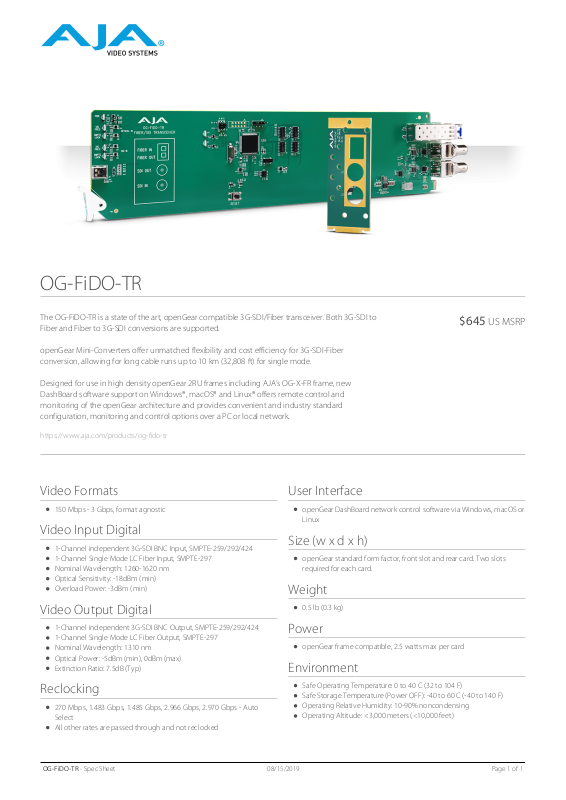

AJA OG-FIDO-TR Specifications

OG-FiDO-TR

The OG-FiDO-TR is a state of the art, openGear compatible 3G-SDI/Fiber transceiver. Both 3G-SDI to
Fiber and Fiber to 3G-SDI conversions are supported.

openGear Mini-Converters offer unmatched flexibility and cost efficiency for 3G-SDI-Fiber
conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new
DashBoard software support on Windows®, macOS® and Linux® offers remote control and
monitoring of the openGear architecture and provides convenient and industry standard
configuration, monitoring and control options over a PC or local network.

https://www.aja.com/products/og-fido-tr

Video Formats

150 Mbps - 3 Gbps, format agnostic

User Interface

openGear DashBoard network control software via Windows, macOS or
Linux

Video Input Digital

1-Channel independent 3G-SDI BNC Input, SMPTE-259/292/424
1-Channel Single Mode LC Fiber Input, SMPTE-297
Nominal Wavelength: 1260-1620 nm
Optical Sensitivity: -18dBm (min)
Overload Power: -3dBm (min)

Size (w x d x h)

openGear standard form factor, front slot and rear card. Two slots
required for each card.

Weight

$645 US MSRP

Video Output Digital

1-Channel independent 3G-SDI BNC Output, SMPTE-259/292/424
1-Channel Single Mode LC Fiber Output, SMPTE-297
Nominal Wavelength: 1310 nm
Optical Power: -5dBm (min), 0dBm (max)
Extinction Ratio: 7.5dB (Typ)

Reclocking

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto
Select
All other rates are passed through and not reclocked

OG-FiDO-TR - Spec Sheet

0.5 lb (0.3 kg)

Power

openGear frame compatible, 2.5 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

08/15/2019 Page 1 of 1
