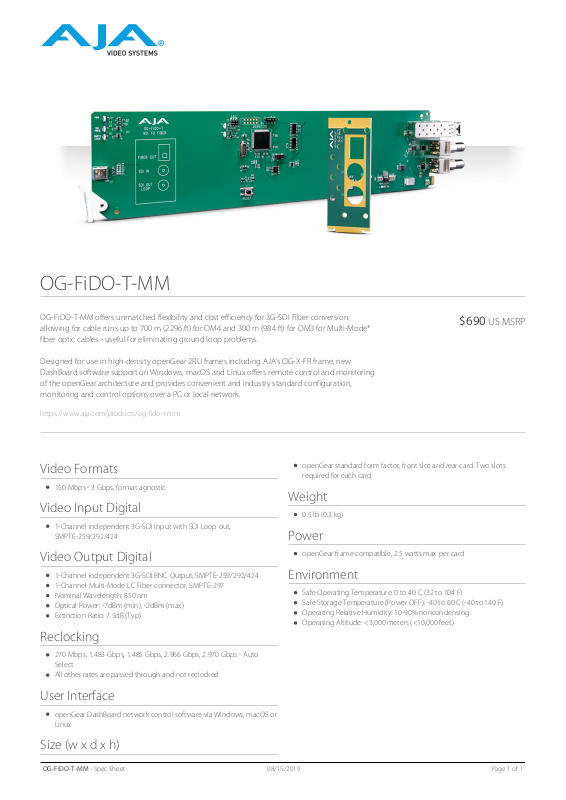

AJA OG-FIDO-T-MM Specifications

OG-FiDO-T-MM

OG-FiDO-T-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion,
allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode*
fiber optic cables - useful for eliminating ground loop problems.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new
DashBoard software support on Windows, macOS and Linux offers remote control and monitoring
of the openGear architecture and provides convenient and industry standard configuration,
monitoring and control options over a PC or local network.

https://www.aja.com/products/og-fido-t-mm

Video Formats

150 Mbps - 3 Gbps, format agnostic

openGear standard form factor, front slot and rear card. Two slots
required for each card.

Weight

Video Input Digital

1-Channel independent 3G-SDI Input with SDI Loop out,
SMPTE-259/292/424

Video Output Digital

1-Channel independent 3G-SDI BNC Output, SMPTE-259/292/424
1-Channel Multi-Mode LC Fiber connector, SMPTE-297
Nominal Wavelength: 850 nm
Optical Power: -7dBm (min), -2dBm (max)
Extinction Ratio: 7.5dB (Typ)

0.5 lb (0.3 kg)

Power

openGear frame compatible, 2.5 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

Reclocking

$690 US MSRP

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto
Select
All other rates are passed through and not reclocked

User Interface

openGear DashBoard network control software via Windows, macOS or
Linux

Size (w x d x h)

OG-FiDO-T-MM - Spec Sheet

08/15/2019 Page 1 of 1
