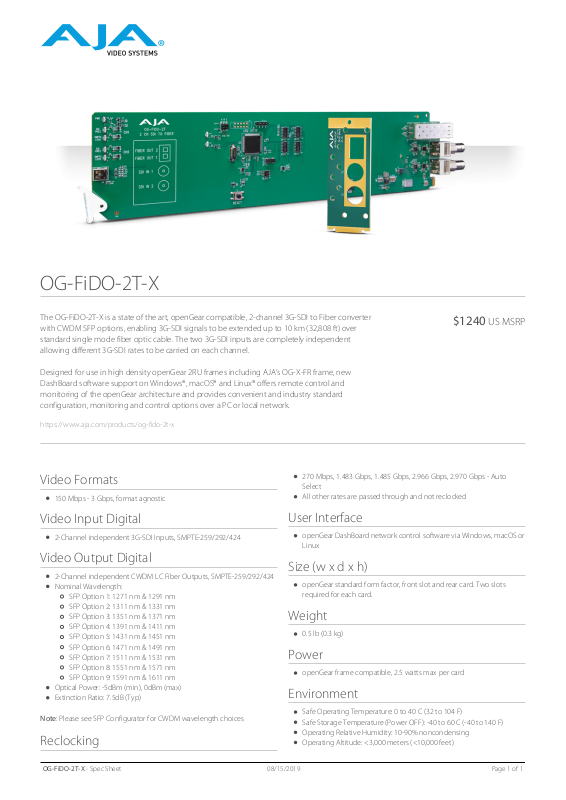

AJA OG-FIDO-2T-X Specifications

OG-FiDO-2T-X

The OG-FiDO-2T-X is a state of the art, openGear compatible, 2-channel 3G-SDI to Fiber converter
with CWDM SFP options, enabling 3G-SDI signals to be extended up to 10 km (32,808 ft) over
standard single mode fiber optic cable. The two 3G-SDI inputs are completely independent
allowing different 3G-SDI rates to be carried on each channel.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new
DashBoard software support on Windows®, macOS® and Linux® offers remote control and
monitoring of the openGear architecture and provides convenient and industry standard
configuration, monitoring and control options over a PC or local network.

https://www.aja.com/products/og-fido-2t-x

Video Formats

150 Mbps - 3 Gbps, format agnostic

Video Input Digital

2-Channel independent 3G-SDI Inputs, SMPTE-259/292/424

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto
Select
All other rates are passed through and not reclocked

User Interface

openGear DashBoard network control software via Windows, macOS or
Linux

Video Output Digital

Size (w x d x h)

2-Channel independent CWDM LC Fiber Outputs, SMPTE-259/292/424
Nominal Wavelength:

SFP Option 1: 1271 nm & 1291 nm
SFP Option 2: 1311 nm & 1331 nm
SFP Option 3: 1351 nm & 1371 nm
SFP Option 4: 1391 nm & 1411 nm
SFP Option 5: 1431 nm & 1451 nm
SFP Option 6: 1471 nm & 1491 nm
SFP Option 7: 1511 nm & 1531 nm
SFP Option 8: 1551 nm & 1571 nm

SFP Option 9: 1591 nm & 1611 nm
Optical Power: -5dBm (min), 0dBm (max)
Extinction Ratio: 7.5dB (Typ)

Note: Please see SFP Configurator for CWDM wavelength choices

Reclocking

openGear standard form factor, front slot and rear card. Two slots
required for each card.

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 2.5 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

$1240 US MSRP

OG-FiDO-2T-X - Spec Sheet

08/15/2019 Page 1 of 1
