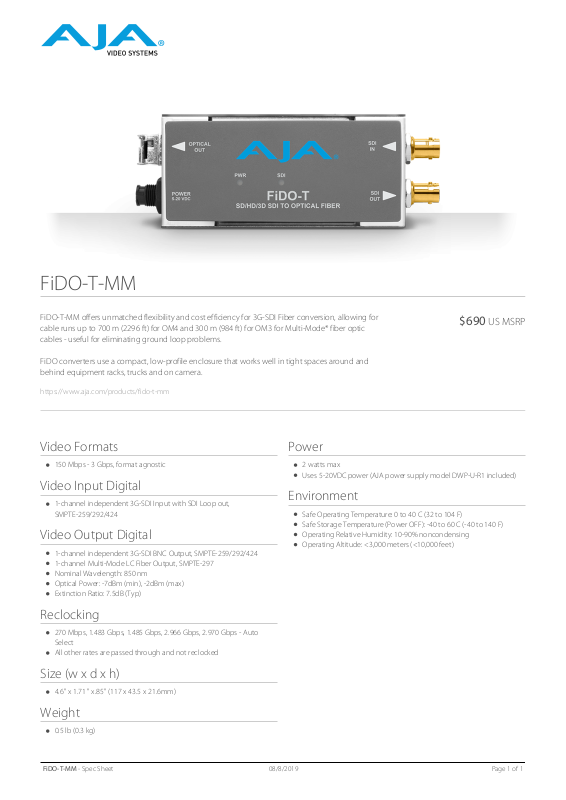

FiDO-T-MM
FiDO-T-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for
cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic
cables - useful for eliminating ground loop problems.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and
behind equipment racks, trucks and on camera.
https://www.aja.com/products/fido-t-mm
Video Formats
150 Mbps - 3 Gbps, format agnostic
Power
2 watts max
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Video Input Digital
1-channel independent 3G-SDI Input with SDI Loop out,
SMPTE-259/292/424
Video Output Digital
1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
1-channel Multi-Mode LC Fiber Output, SMPTE-297
Nominal Wavelength: 850 nm
Optical Power: -7dBm (min), -2dBm (max)
Extinction Ratio: 7.5dB (Typ)
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
$690 US MSRP
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto
Select
All other rates are passed through and not reclocked
Size (w x d x h)
4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
Weight
0.5 lb (0.3 kg)
FiDO-T-MM - Spec Sheet
08/8/2019 Page 1 of 1
