AJA FiDO-T-12G, FiDO-T-12G-ST, FiDO-2T-12G, FiDO-R-12G, FiDO-R-12G-ST User guide [en, pt, fr, de, es +1]

FiDO 12G Series

SDI/Optical Fiber Mini-Converters

Installation and Operation Guide

Version 1.3
Published June 17, 2020

Notices

Trademarks

Copyright

AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc.
for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for
use with recorder, router, software and camera products. Because it matters.™ is a
trademark of AJA Video Systems, Inc. for use with camera products.

Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered trademarks of
AJA Video Systems, Inc.

AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.

All other trademarks are the property of their respective owners.

Copyright © 2020 AJA Video Systems, Inc. All rights reserved. All information in
this manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.

Contacting AJA Support

When calling for support, have all information at hand prior to calling. To contact AJA
for sales or support, use any of the following methods:

Telephone [phone]

FAX [phone]

Web

Support Email

Sales Email

https://www.aja.com

[email protected]

[email protected]

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 2 www.aja.com

Contents

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Copyright
Contacting AJA Support

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 1 – Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Features
FiDO 12G Models

FiDO Converter Simplied Block Diagrams
FiDO Converter I/O Connections
Installation
Operation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessories

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

. . . . . . . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Appendix A – Specications . . . . . . . . . . . . . . . . . . . . . . . . .9

Appendix B – Safety and Compliance

. . . . . . . . . . . . . . . . . . 12

Warranty and Liability Information . . . . . . . . . . . . . . . . . . . . 21

Limited Warranty on Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Limitation of Liability
Governing Law and Language; Your Rights

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

. . . . . . . . . . . . . . . . . . . . . . 21

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 3 www.aja.com

Chapter 1 – Introduction

Overview

FiDO 12G Mini-Converters offer unmatched flexibility and cost efficiency for
12G-SDI, 6G-SDI, and 3G-SDI Fiber conversion, allowing the transport of 12G-SDI
over distances of up to 10km when using standard Single-Mode fiber optic cable.

These converters use a compact, low-profile enclosure that works well in tight
spaces around and behind equipment racks, trucks and on camera.

FiDO 12G Mini-Converters meet all relevant SMPTE specifications as well as
offering electrical isolation to eliminate potential ground loop problems for a
rugged, versatile solution that is suitable for a variety of applications.

Features

• Transport of 12G/6G/3G/HD/SD-SDI as well as DVB-ASI over optical ber

• Auto-reclocking at SMPTE SDI rates

• All SDI ancillary data, including embedded audio, is passed

• Simplex or duplex models available

• Single Mode

• 1310nm optical Transmitter

• 1260 - 1620 wide band optical Receiver

• LC ber connectors

• ST ber connectors

• Coax inputs are equalized

• Coax and ber inputs are reclocked

• DVB-ASI compatible

• Useful for eliminating ground loop problems

• 5-20VDC power supply (included)

• Five year warranty

FiDO 12G Models

• FiDO-T-12G: Single Channel 12G-SDI to Single-Mode LC Fiber Transmitter

• FiDO-T-12G-ST: Single Channel 12G-SDI to Single-Mode ST Fiber Transmitter

• FiDO-2T-12G: Dual Channel 12G-SDI to Single-Mode LC Fiber Transmitter

• FiDO-R-12G: Single Channel Single-Mode LC Fiber to 12G-SDI Receiver

• FiDO-R-12G-ST: Single Channel Single-Mode ST Fiber to 12G-SDI Receiver

• FiDO-2R-12G: Dual Channel Single-Mode LC Fiber to 12G-SDI Receiver

• FiDO-TR-12G: Single Channel 12G-SDI/LC Single-Mode LC Fiber Transceiver

Accessories

• DWP-U-R1: Power supply included

• Rackmount bracket

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 4 www.aja.com

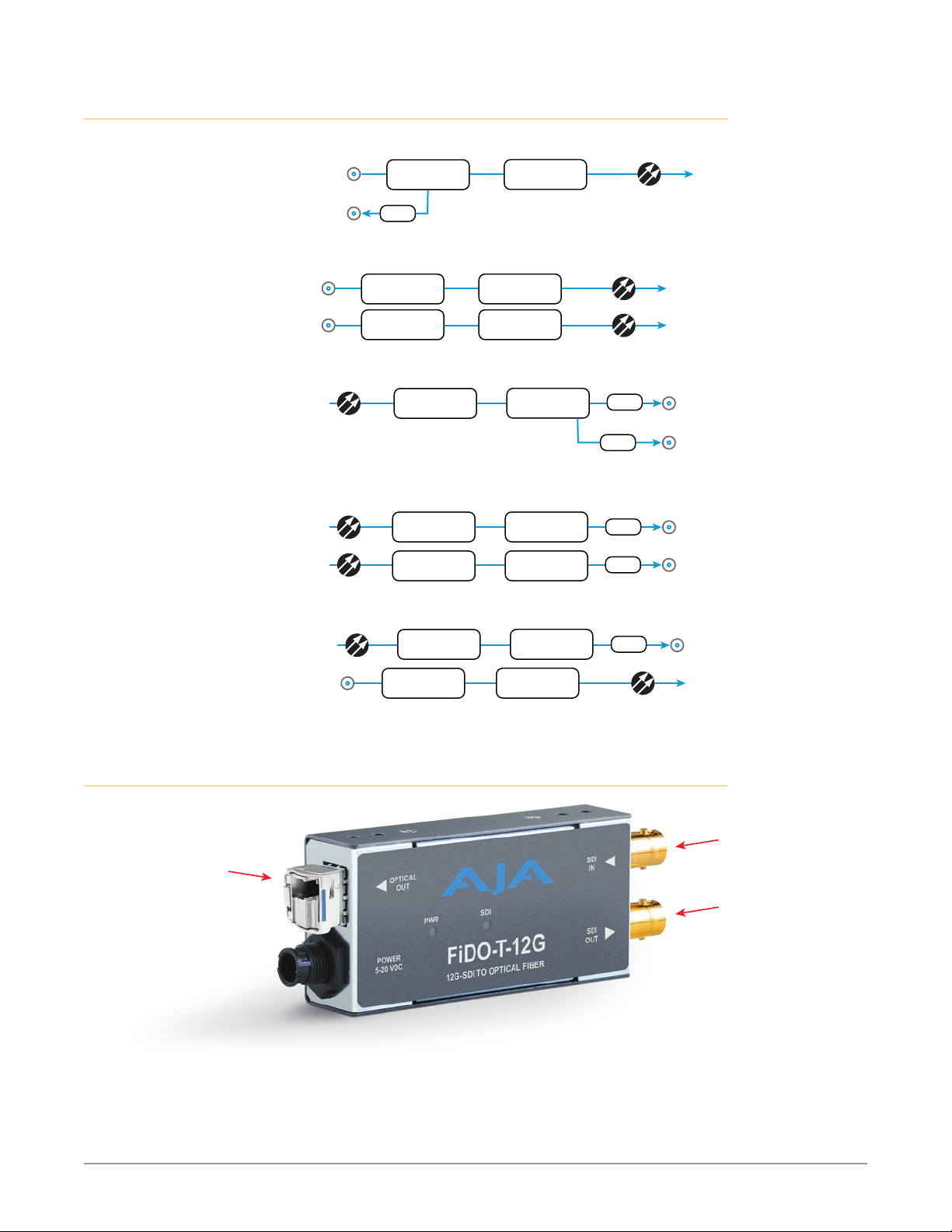

FiDO Converter Simplified Block Diagrams

FiDO-T-12G

12G/6G/3G/HD/SD-SDI

12G/6G/3G/HD/SD-SDI

Re-clocked Loop Thru Output

Input

Equalize &

Reclock

Driver

FiDO-2T-12G

Optical

Transmitter

12G/6G/3G/HD/SD-SDI
Optical Fiber Output

12G/6G/3G/HD/SD-SDI

12G/6G/3G/HD/SD-SDI

12G/6G/3G/HD/SD-SDI

12G/6G/3G/HD/SD-SDI

Optical Fiber Input 1

12G/6G/3G/HD/SD-SDI

Optical Fiber Input 2

12G/6G/3G/HD/SD-SDI

12G/6G/3G/HD/SD-SDI

Input 1

Input 2

Optical Fiber Input

Optical Fiber Input

Input

Equalize &

Reclock

Equalize &

Reclock

Equalize &

Reclock

Optical

Receiver

Optical

Receiver

Optical

Receiver

FiDO-TR-12G

Optical

Receiver

Optical

Transmitter

Optical

Transmitter

FiDO-R-12G

Equalize &

Reclock

FiDO-2R-12G

Equalize &

Reclock

Equalize &

Reclock

Equalize &

Reclock

Optical

Transmitter

Driver

Driver

Driver

Driver

Driver

12G/6G/3G/HD/SD-SDI
Optical Fiber Output 1

12G/6G/3G/HD/SD-SDI
Optical Fiber Output 2

12G/6G/3G/HD/SD-SDI
Output

12G/6G/3G/HD/SD-SDI
Identical
Second Output

12G/6G/3G/HD/SD-SDI
Output 1

12G/6G/3G/HD/SD-SDI
Output 2

12G/6G/3G/HD/SD-SDI
Output

12G/6G/3G/HD/SD-SDI
Optical Fiber Output

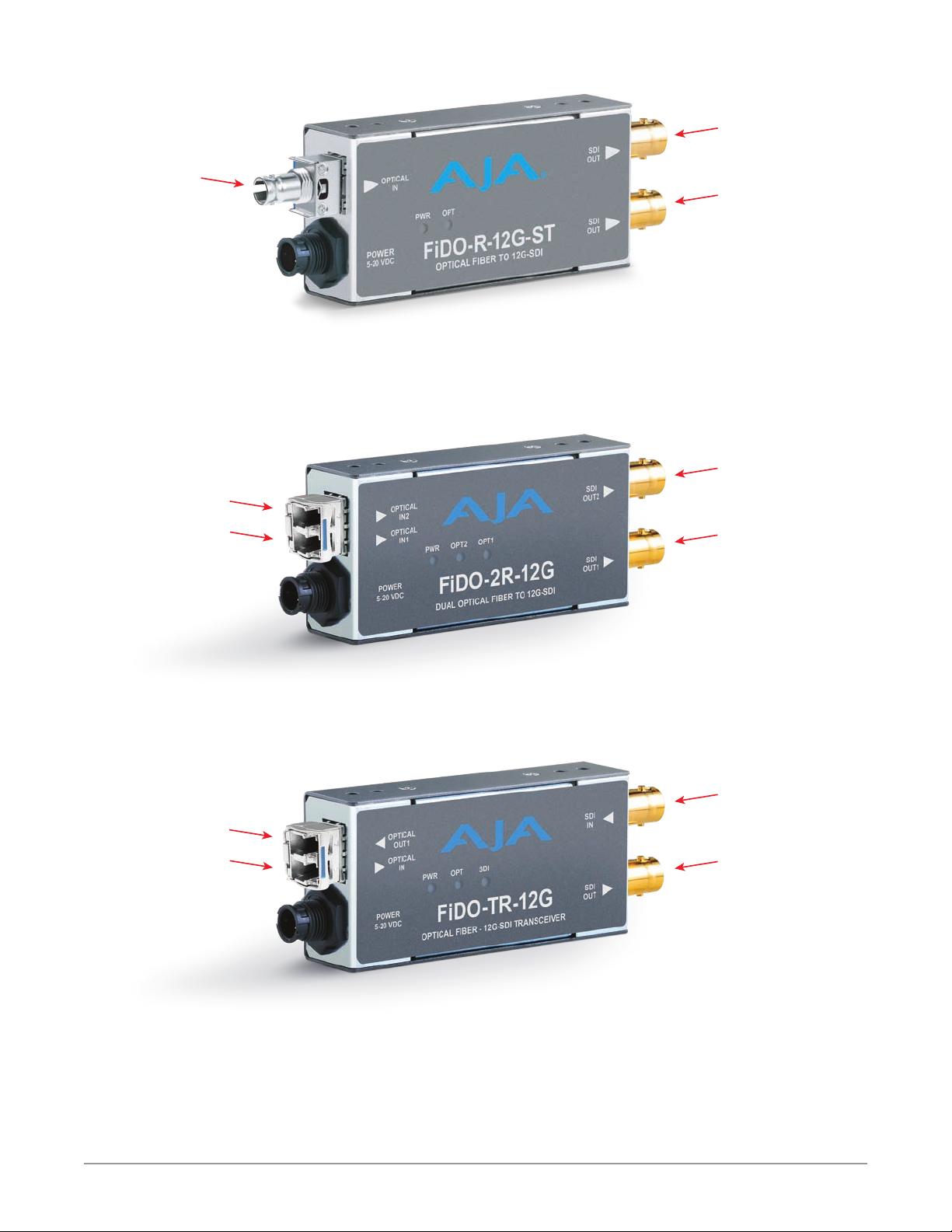

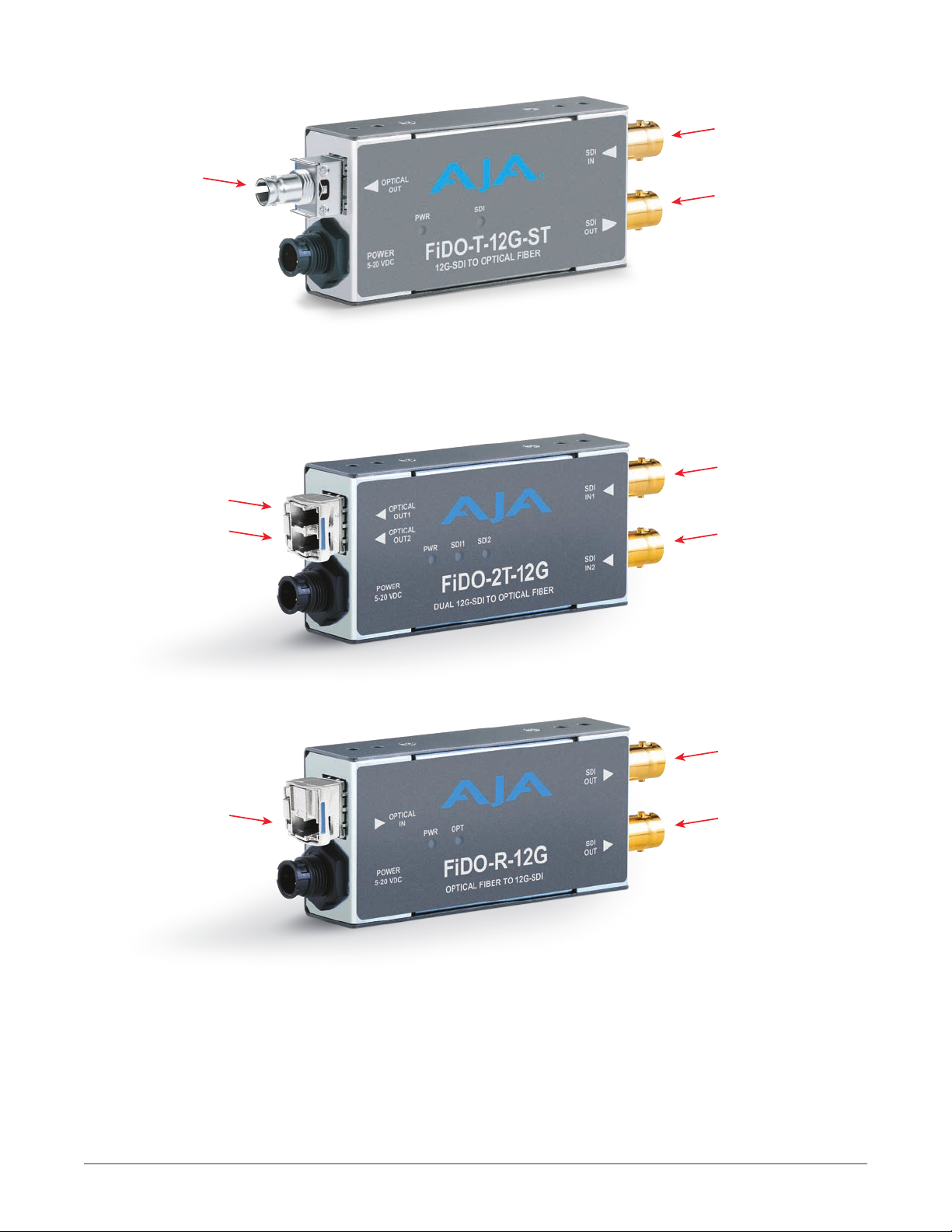

FiDO Converter I/O Connections

simplex

connection

(LC connector)

Output

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 5 www.aja.com

12G/6G/3G/
HD/SD-SDI
Input

Output (Reclocked
loop-thru of SDI
Input)

simplex

connection

(LC connector)

12G/6G/3G/
HD/SD-SDI
Output

Input

Second SDI
Output
(DA: same signal)

(ST connector)

Output

(LC connector)

Output

Output

simplex

connection

2 simplex or

1 duplex

connection

12G/6G/3G/
HD/SD-SDI
Input

Output (Reclocked
loop-thru of SDI
Input)

2 Independent
Channels of
12G/6G/3G/
HD/SD-SDI

Input

Input

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 6 www.aja.com

connection

(ST connector)

Input

2 simplex or

connection

(LC connector)

Input

Input

simplex

1 duplex

12G/6G/3G/
HD/SD-SDI
Output

Second SDI
Output
(DA: same signal)

2 Independent
Channels of
12G/6G/3G/
HD/SD-SDI

Output

Output

2 simplex or

1 duplex

connection

(LC connector)

Output

Input

NOTE: Green illuminated LEDs labeled OPT or SDI indicate a signal has been detected

and locked for that input.

NOTE: The OPT indicator for optical receivers may flicker or glow dim with the optical

input disconnected.

2 Independent
Channels of
12G/6G/3G/
HD/SD-SDI

Input

Output

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 7 www.aja.com

Installation

CLASS 1

LASER

PRODUCT

NOTE: AJA does not support use of any SFP modules other than our own; use of any non-

AJA SFP module will void the warranty.

Installation consists of the following steps:

1. Connect video equipment to the FiDO converter BNCs.

2. Connect ber to the FiDO Optical ber connectors.

Caution! Single-Mode (1310 nm) and CWDM FiDO devices require the use of “single

mode 1310nm compatible” ber optic cable.

Warning! Active ber-optic cables emit radiation invisible to the human eye. Do

not look directly at the end of an active ber-optic cable or the ber connector
on a FiDO-T-12G, FiDO-2T-12G, FiDO-TR-12G, ; these models are Class 1 Laser
Products.

3. FiDO-2T-12G, FiDO-2R-12G, and FiDO-TR-12G require either a duplex LC
cable or two simplex LC cables. Insert each connector until it latches.

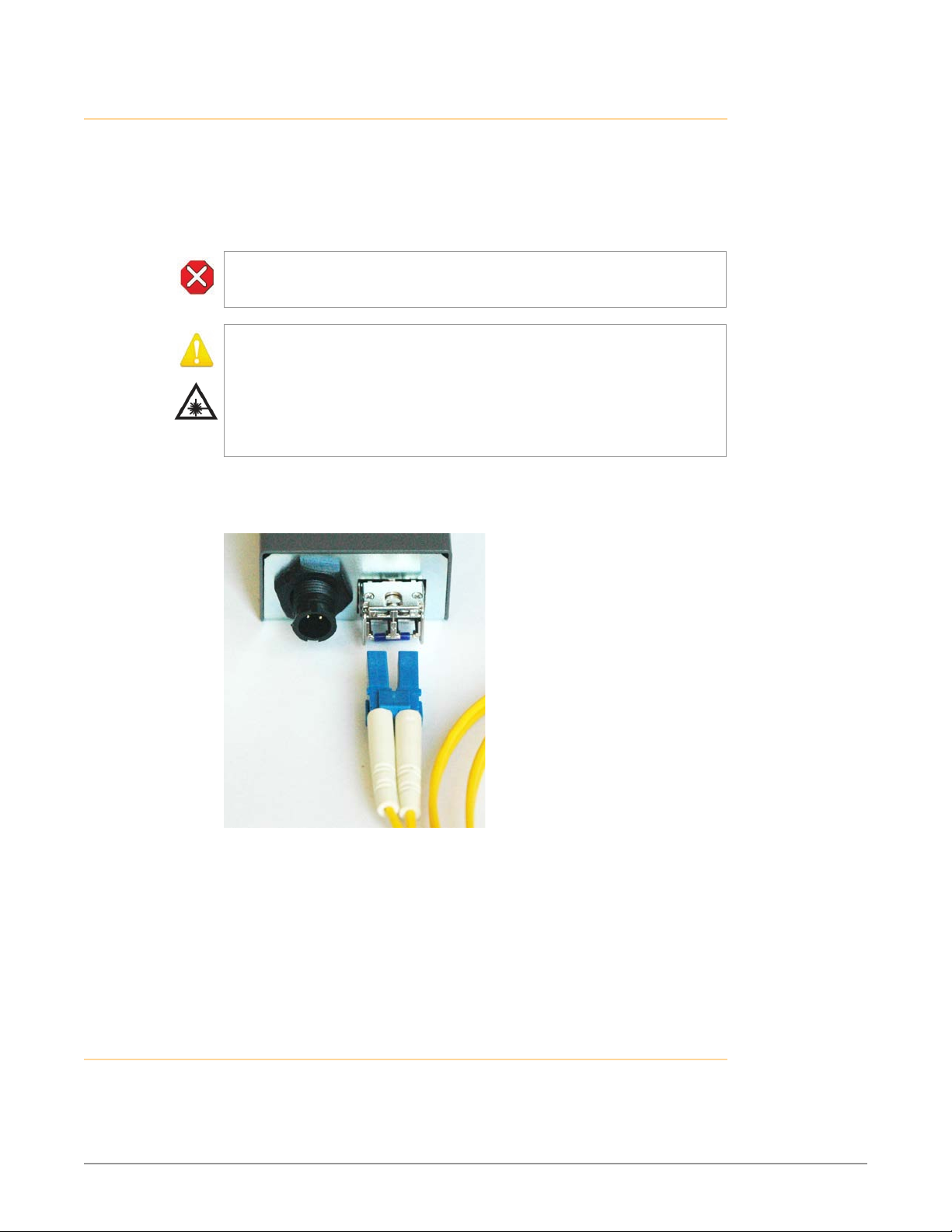

Figure 1. FiDO to Duplex LC Example

4. FiDO-T-12G and FiDO-R-12G require a single simplex LC cable connected to
the optical port on the converter pointed to by the arrow (Optical Output
on FiDO-T-12G, or Optical Input on FiDO-R-12G).

NOTE: Fiber optic interconnections can be severely compromised by dirt, oils, or other

contaminants. All dust caps should be replaced on cables and equipment
whenever FiDO converters are disconnected from fiber optic cables.

5. Apply +5VDC power to the converter (AJA power supply included).

Operation

FiDO series converters have no user controls. No configuration or settings are
required. Once powered, the FiDO converters will begin converting applied fiber/
SDI signals.

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 8 www.aja.com

Appendix A – Specifications

FiDO 12G Family Tech Specs

Video Formats

• 270Mbps - 12 Gbps, format agnostic

Video Input Digital - FiDO-T-12G and FiDO-T-12G-ST

• 1-channel independent 12G-SDI BNC connector,
SMPTE 259/292/424/2081/2082

Video Input Digital - FiDO-2T-12G

• 2-channel independent 12G-SDI BNC connectors,
SMPTE 259/292/424/2081/2082

Video Input Digital - FiDO-R-12G

• 1-channel independent Single Mode LC Fiber connector,
SMPTE 297/259/292/424/2081/2082

• Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)

• Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)

• Overload Power: -2 dBm (min)

Video Input Digital - FiDO-R-12G-ST

• 1-channel independent Single Mode ST Fiber connector,
SMPTE 297/259/292/424/2081/2082

• Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)

• Optical Sensitivity: -10 dBm (max 12 Gbps), -14 dBm (max 3 Gbps)

• Overload Power: -2 dBm (min)

Video Input Digital - FiDO-2R-12G

• 2-channel independent Single Mode LC Fiber connectors,
SMPTE 297/259/292/424/2081/2082

• Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)

• Optical Sensitivity: -9 dBm (min 12 Gbps), -10 dBm (min 3 Gbps)

• Overload Power: -2 dBm (min)

Video Input Digital - FiDO-TR-12G

• 1-channel independent 12G-SDI BNC connector,
SMPTE 259/292/424/2081/2082

• 1-channel independent Single-Mode LC Fiber connector,
SMPTE 297/259/292/424/2081/2082

• Nominal Wavelength:

• Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)

• Rx 1260 nm (min), 1620 nm (max)

• Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)

• Optical Power: -5 dBm (min), 0.5 dBm (max)

• Overload Power: -2 dBm (min)

• Extinction Ratio: 5.4 dB (min)

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 9 www.aja.com

Video Output Digital - FiDO-T-12G

• 1-channel 12G-SDI reclocked, loop out, BNC connector,
SMPTE 259/292/424/2081/2082

• 1-channel independent Single Mode LC Fiber connector,
SMPTE 297/259/292/424/2081/2082

• Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)

• Optical Power: -5 dBm (min), 0.5 dBm (max)

• Extinction Ratio: 5.4 dB (min)

Video Output Digital - FiDO-T-12G-ST

• 1-channel 12G-SDI reclocked, loop out, BNC connector,
SMPTE 259/292/424/2081/2082

• 1-channel independent Single Mode ST Fiber connector,
SMPTE 297/259/292/424/2081/2082

• Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)

• Optical Power: -5 dBm (min), 2 dBm (max)

• Extinction Ratio: 3.4 dB (min)

Video Output Digital - FiDO-2T-12G

• 2-channel independent Single Mode LC Fiber connectors,
SMPTE 297/259/292/424/2081/2082

• Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)

• Optical Power: -5 dBm (min), 0.5 dBm (max)

• Extinction Ratio: 5.4 dB(min)

Video Output Digital - FiDO-R-12G and FiDO-R-12G-ST

• 1-channel dual matching 12G-SDI BNC connectors,
SMPTE 259/292/424/2081/2082

Video Output Digital - FiDO-2R-12G

• 2-channel independent 3G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082

Video Output Digital - FiDO-TR-12G

• 1-channel independent 12G-SDI BNC connector,
SMPTE-259/292/424/2081/2082

• 1-channel independent Single Mode LC Fiber connector,
SMPTE-297/259/292/424/2081/2082

• Nominal Wavelength:

• Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)

• Rx 1260 nm (min), 1620 nm (max)

• Optical Sensitivity: -10 dBm (min @12 Gbps), -14 dBm (min @ 3 Gbps)

• Optical Power: -5 dBm (min), 0.5 dBm (max)

• Extinction Ratio: 5.4 dB (min)

Reclocking

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940
Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select

• All other rates are passed through and not reclocked

Size (w x d x h)

• 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

Weight

• 0.4 lb (0.2 kg)

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 10 www.aja.com

Power

Environment

• 2 watts (max)

• Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 11 www.aja.com

Appendix B – Safety and Compliance

Federal Communications Commission (FCC) Compliance Notices

Class A Interference Statement

This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

Canadian ICES Statement

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class A limits for radio-noise emissions
from a digital apparatus as set out in the Radio Interference Regulations of
the Canadian Department of Communications. This Class A digital apparatus
complies with Canadian ICES-003.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique respecte les limites de bruits radioélectriques visant les
appareils numériques de classe A prescrites dans le Règlement sur le brouillage
radioélectrique du ministère des Communications du Canada. Cet appareil
numérique de la Classe A est conforme à la norme NMB-003 du Canada.

European Union and European Free Trade Association (EFTA)
Regulatory Compliance

This equipment may be operated in the countries that comprise the member
countries of the European Union and the European Free Trade Association. These
countries, listed in the following paragraph, are referred to as The European
Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA,
LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL,
ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND,
LICHTENSTEIN, NORWAY, SWITZERLAND

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 12 www.aja.com

Declaration of Conformity

Marking by this symbol indicates compliance with the Essential Requirements of
the EMC Directive of the European Union 2014/30/EU.

This equipment meets the following conformance standards:

Safety

EN 60065: 2014 (T-Mark License)

IEC 60065: 2014 (CB Scheme Report/Certificate)

EN 62368-1: 2014 + A11 (T-Mark License)

IEC 62368-1: 2014 (CB Scheme Certificate)

Additional licenses issued for specific countries available on request.

Emissions

EN 55032: 2012 + AC: 2013, CISPR 32: 2015

EN 61000-3-2: 2014, EN 61000-3-3: 2013

Immunity

EN 55103-2: 2009, EN 61000-4-2: 2009,

EN 61000-4-3: 2006 + A1: 2008 + A2: 2010,

EN 61000-4-4: 2004 + A1: 2010,

EN 61000-4-5: 2006, EN 61000-4-6: 2009, EN 61000-4-11: 2004

Environments: E2, E3 and E4

The product is also licensed for additional country specific standards as required
for the International Marketplace

Laser

EN 60825-1: 2007 and EN 60825-2: 2004 +A2: 2010,

CDRH Compliant Class 1 (TUV Cert No. 50135086)

Also Licensed for Standards: FDA 21 CFR 1040.10 and 1040.11

Recycling Notice

This symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment
at the time of disposal will help conserve natural resources and ensure that
it is recycled in a manner that protects human health and the environment.
For more information about where you can drop o your waste for recycling,
please contact your local authority, or where you purchased your product.

Korea KCC Compliance Statement

넩 韥韥鱉 꽺ꓩ끞 쀍陲꾅꫑ ꩡ끞뼕 ꑞ놶냱ꈑ 놶뼞ꫦ뵾閵ꌱ ꗐ냵 韥韥ꈑ꫑ 閵뇊

끞 쀍陲꾅꫑ ꩡ끞뼍鱉 陲끥 놹볁閹ꫢ넍 끥ꇙ閵 넽걪鱽鲙.

ꩡ 끞 녅 껽 驩 ꓭ

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 13 www.aja.com

Taiwan Compliance Statement

This is a Class A product based on the standard of the Bureau of Standards,
Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment
this product may cause radio interference in which case the user may be required
to take adequate measures.

Japan Compliance Statement

This is a Class A product based on the standard of the VCCI Council (VCCI-32:

2016). If this is used near a radio or television receiver in a domestic environment,
it may cause radio interference. Install and use the equipment according to the
instruction manual.

Translated Warning and Caution Messages

The following caution statements, warning conventions, and warning messages
apply to this product and manual.

Warning Symbol Caution Symbol

Before Operation Please Read These Instructions

Warning! Read and follow all warning notices and instructions marked on the

product or included in the documentation.

Avertissement! Lisez et conformez-vous à tous les avis et instructions

d'avertissement indiqués sur le produit ou dans la documentation.

Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf

dem Produkt angebracht oder in der Dokumentation enthalten sind.

¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el

producto o incluidas en la documentación.

Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos

na documentação.

Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o

inclusi nella documentazione.

CLASS 1

LASER

PRODUCT

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 14 www.aja.com

Warning! Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement

avec un tissu sec.

Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem

trockenen Tuch säubern.

¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con

un paño seco.

Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano

seco.

Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un

panno asciutto.

Warning! Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

Avertissement! Ne bloquez aucune ouverture de ventilation. Suivez les

instructions du fabricant lors de l'installation.

Warnung! Die Lüftungsönungen dürfen nicht blockiert werden. Nur gemäß den

Anweisungen des Herstellers installieren.

¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de

acuerdo con las instrucciones del fabricante.

Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as

instruções do fabricante.

Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le

istruzioni del fornitore.

Warning! Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

Avertissement! N'installez pas l'appareil près d'une source de chaleur telle que des

radiateurs, des bouches d'air de chauage, des fourneaux ou d'autres appareils
(amplicateurs compris) qui produisent de la chaleur.

Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern,

Öfen oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern)
aufstellen.

¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros

de calor, estufas u otros aparatos (incluidos amplicadores) que generan calor.

Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de

calor, fogões ou outros aparelhos (incluindo amplicadores) que produzam calor.

Avviso! Non installare vicino a fonti di calore come termosifoni, diusori di aria

calda, stufe o altri apparecchi (amplicatori compresi) che emettono calore

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 15 www.aja.com

Warning! Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does
not t into your outlet, consult an electrician for replacement of the obsolete
outlet.

Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la

terre ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée
a deux broches, l'une étant plus large que l'autre. Une prise de type mise à la
terre a deux broches et une troisième broche pour la mise à la terre. La broche
large ou la troisième broche sont fournies pour votre sécurité. Si la prise
fournie ne s'insère pas dans votre prise femelle, consultez un électricien pour le
remplacement de la prise femelle obsolète.

Warnung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu

berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer
breiter als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch
über einen dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der
Sicherheit. Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss
passt, konsultieren Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.

¡Advertencia! No eche por tierra la nalidad del tipo de enchufe polarizado con

conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha
que la otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una
tercera espiga que sirve para la conexión a tierra. La expiga ancha, o la tercera
espiga, sirven para su seguridad. Si el enchufe suministrado no encaja en el
tomacorriente, consulte con un electricista para reemplazar el tomacorriente
obsoleto.

Aviso! Não anule a nalidade da segurança da cha polarizada ou do tipo ligação

terra. Uma cha polarizada tem duas lâminas sendo uma mais larga do que
a outra. Uma cha do tipo de ligação à terra tem duas lâminas e um terceiro
terminal de ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos
para sua segurança. Se a cha fornecida não couber na sua tomada, consulte um
electricista para a substituição da tomada obsoleta.

Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a

terra. Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con
messa a terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto
largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non
si inserisce nella presa di corrente, contattare un elettricista per la sostituzione
della presa obsoleta.

Warning! Since the Mains plug is used as the disconnection for the device, it must

remain readily accessible and operable.

Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil,

elle doit rester aisément accessible et fonctionnelle.

Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich

und funktionsfähig sein.

¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo

de desconexión, debe seguir siendo fácilmente accesible y operable.

Aviso! Dado que a cha principal é utilizada como a desconexão para o dispositivo,

esta deve manter-se prontamente acessível e funcional.

Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di

sconnessione, deve rimane prontamente accessibile e operabile.

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 16 www.aja.com

Warning! Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the device.

Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche

pas dessus ou qu'on le pince, en particulier au niveau des prises mâles, des
réceptacles de convenance, et à l'endroit où il sort de l'appareil.

Warnung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt

wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am
Gerät.

¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en

especial cerca del enchufe, los receptáculos de conveniencia y el punto del que
salen del equipo.

Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido

particularmente nas chas, em tomadas de parede de conveniência e no ponto
de onde sai do dispositivo.

Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra

e che non venga schiacciato soprattutto in corrispondenza delle spine e del
punto in cui esce dal dispositivo.

Warning! Unplug this device during lightning storms or when unused for long

periods of time.

Avertissement! Débranchez cet appareil pendant les orages avec éclairsou s'il est

inutilisé pendant de longues périodes.

Warnung! Das Gerät ist bei Gewitterstürmen oder wenn es über lange Zeiträume

ungenutzt bleibt vom Netz zu trennen.

¡Advertencia! Desenchufe este dispositivo durante tormentas eléctricas o cuando

no se lo utilice por largos periodos del tiempo.

Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é

utilizado durante longos períodos de tempo.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specicati e/o venduti dal

produttore, quali il treppiedi e l'esoscheletro.

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 17 www.aja.com

Warning! Refer all servicing to qualied service personnel. Servicing is required

when the device has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the device,
the device has been exposed to rain or moisture, does not operate normally, or
has been dropped.

Avertissement! Référez-vous au personnel de service qualié pour tout entretien.

L'entretien est exigé quand l'appareil a été endommagé de quelque manière
que ce soit, par exemple lorsque le cordon d'alimentation ou la prise sont
endommagés, que du liquide a été versé ou des objets sont tombés dans
l'appareil, que l'appareil a été exposé à la pluie ou à l'humidité, ne fonctionne pas
normalement ou est tombé.

Warnung! Das Gerät sollte nur von qualizierten Fachkräften gewartet werden.

Eine Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde,
wie bei beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder
Objekte in das Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt
wurde, nicht ordnungsgemäß funktioniert oder fallen gelassen wurde.

¡Advertencia! Consulte al personal calicado por cuestiones de reparación. El

servicio de reparación se requiere cuando el dispositivo ha recibido cualquier
tipo de daño, por ejemplo cable o espigas dañadas, se ha derramado líquido o
se han caído objetos dentro del dispositivo, el dispositivo ha sido expuesto a la
lluvia o humedad, o no funciona de modo normal, o se ha caído.

Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência

qualicado. A prestação de serviços de manutenção é exigida quando o
dispositivo foi danicado mediante qualquer forma, como um cabo de
alimentação ou cha que se encontra danicado/a, quando foi derramado líquido
ou caíram objectos sobre o dispositivo, quando o dispositivo foi exposto à chuva
ou à humidade, quando não funciona normalmente ou quando foi deixado cair.

Avviso! Fare riferimento al personale qualicato per tutti gli interventi di assistenza.

L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche
modo, ad esempio se il cavo di alimentazione o la spina sono danneggiati, è
stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel
dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona
correttamente o è caduto

Warning! Do not open the chassis. There are no user-serviceable parts inside.

Opening the chassis will void the warranty unless performed by an AJA service
center or licensed facility.

Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis

ne peut être réparé par l’utilisateur. La garantie sera annulée si le châssis est
ouvert par toute autre personne qu’un technicien d’un centre de service ou d’un
établissement agréé AJA.

Warnung! Önen Sie das Gehäuse nicht. Keine der Geräteteile können vom

Benutzer gewartet werden. Durch das Önen des Gehäuses wird die Garantie
hinfällig, es sei denn, solche Wartungsarbeiten werden in einem AJA-Service­Center oder einem lizenzierten Betrieb vorgenommen.

¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el

usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro
de servicio AJA o en un local autorizado.

Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita

manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura
seja realizada por uma central de serviços da AJA ou por um local autorizado.

Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili

dall’utente. L’apertura dello chassis invaliderà la garanzia se non viene eettuata
da un centro uciale o autorizzato AJA.

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 18 www.aja.com

Warning! Disconnect the external AC power supply line cord(s) from the mains

power before moving the unit.

Avertissement! Retirez le ou les cordons d’alimentation en CA de la source

d’alimentation principale lorsque vous déplacez l’appareil.

Warnung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor

Sie das Gerät verschieben.

¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los

cable(s) de la fuente de alimentación CA tipo brick.

Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover

a unidade.

Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità.

Warning! Only use attachments and accessories specied and/or sold by the

manufacturer.

Avertissement! Utilisez seulement les attaches et accessoires spéciés et/ou

vendus par le fabricant.

Warnung! Verwenden Sie nur Zusatzgeräte und Zubehör angegeben und / oder

verkauft wurde durch den Hersteller.

¡Advertencia! Utilice solamente los accesorios y conexiones especicados y/o

vendidos por el fabricante.

Aviso! Utilize apenas equipamentos/acessórios especicados e/ou vendidos pelo

fabricante.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specicati e/o venduti dal

produttore.

Caution! FiDO 12G Series devices require the use of “single mode 1310nm

compatible” fiber optic cable.

Aviso! Dispositivos FiDO 12G Series exigem a utilização de cabo de bra ótica

"compatível com monomodo 1310nm ".

Attention! Les équipements FiDO 12G Series doivent être utilisés avec un câble en

bre optique monomode compatible 1310 nm.

Attenzione I dispositivi FiDO 12G Series richiedono l'uso di un cavo a bre ottiche

"compatibile con 1310 nm monomodo".

¡Precaución! FiDO 12G Series dispositivos requieren el uso de cable de bra óptica

"mono modo 1310nm compatibles".

Vorsicht! FiDO 12G Series-Geräte erfordern den Gebrauch von "Einzelmodus

1310nm kompatiblen" Faseroptik-Kabeln.

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 19 www.aja.com

CLASS 1

LASER

PRODUCT

PRODUTO

LASER DE

CLASSE 1

PRODUITS

LASER DE

CLASSE 1

PRODOTTO

LASER DI
CLASSE 1

Warning! Active fiber-optic cables emit radiation invisible to the human

eye. Do not look directly at the end of an active fiber-optic cable; the

FiDO 12G Series is a Class 1 Laser Product.

Advertência! Cabos de bra ótica ativos emitem radiação invisível ao olho

humano. Não olhe diretamente para a extremidade de um cabo de bra óptica
ativo; o FiDO 12G Series é um produto laser de classe 1.

Avertissement! Lorsqu'ils sont actifs, les câbles en bre optique émettent

des radiations que l'oeil humain ne peut voir. Ne regardez pas directement
l'extrémité d'un câble en bre optique en cours d'utilisation ; les équipements
FiDO 12G Series sont des produits laser de classe 1.

Avvertenza I cavi a bre ottiche attivi (ossia in cui si propagano segnali) emettono

radiazioni invisibili. Non ssare lo sguardo direttamente sull'estremità di un cavo
a bre ottiche attivo; il cavo FiDO 12G Series è un prodotto laser di Classe 1.

¡Advertencia! Active los cables de bra óptica de emitir radiación invisible para

el ojo humano. No mire directamente en el extremo de un cable de bra óptica
activa; el FiDO 12G Series es un producto láser de Clase 1.

Achtung! Aktive Faseroptik-Kabel geben eine Strahlung ab, die für das

menschliche Auge unsichtbar ist. Das Ende eines aktiven Faseroptik-Kabels
niemals direkt ansehen; die FiDO 12G Series ist ein Laser-Produkt der Klasse 1.

CLASE 1

LASER

PRODUCTO

KLASSE 1

LASER-

PRODUKT

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 20 www.aja.com

Warranty and Liability Information

Limited Warranty on Hardware

AJA Video Systems, Inc. (AJA Video) warrants that the hardware product,
not including software components, will be free from defects in materials
and workmanship for a period of five years from the date of purchase. AJA
Video provides a separate software warranty as part of the license agreement
applicable to software components.

If the Customer brings a valid claim under this limited warranty for a hardware
product (hereafter, a “product”) during the applicable warranty period, AJA Video
will, at its sole option and as the Customer’s sole remedy for breach of the above
warranty, provide one of the following remedies:

• Repair or facilitate the repair the product within a reasonable period of time,
free of charge for parts and labor.

• Replace the product with a direct replacement or with a product that
performs substantially the same function as the original product.

• Issue a refund of the original purchase price less depreciation to be
determined based on the age of the product at the time remedy is sought
under this limited warranty.

To obtain service under this warranty, the Customer must notify AJA Video of the
defect before expiration of the warranty period and make suitable arrangements
for the performance of service by contacting AJA Video support through the
channels set forth on the support contacts web page at https://www.aja.com/
support. Except as stated, the Customer shall bear all shipping, packing, insurance
and other costs, excluding parts and labor, to effectuate repair. Customer shall
pack and ship the defective product to a service center designated by AJA Video,
with shipping charges prepaid. AJA Video shall pay to return the product to
Customer, but only if to a location within the country in which the AJA Video
service center is located. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION
OF IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS
OF A CONSUMER, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH MAY NOT
APPLY TO YOU.

Limitation of Liability

Under no circumstances shall AJA video BE LIABLE IN ANY WAY FOR ANY LOST,
CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS,
OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION WITH THE PRODUCT, WHETHER
RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR HARDWARE FAILURE,
OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AJA VIDEO’S LIABILITY IN CONNECTION WITH THE
PRODUCT SHALL UNDER NO CIRCUMSTANCES EXCEED THE PURCHASE PRICE PAID
FOR THE PRODUCT. The foregoing limitations apply even if any remedy set forth in
this LIMITED WARRANTY fails of its essential purpose. SOME JURISDICTIONS DO NOT
ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH
MAY NOT APPLY TO YOU.

Governing Law and Language; Your Rights

This limited warranty is the only warranty provided by AJA Video on the hardware
product. It supersedes all prior or contemporaneous understandings regarding such
subject matter. No amendment to or modification of this warranty will be binding
unless in writing and signed by AJA Video. The laws of the State of California, USA
will govern this warranty and any dispute arising from it. Any translation of this

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 21 www.aja.com

Agreement is intended for convenience and to meet local requirements and in the
event of a dispute between the English and any non-English versions, the English
version of this warranty will govern. This limited warranty gives you specific legal
rights and you may have other rights that vary from jurisdiction to jurisdiction, some
of which are noted above.

FiDO 12G Series SDI/Optical Fiber Mini-Converters v1.3 22 www.aja.com
