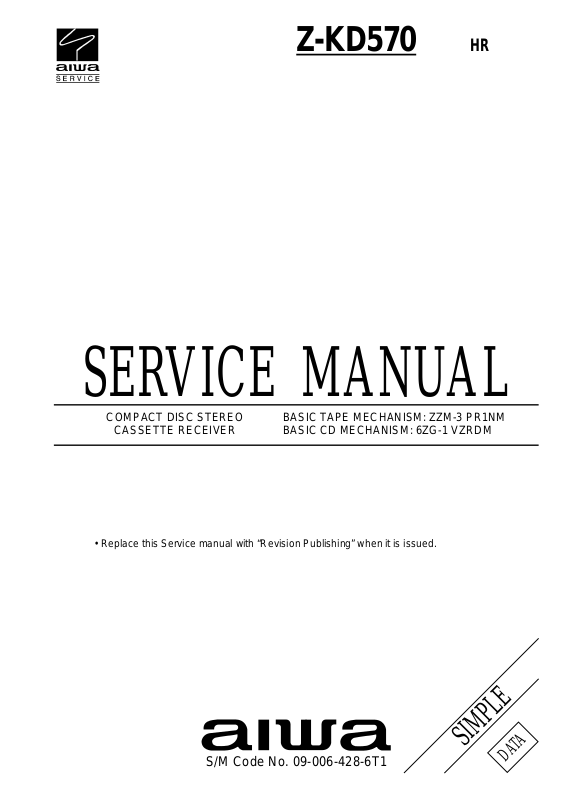

Z-KD570

HR

SERVICE MANUAL

COMPACT DISC STEREO

CASSETTE RECEIVER

• Replace this Service manual with “Revision Publishing” when it is issued.

BASIC TAPE MECHANISM: ZZM-3 PR1NM
BASIC CD MECHANISM: 6ZG-1 VZRDM

S/M Code No. 09-006-428-6T1

SIMPLE

DATA

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O ACCESSORY 87-006-225-010 1D ANT,LOOP ANT NC2 HRJ7SM CX-ZKD570
O ACCESSORY 87-043-115-010 1A FEEDER-ANT,FM HRJ7SM CX-ZKD570
O ACCESSORY 87-050-103-010 1B CORD,PIN 1PY1.5M HRJ7SM CX-ZKD570
! O ACCESSORY 87-099-789-010 1B PLUG,CONVERSION IR44 HRJ7SM CX-ZKD570
O ACCESSORY 8Z-NHT-702-010 2A RC UNIT,RC-ZAS08 HRJ7SM CX-ZKD570
X AMP 1F 8A-MA3-631-110 1C PWB,AMA3 1ST PWB HRJ7SM CX-ZKD570
O AMP 1F C 0001 87-A10-264-080 0E C-CAP,S 0.1-16 Z F HRJ7SM CX-ZKD570
O AMP 1F C 0002 87-A10-264-080 0E C-CAP,S 0.1-16 Z F HRJ7SM CX-ZKD570
O AMP 1F C 0003 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HRJ7SM CX-ZKD570
O AMP 1F C 0101 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570

O AMP 1F C 0102 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570
O AMP 1F C 0103 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 1F C 0104 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 1F C 0107 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 1F C 0108 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 1F C 0111 87-010-170-080 0E C-CAP,S 220P-50 J SL HRJ7SM CX-ZKD570
O AMP 1F C 0112 87-010-170-080 0E C-CAP,S 220P-50 J SL HRJ7SM CX-ZKD570
O AMP 1F C 0113 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJ7SM CX-ZKD570
O AMP 1F C 0114 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJ7SM CX-ZKD570
O AMP 1F C 0115 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570

O AMP 1F C 0116 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 1F C 0119 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O AMP 1F C 0120 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O AMP 1F C 0133 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HRJ7SM CX-ZKD570
O AMP 1F C 0219 87-A10-264-080 0E C-CAP,S 0.1-16 Z F HRJ7SM CX-ZKD570
O AMP 1F C 0220 87-A10-264-080 0E C-CAP,S 0.1-16 Z F HRJ7SM CX-ZKD570
O AMP 1F C 0291 87-010-374-080 0E CAP,E 47-10 M 11L SME HRJ7SM CX-ZKD570
! O AMP 1F CNA0101 8A-NF8-656-010 1A CONN ASSY,5P TID-A 400 HRJ7SM CX-ZKD570
! O AMP 1F CNA0102 8A-NF8-655-010 1A CONN ASSY,7P TID-A(250) HRJ7SM CX-ZKD570
! O AMP 1F CON0101 87-A61-011-010 0E CONN,13P H BLK TAC-L13P-A3 HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

! O AMP 1F CON0102 87-A61-011-010 0E CONN,13P H BLK TAC-L13P-A3 HRJ7SM CX-ZKD570
O AMP 1F CON0103 87-A60-058-010 0E CONN,10P V 9604S-10C HRJ7SM CX-ZKD570
S AMP 1F D 0101 87-A40-269-080 0E C-DIODE,MC2836 HRJ7SM CX-ZKD570
S AMP 1F D 0102 87-020-331-080 0E C-DIODE,DAN202K HRJ7SM CX-ZKD570
S AMP 1F D 0103 87-A40-313-080 0E C-DIODE,MC2840 HRJ7SM CX-ZKD570
S AMP 1F D 0150 87-A40-270-080 0E C-DIODE,MC2838 HRJ7SM CX-ZKD570
S AMP 1F D 0204 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
S AMP 1F D 0402 87-A40-553-080 0E DIODE,1N4003 LES HRJ7SM CX-ZKD570
S AMP 1F D 0403 87-A40-553-080 0E DIODE,1N4003 LES HRJ7SM CX-ZKD570
! S AMP 1F IC 0101 87-A21-398-010 2A IC,STK490-110 HRJ7SM CX-ZKD570

X AMP 1F JR 0001 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0002 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0003 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0004 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0007 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0008 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0009 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0010 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 1F JR 0011 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X AMP 1F JR 0012 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

S AMP 1F Q 0101 87-A30-107-070 0E C-TR,CMBT5401 HRJ7SM CX-ZKD570
S AMP 1F Q 0102 87-A30-107-070 0E C-TR,CMBT5401 HRJ7SM CX-ZKD570
S AMP 1F Q 0150 87-A30-107-070 0E C-TR,CMBT5401 HRJ7SM CX-ZKD570
S AMP 1F Q 0151 87-A30-106-070 0E C-TR,CMBT5551 HRJ7SM CX-ZKD570
S AMP 1F Q 0204 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
X AMP 1F R 0004 88-128-223-080 0E C-RES, 22K-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0005 88-128-223-080 0E C-RES, 22K-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0006 88-128-223-080 0E C-RES, 22K-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0007 88-128-223-080 0E C-RES, 22K-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0101 88-118-272-080 0E C-RES,S 2.7K-1/10W J HRJ7SM CX-ZKD570

X AMP 1F R 0102 88-118-272-080 0E C-RES,S 2.7K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0103 88-118-273-080 0E C-RES,S 27K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0104 88-118-273-080 0E C-RES,S 27K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0105 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0106 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0109 88-118-561-080 0E C-RES,S 560-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0110 88-118-561-080 0E C-RES,S 560-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0111 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0112 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0121 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570

-2-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X AMP 1F R 0123 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0125 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0126 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570
O AMP 1F R 0129 87-A00-669-080 0E RES,M/F 0.22-2W J RA HRJ7SM CX-ZKD570
O AMP 1F R 0130 87-A00-669-080 0E RES,M/F 0.22-2W J RA HRJ7SM CX-ZKD570
O AMP 1F R 0131 87-A00-669-080 0E RES,M/F 0.22-2W J RA HRJ7SM CX-ZKD570
O AMP 1F R 0132 87-A00-669-080 0E RES,M/F 0.22-2W J RA HRJ7SM CX-ZKD570
X AMP 1F R 0133 88-118-182-080 0E C-RES,S 1.8K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0134 88-118-182-080 0E C-RES,S 1.8K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0135 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570

X AMP 1F R 0136 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0137 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0138 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0141 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0142 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0143 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0144 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0145 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0146 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0150 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570

X AMP 1F R 0151 88-118-473-080 0E C-RES,S 47K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0152 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0153 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0154 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0261 88-128-562-080 0E C-RES, 5.6K-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0262 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0263 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X AMP 1F R 0264 88-121-181-080 0E RES,180-1/8W J HRJ7SM CX-ZKD570
X AMP 1F R 0291 88-121-103-080 0E RES,10K-1/8W J HRJ7SM CX-ZKD570
! O AMP 1F WH 0101 87-A90-459-010 0E HLDR,WIRE 2.5-5P HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

! O AMP 1F WH 0102 87-A90-460-010 0E HLDR,WIRE 2.5-7P HRJ7SM CX-ZKD570
O AMP 2F 87-067-703-010 0E BVT2+3-10 W/0 SL0T HRJ7SM CX-ZKD570
O AMP 2F 8A-NF3-222-010 1A HLDR,TR-2F HRJ7SM CX-ZKD570
X AMP 2F * 8A-NF3-631-110 1B PWB,AMP 2F 2M HRJ7SM CX-ZKD570
O AMP 2F C 0101 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0102 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0103 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0104 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0107 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0108 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJ7SM CX-ZKD570

O AMP 2F C 0111 87-010-170-080 0E C-CAP,S 220P-50 J SL HRJ7SM CX-ZKD570
O AMP 2F C 0112 87-010-170-080 0E C-CAP,S 220P-50 J SL HRJ7SM CX-ZKD570
O AMP 2F C 0113 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0114 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0115 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0116 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0118 87-A10-264-080 0E C-CAP,S 0.1-16 Z F HRJ7SM CX-ZKD570
O AMP 2F C 0119 87-A10-264-080 0E C-CAP,S 0.1-16 Z F HRJ7SM CX-ZKD570
O AMP 2F C 0121 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0122 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570

O AMP 2F C 0151 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJ7SM CX-ZKD570
O AMP 2F C 0152 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJ7SM CX-ZKD570
O AMP 2F C 0153 87-A11-595-080 0E C-CAP,S 0.056-50 K B HRJ7SM CX-ZKD570
O AMP 2F C 0154 87-A11-595-080 0E C-CAP,S 0.056-50 K B HRJ7SM CX-ZKD570
O AMP 2F C 0155 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0156 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0157 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0160 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0161 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0201 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570

O AMP 2F C 0202 87-010-258-080 0E CAP,E 22-35 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0203 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJ7SM CX-ZKD570
O AMP 2F C 0204 87-010-258-080 0E CAP,E 22-35 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0205 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJ7SM CX-ZKD570
O AMP 2F C 0206 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJ7SM CX-ZKD570
O AMP 2F C 0208 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJ7SM CX-ZKD570
O AMP 2F C 0251 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJ7SM CX-ZKD570
O AMP 2F C 0252 87-A11-595-080 0E C-CAP,S 0.056-50 K B HRJ7SM CX-ZKD570
O AMP 2F C 0253 87-A11-595-080 0E C-CAP,S 0.056-50 K B HRJ7SM CX-ZKD570
O AMP 2F C 0258 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570

-3-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

! O AMP 2F CN 0101 87-A61-109-010 0E CONN,7P V TID-A HRJ7SM CX-ZKD570
! O AMP 2F CN 0102 87-A60-135-010 0E CONN,10P V FE HRJ7SM CX-ZKD570
S AMP 2F D 0101 87-A40-269-080 0E C-DIODE,MC2836 HRJ7SM CX-ZKD570
S AMP 2F D 0103 87-A40-313-080 0E C-DIODE,MC2840 HRJ7SM CX-ZKD570
S AMP 2F D 0105 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
S AMP 2F D 0106 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
S AMP 2F D 0160 87-A40-270-080 0E C-DIODE,MC2838 HRJ7SM CX-ZKD570
S AMP 2F D 0201 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
S AMP 2F D 0202 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
S AMP 2F D 0203 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570

S AMP 2F D 0204 87-A40-488-080 0E DIODE,1SS244 HRJ7SM CX-ZKD570
S AMP 2F D 0205 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
S AMP 2F D 0214 87-A40-313-080 0E C-DIODE,MC2840 HRJ7SM CX-ZKD570
S AMP 2F D 0215 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
S AMP 2F D 0216 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
! S AMP 2F IC 0101 87-A21-396-010 1H IC,STK490-040 HRJ7SM CX-ZKD570
O AMP 2F J 0101 87-A61-159-010 1A JACK,PIN 4P R/W/B/0 KM HRJ7SM CX-ZKD570
X AMP 2F JR 0101 88-128-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X AMP 2F JR 0201 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0202 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

X AMP 2F JR 0205 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0206 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0207 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0209 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0210 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0212 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0218 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0219 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X AMP 2F JR 0220 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X AMP 2F JR 0221 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O AMP 2F L 0151 87-A50-610-010 0E COIL,1UH K(MDEC) HRJ7SM CX-ZKD570
O AMP 2F L 0152 87-A50-610-010 0E COIL,1UH K(MDEC) HRJ7SM CX-ZKD570
O AMP 2F L 0251 87-A50-610-010 0E COIL,1UH K(MDEC) HRJ7SM CX-ZKD570
S AMP 2F Q 0101 87-A30-107-070 0E C-TR,CMBT5401 HRJ7SM CX-ZKD570
S AMP 2F Q 0102 87-A30-107-070 0E C-TR,CMBT5401 HRJ7SM CX-ZKD570
S AMP 2F Q 0160 87-A30-107-070 0E C-TR,CMBT5401 HRJ7SM CX-ZKD570
S AMP 2F Q 0161 87-A30-106-040 0E C-TR,CMBT5551 HRJ7SM CX-ZKD570
S AMP 2F Q 0201 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
S AMP 2F Q 0202 87-A30-076-080 0E C-TR,2SC3052F HRJ7SM CX-ZKD570
S AMP 2F Q 0203 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570

S AMP 2F Q 0204 87-A30-076-080 0E C-TR,2SC3052F HRJ7SM CX-ZKD570
S AMP 2F Q 0206 87-A30-190-080 0E TR,CC5551 HRJ7SM CX-ZKD570
S AMP 2F Q 0207 87-A30-076-080 0E C-TR,2SC3052F HRJ7SM CX-ZKD570
S AMP 2F Q 0208 87-A30-076-080 0E C-TR,2SC3052F HRJ7SM CX-ZKD570
S AMP 2F Q 0209 87-A30-256-010 1A TR,2SD1933 HRJ7SM CX-ZKD570
S AMP 2F Q 0210 87-A30-255-010 1A TR,2SB1342 HRJ7SM CX-ZKD570
S AMP 2F Q 0213 87-A30-107-070 0E C-TR,CMBT5401 HRJ7SM CX-ZKD570
S AMP 2F Q 0214 87-A30-074-080 0E C-TR,RT1P 141C HRJ7SM CX-ZKD570
S AMP 2F Q 0215 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
S AMP 2F Q 0217 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570

X AMP 2F R 0101 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0102 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0103 88-118-393-080 0E C-RES,S 39K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0104 88-118-393-080 0E C-RES,S 39K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0105 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0106 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0109 88-118-471-080 0E C-RES,S 470-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0110 88-118-471-080 0E C-RES,S 470-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0111 88-118-393-080 0E C-RES,S 39K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0112 88-118-393-080 0E C-RES,S 39K-1/10W J HRJ7SM CX-ZKD570

X AMP 2F R 0121 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570
X AMP 2F R 0123 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570
X AMP 2F R 0125 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570
X AMP 2F R 0126 88-128-222-080 0E C-RES, 2.2K-1/8W J HRJ7SM CX-ZKD570
O AMP 2F R 0131 87-A00-258-080 0E RES,M/F 0.22-1W J HRJ7SM CX-ZKD570
O AMP 2F R 0132 87-A00-258-080 0E RES,M/F 0.22-1W J HRJ7SM CX-ZKD570
X AMP 2F R 0133 88-118-332-080 0E C-RES,S 3.3K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0134 88-118-332-080 0E C-RES,S 3.3K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0135 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0136 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570

-4-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X AMP 2F R 0137 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0138 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0139 88-118-153-080 0E C-RES,S 15K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0140 88-118-153-080 0E C-RES,S 15K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0141 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0142 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0145 88-118-563-080 0E C-RES,S 56K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0146 88-118-563-080 0E C-RES,S 56K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0147 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0148 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570

X AMP 2F R 0151 88-130-100-080 0E RES,10-1/4W J HRJ7SM CX-ZKD570
X AMP 2F R 0152 88-130-100-080 0E RES,10-1/4W J HRJ7SM CX-ZKD570
X AMP 2F R 0153 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0154 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0155 88-128-100-080 0E C-RES, 10-1/8W J HRJ7SM CX-ZKD570
X AMP 2F R 0156 88-128-100-080 0E C-RES, 10-1/8W J HRJ7SM CX-ZKD570
X AMP 2F R 0160 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0161 88-118-473-080 0E C-RES,S 47K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0162 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0163 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570

X AMP 2F R 0164 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
O AMP 2F R 0171 87-A00-258-080 0E RES,M/F 0.22-1W J HRJ7SM CX-ZKD570
O AMP 2F R 0172 87-A00-258-080 0E RES,M/F 0.22-1W J HRJ7SM CX-ZKD570
X AMP 2F R 0201 88-118-123-080 0E C-RES,S 12K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0202 88-118-333-080 0E C-RES,S 33K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0203 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0204 88-118-152-080 0E C-RES,S 1.5K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0205 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0206 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0207 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X AMP 2F R 0208 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0209 88-128-102-080 0E C-RES, 1K-1/8W J HRJ7SM CX-ZKD570
X AMP 2F R 0210 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0211 88-128-102-080 0E C-RES, 1K-1/8W J HRJ7SM CX-ZKD570
X AMP 2F R 0212 88-118-561-080 0E C-RES,S 560-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0213 88-118-332-080 0E C-RES,S 3.3K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0214 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0215 88-118-473-080 0E C-RES,S 47K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0216 88-118-390-080 0E C-RES,S 39-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0217 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

O AMP 2F R 0218 87-A00-257-080 0E RES,M/F 0.15-1W J HRJ7SM CX-ZKD570
X AMP 2F R 0221 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0222 88-118-332-080 0E C-RES,S 3.3K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0223 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0224 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0226 88-118-153-080 0E C-RES,S 15K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0229 88-118-563-080 0E C-RES,S 56K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0230 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0231 88-118-473-080 0E C-RES,S 47K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0232 88-118-272-080 0E C-RES,S 2.7K-1/10W J HRJ7SM CX-ZKD570

X AMP 2F R 0233 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0235 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0236 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0237 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0238 88-118-271-080 0E C-RES,S 270-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0251 88-130-100-080 0E RES,10-1/4W J HRJ7SM CX-ZKD570
X AMP 2F R 0252 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X AMP 2F R 0253 88-128-100-080 0E C-RES, 10-1/8W J HRJ7SM CX-ZKD570
O AMP 2F R 0278 87-A00-257-080 0E RES,M/F 0.15-1W J HRJ7SM CX-ZKD570
O AMP 2F TH 0201 87-A91-042-080 0E C-THMS,100K 55001 HRJ7SM CX-ZKD570

! O APPEARANCE 87-B00-002-010 0E BADGE,AIWA 30 ABS SIL HRJ7SM CX-ZKD570
O APPEARANCE 8A-MA3-025-110 1B BOX,CASS L HRJ7SM CX-ZKD570
O APPEARANCE 8A-MA3-026-110 1B BOX,CASS R HRJ7SM CX-ZKD570
O APPEARANCE 8A-MA3-045-010 1D PANEL,SIDE L 3 HRJ7SM CX-ZKD570
O APPEARANCE 8A-MA3-046-010 1D PANEL,SIDE R 3 HRJ7SM CX-ZKD570
O APPEARANCE * 8A-MA3-020-110 1H CABI,TOP HRJ7SM CX-ZKD570
O APPEARANCE * 8A-MGS-001-010 -- CABI,FR VCD S HRJ7SM CX-ZKD570
O APPEARANCE * 8A-MGS-011-010 -- CABI,REAR HR S HRJ7SM CX-ZKD570
O CD 84-ZG1-245-210 0E CAP,OPTICAL HRJ7SM CX-ZKD570
X CD M8-6ZG-19Z-030 -- 6ZG-1 VZRDM HRJ7SM CX-ZKD570

-5-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O CNTL C 0651 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HRJ7SM CX-ZKD570
O CNTL C 0652 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJ7SM CX-ZKD570
O CNTL C 0661 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O CNTL C 0663 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJ7SM CX-ZKD570
O CNTL C 0846 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O CNTL CN 0661 87-A60-166-010 0E CONN,18P H FE HRJ7SM CX-ZKD570
S CNTL IC 0661 87-A21-021-040 1B C-IC,BU2099FV HRJ7SM CX-ZKD570
X CNTL JR 0082 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X CNTL JR 0083 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X CNTL JR 0084 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570

X CNTL JR 0086 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X CNTL JR 0088 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X CNTL JR 0089 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X CNTL JR 0092 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X CNTL JR 0313 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X CNTL JR 0334 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
O CNTL LED0675 87-A40-317-080 0E LED,SLR-342VCT31 RED HRJ7SM CX-ZKD570
O CNTL LED0676 87-A40-317-080 0E LED,SLR-342VCT31 RED HRJ7SM CX-ZKD570
O CNTL LED0677 87-A40-317-080 0E LED,SLR-342VCT31 RED HRJ7SM CX-ZKD570
O CNTL LED0678 87-A40-317-080 0E LED,SLR-342VCT31 RED HRJ7SM CX-ZKD570

O CNTL LED0679 87-A40-317-080 0E LED,SLR-342VCT31 RED HRJ7SM CX-ZKD570
O CNTL LED0682 87-A40-619-040 0E LED,SLR-56PT-T31-W GRN HRJ7SM CX-ZKD570
O CNTL LED0683 87-A40-619-040 0E LED,SLR-56PT-T31-W GRN HRJ7SM CX-ZKD570
O CNTL LED0684 87-A40-619-040 0E LED,SLR-56PT-T31-W GRN HRJ7SM CX-ZKD570
O CNTL LED0685 87-A40-619-040 0E LED,SLR-56PT-T31-W GRN HRJ7SM CX-ZKD570
O CNTL LED0698 87-A40-619-040 0E LED,SLR-56PT-T31-W GRN HRJ7SM CX-ZKD570
X CNTL R 0651 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0652 88-118-183-080 0E C-RES,S 18K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0653 88-118-473-080 0E C-RES,S 47K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0654 88-118-152-080 0E C-RES,S 1.5K-1/10W J HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X CNTL R 0655 88-118-682-080 0E C-RES,S 6.8K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0661 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0662 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0663 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0664 88-128-472-080 0E C-RES, 4.7K-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0665 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0675 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0676 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0677 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0678 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570

X CNTL R 0679 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0680 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0682 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0683 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0684 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0685 88-128-681-080 0E C-RES, 680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0705 88-128-471-080 0E C-RES, 470-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0706 88-128-471-080 0E C-RES, 470-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0707 88-128-471-080 0E C-RES, 470-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0708 88-128-471-080 0E C-RES, 470-1/8W J HRJ7SM CX-ZKD570

X CNTL R 0709 88-128-471-080 0E C-RES, 470-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0710 88-128-471-080 0E C-RES, 470-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0805 88-121-681-080 0E RES,680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0806 88-118-821-080 0E C-RES,S 820-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0807 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0808 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0809 88-118-152-080 0E C-RES,S 1.5K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0810 88-128-182-080 0E C-RES, 1.8K-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0811 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0812 88-118-272-080 0E C-RES,S 2.7K-1/10W J HRJ7SM CX-ZKD570

X CNTL R 0813 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0814 88-121-472-080 0E RES,4.7K-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0815 88-118-682-080 0E C-RES,S 6.8K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0816 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0821 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0822 88-118-561-080 0E C-RES,S 560-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0823 88-118-561-080 0E C-RES,S 560-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0824 88-118-681-080 0E C-RES,S 680-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0825 88-118-681-080 0E C-RES,S 680-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0826 88-118-821-080 0E C-RES,S 820-1/10W J HRJ7SM CX-ZKD570

-6-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X CNTL R 0827 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0828 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0829 88-121-152-080 0E RES,1.5K-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0830 88-118-182-080 0E C-RES,S 1.8K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0831 88-121-222-080 0E RES,2.2K-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0842 88-118-561-080 0E C-RES,S 560-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0843 88-118-561-080 0E C-RES,S 560-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0844 88-121-681-080 0E RES,680-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0845 88-118-681-080 0E C-RES,S 680-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0846 88-118-821-080 0E C-RES,S 820-1/10W J HRJ7SM CX-ZKD570

X CNTL R 0847 88-121-102-080 0E RES,1K-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0848 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0849 88-121-152-080 0E RES,1.5K-1/8W J HRJ7SM CX-ZKD570
X CNTL R 0850 88-118-182-080 0E C-RES,S 1.8K-1/10W J HRJ7SM CX-ZKD570
X CNTL R 0851 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJ7SM CX-ZKD570
O CNTL S 0651 87-A91-624-010 1A SW,RTRY EC12E1240405-20MM HRJ7SM CX-ZKD570
O CNTL S 0805 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0806 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0807 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0808 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570

O CNTL S 0809 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0812 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0813 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0814 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0815 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0816 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0821 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0822 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0823 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0824 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O CNTL S 0825 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0826 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0827 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0828 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0829 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0830 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0831 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0842 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0843 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0845 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570

O CNTL S 0846 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0849 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0850 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O CNTL S 0851 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O DSP/ECHO(MIC MIX) C 0531 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O DSP/ECHO(MIC MIX) C 0532 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O DSP/ECHO(MIC MIX) C 0533 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O DSP/ECHO(MIC MIX) C 0534 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJ7SM CX-ZKD570
O DSP/ECHO(MIC MIX) C 0535 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570
O DSP/ECHO(MIC MIX) C 0536 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570

O DSP/ECHO(MIC MIX) C 0541 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) FB 0501 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) JR 0504 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
S DSP/ECHO(MIC MIX) Q 0531 87-A30-076-080 0E C-TR,2SC3052F HRJ7SM CX-ZKD570
S DSP/ECHO(MIC MIX) Q 0532 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) R 0429 88-118-225-080 0E C-RES,S 2.2M-1/10W J HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) R 0531 88-121-101-080 0E RES,100-1/8W J HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) R 0532 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) R 0533 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) R 0534 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570

X DSP/ECHO(MIC MIX) R 0535 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) R 0536 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X DSP/ECHO(MIC MIX) R 0537 88-118-123-080 0E C-RES,S 12K-1/10W J HRJ7SM CX-ZKD570
! S ELECTRICAL 87-035-458-010 0E FUSE,4A 250V T 218 HRJ7SM CX-ZKD570
! X ELECTRICAL 87-069-033-010 0E CABLE,TIE HRJ7SM CX-ZKD570
! O ELECTRICAL 87-085-185-010 0E BUSHING,AC CORD(E) CM-22B HRJ7SM CX-ZKD570
! O ELECTRICAL 87-A80-148-010 1B AC CORD ASSY,E BLK HRJ7SM CX-ZKD570
O ELECTRICAL 87-A91-711-010 2A FAN,3110GL-B4W-B34-H04 -400MM HRJ7SM CX-ZKD570
O ELECTRICAL 88-906-321-110 -- FF-CABLE, 6P 1.25 320MM HRJ7SM CX-ZKD570
O ELECTRICAL 88-910-201-110 0E FF-CABLE, 10P 1.25 200MM HRJ7SM CX-ZKD570

-7-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O ELECTRICAL 88-911-151-110 1A FF-CABLE,11P 1.25 150MM HRJ7SM CX-ZKD570
O ELECTRICAL 88-914-231-110 1A FF-CABLE, 14P 1.25 230MM HRJ7SM CX-ZKD570
O ELECTRICAL 88-918-151-110 1A FF-CABLE, 18P 1.25 HRJ7SM CX-ZKD570
X ELECTRICAL 8A-MG5-651-010 0E WIRE ASSY,1P GND HRJ7SM CX-ZKD570
O ELECTRICAL PT 0001 8A-MGS-664-010 -- PT,AMG-S HR HRJ7SM CX-ZKD570
O FLTR C 0115 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O FLTR C 0116 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O FLTR C 0117 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O FLTR C 0160 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O FLTR C 0171 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJ7SM CX-ZKD570

O FLTR C 0172 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJ7SM CX-ZKD570
O FLTR C 0173 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJ7SM CX-ZKD570
O FLTR C 0174 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJ7SM CX-ZKD570
! O FLTR CN 0101 87-A60-996-010 0E CONN,13P V BLK TAC-L13X-A3 HRJ7SM CX-ZKD570
O FLTR J 0101 87-A60-483-010 1B JACK,DIA6.3 BLK ST W/S KM HRJ7SM CX-ZKD570
! O FLTR J 0102 87-A60-238-010 1A TERMINAL,SP 4P (MSC) HRJ7SM CX-ZKD570
X FLTR JR 0101 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR JR 0106 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR JR 0107 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR JR 0108 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

X FLTR JR 0109 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR JR 0110 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR JR 0205 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR JR 0206 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR JR 0207 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X FLTR JR 0208 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
O FLTR L 0101 87-A50-610-010 0E COIL,1UH K(MDEC) HRJ7SM CX-ZKD570
O FLTR L 0102 87-A50-610-010 0E COIL,1UH K(MDEC) HRJ7SM CX-ZKD570
S FLTR Q 0111 87-A30-257-080 0E C-TR,2SD1306E HRJ7SM CX-ZKD570
S FLTR Q 0112 87-A30-257-080 0E C-TR,2SD1306E HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

S FLTR Q 0113 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
X FLTR R 0105 88-118-224-080 0E C-RES,S 220K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0113 88-118-105-080 0E C-RES,S 1M-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0115 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0116 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0131 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR R 0132 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FLTR R 0137 88-118-152-080 0E C-RES,S 1.5K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0138 88-118-152-080 0E C-RES,S 1.5K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0151 88-121-562-080 0E RES,5.6K-1/8W J HRJ7SM CX-ZKD570

X FLTR R 0152 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0153 88-118-683-080 0E C-RES,S 68K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0154 88-118-105-080 0E C-RES,S 1M-1/10W J HRJ7SM CX-ZKD570
O FLTR R 0161 87-A00-441-050 0E RES,270-1/2W J RP HRJ7SM CX-ZKD570
O FLTR R 0162 87-A00-441-050 0E RES,270-1/2W J RP HRJ7SM CX-ZKD570
O FLTR R 0163 87-A00-441-050 0E RES,270-1/2W J RP HRJ7SM CX-ZKD570
O FLTR R 0164 87-A00-441-050 0E RES,270-1/2W J RP HRJ7SM CX-ZKD570
X FLTR R 0165 88-128-102-080 0E C-RES, 1K-1/8W J HRJ7SM CX-ZKD570
X FLTR R 0166 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0170 88-118-122-080 0E C-RES,S 1.2K-1/10W J HRJ7SM CX-ZKD570

X FLTR R 0171 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0172 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X FLTR R 0173 88-130-100-080 0E RES,10-1/4W J HRJ7SM CX-ZKD570
X FLTR R 0174 88-130-100-080 0E RES,10-1/4W J HRJ7SM CX-ZKD570
X FLTR R 0175 88-128-100-080 0E C-RES, 10-1/8W J HRJ7SM CX-ZKD570
X FLTR R 0176 88-128-100-080 0E C-RES, 10-1/8W J HRJ7SM CX-ZKD570
O FUNC/E.VR C 0611 87-010-956-080 0E C-CAP,S 0.068-25 K B GRM HRJ7SM CX-ZKD570
O FUNC/E.VR C 0612 87-010-369-080 0E C-CAP,S 0.033-25 K B HRJ7SM CX-ZKD570
O FUNC/E.VR C 0613 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570
O FUNC/E.VR C 0614 87-016-669-080 0E C-CAP,S 0.1-25 K B HRJ7SM CX-ZKD570

O FUNC/E.VR C 0616 87-010-185-080 0E C-CAP,S 3900P-50 K B HRJ7SM CX-ZKD570
O FUNC/E.VR C 0617 87-010-194-080 0E C-CAP,S 0.047-25 Z F HRJ7SM CX-ZKD570
O FUNC/E.VR C 0618 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0619 87-010-263-080 0E CAP,E 100-10 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0620 87-016-669-080 0E C-CAP,S 0.1-25 K B HRJ7SM CX-ZKD570
O FUNC/E.VR C 0621 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJ7SM CX-ZKD570
O FUNC/E.VR C 0623 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0624 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0626 87-A11-590-080 0E C-CAP,S 0.047-16 K B HRJ7SM CX-ZKD570
O FUNC/E.VR C 0627 87-010-400-080 0E CAP,E 0.47-50 M 11L SME HRJ7SM CX-ZKD570

-8-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O FUNC/E.VR C 0628 87-010-400-080 0E CAP,E 0.47-50 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0629 87-A11-590-080 0E C-CAP,S 0.047-16 K B HRJ7SM CX-ZKD570
O FUNC/E.VR C 0630 87-010-383-080 0E CAP,E 33-25 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0631 87-010-185-080 0E C-CAP,S 3900P-50 K B HRJ7SM CX-ZKD570
O FUNC/E.VR C 0632 87-010-185-080 0E C-CAP,S 3900P-50 K B HRJ7SM CX-ZKD570
O FUNC/E.VR C 0634 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O FUNC/E.VR C 0635 87-A10-307-080 0E CAP,M 0.1-50 J HRJ7SM CX-ZKD570
O FUNC/E.VR C 0636 87-A10-307-080 0E CAP,M 0.1-50 J HRJ7SM CX-ZKD570
O FUNC/E.VR C 0637 87-A10-307-080 0E CAP,M 0.1-50 J HRJ7SM CX-ZKD570
O FUNC/E.VR C 0638 87-A10-307-080 0E CAP,M 0.1-50 J HRJ7SM CX-ZKD570

O FUNC/E.VR C 0639 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0643 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O FUNC/E.VR C 0644 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJ7SM CX-ZKD570
O FUNC/E.VR C 0645 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJ7SM CX-ZKD570
O FUNC/E.VR C 0671 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJ7SM CX-ZKD570
O FUNC/E.VR C 0672 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJ7SM CX-ZKD570
O FUNC/E.VR C 0673 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570
O FUNC/E.VR C 0679 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O FUNC/E.VR C 0680 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 HRJ7SM CX-ZKD570
X FUNC/E.VR C 0681 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

X FUNC/E.VR C 0683 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
O FUNC/E.VR C 0685 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJ7SM CX-ZKD570
! O FUNC/E.VR CN 0601 87-099-719-010 1B CONN,30P H BLK TYK-B(X) HRJ7SM CX-ZKD570
! O FUNC/E.VR CN 0602 87-A60-131-010 0E CONN,6P V FE HRJ7SM CX-ZKD570
! O FUNC/E.VR CN 0606 87-099-566-010 0E CONN,7P TUC-P7P-B1 HRJ7SM CX-ZKD570
S FUNC/E.VR D 0602 87-A40-438-080 0E ZENER,MTZJ4.7A HRJ7SM CX-ZKD570
S FUNC/E.VR D 0603 87-020-465-080 0E DIODE,1SS133 HRJ7SM CX-ZKD570
X FUNC/E.VR FB 0601 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJ7SM CX-ZKD570
S FUNC/E.VR IC 0601 87-A21-452-030 1H C-IC,BD3876KS2 HRJ7SM CX-ZKD570
O FUNC/E.VR J 0602 87-A60-881-010 0E JACK,PIN 2P MSP 242V05 PBSN HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNC/E.VR JR 0610 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0611 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0612 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0613 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0614 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0617 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0618 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0619 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0620 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0622 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

X FUNC/E.VR JR 0623 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0624 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0625 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0627 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0630 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0633 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0634 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0635 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0636 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR JR 0662 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

S FUNC/E.VR Q 0601 87-026-610-080 0E TR,KTC3198GR HRJ7SM CX-ZKD570
S FUNC/E.VR Q 0607 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
S FUNC/E.VR Q 0608 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
S FUNC/E.VR Q 0609 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
X FUNC/E.VR R 0601 88-118-333-080 0E C-RES,S 33K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0602 88-118-333-080 0E C-RES,S 33K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0603 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0604 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0607 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJ7SM CX-ZKD570
X FUNC/E.VR R 0608 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJ7SM CX-ZKD570

X FUNC/E.VR R 0609 88-121-392-080 0E RES,3.9K-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0610 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0611 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0612 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0613 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0614 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0615 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR R 0616 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR R 0617 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0618 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570

-9-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X FUNC/E.VR R 0619 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0620 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0621 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0622 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0623 88-121-223-080 0E RES,22K-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0624 88-118-153-080 0E C-RES,S 15K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0625 88-128-105-080 0E C-RES, 1M-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0626 88-130-560-080 0E RES,56-1/4W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0627 88-128-270-080 0E C-RES, 27-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0628 88-128-270-080 0E C-RES, 27-1/8W J HRJ7SM CX-ZKD570

X FUNC/E.VR R 0629 88-128-270-080 0E C-RES, 27-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0630 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0631 88-121-820-080 0E RES,82-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0632 88-128-680-080 0E C-RES, 68-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0633 88-128-680-080 0E C-RES, 68-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0634 88-128-680-080 0E C-RES, 68-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0635 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0636 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0637 88-121-820-080 0E RES,82-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0638 88-128-680-080 0E C-RES, 68-1/8W J HRJ7SM CX-ZKD570

X FUNC/E.VR R 0639 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0640 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0641 88-118-154-080 0E C-RES,S 150K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0642 88-118-154-080 0E C-RES,S 150K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0645 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0646 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0647 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0648 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0652 88-121-682-080 0E RES,6.8K-1/8W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0657 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNC/E.VR R 0659 88-118-105-080 0E C-RES,S 1M-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0660 88-118-105-080 0E C-RES,S 1M-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0663 88-118-683-080 0E C-RES,S 68K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0664 88-118-683-080 0E C-RES,S 68K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0671 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0672 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0673 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X FUNC/E.VR R 0677 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X FUNC/E.VR R 0678 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X KEY CD R 0751 88-118-272-080 0E C-RES,S 2.7K-1/10W J HRJ7SM CX-ZKD570

X KEY CD R 0752 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJ7SM CX-ZKD570
X KEY CD R 0753 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X KEY CD R 0754 88-118-682-080 0E C-RES,S 6.8K-1/10W J HRJ7SM CX-ZKD570
X KEY CD R 0755 88-118-103-080 0E C-RES,S 10K-1/10W J HRJ7SM CX-ZKD570
X KEY CD R 0756 88-118-153-080 0E C-RES,S 15K-1/10W J HRJ7SM CX-ZKD570
X KEY CD R 0757 88-118-273-080 0E C-RES,S 27K-1/10W J HRJ7SM CX-ZKD570
O KEY CD S 0751 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O KEY CD S 0752 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O KEY CD S 0753 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O KEY CD S 0754 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570

O KEY CD S 0755 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O KEY CD S 0756 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O KEY CD S 0757 87-A90-095-080 0E SW,TACT EVQ11G04M HRJ7SM CX-ZKD570
O KEY/CON C 0551 87-A10-060-080 0E C-CAP,S 0.18-16 K B HRJ7SM CX-ZKD570
O KEY/CON C 0552 87-A10-060-080 0E C-CAP,S 0.18-16 K B HRJ7SM CX-ZKD570
O KEY/CON C 0553 87-012-154-080 0E C-CAP,S 150P-50 J CH GRM HRJ7SM CX-ZKD570
O KEY/CON C 0554 87-012-154-080 0E C-CAP,S 150P-50 J CH GRM HRJ7SM CX-ZKD570
O KEY/CON C 0555 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O KEY/CON C 0556 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O KEY/CON C 0557 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HRJ7SM CX-ZKD570

O KEY/CON C 0559 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O KEY/CON C 0560 87-010-177-080 0E C-CAP,S 820P-50 J SL C2012 HRJ7SM CX-ZKD570
O KEY/CON C 0561 87-010-177-080 0E C-CAP,S 820P-50 J SL C2012 HRJ7SM CX-ZKD570
O KEY/CON C 0562 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O KEY/CON C 0563 87-010-374-080 0E CAP,E 47-10 M 11L SME HRJ7SM CX-ZKD570
O KEY/CON C 0564 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O KEY/CON C 0565 87-010-263-080 0E CAP,E 100-10 M 11L SME HRJ7SM CX-ZKD570
O KEY/CON C 0567 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HRJ7SM CX-ZKD570
O KEY/CON C 0571 87-016-460-080 0E C-CAP,S 0.22-16 K B HRJ7SM CX-ZKD570
O KEY/CON C 0572 87-016-460-080 0E C-CAP,S 0.22-16 K B HRJ7SM CX-ZKD570

-10-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O KEY/CON C 0573 87-016-460-080 0E C-CAP,S 0.22-16 K B HRJ7SM CX-ZKD570
O KEY/CON C 0577 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
! O KEY/CON CN 0551 87-A60-689-010 0E CONN,7P H GRY TUC-P07X-C1 HRJ7SM CX-ZKD570
S KEY/CON D 0551 87-A40-747-080 0E ZENER,UZ5.1BSB HRJ7SM CX-ZKD570
X KEY/CON D 0555 88-121-822-080 0E RES,8.2K-1/8W J HRJ7SM CX-ZKD570
X KEY/CON D 0556 88-121-822-080 0E RES,8.2K-1/8W J HRJ7SM CX-ZKD570
X KEY/CON D 0557 88-121-822-080 0E RES,8.2K-1/8W J HRJ7SM CX-ZKD570
S KEY/CON IC 0551 87-A20-561-040 2A C-IC,M65847AFP HRJ7SM CX-ZKD570
X KEY/CON JR 0502 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X KEY/CON R 0551 88-118-183-080 0E C-RES,S 18K-1/10W J HRJ7SM CX-ZKD570

X KEY/CON R 0552 88-118-473-080 0E C-RES,S 47K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0554 88-118-183-080 0E C-RES,S 18K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0555 88-118-473-080 0E C-RES,S 47K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0557 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0558 88-118-393-080 0E C-RES,S 39K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0559 88-118-563-080 0E C-RES,S 56K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0560 88-118-563-080 0E C-RES,S 56K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0561 88-118-223-080 0E C-RES,S 22K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0562 88-118-393-080 0E C-RES,S 39K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0569 88-128-221-080 0E C-RES, 220-1/8W J HRJ7SM CX-ZKD570

X KEY/CON R 0570 88-128-221-080 0E C-RES, 220-1/8W J HRJ7SM CX-ZKD570
X KEY/CON R 0571 88-118-333-080 0E C-RES,S 33K-1/10W J HRJ7SM CX-ZKD570
X KEY/CON R 0572 88-118-333-080 0E C-RES,S 33K-1/10W J HRJ7SM CX-ZKD570
O KNOB 8A-MA3-061-010 1A KEY,CD HRJ7SM CX-ZKD570
O KNOB 8A-MA3-062-110 1A KEY,MIC HRJ7SM CX-ZKD570
X KNOB 8A-MA3-068-010 -- KEY,FF HRJ7SM CX-ZKD570
O KNOB 8A-MA3-071-010 1A KEY,TIMER HRJ7SM CX-ZKD570
O KNOB 8A-MA3-073-010 1A KEY,ENTER HRJ7SM CX-ZKD570
O KNOB 8A-MA3-075-010 1A KEY,POWER HRJ7SM CX-ZKD570
O KNOB 8A-MA3-084-010 1B KEY ASSY,FF HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O KNOB 8A-MA3-090-110 1A KNOB,RTRY MAIN HRJ7SM CX-ZKD570
X KNOB 8A-MA3-091-010 -- KNOB,RTRY JOG HRJ7SM CX-ZKD570
O KNOB 8A-MA3-093-010 1C KNOB ASSY,RTRY JOG HRJ7SM CX-ZKD570
O KNOB 8A-MA3-094-010 1A RING,MAIN HRJ7SM CX-ZKD570
O KNOB 8A-MA3-101-010 0E REFLECTOR,POWER HRJ7SM CX-ZKD570
X KNOB 8A-MA3-105-010 -- REFLECTOR,FF HRJ7SM CX-ZKD570
X KNOB 8A-MA3-106-010 -- REFLECTOR,JOG HRJ7SM CX-ZKD570
X KNOB 8A-MA3-107-010 -- REFLECTOR,GEQ HRJ7SM CX-ZKD570
X KNOB 8A-MA5-067-010 -- KEY,PLAY HRJ7SM CX-ZKD570
O KNOB 8A-MA5-081-010 1B KEY ASSY,PLAY HRJ7SM CX-ZKD570

O KNOB 8A-MA5-102-010 0E REFLECTOR,FUN 4F HRJ7SM CX-ZKD570
X KNOB 8A-MA5-103-010 -- REFLECTOR,PLAY HRJ7SM CX-ZKD570
O KNOB 8A-MAS-066-010 1A KEY,FUN 5.1CH 4F HRJ7SM CX-ZKD570
O KNOB 8A-MG5-070-010 1A KEY,CONT 5 HRJ7SM CX-ZKD570
X KNOB 8A-MGS-063-010 -- KEY,PBC S HRJ7SM CX-ZKD570
O KNOB 8A-MGS-080-010 -- KEY ASSY,PBC S HRJ7SM CX-ZKD570
X MECHANICAL 8A-MAS-201-010 1H CHAS,MAIN AS HRJ7SM CX-ZKD570
O MIC C 0601 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O MIC C 0602 87-010-069-040 0E CAP,E 0.33-50 M 5L SRE HRJ7SM CX-ZKD570
O MIC C 0603 87-010-319-080 0E C-CAP,S 56P-50 J CH HRJ7SM CX-ZKD570

O MIC C 0604 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570
O MIC C 0606 87-015-785-080 0E C-CAP, 0.1-25 Z F C3216 HRJ7SM CX-ZKD570
O MIC C 0607 87-010-060-040 0E CAP,E 100-16 M 7L SRA HRJ7SM CX-ZKD570
O MIC C 0611 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HRJ7SM CX-ZKD570
O MIC C 0612 87-015-699-040 0E CAP,E 10-50 M 7L SRA HRJ7SM CX-ZKD570
X MIC C 0614 88-129-000-080 0E C-JUMPER,3216 HRJ7SM CX-ZKD570
O MIC CN 0601 87-A60-619-010 0E CONN,2P V 2MM JMT HRJ7SM CX-ZKD570
O MIC CNA0602 8A-MA3-655-010 0E CONN ASSY,2P V 60MM HRJ7SM CX-ZKD570
X MIC FB 0601 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
X MIC FB 0602 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570

O MIC FB 0603 83-XM1-617-080 0E C-COIL,BK2125HM601 HRJ7SM CX-ZKD570
! O MIC J 0601 87-099-659-010 1A JACK,6.3 0 HRJ7SM CX-ZKD570
! O MIC J 0602 87-099-659-010 1A JACK,6.3 0 HRJ7SM CX-ZKD570
X MIC JR 1601 88-118-000-080 0E C-JUMPER,S HRJ7SM CX-ZKD570
S MIC Q 0601 87-A30-076-080 0E C-TR,2SC3052F HRJ7SM CX-ZKD570
S MIC Q 0602 87-A30-075-080 0E C-TR,2SA1235F HRJ7SM CX-ZKD570
S MIC Q 0611 87-A30-087-080 0E C-FET,2SK2158 HRJ7SM CX-ZKD570
S MIC Q 0612 87-A30-076-080 0E C-TR,2SC3052F HRJ7SM CX-ZKD570
X MIC R 0601 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0602 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJ7SM CX-ZKD570

-11-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X MIC R 0603 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0604 88-118-333-080 0E C-RES,S 33K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0605 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0606 88-118-334-080 0E C-RES,S 330K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0607 88-118-102-080 0E C-RES,S 1K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0608 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X MIC R 0609 88-118-101-080 0E C-RES,S 100-1/10W J HRJ7SM CX-ZKD570
X MIC R 0611 88-118-104-080 0E C-RES,S 100K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0612 88-118-224-080 0E C-RES,S 220K-1/10W J HRJ7SM CX-ZKD570
X MIC R 0613 88-118-334-080 0E C-RES,S 330K-1/10W J HRJ7SM CX-ZKD570

X MIC R 0614 88-128-224-080 0E C-RES, 220K-1/8W J HRJ7SM CX-ZKD570
X MIC W 0601 87-MA3-609-010 0E WIRE ASSY, GND MA3 HRJ7SM CX-ZKD570
O MICON 87-MA5-203-110 0E GUIDE,FL HRJ7SM CX-ZKD570
X MICON 8A-MA5-601-410 1F PWB,COMB FR HRJ7SM CX-ZKD570
X MICON 8A-MA5-602-410 -- PWB,MICON HRJ7SM CX-ZKD570
X MICON 8A-MA5-603-410 -- PWB,CNTL HRJ7SM CX-ZKD570
X MICON 8A-MA5-604-410 -- PWB,KEY CD HRJ7SM CX-ZKD570
X MICON 8A-MA5-605-410 -- PWB,MIC HRJ7SM CX-ZKD570
X MICON 8A-MA5-606-410 -- PWB,DK1 LED HRJ7SM CX-ZKD570
X MICON 8A-MA5-607-410 -- PWB,DK2 LED HRJ7SM CX-ZKD570

O MICON C 0101 87-010-498-040 0E CAP,E 10-16 M 5L SRE HRJ7SM CX-ZKD570
O MICON C 0102 87-010-194-080 0E C-CAP,S 0.047-25 Z F HRJ7SM CX-ZKD570
O MICON C 0103 87-010-194-080 0E C-CAP,S 0.047-25 Z F HRJ7SM CX-ZKD570
O MICON C 0105 87-A11-242-040 0E CAP,E 220-10 M 5L SRM HRJ7SM CX-ZKD570
O MICON C 0106 87-A11-242-040 0E CAP,E 220-10 M 5L SRM HRJ7SM CX-ZKD570
O MICON C 0107 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O MICON C 0111 87-016-460-080 0E C-CAP,S 0.22-16 K B HRJ7SM CX-ZKD570
O MICON C 0112 87-010-493-040 0E CAP,E 0.47-50 M 5L SRE HRJ7SM CX-ZKD570
O MICON C 0113 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJ7SM CX-ZKD570
O MICON C 0114 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050 HRJ7SM CX-ZKD570

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O MICON C 0115 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050 HRJ7SM CX-ZKD570
O MICON C 0116 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O MICON C 0117 87-010-174-080 0E C-CAP,S 470P-50 J SL HRJ7SM CX-ZKD570
O MICON C 0122 87-012-369-080 0E C-CAP,S 0.047-50 Z F HRJ7SM CX-ZKD570
O MICON C 0123 87-010-408-040 0E CAP,E 47-50 M 11L SME HRJ7SM CX-ZKD570
O MICON C 0124 87-010-421-040 0E CAP,E 4.7-50 M 5L SRE HRJ7SM CX-ZKD570
O MICON C 0125 87-010-421-040 0E CAP,E 4.7-50 M 5L SRE HRJ7SM CX-ZKD570
O MICON C 0132 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0133 87-010-316-080 0E C-CAP,S 33P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0135 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050 HRJ7SM CX-ZKD570

O MICON C 0137 87-010-313-080 0E C-CAP,S 18P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0138 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O MICON C 0171 87-010-213-080 0E C-CAP,S 0.015-25 K B GRM HRJ7SM CX-ZKD570
O MICON C 0172 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HRJ7SM CX-ZKD570
O MICON C 0188 87-010-194-080 0E C-CAP,S 0.047-25 Z F HRJ7SM CX-ZKD570
O MICON C 0193 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJ7SM CX-ZKD570
O MICON C 0251 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJ7SM CX-ZKD570
O MICON C 0252 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0253 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0411 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJ7SM CX-ZKD570

O MICON C 0412 87-010-405-040 0E CAP,E 10-50 M 11L SME HRJ7SM CX-ZKD570
O MICON C 0421 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJ7SM CX-ZKD570
O MICON C 0422 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HRJ7SM CX-ZKD570
O MICON C 0940 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0941 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0942 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0943 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0944 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0945 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0946 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570

O MICON C 0947 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0948 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0949 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0950 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0951 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
O MICON C 0952 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJ7SM CX-ZKD570
! O MICON CN 0101 87-099-720-010 1B CONN,30P BLK TYK-B(P) HRJ7SM CX-ZKD570
! O MICON CN 0102 87-A60-139-010 0E CONN,14P V FE HRJ7SM CX-ZKD570
O MICON CN 0103 87-A60-166-010 0E CONN,18P H FE HRJ7SM CX-ZKD570
O MICON CN 0104 87-A60-159-010 0E CONN,11P H FE HRJ7SM CX-ZKD570

-12-
