Page 1

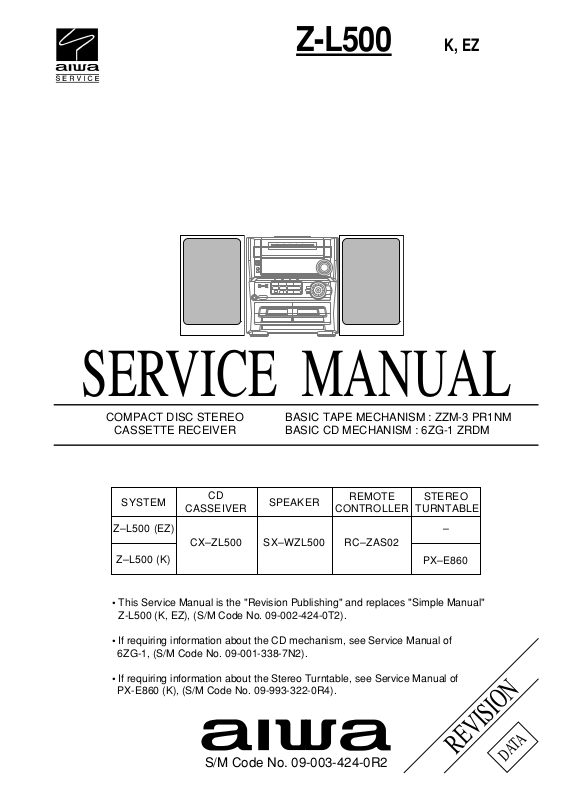

Z-L500

K, EZ

SERVICE MANUAL

COMPACT DISC STEREO

CASSETTE RECEIVER

CASSEIVER

Z–L500 (EZ)

Z–L500 (K)

• This Service Manual is the "Revision Publishing" and replaces "Simple Manual" Z-L500 (K, EZ), (S/M Code No. 09-002-424-0T2).

• If requiring information about the CD mechanism, see Service Manual of

6ZG-1, (S/M Code No. 09-001-338-7N2).

BASIC TAPE MECHANISM : ZZM-3 PR1NM BASIC CD MECHANISM : 6ZG-1 ZRDM

SPEAKERSYSTEM

SX–WZL500CX–ZL500

REMOTE

CONTROLLER

RC–ZAS02

STEREO

TURNTABLE

–

PX–E860

• If requiring information about the Stereo Turntable, see Service Manual of

PX-E860 (K), (S/M Code No. 09-993-322-0R4).

S/M Code No. 09-003-424-0R2

REVISION

DATA

Page 2

SPECIFICATIONS

<FM tuner section> Tuning range 87.5 MHz to 108 MHz Usable sensitivity (IHF) 13.2 dBf Antenna terminals 75 ohms (unbalanced)

<MW tuner section> Tuning range 530 kHz to 1710 kHz (10 kHz step)

531 kHz to 1602 kHz (9 kHz step)

Usable sensitivity 350 µV/m Antenna Loop antenna

<LW tuner section> Tuning range 144 kHz to 290 kHz Usable sensitivity 1400 µV/m Antenna Loop antenna

<Amplifier section> Mid-high frequency amplifier Power output Rated: 20 W + 20 W (8 ohms,

T.H.D. 1 %, 1 kHz) Reference: 25 W + 25 W (8 ohms, T.H.D. 10 %, 1 kHz)

EZ:

DIN MUSIC POWER: 45 W + 45W

Total harmonic distortion 0.15 % (10 W, 1 kHz, 8 ohms, DIN

AUDIO<EZ only>)

Low frequency amplifier Power output Rated: 60 W + 60 W (6 ohms,

T.H.D. 1 %, 75 Hz) Reference : 75 W + 75 W (6 ohms, T.H.D. 10 %, 75 Hz)

EZ:

DIN MUSIC POWER: 135 W + 135W

Total harmonic distortion 0.15 % (30 W, 75 Hz, 6 ohms, DIN

AUDIO<EZ only>)

Inputs VIDEO/AUX/PHONO IN: 500 mV Outputs CD DIGITAL OUT (OPTICAL)

SPEAKERS HIGH FREQ: accept speakers of 8 ohms or more SPEAKERS LOW FREQ: accept speakers of 6 ohms or more PHONES (stereo jack): accepts headphones of 32 ohms or more

<Cassette deck section> Track format 4 tracks, 2 channels stereo Frequency response 50 Hz – 12500 Hz Recording system AC bias Heads Deck 1 : Playback head x 1

Deck 2 : Recording/Playback head x 1, erase head x 1

<Compact disc player section> Laser Semiconductor laser (λ =780 nm) D-A converter 1 bit dual Signal-to-noise ratio 85 dB (1 kHz, 0 dB) Harmonic distortion 0.05 % (1 kHz, 0 dB) Wow and flutter Unmeasurable

<Speaker system SX–WZL500> Cabinet type 3 way, built-in subwoofer Speakers Subwoofer:

220 mm (83/4 in.) cone type Full range: 120 mm (43/4 in.) cone type Super tweeter: 20 mm (13/16 in.) ceramic type

Impedance 6 ohms/8 ohms Output sound pressure level 89 dB/W/m Dimensions (W x H x D) 260 x 495x 261 mm

(101/4 x 191/2 x 103/8 in.)

Weight 5.8 kg (12 lbs. 14 oz.)

<General> Power requirements 230 V AC, 50 Hz Power consumption 150 W Dimensions of main unit 360 x 395.3 x 385.1 mm (W x H x D) (141/4 x 155/8 x 151/4 in.) Weight of main unit 10.9 kg (24 lbs.)

• Design and specifications are subject to change without notice.

• The word "BBE"and the "BBE symbol" are trademarks of BBE

Sound, Inc.

Under license from BBE Sound,Inc.

– 2 –

Page 3

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

s Caution: Invisible laser radiation when

open and interlocks defeated avoid exposure to beam.

s Advarsel: Usynlig laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saataa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herin may result in hazardous radiation exposure.

ATTENTION

L’utillisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations.

ADVARSEL

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT

Precaution to replace Optical block

(KSS-213F)

Body or clothes electrostatic potential could

ruin laser diode in the optical block. Be sure

ground body and workbench, and use care the

clothes do not touch the diode.

1) After the connection, remove solder shown in right figure.

PICK-UP Assy P.C.B

Solder

– 3 –

Page 4

NOTE ON BEFORE STARTING REPAIR

1. Forced discharge of electrolytic capacitor of power supply block

When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect can occur. In order to prevent the secondary trouble, perform the following measures before starting repair work.

Discharge procedure

1 Remove the AC power cord.

11 22

2 Connect a discharging resistor at an end of lead wire that

has clips at both ends. Connect the other end of the lead wire to metal chassis.

3 Contact the other end of the discharging resistor to the

positive (+) side (+VH) of C101. (For two seconds)

4 Contact the same end of the discharging resistor as step

3 to the negative (-) side (-VH) of C102 in the same way.

(For two seconds)

5 Check that voltage across C101 and C102 has decreased

to 1 V or less using a multimeter or an oscilloscope.

Select a discharging resistor referring to the following table.

Charging voltage (V) Discharging

(C101, 102) resistor (Ω)

25-48 100 3 87-A00-247-090

49-140 220 5 87-A00-232-090

Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the

reference numbers of the charging capacitors on schematic diagram before starting the discharging work.

Rated power (W) Parts number

MAIN C.B

D101

C101 C102

Fig-1

2. Check items before exchanging the MICROCOMPUTER

Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming that the MICROCOMPUTER is surely defective.

2-1. Regarding the HOLD terminal of the MICROCOMPUTER

When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly. When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD terminal before exchange. When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.

• Good or no good judgement of the MICROCOMPUTER

1 Turn on the AC main power.

11 22

2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.

22 33

3 When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the

MICROCOMPUTER is judged to be good.

– 4 –

Page 5

In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.

2-2. Regarding reset

There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed. When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no good of the MICROCOMPUTER.

1 Remove the AC power cord.

FRONT C.B

MICROCOMPUTER

FRONT C.B

2 Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.

22 33

3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is

good.

Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending

on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.

C113

Short with tweezers.

Fig-2-2

C113

VSS

VDD

MICROCOMPUTER

2-3. Confirmation of soldering state of MICROCOMPUTER

Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.

– 5 –

Page 6

ELECTRICAL MAIN PARTS LIST

PART NO.

NO.

8A-MA5-656-010 C-IC,LC876580W-5P44 87-A21-417-010 IC,STK490-310 87-A21-396-010 IC,STK490-040 87-A21-021-040 C-IC,BU2099FV 87-A21-419-040 C-IC,NJM14558MD-TE2

87-A21-577-040 C-IC,M61506FP 87-A21-482-010 IC,RPM 6938-H4 87-A21-401-040 C-IC,M61503FP 87-A21-415-010 IC,LA1843 87-070-127-110 IC,LC72131 D

87-A21-269-010 IC,EW732 87-A20-440-040 IC,BU1920FS

TRANSISTOR

87-026-609-080 TR,KTA1266GR 89-213-702-010 TR,2SB1370 (1.8W) 87-026-610-080 TR,KTC3198GR 87-A30-076-080 C-TR,2SC3052F 87-A30-075-080 C-TR,2SA1235F

87-A30-257-080 C-TR,2SD1306E 87-026-245-080 TR,DTC114ES 87-A30-198-080 TR,KTC3199GR 87-A30-484-080 C-TR,KRA102S 87-A30-107-070 C-TR,CMBT5401

87-A30-106-040 C-TR,CMBT5551 87-A30-087-080 C-FET,2SK2158 87-A30-468-080 C-TR,KRC102S-RTK 87-A30-091-080 FET,2SJ460 87-A30-090-080 FET,2SK2541

87-A30-104-080 C-TR,RT1N 144C 87-A30-329-080 TR,CD1585BC 87-A30-318-080 TR,CSA952K 89-333-317-080 TR,2SC3331 (T/U) 87-A30-269-040 C-FET,2SJ461-T1

89-327-143-080 C-TR,2SC2714O(0.1W) 87-A30-489-080 C-TR,KRA 107S 87-A30-234-080 TR,CSC4115BC 87-A30-086-070 C-TR,CSD1306E 87-A30-074-080 C-TR,RT1P141C

89-503-602-080 C-FET,2SK360E

DIODE

87-A40-393-090 DIODE,1N5402GW(F20) 87-020-465-080 DIODE,1SS133 (110MA) 87-017-447-010 DIODE,GBU 4DL-6419 87-A40-455-080 DIODE,RL203 GW 87-070-274-080 DIODE,1N4003 SEM

87-A40-780-080 ZENER,UZ33BSD 87-020-465-080 DIODE,1SS133 87-A40-764-080 ZENER,UZ10BSC 87-A40-553-080 DIODE,1N4003 LES 87-A40-313-080 C-DIODE,MC 2840

87-A40-270-080 C-DIODE,MC2838 87-A40-269-080 C-DIODE,MC2836 87-A40-768-080 ZENER, UZ16BSA 87-017-154-080 ZENER,HZS6C3L 87-A40-751-080 ZENER,UZ6.2BSB

87-A40-739-080 ZENER,UZ2.7BSA 87-017-149-080 ZENER,HZS6A2L

MAIN C.B

C3 87-A10-712-080 CHIP CAPACITOR,0.22-50 C4 87-A10-712-080 CHIP CAPACITOR,0.22-50 C5 87-A10-712-080 CHIP CAPACITOR,0.22-50 C6 87-A10-712-080 CHIP CAPACITOR,0.22-50

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C9 87-A10-712-080 CHIP CAPACITOR,0.22-50 C10 87-A10-712-080 CHIP CAPACITOR,0.22-50 C11 87-A10-712-080 CHIP CAPACITOR,0.22-50 C12 87-A10-712-080 CHIP CAPACITOR,0.22-50 C15 87-A10-712-080 CHIP CAPACITOR,0.22-50

C16 87-A10-712-080 CHIP CAPACITOR,0.22-50 C17 87-A10-712-080 CHIP CAPACITOR,0.22-50 C18 87-A10-712-080 CHIP CAPACITOR,0.22-50 C19 87-010-917-000 CAP,E 3300-50 C20 87-010-917-000 CAP,E 3300-50

C21 87-A10-520-000 CAP,E 3300-35 SME C22 87-A10-520-000 CAP,E 3300-35 SME C23 87-A10-520-000 CAP,E 3300-35 M SME C24 87-A10-520-000 CAP,E 3300-35 M SME C25 87-010-247-080 CAP, ELECT 100-50V

C26 87-010-247-080 CAP, ELECT 100-50V C30 87-010-430-080 CAP, ELECT 100-63V C31 87-010-263-080 CAP, ELECT 100-10V C32 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C34 87-010-247-080 CAP, ELECT 100-50V

C35 87-010-380-080 CAP, ELECT 47-16V C36 87-010-381-080 CAP, ELECT 330-16V C38 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C60 87-010-403-080 CAP, ELECT 3.3-50 M 11L SME C61 87-010-260-080 CAP, ELECT 47-25V

C101 87-010-178-080 CHIP CAP 1000P-50 KB C2012 C102 87-010-178-080 CHIP CAP 1000P-50 KB C2012 C103 87-010-405-080 CAP, ELECT 10-50V C104 87-010-405-080 CAP, ELECT 10-50V C107 87-010-404-080 CAP, ELECT 4.7-50V

C108 87-010-404-080 CAP, ELECT 4.7-50V C109 87-010-166-080 C-CAP,S 100P-50 J SL C110 87-010-166-080 C-CAP,S 100P-50 J SL C111 87-010-405-080 CAP, ELECT 10-50V C112 87-010-405-080 CAP, ELECT 10-50V

C113 87-010-866-080 CAP, ELECT 10-63 M VX C114 87-010-866-080 CAP, ELECT 10-63 M VX C119 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C120 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C123 87-010-176-080 C-CAP,S 680P-50 SL

C124 87-010-176-080 C-CAP,S 680P-50 SL C125 87-012-368-080 C-CAP,S 0.1-50 ZF C126 87-012-368-080 C-CAP,S 0.1-50 ZF C127 87-012-368-080 CHIP CAPACITOR,0.1-50 C128 87-012-368-080 CHIP CAPACITOR,0.1-50

C129 87-010-191-080 C-CAP,S 0.015-50 ZF GRM C130 87-010-191-080 C-CAP,S 0.015-50 ZF GRM C133 87-010-186-080 CAP,CHIP 4700P-50 KB C2012 C134 87-010-404-080 CAP, ELECT 4.7-50V C140 87-010-186-080 C-CAP,S 4700P-50 KB C2012

C160 87-010-196-080 CHIP CAPACITOR,0.1-25 C203 87-010-183-080 C-CAP,S 2700P-50 KB GRM C204 87-010-183-080 C-CAP,S 2700P-50 KB GRM C205 87-010-170-080 C-CAP,S 220P-50 J SL C206 87-010-170-080 C-CAP,S 220P-50 J SL

C209 87-010-403-080 CAP, ELECT 3.3-50V C210 87-010-403-080 CAP, ELECT 3.3-50V C211 87-010-184-080 CHIP CAPACITOR 3300P-50 C212 87-010-184-080 CHIP CAPACITOR 3300P-50 C213 87-010-403-080 CAP, ELECT 3.3-50V

C214 87-010-403-080 CAP, ELECT 3.3-50V C217 87-010-405-080 CAP, ELECT 10-50V C218 87-010-405-080 CAP, ELECT 10-50V C220 87-010-405-080 CAP, ELECT 10-50V C223 87-010-190-080 CAP, CHIP 0.01-50 ZF C2012

C224 87-010-190-080 CAP, CHIP 0.01-50 ZF C2012 C228 87-010-405-080 CAP, ELECT 10-50V C229 87-010-993-080 C-CAP,S 0.056-25 B C230 87-010-993-080 C-CAP,S 0.056-25 B C231 87-010-196-080 CHIP CAPACITOR,0.1-25

DESCRIPTIONREF. NO. KANRI

– 6 –

Page 7

PART NO.

NO.

C232 87-010-196-080 CHIP CAPACITOR,0.1-25 C233 87-010-190-080 CAP, CHIP 0.01-50 C234 87-010-190-080 CAP, CHIP 0.01-50 C241 87-016-081-080 C-CAP, S 0.1-16 KR GRM C242 87-016-081-080 C-CAP, S 0.1-16 KR GRM

C301 87-010-178-080 CHIP CAP 1000P-50 KB C2012 C302 87-010-178-080 CHIP CAP 1000P-50 KB C2012 C303 87-010-178-080 CHIP CAP 1000P-50 KB C2012 C304 87-010-178-080 CHIP CAP 1000P-50 KB C2012 C307 87-010-263-080 CAP, ELECT 100-10V

C308 87-010-263-080 CAP, ELECT 100-10V C309 87-010-318-080 C-CAP,S 47P-50 CH C310 87-010-318-080 C-CAP,S 47P-50 CH C313 87-010-188-080 CAP CHIP S6800P-50 KB C2012 C314 87-010-188-080 CAP CHIP S6800P-50 KB C2012

C315 87-010-263-080 CAP, ELECT 100-10V C317 87-010-546-080 CAP, ELECT 0.33-50V C318 87-010-546-080 CAP, ELECT 0.33-50V C326 87-010-198-080 CAP, CHIP 0.022-25 C327 87-012-368-080 CHIP CAPACITOR,0.1-50

C360 87-010-401-080 CAP, ELECT 1-50V C365 87-010-197-080 C-CAP,S 0.01-25 KB C399 87-012-140-080 CAP 470P-50 C401 87-010-544-080 CAP, ELECT 0.1-50V C402 87-010-544-080 CAP, ELECT 0.1-50V

C403 87-010-321-080 CHIP CAPACITOR,82P-50J CH C404 87-010-321-080 CHIP CAPACITOR,82P-50J CH C405 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C406 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C407 87-010-197-080 CAP, CHIP 0.01-25 KB C2012

C408 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C409 87-010-182-080 C-CAP,S 2200P-50 B C410 87-010-182-080 C-CAP,S 2200P-50 B C411 87-010-405-080 CAP, ELECT 10-50V C412 87-010-405-080 CAP, ELECT 10-50V

C452 87-010-382-080 CAP, ELECT 22-25V C453 87-010-183-080 C-CAP,S 2700P-50 B C454 87-010-183-080 C-CAP,S 2700P-50 B C455 87-010-183-080 C-CAP,S 2700P-50 B C456 87-010-197-080 CAP, CHIP 0.01-25

C458 87-010-178-080 CHIP CAP 1000P-50 C459 87-010-175-080 CAP 560P-50 J SL C460 87-016-669-080 CAP, CHIP 0.01-25 C461 87-012-158-080 C-CAP,S 390P-50 CH C462 87-012-158-080 C-CAP,S 390P-50 CH

C507 87-010-196-080 CHIP CAPACITOR,0.1-25 C518 87-010-196-080 CHIP CAPACITOR,0.1-25 C519 87-010-404-080 CAP, ELECT 4.7-50V C520 87-010-404-080 CAP, ELECT 4.7-50V C521 87-010-546-080 CAP, ELECT 0.33-50V

C522 87-010-546-080 CAP, ELECT 0.33-50V C523 87-010-256-080 CAP, ELECT 0.68-50V C524 87-010-256-080 CAP, ELECT 0.68-50V C525 87-010-545-080 CAP, ELECT 0.22-50V C526 87-010-545-080 CAP, ELECT 0.22-50V

C601 87-010-179-080 CAP,CHIP S 1200P-50 KB GRM C602 87-010-179-080 CAP,CHIP S 1200P-50 KB GRM C605 87-010-179-080 CAP,CHIP S 1200P-50 KB GRM C606 87-010-179-080 CAP,CHIP S 1200P-50 KB GRM C609 87-010-213-080 C-CAP,S 0.015-25 B

C610 87-010-213-080 C-CAP,S 0.015-25 B C611 87-010-545-080 CAP, ELECT 0.22-50V C612 87-010-545-080 CAP, ELECT 0.22-50V C613 87-010-545-080 CAP, ELECT 0.22-50V C614 87-010-545-080 CAP, ELECT 0.22-50V

C615 87-010-154-080 CAP CHIP 10P-50 D CH GRM C616 87-010-385-080 CAP, ELECT 220-25V C617 87-010-385-080 CAP, ELECT 220-25V C618 87-010-405-080 CAP, ELECT 10-50V C620 87-010-263-080 CAP, ELECT 100-10 M 11L SME

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C630 87-A10-201-080 CAP, S 0.33-16 C631 87-010-185-080 C-CAP,S 3900P-50 B C632 87-010-185-080 C-CAP,S 3900P-50 B C633 87-010-193-080 CHIP CAPACITOR,0.033-25 C634 87-010-193-080 CHIP CAPACITOR,0.033-25

C669 87-010-322-080 C-CAP,S 100P-50 CH C670 87-010-322-080 C-CAP,S 100P-50 CH C673 87-010-182-080 C-CAP,S 2200P-50 B C677 87-010-197-080 C-CAP, S 0.01-25 KB C2012 C678 87-010-197-080 C-CAP, S 0.01-25 KB C2012

C771 87-010-263-080 CAP, ELECT 100-10V C772 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C779 87-010-426-080 C-CAP,S 0.012-25 KB C780 87-010-426-080 C-CAP,S 0.012-25 KB C782 87-010-197-080 CAP, CHIP 0.01-25 KB C2012

C783 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C784 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C785 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C786 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C788 87-010-149-080 C-CAP,S 5P-50 CH

C789 87-A10-801-080 C-CAP,S 0.022-16 JB C790 87-A10-801-080 C-CAP,S 0.022-16 JB C791 87-010-196-080 CHIP CAPACITOR,0.1-25 C792 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C793 87-010-404-080 CAP, ELECT 4.7-50V

C795 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C796 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C797 87-010-405-080 CAP, ELECT 10-50V C798 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C799 87-010-407-080 CAP, ELECT 33-50V

C800 87-012-369-080 C-CAP,S 0.047-50F C801 87-010-403-080 CAP, ELECT 3.3-50V C802 87-010-194-080 CAP, CHIP 0.047-25 ZF C803 87-010-198-080 CAP, CHIP 0.022-25 C804 87-010-263-080 CAP, ELECT 100-10V

C807 87-010-400-080 CAP, ELECT 0.47-50V C808 87-010-401-080 CAP, ELECT 1-50V C809 87-010-401-080 CAP, ELECT 1-50V C810 87-010-196-080 CHIP CAPACITOR,0.1-25 C814 87-010-197-080 CAP, CHIP 0.01-25 KB C2012

C815 87-010-403-080 CAP, ELECT 3.3-50V C816 87-010-403-080 CAP, ELECT 3.3-50V C818 87-010-180-080 C-CAP,S 1500P-50 KB C821 87-010-405-080 CAP, ELECT 10-50V C823 87-012-349-080 C-CAP,S 1000P-50 CH

C824 87-010-405-080 CAP, ELECT 10-50 C825 87-010-596-080 CAP, S 0.047-16 C831 87-010-406-080 CAP,E 22-50V C842 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C844 87-010-197-080 CAP, CHIP 0.01-25 KB C2012

C850 87-010-260-080 CAP, ELECT 47-25V C851 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C852 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C853 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C858 87-010-196-080 CHIP CAPACITOR,0.1-25

C859 87-010-196-080 CHIP CAPACITOR,0.1-25 C860 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C869 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C871 87-012-156-080 C-CAP,S 220P-50 J CH C872 87-012-156-080 C-CAP,S 220P-50 J CH

C873 87-012-140-080 C-CAP,S 470P-50 J CH C874 87-010-405-080 CAP,E 10-50V C875 87-010-196-080 CHIP CAPACITOR,0.1-25 C876 87-010-405-080 CAP,E 10-50V C877 87-010-197-080 CAP, CHIP 0.01-25 KB C2012

C878 87-010-316-080 C-CAP,S 33P-50 J CH C879 87-010-314-080 C-CAP,S 22P-50 J CH C940 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C942 87-010-149-080 C-CAP,S 5P-50 CH C947 87-010-197-080 CAP, CHIP 0.01-25 KB C2012

DESCRIPTIONREF. NO. KANRI

– 7 –

Page 8

PART NO.

NO.

C948 87-012-140-080 C-CAP,S 470P-50 J CH C952 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C957 87-010-311-080 C-CAP,S 12P-50 J CH C958 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C959 87-010-196-080 CHIP CAPACITOR,0.1-25

C960 87-010-196-080 CHIP CAPACITOR,0.1-25 C962 87-010-401-080 CAP,E 1-50V C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z C971 87-010-381-080 CAP, ELECT 330-16V C972 87-010-404-080 CAP, ELECT 4.7-50V

C973 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C974 87-010-197-080 CAP, CHIP 0.01-25 KB C2012 C979 87-010-322-080 C-CAP,S 100P-50 CH C981 87-010-260-080 CAP, ELECT 47-25V C982 87-010-196-080 CHIP CAPACITOR,0.1-25

C983 87-010-197-080 CAP, CHIP 0.01-25 C984 87-010-197-080 CAP, CHIP 0.01-25 C985 87-010-322-080 C-CAP,S 100P-50 J CH C987 87-010-197-080 CAP, CHIP 0.01-25 C989 87-010-197-080 CAP, CHIP 0.01-25

C991 87-010-312-080 C-CAP,S 15P-50 CH C992 87-010-312-080 C-CAP,S 15P-50 CH C993 87-010-178-080 CHIP CAP 1000P-50 C995 87-010-178-080 CHIP CAP 1000P-50 C997 87-010-196-080 CHIP CAPACITOR,0.1-25

C998 87-010-260-080 CAP, ELECT 47-25V C999 87-A11-132-080 CAP,TC U 0.01-50 KB CF831 87-008-423-010 FLTR,CF SFE10.7MS3G-A CF832 82-785-747-010 CF,MS2 GHY,R CN301 87-A60-620-010 CONN,3P V 2MM JMT

CN351 87-A60-625-010 CONN,8P V 2MM JMT CN601 87-099-719-010 CONN,30P TYK-B(X) CN602 87-A60-131-010 CONN,6P V FE CNA1 8A-NF8-654-010 CONN ASSY,11P TID-A(480) FB301 87-A90-896-080 F-BEAD,035600STY7

FB602 87-A90-896-080 F-BEAD,035600STY7 FC602 88-906-321-110 FF-CABLE, 6P 1.25 FFE831 A8-6ZA-191-130 6ZA-1 FEENM J201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM J203 87-A60-238-010 TERMINAL,SP 4P (MSC)

J205 87-A61-157-010 JACK,PIN 2P R/W/BL V(SEPA)KM J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312 V05 L101 87-003-383-010 COIL,1UH-S L102 87-003-383-010 COIL,1UH-S

L201 87-003-383-010 COIL,1UH-S L202 87-003-383-010 COIL,1UH-S L451 87-007-342-010 COIL,OSC 85K BIAS L801 87-A50-540-010 COIL,FM DET(TOK) L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)

L811 87-005-847-080 COIL,2.2UH(CECS) L832 87-005-847-080 COIL,2.2UH(CECS) L861 87-005-847-080 COIL,2.2UH(CECS) L941 87-A50-020-010 COIL,ANT LW (COI)252KHZ L942 87-A50-019-010 COIL,OSC LW (COI)856KHZ

L951 8A-NF8-668-010 COIL,AM PACK 2(TOK) R129 87-A00-262-080 RES,M/F 0.15-2W J R130 87-A00-262-080 RES,M/F 0.15-2W J R143 87-A00-440-050 RES,220-1/2W J RP R144 87-A00-440-050 RES,220-1/2W J RP

R145 87-A00-440-050 RES,220-1/2W J RP R146 87-A00-440-050 RES,220-1/2W J RP R233 87-A00-258-080 RES,M/F 0.22-1W J R234 87-A00-258-080 RES,M/F 0.22-1W J R991 87-010-322-080 C-CAP, S 100P-50 J CH GRM

R993 87-010-322-080 C-CAP, S 100P-50 J CH GRM R995 87-010-322-080 C-CAP, S 100P-50 J CH GRM SFR451 87-A90-432-080 SFR,30K H NVZ6TLTA SFR452 87-A90-432-080 SFR,30K H NVZ6TLTA TC942 87-011-253-080 TRIMMER,CER 30P 4.0X4.5

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

WH1 87-A91-179-010 HLDR,WIRE 2.5-11P X861 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309

MICON C.B

C101 87-010-498-040 CAP,E 10-16 M 5L SRE C102 87-010-194-080 CAP, CHIP 0.047-25 Z F C103 87-010-194-080 CAP, CHIP 0.047-25 Z F C105 87-A11-242-040 CAP,E 220-10 M 5L SRM C106 87-A11-242-040 CAP,E 220-10 M 5L SRM

C107 87-010-196-080 CHIP CAPACITOR,0.1-25 C111 87-016-460-080 C-CAP,S 0.22-16 K B C112 87-010-493-040 CAP,E 0.47-50 GAS C113 87-010-178-080 CHIP CAP 1000P-50 C114 87-018-209-080 CAP TC U 0.1-50 ZF UP 050

C116 87-010-196-080 C-CAP,S 0.1-25 ZF C2012 C122 87-012-369-080 C-CAP,S 0.047-50F C123 87-010-408-040 CAP,E 47-50 SME C124 87-010-421-040 CAP,E 4.7-50 5L C125 87-010-421-040 CAP,E 4.7-50 5L

C132 87-012-156-080 C-CAP,S 220P-50 CH C133 87-010-316-080 C-CAP,S 33P-50 CH C134 87-010-178-080 C-CAP,S 1000P-50KB C135 87-018-209-080 CAP, TCU 0.1-50 C137 87-010-313-080 CAP, CHIP 18P-50

C138 87-010-196-080 CHIP CAPACITOR,0.1-25 C188 87-010-194-080 CAP, CHIP 0.047-25 C193 87-010-197-080 CAP, CHIP 0.01-25 C251 87-010-196-080 CHIP CAPACITOR,0.1-25 C252 87-012-156-080 C-CAP,S 220P-50 CH

C253 87-010-322-080 C-CAP,S 100P-50 CH C301 87-012-358-080 C-CAP,S 0.47-10 F Z C302 87-012-158-080 C-CAP,S 390P-50 CH C303 87-012-358-080 C-CAP,S 0.47-10 F Z C304 87-012-358-080 C-CAP,S 0.47-10 F Z

C305 87-010-196-080 CHIP CAPACITOR,0.1-25 C306 87-010-196-080 CHIP CAPACITOR,0.1-25 C310 87-010-196-080 CHIP CAPACITOR,0.1-25 C311 87-010-405-040 CAP,E 10-50 C411 87-012-157-080 C-CAP,S 330P-50 CH

C412 87-010-405-040 CAP,E 10-50 C421 87-010-197-080 CAP, CHIP 0.01-25 C422 87-010-182-080 C-CAP,S 2200P-50 B C940 87-012-145-080 CAP, CHIP S 270P-50 C941 87-012-145-080 CAP, CHIP S 270P-50

C942 87-012-145-080 CAP, CHIP S 270P-50 C943 87-012-145-080 CAP, CHIP S 270P-50 C944 87-012-145-080 CAP, CHIP S 270P-50 C945 87-012-145-080 CAP, CHIP S 270P-50 C946 87-012-145-080 CAP, CHIP S 270P-50

C947 87-012-145-080 CAP, CHIP S 270P-50 C948 87-012-145-080 CAP, CHIP S 270P-50 C949 87-012-145-080 CAP, CHIP S 270P-50 C950 87-012-145-080 CAP, CHIP S 270P-50 C951 87-012-145-080 CAP, CHIP S 270P-50

C952 87-012-145-080 CAP, CHIP S 270P-50 CN101 87-099-720-010 CONN,30P TYK-B(P) CN102 87-A60-162-010 CONN,14P H FE CN103 87-A60-160-010 CONN,12P H FE CN104 87-A60-159-010 CONN,11P H FE

CN301 87-A60-156-010 CONN,8P H FE FB001 87-A90-896-080 F-BEAD,035600STY7 FC102 88-914-231-110 FF-CABLE,14P 1.25 FC104 88-911-151-110 FF-CABLE,11P 1.25 FL101 8A-MA5-651-010 FL,BJ746GNK

L101 87-A50-333-010 COIL,OSC 9.43MHZ LED131 87-A40-317-080 LED,SLR-342VCT31 RED LED201 87-A40-496-040 LED,SLR-342PCT31 GRN LED202 87-A40-317-080 LED,SLR-342VCT31 RED

DESCRIPTIONREF. NO. KANRI

– 8 –

Page 9

PART NO.

DESCRIPTIONREF. NO. KANRI

NO.

LED204 87-A40-496-040 LED,SLR-342PCT31 GRN LED205 87-A40-317-080 LED,SLR-342VCT31 RED LED208 87-A40-496-040 LED,SLR-342PCT31 GRN LED210 87-A40-317-080 LED,SLR-342VCT31 RED LED211 87-A40-496-040 LED,SLR-342PCT31 GRN

LED212 87-A40-317-080 LED,SLR-342VCT31 RED S401 87-A90-095-080 SW,TACT EVQ11G04M S402 87-A90-095-080 SW,TACT EVQ11G04M S405 87-A90-095-080 SW,TACT EVQ11G04M S421 87-A91-625-010 SW,RTRY EC12E24308-30MM

CNTL C.B

C651 87-010-182-080 C-CAP,S 2200P-50 B C652 87-010-197-080 CAP, CHIP 0.01-25 C661 87-010-196-080 C-CAP,S 0.1-25 ZF C663 87-012-156-080 C-CAP,S 220P-50 CH C846 87-010-196-080 C-CAP,S 0.1-25 ZF

CN661 87-A60-160-010 CONN,12P H FE FC661 88-912-151-110 FF-CABLE,12P 1.25 LED675 87-A40-317-080 LED,SLR-342VCT31 RED LED676 87-A40-317-080 LED,SLR-342VCT31 RED LED677 87-A40-317-080 LED,SLR-342VCT31 RED

LED678 87-A40-317-080 LED,SLR-342VCT31 RED LED679 87-A40-317-080 LED,SLR-342VCT31 RED LED682 87-A40-619-040 LED,SLR-56PT-T31-W GRN LED683 87-A40-619-040 LED,SLR-56PT-T31-W GRN LED684 87-A40-619-040 LED,SLR-56PT-T31-W GRN

LED685 87-A40-619-040 LED,SLR-56PT-T31-W GRN LED698 87-A40-619-040 LED,SLR-56PT-T31-W GRN S651 87-A91-624-010 SW,RTRY EC12E1240405-20MM S805 87-A90-095-080 SW,TACT EVQ11G04M S806 87-A90-095-080 SW,TACT EVQ11G04M

S807 87-A90-095-080 SW,TACT EVQ11G04M S808 87-A90-095-080 SW,TACT EVQ11G04M S809 87-A90-095-080 SW,TACT EVQ11G04M S821 87-A90-095-080 SW,TACT EVQ11G04M S822 87-A90-095-080 SW,TACT EVQ11G04M

S823 87-A90-095-080 SW,TACT EVQ11G04M S824 87-A90-095-080 SW,TACT EVQ11G04M S826 87-A90-095-080 SW,TACT EVQ11G04M S827 87-A90-095-080 SW,TACT EVQ11G04M S828 87-A90-095-080 SW,TACT EVQ11G04M

S829 87-A90-095-080 SW,TACT EVQ11G04M S830 87-A90-095-080 SW,TACT EVQ11G04M S831 87-A90-095-080 SW,TACT EVQ11G04M S836 87-A90-095-080 SW,TACT EVQ11G04M S837 87-A90-095-080 SW,TACT EVQ11G04M

S838 87-A90-095-080 SW,TACT EVQ11G04M S842 87-A90-095-080 SW,TACT EVQ11G04M S843 87-A90-095-080 SW,TACT EVQ11G04M S845 87-A90-095-080 SW,TACT EVQ11G04M S846 87-A90-095-080 SW,TACT EVQ11G04M

S849 87-A90-095-080 SW,TACT EVQ11G04M S850 87-A90-095-080 SW,TACT EVQ11G04M S851 87-A90-095-080 SW,TACT EVQ11G04M

PART NO.

DESCRIPTIONREF. NO. KANRI

NO.

C101 87-010-387-080 CAP,E 470-25 SME C116 87-010-403-040 CAP,E 3.3-50 SME CN101 87-A61-122-010 CONN,11P V TID-A

F101 87-035-458-010 FUSE,4A 250V T 218 FC1 87-033-213-080 CLAMP, FUSE PFC5000

FC2 87-033-213-080 CLAMP, FUSE PFC5000

PR101 87-026-682-080 PROTECTOR,10A 60V491

PR104 87-026-682-080 PROTECTOR,10A 60V491 PT1 8A-MA5-662-010 PT,AMA-5 EZ

PT2 8A-NF8-662-010 PT,SUB ANF-8 (E)

RY102 87-A90-976-010 RELAY,AC12V SDT-S-112LMR T1 87-A60-317-010 TERMINAL, 1P MSC

T2 87-A60-317-010 TERMINAL, 1P MSC

DECK C.B

CN1 87-099-753-010 CONN,11P H 9604 SFR1 87-024-581-010 SFR,3.3K DIA6V K0A SW1 87-A90-673-010 SW,MICRO ESE11SH1C SW2 87-A91-500-010 SW,MICRO MPU11470MLB0 SW3 87-A91-500-010 SW,MICRO MPU11470MLB0

SW4 87-A91-500-010 SW,MICRO MPU11470MLB0 SW5 87-A90-673-010 SW,MICRO ESE11SH1C

KEY CD C.B

CN701 87-A60-156-010 CONN,8P H FE FC701 88-908-231-110 FF-CABLE,8P 1.25 S751 87-A90-095-080 SW,TACT EVQ11G04M S752 87-A90-095-080 SW,TACT EVQ11G04M S753 87-A90-095-080 SW,TACT EVQ11G04M

S754 87-A90-095-080 SW,TACT EVQ11G04M S755 87-A90-095-080 SW,TACT EVQ11G04M S756 87-A90-095-080 SW,TACT EVQ11G04M S757 87-A90-095-080 SW,TACT EVQ11G04M

PT C.B

– 9 –

Page 10

TRANSISTOR ILLUSTRATION

E C B

KTA1266GR KTC3198GR CD1585BC CSA952K

E C B

DTC114ES KTC3199GR

E C B

2SC3331(T/U)

S D G

2SJ460 2SK2541

E C B B C E

CSC4115BC

2SK2158 2SJ461-T1

2SA1235F 2SC2714O 2SC3052F CMBT5551 CMBT5401 RT1N144C

2SB1370

2SD1306E KRA102S KRC102S-RTK KRA107S CSD1306E RT1P141C

2SK360E

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

Resistor Code

Chip resistor

Wattage Type Tolerance 1/16W 1005 5% CJ

1/16W 1/10W

1/8W

1608 2125

3216

5% 5%

Symbol

CJ CJ

Figure

Value of resistor

Form

Dimensions (mm)

0.55

Resistor Code

108 118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45 2 1.25 0.45

3.2

1.6

: A : A

– 10 –

Page 11

WIRING – 1 (MAIN)

101112131415161718192021222324

1234567892526272829303132

– 11 –

Page 12

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2 : AMP SECTION)

– 12 –

Page 13

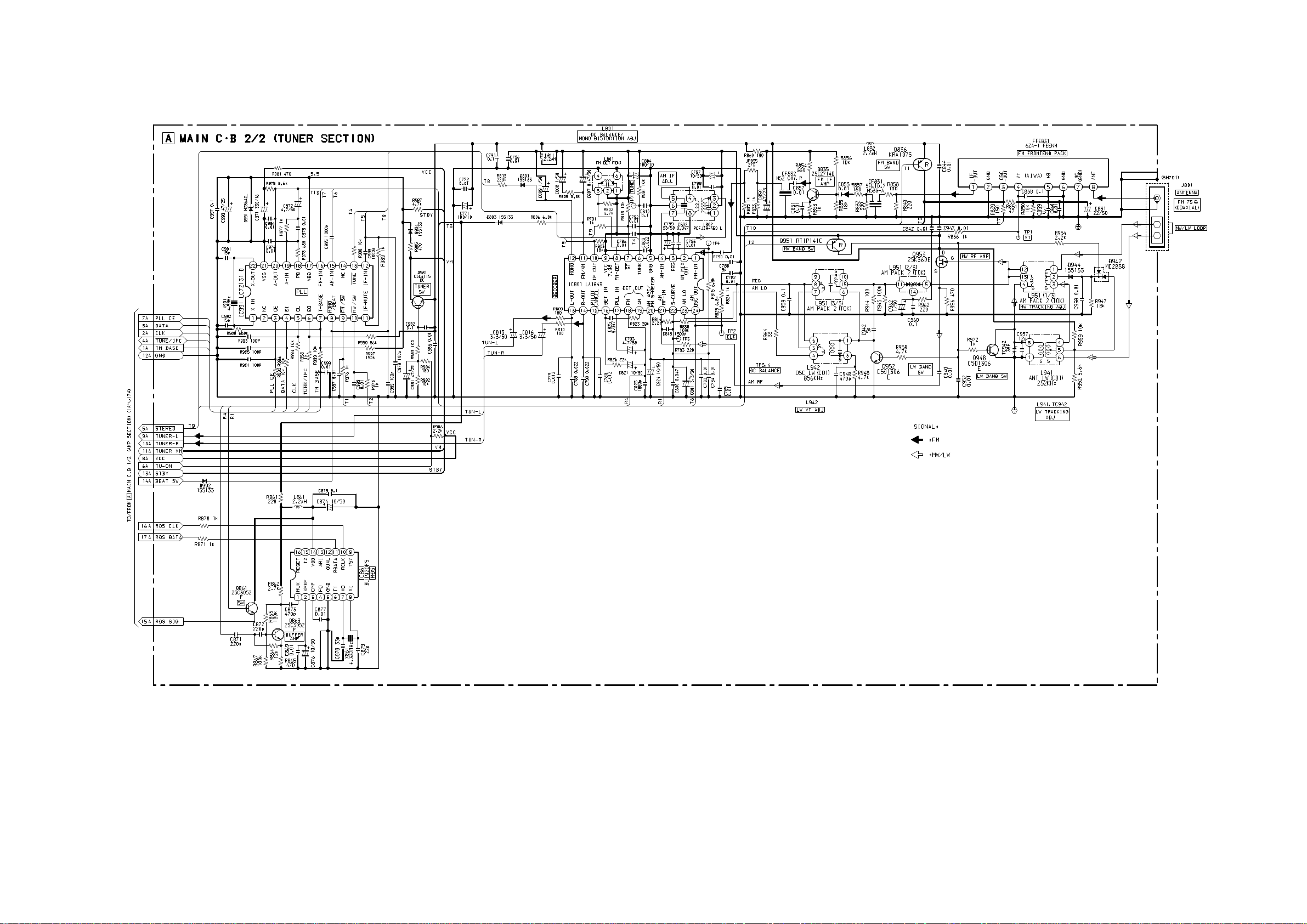

SCHEMATIC DIAGRAM – 2 (MAIN 2 / 2 : TUNER SECTION)

– 13 –

Page 14

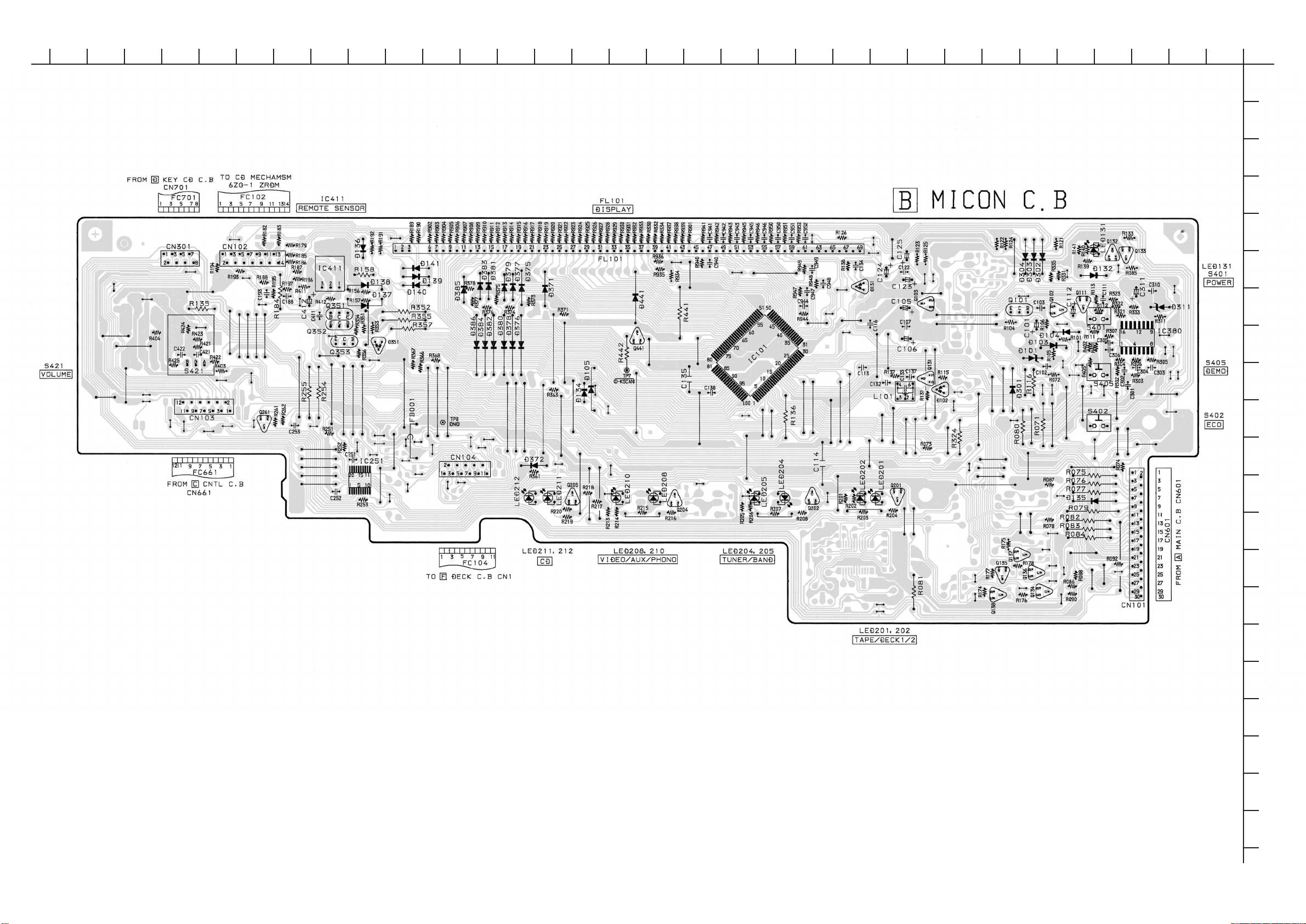

WIRING – 2 (MICON)

101112131415161718192021222324

1234567892526272829303132

– 14 –

Page 15

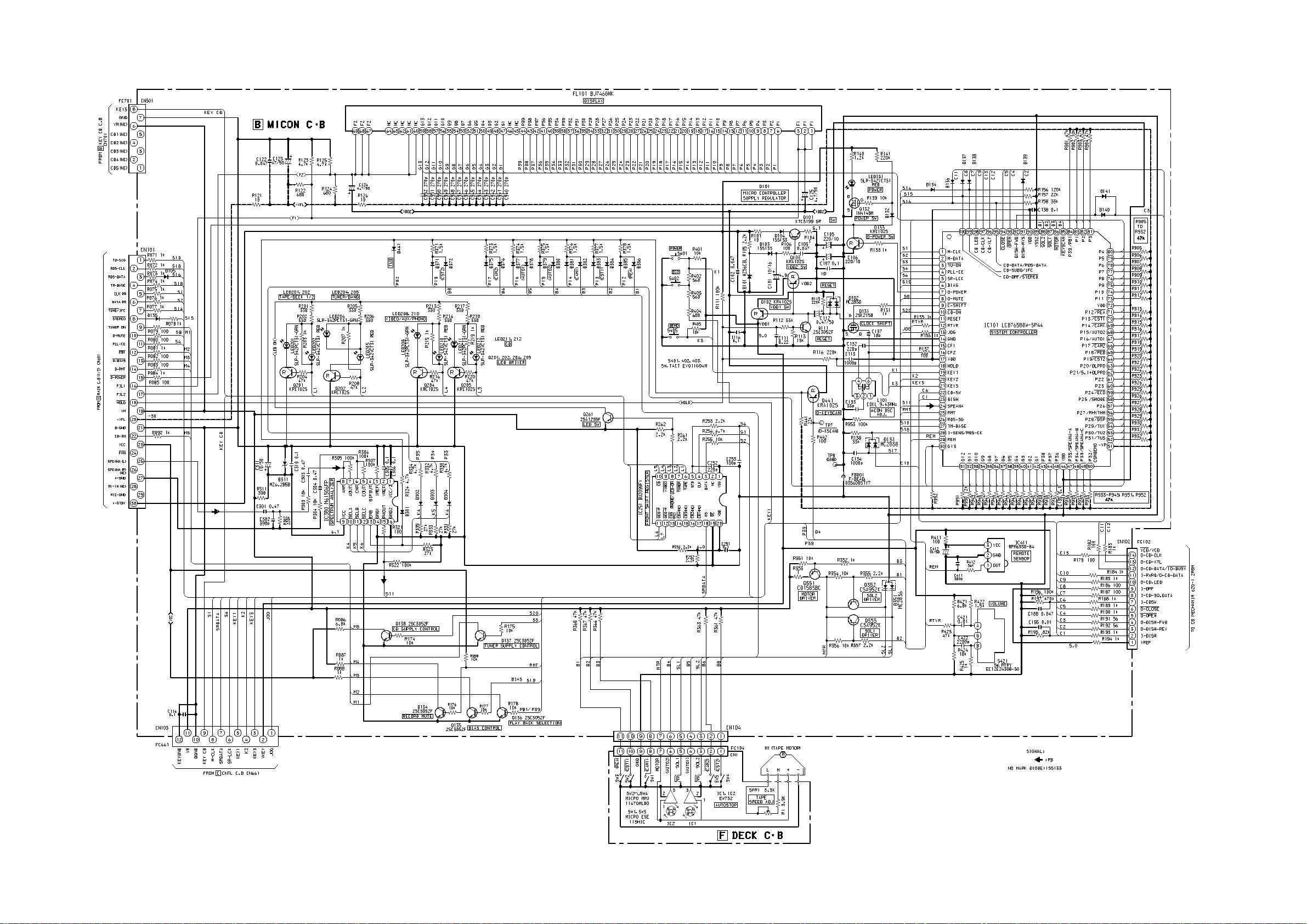

SCHEMATIC DIAGRAM – 3 (MICON / DECK)

– 15 –

Page 16

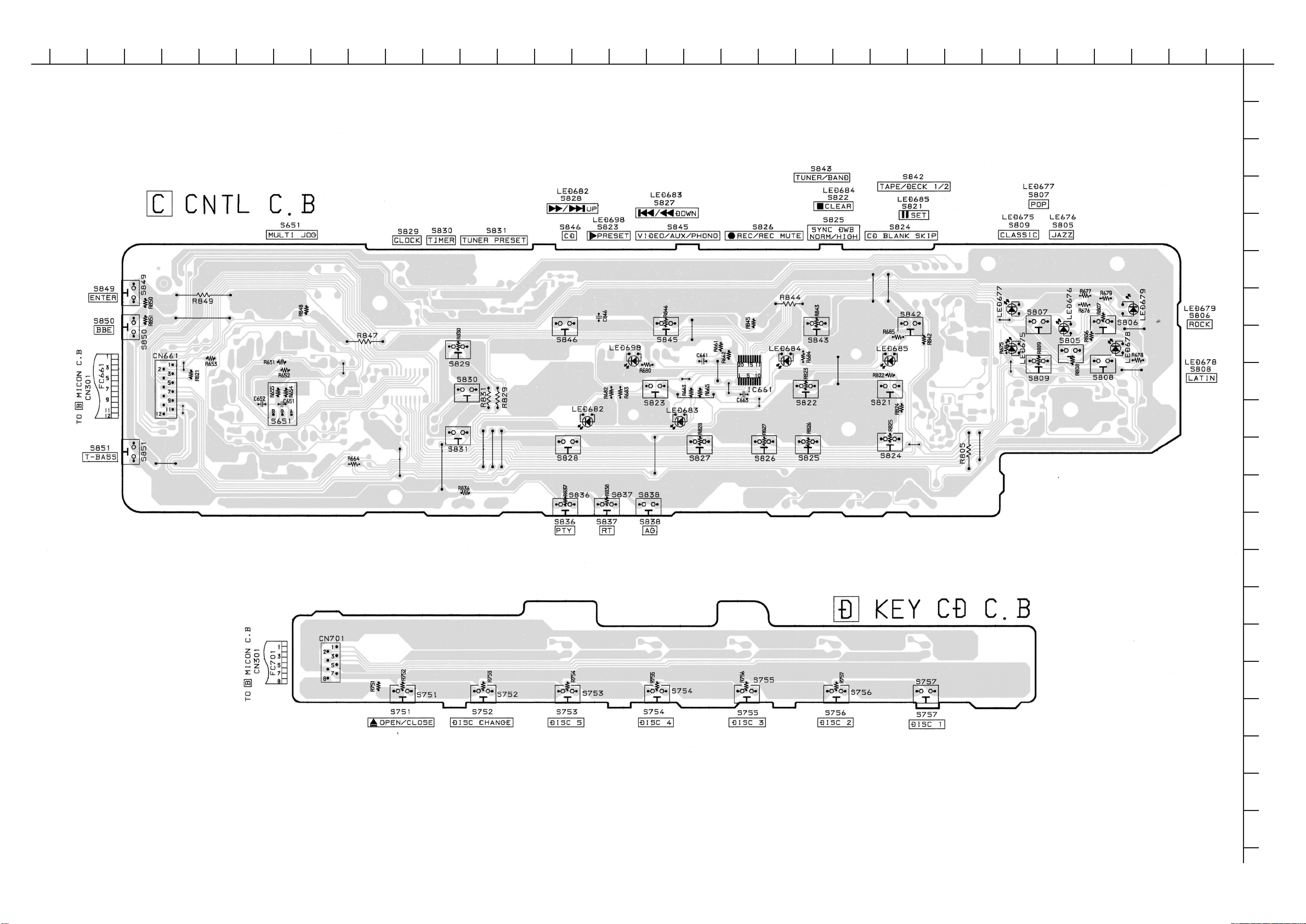

WIRING – 3 (CNTL / KEY CD)

101112131415161718192021222324

1234567892526272829303132

– 16 –

Page 17

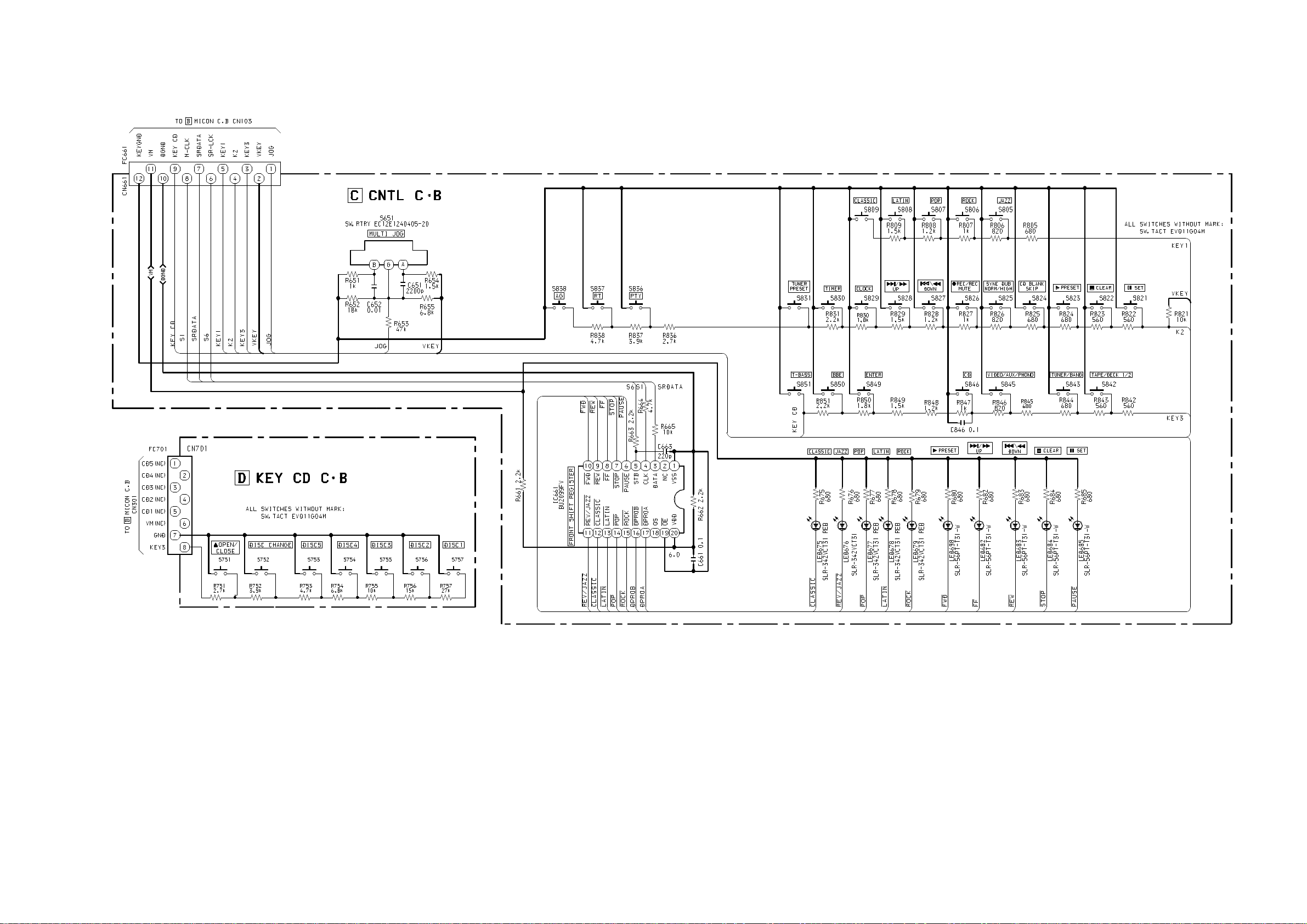

SCHEMATIC DIAGRAM – 4 (CNTL / KEY CD)

– 17 –

Page 18

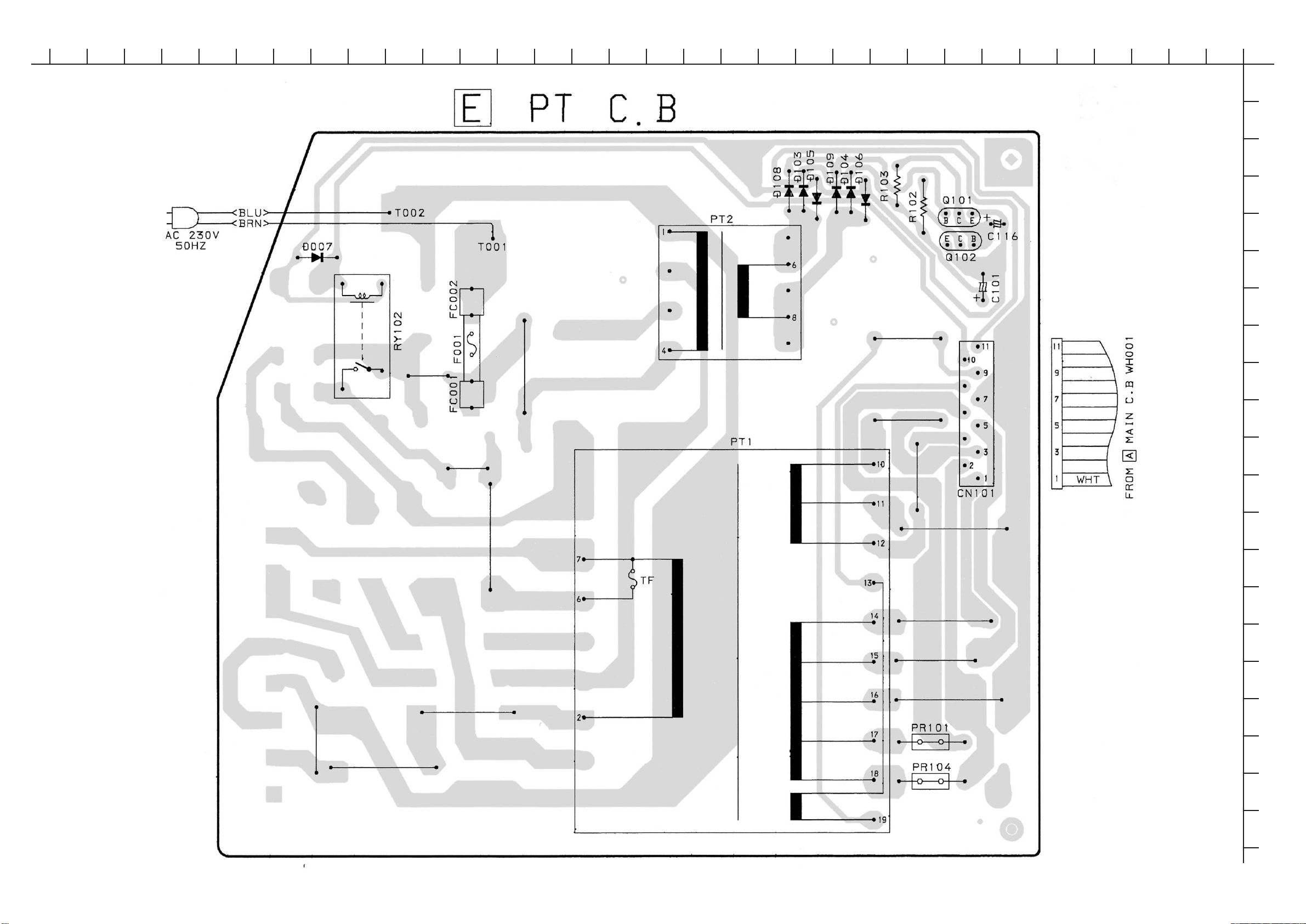

WIRING – 4 (PT)

101112131415161718192021222324

1234567892526272829303132

CNA001

– 18 –

Page 19

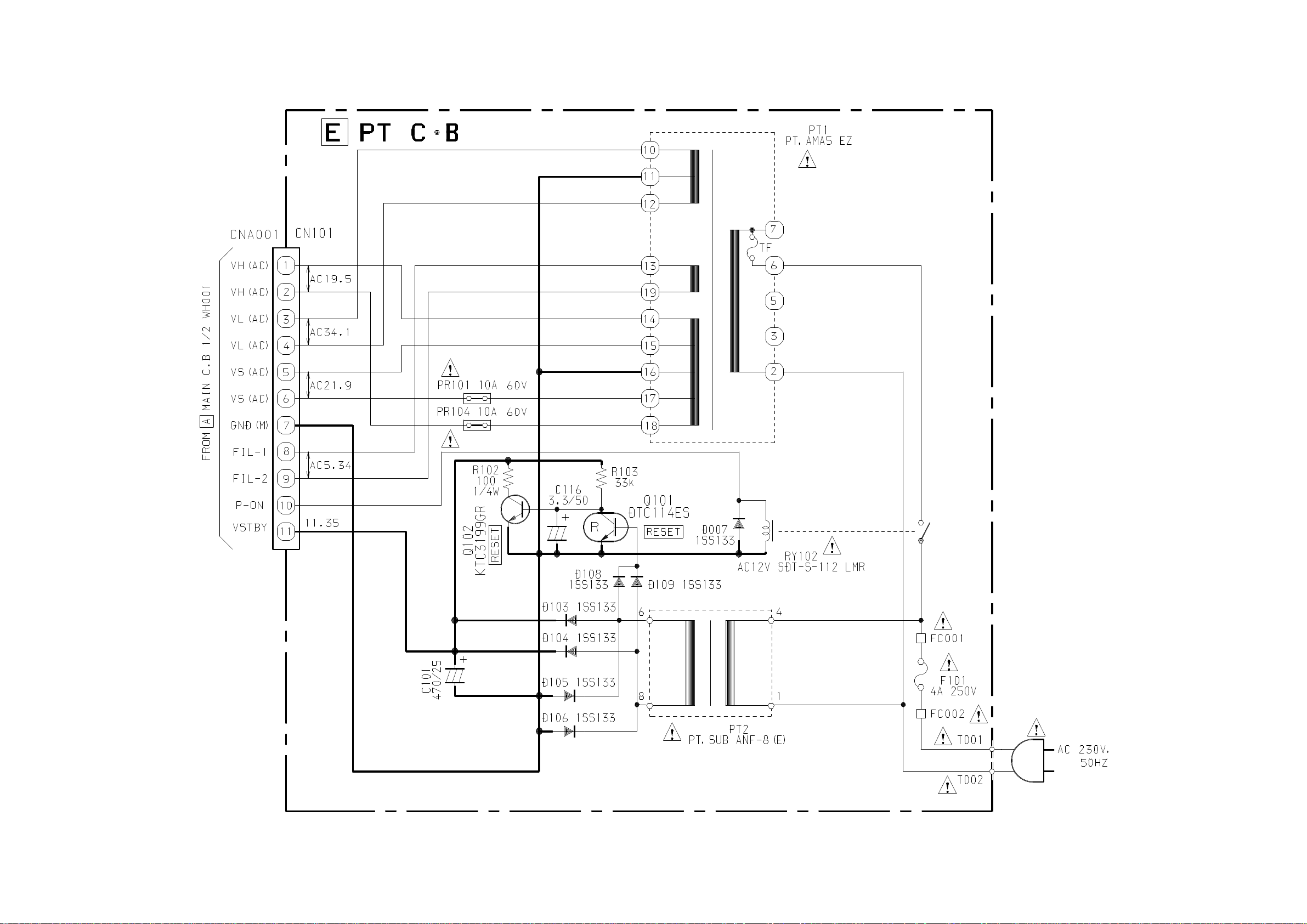

SCHEMATIC DIAGRAM – 5 (PT)

– 19 –

Page 20

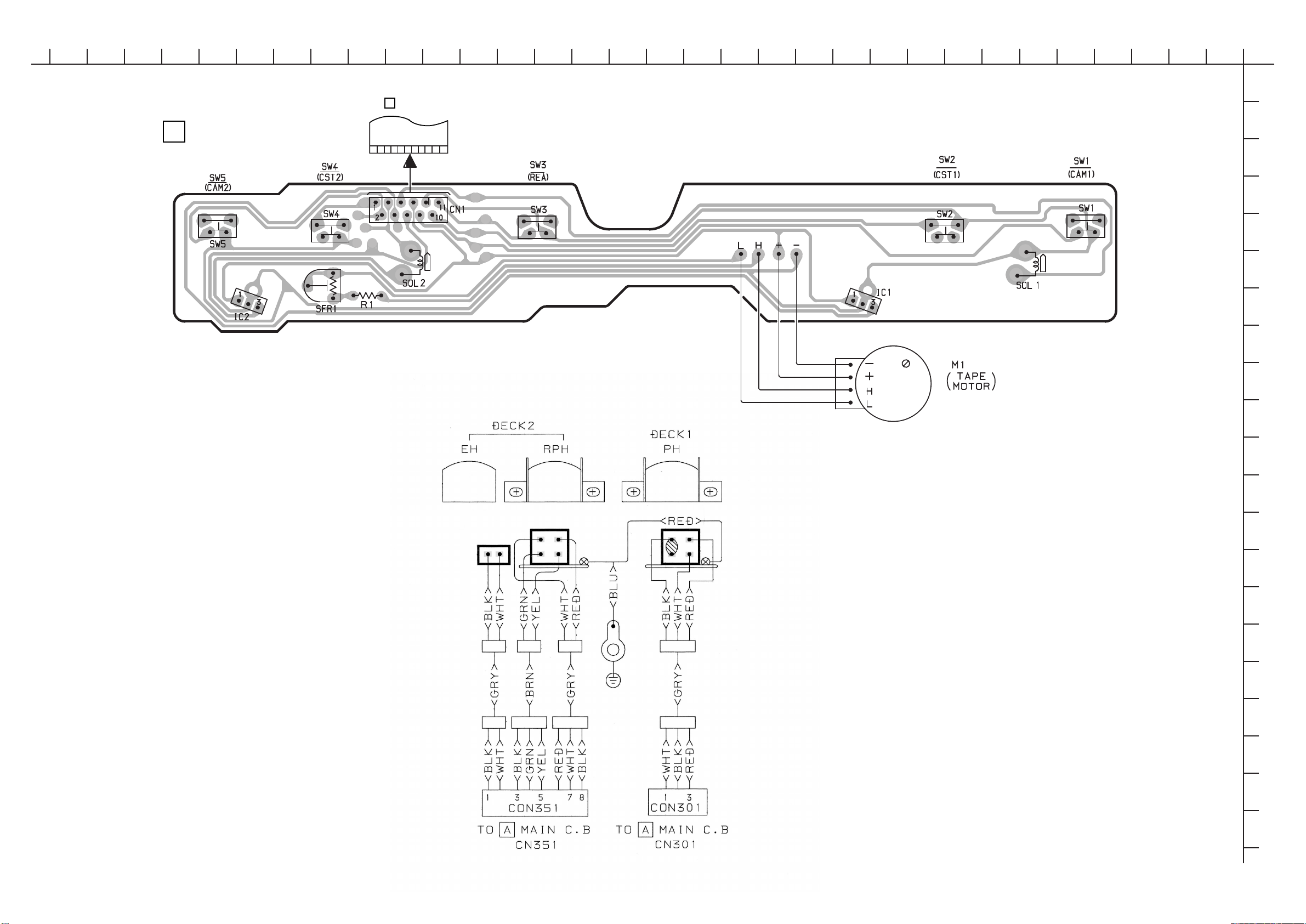

WIRING – 5 (DECK)

F DECK C . B

FROM

B MICON C. B CN104

FC104

1 3

101112131415161718192021222324

1234567892526272829303132

– 20 –

Page 21

IC DESCRIPTION

IC, LC876580W-5P44

Pin No.

1 M-CLK O Main IC control serial CLOCK output.

2 M-DATA O Main IC control serial DATA output.

3 TU-ON O Tuner supply control. L: ON.

4 PLL-CE O TUNER PLL IC control CHIP ENABLE output.

5 SR-LCK O SHIFT REGISTER IC control LATCH CLOCK output.

6 BIAS O Recording bias control.

7 O-POWER O System power control output. H: POWER ON.

8 O-MUTE O System mute control output. H: MUTE ON.

9 C-SHIFT O Microcomputer CLOCK SHIFT control output. L: SHIFT UP (initial H).

10 CD-ON I CD supply control.

11 RESET I Reset input.

12 RTVR I Waveform input for VOL rotary encoder.

13 JOG I Waveform input for JOG rotary encoder.

14 GND – Connected to GND.

15 CF1 I Oscillator input for system clock (9.43MHz).

16 CF2 O Oscillator output for system clock (9.43MHz).

Pin Name I/O

Description

17 VDD – Power supply.

18 HOLD I System HOLD input (A/D level port).

19 ~ 21 KEY1 ~ 3 I Tact key matrix 1 ~ 3 input.

22 CD-SW I CD MECHA SW matrix input.

23 DISH I CD turntable photo sensor input.

24 SPEANA I Spectrum analyser level detection input.

25 RMT I Record ON/OFF control.

26 RDS_SG I

27 TM-BASE I Reference signal input for clock.

29 REM I Remote control signal input.

30 ~ 42 G13 ~ G1 O FL grid G13 ~ G1 output.

43 ~ 45 P38 ~ P36 O FL segment P38 ~ P36 output.

46 VDD – Power supply.

47 P35/SPEANA–A O FL segment P35 output/Spectrum analyser BPF switching control A output.

48 P34/SPEANA–B O FL segment P34 output/Spectrum analyser BPF switching control B output.

49 P33/SPEANA–C O FL segment P33 output/Spectrum analyser BPF switching control C output.

I-SENS/

RDS-CK During TUNER FUNC, RDS serial clock input.

During TUNER FUNC, RDS Signal level input.

During CD FUNC, CD DSP SENS input./

50 P32/CSNDEMO O/I

51 –VP – Power supply for FL input.

52 P31/TU3 O/I FL segment P31 output/TUNER location switching 3 input.

53 P30/TU2 O/I FL segment P30 output/TUNER location switching 2 input.

54 P29/TU1 O/I FL segment P29 output/TUNER location switching 1 input.

55 P28/DSP O/I FL segment P28 output/DSP setting switching input. H: Absent (Not used).

FL segment P32 output/While initializing, DEMO MODE switching input. L: Normal

DEMO. H: CASINO DEMO (Not used).

– 21 –

Page 22

Pin No.

56 P27/RHYTHM O/I FL segment P27 output/RHYTHM setting switching input. H: Present (Not used).

57 P26 O FL segment P26 output.

58 P25/5MODE O/I

59 P24/ECO O/I FL segment P24 output/ECO setting switching input. H: ECO mode off (Not used).

60, 61 P23, P22 O

Pin Name I/O

FL segment P25 output/GEQ 5MODE/4MODE setting input. H: 5 MODE

(Not used).

FL segment P23, P22 output.

Description

62 P21/5.1+DLPRO O/I

63 P20/DLPRO O/I

64 P19/CST2 O/I FL segment P19 output/Deck 2 cassette existence detection SW input. L: Existent.

65 P18/REB O/I

66 P17/CAM2 O/I FL segment P17 output/Deck 2 cam-operation detection SW input. L: ON.

67 P16/AUTO1 O/I FL segment P16 output/Deck 1 reel-rotation detection signal input.

68 P15/AUTO2 O/I FL segment P15 output/Deck 2 reel-rotation detection signal input.

69 P14/CAM1 O/I FL segment P14 output/Deck 1 cam-operation detection SW input. L: ON.

70 P13/CST1 O/I FL segment P13 output/Deck 2 cassette existence detection SW input. L: Existent.

71 P12/REA O/I

72 VDD – Power supply.

73 ~ 83 P11 ~ P1 O FL segment P11 ~ P1 output.

84 P39/PB1 O/I FL segment P39 output/Deck 1/2 select control. H: Deck 1.

85 KEYSCAN O Segment input timing output. L: Input timing.

FL segment P21 output/5.1CH+DOLBY PROLOGIC setting switching input.

H: Existent (Not used).

FL segment P20 output/DOLBY PROLOGIC setting switching input. H: Existent

(Not used).

FL segment P18 output/Deck 2 side-B recording able/disable detection SW input.

L: Able (Not used).

FL segment P12 output/Deck 2 side-A recording able/disable detection SW input.

L: Able.

86 MOTOR O DECK MECHA motor control output. L: ON.

87 SOL1 O DECK 1 MECHA plunger control output. L: ON.

88 SOL2 O DECK 2 MECHA plunger control output. L: ON.

89 VSS2 – Connected to GND.

90 VDD – Power supply.

91 DISH-RVS O CD turntable control output. H: Reverse rotation.

92 DISH-FWD O CD turntable control output. H: Forward rotation.

93 OPEN O CD tray control output. L: OPEN.

94 CLOSE O CD tray control output. L: CLOSE.

96 CD-XLT O CD DSP control serial LATCH output. LATCH when drop.

97 CD-CLK O CD DSP control serial CLOCK output.

98 CD-LED O CD flash window LED control output. H: ON

100

CD-DATA/

RDS-DATA During TUNER FUNC, RDS serial data input.

CD-SUBQ/

IFC During TUNER FUNC, IF COUNT data input.

CD-DRF/

STEREO

During CD FUNC, CD DSP control serial data output/

O/I

During CD FUNC, SUBQ serial data input/

During CD FUNC, radio frequency detection input/

During TUNER STEREO signal input.

– 22 –

Page 23

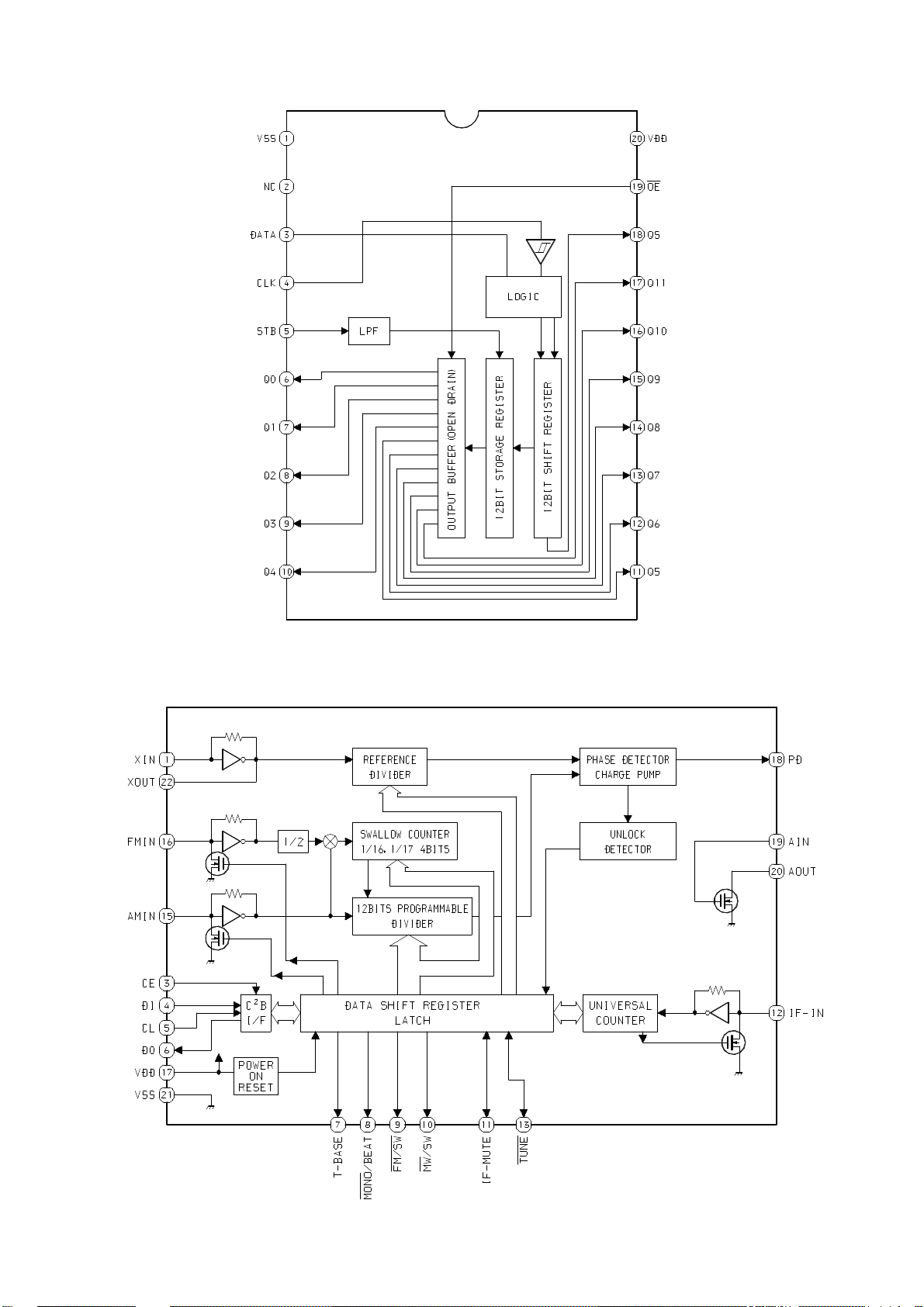

IC BLOCK DIAGRAM

IC, BU2099FV

IC, LC72131D

– 23 –

Page 24

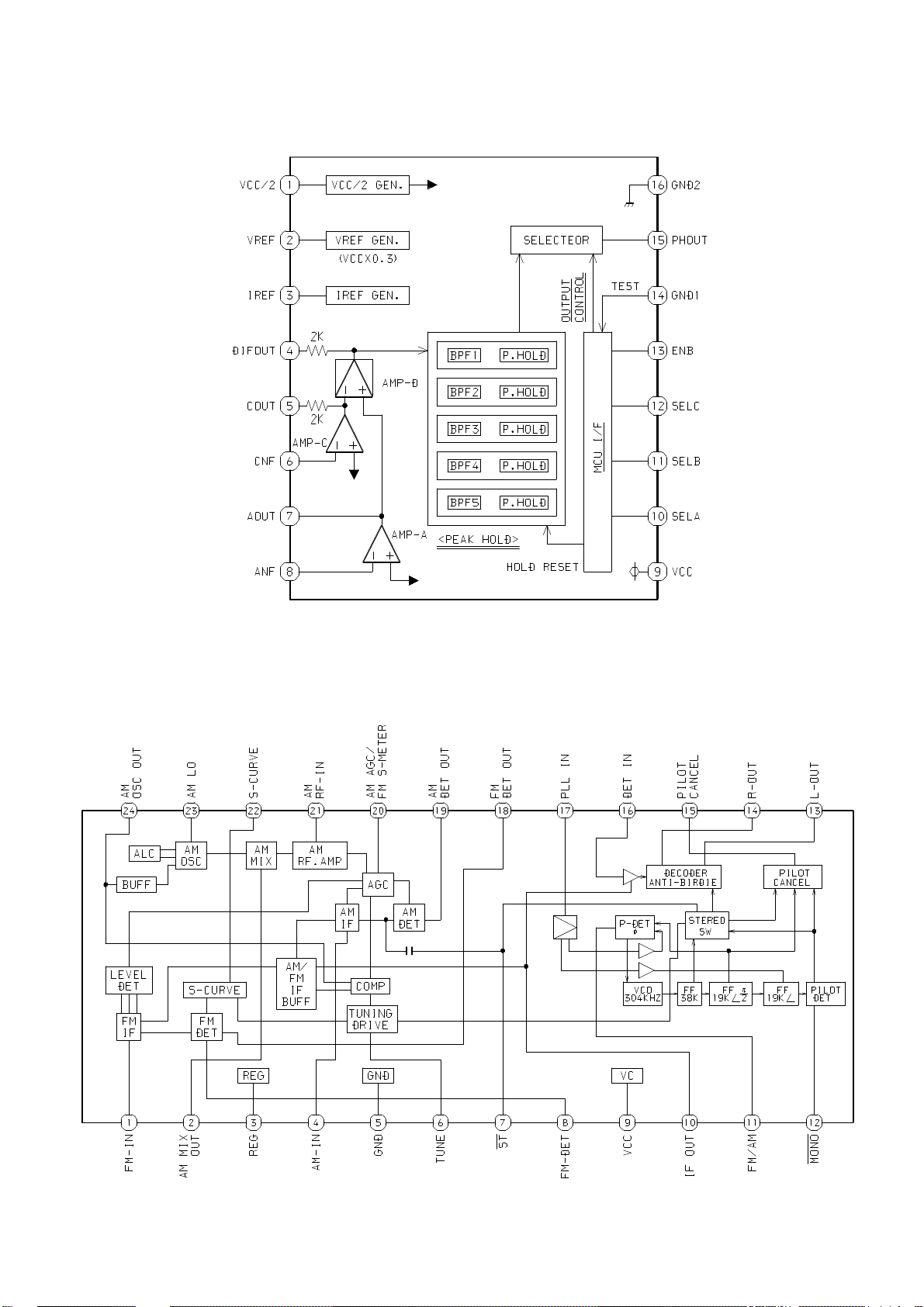

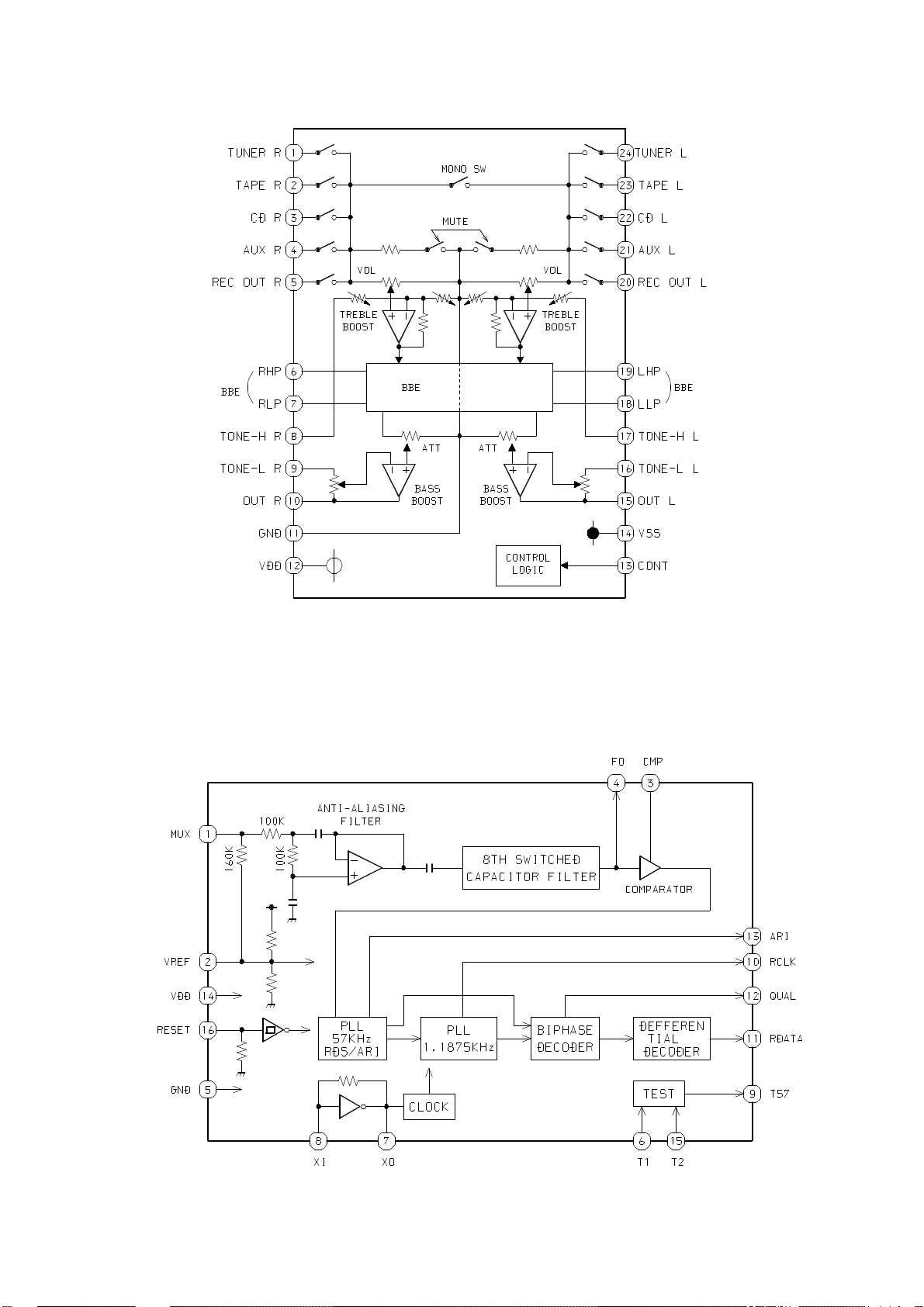

IC, M61506FP

IC, LA1843

– 24 –

Page 25

IC, M61503FP

IC, BU1920FS

– 25 –

Page 26

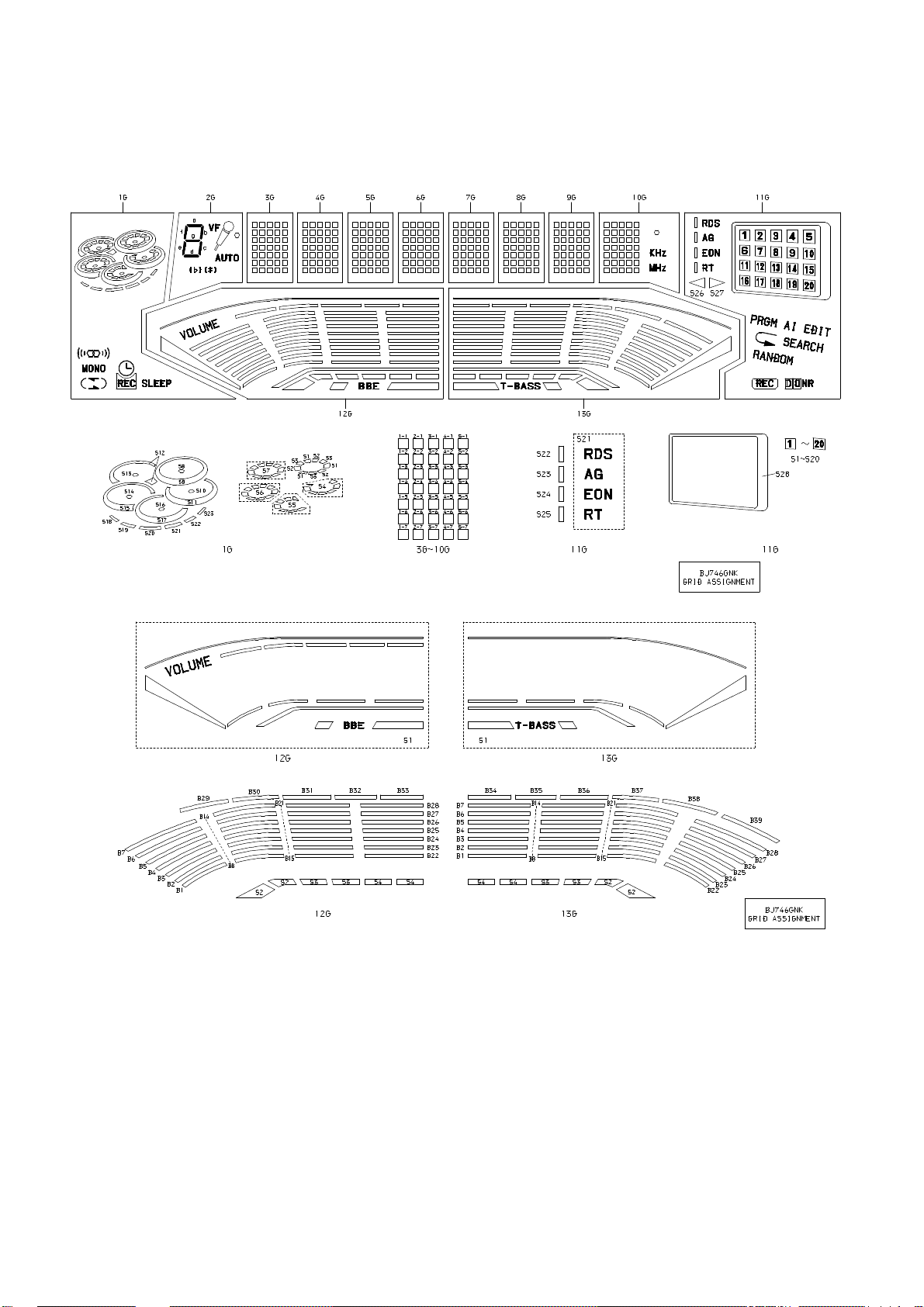

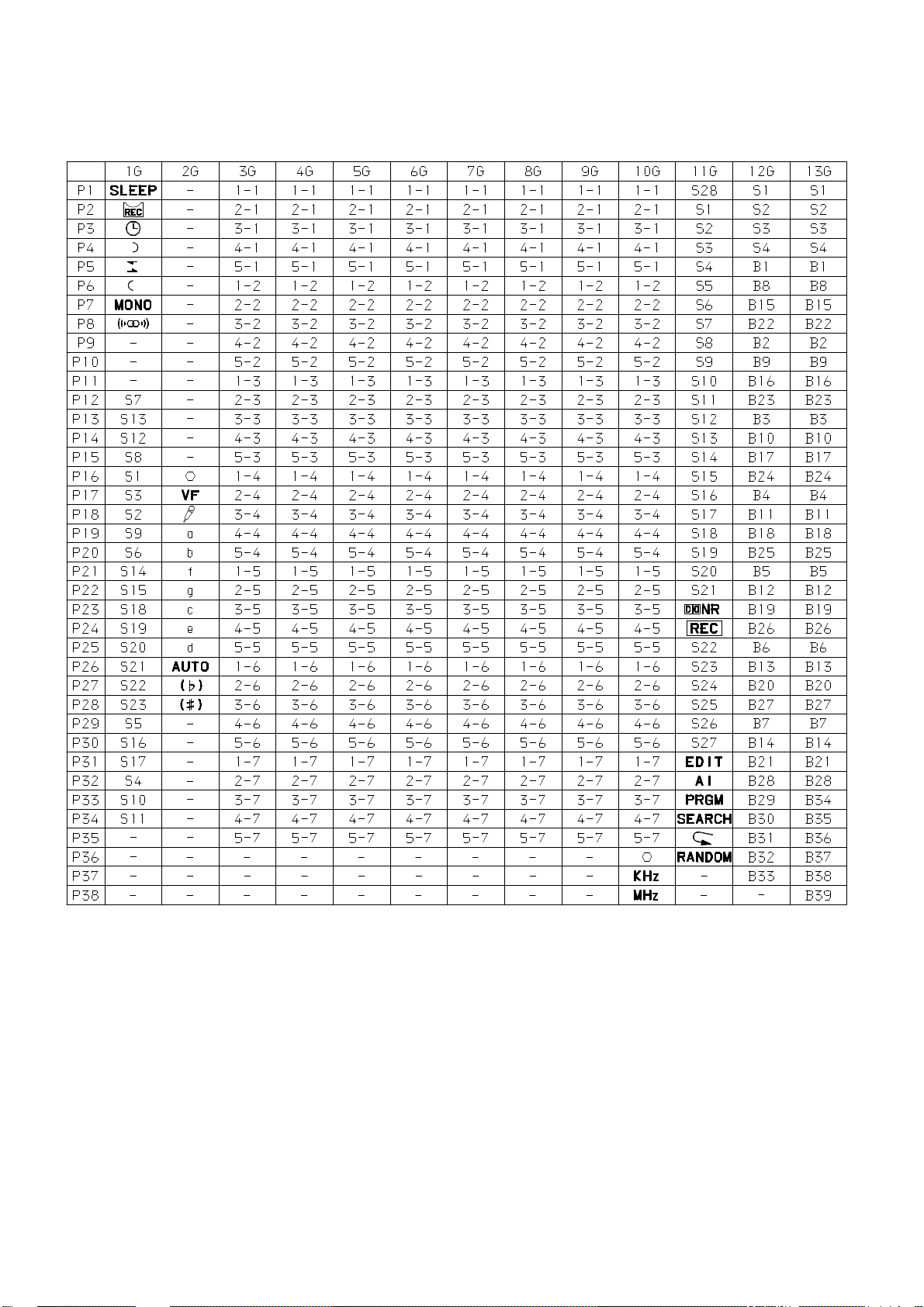

FL (BJ746GNK) GRID ASSIGNMENT & ANODE CONNECTION

GRID ASSIGNMENT

– 26 –

Page 27

ANODE CONNECTION

– 27 –

Page 28

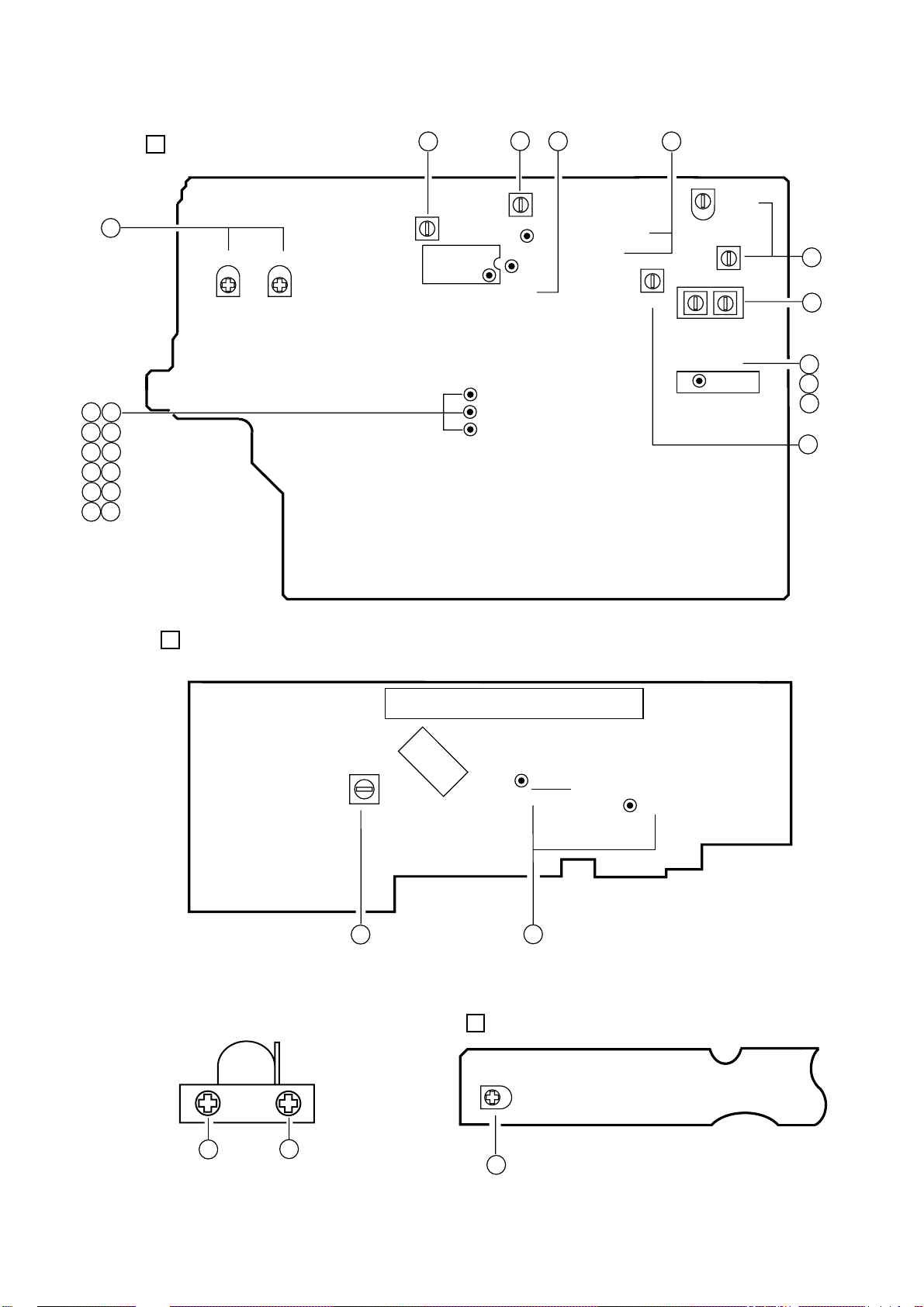

ADJUSTMENT <TUNER / DECK / MICON>

MAIN C.B

10 11

L802

SFR451

15 16

MICON C.B

SFR452

L801

IC801

TP4 (DC BALANCE)

TP3 (DC BALANCE)

TP2 (CLK)

TP5 (LCH) GND

TP6 (RCH)

L942

TC943

L941

L951

(3/3) (1/3)

TP1 (VT)

FFE831

4 7

FWD

L101

DECK–1 P HEAD DECK–2 R/P/E HEAD

REV

IC101

FL101

TP7

(O-KSCAN)

DECK C.B

SFR1

TP8(GND)

– 28 –

Page 29

< TUNER SECTION >

1. Clock Frequency Check Settings : • Test point : TP2 (CLK) Method : Set to MW 1602kHz and check that the test point is

2052kHz ± 45Hz.

2. MW VT Check Settings : • Test point : TP1 (VT) Method : Set to MW 1602kHz and check that the test point is

less than 8.0V. Then set to MW 531kHz and check that the test point is more than 0.6V.

3. MW Tracking Adjustment Settings : • Test point : TP5 (Lch), TP6 (Rch)

• Adjustment location : L951 (1/3)

Method : Set to MW 999kHz and adjust L951 (1/3) so that the

test point becomes maximum.

4. LW VT Adjustment Settings : • Test point : TP1 (VT)

• Adjustment location : L942

Method : Set to LW 144kHz and adjust L942 so that the test

point becomes 1.3V ± 0.05V. Then set to LW 290kHz and check that the test point is less than 8.0V.

5. LW Tracking Adjustment Settings : • Test point : TP5 (Lch), TP6 (Rch)

• Adjustment location :

L941 ........................... 144kHz

TC943 ......................... 290kHz

Method : Set up TC943 to center before adjustment. The level at

144kHz is adjusted to MAX by L941. Then the level at 290kHz is adjusted to MAX by TC943.

6. AM IF Adjustment Settings : • Test point : TP5 (Lch), TP6 (Rch)

• Adjustment location :

L802 ........................... 450kHz

7. FM VT Check Settings : • Test point : TP1 (VT) Method : Set to FM 108.0MHz and check that the test

point is less than 8.0V. Then set to FM

87.5MHz and check that the test point is more than

0.5V.

8. FM Tracking Check Settings : • Test point : TP5 (Lch), TP6 (Rch) Method : Set to FM 98.0MHz and check that the test point is

less than 13dBµV.

9. DC Balance / Mono Distortion Adjustment Settings : • Test point : TP3, TP4 (DC balance)

• Adjustment location : L801

• Input level : 60dBµV

Method : Set to FM 98.0MHz and adjust L801 so that the

distortion is minimum. Then check the voltage between TP3 and TP4 is 0V ± 300mV.

10. Output Level Check <MW> Settings : • Test point : TP5 (Lch), TP6 (Rch)

• Input level : 74dBµV

Method : Set to MW 999kHz and check that the test point is

50mV ± 3dB.

<FM> Settings : • Test point : TP5 (Lch), TP6 (Rch)

• Input level : 60dBµV

Method : Set to FM 98.0MHz and check that the test point is

100mV ± 3dB.

11. FM Separation Check Settings : • Test point : TP5 (Lch), TP6 (Rch)

• Input level : 60dBµV

Method : Set to FM 98.0MHz and check that the test point is

more than 12dB.

– 29 –

Page 30

< DECK SECTION >

12. Tape Speed Adjustment (DECK 2) Settings : • Test tape : TTA–100

• Test point : TP5(Lch), TP6(Rch)

• Adjustment location : SFR1

Method : Play back the test tape and adjust SFR1 so that the

frequency counter reads 3000Hz ± 5Hz and ±45Hz (REV) with respect to forward speed.

13. Head Azimuth Adjustment (DECK 1, DECK 2) Settings : • Test tape : TTA–330

• Test point : TP5(Lch), TP6(Rch)

• Adjustment location : Head azimuth adjustment screw

Method : Play back (FWD) the 8kHz signal of the test tape and

adjust screw so that the output becomes maximum. Next, perform on REV PLAY mode.

14. PB Frequency Response Check (DECK 1, DECK 2) Settings : • Test tape : TTA–330

• Test point :TP5(Lch), TP6(Rch)

Method : Play back the 315Hz and 8kHz signals of the test tape

and check that the output ratio of the 8kHz signal with respect to that of the 315Hz signal is within 5dB.

15. PB Sensitivity Check (DECK 1, DECK 2) Settings : • Test tape : TTA–200

• Test point : TP5(Lch), TP6(Rch)

Method : Play back the test tape and check that the output level of

the test point is 140mV ± 3dB.

16. REC/PB Frequency Response Adjustment (DECK 2) Settings : • Test tape : TTA–602

• Test point : TP5(Lch), TP6(Rch)

• Input signal : 1kHz / 8kHz (LINE IN)

• Adjustment location : SFR451 (Lch) SFR452 (Rch)

Method : Apply a 1kHz signal and REC mode. Then adjust

OSC attenuator so that the output level at the TP5, TP6 becomes -20VU. Record and play back the 1kHz and 8kHz signals and adjust SFRs so that the output of the 8kHz signals becomes 0.5dB ± 0.5dB with respect to that of the 1kHz signal.

17. REC/PB Sensitivity Check (DECK 2) Settings : • Test tape : TTA–602

• Test point : TP5(Lch), TP6(Rch)

• Input signal : 1kHz (LINE IN)

Method : Apply a 1kHz signal and REC mode. Then adjust

OSC attenuator so that the output level at TP5, TP6 becomes 0VU. Record and play back the 1kHz signals and check that the output is 0dB ± 3.0dB.

< MICON SECTION >

18. µ-CON OSC Adjustment Settings : • Test point : TP7 (O-KSCAN)

• Adjustment location : L101

Method : Insert AC plug while pressing TUNER function key.

Adjust L101 so that the frequency at the test point is

208.80Hz ± 0.21Hz.

– 30 –

Page 31

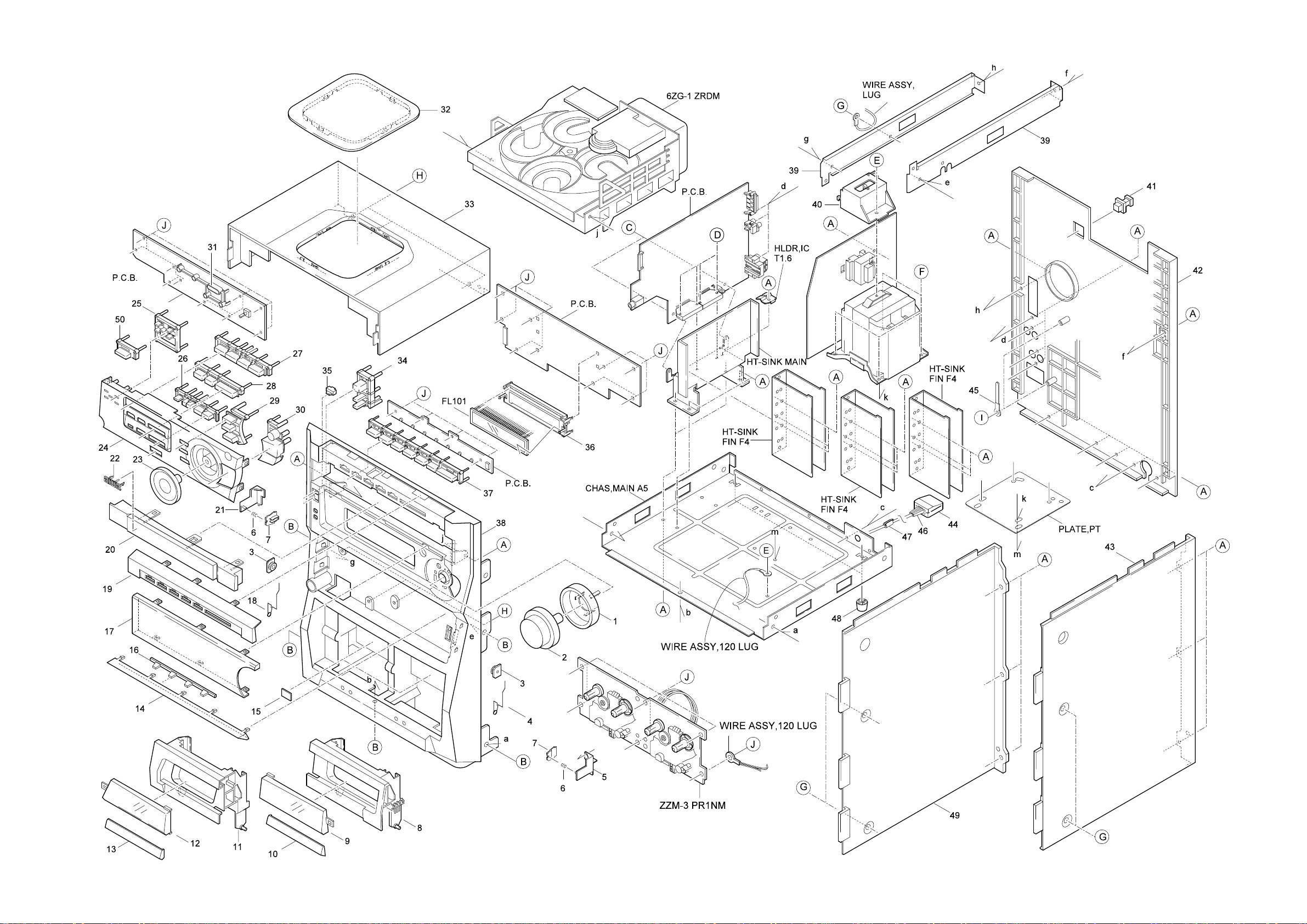

MECHANICAL EXPLODED VIEW 1 / 1

– 31 –

Page 32

MECHANICAL PART LIST 1 / 1

PART NO.

NO.

1 8A-MA3-095-010 RING,VOL 2 8A-MA3-090-010 KNOB,RTRY MAIN 3 87-NF8-220-010 DMPR,150 4 8A-MA5-208-010 SPR-T,EJECT 2 5 87-NF4-217-110 HLDR,LOCK 2

6 86-NF9-224-010 SPR-C,LOCK 7 82-NF5-229-010 PLATE,LOCK 8 8A-MA3-026-110 BOX,CASS R 9 8A-MA3-056-010 WINDOW,CASS R 10 8A-MA5-036-010 PANEL,CASS R 5

11 8A-MA3-025-110 BOX,CASS L 12 8A-MA3-055-010 WINDOW,CASS L 13 8A-MA5-035-010 PANEL,CASS L 5 14 8A-MA5-041-010 PANEL,FUN 4F 15 81-532-080-010 LABEL, CASS. COMPT

16 8A-MA5-102-010 REFLECTOR,FUN 4F 17 8A-MA5-051-010 WINDOW,DISP RDS 5 18 8A-MA5-207-010 SPR-T,EJECT 1 19 8A-MA5-034-010 PANEL,CD 20 8A-MA5-037-010 PANEL ASSY,TRAY 5

21 87-NF4-216-010 HLDR,LOCK 1 22 87-B00-002-010 BADGE,AIWA 30 ABS SIL 23 8A-MA3-093-010 KNOB ASSY,RTRY JOG 24 8A-MA5-031-010 PANEL,FR RDS 5 25 8A-MA5-080-010 KEY ASSY,GEQ 5M

26 8A-MA3-084-010 KEY ASSY,FF 27 8A-MA5-066-010 KEY,FUN 4F 28 8A-MA5-081-010 KEY ASSY,PLAY 29 8A-MA3-071-010 KEY,TIMER 30 8A-MA3-073-010 KEY,ENTER

31 8A-MA3-210-010 GUIDE,LED OPE 32 8A-MA3-057-010 WINDOW,TOP 33 8A-MA3-020-110 CABI,TOP 34 8A-MA3-075-010 KEY,POWER 35 8A-MA3-101-010 REFLECTOR,POWER

DESCRIPTIONREF. NO. KANRI

PART NO.

36 87-MA5-203-010 GUIDE,FL 37 8A-MA3-061-010 KEY,CD 38 8A-MA5-001-210 CABI,FR U 5 39 88-MA1-208-210 JOINT,CABI 40 8A-DB8-209-010 HLDR,PWB PT

41 84-ZG1-245-210 CAP,OPTICAL 42 8A-MA5-013-010 CABI,REAR KSTNM 43 8A-MA5-046-010 PANEL,SIDE R 5

44 87-099-811-010 PLUG,ADPTR CONV(K)<K> 45 87-064-185-010 HLDR,WIRE

46 87-A80-148-010 AC CORD ASSY,E BLK<EZ>

46 87-A80-143-010 AC CORD ASSY,E BLK<K> 47 87-085-185-010 BUSHING, AC CORD (E) 48 87-MA3-062-010 FOOT, H17 49 8A-MA5-045-010 PANEL,SIDE L 5

50 8A-MA3-070-010 KEY RDS A 87-067-703-010 TAPPING SCREW, BVT2+3-10 B 87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) C 87-NF4-224-010 S-SCREW,IT3B+3-8 CU D 87-067-581-010 BVT2+3-15 W/O

E 87-067-688-010 BVTT+3-6 F 87-067-975-010 S-SCREW,1T+4-8 G 87-067-641-010 UTT2+3-8(W/O SLOT)BL H 87-067-758-010 BVT2+3-12 W/O SLOT I 87-067-579-010 TAPPING SCREW, BVT2+3-8

J 87-078-060-010 BVIT3PB+3-10

NO.

DESCRIPTIONREF. NO. KANRI

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green

YM Metallic Yellow DM Metallic Orange

– 32 –

Page 33

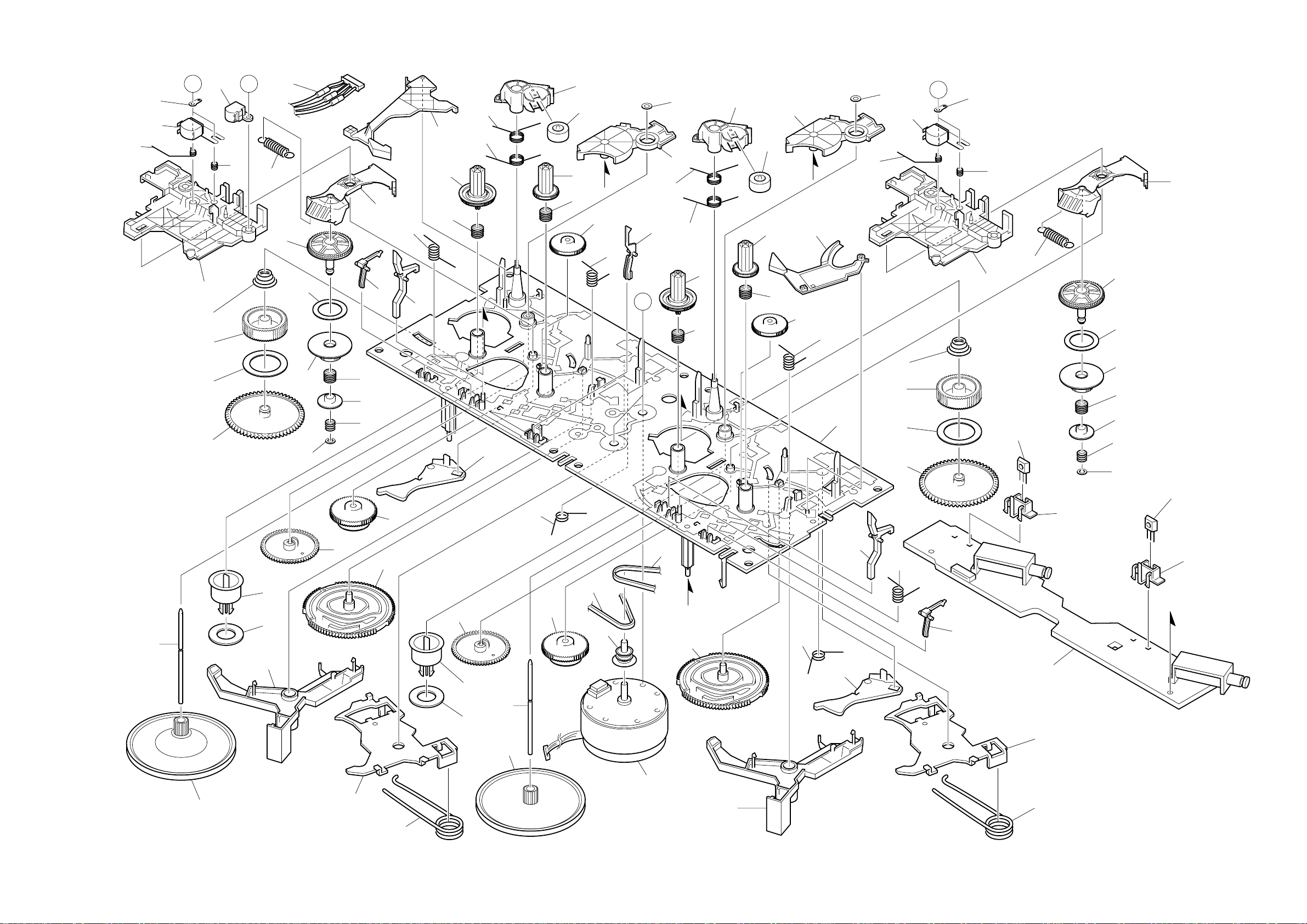

TAPE MECHANISM EXPLODED VIEW 1 / 1

TERMINAL, LB1

25 24

46 47

TERMINAL,LB1

IC, EW732

P. C . B

– 33 –

Page 34

TAPE MECHANISM PART LIST 1 / 1

PART NO.

NO.

1 8Z-ZM3-227-010 BELT,MAIN M3 2 8Z-ZM3-235-010 BELT,MAIN L 3 8Z-ZM1-235-010 PULLEY,MOT 4 87-045-347-010 MOT,SHU2L 70 5 8Z-ZM1-232-010 GEAR,IDL FF/REW

6 8Z-ZM3-244-010 GEAR,CAM TD20 7 8Z-ZM3-242-010 SHAFT,CAP M3 8 8Z-ZM3-228-010 FLY-WHL,M3 9 8Z-ZM3-231-010 SPR-T,TRIG 10 8Z-ZM3-213-010 CLR,MG

11 82-ZM3-616-010 RING MAGNET 4 12 8Z-ZM3-243-010 LEVER ASSY,HD UP 13 8Z-ZM3-238-010 SPR-T,HD UP 14 8Z-ZM3-219-010 GEAR,CAM M3 15 8Z-ZM3-206-010 LEVER,TRIG

16 8Z-ZM3-209-010 LEVER,CAM FR 17 8Z-ZM2-211-010 FLY-WHL,ZZM-2 18 8Z-ZM1-228-010 GEAR,SLIP T-UP B 19 8Z-ZM1-265-010 FELT,T-UP 20 8Z-ZM1-227-010 GEAR,SLIP T-UP A

21 8Z-ZM1-251-110 SPR-C,T-UP SLIP 22 8Z-ZM1-275-010 W-L,1,47-4-0.25 23 8Z-ZM1-257-010 SPR-C,F/R 24 8Z-ZM1-236-010 CLR,SLIP FF/REW 25 8Z-ZM3-226-010 SPR-C,FR M3

26 8Z-ZM3-250-010 GEAR,SLIP F/R A M3 27 8Z-ZM1-269-010 FELT,FF/REW 2 28 8Z-ZM1-238-110 GEAR,SLIP FF/REW B 2 29 8Z-ZM3-220-010 LEVER,FR M3 30 8Z-ZM3-205-010 LEVER,PLAY M3

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

31 8Z-ZM3-233-010 SPR-T,BRG M3 32 84-ZM2-227-310 SPR-C,AZIMUTH 33 87-A90-403-110 HEAD,RPH MS15R 34 87-A90-404-010 HEAD,EH LE15B 35 8Z-ZM3-239-010 SPR-E,FR

36 8Z-ZM3-211-010 LEVER,EJECT R 37 8Z-ZM3-225-010 LEVER,STOP 38 8Z-ZM3-221-010 LEVER,CAS 39 8Z-ZM3-234-010 SPR-T,LVR CAS 40 8Z-ZM3-223-010 SPR-C,REEL R M3

41 8Z-ZM1-225-110 GEAR,REEL R 42 8Z-ZM3-240-010 SPR-T,T-UP M3 43 8Z-ZM3-237-010 SPR-T,PINCH M3 44 8Z-ZM3-215-010 LEVER,PINCH M3 45 8Z-ZM1-261-110 ROLLER ASSY,PINCH

46 8Z-ZM1-226-010 GEAR,REEL L 47 8Z-ZM3-222-010 SPR-C,REEL L M3 48 8Z-ZM3-251-010 GEAR,IDL REW M3 49 8Z-ZM3-236-010 SPR-T,PLAY M3 50 82-ZM1-240-110 LVR,REC(*)

51 8Z-ZM3-216-010 LEVER,T-UP M3 52 87-B10-301-010 W-L,1.63-3.2-05 SLIT 53 8Z-ZM3-212-010 LEVER,EJECT L 54 8Z-ZM3-214-010 HLDR,IC 55 86-ZM3-605-110 CONN ASSY,8P -RPB

56 8Z-ZM3-203-010 CHAS ASSY,M3 A 84-ZM2-242-010 S-SCREW,AZ1-2-6.4 B 8Z-ZM2-220-110 V+2.6 ZZM-2

DESCRIPTIONREF. NO. KANRI

– 34 –

Page 35

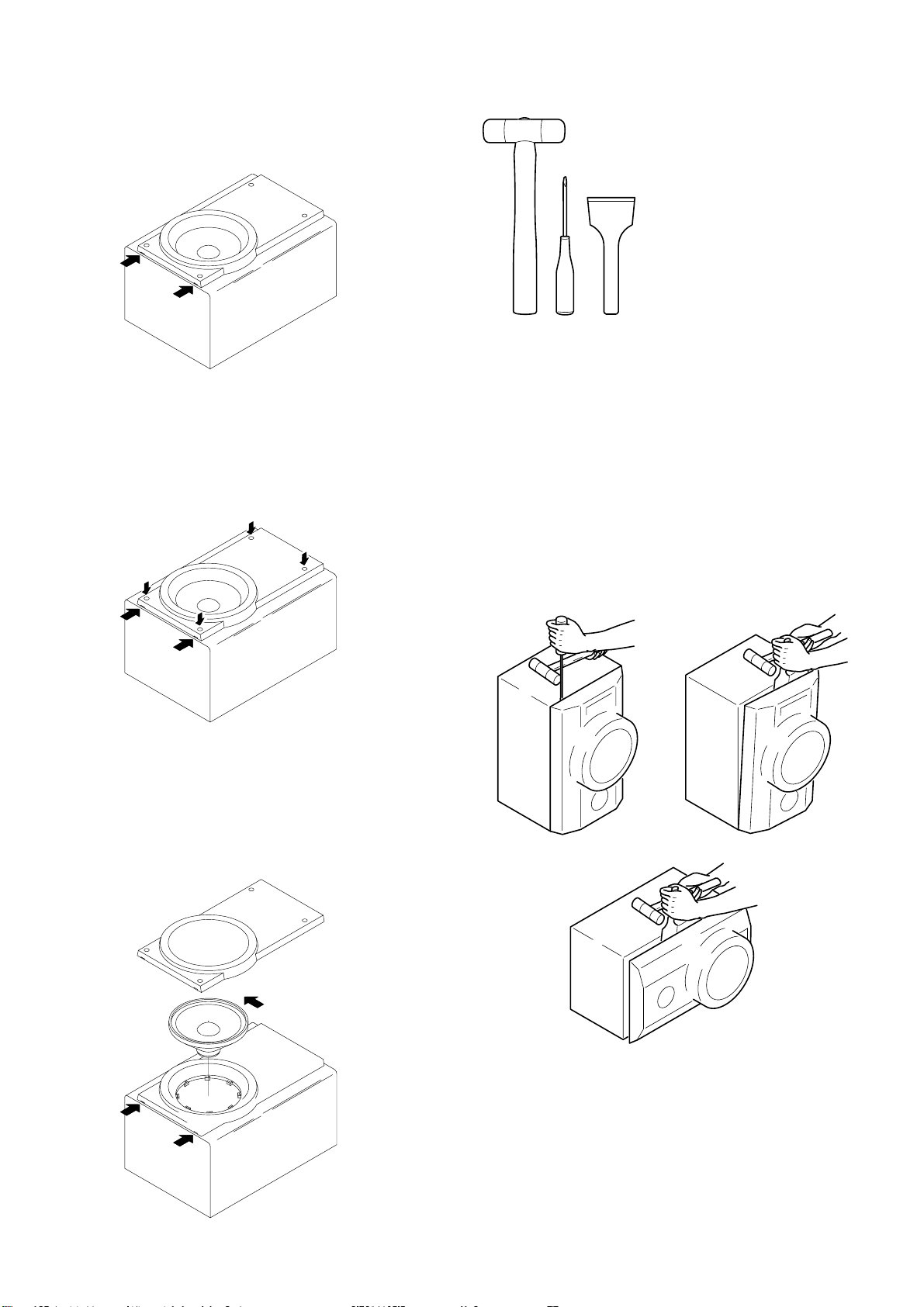

SPEAKER DISASSEMBLY INSTRUCTIONS

Type.1

Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker units.

Type.2

Remove the grill frame and four pieces of rubber caps by pulling out with a flat-bladed screwdriver. Remove the screws from hole where installed rubber caps. Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker units.

Type.4

TOOLS

1 Plastic head hammer 2 (() flat head screwdriver 3 Cut chisel

12 3

How to Remove the PANEL, FR

1. Insert the (() flat head screwdriver tip into the gap

between the PANEL, FR and the PANEL, SPKR. Tap the head of the (() flat head screwdriver with the plastic hammer head, and create the clearance as shown in Fig-1.

2. Insert the cut chisel in the clearance, and tap the head of

the cut chisel with plastic hammer as shown in Fig-2, to remove the PANEL, FR.

Type.3

Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Turn the speaker unit to counterclockwise direction while inserting a flat-bladed screwdriver into one of the hollows around speaker unit, and then remove the speaker unit. After replacing the speaker unit, install it turning to clockwise direction until "click" sound comes out.

3. Place the speaker horizontally. Tap head of the cut chisel

with plastic hammer as shown in Fig-3, and remove the PANEL, FR completely.

Fig-1 Fig-2

– 35 –

Fig-3

How to Attach the PANEL, FR

Attach the PANEL, FR to the PANEL, SPKR. Tap the four corners of the PANEL, FR with the plastic hammer to fit the PANEL, FR into the PANEL, SPKR completely.

Page 36

SPEAKER PARTS LIST SX-WZL500 (YSL, YSC)

PART NO.

NO.

1 8A-MS5-001-010 PANEL,FR 2 8A-MS5-015-010 PANEL,DUCT RING 3 8A-MS5-002-010 GRILLE,FRAME ASSY A 4 8A-MS5-005-010 GRILLE,FRAME ASSY B 5 8A-MS5-602-010 SPKR,W 200

6 8A-MS5-604-010 SPKR,M 120 7 88-MS1-608-010 SPKR,CERAMIC 8 88-NS3-605-010 CAP, 9 88-MS1-610-010 CORD,SPKR 10 88-NS5-611-010 CORD,SPKR B/L

11 8A-MS5-013-010 CORD,PACKING

DESCRIPTIONREF. NO. KANRI

ACCESSORIES / PACKAGE LIST

PART NO.

NO.

1 8A-MA5-905-010 IB,K(E) M<K> 1 8A-MA5-906-010 IB,EZ(9L) M<EZ> 2 8Z-NF9-701-210 RC UNIT,ZAS02 3 87-A90-118-010 ANT,WIRE FM(Z) 4 87-A90-030-010 ANT,LOOP AM-NC C

DESCRIPTIONREF. NO. KANRI

– 36 –

Page 37

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore9420208 9630472 0251431
