Z-HT545

K

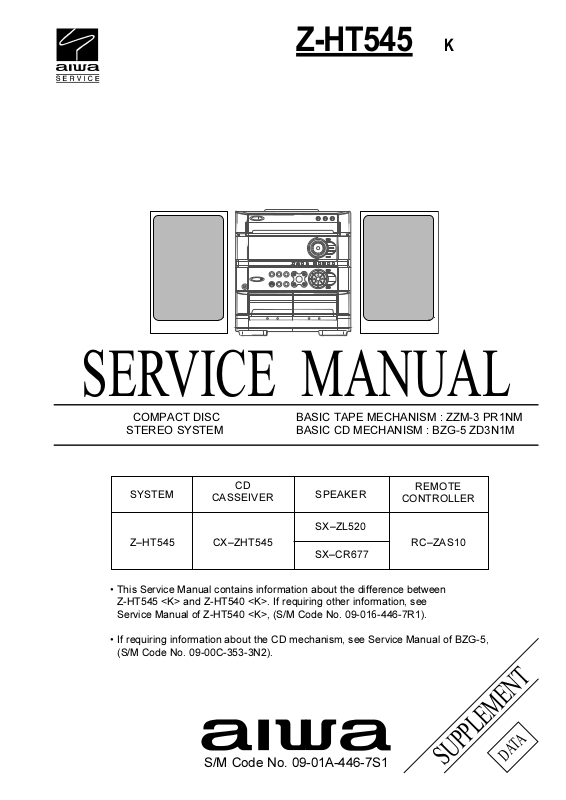

SERVICE MANUAL

COMPACT DISC

STEREO SYSTEM

CD

CASSEIVER

ZHT545

 This Service Manual contains information about the difference between

Z-HT545 <K> and Z-HT540 <K>. If requiring other information, see

Service Manual of Z-HT540 <K>, (S/M Code No. 09-016-446-7R1).

 If requiring information about the CD mechanism, see Service Manual of BZG-5,

(S/M Code No. 09-00C-353-3N2).

CXZHT545

BASIC TAPE MECHANISM : ZZM-3 PR1NM
BASIC CD MECHANISM : BZG-5 ZD3N1M

SPEAKERSYSTEM

SXZL520

SXCR677

REMOTE

CONTROLLER

RCZAS10

S/M Code No. 09-01A-446-7S1

SUPPLEMENT

DATA

SPECIFICATIONS

<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)

<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)

530 kHz to 1710 kHz (10 kHz step)

Usable sensitivity 350 µV/m
Antenna Loop antenna

<LW tuner section>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna

<Amplifier section>
Power output Front

Rated: 56 W + 56 W (6 ohms,
T.H.D. 1 %, 1 kHz)
Reference: 70 W + 70 W (6 ohms,
T.H.D. 10 %, 1 kHz)

Rear(Surround)

Rated: 16 W + 16 W (8 ohms,
T.H.D. 1 %, 1 kHz)
Reference: 20 W + 20 W (8 ohms,
T.H.D. 10 %, 1 kHz)

Centre

Rated: 16 W (8 ohms, T.H.D. 1 %,
1 kHz)
Reference: 20 W (8 ohms, T.H.D. 10 %,
1 kHz)

Total harmonic distortion 0.15 % (30 W, 1 kHz, 6 ohms, DIN

AUDIO/Front)

Inputs VIDEO/AUX/PHONO : 320 mV

(adjustable)

5.1CH INPUT:
FRONT: 180 mV
SURROUND: 180 mV
CENTER: 180 mV
SUB WOOFER: 100 mV

Outputs SUB WOOFER: 1 V

SPEAKERS: accept speakers of
6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8  16 ohms
or more
CENTER SPEAKERS: accept speakers
of 8 ohms or more
PHONES (stereo jack):
accepts headphones of 32 ohms
or more

<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz  10000 Hz
Recording system AC bias
Heads Deck 1 : Playback head x 1

Deck 2 : Recording/playback x 1,

Erase head x 1

<Compact disc player section>
Laser Semiconductor laser (l = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable

<General>
Power requirements 230 V AC, 50 Hz
Power consumption 160 W
Dimensions of main unit 360 x 395.3 x 350.6 mm
(W x H x D)
Weight of main unit 8.6 kg

<Speaker system SXZL520>
Cabinet type 3 way, bass reflex
Speakers Woofer:

220 mm cone type
Tweeter:
60 mm cone type

Super tweeter:

20 mm ceramic type
Impedance 6 ohms
Output sound pressure level 89 dB/W/m
Dimensions (W x H x D) 260 x 495 x 314 mm
Weight 6.1 kg

 Design and specifications are subject to change without notice.

 Manufactured under license from Dolby Laboratories Licensing

Corporation.

DOLBY and the double-D symbol are trademarks of Dolby

Laboratories Licensing Corporation.

 2 

ELECTRICAL MAIN PARTS LIST

PART NO.

NO.

IC

87-A20-783-040 C-IC,BA7762AFS
87-A21-018-040 C-IC,M65849BFP631D
87-A21-882-030 C-IC,M62466FP
87-A21-695-010 IC,LA1845L
87-A20-440-040 C-IC,BU1920FS

87-A21-928-010 IC,LC72131D-N

TRANSISTOR

87-A30-076-080 C-TR,2SC3052F
87-026-610-080 TR,KTC3198GR
87-A30-087-080 C-FET,2SK2158
87-A30-495-080 TR,2SA1981Y
87-A30-494-080 TR,2SA1980G

89-213-702-010 TR,2SB1370E
87-A30-075-080 C-TR,2SA1235F
87-A30-086-040 C-TR,CSD1306E
87-A30-636-040 C-TR,SBT5551F
87-A30-190-080 TR,CC5551

87-A30-635-040 C-TR,SBT5401F
87-A30-074-080 C-TR,RT1P 141C
87-A30-484-080 C-TR,KRA102S
87-A30-215-010 TR,2SD2025
87-A30-214-010 TR,2SB1344

87-A30-162-010 FET,2SK2937
87-A30-105-080 C-TR,RT1P 441C
87-A30-615-080 TR,STC250
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S

89-503-602-080 C-FET,2SK360E
87-A30-234-080 TR,CSC4115BC

DIODE

87-020-465-080 DIODE,1SS133
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-838-090 DIODE,G3SBA60L-6088
87-A40-553-080 DIODE,1N4003 LES

87-A40-778-080 ZENER,UZ30BSD
87-A40-291-080 DIODE,1N4148M (CPT)
87-A40-764-080 ZENER,UZ10BSC
87-A40-488-080 DIODE,1SS244
87-A40-747-080 ZENER,UZ5.1BSB

87-A40-749-080 ZENER,UZ5.6BSB
87-A40-393-090 DIODE,1N5402GW(F20)

MAIN C.B

C5 87-012-368-080 C-CAP,S 0.1-50 Z F
C6 87-012-368-080 C-CAP,S 0.1-50 Z F
C7 87-012-368-080 C-CAP,S 0.1-50 Z F
C8 87-012-368-080 C-CAP,S 0.1-50 Z F
C9 87-012-368-080 C-CAP,S 0.1-50 Z F

C10 87-012-368-080 C-CAP,S 0.1-50 Z F
C11 87-012-368-080 C-CAP,S 0.1-50 Z F
C12 87-012-368-080 C-CAP,S 0.1-50 Z F
C21 87-A12-780-090 CAP,E 4700-35 M 85 SKR
C22 87-A12-780-090 CAP,E 4700-35 M 85 SKR

C23 87-A12-832-000 CAP,E 3300-56 M 85 GS
C24 87-A12-832-000 CAP,E 3300-56 M 85 GS
C25 87-A12-095-080 CAP,E 100-50 SMG
C26 87-A12-095-080 CAP,E 100-50 SMG
C27 87-A12-095-080 CAP,E 100-50 SMG

C28 87-A12-095-080 CAP,E 100-50 SMG
C30 87-010-430-080 CAP,E 100-63
C31 87-A12-062-080 CAP,E 100-10 SMG
C32 87-012-286-080 C-CAP,U 0.01-25 K B

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C34 87-A12-095-080 CAP,E 100-50 SMG
C35 87-A12-076-080 CAP,E 22-35 SMG
C36 87-A12-068-080 CAP,E 470-16 SMG
C40 87-012-286-080 C-CAP,U 0.01-25 K B
C41 87-A12-074-080 CAP,E 470-25 SMG

C60 87-A12-089-080 CAP,E 3.3-50 SMG
C63 87-A12-071-080 CAP,E 47-25 SMG
C81 87-A10-918-080 CAP,E 100-16 SMG
C101 87-A12-089-080 CAP,E 3.3-50 SMG
C102 87-A12-089-080 CAP,E 3.3-50 SMG

C111 87-A12-089-080 CAP,E 3.3-50 SMG
C112 87-A12-089-080 CAP,E 3.3-50 SMG
C121 87-A12-089-080 CAP,E 3.3-50 SMG
C122 87-A12-086-080 CAP,E 0.47-50 SMG
C141 87-010-191-080 C-CAP,S 0.015-50 Z F GRM

C142 87-010-191-080 C-CAP,S 0.015-50 Z F GRM
C145 87-012-368-080 C-CAP,S 0.1-50 Z F
C146 87-012-368-080 C-CAP,S 0.1-50 Z F
C147 87-012-368-080 C-CAP,S 0.1-50 Z F
C148 87-012-368-080 C-CAP,S 0.1-50 Z F

C153 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C154 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C170 87-012-278-080 C-CAP,U 2200P-50 K B
C171 87-012-282-080 C-CAP,U 4700P-50 K B
C173 87-010-759-080 C-CAP,U, 0.1-25 Z F

C201 87-012-282-080 C-CAP,U 4700P-50 K B
C202 87-012-282-080 C-CAP,U 4700P-50 K B
C203 87-A12-089-080 CAP,E 3.3-50 SMG
C204 87-A12-089-080 CAP,E 3.3-50 SMG
C205 87-012-282-080 C-CAP,U 4700P-50 K B

C206 87-012-282-080 C-CAP,U 4700P-50 K B
C207 87-A12-091-080 CAP,E 10-50 SMG
C208 87-A12-091-080 CAP,E 10-50 SMG
C209 87-016-615-080 C-CAP,U 2.2P-50 CH
C210 87-016-615-080 C-CAP,U 2.2P-50 CH

C211 87-A12-078-080 CAP,E 47-35 SMG
C212 87-A12-078-080 CAP,E 47-35 SMG
C213 87-012-199-080 C-CAP,U 220P-50 J CH
C214 87-012-199-080 C-CAP,U 220P-50 J CH
C215 87-012-273-080 C-CAP,U 820P-50 K B

C216 87-012-273-080 C-CAP,U 820P-50 K B
C217 87-012-195-080 C-CAP,U 100P-50 J CH
C218 87-012-195-080 C-CAP,U 100P-50 J CH
C219 87-012-368-080 C-CAP,S 0.1-50 Z F
C220 87-012-368-080 C-CAP,S 0.1-50 Z F

C221 87-012-286-080 C-CAP,U 0.01-25 K B
C222 87-012-286-080 C-CAP,U 0.01-25 K B
C223 87-012-195-080 C-CAP,U 100P-50 J CH
C224 87-012-195-080 C-CAP,U 100P-50 J CH
C273 87-010-759-080 C-CAP,U, 0.1-25 Z F

C274 87-A12-091-080 CAP,E 10-50 SMG
C275 87-A12-091-080 CAP,E 10-50 SMG
C301 87-012-188-080 C-CAP,U 47P-50 J CH
C302 87-012-188-080 C-CAP,U 47P-50 J CH
C303 87-012-271-080 C-CAP,U 560P-50 K B

C304 87-012-271-080 C-CAP,U 560P-50 K B
C305 87-012-271-080 C-CAP,U 560P-50 K B
C306 87-012-271-080 C-CAP,U 560P-50 K B
C307 87-010-759-080 C-CAP,U 0.1-25 Z F
C309 87-010-759-080 C-CAP,U 0.1-25 Z F

C310 87-010-759-080 C-CAP,U 0.1-25 Z F
C311 87-010-787-080 C-CAP,U 0.022-25 K B
C312 87-010-787-080 C-CAP,U 0.022-25 K B
C313 87-012-276-080 C-CAP,U 1500P-50 K B
C314 87-012-276-080 C-CAP,U 1500P-50 K B

C315 87-012-278-080 C-CAP,U 2200P-50 K B
C316 87-012-278-080 C-CAP,U 2200P-50 K B
C321 87-012-142-080 C-CAP,S 0.33-16 Z F GRM
C322 87-012-142-080 C-CAP,S 0.33-16 Z F GRM
C324 87-A12-071-080 CAP,E 47-25 SMG

DESCRIPTIONREF. NO. KANRI

 3 

PART NO.

NO.

C325 87-A12-057-080 CAP,E 330-6.3 SMG
C327 87-A12-090-080 CAP,E 4.7-50 SMG
C328 87-A12-090-080 CAP,E 4.7-50 SMG
C332 87-010-759-080 C-CAP,U 0.1-25 Z F
C335 87-A12-087-080 CAP,E 1-50 SMG

C336 87-A12-087-080 CAP,E 1-50 SMG
C337 87-010-759-080 C-CAP,U 0.1-25 Z F
C339 87-010-759-080 C-CAP,U 0.1-25 Z F
C340 87-010-759-080 C-CAP,U 0.1-25 Z F
C351 87-012-270-080 C-CAP,U 470P-50 K B

C352 87-012-270-080 C-CAP,U 470P-50 K B
C354 87-012-271-080 C-CAP,U 560P-50 K B
C355 87-012-274-080 C-CAP,U 1000P-50 K B
C356 87-A12-071-080 CAP,E 47-25 SMG
C357 87-012-286-080 C-CAP,U 0.01-25 K B

C358 87-012-279-080 C-CAP,U 2700P-50 K B GRM
C359 87-012-279-080 C-CAP,U 2700P-50 K B GRM
C360 87-012-279-080 C-CAP,U 2700P-50 K B GRM
C363 87-A12-361-080 CAP,M 5600P-100 J CP
C370 87-010-759-080 C-CAP,U 0.1-25 Z F

C373 87-A11-177-080 C-CAP,S 0.15-16 K B
C374 87-A11-177-080 C-CAP,S 0.15-16 K B
C378 87-010-759-080 C-CAP,U 0.1-25 Z F
C379 87-A12-069-080 CAP,E 22-25 SMG
C380 87-A12-069-080 CAP,E 22-25 SMG

C386 87-010-759-080 C-CAP,U 0.1-25 Z F
C388 87-012-266-080 C-CAP,U 220P-50 K B GRM
C391 87-012-337-080 C-CAP,U 56P-50 J CH GRM
C392 87-012-337-080 C-CAP,U 56P-50 J CH GRM
C393 87-012-337-080 C-CAP,U 56P-50 J CH GRM

C394 87-012-337-080 C-CAP,U 56P-50 J CH GRM
C611 87-012-195-080 C-CAP,U 100P-50 J CH
C616 87-012-195-080 C-CAP,U 100P-50 J CH
C620 87-010-759-080 C-CAP,U 0.1-25 Z F
C621 87-012-277-080 C-CAP, U 1800P-50 K B GRM

C622 87-012-277-080 C-CAP, U 1800P-50 K B GRM
C633 87-012-281-080 C-CAP,U 3900P-50 K B GRM
C634 87-016-369-080 C-CAP,S 0.033-25 K B GRM
C635 87-012-281-080 C-CAP,U 3900P-50 K B GRM
C636 87-016-369-080 C-CAP,S 0.033-25 K B GRM

C637 87-A12-088-080 CAP,E 2.2-50 SMG
C638 87-A12-088-080 CAP,E 2.2-50 SMG
C643 87-016-114-080 C-CAP,U 0.01-25 J B GRM
C644 87-016-114-080 C-CAP,U 0.01-25 J B GRM
C645 87-016-114-080 C-CAP,U 0.01-25 J B GRM

C646 87-016-114-080 C-CAP,U 0.01-25 J B GRM
C647 87-A12-309-080 C-CAP,U 680P-50 J CH
C648 87-A12-309-080 C-CAP,U 680P-50 J CH
C649 87-A10-260-080 C-CAP,U 0.1-16 K B
C650 87-016-118-080 C-CAP,U 0.022-25 J B

C651 87-016-118-080 C-CAP,U 0.022-25 J B
C652 87-A10-260-080 C-CAP,U 0.1-16 K B
C653 87-A10-260-080 C-CAP,U 0.1-16 K B
C654 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C655 87-A10-802-080 C-CAP,S 0.047-16 J B CM

C656 87-A10-260-080 C-CAP,U 0.1-16 K B
C657 87-016-460-080 C-CAP,S 0.22-16 K B
C658 87-016-460-080 C-CAP,S 0.22-16 K B
C659 87-A12-090-080 CAP,E 4.7-50 SMG
C660 87-A12-090-080 CAP,E 4.7-50 SMG

C661 87-016-460-080 C-CAP,S 0.22-16 K B
C662 87-016-460-080 C-CAP,S 0.22-16 K B
C663 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C664 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C665 87-A10-230-080 C-CAP,S 0.68-25 Z F

C666 87-A10-260-080 C-CAP,U 0.1-16 K B
C667 87-A12-091-080 CAP,E 10-50 SMG
C668 87-A12-091-080 CAP,E 10-50 SMG
C669 87-A12-090-080 CAP,E 4.7-50 SMG
C670 87-A12-090-080 CAP,E 4.7-50 SMG

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C675 87-012-282-080 C-CAP,U 4700P-50 K B
C676 87-012-282-080 C-CAP,U 4700P-50 K B
C683 87-A11-969-080 C-CAP,U 0.082U-16 K B
C684 87-A12-075-080 CAP,E 10-35 SMG
C685 87-012-167-080 C-CAP,U 5P-50 C CH

C686 87-010-759-080 C-CAP,U 0.1-25 Z F
C687 87-010-759-080 C-CAP,U 0.1-25 Z F
C688 87-A12-062-080 CAP,E 100-10 SMG
C689 87-010-371-080 CAP,E 470-6.3 M SME
C701 87-012-195-080 C-CAP,U 100P-50 J CH

C702 87-012-195-080 C-CAP,U 100P-50 J CH
C703 87-012-286-080 C-CAP,U 0.01-25 K B
C707 87-A12-088-080 CAP,E 2.2-50 SMG
C708 87-A12-088-080 CAP,E 2.2-50 SMG
C771 87-A12-062-080 CAP,E 100-10 SMG

C772 87-012-286-080 C-CAP,U 0.01-25 K B
C779 87-010-949-080 C-CAP,S 0.01-50 J B
C780 87-010-949-080 C-CAP,S 0.01-50 J B
C782 87-012-286-080 C-CAP,U 0.01-25 K B
C783 87-012-286-080 C-CAP,U 0.01-25 K B

C784 87-012-286-080 C-CAP,U 0.01-25 K B
C785 87-012-286-080 C-CAP,U 0.01-25 K B
C786 87-012-286-080 C-CAP,U 0.01-25 K B
C788 87-012-167-080 C-CAP,U 5P-50 C CH
C789 87-016-118-080 C-CAP,U 0.022-25 J B GRM

C790 87-016-118-080 C-CAP,U 0.022-25 J B GRM
C791 87-010-831-080 C-CAP,U 0.1-16 Z F
C792 87-012-286-080 C-CAP,U 0.01-25 K B
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 C-CAP,U 0.01-25 K B

C796 87-012-286-080 C-CAP,U 0.01-25 K B
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 C-CAP,U 0.01-25 K B
C799 87-010-265-080 CAP,E 33-16 M 11L SME
C800 87-010-829-080 C-CAP,U 0.047-16 Z F

C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 C-CAP,U 0.047-16 Z F
C803 87-010-787-080 C-CAP,U 0.022-25 K B
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG

C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U 0.1-16 Z F
C814 87-012-286-080 C-CAP,U 0.01-25 K B
C815 87-A12-086-080 CAP,E 0.47-50 SMG

C816 87-A12-086-080 CAP,E 0.47-50 SMG
C818 87-012-276-080 C-CAP,U 1500P-50 K B
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C824 87-A12-090-080 CAP,E 4.7-50 SMG

C825 87-010-829-080 C-CAP,U 0.047-16 Z F
C831 87-A12-092-080 CAP,E 22-50 SMG
C844 87-012-286-080 C-CAP,U 0.01-25 K B
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 C-CAP,U 0.01-25 K B

C852 87-012-286-080 C-CAP,U 0.01-25 K B
C853 87-012-286-080 C-CAP,U 0.01-25 K B
C858 87-010-831-080 C-CAP,U 0.1-16 Z F
C859 87-010-831-080 C-CAP,U 0.1-16 Z F
C860 87-012-286-080 C-CAP,U 0.01-25 K B

C869 87-012-286-080 C-CAP,U 0.01-25 K B
C870 87-012-274-080 C-CAP,U 1000P-50 K B
C871 87-012-199-080 C-CAP,U 220P-50 J CH
C872 87-012-199-080 C-CAP,U 220P-50 J CH
C873 87-A10-039-080 C-CAP,U 470P-50 J CH

C874 87-A12-091-080 CAP,E 10-50 SMG
C875 87-010-759-080 C-CAP,U 0.1-25 Z F
C876 87-A12-091-080 CAP,E 10-50 SMG
C877 87-012-286-080 C-CAP,U 0.01-25 K B
C878 87-012-184-080 C-CAP,U 33P-50 J CH

DESCRIPTIONREF. NO. KANRI

 4 

PART NO.

NO.

C879 87-012-180-080 C-CAP,U 22P-50 J CH
C900 87-018-134-080 CAP,TC U 0.01-16 Z F NYUP050
C940 87-012-286-080 C-CAP,U 0.01-25 K B
C942 87-012-165-080 C-CAP,U 3P-50 C CH
C947 87-012-286-080 C-CAP,U 0.01-25 K B

C948 87-A10-039-080 C-CAP,U 470P-50 J CH
C952 87-012-286-080 C-CAP,U 0.01-25 K B
C957 87-012-174-080 C-CAP,U 12P-50 J CH
C958 87-012-286-080 C-CAP,U 0.01-25 K B
C959 87-010-831-080 C-CAP,U 0.1-16 Z F

C960 87-010-831-080 C-CAP,U 0.1-16 Z F
C962 87-A12-087-080 CAP,E 1-50 SMG
C963 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG

C973 87-012-286-080 C-CAP,U 0.01-25 K B
C974 87-012-286-080 C-CAP,U 0.01-25 K B
C979 87-012-195-080 C-CAP,U 100P-50 J CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U 0.1-16 Z F

C983 87-012-286-080 C-CAP,U 0.01-25 K B
C984 87-012-286-080 C-CAP,U 0.01-25 K B
C985 87-012-195-080 C-CAP,U 100P-50 J CH
C987 87-012-286-080 C-CAP,U 0.01-25 K B
C989 87-012-286-080 C-CAP,U 0.01-25 K B

C991 87-012-176-080 C-CAP,U 15P-50 J CH
C992 87-012-176-080 C-CAP,U 15P-50 J CH
C993 87-012-274-080 C-CAP,U 1000P-50 K B
C995 87-012-274-080 C-CAP,U 1000P-50 K B
C997 87-010-831-080 C-CAP,U 0.1-16 Z F

C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
C1000 87-018-199-080 CAP,TC U 3300P-16 N
C1001 87-018-199-080 CAP,TC U 3300P-16 N
C1002 87-018-121-080 CAP,TC U 150P-50 K B

C1003 87-018-121-080 CAP,TC U 150P-50 K B
C1004 87-018-131-080 CAP,TC U 1000P-50 K
CF831 87-008-423-010 FLTR,CF SFE10.7 MS3G-A
CF832 82-785-747-010 CF,MS2 GHY,R
CN105 87-099-195-010 CONN,7P V BLK 6216

CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN551 87-099-668-010 CONN,9P TUC-P 9P-B1
CN601 87-099-719-010 CONN,30P H BLK TYK-B(X)
CN701 87-A60-061-010 CONN,06P V 9604S-06C

CNA1 8A-NF6-646-010 CONN ASSY,9P TID-A(460)
CNA102 8A-NF8-655-010 CONN ASSY,7P TID-A(250)
CNA301 86-ZM3-604-210 CONN ASSY,3P-PB
CNA351 86-ZM3-605-110 CONN ASSY,8P-RPB
FB301 87-A90-896-080 F-BEAD,035600STY7

FFC105 88-907-201-110 FF-CABLE, 7P 200MM
FFC701 88-906-321-110 FF-CABLE, 6P 1.25 320MM
FFE831 A8-6ZA-19H-030 6ZA-1 FEMENM
J101 87-A61-481-010 JACK,DIA6.3 BLK ST W/SW MSC16B
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)

J602 87-A61-069-010 JACK,PIN 6P R/W,R/W, O/B MSC
J603 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05
JW639 87-A90-896-080 F-BEAD,035600STY7
L141 87-A50-610-010 COIL,1UH K(MDEC)

L142 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-625-010 COIL,TRAP 85KHZ (SANWA)
L302 87-A50-625-010 COIL,TRAP 85KHZ (SANWA)
L351 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)

L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH K CECS
L832 87-005-847-080 COIL,2.2UH K CECS
L861 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-020-010 COIL,ANT LW(COI) 252KHZ

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

L942 87-A50-019-010 COIL,OSC LW(COI) 856KHZ
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)
R85 87-A00-436-050 RES,100-1/2W J RP
R86 87-A00-436-050 RES,100-1/2W J RP
R87 87-A00-436-050 RES,100-1/2W J RP

R88 87-A00-436-050 RES,100-1/2W J RP
R149 87-A00-440-050 RES,220-1/2W J RP
R150 87-A00-440-050 RES,220-1/2W J RP
R151 87-A00-440-050 RES,220-1/2W J RP
R152 87-A00-440-050 RES,220-1/2W J RP

R257 87-A00-669-080 RES,M/F 0.22-2W J RA
R258 87-A00-669-080 RES,M/F 0.22-2W J RA
R261 87-A00-669-080 RES,M/F 0.22-2W J RA
R262 87-A00-669-080 RES,M/F 0.22-2W J RA
R790 87-012-286-080 C-CAP,U 0.01-25 K B

R991 87-012-195-080 C-CAP,U 100P-50 J CH
R993 87-012-195-080 C-CAP,U 100P-50 J CH
R995 87-012-195-080 C-CAP,U 100P-50 J CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA

TC942 87-A91-774-080 TRIMMER,PLY 30P 6.8X5.4 CDYL
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
WH102 87-A90-460-010 HLDR,WIRE 2.5-7P

X862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST

DSP C.B

C552 87-A12-061-080 CAP,E 47-10 SMG
C556 87-016-460-080 C-CAP,S 0.22-16 K B
C557 87-016-460-080 C-CAP,S 0.22-16 K B
C558 87-010-759-080 C-CAP,U 0.1-25 Z F
C559 87-016-460-080 C-CAP,S 0.22-16 K B

C560 87-010-971-080 C-CAP,S 4700P-50 J B
C561 87-A10-978-080 C-CAP,U 820P-25 J CH
C562 87-A12-319-080 C-CAP,U 0.1-25 K B
C563 87-A12-319-080 C-CAP,U 0.1-25 K B
C564 87-010-971-080 C-CAP,S 4700P-50 J B

C565 87-A10-978-080 C-CAP,U 820P-25 J CH
C566 87-016-460-080 C-CAP,S 0.22-16 K B
C567 87-A12-061-080 CAP,E 47-10 SMG
C569 87-A12-087-080 CAP,E 1-50 SMG
C571 87-A12-085-080 CAP,E 0.33-50 SMG

C573 87-A12-086-080 CAP,E 0.47-50 SMG
CN552 87-A60-649-010 CONN,9P H GRY TUC-P09X-C1

DESCRIPTIONREF. NO. KANRI

 5 

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

88

A

Resistor Code

Chip resistor

Wattage Type Tolerance
1/16W 1005 5% CJ

1/16W
1/10W

1/8W

1608
2125

3216

5%
5%

5%

TRANSISTOR ILLUSTRATION

Symbol

CJ
CJ

CJ

Figure

Value of resistor

Form

L

Dimensions (mm)

t

W

0.55

Resistor Code

108
118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45
2 1.25 0.45

3.2

1.6

: A
: A

CC5551
CSC4115BC
KTC3198GR

B

2SA1235F
2SC2714O
2SC3052F
CSD1306E
KRA102S
KRA107S
RT1P 141C

C

E

RT1P 441C
SBT5401F
SBT5551F

2SA1980G
2SA1981Y
STC250

D

G

G D SE C B E C B B C E

2SB1344

2SK2937
2SB1370E
2SD2025

S

G

D

S

2SK21582SK360E

 6 

WIRING (MAIN / DSP)

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

 7 

R

S

T

U

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 4 : FUNC SECTION / DSP)

– 8 –

SCHEMATIC DIAGRAM – 2 (MAIN 2 / 4 : DECK SECTION)

– 9 –

SCHEMATIC DIAGRAM – 3 (MAIN 3 / 4 : TUNER SECTION)

– 10 –

SCHEMATIC DIAGRAM – 4 (MAIN 4 / 4 : AMP SECTION)

– 11 –

MECHANICAL EXPLODED VIEW 1 / 1

d

BZG-5 ZD3N1M

f

A

17

e

16

18

B

FL101

8

PWB

PWB

C

J

A

48
PWB

50

36

A

49

j

PWB

J

D

HT-SINK
ASSY, DPL

WIRE ASSY,
120 LUG

22

47

HLDR,TR VM

C

g

b

E

38

39

J

C

C

D

F

40

g

C

41

PWB

G

WIRE,
LUG-PT-150

PT1

51

a

39

C

d

j

42

PWB

c

C

C

c

C

15

14

6

5

4

8

7

10

11

12

C

19

f

H

b

9

H

h

H

1

2

e

21

a

C

20

A

40

26

A

H

9

13

H

25

27

28

11

29

10

23

A

30

24

52

A

A

ZZM-3 PR1NM

31

32

33

WIRE ASSY,
120 LUG

h

WIRE ASSY,
120 LUG

WIRE ASSY,
120 LUG

I

F

A

i

35

43

44

CHAS,MAIN S

37

C

46

45

i

C

C

3

C

34

I

 12 

MECHANICAL PARTS LIST 1 / 1

PART NO.

NO.

1 8B-MA5-087-010 RING,JOG R
2 8B-MA3-088-010 RING,IND
3 8B-MA3-081-010 KNOB,RTRY JOG
4 8B-MA3-105-010 KNOB ASSY,RTRY VOL
5 8B-MA3-086-010 RING,VOL

6 8B-MAS-051-010 WINDOW,DISP RDS S 545
7 87-NF4-216-010 HLDR,LOCK 1
8 87-B00-002-010 BADGE,AIWA 30 ABS SIL
9 87-NF8-220-010 DMPR,150
10 86-NF9-224-010 SPR-C,LOCK

11 82-NF5-229-010 PLATE,LOCK
12 8A-MA5-207-010 SPR-T,EJECT 1
13 8A-MA5-208-010 SPR-T,EJECT 2
14 8B-MAS-031-010 PANEL,GEQ RDS S
15 8B-MA5-030-110 PANEL,TRAY A5

16 8B-MA6-019-010 CABI,TOP U
17 8A-MA3-057-010 WINDOW,TOP
18 87-MA5-203-110 GUIDE,FL
19 8B-MA3-061-010 KEY,OPEN
20 8B-MA5-063-010 KEY,DIRECT A5

21 8B-MAS-001-010 CABI,FR S
22 8B-MA3-206-010 GUIDE,LED OPE
23 8B-MA3-102-010 KEY ASSY,OPE
24 8B-MA5-103-010 KEY ASSY,FUNC A5
25 8B-MA3-084-010 RING,OPE

26 8B-MA3-064-010 KEY,T-BASS A3
27 8B-MA3-065-010 KEY,ENTER
28 8B-MA3-066-010 KEY,GEQ
29 8B-MAS-067-010 KEY,RDS S
30 87-NF4-217-110 HLDR,LOCK 2

31 8B-MA3-026-010 BOX,CASS R A3
32 8B-MA3-056-010 WINDOW,CASS R A3
33 8B-MA3-025-010 BOX,CASS L A3
34 8B-MA3-055-010 WINDOW,CASS L A3
35 87-MA3-062-010 FOOT, H17

DESCRIPTIONREF. NO. KANRI

PART NO.

36 8B-MA6-207-010 HLDR,TR A6
37 8B-MA3-047-010 PANEL,SIDE L (U)
38 8B-MA3-215-010 HLDR,PWB PT (HH)
39 88-MA1-208-210 JOINT,CABI
40 87-064-185-010 HLDR,WIRE PVC 0.5

41 87-NF4-221-010 HLDR,CABLE
42 8B-MAS-012-010 CABI,REAR K S

!

43 87-A80-157-010 AC CORD ASSY,E BLK CC
44 87-085-185-010 BUSHING, AC CORD (E)

!

45 87-099-811-010 PLUG,ADPTR CONV(K)

46 8B-MA3-048-010 PANEL,SIDE R (U)
47 88-906-321-110 FF-CABLE, 6P 1.25 320MM
48 88-907-201-110 FF-CABLE, 7P 200MM
49 88-908-271-210 FF-CABLE, 8P 1.25 270MM
50 88-911-151-110 FF-CABLE, 11P 1.25 150MM

51 87-A91-870-010 F-BEAD,9.5-17.5-28.5 TAITECH
52 87-003-317-010 F-BEAD,15-25-15 E2515MRT
A 87-078-060-010 BVIT3PB+3-10
B 87-067-758-010 BVT2+3-12 W/O SLOT
C 87-067-703-010 TAPPING SCREW, BVT2+3-10

D 87-B10-316-010 BVIT3B+3-10 R W/O
E 87-067-689-010 TAPPING SCREW, BVTT+3-8
F 87-B10-315-010 BVIT3B+3-8 R W/O
G 87-078-200-010 S-SCREW,ITC+4-8 R
H 87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD)

I 87-067-641-010 UTT2+3-8(W/O SLOT)BL
J 87-NF4-224-010 S-SCREW,IT3B+3-8 CU

NO.

DESCRIPTIONREF. NO. KANRI

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange
G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver
T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green

YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue GL Light Green HT Transparent Gray

HM Metallic Gray NH Champagne Gold M Wood Pattern

 13 

SPEAKER PARTS LIST (SX-ZL520 <YS1C>)

PART NO.

NO.

1 8B-MSF-001-010 PANEL,DUCT
2 8B-MSF-004-010 GRILLE,FRAME ASSY G
3 8B-MSG-612-010 CORD,SPKR
4 8B-MSF-606-010 SPKR,W 160 25/4
5 8B-MSF-604-010 SPKR,TW 60

6 83-MSE-605-010 SPKR,CERAMIC

DESCRIPTIONREF. NO. KANRI

SPEAKER PARTS LIST (SX-CR677 <YSTC>)

NOTE: This SX-CR677 Speaker contains SX-C607 (Center Speaker) and SX-R277 (Surround Speakers).

PART NO.

NO.

1 8Z-YS1-002-010 GRILLE,FRAME ASSY<R277>
2 81-VSA-009-010 CORD,BUSH<R277>
3 87-010-384-010 CAP,E 100-25 M SME<R277>
4 87-YS6-002-010 SPKR,CORD Y<R277>
5 8Z-YS1-601-010 SPKR,100<R277>

6 87-YS3-003-010 GRILLE,FRAME ASSY<C607>
7 81-VSA-009-010 CORD,BUSH<C607>
8 83-NSM-010-010 SPKR,CORD<C607>
9 87-YS7-602-010 SPKR,100<C607>
10 87-YS7-012-010 PANEL,FR S<C607>

DESCRIPTIONREF. NO. KANRI

ACCESSORIES / PACKAGE LIST

PART NO.

1 8B-MAS-901-110 IB,K(E)M
2 8Z-NFW-702-010 RC UNIT,ZAS10
3 87-006-268-010 ANT,LOOP AM
4 87-A90-118-010 ANT,WIRE FM(Z)
5 87-099-811-010 PLUG,ADPTR CONV(K)

!

NO.

DESCRIPTIONREF. NO. KANRI

 14 

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore2000075 921338
