SUB WOOFER: 1V
SPEAKERS:
accept speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8-16 ohms or more
CENTER SPEAKERS:
accept speakers of 8 ohms or more
PHONES (stereo jack):
accepts headphones of 32 ohms or
more
<Cassette deck section>
Track format4 tracks, 2 channels stereo
Frequency response50 Hz – 12500 Hz
Recording systemAC bias
HeadsDeck 1 : Playback head x 1
Deck 2 : Recording/Playback head
x 1, erase head x 1
<Compact disc player section>
LaserSemiconductor laser (λ =780 nm)
D-A converter1 bit dual
Signal-to-noise ratio85 dB (1 kHz, 0 dB)
Harmonic distortion0.05 % (1 kHz, 0 dB)
Wow and flutterUnmeasurable

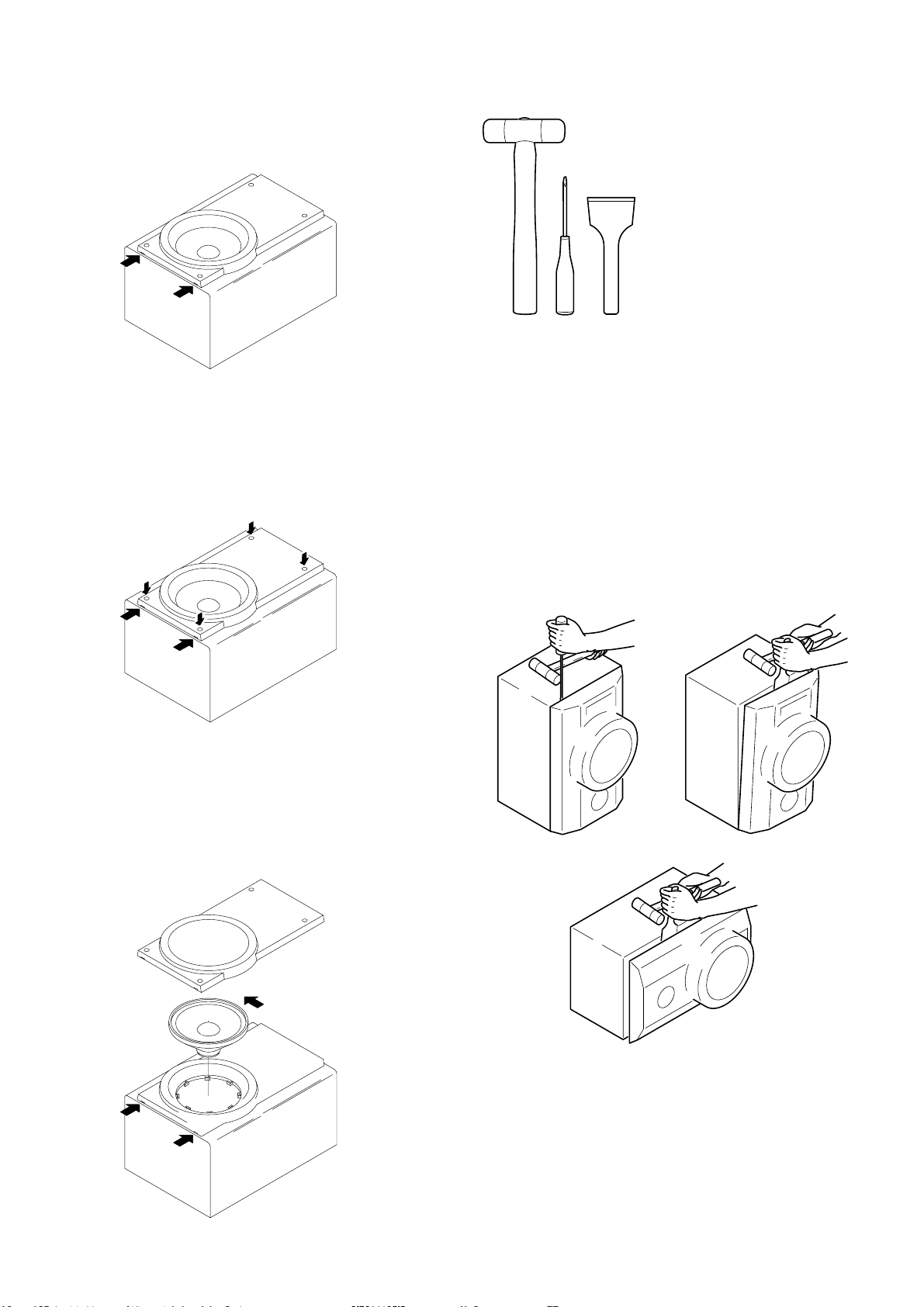

<Speaker system SX–ZHT530>
Cabinet type3 way, bass reflex
SpeakersWoofer:
220 mm cone type
Tweeter:
60 mm cone type
Super tweeter:
20 mm ceramic type
Impedance6 ohms
Output sound pressure level 89 dB/W/m
Dimensions (W x H x D)260 x 495 x 314 mm
Weight6.1 kg
<General>
Power requirements230 V AC, 50 Hz
Power consumption210 W
Dimensions of main unitK: 360 x 395.3 x 385.1 mm
(W x H x D)EZ: 360 x 395.3 x 402.3 mm
Weight of main unitK: 11.7 kg
EZ: 11.9 kg
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
– 2 –
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
s Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
s Advarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1LASER PRODUCT
KLASSE 1LASER PRODUKT
LUOKAN 1LASER LAITE
KLASS 1LASER APPARAT
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder
– 3 –
NOTE ON BEFORE STARTING REPAIR
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
1 Remove the AC power cord.
11
22
2 Connect a discharging resistor at an end of lead wire that
22
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
3 Contact the other end of the discharging resistor to the
33
positive (+) side (+VH) of C101. (For two seconds)
44
4 Contact the same end of the discharging resistor as step
44
33
3 to the negative (-) side (-VH) of C102 in the same way.
33
(For two seconds)
55
5 Check that voltage across C101 and C102 has decreased
55
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Charging voltage (V)Discharging
(C101, 102)resistor (Ω)
25-48100387-A00-247-090
49-140220587-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
Rated power (W)Parts number
MAIN C.B
D101
3
C101C102
22
Fig-1
4
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
1 Turn on the AC main power.
11
22
2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
22
33
3 When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
33
MICROCOMPUTER is judged to be good.
– 4 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
1 Remove the AC power cord.
11
FRONT C.B
18
MICROCOMPUTER
FRONT C.B
22
2 Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
22
33
3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
33
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
15
C113
Short with tweezers.
Fig-2-2
C113
%
*
VSS
VDD
MICROCOMPUTER
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
C3 87-A10-712-080 C-CAP,S 0.22-50 Z F
C4 87-A10-712-080 C-CAP,S 0.22-50 Z F
C21 87-A10-520-000 CAP,E 3300-35 M SMG
C22 87-A10-520-000 CAP,E 3300-35 M SMG
C25 87-016-300-080 CAP, ELECT 22-100
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-010-178-080 CHIP CAP 1000P
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-A11-177-080 C-CAP,S 0.15-16 K B
C430 87-012-142-080 CAP, S 0.33-16
C431 87-010-971-080 C-CAP,S 4700P-50 B J
C432 87-010-178-080 CHIP CAP 1000P
C433 87-A11-183-080 C-CAP,S 0.12-16 J B
C434 87-A11-182-080 C-CAP,S 0.27-16 J B
C435 87-A11-182-080 C-CAP,S 0.27-16 J B
C436 87-A11-183-080 C-CAP,S 0.12-16 J B
C437 87-010-971-080 C-CAP,S 4700P-50 B J
C438 87-010-178-080 CHIP CAP 1000P
C439 87-010-805-080 CAP, S 1-16
C440 87-010-401-080 CAP, ELECT 1-50V
C441 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C442 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C443 87-A10-229-080 C-CAP,S 0.68-10 K W5
C444 87-016-460-080 C-CAP,S 0.22-16 B
C445 87-016-460-080 C-CAP,S 0.22-16 B
C446 87-010-404-080 CAP, ELECT 4.7-50V
C447 87-010-404-080 CAP, ELECT 4.7-50V
C448 87-016-460-080 C-CAP,S 0.22-16 B
C449 87-016-460-080 C-CAP,S 0.22-16 B
C450 87-016-081-080 C-CAP,S 0.1-16 RK
C451 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C452 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C453 87-016-081-080 C-CAP,S 0.1-16 RK
C454 87-016-081-080 C-CAP,S 0.1-16 RK
C455 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C456 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C457 87-016-081-080 C-CAP,S 0.1-16 RK
C461 87-010-196-080 CHIP CAPACITOR,0.1-25
C463 87-010-196-080 CHIP CAPACITOR,0.1-25
C613 87-010-190-080 S CHIP F 0.01
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C941 87-012-145-080 CAP, CHIP S 270P CH
C942 87-012-145-080 CAP, CHIP S 270P CH
C943 87-012-145-080 CAP, CHIP S 270P CH
C944 87-012-145-080 CAP, CHIP S 270P CH
C945 87-012-145-080 CAP, CHIP S 270P CH
C946 87-012-145-080 CAP, CHIP S 270P CH
C947 87-012-145-080 CAP, CHIP S 270P CH
C948 87-012-145-080 CAP, CHIP S 270P CH
C949 87-012-145-080 CAP, CHIP S 270P CH
C950 87-012-145-080 CAP, CHIP S 270P CH
C951 87-012-145-080 CAP, CHIP S 270P CH
C952 87-012-145-080 CAP, CHIP S 270P CH
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-A60-162-010 CONN,14P H FE
CN103 87-A60-162-010 CONN,14P H FE
CN104 87-A60-159-010 CONN,11P H FE
CN301 87-A60-156-010 CONN,8P H FE
FB1 87-A90-896-080 F-BEAD, 035600STY7
FC102 88-914-231-110 FF-CABLE 14P 1.25
FC104 88-911-151-110 FF-CABLE, 11P 1.25 150MM
FL101 8A-MA5-651-010 FL,BJ746GNK
L101 87-A50-333-010 COIL,OSC 9.43MHZ
LED131 87-A40-317-080 LED,SLR-342VCT31 RED
LED201 87-A40-496-040 LED,SLR-342MCT31 GRN
LED202 87-A40-317-080 LED,SLR-342VCT31 RED
LED204 87-A40-496-040 LED,SLR-342MCT31 GRN
LED205 87-A40-317-080 LED,SLR-342VCT31 RED
LED208 87-A40-496-040 LED,SLR-342MCT31 GRN
LED210 87-A40-317-080 LED,SLR-342VCT31 RED
LED211 87-A40-496-040 LED,SLR-342MCT31 GRN
LED212 87-A40-317-080 LED,SLR-342VCT31 RED
LED231 87-A40-317-080 LED,SLR-342VCT31 RED
LED232 87-A40-317-080 LED,SLR-342VCT31 RED
LED233 87-A40-496-040 LED,SLR-342MCT31 GRN
LED234 87-A40-496-040 LED,SLR-342MCT31 GRN
LED675 87-A40-317-080 LED,SLR-342VCT31 RED
LED676 87-A40-317-080 LED,SLR-342VCT31 RED
LED677 87-A40-317-080 LED,SLR-342VCT31 RED
LED678 87-A40-317-080 LED,SLR-342VCT31 RED
LED679 87-A40-317-080 LED,SLR-342VCT31 RED
C122 87-010-190-080 S CHIP F 0.01
C151 87-012-368-080 C-CAP,S 0.1-50 F
C152 87-012-368-080 C-CAP,S 0.1-50 F
C153 87-A11-595-080 C-CAP,S 0.056-50 K B
C154 87-A11-595-080 C-CAP,S 0.056-50 K B
C155 87-010-190-080 S CHIP F 0.01
C156 87-010-190-080 S CHIP F 0.01
C157 87-010-190-080 S CHIP F 0.01
C160 87-010-186-080 CAP,CHIP 4700P
C161 87-010-186-080 CAP,CHIP 4700P
C201 87-010-178-080 CHIP CAP 1000P
C202 87-010-258-080 CAP,E 22-35 SME
C203 87-010-322-080 C-CAP,S 100P-50 CH
C204 87-010-258-080 CAP,E 22-35 SME
C205 87-010-260-080 CAP, ELECT 47-25V
C206 87-012-156-080 C-CAP,S 220P-50 CH
C208 87-010-197-080 CAP, CHIP 0.01 DM
C251 87-012-368-080 C-CAP,S 0.1-50 F
C252 87-A11-595-080 C-CAP,S 0.056-50 K B
C253 87-A11-595-080 C-CAP,S 0.056-50 K B
C258 87-010-196-080 C-CAP,S 0.1-25 ZF
CN101 87-A61-109-010 CONN,7P V TID-A
CN102 87-A60-135-010 CONN,10P V FE
FC102 88-910-201-110 FF-CABLE 10P 1.25
J101 87-A61-159-010 JACK,PIN 4P R/W/B/0 KM
C1 87-A11-148-080 CAP,TC U 0.1-50 Z F
C2 87-A11-148-080 CAP,TC U 0.1-50 Z F
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-A11-148-080 CAP,TC U 0.1-50 Z F
C7 87-A11-148-080 CAP,TC U 0.1-50 Z F
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C101 87-010-387-080 CAP,E 470-25 SME
C102 87-A11-148-080 CAP,TC U 0.1-50 Z F
C103 87-A11-148-080 CAP,TC U 0.1-50 Z F
C104 87-A11-148-080 CAP,TC U 0.1-50 Z F
C105 87-A11-148-080 CAP,TC U 0.1-50 Z F
C106 87-A11-148-080 CAP,TC U 0.1-50 Z F
C107 87-A11-148-080 CAP,TC U 0.1-50 Z F
C108 87-A11-148-080 CAP,TC U 0.1-50 Z F
C109 87-A11-148-080 CAP,TC U 0.1-50 Z F
C110 87-A11-148-080 CAP,TC U 0.1-50 Z F
C111 87-A10-520-000 CAP,E 3300-35 M SMG
C112 87-A10-520-000 CAP,E 3300-35 M SMG
C113 87-016-520-000 CAP,E 3300-65 M SMG
C114 87-016-520-000 CAP,E 3300-65 M SMG
C116 87-010-403-040 CAP,E 3.3-50 SME
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
