Aiwa XR-M131 User Manual

Compact Disc

OPERATING INSTRUCTIONS

En (English)

Stereo System

XR-M131

U

For assistance and information

(United States and Puerto Rico)

8B-CLB-903-31
010620DYK-H-B

C

MANUAL DE INSTRUCCIONES

MODE D'EMPLOI

E (Español)

F (Français)

PRECAUTIONS

WARNING

To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.

CAUTION

En

Explanation of Graphical Symbols:

2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

“CAUTION:TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.

The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

Read these Operating Instructions carefully and completely
before operating the unit. All precautions in this booklet and
on the unit should be strictly followed.
Keep the Operating Instructions for future reference.

Installation
1 Water and moisture — Do not use this unit near water,

such as near a bathtub, washbowl, swimming pool, or the
like.

2 Heat — Do not use this unit near sources of heat, including

heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).

3 Mounting surface — Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate

space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of
the unit, and 5 cm (2 in.) from each side.

- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.

5 Objects and liquid entry — Make sure that objects or

liquids do not get inside the unit through the ventilation
openings.

6 Carts and stands — When placed or

mounted on a stand or cart, the unit should
be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the
unit or cart to overturn or fall.

7 Condensation — Moisture may form on the CD pickup

lens when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.

8 Wall or ceiling mounting — The unit should not be

mounted on a wall or ceiling, unless specified in the
Operating Instructions.

Electric Power
1 Power sources — Connect this unit only to power sources

specified in the Operating Instructions, and as marked on
the unit.

2 Polarization — As a safety feature, some units are

equipped with polarized AC power plugs which can only be
inserted one way into a power outlet. If it is difficult or
impossible to insert the AC power plug into an outlet, turn
the plug over and try again. If it still does not easily insert
into the outlet, please call a qualified service technician to
service or replace the outlet. To avoid defeating the safety
feature of the polarized plug, do not force it into a power
outlet.

3 AC power cord

- When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, as this
could result in fire or shock.

- Power cords should be firmly secured to avoid being
severely bent, pinched, or walked upon. Pay particular
attention to the cord from the unit to the AC outlet.

- Avoid overloading AC outlets and extension cords beyond
their capacity, as this could result in fire or shock.

4 Extension cord — T o help prevent electric shock, do not

use a polarized AC power plug with an extension cord,
receptacle, or other outlet unless the polarized plug can be
completely inserted to prevent exposure of the blades of the
plug.

5 When not in use — Unplug the AC power cord from the

AC outlet if the unit will not be used for several months or
more. When the cord is plugged in, a small amount of
current continues to flow to the unit, even when the power
is turned off.

Outdoor Antenna
1 Power lines — When connecting an outdoor antenna,

make sure it is located away from power lines.

2 Outdoor antenna grounding — Be sure the antenna

system is properly grounded to provide protection against
unexpected voltage surges or static electricity build-up.
Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information on proper grounding of the mast,
supporting structure, and the lead-in wire to the antenna
discharge unit, as well as the size of the grounding unit,
connection to grounding terminals, and requirements for
grounding terminals themselves.

Antenna Grounding According
to the National Electrical Code

GROUND CLAMP

ELECTRIC
SERVICE
EQUIPMENT

POWER SERVICE
GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

ANTENNA
LEAD IN
WIRE

ANTENNA
DISCHARGE
UNIT
(NEC SECTION
810-20)

GROUNDING
CONDUCTORS
(NEC SECTION
810-21)

GROUND CLAMPS

Maintenance

Clean the unit only as recommended in the Operating
Instructions.

Damage Requiring Service

Have the unit serviced by a qualified service technician if:

- The AC power cord or plug has been damaged

- Foreign objects or liquid have gotten inside the unit

- The unit has been exposed to rain or water

- The unit does not seem to operate normally

- The unit exhibits a marked change in performance

- The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

OWNER'S RECORD

Record the model number and serial number of your set
(found at the rear of your set) below. Refer to them when
contacting your Aiwa dealer.

TABLE OF CONTENTS

PRECAUTIONS .................................... 2

PREPARATIONS ................................... 4

PARTS AND CONTROLS ......................... 5

ADJUSTMENTS BEFORE OPERATION.......... 7

CD OPERATIONS.................................. 8

RADIO OPERATIONS ........................... 10

TAPE OPERATIONS ............................. 11

TIMER OPERATIONS ........................... 14

REFERENCE ..................................... 16

System and accessories

Main unit
Speakers

Remote control
FM antenna
AM antenna

En

Model No. _____________________________
Serial No. _____________________________

3

En

Remote control

Detach the battery compartment lid at the rear of the remote
control and insert two R6 (size AA) batteries with correct
polarity.

4

PARTS AND CONTROLS

Main unit: front

1

2
3

4

5

1 POWER 6STANDBY/ON

Switches the unit on and off (standby).

2 QSOUND

Turns QSOUND on or off.

3 TIMER/SLEEP

Selects timer setting mode.

4 3-MODE EQUALIZER

Selects a sound equalization curve, ROCK, POP or JAZZ.

5 PHONES jack

Plug in optional headphones set with a stereo mini plug
(ø3.5 mm,

6 CD OPEN

Opens or closes the disc compartment.

1

/8 in.). Speaker output is canceled.

6

7
8
9

0

7 TAPE

Selects Tape function.

TUNER/BAND

Selects Radio function and the radio band.

AUX

Selects the function of external equipment connected to
AUX jacks.

CD

Selects CD function.

8 aSET

CD and Tape: pauses playback.
Radio: stores the received station to preset.

cPRESET

CD and Tape: starts playback.
Radio: tunes in a preset station.

sCLEAR

CD and Tape: stops playback.
Radio: clears a station preset.

f/r, t/g (TUNING DOWN, UP)

CD: skips to a previous or a succeeding track when
pressed, searches a track in fast forward or reverse
playback when held down.
Tape: rewinds or fast forwards the tape.
Radio: manually tunes up or down within the band.

wREC/REC MUTE

Starts recording.
REC MUTE: also used to enter 4-second blank spaces.

9 VOLUME UP/DOWN

Adjusts the volume.

0 zPUSH EJECT

Opens or closes the cassette holder.

En

5

Remote control

1

En

2
3

4

Buttons with the same or similar names on the main unit
basically have the same function.

1 0–9, +10

CD: selects a track of the specified number.
Radio: tunes in the station with the specified preset
number.

2 REPEAT

Selects CD repeat playback mode.

DISPLAY

Displays the time or the adjusted volume level.

EQ

Selects a sound equalization curve; ROCK, POP, JAZZ
or EQ OFF.

5
6

MODE

Selects random play, programmed play , AI edit recording
or programmed edit recording mode for CD playback or
recording.

BAND

Selects Radio function and the radio band.

FUNCTION

Switches the active function among TAPE, FM/AM, AUX
and CD.

3 VOL (k/i)
4 POWER
5 aPAUSE

6 cPLAY

r/f, g/t (SKIP/SEARCH)
sSTOP

Main unit: rear

1

2

3

4

1 AM LOOP and FM 75 Ω terminals

Plug in the supplied AM and FM antennas.

2 AUX jacks

Accept analog sound signals from external equipment.
Connect external equipment using an optional connecting
cable with RCA phono plugs (red plug to R jack, white
plug to L jack). Refer also to the operating instructions
for your equipment.
To switch function to external input, press AUX.

3 SPEAKERS3 terminals

Connect the speaker cords of the supplied speakers.

4 AC power cord

6

ADJUSTMENTS BEFORE OPERATION

Graphic equalizer

Selects a sound equalization curve to match the music type.

Press 3-MODE EQUALIZER (ROCK, POP, JAZZ) (EQ
on the remote control repeatedly) to select one of the
three equalization curves.

- ROCK: Powerful sound emphasizing treble and bass

- POP: More presence in the vocals and midrange

- JAZZ: Accented lower frequencies for jazz-type music

To cancel equalization

Press the selected equalization mode button (EQ on the remote
control repeatedly).
"EQ OFF" is displayed.

En

Power

Turning the unit on

Press POWER 6STANDBY/ON (POWER on the remote
control).
Alternatively, press T APE, TUNER/BAND (BAND on the remote
control), AUX or CD. Playback will start automatically if a disc
or tape is loaded.

Turning the unit off

Press POWER 6STANDBY/ON again.
The unit goes into standby.

Volume

Press VOLUME DOWN or UP (VOL k/i on the remote
control).

Adjust from 0 (minimum) to 30 and MAX (maximum).
Pressing DISPLAY twice displays the adjusted volume level.

Tip:

Volume level setting is retained during power-off standby. If
the unit is turned off with the volume set to 21 or more, it is
automatically turned down to 20 the next time the unit is turned
on.

Q SOUND system

The Q SOUND system creates a wider sound area by processing
the original music signals electronically.

Press QSOUND.

"Q SOUND" is displayed.

To cancel the Q SOUND

Press QSOUND so that "Q SOUND" disappears from the
display.

Tip:

When the QSOUND system is activated, the sound may be
distorted. If this happens, decrease the volume.

7

CD OPERATIONS

Setting the clock

1

Press a on the main unit while the power is off.

The hour flashes.

2

Press f or g to designate the hour.

3

Press a.

En

The hour stops flashing and the minute starts flashing.

4

Press f or g to designate the minute.

5

Press a.

The time display stops flashing and the clock starts from
00 seconds.

To display the time while the power is on.

Press DISPLAY on the remote control.
The time will be displayed for 4 seconds, but it cannot be
displayed during recording.

To switch to the 24-hour standard

While the time is displayed, press s.
With each press, the clock alternates between the 12- and
24-hour standard time.

Tip:

In the 12-hour standard, "AM 12:00" indicates midnight
and "PM 12:00" noon.

If the clock display flashes when the unit is turned
off

There has been a power interruption. Reset the clock.

c

a

CD OPEN
CD

sCLEAR

f,g

This unit plays back finalized CD-R/RW discs as well as audio
CDs.

Playback

1

Press CD.

2

Press CD OPEN to open the disc compartment.

Place a disc with the label side up. Then close the disc
compartment.

3

Press c to start play.

To stop playback

Press s.

To pause playback

Press a. Press again to resume playback.

To skip to the beginning of the current/preceding/
succeeding track

Press f or g repeatedly .

To search (playback in fast forward or reverse)

Hold down f or g. Release at the desired point.

0-9,+10

cPLAY

To select a track with the remote control (Direct play)

Press the numbered buttons to select a track.

- To select the 25th track, press +10, +10 and 5.

- To select the 10th track, press +10 and 0.

REPEAT
MODE

aPAUSE
f,g

SKIP/SEARCH
sSTOP

Random/Repeat playback

Random playback plays all the tracks in random order. Repeat
playback plays all the tracks or the track being played repeatedly.
You can select random and repeat all playback at the same
time.

Random play

1

Press MODE on the remote control once in stop
mode.

"RAN" is displayed.

2

Press c to start play.

To cancel, press MODE repeatedly or s in stop mode so
that "RAN" disappears.

•Direct selection of the tracks with the numbered buttons
cancels the random play mode.

8

Repeat play

Press REPEAT on the remote control repeatedly to select
"REPEAT ALL" or "REPEAT 1".

To cancel, press REPEAT repeatedly so that the repeat
indicator goes off.

To repeat a selected set of tracks

Select the tracks with programmed playback, then press
REPEAT on the remote control to select repeat playback.
(See "Programmed playback" on this page.)

• If the random play mode is activated during "REPEAT 1"
play mode, the "REPEAT 1" will be canceled and
"REPEAT ALL" will be selected instead.

Programmed playback

Plays back up to 30 selected tracks in programmed order.

1

Press MODE on the remote control twice in stop
mode.

"M" flashes on the display.

2

Press the numbered buttons on the remote
control to program a track.

-To select the 25th track, press +10, +10 and 5.

-To select the 10th track, pr ess +10 and 0.
The selected track number lights up on the display.

3

Repeat step 2 to program other tracks.

The total number of selected tracks and total playing time
will be displayed.

4

Press c.

The track number for the current track flashes on the
display.

•During programmed playback, you cannot

-select repeat 1 play or random play.

-select a track with the numbered buttons.

•If the total playback time of the program exceeds 99 minutes
and 59 seconds, or if a track with a track number exceeding
30 is programmed, the playing time is displayed as
"- -:- -".

To check the program

Press f or g repeatedly in stop mode. The track
number and program number are displayed in succession.

To clear the program

Press s in stop mode.

To add tracks to the program

Repeat step 2 before starting playback. The tracks are added
to the end of the program.

To change the programmed tracks

Clear the program and repeat all the steps again.

Notes on CDs

•Do not place more than one disc.

•Do not tilt the unit with a disc loaded.

•The unit may not play CD-R/RW discs recorded on personal

computers or certain kinds of CD-R/RW recorders.

•Do not attach adhesive labels, etc. to either side of
CD-R/RW discs, as doing so may cause malfunction.

•Do not load an unrecorded CD-R/RW disc. The disc may be
damaged.

•Do not use irregular-shaped CDs.

•Do not try to open the disc compartment during play.

•Do not touch the CD pickup lens. If it is soiled, a CD may

not be played normally.

En

9

RADIO OPERATIONS

TUNER/BAND

POWER

aSET

En

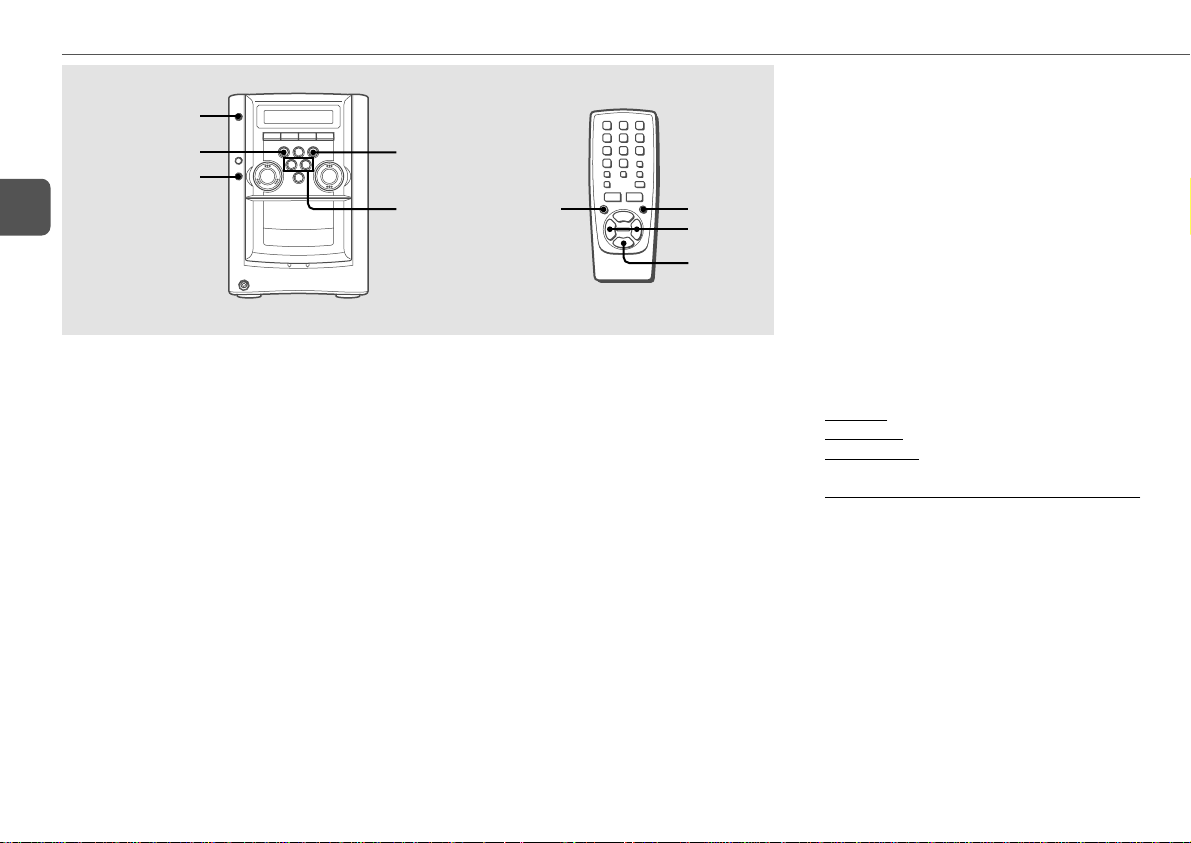

Manual tuning

1

Press TUNER/BAND (BAND on the remote
control) repeatedly to select a band.

The unit switches to the radio from any other function
and alternates between FM and AM.

2

Press f or g repeatedly to tune in a station.

"TUNE" is displayed when a station is tuned in.
"STEREO" is displayed for FM stereo reception.

To search for a station automatically (Auto search)

Hold down f or g.
The unit searches for a station and stops at reception.
To stop the search manually, press f or g.

•Auto search may not stop at stations with weak signals.

cPRESET

1

sCLEAR

f,g

TUNING
DOWN/UP

0-9,+10

BAND

c

Preset tuning

Preset up to 32 of your favorite stations and tune them in
directly.

Presetting stations

1

Tune in the desired station.

2

Press a to store the station.

The preset number, beginning from "1" and the "M"
indicator are displayed on the display.

3

Repeat steps 1 and 2 to preset other stations.

•Each band can store a maximum of 16 preset stations.

•If power is interrupted for more than approximately 12 hours,

all settings stored in memory after purchase need to be reset.

Tuning in preset stations

1

Select the band.

2

Press c repeatedly.

With each press, the station with the succeeding preset
number is tuned in.

MODE
FUNCTION

a
f,g

s

You can tune in the desired preset station directly by
pressing the numbered buttons on the remote control.

- To select preset number 10, press +10 and 0.

- To select preset number 15, press +10 and 5.

To scan preset stations

Press "1" until "P-SCAN" is displayed. The preset stations
are received in ascending order for 5 seconds each. To stop
scanning, press s. The preset number flashes during
reception.

To clear a preset station

1 Tune in the station by preset tuning.
2 Press s, then press a within 4 seconds.

Preset station numbers in the band which are higher than
the cleared number decrease by one.

Adjustments

To switch to monaural FM reception

Press MODE on the remote control so that "MONO" is
displayed.

To cancel, press MODE repeatedly.

Tip:

When FM stereo reception is poor, switching to monaural
reduces noise.

To switch the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation
system is 9 kHz/step, change the tuning interval.
Hold down TUNER/BAND and press POWER.

Tip:

When the AM tuning interval is changed, all preset stations
are cleared.

10

TAPE OPERATIONS

TAPE

a

wREC/

REC MUTE

f,g

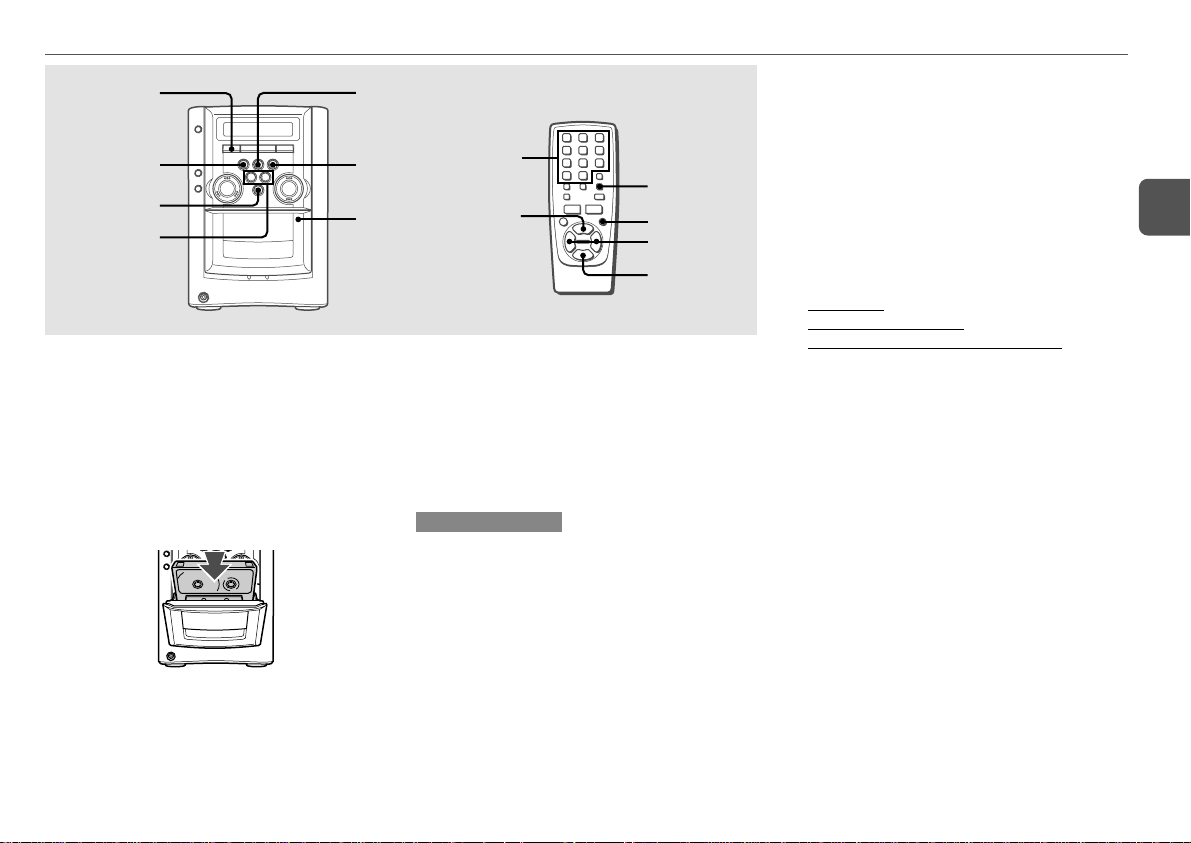

Playback

Use only type I (normal) tapes.

1

Press TAPE.

2

Press z to open the cassette holder.

3

Insert the tape.

Insert with the exposed side down and playback side facing
out from the unit.

c

sCLEAR

zPUSH

EJECT

0-9,+10

cPLAY

To rewind or fast forward

Press f or g.

To reset the tape counter

Press s in stop mode, and the tape counter on the display is
reset to "0000".
Opening and closing the cassette holder will also reset the
tape counter.

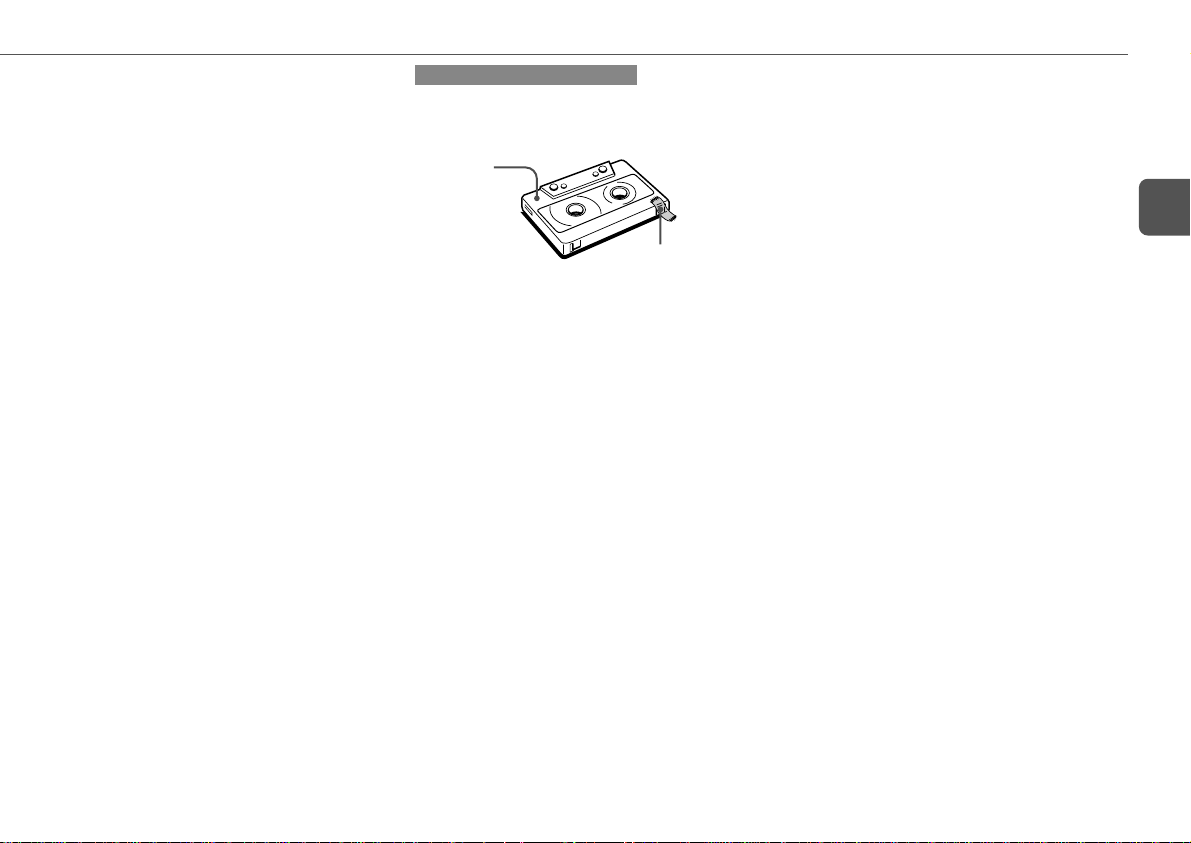

Notes on cassettes

•Use of 120-minute or longer tapes is not recommended
since they are extremely thin and easily deformed or
damaged.

•Wind up any slack in the tape with a pencil or similar tool
before use. Slack tape may jam in the mechanism.

MODE

aPAUSE
f,g

sSTOP

Basic recording

Use only type I (normal) tapes. Only one side of the tape can
be recorded on at a time.

1

Press TAPE.

2

Press z to open the cassette holder.

3

Insert the recording tape.

Insert with the exposed side down and recording side
facing out from the unit.

4

Prepare the source.

To record CD, press CD and load a disc.
To record a radio broadcast, tune in the desired station.
To record from connected external equipment, press AUX
and prepare the equipment.

5

Press w to start recording.

When recording a CD, CD playback starts automatically.
When recording input from connected equipment,
manually start playback of the source.

•Volume or tone adjustment(s) does not affect recording.
When the tape reaches its end, the recording stops.

En

4

Press c to start play.

To stop playback

Press s.

To pause playback

Press a. Press again to resume.

11

To stop recording

Press s.

To pause recording (only for TUNER or AUX source)

Press a. Press again to resume.

To record a selected set of tracks from a CD

Program the desired tracks (see "Programmed playback") and

En

then press w.

To record a 4-second blank space (only for TUNER
or AUX source)

Inserting 4-second blank spaces may help you locate the
beginning of the track on other equipment.

1 Press w during recording or in recording pause mode.

"4" flashes on the display for 4 seconds (a blank space
is added) and then the unit enters recording pause mode.

2 Press a to resume recording.
To record a blank space shorter than 4 seconds, press w

again while "4" flashes.
To record a blank space longer than 4 seconds, press w
again after the unit enters recording pause mode. Each time
the button is pressed, a 4-second blank space is added.

To erase a tape

1 Insert the tape. Set the tape to the desired point if needed.
2 Press AUX.

If optional equipment is connected to the AUX jacks, turn it
off.

3 Press w.

Edited CD recording

AI Edit Recording

Preparation

Prepare a tape that is longer than the CD length.

When recording a whole CD, AI Edit Recording takes the length
of your tape into account and rearranges the recording order of
the tracks if necessary, so that no track is cut short at the end
of the side.
(AI: Artificial Intelligence)

•Recording cannot start from a point halfway in the tape.

•AI Edit Recording cannot be used with discs containing more
than 30 tracks.

1

Insert the recording tape.

2

Press CD and load the disc.

3

Press MODE three times on the remote control
in stop mode.

"AI C-00" is displayed.

4

Press the numbered buttons on the remote
control to enter the length of the recording tape.

10 to 99 minutes can be specified.

- For a 60-minute tape press 6 and 0.
In a few seconds, the unit determines the tracks to be
recorded for each side.
The recording time left for side A appears on the display.

•for g can also be used to specify tape length.

5

Press w to start recording on side A.

The tape is rewound to the beginning of side A and
recording starts.
When recording on side A finishes, "SIDE CHA" appears
on the display. Proceed step 6.

6

Press MODE once on the remote control.

The recording time left for side B appears on the display.

7

Turn over the tape and press w to start recording
on side B.

Programmed Edit Recording

As you program the CD tracks to record, Programmed Edit
Recording displays the remaining recording time for each side
of the tape, so you can easily select a set of desired tracks
within the length of your tape.

•Recording cannot start from a point halfway in the tape.

•You cannot program more than 30 tracks.

•You cannot program a track with a track number larger than

30.

1

Insert the recording tape.

2

Press CD and load the disc.

3

Press MODE four times on the remote control in
stop mode.

"PRGM C-00" is displayed.

4

Press the numbered buttons on the remote
control to enter the length of the recording tape.

10 to 99 minutes can be specified.

- For a 60-minutes tape press 6 and 0.

•for g can also be used to specify tape length.

5

Press the numbered buttons on the remote
control to select the first track to be recorded on
side A.

-To select the 25th track, press +10, +10 and 5.

-To select the 10th track, press +10 and 0.

12

6

Repeat step 5 to select the rest of the tracks for
side A.

The remaining recording time of side A is displayed. You
cannot select a track with a longer playing time.

7

Press MODE on the remote control to switch to
side B and select the tracks for the side.

8

Press MODE on the remote control to switch back
to side A and press w to start recording on side
A.

The tape is rewound to the beginning of side A and
recording starts.
When recording on side A finishes, "SIDE CHA" appears
on the display. Proceed to step 9.

9

Press MODE on the remote control to switch to
side B, turn over the tape, and press w to start
recording on side B.

To stop recording

Press s. Recording and CD playback stop simultaneously.

To check the program

1 Before recording, press MODE on the remote control to

select side A or B.

2 Press f or g repeatedly. The track number and

program number are displayed in succession.

To change the program of each side

Press MODE on the remote control to select side A or B, and
press s to clear the program for the selected side. Then,
select tracks again.

To clear the edit program

Press s twice.

To prevent accidental erasure

Break off the plastic tab of the cassette tape with a screwdriver
or other pointed tool. To record on the tape again, cover the
detection slot with adhesive tape.

Side A

En

Tab for side A

13

TIMER OPERATIONS

POWER

6STANDBY/ON

En

Sleep timer

Turns off the unit automatically after a specified time.

1

Press TIMER/SLEEP.

"SLEEP" is displayed.

2

Press a.

If a is not pressed within 4 seconds, the sleep timer
setting mode is canceled.

3

Press f or g repeatedly to set the sleep
timer duration.

With each press, the timer duration changes in 5-minute
steps between 5 to 240 minutes. If there is no button input
for 4 seconds, the current setting is entered automatically.
The unit turns off after the selected time.

To check the remaining time until the unit turns off

Press TIMER/SLEEP. The remaining time is displayed for 4
seconds.

To cancel the sleep timer

Press TIMER/SLEEP repeatedly so that "SLEEP" is displayed,
then press s within 4 seconds.

14

aSET

TIMER/SLEEP

sCLEAR

f,g

POWER

Timer playback

Turns on the unit at a specified time for the specified duration.
Make sure the clock is set correctly.

1

Press TIMER/SLEEP repeatedly so that "5" lights
up and "TM PLAY" is displayed.

2

Press a.

If a is not pressed within 4 seconds, the timer setting
mode is canceled.

3

Press f or g to set the hour of the timer-
on time, and press a.

4

Press f or g to set the minute of the timer-
on time, and press a.

a
f,g

s

5

Press f or g to select the source, and press
a.

•For timer play of a CD, select "CD".

•For timer play of a tape, select "TAPE".

•For timer play of a radio broadcast, select "FM" or "AM".

You will select the band later in step 8.

•For timer play of the equipment connected to the AUX
jacks, select "AUX".

6

Press f or g to set the timer-activated
duration, then press a.

With each press, the timer-activated duration changes in
5-minute steps between 5 to 240 minutes.

7

Adjust the volume and tone for timer playback.

If the volume level is set to 21 or higher, it is automatically
turned down to 20 when the unit is turned on by the timer.

8

Prepare the source.

To play CD, load a disc.
To play a tape, insert the tape.
To play the radio, select the band and tune in the desired
station.
To play external equipment connected to the AUX jacks,
set an external timer for the equipment so that its playback
begins at the same time.

9

Press POWER 6STANDBY/ON (POWER) to turn
the unit off.

"5" remains on the display to indicate the timer standby
mode.
At timer-on time, the unit turns on and plays the selected
source. After the specified timer-activated duration, the
unit turns off again.

•Timer playback will not begin unless the unit is turned off
first.

•Connected equipment cannot be turned on or off by the built­in timer of this unit. Use an external timer.

Timer recording

Timer recording is available only for TUNER and AUX (with an
external timer) sources.

1

Press TIMER/SLEEP repeatedly so that "5" lights
up and "TM REC" is displayed.

2

Carry out step 2 to step 4 described in "Timer
playback".

3

Press f or g to select the source, and press
a.

•For timer recording of a radio broadcast, select "FM" or
"AM". You will select the band later in step 6.

•For timer recording of the equipment connected to the
AUX jacks, select "AUX".

4

Press f or g to set the timer-activated
duration, then press a.

With each press, the timer-activated duration changes in
5-minute steps between 5 to 240 minutes.

5

Adjust the volume and tone for timer recording.

If the volume level is set to 21 or higher, it is automatically
turned down to 20 when the unit is turned on by the timer.

6

Prepare the source.

To record the radio, select the band and tune in the desired
station.
To record external equipment connected to the AUX jacks,
set an external timer for the equipment so that its playback
begins at the same time.

7

Insert the recording tape and then turn the unit
off.

"5" and 4 remain on the display to indicate the
timer standby mode.
At timer-on time, the unit turns on and records the selected
source. After the specified timer-activated duration, the
unit turns off again.

•Connected equipment cannot be turned on or off by the built­in timer of this unit. Use an external timer.

To check the timer setting

Press TIMER/SLEEP repeatedly so that "TM PLAY" or
"TM REC" appears on the display.
The timer-on time, the source and the timer-activated duration
are displayed for 4 seconds.

To change the timer setting

Reset the timer again.

To cancel the timer

Press TIMER/SLEEP repeatedly until "TM OFF" is displayed.
"5" and 4 disappear from the display.

Tip:

Your timer setting is retained even if the timer is canceled.
Next time the timer is activated, you can change your previous
setting, or simply use the same setting again.

En

15

REFERENCE

Care and maintenance

Occasional care and maintenance of the unit and the software
are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth. If the unit surfaces are extremely
dirty, use a soft cloth lightly moistened with mild detergent

En

solution. Do not use strong solvents such as alcohol, benzene
or thinner.

To clean the tape heads

Dirty tape heads cause sound deterioration. After every 10
hours of use, clean the tape heads with a head cleaning
cassette. Refer to the instructions of the cleaning cassette.

To demagnetize the tape heads

Use a demagnetizing cassette after every 20 to 30 hours of
use. Refer to the instructions of the demagnetizing cassette.

Care of CDs

When a CD becomes dirty, wipe it from the center out with a
cleaning cloth. After playing a CD, store it in its case. Do not
keep it in hot or humid places.

Care of tapes

Store tapes in their cases after use. Do not leave tapes near
magnets, motors, television sets, or any source of magnetism.
Do not expose tapes to direct sunlight, or leave them in a car
parked in direct sunlight.

Troubleshooting

If your unit fails to perform properly, check the following guide
and the relevant sections of the Operating Instructions.

There is no sound

•Are the speakers and AC power cord connected properly?

The unit shut off suddenly

•Possibly a short circuit in the speaker terminals. Disconnect
the AC power cord from the AC outlet and reconnect the
speaker cords correctly.

Erroneous display

•Reset the unit. (See "Resetting the unit" on this page.)

Poor radio reception

•Check antenna connection. Adjust the antenna to find the
best reception.

•Move the unit and antenna away from other electric
appliances and cords.

The tape does not run

•Is the deck in pause?

Poor tape sound

•Check for dirty heads. Clean them if needed.

•Use type I (normal) tapes.

Cannot record

•Is the erasure prevention tab of the tape broken off? If so,
cover the detection slot with adhesive tape.

The CD player works poorly

•Is the disc correctly loaded?

•Is the disc dirty?

•Is the lens affected by condensation? If so, wait

approximately one hour and try again.

Resetting the unit

If an unusual condition occurs in the display window or the
cassette deck, reset the unit as follows:
1 Press POWER to turn off the power.

If the power cannot be turned off, disconnect the AC power
cord, then plug it in again.

2 Hold down s and press POWER.

Everything stored in memory after purchase is cleared.

16

Specifications

MAIN UNIT
TUNER

FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 13.2 dBf
FM antenna terminals 75 ohms (unbalanced)
AM tuning range 530 kHz to 1710 kHz (10 kHz step)

531 kHz to 1602 kHz (9 kHz step)
AM usable sensitivity 350 µV/m
AM antenna Loop antenna

AMPLIFIER

Power output 5.5 W + 5.5 W (50 Hz - 20 kHz, THD

less than 1%, 4 ohms)

7 W + 7 W (1 kHz, THD 10%,

4 ohms)
Total harmonic distortion 0.2 % (2 W, 1 kHz, 4 ohms)
Input AUX: 500 mV
Outputs SPEAKERS: 4 ohms or more

PHONES: 32 ohms or more

CASSETTE DECK

Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Recording/playback × 1, erase × 1

CD PLAYER

Laser Semiconductor laser (λ = 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion Unmeasurable (1 kHz, 0 dB)

GENERAL

Power requirements 120V AC, 60 Hz
Power consumption 26 W
Dimensions (W × H × D) 160 × 237 × 206 mm

(6 3/8 × 9 3/8 × 8 1/8 in.)

Weight 2.9 kg (6 lbs 7 oz)

SPEAKER SYSTEM

Speakers 100 mm cone type
Impedance 4 ohms
Dimensions (W × H × D) 140 × 232.5 × 191.5 mm

(5 5/8 × 9 1/4 × 7 5/8 in.)

Weight 1.1 kg (2 lbs 8 oz)

Specifications and external appearance are subject to change
without notice.

COPYRIGHT

Check copyright laws relevant to recordings from discs, radio
or tape for the country where the unit is to be used.

En

17

NOTE

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for
help.

CAUTION

Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.

REMARQUE

Cet appareil a été testé et jugé conforme aux limites des
appareils numériques de Classe B, conformément à la Partie
15 des Règles FCC. Ces limites sont conçues pour fournir
une protection raisonnable contre les interférences néfastes
dans une installation résidentielle.
Cet appareil produit, utilise et peut rayonner une énergie de
fréquence radio et, s'il n'est pas installé et utilisé
conformément aux instructions, peut provoquer des
interférences gênantes pour les communications radio. Mais
rien ne garantit qu'une telle interférence ne se produira pas
dans une installation particulière. Si cet appareil produit des
interférences gênantes pour la réception radio ou de télévision,
ce qui peut se déterminer en allumant et éteignant l'appareil,
il est recommandé à l'utilisateur d'essayer de corriger cette
interférence en appliquant une ou plusieurs des mesures
suivantes:

-Réorientation ou déplacement de l'antenne réceptrice.

- Éloignement de l'appareil du récepteur.

- Raccordement de l'appareil à une prise d'un circuit différent
de celui du récepteur.

- Consultez le revendeur ou un technicien radio/télévision
expérimenté.

PRÉCAUTION

Les modifications ou ajustements de ce produit, non
expressément approuvés par le fabricant, peuvent invalider le
droit ou l'autorité de l'utilisateur à utiliser ce produit.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.

This Class B digital apparatus complies with Canadian
ICES-003.

Only for C models.

ATTENTION

POUR PREVENIR TOUTE DECHARGE ELECTRIQUE, INSEREZ
COMPLETEMENT EN FAISANT COINCIDER LA LAME LARGE
DE LA FICHE DANS LA FENTE LARGE.

Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.

Pour les modèles C uniquement.

For assistance and information

Printed in China

(United States and Puerto Rico)
