Page 1
VX-T149
KAL
This SERVICE MANUAL is exclusive with KAL model.
The A is indicated for KAL model after the Model Name on the Spec. Plate.
The specification for KAL model and K model is common. But, there are slightly differences between the 2
models on the Electric Circuit and Structure Parts.
SERVICE MANUAL
INTEGRATED COLOR TV /VIDEO
CASSETTE RECORDER
POWER REQUIREMENTS............
POWER CONSUMPTION..............
WEIGHT .........................................
DIMENSIONS.................................
PICTURE TUBE .............................
TUNER SYSTEM ...........................
CHANNEL COVERAGE.................
TV SYSTEM ...................................
HORIZONTAL RESOLUTION .......
OPERATING TEMPERATURE......
VIDEO RECORDING SYSTEM .....
VIDEO SIGNAL SYSTEM ..............
VIDEO HEAD .................................
USABLE CASSETTES...................
230V AC, 50Hz
55W
Standby 6W
Approx.12.8 kg (28.16 lbs.)
435 mm (W) x 370.5 mm (D) x
384.5 mm (H)
(17 1/4 x 14 5/8 x
15 1/4 in.)
14 in. (34 cm “V”), 90 degree
deflection
Frequency synthesized tuner
UHF: 21 to 69
I
240 lines
5°C to 40°C
Rotary 2 head helical scanning system
PAL colour signal, 625 lines, 50 fields
Azimuth 2 heads
VHS video cassettes
SPECIFICATIONS
BASIC TAPE MECHANISM : OVD-6S
TAPE SPEED ...................................
RECORDING/PLAYBACK TIME .....
VIDEO INPUT...................................
VIDEO OUTPUT ..............................
VIDEO S/N .......................................
AUDIO INPUT ..................................
AUDIO OUTPUT ..............................
AUDIO TRACK .................................
PAL
SP: 23.39 mm/sec.
LP: 11.69 mm/sec.
NTSC (playback SP only)
33.35 mm/sec.
PAL
SP: 5 hours max. with E-300 tape
LP: 10 hours max. with E-300 tape
NTSC (playback SP only)
3 hours 30 minutes max. with T-210
tape
1.0Vp-p, 75 ohm, unbalanced
1.0Vp-p, 75 ohm, unbalanced
53dB (nominal)
SCART: –3.8 dBs, 50K ohm
RCA: –3.8 dBs, 50K ohm
SCART: –3.8 dBs less than 1K ohm
1 track (mono)
Design and specifications are subject to change without
•
notice.
S/M Code No. 09-005-345-1N2
DATA
Page 2
TABLE OF CONTENTS
SPECIFICATIONS ..............................................................................................................................................................
TABLE OF CONTENTS ......................................................................................................................................................
SERVICING NOTICES ON CHECKING .............................................................................................................................
DISASSEMBLY INSTRUCTIONS
REMOVAL OF MECHANICAL PARTS AND P.W. BOARDS ...........................................................................................
REMOVAL OF DECK PARTS .........................................................................................................................................
REMOVAL OF ANODE CAP ...........................................................................................................................................
KEY TO ABBREVIATIONS .................................................................................................................................................
SERVICE MODE LIST ........................................................................................................................................................
PREVENTIVE CHECKS AND SERVICE INTERVALS .......................................................................................................
NOTE FOR THE REPLACING OF MEMORY IC................................................................................................................
SERVICING FIXTURES AND TOOLS................................................................................................................................
PREPARATION FOR SERVICING .....................................................................................................................................
VCR TEST TAPE INTERCHANGEABILITY TABLE ...........................................................................................................
MECHANICAL ADJUSTMENTS
CONFIRMATION AND ADJUSTMENT ...........................................................................................................................
CONFIRMATION AND ADJUSTMENT OF TAPE RUNNING MECHANISM ..................................................................
MECHANISM ADJUSTMENT PARTS LOCATION GUIDE .............................................................................................
ELECTRICAL ADJUSTMENTS
ADJUSTMENT PROCEDURE.........................................................................................................................................
BASIC ADJUSTMENTS ..................................................................................................................................................
ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE.............................................................................................
PURITY AND CONVERGENCE ADJUSTMENTS ..........................................................................................................
TROUBLESHOOTING GUIDES .........................................................................................................................................
IC DESCRIPTIONS ............................................................................................................................................................
SERVO TIMING CHART ....................................................................................................................................................
SYSTEM SWITCH MODE ..................................................................................................................................................
SEMICONDUCTOR BASE CONNECTIONS......................................................................................................................
BLOCK DIAGRAMS
TV ....................................................................................................................................................................................
Y/C/AUDIO/HEAD AMP/21PIN/IN/OUT ..........................................................................................................................
MICON/OPERATION.......................................................................................................................................................
T'TEXT.............................................................................................................................................................................
PRINTED WIRING BOARDS (OPERATION/DECK) ..........................................................................................................
OPERATION SCHEMATIC DIAGRAM ...............................................................................................................................
DECK SCHEMATIC DIAGRAM ..........................................................................................................................................
PRINTED WIRING BOARDS (SYSCON) ...........................................................................................................................
Y/C/AUDIO/HEAD AMP SCHEMATIC DIAGRAM ..............................................................................................................
MICON SCHEMATIC DIAGRAM ........................................................................................................................................
POWER SCHEMATIC DIAGRAM ......................................................................................................................................
21PIN/IN/OUT SCHEMATIC DIAGRAM .............................................................................................................................
CHROMA/IF SCHEMATIC DIAGRAM ................................................................................................................................
SOUND AMP SCHEMATIC DIAGRAM ..............................................................................................................................
T'TEXT SCHEMATIC DIAGRAM ........................................................................................................................................
PRINTED WIRING BOARDS (MAIN/CRT/POWER SW) ...................................................................................................
TV POWER SCHEMATIC DIAGRAM .................................................................................................................................
DEFLECTION SCHEMATIC DIAGRAM .............................................................................................................................
CRT SCHEMATIC DIAGRAM.............................................................................................................................................
INTERCONNECTION DIAGRAM .......................................................................................................................................
WAVEFORMS ....................................................................................................................................................................
MECHANICAL EXPLODED VIEW......................................................................................................................................
MECHANICAL REPLACEMENT PARTS LIST ...................................................................................................................
ACCESSORY REPLACEMENT PARTS LIST ....................................................................................................................
CHASSIS EXPLODED VIEW (TOP VIEW) ........................................................................................................................
CHASSIS EXPLODED VIEW (BOTTOM VIEW) ................................................................................................................
CHASSIS REPLACEMENT PARTS LIST...........................................................................................................................
ELECTRICAL REPLACEMENT PARTS LIST ....................................................................................................................
COVER
A1-1
A2-1
B1-1, B1-2
B2-1~B2-5
B3-1
C1-1, C1-2
C2-1
C3-1, C3-2
C4-1
C5-1
C5-2, C5-3
C6-1
D1-1, D1-2
D1-2, D1-3
D1-4
D2-1
D2-1~D2-4
D2-5, D2-6
D2-7
E-1~E-27
F1-1~F1-3
F2-1
F2-2
G-1, G-2
H-1
H-2
H-3
H-4
I-1
I-2
I-3
I-4~I-6
I-7
I-8
I-9
I-10
I-11
I-12
I-13
I-14
I-15
I-16
I-17
I-18
J-1~J-3
K1-1, K1-2
K1-3
K1-3
K2-1
K2-2
K2-3
K3-1~K3-5
A1-1
Page 3
SERVICING NOTICES ON CHECKING
1. KEEP THE NOTICES
As for the places which need special attentions, they are
indicated with the labels or seals on the cabinet, chassis
and parts. Make sure to keep the indications and notices
in the operation manual.
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an electric
shock while the electric current is flowing.
3. USE THE DESIGNATED PARTS
The parts in this equipment have the specific
characters of incombustibility and withstand voltage for
safety. Therefore, the part which is replaced should be
used the part which has the same character.
Especially as to the important parts for safety which is
indicated in the circuit diagram or the table of parts as
a mark, the designated parts must be used.
4. PUT PARTS AND WIRES IN THE ORIGINAL
POSITION AFTER ASSEMBLING OR WIRING
There are parts which use the insulation material such
as a tube or tape for safety, or which are assembled in
the condition that these do not contact with the printed
board. The inside wiring is designed not to get closer to
the pyrogenic parts and high voltage parts. Therefore,
put these parts in the original positions.
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
In the condition that an explosion-proof cathode-ray
tube is set in this equipment, safety is secured against
implosion. However, when removing it or serving from
backward, it is dangerous to give a shock. Take
enough care to deal with it.
6. AVOID AN X-RAY
Safety is secured against an X-ray by considering about
the cathode-ray tube and the high voltage
peripheral circuit, etc.
Therefore, when repairing the high voltage peripheral
circuit, use the designated parts and make sure not
modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode-ray tube.
PERFORM A SAFETY CHECK AFTER
7.
SERVICING
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original
positions, or whether there are the
portions which are deteriorated around the serviced
places serviced or not. Check the insulation between the
antenna terminal or external metal and the AC cord plug
blades. And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
Unplug the plug from the AC outlet.
2.
Remove the antenna terminal on TV and turn on the
TV.
3.
Insulation resistance between the cord plug terminals
and the eternal exposure metal [Note 2] should be
more than 1M ohm by using the 500V insulation resistance meter [Note 1].
4.
If the insulation resistance is less than 1M ohm, the
inspection repair should be required.
[Note 1]
If you have not the 500V insulation resistance meter,
use a Tester.
[Note 2]
External exposure metal: Antenna terminal
Earphone jack
A2-1
Page 4
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS
AND P.W. Boards
1-1: BACK CABINET (Refer to Fig. 1-1)
1.
Remove the 2 screws 1.
2.
Remove the 2 screws 2.
3.
Remove the 2 screws 3 which are used for holding the
Back Cabinet.
4.
Remove the AC cord from the AC cord hook 4.
5.
Remove the Back Cabinet in the direction of arrow.
Front Cabinet
1
1
2
3
3
2
4
1-2: CRT PWB (Refer to Fig. 1-2)
CAUTION: BEFORE REMOVING THE ANODE CAP,
DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PWB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.
1.
Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)
2.
Disconnect the following connectors:
(CP801 and CP850).
3.
Remove the CRT PWB in the direction of arrow.
Back Cabinet
Fig. 1-1
1-3: TV/VCR BLOCK (Refer to Fig. 1-3)
1.
Remove the 2 screws 1.
2.
Disconnect the following connectors:
(CP351, CP757, CP302, CP401, CP501 and CP502).
3.
Unlock the support 2.
4.
Remove the TV/VCR Block in the direction of arrow.
1
Front Cabinet
1
2
UP TO
RELEASE
TV/VCR Block
1-4: MAIN PWB (Refer to Fig. 1-4)
1.
Remove the screw 1.
2.
Remove the Main PWB Holder.
3.
Remove the 2 screws 2.
4.
Remove the 3 screws 3.
5.
Disconnect the following connectors:
(CP810 and CP820).
6.
Remove the Main PWB in the direction of arrow.
2
2
3
3
Main PWB Holder
1
Main PWB
3
Fig. 1-3
Front Cabinet
CRT PWB
VCR Block
Fig. 1-4
Fig. 1-2
B1-1
Page 5
DISASSEMBLY INSTRUCTIONS
1-5: DECK SHIELD PLATE (Refer to Fig. 1-5)
1.
Remove the 2 screws 1.
2.
Remove the 4 screws 2.
3.
Remove the screw 3.
4.
Remove the Deck Shield Plate in the direction of arrow (A).
5.
Remove the screw 4.
6.
Remove the Shield Plate Bottom in the direction of arrow (B).
Deck Shield Plate
3
1
1
(A)
VCR Block
2
2
(B)
1
1
1
Deck Chassis
Syscon PWB
Fig. 1-6
1-7: JACK PLATE AND SYSCON PWB (Refer to Fig. 1-7)
1.
Remove the screw 1.
2.
Remove the Syscon PWB in the direction of arrow (A).
3.
Remove the 2 screws 2.
4.
Unlock the 2 supports 3.
5.
Remove the Jack Plate in the direction of arrow (B).
Jack Plate
Shield Plate Bottom
4
2
1-6: DECK CHASSIS (Refer to Fig. 1-6)
1.
Remove the 3 screws 1.
2.
Disconnect the following connectors:
(CP1004, CP1005, CP1006, CP4001, CP4004 and
CP4005).
3.
Remove the Deck Chassis in the direction of arrow.
2
Fig. 1-5
Syscon PWB
2
3
(B)
1
(A)
Deck Holder
2
3
Fig. 1-7
B1-2
Page 6
DISASSEMBLY INSTRUCTIONS
2. REMOVAL OF DECK PARTS
2-1: TOP BRACKET (Refer to Fig. 2-1)
Remove the 2 screws 1.
1.
Slide the 2 supports 2 and remove the Top Bracket.
2.
NOTE
When you install the Top Bracket, install the screw (1)
first, then install the screw (2).
(2)
1
Top Bracket
2
Main Chassis
• Screw Torque: 5 ± 0.5kgf•cm
Top Bracket
2
Main Chassis
2-2: FLAP LEVER/TAPE GUIDE R (Refer to Fig. 2-2)
Move the Cassette Holder Ass'y to the back side.
1.
Remove the Polyslider Washer 1.
2.
Remove the Flap Lever.
3.
Unlock the 3 supports 2 and remove the Tape Guide R.
4.
(1)
1
Fig. 2-1
NOTE
When you install the Tape Guide L, install as shown in the
circle of Fig. 2-3-B. (Refer to Fig. 2-3-B)
Tape Guide L
REC Lever
• The REC Lever is not installed on the Video Cassette Player.
Fig. 2-3-B
2-4: CASSETTE HOLDER ASS'Y (Refer to Fig. 2-4)
Move the Cassette Holder Ass'y to the front side.
1.
Push the Locker R to remove the Cassette Side R.
2.
Remove the Cassette Side L.
3.
Main Chassis
Cassette Side R
Locker R
Tape Guide R
Flap Lever
2
2
2
Main Chassis
1
Fig. 2-2
2-3: TAPE GUIDE L (Refer to Fig. 2-3-A)
Move the Cassette Holder Ass'y to the back side.
1.
Unlock the 2 supports 1 and remove the Tape Guide L.
2.
Remove the REC Lever. (Recorder only)
3.
REC Lever
Tape Guide L
1
Cassette Side L
Main Chassis
Fig. 2-4
2-5: CASSETTE SIDE L/R (Refer to Fig. 2-5)
Unlock the 4 supports 1 and then remove the Cassette
1.
Side L/R.
NOTE
When you install the Cassette Side R, be sure to move the
Locker R after installing.
1
1
Locker R
Cassette Side R
1
1
Cassette Side L
Fig. 2-5
1
Main Chassis
• The REC Lever is not installed on the Video Cassette Player.
Fig. 2-3-A
B2-1
Page 7
DISASSEMBLY INSTRUCTIONS
2-6: LINK ASS'Y (Refer to Fig. 2-6)
Set the Link Ass'y to the Eject position.
1.
Remove the (A) side of the Link Ass'y first, then remove
2.
the (B) side.
Link Ass'y
(A)
Main Chassis
(B)
Link Ass'y
Main Chassis
Fig. 2-6
2-7: LOADING MOTOR ASS'Y (Refer to Fig. 2-7)
Remove the Link Lever.
1.
Remove the Dumper Spring.
2.
Remove the 2 screws 1.
3.
Unlock the support 2 and remove the Loading Motor
4.
Ass'y.
Unlock the 2 supports 3 and remove the Deck PWB
5.
(BOT).
1
Dumper Spring
Loading Motor Ass'y
2
2-9: TENSION ASS'Y (Refer to Fig. 2-9-A)
Move the Inclined S Ass'y to the back side.
1.
Remove the Tension Spring.
2.
Unlock the support 1 and remove the Tension Arm
3.
Ass'y.
Remove the Tension Adjust.
4.
Unlock the 2 supports 2 and remove the Tension Band
5.
Ass'y.
Unlock the support 3 and remove the Tension Holder.
6.
Remove the SS Brake Spring.
7.
Remove the SS Arm Brake.
8.
Tension Adjust
2
Tension Spring
SS Brake Spring
SS Arm Brake
2
1
3
Tension Band Ass'y
Tension Arm Ass'y
Tension Holder
Inclined S Ass'y
Fig. 2-9-A
NOTE
When you install the Tension Adjust, install as shown in
Fig. 2-9-B. (Refer to Fig. 2-9-B)
3
Main Chassis
• Screw Torque: 5 ± 0.5kgf•cm
1
Deck PWB
(BOT)
2-8: SENSOR COVER L3 (Refer to Fig. 2-8)
Unlock the support 1 and remove the Sensor Cover L3.1.
Main Chassis
Sensor Cover L3
1
Link Lever
Fig. 2-7
Fig. 2-8
Adjust the direction of the Marker to inside.
2-10: T BRAKE ASS'Y (Refer to Fig. 2-10)
Remove the T Brake Spring.
1.
Remove the T Brake Ass'y.
2.
T Brake Ass'y
T Brake Spring
Fig. 2-9-B
Fig. 2-10
B2-2
Page 8
DISASSEMBLY INSTRUCTIONS
2-11: S REEL/T REEL (Refer to Fig. 2-11)
Remove the S Reel and T Reel.
1.
Remove the 2 Polyslider Washers 1.
2.
NOTE
Take care not to damage the gears of the S Reel and T
1.
Reel.
The Polyslider Washer may be remained on the back of
2.
the reel.
Take care not to damage the shaft.
3.
Do not touch the section "A" of S Reel and T Reel. (Use
4.
gloves.) (Refer to Fig. 2-11) Do not adhere the stains
on it.
When you install the reel, clean the shaft and oil it (FL
5.
OIL #6115). (If you do not oil, noise may be heard in FF/
REW mode.)
After installing the reel, adjust the height of the reel.
6.
(Refer to MECHANICAL ADJUSTMENT)
S Reel
(A)
1
T Reel
(A)
1
NOTE
Do not touch the Pinch Roller. (Use gloves.)
1.
When you install the Pinch Roller Block, install as shown
2.
in the circle of Fig. 2-12-B. (Refer to Fig. 2-12-B)
Fig. 2-12-B
2-13: A/C HEAD (Refer to Fig. 2-13-A)
Remove the screw 1.
1.
Remove the A/C Head Base.
2.
Remove the 3 screws 2.
3.
Remove the A/C Head and A/C Head Spring.
4.
NOTE
Do not touch the A/C Head. (Use gloves.)
1.
When you install the A/C Head Spring, install as shown
2.
in Fig. 2-13-B. (Refer to Fig. 2-13-B)
When you install the A/C Head, tighten the screw (1)
3.
first, then tighten the screw (2), finally tighten the screw
(3).
Fig. 2-11
2-12: PINCH ROLLER BLOCK/P5-3 ARM ASS'Y
(Refer to Fig. 2-12-A)
Remove the P5 Spring.
1.
Remove the screw 1.
2.
Unlock the 2 supports 2 and remove the Cassette
3.
Opener.
Remove the Pinch Roller Block, Pinch Roller Arm
4.
Spring, Pinch Roller Lever Ass'y and P5-3 Arm Ass'y.
P5 Spring
P5-3 Arm Ass'y
1
2
Cassette Opener
2
Pinch Roller Block
Pinch Roller Arm Spring
Pinch Roller Lever Ass'y
Main Chassis
(3)
(1)
2
2
(2)
1
• Screw Torque: 4 ± 0.5kgf•cm (Screw 1)
2
Spring Position
A/C Head
A/C Head Spring
A/C Head Base
Fig. 2-13-A
Fig. 2-13-B
2-14: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-14)
Remove the screw 1.
1.
Remove the FE Head.
2.
• Screw Torque: 5 ± 0.5kgf•cm
Fig. 2-12-A
B2-3
FE Head
• The FE Head is not installed on the Video Cassette Player.
• Screw Torque: 4 ± 0.5kgf•cm
1
Fig. 2-14
Page 9
DISASSEMBLY INSTRUCTIONS
2-15: AHC ASS'Y/CYLINDER UNIT ASS'Y
(Refer to Fig. 2-15)
Unlock the support 1 and remove the AHC Ass'y.
1.
Remove the 3 screws 2.
2.
Remove the Cylinder Unit Ass'y.
3.
NOTE
When you install the Cylinder Unit Ass'y, tighten the
screws from (1) to (3) in order while pulling the Ass'y
toward the left front direction.
AHC Ass'y
Cylinder Unit Ass'y
2
(2)
• Screw Torque: 3 ± 0.5kgf•cm
(1)
2
2
(3)
1
Fig. 2-15
2-16: CAPSTAN DD UNIT (Refer to Fig. 2-16)
Remove the Capstan Belt.
1.
Remove the 3 screws 1.
2.
Remove the Capstan DD Unit.
3.
1
Middle Gear
E-Ring
Main Cam
Pinch Roller Cam
2
Joint Gear
P5 Cam
Fig. 2-17-A
NOTE
When you install the Pinch Roller Cam, P5 Cam and Main
Cam, align each marker. (Refer to Fig. 2-17-B)
Pinch Roller Cam
Check the hole of Main
Chassis can be seen.
Marker
Main Cam
P5 Cam
Capstan Belt
Capstan DD Unit
1
1
1
• Screw Torque: 5 ± 0.5kgf•cm
Fig. 2-16
2-17: MIDDLE GEAR/MAIN CAM (Refer to Fig. 2-17-A)
Remove the Polyslider Washer 1, then remove the
1.
Middle Gear.
Remove the E-Ring, then remove the Main Cam, P5
2.
Cam and Pinch Roller Cam.
Remove the Polyslider Washer 2, then remove the
3.
Joint Gear.
Fig. 2-17-B
2-18: CLUTCH ASS'Y (Refer to Fig. 2-18)
Remove the Polyslider Washer 1.
1.
Remove the Clutch Ass'y, Ring Spring and Coupling
2.
Gear.
Unlock the 2 supports 2 and remove the Clutch Lever.
3.
1
Clutch Ass'y
Ring Spring
Coupling Gear
Clutch Lever
2
2
Fig. 2-18
B2-4
Page 10
DISASSEMBLY INSTRUCTIONS
2-19: LOADING GEAR S/T ASS'Y (Refer to Fig. 2-19-A)
Remove the E-Ring 1 and remove the Main Loading
1.
Gear.
Remove the Capstan Brake Spring.
2.
Slide the Main Rod and remove the Capstan Brake
3.
Ass'y.
Remove the Main Rod, Tension Lever, Clutch Actuator,
4.
Idler Arm Ass'y.
Remove the screw 2.
5.
Remove the LED Reflecter.
6.
Remove the Loading Arm S Ass'y and Loading Arm T
7.
Ass'y.
8.
Remove the Loading Gear S and Loading Gear T.
9.
Remove the Loading Gear Spring.
Capstan Brake Spring
Main Rod
Idler Arm Ass'y
LED Reflecter
Clutch Actuator
Capstan Brake Ass'y
1
2
Main Loading Gear
Tension Lever
Loading Gear T
Loading Gear
Spring
Loading Arm T Ass'y
Loading Gear S
Loading Gear
Spring
2. When you install the Clutch Actuator, install as shown in
the circle of Fig. 2-19-C. (Refer to Fig. 2-19-C)
Clutch Actuator
Fig. 2-19-C
2-20: INCLINED S/T ASS'Y (Refer to Fig. 2-20)
Unlock the support 1 and remove the P4 Cover.
1.
Remove the screw 2.
2.
Unlock the support 3 and remove the Loading Gear
3.
Holder.
Remove the Inclined S.
4.
Remove the Inclined T.
5.
Remove the 2 screws 4, then remove the Guide Roller.
6.
NOTE
Do not touch the roller of Guide Roller.
2
Loading Gear Holder
Guide Roller
3
Loading Arm S Ass'y
• Screw Torque: 5 ± 0.5kgf•cm
Fig. 2-19-A
NOTES
1. When you install the Loading Arm S Ass'y, Loading Arm
T Ass'y and Main Loading Gear, align each marker.
(Refer to Fig. 2-19-B)
Marker
Main Loading Gear
Marker
Loading Arm T Ass'y
Loading Arm S Ass'y
4
Inclined S
• Screw Torque: 5 ± 0.2kgf•cm (Screw 2)
• Screw Torque: 0.7 ± 0.2kgf•cm (Screw 4)
Guide Roller
4
Inclined T
P4 Cover
1
Fig. 2-20
Fig. 2-19-B
B2-5
Page 11
DISASSEMBLY INSTRUCTIONS
3. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
*
After turning the power off there might still be a potential
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
*
Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.
REMOVAL
1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 3-1.)
Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.
GND on the CRT
3. After one side is removed, pull in the opposite direction to
remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 3-3.)
Location of Anode Cap
Fig. 3-3
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
2.3.Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 3-4.)
Screwdriver
Alligator Clip
GND on the CRT
Flip up the sides of the Rubber Cap in the direction of the
2.
arrow and remove one side of the support.
(Refer to Fig. 3-2.)
Rubber Cap
CRT
Support
Support
CRT
Fig. 3-1
Fig. 3-2
Fig. 3-4
4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 3-5.
Support
CRT
5.6.Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.
Fig. 3-5
B3-1
Page 12
A
A/C
ACC
AE
AFC
AFT
AFT DET
AGC
AMP
ANT
A.PB
APC
ASS'Y
AT
AUTO
A/V
B
BGP
BOT
BPF
BRAKE SOL
BUFF
B/W
C
C
CASE
CAP
CARR
CH
CLK
CLOCK (SY-SE)
COMB
CONV
CPM
CTL
CYL
CYL-M
CYL SENS
D
DATA (SY-CE)
dB
DC
DD Unit
DEMOD
DET
DEV
E
E
EF
EMPH
ENC
ENV
EOT
EQ
EXT
F
F
FBC
FE
FF
FG
FL SW
FM
FSC
FWD
G
GEN
GND
H
H.P.F
KEY TO ABBREVIATIONS
:
Audio/Control
:
Automatic Color Control
:
Audio Erase
:
Automatic Frequency Control
:
Automatic Fine Tuning
:
Automatic Fine Tuning Detect
:
Automatic Gain Control
:
Amplifier
:
Antenna
:
Audio Playback
:
Automatic Phase Control
:
Assembly
:
All Time
:
Automatic
:
Audio/Video
:
Burst Gate Pulse
:
Beginning of Tape
:
Bandpass Filter
:
Brake Solenoid
:
Buffer
:
Black and White
:
Capacitance, Collector
:
Cassette
:
Capstan
:
Carrier
:
Channel
:
Clock
:
Clock (Syscon to Servo)
:
Combination, Comb Filter
:
Converter
:
Capstan Motor
:
Control
:
Cylinder
:
Cylinder-Motor
:
Cylinder-Sensor
:
Data (Syscon to Servo)
:
Decibel
:
Direct Current
:
Direct Drive Motor Unit
:
Demodulator
:
Detector
:
Deviation
:
Emitter
:
Emitter Follower
:
Emphasis
:
Encoder
:
Envelope
:
End of Tape
:
Equalizer
:
External
:
Fuse
:
Feed Back Clamp
:
Full Erase
:
Fast Forward, Flipflop
:
Frequency Generator
:
Front Loading Switch
:
Frequency Modulation
:
Frequency Sub Carrier
:
Forward
:
Generator
:
Ground
:
High Pass Filter
H.SW
Hz
I
IC
IF
IND
INV
K
KIL
L
L
LED
LIMIT AMP
LM, LDM
LP
L.P.F
LUMI.
M
M
MAX
MINI
MIX
MM
MOD
MPX
MS SW
N
NC
NR
O
OSC
OPE
P
PB
PB CTL
PB-C
PB-Y
P. CON
PD
PG
P-P
PWB
R
R
REC
REC-C
REC-Y
REEL BRK
REEL S
REF
REG
REW
REV, RVS
RF
RMC
RY
S
S. CLK
S. COM
S. DATA
SEG
SEL
SENS
SER
SI
SIF
SO
SOL
SP
STB
SW
:
Head Switch
:
Hertz
:
Integrated Circuit
:
Intermediate Frequency
:
Indicator
:
Inverter
:
Killer
:
Left
:
Light Emitting Diode
:
Limiter Amplifier
:
Loading Motor
:
Long Play
:
Low Pass Filter
:
Luminance
:
Motor
:
Maximum
:
Minimum
:
Mixer, mixing
:
Monostable Multivibrator
:
Modulator, Modulation
:
Multiplexer, Multiplex
:
Mecha State Switch
:
Non Connection
:
Noise Reduction
:
Oscillator
:
Operation
:
Playback
:
Playback Control
:
Playback-Chrominance
:
Playback-Luminance
:
Power Control
:
Phase Detector
:
Pulse Generator
:
Peak-to Peak
:
Printed Wiring Board
:
Right
:
Recording
:
Recording-Chrominance
:
Recording-Luminance
:
Reel Brake
:
Reel Sensor
:
Reference
:
Regulated, Regulator
:
Rewind
:
Reverse
:
Radio Frequency
:
Remote Control
:
Relay
:
Serial Clock
:
Sensor Common
:
Serial Data
:
Segment
:
Select, Selector
:
Sensor
:
Search Mode
:
Serial Input
:
Sound Intermediate Frequency
:
Serial Output
:
Solenoid
:
Standard Play
:
Serial Strobe
:
Switch
C1-1
Page 13
S
SYNC
SYNC SEP
T
TR
TRAC
TRICK PB
TP
U
UNREG
V
V
VCO
VIF
VP
V.PB
VR
V.REC
VSF
VSR
VSS
V-SYNC
VT
X
X'TAL
Y
Y/C
KEY TO ABBREVIATIONS
:
Synchronization
:
Sync Separator, Separation
:
Transistor
:
Tracking
:
Trick Playback
:
Test Point
:
Unregulated
:
Volt
:
Voltage Controlled Oscillator
:
Video Intermediate Frequency
:
Vertical Pulse, Voltage Display
:
Video Playback
:
Variable Resistor
:
Video Recording
:
Visual Search Fast Forward
:
Visual Search Rewind
:
Voltage Super Source
:
Vertical-Synchronization
:
Voltage Tuning
:
Crystal
:
Luminance/Chrominance
C1-2
Page 14
SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter SERVICE MODE, Unplug AC cord till lost actual clock time. Then press and hold Vol (-) button of main unit and
remocon key for more than 2 seconds.
The both pressing of set key and remote control key will not be possible if clock has been set. To reset clock, either unplug
AC cord and allow at least 30 minutes before Power On or alternatively, discharge backup capacitor.
Set Key Remocon Key Operations
VOL. (-) MIN 1
VOL. (-) MIN 2
VOL. (-) MIN
VOL. (-) MIN 4
VOL. (-) MIN 5
VOL. (-) MIN 6
VOL. (-) MIN 8
Initialization of the factory.
NOTE: Do not use this for the normal servicing.
Horizontal position adjustment of OSD.
NOTE: Also can be adjusted by using the Adjustment MENU.
Refer to the "ELECTRICAL ADJUSTMENT" (OSD HORIZONTAL).
3
Adjust the PG SHIFTER automatically.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).
Adjust the PG SHIFTER manually.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).
Adjusting of the Tracking to the center position.
NOTE: Also can be adjusted by pressing the ATR button for more tan 2 seconds
during PLAY.
POWER ON total hours and PLAY/REC total hours are displayed on the screen.
Refer to the "PREVENTIVE CHECKS AND SERVICE INTERVALS" (CONFIRMATION
OF USING HOURS).
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "NOTE FOR THE REPLACING OF MEMORY IC".
Writing of EEPROM initial data.
NOTE: Do not use this for the normal servicing.
VOL. (-) MIN 9
Method Operations
Press the ATR button on the
remote control for more than
2 seconds during PLAY.
Make the short circuit between
the test point of SERVICE and
the GND.
Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
Adjusting of the Tracking to the center position.
Refer to the "MECHANICAL ADJUSTMENT" (GUIDE ROLLER) and "ELECTRICAL
ADJUSTMENT" (PG SHIFTER).
The EOT/BOT/Reel sensor do not work at this moment.
Refer to the "PREPARATION FOR SERVICING"
C2-1
Page 15
PREVENTIVE CHECKS AND SERVICE INTERVALS
The following standard table depends on environmental conditions and usage. Unless maintenance is properly
carried out, the following service intervals may be quite shortened as harmful effects may be had on other parts.
Also, long term storage or misuse may cause transformation and aging of rubber parts.
Time
Parts Name
Audio Control Head
Full Erase Head
(Recorder only)
Capstan Belt
Pinch Roller
Capstan DD Unit
Loading Motor
Tension Band
Capstan Shaft
Tape Running
Guide Post
Cylinder Unit
: Clean
: Replace
500
hours
1,000
hours
1,500
hours
2,000
hours
3,000
hours
Notes
Clean those parts in
contact with the tape.
Clean the rubber, and parts
which the rubber touches.
Replace when rolling
becomes abnormal.
Clean the Head
CONFIRMATION OF USING HOURS
POWER ON total hours and PLAY/REC total hours can be checked on the screen.
Total hours are displayed in 16 system of notation.
NOTE: The confirmation of using hours will not be possible if clock has been set. To reset clock, either unplug
AC cord and allow at least 30 minutes before Power On or alternatively, discharge backup capacitor.
1.
Set the VOLUME to minimum.
2.
While holding down VOLUME button on front cabinet, press key 6 on remote control for more than 2 seconds.
3.
After the confirmation of using hours, turn off the power.
INIT 00 83
POWER ON
PLAY/REC
(16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)
0010
0003
Initial setting content of MEMORY IC.
POWER ON total hours.
PLAY/REC total hours.
C3-1
Page 16
PREVENTIVE CHECKS AND SERVICE INTERVALS
CLEANING
NOTE
After cleaning the heads with isopropyl alcohol, do not
run a tape until the heads dry completely. If the heads
are not completely dry and alcohol gets on the tape,
damage may occur.
1. AUDIO CONTROL HEAD
Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol and clean the audio control head by
wiping it horizontally. Clean the full erase head in the
same manner. (Refer to the figure below.)
2. TAPE RUNNING SYSTEM
When cleaning the tape transport system, use the
gauze moistened with isopropyl alcohol.
3. CYLINDER
Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol. Hold it to the cylinder head softly.
Turn the cylinder head counterclockwise to clean it (in
the direction of the arrow). (Refer to the figure below.)
NOTE
Do not exert force against the cylinder head. Do not move
the chamois upward or downward on the head.
Use the chamois one by one.
Audio Control Head
Cylinder Head
C3-2
Page 17
NOTE FOR THE REPLACING OF MEMORY IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
NOTE: Initial Data setting will not be possible if clock has been set. To reset clock, either unplug AC cord and allow
at least 30 minutes before Power On or alternatively, discharge backup capacitor.
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9
5C 1E 07 81 6A 02 00 07 C4 01
00 12 F1 67 0D 90 00
00 63 65 66 46 40 00 05 00
10
20
30
40
Enter DATA SET mode by setting VOLUME to minimum.
1.
While holding down VOLUME button on front cabinet, press key 6 on remote control for more than 2 seconds.
2.
ADDRESS and DATA should appear as FIG 1.
05
01 01 00 04 6A 00 F5 77 A0
0B
52 00 00 00 00 00 5F 01 F0
F0
2B 15 50 A0 C4 20 08 BF 10
21
Table 1
ADDRESS DATA
+A
+B +C +D +E +FINI
18 00 00 00 00 00
68 00 00 5F 05 C0
01 F0 0E 00 01 6C
--- --- --- --- --- ---
INIT 00 83
POWER ON
PLAY/REC
ADDRESS is now selected and should "blink". Using the PLAY or STOP button on the remote, step through the
3.
ADDRESS until required ADDRESS to be changed is reached.
Press ENTER to select DATA. When DATA is selected, it will "blink".
4.
Again, step through the DATA using PLAY or STOP button until required DATA value has been selected.
5.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
6.
Repeat steps 3 to 6 until all data has been checked.
7.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
8.
The unit will now have the correct DATA for the new MEMORY IC.
0010
0003
Fig. 1
C4-1
Page 18
SERVICING FIXTURES AND TOOLS
(For 2 head 1 speed model,
4 head model)
VHS Alignment Tape
JG001E
JG001F
JG001U
(TTV-P2)
(TTV-P1L)
(VP S-X6 )
1
3
Screwdriver
JG154 Cable
Parts No. SJ-G15-400-000
(For 2 head 2 speed model)
VHS Alignment Tape
JG001C
JG001D
JG001V
JG162A Cable (8 Pins)
Parts No. SJ-G16-2A0-000
JG162F Cable (13 Pins)
Parts No. SJ-G16-2F0-000
JG162Y Cable (5 Pins)
Parts No. SJ-G16-2Y0-000
(TTV-P2)
(TTV-P1L)
2
(VP S-X6 )
3
JG002B
JG002E
Adapter
Dial Torque Gauge
(10~90gf•cm)
JG002F
JG024AJG022 Master PlaneJG153 X Value Adjustment
(60~600gf•cm)
Reel Disk Height
Adjustment Jig
Tentelometer
JG005 Post Adjustment
Screwdriver
Part No. SV-TG0-030-000
(small)
JG100A Torque Tape
(VHT-063)
Part No. Remarks
JG001E Stair Steps, 7KHz (For 2 head 1 speed model, 4 head model)
JG001F Color Bar, 1KHz (For 2 head 1 speed model, 4 head model)
JG001U X Value Adjustment (For 2 head 1 speed model, 4 head model)
JG001C Stair Steps, 7KHz (For 2 head 2 speed model)
JG001D Color Bar, 1KHz (For 2 head 2 speed model)
JG001V
X Value Adjustment (For 2 head 2 speed model)
JG002B VSR Torque, Brake Torque (S Reel/T Reel Ass'y)
JG002E Brake Torque (T Reel Ass'y)
JG002F
JG005
JG153
JG022/JG024A
VSR Torque, Brake Torque (S Reel)
Guide Roller Adjustment
X Value Adjustment
Reel Disk Height Adjustment
JG100A Playback Torque, Back Tension Torque During Playback
JG154
Used to connect the test point of SERVICE and GROUND
JG162A/JG162F Used to connect the Syscon PWB and Main PWB
Used to connect the Syscon PWB and CRT PWBJG162Y
C5-1
Page 19
PREPARATION FOR SERVICING
Basic Servicing Position (In case of needing to check on all blocks)
1.
Unplug the connector CP351, CP757 and CP302, then remove the TV/VCR Block from the set.
2.
Unplug the connector CP810, CP820 and CP850, then remove the Main PWB from the VCR Block.
3.
Connect as shown in the below figure using the Service Fixture.
• Connect the Syscon PWB to the Main PWB with the cable JG162A and JG162F.
• Connect the Syscon PWB to the CRT PWB with the cable JG162Y.
4.
Remove the Operation PWB from the set, then connect it with the Syscon PWB.
If necessary, connect CP351. (Front A/V Jack Input Terminal)
5.
Short circuit between TP1001 and GND with the cable JG154.
(The EOT, BOT and Reel Sensor do not work at this moment.)
6.
At that time, the STOP/EJECT button is available to insert and eject the Cassette Tape.
Front Cabinet
Syscon PWB
TP1001
CRT PWB
CP820
CP850
Main PWB
JG162Y
CP810
CD810
CD850
JG162F
JG162A
CP502
CD351
CP757
To Ground
JG154
CD750
C5-2
Operation PWB
Page 20
PREPARATION FOR SERVICING
Servicing Position for Main PWB (In case of needing to check on Main PWB)
• It's possible to get the Servicing Position without the extension Jig if you arrange the unit as shown below.
(But L503 connection can not be done, Degauss circuit will not operate.)
L503 (2 Pin)
• Be careful for the short circuit.
Main PWB
VHS Tape
(Put the Tape under the FBT.)
C5-3
Page 21
VCR TEST TAPE INTERCHANGEABILITY TABLE
There are two types of the new alignment tape CH-1B (for NTSC) and CH-2 (for PAL). On each tape four signals (1) - (4) are
recorded for the times and in the order shown below.
(1) : 8min. ---> (2) : 2min. ---> (3) : 5min. ---> (4) : 5min.
The TTV-MP1 (for M-PAL), TTV-MS1 (for MESECAM) and TTV-S1 (for SECAM) alignment tapes have the same contents as
the previous tapes.
Method
NTSC
Now in use TYPE
Model Model Contents*1
TTV-N1
TTV-N1E
TTV-N2
TTV-N12
(SCV-1998)
TTV-N7A
Contents*1
NTSC, Color,
1kHz, SP
NTSC, Color,
1kHz, EP
NTSC, Stairsteps,
7kHz, SP
NTSC, Color,
1kHz, SP
NTSC, Stairsteps,
1kHz, SP, HiFi
400Hz
CH-1B(2)
CH-1B(4)
CH-1B(1)
CH-1B(4)
CH-1B(3)
New TYPE
NTSC, Stairsteps,
1kHz, SP
NTSC, Color,
*2
1kHz, EP
NTSC, Stairsteps,
7kHz, SP
NTSC, Color, No
sound SP, HiFi
400Hz
NTSC, Color,
1kHz, EP
Application
PB-Y Level/General electrical ADJ.
Head ACE Height/Tilt ADJ.
Switching position ADJ.
Head ACE Azimuth ADJ.
FM envelope ADJ.
X-Value ADJ.
HiFi Audio PB Level ADJ.
TTV-P1
TTV-P1L
PAL
TTV-P2
TTV-P7
TTV-P16
*1. Described in the order of color format. Video signal. Linear audio. Tape speed and Hi-Fi audio.
*2. Use CH-1B (1) - (3) with models used exclusively in the SP mode.
*3. Use CH-2 (3) and (4) when it is necessary to observe the chroma signal.
PAL, Color,
1kHz, SP
PAL, Color,
1kHz, LP
PAL, Stairsteps,
6kHz, SP
PAL, Stairsteps,
1kHZ, SP, HiFi,
1kHz
PAL, Color, 400Hz,
SP, HiFi 1kHz
CH-2(2)
*3
CH-2(4)
CH-2(1)
CH-2(3)
PAL, Stairsteps,
1kHz, SP
PAL, Color,
1kHz, LP
PAL, Stairsteps,
6kHz, SP
PAL, Color, No
sound SP, HiFi
400Hz
No Changed.
Switching position ADJ.
PB-Y Level/General electrical ADJ.
Head ACE Height/Tilt ADJ.
Switching position. (LP Model)
FM Envelope ADJ. (LP Model)
X-Value ADJ. (LP Model)
Head ACE Azimuth ADJ.
FM Envelope ADJ. (SP Model)
X-Value ADJ. (SP Model)
HiFi Audio PB Level ADJ.
FM Filter ADJ.
C6-1
Page 22
MECHANICAL ADJUSTMENTS
1. CONFIRMATION AND ADJUSTMENT
Read the following NOTES before starting work.
••Place an object which weighs between 450g~500g on
the Cassette Tape to keep it steady when you want to
make the tape run without the Cassette Holder. (Do not
place an object which weighs over 500g.)
When you activate the deck without the Cassette Holder,
short circuit between TP1001 and GND. (Refer to
ELECTRICAL ADJUSTMENT PARTS LOCATION
GUIDE) In this condition the BOT/EOT/Reel Sensor will
not function.
CONFIRMATION AND ADJUSTMENT OF REEL
1-1:
DISK HEIGHT
1.
Turn on the power and set to the STOP mode.
2.
Set the master plane (JG022) and reel disk height
adjustment jig (JG024A) on the mechanism framework,
taking care not to scratch the drum, as shown in Fig. 1-
1-A.
3.
Confirm that "A" of the reel disk is lower than "B" of the
reel disk height adjustment jig (JG024A), and is higher
than "C". If it is not enough height, adjust to 10(+0.2, -0)
mm with the height adjustment washer.
4.
Adjust the other reel in the same way.
Master Plane (JG022)
1-2: CONFIRMATION AND ADJUSTMENT OF TENSION
POST POSITION
1.
Set to the PLAY mode.
2.
Adjust the Tension Adjust until the edge of the Tension
Arm is positioning within 0.5mm range from the
standard line center of Main Chassis.
After this adjustment, confirm that the cut position is
located in "A" area as shown in Fig. 1-2-B. If it is
located in "B" area, adjust again.
3.
While turning the S Reel clockwise, confirm that the
edge of the Tension Arm is located in the position
described above.
Standard line of Main Chassis
Tension Arm
0.5mm (Adjusting range)
Standard line center of Main Chassis
Tension Adjust
Fig. 1-2-A
Master Plane (JG022)
10(+0.2, -0)mm
Reel Disk Height Adjustment Jig
(JG024A)
Reel Disk
Height Adjustment
Washer
2.6x4.7xT0.13
2.6X4.7xT0.25
Reel Disk Height
Adjustment Jig
(JG024A)
(B)
(A)
Fig. 1-1-A
(C)
Fig. 1-1-B
(A)
Cut Position
(B)
Tension Adjust
Fig. 1-2-B
1-3: CONFIRMATION OF PLAYBACK TORQUE AND
BACK TENSION TORQUE DURING PLAYBACK
Load a video tape (E-180) recorded in standard speed
1.
mode. Set the unit to the PLAY mode.
Install the tentelometer as shown in Fig. 1-3. Confirm that
2.
the meter indicates 20 ± 2gf in the beginning of playback.
• USING A CASSETTE TYPE TORQUE TAPE (JG100A)
1.
After confirmation and adjustment of Tension Post
position (Refer to item 1-2), load the cassette type
torque tape (JG100A) and set to the PLAY mode.
2.
Confirm that the right meter of the torque tape indicates
60~110gf•cm during playback in SP mode.
3.
Confirm that the left meter of the torque tape indicates
25~40gf•cm during playback in SP mode.
Tentelometer
Video Tape
D1-1
P1 Post
Guide Roller
Fig. 1-3
Page 23
MECHANICAL ADJUSTMENTS
1-4: CONFIRMATION OF VSR TORQUE
Operate within 4~5 seconds after the reel disk begins to
1.
turn.
Install the Torque Gauge (JG002F) and Adapter (JG002B)
2.
on the S Reel. Set to the Rewind mode. (Refer to Fig.1-4)
Then, confirm that it indicates 120~180gf•cm.
3.
NOTE
Install the Torque Gauge on the reel disk firmly. Press the
REW button to turn the reel disk.
1-5: CONFIRMATION OF REEL BRAKE TORQUE
(S Reel Brake) (Refer to Fig. 1-4)
Set to the STOP mode.
1.
Move the Idler Ass'y from the S Reel.
2.
Install the Torque Gauge (JG002F) and Adapter
3.
(JG002B) on the S Reel. Turn the Torque Gauge
(JG002F) clockwise.
Then, confirm that it indicates 60~100gf•cm.
4.
(T Reel Brake) (Refer to Fig. 1-4)
Set to the STOP mode.
1.
Move the Idler Ass'y from the T Reel.
2.
Install the Torque Gauge (JG002E) and Adapter
3.
(JG002B) on the T reel. Turn the Torque Gauge
(JG002E) counterclockwise.
Then, confirm that it indicates 45~70gf•cm.
4.
Torque Gauge/Adapter
(JG002F/JG002B)
2. CONFIRMATION AND ADJUSTMENT
OF TAPE RUNNING MECHANISM
Tape Running Mechanism is adjusted precisely at the
factory. Adjustment is not necessary as usual. When you
replace the parts of the tape running mechanism because
of long term usage or failure, the confirmation and
adjustment are necessary.
2-1: GUIDE ROLLER
Playback the VHS Alignment Tape (JG001C or JG001E).
1.
(Refer to SERVICING FIXTURE AND TOOLS)
Connect CH-1 of the oscilloscope to TP4002 (Envelope)
2.
and CH-2 to TP4001 (SW Pulse).
Press and hold the Tracking-Auto button on the remote
3.
control more than 2 seconds to set tracking to center.
Trigger with SW Pulse and observe the envelope. (Refer
4.
to Fig. 2-1-A)
When observing the envelope, adjust the Adjusting Driver
5.
(JG005) slightly until the envelope will be flat.
Even if you press the Tracking Button, adjust so that
flatness is not moved so much.
Adjust so that the A : B ratio is better than 3 : 2 as shown
6.
in Fig. 2-1-B, even if you press the Tracking Button to
move the envelope (The envelope waveform will begin to
decrease when you press the Tracking Button).
Adjust the PG shifter during playback.
7.
(Refer to the ELECTRICAL ADJUSTMENTS)
NOTE
After adjustment, confirm and adjust A/C head.
(Refer to item 2-2)
Torque Gauge/Adapter
(JG002E/JG002B)
S Reel
T Reel
Fig. 1-4
NOTE
If the torque is out of the range, replace the following
parts.
Check item
1-4
1-5
Replacement Part
Idler Ass'y/Clutch Ass'y
T Brake Spring/Tension Spring
Envelope
CH-3
Audio
Max
CH-1
Envelope
(TP4002)
CH-1
CH-2
Track
Track
CH-2
SW Pulse (TP4001)
(1)
(2)
Entrance Exit
A
B
Fig. 2-1-A
Max
D1-2
A : B ≥ 3 : 2
Fig. 2-1-B
Page 24
MECHANICAL ADJUSTMENTS
CONFIRMATION AND ADJUSTMENT OF AUDIO/
CONTROL HEAD
When the Tape Running Mechanism does not work well,
adjust the following items.
1.
Playback the VHS Alignment Tape (JG001C or JG001E).
(Refer to SERVICING FIXTURE AND TOOLS)
2.
Confirm that the reflected picture of stamp mark is
appeared on the tape prior to P4 Post as shown in Fig. 2-
2-A.
a)
When the reflected picture is distorted, turn the screw
1 clockwise until the distortion is disappeared.
b)
When the reflected picture is not distorted, turn the
screw 1 counterclockwise until little distortion is
appeared, then adjust the a).
3.
Turn the screw 2 to set the audio level to maximum.
4.
Confirm that the bottom of the Audio/ Control Head and
the bottom of the tape is shown in Fig. 2-2-C.
c)
When the height is not correct, turn the screw 3 to
adjust the height. Then, adjust the 1~3 again.
Audio/Control Head
Reflected picture of
Stamp Mark
P4 Post
2-3:2-2:
TAPE RUNNING ADJUSTMENT
(X VALUE ADJUSTMENT)
Confirm and adjust the height of the Reel Disk.
1.
(Refer to item 1-1)
Confirm and adjust the position of the Tension Post.
2.
(Refer to item 1-2)
Adjust the Guide Roller. (Refer to item 2-1)
3.
Confirm and adjust the Audio/Control Head.
4.
(Refer to item 2-2)
Connect CH-1 of the oscilloscope to TP4002, CH-2 to
5.
TP4001 and CH-3 to HOT side of Audio Out Jack.
Playback the VHS Alignment Tape (JG001U or JG001V).
6.
(Refer to SERVICING FIXTURE AND TOOLS)
Press and hold the Tracking-Auto button on the remote
7.
control more than 2 seconds to set tracking to center.
Set the X Value adjustment driver (JG153) to the 4 of
8.
Fig. 2-2-B. Adjust X value so that the envelope waveform
output becomes maximum. Check if the relation between
Audio and Envelope waveform becomes (1) or (2) of Fig.
2-1-A.
3
2
Audio/Control Head
Tape
Stamp Mark
Audio/Control Head
Fig. 2-2-A
1
4
Fig. 2-2-B
0.25±0.05mm
Fig. 2-2-C
D1-3
Page 25
MECHANICAL ADJUSTMENTS
3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE
4
3
2
5
6
7
1
10
1. Tension Adjust
2. Tension Arm
3. Guide Roller
4. P1 Post
5. Audio/Control Head
6.
X value adjustment driver hole
7.
P4 Post
8.
T Brake Spring
9.
T Reel
10.
S Reel
9
8
D1-4
Page 26
ELECTRICAL ADJUSTMENTS
1. ADJUSTMENT PROCEDURE
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PWB assemblies.
CAUTION
When replacing IC's or transistors, use only specified
silicon grease (G746).
(To prevent the damage to IC's and transistors.)
On-Screen Display Adjustment
1.
Unplug the AC plug for more than 30 minutes to set the
clock to the non-setting state. (To release the Back-Up
immediately, take the short circuit between C1003 and
GND at the Power Off.) Then, set the volume level to
minimum.
2.
Press the VOL. DOWN button on the set and the
channel button (9) on the remote control for more than
2 seconds to display adjustment mode on the screen
as shown in Fig. 1-1.
NOTE
Use the channel buttons (1-8) on the remote control to
select the options shown in Fig. 1-1.
Press the channel button (0) or MENU button on the
remote control to end the adjustments.
1. H/V
2. AKB
3. COLOR TEMP
4. PICTURE
5. OTHERS
6. TEST PATTERN
7.
8. 0. END
"The adjustment items 3 and 6 are not used for this
model."
2. BASIC ADJUSTMENTS
Fig. 1-1
CH-2
6.5H
CH-1
Fig. 2-1-A
CH-2
CH-1
6.5H
Fig. 2-1-B
2-2: VCO
1.
Connect the oscillator (39.5MHz) to pin 11 of TU601
through 100 Ω resistor.
2.
Connect the digital voltmeter between the pin 47 of
IC601 and the GND.
3.
Adjust the L608 until the digital voltmeter is 3.8 ± 0.05V.
2-3: RF AGC
1.
Receive the UHF (80dB).
2.
Connect the digital voltmeter between the pin 5 of
CP603 and the pin 1 (GND) of CP603.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (5) on the remote control to
select "OTHERS". The Fig. 2-2 appears on the display.
4.
Press the channel button (1) on the remote control to
select "RF AGC DELAY".
5.
Press the PLAY or STOP button on the remote control
until the digital voltmeter is 2.25 ± 0.05V.
(VCR SECTION)
2-1: PG SHIFTER
1.
Connect CH-1 on the oscilloscope to TP4001 and CH-2
to pin 7 of CP603.
2.
Playback the alignment tape. (JG001D)
3.
Press and hold the Tracking-Auto button on the remote
control more than 2 seconds to set tracking to center.
4.
Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears. If the indicator REC
disappears, adjustment is completed.
(If the above adjustments doesn't work well:)
5.
Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears.
6.
When the REC indicator is blinking, press both VOL.
DOWN button on the set and the channel button (4) on
the remote control simultaneously and adjust the
Tracking +/- button until the arising to the down of Head
Switching Pulse becomes 6.5 ± 0.5H.
(Refer to Fig. 2-1-A, B)
7.
Stop the alignment tape.
D2-1
1. RF AGC DELAY
2. VIDEO LEVEL
3. FM LEVEL
4. OSD H
5. CUT OFF
6. (VOL TEST)
7.
8. 0. RETURN
"The adjustment items 2, 3 and 6 are not used for this
model."
Fig. 2-2
Page 27
ELECTRICAL ADJUSTMENTS
(TV SECTION)
2-4: CONSTANT VOLTAGE
Connect the digital voltmeter to TP401.
1.
Set condition is AV MODE without signal.
2.
Adjust the VR502 until the DC voltage is 135 ± 0.5V.
3.
2-5: CUT OFF
1.
Place the set with Aging Test for more than 15 minutes.
2.
Set condition is AV MODE without signal.
3.
Using the remote control, set the brightness and
contrast to normal position.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (5) on the remote control to
select "OTHERS". The Fig. 2-2 appears on the display.
5.
Press the channel button (5) on the remote control to
select "CUT OFF".
6.
Adjust the Screen Volume until a dim raster is obtained.
2-6: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
1.
Place the set with Aging Test for more than 15 minutes.
2.
Receive the white 100% signal from the Pattern
Generator.
3.
Using the remote control, set the brightness and
contrast to normal position.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (2) on the remote control to
select "AKB". The Fig. 2-3 appears on the display.
5.
Press the channel button (2) on the remote control to
select the "R.BIAS".
6.
Using the PLAY or STOP button on the remote control,
adjust the R.BIAS.
7.
Press the CH. UP/DOWN button on the remote control
to select the "G.BIAS", "B.BIAS", "R.DRIVE",
"G.DRIVE" or "B.DRIVE".
8.
Using the PLAY or STOP button on the remote control,
adjust the G.BIAS, B.BIAS, R.DRIVE, G.DRIVE or
B.DRIVE.
9.
Perform the above adjustments 7 and 8 until the white
color is looked like a white.
1.
2. R.BIAS
3. G.BIAS
4. B.BIAS
5. R.DRIVE
6. G.DRIVE
7. B.DRIVE
8. 0. RETURN
Fig. 2-3
2-7: FOCUS
1.
Receive a broadcast.
2.
Turn the Focus Volume fully counterclockwise once.
3.
Adjust the Focus Volume until picture is distinct.
2-8: HORIZONTAL PHASE
1.
Receive the center cross signal from the Pattern
Generator.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (1) on the remote control to
select "H/V". The Fig. 2-4 appears on the display.
4.
Press the channel button (1) on the remote control to
select "H. PHASE".
5.
Press the PLAY or STOP button on the remote control
until the right and left screen size of the vertical line
becomes the same.
1. H. PHASE
2. H. BLK
3. V. SIZE 50/60
4. V. POSI 50/60
5. V. LIN 50/60
6. V. SC 50/60
7. V. COMP
8. (H FREQ) 0. RETURN
"The adjustment item 8 is not used for this model."
Fig. 2-4
2-9: VERTICAL LINEARITY
NOTE: Adjust after performing adjustments in section 2-8.
1.
Receive the cross hatch signal from the Pattern
Generator.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (1) on the remote control to
select "H/V". The Fig. 2-4 appears on the display.
4.
Press the channel button (5) on the remote control to
select "V. LIN 50/60".
5.
Press the PLAY or STOP button on the remote control
until the SHIFT quantity of the OVER SCAN on upside
and downside becomes minimum.
6.
Receive the cross hatch signal of NTSC. (Audio Video
Input)
7.
Press the AV button on the remote control to set to the
AV mode. Then perform the above adjustments 2~5.
2-10: VERTICAL POSITION
NOTE: Adjust after performing adjustments in section 2-9.
1.
Receive the center cross signal from the Pattern
Generator.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (1) on the remote control to
select "H/V". The Fig. 2-4 appears on the display.
4.
Press the channel button (4) on the remote control to
select "V. POSI 50/60".
5.
Press the PLAY or STOP button on the remote control
until the horizontal line becomes fit to the notch of the
shadow mask.
6.
Receive the center cross signal of NTSC. (Audio Video
Input)
7.
Press the AV button on the remote control to set to the
AV mode. Then perform the above adjustments 2~5.
D2-2
Page 28
ELECTRICAL ADJUSTMENTS
2-11: VERTICAL SIZE
NOTE: Adjust after performing adjustments in section 2-10.
1.
Receive the cross hatch signal from the Pattern
Generator.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (1) on the remote control to
select "H/V". The Fig. 2-4 appears on the display.
4.
Press the channel button (3) on the remote control to
select "V. SIZE 50/60".
5.
Press the PLAY or STOP button on the remote control
until the rectangle on the center of the screen becomes
square.
6.
Receive a broadcast and check if the picture is normal.
7.
Receive the cross hatch signal of NTSC. (Audio Video
Input)
8.
Press the AV button on the remote control to set to the
AV mode. Then perform the above adjustments 2~5.
2-12: OSD HORIZONTAL
1.
Set condition is AV MODE without signal.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (5) on the remote control to
select "OTHERS". The Fig. 2-2 appears on the display.
4.
Press the channel button (4) on the remote control to
select "OSD H".
5.
Press the PLAY or STOP button on the remote control
until the difference of A and B becomes minimum.
(Refer to Fig. 2-5)
1. BRIGHT
2. CONTRAST
3. COLOR
4. TINT
5. SHARPNESS
6. TEXT CONT
7.
8. 0. RETURN
"The adjustment item 4 is not used for this model."
Fig. 2-6
2-14: SUB COLOR
1.
Receive the color bar pattern. (RF Input)
2.
Using the remote control, set the brightness, contrast
and color to normal position.
3.
Connect the synchro scope to TP801.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (4) on the remote control to
select "PICTURE". The Fig. 2-6 appears on the display.
5.
Press the channel button (3) on the remote control to
select "COLOR".
6.
Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and
0% is set to 4 scales on the screen of the oscilloscope.
7.
Press the PLAY or STOP button on the remote control
until the red color level is adjusted to 95% of the white
level. (Refer to Fig. 2-7)
8.
Receive the color bar pattern. (Audio Video Input)
9.
Press the AV button on the remote control to set to the
AV mode. Then perform the above adjustments 2~7.
White 0%
[ TV ]
OSD H
A
2-13: SUB BRIGHTNESS
1.
Receive the black pattern*. (RF Input)
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (4) on the remote control to
select "PICTURE". The Fig. 2-6 appears on the display.
4.
Press the channel button (1) on the remote control to
select "BRIGHT".
5.
Press the PLAY or STOP button on the remote control
until the screen begin to shine.
6.
Receive the black pattern*. (Audio Video Input)
7.
Press the TV/VCR button on the remote control to set to
the AV mode. Then perform the above adjustments 2~5.
*The Black Pattern means the whole black raster signal.
Select the "RASTER" of the pattern generator, set to
the OFF position for each R, G and B.
B
Fig. 2-5
0%
95%
Red Level
White 100%
2-15: SUB CONTRAST
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (4) on the remote control to
select "PICTURE". The Fig. 2-6 appears on the display.
2.
Press the channel button (2) on the remote control to
select "CONTRAST".
3.
Press the PLAY or STOP button on the remote control
until the contrast step No. becomes "105"
4.
Press the AV button on the remote control to set to the
AV mode.
5.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (4) on the remote control to
select "PICTURE". The Fig. 2-6 appears on the display.
6.
Press the channel button (2) on the remote control to
select "CONTRAST".
7.
Press the PLAY or STOP button on the remote control
until the contrast step No. becomes "112"
Fig. 2-7
D2-3
Page 29
ELECTRICAL ADJUSTMENTS
2-16: SUB SHARPNESS
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (4) on the remote control to
select "PICTURE". The Fig. 2-6 appears on the display.
2.
Press the channel button (5) on the remote control to
select "SHARPNESS".
3.
Check if the step No. of SHARPNESS is "30".
4.
Press the AV button on the remote control to set to the
AV mode. Then perform the above adjustments 1~3.
2-17: TEXT CONTRAST
1.
Using the remote control, set the brightness and
contrast to normal position.
2.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (4) on the remote control to
select "PICTURE". The Fig. 2-6 appears on the display.
3.
Press the channel button (6) on the remote control to
select "TEXT CONT".
4.
Check if the step No. of TEXT CONT is "40".
2-18: H. BLK
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (1) on the remote control to
select "H/V". The Fig. 2-4 appears on the display.
2.
Press the channel button (2) on the remote control to
select "H. BLK".
3.
Switch the R/L by using the ENTER button on the
remote control and check if the H. BLK step No.
becomes "R2, L4".
2-19: V. S-CORRECTION (V. SC)
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (1) on the remote control to
select "H/V". The Fig. 2-4 appears on the display.
2.
Press the channel button (6) on the remote control to
select "V. SC 50/60".
3.
Check if the step No. of V. SC is "0".
4.
Press the AV button on the remote control to set to the
AV mode. Then perform the above adjustments 1~3.
2-20: V. COMP
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (1) on the remote control to
select "H/V". The Fig. 2-4 appears on the display.
2.
Press the channel button (7) on the remote control to
select "V. COMP".
3.
Check if the step No. of V. COMP is "7".
2-21: E-E LEVEL
1.
Receive the color bar pattern. (Audio Video Input)
2.
Connect the oscilloscope to TP4501.
3.
Check if the VIDEO OUT LEVEL is 1Vp-p ± 3dB.
2-22: COLOR LEVEL
1.
Receive the color bar pattern.
2.
Connect the oscilloscope to TP4501.
3.
When setting to the Y-LEVEL 100%, check if the
MAGENTA is 45 ± 10%.
D2-4
Page 30
ELECTRICAL ADJUSTMENTS
3. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE
(VCR SECTION)
TP1001
C1003
TP4002
TP4001
TP4501
L608
IC601
TU601
TU601
11 pin
CP603
J4501
SYSCON PWB
D2-5
Page 31
(TV SECTION)
ELECTRICAL ADJUSTMENTS
J801
TP801
CRT PWB
VR502
T501
FOCUS VOLUME
SCREEN VOLUME
FB401
TP401
MAIN PWB
D2-6
Page 32
ELECTRICAL ADJUSTMENTS
4.PURITY AND CONVERGENCE
ADJUSTMENTS
NOTE
1.
Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.
2.
Place the CRT surface facing east or west to reduce the
terrestrial magnetism.
3.
Turn ON the unit and demagnetize with a Degauss Coil.
4-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
1.
Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 4-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
2.
Receive the green raster pattern from the color bar
generator.
3.
Slide the deflection yoke until it touches the funnel side
of the CRT.
4.
Adjust center of screen to green, with red and blue on
the sides, using the pair of purity magnets.
5.
Switch the color bar generator from the green raster
pattern to the crosshatch pattern.
6.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of 4
pole magnets.
7.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
8.
Adjust the crosshatch pattern to change to white by
repeating steps 6 and 7.
4-2: PURITY
NOTE
Adjust after performing adjustments in section 4-1.
1.
Receive the green raster pattern from color bar
generator.
2.
Adjust the pair of purity magnets to center the color on
the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.
3.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole screen
is green.
4.
Confirm red and blue colors.
5.
Adjust the slant of the deflection yoke while watching
the screen, then tighten the fixing screw.
DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
4-3: STATIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 4-2.
1.
Receive the crosshatch pattern from the color bar
generator.
2.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of 4
pole magnets.
3.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
4-4: DYNAMIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 4-3.
1.2.Adjust the differences around the screen by moving the
deflection yoke upward/downward and right/left.
(Refer to Fig. 4-2-a)
Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 4-2-b)
R G B
R
G
B
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
WEDGE
WEDGE POSITION
R
G
B
Fig. 4-2-a
WEDGE
WEDGE
Fig. 4-2-b
R G B
6 POLE MAGNETS
4 POLE MAGNETS
PURITY MAGNETS
Fig. 4-1
D2-7
Page 33
(TV SECTION)
TROUBLESHOOTING GUIDE
( 1 ) that a power supply doesn't
enter
Is there output on the
secondary of T501
dimensions or not?
Yes
Whether is POWER
FAIL normal?
Yes
(In case that there isn't a normal tension for time to do
stanby CD810 every terminal)
No
No
Voltage of C507 is
it normal?
Yes
Whether there is output
for IC501 3rd pin or not?
Yes
Investigate T501.
No
No
Investigate R501 and F501.
Investigate IC506 and IC501.
Investigate T501 and ICP502.
UNREG 8V is it normal?
Yes
AT13V is it normal?
Yes
+B is it normal?
No
No
No
Investigate D512.
Investigate ICP504.
Investigate F502 and D510.
E-1
Page 34
TROUBLESHOOTING GUIDE
( 2 ) that a power supply doesn't
enter
Is the voltage 5V for
IC1006 36th pin or not?
Yes
Is the voltage of IC1006
37th pin 5V or not?
Yes
Is there 10MHz OSC for
IC1006 78th pin and
80th pin or not?
Yes
(In case that there is a normal tension for time to do
stanby CD810 every terminal)
No
No
No
Investigate D1006 .
Investigate D1008.
Investigate X1001.
Is there 130V in the
2nd pin of FB401?
Yes
Is there horizontal out
for Q405 base or not?
Yes
Is there a heater
voltage or not?
Yes
Investigate CRT.
No
No
No
Is the 5V for IC601
8th pin or not?
Yes
Investigate IC601.
No
Investigate F502.
Investigate Q1010 and IC1005.
Investigate R450.
E-2
Page 35
A voice isn't though an image
appears
TROUBLESHOOTING GUIDE
Whether does a signal
come to IC352 6th pin
or not?
Yes
Is the voltage of IC352
1st pin DC 8.3V or not?
Yes
Does a signal come to
CP351 6th pin or not?
Yes
Investigate a speaker.
No
No
No
Whether does a signal
come to IC601 1st pin
or not?
Yes
Investigate IC601 peripheral
circui.
No
Investigate IC4001 11th pin.
Investigate R517, D505 and
D509.
Investigate headphone jack
(J351) or a peripheral circuit.
E-3
Page 36
A color doesn't adhere to it
TROUBLESHOOTING GUIDE
Whether is wave form of
IC601 38th pin normal or
not?
Yes
Whether is wave form of
IC602 19th pin,20th pin and
21th pin normal or not?
Yes
Investigate CRT PWB and a
peripheral circuit.
No
No
Investigate X601.
Investigate IC601.
E-4
Page 37
An image doesn't appear
TROUBLESHOOTING GUIDE
Is the voltage DC 5V for
IC601 43th pin or not?
Yes
Whether is a luminance
signal early in IC602
42th pin or not?
Yes
Whether is a luminance
signal early in IC4001
52th pin or not?
Yes
R, G, B signal out from
the 19th pin, the 20th
pin and 21th pin?
No
No
No
No
Investigate IC602 3rd pin.
Investigate IC601.
Investigate IC4001.
Investigate IC601 and a
peripheral circuit.
Yes
Investigate a transistor of CRT
PWB.
E-5
Page 38
An only horizontal line appears
TROUBLESHOOTING GUIDE
Is the voltage DC 25V for
IC401 6th pin or not?
Yes
Is the voltage DC 25V for
IC401 2nd pin or not?
Yes
Whether does a video
signal appear for IC601
42th pin or not?
OSD screen doesn't appear
No
No
No
Investigate C429, D411 .
Investigate CRT, IC401 and a
peripheral circuit.
Investigate IC601.
The wave form of the 99th
pin, the 100th pin, the
101th pin, and also the
96th pin of IC1006
normal?
Yes
The wave form of the
D1014 , D1015 and D1016
normal?
No
No
investigate Q1015 and Q1016
Investigate the circuit of IC601
from IC1006.
E-6
Page 39
(VCR SECTION)
PLAY SHUTS OFF
Insert a cassette and push PLAY
button.
TROUBLESHOOTING GUIDE
Does Playback change to
Stop about 3 seconds
later?
No
Does Playback
change to Stop about
6 seconds later?
No
Check IC1006.
Yes
Yes
Check TAPE LOADING, CAPSTAN
DD UNIT and CYLINDER UNIT.
Check REEL SENSOR and
CAPSTAN BELT.
E-7
Page 40
NO PLAYBACK PICTURE
TROUBLESHOOTING GUIDE
Does E-E appear on the
Monitor TV?
Yes
Is there PB Y/C signal
at TP4002 ?
Yes
Is there FM Y signal at
pin 78 or 79 of IC4001?
Yes
Is there CHROMA
signal at pins 55, 54 of
IC4001?
No
No
No
No
Is there voltage at pins
12, 36 and 61of IC4001 5V?
Yes
No
Check Power circuit.
Check IC4001 and the connection of
the CYLINDER.
Check C4035, W905 and the
peripheral circuit.
Check C4075, R4050 and the
peripheral circuit.
Yes
Is there VIDEO signal
at pin 52 of IC4001?
Yes
Check pin 7 of CP603.
No
Check R4040, Q4006 or Replace
IC4001.
E-8
Page 41
NO COLOR DURING PLAYBACK
TROUBLESHOOTING GUIDE
Does FM ENVELOPE
appear at TP4002?
Yes
Does CHROMA signal
appear at pin 52 of IC4001?
Yes
Does CHROMA
signal appear at pins
55 or 54 of IC4001?
Yes
pin 61 of IC4001?
No
No
No
Check IC4001.
Check R4040, Q4006 and
peripheral circuit.
Check C4075, R4050 and the
peripheral circuit.
NoIs there voltage at
Check L4013 or Replace IC4001.
Yes
Check TV Block.
E-9
Page 42
PLAYBACK PICTURE IS NOISY
(EVEN AFTER CLEANING HEADS)
TROUBLESHOOTING GUIDE
Is FM signal at TP4002
more than 200mVp-p?
Yes
Is VIDEO waveform at pin
52 of IC4001 1Vp-p and
are there any noise?
Yes
Is there FM signal at pin 79
of IC4001 200mVp-p?
Yes
Is there CHROMA signal
at pin 55 of IC4001
200mVp-p?
No
No
No
No
Replace CYLINDER UNIT.
Check pin 52 of IC4001 and
peripheral circuit.
Check pins 79 and 78 and
peripheral circuit.
Replace IC4001.
Yes
Replace IC4001.
E-10
Page 43
NO COLOR DURING SELF
RECORDING AND PLAYBACK
TROUBLESHOOTING GUIDE
Does VCR signal
appear at pin 31 or 30 or
28 of IC4001?
Yes
Refer to section "NO COLOR
DURING PLAYBACK".
No
Check J4501, J701 and VIDEO
input circuit.
E-11
Page 44
NO NORMAL AUDIO IN
PLAYBACK MODE
TROUBLESHOOTING GUIDE
Is sound heard on E-E ?
Yes
Does Audio appear at
pin 11 of IC4001?
Yes
Does Audio signal
appear at pin 51 of
IC601?
Yes
Check IC601.
No
No
No
Refer to section "NO E-E".
Check AUDIO HEAD for debris of
stains.
Check that the cinnector from
AUDIO HEAD is fully inserted to
CP4005.
Check L4001, Q4007 and
peripheral circuit.
E-12
Page 45
CAPSTAN DD MOTOR NOT
ROTATING
TROUBLESHOOTING GUIDE
In playback, is the
voltage at pin 5 of
CP1004 12V?
Yes
Is the voltage at pin 8
of CP1004 5V?
Yes
In playback, check the voltage
at pin 3 of CP1004 is 2V or at
pin 83 of IC1006 is normal?
Yes
In playback, is the
voltage at pin 4 of
CP1004 2.5V?
No
No
No
No
Check POWER circuit.
Replace IC1006.
Check pins between 72 and 108 of
IC1006 and peripheral circuit.
Yes
Replace DD MOTOR.
E-13
Page 46
AUDIO CAN NOT BE
RECORDED
TROUBLESHOOTING GUIDE
Is there BIAS at pin 4
of IC4001?
Yes
Is there AUDIO signal at
pins 7 or 8 or 9 of IC4001?
Yes
Is there signal at pin
11 of IC4001?
Yes
Check the lead wire and connector
to A/C HEAD.
No
No
No
Is the voltage at pin 2
of L4005 5V?
Yes
L4003 is broken or shorted.
Check peripheral circuit.
No
Check POWER BLOCK.
Check the circuit of 21 PIN and
TUNER.
Replace IC4001.
E-14
Page 47
CASSETTE IN AND DOWN BUT
UNIT HAS NO FUNCTIONS
TROUBLESHOOTING GUIDE
Does mode indicator
appear in Display?
No
Does VCR operate with
the remote control?
Yes
Check CONTROL PWB.
Yes
No
Check LOADING MOTOR and the
peripheral parts.
Check IC1006.
E-15
Page 48
RECORDING MECHANISM
WORKS, BUT NO VIDEO
RECORDED FROM INPUT
JACK OR TUNER
TROUBLESHOOTING GUIDE
Does video signal
appear at pin 28 or
30 or 31 of IC4001?
Yes
Does FM signal
appear at pin 86 or 89
of IC4001?
Yes
Does FM signal appear
at pin 2 or 4 of CP4001?
Yes
Check CYLINDER UNIT and IC4001.
No
No
No
Check the circuit from VIDEO input
jack to IC4001 and from Tuner Pack
to IC4001.
Check the peripheral circuit IC4001.
Check C4027, C4028 and the
peripheral circuit.
E-16
Page 49
NO E-E (NO VIDEO AND AUDIO
FROM TUNER)
TROUBLESHOOTING GUIDE
Is the voltage at pin
7 of TU601 5V?
Yes
Is the voltage at pin 9 of
TU601 30V?
Yes
Is there waveform at pins
4 and 5 of TU601?
Yes
No
No
Check Power PWB.
No
Check IC601.
Check TU601.
E-17
Page 50
CYLINDER NOT ROTATING
DURING PLAYBACK AND
RECORDING
TROUBLESHOOTING GUIDE
Is the voltage at pin 2 of
CP1005 about DC12V?
Yes
In playback, is the voltage
at pin 5 of CP1005 about
DC1.2V?
Yes
Check CYLINDER MOTOR.
No
No
Check P. CON 12V line and
POWER BLOCK.
Check IC1006.
E-18
Page 51
AUDIO SHAKES
TROUBLESHOOTING GUIDE
Is AUDIO HEAD scratched?
No
Does pin 9 of IC1006
output a 3.0Vp-p square
wave?
Yes
In playback, is the voltage
at pin 4 of CP1004 2.8V?
Yes
Check AUDIO BLOCK.
Yes
No
No
Replace AUDIO HEAD.
Replace CAPSTAN DD MOTOR.
Check peripheral components
of IC1006.
E-19
Page 52
CASSETTE TAPE IS NOT
ACCEPTED
TROUBLESHOOTING GUIDE
Does WORM GEAR of
CASSETTE LOADING
BLOCK activate?
Yes
When cassette is not
inserted ,is EOT BOT
5V at pin 2 of CP1006
and pin 1 of CP1002?
No
When a cassette is inserted,
is the voltage between pins
3 and 4 of CP1006?
No
When a cassette is
inserted, is the voltage at
pin 67 of IC1006 5V?
No
Yes
Yes
No
Check WORM GEAR of
CASSETTE LOADING BLOCK.
Check EOT, BOT, PHOTO
SENSOR, pins 26 and 25 of IC1006.
Replace LOADING MOTOR.
Replace IC1006.
Yes
Check circuit of LOADING MOTOR.
E-20
Page 53
WHEN INSERTING CASSETTE,
IT EJECTS IMMEDIATELY
TROUBLESHOOTING GUIDE
Does this same problem
appear when using
another cassette tape?
Yes
When inserting a cassette,
does Emitter of EOT return
to LOW?
Yes
Is pin 26 of IC1006 LOW?
Yes
Check IC1006 circuit.
No
No
No
Defective CASSETTE or
CASSETTE LOADING BLOCK.
Replace EOT PHOTO
TRANSISTORS.
Check R1056 circuit.
E-21
Page 54
FF/REW DO NOT WORK
TROUBLESHOOTING GUIDE
When the FF/REW is pushed,
does the PULSE appear at
pin 71 of IC1006?
Yes
Is the voltage change at
pin 7 of CP1004 when
you press FF/REW?
Yes
Check DECK MECHANISM.
No
No
Check pin 71 of IC1006 lines.
Replace IC1006.
Check pin 7 of CP1004 and
peripheal circuit.
E-22
Page 55
TAPE LOADING IS OK, BUT
UNLOADS IMMEDIATELY
TROUBLESHOOTING GUIDE
Does CYLINDER rotate ?
Yes
Does TP4001 feed
HEAD SWITCHING
PULSE signal 30Hz?
Yes
No
No
Is the voltage at pin 2 of
CP1005, AT 12V?
Yes
Replace CYLINDER UNIT.
No
Does PG PULSE
appear at pin 103 of
IC1006?
Yes
No
Check Power circuit.
Does REEL SENSOR
PULSE signal appear at
pins 69 and 70 of IC1006?
No
Check REEL SENSOR.
Replace IC1006.
Yes
E-23
Page 56
PLAYBACK PICTURE JITTERS
VERTICALLY
TROUBLESHOOTING GUIDE
No
Does tracking noise
appear in the picture?
Yes
By adjusting the manual
tracking UP/DOWN
buttons, will the noise
disappear in the picture?
Yes
Are GUIDE POSTS
the right height?
Yes
Is PG SHIFTER
Adjustment 6.5H?
No
No
No
Check P/B ENVELOPE.
Adjust GUIDE POST height.
Adjust PG SHIFTER.
Yes
Check YCA circuit.
E-24
Page 57
PLAYBACK PICTURE JITTERS
HORIZONTALLY
TROUBLESHOOTING GUIDE
Is FG output level at pin
3 of CP1005 5Vp-p?
Yes
Is the voltage at pin 5 of
CP1005 1.2V?
Yes
Replace CYLINDER UNIT.
AUTO TRACKING DOES NOT
OPERATE
By manual tracking, does
the DC level at pin 24 of
IC1006 change?
No
No
No
Replace CYLINDER UNIT.
Replace IC1006.
Check YCA, H/AMP circuit and
CYLINDER UNIT.
Yes
In auto tracking, is the
voltage at pin 24 of IC1006
more than DC0.7V?
Yes
Replace IC1006.
No
Does the CTL PULSE
(about 1.0Vp-p) appear at
pin 8 of IC1006?
1.0Vp-p
Yes
No
Check CONTROL HEAD.
E-25
Page 58
WHEN PLAYBACK, FAST
FORWARD OR REWIND MODE
IS ACTIVATED, UNIT STOPS
IMMEDIATELY
TROUBLESHOOTING GUIDE
Does CAPSTAN DD
MOTOR rotate?
Yes
Is CAPSTAN BELT normal?
Yes
Does REEL SENSOR PULSE
signal appear at pin 69 of
IC1006?
Yes
Does REEL SENSOR PULSE
signal appear at pin 70 of
IC1006?
No
No
No
No
Refer to section "CAPSTAN DD
MOTOR NOT ROTATING".
Replace CAPSTAN BELT.
Check Reel Sensor of Q1001 and
R1006.
Check Reel Sensor of Q1005 and
R1019.
Yes
Replace IC1006.
E-26
Page 59
PLAYBACK PICTURE SHAKES
TROUBLESHOOTING GUIDE
Is FG Pulse output
level at pin 3 of
CP1005 about 5Vp-p?
Yes
Does pin 104 of IC1006 output
a 5Vp-p square wave?
Yes
In playback, is the voltage
at pin 5 of CP1005 about 1.2V?
Yes
Replace CYLINDER MOTOR.
No
No
No
Replace CYLINDER MOTOR.
Replace IC1006.
E-27
Page 60
IC DESCRIPTIONS
OEC0093B (IC1006)
No. PORT PIN NAME I/O DESCRIPTION
1 SVSS SVSS — Ground.
2 CTLREF CTLREF OUT Output terminal for AMP REFERENCE.
3 CTL(+) CTL(+) I/O Input and output terminal of Control Head.
4 CTL(-) CTL(-) I/O Input terminal of Control Head.
5 CTLBIAS CTLBIAS IN Input terminal for Control Bias.
6 CTLFB CTLFB IN Input terminal for Control Feedback.
7 CTLAMP(O) CTLAMP(O) OUT Output terminal for Control Amp Output.
8 CTLSMT(I) CTLSMT(I) IN Input terminal for Control SMT Input.
9 CFG CFG IN Input terminal for Capstan FG Input.
10 SVCC SVCC — P.CON +5 V.
11 AFCPC AFCPC IN Condenser connection for AFC PC.
12 AFCOSC AFCOSC IN Condenser connection for AFC OSC.
13 AFCLPF AFCLPF IN Condenser connection for AFC LPF.
14 H.SYNC H.SYNC IN Input terminal for video H.SYNC signal.
15 V.SYNC V.SYNC IN Input terminal for video V.SYNC signal.
16 CVIN2 CVIN2 IN Not used.
17 CVIN1 CVIN1 IN Not used.
18 OSDVCC OSDVCC — AT +5 V.
19 CVOUT CVOUT OUT Not used.
20 OSDVSS OSDVSS — Ground.
21 4/2FSCOUT 4/2FSCOUT OUT Not used.
22 4/2FSCIN 4/2FSCIN IN 2 FSC pulse.
23 AVSS AVSS — Ground.
24 ANB VIDEO_ENV IN Input terminal of Video RF envelope.
25 ANA BOT IN Tape start sensor input signal.
26 AN9 EOT IN Tape end sensor input signal.
27 AN8 MSSEN_B IN Input terminal of mecha state sensor.
28 AN7 MSSEN_A IN
29 AN6 KEY_B IN Main unit key input.
30 AN5 KEY_A IN
31 AN4 - IN Not used.
32 AN3 MESECAM-M IN Input terminal of MESECAM or NOT.
33 AN2 AFT.S.CURVE IN AFT S.CURVE input for tuner.
34 AN1 DEW IN Input terminal of Dew sensor.
35 AN0 TUNER AGC IN Input terminal of Electric field strength for Auto setup.
36 AVCC AVCC — AT +5 V.
37 P10/IRQ0 POWER_FAIL IN input terminal for power fail.
38 P11 DEGAUSS OUT Output terminal for DEGAUSS.
39 P12 SERVICE IN Input terminal for Service Mode.
40 P13 P13 IN AT+5V.
41 P14 IIC_OFF IN Input signal to Communications of all the terminals are cut(for Factory adjustment)
42 P15 - OUT Not used.
43 P16/IC REMOCON IN IN Receive the remote control signal input.
F1-1
Page 61
IC DESCRIPTIONS
OEC0093B (IC1006)
No. PORT PIN NAME I/O DESCRIPTION
44 P17 32KHz_MONITOR OUT Not used.
45 P67 T-REC_LED OUT Output terminal control for T-REC-LED voltage drive.
46 P66 REC/OTR_LED OUT Output terminal control for REC-LED voltage drive.
47 P65 ON_TIMER_LED OUT Output terminal control for ON TIMER-LED voltage drive.
48 P64 PLAY_LED OUT Output terminal control for PLAY-LED voltage drive.
49 P63 OTPB_LED OUT Output terminal control for OTPB-LED voltage drive.
50 P62 TV POWER_ON-H OUT For control of the user TV-power switch ON/OFF.
51 P61 VCR POWER_ON-H OUT For control of the user VCR-power switch ON/OFF.
52 P60 CENT_LED OUT Output terminal for center LED control.
53 P37 TAB_SW IN Input terminal for judge the tape if it has TAB or not.
54 P36 CTL_MONITOR OUT Not used.
55 P35 MS_SENS_CTL OUT Output terminal to drive sensor control.
56 VCC VCC — AT +5V.
57 VSS VSS — Ground.
58 P27 TRICK_PB-H OUT Special effect playback.(CUE/REVIEW/STILL/SLOW etc)
59 SCL0 IIC_CLK_0 OUT Output Clock terminal for I2CBUS communication.
60 SDA0 IIC_DATA_0 OUT Output Data terminal for I2CBUS communication.
61 P24 TEXT RESET OUT Output terminal of reset for TEXT_IC.
62 P23 SECAM-H OUT Output signal of SECAM or NOT.
63 SCK1 AFC OFF-H OUT Output terminal of CHROMA AFC cut or NOT.
64 SO1 SO1 OUT output terminal of FZTAT signal.
65 SI1 SI1 IN input terminal of FZTAT signal.
66 P47 T'TEXT-H OUT Output terminal of TEXT/MIX mode or TV mode.
67 P46 LDM_FWD OUT Output signal to control the rotation direction of the loading motor.
68 P45 LDM_RVS OUT
69 P44 REEL-S IN Input terminal of reel sensor SUPPLY.
70 P43 REEL-T IN Input terminal of reel sensor TAKE UP.
71 P42 CAP_FWD-L OUT Capstan forward and backward command.
72 P41 CAP_FULL OUT Output the HIGH during the acceleration force of Capstan Motor at SLOW mode.
73 P40 VV-H OUT Output terminal for select Playback/Recording at the circuit of sound.
74 FWE FWE IN Input terminal of FZTAT signal( L: low signal input).
75 X2 X2 OUT Subclock pulse (32.768KHz).
76 X1 X1 IN Subclock pulse (32.768KHz).
77 /RES /RES IN RESET will be done when the voltage goes to HIGH after the restart signal.
78 OSC1 OSC1 IN Connect the main crystal (10MHz).
79 VSS VSS — Ground.
80 OSC2 OSC2 OUT Connect the main crystal (10MHz).
81 VCL VCL IN Condenser connection for VCC.
82 MD0 MD0 IN Input terminal of FZTAT signal.
83 PWM2 CAP_LIMIT OUT Switch the maximum out put current of the CAPSTAN Motor.
84 P33 EXT_IN-L IN Input terminal for Compulsion outside input.
85 P32 - OUT Not used.
86 SV2 STAND_BY-H OUT Output terminal control for STAND BY-LED.
F1-2
Page 62
IC DESCRIPTIONS
OEC0093B (IC1006)
No. PORT PIN NAME I/O DESCRIPTION
87 SV1 SV1 OUT Not used.
88 P70 TV MUTE-H OUT Mute signal of TV mute.
89 P71 VCR MUTE-H OUT Mute signal of VCR mute.
90 P72 V.REC.START-H OUT Output terminal for REC signal when record.
91 P73 TUNER MUTE-H OUT Mute signal of audio mute for tuner.
92 P74 - OUT Not used.
93 P75 SOUND B IN Input terminal of SOUND IF(4.5MHz,5.5MHz,6.0MHz,6.5MHz).
94 P76 SOUND A IN
95 P77 FF/REW-L OUT Output terminal for FF/REW or NOT.
96 P80 YCO OUT Output signal for OSD Y.
97 P81 BB-L OUT Output terminal for Blue Back or NOT.
98 P82 DA RGB SW OUT Output signal to cut of RGB sync.
99 C.ROT R OUT Output signal for OSD R.
100 H.AMP.SW G OUT Output signal for OSD G.
101 COMP B OUT Output signal for OSD B.
102 P85 CYL_SPEED_UP OUT Output terminal for correct cylinder during SLOW.
103 DPG DPG IN Input terminal for DRUM PG signal.
104 DFG DFG IN Input terminal for DRUM FG signal.
105 VIDEO FF VIDEO_H.SW OUT Output terminal of signal Video head switching.
106 AUDIO FF - OUT Not used.
107 DRUM PWM DRUM_PWM OUT Output terminal for PWM of Drum Motor.
108 CAP PWM CAP_PWM OUT Output terminal for PWM of Capstan Motor.
109 VPULSE DUMMY.V.SYNC OUT Output terminal of Video Pulse signal.
110 VSS VSS — Ground.
111 C.SYNC C.SYNC IN Input terminal for composite C SYNC.
112 VCC VCC — AT +5V.
F1-3
Page 63
IC1006 (OEC0093B)
DPG 103 PIN
DFG 104 PIN
SERVO TIMING CHART
24 Cycle
H. SW. P 105 PIN
V-SYNC (E-E) 15 PIN
REC CTL (REC)
7 PIN
V-SYNC (TRICK PB)
109 PIN
• WAVEFORM CHANGES DEPENDED ON THE TAPE SPEED
CH 1
CH 2
F2-1
Page 64
SYSTEM SWITCH MODE
LOADING DIRECTION
(FWD)
EJECTION
LIGHT
RECEIVING
EOT
BOT
MSSEN A
MSSEN B
LOADING ARM
PINCH ROLLER
TENSION
LIGHT
GUARD
LIGHT
RECEIVING
LIGHT
GUARD
LIGHT
RECEIVING(H)
LIGHT
GUARD (L)
LIGHT
RECEIVING
LIGHT
GUARD
FWD
: CAPSTAN FWD ROTATING
DIRECTION
: CAPSTAN RVS ROTATING
RVS
PB SLOW : SETTING SPEED TO SERVO
: MECHANICAL MOVEMENT AND CAPSTAN ROTATING
: MECHANICAL MOVEMENT (NO CAPSTAN ROTATING)
DIRECTION
UNLOADING STP3 VSR F. SLOW PB/STP STP2 FF/REW
HEAD CLEANING
OFF
STB
R. SLOW
CLUTCH
MAIN
SUB
Maintains the Direct
Connection for STOP2, too.
DIRECT
CONNECTION
OFF
T BRAKE
S BRAKE
TAPE IN
POWER OFF
STP FF/FWD
FF/REW STP
OFF
CASSETTE DOWN
FWD
TAPE LOADING
(WHEN MSSEN A IS CHANGED FROM LIGHT GUARD TO
LIGHT RECEIVING, CASSETTE IN WILL BE DETECTED)
RVS
(VCP)
(VCR)
STP3 PB
ON
FWD
PB/STP STP3
FWD
FF/REW
FF/REW
PB/STP
FWD
PB
F2-2
Page 65
DIODE
SEMICONDUCTOR BASE CONNECTIONS
CATHODE
ANODE
1SS133T-77 11E1-EIC 10ELS2N-TA1B2 SID1050CM EM-553-F1T GBL06L-6177
MTZJ33B T-77 11EQS04N-TA1B2 21DQ09N-TA2B1 EQ-552-F1T
MTZJ5.6B T-77 11ES1N-TA1B2 EG-01C
RB721QT-77 1N4005E-6580-G23 EG01Z-V0
SB10-03A3 RD12FB-T7 RMPG06J-G3
RU2YX-V1 RU2AM V1
CATHODE
ANODE
IC
1
1
1
28PIN 8PIN 5PIN 4PIN 16PIN 7PIN
ET106 BA6955N STR-F6707 TLP621(GR) TC74HC4053AF LA78040
20PIN
ET317
54PIN
LA76812
1
5
1
1
7
1
1
100PIN 8PIN 24PIN 3PIN 3PIN 9PIN
HA118217F S-24C08ADPA-01 LC74793/JM RE5VS31A KIA7805API AN7523
112PIN KIA7809API
OEC0093B
1
1
2
3
1
2
3
1
G-1
Page 66
TRANSISTOR
C
E
C
CKA
E
C
K
C
SEMICONDUCTOR BASE CONNECTIONS
E
E
B
2SA1371(D,E)-AE 2SA933STP(R,S) 2SC4217(D,E)-RAC 2SA1037AKT146R,S RPI-352Q01R 2SD2499
2SB892(S,T)-AE DTC114TSTP 2SC2412KT146 R,S
2SC1815Y(TPE2) DTC114ESTP DTA124EKAT146
2SC2271(D,E)-AE DTC114EKAT146
2SC2909(S,T)-AA DTC114EKT147
2SC3000-AA DTC114TKAT146
2SC3331(S,T,U)-A DTC124EKAT146
2SC945(C)-T(P,Q)
2SD734(E,F)-AA
E
PNA2604M010R RPI-301
B
A
E
E
C
B
C
B
E
B
C
G-2
Page 67
SPEAKER
HEAD PHONE
T'TEXT
Y/C/AUDIO/
HEAD AMP/
21PIN/IN/OUT
MICON/
OPERATION
SP351
J351
TV_POWER_H
SYNC
Y/C_VIDEO
Y/C_AUDIO
TU_AUDIO
TU_VIDEO
TU_AGC
1
2
7
Q605
BUFFER
TU601
1
4
5
11
TH501
DEGAUSS ELEMENT
SOUND AMP.
IC352 AN7523
1
Q601
AMP
4
5
Q608
BUFFER
SAW FILTER
CF601
154
L608
6
4
R. SIGNAL
TV BLOCK DIAGRAM
62
V. OUTPUT IC401 LA78040
THERMAL
PROTECTION
PUMP
-
UP
+
5
CHROMA/IF
IC601
LA76812
38
44
CLMP
PLL
P2C
VIDEO
SW
SW
DELAY
PEAKING
CORING
PPC1
ACC
DEMO
CONTRAST
BRIGHT
LINE
42
CLMP
51
DC
VOL
BUS
SW
BPF
VIDEO
AMP
IF AGC
SPLL
VIF
DET
FM
PMP
LIM
BPF
VIDEO
DET
1
2
54
52
46
11
12
4
RF AGC
6
5
1
3
49
48
VCO
TINT
SYNC
SEP
BLACK
STRETCH
BLACK
STRETCH
X601
4.433619MHz
HOR
VCO
1/256
HOR
C/D
PFC1
COLOP
CLAMP
RGB
MATRIX
PFC2
PHASE
SHIFTER
VER
C/D
VER
SEP
OSD
SW
OSD
FBP
HOR
OUT
VER
RANP
FIX GAIN
AFT
ABL
DRIVE/
CUT-OFF
CLAMP
13
28
27
23
21
20
19
17
16
15
14
10
1
3
2
Q405
H. DRIVE
Q804
RED AMP
Q805
GREEN AMP
Q806
BLUE AMP
FB401
3
7
9
2
Q406
H. OUTPUT
HV
F
S
G. SIGNAL
B. SIGNAL
COLOR SIGNAL
LUMINANCE SIGNAL
TUNER VIDEO SIGNAL
AUDIO SIGNAL
DEFLECTION SIGNAL
TUNER AUDIO SIGNAL
J801
F
8
7
9
3
B_OUT
G_OUT
R_OUT
AFT_M
VD
HD
TEXT_Y
TEXT_Y
TEXT_B
TEXT_G
TEXT_R
DY
V801
CRT
MICON/
OPERATION
T'TEXT
AC IN
VR502
+B ADJ.
L503
DEGAUSS COIL
F501
Q507
FEED BACK SW.
Q506
5V SW.
Q513
5V SW.
3
2
1
IC506 TLP621
FEED BACK
RY501
RELAY
D501
RECTIFIER
POWER REG.
IC501
STR-F6707
Q504
RELAY DRIVE
F502
Q501, Q502
SW.
CP810
T501
31
11
13
8
15
Q503, Q505
SW.
CD810
8
6
5
8
6
5
4
17
18
Q508, Q509
SW.
7
3
7
3
5V REG.
IC1005 KIA7805API
31
AT+30V
Q1008, Q1018
P.CON SW.
AT+12V
Q1007, Q1019
Q1010
P.CON SW.
P.CON SW.
5V REG.
IC1004 KIA7805API
9V REG.
IC1003 KIA7809API
31
VCR_POWER-H
POWER FAIL(DC) MICON/OPE.
TV_POWER-H
31
P.CON+9V
P.CON+5V_B
P.CON+5V
H-1
Page 68
Q4010
BUFFER
79

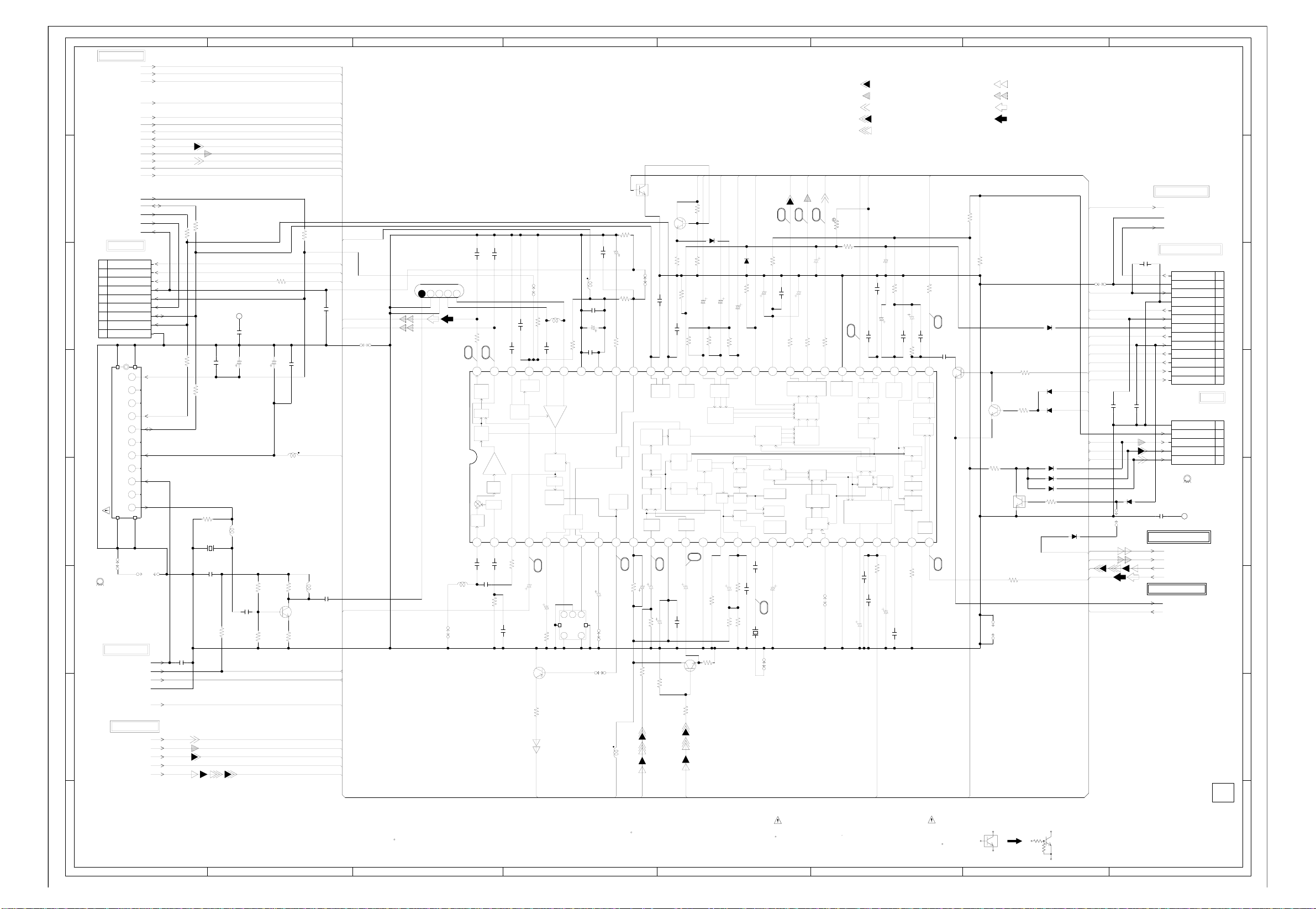

Y/C/AUDIO/HEAD AMP/21PIN/IN/OUT BLOCK DIAGRAM
X4001
4.433619MHz
78 73
75
69
5860
55
54
52
VPS/PDC IC
IC4002
LC74793/JM
2
X'tal IN
CYL.
MICON/
AC HEAD
FE HEAD
CP4001
2
3
4
OPE.
CP4005
1
2
3
4
5
CP4004
1
2
SP-CH2 (L)
SP COM
SP-CH1 (R)
2FSC_A
SCL
SDA
H.SW
ENV.DET
VCR_A_MUTE
V.REC_ST_H
CTL+
CTL-
AE HEAD (+)
AE HEAD (-)
CTLCTL+
AUDIO REC
AUDIO PB6
FE HEAD (HOT)
FE HEAD (GND)
Q4002
OSC
Q4001
NORMAL A
REC ST SW
Q4003
V.REC
ST SW
1
3
L4005
Q4004,Q4005
PB SW
6
5
4
86
87
88
89
62
SERIAL CONT
INTERFACE
63
81
84
99
PRE
2
AMP
REC
4
Y/C/AUDIO/
CCD/H.AMP
IC4001
HA118217F
H.AMP
ENV
DET
EQ
2MLPF
REC
MUTE
P
R
87
HPF
R
REC
MUTE
9
P
HPF
VCA
ACC
TRAP
LPF
+
P
R
CTL TRAP
LEVELADJ
629
TRAP
7M LPF
1M HPF
LINE
MUTE
LINE
AMP
11
fh HPF
MIX
B.E
C.K
P
P
R
FM AGC
LAG LEAD
FM MOD
F0/DEV ADJ
S-DET
LPF
R
DELAY
L4001
P.EQ
TRAP
VCA
CLPF
+
R
MAIN
CONV1
P
S DL
FBC
ALC
MAIN EMPH
CARRIER
OFFSET
W.C/DC
Q4007
RP
SQPB
SQPB
AMP
CCD
LPF
CLPF
MAIN
+
CONV2
RP
P
BPF
R
G EQ
D LIM
DEMO
SLPF
MAIN
DE-EMPH
C.K
N-->P
B.D
6dB AMP
C SQUELCH
NL EMPH
NL DE EMPH
RP
YLPF
R
P
18
SDA
6
7
16
V.SYNC
SCL
SYNC IN
MICON/
OPE.
ATT
ATT
ATT
19
46
35
44
42
39
28
30
31
50
26
Q4006
BUFFER
6dB AMP
C CCD
CLEAR
SYNC
CLOCK
SQUELCH
R
P
Y APA
YNP
CLAMP
23
VIDEO ALC
VIDEO
D.E
N.C
FBC
AGC
21
DEIVER
P
R
SYNC.
SEP
CLAMP
24
Y CCD
LPF
TU_AUDIO
TU_VIDEO
Y/C_VIDEO
TV
Y/C_AUDIO
MICON/
OPE.
EXT_IN_L
TU_AUDIO_MUTE_H
T'TEXT
Y/C_VIDEO
VV-H
21_Y
21_B
21_G
21_R
D4511
D4510
Q4510, Q4511
Y SW
Q4507
PERI SW
Q4505
MUTE SW
Q4509
AMP
6
2
1
8
7
3
11
161520
19
J4501
Q4501, Q4502
BUFFER
H-2
FRONT
AUDIO
4 2
J701
FRONT
VIDEO
RECORD LUMINANCE SIGNAL
PLAYBACK LUMINANCE SIGNAL
RECORD COLOR SIGNAL
PLAYBACK COLOR SIGNAL
TUNER VIDEO SIGNAL
AUDIO SIGNAL(REC)
AUDIO SIGNAL (PB)
TUNER AUDIO SIGNAL
Page 69
MICON/OPERATION BLOCK DIAGRAM
TV
CAPSTAN
DD UNIT
MICRO
MOTOR
AT+5.6V
AT+12V
VCR_POWER_H
CP1004
4CTL
5
VCO
FG
76CAP/M/F/R
CP1005
1 CYL PG
3 CYL FG
5 CYL DRIVE
P. CON+5V
D1003
SW1001
23
4
1
32
14
2
3
3
1
2
4
1
234
32.768KHz
Q1021
Q1020
MS_SEN A
Q1009
MS_SEN B
Q1003
Q1002
SENSOR SW
REEL SENS.
Q1005
REEL SENS.
X1002
X1001
10MHz
VCR POWER
SW
CENT LED CTL
Q1001
SYSCON/TIMER/SERVO
IC1006 OEC0093B
TAB SW
53
MS SEN-A1 4
28
MS SEN-B
27
55
MS SENS CTL
REEL T
70
REEL S
69
76
X1
75
X2
80
OSC2
78 OSC1
51
VCR_POWER_ON-H
CAP FULL
72
9
CFG
CAP FWD-L
71
DPG
103
DFG
104
107 DRUM PWM
52
CENT LED
SYSTEM RESET
/RES
POWER_FAIL
77
37
OUT
3
84 EXT_IN-L
TUNER_MUTE TU_AUDIO_MUTE_H
4/2FSC IN
C.SYNC
VCR_MUTE
CTL(+)
CTL(-)
V.REC ST-H
TUNER_AGC
VIDEO H.SW
VIDEO_ENV
IIC_DATA_0
IIC_CLK_0
VV-H
91
22
111
89
3
4
90
73
35
105
24
60
59
IC1002
RE5VS31A
SDA
5
6
SCL
EEP ROM
IC1099
S-24C08ADPA-01
POWER_FAIL (DC)
EXT_IN_L
2FSC_A
V.SYNC
VCR_A_MUTE
CTL+
CTLV. REC_ST_H
VV-H
H. SW
ENV_DET
SCL
SDA
SDA
SCL
TEXT_RESET
61TEXT_RESET
Q1016
14HSYNC
15VSYNC
101B
G
100
99R
96YCO
Q1011
BUFFER
HD SW
Q1015
VD SW
HD
VD
B.OUT
G.OUT
R.OUT
TEXT_Y
TU_AGC
AFT S.CURVE
TV_POWER_ON-H
KEY-A
33
50
30
Q1014
TV POWER
SW
AFT_M
TV_POWER_H
TV
Y/C/AUDIO/
HEAD AMP/
21PIN/IN/OUT
T'TEXT
TV
DECK
CP1006
BOT
2
LDM-
3
4
LDM+
Q1017
LOADING MOTOR DRIVER
IC1001 BA6955N
POWER
SAVE
2574
EOT
CONTROL LOGIC
STD
68
67
25
LDM RVS
LDM FWD
BOT
EOT26
KEY-B
OTPB_LED
REC LED
T-REC LED
86SV 1
29
43REMOCON IN
49
46
45
H-3
D796
OS1001
D793
31
D791
POWER
ON/OFF
CH DOWN
D792
CH UP
REC/OTR
Q4201
POWER ON SW
VOL. UP
STOP/EJECT PLAY
AT + 5V
VOL. DOWN
FF/CUE
R. SIGNAL
G.SIGNAL
B. SIGNAL
CAPSTAN AFC SIGNAL
CYLINDER AFC SIGNAL
CYLINDER APC SIGNAL
REW/REV
INPUT
SELECT
Page 70
T'TEXT BLOCK DIAGRAM
Y/C/AUDIO/
HEAD AMP/
21PIN/IN/OUT
TV
Y/C_VIDEO
21_B
21_R
21_G
21_Y
TEXT_B
TEXT_R
TEXT_G
TEXT_Y
SYNC
D852
D861
1
1Y
Y-COM
15
2
0Y
X-COM
14
13
3
1X
1Z
4
12
Z-COM
0X
11 10
TRIPLE ANALOG MPXER
IC853
TC74HC4053AF
5
0Z
A
C
B
9
Q853
SYNC
BUFFER
Q855
BUFFER
Q852
BUFFER
Q851
BUFFER
Q862
BUFFER
D860
D858
D855
D857
D859
D856
RED
GREEN
BLUE
BLK
Q863
DECODER
IC851 ET106
RED
23
GREEN
22
BLUE
20
19
BLANK
SYNC
2
V.REF
VIDEO
TDATA
TCLK
WIND
P.CON+5V
3
10
11
12CSB
15
DATA SLICER
IC852
ET317
TDATA
13
TCLK
12
SYNC
19
WIND
17
TSIG
SSIG
OSC1
OSC2
Q856
BUFFER
1
2
3CSIG
X851
13875KHz
5
6
MICON/
OPERATION
SDA
SCL
TEXT_RESET
H-4
18
17
SDA
SCL
RSTB
5
RECORD LUMINANCE SIGNAL
PLAYBACK LUMINANCE SIGNAL
RECORD COLOR SIGNAL
PLAYBACK COLOR SIGNAL
Page 71
PRINTED WIRING BOARDS
OPERATION
SOLDER SIDE
ABCDEFG
C751
R771
R793
SW795
D793D796
R772
SW791
R774 C779
SW794
CD750_2
SW792
W003
SW793
1
R773
C781
SW751
2
R760
SW799
W001
W807
R763
OS753
C752
C755
SW796SW797
W002
R766
C354
R351
D792
W804
W814
C353
W806
D797D791
R754R761
W004
J351
W811
1
C355
W813
C356
C702
B701
CD351_2
J701_1
W812
R350
B702
L703
C351
R759
R776
SW798
R777
R780
SW750
R762
2
ABCDEFG
S101
S102
DECK
SOLDER SIDE
CP101
S104
S103
S105
Q101
I-1
S106
Page 72
ABC D E F GH
8
7
6
5
L005
HF57T18.5*10*10
FROM/TO 21PIN I/O
CD750_2
(CP757)
CH2A014A
1
REMOCON OUT
GND
2
3
AT+5V
4
POWER ON L
5
OTPB LED
6
KEY A
7
T-REC LED
8
REC LED
9
KEY B
ON TIMER LED
10
C781
0.001 B
C779
SW751
SKHVBED010
POWER ON/OFF
0.001 B
SW799
CH DOWN
SKHVBED010
R759
CH UP
820 1/4W
SW798
SKHVBED010
R760
820 1/4W
R776
1K 1/4W
REC/OTR
VOL UP
SW795
SKHVBED010
SW796
SKHVBED010
R771
1K 1/4W
R777
1.5K 1/4W
SW791
STOP/EJECT
SW797
VOL DOWN
R772
1.5K 1/4W
SKHVBED010
R780
2.7K 1/4W
SKHVBED010
OPERATION SCHEMATIC DIAGRAM
(OPERATION PWB)
R766
100 1/2W
PLAY
SW792
SKHVBED010
R773
2.7K 1/4W
SW750
PLAY BACK
FF/CUE
SKHVBED010
SW793
SKHVBED010
R774
5.6K 1/4W
REW/REV
SW794
SKHVBED010
W811
C353
4716V KA
R351
220 1/2W
C354
4716V KA
C755
220 1/2W
2206.3V KA
R350
C752
8
R761
270 1/4W
R762
270 1/4W
R763
270 1/4W
7
GND
3
B+
2
Vout
1
OS753
PIC-28143TH5
C751
0.1 F
100P B
REC/OTR
R793
D793
270 1/4W
EQ-552-F1T
T-REC
R754
D791
270 1/4W
EQ-552-F1T
W804
D792
POWER LED
EQ-552-F1T
OTPB LED
D796
EM-553-F1T
6
J351
HTJ-035-28A
1
NC
5
4
3
2
6
7
D797
EQ-552-F1T
ON TIMER LED
W807
5
B702
BL01RN1-A63
W814
C351
470P B
4
L004
3
2
HF57T18.5*10*10
FROM/TO 21PIN I/O
(CP351)
CD351_2
CH27087A
FRONT VIDEO IN
1
GND
2
FRONT AUDIO IN
3
SOUND GND
4
SOUND OUT
5
SP OUT
6
GND
7
B701
BL01RN1-A63
W813
C702
L703
W812
10uH
HEH
4
0.0022 B
123
E
VIDEO
J701_1
JPJ3811-01-430
AUDIO L
C355
C356
0.0047 X
0.0047 X
W806
4
3
AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)
RECORD LUMINANCE SIGNAL
2
RECORD COLOR SIGNAL
PLAYBACK COLOR SIGNAL
PLAYBACK LUMINANCE SIGNAL
PWB030
TEXA19
1
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
1
ABC D E F GH
I-2
Page 73
ABC D E F GH
8
(DECK PWB)
LOADING MOTOR
M101
7
S105
S106
5.1
0
BOT SENSOR
Q101
RPT-38PB113
6
S103 S104S101 S102
8
7
6
DECK SCHEMATIC DIAGRAM
5
FROM/TO
MICON
(CP1006)
CP101
52044-0445
LDM+
4
LDM-
3
2
BOT
1
VCC
4
PWB550
VE8851
3
5
4
3
2
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
THE DC VOLTAGE AT EACH PART WAS
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
1
2
1
ABC D E F GH
I-3
Page 74
PRINTED WIRING BOARDS
SYSCON
ABCDEF
R1074
C1002
R1055
C1018
Q4201
R1022
R1017
R1067
W824
Q1004
C1061
85
R1082
C1069
R1020
C1081
R1038
C1004
C1082
C1008
Q1011
C1028
W858
R1023
C1026
C1022
R1064
C1023
R1010
R1057
R1001
R1053
C1024
R1029
C1058
C1059
C1066
C1009
R1037
C1025
R1025
R1032
R1012
C1073
R1039
Q1021
R1009
Q1006
C1068
C1076
R1088
R4057
C1057
R4013
R4012
Q4003
C1006
R1008
R1004
C1007
C1010
R4056
R1007
C1063
S801X
5
R1078
C1056
R1096
C1030
R1044
R1045
C1050
R1083
C1079
R1049
C1072
R1080
C1071
Q1002
R1087
Q1014
R1090
C1074
4
R1035
R1051
C1014
C1067
C1017
R1041
R1040
R1046
R1060
Q1015
R1013
R1058
R1061
C1044
R1030
C1049
Q1016
R1028
C1040
R1062
R1063
R1059
R1026
C1078
C1055
29
C1035
C1062
C1027
C1038
C1015
R1021
R1077
C1012
C1060
R1027
1
IC1006
57
C1019
C1043
C4002
C4101
R641
R653
R639
W257
R648
C643
Q612
R678
R634
C640
R655
C676
C633
C668
R1043
S816X
W259
W260
C685
S816Y
W926
W874
W261
R664
C627
C624
C615
R633
Q605
R631
R630
R665
R616
R632
R618
R636
W258
R680
C644
C647
W264
R642
R4054
R621
C646
C621
C610
R646
R622
W809
R647
R4053
C661
C654
R668
Q4007
L610
C606
C4033
W868
R661
R638
C650
R608
R4052
C4107
W871
R663
R644
C653
R609
R4055
C648
C649
C641
C607
C608
R607
W844
C682
R613
R610
C602
Q4513
C4505
R4520
Q609
Q4502
C4502
Q4501
W860
Q4507
Q4505
Q610
R676
R4505
R4506
R4525
R677
R4516 R4523
R4508
R4521
R4515
R4522
R4501
R4518
R4519
W885
C680
5
W863
R4524
B4501
R4517
4
C4515C4511
C4516
B4502
R657
C1034
R603
C637
C609
R669
R359
C655
R360
W823
C681
Q351
C657
Q353
C623
C360 C361
R862
C4089
R853
R4025
C4034
R4046
W092
R4018
C4045
C4114
R4043
C4087
R4031
C4086
R4045
IC4002
R4035
C4100
R4051
C4062
C4068
R4073
C4053
C4077
R4047
C4004
R4033
C4058
C4056
R4049
C4070
R4032
R4001
R4003
R4030 R4029
C4052
R4036
C4060
31
C4082
C4083
C4076
C4090
C4043
C4047
C4099
S801Y
C4013
R4011
C4007
R4016
81
Q4010
C4061
C4059
R4005
C4098
R4006
C4054
C4006
C4005
C4097
R4002
R4004
C4020
C4027
R4026
C4046
C4028
C4048
C4044
C4106
C4010
C4023
C4105
C4019
C4016
C4014
C4018
C4035
R4022
C4032
R4021
R4017
C4037
R4015
R4014
C4026
1
IC4001
51
C4072R4042
C4063
C4067
C4075
R4050
R4034
R354
R623
R4533
R4537
Q4511
W831
C861
R856
R1094
W820
C4079
R801
W803
Q4006
R880
Q853
R854
R4201
R871
R867
C855
R627
IC853
W922
R1048
Q863
R675
R897
Q851
R866
R863
R864
R869
R868
R624
R865
R861
R902
W811
R919
R851
R4542
Q4510
R896
Q855Q852
C1005
R4540
Q4512
W845
R910
R911
3
C869
Q856
C851
C868
Q862
C896
W929
R881
R879
R882
R878
C893
C884
R870
R670
R889
C859
R1033
C1101
C1103
Q611
R619
R659
R629
R860
C888
R1011
C866
C887
C885
C853
C890
Q602
C886
2
1
C4203
C4204
Q1008
Q1007
C604
C674
3
2
1
ABCDEF
I-4
Page 75
PRINTED WIRING BOARDS
W825
R1014
W822
W152
L4013
SYSCON
C1001
W337
D1005
W205
W206
W209
W187
W191
W188
W195
W167
W154
W934
L4009
C4051
C4055
L4012
C4073
W147
W148
C4078
C4071
L4015
C4064
C4080
W138
W139
C4095
L4007
W143
C4092
C4093
CP302_1
D4202
W208
W186
W192
W194
D1023
W155
W142
D1004
W179
W190
W153
C4049
W145
D4003
W140
10
04
W165
W168
W146
C4069
TP4002
TP4001
W201
W202
W203
W207
C
P
W184
R1086
X1002
W172
W193
D1008
W166
L4001
W339
W199
W200
D1001
W802
W196
W157
L4005
C4041
CP4004
C4091
W183
W158
W173
C4039
C4050
W357
W164
L4016
W144
D1014
W175
C4036
W141
C4038
D1015
Q4005
W163
S802Y
D1016
L4011
C4057
W846
D1009
Q4004
W160
Q4001
Q4002
C4031
C4042
R1003
W180
D1012
C4009
W161
W170
C4025
C4015
W806
CP1005_1
W352
W241
W171
L4003
W174
C4017
W149
W150
W151
C4040
W875
W351
CP1006
C1083
W182
W185
W358
W245
C4001
CP4001_1
W905
W210
W212
C354
W267
W270
R4008
CP4005
W243
W248
W268
W265
W247
L4006
L4004
C4024
W279
W281
W353
W254
C628
W276
W239
D608
W225
C351_1
S804X
W804
R656
D609
W360
C352
W275
C634
W242
W829
R666
C632
D610
W244
D612
D854
W322
C642
D611
X4001
W255
C639_1
R651
W215
S111X
W830
W214
W280
S111Y
W246
W252
W807
W228
C669
IC601
C617
R355
R654
D350
W226
W232
W233
R1052
W213
X601
C616
R650
W350
W346
R1054
W876
W263
R353
D1018
IC1005
C1036
W256
CD850
W240
C1033
C622
W872
W253
W271
W272
C626
D601
R620
C636_1
W348
W819
W220
R1069
Q1010
C1029_1
W211
IC1004
W269
C667
W216
W219
C618
W924
C619
W250
W222
HS1001
L604
W251
W229
W347
W324
C620
Q608
L608
W262
C645
W306
D604
W227
W231
HS1002
W287
D1019
C659
Q601
C658
W295
W289
W326
R681
L601
L606
W340
C359
W286
W290
C1045_1
W321
C4108
L4008
C652
C651
CF601
CF602
C656
CP502
W309
HS351
L603
W316
W305
S802X
W296
C358_2
W910
W333
W315
W288
C4522
W332
W312
W867
R604
W293
R1036
Q1019
W320
W331
C675
C614
R615
W300
W299
W304
W308
R658
W878
R1081
C1042_1
C4504
R4511
W314
L609
W318
L605
W310
R308
B4503
R4539
C4508
W301
W311
C357
IC352
C1037
D4510
L4503
W292
W861
L4502
W907
W317
R674
R350
C1064
W298
D1024
W285
W817
W843
D606
W856
W307
C1084
W291
CD810
D605
W355
R4507
J4501
R673
R1085
L4504
R1073
C4509
W294
D4503
CP603
CD653
W313
IC1003
B4504
W931
C605
R605
Q1018
R1068
TP4501
W302
W303
TU601
5
4
CD652
3
2
1
ABCDEF
CP757_1
R1005
W828
W857
5
C1070
W057
W060
W059
C1048
D1006
D1010
C1003
4
TP1001
W042
D1017
R1031
C1021
R1056
3
C1102
R1101
W010
W051
W064
R1079
C1032
W052
S815Y
W030
R1050
D1002
W053
W005
W061
W334
W054
R1018
R1019
W055
W031
W361
Q1003
W046
R1006
W018
W019
W020
W006
W038
W026
2
W015
R877
R876
W016
W001
W002
SW1001
C889
1
X851
C862
C854
IC852
C879
C867
C892
L851_1
L854
W035
D863
W004
1009
Q
C852
W045
IC1002
IC1099
W027
W028
W011
R1002
W801
W063
W048
W022
W012
C881
L852
W056
Q
D602
W058
W062
W033
W034
1005
W023
W013
W025
Q1001
W003
C863
W032
W036
W037
W039
W040
W041
W043
W050
W017
W024
W029
B851
C856_1
C865
W853
W044
W049
W021
C882
C613
W134
D859
D861
W137
W065
W098
C612
W128
W047
W102
C611
W129
W101
D856
W090
D857
W088
W089
D860
W084
L1001
W126
D1022
W082
W083
W921
W851
W077
W080
C872
W097
W110
D858
W073
D851
IC851
W122
W095
D855
W078
CP351
D852
W096
R1016
W076
W812
W068
W123
W099
C895
W124
W336
W127
W130
X1001
W100
W103
D1003
W108
W115
W117
W118
W119
W072
W074
W075
W354
W085W081
C4102
W087
R4041
C874
W850
W069
Q1017
W071
W070
W094
C857
C1013
R1047
W349
W093
W106
W356
C883
C873
W338
W091
W111
L4002
C1020
S815X
W131
W112
W105
W109
W113
C4084
R4028
R4007
C4085
IC1001
W132
W107
W066
R4040
W197
W156
W114
W116
S804Y
C4088
L4018
C4096
W136
C1016
W120
W121
W125
W198
W162
W079
C4074
W067
L4010
W342
ABCDEF
I-5
Page 76
PRINTED WIRING BOARDS
SYSCON
ABCDEF
CP757_1
W825
R1005
W828
W857
5
C1070
W057
W060
W059
C1048
D1006
D1010
C1003
4
TP1001
W042
D1017
R1031
C1014
C1021
R1056
3
C1102
R1101
C1101
C1103
W010
2
W015
R877
R876
W016
W001
W002
SW1001
1
C4203
C4204
R860
C889
R1051
W051
C888
X851
W064
R1079
C1032
R1035
W052
S815Y
W030
C862
C866
C887
R1050
C1074
D1002
W053
W005
R1011
C854
C885
C853
W061
W334
Q1002
Q1014
R1090
C1017
R1041
W054
R1018
Q611
R629
IC852
C890
R1019
W055
R1040
W031
W361
R659
Q602
C879
C867
C886
C892
Q1003
R1087
W046
C1067
R1006
W018
W019
W020
W026
R1033
W006
R1078
C1056
W038
R1096
C1030
R1044
R619
L851_1
C869
Q856
L854
R1045
W035
D863
C868
W004
1009
Q
C1050
R1083
C1072
C851
C852
W929
C1079
W045
IC1002
R1049
IC1099
C1071
W027
W028
W011
R879
R1002
Q862
W801
C896
R881
R882
R1080
W022
C881
L852
R878
C893
W063
W048
C884
W012
D602
C859
W056
W058
W062
W033
W034
R1046
1005
Q
W023
W013
R870
R670
R889
W025
Q1001
W003
C863
W032
W036
W037
W039
W040
W041
W043
W050
W017
W024
R871
W029
R867
B851
C856_1
C855
C865
W853
W044
W049
W021
C882
C613
R627
W134
R1060
Q1015
IC853
D859
W922
R1061
R1013
C1049
R1058
R1048
R675
D861
W137
W065
C1044
R1030
W098
Q863
C612
R1028
R1062
R1063
Q1016
R1026
C1078
W128
W047
W101
W102
D856
C611
Q851
C1040
C1055
R1059
W129
W090
R866
R863
D857
R864
W088
R897
C1035
29
D860
R869
R868
R624
R865
W089
R861
W083
W084
R902
C1062
C1027
L1001
C1038
W126
D1022
W811
W080
W082
C872
R919
W921
W851
C1015
R1021
R1077
W097
W110
D858
W077
R4542
Q4510
R851
Q855Q852
C1012
W122
C1060
D855
W073
W078
D851
R4540
Q4512
IC851
R896
C1005
R1027
1
IC1006
57
W095
D852
W845
R910
R911
CP351
C1019
C1043
W096
R1016
W076
R623
R4533
Q4511
W812
C861
W068
C895
W123
R4537
W831
R1082
W824
Q4201
R1055
Q1004
C1018
R1022
R1017
R1020
W124
C1081
C1061
W336
R1067
W127
85
C1004
W130
C1082
X1001
W100
W099
W103
R1094
D1003
W108
W115
W117
W118
W119
W072
W074
W075
W354
W085W081
W820
C4102
C4079
W087
R4041
R801
W803
R880
R856
W850
R854
W069
Q1017
W071
W070
R4201
C1069
C1008
Q1011
R1038
C1028
W094
Q4006
C874
Q853
C857
W858
C1013
R1047
W349
W093
W106
C4089
R862
C1022
W356
R1023
C1026
R1010
W091
C883
C873
R853
W338
C1020
R1064
R1057
R1001
C1023
W105
W111
L4002
C4034
S815X
R1053
W131
C1024
W112
W109
W113
R4025
C4084
R4028
R4007
C4085
R4046
IC1001
R1029
C1058
W132
C1059
C1066
W107
W092
R4018
W066
R4040
W197
C1009
W156
W114
W116
S804Y
C4045
C4088
L4018
C4114
R4043
C4087
C4096
W136
C1016
W120
W121
W125
W342
R1037
W198
C1025
W162
W079
C4074
C4086
W067
L4010
R4045
IC4002
R1014
W822
R1025
W152
R4031
L4013
D1005
W206
W191
W195
W934
L4009
C4055
C4053
R4035
L4012
C4100
R4051
C4062
C4068
W148
R4073
C4080
W138
W139
C4092
CP302_1
C1001
W205
R1032
W188
W167
W147
C4077
L4007
R4047
W337
W209
R1012
W187
W154
C4051
C4004
R4033
C4058
C4056
C4073
R4049
C4070
C4078
L4015
C4064
C4095
W143
C4093
R4032
C4071
D4202
D1004
W208
W179
W186
W190
W192
W194
Q1021
R1039
C1073
D1023
W165
W155
W153
R4001
R4003
C4049
R4030 R4029
W145
C4052
R4036
C4060
C4082
C4083
D4003
C4069
C4076
W140
W142
C4090
TP4002
P
10
04
W184
W168
W146
C4047
31
C4099
TP4001
W201
W202
W203
W207
C
W193
Q1006
R1086
D1008
X1002
W166
W172
W339
C4043
C4072R4042
W199
W200
D1001
W802
R1009
W196
W157
L4001
C4041
51
CP4004
C4091
C1068
C1076
W183
R1088
R4057
W158
S801Y
R4011
L4005
W173
C4032
R4021
IC4001
C4063
C4067
C1057
W357
R4013
R4012
W164
R4017
C4037
R4015
R4014
C4039
C4026
1
L4016
R4050
C4050
W144
Q4003
D1014
C4013
W175
C4036
C4075
W141
C4038
R354
C1006
D1015
Q4005
W163
C4007
R4016
R4034
C4061
C1007
S802Y
C1010
D1016
R4056
R4005
C4098
81
Q4010
L4011
R4006
C4054
C4057
C4059
R1008
R1004
R1007
D1009
Q4004
W160
C4006
C4031
C4005
C4097
C4042
W846
R1003
W180
D1012
C4009
W161
Q4001
Q4002
R4004
C4025
C4027
C4015
C4046
C1002
W806
CP1005_1
W352
C1063
S801X
W171
W170
R4002
W174
C4020
C4028
W150
W151
C4048
R4026
C4040
C4044
W241
L4003
C4023
C4017
C4019
W149
C4018
R4022
W875
W351
R1074
C1083
W182
W358
W245
C4001
C4016
CP4001_1
C4035
W212
C354
W267
CP1006
R4008
W185
CP4005
W243
C4106
W905
W210
W270
W248
W268
W265
W247
L4006
L4004
C4105
C4014
C4024
W279
W281
W353
W254
C628
R653
W276
W239
D608
C4010
W225
C351_1
S804X
C4002
C4101
W804
R641
R656
D609
W242
W360
C352
W275
C634
R666
R639
C632
W829
W322
W257
R648
C643
Q612
R678
D610
W244
D612
D854
C633
C668
R634
C640
C642
R655
C639_1
R651
D611
W215
X4001
C676
W830
W214
R1043
W280
S816X
W255
W259
W260
C685
S111Y
W246
W252
W807
S111X
W228
C669
IC601
W926
C617
R355
S816Y
R654
R657
D350
W226
W232
W233
R1052
W213
X601
W261
C616
R664
R650
W350
W346
R1054
W876
W874
C627
C624
C615
R633
W263
R353
D1018
IC1005
C1036
Q605
R631
R618
W256
R630
R636
R665
R616
R632
CD850
W240
C1033
C1034
C622
W258
R680
W872
W253
R4054
W271
W272
C626
R621
C644
C646
C647
W264
D601
R642
R620
C636_1
W348
W819
W220
R1069
Q1010
C1029_1
W211
IC1004
W269
C621
C610
R646
C667
W216
W219
R4053
C618
R622
W924
C619
C661
W809
R647
W250
W222
HS1001
R668
L604
R603
C637
W251
W229
W347
Q4007
W324
C620
Q608
L608
C654
W262
L610
C645
C606
W306
D604
C609
W227
W231
HS1002
W287
D1019
C4033
W868
R661
R638
C650
R608
C658
R669
W295
W289
W326
L601
R4052
C4107
C659
W871
R663
R644
C653
Q601
R609
R359
W290
C1045_1
R4055
R681
C648
C649
CF601
C641
L606
CF602
W340
C655
R360
Q351
C359
W286
W321
C4108
L4008
C652
C607
C608
R607
W823
C656
C681
W309
HS351
W844
C651
C682
W316
R613
C657
CP502
W296
C358_2
W910
Q353
W333
L603
W315
R610
C602
W305
S802X
W288
C4522
W332
W312
W867
R604
C623
W293
R1036
Q1019
W320
W331
Q4513
C675
C4505
R4520
C614
R615
W300
W299
W304
W308
R658
W310
W878
C360 C361
R1081
C1042_1
Q609
B4503
C4504
R4511
Q4502
C4502
Q4501
W314
L609
W860
W318
Q4507
W301
L605
R308
D4510
R4539
Q4505
C4508
W311
C357
IC352
C1037
R676
W317
L4503
W292
R350
Q1008
Q610
W861
R4505
R4506
L4502
W907
W298
R674
C1064
Q1007
D1024
W285
R4525
W817
W843
R4508
C604
W307
W291
CD810
D605
R677
D606
R4516 R4523
J4501
R4521
R4515
W856
R673
W355
R4507
R4522
R4501
R4518
R4519
L4504
C1084
R1085
R1073
B4502
W885
C674
W294
W863
D4503
R4524
B4501
R4517
C4515C4511
C4509
CP603
CD653
C680
W313
IC1003
B4504
W931
C4516
C605
R605
Q1018
R1068
TP4501
W302
W303
TU601
5
4
CD652
3
2
1
ABCDEF
I-6
Page 77
8
7
6
5
4
3
2
1
ABC D E F GH
FROM/TO POWER
FROM/TO CYL
CP4001_1
TOC-C04X-B1
SP-CH1 (R)
4
SP COM
3
SP-CH2 (L)
2
1
FROM/TO HEAD AUDIO CONTROL
CP4005
IMSA-9604S-06Z14
AE HEAD(+)
1
AE HEAD(-)
2
CTL-
3
CTL+
4
AUDIO REC
5
AUDIO PB
6
FROM/TO FULL ERASE HEAD
CP4004
TMC-T02X-E1
FE HEAD(GND)
2
FE HEAD(HOT)
1
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
RECORD LUMINANCE SIGNAL
RECORD COLOR SIGNAL
PLAYBACK COLOR SIGNAL
PLAYBACK LUMINANCE SIGNAL
TUNER VIDEO SIGNAL
AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)
TUNER AUDIO SIGNAL
GND
10016V KA
C4108
C4107
0.022 B
C4105
L4008
1mH
5P CH
CTLCTL+
P.CON+9V
P.CON+5V
NC
CAUTION: DIGITAL TRANSISTOR
Y/C_AUDIO
220
R4052
15.6KHz TRAP
L4001
2623003
P.CON+5V
MESECAM_M
VCR_A_MUTE
S801X S801Y
C4001
R4056
2.2K
V.REC_ST_H
NORMAL AUDIO
REC ST SW
Q4001
2SD734
C4033
3316V KA
0
Q4007
0.001 B
2SC2412K
6.3 1.4
R4053
330K
3.3
R4002
4.7
0
AMP
C4101
NC
2.0
4
0.1 B
4.9
R4054
330K
R4001
1.5K
C4002
0.022 B
NC
19
Q4002
2SD734
0.0047 B
C4005
R4055
100
123
6
4.94.6
OSC
R4004
10K
C4006
0.01 B
C4004
0.01 B
20
C4007
R4005
R4003
0.01 B
150
L4003
820
18
100uH 0607
P.CON+5V
ENV_DET
L4004
100uH 0305
L4006
1mH 0607
1
2
34
COIL,BIAS OSC
L4005
1626008
H.SW
TP4001
JWF-50K-1
6
5
H.SW
C4106
11
0.1 B
C4009
V.ENV
TP4002
JWF-50K-1
12
Y/C/AUDIO/CCD/HEAD AMP IC
C4010
0.001 B
C4018
0.033 B
50V
C4014 0.1 B
C4019 0.01 B
C4020 0.01 B
C4027 0.01 B
C4028 0.01 B
C4015 2206.3V KA
C4016 0.1 B
C4097
0.01 B
C4098
0.01 B
C4025
R4008
1K 1/4W
100
C4017
6.3V KA
C4023
C4013
220P CH
V.REC ST SW
Q4003
DTA124EKA
4.84.8
0.022100V TF
0
P.CON+5V
V.REC_ST_H
Y/C/AUDIO/HEAD AMP SCHEMATIC DIAGRAM
(SYSCON PWB)
SDA
ACC
DET
SW18
SW9
4.750V KA
C4059
4.7K
KIL
SERIAL CONT
INTERFACE
APC
TRAP
SW11
C4060
39P CH
5.6K
220uH
R4036
0.001 B
SW26
SW
DO
DET
NL
EMPH
FBC/ALC
SW10
P
Y LPF
RP
R4049
100K
2.2M
C4061 0.022 B
R
SW25
DL
EDGE
DELAY
NL
DE EMPH
R
CLAMP
0.1 B
C4100
R4051
SCL
P
P.CON+5V
L4013
CVCC
R
CLPHDELAY
P
MAIN
CONV1
SW23
P
PR
SW12
C4062
27P CH
10K
100uH 0607
C4063
0.1 B
C4064
0.01 Y
C4067
VCA
LEVEL DET1
-
LEVEL DET2
+
SW24
R
+
SW22
R
P
SW21
R
SW16
R
P
SW14
REC
DO
DO
SW15
0.1 B
C4068
CLPH
MAIN
CONV2
R
C4069
0.01 B
BPF
D.E.
YNR
CLAMP
RP
C4070
C4071
0.1 B
NTSC/PAL
N-P CONT
CCD
LPF
P
Y APA
476.3V KA
C4072
OUT
C.K
N P
B.D
LPF
0.1 B
1016V KA
C4073
HA118217F
C4024
3.3
4.750V KA
C4026
C4031
0.1 B
R4011
2.2K +-1%
R4012
R4013
2.2K
W905
C4040
C4042
0.4750V KA
C4046
2.250V KA
C4038 150V KA
C4044
C4035
IC4001
KA
R4014
0.01 B
4.750V KA
C4032
0.01 B
R4022
680
NC
2.5
818283848586878889
1.2
2.6
1.5
2.2
2.2
2.1
2.2
4.8
0.5
4.8
4.8
2.5
2.5
R4015
R4016
0.001 B
0
0
0
0
0
0
270K
10K
R4017
90919293949596979899
100
220
HEAD SW1
LIMITTER
KILLER
DET OUT
ENV
HPF
DET
HA GND
SW32
SW33
SW34
SW35
HA VCC
SW36
SW37
SW38
SW39
DET
AVCC
MUTE
110
C4036_1
47K +-1%
R4021
18K
+-1%
COMP
SP2
4.750V KA
C4037
HEAD SW2
+
SP1
+
SP1
EP2
+
EP2
-
EP1
-
EP1
+
SW1EP ON
REC EQ
4
C4039
820P CH
DET
DET
SP2
SW40
A.GND
TANC
SW30
CH2
CH1
VCA
SW31
CH2
CH1
FROM
MESECAM
DET
+
PRE
AMP
SP ON
5
4.750V KA
BAND
C4041
0.1 B
X4001
4.433619MHz
27K
R4026
ME
SECAM
DET
2FL VCO
4PHASE GEN
SW28
SW29
SP
EP
L SECAM
L SECAM
REC
MUTE
P SW7
629
TRAP
R
SW4
SW2
P
R
VCA
SW3
REC ON
SW6
GAP
3
1
2
9
4.750V KA
C4045
0.1 B
17
C4047
C4043
0.1 B
R4025
7.5K
27K1/4W
R4028
FRONT_AUDIO
TU_AUDIO
R4029
REAR_AUDIO
PB SW
Q4004
2SC3331
0
0.7
0
2.2K
0.7
R4057
47K +-1%
0
PB SW
Q4005
2SC3331
0
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
2FSC
BUFFER
Q4010
2SC2412K
2.5
0.1 B
C4048
0.022 B
4.750V KA
C4050
NC
C GND
CR DET 2FSCX TAL VCO/OSD
RECPB/REC
DISCRI AFC
DOWN1/2 1/2
CONV.
PHASE SW
P
2M LPF
R
SEP
SW27
SW5
SW19COMP
LPF
+
P
AGCFMEQ
DET
1M HPF
7M HPF
LAG LERD
LPF
FM MOD
FO/DEV
ADJ
S-DET
YVCC
11 12 13 14 15 16 17 18 192 20 21 22 23 24 25 26 27 28 293 30
226.3V KA
C4049
1016V KA
0.1 B
C4051
R4030 6.8K
4.7K
R4031
2FSCVCO
REC
APC
SW20
MIX
LEVEL
ADJ
S
DL
SQPB
R4032
C4052
R4033
C4053
000
ACC
HPF
R4006
13
C4054
DO
PB
APC
SQPB
MAIN
EMPH
CARRIER
OFFSET
W.C/DC
6.8K
150P CH
1.5K
0.1 B
5.0
2.5
1K
3P CH
L4011
C4056
C4055
2FSC_A
C4057
12uH
R4034
FH SYNC
COLOR
KILLER
ID DET
CTL TRAP
HPF
FHTRAP
B.EC.K
P
R
EQ
DLIM
DEMO
SUB LPF
MAIN
DE EMPH
0.1 B
C4058
R4035
L4012
476.3V KA
G
24K
L4009
100uH 0607
P.CON+5V
0.1 B
C4075
C SQUELCH
PULSE
GEN
LMIT
WHAITH
SW17
P
R
REC
AGC DEL
PB ALC
VIDEO AGC
C4074
C4099
L4016
0.01 B
3.350V KA
R4073
P.CON+5V
L4002
100uH
0607
68P CH
39uH
R4050
C
CCD
SW115
1016V KA
2.2M
R4018
P.CON+5V
C4076
330
6dB AMP6dB AMP
SYNC.SEP.
CLEAR SYNC
SQUELCH
FEED BACK
CLAMP
VIDEO ALC
CLOCK
DEIVER
MODE
CONT
VCC=5VN.C.
CH1CH3
CH2
(-10dB)(-10dB)(-10dB)
16
C4077
560
TU_VIDEO
EE/VV_OUT
0.1 B
Y
CCD
CCD
ATTATTATT
AGCYGND
C4078
1B
D.V_SYNC
BUFFER
2SA1037AK
R4040
100 1/4W
0.42.52.82.02.12.80.13.02.92.14.84.84.82.44.84.82.82.72.12.21.71.02.14.5 2.62.82.1
515253545556575859660616263646566676869770717273747576777879880
50
0.4
0
0
0
0
CCD
GND
0
2.5
4.8
1.8
4.8
40 41 42 43 44 45 46 47 48 49
4.8
3.0
4.8
0.1
4.8
3.0
0
0
0
31 32 33 34 35 36 37 38 39
2.8
2.81.92.802.11.42.13.12.12.42.73.12.10.60.73.11.41.44.82.52.52.52.52.52.902.502.52.5
1B
C4079
2.250V KA
S804Y S804X
FRONT_VIDEO
W820
Q4006
8
2206.3V KA
C4102
68 1/4W
R4041
3.1
2.5
C4084
0
2206.3V KA
C4089
D4003
RB721Q
R4042
W803
0.1 B
15
W934
Y/C_VIDEO
14
V.SYNC
5.6K
C4080
0.01 Y
C4083
0.01 B
476.3V KA
C4088
C4082
180PCH
C4086
1B
2FSC
SDA
SCL
C4087
0.056 B
C4085_1
4.750V KA
100uH 0607
C4091
4716V KA
C4090
0.01 B
C4095
0.01 B
R4043
3.3K
L4015
R4045
L4007
100uH
10K
0607
0.2
5.3
5.3
5.0
3.0
3.1
0
NC
0
NC
0
0
0
NC
NC
0
L4010
P.CON+5V
REAR_VIDEO
0607
100uH
VPS/PDC IC
IC4002 LC74793/JM
1101112
VSS1
2
X’tal IN
3456789
X’tal OUT
CTRL1
SDA
SCL
SYNC
H.OUT
VSS2
CP.OUT
VCO IN
EE/VV_OUT
VDD1
COLR
CTRL2
V OUT
SEP IN
SEP OUT
SEP C
SYNC IN
VDD2
VCOR
RST
DAV
FROM/TO CHROMA/IF
TU_VIDEO
TU_AUDIO
Y/C_VIDEO
Y/C_AUDIO
FROM/TO 21PIN I/O
FRONT_VIDEO
REAR_VIDEO
FRONT_AUDIO
REAR_AUDIO
Y/C_VIDEO
Y/C_AUDIO
FROM/TO T’TEXT
Y/C_VIDEO
FROM/TO MICON
VCR_A_MUTE
H.SW
V.SYNC
SCL
SDA
2FSC_A
MESECAM_M
D.V_SYNC
V.REC_ST_H
ENV_DET
CTL+
CTL-
5.3
5.3
4.0
0
NC
20 21 22 23 24
5.3
5.3
NC
4.9
NC
2.7
3.1
5.3
NC
14 15 16 17 18 19
0
1.4
13
R4046
5.6K
C4092
C4114
C4093
R4047
4716V KA
0.1 F
150V KA
10K
C4034
10P CH
R4007
L4018
C4096
3901/4W
22uH
4716V KA
PWB010
VMX193
7
6
5
4
3
2
1
ABC D E F GH
I-7
Page 78
ABC D E F GH
8
FROM/TO POWER
7
6
FROM/TO DECK
5
CP1006 IMSA-9604S-04Z14
(CP101)
1
VCC
2
BOT
3
LDM-
4
LDM+
4
3
FROM/TO MICRO MOTOR
CP1005_1
(CD2001)
IMSA-9604S-05Z14
5
CYL DRIVE
4
CYL GND
3
CYL FG
2
CYL +B
1
2
1
CYL PG
FROM/TO CAPSTAN DD UNIT
CP1004
TMC-J08P-B1
1
GND
MOTOR GND
2
3
I LIMIT
4
CTL
5
VCO
6
CAP.M/F/R
7
8
VCC(5V)
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
AT+5.6V
GND
VCR_POWER_H
P.CON+5V
AT+12V
(LDM)
MOTOR_GND
LOADING MOTOR DRIVER IC
IC1001 BA6955N
CONTROL LOGIC
POWER
SAVE
12345678
R1005
2.7 1W
FG
LDM_F
EOT
Q1017
PNA2604M010R
D1001
1N4005E
R1016
LDM_R
C1057
0.1 B
0
5.0
270 1/4W
LM-
D1003
SID1050CM
W811
R1032
10K
TSD
EOT
R1011
D1010
SB10-03A3
BOT
2.2K
R1003
23
CYL_DRIVE
W806
C1066
0.1 B
CONTROL_IN
R1010
3.3K
ETANTLES PIECES REPAREES PAR UNATTENTION:
ARESINCE THESE PARTS MARKED BYCAUTION:
LM+
D1004
C1002
0.001 B
82K 1/4W
4
1
CYL_FG
CYL_PG
CAP_FG
CAP_F/R
D1006
SB10-03A3
11.50.30.10.3011.5 0.10
10016V KA
C1001
D1005
1N4005E
TAB SW
SW1001
SPVF130100
CAP_FG
LMLM+
C1005
0.001 B
C1061
0.022 B
RD12FB
W802
MICON SCHEMATIC DIAGRAM
C1083
C1004
EXT_IN_L
CAP_LIMIT
C1023
28
27
5.1
Q1004
33K
0.1 B
5.0 5.2 5.2 3.3 2.5 0 2.5 5.2 1.4 1.5 0 4.9 5.1 5.2 5.2 5.2 5.2 5.2 0 5.1 5.2 5.2 5.2 0
0
NC
8586878889
5.2
0
NC
5.2
5.1
5.0
90919293949596979899
5.1
0
NC
0
5.3
5.2
5.2
0
0
4.8
4.8
100
4.8
1.3
4.6
5.0
5.2
0
NC
5.2
5.2
5.2
0
110 101102103104105106107108109112 111
4.7
5.2
R1017
560
R1020
560
MS_SEN-A
C1056
100P CH
R1074
22K
R1043
10K
R1025
10K
C1063
390P CH
FF/REW-L REC_LED
C1068
330P CH
D1009
C1076
330P CH
0.022 B
CYL_DRIVE
R1004 1K
CYL_PG DEGAUSS_H
R1008 1K
29
CYL_FG POWER_FAIL[DC]
C1007
30
0.0047 B
CYL_DRIVE
R1057 5.6K
CONTROL_IN AFT_M
0.1 B
C1067
D1023
MTZJ5.6B
CAP_LIMIT
C1009
0.022 B
SENSOR SW
Q1002
2SC2412K
RPI-352Q01R
STANDBY_H SEN_LED
TV_A_MUTE TAB_SW
VCR_A_MUTE
V.REC_ST_H
TU_AUDIO_MUTE_H
C1058
220P CH
1M
R1014
1K 1/4W
R1067
56K
C1081
0.001 B
10K
5.0
MS_SEN-B
MS_SEN A
Q1009
RPI-352Q01R
100P CH
R1053 18K
R1009 100
R1012 100
C1010
0
0
0.9
23
1
4
0.5 1.4
R1050
R1087
100 1/4W
0.001 B
FF/REW SW
DTC124EKA
D1012 1SS133
TEXT_Y T-REC_LED
B.B-L
TUNERON/OFF-A REMOCON_IN
1SS133
B.OUT_B
C1006
C1008
0.18 B
TAB_SW
SEN_LED
R1058
1.2
MS_SEN B
Q1003
D1014 1SS133
R.OUT
D1015
G.OUT IIC_OFF
1SS133
B.OUT_A
R1001
H.SW
R1064
56K
D.V_SYNC MESECAM_M
V.SYNC KEY_A
CTL+
R1007
CTL-
FF/REW-L
KA
2206.3V
C1032
1K
R1079
22 1/4W
5.0
1.3
5.1
23
1
4
1.4
0.9
33K
R1083
C1050
R1031
22K 1/4W
22K
R1023
MDO
EXT_IN-L
CAP_LIMIT
CTLREF
SVSS
226.3V KA
C1013
C1015 0.0018 B
R1002
1.22.4
2
1
34
REEL SENSOR
Q1001
RPI-301
3
C1016
5.10
CTL(+)
476.3V
C1012
R1006
120 1/4W
85
86
4
SV1
TV_MUTE
VCR_MUTE
V.REC.START-H
TUNER MUTE
SOUND B
SOUND A
FF/REW-L
YC0
B.B_L
DA RGB SW
R
G
B
CYL_SPEED_UP
DPG
DFG
VIDEO_H.SW
NC
DRUM_PWM
CAP_PWM
DUMMY.V.SYNC
VSS
110
VCL
CTL(-)
KANP
0.1 B
10MHz
OSC2
STAN BY
111
112
CTLBIAS
5
B
0.0039
25
REEL-S
47K 1/4W
C1026
X1001
C.SYNC
VCC
R1022
C1018
REEL-T
18P CH
21
VSS
CTLFB
R1019
C1028
68K
220P CH
C1019
R1027
0.1 B
18P CH
OSC1
CTLAMP(0)
0.1 B
10K
47K 1/4W
X1002
/RES
CTLSMT(I)
9
C1020
C1022 0.0039 B
1
RESET
C1082
VV-H
C1024
15P CH
C1025
12P CH
32.768KHz
22
X1
X2
SVCC
CFG
11 12 13 14 15 16 17 18 192 20 21 22 23 24 25 26 27 28
4.7
R1021
50V KA
L1001
C1027
0.1 B
12uH
C1038
15P CH
C1035
R1029 1K
26
01.2
2
34
5.10
REEL SENSOR
Q1005
RPI-301
CAP_F/R
CONTROL_IN
FWE
VV-H
CAP_FULL
CAP_FWD-L
SYSCON/TIMER/SERVO IC
IC1006
OEC0093B
HSYNC
AFCLPF
AFCOSC
AFCPC
470
4.7K
R1028
4.750V KA
C1048
1B
H.SYNC
C1040
0.001 B
SYSTEM RESET IC
IC1002 RE5VS31A
123
5.1 0 5.1
R1033
REEL-T
REEL-T
VSYNC
V.SYNC_A
GND OUTIN
22K
REEL-S
REEL-S
CVIN2
C1017
LDM_R
LDM_RVS
CVIN1
R1026 10K
0.1 B
R1030 10K
RESET
D1017
1SS133
T_TEXT-H
S815X
LDM_F
LDM_FWD
OSDVCC
C1078
R1049
4.7K
D1002
R1040 22K
S815Y
5.25.2
T’TEXT-H
CVOUT
0.1 B
R1051
1SS133
C1021
R1041
SI1
OSDVSS
C1079
5.6K
3316V KA
S01
4/2FSCOUT
100PCH
SD-L/AFC-OFF-H
22K
NC NC
AFC-OFF-H
56
VCC
55 MS_SENS_CTL
30
29
28
4/2FSCIN
C1049
0.01 B
R1046 100
2FSC_A
0.1 F
C1014
C1003
(SYSCON PWB)
0.1 F
SDA
SCL
TEXT_RESET
00
SECAM-H
AVSS
IIC_CLK_0
IIC_DATA_0
CTL_MONITOR
CENT LED
VCR_POWER_ON-H
TV_POWER_ON-H
OTPB_LED
PLAY_LED
ON_TIMER_LED
REC/OTR_LED
T-REC_LED
32KHz_MONITOR
REMOCON IN
IIC_OFF
SERVICE
DEGAUSS
POWER_FAIL
TUNER AGC
AFT.S.CURVE
MESECAM-M
EOT
BOT
1K
R1056
10K 1/4W
10K
R1055
MS_SEN-B
BOT
EOT
TRICK-PB-H
TAB_SW
MSSEN_B
5.15.14.45.11.600NC2.50NC1.55.21.42.05.15.21.61.91.95.02.52.52.70.52.52.52.52.50
TEXT RESET
KEY_A
KEY_B
MSSEN_A
VIDEO_ENV
R1094
ENV_DET
0.1F5.5V
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
CAUTION: DIGITAL TRANSISTOR
3.3K
3.3K
R1045
R1044
C1072
R1096
1K
C1030
0.1 F
5.1
52 53 54 55 56
51
50
40 41 42 43 44 45 46 47 48 49
30 31 32 33 34 35 36 37 38 39
29
0.1 B
C1070
IC1099
EEP ROM IC
S-24C08ADPA-01
5.1
5.1
NC
5.2
5.1
NC
5.2
5.2
5.2
5.2
NC
5.2
5.2
5.1
0
NC
4.5
0
NC
5.2
R1048
5.2
22K
5.2
5.2
5.0
5.2
0
0
2.6
0
0
5.2
5.2
2206.3V YK
4.7K
R1078
R1080
C1060
0.1 B
57585966061626364656667686977071727374757677787988081828384
VSS
P13
AVCC
DEW
C1062
MS_SEN-A
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
68P CH
05.1
VCC
A0
1234
C1059
KEY_B
4.7K
SCL
TEST
A2
A1
0.1 F
D1008
MTZJ5.6B
R1082
22K
R1077
10K
R1088
4.2
R1037
220
B.B-L
10K
0
R1035
22K
5.0
2.6
4.84.8
5678
SDA
VSS
0000
R1086
HD SW
Q1016
2SC2412K
0.2
C1071
4.7K 1/4W
18K 1/4W
OTPB_LED
ON_TIM_LED
SERVICE
TP1001
JWF-50K-1
TUNER_AGC
2.6
BUFFER
Q1011
2SC2412K
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CAUTION: DIGITAL TRANSISTOR
R1018
D1022
R1047
68P CH
SDA
SCL
R1059
1K
R1063
1SS133
33K1/4W
5.1
C1043
0.1 B
W807
R1013
10K
C1055
330P CH
1.2K
NOTE:
MAIN POWER OFF MUTE SW
Q1006
DTA124EKA
4.9
4.6
0
5.1
VCR POWER SW
4.4
0.01 B
C1069 22P CH
TV POWER SW
Q1014
2SC2412K
C1074
0.01 B
R1061
VD SW
Q1015
2SC2412K
0
R1060
220
23
Q1021
2SC2412K
R1039
C1073
33K
04.7
24
5.1
5.1
4.4
R1090
1K
R1038
3.9K
D1016
1SS133
THE DC VOLTAGE AT EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
FROM/TO Y/C/A/H.AMP
VCR_POWER_H
1K
TV_POWER_H
VD
C1044
0.0082 B
R1062
4.7K
V.SYNC_A
HD
H.SYNC
B.OUT_A
B.OUT
B.OUT_B
R.SIGNAL
G.SIGNAL
B.SIGNAL
CAPSTAN AFC SIGNAL
CYLINDER AFC SIGNAL
CYLINDER APC SIGNAL
VCR_A_MUTE
H.SW
V.SYNC
SCL
SDA
2FSC_A
MESECAM_M
D.V_SYNC
V.REC_ST_H
ENV_DET
CTL+
CTL-
FROM/TO 21PIN I/O
ON_TIM_LED
KEY_B
REC_LED
T-REC_LED
KEY_A
OTPB_LED
REMOCON_IN
STANDBY_H
TUNERON/OFF-A
VV-H
EXT_IN_L
TU_AUDIO_MUTE_H
AT+5.6V_A
FROM/TO CHROMA/IF
T_TEXT-H
SD-L/AFC-OFF-H
VV-H
VCR_POWER_H
TV_POWER_H
HD
VD
R.OUT
G.OUT
B.OUT
TEXT_Y
SDA
SCL
IIC_OFF
AFT_M
TUNER_AGC
POWER_FAIL[DC]
DEGAUSS_H
FROM/TO T’TEXT
AT+5.6V_A
TUNERON/OFF-A
SCL
SDA
TEXT_RESET
FROM/TO SOUND AMP
M.POWEROFFMUTE_H
TV_POWER_H
TV_A_MUTE
PWB010
VMX193
8
7
6
5
4
3
2
1
ABC D E F GH
I-8
Page 79
ABC D E F GH
8
POWER SCHEMATIC DIAGRAM
8
(SYSCON PWB)
5.2
0
0
820 1/4W
P.CON SW
C1045_1
Q1010
2SD734
33016V YK
5.6
8.0
R1069
220 1/4W
5V REG. IC
IC1004 KIA7805API
123
D1019
11EQS04N
OUTGNDIN
C1034
4706.3V YK
C1033
5.30.38.2
4706.3V YK
0.1 B
C1036
HS1002
763WAA0157
7
5V REG. IC
IC1005 KIA7805API
OUTGNDIN
C1042_1
100016V YK
123
6
FROM/TO TV POWER
CD810
(CP810)
CH28092A
1
GND
2
GND
3
5
4
5
6
7
8
AT+12V
MOTOR GND
UNREG+8V
UNREG+8V
AT+13V
AT+30V
4
C1064
47016V YK
AT+12V
MOTOR_GND
UNREG+8V
AT+30V
VCR_POWER_H
D1024
1SS133
UNREG+8V
12.8 12.0
R1068
1K1/4W
5.0
C1084
P.CON SW
Q1018
2SB892
1016V KA
R1073
12.0
820 1/4W
0
0
IC1003 KIA7809API
123
P.CON SW
Q1008
DTC114TKA
9V REG IC
OUTGNDIN
R1085
9.012.0 0
100 1/4W
C1037
47016V YK
W876
R1052
R1054
220 1/4W
22 1/4W
5.60.68.8
HS1001
763WAA0157
D1018
11EQS04N
C1029_1
P.CON SW
Q1007
DTC114TKA
R1036
1K 1/4W
4706.3V YK
5.0
8.8 8.2
P.CON SW
Q1019
2SB892
R1081
7.6
P.CON+5V_B
AT+5.6V
P.CON+9V
P.CON+5V
GND
FROM/TO Y/C/A/H.AMP
P.CON+9V
P.CON+5V
GND
FROM/TO MICON
VCR_POWER_H
AT+12V
P.CON+5V
MOTOR_GND
GND
AT+5.6V
FROM/TO CHROMA/IF
AT+30V
P.CON+9V
P.CON+5V_B
P.CON+5V
GND
FROM/TO 21PIN I/O
AT+5.6V
P.CON+9V
P.CON+5V
GND
FROM/TO T’TEXT
P.CON+5V
AT+5.6V
GND
7
6
5
4
3
2
PWB010
THE DC VOLTAGE AT EACH PART WAS
NOTE:
1
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CAUTION: DIGITAL TRANSISTOR
VMX193
3
2
1
ABC D E F GH
I-9
Page 80
ABC D E F GH
21PIN/IN/OUT SCHEMATIC DIAGRAM
8
FROM/TO MICON
ON_TIM_LED
KEY_B
REC_LED
7
6
T-REC_LED
KEY_A
OTPB_LED
REMOCON_IN
STANDBY_H P.CON+5V
TUNERON/OFF-A
VV-H
EXT_IN_L
TU_AUDIO_MUTE_H
AT+5.6V_A
W822
C1101
0.1 B
C1102
1006.3V KA
R1101
1/4W
100
21_R
C1103
100PCH
21_G
W824
W825
21_B
FROM/TO OPERATION
0.1 B
C4204
(SYSCON PWB)
9
(CD750)
KEY B
CP757_1
REC LED
8283_1012_00_000
ON TIMER LED
0.1 B
C4203
T-REC LED
KEY A
OTPB LED
POWER ON L
W828
AT+5V
W857
GND
1102345678
REMOCON OUT
1234567
SOUND GND
FRONT A IN L
SOUND OUT L
P.CON+5V
GND
FRONT VIDEO IN
R4201
D4202
11ES1N
75
P.CON+9V
FROM/TO SOUND AMP
SOUND_GND_A
SOUND+
SP_OUT
FROM/TO POWER
AT+5.6V
GND
P.CON+9V
GND
(CD351)
SP OUT L
CP351
173979-7
FROM/TO OPERATION
W858
0.1
4.8
POWER ON SW
Q4201
DTC114EK
0
8
7
6
V.OUT
TP4501
JWF-50K-1
31
5
W931
P.CON+5V
10K
R4533
21_Y
0
0.7
Y SW
Q4510
2SC2412K
0
Y SW
4
2SC2412K
EXT_H
TUNERON/OFF-A
Q4511
R4537
R4542
10K
10K
0.7
0
TUNER SW
2SC2412K
W863
0
0
Q4512
R4540
1K
W812
R4517
75
5.0
0
3
2
0
0
68
R4524
B4501
BLM21A601SPT
2.5
19
21 3456789
20
00 0 000
R4507
150 1/2W
BUFFER
Q4501
2SC2412K
1.8
BUFFER
Q4502
2SA1037AK
R4505
R4523
15
17
16
18
R4516
75
22K
R4506
8.5
0.5
1.8
R4525
100
12K
D4503
1SS133
R4522
75
11
13
12
14
C4502_1
75
10
NCNC
R4508
6.8K
L4502
100uH
1B
R4501
R4521
75
00000000
0000
C4515
470PCH
56K
5.6K
R4518
B4502
BLM21A601SPT
W843
L4504
C4516
470PCH
R4539
4.7K 1/4W
10uH
32
2
R4519
00
1
035_0_9985_05
C4511
470P CH
5.6K
120K
R4515
C4505
0.018 B
J4501
L4503
10uH
0
W885
0
5.1
PERI SW
Q4507
2SC2412K
C4509
1016V KA
C4508
150V KA
R4520
C4504
W907W860
VV-H SW
0
Q4513
2SC2412K
4.3
0
FROM/TO CHROMA/IF
EXT_H
SHIELD_GND
5
4
1K
1016V KA
MUTE SW
Q4505
2SC2412K
0
0
0
D4510
1SS133
W861
R4511
4.7K1/4W
C4522
W804W844
W817
1016V KA
P.CON+9V
FROM/TO Y/C/A/H.AMP
FRONT_VIDEO
FRONT_AUDIO
REAR_AUDIO
REAR_VIDEO
Y/C_VIDEO
Y/C_AUDIO
3
2
FROM/TO T’TEXT
21_Y
21_R
LFP3A-M3R2TA
B4503
LFP3A-M3R2TA
B4504
21_G
21_B
THE DC VOLTAGE AT EACH PART WAS
1
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CAUTION: DIGITAL TRANSISTOR
R.SIGNAL
G.SIGNAL
B.SIGNAL
AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)
TUNER AUDIO SIGNAL
TUNER VIDEO SIGNAL
PLAYBACK LUMINANCE SIGNAL
PLAYBACK COLOR SIGNAL
RECORD LUMINANCE SIGNAL
RECORD COLOR SIGNAL
PWB010
VMX193
1
ABC D E F GH
I-10
Page 81
8
7
6
5
4
3
2
L002
ESD-R-30SD
ABC D E F GH
FROM/TO MICON
T_TEXT-H
SD-L/AFC-OFF-H
VV-H
TEXT_Y
VCR_POWER_H
TV_POWER_H
HD
VD
R.OUT
G.OUT
B.OUT
POWER_FAIL[DC]
DEGAUSS_H
TUNER_AGC
SDA
SCL
IIC_OFF
AFT_M
TEST POINT
CP603 8283_0912_00_000
P.CON+9V
9
AUDIO_OUT
8
VIDEO_OUT
7
AFT
6
AGC
5
IIC_OFF
4
3
SDA
2
SCL
1
GND
1213
1
AGC
0.2
2
NC
7.2
3
NC
1.3
4
SCL
4.8
5
SDA
4.8
6
NC
0.1
7
+5V
5.0
8
NC
0.2
9
+30V
29.9
10
NC
0
TU601 NJH3023M218
11
IF
0
1415
W823
S802YS802X
FROM/TO POWER
AT+30V
P.CON+9V
P.CON+5V_B
GND
P.CON+5V
FROM/TO T’TEXT
TEXT_B
TEXT_G
TEXT_R
TEXT_Y
SYNC
R653
R673
C655
0.1 F
100
R648
100
C604
220 1/4W
R674
220 1/4W
R603
75
FILTER
CERAMIC TRAP
CF602
MKT41.5MA110P
C602
0.01 B
R604
CHROMA/IF SCHEMATIC DIAGRAM
(SYSCON PWB)
R.SIGNAL
G.SIGNAL
B.SIGNAL
RECORD LUMINANCE SIGNAL
TUNER VIDEO SIGNAL
TUNER AUDIO SIGNAL
AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)
RECORD COLOR SIGNAL
SW
2.5
Q611
DTC114TKA
0
T_TEXT-H
V.REF
0
Q602
2SC2412K
5.0
C682
0.1 B
C658
100uH 0607
100
C659 0.4750V KA
W868
W924
C661 0.1 B
KA
R647
120K
150V KA
C645
R646
100K
R668
100K
AFT
IDENT
IF
44
L601
100uH 0607
P.CON+5V_B
R622 680K
W809
CORING
PEAKING
150V KA
C618
R623
SYNC
LINE
DELAY
TRAP
SW
VIDEO
1
50V KA
C619
R624 1K
C646
100P CH
43
476.3V KA
C620
1K
R639
1.5K
1K
R669
R605
75 1/4W
CD652
CH1408A
1B
C674
KA
2.250V
0.01 B
C605
L604
0.22uH
C606
0.022 B
100 1/2W
R607
R608
C656
6.8K
1.6
2.2K
22010V YK
C657
0.1 B
L605
100uH 0607
150
R609
7.2
AMP
Q601
2SC3000
0.8
47
R610
P.CON+5V_B
L606
P.CON+5V_B
SAW FILTER
P.CON+9V
Y/C_AUDIO
Y/C_VIDEO
C637
0.1 B
AUDIO_OUT V_OUT
TU_AUDIO
W872
2.2uH
C608
0.001 B
Y/C_AUDIO
CF601
SAF39.5MZL220ZL
2345
C609
C641
0.01 F
0.015 B
W867
L610
2.2uH
R638
120K
C650
0.01 B
100
R613
33
CHROMA/IF IC
IC601 LA76812
C607
L603
15uH
W871
C649
34
1 101112131415161718192 20 21 22 23 24 25 26 27
VOL
DC
SW
DET
FM
AMP
LIM
BPF
SPLL
BPF
1B
R661
47P CH
C610_1
C648
47P CH
1K
R636
C644
0.022 B
IF AGC
560
0.001 B
BUFFER
Q608
2SA933S
RF AGC
C651
45
1016V KA
0
4.0
R681
TU_VIDEO
C653
C652
R663
5
5051525354
560 1/4W
VIF
VIDEO
TRAP
AMP
VIDEO
3.5
(W325)
L609
6.3V
10K
C654
R644
0.01 B
0.01 B
6789
DET
PLL
A2C
0.3350V KA
1234
6
330
COIL,VIDEO IFT
L608
360K043
1.6
R619
R680 1.5K
C647
STRETCH
BLACK
SEP
SYNC
C622
C621 0.01 B
5.0
2.5
R629
2.5
1K
100P CH
CLMPCLMP
42
R641
Y/C_VIDEO
TEXT_R
P.CON+5V
1K
1K
R659
C611
R627
22K
ACC
SWBAF
150V KA
R621
1K
2.6
BUFFER
Q605
2SC2412K
1K
TEXT_G
D602 1SS133
1016V KA
C612
1016V KA
R675
R670 22K
CLAMPABLBUS
CONTRAST
OSD
APC1
0.4750V KA
C626
1K
R665
R630 24K
TEXT_B
D601
R616
22K
DEMO
SW
PAL
TINT
VCO
2.2M
R618
R631 24K
0.047 B
C613
C624
TEXT_Y
1SS133
10K
1016V KA
C627
X601
10016V KA
C614
BRIGHT
CONTRAST
CLAMP
VCO
APC2
KILLER
CW
16P CH
C669_1
41
4.433619MHz
W874
35
R615
C615
1016V KA
R.OUT
36
39 1/4W
C675
0.01 F
100
R632
MATRIX
NC NC
R633
SW
OSD
RGB
3536373839440414243444546474849
G.OUT
10016V KA
DC ADS.
CLAMP
C667
B.OUT
37
0.150V KA
100
R664
SW
R620
100
W926
V_OUT
P.CON+5V_B
390 +-1%
R642
2.2K
38
B.AKBDRIVE/OUT-OFF
CLAMP
COLOR
1H DELAY
C676_1 220P CH
10
50V KA
C632
C636_1
C616
0.33 TF
C639_1
C617
0.22 TF
RAMP
VER HDR
C/D
VER
SEP
VER
ALC
+
LPF
R666
1001/4W
B
C633 0.01
C634 4.750V KA
P.CON+5V_B
2225V KANP
R654
KA
1016V
VCC
C668
C640
150 1/2W
220P CH
C642
0.01 B
R655
AFC1
C/D
HDR
1/256
VCO
HDR
R634
3.350V KA
C643
12K
OUT
HDR
SHIFTER
PHASE
AFC2
FBP
4.7K +-1%
R658
282933031323334
H_OUT
0.0039 B
0.42.65.12.62.101.81.71.87.801.11.11.14.04.84.84.82.65.002.92.9002.42.3
1.100.94.98.50000.93.92.83.52.002.74.92.62.53.53.74.34.32.52.52.02.13.1
100 1/4W
C628
39
1F
40
FROM/TO SOUND AMP
AUDIO_OUT
C623
330P CH
C681
0.1 B
C680
FROM/TO Y/C/A/H.AMP
FROM/TO 21PIN I/O
SOUND_GND
SOUND+B
FROM/TO DEFLECTION
CP502
CH2D068A
SOUND +B
SOUND GND
H.OUT
GND
P.CON+5V
V.OUT
ACL
H.PULSE
TV POWER H
POWER FAIL
V.PULSE
VCR POWER H
DEGAUSS H
TO CRT
CD850
CH25080A
GND
CUT OFF
G.OUT
R.OUT
B.OUT
L600
ESD-R-30SD
CD653
1B
CH01408A
TU_VIDEO
TU_AUDIO
Y/C_VIDEO
Y/C_AUDIO
SHIELD_GND
EXT_H
(CP820)
(CP850)
R650
5.6K 1/4W
R657
5.6K
W856
H_OUT
P.CON+5V_B
D604
11ES1N
SD SW
Q609
0
P.CON+9V
2SC2412K
SD SW
Q610
2SC2412K
0
0
R651
3901/2W
SPOT SW
DTC114TKA
3.3K 1/4W
S816XS816Y
0
Q612
0
R656
R676
4.7K
R677
4.7K
D608 1SS133
D609
D610 1SS133
2.8
0
SD-L/AFC-OFF-H
D605
1SS133
D606
1SS133
1SS133
R678
100
M.POWEROFFMUTE_H
0
0
VV-H
EXT_H
D612
1SS133
HD
TV_POWER_H
POWER_FAIL[DC]
VD
VCR_POWER_H
DEGAUSS_H
G.OUT
R.OUT
B.OUT
HD
C685
S111X
0.001 B
S111Y
D611
1SS133
1
2
3
4
5
6
7
8
9
10
11
12
13
5
4
3
2
1
PWB010
VMX193
8
7
6
5
4
3
2
THE DC VOLTAGE AT EACH PART WAS
1
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
CAUTION: DIGITAL TRANSISTOR
1
ABC D E F GH
I-11
Page 82
ABC D E F GH
SOUND AMP SCHEMATIC DIAGRAM
8
(SYSCON PWB)
SOUND AMP IC
IC352 AN7523
8
1234567
1/4W
C360
C361
1B
1.5
0
10K
0.001 B
W875
C359_2
7
0.8
A_MUTE SW
Q353
2SC2412K
FROM/TO 21PIN I/O
SP_OUT
SOUND+
6
5
SOUND_GND_A
FROM/TO MICON
M.POWEROFFMUTE_H
TV_POWER_H
TV_A_MUTE
FROM/TO CHROMA/IF
SOUND+B
SOUND_GND
AUDIO_OUT
W878
W829
W830
D350
1SS133
R355
10K1/4W
C354
W910
R353
68K 1/4W
R350
12W
W819
100016V YK
R308
0.1
0.8
A_MUTE SW
Q351
0
2SC2412K
C357
100025V YK
000.33.93.43.58.2
22016V YK
10K
R359
HS351
763WAA0172
89
NC
W846
0.1
7
6
L001
CP302_1
B2B-EH-A
SP OUT
SOUND GND
1
2
CD354
CH12434A
1
2
HF57T18.5*10*10
SPEAKER
SPEAKER
SP351_1
810-47-171
8_OHM
SP352_1
810-47-171
8_OHM
5
4
C351_1
2216V KA
R354
270K
C352
2216V KA
3
KANP
R360
56K
C358_2
50V
2.2
2
1
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)
TUNER AUDIO SIGNAL
PWB010
VMX193
4
3
2
1
ABC D E F GH
I-12
Page 83
ABC D E F GH
8
FROM/TO Y/C/A/H.AMP
7
FROM/TO MICON
FROM/TO CHROMA/IF
6
5
4
FROM/TO CHROMA/IF
FROM/TO MICON
3
Y/C_VIDEO
TEXT_RESET
AT+5.6V_A
FROM/TO POWER
AT+5.6V
P.CON+5V
TEXT_B
TEXT_G
TEXT_R
TEXT_Y
TUNERON/OFF-A
SDA
SCL
SYNC
GND
2206.3V KA
C884
C879
0.01 B
1
2345678
1Z
0Y
1Y
IC853 TC74HC4053AF
Y-COM
Vcc
TRIPLE ANALOG MPXER IC
X-COM
Z-COM
1X
D851
1SS133
T’TEXT SCHEMATIC DIAGRAM
8
(SYSCON PWB)
7
2216V KANP
R910
W850
W851
C863
5.0
2.5
BUFFER
Q856
2.5
2SC2412K
1K
R882
1K
R881
W921
R911
150K
W922
56K
C895
0.1 TF
W853
C865
0.1 MMTV
C866
0.01 B
C867
0.1 MMTV
0
20
4.4
0
0.1
4.8
2.2
0
0
0
0
11 12 13 14 15 16 17 18 19
DATA SLICER IC
IC852 ET317
SCAN-0
SYNC
DGND
WIND
DVCC
OSC OUT
DGND
TADATA
TCLK
TSTAPLB
TSIG
SSIG
CSIG
AGND
OSC1
OSC2
AVCC
CREF
AGND
BIAS
C886
C887
C869
47
15P CH
220P CH
0.022 B
0.022 B
X851
13875KHz
C888
C896
C868
0.01 B
C889
C893
C890
15P CH
0.1 F
R860
56P CH
1K
1.8
110
1.8
2
W929
0.5
3456789
220P CH
0
2.3
2.5
4.8
0.5
0
1.7
6
5
4
3
L854
100uH
W801
D854
SB10-03A3
R868
1K
4.8
R863
2.4
1K
1K
R864
C872
10016V KA
C873
10016V KA
C874
10016V KA
C859
330P CH
SYNC BUFFER
Q853
2SC2412K
RED BUFFER
Q855
2SC2412K
4.8 0
C851
C852
0.01 B
R853
4.8
2.3
1.7
150
R854
R862
R851 1K
0
GREEN BUFFER
Q852
2SC2412K
BLUE BUFFER
2SC2412K
R878
6.8K
2206.3V KA
22K
22K
Q851
LFP3A-M3R2TA
B851
4.8
0
0
R856
1K
4.8
0
R880
0
1K
V.REF
Q863
2SC2412K
R861
12K
R869
R866
R871
4.8
12K
22K
22K
R870
12K
R867
12K
D856
1SS133
0
R879
1.8
0.3
1K
D855
1SS133
D858
1SS133
D857
1SS133
C882
3.350V KA
C883
D860
1SS133
D859
1SS133
BLK. BUFFER
Q862
2SC2412K
3.350V KA
0001.31.31.31.31.3
0Z
INH
A
0X
GND
Vee
C
B
10111213141516
9
0001.31.31.31.34.8
D863
11EQS04N
2.7K
R889
D861
1SS133
3.350V KA
C881
L852
10uH
C855
L851_1
10uH
YK
4706.3V
C856_1
0.01 B
W845
C861
0.01 B
R919
27K
390
R896
R865
390
R897
2.2K
R877
1001/4W
R876
100 1/4W
4706.3V YK
C853
R902
C885
C854
0.022 B
R801
390
330P CH
C862
0.1 MMTV
C857
10016V YK
DECODER IC
10K
IC851
FRAG2
FRAG1
REF.
RGB SET
AGND
RED
GREEN
AVCC
BLUE
20 21 22 23 24 25 26 27 28
BLANK
SDA
SCL
TEST3
16 17 18 19
WIND
15
ET106
1.0
NC
1.0
W831
2.1
2.1
0
0
0
4.8
0
0.3
4.8
4.8
0.3
NC NC
0.1
TEST5
VIDEO
CLK.IN
TEST1
TEST4
TDATA
TEST2
SYNC
DVCC
RSTB
DGND
TCLK
CSB
MUTE
C892
11011121314
2
34567
89
47
16V KA
1.0
3.5
3.5
4.8
5.1
0
0
0
NC
4.8
0
0
4.4
4.8
0
2
1
FROM/TO 21PIN I/O
21_Y
21_R
21_G
21_B
D852
1SS133
2
R.SIGNAL
G.SIGNAL
PWB010
VMX193
B.SIGNAL
PLAYBACK LUMINANCE SIGNAL
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
ABC D E F GH
PLAYBACK COLOR SIGNAL
RECORD LUMINANCE SIGNAL
RECORD COLOR SIGNAL
1
I-13
Page 84
PRINTED WIRING BOARDS
MAIN/CRT/POWER SW
SOLDER SIDE
ABCDE
CP820_1
W008
W009
R518
Q503
R512
C517_1
B504
IC501_1
C512
C515_1
R505
C506
W015
FH501 FH502
D526
C528
R528
C510
D518
F501
R524
D515
C521_1
T501_1
W039
R506
D521
R519
L501
D524
W818
HS501
W042
W044
D534
D533
B505
W003
R543
Q509
D508
Q505
D530
D527
C519
C527_1
ICP504
D502
C513
CP501
Q508
R521
D519
W004
C514_1
R542
D531
W801
D506
CP810_1
W001
C524 C518
W822
D517
C505
R520
ICP502
R503
C509
IC506
C523
D512
D511
W824
1
C537_1
C531_1
W825
2
3
C529
4
TP401
R449
R508
D501
R504
C522
FH504FH503
W038
D528
R509
Q501
C503
C502
TH501
F502
W002
W007
D510
C507
CP502
L502
C530
R533
D410
D516
Q405
C416
C418
R523
C549
Q507
R552
R507
W012
W010
D505
R532
SW501
W014
R423
C425_2
1
D411
TP802
C820
R450_1
CP803A
CD803
CC004
R808
R
05
8
TP803
Q805_1
R815
C805
D413
C431
C810
R816
W035
R490
C432
W814
C421
R820
TP801
Q806_1
R812
C430_1
0
81
R
C811
R813
W037
R807
W040
CP850
C429_1
R453
R421
C403
C809
R814
R
R419
2
0
8
R811
W023
W034
R417
R408
R407
Q804_1
C819
W832
C411
C405
R418
W036
R414
C407
C801
W805
R416
L801
R801
CP807
R448
W031
CP401
W030
HS401
C406
W032
2
3
4
FB401
D401
C450_1
W029
J801_1
C404
W043
R447
IC401
R411
CP803B
C423
R413_1
C409
L401
L402
W028
R420
C422
R427
C
P
R425
W027
80
C424
W823
1
W817
Q406_1
C410
CC001
W017
W024
R412
HS402
W020
Q513
Q506
S101
W018
R553
VR502
W026
R529
R513
R456
R460
C417
C438
W812
R516
W816
T401
W022
R515
Q504
W019
D523
C554
D529
CP504
S102
RY501
W016
R517
R501
W013
R554
D509
C516
W810
C520
Q502
W830
R538
CD502
ABCDE
I-14
Page 85
ABC D E F GH
15.5
18
NC
SB
15.5
17
SG
0
16
135.7
15
HG
0
14
8V
16.5
13
LG
0
12
20.3
11
13V
12V
19.8
10
(MAIN PWB)
BL01RN1-A63
ICP502
251005
5A125V
ICP504
251005
5A125V
W801
B504
W830
D511
10ELS2N
C518
470P500V B
D512
21DQ09N
D508
21DQ09N
C527_1
470P2KV YR
D519
21DQ09N
C519
470P500V B
C516
470P500V B
D505
21DQ09N
D509
21DQ09N
D510
RU2AM
C517_1
0.00182KV YR
C523
C524
100025V MHE
W818
100025V MHE
R517
0.22 2W
C537_1
D527
F502
21801.6
T1.6A_L_250V
C520
100016V MHE
220200V YXF
C521_1
0.1 TF
SWITHING
Q508
2SB892
13.9 13.9
R521
1SS133
10K 1/4W
SWITHING
Q509
DTC114TS
0
R524
13.1
13.1
9
22K 1W
1SS133
4.8
1.5K 1/4W
330 1/2W
FH504
FH503
R512
W824W825
C531_1
D530
R507
EYF-52BC
EYF-52BC
R518
10K 1/4W
220016V MHE
D533
31.3
SWITHING
Q503
2SA1371
SWITHING
Q505
2SC2909
D524
1SS133
30.6
R519
0
1SS133
D534
1SS133
D526
1SS133
DEGAUSS_H
+B
AT+125V
SOUND+B
FROM/TO DEFLECTION
+B
DEGAUSS_H
SOUND+B
TV.POWER_H
P.CON+125V
POWER_FAIL
VCR.POWER_H
GND
SOUND_GND
7
6
8
AT+30V
31.3
D515
C528
0.022 F
MTZJ33B
POWER_FAIL
10K 1/4W
R520
0.7
10K 1/4W
0
UNREG+8V
5
4
FROM/TO REGULATOR
CP810_1
(CD810)
UNREG+8V
AT+13V
AT+30V
8283_0812_00_000
MOTOR GND
UNREG+8V
UNREG+8V
GND
GND
AT+12V
AT+13V
AT+30V
1
2
3
4
5
3
6
7
8
2
SOUND+B
PWB070
TMX473
TV POWER SCHEMATIC DIAGRAM
8
R515
Q504
0.6
C554
0.0022 M
FEED BACK
SWITCHING
R553
135.2
135.8
10K
R509
TV.POWER_H
R523
R552
10K 1/4W
Q507
2SC945
39K 1/2W
1/4W
AT+125V
10K 1/4W
10K 1/4W
NC
6.3
6.0
5.4
R554
22K 1/2W
C522
P.CON+125V
12
3
45
7.3
6.3 6.4
R533
R532
D528
MTZJ5.6B
2.250V YK
L501
RB-20871
1
2
5.6K 1/4W
5.6K 1/4W
C530
0.001250V KX
34
C506
R505
FEED BACK
IC506
TLP621(GR)
12
0.1250V ECQUL
L502
SS28H-08350
POWER REG.
IC501_1 STR-F6707
33K 3W
10.1
34
DRIVER
FB/
OCP
S D VCC
12345
1.7 0.2 100.5 18.5 0
R503
4.7K 1/4W
C509
0.0056 M
IS THE LIVE CONNECTIONCAUTION:
1
CONT
D517
EG01Z
C515_1
R501
W810
2.2 7W
C503
0.00222KV B
4
R538
1.5M 1/2W
GND
10
R543
680 1/2W
D518
EG01Z-V0
0.0027500V B
D531
R542
C529
R528
0.33 1W
C513
RU2YX
R506
2.2K 1/4W
0.33 1W
0.0022250V KX
C502
2250V MHE
0.00222KV B
C510
C512
0.001 M
D506
RMPG06J
22035V MHE
D521
EG01Z-V0
763WAA0174
2
GBL06L-6177
1
3
B505
BL02RN2-R62T2
C514_1
HS501
0.00222KV YR
W822
D501
GND1
C507
100400V USP
D502 EG-01C
308.3
344.5
344.5
397.2
16.5
0
T501_1 81290664
DC IN
8
6
5
4
COL
ADJ
2
GND
1
135V
RELAY DRIVE
D516
1SS133
2SC1815Y
0.2
0
7
DEGAUSS
COIL
L503
8F140018
21
CP502
TV-50P-02-A1
1
2
RY501
ALKS321
TH501
PTH451A140M21
12
3
4
6
C505
FH501
EYF-52BC
D529
0
390 1/4W
220 1/4W
SWITHING
UNREG+8V
C549
0.033 M
1SS133
6.8
0
R504
0
0
Q501
2SC2909
0.22250V ECQUL
SWITHING
Q502
2SA1371
134.9
R508
270K 1/2W
1M 1/4W
0.7
F501
5
CD502
CPU2012A
12
12
BROWN
BLUE
CP501
THL-P03P-B1
S102 S101
4
2
BLUE
12
BROWN
CP504
THL-P03P-B1
4
PWB340
TEXA36
CD501
AC230V 50HZ
1206635823
BLUE
BROWN
21
3
(POWER SW PWB)
1
3
SW501
SDDFC30200
+B ADJ
2
FH502
EYF-52BC
VR502 330
W812
R529
2.7K 1/4W +-1%
5VSWITCHING
Q513
DTC114ES
T4A_L_250V
218004
D523
1SS133
5V SWITCHING
Q506
DTC114TS
0
4.6
0
TV.POWER_H
R513
R516
1
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
1
ABC D E F GH
I-15
Page 86
8
7
6
5
FROM/TO CHROMA/IF
CP820_1
(CP502)
8283_1312_00_000
1
SOUND +B
2
SOUND GND
3
H.OUT
4
GND
5
P.CON+5V
6
V.OUT
7
ACL
8
H.PULSE
9
TV POWER H
POWER FAIL
10
V.PULSE
11
VCR POWER H
12
DEGAUSS H
13
ABC D E F GH
DEFLECTION SCHEMATIC DIAGRAM
W805
R427
8.2K 1/4W
V.OUTPUT
IC401 LA78040
C406
11E1-EIC
C410
0.01 M
4.750V YK
THERMAL PROTECTION
PUMP UP
GNDVcc
10035V MHE
763WSA0016
C409
0.001 M
HS401
AMP
+
1234567
25.70.3 3.3 0 14.1 26.2 2.7
D401
R425
8.2K 1/4W
R412
4.7K 1/4W
C404
R420
18K 1/4W
R411
R413_1
10K +-1%
11K +-1%
R414
C405
R416
27K 1/4W
1.8K 1/4W
4.750V YK
R417
C407
R418
330 1/2W
120025V HR
1.5 1/4W+-1%
R419
R408
330 1/2W
1.5K 1/2W
C411
C403
(MAIN PWB)
TO DY
CP401
B05B-DVS
5
4
8
0.47100V TF
R421
2.2K 1/2W
1050V YK
R407
2.2K 1/2W
1250V MHE
C422
L401
4.7mH0909
C423
0.47250V ECWF
L402
ELH5L4112
R448
1K 1W
C450_1
120P2KV YR
C431
10250V YK
D413
RMPG06J
C430_1
0.001500V B
3
2
NC
1
V801
A34AGT13*07
9
10
R
8
G
6
B
11
175
8
7
6
5
TO CRT
2
R447
68 1/2W
FROM/TO TV POWER
4
P.CON+125V
TV.POWER_H
VCR.POWER_H
SOUND+B
SOUND_GND
DEGAUSS_H
POWER_FAIL
+B
GND
4
3
W832
2
0.5
H-DRIVE
Q405
2SC2271
TP401
C416
22P500V SL
31.0
0
R449
6.8K 7W
R456
C417
4.7K 1/2W
W823
T401
305Y002
31.0
NC
0.2
0.0022500V B
22.3
1160V MHE
C418
0
34
2
1
6
1.3
C438
R460
W816
HS402
763WSA0016
100 1/4W
1.3
247.6
0
H.OUTPUT
Q406_1
2SD2499
W817
C424
0.00821.6KV ECWH
C425_2
D410
C429_1
0.0012KV YR
RMPG06J
C421
100035V MHE
MTZJ5.6B
470P500V B
D411
R423
12K 1/4W
R450_1
5.6 1W
CC004
TP-1S-05
R453
390K 1/4W
2
0.001500V B
247.6
126.0
131.0
NC
COL
1
VIDEO
6
B+
2
AFC
0
9
HEA
0
TER
10
GND
0
8
0
E12
4
E25
0
3
FB401 3213012R
W814
ABL
GND
GND
E8
HV
180V
NC
GND
GND
HEATER
5
4
3
2
1
FOCUS
SCREEN
180V
GND
GND
HEATER
CD803
2E053002
F
S
0
11
2.5
7
0
8
0
5
NC
R490
68K 1/4W
51052-0500
C432
PWB070
TMX473
CP803A
0.47100V TF
1
CD801
8M82025A
TO CRT
4
TO CRT
3
2
DEFLECTION SIGNAL
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
1
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ABC D E F GH
ARESINCE THESE PARTS MARKED BYCAUTION:
1
I-16
Page 87
ABC D E F GH
8
FROM CHROMA/IF
CP850
7
(CD850)
8283_0512_00_000
GND
5
CUT OFF
4
G.OUT
3
R.OUT
2
B.OUT
1
6
5
(CRT PWB)
5
132.5
2.8
RED AMP
Q804_1
2.5
2SC4217
R814
C809
270P B
R811
270 1/4W
4.7K 1/4W
6
132.1
GREEN AMP
2.9
Q805_1
2.5
2SC4217
CRT SCHEMATIC DIAGRAM
132.8
TP801
TP802
R802
12K 2W
R807
2.7K 1/4W
R808
2.7K 1/4W
R805
12K 2W
0
0
4
3
0
0
567
1
F
132.9
8
104.1
9
HPS3200-010501
132.5
8
J801_1
7
6
5
R815
C811
560P B
R813
R816
4.7K 1/4W
4.7K 1/4W
TP803
R820
2.7K 1/4W
4
7
132.3
2.8
BLUE AMP
Q806_1
2.5
2SC4217
R810
12K 2W
C820
4.7250V YK
100P B
C805
L801
100uH
0607
CC001
TP-1S-05
(CD801)
CP801
GND
GND
GND
GND
TS-80P-02-V1
1
2
R801
FOCUS
FROM DEFLECTION
CP807 005P-2100
1M 1/4W
SCREEN
SCREEN
1
C819
0.00222KV B
C801
0.00222KV B
180V
180V
5
3
ACCESSORY
2
HEATER
GND
GND
NC
(CD803)
GND
GND
HEATER
CP803B
51052-0500
123
4
BT001
UM-4/R03
TM101
R25-1397
R.SIGNAL
G.SIGNAL
B.SIGNAL
C810
220P B
R812
270 1/4W
4
3
270 1/4W
2
PWB110
TCX333
1
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
1
ABC D E F GH
I-17
Page 88
ABC D E F GH
INTERCONNECTION DIAGRAM
8
S102S101
7
AC230V 50Hz
BLUE
BROWN
6
5
DEGAUSS COIL
4
3
FOCUS SCREEN
2
CP807
CD501
21
L503
21
2
CP502
DEGAUSS COIL
FOCUS
SCREEN
1
2
CP801
GND
1
DEGAUSS COIL
1
GND
POWER SW PWB
PWB340
TEXA36
CP504
12
CD502
12
MAIN PWB
PWB070
TMX473
FBT
FB401
4
5
180V
5
4
CRT SOCKET
3
1
CP850
GND
CUT OFF
CD801
SPEAKER
SP351
8_OHM
SPEAKER
SP352
8_OHM
CP501
CP820
1
CP810
1
GND
GND
PWB110
TCX333
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
HEATER
123
SOUND +B
SOUND GND
H.OUT
GND
P.CON+5V
V.OUT
ACL
H.PULSE
TV POWER H
POWER FAIL
V.PULSE
VCR POWER H
DEGAUSS H
GND
GND
AT+12V
MOTOR GND
UNREG+8V
UNREG+8V
AT+13V
AT+30V
V801
H.V
1 2
123
CP803A
GND
GND
HEATER
CP401
NC
6
7
8
9
J801
F
12345
B.OUT
R.OUT
G.OUT
5
CD803
CP803B
234
NC
NC
180V
4
5
CRT PWB
ANODE
CRT
J351
CD354
1
2
1
5
4
3
2
6
7
OPERATION PWB
CP302
1
2
SOUND GND
SOUND +B
SOUND GND
H.OUT
GND
P.CON+5V
V.OUT
ACL
H.PULSE
TV POWER H
POWER FAIL
V.PULSE
VCR POWER H
DEGAUSS H
AT+12V
MOTOR GND
UNREG+8V
UNREG+8V
AT+13V
AT+30V
B.OUT
R.OUT
G.OUT
CUT OFF
GND
SYSCON PWB
1
HEH
J701
4
123
E
PWB030
TEXA19
CD750
9
8765432
10
AT+5V
KEY A
KEY B
REC LED
OTPB LED
T-REC LED
ON TIMER LED
9
8765432
10
CP757
SP OUT
CP502
1
2
3
4
5
6
7
8
9
10
11
12
13
CD810
1
GND
2
GND
3
4
5
6
7
8
CD850
1
2
3
4
5
PWB010
VMX193
J4501
2 20
1
GND
GND
BLUE
AUDIO IN
TUNER AUDIO OUT
AUDIO IN
TUNER AUDIO OUT
POWER ON L
101112131415161718
NC
NC
GND
GREEN
PERI CTL
1
GND
REMOCON OUT
1
GND
GND
CD351
7654321
GND
SP OUT L
7654321
CP351
GND
GND
RED
R.G.B SW
SOUND GND
FRONT A IN L
SOUND OUT L
19
213456789
GND
VIDEO IN
TUNER VIDEO OUT
OS753
GND
B+
V.OUT
GND
FRONT VIDEO IN
TM101
RED
WHITE
FG SENSOR
VCC
AUDIO
CONTROL
SP
HEAD
MR
G
O
CAPSTAN DD UNIT
DECK MECHA ASS’Y
M2001
AE
CYLINDER UNIT
DECK PWB
PWB550
VE8851
BOT SENSOR
Q101
LM
LOADING MOTOR
M101
UN4001
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ARESINCE THESE PARTS MARKED BYCAUTION:
ETANTLES PIECES REPAREES PAR UNATTENTION:
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE TIMETHIS INTERCONNECTION DIAGRAM IS THE LATEST ATNOTE:
ROTOR
MAGNETCOIL
MICRO MOTOR
M2003
VCC
DRIVE CONTROL
GND
FG
PG
FG.PG GND
CH2
CH1
HALL
IN
H5001
MAINHALL
OUT
SWITCH
LOGIC
SENSOR
HALL
VCC
CP1004
CP4005
AUDIO PB
6
AUDIO REC
5
CTL+
4
CTL-
3
AE HEAD(-)
2
AE HEAD(+) AE HEAD(+)
1
CP1006
VCC
1
BOT
2
LDM-
3
LDM+
4
CP4004
FE HEAD (GND)
2
FE HEAD (HOT)
1
PACK
TU601
TUNER
IF
11
10
+30V
9
8
+5V
7
6
5
SDA
SCL
4
3
2
AGC
1
U IN
CP1005
CYL DRIVE
5
CYL GND
4
CYL FG
3
CYL +B
2
CYL PG
1
CP4001
1
SP-CH2 (L)
2
SP COM
3
SP-CH1 (R) 4
4
1
2
3
4
5
6
7
8
GND
MOTOR GND
I LIMIT
CTL
VCO
FG
CAP.M/F/R
VCC(5V)
1
2
3
4
5
6
7
8
FFC
FFC
2
FE HEAD (GND)
1 FE HEAD (HOT)
FFC
AUDIO PB
6
AUDIO REC
5
CTL+
4
CTL-
3
AE HEAD(-)
2
1
CP101
VCC
BOT
LDMLDM+
FULL ERASE HEAD ASS’Y
H5002
CD2001
CYL DRIVE
CYL GND
CYL FG
CYL +B
CYL PG
1
2
3
HEAD AUDIO CONTROL ASS’Y
4
3
2
1
5
4
3
2
1
ABC D E F GH
I-18
8
7
6
5
4
3
2
1
Page 89
TV POWER
WAVEFORMS
1 5V 0.1ms/div 7 20V 20µs/div
DEFLECTION
2 5V 50µs/div
DEFLECTION
8 10V 10ms/div
TV POWER
4 200mV 50µs/div
9 20V 10ms/div
12 PB
10mV 5ms/div
13 POWER ON
200mV 50ns/div
14 POWER ON
0.5V 10µs/div
CRT
5 2V 20µs/div
6 20V 20µs/div
10 2V 5µs/div
Y/C/AUDIO/HEAD AMP
11 PB
2V 10ms/div
The following waveforms were measured at the point of the corresponding
NOTE:
balloon number in the schematic diagram.
15 POWER ON
2V 20µs/div
16 POWER ON
200mV 10µs/div
J-1
Page 90
WAVEFORMS
17 POWER ON
50mV 1ms/div
18 POWER ON
50mV 1ms/div
19 REC
10V 5µs/div
22 POWER ON
1V 20µs/div
23 POWER ON
2V 20µs/div
24 POWER ON
2V 5ms/div
27 PB
1V 0.5µs/div
28 PB
1V 0.5µs/div
29 PB
2V 20µs/div
20 REC
10V 5µs/div
MICON
21 POWER ON
1V 50ns/div
25 PB
50mV 10ms/div
30 PB
1V 50ms/div
21PIN/IN/OUT
26 PB
50mV 0.5ms/div
The following waveforms were measured at the point of the corresponding
NOTE:
balloon number in the schematic diagram.
J-2
31 POWER ON
0.5V 10µs/div
Page 91
WAVEFORMS
32 POWER ON
20mV 1ms/div
CHROMA/IF
33 POWER ON
5mV 1ms/div
34 POWER ON
5mV 1ms/div
37 POWER ON
0.5V 20µs/div
38 POWER ON
0.5V 10ms/div
39 POWER ON
200mV 50µs/div
42 POWER ON
200mV 10µs/div
43 POWER ON
10mV 10µs/div
44 POWER ON
0.5V 10µs/div
35 POWER ON
0.5V 20µs/div
36 POWER ON
0.5V 20µs/div
40 POWER ON
2V 50µs/div
45 POWER ON
200mV 1ms/div
T'TEXT
41 POWER ON
200mV 0.1µs/div
The following waveforms were measured at the point of the corresponding
NOTE:
balloon number in the schematic diagram.
J-3
47 POWER ON
200mV 50ns/div
Page 92
MECHANICAL EXPLODED VIEW
110
139
132
211
211
114
211
130
J801
203
PWB110
(CRT PWB)
128
142
140
201
142
213
129
201
141
138
145
206
203
130
144
110
146
217
117
V801
PWB340
(POWER SW PWB)
208
149
208
115
120
119 208
SW501
123
124
110
110
104
208
126
208
125
150
L503
116
211
SP352
B
208
PWB070
(MAIN PWB)
147
101
K1-1
208
118
108
127
205
213
115
205
208
SP351
214
209
148
209
214
109
114
213
136
PWB030
(OPERATION PWB)
147
208
205
FB401
113
A
Page 93
MECHANICAL EXPLODED VIEW
204
204
204
112
143
102
205
210
206
202
205
205
105
207
212
107
213
115
134
206
TU601
A
133
106
206
L002
J4501
PWB010
(SYSCON PWB)
135
216
151
131
103
137
121
B
122
202
115
111
216
115
215
K1-2
Page 94
MECHANICAL REPLACEMENT PARTS LIST
Y
REF. NO. PART NO. DESCRIPTION Q'TY REF. NO. PART NO. DESCRIPTION Q'TY
101 S5-708-3G7-200 CABI,FRONT ASS'Y 1 140 ---- FELT SHEET 1
102 ---- SHIELD,CASE HEAD AMP 1 141 ---- FELT SHEET 1
103 ---- PLATE,EARTH-SYSCON 1 142 ---- FELT SHEET 4
104 S3-5WP-D06-800 BUTTON,REC 1 143 S5-OP7-000-360 HOLDER,EOT SENSOR 1
105 ---- HEAT SINK 2 144 S5-1WS-A00-160 COVER,TRANS 1
106 S7-1WP-A02-430 PLATE,JACK 1 145 ---- LABEL,ANTI-THEFT 1
107 ---- HEAT SINK 1 146 S3-5WP-B00-440 BUTTON,POWER 1
108 ---- HEAT SINK 1 147 ---- WIRE,SPEAKER 2
109 ---- HEAT SINK 2 148 S9-0PS-120-100 PUSH SPACER 1
110 ---- SHEET,CRT SUPPORT(A) 4
111 ---- PLATE,SHIELD BOTTOM 1 150 ---- FELT SHEET 1
112 S5-3WU-AA0-060 SPR,EARTH HEAD AMP 1 151 ---- WIRING CLIP 1
113 ---- RUBBER,SILCON 2
114 ---- COATING CLIP 2 201 S1-172-40C-540 SCREW,TAPPING(B0) BIND 4x35 2
115 ---- CORD CLIP UL CO. 5 202 S1-175-40B-040 SCREW,TAP(B0)TRUSS 4-20 2
116 ---- CABI,FRONT 1 203 S1-175-40A-640 TAP(B0)4-16 2
117 S0-1WP-J09-100 PLATE,FRONT 1 204 S1-171-40A-240 TAP(B0)V+4-12 3
118 S1-2WP-J06-650 FLAP 1 205 S1-09I-30A-040 SCREW,TAP TITE(B) 3-10 7
119 S1-3WP-A01-110 GLASS,LED 1 206 S1-106-30A-240 SCREW,TAP(P)3-12 6
120 S1-3WP-A01-100 GUIDE,REMOCON 1 208 S1-106-30A-040 UIT+3-10 23
121 ---- SHIELD,COVER 1 209 S1-079-306-040 SCREW,CUP(S) 3X6 2
122 ---- SHIELD,CASE 1
123 S2-344-901-020 BADGE,BRAND 1 210 87-741-095-410 SCREW,TAP TITE(P) FLAT 3-8 1
124 S3-5WP-D06-790 BUTTON,OTPB 1 211 S1-21J-50B-540 SCREW,TAP GW20 5-28 4
125 S3-5WP-J01-280 BUTTON,FRAME 1 212 87-743-073-010 VT2+2.6-6 1
126 S3-5WP-D06-780 BUTTON,PLAY 1 213 87-753-095-410 SCREW,TAP 3-8 7
127 S4-3WK-A00-320 SPR,FLAP 1 214 S1-0A1-30B-040 SCREW,WASHER(A)M3-20 3
128 S5-708-3G7-400 CABI,BACK ASS'Y 1 215 S1-106-306-040 UIT+3-6 1
129 ---- CABI,BACK 1 216 S1-076-306-040 BVTT+3-6 4
130 ---- FELT SHEET 2
131 S5-3WS-A01-200 PLATE,BOTTOM-EARTH 1
132 S4-1WU-A00-240 SPRING,EARTH 1
133 ---- PLATE,DECK SHIELD ASS'
134 S6-1WP-A01-510 HOLDER,M/PWB 1
135 S6-1WP-AA0-230 HOLDER,DECK 1
136 S6-1WP-A01-450 HOLDER,FBT 1
137 ---- SHEET,PVC 1
138 ---- SHEET,RATING 1
139 ---- LABEL,POP 1
149 S5-2WS-A01-990 PLATE,POWER SW 1
207 S1-076-308-040 SCREW,TAP 1
217 S1-0A1-305-040 SCREW,WASHER(A) M3-5 2
1
ACCESSORY REPLACEMENT PARTS LIST
REF. NO. PART NO. DESCRIPTION Q'TY
1 S7-6R0-DF0-200 TRANSMITTER R25-1397 1
2 S5-708-3G9-750 INSTRUCTION BOOK KIT 1
3 S5-708-301-000 IB,VX-T149K 1
K1-3
Page 95
CHASSIS EXPLODED VIEW (TOP VIEW)
K2-1
515
360
Page 96
CHASSIS EXPLODED VIEW (BOTTOM VIEW)
302
300
307
327
308
354
513
326
350
341
322
514
AA
340
511
AA
342
AB
AA
343
511
339
AA
AB
503
345
AA
AA
514
AC
M2001
331
AB
346
AA
AA
344
333
AA
332
346
311
312
325
AB
CLASS
GREASE G-555G
OIL
PART NO.
MG-33
FL-721 AC
FL OIL No. 6115 BA
AB
MARK
AA
AB
504
K2-2
AA
AA
NOTE:
Applying positions AA, AB, AC, AD and BA for
the grease or oil are displayed for this section.
Check if the correct grease or oil is applied for
each position.
337
Page 97
CHASSIS REPLACEMENT PARTS LIST
REF. NO. PART NO. DESCRIPTION Q'TY REF. NO. PART NO. DESCRIPTION Q'TY
300 ---- DECK ASSY A57054A420A 1 350 S5-OP8-003-360 SPR,CAP BRAKE (S) 1
301 S5-OA5-000-220 AHC ASS'Y 1 352 S5-OP8-003-260 SPR,LINK 1
302 S5-OP2-002-900 BELT,CAPSTAN (S) 1 353 S5-OP8-003-280 SPR,DAMPER 1
303 S5-OP9-007-100 LEVER,REC 1 354 S5-OP8-003-300 SPR,RING 1
304 S5-OP5-000-830 BASE,AC HEAD 1 355 S5-OP8-003-370 SPR,SS BRAKE (S) 1
305 S5-OP8-003-240 SPR,AC HEAD 1 356 S5-OP9-006-800 OPENER,CASS 1
306 S5-OA0-003-670 MAIN CHASSIS ASS'Y (S-Z) 1 357 S5-OP9-007-310 CASS SIDE L 1
307 S5-OA2-000-820 CLUTCH ASS'Y(S2) 1 358 S5-OP9-007-320 CASS SIDE R 1
308 S5-OA2-000-800 ARM,IDLER ASS'Y (S) 1 359 S5-OP9-007-280 TAPE GUIDE L(P,R) 1
309 S5-OP6-005-560 ARM,SS BRAKE (S) 1
310 S5-OP2-002-920 REEL,T (S) 1 361 S5-OP9-007-140 COVER,SENSOR L3 1
311 S5-OA3-000-610 LOAD ARM S ASS'Y 1 362 S5-OP9-006-880 LEVER,FLAP 1
312 S5-OA3-000-620 LOAD ARM T ASS'Y 1 363 S5-OP9-006-900 CASS HOLDER 1
313 S5-OA4-002-100 GUIDE ROLLER ASS'Y 2 364 S5-OP6-005-400 DRIVER,WORM 1
314 S5-OA4-001-880 BASE,INCL S ASS'Y 1 365 S5-OP9-007-130 LOCKER,R2 1
315 S5-OA4-001-960 BASE,INCL T(S) ASS'Y 1 366 S5-OP9-006-940 SPR,PACK 2
316 S5-OA4-001-990 P5-3 ARM ASS'Y(S) 1 367 S5-OP9-006-950 BRACKET,TOP 1
317 S5-OA4-002-050 PINCH ROLLER BLOCK 1 368 ---- SPR,CASS EARTH 1
318 S5-OA4-001-750 TENSION ARM ASS'Y 1 369 S5-OP8-003-410 SPRING,P/R ARM 1
319 S5-OA4-001-840 TENSION BAND ASS'Y (S) 1
320 S5-OA4-001-780 PINCH ROLLER LEVER ASS'Y 1 502 S1-072-268-040 VT2+2.6-8 3
321 S5-OA6-001-960 BRAKE T ASSY(S) 1 503 87-743-073-010 VT2+2.6-6 3
322 S5-OA6-001-910 CAP BRAKE ASS'Y(S) 1 504 87-743-073-410 SCREW,TAP 2.6-6 3
323 S5-OA9-002-130 LINK ASS'Y 1 505 S1-0A1-268-040 SCREW,WASHER(A)M2.6-8 1
324 S5-OA9-002-160 LINK LEVER ASS'Y 1 506 S1-0B1-264-040 SCREW,WASHER(B)M2.6-4 1
325 S5-OP2-002-840 LEVER,CLUTCH (S) 1 507 87-261-035-410 SCREW,PAN M2-6 3
326 S5-OP2-002-850 ACTUATOR,CLUTCH 1 508 87-261-032-410 SCREW,PAN M2-3 2
327 S5-OP2-002-980 GEAR,COUPLING(S2) 1 509 87-258-091-010 U+M3-3 2
328 S5-OP2-002-910 REEL,S (S) 1
329 S5-OP6-005-410 WORM 1 510 S1-0A1-235-040 SEMS A M2.3-5 2
330 S5-OP6-005-630 BRACKET,MOTOR 1 512 S2-Q26-47C-5N0 POLY,WASHER 2.6-4.7 2
331 S5-OP3-001-780 GEAR,MAIN LOADING 1 513 S2-P18-450-5N0 PW(CUT)1.8-4.5-0.5 1
332 S5-OP3-001-790 GEAR,LOADING S 1 514 S3-ETW-300-000 E-RING 3 2
333 S5-OP3-001-800 GEAR,LOADING T 1 515 S1-0A1-265-040 SCREW,WASHER(A) M2.6-5 3
334 S5-OP3-001-870 HOLDER,LOADING GEAR (S-Z) 1
335 S5-OP4-004-720 ADJUST,TENSION 1 CP101 ---- CONN,PWB SIDE 52044-0445 1
336 S5-OP4-004-920 HOLDER,TENSION 1 H5001 S5-23D-910-340 HEAD,AC HVMXA1072A 1
337 S5-OP4-004-900 LEVER,TENSION 1 H5002 S5-43D-020-130 HEAD,FE 1
338 S5-OP4-004-750 COVER,P4 1 ! M101 S5-96P-780-010 MOTOR(LOADING) 1
339 S5-OP6-005-430 GEAR,JOINT 1 ! M2001 S5-94J-980-090 CAPSTAN DD UNIT EP15BD 1
340 S5-OP6-005-440 GEAR,MIDDLE 1 PWB550 ---- DECK PWB ASS'Y VE8851 1
341 S5-OP6-005-540 CAM,MAIN (S) 1 Q101 S0-007-003-200 PHOTO,TR RPT-38PB113 1
342 S5-OP6-005-460 CAM,P5 1 ! UN4001 S4-D12-0B5-000 CYLINDER UNIT ASSY A4D120B500 1
343 S5-OP6-005-650 CAM,PINCH ROLLER 1
344 S5-OP6-005-610 ROD,MAIN(S) 1
345 S5-OP7-000-350 REFLECTOR,LED 1
346 S5-OP8-003-180 SPR,LOADING GEAR 2
347 S5-OP8-003-340 SPR,P5 (S) 1
348 S5-OP8-003-350 SPR,BRAKE T (S) 1
349 S5-OP8-003-220 SPR,TENSION 1
351 S5-OP8-003-420 SPRING,LOCKER(S) 1
360 S5-OP9-007-290 TAPE GUIDE R 1
501 87-654-075-410 SCREW,TAP 2.6-10 1
511 S2-P26-600-5N0 PW(CUT)2.6-6-0.5 3
M2003 S5-89V-110-070 MICRO MOTOR 1
K2-3
Page 98
ELECTRICAL REPLACEMENT PARTS LIST
REF.NO PART NO. DESCRIPTION REF.NO PART NO. DESCRIPTION
SYSCON PWB ASS'Y C4017 87-015-677-010 CAP,E 100-6.3
*** RESISTORS *** C4025 87-010-404-080 CAP,E 4.7-50V
R620 87-025-362-080 RES,M 390-1/6W C4036 87-010-404-080 CAP,E 4.7-50V
! R1005 S6-150-12R-7J0 RES,FUSE 2.7-1W C4038 87-015-695-080 CAP,E 1-50V
*** CAPACITORS *** C4040 87-010-402-080 CAP,E 2.2-50V
C351 87-016-053-080 CAP,E 22-16V C4042 87-010-400-080 CAP,E 0.47-50V
C352 87-016-053-080 CAP,E 22-16V C4049 87-010-076-040 CAP,E 22UF-6.3V
C354 87-010-271-080 CAP,E 1000-16V C4050 87-010-404-080 CAP,E 4.7-50V
C357 87-010-388-090 CAP,E 1000-25V C4051 87-015-075-040 CAP,E 10-16V
C358 87-015-696-080 CAP,E 2.2-50 C4055 87-010-374-080 CAP,E 47-6.3V
C359 S0-2LU-222-1M0 CAP,E 220-16V C4057 87-010-404-080 CAP,E 4.7-50V
C605 87-010-402-080 CAP,E 2.2-50V C4069 87-010-549-010 CAP,E 47-6.3V
C611 87-010-378-080 CAP,E 10-16V C4071 87-015-075-040 CAP,E 10-16V
C612 87-010-378-080 CAP,E 10-16V C4073 87-010-403-080 CAP,E 3.3-50V
C613 87-010-378-080 CAP,E 10-16V C4074 87-015-075-040 CAP,E 10-16V
C614 87-010-112-080 CAP,E 100-16V C4078 87-010-402-080 CAP,E 2.2-50V
C618 87-015-695-080 CAP,E 1-50V C4084 87-016-088-040 CAP,E 220-6.3V
C619 87-015-695-080 CAP,E 1-50V C4085 87-010-404-080 CAP,E 4.7-50V
C620 87-010-374-080 CAP,E 47-6.3V C4088 87-010-549-010 CAP,E 47-6.3V
C622 87-015-695-080 CAP,E 1-50V C4091 87-010-380-080 CAP,E 47-16V
C626 87-010-400-080 CAP,E 0.47-50V C4092 87-010-380-080 CAP,E 47-16V
C632 87-010-560-010 CAP,E 10-50V C4093 87-015-695-080 CAP,E 1-50V
C634 87-010-404-080 CAP,E 4.7-50V C4096 87-010-380-080 CAP,E 47-16V
C636 S0-0NU-322-0M0 CAP,E 22-25V C4102 87-016-088-040 CAP,E 220-6.3V
C639 87-015-075-040 CAP,E 10-16V C4108 87-010-112-080 CAP,E 100-16V
C642 87-010-403-080 CAP,E 3.3-50V C4504 87-015-075-040 CAP,E 10-16V
C645 87-015-695-080 CAP,E 1-50V C4508 87-015-695-080 CAP,E 1-50V
C651 87-015-075-040 CAP,E 10-16V C4509 87-010-378-080 CAP,E 10-16V
C652 87-015-693-080 CAP,E 0.33-50V C4522 87-015-075-040 CAP,E 10-16V
C656 87-A10-189-040 CAP,E 220-10V
C658 87-015-677-010 CAP,E 100-6.3 *** DIODES ***
C659 87-010-400-080 CAP,E 0.47-50V
C667 87-010-067-010 CAP,E 0.1-50V D350 87-020-465-010 DIODE,1SS133T
C669 87-015-075-040 CAP,E 10-16V D601 87-020-465-010 DIODE,1SS133T
C675 87-010-112-080 CAP,E 100-16V D602 87-020-465-010 DIODE,1SS133T
C852 87-015-975-080 CAP,E 220-6.3V D604 S2-8T1-1ES-N10 DIODE,11ES1N-TA1B2
C854 87-010-371-080 CAP,E 470-6.3V D605 87-020-465-010 DIODE,1SS133T
C856 87-010-371-080 CAP,E 470-6.3V D606 87-020-465-010 DIODE,1SS133T
C857 87-010-112-080 CAP,E 100-16V D608 87-020-465-010 DIODE,1SS133T
C863 87-010-379-080 CAP,E 22-16V D609 87-020-465-010 DIODE,1SS133T
C872 87-010-112-080 CAP,E 100-16V D610 87-020-465-010 DIODE,1SS133T
C873 87-010-112-080 CAP,E 100-16V D611 87-020-465-010 DIODE,1SS133T
C874 87-010-112-080 CAP,E 100-16V D612 87-020-465-010 DIODE,1SS133T
C879 87-015-975-080 CAP,E 220-6.3V D851 87-020-465-010 DIODE,1SS133T
C881 87-010-403-080 CAP,E 3.3-50V D852 87-020-465-010 DIODE,1SS133T
C882 87-010-403-080 CAP,E 3.3-50V D854 S2-3U1-003-A30 DIODE,SB10-03A3
C883 87-010-403-080 CAP,E 3.3-50V D855 87-020-465-010 DIODE,1SS133T
C892 87-010-380-080 CAP,E 47-16V D856 87-020-465-010 DIODE,1SS133T
C1001 87-010-112-080 CAP,E 100-16V D857 87-020-465-010 DIODE,1SS133T
C1003 S5-1A0-P10-4Z0 CAP,E 0.1F-5.5V D858 87-020-465-010 DIODE,1SS133T
C1013 87-010-076-040 CAP,E 22UF-6.3V D859 87-020-465-010 DIODE,1SS133T
C1016 S0-0NU-047-0M0 CAP,E 47-6.3V D860 87-020-465-010 DIODE,1SS133T
C1020 87-010-404-080 CAP,E 4.7-50V D861 87-020-465-010 DIODE,1SS133T
C1021 87-015-683-080 CAP,E 33-16V D863 S2-8TE-QS0-400 DIODE,11EQS04N-TA
C1029 87-010-371-080 CAP,E 470-6.3V D1001 S2-LXE-658-000 DIODE,1N4005E-G23
C1032 87-016-088-040 CAP,E 220-6.3V D1002 87-020-465-010 DIODE,1SS133T
C1033 87-010-371-080 CAP,E 470-6.3V D1003 S0-106-000-600 LED,SID1050CM
C1036 87-010-371-080 CAP,E 470-6.3V D1004 S2-LXE-658-000 DIODE,1N4005E-G23
C1037 87-010-235-080 CAP,E 470-16V D1005 S9-2T1-120-B00 ZENER,RD12FB-T7
C1042 87-010-271-080 CAP,E 1000-16V D1006 S2-3U1-003-A30 DIODE,SB10-03A3
C1045 87-010-685-080 CAP,E 330-16V D1008 87-017-931-010 ZENER,MTZJ5.6B
C1048 87-010-404-080 CAP,E 4.7-50V D1009 87-020-465-010 DIODE,1SS133T
C1064 87-010-235-080 CAP,E 470-16V D1010 S2-3U1-003-A30 DIODE,SB10-03A3
C1070 S0-2LU-022-1M0 CAP,E 220-6.3V D1012 87-020-465-010 DIODE,1SS133T
C1102 87-015-677-010 CAP,E 100-6.3 D1014 87-020-465-010 DIODE,1SS133T
C4001 87-015-683-080 CAP,E 33-16V D1015 87-020-465-010 DIODE,1SS133T
C4015 87-016-088-040 CAP,E 220-6.3V
C4024 87-010-403-080 CAP,E 3.3-50V
C4031 S5-0HU-54R-7M0 CAP,E 4.7-50V
C4039 87-010-404-080 CAP,E 4.7-50V
C4041 87-010-404-080 CAP,E 4.7-50V
K3-1
Page 99
ELECTRICAL REPLACEMENT PARTS LIST
REF.NO PART NO. DESCRIPTION REF.NO PART NO. DESCRIPTION
D1016 87-020-465-010 DIODE,1SS133T Q4007 89-324-122-080 TR,2SC2412KT
D1017 87-020-465-010 DIODE,1SS133T Q4010 89-324-122-080 TR,2SC2412KT
D1018 S2-8TE-QS0-400 DIODE,11EQS04N-TA Q4201 SN-YTB-050-010 TR,DTC114E
D1019 S2-8TE-QS0-400 DIODE,11EQS04N-TA Q4501 89-324-122-080 TR,2SC2412KT
D1022 87-020-465-010 DIODE,1SS133T Q4502 89-110-372-080 TR,2SA1037AK
D1023 87-017-931-010 ZENER,MTZJ5.6B Q4505 89-324-122-080 TR,2SC2412KT
D4003 S0-400-721-010 DIODE,RB721Q Q4507 89-324-122-080 TR,2SC2412KT
D4202 S2-8T1-1ES-N10 DIODE,11ES1N-TA1B2 Q4510 89-324-122-080 TR,2SC2412KT
D4503 87-020-465-010 DIODE,1SS133T Q4511 89-324-122-080 TR,2SC2412KT
D4510 87-020-465-010 DIODE,1SS133T Q4512 89-324-122-080 TR,2SC2412KT
*** ICS ***
IC352 S0-FSP-752-300 IC,AN7523
IC601 S0-3DE-681-200 IC,LA76812 B851 S2-4DT-035-810 CORE,BEADS LFP3A-M3R2TA
IC851 SC-KD0-010-600 IC,ET106 B4501 S2-4AC-360-1C0 CORE,BEADS BLM21A601SPT
IC852 SC-KD0-031-700 IC,ET317 B4502 S2-4AC-360-1C0 CORE,BEADS BLM21A601SPT
IC853 S5-5JM-405-3A0 IC,TC74HC4053AF B4503 S2-4DT-035-810 CORE,BEADS LFP3A-M3R2TA
! IC1001 S0-7SQ-695-500 IC,BA6955N B4504 S2-4DT-035-810 CORE,BEADS LFP3A-M3R2TA
IC1002 SE-1J0-S31-AH0 IC,RE5VS31A
! IC1003 S1-KA9-780-9A0 IC,KIA7809API L600 S2-AXB-9A9-710 CORE FERRITE ESD-R-30SD
! IC1004 S1-KA9-780-5A0 IC,KIA7805API L601 S2-AXB-9A9-710 CORE FERRITE ESD-R-30SD
! IC1005 S1-KA9-780-5A0 IC,KIA7805API L601 S2-167-D10-1K0 COIL,100UH
IC1006 S5-4F5-009-3B0 IC,OEC0093B L603 87-003-146-010 COIL,15UH
IC1099 S5-708-3G0-150 IC,S-24C08ADPA-01 L604 S2-1LA-6R2-2M0 COIL,0.22 LAP02TAR22M
IC4001 S0-4F3-821-7F0 IC,HA118217F L605 S2-167-D10-1K0 COIL,100UH
IC4002 S0-3F6-479-300 IC,LC74793/JM L606 87-A50-040-010 COIL,2.2UH
*** TRANSISTORS *** L609 S2-167-D10-1K0 COIL,100UH
Q351 89-324-122-080 TR,2SC2412KT L851 87-003-102-010 COIL,10UH
Q353 89-324-122-080 TR,2SC2412KT L852 87-003-102-010 COIL,10UH
Q601 SC-3T0-300-000 TR,2SC3000 L854 87-003-152-010 COIL,100UH
Q602 89-324-122-080 TR,2SC2412KT L1001 87-003-282-010 COIL,12UH
Q605 89-324-122-080 TR,2SC2412KT L4001 S3-262-300-380 COIL,TRAP 2623003
Q608 89-109-330-010 TR,2SA933STP L4002 S2-167-D10-1K0 COIL,100UH
Q609 89-324-122-080 TR,2SC2412KT L4003 S2-167-D10-1K0 COIL,100UH
Q610 89-324-122-080 TR,2SC2412KT L4004 S2-167-F10-1J0 COIL,100UH
Q611 87-026-239-080 DTC114TKAT14 L4005 S3-162-600-880 COIL,BIAS OSC 1626008
Q612 87-026-239-080 DTC114TKAT14 L4006 87-003-112-010 COIL,1MH
Q851 89-324-122-080 TR,2SC2412KT L4007 S2-167-D10-1K0 COIL,100UH
Q852 89-324-122-080 TR,2SC2412KT L4008 87-003-112-010 COIL,1MH
Q853 89-324-122-080 TR,2SC2412KT L4009 S2-167-D10-1K0 COIL,100UH
Q855 89-324-122-080 TR,2SC2412KT L4010 S2-167-D10-1K0 COIL,100UH
Q856 89-324-122-080 TR,2SC2412KT L4011 87-003-282-010 COIL,12UH
Q862 89-324-122-080 TR,2SC2412KT L4012 87-003-154-080 COIL,220UH
Q863 89-324-122-080 TR,2SC2412KT L4013 S2-167-D10-1K0 COIL,100UH
Q1001 S0-027-005-900 PHOTO COUPLER RPI-301 L4015 S2-167-D10-1K0 COIL,100UH
Q1002 89-324-122-080 TR,2SC2412KT L4016 87-003-285-010 COIL,39UH
Q1003 S0-027-005-300 PHOTO,COUPLER RPI-352Q01 L4018 87-003-147-010 COIL,22UH
Q1004 87-026-236-080 TR,DTC124EK L4502 87-003-152-010 COIL,100UH
Q1005 S0-027-005-900 PHOTO COUPLER RPI-301 L4503 87-003-102-010 COIL,10UH
Q1006 87-026-228-080 TR,DTA124EK L4504 87-003-102-010 COIL,10UH
! Q1007 87-026-239-080 DTC114TKAT14
Q1008 87-026-239-080 DTC114TKAT14 *** JACKS ***
Q1009 S0-027-005-300 PHOTO,COUPLER RPI-352Q01
Q1010 SD-3T0-073-400 TR,2SD734(E,F,G)-AA J4501 S6-3G1-000-370 SOCKET,21PIN 035_0_9985_0
Q1011 89-324-122-080 TR,2SC2412KT
Q1014 89-324-122-080 TR,2SC2412KT *** SWITCHES ***
Q1015 89-324-122-080 TR,2SC2412KT
Q1016 89-324-122-080 TR,2SC2412KT SW1001 S5-082-210-010 SW,LEAF SPVF130100
Q1017 S0-001-003-800 PHOTO TR,PNA2604M010R
! Q1018 SB-3T0-089-200 TR,2SB892 *** CONNECTORS ***
Q1019 SB-3T0-089-200 TR,2SB892
Q1021 89-324-122-080 TR,2SC2412KT CP603 S6-9E2-901-290 CONN,PWB SIDE
Q4001 SD-3T0-073-400 TR,2SD734(E,F,G)-AA CP757 S6-9E2-A01-290 CONN,PWB SIDE
Q4002 SD-3T0-073-400 TR,2SD734(E,F,G)-AA CP1004 S6-972-805-900 CONN PWB SIDE TMC-J08P-B1
Q4003 87-026-228-080 TR,DTA124EK CP1005 S6-9J7-500-290 CONN,IMSA-9604S-05Z14
Q4004 SC-3T0-333-100 TR,2SC3331(S,T,U)-A CP1006 S6-9J7-400-290
Q4005 SC-3T0-333-100 TR,2SC3331(S,T,U)-A CP4001 S6-972-406-000 CONN,PWB SIDE TOC-C04X-B1
Q4006 89-110-372-080 TR,2SA1037AK CP4004 S6-971-203-200 CONN,TMC-TD2X-E1
Q4513 89-324-122-080 TR,2SC2412KT
*** COILS ***
L608 S3-360-K04-380 COIL,V IFT 360K043
L610 S2-16S-12R-2J0 COIL,2.2UH
CONN,PWB SIDE IMSA-9604S-04Z14
K3-2
Page 100
ELECTRICAL REPLACEMENT PARTS LIST
REF.NO PART NO. DESCRIPTION REF.NO PART NO. DESCRIPTION
CP4005 S6-9J7-600-290 CONN,IMSA-9604S-06Z14 *** OTHERS ***
*** FILTERS *** CD351 S6-CH2-708-7A0 CORD CONN CH27087A
CF601 S0-22V-39R-520 FILTER,SAW SAF39.5MZL220ZL
CF602 S0-12T-041-010 CER,FLTR MKT41.5MA110 OS753 S7-7Q0-000-170 REMOTE RECEIV
*** CRYSTAL & CERAMIC OSCILLATORS *** MAIN PWB ASS'Y
X601 S0-0CT-4R4-060 X'TAL HC-94/U *** RESISTORS ***
X851 S0-0CT-013-020 X'TAL HC-49/U-S
X1001 S0-0CT-010-020 X'TAL,HC-49/U R411 87-022-629-080 RES,M/F 11K-1/6W
X1002 S0-0D3-2R8-010 X'TAL,32.768K R413 87-025-424-080 RES,MF 10K-1/6W
X4001 S0-0CT-4R4-070 X'TAL HC-49/U R418 S4-X5T-41R-5F0 RES,M 1.5-1/4W
*** TUNER *** ! R448 SF-F01-02J-B10 RES,M 1K-1W
! TU601 S1-44W-070-230 TUNER,UHF ! R450 S6-558-15R-6J0 RES,FUSE 5.6-1W
*** OTHERS *** ! R505 S3-X28-B33-3J0 RES,M 33K-3W
CD652 S6-CH0-140-8A0 CORD EIS CONN CH01408A ! R517 S3-X28-AR2-2J0 RES,M 0.22-2W
CD653 S6-CH0-140-8A0 CORD,CONN CH01408A R528 S3-X18-1R3-3J0 RES,M 0.33-1W
CD810 S6-CH2-809-2A0 CORD CONN CH28092A R529 87-025-277-010 RES,M 2.7K-1/4W
CD850 S6-CH2-508-0A0 CORD CONN CH25080A ! R542 S3-X18-1R3-3J0 RES,MO 0.33-1W
CP502 S6-CH2-D06-8A0 CORD CONN CH2D068A ! R543 S6-35U-268-1J0 RES,FUSE 680-1/2W
OPERATION PWB ASS'Y *** CAPACITORS ***
*** CAPACITORS *** C403 87-010-560-080 CAP,E 10-50V
C353 87-010-380-080 CAP,E 47-16V C405 87-016-636-080 CAP,E 4.7-50V
C354 87-010-380-080 CAP,E 47-16V C406 S5-EZT-410-1M0 CAP,E 100-35V
C755 87-016-088-040 CAP,E 220-6.3V C407 S6-2I0-312-2M0 CAP,E 1200-25V
*** DIODES *** C421 S5-EZ0-410-2M0 CAP,E 1000-35V
D791 S0-21M-2Q1-200 LED,EQ-552-F1T C423 S4-11F-347-4J0 CAP,MPP 0.47-250V
D792 S0-21M-2Q1-200 LED,EQ-552-F1T C424 SA-LR8-22J-010 CAP,MPP 0.0082-1.6KV
D793 S0-21M-2Q1-200 LED,EQ-552-F1T C425 S0-JLY-R71-3K0 CAP,001-2KV
D796 S0-21M-5Q1-500 LED,EM-553-F1T C429 87-012-376-010 CAP,CER 470PF-500V
D797 S0-21M-2Q1-200 LED,EQ-552-F1T ! C431 87-016-373-080 CAP,E 10-250V
*** COILS *** ! C505 S2-122-B22-4M0 CAP,0.22-250V E
B701 S2-4AT-036-550 CORE,BEADS BL01RN1-A63T6 ! C507 S1-9A0-C01-040 CAP,E 100-400V
B702 S2-4AT-036-550 CORE,BEADS BL01RN1-A63T6 C510 S5-EZT-422-1M0 CAP,E 220-35V
L004 S2-A6A-8A0-A10 CORE,FERRITE HF57T18.5*10*10 C514 S0-JLY-R7H-3K0 CAP,0.0022-2KV
L005 S2-A6A-8A0-A10 CORE,FERRITE HF57T18.5*10*10 C516 87-012-376-010 CAP,CER 470PF-500V
L703 87-003-102-010 COIL,10UH C517 S0-JLY-R7G-3K0 CAP,0.0018-2KV
*** JACKS *** C519 87-012-376-010 CAP,CER 470PF-500V
J351 S6-0G1-310-140 RCA JACK HTJ-035-28A C521 S6-2NF-C22-1M0 CAP,E 220-200V
J701 S6-021-010-200 JACK,RCA C522 S0-2LT-52R-2M0 CAP,E 2.2-50V
*** SWITCHES *** C524 S5-EZF-310-2M0 CAP,E 1000-25V
SW750 S5-042-01T-310 SW,TACT SKHVBED010 ! C530 SB-393-0M1-3M0 CAP,CER 0.001-250V
SW751 S5-042-01T-310 SW,TACT SKHVBED010 C531 87-010-618-010 CAP,E 2200-16V
SW791 S5-042-01T-310 SW,TACT SKHVBED010
SW792 S5-042-01T-310 SW,TACT SKHVBED010 *** DIODES ***
SW793 S5-042-01T-310 SW,TACT SKHVBED010
SW794 S5-042-01T-310 SW,TACT SKHVBED010 D401 S2-WT0-11E-100 DIODE,11E1-EIC
SW795 S5-042-01T-310 SW,TACT SKHVBED010 D410 87-017-931-010 ZENER,MTZJ5.6B
SW796 S5-042-01T-310 SW,TACT SKHVBED010 ! D411 S2-LTP-G06-J00 DIODE,RMPG06J
SW797 S5-042-01T-310 SW,TACT SKHVBED010 ! D413 S2-LTP-G06-J00 DIODE,RMPG06J
SW798 S5-042-01T-310 SW,TACT SKHVBED010 ! D501 S4-LZB-L06-L00 DIODE,GBL06L-6177
SW799 S5-042-01T-310 SW,TACT SKHVBED010 D502 S2-BT0-EG0-1C0 DIODE,EG-01C
CD750 S6-CH2-A01-4A0 CORD,CONN CH2A014A
! R447 S6-35U-268-0J0 RES,FUSE 68-1/2W
! R449 S5-X2C-E68-2J0 RES,CEMENT 6.8K-7W
! R501 S5-K2C-E2R-2J0 RES,CEM 2.2-7W
! R512 S3-X18-122-3J0 RES,MO 22K-1W
C404 87-016-636-080 CAP,E 4.7-50V
C418 S5-EZT-B01-0M0 CAP,E 1-160V
C422 S5-EZT-D01-0M0 CAP,E 1-250V
C450 S0-JLY-R7B-2K0 CAP,120P-2KV
! C506 S2-122-B10-4M0 CAP,MP 0.1-250V
C513 S5-EZT-522-0M0 CAP,E 22-50V
C518 87-012-376-010 CAP,CER 470PF-500V
C520 87-010-271-080 CAP,E 1000-16V
C523 S5-EZF-310-2M0 CAP,E 1000-25V
C527 S0-JLY-R7Q-2K0 CAP,470P-2KV
! D505 S2-8T2-1DQ-N90 DIODE,21DQ09N-TA2B
K3-3
Loading...
