Aiwa TV-C202SPH, TV-C202KER, TV-C202S User Manual

TV-C202S

SERVICE MANUAL

COLOR TELEVISION

• This Service Manual is the "Supplement" and replaces "Simple Manual" TV-C202S(PH), (S/M Code No. 09-00B-421-9T2).

• This Service Manual contains information about the difference between TV-C202S(PH) and TV-C202(KER). If requiring other information, see Service Manual of TV-C202(KER). (S/M Code No. 09-974-183-1FP).

S/M Code No. 09-00B-421-9S3

SUPPLEMENT

DATA

SPECIFICATIONS

Category

Color television

Broadcasting color system

PAL (B/G, D/K), SECAM (B/G, D/K, K1)

Television color system (Video input)

PAL, SECAM, NTSC

Receivable channel

BAND CHANNEL

E2- E12 (WEST EUROPE) R1-R12 (EAST EUROPE) VHF 1-9 (IVORY COAST) S1-S20 (OSCAR CABLE CH) S21-S23 (HYPER CABLE CH) UHF E21-E69 (EUROPE) S24-S41 (HYPER CABLE CH)

Aerial Input

75 ohms, unbalanced

Picture Tube

20"

Screen size

404(W) x 480(D) x 303(H)mm (16 x 19 x 12 in.)

Video Input/Output

1 Vp-p, 75 ohms

Audio Input

0.5 Vrms., 33 kohms more

3.58

, NTSC

, PAL60

4.43

Audio Output

0.5 Vrms., 2.2 kohms less

Speaker

76 mm(3 in.) round

Operating Voltage

100 – 240 V AC, 50/60 Hz

Power Consumption

85W

Earphone jack

Monaural-mini jack

Operating temperature

5°C – 40°C

Operating humidity

35% – 80%

Dimensions

520(W) x 479.5(D) x 425(H)mm (201/2 x 19 x 163/4 in.)

Weight

18 kg (39.6 lbs.)

• Design and specifications are subject to change without notice.

– 2 –

ELECTRICAL MAIN PARTS LIST

REF. NO. DESCRIPTIONPART NO. KANRI

86-LB7-622-010 IC,M37221M6-286SP 87-A20-371-080 IC,KA33V 87-A20-436-010 IC,LA7565N

87-A21-377-010 IC,S-24C02BDP-1A

87-A21-845-080 IC,KIA7042AP

87-070-080-010 IC,TA8759BN 87-027-938-010 IC,TC4053BP 87-070-117-010 IC,AN5265 87-070-237-010 IC,LA7832 87-A20-517-010 IC,STR-S6707

87-A30-096-010 P-COUPLER,TLP721F 87-A21-785-010 IC,KIA7812API 87-A21-788-010 IC,KIA7809API 87-020-881-080 IC,NJM78L05A 87-A91-538-010 RCR UNIT,SBX1981-72P

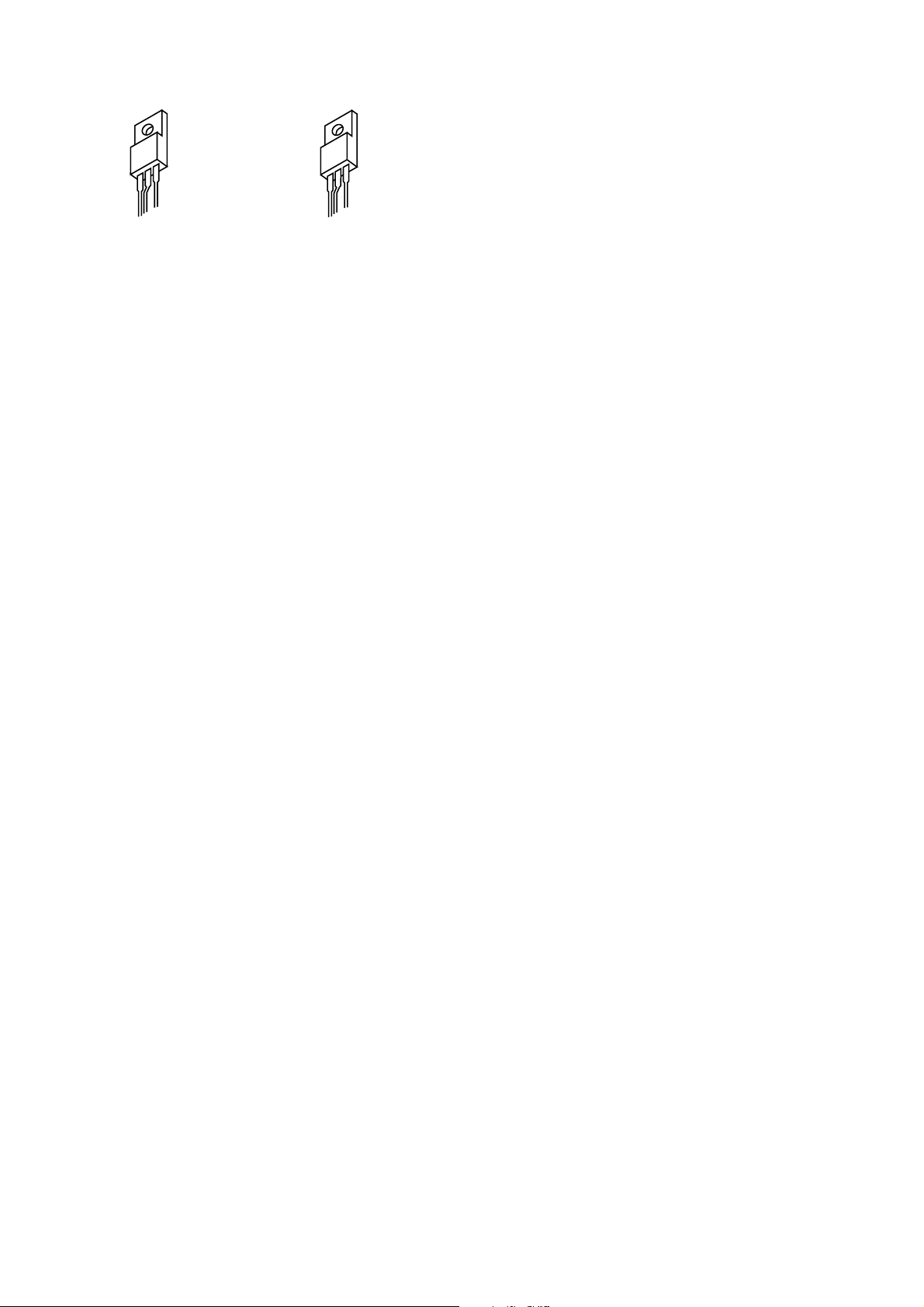

TRANSISTOR

87-A30-065-080 TR,2SC2785FE 87-026-218-080 TR,DTC144ES 87-A30-121-080 TR,DTC323TS 87-A30-066-080 TR,2SA1175FE 87-A30-090-080 FET,2SK2541

84-LB2-699-080 TR,2SC945A(C)-T 87-026-502-080 TR,DTC144TS 89-342-174-510 TR,2SC4217(D/E) 89-334-674-580 TR,2SC3467(D/E) 87-A30-095-010 TR,2SD2333

87-A30-114-080 TR,2SD1207TS 87-A30-041-110 TR,SE115N

DIODE

87-A40-291-080 DIODE,1N4148M(CPT) 87-A40-757-080 ZENER,UZ7.5BSC 87-A40-001-080 ZENER,MTZJ12C 87-A40-235-080 ZENER,MTZJ9.1C 87-A40-348-080 ZENER,MTZJ3.3A

87-070-274-080 DIODE,1N4003 SEM 87-A40-286-080 DIODE,RGP10JE-5025

87-A40-371-010 DIODE,D3SBA60-4101

87-070-111-060 DIODE,RU30A 87-017-354-080 DIODE,RU3

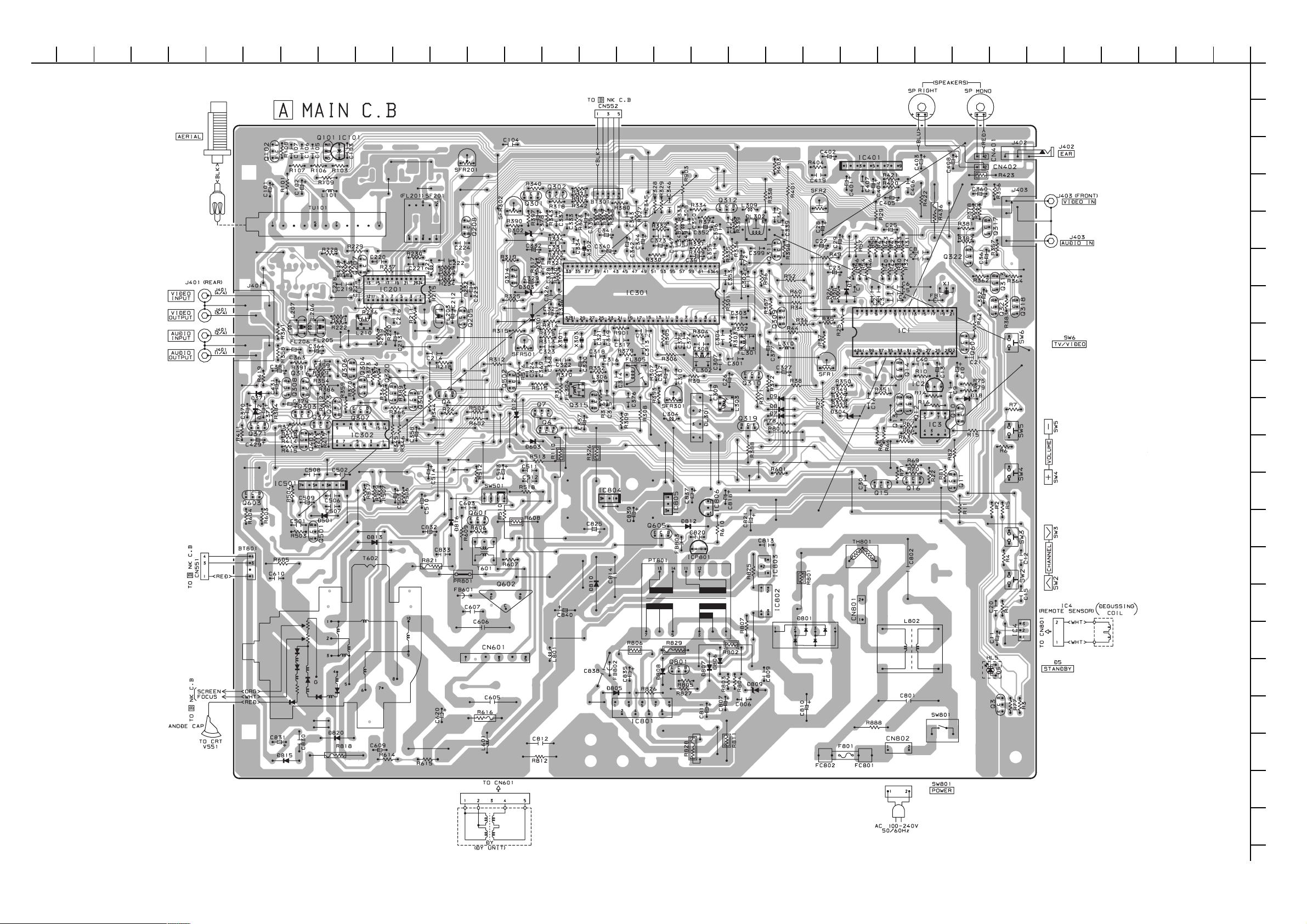

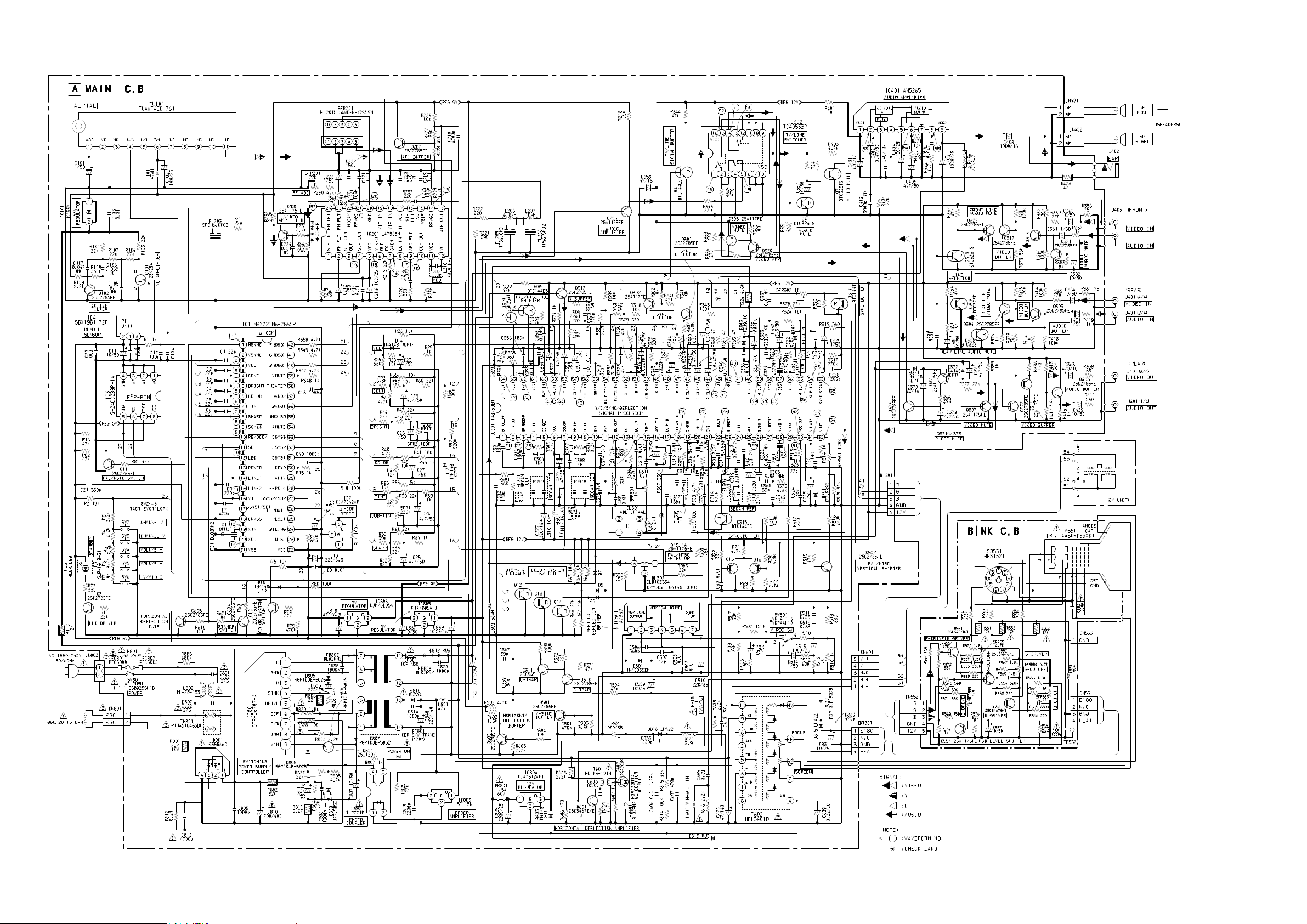

MAIN C.B

BT301 86-LB7-691-010 CONN ASSY,5P TN-3 BT801 84-LB3-690-110 CONN ASSY,4P TN-1 C1 87-018-109-080 CAP,TC U 22P-50 J SL UP050 C2 87-018-109-080 CAP,TC U 22P-50 J SL UP050 C3 87-018-109-080 CAP,TC U 22P-50 J SL UP050

C4 87-018-109-080 CAP,TC U 22P-50 J SL UP050 C5 87-018-109-080 CAP,TC U 22P-50 J SL UP050 C6 87-018-109-080 CAP,TC U 22P-50 J SL UP050 C7 87-018-127-080 CAP,TC U 470P-50 K B UP050 C8 87-018-123-080 CAP,TC U 220P-50 K B UP050

C9 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C10 87-016-088-080 CAP,E 220-6.3 M SR C11 87-A12-091-080 CAP,E 10-50 SMG C12 87-018-119-080 CAP,TC U 100P-50 K B UP050 C13 87-A12-083-080 CAP,E 0.1-50 SMG

C14 87-018-115-080 CAP,TC U 47P-50 J SL UP050 C15 87-018-119-080 CAP,TC U 100P-50 K B UP050 C16 87-018-131-080 CAP,TC U 1000P-50 K B UP050 C20 87-018-131-080 CAP,TC U 1000P-50 K B UP050 C21 87-018-125-080 CAP,TC U 330P-50 K B

C23 87-A12-087-080 CAP,E 1-50 SMG C25 87-A12-090-080 CAP,E 4.7-50 SMG C26 87-A12-090-080 CAP,E 4.7-50 SMG

KANRI NO.

REF. NO. DESCRIPTIONPART NO.

C27 87-A12-087-080 CAP,E 1-50 SMG C28 87-A12-087-080 CAP,E 1-50 SMG C29 87-A10-090-080 CAP,E 4.7-50 SMG C30 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C40 87-018-131-080 CAP,TC U 1000P-50 K B UP050

C101 87-A12-087-080 CAP,E 1-50 SMG C102 87-A12-072-080 CAP,E 100-25 SMG C103 87-A10-207-080 CAP,TC U 0.01-50 K B UP050 C104 87-018-119-080 CAP,TC U 100P-50 K B UP050 C212 87-A12-087-080 CAP,E 1-50 SMG

C213 87-A12-072-080 CAP,E 100-25 SMG C214 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C218 87-018-133-080 CAP,TC U 4700P-16 N X UP050 C219 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C221 87-018-134-080 CAP,TC U 0.01-16 N Y UP050

C222 87-018-121-080 CAP,TC U 150P-50 K B UP050 C223 87-A12-087-080 CAP,E 1-50 SMG C225 87-018-119-080 CAP,TC U 100P-50 K B UP050 C301 87-018-122-080 CAP,TC U 180P-50 K B UP050 C302 87-018-122-080 CAP,TC U 180P-50 K B UP050

C303 87-018-122-080 CAP,TC U 180P-50 K B UP050 C307 87-018-209-080 CAP,TC U 0.1-50 Z F UP050 C309 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C310 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C311 87-018-209-080 CAP,TC U 0.1-50 Z F UP050

C312 87-A12-086-080 CAP,E 0.47-50 SMG C313 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C314 87-018-122-080 CAP,TC U 180P-50 K B UP050 C315 87-018-107-080 CAP,TC U 18P-50 J SL UP050 C316 87-018-131-080 CAP,TC U 1000P-50 K B UP050

C320 87-010-529-080 CAP,E 1-50 M BP C325 87-A12-087-080 CAP,E 1-50 SMG C327 87-016-251-080 CAP,E 220-16 M SMG C328 87-018-195-080 CAP,TC U 1200P-16 N X UP050 C329 87-A12-087-080 CAP,E 1-50 SMG

C330 87-018-124-080 CAP,TC U 270P-50 K B UP050 C332 87-A12-089-080 CAP,E 3.3-50 SMG C335 87-A10-918-080 CAP,E 100-16 SMG C336 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C339 87-018-116-080 CAP,TC U 56P-50 J SL UP050

C340 87-A12-086-080 CAP,E 0.47-50 SMG C341 87-A12-086-080 CAP,E 0.47-50 SMG C342 87-A12-086-080 CAP,E 0.47-50 SMG C344 87-A12-087-080 CAP,E 1-50 SMG C347 87-A12-090-080 CAP,E 4.7-50 SMG

C348 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C349 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C350 87-018-123-080 CAP,TC U 220P-50 J B UP050 C351 87-A12-087-080 CAP,E 1-50 SMG C352 87-A12-087-080 CAP,E 1-50 SMG

C354 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C356 87-018-122-080 CAP,TC U 180P-50 K B UP050 C357 87-A12-091-080 CAP,E 10-50 SMG C358 87-A12-066-080 CAP,E 47-16 SMG C359 87-018-134-080 CAP,TC U 0.01-16 N Y UP050

C360 87-A12-091-080 CAP,E 10-50 SMG C361 87-A12-087-080 CAP,E 1-50 SMG C363 87-016-459-080 CAP,E 470-10 M SMG C364 87-A12-091-080 CAP,E 10-50 SMG C370 87-010-379-080 CAP,E 22-16 11L SME

C371 87-A12-090-080 CAP,E 4.7-50 SMG C372 87-A12-090-080 CAP,E 4.7-50 SMG C373 87-018-115-080 CAP,TC U 47P-50 J SL UP050 C374 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C375 87-018-134-080 CAP,TC U 0.01-16 N Y UP050

C377 87-A12-071-080 CAP,E 47-25 SMG C378 87-A10-087-080 CAP,E 1-50 SMG C379 87-A12-090-080 CAP,E 4.7-50 SMG C381 87-A12-091-080 CAP,E 10-50 SMG C382 87-A12-091-080 CAP,E 10-50 SMG

NO.

– 3 –

REF. NO. DESCRIPTIONPART NO.

NO.

C399 87-A10-211-010 CAP,CER 0.1-50 M C401 87-A12-068-090 CAP,E 470-16 SMG C402 87-A12-086-080 CAP,E 0.47-50 SMG C403 87-A10-831-090 CAP,E 1000-25 M SMG C404 87-A12-072-080 CAP,E 100-25 SMG

C405 87-A12-090-080 CAP,E 4.7-50 SMG C406 87-A10-210-010 CAP,CER 0.047-50 M C407 87-A11-148-080 CAP,TC U 0.1-50 Z F C408 87-A10-730-080 CAP,E 1000-16 SMG C429 87-A12-091-080 CAP,E 10-50 SMG

C431 87-A12-087-080 CAP,E 1-50 SMG C501 87-018-127-080 CAP,TC U 470P-50 K B UP050 C502 87-018-134-080 CAP,TC U 0.01-16 N Y UP050 C503 87-A12-087-080 CAP,E 1-50 SMG C506 87-A10-408-080 CAP,CER 560P-500 K YP

C507 87-012-357-010 CAP,CER 47P-500 J CH DD10 C508 87-018-131-080 CAP,TC U 1000P-50 K B UP050 C509 87-A12-095-080 CAP,E 100-50 SMG C510 87-A12-080-080 CAP,E 220-35 SMG C513 87-A10-831-090 CAP,E 1000-25 M SMG

C514 87-A12-087-080 CAP,E 1-50 SMG C603 87-010-976-080 CAP,CER 1000P-500 K B DD10 C605 87-016-481-010 CAP,M/P 0.47-200 J DHS C606 87-016-357-010 CAP,M/P 0.01-1.25K PH C607 87-A10-860-090 CAP,CER 470P-2 K K R

C609 87-010-709-080 CAP,0.22-50M BP SM C620 87-016-220-090 CAP,E 47-160 M TWSS

C801 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)

C802 87-A10-688-090 CAP,M/P 0.22-275 K (B81133) C807 87-A12-091-080 CAP,E 10-50 SMG

C809 87-016-515-080 CAP,CER 1000P-1K K B DE

C810 87-A10-647-090 CAP,E 200-400 SMH C811 87-A12-067-080 CAP,E 330-16 SMG

C812 87-A10-519-010 CAP,CER 4700P-4K M E K X C813 87-A10-469-080 CAP,CER 2200P-500 K B DD10

C814 87-A10-238-010 CAP,M/P 1000P-1.6 K J DKR C818 87-A12-058-080 CAP,E 470-6.3 SMG C820 87-010-976-080 CAP,CER 1000P-500 K B DD10 C821 87-010-389-090 CAP,E 2200-25 SME C825 87-010-389-090 CAP,E 2200-25 M SME

C830 87-012-386-080 CAP,CER 470P-2K K BN DE C831 87-016-373-080 CAP,E 10-250 SME C832 87-010-397-090 CAP,E 1000-35 M SME C833 87-010-976-080 CAP,CER 1000P-500 K B DD10 C835 87-A12-073-080 CAP,E 220-25 SMG

C837 87-A10-091-080 CAP,E 10-50 SMG C838 87-A10-832-010 CAP,CER 1000P-1K K R LONG C839 87-A10-730-080 CAP,E 1000-16 SMG C840 87-A10-731-090 CAP,E 220-160 M KMF CN401 86-LBR-690-210 CONN ASSY,2P SP MONO

CN402 86-LB4-692-210 CONN ASSY,2P SP RIGHT CN601 87-099-675-010 CONN,5P V V

CN801 82-481-649-010 CONN,2P V VT-50P

CN802 87-099-674-010 CONN,2P V VA D5 87-070-110-010 LED,SLP-181B-51 RED

DL301 84-LB3-638-010 DL,ADL-CP144E DL302 87-A90-370-010 DELAY LINE,ELB10Z334

F801 87-035-458-010 FUSE,4A 250V T 218 FB1 87-003-223-080 F-BEAD,BL02RN2 FB601 87-003-223-080 F-BEAD,BL02RN2

FB802 87-003-223-080 F-BEAD,BL02RN2 FB803 87-003-223-080 F-BEAD,BL02RN2

FC801 87-033-213-080 FUSE CLAMP,PFC5000

FC802 87-033-213-080 FUSE CLAMP,PFC5000 FL203 87-A90-223-080 FLTR, SFSH6.0MCB

FL205 87-A90-224-080 FLTR,TPS6.0MB FL206 87-008-577-080 FLTR,TPS5.5MB2 FL301 84-LB3-668-010 FLTR,SECAM DET FL302 84-LB3-668-010 FLTR,SECAM DET FL304 82-JT2-611-010 FLTR, SECAM REF

REF. NO. DESCRIPTIONPART NO.KANRI

KANRI NO.

FL305 84-LB3-622-010 FLTR,BELL 2 S-10E HL5 84-LB3-216-010 HLDR,LED

ICP801 87-001-132-080 PROTECTOR,IC ICP-N38 J401 87-A60-323-010 JACK,PIN 4P Y-BLK J402 87-A60-329-110 JACK,3.5 BLK MONO W/SW

J403 87-A60-370-010 JACK,PIN 2P BLK-Y W/SW L101 87-005-610-080 COIL,47UH J LAV35 L206 87-005-645-080 COIL,6.8UH K LF5.0S L207 87-005-684-080 COIL,10UH J LF5.0S L210 86-LB7-656-010 COIL,VCO2 38.0MHZ LA7565N

L221 87-005-684-080 COIL,10UH J LF5.0S L303 82-JT2-608-010 FLTR,DL PHASE L304 87-005-646-080 COIL,8.2UH K LF5.0S L306 87-005-611-080 COIL,56UH J LAV35 L308 87-005-688-080 COIL,22UH J LF5.0S

L309 87-005-693-080 COIL,56UH J LF5.0S L310 87-005-602-080 COIL,10UH J LAV35 L601 84-LB2-621-010 COIL,WLH-605 LIN L801 87-005-770-080 COIL,47UH K #7607

L802 87-A90-586-010 FLTR,LINE HL-28-153

PR801 87-A90-090-080 PROTECTOR,1.5A 4.91 SERIES 60V

PT801 86-LB4-655-010 PT,KER S/W TRANS ("20") R110 87-A00-164-090 RES,M/F 12K-2W J RSF(S) R326 87-A00-067-090 RES,M/F 6.8K-3W J R423 87-025-569-010 RES,M/F 47-1/2 WJ

R436 87-A00-284-090 RES,FUSE 8.2-2W J R TYPE R608 87-A00-185-010 RES,CEM 2.2K-5W J Z Y

R616 87-A00-049-060 RES,FUSE 2.2K-1/2W J R-TYPE R801 87-A00-555-010 RES,CEM 2.2-10W J MPC722 R802 87-A00-171-090 RES,M/F 82K-3W J

R806 87-A00-208-090 RES,M/F 22-1/2W J RSF(S) R811 87-A00-283-090 RES,M/F 0.27-2W J RSF(S) R812 87-A00-224-090 RES,SD8.2M-1W J CE

R818 87-A00-419-090 RES,FUSE 1-2W J ERQ2Z

R821 87-A00-052-060 RES,FUSE 3.9-1W J R-TYPE

R828 87-A00-271-080 RES,FUSE 100-1/8 W RF16S

R829 87-A00-272-080 RES,FUSE 1.8K-1/4W RF25S SF201 87-A90-337-010 FLTR,SAW OFW-K2959M SFR1 87-024-438-080 SFR,220K H RH0638MC SFR2 87-024-357-080 SFR,100K H EVN DJAA03

SFR201 87-024-354-080 SFR,22K H EVN DJAA03 SFR301 87-024-349-080 SFR,1K H EVN DJAA03 SFR302 87-024-349-080 SFR,1K H EVN DJAA03 SFR501 87-024-357-080 SFR,100K H EVN DJAA03 SW2 87-A90-712-080 SW,TACT EVQ11L07K

SW3 87-A90-712-080 SW,TACT EVQ11L07K SW4 87-A90-712-080 SW,TACT EVQ11L07K SW5 87-A90-712-080 SW,TACT EVQ11L07K SW6 87-A90-712-080 SW,TACT EVQ11L07K SW501 87-A90-567-010 SW,LVR 4-1-3 EVQRAAL10

SW801 87-A91-410-010 SW,AC PUSH 1-1-1 ESB92SH1B

T601 84-LB3-651-010 TRANS,HD MS-101N

T602 88-JBJ-607-010 FBT, HFL3601B

TH801 87-A90-830-010 THMS,PTH451C463BF9R0Q270 TU101 87-A91-904-010 TU UNIT, TUAWF4EG-761

X1 87-030-212-080 VIB,CER 8.000MHZ CST X301 87-A70-054-080 VIB,XTAL 4.43MHZ AQC-1018 X302 87-030-327-010 VIB,CER 503.500KHZ CSB F30 X303 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001

NK C.B

C551 87-010-976-080 CAP,CER 1000P-500 K B DD10

C552 87-016-037-060 CAP,CER 1000P-2K K B DE C553 87-018-125-080 CAP,TC U 330P-50 K B UP050 C554 87-018-126-080 CAP,TC U 390P-50 K B UP050 C555 87-018-129-080 CAP,TC U 680P-50 K B UP050

C557 87-A12-091-080 CAP,E 10-50 SMG CN551 87-049-469-010 CONN,4P V WHT EH CN552 87-009-033-010 CONN,5P V WHT PH

– 4 –
