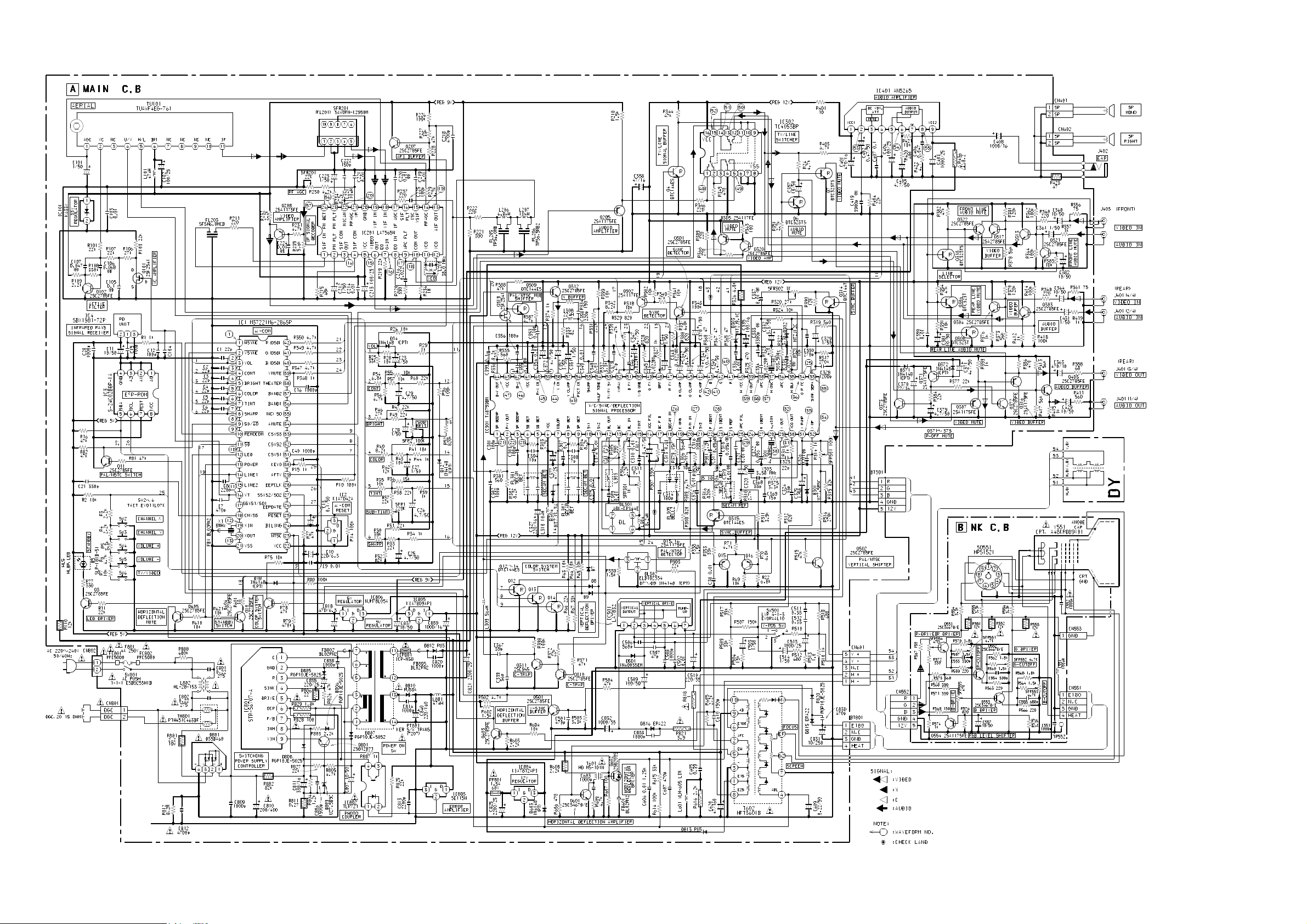

Aiwa tv c202s schematic

TV-C202S

PH

SERVICE MANUAL

COLOR TELEVISION

 Replace this Service manual with Revision Publishing when it is issued.

S/M Code No. 09-00B-421-9T2

SIMPLE

DATA

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O ACC 86-LB4-951-010 2M RC UNIT,RC-6VT06 PHJ3K1C TV-C202S
X ACC 87-B30-274-010 0E BAT,R6P ATC PHJ3K1C TV-C202S
O ACC 8Z-JB6-610-010 1E ANT ASSY,TV 5 SEC (PAL)PT CROW PHJ3K1C TV-C202S
O APPEAR 86-LB4-005-010 0E LENS,RC PHJ3K1C TV-C202S
O APPEAR 86-LB4-012-110 2 CABI,REAR KE PHJ3K1C TV-C202S
X APPEAR 86-LB4-032-010 2P CABI,FR C202S M PHJ3K1C TV-C202S
X APPEAR 86-LB4-033-010 1 PANEL,FR C202S M PHJ3K1C TV-C202S
X APPEAR 86-LBR-004-010 0E LENS,LED PHJ3K1C TV-C202S
X APPEAR 86-LBR-020-010 0E PLATE,FBT S PHJ3K1C TV-C202S
! O APPEAR 87-054-086-010 1A BADGE,AIWA 52.5 ABS GLD PHJ3K1C TV-C202S

O APPEAR 8Z-JBW-007-010 0E PLATE,FOOT ST PHJ3K1C TV-C202S
O AUDIO C 0361 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O AUDIO C 0381 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O AUDIO C 0382 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O AUDIO C 0401 87-A12-068-090 0E CAP,E 470-16 SMG PHJ3K1C TV-C202S
O AUDIO C 0402 87-A12-086-080 0E CAP,E 0.47-50 SMG PHJ3K1C TV-C202S
O AUDIO C 0403 87-A10-831-090 1A CAP,E 1000-25 M SMG PHJ3K1C TV-C202S
O AUDIO C 0404 87-A12-072-080 0E CAP,E 100-25 SMG PHJ3K1C TV-C202S
O AUDIO C 0405 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O AUDIO C 0406 87-A10-210-010 0E CAP,CER 0.047-50 M PHJ3K1C TV-C202S

O AUDIO C 0407 87-A11-148-080 0E CAP,TC U 0.1-50 Z F PHJ3K1C TV-C202S
O AUDIO C 0408 87-A10-730-080 0E CAP,E 1000-16 SMG PHJ3K1C TV-C202S
X AUDIO C 0419 88-700-719-810 0E CAP,M 3900P-50 J PHJ3K1C TV-C202S
O AUDIO C 0429 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O AUDIO C 0431 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O AUDIO CN 0401 86-LBR-690-210 1A CONN ASSY,2P SPMONO PHJ3K1C TV-C202S
O AUDIO CN 0402 86-LB4-692-210 1A CONN ASSY,2P SP RIGHT PHJ3K1C TV-C202S
S AUDIO IC 0401 87-070-117-010 1C IC,AN5265 PHJ3K1C TV-C202S
O AUDIO J 0401 87-A60-680-010 1A JACK,PIN 4P Y-BLK HTJ-036-22 PHJ3K1C TV-C202S
O AUDIO J 0402 87-A60-329-110 0E JACK,3.5 BLK MONO W/SW PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O AUDIO J 0403 87-A60-370-010 1A JACK,PIN 2P BLK-Y W/SW PHJ3K1C TV-C202S
S AUDIO Q 0303 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S AUDIO Q 0308 87-A30-121-080 0E TR,DTC323TS PHJ3K1C TV-C202S
S AUDIO Q 0313 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S AUDIO Q 0321 87-A30-121-080 0E TR,DTC323TS PHJ3K1C TV-C202S
S AUDIO Q 0403 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
X AUDIO R 0357 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0362 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0364 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0383 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S

X AUDIO R 0391 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0401 88-130-100-080 0E RES,10-1/4W J PHJ3K1C TV-C202S
X AUDIO R 0403 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0404 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0411 88-121-561-080 0E RES,560-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0412 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0413 88-121-563-080 0E RES,56K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0414 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0415 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0417 88-121-563-080 0E RES,56K-1/8W J PHJ3K1C TV-C202S

X AUDIO R 0418 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0419 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0420 88-121-681-080 0E RES,680-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0421 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X AUDIO R 0422 88-140-479-080 0E RES,4.7-1/2W J PHJ3K1C TV-C202S
O AUDIO R 0423 87-025-569-010 0E RES,M/F 47-1/2W J PHJ3K1C TV-C202S
O AUDIO R 0436 87-A00-284-090 0E RES,FUSE 8.2-2W J R-TYPE PHJ3K1C TV-C202S
! O CRT V 0551 86-LB4-610-010 3P CRT,A48KRD89X01 PHJ3K1C TV-C202S
O DEFLECTION 87-067-579-010 0E BVT2+3-8 W/0 SL0T PHJ3K1C TV-C202S
O DEFLECTION BT 0301 86-LB7-691-010 1A CONN ASSY,5P TN-3 PHJ3K1C TV-C202S

O DEFLECTION BT 0801 84-LB3-690-110 1 CONN ASSY,4P TN-1 PHJ3K1C TV-C202S
O DEFLECTION C 0501 87-018-127-080 0E CAP,TC U 470P-50 K B UP050 PHJ3K1C TV-C202S
O DEFLECTION C 0502 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O DEFLECTION C 0503 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O DEFLECTION C 0506 87-A10-408-080 0E CAP,CER 560P-500 K YP PHJ3K1C TV-C202S
O DEFLECTION C 0507 87-012-357-010 0E CAP,CER 47P-500 J CH DD10 PHJ3K1C TV-C202S
O DEFLECTION C 0508 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050 PHJ3K1C TV-C202S
O DEFLECTION C 0509 87-A12-095-080 0E CAP,E 100-50 SMG PHJ3K1C TV-C202S
O DEFLECTION C 0510 87-A12-080-080 0E CAP,E 220-35 SMG PHJ3K1C TV-C202S
X DEFLECTION C 0511 88-707-789-810 0E CAP,M 0.33-50 J TF ECQ PHJ3K1C TV-C202S

 1 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X DEFLECTION C 0512 88-707-789-810 0E CAP,M 0.33-50 J TF ECQ PHJ3K1C TV-C202S
O DEFLECTION C 0513 87-A10-831-090 1A CAP,E 1000-25 M SMG PHJ3K1C TV-C202S
O DEFLECTION C 0514 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O DEFLECTION C 0603 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P PHJ3K1C TV-C202S
O DEFLECTION C 0605 87-016-481-010 1A CAP,M/P 0.47-200 J DHS PHJ3K1C TV-C202S
O DEFLECTION C 0606 87-016-357-010 1B CAP,M/P 0.01-1.25K PH PHJ3K1C TV-C202S
O DEFLECTION C 0607 87-A10-860-090 0E CAP,CER 470P-2K K R PHJ3K1C TV-C202S
O DEFLECTION C 0609 87-010-709-080 0E CAP,E 0.22-50 M BP SM PHJ3K1C TV-C202S
O DEFLECTION C 0610 88-238-450-810 0E CAP,CER 150P-500 K YP PHJ3K1C TV-C202S
O DEFLECTION C 0620 87-016-220-090 1A CAP,E 47-160 M TWSS PHJ3K1C TV-C202S

O DEFLECTION C 0830 87-012-386-080 0E CAP,CER 470P-2K K BN DE PHJ3K1C TV-C202S
O DEFLECTION C 0831 87-016-373-080 1A CAP,E 10-250 M SME PHJ3K1C TV-C202S
O DEFLECTION C 0832 87-010-397-090 1A CAP,E 1000-35 M SME PHJ3K1C TV-C202S
O DEFLECTION C 0833 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P PHJ3K1C TV-C202S
O DEFLECTION CN 0601 87-099-675-010 1A CONN,5P V V PHJ3K1C TV-C202S
S DEFLECTION D 0501 87-070-274-080 0E DIODE,1N4003 SEM PHJ3K1C TV-C202S
S DEFLECTION D 0603 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
S DEFLECTION D 0815 87-A40-286-080 0E DIODE,RGP10JE-5025 PHJ3K1C TV-C202S
S DEFLECTION D 0816 87-A40-286-080 0E DIODE,RGP10JE-5025 PHJ3K1C TV-C202S
S DEFLECTION D 0820 87-A40-286-080 0E DIODE,RGP10JE-5025 PHJ3K1C TV-C202S

O DEFLECTION FB 0601 87-003-223-080 0E F-BEAD, BL02RN2 PHJ3K1C TV-C202S
X DEFLECTION HT 0501 8Z-JBR-213-010 0E HT-SINK,V-DR PHJ3K1C TV-C202S
X DEFLECTION HT 0602 8Z-JBR-212-010 0E HT-SINK,C PHJ3K1C TV-C202S
S DEFLECTION IC 0501 87-070-237-010 1C IC,LA7832 PHJ3K1C TV-C202S
O DEFLECTION L 0601 88-JBJ-625-010 1B COIL,HLC-ELH5L4120N PHJ3K1C TV-C202S
S DEFLECTION Q 0501 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S DEFLECTION Q 0601 89-334-674-580 1A TR,2SC3467(D/E) PHJ3K1C TV-C202S
S DEFLECTION Q 0602 87-A30-095-010 1E TR,2SD2333 PHJ3K1C TV-C202S
S DEFLECTION Q 0603 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
X DEFLECTION R 0502 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X DEFLECTION R 0503 88-121-332-080 0E RES,3.3K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0504 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0506 88-121-183-080 0E RES,18K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0507 88-121-154-080 0E RES,150K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0509 88-121-333-080 0E RES,33K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0510 88-140-102-080 0E RES,1K-1/2W J PHJ3K1C TV-C202S
X DEFLECTION R 0512 88-121-681-080 0E RES,680-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0513 88-140-109-080 0E RES,1-1/2W J PHJ3K1C TV-C202S
X DEFLECTION R 0517 88-121-393-080 0E RES,39K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0518 88-140-681-080 0E RES,680-1/2W J PHJ3K1C TV-C202S

X DEFLECTION R 0602 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0603 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0604 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0605 88-140-222-080 0E RES,2.2K-1/2W J PHJ3K1C TV-C202S
X DEFLECTION R 0606 88-121-471-080 0E RES,470-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0607 88-121-101-080 0E RES,100-1/8W J PHJ3K1C TV-C202S
O DEFLECTION R 0608 87-A00-185-010 1A RES,CEM 2.2K-5W J ZY PHJ3K1C TV-C202S
X DEFLECTION R 0609 88-140-472-080 0E RES,4.7K-1/2W J PHJ3K1C TV-C202S
X DEFLECTION R 0614 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X DEFLECTION R 0615 88-121-333-080 0E RES,33K-1/8W J PHJ3K1C TV-C202S

O DEFLECTION R 0616 87-A00-049-060 0E RES,FUSE 2.2K-1/2W J R-TYPE PHJ3K1C TV-C202S
O DEFLECTION R 0818 87-A00-419-090 1D RES,FUSE 1-2W J ERQ2Z PHJ3K1C TV-C202S
O DEFLECTION R 0821 87-A00-052-060 0E RES,FUSE 3.9-1W J R-TYPE PHJ3K1C TV-C202S
O DEFLECTION SW 0501 87-A90-567-010 1A SW,LVR 4-1-3 EVQRAAL10 PHJ3K1C TV-C202S
! O DEFLECTION T 0601 84-LB3-651-010 1B TRANS,HD MS-101N PHJ3K1C TV-C202S
! O DEFLECTION T 0602 88-JBJ-607-010 2M FBT, HFT3601B PHJ3K1C TV-C202S
O KNOB 86-LB4-035-010 0E BTN,POWER ST M PHJ3K1C TV-C202S
X LBL,POP 86-LB4-971-010  LBL,POP PHJ PHJ3K1C TV-C202S
X LBL,POP 87-JB8-972-010 0E LBL,POP NO.1 PHJ3K1C TV-C202S
O NK C 0551 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P PHJ3K1C TV-C202S

O NK C 0552 87-016-037-060 0E CAP,CER 1000P-2K K B DE PHJ3K1C TV-C202S
O NK C 0553 87-018-125-080 0E CAP,TC U 330P-50 K B UP050 PHJ3K1C TV-C202S
O NK C 0554 87-018-126-080 0E CAP,TC U 390P-50 K B UP050 PHJ3K1C TV-C202S
O NK C 0555 87-018-129-080 0E CAP,TC U 680P-50 K B UP050 PHJ3K1C TV-C202S
O NK C 0557 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
! O NK CN 0551 87-049-469-010 0E CONN,4P V WHT EH PHJ3K1C TV-C202S
! O NK CN 0552 87-009-033-010 0E CONN,5P V WHT PH PHJ3K1C TV-C202S
O NK CN 0553 87-099-672-010 0E CONN,1P V LV GRA PHJ3K1C TV-C202S
O NK L 0551 87-005-614-080 0E COIL,100UH J LAV35 PHJ3K1C TV-C202S
S NK Q 0551 89-342-174-510 1A TR,2SC4217(D/E) PHJ3K1C TV-C202S

 2 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

S NK Q 0552 89-342-174-510 1A TR,2SC4217(D/E) PHJ3K1C TV-C202S
S NK Q 0553 89-342-174-510 1A TR,2SC4217(D/E) PHJ3K1C TV-C202S
S NK Q 0554 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
O NK R 0551 87-A00-041-060 0E RES,M/F 12K-2W J L-FORMING PHJ3K1C TV-C202S
O NK R 0552 87-A00-041-060 0E RES,M/F 12K-2W J L-FORMING PHJ3K1C TV-C202S
O NK R 0553 87-A00-041-060 0E RES,M/F 12K-2W J L-FORMING PHJ3K1C TV-C202S
X NK R 0554 88-140-332-080 0E RES,3.3K-1/2W J PHJ3K1C TV-C202S
X NK R 0555 88-140-332-080 0E RES,3.3K-1/2W J PHJ3K1C TV-C202S
X NK R 0556 88-140-332-080 0E RES,3.3K-1/2W J PHJ3K1C TV-C202S
X NK R 0557 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S

X NK R 0559 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X NK R 0560 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S
X NK R 0562 88-121-182-080 0E RES,1.8K-1/8W J PHJ3K1C TV-C202S
X NK R 0563 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X NK R 0564 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S
X NK R 0565 88-121-182-080 0E RES,1.8K-1/8W J PHJ3K1C TV-C202S
X NK R 0566 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X NK R 0567 88-121-151-080 0E RES,150-1/8W J PHJ3K1C TV-C202S
X NK R 0568 88-121-391-080 0E RES,390-1/8W J PHJ3K1C TV-C202S
X NK R 0569 88-121-151-080 0E RES,150-1/8W J PHJ3K1C TV-C202S

X NK R 0570 88-121-182-080 0E RES,1.8K-1/8W J PHJ3K1C TV-C202S
X NK R 0571 88-121-331-080 0E RES,330-1/8W J PHJ3K1C TV-C202S
X NK R 0572 88-121-331-080 0E RES,330-1/8W J PHJ3K1C TV-C202S
X NK R 0573 88-121-561-080 0E RES,560-1/8W J PHJ3K1C TV-C202S
X NK R 0574 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X NK R 0575 88-121-332-080 0E RES,3.3K-1/8W J PHJ3K1C TV-C202S
X NK R 0576 88-121-821-080 0E RES,820-1/8W J PHJ3K1C TV-C202S
O NK SFR0551 87-024-522-080 0E SFR,4.7K V RH063LC PHJ3K1C TV-C202S
O NK SFR0552 87-024-522-080 0E SFR,4.7K V RH063LC PHJ3K1C TV-C202S
O NK SFR0553 87-024-522-080 0E SFR,4.7K V RH063LC PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O NK SFR0554 87-024-519-080 0E SFR,470 V RH063LC PHJ3K1C TV-C202S
O NK SFR0555 87-024-519-080 0E SFR,470 V RH063LC PHJ3K1C TV-C202S
O NK SO 0551 86-LBR-670-010 1B SOCKET,CRT 9P HPS1521 PHJ3K1C TV-C202S
X NK TP 0552 87-033-144-010 0E PIN,DIA1 LONG PHJ3K1C TV-C202S
X OTHER 80-MQ1-209-010 0E CLOTH,20-7 PHJ3K1C TV-C202S
X OTHER 81-JT1-233-010 0E CLOTH,5-10-0.5 PHJ3K1C TV-C202S
O OTHER 84-LB3-205-010 0E SPR-E,EARTH PHJ3K1C TV-C202S
X OTHER 86-LB2-202-010 0E CLOTH,15-440-0.5 PHJ3K1C TV-C202S
O OTHER 86-LB7-212-010 1A HLDR,FBT PHJ3K1C TV-C202S
! X OTHER 86-LBP-201-110 1A CUSH-R, 15-15-8 PHJ3K1C TV-C202S

X OTHER 86-LBR-203-010 0E SH, PVC 15-20-0.5 PHJ3K1C TV-C202S
X OTHER 86-LBR-204-010 0E TAPE,100-19 PHJ3K1C TV-C202S
X OTHER 86-LBR-205-010 0E CLOTH,15-95-0.5 PHJ3K1C TV-C202S
X OTHER 86-LBR-206-010 0E CLOTH,10-75-0.5 PHJ3K1C TV-C202S
O OTHER 86-LBU-201-010 0E HLDR,AC CORD PHJ3K1C TV-C202S
! X OTHER 87-069-033-010 0E CABLE,TIE PHJ3K1C TV-C202S
O OTHERS,E 84-LB2-633-210 1E CONN ASSY,1P CRT GND PHJ3K1C TV-C202S
O OTHERS,E 84-LB3-641-010 2A SPKR,F DIA77 8OHM 2W PHJ3K1C TV-C202S
! O OTHERS,E 86-LB7-694-010 1H AC CORD SET,KE2 BLK PHJ3K1C TV-C202S
! S OTHERS,E 87-035-458-010 0E FUSE,4A 250V T 218 PHJ3K1C TV-C202S

! O OTHERS,E 87-A90-332-010 0E HLDR,SF-2001 HV CABLE PHJ3K1C TV-C202S
! O OTHERS,E 87-JBD-625-010 1H DGC,20 15 OHM PHJ3K1C TV-C202S
X PACKING 81-ZG1-855-010 0E BAG,PV ANTI PHJ3K1C TV-C202S
X PACKING 84-LB2-857-010 1F BAG,FOAMED MAT PHJ3K1C TV-C202S
X PACKING 86-LB4-551-010  CUSHION,SUB M PHJ3K1C TV-C202S
X PACKING 86-LB4-552-010  PAD,SHEET SP PHJ3K1C TV-C202S
X PACKING 86-LB4-870-010  CUSHION,BOTTOM C PHJ3K1C TV-C202S
X PACKING 86-LB4-871-010  CUSHION,TOP C PHJ3K1C TV-C202S
X PACKING 86-LB4-872-010  CTN,OUTER CRT PHJ3K1C TV-C202S
X PACKING 86-LB4-873-010  CUSHION,CRT C PHJ3K1C TV-C202S

X PACKING 86-LB4-875-010  SH,PV 0.05-800-1300 PHJ3K1C TV-C202S
X PACKING 86-LB4-876-010  CTN,OUTER MAIN PHJ3K1C TV-C202S
X PACKING 86-LB4-877-010  CUSHION,BOTTOM C PHJ3K1C TV-C202S
X PACKING 86-LB4-878-010  CUSHION,TOP C PHJ3K1C TV-C202S
X PACKING 86-LB4-884-010  CTN,OUTER SP PHJ3K1C TV-C202S
X PACKING 86-LB4-885-010  BD,ASSY SP PHJ3K1C TV-C202S
X PACKING 86-LB4-886-010  BD,SECTION C PHJ3K1C TV-C202S
X PACKING 86-LB4-887-010  BD,SECTION D PHJ3K1C TV-C202S
X PACKING 86-LB4-889-010  BD,PAD SP PHJ3K1C TV-C202S
X PACKING 86-LB4-890-010  CTN,INNER SCREW PHJ3K1C TV-C202S

 3 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X PACKING 86-LB4-890-010  CTN,INNER SCREW PHJ3K1C TV-C202S
X PACKING 86-LB4-890-010  CTN,INNER SCREW PHJ3K1C TV-C202S
X PACKING 86-LB4-890-010  CTN,INNER SCREW PHJ3K1C TV-C202S
X PACKING 86-LB4-890-010  CTN,INNER SCREW PHJ3K1C TV-C202S
X PACKING 86-LB4-892-010  CUSHION,PAD SP PHJ3K1C TV-C202S
X PACKING 86-LB4-893-010  CTN,OUTER ACCESSORY PHJ3K1C TV-C202S
X PACKING 86-LB4-894-010  CTN,OUTER SCREW PHJ3K1C TV-C202S
X PACKING 86-LB4-894-010  CTN,OUTER SCREW PHJ3K1C TV-C202S
X PACKING 86-LB4-894-010  CTN,OUTER SCREW PHJ3K1C TV-C202S
X PACKING 86-LB4-897-010  CTN,OUTER SCREW/3M PHJ3K1C TV-C202S

X PACKING 86-LB4-898-010  SH,BUBB-MAT 4-130-250 PHJ3K1C TV-C202S
X PACKING 86-LB4-899-010  CTN,PRINTED PHJ3K1C PHJ3K1C TV-C202S
X PACKING 87-066-133-010 0E BAG,PV 0.04-75-280 PHJ3K1C TV-C202S
X PLATE 86-LB4-039-010  LBL,CAUTION AC CORD C PHJ3K1C TV-C202S
X PLATE 86-LB4-040-010  LBL,SPEC C202S PH PHJ3K1C TV-C202S
X PLATE 87-056-081-010 0E LBL,SERIAL NO PHJ3K1C TV-C202S
X PLATE 87-B40-281-010 0E LBL,BAR-CODE A 35X8 PHJ3K1C TV-C202S
O POWER 87-067-584-010 0E BVT2+3-6 W/0 SL0T PHJ3K1C TV-C202S
O POWER 87-067-680-010 0E BVIT3B+3-10 PHJ3K1C TV-C202S
O POWER 87-A90-667-010 0E COVER,CAP 851640-23 PHJ3K1C TV-C202S

! O POWER C 0801 87-A10-688-090 1A CAP,M/P 0.22-275 K (B81133) PHJ3K1C TV-C202S
! O POWER C 0802 87-A10-688-090 1A CAP,M/P 0.22-275 K (B81133) PHJ3K1C TV-C202S
O POWER C 0806 88-238-630-810 0E CAP,CER 1500P-500 K YP PHJ3K1C TV-C202S
O POWER C 0807 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O POWER C 0809 87-016-515-080 0E CAP,CER 1000P-1K K B DE PHJ3K1C TV-C202S
O POWER C 0810 87-A10-647-090 1E CAP,E 220-400 SMH PHJ3K1C TV-C202S
O POWER C 0811 87-A12-067-080 0E CAP,E 330-16 SMG PHJ3K1C TV-C202S
! O POWER C 0812 87-A10-519-010 1A CAP,CER 4700P-4K M E KX PHJ3K1C TV-C202S
O POWER C 0813 87-A12-493-080 0E CAP,CER 2200P-500 K B Y5P PHJ3K1C TV-C202S
O POWER C 0814 87-A10-238-010 1A CAP,M/P 1000P-1.6K J DKR PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O POWER C 0818 87-A12-058-080 0E CAP,E 470-6.3 SMG PHJ3K1C TV-C202S
O POWER C 0820 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P PHJ3K1C TV-C202S
O POWER C 0821 87-010-389-090 1A CAP,E 2200-25 M SME PHJ3K1C TV-C202S
O POWER C 0825 87-010-389-090 1A CAP,E 2200-25 M SME PHJ3K1C TV-C202S
O POWER C 0835 87-A12-073-080 0E CAP,E 220-25 SMG PHJ3K1C TV-C202S
O POWER C 0837 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O POWER C 0838 87-A10-832-010 0E CAP,CER 1000P-1K K R LONG PHJ3K1C TV-C202S
O POWER C 0839 87-A10-730-080 0E CAP,E 1000-16 SMG PHJ3K1C TV-C202S
O POWER C 0840 87-A10-731-090 1C CAP,E 220-160 M KMF PHJ3K1C TV-C202S
! O POWER CN 0801 82-481-649-010 0E CONN,2P V VT-50P PHJ3K1C TV-C202S

! O POWER CN 0802 87-099-674-010 0E CONN,2P V VA PHJ3K1C TV-C202S
S POWER D 0801 87-A40-371-010 1B DIODE,D3SBA60-4101 PHJ3K1C TV-C202S
S POWER D 0805 87-A40-286-080 0E DIODE,RGP10JE-5025 PHJ3K1C TV-C202S
S POWER D 0806 87-A40-286-080 0E DIODE,RGP10JE-5025 PHJ3K1C TV-C202S
S POWER D 0807 87-A40-286-080 0E DIODE,RGP10JE-5025 PHJ3K1C TV-C202S
S POWER D 0808 87-A40-286-080 0E DIODE,RGP10JE-5025 PHJ3K1C TV-C202S
S POWER D 0809 87-A40-757-080 0E ZENER,UZ7.5BSC PHJ3K1C TV-C202S
S POWER D 0810 87-070-111-060 1B DIODE,RU30A PHJ3K1C TV-C202S
S POWER D 0812 87-017-354-080 1A DIODE,RU3 PHJ3K1C TV-C202S
S POWER D 0813 87-017-354-080 1A DIODE,RU3 PHJ3K1C TV-C202S

O POWER FB 0802 87-003-223-080 0E F-BEAD, BL02RN2 PHJ3K1C TV-C202S
O POWER FB 0803 87-003-223-080 0E F-BEAD, BL02RN2 PHJ3K1C TV-C202S
O POWER FC 0801 87-033-213-080 0E FUSE CLAMP,PFC5000 PHJ3K1C TV-C202S
O POWER FC 0802 87-033-213-080 0E FUSE CLAMP,PFC5000 PHJ3K1C TV-C202S
X POWER HT 0801 87-A90-073-010 1A HT-SINK,OSH1743 PHJ3K1C TV-C202S
X POWER HT 0805 87-038-099-010 0E HT-SINK,20DG/W(FE) PHJ3K1C TV-C202S
S POWER IC 0801 87-A20-517-010 2A IC,STR-S6707 PHJ3K1C TV-C202S
! O POWER IC 0802 87-A30-096-010 1A P-COUPLER,TLP721F PHJ3K1C TV-C202S
S POWER IC 0803 87-A30-041-110 1C TR,SE115N PHJ3K1C TV-C202S
S POWER IC 0804 87-A21-785-010 1A IC,KIA7812API PHJ3K1C TV-C202S

S POWER IC 0805 87-A21-788-010 1A IC,KIA7809API PHJ3K1C TV-C202S
S POWER IC 0806 87-020-881-080 1A IC,NJM78L05A PHJ3K1C TV-C202S
S POWER ICP0801 87-001-132-080 0E PROTECTOR,IC ICP-N38 PHJ3K1C TV-C202S
O POWER L 0801 87-005-770-080 1A COIL,47UH K #7607 PHJ3K1C TV-C202S
! O POWER L 0802 87-A90-586-010 1D FLTR,LINE HL-28-153 PHJ3K1C TV-C202S
S POWER PR 0801 87-A90-090-080 0E PROTECTOR,1.5A 491SERIES 60V PHJ3K1C TV-C202S
! O POWER PT 0801 86-LB4-655-010 1H PT,KER S/W TRANS(20) PHJ3K1C TV-C202S
S POWER Q 0801 87-A30-114-080 1D TR,2SD1207TS PHJ3K1C TV-C202S
O POWER R 0110 87-A00-164-090 0E RES,M/F 12K-2W J RSF(S) PHJ3K1C TV-C202S
O POWER R 0801 87-A00-555-010 1A RES,CEM 2.2-10W J MPC722 PHJ3K1C TV-C202S

 4 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O POWER R 0802 87-A00-171-090 0E RES,M/F 82K-3W J PHJ3K1C TV-C202S
X POWER R 0803 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S
X POWER R 0804 88-121-122-080 0E RES,1.2K-1/8W J PHJ3K1C TV-C202S
X POWER R 0805 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
O POWER R 0806 87-A00-208-090 0E RES,M/F 22-1/2W J RSF(S) PHJ3K1C TV-C202S
X POWER R 0807 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
O POWER R 0811 87-A00-283-090 0E RES,M/F 0.27-2W J RSF(S) PHJ3K1C TV-C202S
O POWER R 0812 87-A00-224-090 0E RES,SD 8.2M-1W J CE PHJ3K1C TV-C202S
X POWER R 0825 88-140-223-080 0E RES,22K-1/2W J PHJ3K1C TV-C202S
X POWER R 0826 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S

X POWER R 0827 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
O POWER R 0828 87-A00-271-080 0E RES,FUSE 100-1/8W RF16S PHJ3K1C TV-C202S
O POWER R 0829 87-A00-272-080 0E RES,FUSE 1.8K-1/4W RF25S PHJ3K1C TV-C202S
X POWER R 0888 88-144-684-080 0E RES,SD 680K-1/2W K PHJ3K1C TV-C202S
! O POWER SW 0801 87-A91-410-010 1B SW,AC PUSH 1-1-1 ESB92SH1B PHJ3K1C TV-C202S
! O POWER TH 0801 87-A90-830-010 1C POS-THMS,PTH451C463BF9R0Q270 PHJ3K1C TV-C202S
O PRINTS LOCAL 86-LB4-903-010 1A IB,PH (E) -C202S PHJ3K1C TV-C202S
X PRINTS LOCAL 87-B40-086-010 0E BAG,PV 0.04-230-400 PL PHJ3K1C TV-C202S
X PWB 86-LB7-666-010  PWB,TV-66 CH PHJ3K1C TV-C202S
X PWB,NK 86-LB7-667-010  PWB,NK-22 4M CH PHJ3K1C TV-C202S

X PWB,OTHER 89-951-263-410 0E WIRE,U24H1-26-5 PHJ3K1C TV-C202S
X PWB,OTHER 89-956-073-410 0E WIRE,U24H6-7-5 PHJ3K1C TV-C202S
X PWB,OTHER 89-956-123-410 0E WIRE,U24H6-12-5 PHJ3K1C TV-C202S
X PWB,OTHER 89-956-143-410 0E WIRE,U24H6-14-5 PHJ3K1C TV-C202S
X PWB,OTHER 89-956-183-410 0E WIRE,U24H6-18-5 PHJ3K1C TV-C202S
X PWB,OTHER C 0215 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER C 0505 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER C 0515 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER CLP0001 87-A60-884-010 0E PIN,DIA1 COATING-SHS PHJ3K1C TV-C202S
X PWB,OTHER D 0011 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X PWB,OTHER D 0202 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER EY 0001 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0002 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0003 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0005 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0007 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0009 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0010 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0011 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0012 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S

X PWB,OTHER EY 0013 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0014 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0015 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0016 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0017 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0019 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0020 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0021 81-JT1-216-010 0E EYELET,1.6-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0051 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0052 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S

X PWB,OTHER EY 0053 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0054 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0055 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0056 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0057 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0058 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0059 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0060 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0061 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0062 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S

X PWB,OTHER EY 0063 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER EY 0064 81-JT1-215-010 0E EYELET2.0-3.0 PHJ3K1C TV-C202S
X PWB,OTHER L 0202 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER L 0205 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER Q 0202 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER R 0076 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER R 0095 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER R 0201 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER R 0385 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
X PWB,OTHER R 0617 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S

 5 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X PWB,OTHER R 0620 87-A80-061-010 0E PLATING-JW, P15-5-7 PHJ3K1C TV-C202S
X PWB,OTHER X 0201 88-100-000-010 0E PLATING-JW, 0.58 SN95 PHJ3K1C TV-C202S
O SCREW 86-LBB-206-010 0E S-SCREW,ASSY TV5-40 W20 PHJ3K1C TV-C202S
O SCREW 87-067-680-010 0E BVIT3B+3-10 PHJ3K1C TV-C202S
O SCREW 87-067-758-010 0E BVT2+3-12 W/0 SL0T PHJ3K1C TV-C202S
O SCREW 87-067-761-010 0E BVT2+3-10 BLK PHJ3K1C TV-C202S
O SCREW 87-067-844-010 0E BVT2+4-16 BLK PHJ3K1C TV-C202S
O SYSCON C 0001 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050 PHJ3K1C TV-C202S
O SYSCON C 0002 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050 PHJ3K1C TV-C202S
O SYSCON C 0003 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050 PHJ3K1C TV-C202S

O SYSCON C 0004 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050 PHJ3K1C TV-C202S
O SYSCON C 0005 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050 PHJ3K1C TV-C202S
O SYSCON C 0006 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050 PHJ3K1C TV-C202S
O SYSCON C 0007 87-018-127-080 0E CAP,TC U 470P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0008 87-018-123-080 0E CAP,TC U 220P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0009 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O SYSCON C 0010 87-A12-063-080 0E CAP,E 220-10 SMG PHJ3K1C TV-C202S
O SYSCON C 0011 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O SYSCON C 0012 87-018-119-080 0E CAP,TC U 100P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0013 87-A12-083-080 0E CAP,E 0.1-50 SMG PHJ3K1C TV-C202S

O SYSCON C 0014 87-018-115-080 0E CAP,TC U 47P-50 J SL UP050 PHJ3K1C TV-C202S
O SYSCON C 0015 87-018-119-080 0E CAP,TC U 100P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0016 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0020 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0021 87-018-125-080 0E CAP,TC U 330P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0023 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O SYSCON C 0025 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O SYSCON C 0026 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O SYSCON C 0027 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O SYSCON C 0028 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O SYSCON C 0029 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O SYSCON C 0040 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050 PHJ3K1C TV-C202S
O SYSCON C 0357 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O SYSCON D 0005 87-070-110-010 0E LED,SLP-181B-51 RED PHJ3K1C TV-C202S
S SYSCON D 0012 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
S SYSCON D 0014 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
S SYSCON D 0018 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
O SYSCON FB 0001 87-003-223-080 0E F-BEAD, BL02RN2 PHJ3K1C TV-C202S
O SYSCON HL 0005 84-LB3-216-010 0E HLDR,LED PHJ3K1C TV-C202S
S SYSCON IC 0001 86-LB7-622-010 2A IC,M37221M6-286SP PHJ3K1C TV-C202S

S SYSCON IC 0002 87-A21-845-080 1A IC,KIA7042AP PHJ3K1C TV-C202S
S SYSCON IC 0003 87-A21-377-010 1A IC,S-24C02BDP-1A PHJ3K1C TV-C202S
O SYSCON IC 0004 87-A91-538-010 1B RCR UNIT,SBX1981-72P PHJ3K1C TV-C202S
S SYSCON Q 0003 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S SYSCON Q 0004 87-026-218-080 0E TR,DTC144ES PHJ3K1C TV-C202S
S SYSCON Q 0006 87-A30-121-080 0E TR,DTC323TS PHJ3K1C TV-C202S
S SYSCON Q 0007 87-A30-121-080 0E TR,DTC323TS PHJ3K1C TV-C202S
S SYSCON Q 0010 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S SYSCON Q 0011 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S SYSCON Q 0604 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S

S SYSCON Q 0605 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
X SYSCON R 0001 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0002 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0003 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0004 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0005 88-121-332-080 0E RES,3.3K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0006 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0007 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0010 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0011 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S

X SYSCON R 0014 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0015 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0016 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0024 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0025 88-121-333-080 0E RES,33K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0026 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0027 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0028 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0029 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0030 88-121-393-080 0E RES,39K-1/8W J PHJ3K1C TV-C202S

 6 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X SYSCON R 0031 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0032 88-121-823-080 0E RES,82K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0033 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0034 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0035 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0036 88-121-153-080 0E RES,15K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0037 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0038 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0039 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0040 88-121-822-080 0E RES,8.2K-1/8W J PHJ3K1C TV-C202S

X SYSCON R 0041 88-121-183-080 0E RES,18K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0042 88-121-123-080 0E RES,12K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0043 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0044 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0046 88-121-273-080 0E RES,27K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0047 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0049 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0052 88-121-824-080 0E RES,820K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0054 88-121-682-080 0E RES,6.8K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0055 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S

X SYSCON R 0056 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0057 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0060 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0075 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0077 88-121-331-080 0E RES,330-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0078 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0079 88-121-474-080 0E RES,470K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0080 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0081 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0082 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X SYSCON R 0096 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0347 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0348 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0349 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0350 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0351 88-121-272-080 0E RES,2.7K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0601 88-121-100-080 0E RES,10-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0610 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X SYSCON R 0621 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
O SYSCON SFR0001 87-024-438-080 0E SFR,220K H RH063MC PHJ3K1C TV-C202S

O SYSCON SFR0002 87-024-357-080 0E SFR,100K H EVN DJAA03 PHJ3K1C TV-C202S
X SYSCON SH 0001 84-LB3-235-010 0E SHLD-PLATE,MC PHJ3K1C TV-C202S
O SYSCON SW 0002 87-A90-712-080 0E SW,TACT EVQ11L07K PHJ3K1C TV-C202S
O SYSCON SW 0003 87-A90-712-080 0E SW,TACT EVQ11L07K PHJ3K1C TV-C202S
O SYSCON SW 0004 87-A90-712-080 0E SW,TACT EVQ11L07K PHJ3K1C TV-C202S
O SYSCON SW 0005 87-A90-712-080 0E SW,TACT EVQ11L07K PHJ3K1C TV-C202S
O SYSCON SW 0006 87-A90-712-080 0E SW,TACT EVQ11L07K PHJ3K1C TV-C202S
O SYSCON X 0001 87-030-212-080 1A VIB,CER 8.000MHZ CST PHJ3K1C TV-C202S
O TUNER C 0101 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O TUNER C 0102 87-A12-072-080 0E CAP,E 100-25 SMG PHJ3K1C TV-C202S

O TUNER C 0103 87-A11-132-080 0E CAP,TC U 0.01-50 K B PHJ3K1C TV-C202S
O TUNER C 0104 87-018-119-080 0E CAP,TC U 100P-50 K B UP050 PHJ3K1C TV-C202S
X TUNER C 0105 88-700-919-810 0E CAP,M 0.1-50 J PHJ3K1C TV-C202S
X TUNER C 0106 88-700-869-810 0E CAP,M 0.068-50 J PHJ3K1C TV-C202S
X TUNER C 0107 88-700-859-810 0E CAP,M 0.047-50 J PHJ3K1C TV-C202S
O TUNER C 0212 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O TUNER C 0213 87-A12-072-080 0E CAP,E 100-25 SMG PHJ3K1C TV-C202S
O TUNER C 0214 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
X TUNER C 0216 88-700-839-810 0E CAP,M 0.022-50 J PHJ3K1C TV-C202S
O TUNER C 0218 87-018-133-080 0E CAP,TC U 4700P-16 N X UP050 PHJ3K1C TV-C202S

O TUNER C 0219 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
X TUNER C 0220 88-700-819-810 0E CAP,M 0.01-50 J PHJ3K1C TV-C202S
O TUNER C 0221 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TUNER C 0222 87-018-121-080 0E CAP,TC U 150P-50 K B UP050 PHJ3K1C TV-C202S
O TUNER C 0223 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
X TUNER C 0224 88-700-819-810 0E CAP,M 0.01-50 J PHJ3K1C TV-C202S
O TUNER C 0225 87-018-119-080 0E CAP,TC U 100P-50 K B UP050 PHJ3K1C TV-C202S
O TUNER FL 0201 87-A90-337-010 1C FLTR,SAW OFW-K2959M PHJ3K1C TV-C202S
O TUNER FL 0203 87-A90-223-080 1A FLTR, SFSH6.0MCB PHJ3K1C TV-C202S
O TUNER FL 0205 87-A90-224-080 0E FLTR, TPS6.0MB PHJ3K1C TV-C202S

 7 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O TUNER FL 0206 87-008-577-080 1A FLTR,TPS5.5MB2 PHJ3K1C TV-C202S
O TUNER FL 0210 87-008-575-080 1A FLTR,CFSFSH5.5MCB PHJ3K1C TV-C202S
S TUNER IC 0101 87-A20-371-080 0E IC,KA33V PHJ3K1C TV-C202S
S TUNER IC 0201 87-A20-436-010 1E IC,LA7565N PHJ3K1C TV-C202S
O TUNER L 0101 87-005-610-080 0E COIL,47UH J LAV35 PHJ3K1C TV-C202S
O TUNER L 0206 87-005-645-080  COIL,6.8UH K LF5.0S PHJ3K1C TV-C202S
O TUNER L 0207 87-005-684-080 0E COIL,10UH J LF5.0S PHJ3K1C TV-C202S
O TUNER L 0210 86-LB7-659-010 0E COIL,VCO3 38.0MHZ LA7565N PHJ3K1C TV-C202S
O TUNER L 0221 87-005-684-080 0E COIL,10UH J LF5.0S PHJ3K1C TV-C202S
S TUNER Q 0101 87-A30-090-080 0E FET,2SK2541 PHJ3K1C TV-C202S

S TUNER Q 0102 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TUNER Q 0205 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
S TUNER Q 0207 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TUNER Q 0208 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
X TUNER R 0101 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0103 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0106 88-121-273-080 0E RES,27K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0107 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0108 88-121-334-080 0E RES,330K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0109 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S

X TUNER R 0211 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X TUNER R 0215 88-121-680-080 0E RES,68-1/8W J PHJ3K1C TV-C202S
X TUNER R 0218 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0219 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0220 88-121-331-080 0E RES,330-1/8W J PHJ3K1C TV-C202S
X TUNER R 0221 88-121-391-080 0E RES,390-1/8W J PHJ3K1C TV-C202S
X TUNER R 0222 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X TUNER R 0226 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0227 88-121-333-080 0E RES,33K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0228 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X TUNER R 0229 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0230 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0231 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0232 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0234 88-121-822-080 0E RES,8.2K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0235 88-121-562-080 0E RES,5.6K-1/8W J PHJ3K1C TV-C202S
X TUNER R 0236 88-121-105-080 0E RES,1M-1/8W J PHJ3K1C TV-C202S
X TUNER R 0237 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
O TUNER SFR0201 87-024-354-080 0E SFR,22K H EVN DJAA03 PHJ3K1C TV-C202S
O TUNER TU 0101 87-A91-904-010 2P TU UNIT, TUAWF4EG-761 PHJ3K1C TV-C202S

O TV C 0030 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0301 87-018-122-080 0E CAP,TC U 180P-50 K B UP050 PHJ3K1C TV-C202S
O TV C 0302 87-018-122-080 0E CAP,TC U 180P-50 K B UP050 PHJ3K1C TV-C202S
O TV C 0303 87-018-122-080 0E CAP,TC U 180P-50 K B UP050 PHJ3K1C TV-C202S
X TV C 0304 88-254-100-810 0E CAP,CER 10P-50 D CH PHJ3K1C TV-C202S
O TV C 0307 87-A11-148-080 0E CAP,TC U 0.1-50 Z F PHJ3K1C TV-C202S
X TV C 0308 88-254-070-810 0E CAP,CER 7P-50 J C PHJ3K1C TV-C202S
O TV C 0309 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0310 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0311 87-A11-148-080 0E CAP,TC U 0.1-50 Z F PHJ3K1C TV-C202S

O TV C 0312 87-A12-086-080 0E CAP,E 0.47-50 SMG PHJ3K1C TV-C202S
O TV C 0313 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0314 87-018-122-080 0E CAP,TC U 180P-50 K B UP050 PHJ3K1C TV-C202S
O TV C 0315 87-018-107-080 0E CAP,TC U 18P-50 J SL UP050 PHJ3K1C TV-C202S
O TV C 0316 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050 PHJ3K1C TV-C202S
X TV C 0317 88-700-989-810 0E CAP,M 0.056-50 J PHJ3K1C TV-C202S
X TV C 0318 88-700-989-810 0E CAP,M 0.056-50 J PHJ3K1C TV-C202S
X TV C 0319 88-700-819-810 0E CAP,M 0.01-50 J PHJ3K1C TV-C202S
O TV C 0320 87-010-529-080 0E CAP,E 1-50 M BP PHJ3K1C TV-C202S
X TV C 0321 88-700-819-810 0E CAP,M 0.01-50 J PHJ3K1C TV-C202S

X TV C 0322 88-700-989-810 0E CAP,M 0.056-50 J PHJ3K1C TV-C202S
X TV C 0323 88-254-210-810 0E CAP,CER 22P-50 J CH PHJ3K1C TV-C202S
X TV C 0324 88-254-250-810 0E CAP,CER 33P-50 J CH PHJ3K1C TV-C202S
O TV C 0325 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
X TV C 0326 88-700-819-810 0E CAP,M 0.01-50 J PHJ3K1C TV-C202S
O TV C 0327 87-016-251-080 0E CAP,E 220-16 M SMG PHJ3K1C TV-C202S
O TV C 0328 87-018-195-080 0E CAP,TC U 1200P-16 N X UP050 PHJ3K1C TV-C202S
O TV C 0329 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O TV C 0330 87-018-124-080 0E CAP,TC U 270P-50 K B UP050 PHJ3K1C TV-C202S
X TV C 0331 88-700-839-810 0E CAP,M 0.022-50 J PHJ3K1C TV-C202S

 8 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O TV C 0332 87-A12-089-080 0E CAP,E 3.3-50 SMG PHJ3K1C TV-C202S
X TV C 0333 88-700-709-810 0E CAP,M 3300P-50 J PHJ3K1C TV-C202S
X TV C 0334 88-700-839-810 0E CAP,M 0.022-50 J PHJ3K1C TV-C202S
O TV C 0335 87-A10-918-080 0E CAP,E 100-16 SMG PHJ3K1C TV-C202S
O TV C 0336 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
X TV C 0337 88-700-819-810 0E CAP,M 0.01-50 J PHJ3K1C TV-C202S
O TV C 0339 87-018-116-080 0E CAP,TC U 56P-50 J SL UP050 PHJ3K1C TV-C202S
O TV C 0340 87-A12-086-080 0E CAP,E 0.47-50 SMG PHJ3K1C TV-C202S
O TV C 0341 87-A12-086-080 0E CAP,E 0.47-50 SMG PHJ3K1C TV-C202S
O TV C 0342 87-A12-086-080 0E CAP,E 0.47-50 SMG PHJ3K1C TV-C202S

X TV C 0343 88-700-839-810 0E CAP,M 0.022-50 J PHJ3K1C TV-C202S
O TV C 0344 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
X TV C 0345 88-700-839-810 0E CAP,M 0.022-50 J PHJ3K1C TV-C202S
X TV C 0346 88-700-839-810 0E CAP,M 0.022-50 J PHJ3K1C TV-C202S
O TV C 0347 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O TV C 0348 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0349 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0350 87-018-123-080 0E CAP,TC U 220P-50 K B UP050 PHJ3K1C TV-C202S
O TV C 0351 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O TV C 0352 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S

X TV C 0353 88-700-919-810 0E CAP,M 0.1-50 J PHJ3K1C TV-C202S
O TV C 0354 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
X TV C 0355 88-700-919-810 0E CAP,M 0.1-50 J PHJ3K1C TV-C202S
O TV C 0356 87-018-122-080 0E CAP,TC U 180P-50 K B UP050 PHJ3K1C TV-C202S
O TV C 0358 87-A12-066-080 0E CAP,E 47-16 SMG PHJ3K1C TV-C202S
O TV C 0359 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0360 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
O TV C 0363 87-016-459-080 0E CAP,E 470-10 M SMG PHJ3K1C TV-C202S
O TV C 0364 87-A12-091-080 0E CAP,E 10-50 SMG PHJ3K1C TV-C202S
X TV C 0367 88-254-250-810 0E CAP,CER 33P-50 J CH PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X TV C 0368 88-254-250-810 0E CAP,CER 33P-50 J CH PHJ3K1C TV-C202S
X TV C 0369 88-254-150-810 0E CAP,CER 15P-50 J CH PHJ3K1C TV-C202S
O TV C 0370 87-010-379-080 0E CAP,E 22-16 M 11L SME PHJ3K1C TV-C202S
O TV C 0371 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O TV C 0372 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O TV C 0373 87-018-115-080 0E CAP,TC U 47P-50 J SL UP050 PHJ3K1C TV-C202S
O TV C 0374 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
O TV C 0375 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050 PHJ3K1C TV-C202S
X TV C 0376 88-214-810-810 0E CAP,CER 0.01-50 M Y PHJ3K1C TV-C202S
O TV C 0377 87-A12-071-080 0E CAP,E 47-25 SMG PHJ3K1C TV-C202S

O TV C 0378 87-A12-087-080 0E CAP,E 1-50 SMG PHJ3K1C TV-C202S
O TV C 0379 87-A12-090-080 0E CAP,E 4.7-50 SMG PHJ3K1C TV-C202S
O TV C 0399 87-A10-211-010 0E CAP,CER 0.1-50 M PHJ3K1C TV-C202S
S TV D 0007 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
S TV D 0008 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
S TV D 0009 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
S TV D 0301 87-A40-757-080 0E ZENER,UZ7.5BSC PHJ3K1C TV-C202S
S TV D 0302 87-A40-001-080 0E ZENER,MTZJ12C PHJ3K1C TV-C202S
S TV D 0303 87-A40-235-080 0E ZENER,MTZJ9.1C PHJ3K1C TV-C202S
S TV D 0304 87-A40-348-080 0E ZENER,MTZJ3.3A PHJ3K1C TV-C202S

S TV D 0371 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
S TV D 0372 87-A40-291-080 0E DIODE,1N4148M (CPT) PHJ3K1C TV-C202S
O TV DL 0301 84-LB3-638-010 1D DL,ADL-CP144E PHJ3K1C TV-C202S
O TV DL 0302 87-A90-370-010 1B DELAY LINE,ELB10Z334 PHJ3K1C TV-C202S
O TV FL 0301 84-LB3-668-010 1A FLTR,SECAM DET PHJ3K1C TV-C202S
O TV FL 0302 84-LB3-668-010 1A FLTR,SECAM DET PHJ3K1C TV-C202S
O TV FL 0304 82-JT2-611-010 1A FLTR, SECAM REF PHJ3K1C TV-C202S
O TV FL 0305 84-LB3-622-010 1A FLTR,BELL 2 S-10E PHJ3K1C TV-C202S
S TV IC 0301 87-070-080-010 2M IC,TA8759BN PHJ3K1C TV-C202S
S TV IC 0302 87-027-938-010 1B IC,TC4053BP PHJ3K1C TV-C202S

O TV L 0303 82-JT2-608-010 1A FLTR,DL PHASE PHJ3K1C TV-C202S
O TV L 0304 87-005-646-080  COIL,8.2UH K LF5.0S PHJ3K1C TV-C202S
O TV L 0306 87-005-611-080 0E COIL,56UH J LAV35 PHJ3K1C TV-C202S
O TV L 0308 87-005-688-080 0E COIL,22UH J LF5.0S PHJ3K1C TV-C202S
O TV L 0309 87-005-693-080 0E COIL,56UH J LF5.0S PHJ3K1C TV-C202S
O TV L 0310 87-005-602-080 0E COIL,10UH J LAV35 PHJ3K1C TV-C202S
S TV Q 0012 87-026-218-080 0E TR,DTC144ES PHJ3K1C TV-C202S
S TV Q 0013 87-026-218-080 0E TR,DTC144ES PHJ3K1C TV-C202S
S TV Q 0014 87-026-218-080 0E TR,DTC144ES PHJ3K1C TV-C202S
S TV Q 0015 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S

 9 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

S TV Q 0016 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
S TV Q 0301 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0302 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
S TV Q 0304 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0305 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
S TV Q 0306 87-A30-121-080 0E TR,DTC323TS PHJ3K1C TV-C202S
S TV Q 0307 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
S TV Q 0309 87-026-218-080 0E TR,DTC144ES PHJ3K1C TV-C202S
S TV Q 0310 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0311 84-LB2-699-080 0E TR,2SC945A(C)-T PHJ3K1C TV-C202S

S TV Q 0312 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0314 87-026-502-080 0E TR,DTC144TS PHJ3K1C TV-C202S
S TV Q 0315 87-026-218-080 0E TR,DTC144ES PHJ3K1C TV-C202S
S TV Q 0316 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S
S TV Q 0317 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0318 87-A30-121-080 0E TR,DTC323TS PHJ3K1C TV-C202S
S TV Q 0319 87-A30-090-080 0E FET,2SK2541 PHJ3K1C TV-C202S
S TV Q 0320 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0322 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0371 87-A30-066-080 0E TR,2SA1175FE PHJ3K1C TV-C202S

S TV Q 0372 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0373 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
S TV Q 0502 87-A30-065-080 0E TR,2SC2785FE PHJ3K1C TV-C202S
X TV R 0022 88-121-682-080 0E RES,6.8K-1/8W J PHJ3K1C TV-C202S
X TV R 0063 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0064 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0065 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0066 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TV R 0067 88-121-333-080 0E RES,33K-1/8W J PHJ3K1C TV-C202S
X TV R 0069 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X TV R 0070 88-121-682-080 0E RES,6.8K-1/8W J PHJ3K1C TV-C202S
X TV R 0071 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X TV R 0301 88-121-561-080 0E RES,560-1/8W J PHJ3K1C TV-C202S
X TV R 0302 88-121-822-080 0E RES,8.2K-1/8W J PHJ3K1C TV-C202S
X TV R 0303 88-121-272-080 0E RES,2.7K-1/8W J PHJ3K1C TV-C202S
X TV R 0304 88-121-822-080 0E RES,8.2K-1/8W J PHJ3K1C TV-C202S
X TV R 0305 88-121-391-080 0E RES,390-1/8W J PHJ3K1C TV-C202S
X TV R 0306 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S
X TV R 0307 88-121-334-080 0E RES,330K-1/8W J PHJ3K1C TV-C202S
X TV R 0308 88-121-821-080 0E RES,820-1/8W J PHJ3K1C TV-C202S

X TV R 0309 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X TV R 0310 88-121-272-080 0E RES,2.7K-1/8W J PHJ3K1C TV-C202S
X TV R 0311 88-121-392-080 0E RES,3.9K-1/8W J PHJ3K1C TV-C202S
X TV R 0312 88-121-821-080 0E RES,820-1/8W J PHJ3K1C TV-C202S
X TV R 0313 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X TV R 0314 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X TV R 0315 88-121-823-080 0E RES,82K-1/8W J PHJ3K1C TV-C202S
X TV R 0316 88-121-334-080 0E RES,330K-1/8W J PHJ3K1C TV-C202S
X TV R 0317 88-121-274-080 0E RES,270K-1/8W J PHJ3K1C TV-C202S
X TV R 0318 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S

X TV R 0319 88-121-561-080 0E RES,560-1/8W J PHJ3K1C TV-C202S
X TV R 0320 88-121-273-080 0E RES,27K-1/8W J PHJ3K1C TV-C202S
X TV R 0321 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0322 88-121-332-080 0E RES,3.3K-1/8W J PHJ3K1C TV-C202S
X TV R 0323 88-121-471-080 0E RES,470-1/8W J PHJ3K1C TV-C202S
X TV R 0324 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0325 88-121-471-080 0E RES,470-1/8W J PHJ3K1C TV-C202S
O TV R 0326 87-A00-067-090 0E RES,M/F 6.8K-3W J PHJ3K1C TV-C202S
X TV R 0327 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X TV R 0328 88-121-821-080 0E RES,820-1/8W J PHJ3K1C TV-C202S

X TV R 0329 88-121-821-080 0E RES,820-1/8W J PHJ3K1C TV-C202S
X TV R 0330 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X TV R 0331 88-121-222-080 0E RES,2.2K-1/8W J PHJ3K1C TV-C202S
X TV R 0332 88-121-332-080 0E RES,3.3K-1/8W J PHJ3K1C TV-C202S
X TV R 0333 88-121-820-080 0E RES,82-1/8W J PHJ3K1C TV-C202S
X TV R 0334 88-121-151-080 0E RES,150-1/8W J PHJ3K1C TV-C202S
X TV R 0335 88-121-561-080 0E RES,560-1/8W J PHJ3K1C TV-C202S
X TV R 0336 88-121-822-080 0E RES,8.2K-1/8W J PHJ3K1C TV-C202S
X TV R 0338 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S
X TV R 0339 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S

 10 

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X TV R 0340 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X TV R 0341 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0342 88-121-822-080 0E RES,8.2K-1/8W J PHJ3K1C TV-C202S
X TV R 0343 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X TV R 0344 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X TV R 0345 88-130-471-080 0E RES,470-1/4W J PHJ3K1C TV-C202S
X TV R 0346 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X TV R 0352 88-121-152-080 0E RES,1.5K-1/8W J PHJ3K1C TV-C202S
X TV R 0353 88-121-333-080 0E RES,33K-1/8W J PHJ3K1C TV-C202S
X TV R 0354 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S

X TV R 0356 88-121-750-080 0E RES,75-1/8W J PHJ3K1C TV-C202S
X TV R 0358 88-121-680-080 0E RES,68-1/8W J PHJ3K1C TV-C202S
X TV R 0359 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X TV R 0360 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X TV R 0361 88-121-750-080 0E RES,75-1/8W J PHJ3K1C TV-C202S
X TV R 0363 88-121-101-080 0E RES,100-1/8W J PHJ3K1C TV-C202S
X TV R 0365 88-121-470-080 0E RES,47-1/8W J PHJ3K1C TV-C202S
X TV R 0366 88-121-271-080 0E RES,270-1/8W J PHJ3K1C TV-C202S
X TV R 0367 88-121-470-080 0E RES,47-1/8W J PHJ3K1C TV-C202S
X TV R 0368 88-121-470-080 0E RES,47-1/8W J PHJ3K1C TV-C202S

X TV R 0369 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X TV R 0370 88-121-124-080 0E RES,120K-1/8W J PHJ3K1C TV-C202S
X TV R 0371 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X TV R 0372 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TV R 0373 88-121-563-080 0E RES,56K-1/8W J PHJ3K1C TV-C202S
X TV R 0374 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X TV R 0375 88-121-332-080 0E RES,3.3K-1/8W J PHJ3K1C TV-C202S
X TV R 0376 88-121-102-080 0E RES,1K-1/8W J PHJ3K1C TV-C202S
X TV R 0377 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TV R 0378 88-121-563-080 0E RES,56K-1/8W J PHJ3K1C TV-C202S

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X TV R 0379 88-121-153-080 0E RES,15K-1/8W J PHJ3K1C TV-C202S
X TV R 0380 88-121-821-080 0E RES,820-1/8W J PHJ3K1C TV-C202S
X TV R 0381 88-121-124-080 0E RES,120K-1/8W J PHJ3K1C TV-C202S
X TV R 0382 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X TV R 0384 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
X TV R 0386 88-130-471-080 0E RES,470-1/4W J PHJ3K1C TV-C202S
X TV R 0387 88-121-472-080 0E RES,4.7K-1/8W J PHJ3K1C TV-C202S
X TV R 0388 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X TV R 0389 88-121-221-080 0E RES,220-1/8W J PHJ3K1C TV-C202S
X TV R 0390 88-121-121-080 0E RES,120-1/8W J PHJ3K1C TV-C202S

X TV R 0397 88-121-822-080 0E RES,8.2K-1/8W J PHJ3K1C TV-C202S
X TV R 0398 88-121-104-080 0E RES,100K-1/8W J PHJ3K1C TV-C202S
X TV R 0399 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0515 88-121-473-080 0E RES,47K-1/8W J PHJ3K1C TV-C202S
X TV R 0516 88-121-274-080 0E RES,270K-1/8W J PHJ3K1C TV-C202S
X TV R 0901 88-121-225-080 0E RES,2.2M-1/8W J PHJ3K1C TV-C202S
X TV R 0902 88-121-103-080 0E RES,10K-1/8W J PHJ3K1C TV-C202S
X TV R 0903 88-121-223-080 0E RES,22K-1/8W J PHJ3K1C TV-C202S
O TV SFR0301 87-024-349-080 0E SFR,1K H EVN DJAA03 PHJ3K1C TV-C202S
O TV SFR0302 87-024-349-080 0E SFR,1K H EVN DJAA03 PHJ3K1C TV-C202S

O TV SFR0501 87-024-357-080 0E SFR,100K H EVN DJAA03 PHJ3K1C TV-C202S
O TV X 0301 87-A70-054-080 1B VIB,XTAL 4.43MHZ AQC-1018 PHJ3K1C TV-C202S
O TV X 0302 87-030-327-010 0E VIB,CER 503.500KHZ CSB F30 PHJ3K1C TV-C202S
O TV X 0303 87-A70-007-080 1B VIB,XTAL 3.58MHZ AQC-1001 PHJ3K1C TV-C202S

 11 

SCHEMATIC DIAGRAM (MAIN / NK)

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore9620450
