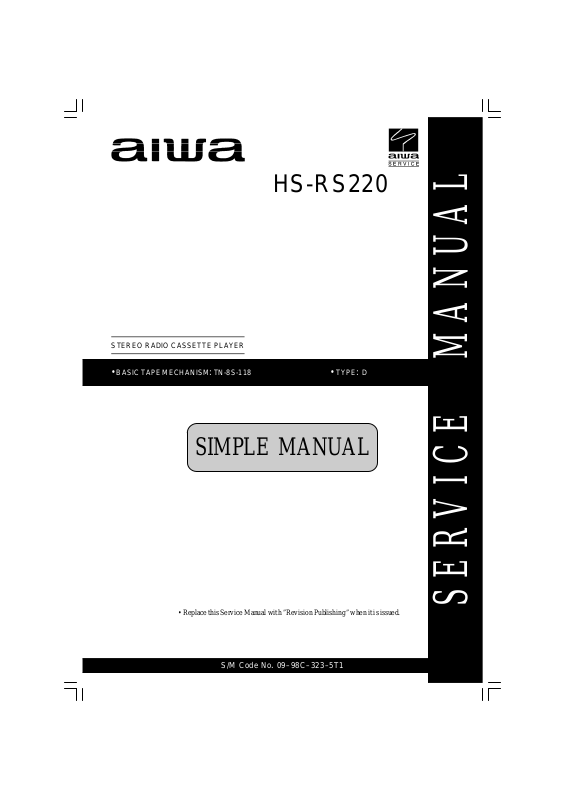

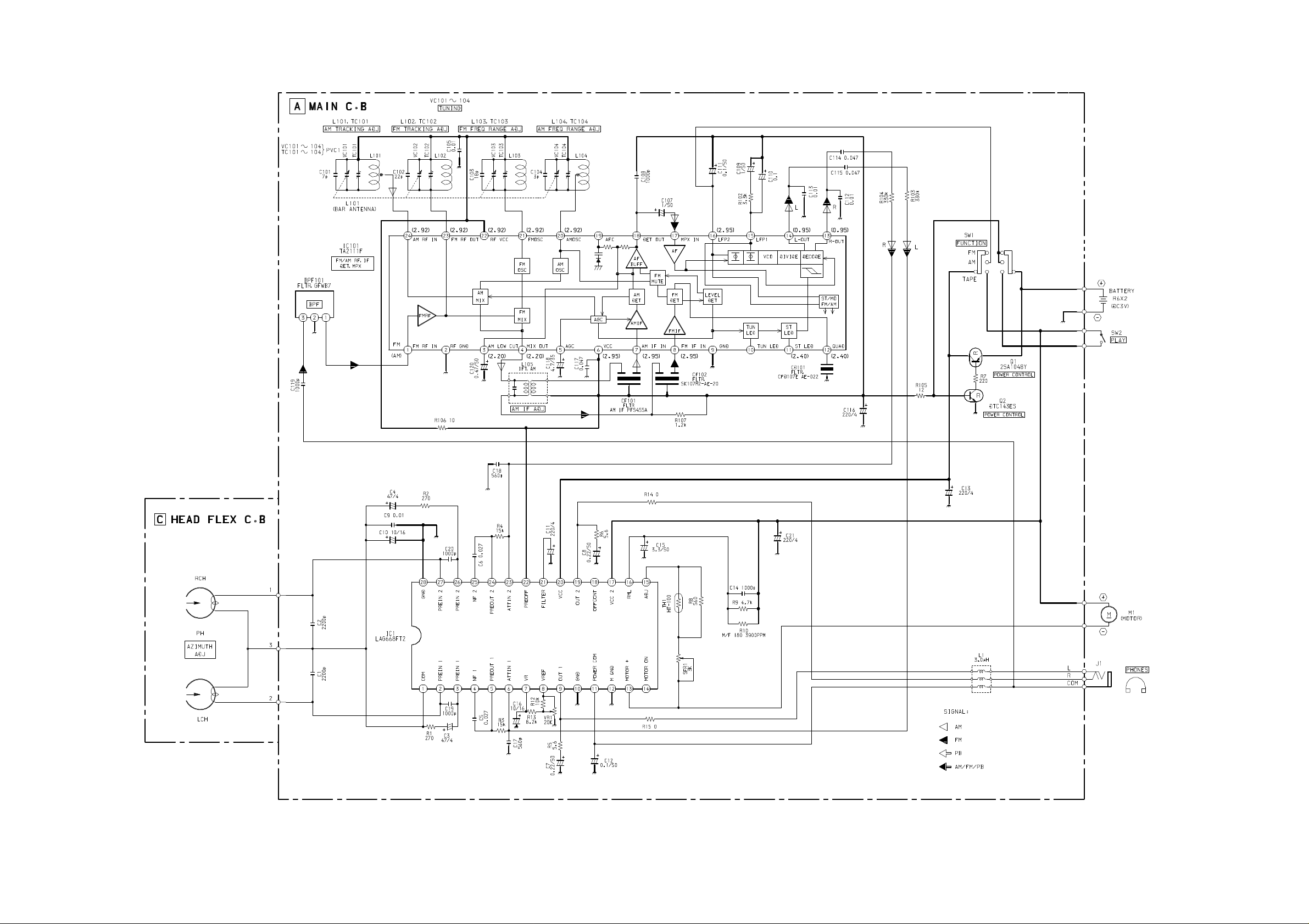

AIWA HS RS220 Service Manual
S E R V I C E M A N U A L
HS-RS220
STEREO RADIO CASSETTE PLAYER
• BASIC TAPE MECHANISM: TN-8S-118 • TYPE: D
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
S/M Code No. 09–98C–323–5T1
ELECTRICAL MAIN PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
S ......................OO..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 7 87-010-490-040 0E CAP, ELECT 0.1-50 A...................
C 8 87-010-490-040 0E CAP, ELECT 0.1-50 A...................
C 3 87-010-501-040 0E E/CAP GAS 47-4 A...................
C 4 87-015-676-040 0E E/CAP 47/6.3 A...................
C 2 87-A10-178-010 CAP,CER 2200P-50 M D A...................
C 1 87-A10-178-010 CAP,CER 2200P-50 M D A...................
C 9 87-A10-182-010 0E CAP,CER 0.01-50 Z F A...................
C 6 87-A10-838-010 0E CAP,SC 0.027 K A...................
C 5 87-A10-838-010 0E CAP,SC 0.027 K A...................
C 12 87-010-490-040 0E CAP, ELECT 0.1-50 A...................
C 15 87-010-496-040 0E CAP,E 3.3-50 GAS A...................
C 16 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 11 87-010-503-040 0E CAP,E 220-4 GAS A...................
C 10 87-015-681-040 0E E/CAP 10-16 A...................
C 18 87-A10-173-010 CAP,CER 560P-50 K B A...................
C 17 87-A10-173-010 CAP,CER 560P-50 K B A...................
C 19 87-A10-176-010 0E CAP,CER 1000P-50 M D A...................
C 14 87-A10-176-010 0E CAP,CER 1000P-50 M D A...................
C 13 87-A10-489-040 0E CAP,E 220-4 7L SR A...................
C 20 87-A10-176-010 0E CAP,CER 1000P-50 M D A...................
IC 1 87-A20-852-040 1D C-IC,LAG668FT2 A...................
J 1 85-HRL-623-010 0E JACK,3.5 ST BLK A...................
L 1 87-A50-167-010 0E COIL,RF CHOKE3.0UH A...................
Q 2 87-026-287-080 0E TR,DTC143ES A...................
Q 1 89-110-484-080 TR,2SA1048Y A...................
R 10 87-A00-434-080 RES,M/F 180-1/8W 3900 PPM A...................
SFR 1 87-A90-775-010 0E SFR 3K H VZ066L3 A...................
SW 1 87-A90-216-010 0E SW SL 2-2-3 SK230 A...................
TH 1 87-026-256-090 0E THERMISTOR, HT-100 A...................
VR 1 87-A90-987-010 VR,RTRY 20KBX2 A...................
BPF 101 87-A90-601-010 0E FLTR,BPF GFWB7 A...................
C 109 87-015-695-040 0E E/CAP 1UF 50V TAPG A...................
C 107 87-015-695-040 0E E/CAP 1UF 50V TAPG A...................
C 105 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 A...................
C 103 87-A10-139-010 0E CAP,CER 18P-50 K CH A...................
C 102 87-A10-140-010 0E CAP,CER 22P-50 K CH A...................
C 108 87-A10-176-010 0E CAP,CER 1000P-50 M D A...................
C 118 87-015-688-040 0E E/CAP 4.7UF 35V TAPG A...................
C 110 87-015-691-040 0E CAP,E0.1-50 SRA A...................
C 111 87-015-691-040 0E CAP,E0.1-50 SRA A...................
C 119 87-A10-176-010 0E CAP,CER 1000P-50 M D A...................
C 115 87-A10-411-010 0E CAP,CER 0.047-16 K SR A...................
C 117 87-A10-411-010 0E CAP,CER 0.047-16 K SR A...................
C 114 87-A10-411-010 0E CAP,CER 0.047-16 K SR A...................
C 116 87-A10-489-040 0E CAP,E 220-4 7L SR A...................
C 120 87-015-694-040 0E E/CAP 0.47-50 A...................
CF 101 87-A90-530-010 0E FLTR,AM IF PFS455A A...................
CF 102 87-A90-980-010 1A FLTR,KIT A...................
L 104 87-A50-187-010 0E COIL,AM OSC270UH A...................
L 105 87-A90-425-010 0E IFT,MW(7L)-455 A...................
L 102 88-HRK-602-010 COIL,RF FM D A...................
L 103 88-HRK-603-010 COIL,OSC FM D A...................
L 101 88-HRK-605-010 0E BAR-ANT,MW A...................
VC 101 87-A90-415-010 1C TUN-CAP,40P-160P 16X A...................
