Page 1
FR-C92
Y
SERVICE MANUAL
RADIO RECEIVER
S/M Code No. 09-99A-336-7N1
DATA
Page 2
SPECIFICATIONS
Design and specifications are subject to change without
•
notice
.
2
Page 3
ELECTRICAL MAIN PARTS LIST
IC BLOCK DIAGRAM
IC, CXA1619BS
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC
S4-316-190-010 IC,CXA1619BS
DIODE
S0-001-000-000 DIODE,RB100A/1S40
MAIN C.B
B101 S1-025-200-000 BULB 2.5V,200MA LAMP
B102 S1-025-500-000 BULB 2.5V,50MA LAMP
C101 87-010-221-010 CAP,E 470-10V
C102 87-010-482-010 CAP,E 220-4V
C103 87-010-420-010 CAP,E 10-6.3V
C104 87-010-419-080 CAP,E 4.7-16V
C106 87-010-420-010 CAP,E 10-6.3V
C111 87-010-419-080 CAP,E 4.7-16V
C126 87-010-420-010 CAP,E 10-6.3V
C129 87-010-420-010 CAP,E 10-6.3V
C132 87-010-420-010 CAP,E 10-6.3V
CF101 S0-004-550-080 CER,FILTER PFS455A6
CF102 S0-001-070-160 CER,FILTER SFT10.7MS23H-A
CF103 S0-001-070-170 CER,FILTER CDA10.7MG16-A
CON101 S0-600-902-000 CONN,6P
REF. NO PART NO. KANRI DESCRIPTION
NO.
L108 S1-920-310-000 COIL ANT ASSY 9-10-50
L109 87-003-147-010 COIL,22UH
LED101 87-070-106-010 LED,SE3001 RED
SW101 S2-310-311-000 SW,SLIDE 2P3T
SW102 S2-310-311-000 SW,SLIDE 2P3T
SW103 S2-210-311-000 SW,SLIDE 2P2T
T101 S0-015-200-550 IFT,5PNR-A152A0
T102 S0-040-500-050 IFT,5M
VC101 S3-221-250-040 PVC,AM/FM
VR101 SE-095-031-070 VR-E10M1GH503KB
WH102 S0-052-680-200 HEADER,2P
WH105 S0-301-002-000 CONN,3P
JACK C.B
J101 S1-000-010-000 JACK,DC 2.75MM
J102 S0-014-560-000 JACK,HP HSJ1456-01-210H
LED C.B
LED102 87-070-106-010 LED,SE3001 RED
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
CHIP RESISTOR PART CODE
Chip Resistor Part Coding
88
A
Resistor Code
Chip resistor
Wattage Type Tolerance
1/16W 1005 5% CJ
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
Symbol
CJ
CJ
CJ
Figure
Value of resistor
Form
L
Dimensions (mm)
t
W
0.55
Resistor Code
108
118
128
LW t
1.0 0.5 0.35 104
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
: A
: A
43
Page 4

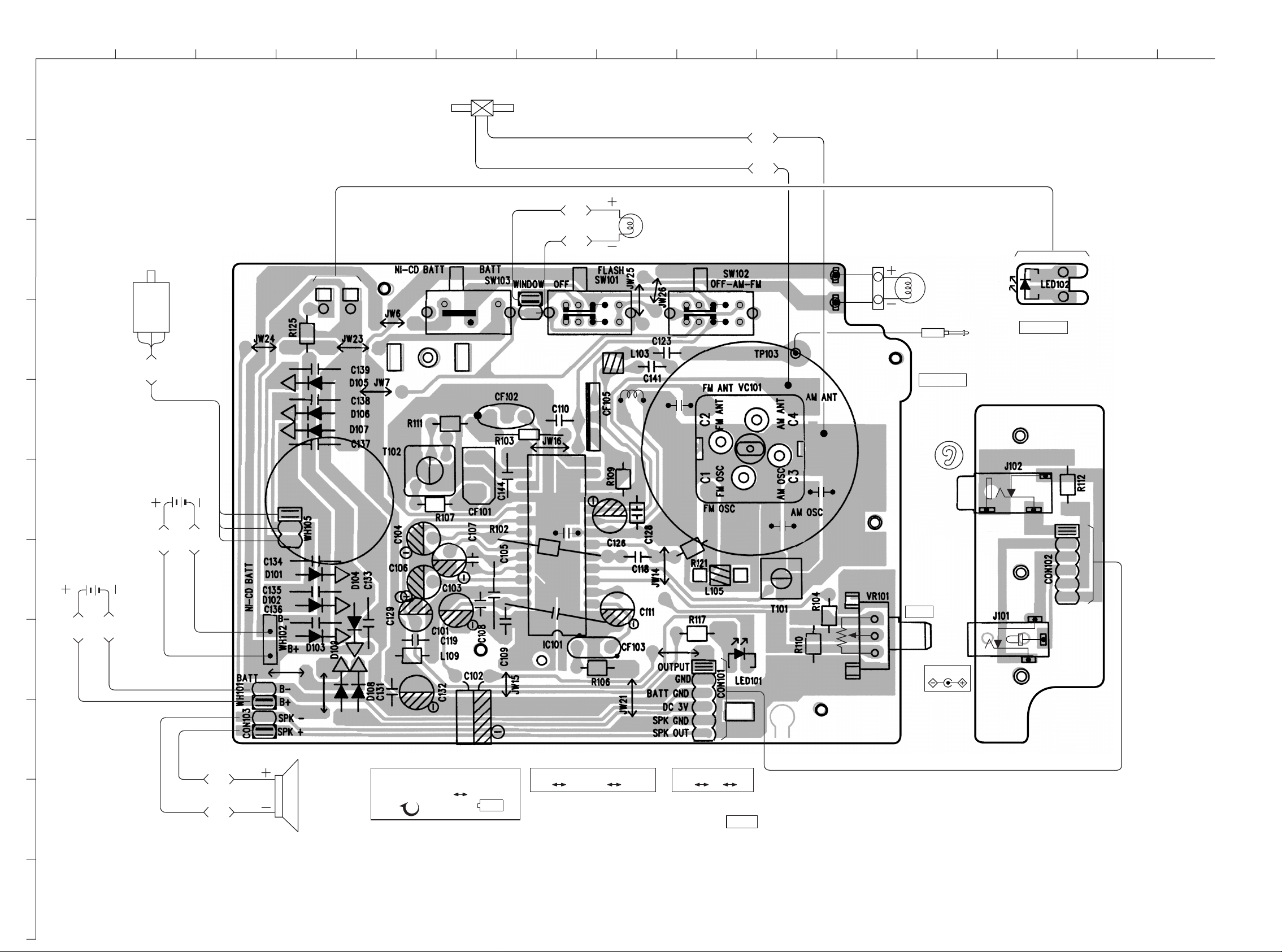

WIRING
1
234567
8
9
10
11 12 13
14
A
L108
WHT
RED
B
WHT
MAIN C.B
WHT
LAMP
C
2
M1
D
12 3
DC
GENERATOR
GRY
1
B102
(WINDOW)
TP102
CN1
1
2
B101
(FLASH)
FM ANT
VC101
TUNE
LED102
DYNAMO
1
2
LED C.B
JACK C.B
E
L107
1516
F
DC 2.4V
C112
J102
TP101
C127
C145
RECHARGEABLE BATTERY
DRY BATTERY
RED
DC 3V
BLK
G
RED
BLK
H
I
RED
J
RED
123
C117
VR101
VOL
2
1
SW103
SPK1
RECHARGEABLE
POWER SELECTOR
BATT
DRY CELL
OFF WINDOW FLASH
130
SW101
LIGHT
6
1
SW102
RADIO
OFF AM FM
LED101
TUNE
J101
DC 3V
6
1
K
65
Page 5
SCHEMATIC DIAGRAM
MAIN C. B
VC101
TUNE
C2
VR101
VOL
LED102
DYNAMO
LED102
2
1
B101
(FLASH)
B102
(WINDOW)
1 2 3
M1
(DC GENERATOR)
WH105
LED C. B
VC101
C1-C4
C1
TP101
C4
TP102
10/6.3V
2.2P
C3
15K
CDA10.7MG16
B101
2.5V 50mA
CN1
10/6.3V
2
1
RB100A
WH101A
BATT
UM-3X2
DC-3V
WH101B
WH102
2
1
ANT1
FM ANT
TP103
SW102B
SFE10.7MS23
10/6.3V
10/6.3V
10/6.3V
FRONT END
SW101
OFF WINDOW FLASH
OFF AM FM
RECHARGEABLE
LIGHT
SW102
RADIO
POWER SELECTOR
BATT
SW103
DRY CELL
2
SPK1
1
CON103
CON101
RECHARGEABLE
BATT
DC 2.4V
JACK C. B
CON102
3
3
4
4
5
5
6
6
1
1
2
2
R112
15
J101
J102
J101
DC 3V
J102
LED101
TUNE
87
Page 6
ELECTRICAL ADJUSTMENT
PRACTICAL SERVICE FIGURE
< FM SECTION >
Sensitivity: Less than 18dB
(THD 3%) (at 88/98/108MHz)
Distortion: Less than 2% (at 75kHz)
Intermediate frequency: 10.7MHz
< AM SECTION >
Sensitivity: Less than 52dB (at 600kHz)
(S/N 10dB) Less than 50dB
(at 1000/1400kHz)
Distortion: Less than 3% (at 1000kHz)
(100dB 60%)
Intermediate frequency: 455kHz
VOLTAGE CHART
109
Page 7
MECHANICAL EXPLODED VIEW 1/1
22
23
MECHANICAL PARTS LIST 1/1
28
B
P.C.B
31
39
21
A
40
F
A
30
B
P.C.B
C
A
25
26
B
29
P.C.B
27
18
24
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 SZ-RT3-530-0A0 BADGE AIWA
2 SZ-RT3-030-010 PANEL,FRONT
3 SZ-RT3-040-000 WINDOW,DIAL
4 SZ-RT3-010-200 CAB,FRONT
5 S2-080-004-100 SPK,4W
6 SZ-RT3-78K-B00 KNOB,SET ZRT3-07/08
7 SZ-RT3-360-000 RING,RUBBER
8 SZ-RT3-540-000 BULB BASE
9 SZ-RT3-220-010 BULB REFLECTOR
10 SZ-RT3-050-000 PLATE LENS TORCH
11 SZ-RT3-060-010 COVER TORCH
12 SZ-RT3-440-000 SPR,TUNING KNOB HOLD
13 SZ-RT3-340-000 KNOB,RING RUBBER TU/VOL
14 SZ-RT3-910-KB0 KNOB,SET
15 SZ-RT3-460-200 PLATE DIAL INDICATOR
16 SZ-RT3-160-000 POINTER INDICATOR
17 SZ-RT3-170-000 POINTER CHAS
18 SZ-RT3-520-000 HOLDER BAR AM
19 S1-920-310-000 COIL ANT ASSY 9-10-50
20 SZ-RT3-320-000 LEVER KNOB BAND
21 SZ-RT3-020-200 CAB,REAR
22 S0-136-380-000 ANT,ROD TELESCOPIC
23 SZ-RT3-250-000 SPR,BATT (-)
24 SZ-RT3-370-000 COVER,HP/DC JACK
25 SZ-RT3-110-010 LID BATT
REF. NO PART NO. KANRI DESCRIPTION
NO.
26 SZ-RT3-240-000 SPR,BATT PLATE (+)
27 SZ-RT3-500-000 JACK HP DC COVER SHAFT
28 SZ-RT3-123-400 PLASTIC DYNAMO
29 S4-240-000-000 RECHARGEABLE BATT 2.4V
30 SA-180-090-800 E-RING WASHER 18-9.0-0.8
31 M8-8ZS-290-000 DYNAMO MOTOR ASSY
32 SZ-RT3-600-000 SPR,PLATE 1
33 SZ-RT3-610-000 SPR,PLATE 2
34 SZ-RT3-150-000 POINTER SPLINE
35 SZ-RT3-560-000 BULB TERMINAL
36 SZ-RT3-430-000 PLATE TUNING GEAR HOLD
37 SZ-RT3-210-000 GEAR,TUNING
38 SZ-RT3-200-000 GEAR,DIAL DRUM
39 SZ-RT3-270-200 PLATE CHARGE
40 SZ-RT3-490-000 SHAFT HANDLE
A S7-HT8-211-010 SCREW,ST2-18
B 87-342-036-210 SCREW,ST2-8
C 87-761-074-410 SCREW 2.6-8MM PM
D 87-264-525-310 SCREW,1.7-2.5
E 87-342-074-010 SCREW ST2.6-8 PB
F 87-751-074-410 SCREW ST2.6-8 PAB(M3 HEAD)
SZ-RT3-380-000 COVER HANDLE
SZ-RT3-420-100 KNOB,TUNING/VOLUME COVER PLET
19
33
E
B
COLOR NAME TABLE
5
32
B
17
6
16
34
15
D
38
37
7
20
4
36
35
8
9
12
10
11
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange
1
2
13
14
3
1211
Page 8
ACCESSORIES/PACKAGE LIST
REF. NO PART NO. KANRI DESCRIPTION
1 SZ-RT3-910-000 INSTRACTION BOOK
2 S8-HT2-220-000 HAND STRAP
NO.
13
920074
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
Printed in Singapore
