2.4GHz multifunction

UFO Presenter Air Mouse

User’s Manual

AWP305

Table of Contents

1. Overview P.1 7. Installation P.5

2. Applications P.2 8. Operation P.6-17

3. Features P.2 9. Troubleshooting P.17

4. Package contents P.3 10. Software compatibility P.18

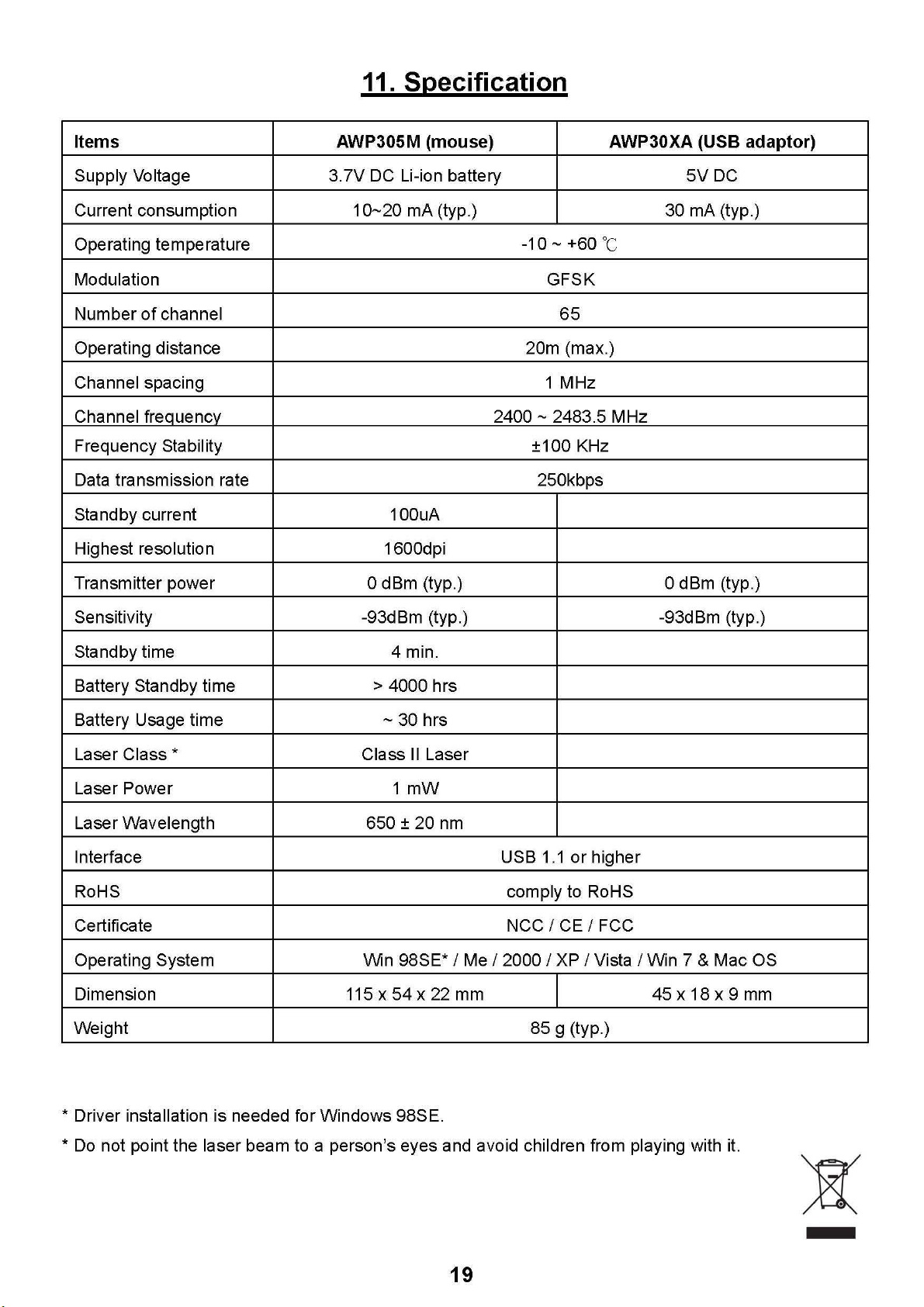

5. System requirements P.3 11. Specification P.19

6. Detailed Introduction P.3-4

1. Overview

This 2.4GHz wireless multifunction UFO (Universal Flip Operation) Presenter Air
Mouse has patents from many countries that include dual-mode operation for
conventional desktops and in-air mode. Thanks to this technology, users can also
freely choose the mode that suits them the best by having shortcut keys for
PowerPoint and PDF files, website and e-mail browsing, multimedia playing and
special function keys, among many others in a single versatile device.

The smart design of the shortcut keys, laser pointer and other wireless presentation
functions allows using them either from your desk or from any spot in a meeting
room giving you a free moving space and the chance to use your body language to
vividly deliver the content of your presentation.

When used on the desktop, the UFO presenter air mouse is a conventional
wireless optical mouse, however, when used with a notebook, you don’t need to
worry anymore about finding a fixed surface to place the mouse or feel
annoyed/uncomfortable about using the touch panel or a red-cap pointer on the
notebook.

Using the UFO presenter air mouse is as simple as pressing a button once to
immediately start enjoying it in the air, besides, the operation method is similar to
an ordinary mouse so its operation will be very simple to learn. The UFO presenter
air mouse has even a complete set of shortcut keys for web and e-mail browsing as
well as a multimedia function allowing you to feel relaxed while surfing on the
internet and checking e-mails or when playing multimedia files. The usage scope
can also be extended to your living room where you can use your LCD TV as the
monitor of your computer while comfortably sit on the sofa to enjoy the
convenience brought to you by our UFO multiple wireless functions.

In addition, the UFO presenter air mouse features a turbo key let you instantly
speed up or slow down the cursor speed for fast and accurate cursor control.

Lastly, the 10 built-in special function keys allow users to customize the set up by
their most frequently used keys, especially in PC games, where you can become
undefeated by setting the frequently used multiple key sequences to a single key.

1

2.Applications

 As a wireless pointer for Power Point presentations.
 As a common wireless mouse when used on a desktop.
 As an “in-air” handy wireless mouse with no surface.
 As a wireless PC remote control when it is used with a LCD TV connected to

a PC.

 While listening to music or watching videos in your PC, you can use the

shortcut keys to remotely control your pre-set multimedia player.

 For web browsing you can use the shortcut keys to operate the browser basic

functions. In online or PC gaming, you can use special function keys to
facilitate some operations.

3.Features

z Can be operated on the desk or in the air, which is suitable for any

circumstances and user’s personal preferences.

z Employs 2.4GHz wireless digital technology and the transmission range is up to

20 meters.

z Equipped with wireless remote control feature for convenient control of a TV or

projector when playing multimedia, web browsing, presenting, and gaming.

z Automatic power saving mode for when it is not being used.
z Built-in rechargeable Li-ion battery, that lasts up to 7 days of normal operations

after charging.

z Includes a ID code pairing and 76 channels which allows that many users can be

at the same time in the same area.

z Through multiple pairing ID codes, a single mouse can control up to 10 PCs or

notebooks.

z Automatic detection to avoid channel interference.
z Battery low LED indication.

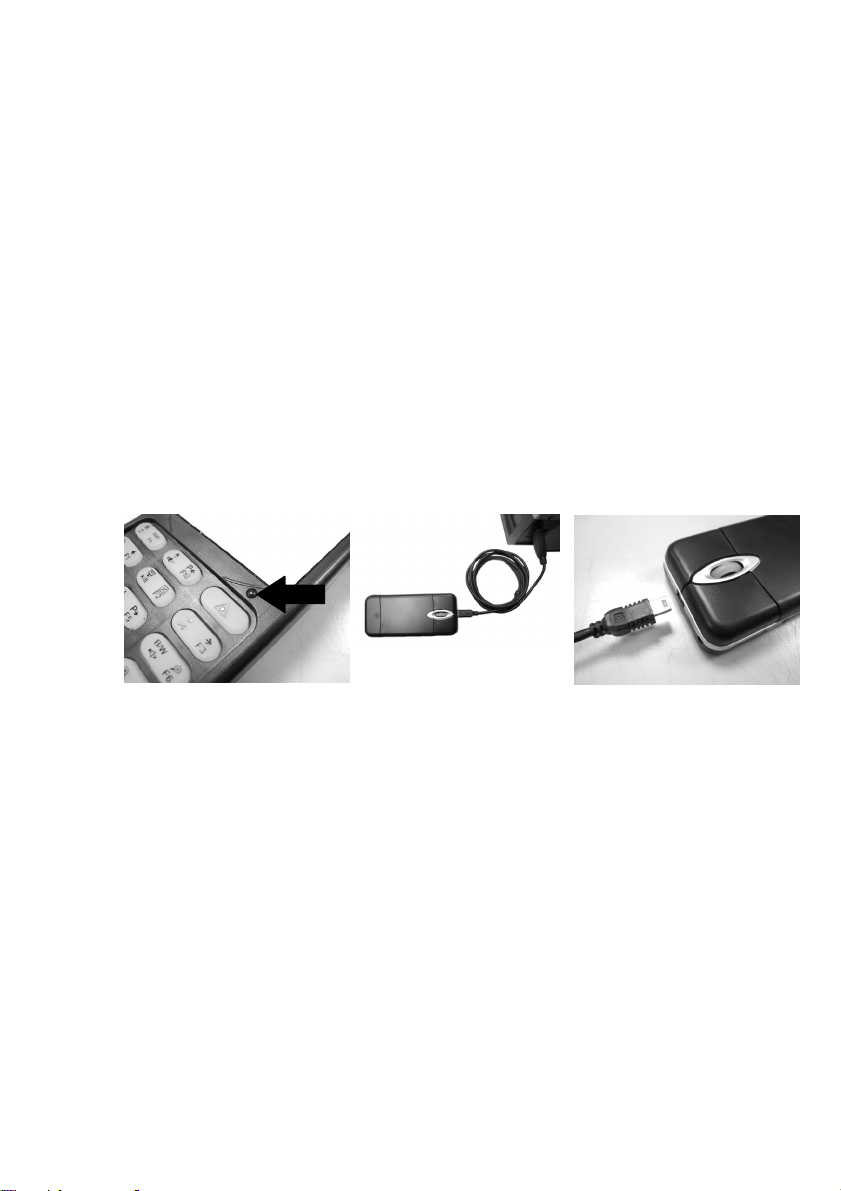

z USB cable connector to PC for simultaneous wired usage and battery charging
z 1600dpi high resolution optical engine, precise and sensitive.
z Laser pointer included, convenient for PowerPoint presentations.
z Turbo key for instant speedup of cursor speed (resolution).

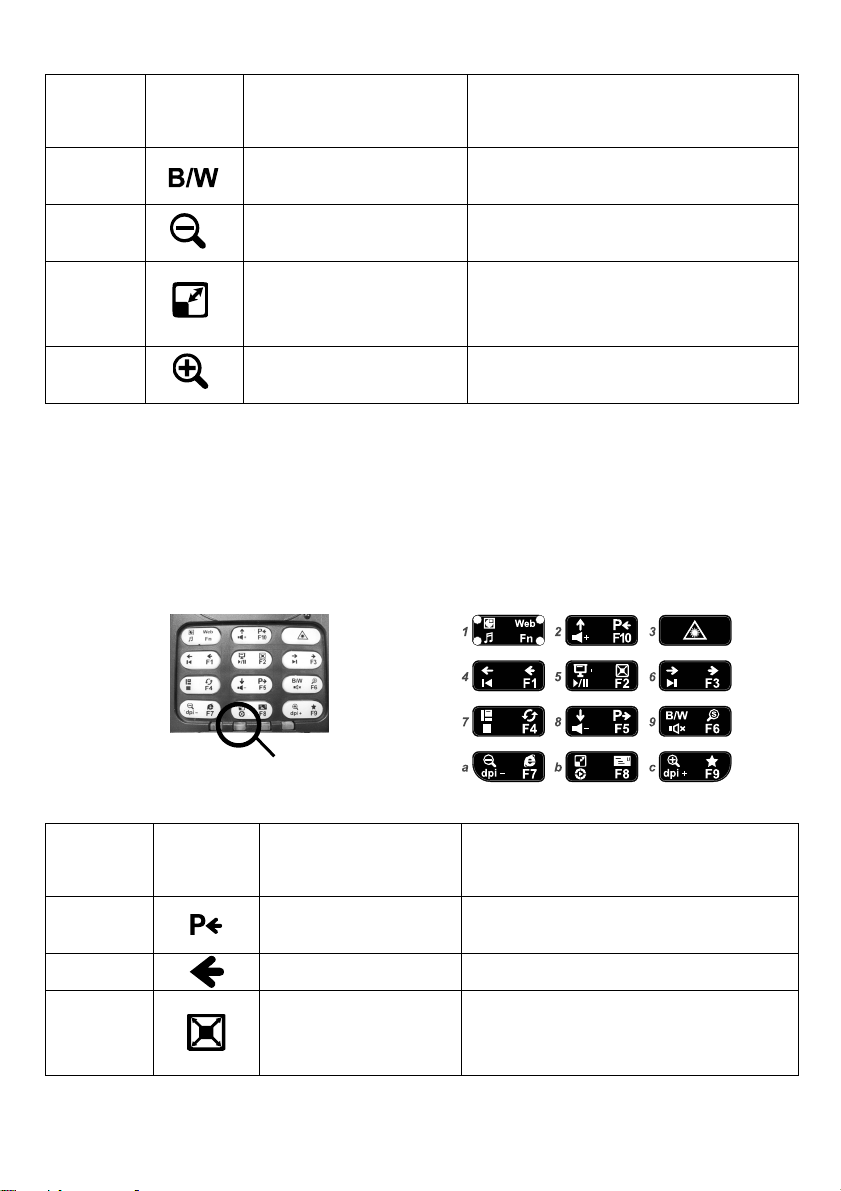

z Built-in 10 shortcut keys for PDF file reading and PowerPoint, convenient for

presentations.

z Built-in 10 shortcut keys for e-mail and web browsing, suitable for Web TV usage,

among others.

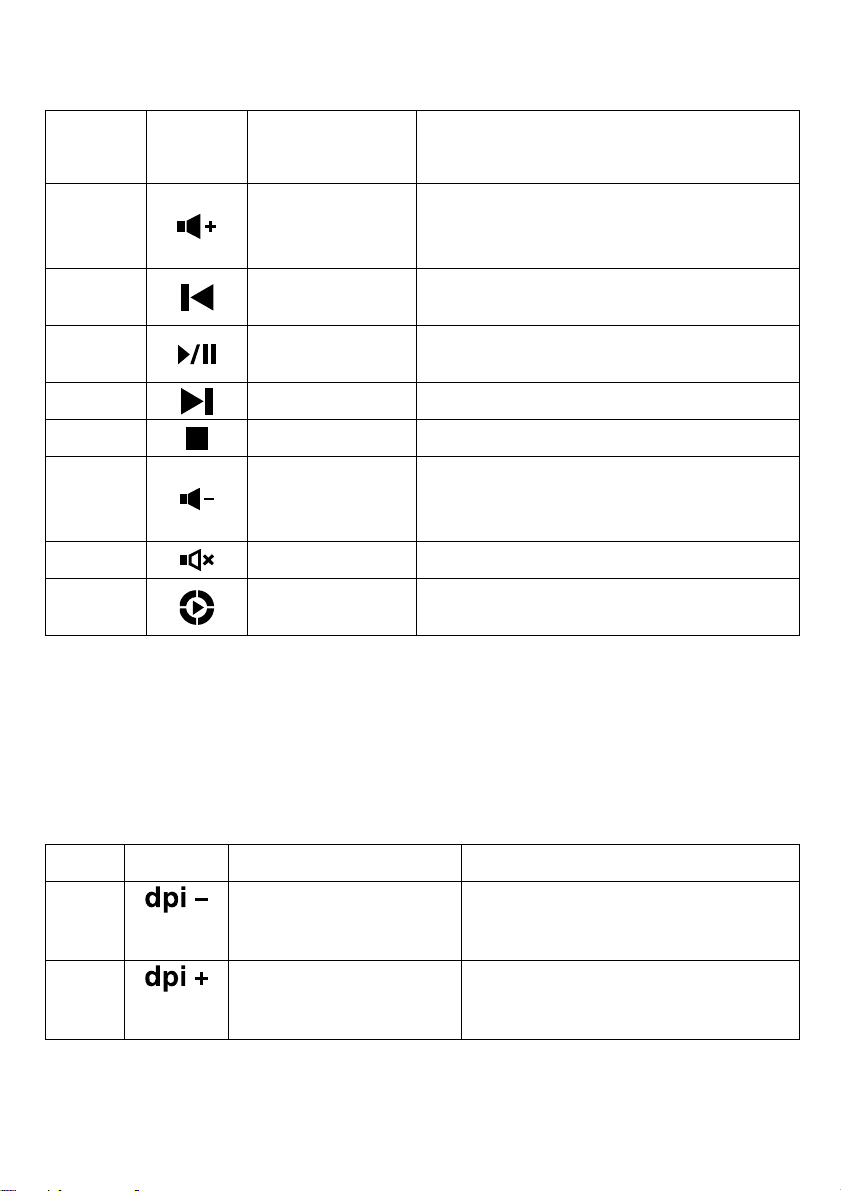

z Built-in 8 shortcut keys for multimedia player.
z Built-in 10 special function keys for the comfort of online gamers and other type

of users.

z Two shortcut keys to adjust cursor speed, suitable for fast and accurate cursor

control.

z Plug-and-play with no software installation needed, compatible with Windows

Me / 2000 / XP / Vista / Win 7 & Mac OS.

2

4.Package contents

 Wireless mouse . . . . . 1 pc

 USB adaptor . . . . . 1 pc

 Sliding plate . . . . . 1 pc

 USB to Mini-USB cable . . . . . 1 pc

 User manual . . . . . 1 pc

5.System Requirement

 Windows 98 SE*/Me/2000/XP/Vista/Win 7 (*need to install driver)
 USB port

Software compatible with

 Microsoft Power Point
 Windows Media Player or other compatible media player software
 Internet Explorer or other internet browsers
 Adobe Acrobat and Acrobat Reader
 Microsoft Outlook or other e-mail software

6. Detailed Introduction

 Wireless mouse

Front view:

Right-click button

Left-click button

Mini-USB port

Scroll wheel
(Turbo key )

Laser pointer

USB adaptor storage space

ON/OFF switch

3

Back view：

Sliding surface

Function key

 USB adaptor

USB connector

LED indicator

Pairing button

 Sliding plate

Battery low LED indicator

Mode LED indicator

4

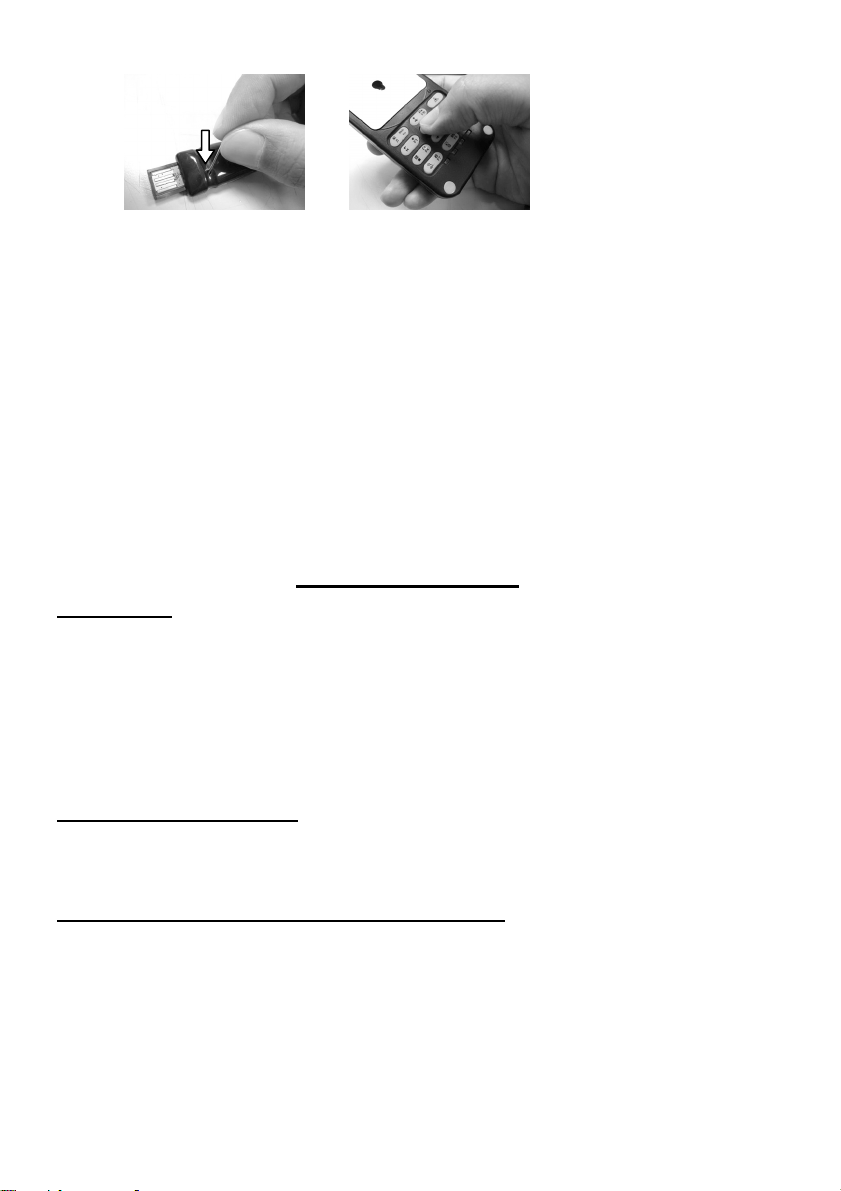

7. Installation

1. Open the cover of the storage space and take out the the USB adaptor.

2. Plug the USB adaptor to an USB port in a desktop PC or notebook.
Note : If the USB adaptor is used for a long period of time in the desktop PC,

it is suggested to plug it into the USB port at the PC’s backside)

3. When the USB connector is correctly plugged in, the toolbar at the lower right

in your computer screen will show it has detected a new device, if it doesn’t
show this message, please unplug and plug it again. (*Windows 98 needs an
installation driver, you can search it online and download it).

4. When you finish using it, please turned the power switch off on the side of

mouse to avoid an incidentally run out of battery and put the sliding plate back
into the storage space.

5

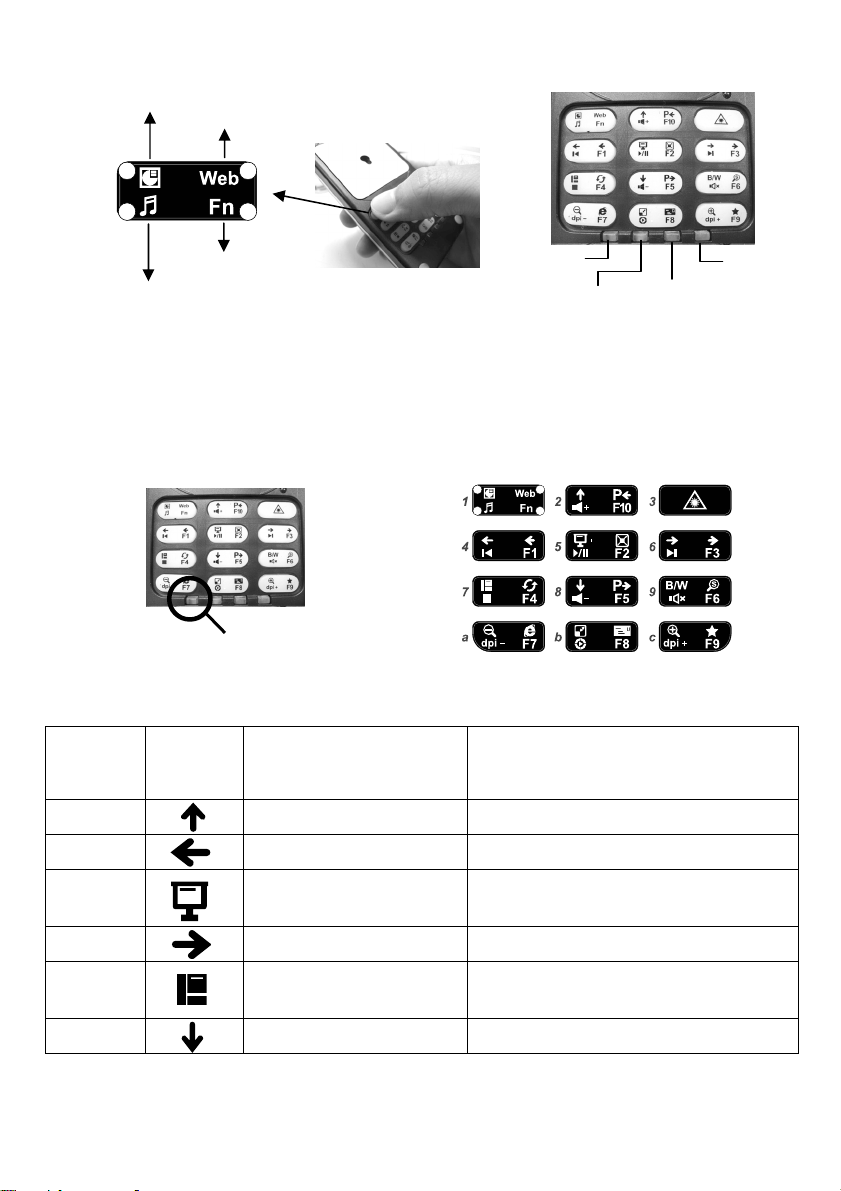

8. Operating instructions

8-1 Operation mode

A. Desktop operation mode (factory default setting)

First make sure the blue LED indicator light of the scroll wheel is on
(indicating mouse is on
goes out, keep pressing left or right button and the scrolling wheel
simultaneously for 3 seconds until the blue LED light is on, which indicates
the cursor-control operation is switched to desktop operation mode (refer to
picture below), then operate it as an ordinary mouse. The mouse will
memorize its previous operation mode, until it is changed to a new one.

B. In-air operation mode

First make sure the blue LED indicator light of the scroll wheel is off (indicating
mouse is on
pressing the left or the right button and the scrolling wheel simultaneously for
3 seconds until the blue LED goes off, which indicates the cursor-control
operation is switched to in-air operation mode (refer to picture below). The
mouse will memorize its previous operation mode, until it is changed to a new
one.

In-air operation mode). If the blue LED lights up, keep

Desktop operation mode). If the blue LED

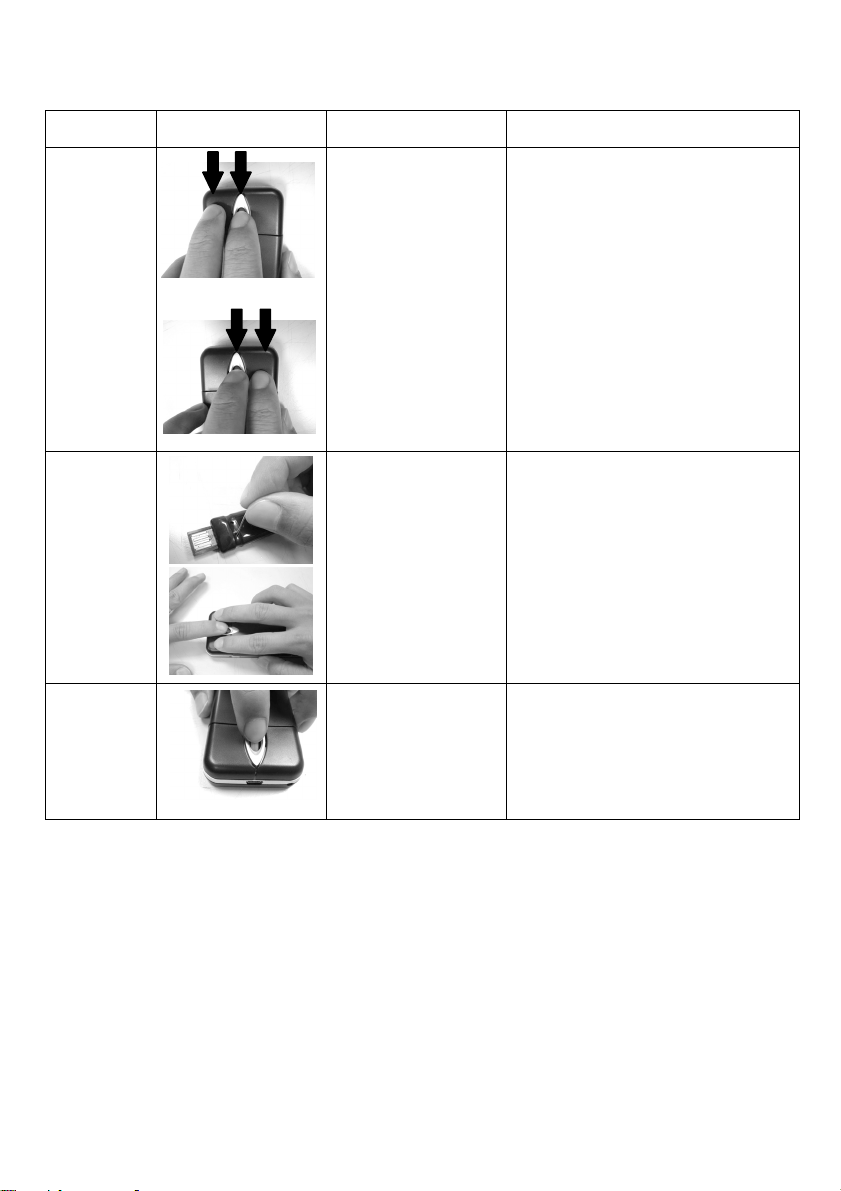

Left button +
scroll wheel

or

Right button +
scroll wheel

LED lights up: desktop mode

LED goes out : in-air mode

8-2 Operating the mouse cursor:

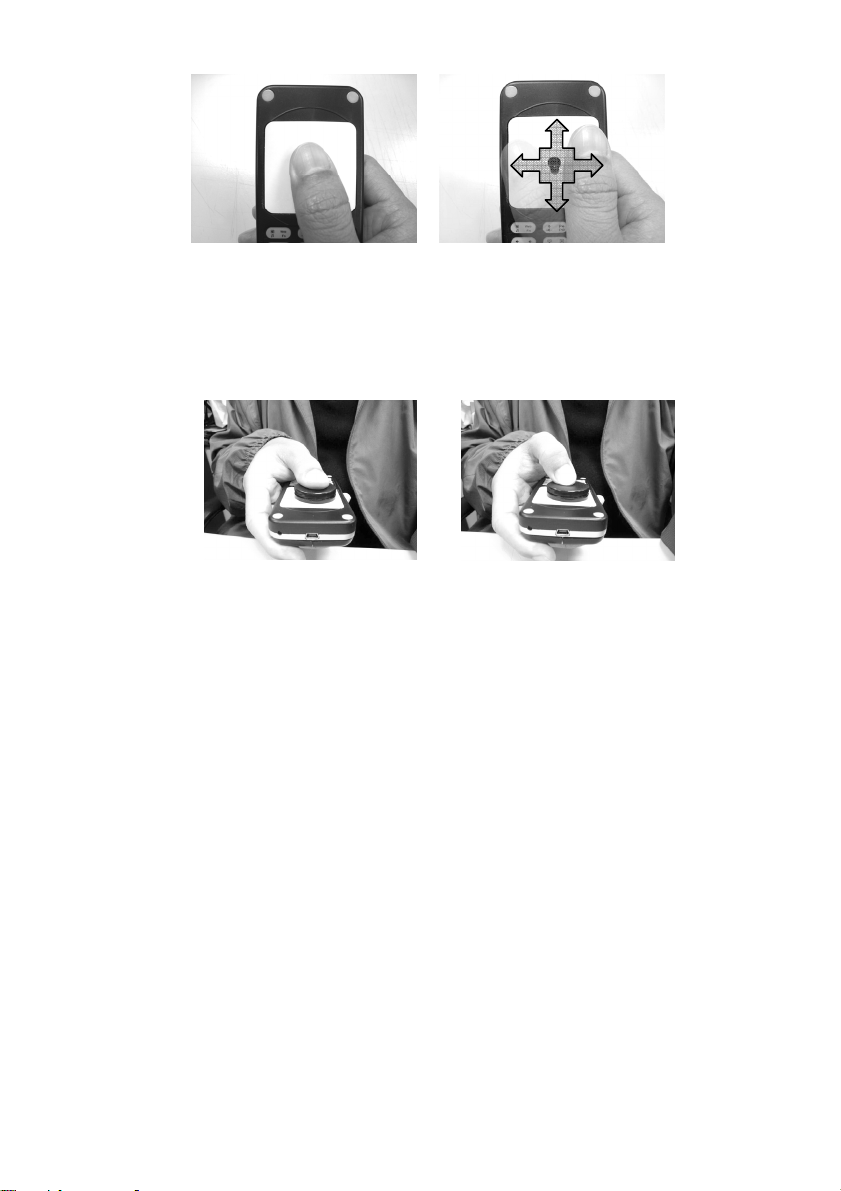

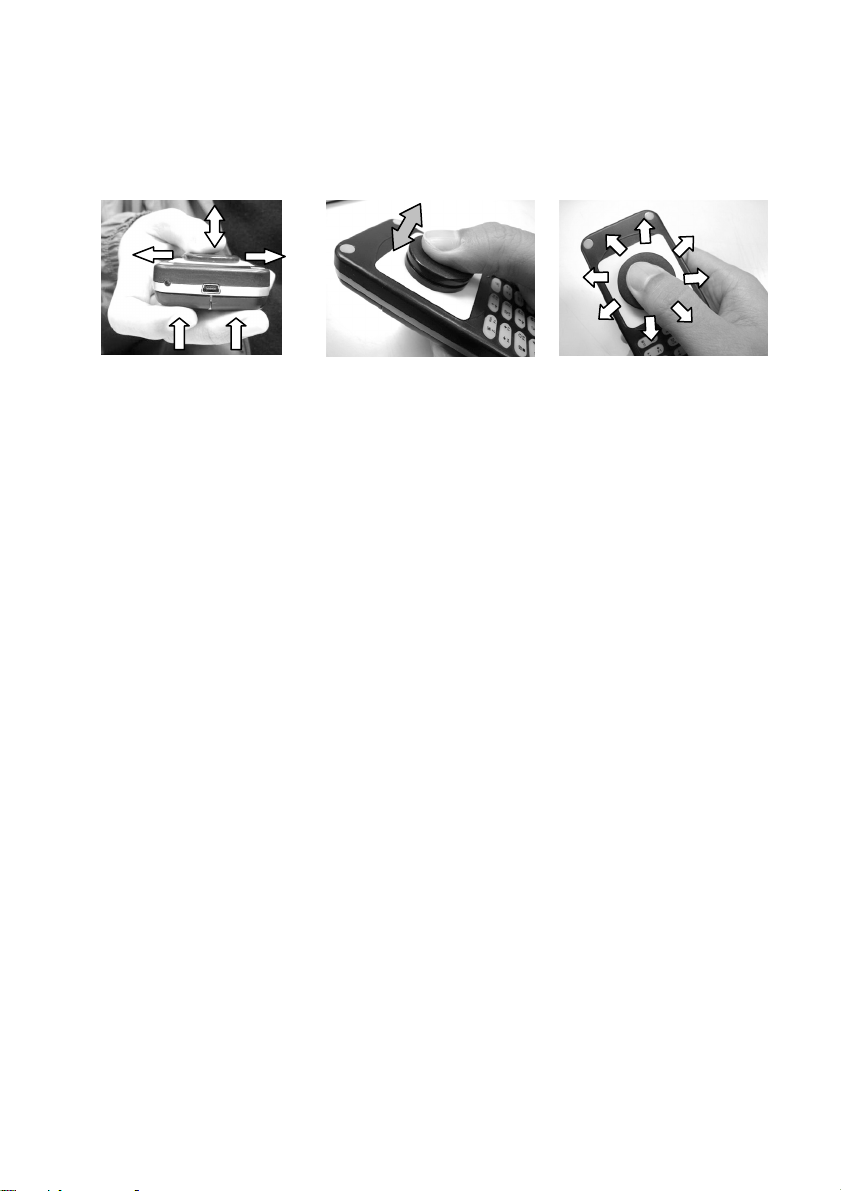

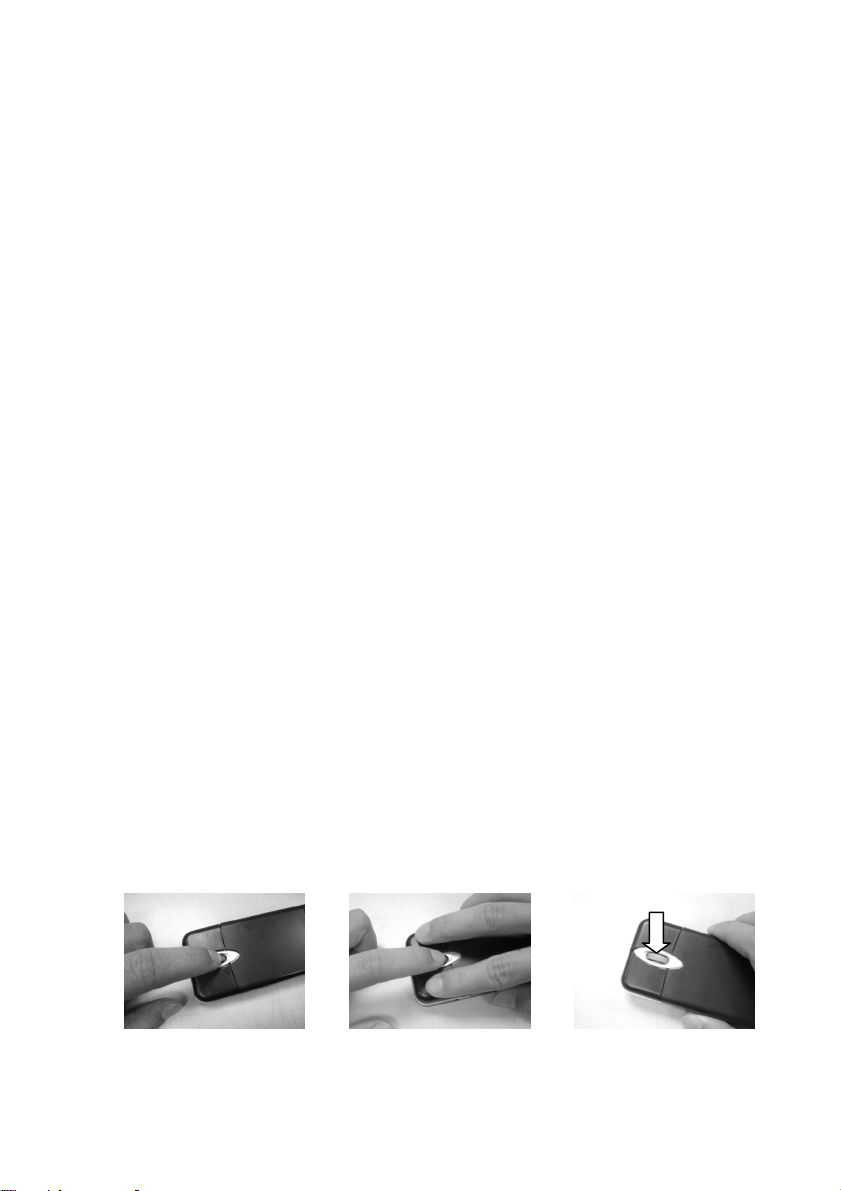

8-2.1 Using the sliding plate to operate the mouse

(a) Put the sliding plate on the sliding surface and cover the optical-detector

hole, at this time the sliding plate will automatically adhere on the sliding
surface.

6
