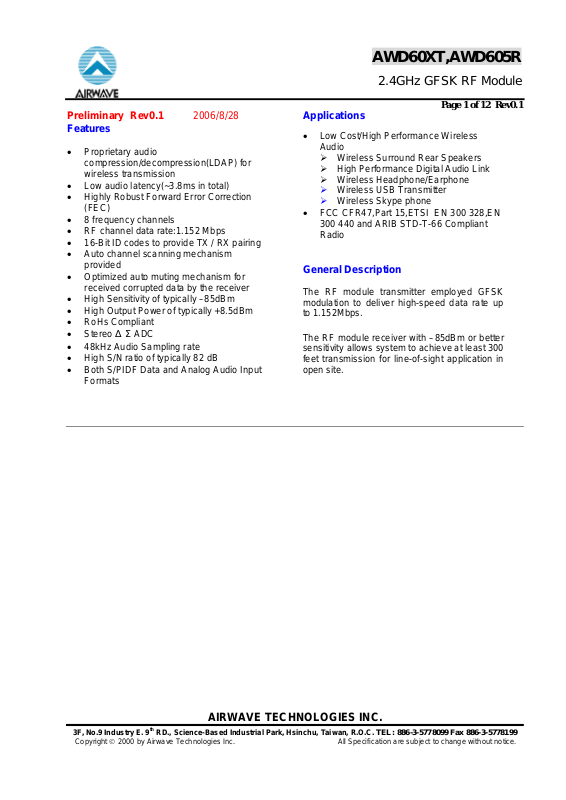

Features
• Proprietary audio
compression/decompression(LDAP) for
wireless transmission
• Low audio latency(~3.8ms in total)
• Highly Robust Forward Error Correction
(FEC)
• 8 frequency channels
• RF channel data rate:1.152 Mbps
• 16-Bit ID codes to provide TX / RX pairing
• Auto channel scanning mechanism
provided
• Optimized auto muting mechanism for
received corrupted data by the receiver
• High Sensitivity of typically –85dBm
• High Output Power of typically +8.5dBm
• RoHs Compliant
• Stereo ΔΣADC
• 48kHz Audio Sampling rate
• High S/N ratio of typically 82 dB
• Both S/PIDF Data and Analog Audio Input
Formats
AWD60XT,AWD605
2.4GHz GFSK RF Module
Page 1 of 12 Rev0.1
Applications
• Low Cost/High Performance Wireless
Audio
Wireless Surround Rear Speakers
High Performance Digital Audio Link
Wireless Headphone/Earphone
Wireless USB Transmitter
Wireless Skype phone
• FCC CFR47,Part 15,ETSI EN 300 328,EN
300 440 and ARIB STD-T-66 Compliant
Radio
General Description
The RF module transmitter employed GFSK
modulation to deliver high-speed data rate up
to 1.152Mbps.
The RF module receiver with –85dBm or better
sensitivity allows system to achieve at least 300
feet transmission for line-of-sight application in
open site.
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 2
AWD60XT,AWD605
R
Tx Module Absolute Maximum Ratings
Parameter Condition Min. Typ Max Units
Supply voltage Vs
Storage temperature Tstg
Operating temperature To
Rx Module Absolute Maximum Ratings
Parameter Condition Min. Typ Max Units
Supply voltage Vs
Storage temperature Tstg
Operating temperature To
Input RF level Prf
Genernal
Parameter Condition Min. Typ Max Units
Audio latency
Tx,Rx pairing ID Code
S/N ratio
3.0 3.3 3.6
-40 25 +125
0 25 +55
3.0 3.3 3.6
-40 25 +125
0 25 +55
+10
3.8
16
82
2.4GHz GFSK RF Module
Page 2 of 12 Rev0.1
V
℃
℃
V
℃
℃
dBm
ms
bit
dB
Tx Module
Parameter Condition Min. Typ Max Units
Supply voltage Vs
Supply current
Operating Frequency
Transmission Power
Modulation Type GFSK
Channel Frequency Peak power position
under no Data in.
3.0 3.3 3.6
89
2400 2483.5
8 8.5 9.5
-0.1
2401.920
2412.288
2422.656
2433.024
2448.576
2458.944
2469.312
+0.1
mA
MHz
dBm
MHz
V
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 3
AWD60XT,AWD605
R
Channel Spacing
Frequency Deviation
Audio Input Level peak to peak value
Audio Input
Impedance
Data Rate
Audio Sampling Rate
Pairing LED voltage Pull High Resistor
Tx/Rx Pairing setting tact switch
Reset pin tact switch
10.368
+/-0.1
2.0
20k
1.152
48
3.3
2.4GHz GFSK RF Module
Page 3 of 12 Rev0.1
2479.680
MHz
MHz
V
Ohm
Mbps
KHz
V
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 4
AWD60XT,AWD605
R
Rx Module
Parameter Condition Min. Typ Max Units
Supply voltage Vs
Supply current
Operating Frequency
Rx Sensitivity BER=1e-3 when
Image Rejection Relative to 2.4-
Audio Output Level 2.6 Vpp
Audio Output Impedance 16 Ohm
Audio frequency
response
Data Rate
Adjacent channel
rejection
Tx/Rx Pairing setting tact switch
3.0 3.3 3.6
2400 2483.5
1.152Mbps input
47 dBc
2.4835GHz power
3dB bandwidth
+/- 5MHz offset the
central frequency
20 20k
2.4GHz GFSK RF Module
Page 4 of 12 Rev0.1
V
99
-85 dBm
1.152
>45
mA
MHz
Hz
Mbps
dB
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 5
AWD60XT,AWD605
R

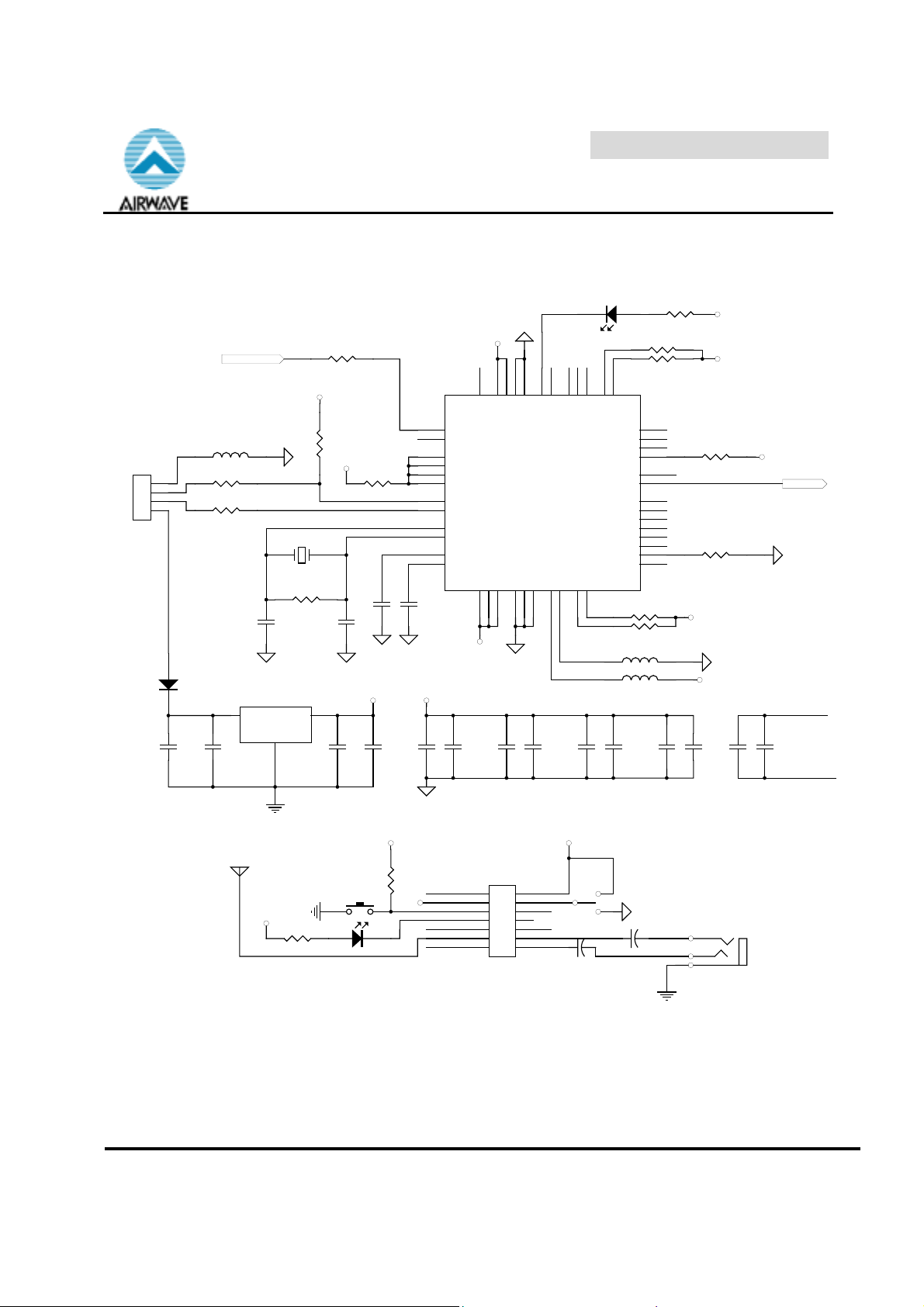

AWD60XT Module Reference Design
for USB or Analog Audio application
R2
RESETN
3.3V
GND
Y1
6 MHz
1M
R9
C1
C2
39pF
39pF
GND GND
Vout
Gnd
1
R1
1.5K
2
0
14
13
C64
10uF
16
15
44
39
10
11
34
33
26
47
C4
0.1uF
3.3V
3.3V
C54
0.1uF
R10
4.7K
C3
0.1uF
GND GND
3.3V
C5
10uF
GNDIO
RSTN
XRSTN
VOLUP
VOLDN
MUTEP
MUTER
USBDP
USBDM
XIUSB
XOUSB
LFA
LFB
C6
0.1uF
43
3.3V
J4
4
3
2
1
USB Jack
D1
1N4148
C63
10uf
L1
R6
R8
3
C53
0.1uf
RESETN
22
1.0uH
22
U52
FS8853-33CC
Vin
GNDIO
3.3V
37
18
24
32
PDSW
RECORD
FREQSEL
FREQMODE0
FREQMODE1
VDD
VSS
VDD25VDD36VSS
46
27
35
GND
C7
10uF
41
VSS
48
USBLED
38
LEDN
HIDMUTER
TAVDD9CODECSEL
12
C8
0.1uF
TAVSS
2.4GHz GFSK RF Module
Page 5 of 12 Rev0.1
D2
LED_R
30
45
29
19
31
SCL
GPIO2
GPIO1
GPIO3
CS(EEPROM_CS)
SK(EEPROM_SK)
DW(EEPROM_DI)
DR(EEPROM_DO)
SPDIFI
SPDIFO
XCDOUT
XSCLK1
XLRCK1
XMCLK1
XSDO1
XSDIN
XCDCLK
DIGIEN
2
8
TAVSS
TAVDD
C9
10uF
SDA
XCSN
R11
R12
BEAD1
BEAD2
C10
0.1uF
R22
330
4.7K
R3
4.7K
R4
U1
6
5
4
3
1
40
7
17
20
21
23
22
42
28
SN11122ARF
4.7K
4.7K
C13
10uF
3.3V
R5
4.7K
R13
4.7K
3.3V
C14
0.1uF
3.3V
3.3V
ADAT
GND
C11
10uF
3.3V
C12
0.1uF
ADAT
GND
TAVDD
TAVSS
3.3V 3.3V
Antenna
3.3V
R7
330
Channel Change Buttom
S1
D3
LED_G
R18
4.7K
3.3V
GND
3.3V
PAIRING
PAIR_LED
GND
ANT
GND
U6
1
8
2
9
3
10
4
11
5
12
6
13
7 14
AWD607TB
3.3V
ASS
RESETN
ADAT
GND
Pre-AIL
Pre-AIR
S2
C2
220UF/16V
AUDIO SOURCE SELECTION
3.3V for USB, GND for Analog input
C1
220UF/16V
J2
PHONEJACK STEREO
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 6
AWD60XT,AWD605
R
M

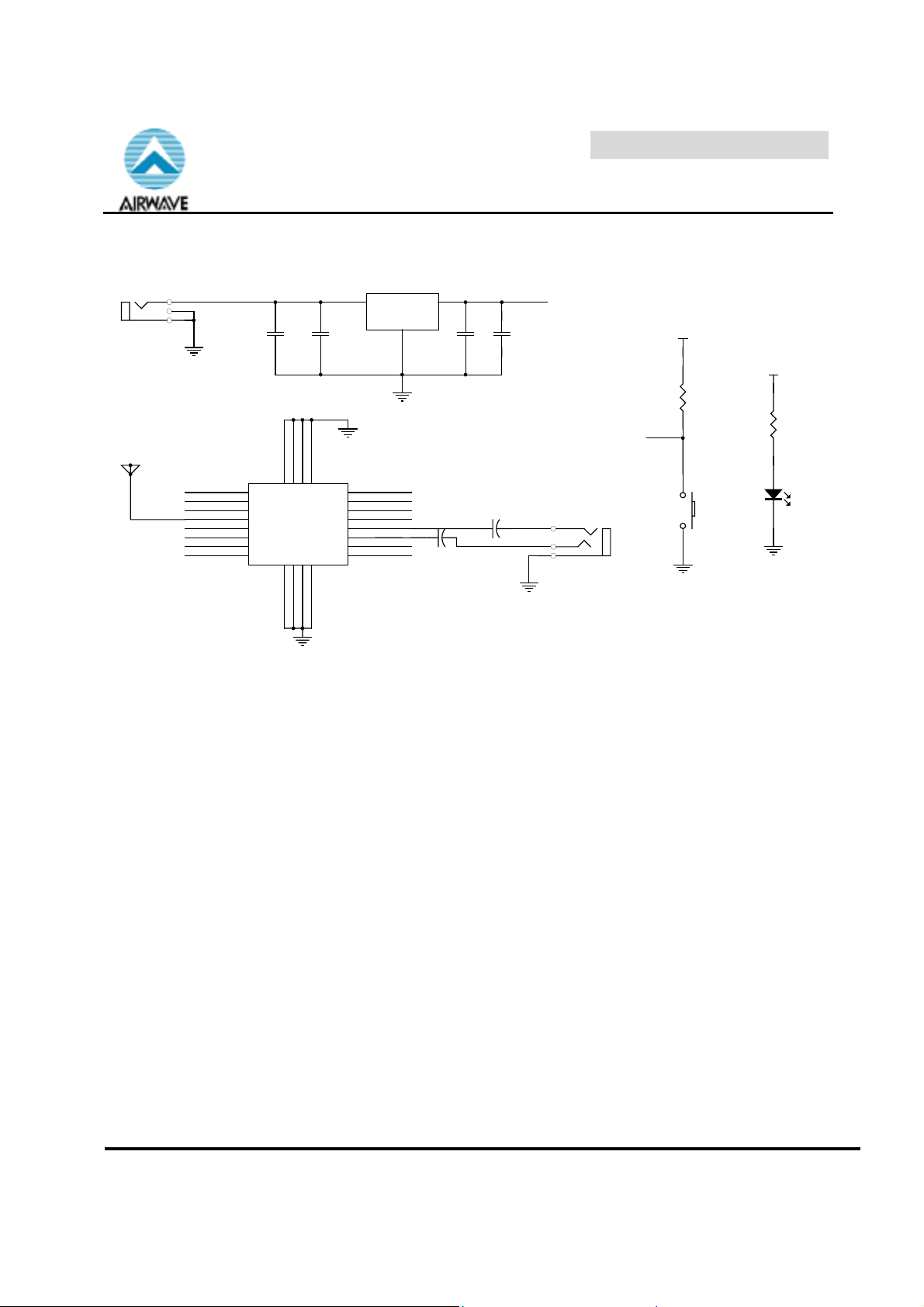

AWD605R Module Reference Design
U52
C62
0.1uF
G
V
G
AOR
AOL
ADAT
G
AWD605RP
3
1
2
3
4
5
6
7
8
FS8853-33CC
Vin
GND
RESETN
VDDA
GND
Pre-AOR
Pre-AOL
ADAT
2
Vout
Gnd
1
C2
220UF/16V
C63
0.1uF
J1
DC JK
C60
10uF
GND
GND
GND
GND
17
19
U1
16
GND
GND
15
14
GND
13
ANT
12
GND
11
PAIRING
10
GND
9
GND GND
G
G
G
ANT
G
PAIRING
INT_EXT DAC
G
24
GND
GND
G18G
G23G
22
GND
G20G
RESETN
G21G
GND
C1
VDDA
C61
10uF
220UF/16V
2.4GHz GFSK RF Module
VDDA
R12
47K
PAIRING
12
S1
Tact-SW
J2
PHONEJACK STEREO
Page 6 of 12 Rev0.1
VDDA
R2
470R
D2
LED_2.54M
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 7
AWD60XT,AWD605
R

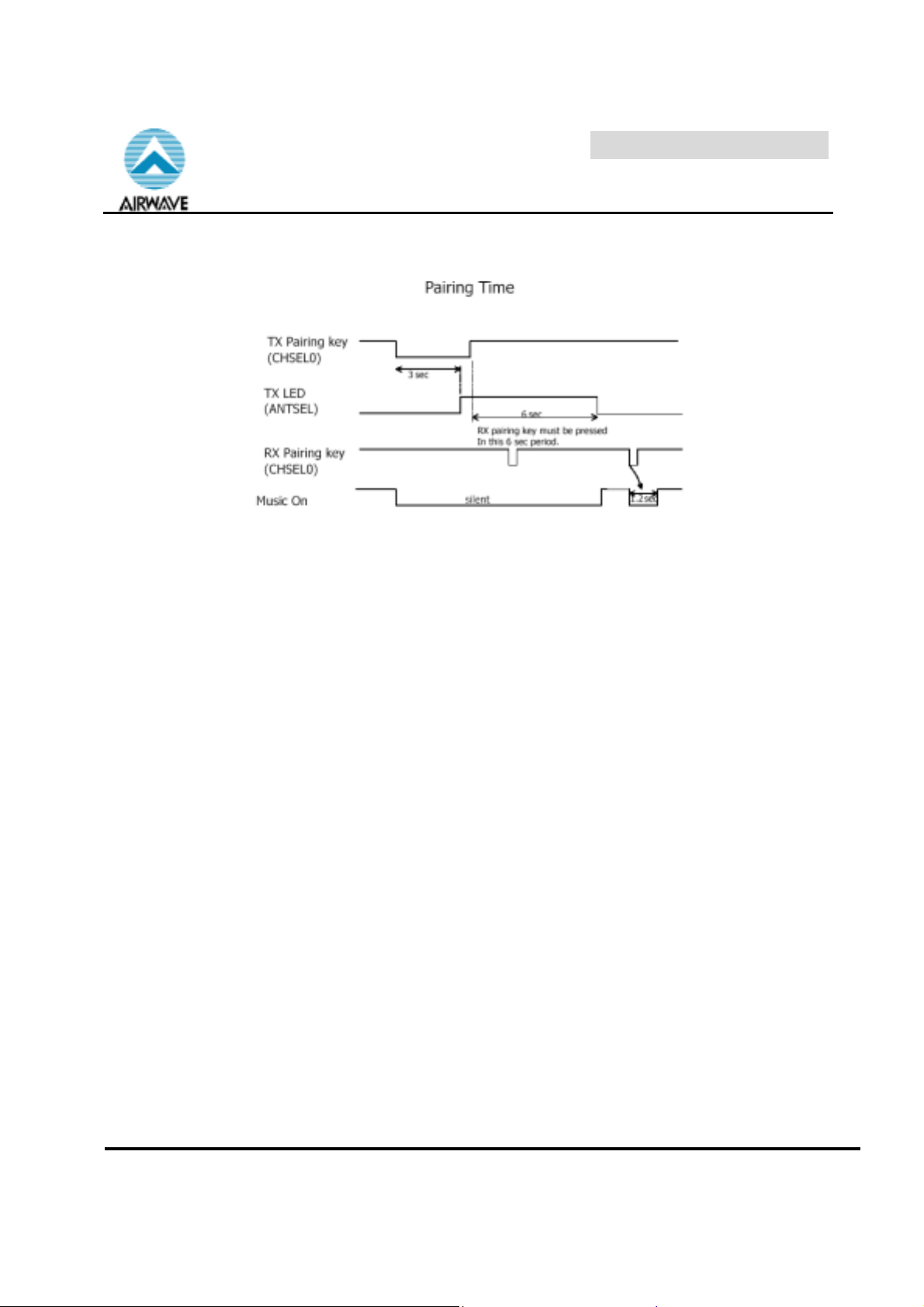

TX / RX Pairing
2.4GHz GFSK RF Module
Page 7 of 12 Rev0.1
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 8
AWD60XT,AWD605
R

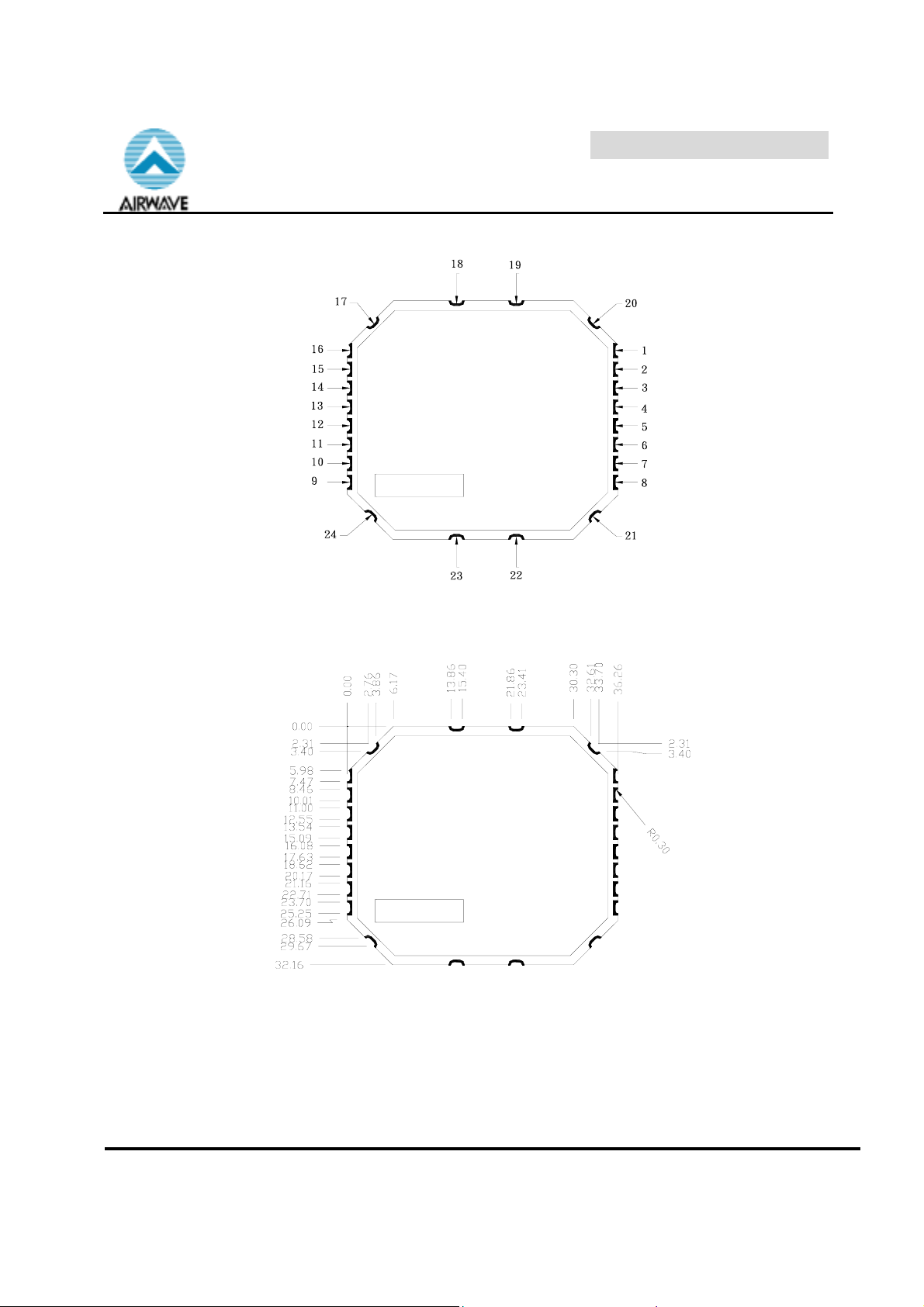

TX Module Pin Assignment
2.4GHz GFSK RF Module
Page 8 of 12 Rev0.1
單位:mm 公差:± 0.2
Unit : mm
Pin
No
1 GND Ground NA Ground
2 3.3V Power Input 3.3V Power Supply
3
4 Pairing LED Signal Output PAIRING state indicate
5 GND Ground NA Ground
6 ANT RF Output 2.4GHz antenna
7 GND Ground NA Ground
8 3.3V Power Input 3.3V Power Supply
9
10 RESET Control Input Reset
11 ADAT Signal Input SPDIF audio data input
12 GND Ground NA Ground
13 AIL Signal Input Lch Analog Input Pin
14 AIR Signal Input Rch Analog Input Pin
Name Functional
Grouping
Control Input pull-low continuously for over 3 seconds to enter
Pairing
Control Input Audio Source Selection: 3.3V for USB, GND for
ASS
IO Type Description
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Tolerance : +/- 0.2 mm
into PAIRING mode and AWD605RP can
perform the PAIRING process within 6 seconds.
Analog input
Page 9

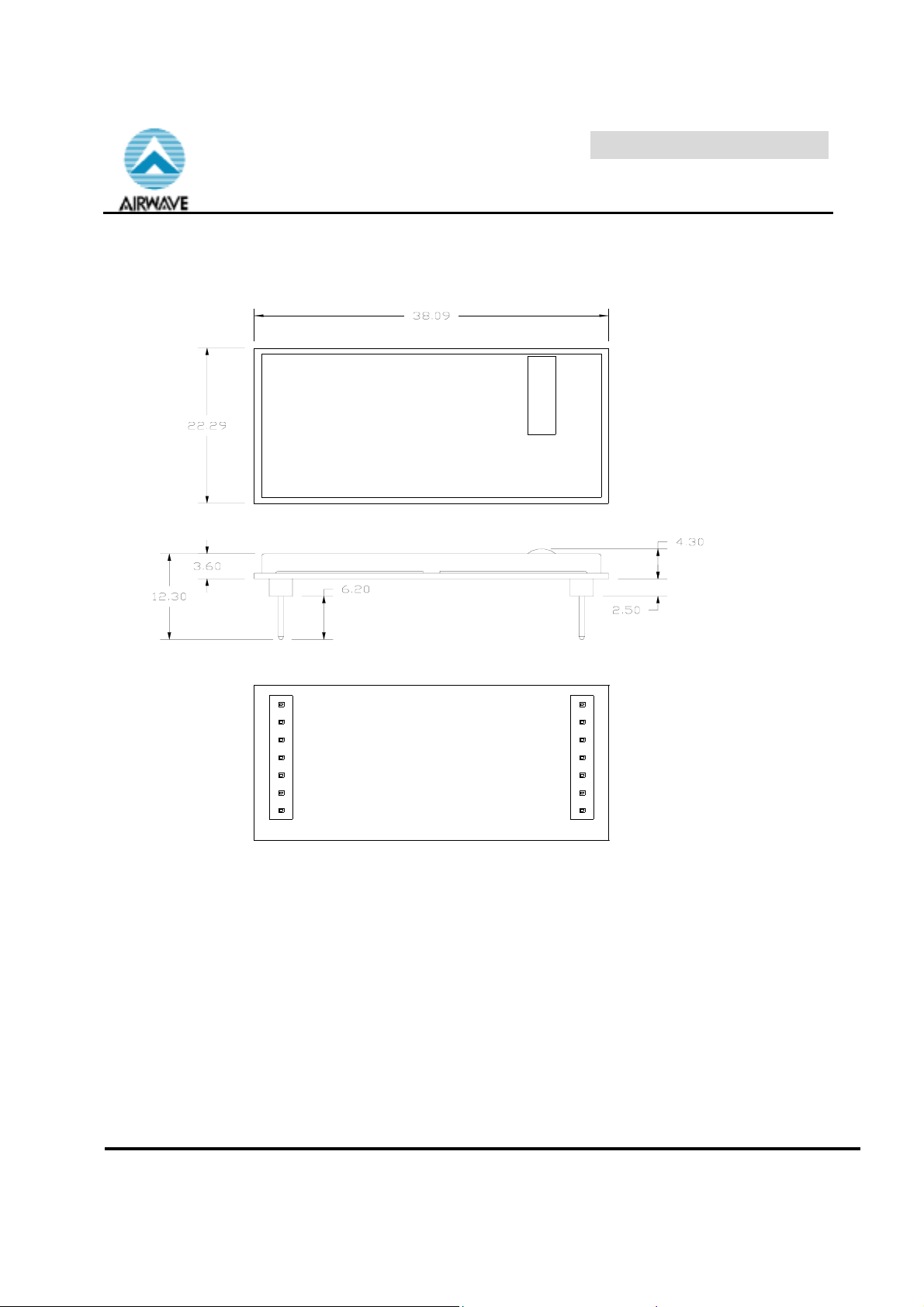

AWD60XT,AWD605
R
2.4GHz GFSK RF Module
Page 9 of 12 Rev0.1
Unit : mm
單 位 :mm 公 差 :± 0.2
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Tolerance : +/- 0.2 mm
Page 10
AWD60XT,AWD605
R

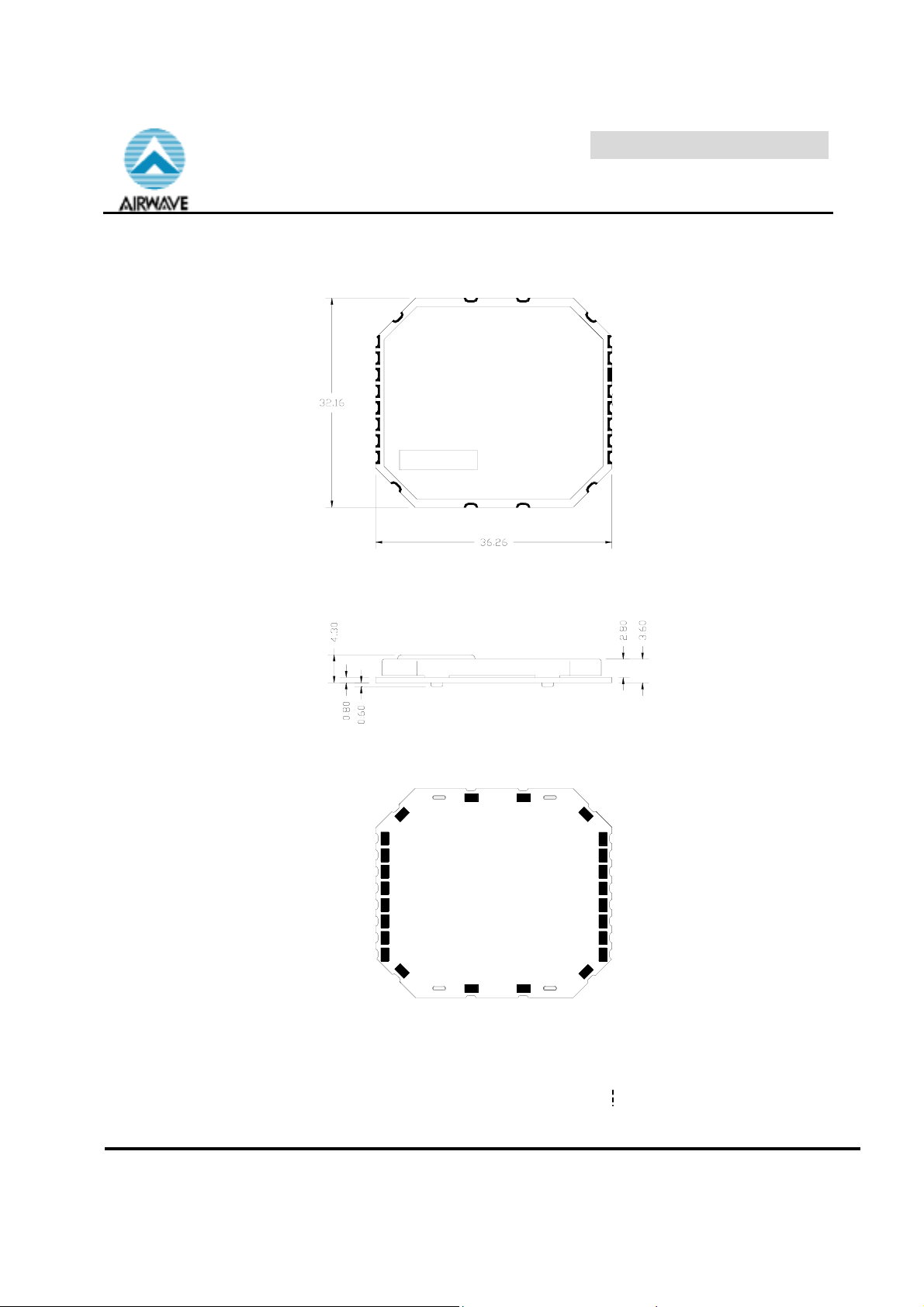

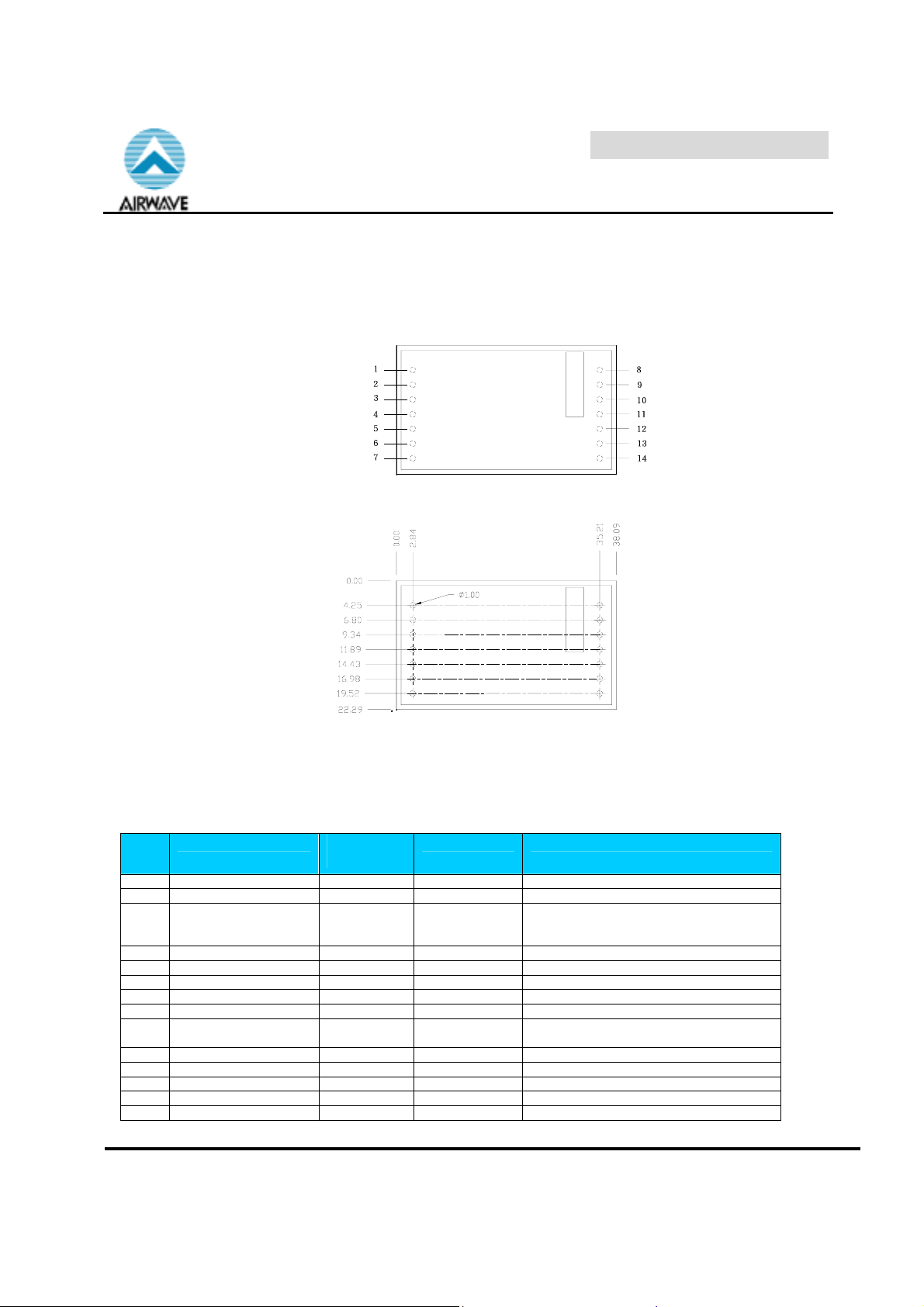

RX Module Pin Assignment
2.4GHz GFSK RF Module
Page 10 of 12 Rev0.1
Unit:mm Tolerance:± 0.2
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 11
AWD60XT,AWD605
R
2.4GHz GFSK RF Module
Pin
No
1 GND Ground NA Ground
2 RESETN Control Input Reset
3 3.3V Power Input 3.3V Power Supply
4 GND Ground NA Ground
5 AOR Signal Output Rch Analog Output Pin
6 AOL Signal Output Lch Analog Output Pin
7 NC NA NA
8 GND Ground NA Ground
9 GND Ground NA Ground
10 GND Ground NA Ground
11
12 GND Ground NA Ground
13 ANT RF Input 2.4GHz antenna
14 GND Ground NA Ground
15 RSSI Signal Output Received signal strength indicator output
16 GND Ground NA Ground
Name Functional
Grouping
Control Input After continuously pulling-low for over 3
Pairing
IO Type Description
seconds on AWD607TP, AWD605RP enters into
PAIRING mode and the PAIRING process can
be performed for the next 6 seconds.
Page 11 of 12 Rev0.1
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 12
AWD60XT,AWD605
R
2.4GHz GFSK RF Module
Page 12 of 12 Rev0.1
Unit:mm Tolerance:± 0.2
AIRWAVE TECHNOLOGIES INC.
3F, No.9 Industry E. 9th RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5778099 Fax 886-3-5778199
Copyright 2000 by Airwave Technologies Inc. All Specification are subject to change without notice.
Page 13
to radio communications. However, there is no guarantee that interference
encouraged
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
interference, and (2) this device must accept any interference received,
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device may not cause harmful
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority
to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
" This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provide with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance. "
Loading...
