Ductless Enclosures, Low-Profile Horizontal Design
“Safety, Convenience and Performance.”
An Affordable, Effective Air Filtration System Solution
— Fume Box™ AP60H
Product Overview
p:2
JUMP TO:
Features
and Callouts (p.3)
Airflow and Multiplex™
Filtration Technology (p.4)
Specifications (p.5)
Options and
Accessories (p.6)
Ductless Enclosures, Low-Profile Horizontal Design
Ductless Enclosures, Low-Profile
Horizontal Design
Low-profile, completely porta ble, no ductwork required.
Compact size, easily positioned on shallow countertops
or counters with overhanging wall cabinets.
Clear viewing enclosure prevents chemical splash.
Modular design permits multiple configurations.
Front and Side View
of the Fume Box AP60H -XL
APPLICATIONS
• Soldering
• Histology
• Cover Slipping
• Staining
• Pathology
• Graphic Arts,
Sign Shops
• Art Conservation
• Electronics Assembly
• Particulate Control
• Manufacturing
Processes
• Air Purification
INTRODUCTION
Air Science Fume Box ductless
enclosures are designed to protect
the user from chemicals, vapors or
powders during low-volume chemical
manipulations by effectively containing
low concentrations of noxious fumes,
vapors or powders.
AIR SCIENCE
MULTIPLEX FILTRATION
TECHNOLOGY SYSTEM
The Fume Box utilizes
the exclusive Air Science
Multiplex filtration system,
a unique configuration
that includes a pre -filter
and main filter to create
a chemical, physical or
combination architecture
to adsorb, neutralize or
trap the target chemical or particulate while
constant negative
pressure removes vapors
and particulates from
the user’s breathing
zone. Clean, filtered air is
returned to the laboratory, eliminating the need
for external ducting and
minimizing loss of treated,
conditioned air from the
facility.
• An electrostatic
polyester fiber pre -filter
with 95% particulate
arrestance intercepts
larger particulates
to help extend carbon
and HEPA/ULPA
filter life.
• The activated carbon
filter adsorbs organic
odors and hazardous
vapors such as xylene
and toluene.
• A HEPA filter can be
added for particulate
control.
MULTIPLEX
SYSTEM FILTERS
• Pre-Filter. The electro-
static pre -filter protects
the main filters from
aerosols, dust and
particulates with
filtration efficiency
superior to 95.5%
down to 0.5 microns.
• Main Filter. Activated
carbon FILTCO™
sourced. A single
carbon filter containing
chemically-formulated
activated carbon
granules is selected
when ordering to
accommodate a
specific vapor or family
of vapors.
• HEPA Filter. A selfcontained Camfil Farr
HEPA filter is designed
to physically capture
particles larger than
0.3 microns.
Air Science carbon
filters are based on
enhanced, activated
carbon particle formulations from specially
selected, naturally
occurring raw material
superior to wood or other
organic sources. The
carbon is treated to attain
the proper porosity and
aggregate surface area
and to react with several
ranges of aerosolized
chemicals moved
through the filter by an
air handling blower.
Made in
the U.S.A.
This Product Exceeds OSHA, ANSI and Other International Standards.
Product Features
p:3
Ductless Enclosures, Low-Profile Horizontal Design

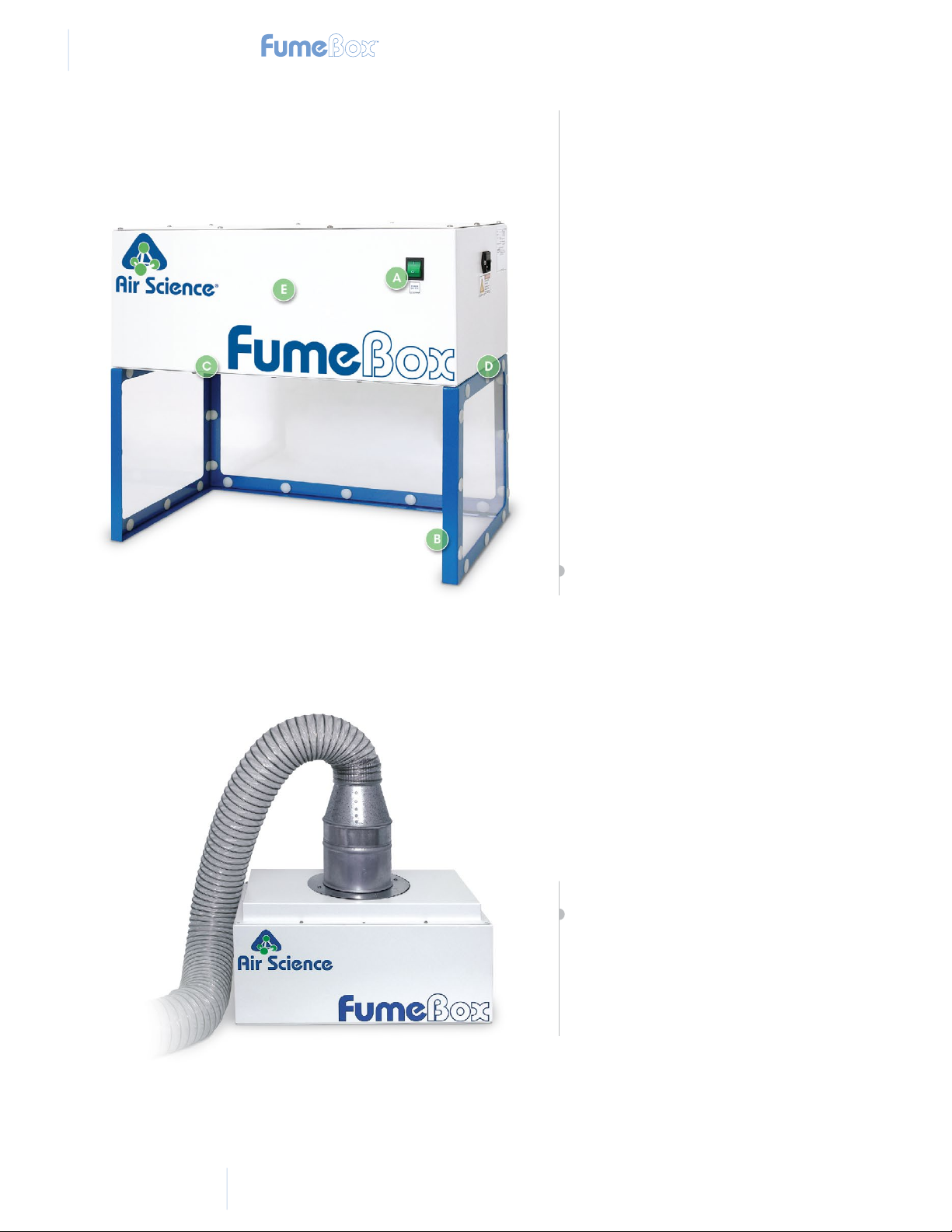

PRODUCT FEATURES:
A. Main On/Off Switch: High qualit y rocker On/Off
switch controls unit power.
B. Steel Support Frame: The chemical resistant
epoxy coated steel frame adds mechanical strength.
C. Electrostatic Pre-Filter: The 99.5% effective electro-
static pre-filter is accessible from inside the chamber to
contain the release of any par ticulates that it traps.
D. Color: The cabinet is white with blue trim;
side and back panels are clear.
E. Enclosed Filtration Chamber: Main filters can
be carbon and/or HEPA/ULPA to fit a variety of containment needs.
Fume Box AP60V (vertical)
The optiona l source capture hos e
converts the Fume Box to a fume
extraction unit with a 6" diameter
(152 mm) hose to capture pollutants at their source. H ose can
attach to any vented enclosure,
exhaust port on your equipme nt
or desk mount scoop.
Catalog No. AP60EX
Air Science
®
120 6th Street • Fort Myers, FL 33907 • T/239.489.0024 • Toll Free/800.306.0656 • F/800.306.0677 • www.airscience.com
Product Filtration
p:4
Ductless Enclosures, Low-Profile Horizontal Design
THE AIR SCIENCE
PERFORMANCE
ADVANTAGE
Each Air Science
Fume Box includes features expressed through
sound design and certified quality construction.
Options and accessories
add functional performance to meet specific
applications.
• Professional Quality.
Air Science enclosures
comply with current
technical and safety
regulations.
• Advanced Filtration.
Air Science Multiplex
filtration provides
high performance
protection.
• Industrial
Components.
The enclosure frame
and work surfaces
are durable and
chemically resistant.
• Reliability.
Internal systems are
isolated from contamination, extending
product life.
FUME BOX
AIRFLOW PATTERN
Fan/Blower
Filtration
Main Filters
of carbon and/or
HEPA/ULPA
Electrostatic
Pre-Filter
Room Air
Exhaust Air
Fume Box, AP60H shown with Multip lex filtration system.
Room air enters from the front of the cabinet through the pre-filter where larger particles
are trapped, increasing the service life of the main filter.
The Fume Box maintains a constant face velocity of 100 fpm in compliance with U.S.A.
and international standards for safety and performance. Contaminated air is pulled
through the Multiplex filtration system where activated carbon adsorbs chemical vapors
and/or particulates if HEPA/ULPA filters are used. Clean air is returned to the room.
A. The main filter is e asy to replac e. The filter clamps tightly against the filter gasket
to prevent filter bypass and to maintain filter integrity.
Intake
The Fume Box incorporates an energy-efficient
ebmpapst™ permanently
lubricated direct drive
centrifugal blower for
maximum operational
savings, low noise and
minimal vibration.
FILTER SUMMARY
Formula Description
GP Plus! The most widely used filter in the range, primarily for solvent, organic, and alcohol removal.
ACI Plus! Neutralizes volatile inorganic acid vapors.
ACR Iodine and methy l iodide vapors. I t is frequ ently used for iodinatio n reactions
with low level radioactive iodine.
ACM Mercur y vapor.
AMM Removes vapors from dilute ammonia solutions and to remove low molecular weight amines.
SUL Designed to remove hydrogen sulphide and low molecular weight mercaptans.
CYN Removal of hydrogen cyanide. Many cyanide c ompounds will evolve HCN gas if acidified,
so this filter is normally specified if working with any cyanide compound.
FOR Designe d to oxidize formald ehyde and glutaral dehyde fumes.
It is widely used in hospital pathology laboratories.
ETH Diethyl ether is adsorbed on activate d carbo n, but because of its low boiling poi nt, local
heat adsorption can reduce the capacity of the filter. Special impregnation allows a chemical
reaction which increases the filter capacity.
EDU Designed to handle chemicals normally used in a university level chemistry curriculum.
MIL As the name implies, this filter is designed for military applications involving war gasses.
HEPA/UPLA Powders and particulates.
This Product Exceeds OSHA, ANSI and Other International Standards.
Product Specifications
p:5
Ductless Enclosures, Low-Profile Horizontal Design
(
) (
side view
AP60VAP60H AP60H-XL
) (
side view
MODEL DIMENSIONS WEIGHT
(W x D x H) Shipping (W x D x H) Net Ship
Fume Box
AP60H
AP60V
AP60H -XL
21.25" x 19.75" x 12"
540 x 502 x 305 mm
21.25" x 12" x 19.75"
540 x 30 5 x 502 mm
29.85" x 17.85" x 15.65"
758 x 377 x 305 mm
24" x 22" x 14"
610 x 559 x 356 mm
24" x 22" x 14"
610 x 559 x 356 mm
36" x 30" x 30 "
914 x 762 x 762 mm
29 / 13 31 / 14
29 / 13 31 / 14
45 / 20 59 / 27
PRODUCT SPECIFICATIONS
Fume Box Model AP60H AP60V AP60H -XL
Filter Weight
Pre-Filter Weight
Airflow
Face Velocity
Construction
Blower
Electrical
Electrical Controls
*Specification s are subject to change without notice.
…
<
…
<
7 lbs / 3.5 kg
…
<
1 lb / 0.4 kg
…
<
135.9 cfm
…
<
100 fpm
White epoxy-coated steel filtration unit with blue enclosure. Clear sides and top panels.
…
<
ebmpapst centrifugal fan.
…
<
120V, 60Hz or 220V, 50Hz voltages availa ble. Spe cify w hen orde ring.
…
<
Main On/Of f switch.
…
>
…
>
…
>
…
>
…
…
>
…
>
…
>
(
lbs/Kg
>
side view
)
)
Air Science
®
120 6th Street • Fort Myers, FL 33907 • T/239.489.0024 • Toll Free/800.306.0656 • F/800.306.0677 • www.airscience.com
Product Options
p:6
Ductless Enclosures, Low-Profile Horizontal Design
OPTIONS AND ACCESSORIES
Vertical Mount* Unit mounts vertically to create an upflow airflow stream. AP60V
Source Capture Hose* Conver ts the Fume Box to a fum e extraction uni t with a 6" diameter (152 mm) hose
to capture polluta nts at the ir source. Hose can attach to any vented enclosure,
exhaust port on your equipment or desk mount scoop.
Polypropylene Construction* Units available in all polypropylene construction. AP60H-PP
Spill Tray Polypropylene spillage tray, slides out for easy cleaning. TRAY-AP60
* Factory in stalled. S pecify when ordering.
AP60EX
AP60V-PP
AP60EX- PP
AP6 0H -XL-P P
STANDARDS & COMPLIANCE
Quality Management Systems ISO 90 01
Chemical Fume Containment ANSI/ASHRAE 110 1995
Carbon Filter Efficiency
Biological Safety
Filter Efficiency
HEPA and ULPA
Electrical Safety UL- C- 61010-1
Product Design ANSI Z 9.5-2003
OSHA, Occupational Safety
and Health Administration
Environment ISO 140 01
BS 79 89-20 01
AFNOR N FX 15-211
IEST-RP- CC-0034.2
I ES T- RP -CC 007.1
IEST-RP-CC001-4
EN 18 22
CE Mark
ROHS Exempt und er EEE Category 9
ANSI Z 9.7-1998
OSHA Standard -29 CRF, Safety and Health Regulations for
General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type
hood. Al l Air Science products me et this definition.
Energy Star Partner
120 6th Street • Fort Myers, FL 33907
T/239.489.0024 • Toll Free/800.306.0656 • F/800.306.0677
www.airscience.com
©2014 Air Scien ce OW 10682 08/14
Air Science, FumeBox, Multiplex, and EFT are all registered trademarks of Air Science Corporation.
