Airlive SNMP-GSH2404L User Manual

SNMP-GSH2404L

24+4 Giga bit SNMP Lite Switch

he SNMP-GSH2404L is a 24-port Gigabit

T

Lite SNMP Managed Switch with 20
10/100/1000Base-T ports and 4 dual media ports
that accommodate optional 10/100/1000Base-T
or SFP modules. This Switch can be used to build
high-performance switched workgroup networks.
The switch can be managed through Ethernet
port using CLI or Web-based management
unit, associated with SNMP agent. In addition,
the switch features comprehensive and useful
functions such as QoS, Spanning Tree, VLAN,
Port Trunking, Bandwidth Control, Port Security,
SNMP/RMON, IGMP Snooping capability via the
intelligent software. It is suitable for both metro­LAN and office applications.

SNMP

802.1x

Web

Management

RSTP

Edge Switch

Ether-GSH2404

POWER

123456789101112
1000M
10/100M
1000M
10/100M

131415 161718 1920

212223 24

Mini

GBIC

Power

Saving

1234

5678

9101112

21 22 23 24

13 14 15 16

17 18 19 20

21 22 23 24

24+4 Pure Gigabit Switch

Ta g

VLAN

Internal

Power

24+4 Gigabit SNMP Lite Switch

Edge Switch

POWER

Bandwidth

Control

Rack

Mount

Segment Bridge

Core Switch

SNMP-GSH2404L

1357 9111315 1719

2404

SNMP-GSH L

13 57 91113151719

21

LINK/ACT

22

10/100/1000Mbps

23

24

POWER

Ether-GSH2404

123456789101112
1000M
10/100M
1000M
10/100M

131415 161718 1920

2 4 6 8 10 12 14 16 18 20

2468101214161820

1234

212223 24

13 14 15 16

RESET

2 4 6 8 10 12 14 16 18 20

5678

9101112

21 22 23 24

21 22 23 24

17 18 19 20

SFP

ISP

24+4 Pure Gigabit Switch

PC PC PC PC

Print server

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

ServerBuilding Building

QoS with four priority queues

The switch supports not only Layer 2 802.1p Priority Queue control, but also supports programmable
higher layer classification and prioritization to enable enhanced Quality of Service (QoS) support for real
time applications based on information taken from Layer 2 to Layer 4, such as VoIP

802.1x Access Control Improve Network Security

802.1x features enable user authentication for each network access attempt. Port security features
allow you to limit the number of MAC addresses per port in order to control the number of stations for
each port. Static MAC addresses can be defined for each port to ensure only registered machines are
allowed to access. By enabling both of these features, you can establish an access mechanism based
on user and machine identities, as well as control the number of access

Support 802.1d Spanning Tree and 802.1w Rapid Spanning Tree

For mission critical environments with multiple switches supporting STP, you can configure the
switches with a redundant backup bridge path so transmission and reception of packets can be
guaranteed in event of any fail-over switch on the network.

Broadcast/Multicast/unknown- unicast Storm Control

To limit too many broadcast/multicast//unknown- unicast flooding in the network, these storm control
functions is used to restrict excess traffic. Threshold values are available to control the rate limit for each
port. Packets are discarded if the count exceeds the configured upper threshold.

Power saving

This function provides power saving for reducing the power consumption with "ActiPHY Power
Management" and "PerfectReach Power Management". It could efficiently save the Switch Power when
the clients are in idle status and detect the cable length to provide different power.

Build-in Web-based Management

We provide a more convenient GUI for users. You just need to configure SNMP-GSH2404L via web
browser. It is helpful for users to be familiar with configuration of Switch easily.

If you are looking for a full featured yet friendly SNMP management switch, look no further. The
SNMP-GSH2404L is your best choice for your network application.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

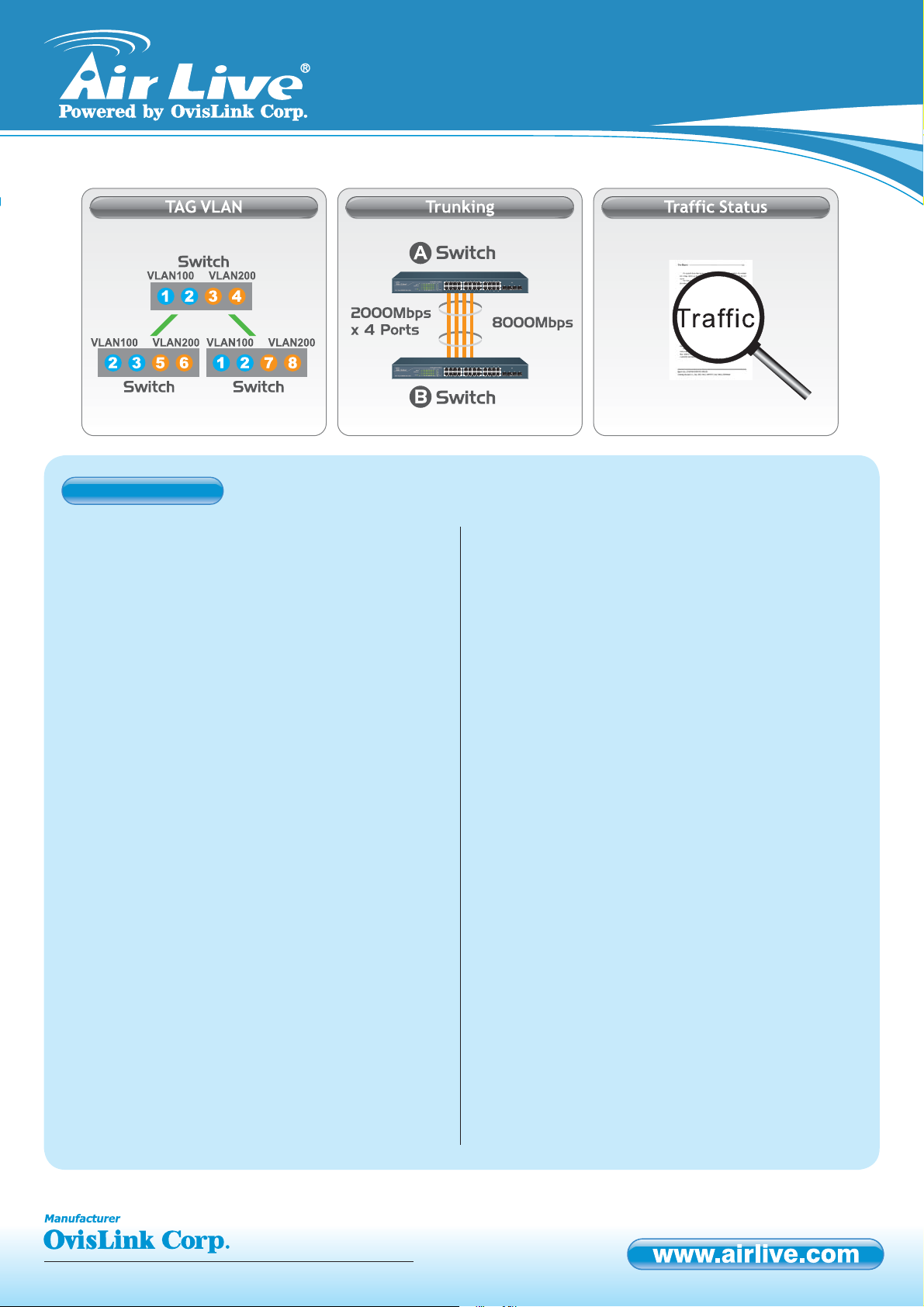

Specifi cations

Standard

- IEEE802.3 10BASE-T

- IEEE802.3u 100BASE-TX/100BASE-FX

- IEEE802.3z Gigabit SX/LX

- IEE802.3ab Gigabit 1000T

- IEEE802.3x Flow Control and Back pressure

- IEEE802.3ad Port trunk with LACP

- IEEE802.1d Spanning Tree Protocol

- IEEE802.1w Rapid Spanning Tree Protocol

- IEEE802.1p Class of service

- IEEE802.1Q VLAN Tagging

Interface

- 24 x 10/100/1000Mbps ports, Auto-negotiation,
Auto-MDIX ports

- 4 x mini GBIC ports

Switch architecture

- Store and forward switch architecture.

- Back-plane up to 48Gbps

MAC address

- 8K

Memory

- 500KB for packet buffer

LED

- System power

- 10/100/1000M TP Port 1 to 24: LINK/ACT,10/100/
1000Mbps

- 1000M SFP Fiber Port 21 to 24: SFP(LINK/ACT)

Management

- Web / SNMP v1,v2c management console
management

- RFC Standard

- SNMP agent : MIB-2 (RFC 1213)

- Bridge MIB (RFC 1493)

- Interface Group MIB (RFC 2863)

- SNMP Trap Event for exception management

- Firmware upgradeable via web browser

- Port Trunk

- Support IEEE802.3ad with LACP function.

- Up to 12 trunk groups and group member up to

12.

- Supports IEEE802.1d STP & IEEE802.1w RSTP

- VLAN

- Port based VLAN

- IEEE 802.1Q Tag-base VLAN, 4094 max, up to 24

active VLANs

- Tag-base VLAN supports egress/ingress packet

filter

- QoS policy

- Supports port based, Tag based, IPv4 ToS and

DSCP

- Supports 802.1p QoS with 4 level priority queue

- Supports two scheduling, WRR and Strict

- Supports IGMP snooping

- Supports Port Mirroring

- Supports Flooded Unicast / Multicast / Broadcast
Storm Control

- Supports ingress and egress per port bandwidth
control, per level 128 Kbps, 512Kbps, 1Mbps,
10Mbps or 32Mbps

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

- Supports 802.1x access control for port-based
authentication

- Support "ActiPHY Power Management" and
"PerfectReach Power Management" to save the
Switch’s power consumption

MTBF

- 68655 (hr)

Temperature

- Operating: 0 to 40°C

- Storage: -10 to 70°C

Humidity

- Operating: 10% ~ 90%

- Storage: 5% ~ 90%

Ordering Information:

EMI & safety

- FCC Class A, CE/EN60950

Power

- 100~240VAC 50/60Hz (maximum)

- Power consumption 40 Watts

Produce Weight (g)

- 2400 g

Dimensions

- 442 x 170 x 44 mm

AirLive SNMP-GSH2404L

Optional Accessories:

SFP-SX
SFP-LX-10

1000Base-SX MiniGBIC Fiber Gigabit Transceiver, LC connector
1000Base-LX MiniGBIC Fiber Gigabit Transceiver, LC connector, 10km

24+4 Gigabit SNMP Lite Switch
