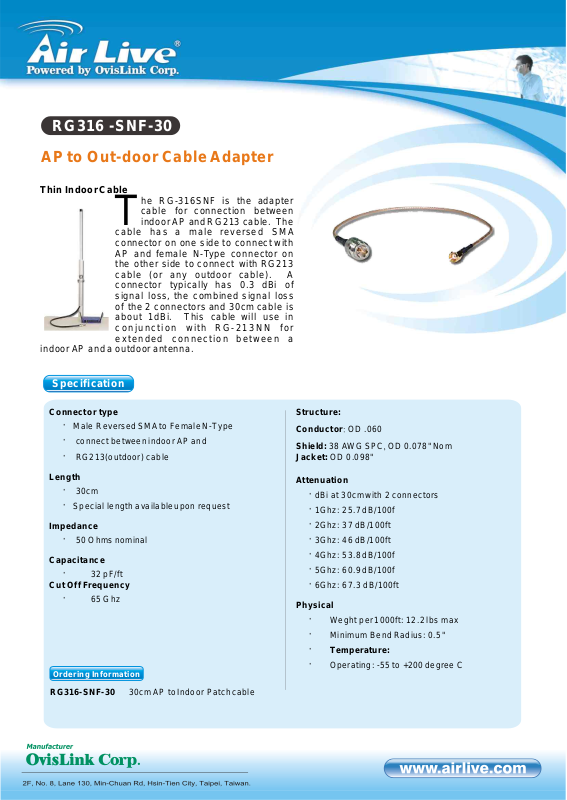

Airlive RG316-SNF-30 DATASHEET

RG316 -SNF-30

AP to Out-door Cable Adapter

Thin Indoor Cable

he RG-316SNF is the adapter cable for connection between indoor AP and RG213 cable. The

cable has a male reversed SMA connector on one side to connect with AP and female N-Type connector on the other side to connect with RG213 cable (or any outdoor cable). A connector typically has 0.3 dBi of signal loss, the combined signal loss of the 2 connectors and 30cm cable is about 1dBi. This cable will use in conjunction with RG-213NN for extended connection between a

indoor AP and a outdoor antenna.

Specification

Connector type

· Male Reversed SMA to Female N-Type

· connect between indoor AP and

· RG213(outdoor) cable

Length

· 30cm

· Special length available upon request

Impedance

· 50 Ohms nominal

Capacitance

· 32 pF/ft

Cut Off Frequency

· 65 Ghz

Ordering Information

Structure: Conductor OD .060 Shield: 38 AWG SPC OD 0.078" Nom

Jacket: OD 0.098"

Attenuation

·dBi at 30cm with 2 connectors

·1Ghz: 25.7 dB/100f

·2Ghz: 37 dB/100ft

·3Ghz: 46 dB/100ft

·4Ghz: 53.8 dB/100f

·5Ghz: 60.9 dB/100f

·6Ghz: 67.3 dB/100ft

Physical

· Weght per 1000ft: 12.2 lbs max

· Minimum Bend Radius: 0.5"

· Temperature:

· Operating: -55 to +200 degree C

RG316-SNF-30 30cm AP to Indoor Patch cable
