Airlive POE-48TU, POE-48PB DATASHEET

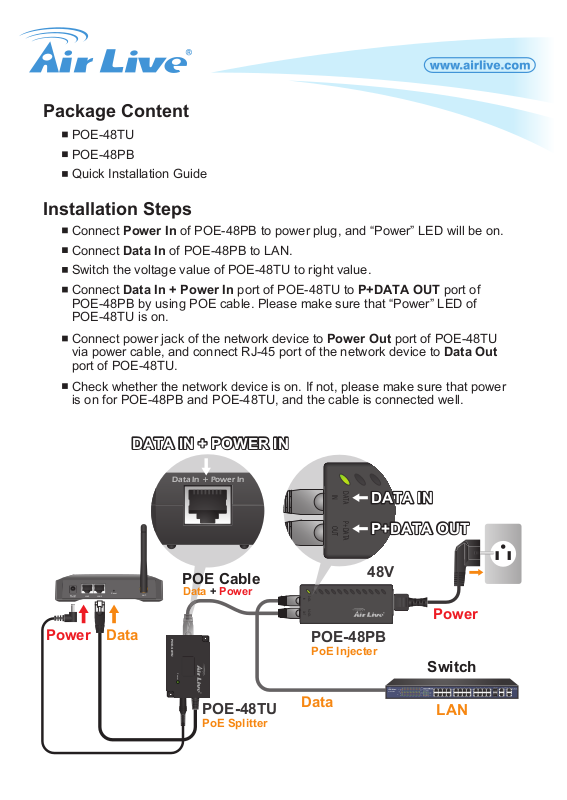

Package Content

P+DATA

OUT

DATA

IN

DATA IN

P+DATA OUT

Data In + Power In

DATA IN + POWER IN

POE-48TU

POE-48PB

Quick Installation Guide

Installation Steps

Connect Power In of POE-48PB to power plug, and “Power” LED will be on.

Connect Data In of POE-48PB to LAN.

Switch the voltage value of POE-48TU to right value.

Connect Data In + Power In port of POE-48TU to P+DATA OUT port of
POE-48PB by using POE cable. Please make sure that “Power” LED of
POE-48TU is on.

Connect power jack of the network device to Power Out port of POE-48TU
via power cable, and connect RJ-45 port of the network device to Data Out
port of POE-48TU.

Check whether the network device is on. If not, please make sure that power
is on for POE-48PB and POE-48TU, and the cable is connected well.

DATA IN + POWER IN

DATA IN + POWER IN

DATA IN

DATA IN

DC 12V

Power Data

LAN1 LAN2

P+DATA OUT

P+DATA OUT

48V

Power

ANT.

POE Cable

Data + Power

POE-48TU

DATA

IN

P+DATA

OUT

POE-48PB

Reset

PoE Injecter

Power

POE-48TU

Data

Switch

1000BASE-TMini-GBIC

25

25

357

91113 15

1

100Mbps

POE-FSH2442G

Link/Act

PWR MAX

25 26

Mini-GBIC

PoE

OK

PoE Switch

1357911131719212325

FAN

1000Mbps

Fail

100Mbps

Link/Act

100Mbps

PWR

RESET

PoE

SYS

Link/Act

24681012141618202224

25 26

27 28

2468

10 12 14 16

23

171921

18 20 22 24 26 26 28

27

Web Smart

LAN

PoE Splitter
