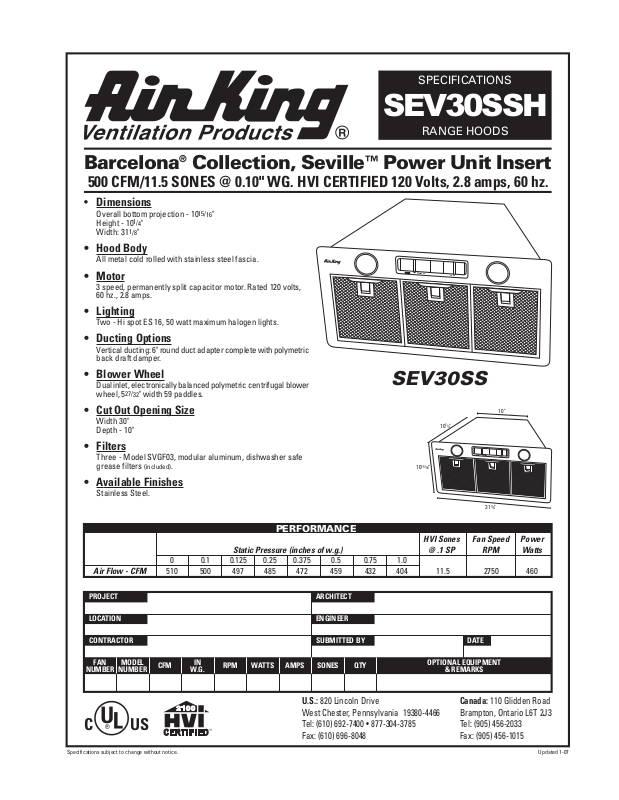

Air King SEV30SSH User Manual
SPECIFICATIONS
SEV30SSH
RANGE HOODS
Barcelona® Collection, Seville™ Power Unit Insert
500 CFM/11.5 SONES @ 0.10" WG. HVI CERTIFIED 120 Volts, 2.8 amps, 60 hz.
• Dimensions
15
Overall bottom projection - 10
Height - 10
Width: 31
1
/
"
4
1
/
"
8
/
"
16
• Hood Body
All metal cold rolled with stainless steel fascia.
• Motor
3 speed, permanently split capacitor motor. Rated 120 volts,
60 hz., 2.8 amps.
• Lighting
Two - Hi spot ES 16, 50 watt maximum halogen lights.
• Ducting Options
Vertical ducting: 6" round duct adapter complete with polymetric
back draft damper.
• Blower Wheel
Dual inlet, electronically balanced polymetric centrifugal blower
27
/
wheel, 5
" width 59 paddles.
32
• Cut Out Opening Size
Width 30"
Depth - 10"
• Filters
Three - Model SVGF03, modular aluminum, dishwasher safe
grease filters (included).
• Available Finishes
Stainless Steel.
SEV30SS
1
/
10
"
4
15
/
10
"
16
10"
1
/
8
31
"
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.1 0.125 0.25 0.375 0.5 0.75 1.0
Air Flow - CFM
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
NUMBER NUMBER W.G. & REMARKS
CUS
510 500 497 485 472 459 432 404 11.5 2750 460
ARCHITECT
ENGINEER
SUBMITTED BY DATE
CFM
IN
RPM WATTS AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
OPTIONAL EQUIPMENT
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
Updated 1-07Specifications subject to change without notice.
