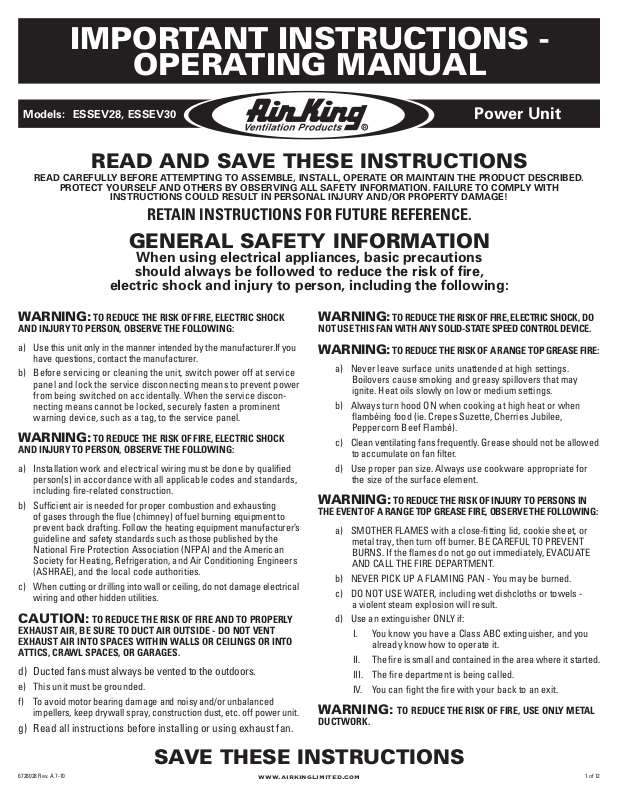

Air King ESSEV28, ESSEV30 Operating Manual
IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
Models: ESSEV28, ESSEV30
Power Unit
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electric shock and injury to person, including the following:
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND INJURY TO PERSON, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer.If you
have questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service
panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND INJURY TO PERSON, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-related construction.
b) Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment to
prevent back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration, and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
CAUTION: TO REDUCE THE RISK OF FIRE AND TO PROPERLY
EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT VENT
EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO
ATTICS, CRAWL SPACES, OR GARAGES.
d) Ducted fans must always be vented to the outdoors.
e) This unit must be grounded.
f) To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power unit.
g) Read all instructions before installing or using exhaust fan.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO
NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
flambéing food (ie. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels -
a violent steam explosion will result.
d) Use an extinguisher ONLY if:
I. You know you have a Class ABC extinguisher, and you
already know how to operate it.
II. The fire is small and contained in the area where it started.
III. The fire department is being called.
IV. You can fight the fire with your back to an exit.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCTWORK.
SAVE THESE INSTRUCTIONS
6728028 Rev. A 7-10 1 of 12
www.airkinglimited.com
INSTALLATION INSTRUCTIONS
CAUTION:
BEFORE STARTING INSTALLATION.
MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL
SECTION 1
Preparing the Insert
1. Unpack hood from the carton and confirm that all pieces are present. In addition to
the range hood you should have:
1 - Package containing:
1 - duct collar
4 - #8-32 screws
2 - Aluminum Grease Filters (shipped installed)
2 - 18 watt fluorescent lamps
1 - Instruction/Safety Sheet
NOTE: Some hoods may be shipped with a protective plastic adhered to the underside
of the unit. It is recommended to leave this in place during installation to protect it from
scratching. Remove when the installation is complete.
SECTION 4
Installing the Insert
2. Insert the power unit into the hole and secure to liner using the screws provided
with the Liner (Figure 3).
Figure 3
NOTE: If an optional Air King Liner is not being used; use appropriate hardware to install
the unit in place, making sure to comply with all Local and National Building Codes.
SECTION 2
Preparing the Area
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL
BEFORE STARTING INSTALLATION.
CAUTION: WHEN CUTTING OR DRILLING INTO WALL DO NOT DAMAGE
ELECTRICAL WIRING AND OTHER HIDDEN UTILITIES.
1. Most building codes require noncombustible material above the cooking surface.
If you you have wood or some other combustible material on the bottom of your
cabinets it is recommended that you use the optional hood liner (See Section 3) If
you have noncombustible material cut an appropriate size hole into the cabinet or

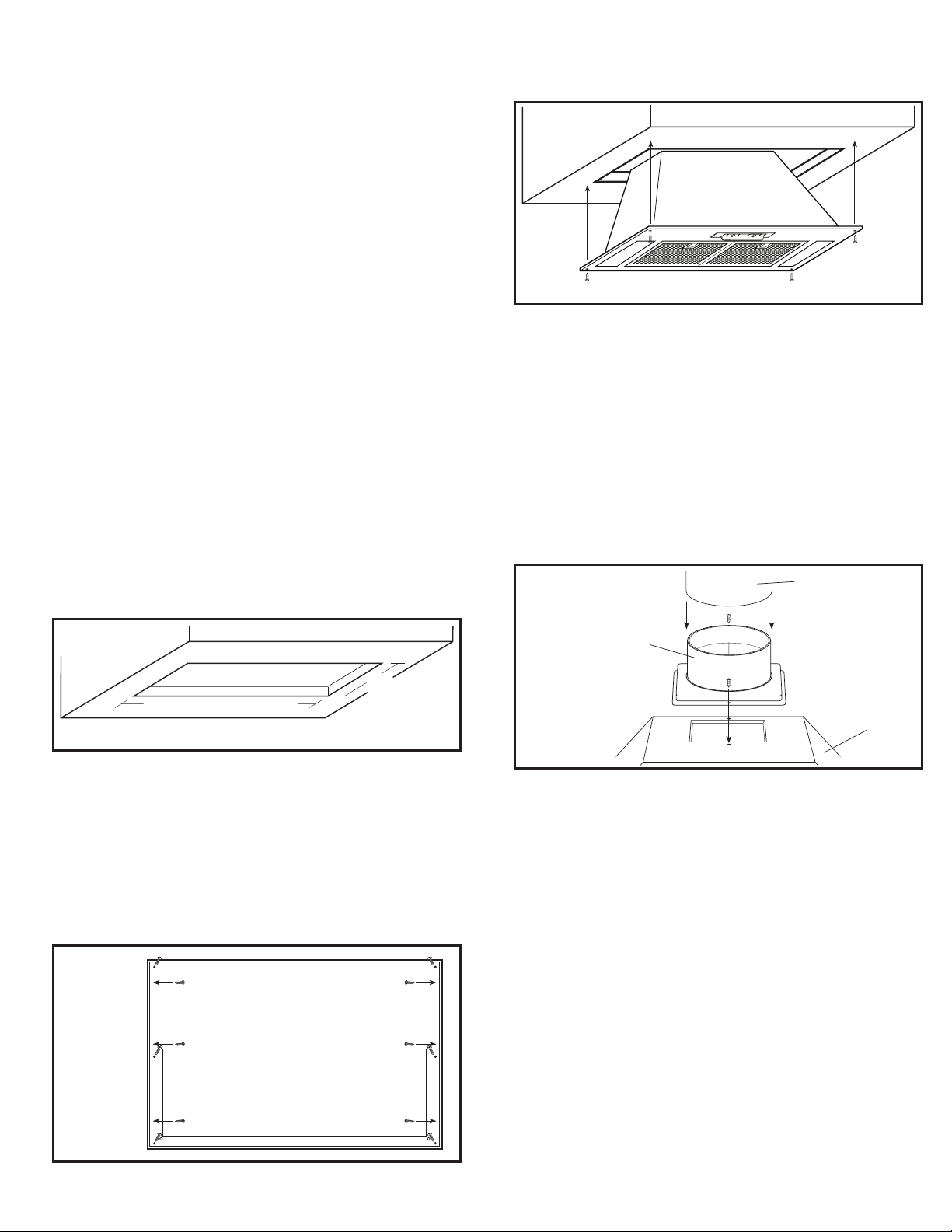

canopy the power unit will be mounted into (Figure 1):
ESSEV28 models: 27" wide by 10" deep.
ESSEV30 models: 30" wide by 10" deep
10"
27" / 30"
Figure 1
NOTE: The hood must be mounted a minimum of 24” and a maximum of 36” from the
cooking surface.
SECTION 3
Optional Hood Liner
CAUTION: MAKE SURE THE SURFACE YOU ARE MOUNTING THE INSERT
AND LINER TO IS CAPABLE OF SUPPORTING THE WEIGHT OF THE UNIT. OTHERWISE
YOU WILL NEED TO REINFORCE THE AREA.
1. Secure the liner to the cabinet frame or custom canopy using three screws on
each end of the liner and 3 screws on each side of the top of the liner (Figure 2).
CAUTION: MAKE SURE THE SURFACE YOU ARE MOUNTING THE POWER
UNIT TO IS CAPABLE OF SUPPORTING THE WEIGHT OF THE UNIT. OTHERWISE YOU
WILL NEED TO REINFORCE THE AREA.
SECTION 5
Ducting
CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL
BUILDING CODES.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
1. Install the included duct collar to the hood with two of the provided #6 blunt tip
screws (Figure 4).
Ducting
Duct Collar
Power Unit
Figure 4
2 When there is access to the top of the unit, connect the ducting to the duct collar
and secure in place using tape to seal all joints (Figure 4).
3. When there is no access to the top of the hood, carefully pull down the metal duct
through the custom hood base hole. Slide this duct over the duct collar. Make sure
the adapter/damper assembly enters the ducting. Seal the connection with duct tape.
NOTE: To achieve proper air flow, 6" round ducting is required. The duct connector is 5.8" in
diameter (for 6" round ducting) and the center is located 3.1875" inches from the back wall.
CAUTION: ALWAYS DUCT THE FAN TO THE OUTSIDE THROUGH A WALL
OR ROOF CAP.
SECTION 6
Wiring
CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE IN ACCORDANCE
WITH LOCAL CODES, ORDINANCES, OR NATIONAL ELECTRICAL CODE. IF YOU ARE
UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL WIRING, SECURE THE
SERVICES OF A QUALIFIED ELECTRICIAN.
3 Examine the wire compartment cover and select the most convenient wire
entrance and remove the knock out. Feed the supply wire through the opening and
install an appropriate strain relief. Connect the white wire from the power unit to
the white wire from the supply. Connect the black wire from the power unit to the

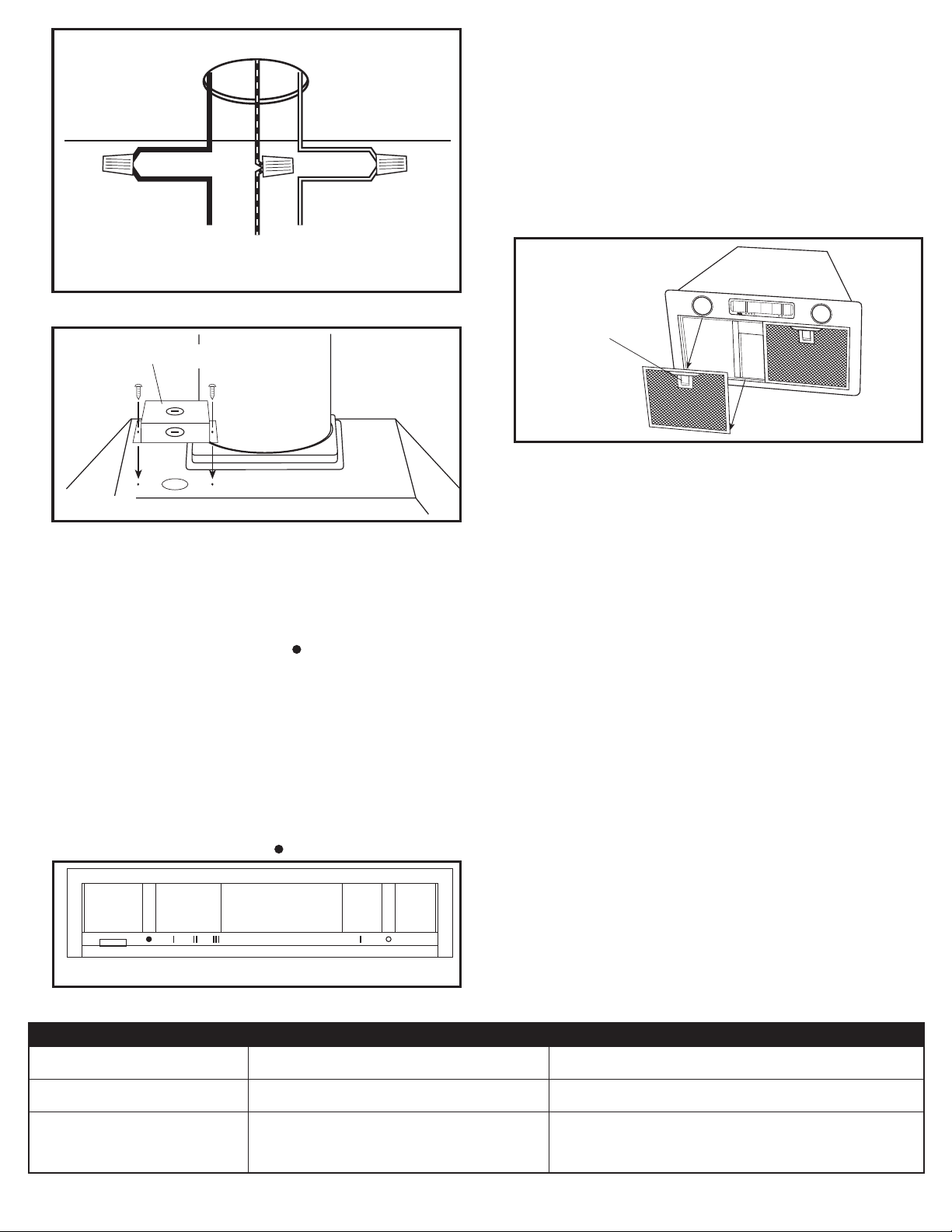

Figure 2
6728028 Rev. A 7-10 2 of 12
www.airkinglimited.com
black wire of the supply. Connect the ground wire from the home (green or bare) to
the ground wire of the power unit (green or green/yellow). Use approved methods
for all connections (Figure 5).
Supply from home
Hot (Black)
Ground (Green or Bare)
Neutral (White)
SECTION 9
Maintenance
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL
BEFORE SERVICING THE UNIT.
Filters
1. Included with your unit are aluminum grease filters that should be washed at least
once a month. The filters are dishwasher safe and should be washed in a mild
soap or detergent.
2. To remove the filters, pull down on the handle tab until the filter releases from
the unit. To reinstall, slide tab at rear of filter into slot in the unit. While holding
in handle of filter, lift filter into place and release handle. The filter should snap
securely into place (Figure 8).
Figure 5
2. Attach the wire compartment to the power unit with two of the provided #6 blunt
tipped screws (Figure 6).
From Hood
Wire Compartment
Figure 6
SECTION 7
Finishing the Installation
1. Remove any protective plastic adhered to the power unit.
2. Remove the lens covers, install the two included 18 Watt compact fluorescent lamps
by fully inserting lamp base into the lamp holder, and replace the lens covers.
3. Turn switches to the OFF ( • ) position and restore power. Test that the light and the
fan are operating properly.
4. If there is any vibration noise, check for the source and try to tighten fasteners,
adjust the tape to make a tighter connection or seal, or check that the hood collar
damper, wall damper or ceiling damper are opening properly.
SECTION 8
Operation
Controls
Your Range Hood is equipped with two sliding switches with one controlling the lighting and
the other controlling the exhaust fan. The light control has two positions, ON (I) and OFF (0).
The fan is a four position control, HIGH (III), MEDIUM (II),LOW (I), and OFF ( • ) (Figure 7).
Tab
Figure 8
3. If the grease filters become damaged, replace with the Air King Model SVGF-03
Grease Filters.
Changing the Lamp
Remove the lamp cover on the underside of the hood and remove the lamp by gently
rocking it back and forth while applying outward pressure to release the lamp from the
base. Replace with Air King model 18WFB or a compatible CFM18W/GX24Q/835 lamp.
Sylvania model: 20877
Phillips model: 26820
Fuse
To replace the fuse, turn the fuse cap located next to the wire connector counter
clockwise and pull out. Replace with a Bussman MDA-1.5 or equivalent 250-Volt, 1-1/2
Amp Max. fuse. Reinstall the fuse back into the hood.
Cleaning
CAUTION: DO NOT USE GASOLINE, BENZINE, THINNER, HARSH
CLEANSERS, ETC., AS THEY MAY DAMAGE THE RANGE HOOD.
1. Clean your power unit with a mild detergent, such as dishwashing liquid, and dry with
a soft cloth. NEVER USE ANY ABRASIVE PADS OR SCOURING POWDERS. Completely
dry before restoring power. NEVER IMMERSE ELECTRICAL PARTS IN WATER.
2. The fan assembly can be vacuumed when build up (dirt, lint, etc.) accumulates
over time. The fan is permanently lubricated and does not require oiling.
Figure 7
Troubleshooting Guide
Trouble Probable Cause Suggested Remedy
1. Hood does not operate when the switch is on. 1a. A fuse may be blown or a circuit tripped. 1a. Replace fuse or reset circuit breaker.
1b. Wiring is not connected properly. 1b. Turn off power to unit. Check that all wires are connected.
2. Hood is operating, but air moves slower than normal. 2. Obstruction in the exhaust ducting. 2. Check for any obstructions in the ducting including filter.
3. Hood is making a rattling noise. 3a. Filters are loose. 3a. Turn off power to unit. Check that all filter screws are fully tightened.
3b. Duct connection is loose. 3b. Turn off power to unit. Check that duct connection is tight.
3c. Damper is stuck. 3c. Turn off power to unit. Check that the damper is opening freely.
6728028 Rev. A 7-10 3 of 12
www.airkinglimited.com
LIMITED WARRANTY
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original
purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or
replace the whole product with the same or comparable model.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or
operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products
to Air King for repair or replacement. Air King will pay return shipping charges from Air King following warranty repairs or replacement
ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST
ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT,
WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR
CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES.
NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED
THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages,
so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to
state and province to province. Proof of purchase is required before a warranty claim will be accepted.
CUSTOMER SERVICE:
Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday
through Friday, 8am-4pm Eastern. Please have your model number available, as well as the type and style (located on the label inside of your product).
Please do not return product to place of purchase.
PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC
COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.
Toll-Free (800) 465-7300
www.airkinglimited.com
Installer: Installation Date:
Place of Purchase: Model Number:
6728028 Rev. A 7-10 4 of 12
www.airkinglimited.com
Loading...
