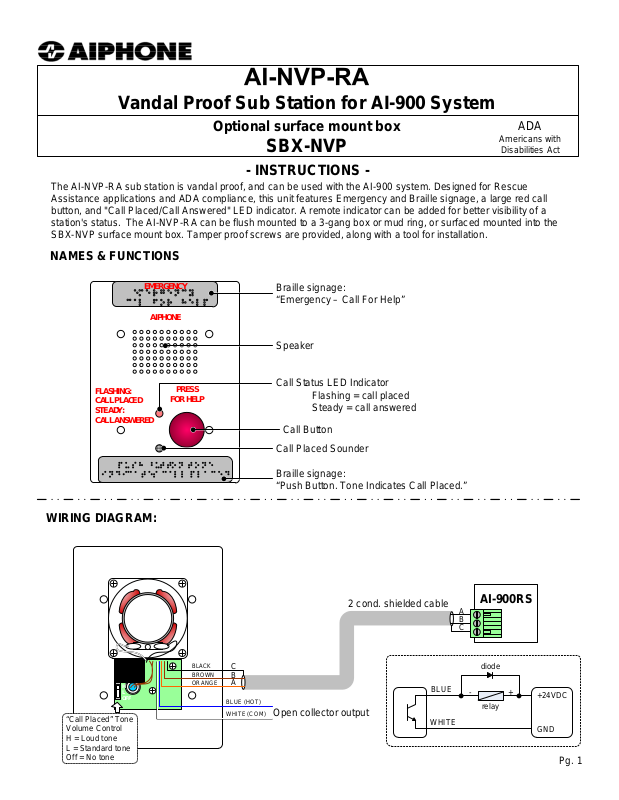

Aiphone SBX-NVP User Manual

Vandal Proof Sub Station for AI-900 System

Optional surface mount box

SBX-NVP

ADA

Americans with

Disabilities Act

- INSTRUCTIONS -

The AI-NVP-RA sub station is vandal proof, and can be used with the AI-900 system. Designed for Rescue Assistance applications and ADA compliance, this unit features Emergency and Braille signage, a large red call button, and "Call Placed/Call Answered" LED indicator. A remote indicator can be added for better visibility of a station's status. The AI-NVP-RA can be flush mounted to a 3-gang box or mud ring, or surfaced mounted into the SBX-NVP surface mount box. Tamper proof screws are provided, along with a tool for installation.

NAMES & FUNCTIONS

EMERGENCY

FLASHING: CALL PLACED STEADY: CALL ANSWERED

AIPHONE

PRESS

FOR HELP

Braille signage: “Emergency – Call For Help”

Speaker

Call Status LED Indicator

Flashing = call placed Steady = call answered

Call Button

WIRING DIAGRAM:

H L OFF

“Call Placed” Tone Volume Control H = Loud tone L = Standard tone Off = No tone

BLACK BROWN ORANGE

C B A

BLUE (HOT) WHITE (COM)

Call Placed Sounder

Braille signage: “Push Button. Tone Indicates Call Placed.”

2 cond. shielded cable

BLUE

Open collector output

WHITE

AI-900RS

A B C

diode

-+ relay

+24VDC

GND

Pg. 1

OPERATION:

1. When a sub station places a call, the "Call Placed/Call Answered" LED on the sub station will flash, and a repetitive tone will be heard.

2. When the call is answered, the "Call Placed/Call Answered" LED on the sub station changes states from flashing to steady. The repetitive tone stops.

3. When the master station terminates the call, the “Call Placed/Call Answered” LED will extinguish.

4. The open collector output will provide a closure when a call has been placed and remain closed until the call is terminated.

BRAILLE SIGNAGE:

The AI-NVP-RA is equipped with Braille signage for the visually impaired. ON TOP OF UNIT:

EMERGENCY "EMERGENCY - CALL FOR HELP"

ON BOTTOM OF UNIT:

"PUSH BUTTON. TONE INDICATES CALL PLACED."

Plating material is .012" aluminum with 5 letter spacing.

SPECIFICATIONS:

Power Source: Supplied by Main Frame Speaker: 20 ohms, 3" diameter, water proof and puncture resistant, 2.5 oz. ceramic magnet Call Button: Single pole, single throw (SPST), normally open (N/O) Faceplate: 11 gauge carbon steel with powder-coated white baked epoxy finish Call Annunciation: Pressing call button at sub calls assigned AI-MS900 master station Communication: Hands free at sub. Master is push-to-talk or VOX handset. Open Collector Output: 24V DC, 30mA Mounting Hardware: Tamper proof screws Terminations: Color-coded pre-wired pigtails Wiring: 2-conductor, shielded wire is homerun to AI-900RS card, shield is used as 3

Shielded wire is required.

Use Aiphone series wire 822202, or 821802 Wiring Distance: 2,625' with 22 AWG; 4,26 5' with 18 AWG. Dimensions (

H x W x D): AI-NVP-RA alone: 7-1/2" x 5-1/2" x 2". With SBX-NVP: 8-5/8" x 6-5/8" x 2-1/4"

NOTE: Only information regarding the connection and operation of the AI-NVP-RA is shown here. Please refer to the AI-900 Installation and Operational literature for additional information on the AI-900 system.

conductor

Aiphone Communication Systems 1700 130th Ave. N.E. Bellevue, WA 98005 (425) 455-0510 FAX (425) 455-0071

TOLL FREE TECHNICAL SUPPORT:

(800) 692-0200

TOLL FREE FAX LINE:

(800) 832-3765
