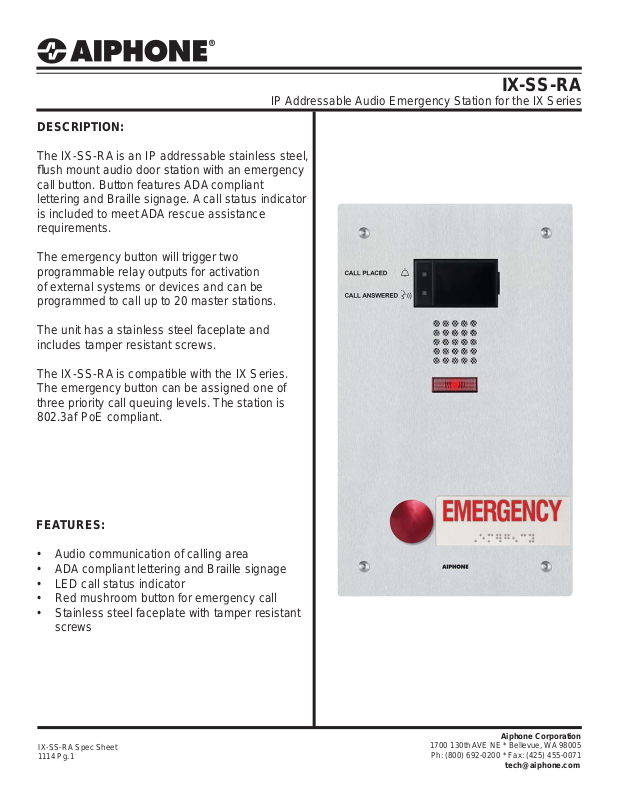

Aiphone IX-SS-RA Specsheet

IP Addressable Audio Emergency Station for the IX Series

DESCRIPTION:

The IX-SS-RA is an IP addressable stainless steel,
fl ush mount audio door station with an emergency
call button. Button features ADA compliant
lettering and Braille signage. A call status indicator
is included to meet ADA rescue assistance
requirements.

The emergency button will trigger two
programmable relay outputs for activation
of external systems or devices and can be
programmed to call up to 20 master stations.

The unit has a stainless steel faceplate and
includes tamper resistant screws.

The IX-SS-RA is compatible with the IX Series.
The emergency button can be assigned one of
three priority call queuing levels. The station is

802.3af PoE compliant.

IX-SS-RA

FEATURES:

• Audio communication of calling area

• ADA compliant lettering and Braille signage

• LED call status indicator

• Red mushroom button for emergency call

• Stainless steel faceplate with tamper resistant
screws

IX-SS-RA Spec Sheet
1114 Pg.1

1700 130th AVE NE * Bellevue, WA 98005

Aiphone Corporation

Ph: [phone] * Fax: [phone]

[e-mail]

IX-SS-RA

IP Addressable Audio Emergency Station for the IX Series

FEATURE CALL-OUT DEFINITIONS:

[1] Microphone
[2] Call status indicators
[3] Speaker
[4] LED locator
[5] Emergency button
[6] Emergency signage with Braille

FEATURE CALL-OUTS:

CALL PLACED

[2]

CALL ANSWERED

[4]

[1]

[3]

SPECIFICATIONS:

Power Source: 802.3af PoE compliant
Communication: Open voice, hands-free
Wiring: CAT-5e or CAT-6
Wiring distance: 330’
Door release: 24V AC/DC, 500mA

(N/O, COM, N/C)
Operating Temp: 14° - 140°F (-10° - 60°C)
Dimensions: 7’’W x 11-11/16’’H x 2’’D

[7]

[8]
