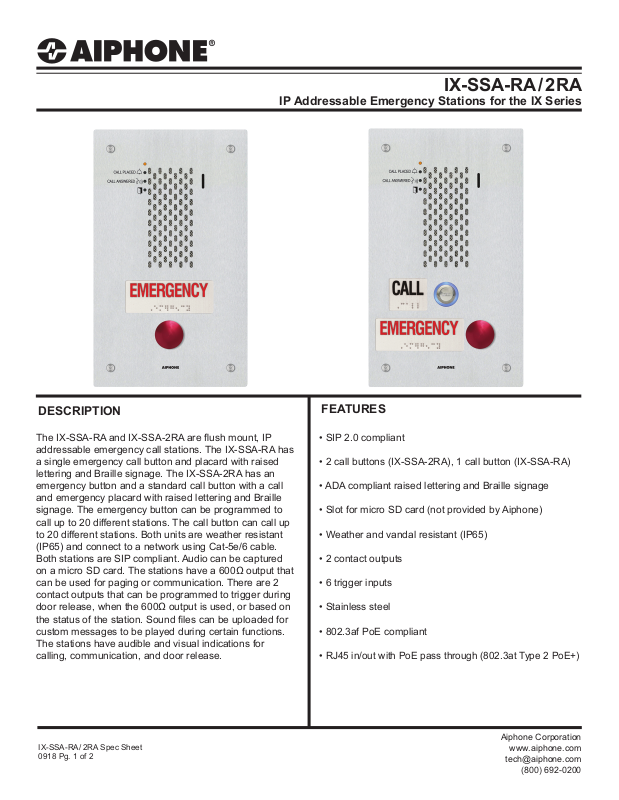

IX-SSA-RA / 2RA
iphone Corporation
(800) 692-0200
tech@aiphone.com
www.aiphone.com
IP Addressable Emergency Stations for the IX Series
DESCRIPTION
The IX-SSA-RA and IX-SSA-2RA are ush mount, IP
addressable emergency call stations. The IX-SSA-RA has
a single emergency call button and placard with raised
lettering and Braille signage. The IX-SSA-2RA has an
emergency button and a standard call button with a call
and emergency placard with raised lettering and Braille
signage. The emergency button can be programmed to
call up to 20 dierent stations. The call button can call up
to 20 dierent stations. Both units are weather resistant
(IP65) and connect to a network using Cat-5e/6 cable.
Both stations are SIP compliant. Audio can be captured
on a micro SD card. The stations have a 600Ω output that
can be used for paging or communication. There are 2
contact outputs that can be programmed to trigger during
door release, when the 600Ω output is used, or based on
the status of the station. Sound les can be uploaded for
custom messages to be played during certain functions.
The stations have audible and visual indications for
calling, communication, and door release.
FEATURES
• SIP 2.0 compliant
• 2 call buttons (IX-SSA-2RA), 1 call button (IX-SSA-RA)
• ADA compliant raised lettering and Braille signage
• Slot for micro SD card (not provided by Aiphone)
• Weather and vandal resistant (IP65)
• 2 contact outputs
• 6 trigger inputs
• Stainless steel
• 802.3af PoE compliant
•
RJ45 in/out with PoE pass through (802.3at Type 2 PoE+)
IX-SSA-RA / 2RA Spec Sheet
0918 Pg. 1 of 2
iphone Corporation
(800) 692-0200
tech@aiphone.com
www.aiphone.com
IX-SSA-RA / 2RA
IP Addressable Emergency Stations for the IX Series
FEATURE CALL-OUT
[1]
[1]
[2]
[3]
[4]
FEATURE CALL-OUT DEFINITIONS
[5]
[6]
[9]
[10]
[2]
[3]
[4]
SPECIFICATIONS
[5]
[6]
[7]
[8]
[9]
[10]
[1] Status indicator (orange/blue)
[2] Call indicator (green)
[3] Communication indicator (orange)
[4] Door release indicator (green)
[5] Microphone
[6] Speaker
[7] Call placard with braille
[8] Call button
[9] Emergency placard with braille
[10] Emergency call button
Power Source: PoE (IEEE 802.3af class 0)
or 24V DC (PS-2420UL)
Power Draw: 3.36 Watts at 48V DC
Audio Codec: G.711 (µ-law, A law), G.722
Protocols: IPv4, IPv6, TCP, UDP, SIP,
HTTP, HTTPS, RTSP, RTP,
RTCP, IGMP, MLD, SMTP,
FTP, DHCP, NTP, DNS
Port Security: IEEE 802.1X
Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
Ingress Protection: IP65
Impact Protection: IK08
Dimensions: 11-11⁄16" H x 7" W
IX-SSA-RA / 2RA Spec Sheet
0918 Pg. 2 of 2
