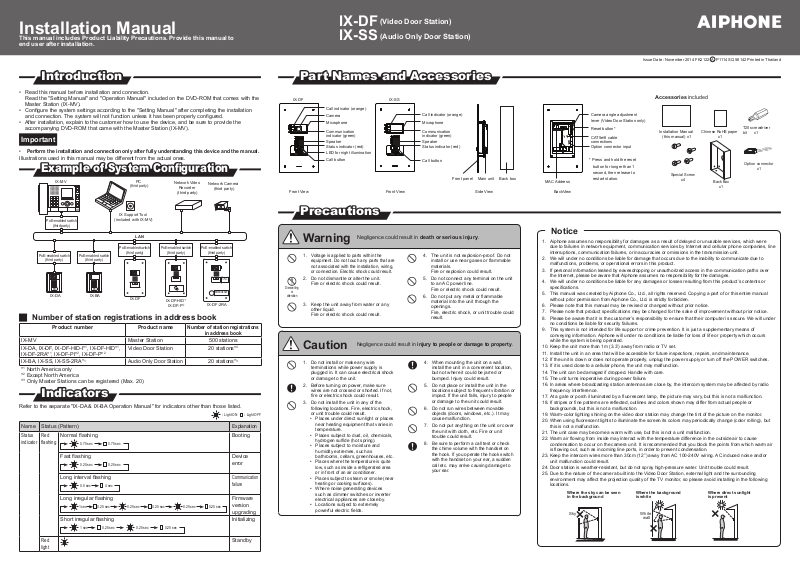

Installation Manual

IX-MV

Where the background

Where the sky can be seen in the background

Where direct sunlight

This manual includes Product Liability Precautions. Provide this manual to end user after installation.

IX-DF IX-SS

(Video Door Station)

(Audio Only Door Station)

Issue Date : November 2014 FK2122 A P1114 SQ 56142 Printed in Thailand

Introduction

• Read this manual before installation and connection. Read the "Setting Manual" and "Operation Manual" included on the DVD-ROM that comes with the Master Station (IX-MV).

• Congure the system settings according to the "Setting Manual" after completing the installation

and connection. The system will not function unless it has been properly congured.

• After installation, explain to the customer how to use the device, and be sure to provide the

accompanying DVD-ROM that came with the Master Station (IX-MV).

Important

• Perform the installation and connection only after fully understanding this device and the manual.

Illustrations used in this manual may be different from the actual ones.

Example of System Conguration

Network Video

Recorder

(third party)

PoE-enabled switch

(third party)

IX-DF-HID*1

IX-DF-P*2

PoE-enabled switch

(third party)

PoE-enabled switch

(third party)

PoE-enabled switch

(third party)

IX-BAIX-DA

(

third party

)

IX Support Tool

(included with IX-MV)

LAN

PoE-enabled switch

(third party)

IX-DF

J Number of station registrations in address book

Product number Product name

IX-MV Master Station 500 stations

IX-DA, IX-DF, IX-DF-HID-I*

, IX-DF-HID*1,

IX-DF-2RA*1, IX-DF-PI*2, IX-DF-P* IX-BA, IX-SS, IX-SS-2RA*

Video Door Station 20 stations*

Audio Only Door Station

*1 North America only *2 Except North America *3 Only Master Stations can be registered (Max. 20)

Number of station registrations

Network Camera

(third party)

PoE-enabled switch

(third party)

EMERGENCY

IX-DF-2RA

in address book

20 stations*

Indicators

Refer to the separate "IX-DA & IX-BA Operation Manual" for indicators other than those listed.

Light ON: Light OFF

Name Status (Pattern)

Status

Red

indicator

ashing

Normal ashing

0.75 sec 0.75 sec

Fast ashing

0.25 sec 0.25 sec

Long interval ashing

0.5 sec 4 sec

Long irregular ashing

1 sec 0.25 sec 0.25 sec0.25 sec 0.25 sec 0.25 sec

Short irregular ashing

1 sec 0.25 sec0.25 sec 0.25 sec

Explanation

Booting

Device error

Communication failure

Firmware version upgrading

Initializing

Part Names and Accessories

IX-DF IX-SS

Call indicator (orange)

Camera

Microphone

Communication indicator (green)

Speaker Status indicator (red)

LED for night illumination

Call button

Front ViewFront View Side View BackView

Call indicator (orange)

Microphone

Communication indicator (green)

Speaker Status indicator (red)

Call button

Front panel Main unit Back box

MAC Address

Camera angle adjustment

lever (Video Door Station only)

Reset button*

CAT5e/6 cable

connections Option connector input

* Press and hold the reset

button for longer than 1

second, then release to

restart station.

Accessories included

Installation Manual

(this manual) x1

Special Screw

Chinese RoHS paper

Back Box

T20 screwdriver bit

Option connector

Precautions

Warning

1. Voltage is applied to parts within the

equipment. Do not touch any parts that are

not associated with the installation, wiring, or connection. Electric shock could result.

2. Do not dismantle or alter the unit.

Dismantling

Fire or electric shock could result.

3. Keep the unit away from water or any other liquid. Fire or electric shock could result.

Caution

1. Do not install or make any wire terminations while power supply is

plugged in. It can cause electrical shock or damage to the unit.

2. Before turning on power, make sure wires are not crossed or shorted. If not,

re or electric shock could result.

3. Do not install the unit in any of the following locations. Fire, electric shock, or unit trouble could result.

• Places under direct sunlight or places

near heating equipment that varies in temperature.

• Places subject to dust, oil, chemicals,

hydrogen sulde (hot spring).

• Places subject to moisture and

humidity extremes, such as

bathrooms, cellars, greenhouses, etc.

• Places where the temperature is quite

low, such as inside a refrigerated area or in front of an air conditioner.

• Places subject to steam or smoke (near

heating or cooking surfaces).

• Where noise generating devices

such as dimmer switches or inverter

electrical appliances are close by.

• Locations subject to extremely

powerful electric elds.

Negligence could result in death or serious injury.

4. The unit is not explosion-proof. Do not

install or use near gases or ammable

materials. Fire or explosion could result.

5. Do not connect any terminal on the unit to an AC power line. Fire or electric shock could result.

6. Do not put any metal or ammable material into the unit through the openings. Fire, electric shock, or unit trouble could result.

Negligence could result in injury to people or damage to property.

4. When mounting the unit on a wall, install the unit in a convenient location, but not where it could be jarred or

bumped. Injury could result.

5. Do not place or install the unit in the locations subject to frequent vibration or

impact. If the unit falls, injury to people

or damage to the unit could result.

6. Do not run wires between movable

objects (doors, windows, etc.). It may

cause malfunction.

7. Do not put anything on the unit or cover the unit with cloth, etc. Fire or unit trouble could result.

8. Be sure to perform a call test or check the chime volume with the handset on

the hook. If you operate the hook switch with the handset on your ear, a sudden call etc. may arrive causing damage to your ear.

Notice

1. Aiphone assumes no responsibility for damages as a result of delayed or unusable services, which were due to failures in network equipment, communication services by Internet and cellular phone companies, line

interruptions, communication failures, or inaccuracies or omissions in the transmission unit.

2. We will under no conditions be liable for damage that occurs due to the inability to communicate due to malfunctions, problems, or operational errors in this product.

3. If personal information leaked by eavesdropping or unauthorized access in the communication paths over

the Internet, please be aware that Aiphone assumes no responsibility for the damages.

4. We will under no conditions be liable for any damages or losses resulting from this product’s contents or specications.

6. Please note that this manual may be revised or changed without prior notice.

7. Please note that product specications may be changed for the sake of improvement without prior notice.

8. Please be aware that it is the customer’s responsibility to ensure that their computer is secure. We will under

no conditions be liable for security failures.

9. This system is not intended for life support or crime prevention. It is just a supplementary means of conveying information. Aiphone will under no conditions be liable for loss of life or property which occurs while the system is being operated.

10. Keep the unit more than 1m (3.3’) away from radio or TV set.

11. Install the unit in an area that will be accessible for future inspections, repairs, and maintenance.

12. If the unit is down or does not operate properly, unplug the power supply or turn off the POWER switches.

13. If it is used close to a cellular phone, the unit may malfunction.

14. The unit can be damaged if dropped. Handle with care.

15. The unit turns inoperative during power failure.

16. In areas where broadcasting station antennas are close by, the intercom system may be affected by radio

frequency interference.

17. At a gate or porch illuminated by a uorescent lamp, the picture may vary, but this is not a malfunction.

18. If stripes or ne patterns are reected, outlines and colors shown may differ from actual people or backgrounds, but this is not a malfunction.

19. Warm-color lighting shining on the video door station may change the tint of the picture on the monitor.

20. When using uorescent lights to illuminate the screen its colors may periodically change (color rolling), but this is not a malfunction.

21. The unit case may become a warm with use, but this is not a unit malfunction.

22. Warm air owing from inside may interact with the temperature difference in the outside air to cause

condensation to occur on the camera unit. It is recommended that you block the points from which warm air is owing out, such as incoming line ports, in order to prevent condensation.

23. Keep the intercom wires more than 30cm (12’’) away from AC 100-240V wiring. AC induced noise and/or unit malfunction could result.

24. Door station is weather-resistant, but do not spray high-pressure water. Unit trouble could result.

25. Due to the nature of the camera built into the Video Door Station, external light and the surrounding

environment may affect the projection quality of the TV monitor, so please avoid installing in the following

locations.

Sky

is white

White

wall

is present

Red light

Standby

)

CAT5e/6 cable

Radius ≥ 25 mm (1") Radius < 25 mm (1")

Pair2

T568A

Pair4

Pair3

T568B

Door Station

(such as the electric lock)

How to Install How to Connect

120 mm

(Back)

Installation of Door Station

Front panel with the unit attached

Special screwdriver (included)

Fasten the front panel to the

back box with the special screws.

Back box (included)

Loosen

Tighten

Special screw x 4 (included)

(4-3/4'')

235 mm (9-5/16'')

45 mm (1-13/16'')

Install the back box in the wall, and

then connect the CAT5e/6 cable and option wires to the unit with the terminal cover open.

Mounting height (box center) GL=1,500 mm (5')

Imaging Range and Mounting Location (IX-DF only)

Connection Precautions

J Cable

The cable is not included with the product.

About the CAT5e/6 cable

• Use a straight cable when connecting between equipment.

• Do not use a CAT5e/6 cable with a bending angle of less than a 25 mm (1”) radius. A radius of less than 25 mm (1”) could cause a communication failure.

CAT5e/6 cable

• Do not peel the jacket off the CAT5e/6 cable any more than is necessary.

• Attach the RJ45 modular plugs using either EIA/TIA-568A or 568B.

Pair4

Pair1

Pair3

• Use the LAN tester to conrm conduction before connecting the

CAT5e/6 cable.

• The RJ45 connector with cover cannot be connected to CAT5e/6 cable terminals for Master Station or Door Stations. Use cables without covers

on the connectors.

Pair2

1234567812345678

Pair1

Cable precautions

• Do not use separate conductors or twisted pair cables.

• Do not use an odd number cable.

J Imaging Position Settings

The camera angle can be adjusted up or down (-8°, 0°, +15°) using the camera angle adjustment lever. Set it to the optimal level.

Camera angle adjustment lever

-8° 0°

+15°

J Wall Mounting

The indicated range is a guideline that may change depending on the installation environment.

Vertical

Camera angle 0° Camera angle +15°

Approx. 1,850 mm (6'1")

Approx. 650 mm (2'2")

Approx. 1,200 mm (3'11")

500 mm

(20")

1,500 mm (5')

Approx. 1,850 mm (6'1")

Unit center

Approx. 1,150 mm (3'9")

Approx. 700 mm (2'3")

500 mm

(20")

Unit center

1,300 mm (4'3")

When light enters the camera, the monitor screen may icker brightly or the subject may become dark. Try to prevent strong lighting from entering the camera directly.

FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, then user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Camera angle -8° If lower due to a level difference

Approx. 1,900 mm (6'3")

Approx. 700 mm (2'3")

Approx. 1,200 mm (3'11")

500 mm

1,500 mm (5')

(20")

150 mm (5")

Unit center

Horizontal

Approx. 950 mm (3'1")

500mm (20"

• Do not pull the CAT5e/6 cable or apply excessive load.

Wiring Connection

Insulate and secure unused wires.

ϕ0.8mm(20AWG)-2C

Contact Input*

Audio Output*

(to paging amplifier)

Door Relay*

*1 Contact Input Specications

Input method Form C dry contact (N/O or N/C)

Level detection method

Fixed detection time

200 msec or more

Contact resistance Maximum closure resistance: 700 Ω or less

Minimum open resistance: 3 kΩ or more

Terminal short-circuit

10 mA or less

current

Voltage between

DC 5V or less (between open terminals)

the terminals

Audio Output Specications

Output impedance 600 Ω

Output audio level 300 mVrms (600 Ω when terminated)

Polarized

15 m (50')

ϕ0.8mm(20AWG)-2C

Shielded wire

IX-DF IX-SS

LAN/PoE

Connector

COM

IX-BAIX-DA

10BASE-T

100BASE-TX

CAT5e/6 straight (UTP)

100 m (330')

Door Stations

Brown

Red

Orange

Yellow

Green

Blue

Purple

Relay Output Specications

Output method Form C dry contact (N/O or N/C)

Voltage between the terminals

AC 24V, 0.5A (resistive load) DC 24V, 0.5A (resistive load)

Minimum load (AC/DC): 100 mV, 0.1 mA

PoE-enabled switch
