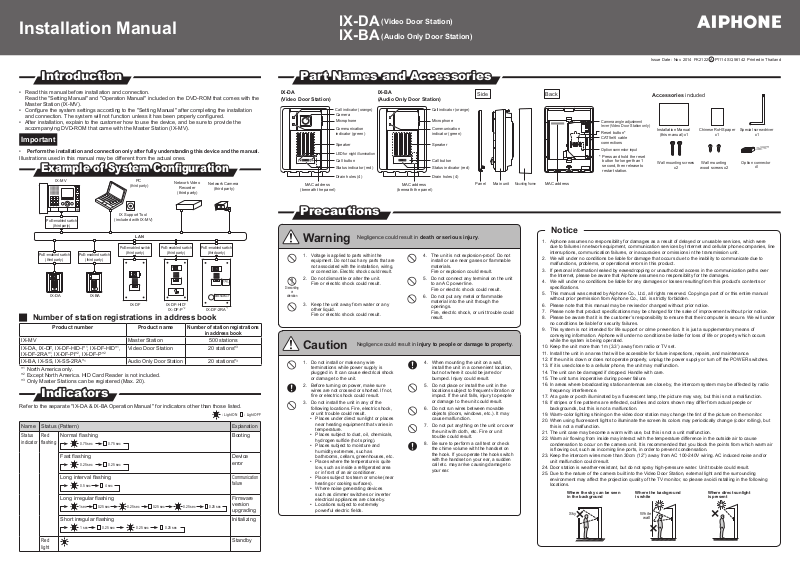

Aiphone IX-BA, IX-DA User Manual

Mounting frame
Main unit
IX-DA (Video Door Station)
IX-BA (Audio Only Door Station)
Panel
Microphone
Communication indicator (green)
Speaker
Call indicator (orange)
Call button
Camera
Microphone
LED for night illumination
Communication indicator (green)
Speaker
Call indicator (orange)
Camera angle adjustment lever (Video Door Station only)
CAT5e/6 cable connections
Option connector input
Drain holes (4)
Status indicator (red)
Drain holes (4)
Status indicator (red)
Call button
Accessories included
Installation Manual
(this manual) x1
Option connector
x1
Special screwdriver
x1
Chinese RoHS paper
x1
Wall mounting screws
x2
Wall mounting
wood screws x2
MAC address
(beneath the panel)
MAC address
(beneath the panel)
MAC address
Reset button*
* Press and hold the reset
button for longer than 1 second, then release to restart station.
Side Back
Installation Manual
LAN
PoE-enabled switch
(third party)
IX Support Tool
(included with IX-MV)
PC
(
third party
)
PoE-enabled switch
(third party)
PoE-enabled switch
(third party)
IX-BAIX-DA
IX-MV
Network Video
Recorder
(third party)
Network Camera
(third party)
EMERGENCY
PoE-enabled switch
(third party)
PoE-enabled switch
(third party)
IX-DF-HID*1
IX-DF-P
*2
IX-DF
PoE-enabled switch
(third party)
IX-DF-2RA
*1
Where the background is white
Where the sky can be seen in the background
Where direct sunlight is present
Sky
White
wall
IX-DA IX-BA
(Video Door Station)
(Audio Only Door Station)
Issue Date : Nov. 2014 FK2122 A P1114 SQ 56142 Printed in Thailand
IntroductionIntroduction
• Read this manual before installation and connection. Read the "Setting Manual" and "Operation Manual" included on the DVD-ROM that comes with the Master Station (IX-MV).
• Confi gure the system settings according to the "Setting Manual" after completing the installation and connection. The system will not function unless it has been properly confi gured.
• After installation, explain to the customer how to use the device, and be sure to provide the accompanying DVD-ROM that came with the Master Station (IX-MV).
Important
Example of System Confi gurationExample of System Confi guration
 Number of station registrations in address book
Product number Product name
IX-MV Master Station 500 stations IX-DA, IX-DF, IX-DF-HID-I*
IX-DF-2RA*1, IX-DF-PI*2, IX-DF-P* IX-BA, IX-SS, IX-SS-2RA*
1
, IX-DF-HID*1,
2
1
Video Door Station 20 stations*
Audio Only Door Station
*1 North America only. *2 Except North America. HID Card Reader is not included. *3 Only Master Stations can be registered (Max. 20).
Number of station registrations
in address book
20 stations*
IndicatorsIndicators
Refer to the separate "IX-DA & IX-BA Operation Manual" for indicators other than those listed.
:
Light ON: Light OFF
Name Status (Pattern)
Status
Red
indicator
ashing
Red light
Normal fl ashing
0.75 sec 0.75 sec
Fast fl ashing
0.25 sec 0.25 sec
Long interval fl ashing
0.5 sec 4 sec
Long irregular fl ashing
Short irregular fl ashing
1 sec 0.25 sec 0.25 sec0.25 sec 0.25 sec 0.25 sec
1 sec 0.25 sec0.25 sec 0.25 sec
Explanation
Booting
Device error
Communication failure
Firmware version upgrading
Initializing
Standby
3
3
Part Names and AccessoriesPart Names and Accessories
PrecautionsPrecautions
Warning
1. Voltage is applied to parts within the equipment. Do not touch any parts that are not associated with the installation, wiring, or connection. Electric shock could result.
2. Do not dismantle or alter the unit.
Dismantling
or
alteration
Fire or electric shock could result.
3. Keep the unit away from water or any other liquid. Fire or electric shock could result.
Caution
1. Do not install or make any wire terminations while power supply is plugged in. It can cause electrical shock or damage to the unit.
2. Before turning on power, make sure wires are not crossed or shorted. If not, re or electric shock could result.
3. Do not install the unit in any of the following locations. Fire, electric shock, or unit trouble could result.
• Places under direct sunlight or places
near heating equipment that varies in temperature.
• Places subject to dust, oil, chemicals,
hydrogen sulfi de (hot spring).
• Places subject to moisture and
humidity extremes, such as bathrooms, cellars, greenhouses, etc.
• Places where the temperature is quite
low, such as inside a refrigerated area or in front of an air conditioner.
• Places subject to steam or smoke (near
heating or cooking surfaces).
• Where noise generating devices
such as dimmer switches or inverter electrical appliances are close by.
• Locations subject to extremely
powerful electric fi elds.
Negligence could result in death or serious injury.
4. The unit is not explosion-proof. Do not install or use near gases or fl ammable materials. Fire or explosion could result.
5. Do not connect any terminal on the unit to an AC power line. Fire or electric shock could result.
6. Do not put any metal or fl ammable material into the unit through the openings. Fire, electric shock, or unit trouble could result.
Negligence could result in injury to people or damage to property.
4. When mounting the unit on a wall, install the unit in a convenient location, but not where it could be jarred or bumped. Injury could result.
5. Do not place or install the unit in the locations subject to frequent vibration or impact. If the unit falls, injury to people or damage to the unit could result.
6. Do not run wires between movable objects (doors, windows, etc.). It may cause malfunction.
7. Do not put anything on the unit or cover the unit with cloth, etc. Fire or unit trouble could result.
8. Be sure to perform a call test or check the chime volume with the handset on the hook. If you operate the hook switch with the handset on your ear, a sudden call etc. may arrive causing damage to your ear.
Notice
1. Aiphone assumes no responsibility for damages as a result of delayed or unusable services, which were due to failures in network equipment, communication services by Internet and cellular phone companies, line interruptions, communication failures, or inaccuracies or omissions in the transmission unit.
2. We will under no conditions be liable for damage that occurs due to the inability to communicate due to malfunctions, problems, or operational errors in this product.
3. If personal information leaked by eavesdropping or unauthorized access in the communication paths over the Internet, please be aware that Aiphone assumes no responsibility for the damages.
4. We will under no conditions be liable for any damages or losses resulting from this product’s contents or specifi cations.
5. This manual was created by Aiphone Co., Ltd., all rights reserved. Copying a part of or this entire manual without prior permission from Aiphone Co., Ltd. is strictly forbidden.
6. Please note that this manual may be revised or changed without prior notice.
7. Please note that product specifi cations may be changed for the sake of improvement without prior notice.
8. Please be aware that it is the customer’s responsibility to ensure that their computer is secure. We will under no conditions be liable for security failures.
9. This system is not intended for life support or crime prevention. It is just a supplementary means of conveying information. Aiphone will under no conditions be liable for loss of life or property which occurs while the system is being operated.
10. Keep the unit more than 1m (3.3’) away from radio or TV set.
11. Install the unit in an area that will be accessible for future inspections, repairs, and maintenance.
12. If the unit is down or does not operate properly, unplug the power supply or turn off the POWER switches.
13. If it is used close to a cellular phone, the unit may malfunction.
14. The unit can be damaged if dropped. Handle with care.
15. The unit turns inoperative during power failure.
16. In areas where broadcasting station antennas are close by, the intercom system may be affected by radio frequency interference.
17. At a gate or porch illuminated by a fl uorescent lamp, the picture may vary, but this is not a malfunction.
18. If stripes or fi ne patterns are refl ected, outlines and colors shown may differ from actual people or backgrounds, but this is not a malfunction.
19. Warm-color lighting shining on the video door station may change the tint of the picture on the monitor.
20. When using fl uorescent lights to illuminate the screen its colors may periodically change (color rolling), but this is not a malfunction.
21. The unit case may become a warm with use, but this is not a unit malfunction.
22. Warm air fl owing from inside may interact with the temperature difference in the outside air to cause condensation to occur on the camera unit. It is recommended that you block the points from which warm air is fl owing out, such as incoming line ports, in order to prevent condensation.
23. Keep the intercom wires more than 30cm (12’’) away from AC 100-240V wiring. AC induced noise and/or unit malfunction could result.
24. Door station is weather-resistant, but do not spray high-pressure water. Unit trouble could result.
25. Due to the nature of the camera built into the Video Door Station, external light and the surrounding environment may affect the projection quality of the TV monitor, so please avoid installing in the following locations.
4
2
1
1
IX-BAIX-DA
Door Station
Green
Purple
Blue
Brown
Red
Orange
Yellow
NO
LAN/PoE
10BASE-T
100BASE-TX
CAT5e/6 straight (UTP)
Relay Output*
3
(the electric lock)
Contact Input*
1
Shielded wire
ϕ0.8mm(20AWG)-2C
ϕ0.8mm(20AWG)-2C
Polarized
PoE-enabled switch
100 m (330')
NC
COM
S
SE
P
P
Audio Output*
2
(to paging amplifier)
15 m (50')
Connector
How to InstallHow to Install How to ConnectHow to Connect
Installation of Door Station
There is no space to accommodate the wiring in the back of the unit. If you do not use a 1-gang box, please provide openings or handle exposed wiring in other ways.
 Back wiring  Surface wiring
1
Remove the panel
<Bottom>
Use a flathead screwdriver to pry open the panel without scraping it.
Screwdriver
2
Remove the main unit (loosen the screw)
Special screwdriver
4
Open the terminal cover and connect the CAT5e/6 cable and option connector. Close the terminal cover.
Main unit
Included screws x2
CAT5e/6 cable
Low voltage cable
Drain holes Do not obstruct.
Mounting frame
Verify " UP" is facing up
1-gang box
Mounting height
(box center)
IX-DA: 1,500 mm (5')
IX-BA: 1,300 mm (4'3")
Included wood
screws x2
Incoming line ports Please insert the lines from the bottom. *Make knockouts as necessary.
3
Attach the mounting frame
5
Attach the main unit to the mounting frame and put the panel on.
83.5 mm (3-5/16")
Mounting height
(device center)
IX-DA: 1,500 mm (5')
IX-BA: 1,300 mm (4'3")
Knockout section
Connection Precautions
 Cable
The cable is not included with the product.
CAT5e/6 cable
Use a straight cable when connecting between equipment.
• Do not use a CAT5e/6 cable with a bending angle of less than a 25 mm (1”) radius. A radius of less than 25 mm (1”) could cause a communication failure.
CAT5e/6 cableCAT5e/6 cable
Radius ≥ 25 mm (1")
• Do not peel the jacket off the CAT5e/6 cable any more than is necessary.
• Attach the RJ45 modular plugs using either EIA/TIA-568A or 568B.
Pair2
Pair3
Pair1
T568A
Pair4
Pair2
12 3 45 6 7812 3 45 6 78
Use the LAN tester to confi rm conduction before connecting the CAT5e/6 cable.
• The RJ45 connector with cover cannot be connected to CAT5e/6 cable terminals for Master Station or Door Stations. Use cables without covers on the connectors.
Radius < 25 mm (1")
Pair3
Pair4
Pair1
T568B
Cable precautions
• Do not use separate conductors or twisted pair cables.
• Do not use an odd number cable.
Imaging Range and Mounting Location (IX-DA only)
 Imaging Position Settings
The camera angle can be adjusted up or down (-8°, 0°, +15°) using the camera angle adjustment lever. Set it to the optimal level.
 Wall Mounting
The indicated range is a guideline that may change depending on the installation environment.
Vertical
When light enters the camera, the monitor screen may fl icker brightly or the subject may become dark. Try to prevent strong lighting from entering the camera directly.
Camera angle 0° Camera angle +15°
Approx. 1,850 mm (6'1")
Approx. 650 mm (2'2")
Approx. 1,200 mm (3'11")
500 mm
(20")
1,500 mm (5')
Approx. 1,850 mm (6'1")
Unit center
Approx. 1,150 mm (3'9")
Approx. 700 mm (2'3")
(Back)
Unit center
500 mm (20")
1,300 mm (4'3")
Camera angle adjustment lever
-8° 0°
+15°
Camera angle -8° If lower due to a level difference
Approx. 1,900 mm (6'3")
Approx. 700 mm (2'3")
Approx. 1,200 mm (3'11")
500 mm
(20")
150 mm (5")
Horizontal
Unit center
1,500 mm (5')
500mm (20")
Approx. 950 mm (3'1")
• Do not pull the CAT5e/6 cable or apply excessive load.
Wiring Connection
Insulate and secure unused wires.
*1 Contact Input Specifi cations
Input method
Fixed detection time
Contact resistance
Terminal short-circuit current
Voltage between the terminals
2
*
Audio Output Specifi cations
Output impedance 600 Ω
Output audio level 300 mVrms (600 Ω when terminated)
Form C dry contact (N/O or N/C)
Level detection method
200 msec or more
Maximum closure resistance: 700 Ω or less Minimum open resistance: 3 kΩ or more
10 mA or less
DC 5V or less (between open terminals)
3
*
Relay Output Specifi cations
Output method
Voltage between the terminals
Form C dry contact (N/O or N/C)
AC 24V, 0.5A (resistive load) DC 24V, 0.5A (resistive load) Minimum load (AC/DC): 100 mV, 0.1 mA
