JF-2MED

Master Monitor Station for the JF Series

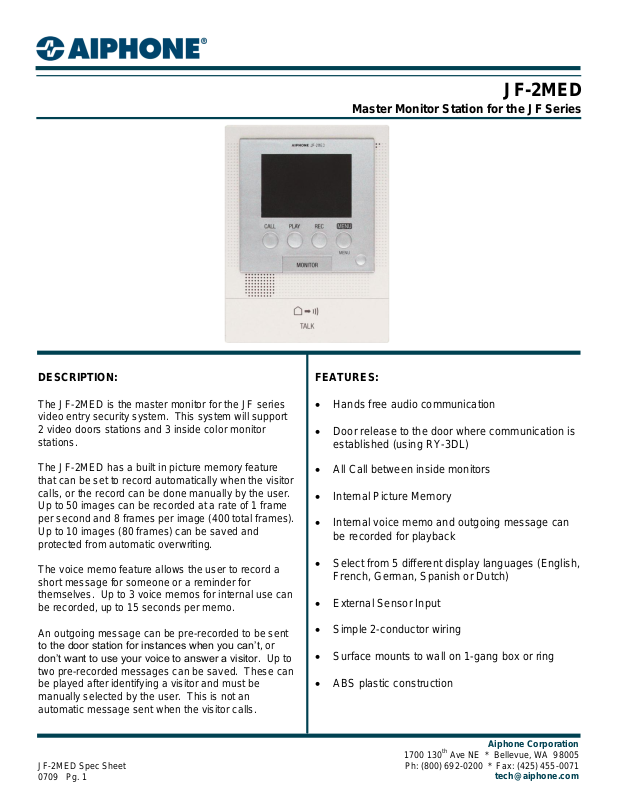

DESCRIPTION:

The JF-2MED is the master monitor for the JF series
video entry security system. This system will support
2 video doors stations and 3 inside color monitor
stations.

The JF-2MED has a built in picture memory feature
that can be set to record automatically when the visitor
calls, or the record can be done manually by the user.
Up to 50 images can be recorded at a rate of 1 frame
per second and 8 frames per image (400 total frames).
Up to 10 images (80 frames) can be saved and
protected from automatic overwriting.

The voice memo feature allows the user to record a
short message for someone or a reminder for
themselves. Up to 3 voice memos for internal use can
be recorded, up to 15 seconds per memo.

An outgoing message can be pre-recorded to be sent

to the door station for instances when you can’t, or
don’t want to use your voice to answer a visitor. Up to

two pre-recorded messages can be saved. These can
be played after identifying a visitor and must be
manually selected by the user. This is not an
automatic message sent when the visitor calls.

FEATURES:

· Hands free audio communication

· Door release to the door where communication is

established (using RY-3DL)

· All Call between inside monitors

· Internal Picture Memory

· Internal voice memo and outgoing message can

be recorded for playback

· Select from 5 different display languages (English,
French, German, Spanish or Dutch)

· External Sensor Input

· Simple 2-conductor wiring

· Surface mounts to wall on 1-gang box or ring

· ABS plastic construction

JF-2MED Spec Sheet
0709 Pg. 1

Aiphone Corporation

1700 130th Ave NE * Bellevue, WA 98005
Ph: [phone] * Fax: [phone]

[e-mail]

JF-2MED

Master Monitor Station for JF Series

FEATURE CALL-OUTS:

[2]

[3]
[7]

[9]

[10]

[1]

[4]
[5]

[6]
[8]

[11]

[12]

FEATURE CALL-OUT DEFINITIONS:

[1] Microphone
[2] Color LCD video monitor (3-½”)
[3] CALL button, door call-in LED (red)
[4] PLAY button, play LED (red)
[5] RECORD button, record LED (red)

[13]

[14]

[15]

DOOR CALL

[16]

1&2 2 1

[6] MENU/MEMO button, Memo LED (red)
[7] Power switch
[8] Option button
[9] MONITOR button
[10] Speaker
[11] Transmit LED (red)
[12] TALK button
[13] Screen brightness control

JF-2MED on MCW-S/A desk stand:

Shown at 60° angle

[14] Receive volume control (high to off)
[15] Chime tone, alert sound volume (high to off)
[16] Call-in setting switch

“1”: Call-in from door station 1 only
“2”: Call-in from door station 2 only
“1&2”: Call-in from both door stations 1 & 2

SPECIFICATIONS:

Power Source: 18VDC, PS-1820UL
Call: Varying ring tones from doors based

on how set in the Menu

Communication: Hands-free (VOX) after TALK button

is pressed once, or push-to-talk
Capacity: 2 doors, 3 monitors
Wiring: 2-conductor, PE insulation, Aiphone

wire #871802 from doors &

#871804 between monitors
Wiring Distance: Door to master, 330'

Master to farthest sub, 330'
Talk Path: Single channel

Operating Temp: 32 – 104° F (0 ~ 40° C)
Dimensions (HxWxD):

7" x 5-5/16" x 1-1/4"

(179 x 135 x 32 mm)
Weight: 1.1 lbs (500g)
