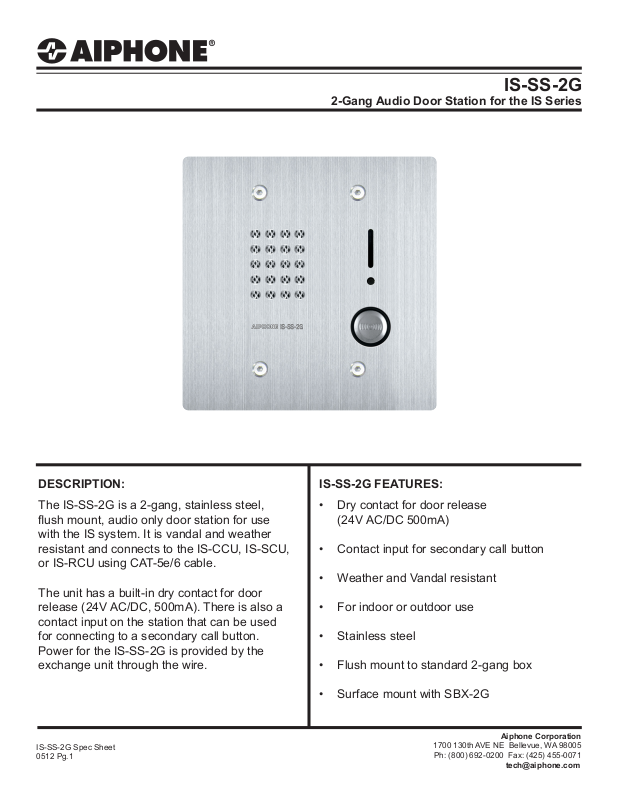

Aiphone IS-SS-2G Specsheet

IS-SS-2G

2-Gang Audio Door Station for the IS Series

DESCRIPTION: IS-SS-2G FEATURES:

The IS-SS-2G is a 2-gang, stainless steel,
ush mount, audio only door station for use

• Dry contact for door release
(24V AC/DC 500mA)

with the IS system. It is vandal and weather
resistant and connects to the IS-CCU, IS-SCU,

• Contact input for secondary call button

or IS-RCU using CAT-5e/6 cable.

• Weather and Vandal resistant

The unit has a built-in dry contact for door
release (24V AC/DC, 500mA). There is also a

• For indoor or outdoor use

contact input on the station that can be used
for connecting to a secondary call button.
Power for the IS-SS-2G is provided by the
exchange unit through the wire.

• Stainless steel

• Flush mount to standard 2-gang box

• Surface mount with SBX-2G

IS-SS-2G Spec Sheet
0512 Pg.1

[e-mail]

1700 130th AVE NE Bellevue, WA 98005

Aiphone Corporation

Ph: [phone] Fax: [phone]

IS-SS-2G

4-3/4"

IS-SS-2G

2-Gang Audio Door Station for the IS Series

FEATURE CALL-OUT:

[1]

[2]

[3]

[4]

[5]

FEATURE CALL-OUT DEFINITIONS:

[1] Speaker

[2] Microphone

[3] Status LED (red/orange/green)

[4] Call button

[5] Tamper-proof screw (x4)

IS-SS-2G Spec Sheet
0512 Pg.2

SPECIFICATIONS:

Power Source: Supplied from IS-CCU/SCU/RCU

Communication: Open voice hands-free

Mounting: Flush mount to 2-gang box

Material: Stainless steel

Temperature: 14 - 140°F (-10 - 60°C)

Dimensions: 4-3/4”H x 4-3/4”W x 1-7/8”D

Weight: Approx. 0.82lbs (370g)

Ingress Protection: IP54
