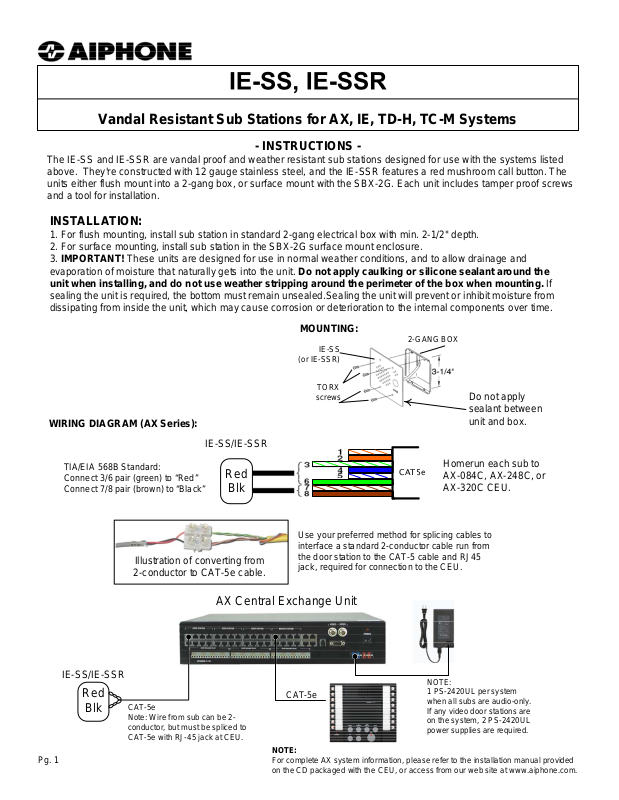

Aiphone IE-SS Instruction Manual
Vandal Resistant Sub Stations for AX, IE, TD-H, TC-M Systems
- INSTRUCTIONS -
The IE-SS and IE-SSR are vandal proof and weather resistant sub stations designed for use with the systems listed
above. They're constructed with 12 gauge stainless steel, and the IE-SSR features a red mushroom call button. The
units either flush mount into a 2-gang box, or surface mount with the SBX-2G. Each unit includes tamper proof screws
and a tool for installation.
INSTALLATION:
1. For flush mounting, install sub station in standard 2-gang electrical box with min. 2-1/2" depth.
2. For surface mounting, install sub station in the SBX-2G surface mount enclosure.
3. IMPORTANT! These units are designed for use in normal weather conditions, and to allow drainage and
evaporation of moisture that naturally gets into the unit. Do not apply caulking or silicone sealant around the
unit when installing, and do not use weather stripping around the perimeter of the box when mounting. If
sealing the unit is required, the bottom must remain unsealed.Sealing the unit will prevent or inhibit moisture from
dissipating from inside the unit, which may cause corrosion or deterioration to the internal components over time.
MOUNTING:
IE-SS
(or IE-SSR)
TORX
screws
WIRING DIAGRAM (AX Series):
2-GANG BOX
Do not apply
sealant between
unit and box.
TIA/EIA 568B Standard:
Connect 3/6 pair (green) to “Red”
Connect 7/8 pair (brown) to “Black”
Illustration of converting from
2-conductor to CAT-5e cable.
IE-SS/IE-SSR
Red
Blk
Pg. 1
CAT-5e
Note: Wire from sub can be 2conductor, but must be spliced to
CAT-5e with RJ-45 jack at CEU.
IE-SS/IE-SSR
Red
Blk
Use your preferred method for splicing cables to
interface a standard 2-conductor cable run from
the door station to the CAT-5 cable and RJ45
jack, required for connection to the CEU.
AX Central Exchange Unit
CAT-5e
NOTE:
For complete AX system information, please refer to the installation manual provided
on the CD packaged with the CEU, or access from our web site at www.aiphone.com.
CAT5e
AX-084C, AX-248C, or
AX-320C CEU.
NOTE:
1 PS-2420UL per system
when all subs are audio-only.
If any video door stations are
on the system, 2 PS-2420UL
power supplies are required.
Homerun each sub to
WIRING DIAGRAM (IE Series):
IE-series IE-SS/IE-SSR
IE Series
1-door systems:
IE-1AD (1 / 2)
IE-1GD (D1/D2)
PT-1210N
~
~
1/D1
2/D2
+
-
WIRING DIAGRAM (TD-H Series):
TD-H Masters:
TD-3H/B
TD-6H/B
TD-12H/B
TD-24H/B
TD-H Master
1*
~
24
C
PS-1225UL
+
-
D
+
-
Red
Blk
DE-UR
C
1
2
D
+
-
IE-series IE-SS/IE-SSR
IE Series
2-door systems:
IE-2AD
IE-8MD
D1
E1
D2
PT-1210N
+
-
E2
+
-
IE-SS/IE-SSR
Red
Blk
* Connect to desired station number, 1 ~ 12.
Red
Blk
IE-SS/IE-SSR
Red
Blk
NOTES:
1. The TD-1H/B does not have a “D” terminal for use with a door station.
2. Max. two door stations can be used on the TD-H/B system, each requiring a DE-UR. Set A-B switch on
each one to differentiate intermittent tremolo tone when doors call in.
2. Refer to the standard TD-H/B instructions for complete installation and wiring information.
SPECIFICATIONS:
Power Source: Supplied by master station
Speaker: Baffle protected, Water proof and puncture resist an t, 2.4 oz. magnet
Microphone: Baffle protected
Call Button: SPST call button. Call tone is activated at master when call button is pressed
IE-SS: Limited stop button. IE-SSR: Limited stop, red mushroom button
Communication: Hands free at sub. Master uses handset.
Faceplate: 12 gauge stainless steel
Mounting: Flush mount into a 2-gang box. Surface mount into SBX-2G, sold separately.
Tamper proof screws included (6x32 for use with flush gang box) with T-10 TO RX bit.
Use hardware included with SBX-2G when installing sub into that unit.
Terminations: Color-coded prewired pigtails
Operating Temperature: Flush Switch rating: 14°F to 158°F; Mushroom Switch rating: -22°F to 185°F
Speaker rating: -67°F to 187°F
Wiring: 2 conductors. Use Aiphone #812202
Wiring Distance: See system that unit is being used with for distance specifications
Dimensions (H x W x D): IE-SS/IE-SSR alone: 4-11/16" x 4-11/16" x 2"
With SBX-2G: 4-3/4" x 4-7/8" x 3-5/8" (Top) 2-3/8" (Bottom)
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
TOLL FREE TECHNICAL SUPPORT: (800) 692-0200
TOLL FREE FAX LINE: (800) 832-3765
E-MAIL: tech-serv@aiphone.com
IE-SS, IE-SSR Instr.
0307JD
