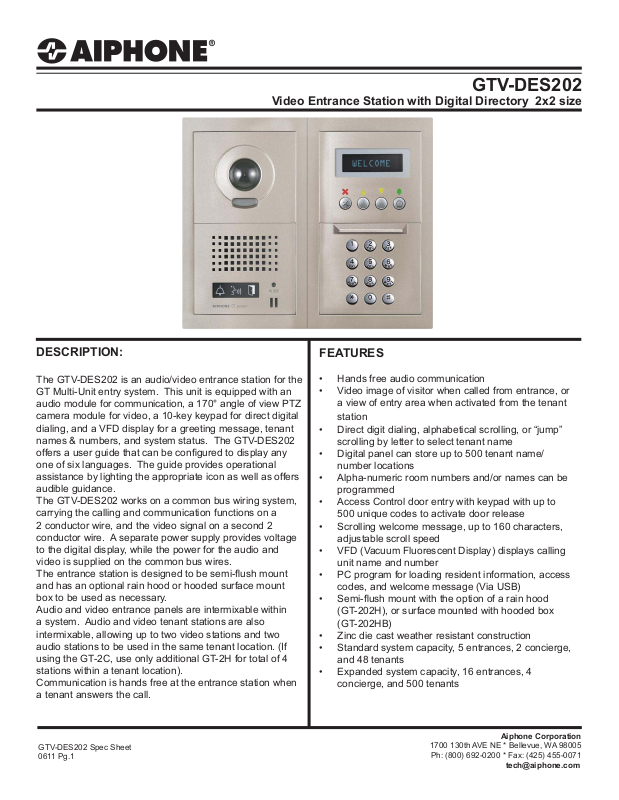

Aiphone GTV-DES202 Specsheet

GTV-DES202

Video Entrance Station with Digital Directory 2x2 size

DESCRIPTION:

The GTV-DES202 is an audio/video entrance station for the
GT Multi-Unit entry system. This unit is equipped with an
audio module for communication, a 170° angle of view PTZ
camera module for video, a 10-key keypad for direct digital
dialing, and a VFD display for a greeting message, tenant
names & numbers, and system status. The GTV-DES202

offers a user guide that can be congured to display any

one of six languages. The guide provides operational
assistance by lighting the appropriate icon as well as offers
audible guidance.
The GTV-DES202 works on a common bus wiring system,
carrying the calling and communication functions on a
2 conductor wire, and the video signal on a second 2
conductor wire. A separate power supply provides voltage
to the digital display, while the power for the audio and
video is supplied on the common bus wires.

The entrance station is designed to be semi-ush mount

and has an optional rain hood or hooded surface mount
box to be used as necessary.
Audio and video entrance panels are intermixable within
a system. Audio and video tenant stations are also
intermixable, allowing up to two video stations and two
audio stations to be used in the same tenant location. (If
using the GT-2C, use only additional GT-2H for total of 4
stations within a tenant location).
Communication is hands free at the entrance station when
a tenant answers the call.

FEATURES

• Hands free audio communication

• Video image of visitor when called from entrance, or

a view of entry area when activated from the tenant
station

• Direct digit dialing, alphabetical scrolling, or “jump”
scrolling by letter to select tenant name

• Digital panel can store up to 500 tenant name/
number locations

• Alpha-numeric room numbers and/or names can be
programmed

• Access Control door entry with keypad with up to
500 unique codes to activate door release

• Scrolling welcome message, up to 160 characters,
adjustable scroll speed

• VFD (Vacuum Fluorescent Display) displays calling
unit name and number

• PC program for loading resident information, access
codes, and welcome message (Via USB)

• Semi-ush mount with the option of a rain hood

(GT-202H), or surface mounted with hooded box
(GT-202HB)

• Zinc die cast weather resistant construction

• Standard system capacity, 5 entrances, 2 concierge,

and 48 tenants

• Expanded system capacity, 16 entrances, 4
concierge, and 500 tenants

GTV-DES202 Spec Sheet
0611 Pg.1

1700 130th AVE NE * Bellevue, WA 98005

Aiphone Corporation

Ph: [phone] * Fax: [phone]

[e-mail]

GTV-DES202

Video Entrance Station with Digital Directory 2x2 size

FEATURE CALL-OUT DEFINITIONS:FEATURE CALL-OUT:

• Camera Module GT-VA & GT-VP
[1] Camera
[2] Illuminator LED

GT-VA

& GT-VP

GT-NS

& GT-NSP-L

[1]

[2]

[3]

[4]

2

3

1

D

A

C

B

E

5

4

6

M

G

J

I

L

K

H

N

8

9

7

W

P

S

T

Q

V

X

U

Y

R

0

[5]
[6]

GT-DA-L

& GT-DP-L

GT-10K

& GF-10KP

KIT COMPONENTS:

The GTV-DES202 kit is made up of the
following components:

GT-VA: Camera Module
GT-VP: Camera Module Panel
GT-DA-L: Audio Module with Guidance
GT-DP-L: Audio Module Panel
GT-NS: Scroll Module
GT-NSP-L: Scroll Module Panel
GT-10K: Keypad Module
GF-10KP: Keypad Module Panel
GF-2B: 2 Module Back Box (quantity 2)
GF-2F: 2 Module Frame (quantity 2)

• Speech Module GT-DA-L & GT-DP-L
[3] Speaker

[7]

[4] In Use LED (orange)
[5] Guidance indicators
Door call-in / Talk / Door release

[8]
[9]
[10]
[11]

F

O

Z

[12]

[6] Microphone

• Digital name scrolling module GT-NS & GT-NSP-L
[7] Display
[8] Cancel button (or set and return)
[9] Back search button (or move cursor to the left)
[10] Forward search button (or mover cursor to the right)
[11] Call button (or set and move forward)

• Digital keypad module GT-10K & GF-10KP
[12] 10-key (0~9, *, #)

SPECIFICATIONS:

Power: 24V DC, use specied number of
PS-2420UL per system conguration

Calling: Electronic ring tone from entrance
panel
Communication: Hands free from entrance panel to
tenant station
Capacity: Max. 16 Entry panels per system
Max. 4 Concierge stations per system
Max. 500 Tenant stations per system
Max. 4 Tenant stations per unit
Wire: Two sets of 2-conductor, PE insulation
(two common buses for audio & video)
Aiphone #872002, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft
Aiphone #871802, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft
Wiring Distance: GT-BC to farthest entrance: 980’
GT-BC to farthest tenant (audio): 980’
GT-VBC to farthest entrance: 980’
GT-VBC to farthest tenant (video): 500’
Talk Path: Single chanel with privacy
Dimensions: 8-7/8” H x 10-5/8” W x 1-3/4” D
(Outer panel dimensions, not including
optional rain hood or surface mount
box.)
