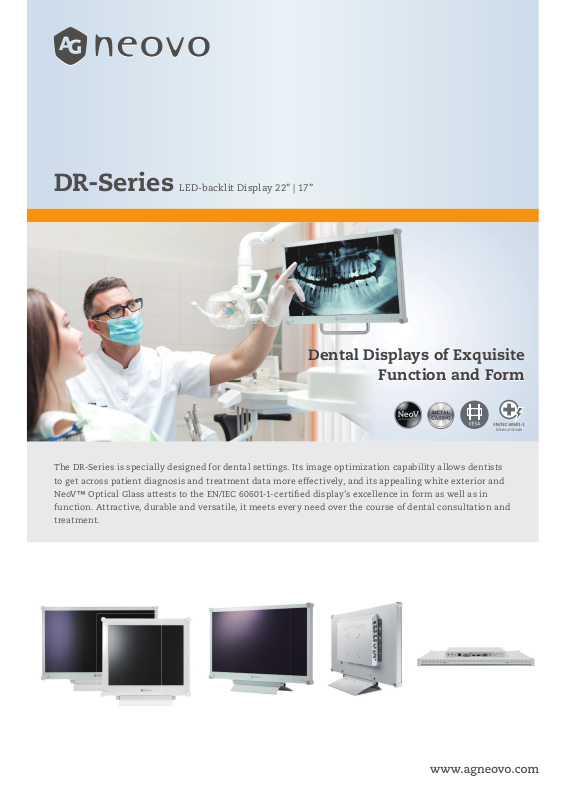

DR-Series LED-backlit Display 22” | 17”

Dental Displays of Exquisite

Dental Displays of Exquisite

Function and Form

Function and Form

The DR-Series is specially designed for dental settings. Its image optimization capability allows dentists
to get across patient diagnosis and treatment data more effectively, and its appealing white exterior and
NeoV™ Optical Glass attests to the EN/IEC 60601-1-certifi ed display’s excellence in form as well as in
function. Attractive, durable and versatile, it meets every need over the course of dental consultation and
treatment.

Enhanced Colour Reproduction and
Image Clarity

Displays with exceptionally clear images help dentists
communicate more e ectively with patients. With
cutting-edge gamma correction, black-level alignment
adjustability, and high contrast ratio, the DR-Series can
capture darker details and deliver premium images,
thereby enhancing treatment quality.

Versatility and Adaptability

 e DR-Series is adaptable to  t every conceivable dental
environment. Besides being mounted on the VESA
mounting stand, the display can be installed with a VESA
stand, on the dentist’s desk or mounted on a rotatable arm
with handles for easy movement. Multiple connectivity
options, including HDMI and DisplayPort, are provided
for connecting to di erent types of devices and showing
video content.

Features

• Compliant with EN60601-1 and IEC60601-1 medical certi cations

• NeoV™ Optical Glass & metal housing for excellent cleanability and protection

• DC 24V medical-grade power adapter allows a longer distance connection

• Equipotential terminal connector

• Illuminator mode for easy X-ray  lm viewing

• Black-level alignment for presenting the delicate dark details

• 3D Comb Filter/Deinterlace/Noise Reduction

Easy to Clean and Reliable Design

 e anti-acid and anti-alkali coating treatment of NeoVTM
Optical Glass ensures that the DR-Series withstand
cleaning and disinfection. Bolstered by the metal casing
and equipped with DC 24V medical-grade power supply,
the DR-Series is durable, safe and reliable.

• Versatile inputs: DisplayPort, HDMI, DVI, VGA, CVBS (BNC x 2),
S-Video & RS-232

• Optional handle for easy movement of display

• EcoSmart Sensor allows brightness adjustment by ambient light

• VESA mount compatibility for easy arm, wall or cart mounting

• Flicker-free backlight for eye comfort
