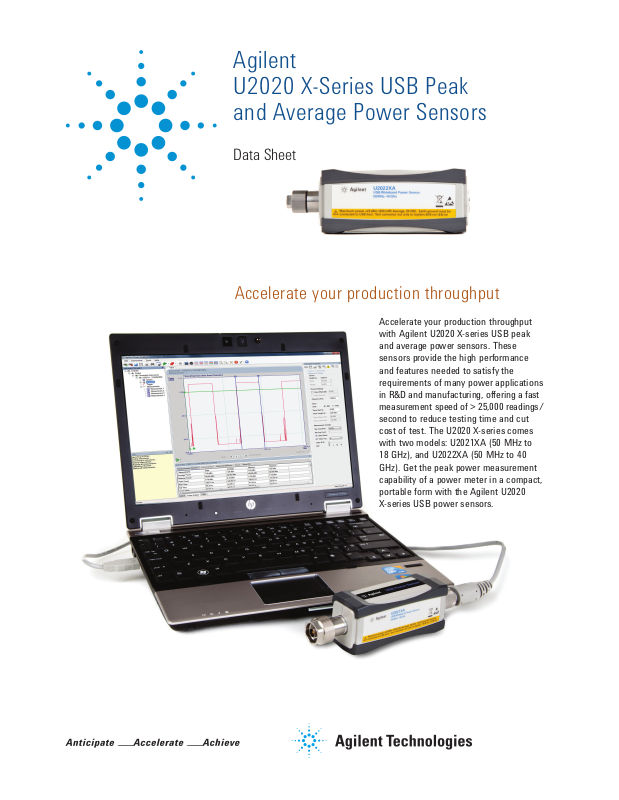

Agilent
U2020 X-Series USB Peak
and Average Power Sensors
Data Sheet
Accelerate your production throughput
Accelerate your production throughput
with Agilent U2020 X-series USB peak
and average power sensors. These
sensors provide the high performance
and features needed to satisfy the
requirements of many power applications
in R&D and manufacturing, offering a fast
measurement speed of > 25,000 readings/
second to reduce testing time and cut
cost of test. The U2020 X-series comes
with two models: U2021XA (50 MHz to
18 GHz), and U2022XA (50 MHz to 40
GHz). Get the peak power measurement
capability of a power meter in a compact,
portable form with the Agilent U2020
X-series USB power sensors.
Page 2
A wide peak power
dynamic range
Compact and portable
form factor
Built-in radar and
wireless presets
The U2020 X-series sensors’ dynamic
range of –30 to +20 dBm for peak
power measurements enables more
accurate analysis of very small signals, across a broader range of peak
power applications in the aerospace,
defense and wireless industries.
Internal zero and calibration
Save time and reduce measurement
uncertainty with the internal zero
and calibration function. Each U2020
X-series sensor comes with technology that integrates a dc reference
source and switching circuits into the
body of the sensor so you can zero
and calibrate the sensor while it is
connected to a device under test. This
feature removes the need for connection and disconnection from an
external calibration source, speeding
up testing and reducing connector
wear and tear.
The internal zero and calibration
function is especially important in
manufacturing and automated test
environments where each second and
each connection counts.
The U2020 X-series are standalone
sensors that operate without the need
of a power meter or an external power
supply. The sensors draw power from
a USB port and do not need additional
triggering modules to operate, making
them portable and lightweight solutions for field applications such as
base station testing. Simply plug the
sensor to the USB port of your PC
or laptop, and start your power
measurements.
Fast rise and fall time; wide
video bandwidth
Accurately measure the output power
and timing parameters of pulses when
designing or manufacturing components and subcomponents for radar
systems. The U2020 X-series USB
power sensors come with a 30 MHz
bandwidth and ≤ 13 ns rise and fall
time, providing a high performance
peak and average power solution
that covers most high frequency test
applications up to 40 GHz.
Begin testing faster; the U2020
X-series USB power sensors come
with built-in radar and wireless
presets for DME, GSM, EDGE, CDMA,
WCDMA, WLAN, WiMAX, and LTE.
Bundled intuitive power
analysis software
The U2020 X-series USB power sensors are bundled with a free N1918A
Option 100 Power Analyzer PC license
key. Simply connect the USB power
sensor and the PC will recognize the
license.
A N1918A Power Analysis Manager
software CD will be shipped together
with the U2021XA or U2022XA. Users
can also download the software from
www.agilent.com/find/N1918A.
Built-in trigger in/trigger out
An external trigger enables accurate
triggering of small signals close to the
signal noise floor. The U2020 X-series
USB power sensors come with
built-in trigger in/out connection,
allowing you to connect an external
trigger signal from a signal source or
the device-under-test directly to the
USB sensor through a standard BNC
to SMB cable. The sensors also come
with recorder/video-output features.
2
Page 3
Complementary Cumulative
Distribution Function (CCDF)
curves
CCDF characterizes the high power
statistics of a digitally modulated signal, and is defined by how much time
the waveform spends at or above a
given power level. The U2020 X-series
supports two types of CCDF curves.
Normal CCDF displays the power statistics of the whole waveform under
free run, internal or external trigger
modes. Gated CCDF can be coupled
with a measurement gate and only
the waveform within the gated region
is analyzed statistically. Gated CCDF
is only applicable in internal trigger
and external trigger modes.
Designers of components, such
as power amplifiers, will compare
the CCDF curves of a signal at the
amplifier’s input and output. A well
designed component will produce
curves that overlap each other. If the
amplifier compresses the signal, then
the peak-to-average ratio of the signal
will be lower at the output of the
amplifier. The designer will need to
improve the range of the amplifier to
handle high peak power.
3
Page 4
Additional U2020 X-Series Features
List mode
List mode is a mode of operation
where a predefined sequence of measurement steps can be programmed
into the power sensor and repeatedly
executed as many times as required.
This mode is suitable for power and
frequency sweeps which normally
require changing the parameters
via the appropriate SCPI commands
before performing a measurement.
The hardware handshaking communication between the power sensor and
the signal source provides the fastest
possible execution time in performing
the test sequences.
Trigger and gating parameters control
which part of the waveform to be
included or excluded from the
measurement. The list mode helps
to analyze modulated signals with
regular and time- slotted or frame
structure. For example, eight timeslotted GSM bursts, LTE-FDD and
LTE-TDD frames and sub-frames,
WCDMA frames and slots, and timeslotted measurements are supported
in this mode. The desired number of
slots and their duration and exclusion
intervals can be easily programmed.
For more information, please refer
to the U2020 X-Series Programming
Guide.
Decreasing the aperture size will
improve the measurement throughput
but reduce the signal-to-noise ratio
of the measured signal. However,
increasing the aperture size will
improve the signal-to-noise ratio of
the measured signal but reduce the
measurement throughput.
Measurement
speed
NORMal 50 ms Yes
DOUBle 26 ms No
FAST 2 ms No
Table 1. Aperture size
Default
aperture
size
Adjustable
Auto burst detection
Auto burst detection helps the
measurement setup of the trace
or gate positions and sizes, and
triggering parameters on a large
variety of complex modulated signals
by synchronizing to the RF bursts.
After a successful auto- scaling, the
triggering parameters such as the
trigger level, delay, and hold- off are
automatically adjusted for optimum
operation. The trace settings are also
adjusted to align the RF burst to the
center of the trace display.
20-pulse measurements
The U2020 X-Series can measure up
to 20 pulses. The measurement of
radar pulse timing characteristics is
greatly simplified and accelerated by
performing analysis simultaneously
on up to 20 pulses within a single
capture. Individual pulse duration,
period, duty cycle and separation,
positive or negative transition
duration, and time (relative to the
delayed trigger point) are measured.
High average count reset
When high averaging factors have
been set, any rapid adjustments to
the amplitude of the measured signal
will be delayed due to the need to
allow the averaging filter to fill before
a new measurement can be taken
at a stable power level. The U2020
X-Series allows you to reset the long
filter after the final adjustment to the
signal’s amplitude has been made.
Variable aperture size
In average only mode and at normal
measurement speed, the time
interval length used to measure the
average power of the signal can
be adjusted by setting the aperture
size to between 2 ms and 200 ms.
This is useful for CW signals and
noise-like modulated signals such as
FDD-LTE and WCDMA by performing
measurements over the full frames or
sub-frames.
4
Page 5
Performance specifications
Specification definitions
There are two types of product
specifications:
• Warranted specifications are
specifications which are covered
by the product warranty and apply
over a range of 0 to 55 °C unless
otherwise noted. Warranted specifications include measurement
uncertainty calculated with a
95 % confidence
• Characteristic specifications
are specifications that are not
warranted. They describe product
performance that is useful in the
application of the product. These
characteristic specifications are
shown in italics.
Characteristic information is representative of the product. In many cases,
it may also be supplemental to a war-
ranted specification. Characteristics
specifications are not verified on
all units. There are several types of
characteristic specifications. They
can be divided into two groups:
One group of characteristic types
describes ‘attributes’ common to all
products of a given model or option.
Examples of characteristics that
describe ‘attributes’ are the product
weight and ’50-ohm input Type-N connector’. In these examples, product
weight is an ‘approximate’ value and
a 50-ohm input is ‘nominal’. These
two terms are most widely used when
describing a product’s ‘attributes’.
The second group describes `statistically’ the aggregate performance of
the population of products. These
characteristics describe the expected
U2020 X-Series USB Power Sensors Specifications
behavior of the population of
products. They do not guarantee the
performance of any individual product.
No measurement uncertainty value
is accounted for in the specification.
These specifications are referred to
as `typical’.
Conditions
The power sensor will meet its
specifications when:
• storedforaminimumoftwohours
at a stable temperature within the
operating temperature range, and
turned on for at least 30 minutes
• thepowersensoriswithinits
recommended calibration period,
and
• usedinaccordancetotheinformation provided in the User’s Guide.
Key specifications
Frequency range
Dynamic power range
Damage level 23 dBm (average power)
Rise/fall time ≤ 13 ns
Maximum sampling rate
Video bandwidth
Single-shot bandwidth
Minimum pulse width
Average power measurement accuracy
Maximum capture length
Maximum pulse repetition rate
Connector type
1. Internal zeroing, trigger output, and video output are disabled in average only mode.
2. It is advisable to perform zeroing when using the average path for the first time after power on, significant temperature
changes, or long periods since the last zeroing. Ensure that the power sensor is isolated from the RF source when performing
external zeroing in average only mode.
3. For frequencies ≥ 500 MHz. Only applicable when the Off video bandwidth is selected.
4. The Minimum Pulse Width is the recommended minimum pulse width viewable, where power measurements are
meaningful and accurate, but not warranted.
5. Specification is valid over a range of –15 to +20 dBm, and a frequency range of 0.5 to 10 GHz, DUT Max. SWR <1.27 for the
U2021XA, and a frequency range of 0.5 to 40 GHz, DUT Max. SWR <1.2 for the U2022XA. Averaging set to 32, in Free Run mode.
U2021XA 50 MHz to 18 GHz
U2022XA 50 MHz to 40 GHz
Normal mode
Average only mode
30 dBm (< 1 μs duration) (peak power)
3
80 Msamples/sec, continuous sampling
≥ 30 MHz
≥ 30 MHz
4
50 ns
U2021XA ≤ ±0.2 dB or ±4.5%
U2022XA ≤ ±0.3 dB or ±6.7%
1 s (decimated)
1.2 ms (at full sampling rate)
10 MHz (based on 8 samples/period)
U2021XA N-Type (m)
U2022XA 2.4 mm (m)
–35 dBm to 20 dBm (≥ 500 MHz)
–30 dBm to 20 dBm (50 MHz to 500 MHz)
1,2
–45 dBm to 20 dBm
5
5
Page 6
Measured rise time percentage error versus signal-under-test rise time
Figure 1. Measured rise time percentage error versus signal under test rise time
Although the rise time specification is
≤13 ns, this does not mean that the
U2021XA/22XA can accurately measure a signal with a known rise time
Measured rise time = √((SUT rise time)
of 13 ns. The measured rise time is
the root sum of the squares (RSS) of
the signal-under-test (SUT) rise time
and the system rise time (13 ns):
2
+ (system rise time)2)
and the % error is:
% Error = ((measured rise time – SUT rise time)/SUT rise time) × 100
Power Linearity
Power range
–20 dBm to –10 dBm
–10 dBm to 15 dBm
15 dBm to 20 dBm
Linearity at 5 dB step (%)
25 °C 0 to 55 °C
1.2 1.8
1.2 1.2
1.4 2.1
Video bandwidth
The video bandwidth in the
U2021XA/22XA can be set to High,
Medium, Low, and Off. The video
bandwidths stated below are not
the 3 dB bandwidths, as the video
bandwidths are corrected for optimal
flatness (except the Off filter). Refer to
Figure 2, “Characteristic peak flatness,”
for information on the flatness
response. The Off video bandwidth
setting provides the warranted rise
time and fall time specifications and
is the recommended setting for minimizing overshoot on pulse signals.
Video bandwidth setting Low: 5 MHz Medium: 15 MHz High: 30 MHz Off
Rise time/fall time
Overshoot
1. Specified as 10% to 90% for rise time and 90% to 10% for fall time on a 0 dBm pulse.
2. Specified as the overshoot relative to the settled pulse top power.
1
2
< 500 MHz
≥ 500 MHz
< 93 ns
< 82 ns
< 75 ns
< 27 ns
6
< 72 ns
< 17 ns
< 73 ns
< 13 ns
< 5%
Page 7
Recorder output and
video output
Characteristic peak flatness
The recorder output produces a
voltage proportional to the selected
power measurement and is updated
at the measurement rate. Scaling can
be selected with an output range of
0 to 1 V and impedance of 1 kΩ.
The video output is the direct signal
output detected by the sensor diode,
with no correction applied. The video
output provides a DC voltage proportional to the measured input power.
The DC voltage can be displayed on
an oscilloscope for time measurement. The video output impedance is
50 Ω and the level is approximately
500 mV at 20 dBm CW. The trigger
out and recorder/video out share the
same port, and the level is approximately 250 mV at 20 dBm.
The peak flatness is the flatness of a
peak- to- average ratio measurement
for various tone separations for an
equal magnitude two- tone RF input.
relative error in peak- to- average ratio
measurements as the tone separation
is varied. The measurements were
performed at –10 dBm.
The figure below refers to the
Figure 2. U2021XA/22XA error in peak-to-average measurements for a two-tone input
(High, Medium, Low and Off Filters)
Noise and drift
1
Mode Zeroing Zero set Zero drift
< 500 MHz ≥ 500 MHz < 500 MHz ≥ 500 MHz
Normal
Average only
Measurement average setting 1 2 4 8 16 32 64 128 256 512 1024
Normal mode Free run
Average only
Video bandwidth setting Low: 5 MHz Medium: 15 MHz High: 30 MHz Off
For average only mode with aperture size of ≥ 12 ms and averaging set to 1, the measurement noise is calculated as follows:
Measurement noise = 120/√(aperture size in ms) nW
For average only mode with aperture size of <12 ms and averaging set to 1, the measurement noise is equal to 50 nW.
For example, if the aperture size is 50 ms and averaging set to 1, Measurement noise = 120/√(50) nW = 17 nW
No RF on input 200 nW
RF present
No RF on input 10 nW
noise multiplier
NORMal speed
noise multiplier
DOUBle speed
noise multiplier
Noise per sample
multiplier
200 nW
1.00 0.9 0.8 0.7 0.6 0.5 0.45 0.4 0.3 0.25 0.2
4.25 2.84 2.15 1.52 1.00 0.78 0.71 0.52 0.5 0.47 0.42
5.88 4.00 2.93 1.89 1.56 1.00 0.73 0.55 0.52 0.48 0.44
< 500 MHz
≥ 500 MHz
200 nW
100 nW 3 μW 2.5 μW
0.6 1.3 2.7 1.00
0.55 0.65 0.8 1.00
Noise per sample Measurement noise
100 nW
(Free run)
6 nW 3 μW 2.5 μW 4 nW
2
3
1. Within 1 hour after zeroing, at a constant temperature, after a 24-hour warm-up of the U2020 X-Series. This component can be disregarded with
the auto-zeroing mode set to ON.
2. Measured over a 1-minute interval, at NORMal speed, at a constant temperature, two standard deviations, with averaging set to 1.
3. Tested with averaging set to 16 at NORMal speed and 32 at DOUBle speed.
7
Page 8
Effect of video
bandwidth setting
Effect of time-gating on
measurement noise
The noise per sample is reduced by
applying the video bandwidth filter
setting (High, Medium, or Low). If
averaging is implemented, this will
dominate any effect of changing the
video bandwidth.
The measurement noise for a
gated average measurement is
calculated from the noise per sample
specification. The noise for any particular gate is equal to N
length/12.5ns). The improvement in
noise limits at the measurement noise
specification of 100 nW.
Maximum SWR
Frequency band U2021XA U2022XA
50 MHz to 10 GHz 1.2 1.2
> 10 GHz to 18 GHz 1.26 1.26
> 18 GHz to 26.5 GHz 1.3
> 26.5 GHz to 40 GHz 1.5
Calibration uncertainty
Definition: Uncertainty resulting from
non- linearity in the U2021XA/22XA
detection and correction process. This
can be considered as a combination
of traditional linearity, calibration factor and temperature specifications
and the uncertainty associated with
the internal calibration process.
sample
/√(gate
Frequency band U2021XA U2022XA
50 MHz to 500 MHz 4.2% 4.3%
> 500 MHz to 1 GHz 4.0% 4.2%
> 1 GHz to 10 GHz 4.0% 4.5%
> 10 GHz to 18 GHz 4.5% 4.5%
> 18 GHz to 26.5 GHz 5.3%
> 26.5 GHz to 40 GHz 5.8%
8
Page 9
Timebase and trigger specifications
Timebase
Range
Accuracy ±25 ppm
Jitter
Trigger
Internal trigger
Range
Resolution
Level accuracy
1
Latency
Jitter
External TTL trigger input
High
Low
2
Latency
Minimum trigger pulse width
Minimum trigger repetition period
Maximum trigger voltage input
Impedance
Jitter
External TTL trigger output Low to high transition on trigger event
High
Low
3
Latency
Impedance
Jitter
Trigger delay
Range
Resolution
Trigger holdoff
Range
Resolution
Trigger level threshold hysteresis
Range
Resolution
2 ns to 100 ms/div
≤ 1 ns
–20 to 20 dBm
0.1 dB
±0.5 dB
225 ns ± 12.5 ns
≤ 5 ns RMS
>2.4 V
<0.7 V
75 ns ± 12.5 ns
15 ns
50 ns
5 V EMF from 50 Ω DC (current <100 mA), or
5 V EMF from 50 Ω (pulse width <1 s, current <100 mA)
50 Ω, 100 kΩ (default)
≤ 8 ns RMS
> 2.4 V
< 0.7 V
50 ns ± 12.5 ns
50 Ω
≤ 5 ns RMS
± 1.0 s, maximum
1% of delay setting, 12.5 ns minimum
1 μs to 400 ms
1% of selected value (to a minimum of 12.5 ns)
± 3 dB
0.05 dB
1. Internal trigger latency is defined as the delay between the applied RF crossing the trigger level and the U2021XA/22XA switching into the triggered state.
2. External trigger latency is defined as the delay between the applied trigger crossing the trigger level and the U2021XA/22XA switching into the triggered state.
3. External trigger output latency is defined as the delay between the U2021XA/22XA entering the triggered state and the output signal switching.
9
Page 10
General specifications
Inputs/Outputs
Current requirement 450 mA max (approximately)
Recorder output Analog 0 to 1 V, 1 kΩ output impedance, SMB connector
Video output 0 to 1 V, 50 Ω output impedance, SMB connector
Trigger input Input has TTL compatible logic levels and uses a SMB connector
Trigger output Output provides TTL compatible logic levels and uses a SMB connector
Remote programming
Interface USB 2.0 interface USB-TMC compliance
Command language SCPI standard interface commands, IVI-COM, IVI-C driver and LabVIEW
drivers
Maximum measurement speed
Free run trigger measurement
External trigger time-gated measurement
1. Tested under normal mode and fast mode, with buffer mode trigger count of 100, output in binary format, unit in watt, auto-zeroing,
auto-calibration, and step detect disabled.
2. Tested under normal mode and fast mode, with buffer mode trigger count of 100, pulsed signal with PRF of 20 kHz, and pulse width at 15 µs.
25,000 readings per second
20,000 readings per second
1
2
General Characteristics
Environmental Compliance
Temperature Operating condition:
•0°Cto55°C
Storage condition:
•–40°Cto70°C
Humidity Operating condition:
•Maximum:95%at40°C(non-condensing)
•Minimum:15%at40°C(non-condensing)
Storage condition:
•Upto90%at65°C(non-condensing)
Altitude Operating condition:
•Upto3000m(9840ft)
Storage condition:
•Upto15420m(50000ft)
Regulatory compliance
The U2021XA/22XA USB peak power sensor
complies with the following safety and EMC
requirements:
Dimensions (Length × Width × Height)
Weight
Connectivity
USB 2.0, with the following cable lengths:
(Selectable during sensor purchase)
Recommended calibration interval 1 year
Warranty 1 year
•IEC61010-1:2001/EN61010-1:2001(2ndedition)
•IEC61326:2002/EN61326:1997+A1:1998+A2:2001+A3:2003
•Canada:ICES-001:2004
•Australia/NewZealand:AS/NZSCISPR11:2004
•SouthKoreaEMC(KCMark)certification:RRA2011-17
140 mm × 45 mm × 35 mm
•Netweight:≤ 0.25 kg
•Shippingweight: 1.4 kg
•Option301:1.5m
•Option302:3m
•Option303:5m
10
Page 11
Using the U2020 X-Series with the N1918A Power Analysis Manager
N1918A Power Analysis Manager is
a powerful application software that
complements the U2020 X-series and
U2000 series USB power sensors,
offering easy monitoring and analysis
on a PC display.
The U2021XA and U2022XA each
come with a free N1918A option
100 Power Analyzer PC license. The
license will be recognized once the
U2021XA or U2022XA is connected
to a PC. A N1918A Power Analysis
Manager software CD will be shipped
together with the USB power sensor.
Users can also download the software
from www.agilent.com/find/N1918A.
The following tables show the
available N1918A functions:
N1918A Power Analysis Manager functions
Measurement displays Compact mode display
Soft panel (digital) display
(enhanced with limits and alerts notifications)
Gauge (analog) display
(enhanced with limits and alerts notifications)
Strip chart display
Trace graph display
Multiple tabs
Multiple display per tab
Multilist
Graph functions Single marker (up to 10 markers per graph)
Dual marker (up to 5 sets of markers per graph)
Graph autoscaling
Graph zooming
Measurement math; delta, ratio
Save/Load file functions Save measurement data with timestamp
(applicable in Strip Chart and Trace Graph)
Load measurement data (applicable in Strip Chart
and Trace Graph)
Data recording1 with timestamp (applicable in
Trace Graph1, Soft Panel, Strip Chart and Gauge)
Instrument settings
options
Measurement limit and
alert functions
Support function Print application screen
Save and restore instrument setting
Time-gated measurements
Instrument preset settings
FDO table parameters
Limit and alert notification
Alert summary
1. Recording time for trace graphs may vary based on trace graph setings.
11
Page 12
Other software attributes
Display units:
Absolute: Watts or dBm
Relative: Percent or dB
Display resolution: Resolution of 1.0, 0.1, 0.01 and 0.001 dB in log mode; one to four digits in linear mode
Default resolution: 0.01 dB in log mode; three digits in linear mode
Zero: For performing internal and external zeroing
Range: Sensor-dependent, configurable in 1-kHz steps
Relative: Displays all successive measurements relative to the last referenced value
Offset:
Limits:
Preset default values:
Allows power measurements to be offset by –100 dB to +100 dB, configurable in 0.001 dB
increments, to compensate for external loss or gain
High and low limits can be set in the range between –150.00 dBm to +230.000 dBm,
in 0.001 dBm increments
Channel Offset (dB) = 0, Duty Cycle Off, Frequency 50 MHz, AUTO Average, AUTO Range,
Free Run Mode, dBm mode
System requirements
Hardware
®
Processor
Desktop PC: 1.3 GHz Pentium
Laptop PC: 900 MHz Pentium M or higher recommended
RAM 512 MB (1.0 GB or higher recommended)
Hard disk space 1.0 GB or more free disk space at runtime
Resolution 800 x 600 or higher (1280 x 1024 recommended)
Operating system and browser
®
7 32-bit and 64-bit
Operating system
Windows
Windows Vista 32-bit and 64-bit
Windows XP Professional 32-bit Service Pack 2 or higher
Browser Microsoft Internet Explorer 5.1 (6.0 or higher recommended)
Others Any of the following to be pre-installed
•GPIBIOinterfacecard
•LANinterfacecard
•USB/GPIBinterfaceconnector
Software
Agilent IO Libraries Suite Version 15.5
1
or higher
Microsoft .NET Framework Runtime version 3.5
Microsoft Visual C++ 2005 Runtime
2
Libraries
Version 1.0 or higher
IV or higher recommended
1. Available on the Agilent Automation-Ready CD-ROM. Agilent IO Libraries Suite 15.5 is required if your PC is running on Windows Vista
32-bit operating system.
2. Bundled with N1918A Power Analysis Manager CD
12
Page 13
Appendix A
Uncertainty calculations for a power measurement (settled, average power)
[Specification values from this document are in bold italic, values calculated on this page are underlined.]
Process:
1. Power level: ....................................................................... W
2. Frequency: ........................................................................
3. Calculate sensor uncertainty:
Calculate noise contribution
•IfinFreeRunmode,Noise = Measurement noise x free run multiplier
•IfinTriggermode,Noise = Noise-per-sample x noise per sample multiplier
Convert noise contribution to a relative term1 = Noise/Power .............................. %
Convert zero drift to relative term = Drift/Power = ..................................... %
RSS of above terms = ........................................................... %
4. Zero uncertainty
(Mode and frequency dependent) = Zero set/Power = .................................. %
5. Sensor calibration uncertainty
(Sensor, frequency, power and temperature dependent) = ............................... %
6. System contribution, coverage factor of 2 ≥ sys
(RSS three terms from steps 3, 4 and 5)
7. Standard uncertainty of mismatch
Max SWR (frequency dependent) = ...................................................
convert to reflection coefficient, | ρ
Max DUT SWR (frequency dependent) = ...............................................
convert to reflection coefficient, | ρ
8. Combined measurement uncertainty @ k=1
UC =
√2 2
Expanded uncertainty, k = 2, = U
Max(ρ
(
) • Max(ρ
DUT
Sensor
| = (SWR–1)/(SWR+1) = ..........................
Sensor
| = (SWR–1)/(SWR+1) = ...........................
DUT
2
)
sys
+
)
(
•2= ................................................. %
C
= ....................................... %
rss
2
rss
........................................
)
%
1. The noise to power ratio is capped for powers > 100 μW, in these cases use: Noise/100 μW.
13
Page 14
Worked Example
Uncertainty calculations for a power measurement (settled, average power)
[Specification values from this document are in bold italic, values calculated on this page are underlined.]
Process:
1. Power level: .......................................................................
2. Frequency: ........................................................................
3. Calculate sensor uncertainty:
In Free Run, auto zero mode average = 16
Calculate noise contribution
•IfinFreeRunmode,Noise = Measurement noise x free run multiplier = 100 nW x 0.6 = 60 nW
•IfinTriggermode,Noise = Noise-per-sample x noise per sample multiplier
Convert noise contribution to a relative term1 = Noise/Power = 60 nW/100 µW ...............
Convert zero drift to relative term = Drift/Power = 100 nW/1 mW ........................
RSS of above terms = ...........................................................
4. Zero uncertainty
(Mode and frequency-dependent) = Zero set/Power = 200 nW/1 mW .....................
5. Sensor calibration uncertainty
(Sensor, frequency, power and temperature-dependent) = ...............................
6. System contribution, coverage factor of 2 ≥ sys
(RSS three terms from steps 3, 4 and 5)
7. Standard uncertainty of mismatch
= .......................................
rss
1 mW
1 GHz
0.06%
0.01%
0.061%
0.02%
4.0%
4.0%
Max SWR (frequency dependent) = ...................................................
convert to reflection coefficient, | ρ
Max DUT SWR (frequency dependent) = ...............................................
convert to reflection coefficient, | ρ
8. Combined measurement uncertainty @ k=1
UC =
√2 2
Expanded uncertainty, k = 2, = U
1. The noise to power ratio is capped for powers > 100 μW, in these cases use: Noise/100 μW.
Max(ρ
(
) • Max(ρ
DUT
Sensor
| = (SWR–1)/(SWR+1) = .......................... 0.091
Sensor
| = (SWR–1)/(SWR+1) = ........................... 0.115
DUT
2
)
+
)
(
•2= .................................................
C
sys
2
rss
........................................
)
14
1.20
1.26
2.13%
4.27%
Page 15
ρ
Graphical Example

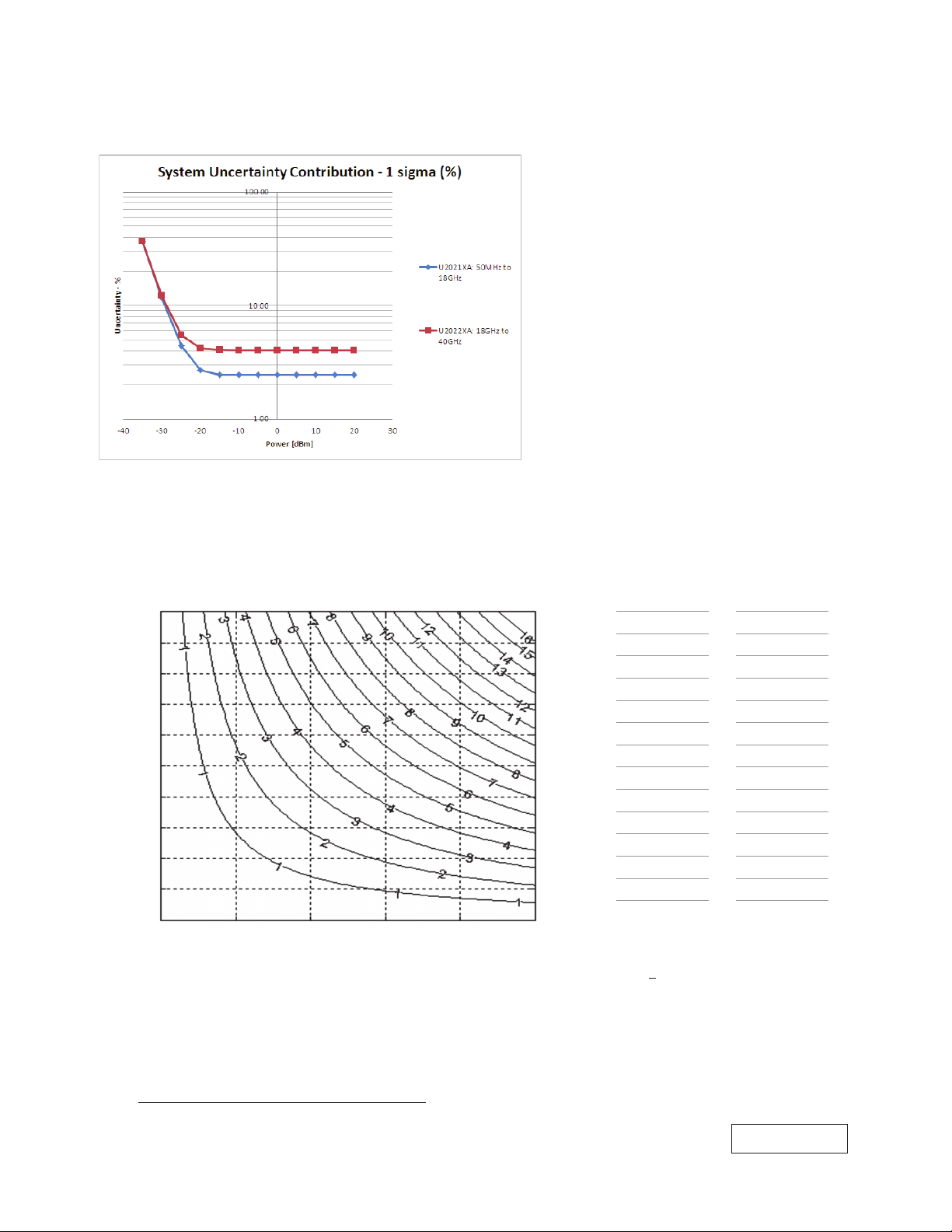

A. System contribution to measurement uncertainty versus power level (equates to step 6 result/2)
Note: The above graph is valid for conditions of free-run operation, with a signal
within the video bandwidth setting on the system. Humidity < 70 %.
B. Standard uncertainty of mismatch
Standard uncertainty of mismatch - 1 sigma (%)
0.5
0.45
0.4
0.35
0.3
Sensor
0.25
0.2
0.15
0.1
0.05
0
0 0.1 0.2 0.3 0.4 0.5
ρ
DUT
Note: The above graph shows the Standard Uncertainty of Mismatch = ρDUT. ρSensor / √2, rather than the Mismatch
Uncertainty Limits. This term assumes that both the Source and Load have uniform magnitude and uniform phase
probability distributions.
SWR
1.0 0.00 1.8 0.29
1.05 0.02 1.90 0.31
1.10 0.05 2.00 0.33
1.15 0.07 2.10 0.35
1.20 0.09 2.20 0.38
1.25 0.11 2.30 0.39
1.30 0.13 2.40 0.41
1.35 0.15 2.50 0.43
1.40 0.17 2.60 0.44
1.45 0.18 2.70 0.46
1.5 0.20 2.80 0.47
1.6 0.23 2.90 0.49
1.7 0.26 3.00 0.50
ρ
SWR
ρ
C. Combine A & B
UC = √ (Value from Graph A)2 + (Value from Graph B)
Expanded uncertainty, k = 2, = UC•2= ........................................................
2
15
± %
Page 16
Ordering Information
Model Description
U2021XA X-Series USB peak and average power sensor, 50 MHz to 18 GHz
U2022XA X-Series USB peak and average power sensor, 50 MHz to 40 GHz
Standard Shipped Items
• Powersensorcable5ft(1.5m),defaultcablelength
• BNCmaletoSMBfemaletriggercable,50ohm,1.5m(shipswith2quantities)
• Certificateofcalibration
• CDdocumentation
• N1918APowerAnalysisManagersoftwareCD
• AgilentIOLibrariesSuiteSoftwareCD
Options Description
Travel kits
U2000A-201 Transit case
U2000A-202 Soft carrying case
U2000A-203 Holster
U2000A-204 Soft carrying pouch
Cables (selectable during sensor purchase)
U2000A-301 Power sensor cable, 5 ft (1.5 m)
U2000A-302 Power sensor cable, 10 ft (3 m)
U2000A-303 Power sensor cable, 16.4 ft (5 m)
Cables (ordered standalone)
U2031A Power sensor cable, 5 ft (1.5 m)
U2031B Power sensor cable, 10 ft (3 m)
U2031C Power sensor cable, 16.4 ft (5 m)
U2032A BNC male to SMB female trigger cable, 50 ohm, 1.5 m
Calibration
U202xXA-1A7 ISO17025 compliant calibration and test data
U202xXA-A6J ANZIZ540 compliant calibration and test data
16
Page 17
www.agilent.com
s
www.agilent.com/find/usbpeaksensor
myAgilent
myAgilent
www.agilent.com/find/myagilent
A personalized view into the information most
relevant to you.
www.axiestandard.org
AdvancedTCA® Extensions for
Instrumentation and Test (AXIe) is an
open standard that extends the
AdvancedTCA for general purpose and
semiconductor test. Agilent is a founding
member of the AXIe consortium.
www.lxistandard.org
LAN eXtensions for Instruments puts the
power of Ethernet and the Web inside
your test systems. Agilent is a founding
member of the LXI consortium.
www.pxisa.org
PCI eXtensions for Instrumentation
(PXI) modular instrumentation delivers
a rugged, PC-based high-performance
measurement and automation system.
Agilent Channel Partners
www.agilent.com/find/channelpartners
Get the best of both worlds: Agilent’s
measurement expertise and product
breadth, combined with channel partner
convenience.
Three-Year Warranty
www.agilent.com/find/ThreeYearWarranty
Agilent’s combination of product reliability
and three-year warranty coverage is another
way we help you achieve your business goals:
increased confidence in uptime, reduced cost
of ownership and greater convenience.
Agilent Advantage
Services
www.agilent.com/find/AdvantageServices
Accurate measurements throughout the
life of your instruments.
Agilent Electronic Measurement Group
DEKRA Certified
ISO 9001:2008
Quality Management SystemQuality Management Sy
www.agilent.com/quality
For more information on Agilent
Technologies’ products, applications or
services, please contact your local Agilent
office. The complete list is available at:
www.agilent.com/find/contactus
Americas
Canada (877) 894 4414
Brazil (11) 4197 3600
Mexico 01800 5064 800
United States (800) 829 4444
Asia Pacific
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 375 8100
Europe & Middle East
Belgium 32 (0) 2 404 93 40
Denmark 45 45 80 12 15
Finland 358 (0) 10 855 2100
France 0825 010 700*
*0.125 €/minute
Germany 49 (0) 7031 464 6333
Ireland 1890 924 204
Israel 972-3-9288-504/544
Italy 39 02 92 60 8484
Netherlands 31 (0) 20 547 2111
Spain 34 (91) 631 3300
Sweden 0200-88 22 55
United Kingdom 44 (0) 118 927 6201
For other unlisted countries:
www.agilent.com/find/contactus
(BP-3-1-13)
Product specifications and descriptions
in this document subject to change
without notice.
© Agilent Technologies, Inc. 2013
Published in USA, June 19, 2013
5991-0310EN
17
Loading...
