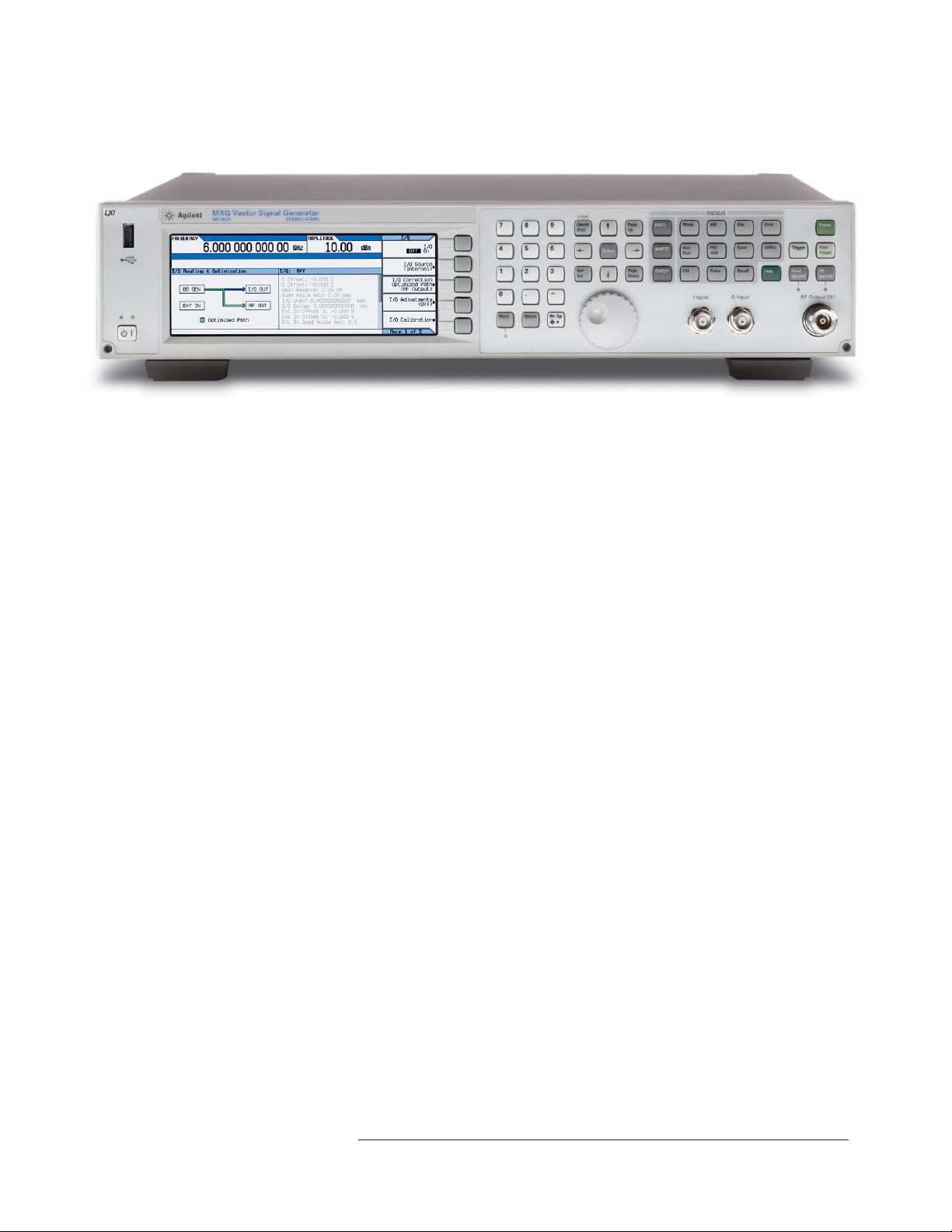

Agilent MXG Signal Generators
• Fast switching speeds
• Industry-best ACPR
• Simplified self-maintenance
• Signal Studio software
Performance optimized
for manufacturing
2
Demands on the production line for communications systems, receivers and
components continue to intensify. Agilent MXG signal generators have been
optimized specifically to meet the challenges facing manufacturers
—
throughput, yield, and downtime.
Increasing throughput
With fast switching speeds, Agilent MXG signal generators reduce test time,
letting you make more measurements using fewer resources and capital.
Raising test yield
For out-of-channel measurements such as ACPR, the Agilent MXG vector signal
generator offers the industry's best dynamic range, reducing error contribution
from the stimulus and ultimately improving test margins and yield.
Reducing downtime
Agilent MXG signal generators are made to maximize up-time through reliability
and simplified self-maintenance. Starting from a simple design for dependable
performance to cost- and time-effective tools for easy onsite maintenance, Agilent
MXG is an ideal solution for manufacturers working in today's highly cost
sensitive communications industry.
Agilent MXG Signal Generators –
Making an Impact in Manufacturing
1. Measured performance for a 1-carrier 3GPP W-CDMA signal (Test Model 1, 64 DPCH)
Flexible signal
creation tools
Proven Signal Studio software with
a first-to-market track record
Simplified
self-maintenance
Innovative design for easy
maintenance and reduced
downtime
Fastest
switching
≤ 1.2 ms in SCPI mode for
increased throughput
Superior
ACPR
–76 dBc adjacent channel power
levels1for testing high dynamic
range components
3
A Solution
Scalable to Your Needs
In two rack units, the Agilent MXG analog and vector signal generators offer
performance that can be tailored for general-purpose applications, cellular communications component manufacturing, or even wireless networking receiver
manufacturing. With a choice of frequency ranges, performance attributes, and
Signal Studio software, you can scale the Agilent MXG to fit your needs.
General purpose test
With fast switching speeds, outstanding level repeatability and analog
modulation, Agilent MXG analog is a reliable stimulus for applications ranging
from simulating a clock signal to generating an interferer for receiver evaluation.
Advanced signal simulation
The combination of IQ modulation, superior dynamic range and Signal Studio
software, make the Agilent MXG vector ideal for applications up to 6 GHz
requiring W-CDMA, cdma2000®/1xEV-DO, GSM/EDGE, TD-SCDMA, WLAN,
and mobile WiMAX (802.16-2005 OFDMA) test signals.
A purchase consideration:
reliability and cost
of ownership
Reliability is often one of the key
considerations manufacturing test
managers use to make equipment
purchases because of the direct
connection to downtime. The downtime created by a single piece of
test equipment, whether due to
maintenance or repair, directly
impacts the bottom line, not only in
terms of lost throughput, but the
cost associated with getting a
piece of equipment functioning
and back in the test system.
While instrument reliability
directly impacts downtime, it is
not a complete indication of total
cost of ownership. To gain a better
understanding on how to minimize
these costs, manufacturing managers
should consider a broader perspective that includes not only reliability,
but also calibration and repair.
The Agilent MXG signal generators
are specifically designed with a
lower cost of ownership. Driven
by reliability and simplified selfmaintenance, the Agilent MXGs
effectively address the issues
associated with the time and cost
of calibration and repair.
Agilent MXG signal generators
are optimized for manufacturing test,
including fast switching, superior ACPR,
and simplified self-maintenance.
4
Agilent MXG at a Glance
1. Test model 1, 64 DPCH
Scalable performance
• Frequency coverage from 250 kHz to 6 GHz (operational down to 100 kHz)
for cellular and ISM-band communications test
• Accurate analog modulation including AM, FM, φM and pulse modulation
for general purpose test
• 100 MHz RF BW internal I/Q baseband generator for flexible signal simulation
• 160 MHz RF BW with external I/Q inputs to up-convert your baseband
signals to IF or RF
Improve test yield
• Low distortion with –76 dBc measured ACLR performance for a 1-carrier
3GPP W-CDMA signal1to reduce measurement uncertainty
Reduce test time and maximize uptime
• Fast switching speeds, ≤ 1.2 ms in SCPI mode and ≤ 900 µs
simultaneous frequency, amplitude and waveform switching in list mode,
to optimize throughput
• Reliable electronic attenuator to 6 GHz provides amplitude switching
speed and repeatability
Easy to use
• Color display and familiar Agilent interface make for easy use
• Embedded help system guides new users through basic instrument
functions and SCPI commands
• USB port for quick file transfer to flash memory, including Signal Studio
waveforms, instrument states, and license keys
5
1. Code compatible with Agilent E4438C, E4428C, E442XB, E443XB, 8648 series, 8656B, 8657A/B
and other signal generators.
Simplify system integration
• LXI class C compliance helps you efficiently integrate Agilent MXG into
your LAN-based test system
• USB, GPIB, and LAN connectivity for remote access
• Tunable reference input from 1 to 50 MHz for frequency locking to your
system clock
• 10 MHz reference output provides a stable reference for your test system
• Backward code compatibility makes for fast and easy replacement of
Agilent and other signal generators
1
Conserve rack space
• A small 2-rack-unit profile
for efficient use of space
Reliability and easy self-maintenance
• Simple design ensures reliable performance and fast maintenance and repair
Display
Keypad
Power
supply
RF assembly
Vector modulation assembly
