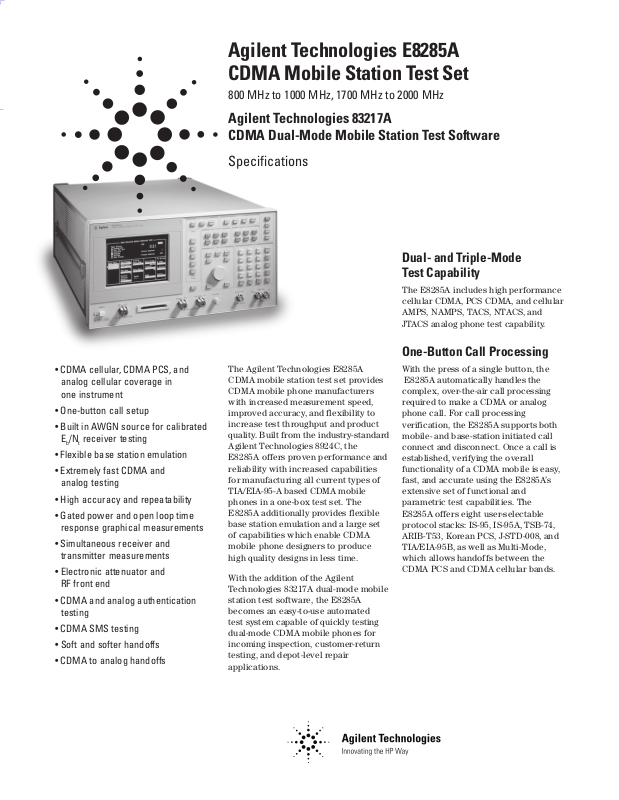

Agilent E8285A Spec Sheet

Agilent Technologies E8285A
CDMA Mobile Station Test Set

800 MHz to 1000 MHz, 1700 MHz to 2000 MHz

Agilent Technologies 83217A
CDMA Dual-Mode Mobile Station Test Software

Specifications

Dual- and Triple-Mode
Test Capability

The E8285A includes high performance
cellular CDMA, PCS CDMA, and cellular
AMPS, NAMPS, TACS, NTACS, and
JTACS analog phone test capability.

• CDMA cellular, CDMA PCS, and
analog cellular coverage in
one instrument

• One-button call setup

• Built in AWGN source for calibrated
Eb/Nt receiver testing

• Flexible base station emulation

• Extremely fast CDMA and
analog testing

• High accuracy and repeatability

• Gated power and open loop time
response graphical measurements

• Simultaneous receiver and
transmitter measurements

• Electronic attenuator and
RF front end

• CDMA and analog authentication
testing

• CDMA SMS testing

• Soft and softer handoffs

• CDMA to analog handoffs

The Agilent Technologies E8285A
CDMA mobile station test set provides
CDMA mobile phone manufacturers
with increased measurement speed,
improved accuracy, and flexibility to
increase test throughput and product
quality. Built from the industry-standard
Agilent Technologies 8924C, the
E8285A offers proven performance and
reliability with increased capabilities
for manufacturing all current types of
TIA/EIA-95-A based CDMA mobile
phones in a one-box test set. The
E8285A additionally provides flexible
base station emulation and a large set
of capabilities which enable CDMA
mobile phone designers to produce
high quality designs in less time.

With the addition of the Agilent
Technologies 83217A dual-mode mobile
station test software, the E8285A
becomes an easy-to-use automated
test system capable of quickly testing
dual-mode CDMA mobile phones for
incoming inspection, customer-return
testing, and depot-level repair
applications.

One-Button Call Processing

With the press of a single button, the
E8285A automatically handles the
complex, over-the-air call processing
required to make a CDMA or analog
phone call. For call processing
verification, the E8285A supports both
mobile- and base-station initiated call
connect and disconnect. Once a call is
established, verifying the overall
functionality of a CDMA mobile is easy,
fast, and accurate using the E8285A’s
extensive set of functional and
parametric test capabilities. The
E8285A offers eight user-selectable
protocol stacks: IS-95, IS-95A, TSB-74,
ARIB-T53, Korean PCS, J-STD-008, and
TIA/EIA-95B, as well as Multi-Mode,
which allows handoffs between the
CDMA PCS and CDMA cellular bands.

2

E8285A ANALOG MODE SPECIFICATIONS

Specifications describe the E8285A’s warranted performance and
apply after a 30 minute warm-up. These specifications are valid over
the E8285A’s entire operating environmental range unless otherwise
noted. Specifications are subject to change without notice.

Supplemental Characteristics (shown in italics) are intended to
provide additional information, useful in applying the instrument
by giving typical expected, but non-warranted performance.

Signal Generator

RF Frequency

Range:

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz.

Accuracy and Stability: Same as reference oscillator
±0.065 Hz

Switching Speed: <150 ms to be within 100 Hz of
carrier frequency

Resolution: 1 Hz

Output

RF IN/OUT Connector

Level Range: –120 dBm to –18 dBm into 50

Level Accuracy:

±1.0 dB (800 MHz to 1000 MHz), typically ±0.7 dB.
±1.25 dB (1.7 to 2.0 GHz), typically ±1.0 dB.

Reverse Power: 2.5 watts

SWR: <1.5:1

DUPLEX OUT Connector

Level Range: –120 dBm to –8 dBm into 50

Level Accuracy: ±1.0 dB

Reverse Power: 60 mW maximum

SWR: <1.7:1 (level <–7.5 dBm)

Display Resolution: 0.1 dB

W

W

Spectral Purity

All specifications are for £–8 dBm output level at
DUPLEX OUT or £–18 dBm output level at RF IN/OUT.

Harmonics: <–18 dBc

Non-Harmonic Spurious (at >5 kHz offset from

carrier):

<–60 dBc for 800 MHz £fc £1000 MHz,
<–55 dBc for 1700 MHz <fc £2000 MHz.

Residual FM (CCITT, rms):

<7 Hz for 800 MHz <fc £1000 MHz,
<14 Hz for 1700 MHz £fc £2000 MHz.

SSB Phase Noise: <–116 dBc/Hz (for >20 kHz
offsets at a 1000 MHz carrier frequency)

FM

FM Deviation (rates >25 Hz):

100 kHz; 800 to 1000 MHz,
100 kHz; 1700 MHz to 2000 MHz.

FM Rate (1 kHz reference):

Internal: dc to 25 kHz (1 dB BW)

External:

ac Coupled: 20 Hz to 75 kHz (typical –3 dB BW)
dc Coupled: dc to 75 kHz (typical –3 dB BW)

FM Accuracy (1 kHz rate):

£

10 kHz dev: ±3.5% of setting ±50 Hz

>10 kHz dev: ±3.5% of setting ±500 Hz

FM Distortion (THD+noise, 0.3 to 3 kHz BW):

<0.5% at >4 kHz deviation and 1 kHz rate,
800 MHz to 1000 MHz.
<1.0% at >4 kHz deviation and 1 kHz rate,
1700 MHz to 2000 MHz.

Center Frequency Accuracy in DC FM Mode

(external source impedance <1 kW):
±500 Hz (after DC FM zero), typically ±50 Hz.

Ext. Mod Input Impedance: 600 W nominal

Resolution: 50 Hz for <10 kHz deviation,

500 Hz for ³10 kHz deviation.

3

Audio Source (both internal sources)

Frequency

Range: dc to 25 kHz

Accuracy: 0.025 % of setting

Resolution: 0.1 Hz

Output Level

Range: 0.1 mV to 4 Vrms

Maximum Output Current: 20 mA peak

Output Impedance: <1.5 W (at 1 kHz)

Accuracy: ±2% of setting plus resolution

Residual Distortion (THD + noise, level ³200 mVrms):

<0.125%; 20 Hz to 25 kHz in an 80 kHz BW.

Resolution:

Level £0.01V: ±50 mV
Level £0.1V: ±0.5 mV
Level £1V: ±5 mV
Level <10V: ±50 mV

Offset in dc Coupled Mode: <50 mV

RF Analyzer

RF Power Measurement

Note: To achieve the specified accuracy when measur­ing power at the RF IN/OUT port, the internal signal
generator’s level must be 40 dB below the measured
power or less than –20 dBm at the DUPLEX OUT port.

Input Frequency Range:

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz,

usable 10 MHz to 100 MHz.

Input Connector: RF IN/OUT

Maximum Input Level: +34 dBm (2.5 watts)

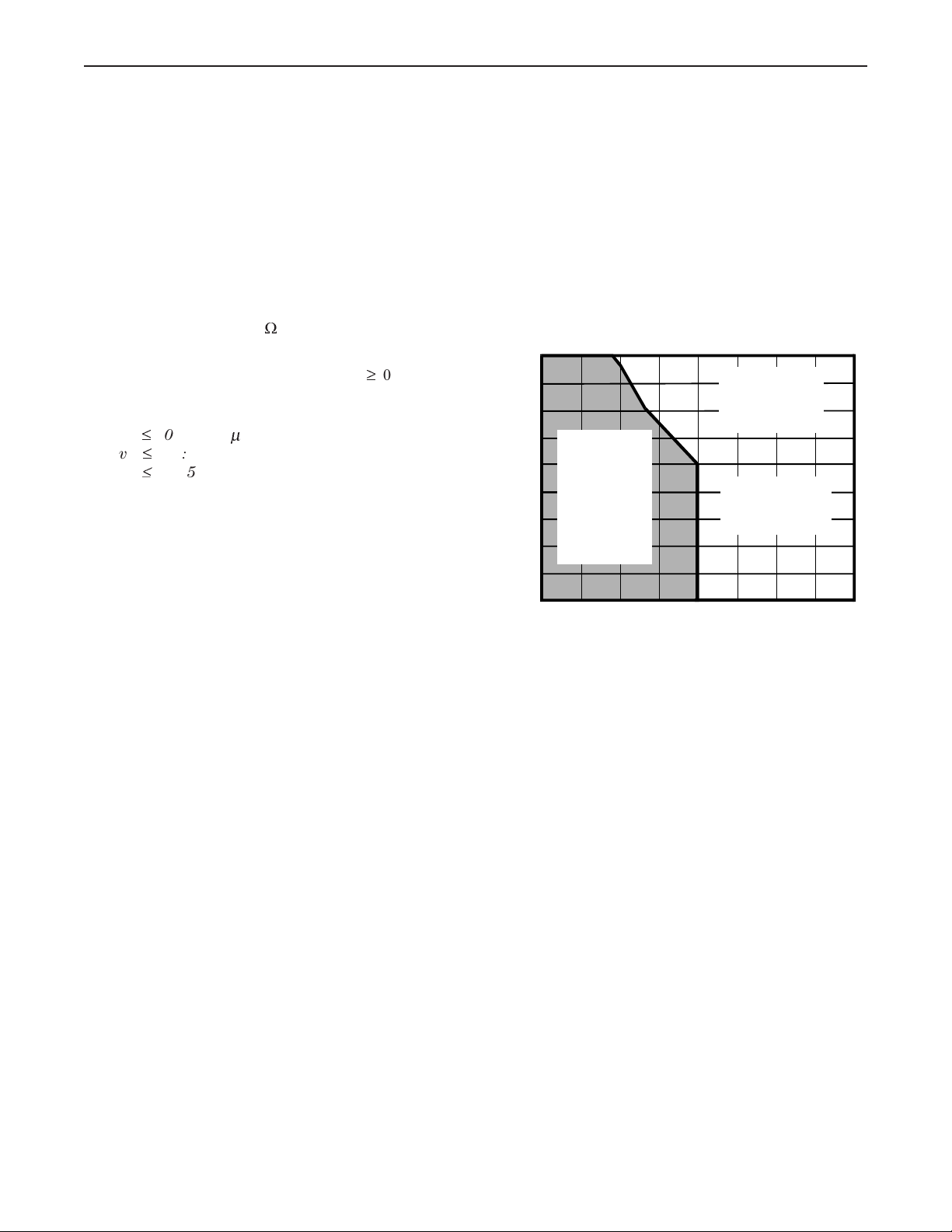

Accuracy: –10 dBm to +30 dBm (after power meter zero)

80%

60%

40%

Relative Humidity

20%

±7.5% ±1 µW

(800 MHz to

1000 MHz)

±8% ±1 µW

(1.7 GHz to

2.0 GHz)

Typically ±5%

±12% ±1 µW

(1.7 GHz to 2.0 GHz)

Typically ±10%

±10.5% ±1 µW

(800 MHz to 1000 MHz)

Typically ±8%

RF Frequency Measurement

Measurement Range:

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz.

Level Range:

RF IN/OUT: –16 dBm to +34 dBm

(0.025 mW to 2.5 W)

ANT IN: –38 dBm to +15 dBm

Accuracy: ±1 Hz plus timebase accuracy

Minimum Resolution: 1 Hz

15 °C 25 °C 35 °C 45 °C 55 °C
59 °F 77 °F 95 °F 113 °F 131 °F

Temperature

Measurement Range: –10 dBm to +34 dBm
(0.1 mW to 2.5 W)

SWR: <1.5:1

Resolution:

Power <2.5 W: 1 mW
Power <100 mW: 0.1 mW
Power <10 mW: 0.01 mW

4

FM Measurement

Frequency Range:

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz.

Deviation Range: 20 Hz to 75 kHz

Sensitivity: 4 mV (ANT IN, 15 kHz IF BW, high

sensitivity mode, 0.3 to 3 kHz BW). Typically <2 mV
(12 dB SINAD, fc ³10 MHz).

Accuracy (20 Hz to 25 kHz rates, deviation £25 kHz,
230 kHz IF BW): ±5% of reading plus residual FM
and noise contribution (<20 Hz HPF, >99 kHz LPF).

Typical Additional FM Measurement Error with
Audio Filters Selected:

Filters

s

Filter Input
Freq. (kHz)

0.02

0.05

0.1

0.15

0.2

0.5

1.0

1.3

1.6

2.0

6.0

Filter Input
Freq. (kHz)

1.0

3.0

5.0

7.5

8.0

m

750

50 Hz HPF

300 Hz HPF

1%

2.8% 2.5%

1% 1%

1% 1% 1%

1% 3%

Filter

15 kHz LPF

1%

1%

1%

1.2%

1.5%

300 Hz LPF

1%

1%

2%

3 kHz LPF

1%

1.5%

3.7%

Bandwidth (3 dB): 2 Hz to 70 kHz (DC FM
measurements also available).

THD+Noise: <1% for ³5 kHz deviation and 1 kHz rate
in a 0.3 to 3 kHz BW, 230 kHz IF BW.

Input Level Range for Specified Accuracy:

Residual FM and Noise (0.3 to 3 kHz, rms):

Resolution:

SAT Deviation Measurement

Frequency Range: 5970 Hz, 6000 Hz, 6030 Hz

Deviation Range: 500 Hz to 3000 Hz

Input Level Range for Specified Accuracy:

6 kHz BPF

Accuracy: ±2.5%, typically ±1%.

Spectrum Analyzer (Option 102)

Frequency Range (center frequency coupled to
RF analyzer setting):

Frequency Span/Resolution Bandwidth (coupled):

Display: Log with 10 dB/division, 2 dB/division, or

1 dB/division.

Display Range: 80 dB

Reference Level Range: +50 to –50 dBm

Residual Responses: <–70 dBm (no input signal,

0 dB attenuation).

Image Rejection: >47 dB

–22 to +34 dBm at RF IN/OUT (6.3 mW to 2.5 W)
–44 to +14 dBm at ANT IN

<7 Hz. at 800 MHz to 1000 MHz
<14 Hz at 1700 MHz to 2000 MHz

Deviation <10 kHz: 1 Hz
Deviation ³10 kHz: 10 Hz

–22 to +34 dBm at RF IN/OUT
–44 to +14 dBm at ANT IN

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz.

Span Bandwidth

<50 kHz 300 Hz
<200 kHz 1 kHz
<1.5 MHz 3 kHz
<18 MHz 30 kHz

³

18 MHz 300 kHz

Plus full span capability

10.0

11.0

12.0

2.7%

3.8%

7.5%

5

Supplemental Characteristics:

Non-Harmonic Spurious Responses: >60 dB

(for input signals £–30 dBm)

Level Accuracy: ±3.5 dB

Log Scale Linearity: ±2 dB (for input levels

£

–30 dBm and/or 60 dB range)

Displayed Average Noise Level: <–109 dBm
(£50 kHz spans)

Other Features: Peak hold, marker with frequency
and level readout, marker to peak, marker to next
peak, trace comparison A–B.

Tracking Generator

Frequency Range:

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz.

Frequency Offset: Frequency span endpoints ±
frequency offset cannot be:

<800 MHz or >1000 MHz for RF analyzer tune
frequency <1000 MHz.

<1700 or >2000 MHz for RF analyzer tune
frequency >1700 MHz.

Output Level Range: Same as signal generator

Sweep Modes: Normal and inverted

Adjacent Channel Power

Relative Measurements

Level Range:

RF IN/OUT: –16 dBm to +34 dBm

ANT IN: –38 dBm to +15 dBm

Dynamic Range: Typical values for channel offsets

Offset Res. BW Dyn. Range

12.5 kHz 8.5 kHz –65 dBc
20 kHz 14 kHz
25 kHz 16 kHz
30 kHz 16 kHz
60 kHz 30 kHz

Relative Accuracy: ±2.0 dB



–68 dBc



–68 dBc



–68 dBc



–65 dBc

Absolute Measurements

Level: Results of absolute power in watts or dBm are
determined by adding the ACP ratio from the spectrum
analyzer to the carrier power measurement obtained
from the input section’s RF power detector.

Level Range:

RF IN/OUT: –10 dBm to +35 dBm

ANT IN: Not available

Dynamic Range: Typical values for channel offsets

Offset Res. BW Dyn. Range

12.5 kHz 8.5 kHz –65 dBc
20 kHz 14 kHz –68 dBc
25 kHz 16 kHz –68 dBc
30 kHz 16 kHz –68 dBc
60 kHz 30 kHz –65 dBc

Absolute Accuracy: Is the sum of the RF power
measurement accuracy found in the RF analyzer
section and the ACP relative accuracy of ±2.0 dB.

Audio Analyzer

Frequency Measurement

Measurement Range: 20 Hz to 400 kHz

Accuracy: ±0.02% plus resolution plus reference

oscillator accuracy

External Input: 20 mV to 30 Vrms

Resolution:

f <10 kHz: 0.01 Hz
f <100 kHz: 0.1 Hz
f ³100 kHz: 1 Hz

AC Voltage Measurement

Measurement Range: 0 to 30 Vrms

Accuracy: ±3% of reading (20 Hz to 15 kHz, ³1 mV)

Residual Noise: 150 mV (15 kHz BW)

3 dB Bandwidth: Typically 2 Hz to 100 kHz

Nominal Input Impedance: Switchable between

1 M ohms in parallel with 95 pF or 600 ohms floating.

Resolution:

4 digits for inputs ³100 mV
3 digits for inputs <100 mV

DC Voltage Measurement

Voltage Range: 100 mV to 42 V

Accuracy: ±1.0 % of reading ±45 mV

DC Offset: ±25 mV

Resolution: 1 mV

6

Distortion Measurement

Fundamental Frequency Range: 300 Hz to 10 kHz ±5%

Input Level Range: 30 mV to 30 Vrms

Display Range: 0.1% to 100%

Accuracy: ±1 dB for frequencies from 300 to 1500 Hz,

measured with the 15 kHz LPF (0.5 to 100% distortion).

±1.5 dB for frequencies from 300 Hz to 10 kHz,
measured with the >99 kHz LPF (1.5 to 100% distortion).

Residual THD+Noise: –60 dB or 150 mV, whichever

is greater for frequencies from 300 Hz to 1500 Hz
measured with the 15 kHz LPF.

–57 dB or 450 mV, whichever is greater for frequencies
from 300 Hz to 10 kHz measured with the >99 kHz LPF.

Resolution: 0.1% distortion

SINAD Measurement

Fundamental Frequency Range: 300 Hz to 10 kHz ±5%

Input Level Range: 30 mV to 30 Vrms

Display Range: 0 to 60 dB

Accuracy:

±1 dB for frequencies from 300 to 1500 Hz,
measured with the 15 kHz LPF (0 to 46 dB SINAD).

±1.5 dB for frequencies from 300 Hz to 10 kHz,
measured with the >99 kHz LPF (0 to 36 dB SINAD).

Residual THD+Noise:



–60 dB or 150 mV, whichever is greater for
frequencies from 300 Hz to 1500 Hz measured with
the 15 kHz LPF.



–57 dB or 450 mV, whichever is greater for
frequencies from 300 Hz to 10 kHz measured with
the >99 kHz LPF.

Resolution: 0.01 dB

Variable Frequency Notch Filter

Frequency Tuning Range: 300 Hz to 10 kHz

Notch Depth: >60 dB

Notch Width: Typically ±5% of the notch center
frequency

Audio Detectors: rms, Pk+, Pk–, Pk+hold, Pk–hold,
Pk±/2, Pk±/2 hold, Pk±max, Pk±max hold,
rms SQRT2.

*

Oscilloscope

Frequency Range (–3 dB BW): 2 Hz to 50 kHz

Scale/Division: 10 mV to 10 V

Amplitude Accuracy (20 Hz to 10 kHz): ±1.5% of

reading ±0.1 division

Signaling

Capability for Generating and Analyzing the
Following Formats: AMPS, EAMPS, NAMPS, TACS,

JTACS, NTACS, ETACS.

Function Generator Waveforms: Sine, square,
triangle, ramp, dc, white Gaussian and white
uniform noise.

Function Generator Frequency Range and Level:

Same as audio source.

Audio Filters

High-Pass Filters: <20 Hz, 50 Hz, and 300 Hz

Low-Pass Filters: 300 Hz, 3 kHz, 15 kHz, >99 kHz

Band-Pass Filters: 6 kHz

Optional Filters:

Option 013: C-message weighting filter

Option 011: CCITT weighting filter (for TACS phones)

Compander: None

7

E8285A CDMA MODE SPECIFICATIONS

Call Processing Functionality

User Settable Parameters

Protocol Stack: IS-95, IS-95A, TSB-74, ARIB T53,
Korea PCS, J-STD-008, TIA/EIA-95B, and Multi-Mode
(for PCS to digital cellular handoffs).

Channel Standards: MS AMPS, US PCS, Korean
PCS 0, Korean PCS 1, Japan CDMA, MS NAMPS
Upper/Middle/Lower, MS TACS, MS ETACS, MS
NTACS, MS JTACS, and User Defined.

Base Station Parameters: NID, SID, BASE_ID,
Country Code, Network Code, SRCH_WIN_A,
SRCH_WIN_N, SRCH_WIN_R, CDG Esc Mode On/Off,
Register SID, Register NID, Power-On Registration
On/Off, Timer Based Registration, Slot_Cycle_Index.

Access Probe Parameters: NOM_PWR,
NOM_PWR_EXT, INIT_PWR, PWR_STEP, PAM_SZ,
NUM_STEP, MAX_REQ_SEQ, and MAX_RSP_SEQ.

Paging Channel Parameters: Paging Data Rate
(full or half rate), NUM_PAGES.

Threshold Parameters: T_ADD, T_DROP, T_COMP,
and T_TDROP.

Service Option Support:

Service Option 001 (normal voice)
Service Option 002 (9600 bps data loopback)
Service Option 003 (EVRC 9600 bps voice)
Service Option 006 (SMS data burst 9600 rate)
Service Option 009 (14.4 kbps data loopback)
Service Option 014 (SMS data burst 14000 rate)
Service Option 32768 (14.4 kbps voice)

Call Control: BS call originate, BS call disconnect,
MS call originate, MS call disconnect.

Handoff Support:

CDMA to CDMA Hard (intraband)
CDMA Softer (between two sectors)
CDMA to Analog (intraband)
CDMA PCS to Analog Cellular
CDMA PCS to CDMA Cellular

CDMA to Analog Handoff: Execute, System Type,
Channel, SAT, and Power Level.

Call Status Indicators: Transmitting (cell active),
Registering, Page Sent, Access Probe Received,
Connected, Softer Handoff, Hard Handoff, Service
Option 002/009. All indicators are also available
over GPIB.

Speech Encoder: None

Speech Echo Mode: Three user selectable fixed

delays: 0 seconds, 2 seconds, and 5 seconds.

CDMA Data Source:

Pseudorandom data (CCITT 215-
Voice Echo
1 kHz tone
400 Hz tone
Audio Chirp (3 second sweep from 5 Hz to 3.75 kHz)

Closed Loop Power Control:

Supports True Closed Loop Power Control
Open Loop (Alternating 0 and 1 power control bits)
Always Up
Always Down
Off (no puncturing, requires special mode in mobile)

Closed Loop Change Modes:

Step n Up (up to 150 bits)
Step n Down (up to 150 bits)
Ramp of n Up followed by n Down power (max. 150)

Open Loop Power Control: Supported through
varying the level of CDMA generator. CDMA analyzer
autoranges to the ideal RF power level for the nomi­nally expected open loop response.

1 pattern)

8

Ideal Mobile Power Display: Reports the ideal
open loop power for the mobile’s transmitter based
upon the forward link power set on the E8285A,
the current protocol mode, and the set values of
NOM_PWR, NOM_PWR_EXT (J-STD-008 mode only),
and INIT_PWR.

Mobile Station FER Reporting: User selectable
number of frames (from predefined list). Report by
number of frames or by user defined number of errors.

Adjacent Cell Mobile Reporting: Displays status,
PN offset, strength, and keep bit for all pilots found by
the CDMA mobile and reported via pilot strength
messages. Also displays the current user set PN
offsets and strengths of Sector A and Sector B to
aid in verifying mobile performance.

Neighbor List Support: Automatically generates a
list of 7 neighbors based on the user entry of Sector A
PN offset, Sector B PN offset and pilot increment.

Mobile Station Identification: 10 digit phone
number (IS-95 mode only), MIN (IS-95 mode only
with hex entry), IMSI (MCC+MNC+MSIN), or AUTO
(uses power-on or user initiated registration to obtain
the mobile ID).

Registration: Supports mobile power-on registration,
timer based, implicit, or user initiated zone based
registration (modulates SID to force the mobile to
perform a zone based registration) via GPIB command
or front panel button.

IMSI Support: Supports Class 0 IMSIs in the TSB-74
and J-STD-008 protocol modes. IMSI mode, Class 0,
type 3 only.

Mobile Database: Upon registration, the database
contains the following information:

IS-95: ESN, MIN1, MIN2, Phone Number,
Dual-Mode, Slot Class, Slot Index, Protocol
Revision, Power Class, Transmit Mode, and
Called Number.

IS-95A, ARIB T53, and TSB74: ESN, MCC,
MNC, MSIN, Dual-Mode, Slot Class, Slot Index,
Protocol Revision, Power Class, Transmit Mode,
and Called Number.

J-STD-008, and Korea PCS: ESN, MCC, MNC,
MSIN, Slot Class, Slot Index, Protocol Revision,
Band Class, EIRP Class, Operation Modes, and
Called Number.

TIA/EIA-95B and Multi-Mode: ESN, MCC, MNC,

MSIN, Dual-mode, Slot Class, Slot Index, Protocol

Revision, Band Class, Power Class, Transmit Mode, Max

EIRPs, Op Modes, Power Step, and Called Number.

Retrievable Mobile Parameters:

IS-95 / IS-95A: MUX1_REV_(1 to 8, 11 to 14),

MUX1_FOR_(1 to 14), PAG_(1 to 7),

ACC_(1 to 8), and LAYER2_RTC(1 to 5).

TSB-74 / J-STD-008 / TIA/EIA-95B / Multi-Mode:

In addition to the above parameters, these param-

eters are available: MUX2_REV_(1 to 25), and

MUX2_FOR_(1 to 26).

Logging: Two rear panel serial ports allow logging of
paging/access channel messages and forward/ reverse
traffic channel messages. Requires an external PC
running terminal emulation software connected to the
rear panel serial ports.

9

CDMA Signal Generator

CDMA Channels:

Additive White Gaussian Noise

Sector A with Selectable PN Offset:

Pilot Channel at Walsh Code 0
Sync Channel at Walsh Code 32
Paging Channel at Walsh Code 1
Traffic Channel with selectable Walsh Code
OCNS Channel with selectable Walsh Code

Sector B with selectable PN offset:

Pilot Channel at Walsh Code 0
Traffic Channel with Selectable Walsh Code
OCNS Channel with Selectable Walsh Code

Frequency

Frequency Range:

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz.

Frequency Resolution: 1 Hz

Frequency Accuracy: Same as reference oscillator

accuracy ±0.065 Hz

AWGN Bandwidth: Nominal bandwidth of 1.8 MHz

Amplitude

Composite Signal Output Level Range: (Default
CDMA code channel configuration)

RF IN/OUT: –120 dBm/1.23 MHz to
–20 dBm/1.23 MHz, usable to

DUPLEX OUT: –120 dBm/1.23 MHz to
–10 dBm/1.23 MHz, usable to -5 dBm.

Composite Signal Output Level Accuracy:

(Using IS-98A sensitivity configuration)

AWGN Off:

±1.25 dB -800 MHz to 1000 MHz,
±1.35 dB -1700 MHz to 2000 MHz,

typically ±1 dB.

AWGN On:

±1.75 dB -800 MHz to 1000 MHz,
±1.85 dB -1700 MHz to 2000 MHz,

typically ±1 dB.

-15

dBm.

Composite Signal Output Power: Equal to the sum
of the individually settable power levels for AWGN,
Sector A, and Sector B.

Maximum Individual Signal Dynamic Range:

The maximum dynamic range of any CDMA channel
(AWGN, Sector A: Pilot, Sync, Paging, Traffic, or
OCNS, Sector B: Pilot, Traffic, or OCNS) is from 0 dB
to –30 dB relative to the total composite output power.
Paging and traffic channels may have more or less
dynamic range depending on the data rate in use.

AWGN Bandwidth: Typically >1.8 MHz bandwidth.
The reported total composite power and AWGN power
is in terms of dBm in a 1.23 MHz bandwidth, the
actual broadband output power as seen by a power
meter on the front panel will be higher than indi­cated on the front panel.

Sector A OCNS Channel Relative Level Range:

Automatically calculated from other Sector A channel
relative levels to provide the set Sector A power.

Sector B OCNS Channel Relative Level Range:

Automatically calculated from other Sector B channel
relative levels to provide the set Sector B power.

Individual Channel Amplitude Resolution: 0.01 dB

Relative CDMA Channel Level Accuracy:

AWGN to Traffic Channel: <0.2 dB, ±5 °C from

the last temperature at which PCB_CAL was run for

values of Eb/Nt from 1 dB to 10 dB.

Between Any Two CDMA Channels: <0.2 dB

±5 °C from the last temperature at which PCB_CAL

was run.

10

CDMA Modulation

Modulation Type: QPSK per TIA/EIA 95-A/ANSI
J-STD-008

Residual r : Better than 0.97, typically >0.98.

Rate Set Support:

Rate Set 1: 9600 bps traffic (8 kbps voice)
Rate Set 2: 14.4 kbps traffic (13 kbps voice)

Data Rate Transmission Modes: TIA/EIA IS-95A/

ANSI J-STD-008 defined base station modes including
full rate, half rate, quarter rate, one-eighth rate data
transmission, and variable rate with equally weighted,
randomly spaced occurrences of each rate.

Data Generator Patterns: Pseudorandom data
(CCITT 215-
audio chirp (3 second sweep from 5 Hz to 3.75 kHz,
tones and chirp conform to IS-96-A, IS-127, and CDG-27).

1 pattern), 1 kHz tone, 400 Hz tone, and

CDMA Analyzer

CDMA Average Power Measurement

Note: To achieve the specified accuracy when mea­suring power at the RF IN/OUT port of the E8285A, the
internal signal generator level must be 40 dB below
the measured power or less than –20 dBm at the
E8285A’s DUPLEX OUT.

Input Frequency Range:

800 MHz to 1000 MHz,
1700 MHz to 2000 MHz.

Input Connector: RF IN/OUT

Measurement Bandwidth: Provides an accurate

measure of the total power for all present signals
within ±2 MHz of the specified operating frequency.
If other signals are present outside of this frequency
range, reduced measurement accuracy will result.

Maximum Input Level: +34 dBm (2.5 watts continuous)

Measurement Range: –10 dBm to +34 dBm, usable to

–20 dBm with degraded accuracy.

Accuracy: –10 dBm to +30 dBm

80%

±12% ±1 µW

(1.7 GHz to 2.0 GHz)

Typically ±10%

60%

±7.5% ±1 µW

(800 MHz to

40%

Relative Humidity

±8% ±1 µW

(1.7 GHz to

2.0 GHz)

1000 MHz)

20%

Measurement Method: Reports the overall average
power for all active power control groups captured.

Measurement Period: Measures over 1/2 of a CDMA
frame (8 power control groups) in full, half, quarter
or one-eighth rate modes.

Measurement Update Rate: Typically 2 readings
per second.

Typically ±5%

15 °C 25 °C 35 °C 45 °C 55 °C
59 °F 77 °F 95 °F 113 °F 131 °F

Temperature

±10.5% ±1 µW

(800 MHz to 1000 MHz)

Typically ±8%

CDMA Tuned Channel and Access Probe
Power Measurements

Input Frequency Range:

800 MHz to 1000 MHz,

1700 MHz to 2000 MHz.

Input Connector: RF IN/OUT, ANT IN.

Measurement Bandwidth: Measures the total power

in a 1.23 MHz bandwidth centered on the active
reverse channel center frequency.

Maximum Input Level:
RF IN/OUT: +34 dBm (2.5 watts continuous)

ANT IN: +15 dBm

Measurement Range:

RF IN/OUT: –50 dBm to +30 dBm, usable to

<–55 dBm with degraded accuracy

ANT IN: –70 dBm to +15 dBm

Measurement Update Rate: Typically 5 readings

per second

11

Measurement Accuracy:

Relative Mode: RF IN/OUT and ANT IN

(uncalibrated against average power relative to
–10 dBm):

0 to –10 dB relative level: ±0.1 dB
–10 to –20 dB relative level: ±0.2 dB
–20 to –40 dB relative level: ±0.5 dB

Calibrated Mode:

RF IN/OUT (Calibrated against average power):

Typically ±1.2 dB at ±10 °C from the
calibration temperature.

Temperature Drift: Typically 0.2 dB per 10 °C

temperature change, 800 MHz to 1000 MHz.

Typically 0.4 dB per 10 °C temperature change,
1700 MHz to 2000 MHz.

Measurement Period: Measures power in a 1.23 MHz
bandwidth over 1/2 of a CDMA frame (8 power
control groups) in full, half, quarter, or one-eighth
rate modes.

Calibrate: Calibrates the channel power measure­ment over the entire operating frequency range of
the currently selected RF channel standard.

Alternate Channel Standard: Allows the selection
of a second channel standard, all bands, PCS band or
cellular band to be calibrated when the channel power
calibration is performed. This allows switching
between two or more standards without having to
re-calibrate after each RF channel standard change.

Un-Calibrated Flag: Displays “Uncal” under the
channel power measurement whenever the unit
detects that the channel power calibration has not
been run for the currently set RF channel standard or
when the temperature has drifted by more than ±10 °C
from temperature at last calibration.

Access Probe Power Trigger Level: Automatically
triggers when input level increases to greater than

-

55 dBm.

CDMA Modulation Measurement

Input Frequency Range:

800 MHz to 1000 MHz
1700 MHz to 2000 MHz

Modulation Measurement Format: OQPSK per
TIA IS-95A/J-STD-008

r

Measurement Input Level Range: –20 dBm to

+34 dBm, usable to –25 dBm with degraded accuracy.

Range of r Measurement for specified accuracy:

0.45 to 1.00

r

Measurement Interval:

Traffic Channel r: 1.042 ms (5 Walsh symbols)

Test Mode r: 1.25 ms (6 Walsh symbols)

Measurement Update Rate: Typically 1.5 readings
per second

r

Measurement Accuracy: r ±0.003

Frequency Error Measurement Range: ±1 kHz

Frequency Error Measurement Accuracy: ±30 Hz

± timebase accuracy

Other Reported Parameters with r Measurement:

Transmit time error (t, time offset), carrier
feedthrough, amplitude error, and phase error.

CDMA Frame Error Rate Measurement

FER Measurement Method: Data loopback per
Service Option 002 or Service Option 009 supporting
Confidence limits as outlined in TIA/EIA-98-B.

Supported Data Rates for FER Measurement:

Full, half, quarter, or one-eight rate.

Confidence Limit Range: User definable from 80.0%
to 99.9% and Off.

Confidence Limit Statistical Model: Meets
TIA/EIA-98-B (20 Hz to 10 kHz) statistical model
parameters.

FER Reported Parameters: Measured FER, Number
of errors, number of frames tested, and one of the
following: passed confidence limit, failed confidence
limit, or max. frames (test indeterminate).

Conditions for Terminating FER Test (with

confidence limits on):

Max Frames: Maximum number of frames to test

completed—indicative of an indeterminate test

result.

Failed: Measured FER failed the specified FER

limit with specified confidence.

Passed: Measured FER passed the specified FER

limit with specified confidence.

FER Measurement Indicators: Testing, Passed,
Failed, and Max. Frames. All indicators are available
over GPIB.

One Button Min/Max Power Measurement

Measurement Method: Automatically sets the
E8285A to the nominal TIA/EIA-98-B/ANSI
J-STD-018 test conditions for the minimum power
measurement and then maximum power measure­ment. Restores the E8285A to the instrument state
active before the measurement was initiated.

Measurement Output: Maximum TX power and
minimum TX power measured

12

CDMA Graphical Measurements

Gated Power

Measurement Speed: 7 seconds for 100 averages

Marker Level Accuracy: 0.5 dB

Marker Time Accuracy: 0.5 ms

Horizontal Range/Display Time Range: -20 ms to

1269.692 ms

Vertical Range/Display Level Range: -35 dB to 7.5 dB

Display Resolution:

-

20 ms to 10.13313 ms: 203.45 nsec/pixel

10.13313 ms to 1237.34353 ms: 11.8001 ms/pixel

1238.1 to 1269.69208: 203.45 nsec/pixel

Open Loop Time Response

Step Sizes: ±25 dB, ±20 dB, ±15 dB, ±10 dB

Measurement Speed: 1 sec

Marker Level Accuracy: 0.5 dB

Marker Time Accuracy: 1 %

Horizontal Range/Display Time Range: 100 ms

Vertical Range/Display Level Range:

Note: These values are calculated and changed
automatically when the step size value is changed.

Vertical Range/

Step Size Display Level Range [dB]

±25
±20
±15
±10

Display Resolution:

Time: 24 ms/pixel
Level: Note: These values are calculated and

changed automatically when the step size value
is changed.

Step Size Pixel/dB (dB/pix)

±25 4.00 (0.2500)
±20 5.00 (0.2000)
±15 6.50 (0.1538)
±10 9.40 (0.1064)

-

7.50 to 40.0

-

6.00 to 32.0

-

4.61 to 24.6

-

3.19 to 17.0

Vertical/Level Resolution

CDMA Reverse Channel Spectrum

Display (Requires Option 102)

Frequency Range: Fixed to the active CDMA reverse
channel setting. Not independently adjustable.

Frequency Span/Resolution Bandwidth (coupled,
maximum span of 5 MHz):

Span Bandwidth

<50 kHz 300 Hz

<200 kHz 1 kHz

<1.5 MHz 3 kHz

<5 MHz 30 kHz

Display: Log with 10 dB/division

Display Range: 80 dB

Reference Level Range: +50 to –50 dBm

CDMA Signals

Available on the Rear Panel Cell Site/Triggers
Connector: I/Q baseband output, power control bit

sent triggers.

13

E8285A COMMON SPECIFICATIONS

Remote Programming

GPIB: Agilent Technologies implementation of IEEE
Standard 488.2.

Remote Front-Panel Lockout: Allows remote user
to disable the front-panel display to improve GPIB
measurement speed.

Functions Implemented: SH1, AH1, T6, L4, SR1, RL1,
LE0, TE0, PP0, DC1, DT1, C4, C11, E2.

RS-232: 2 each 9-wire DB-9 connectors used for serial
data in and out

Baud Rates: 300, 600, 1200, 2400, 4800, 9600, 19200,
38400, 57600 and 115200 selectable.

Centronics Port: Industry standard parallel printer
port for hardcopies of test results or screen dumps

Timebase Subsystem

Locking Range: ±10 ppm

Input: Rear panel coaxial BNC, >0.15 Vrms

Accepted Input Frequencies: 10 MHz, 5 MHz,

2 MHz, and 1 MHz

Outputs (all on rear panel):

Coaxial BNCs: 19.6608 MHz (16x Chip), 10 MHz

CDMA Clock Mux BNC Output: User selectable

output of one of the following clocks via this BNC:

1.25 ms
20 ms frame clock

26.67 ms short sequence clock
80 ms clock
Every even second

Ovenized Reference

Aging Rate: <±0.1 ppm per year (±85 Hz at 850 MHz
in one year)

Warm-up: ±0.1 ppm in <15 minutes

Temperature: <0.05 ppm (0 to +55 °C)

Supply Voltage: 10 ´ 10

Rear Panel BNC connectors:

Output Frequency: 10 MHz
Output Level: >0.5 Vrms into 50 ohms

– 9

(±3%)

Store/Recall

Available RAM: Approximately 928 KB of user
available RAM

Memory Card

Card Compatibility: Single industry standard PC
card slot that accepts type I and type II SRAM and
ROM cards.

Storage Capability: Allows for the storage and
retrieval of IBASIC programs, IBASIC program param­eter and results data, input of new calibration data,
and long term storage of Store/Recall information.

Firmware Upgrades: Accepts PCMCIA memory cards
to allow automatic loading of new firmware for the
Host CPU, Protocol CPU, DSP, and Channel Card
CPU’s without opening the E8285A.

General Specifications

Dimensions (HxWxD): 22.2 cm ´ 42.5 cm ´ 59.0 cm

Weight: 22 kg, 48 lbs

Display Size: 9.7 cm x 13 cm, electroluminescent (EL)

Operating Temperature: 0 °C to +55 °C

Operating Humidity: 0% to 95% relative humidity (RH)

Storage Temperature: –55 °C to +75 °C

Power: 100 V to 240 V, 50/60 Hz, nominally 250 VA.

Calibration Interval: Two years

EMI: Conducted and Radiated interference meets

CISPR-11, IEC 801-2, IEC 801-3, and IEC 801-4.

Leakage: (800 MHz to 1000 MHz, 1700 MHz to
2000 MHz) at RF Generator output levels <–40 dBm,
typical radiated leakage is <1 mV induced in a
resonant dipole antenna 25.4 mm (1 inch) away
from any surface except the rear panel. Spurious
leakage levels are typically <5 mV in a resonant
dipole antenna 25.4 mm (1 inch) away from any
surface except the rear panel. Spurious leakage
levels at the rear panel are typically <5 mV in a
resonant dipole antenna at a distance of 254 mm
(10 inches).

14

E 8285A

CDMA MOBILE STATION TEST SET

DO NOT apply RF
when in standby

Max power 2.5W

Front Panel Inputs:

RF Input/Output: Type N
Antenna Input Type N
Audio Input: Dual BNC’s

Front Panel Outputs:

RF Input/Output: Type N
Duplex Output: Type N
Audio Output: BNC

CALL CONTROL UTILITIES

Answer Print Printer I/O config Help
Call/

End/

Page

USER

K1’
K1

K2’
K2

K3’
K3

Assign

K4

Release

K5

Shift

Register Tests Config Previous Message

Release

CDMA SCREENS

Cell config Spectrum SMS
Call

Gen
control

TX test

Meter
Increment

set

Authen­tication

TX
range

Average
Increment

x 10

High limit

control

MS report MS FER
RX test

DATA FUNCTIONS DATA

Ref set
Increment

10

Low limit

IBASIC
reset

Cancel

ANALOG SCREENS

Call

Duplex Spectrun

control

RX test TX test AF

7 8 9

4 5 6

1 2 3

0 . +/-

Yes

No
Ratio

On/Off

W

analyzer

analyzer

DUPLEX OUTRF IN/OUTPOWER ANTENNA IN VOLUME AUDIO OUT AUDIO IN

Max power 60 mW Max 12V peak Max

High

Preset

Hold
Meas

reset

Address
Local

Save
Recall

Enter

Ghz
dBm
dB

MHz
V
%

kHz
mV
s

mW

%

Hz

dB

V

ms

42V peak

Low

Rear Panel Outputs:

SA Trig Output: BNC
Composite Video Output: BNC
Audio Monitor Output: BNC
10 MHz Output: BNC
CDMA Clock MUX Output: BNC
16x Chip Output: BNC

Rear Panel Inputs:

Modulation Input: BNC
External Reference Input: BNC
Even Second Input: BNC

Rear Panel Digital Ports:

GPIB Port: 24 pin GP-IB
Parallel Port: DB-25
RS-232 Port (two): Serial port 9 and 10: DB-9
Protocol Serial RS-232 Port: DB-9
Traffic Channel Logging (DCS1): DB-9
Paging Channel Logging (DCS2): DB-9
Cell Site/Triggers: DB-25

MODULATION
INPUT

COMPOSITE
VIDEO

CELLSITE/TRIGGERS PARALLEL PORT

PROTOCOL SERIAL

EXT REF
INPUT

AUD MONITOR
OUTPUT

TRAFFIC CHANNEL

LOGGING (DCS1)

PAGING CHANNEL

LOGGING (DCS2)

10 MHz
OUTPUT

16X CHIP
OUTPUT

CDMA CLOCK
MUX OUTPUT

SERIAL PORT 9

SERIAL PORT 10

HP-IB

EVEN SEC
INPUT

GPIB

SA TRIG
OUTPUT

15

AGILENT TECHNOLOGIES 83217A SPECIFICATIONS

Option 001
AMPS/NAMPS/CDMA

CDMA RX/TX Quick General Test
CDMA RX/TX Voice Quality Registration
CDMA Call Processing Origination
CDMA Call Processing Page
CDMA Call Processing Release
CDMA Call Processing Digital to Analog Handoff
CDMA Call Processing Talk Time
CDMA Call Processing Check
CDMA CP Softer Handoff Add and Drop Check
CDMA RX Sensitivity and Dynamic Range
CDMA RX Traffic Channel FER with AWGN
CDMA RX Sensitivity Level Search
CDMA TX Modulation Quality
(includes frequency accuracy)
CDMA TX Open Loop Power Control Accuracy
CDMA TX Closed Loop Power Control Range
CDMA TX Maximum RF Output Power
CDMA TX Minimum Controlled Output Power
CDMA TX Spectrum Emissions
AMPS/NAMPS CP Call Processing Registration
AMPS/NAMPS CP Call Processing Page
AMPS/NAMPS CP Call Processing Release
AMPS/NAMPS CP Call Processing Origination
AMPS/NAMPS CP Call Processing Hook Flash
AMPS/NAMPS CPA Flow Chart (manual phone test)
AMPS/NAMPS TX Functional Test (no audio

connections)
AMPS/NAMPS TX Frequency Error
AMPS/NAMPS TX RF Output Power
AMPS/NAMPS TX Modulation Deviation Limiting
AMPS/NAMPS TX Audio Frequency Response
AMPS/NAMPS TX Audio Distortion
AMPS/NAMPS TX Signaling Tone/DST
AMPS/NAMPS TX FM Hum and Noise
AMPS/NAMPS TX SAT/DSAT
AMPS/NAMPS TX RVC Data Deviation
AMPS/NAMPS TX Compressor Response
AMPS/NAMPS TX Current Drain
AMPS/NAMPS TX DTMF Frequency Error
AMPS/NAMPS TX Switch Channels
AMPS/NAMPS TX Quick General Test
AMPS/NAMPS RX Expandor Response
AMPS/NAMPS RX Audio Frequency Response
AMPS/NAMPS RX Audio Distortion
AMPS/NAMPS RX Hum and Noise
AMPS/NAMPS RX Sensitivity (SINAD)
AMPS/NAMPS RX FVC Order Message Error Rate
AMPS/NAMPS RX Quick General Test
NAMPS RX MRI Performance

Option 003
JTACS/NTACS/CDMA

CPA Registration
CPA Page
TXA Frequency Error
TXA Carrier Power
TXA Peak Frequency Deviation
TXA Audio Frequency Response
TXA Audio Distortion
TXA Signaling Tone / DST
TXA FM Hum and Noise
TXA SAT / DSAT
TXA RVC Data Deviation
TXA Compressor Response
TXA Current Drain
RXA Expandor
RXA Audio Frequency Response
RXA Audio Distortion
RXA Hum and Noise
RXA SINAD
RXA FVC Order Message Error Rate
CPA Release
CPA Origination
OTA No Audio Functional
TXA Quick General
RXA Quick General
CPA Flow Chart
TXA Switch Channels
CPA Hook Flash
TXA DTMF Frequency Error
CPD Registration
CPD Origination
CPD Page
TXD Waveform Quality and Freq. Acc.
TXD Open Loop Power Range
TXD Closed Loop Power Control
TXD Maximum RF Output Power
TXD Min. Controlled Output Power
RXD Traffic Channel FER
RXD Sensitivity and Dynamic Range
CPD Softer Handoff
RTD RX/TX CDMA Quick General
CPD CDMA Voice Quality
TXD Spectrum Emissions
CPD CDMA Release
CPD Digital to Analog Handoff
CPD Talk Time
RXD Sensitivity Level Search

Option 004
CDMA/PCS/AMPS/NAMPS

CPA Registration
CPA Page
TXA Frequency Error
TXA RF Power Output
TXA Modulation Deviation Limiting
TXA Audio Frequency Response
TXA Audio Distortion
TXA Signaling Tone / DST
TXA FM Hum and Noise
TXA SAT / DSAT
TXA RVC Data Deviation
TXA Compressor Response
TXA Current Drain
RXA Expandor
RXA Audio Frequency Response
RXA Audio Distortion
RXA Hum and Noise
RXA SINAD
RXA FVC Order Message Error Rate
CPA Release
CPA Origination
OTA No Audio Functional
TXA Quick General
RXA Quick General
CPA Flow Chart
TXA Switch Channels
CPA Hook Flash
TXA DTMF Frequency Error
RXA MRI
CPD Registration
CPD Origination
CPD Page
TXD Waveform Quality and Freq. Acc.
TXD Open Loop Power Range
TXD Closed Loop Power Control
TXD Maximum RF Output Power
TXD Minimum Controlled Output Power
RXD Traffic Channel FER
RXD Sensitivity and Dynamic Range
CPD Softer Handoff
RTD RX/TX CDMA Quick General
CPD CDMA Voice Quality
TXD Spectrum Emissions
CPD CDMA Release
CPD Digital to Analog Handoff
CPD Talk Time
RXD Sensitivity Level Search

For more product information visit our web site at:

http://www.agilent.com/find/8285/

For more information about Agilent Technologies test
and measurement products, applications, services, and
for a current sales office listing, visit our web site:

http://www.agilent.com/find/tmdir

You can also contact one of the following centers and
ask for a test and measurement sales representative.

United States:

Agilent Technologies
Test and Measurement Call Center
P.O. Box 4026
Englewood, CO 80155-4026
(tel) 1 800 452 4844

Canada:

Agilent Technologies Canada Inc.
5150 Spectrum Way
Mississauga, Ontario
L4W 5G1
(tel) 1 877 894 4414

Europe:

Agilent Technologies
Test & Measurement
European Marketing Organisation
P.O. Box 999
1180 AZ Amstelveen
The Netherlands
(tel) (31 20) 547 9999

Japan:

Agilent Technologies Japan Ltd.
Call Center
9-1, Takakura-Cho, Hachioji-Shi,
Tokyo 192-8510, Japan
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840

Latin America:

Agilent Technologies
Latin American Region Headquarters
5200 Blue Lagoon Drive, Suite #950
Miami, Florida 33126
U.S.A.
(tel) [phone]
(fax) [phone]

Australia/New Zealand:

Agilent Technologies Australia Pty Ltd
347 Burwood Highway
Forest Hill, Victoria 3131
(tel) 1-800 629 485 (Australia)
(fax) (61 3) 9272 0749
(tel) 0 800 738 378 (New Zealand)
(fax) (64 4) 802 6881

Asia Pacific:

Agilent Technologies
24/F, Cityplaza One, 1111 King’s Road
Taikoo Shing, Hong Kong
(tel) (852) 3197 7777
(fax) (852) 2506 9284

ã

1999 Agilent Technologies Co.
Technical data subject to change
Printed in U.S.A. 1/2000
5968-8839E
