Benchtop features and performance with handheld convenience
and price
•3
1
/2and 41/2 digits with dcV
accuracy to 0.05%
• 1 kHz to 100 kHz frequency
response
• Sophisticated math functions
• True rms, dB/dBm available
Bench and field measurements

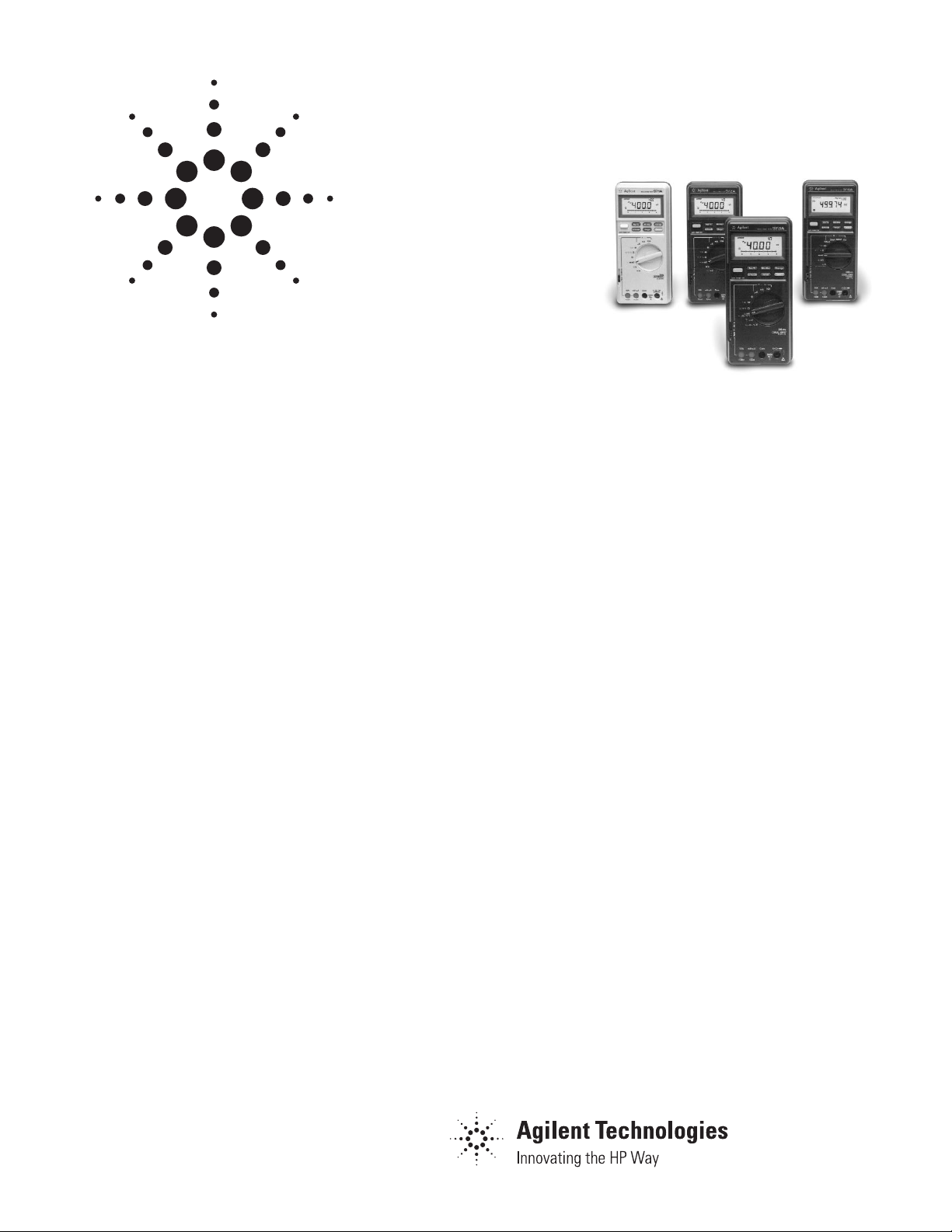

Agilent Technologies 970-series handheld multimeters give you much more
than just the basics. These compact
multimeters have the features you’d
expect from a bench meter, like
sophisticated math functions that
allow relative difference or percent
readings for checking tolerances and
Min/Max with time stamp to monitor
all types of measurements including
high resolution temperature readings.
These DMMs also include a hold feature to let you save readings manually
or automatically and a measurement
averaging capability to use when
you’re working with noisy signals. An
auto diode feature automatically
reverses polarity for you when you’re
checking semiconductor junctions.
Measure with confidence
An innovative safety shutter prevents
accidental connection to the current
terminals. All models feature highenergy fuses and audible overload
alarms. A selectable auto power off
mode conserves batteries.
Use the rugged 971A in every
environment
The 971A is designed to withstand
the toughest environments. Like the
other handhelds in the 970 series, the
971A provides ac/dc volts, and current, ohms, continuity, diode test,
auto diode test, frequency volts and
°F and °C high-resolution temperature measurements.
Measure low-level dc/ac volts or
capacitance with the 972A
For measuring low-level signals, the
972A gives you 40 mV ranges for
dc/ac voltage and the assurance of 20
kHz frequency response. For capacitance testing, the 972A measures
from 10 pF to 1000 µF. A convenient
dual display shows the range, elapsed
time, or reference values, in addition
to your reading.
The 973A gives you more ways to
test and troubleshoot
The 31/2-digit display (with 0.1% basic
dc accuracy), 20 kHz frequency range,
true rms and ac+dc readings let you
measure sinusoidal and nonsinusoidal waveforms with confidence.
The 973A also gives you dBm and relative dB with dynamic range of 57 dB
(2 mV to 400 mV) or 74 dB (0.2 V to
1000 V), with 0.1 dB resolution. This
DMM also features dual displays.
Use the 974A when extra precision
is required
For precision measurements, the
974A gives you 4
1
/2 digits with a
49,999 count full scale, and basic dc
accuracy of 0.05% for all ranges.
It also offers true rms, 100 kHz frequency response, dBm /relative dBm
readings, and ac+dc readings to accurately measure nonsinusoidal waveforms.
3-year warranty
With 970-series handheld multimeters
you get a manual, a high-quality test
lead set, a calibration certificate,
spare fuse, rubber boot, and two
installed AA batteries. Each instrument comes with a 3-year warranty.
Agilent 970-Series Handheld Multimeters
Data Sheet
Agilent Technologies 970-series selection guide
Model* 971A 972A 973A 974A
Display Count 4,000 4,000 4,000 50,000
AC Volts Response 1kHz 20kHz 20kHz 100kHz
Basic dc Accuracy 0.3% 0.2% 0.1% 0.05%
Resolution, ACV, DCV 100µV 10µV 10µV 10µV
AC, DC Volts/Current • • • •
Frequency, Ohms • • • •
Continuity, Diode, Auto Diode • • • •
Thermistor Temperature • • • •
Thermocouple Temperature •
Relative and Percent • • • •
Min Max with Time Stamp • • • •
Data Hold/Auto Hold • • • •
Average of last 8 readings • • • •
Current Safety Shutter • • • •
600V, 15A Fuse, Ovld Alert • • • •
Auto Power Off • • • •
40 Segment Bargraph • • •
Capacitance to 1000µF • •
Dual Digital Display • •
TRUE RMS AC Response • •
dB and dBm • •
*See our value-priced handheld E2373A on page 6.
Specifications 971A, 972A, 973A
23° C ± 5° C, <80% RH, accuracy ± (% of reading + number of digits) 974A specifications on page 4
2
dc Voltage
Range
971A 972A 973A
40 mV 10 µV – 0.3% + 5
400 mV 100 µV
10 MΩ
4 V 1 mV 11 MΩ
40 V 10 mV
400 V 100 mV
0.1% + 1
1000 V 1V
0.3% + 1 0.2% + 1
0.2% + 1
10 MΩ
ac Voltage
971A 972A 973A
Average Average
Input
10µV – – 1% +10
–
1% + 3
1% + 3
–
(N.A.)
10 MΩ
4 V 1 mV
1% + 3
11 MΩ
40 V
1%+3
1V
1% + 2, 40 Hz - 500 Hz
1% + 4, 40 Hz - 500 Hz
(1% + 6 dc, 40 Hz to 500 Hz)
10 MΩ
Resolution
Range Resolution
40 mV
400 mV 100µV
400 V 100 mV
1000 V
4 0 Hz - 50 0 Hz 5 0 0 Hz - 1 k Hz 4 0 Hz - 5 0 Hz 5 0 Hz - 1 k Hz 1 k Hz - 5 k Hz 5 k Hz - 20 k Hz 4 0 Hz - 5 0 Hz 5 0 Hz - 1 k Hz 1 k Hz - 5 k Hz 5 kHz-20 kHz
10 mV
1.5% + 4
1%+2
1% + 2 0.5% + 2
1.5% + 3 3% + 6
Input Resistance
True rms (ac + dc spec in parenthesis)
(N.A.)
(1% + 4)
0.7%+3
(1% + 4)
(N.A.)
1.2%+4
(1.5% + 6)
Impedance
<70 pF
<50 pF
2%+15
(3% + 18)
<50 pF
3
Diode/Auto Diode 971/2/3A
Test current: 0.5 mA nominal @ 0.6 V, <3.2 V
Range; 0-2 V, 1 mV resolution
Accuracy: 1% + 2
Continuity (audible) 971/2/3A
Test Current; 0.8 mA nominal, < 3.2 V
Range 0-400 Ω, 0.1 Ω resolution
Threshold; < 20 Ω
Relative Measures the difference
from a reference value.
Per Cent Displays the per cent change
from reference.
Min/Max Records the minimum and
maximum value of the input,
with audible alert, and
elapsed time; the 974A also
computes long term average
in Min/Max.
Average Dislays the average of the
last 8 readings.
Data-Hold Holds the display reading.
Shows input value on dual
display (972A, 973A).
Auto Hold Stores last stable reading
and displays it when probe is
removed from test circuit.
Range Select auto ranging or
manual ranging.
Auto Diode Choose normal diode test,
or Auto Diode for automatic
reversal of polarity.
Temperature Thermistor temperature for
high accuracy and 0.1° C
resolution and thermocouple
(973A only) for high temperatures.
Dual Display 972/3A, one large main and
a secondary display for two
digital readouts.
Overload Alert Input overload alert provides
audible tone when input is
overloaded or in wrong terminal. Fuse check for
971/2/3A.
Safety Shutter Unique terminal shutter that
helps prevent inadvertent
use of current terminals.
Auto Power Off Turns off power to save
batteries after 30 minutes of
inactivity or choose to defeat
auto power off.
Zero adjust Stores zero between
function changes for critical
measurements: Ohms zero
(971/2/3/4A), dcV and
Capacitance zero (972/3A).
ac+dc The 973A, 974A, displays
ac+dc true rms.
dBm/dB The 973A, displays dBm
and input voltage on dual
display; the 974A has
0.01 dB resolution.
Specifications 971A, 972A, 973A
23° C ± 5° C, <80% RH, accuracy ± (% of reading + number of dig)
µ
Resistance
Range Resolution 971A 972A 973A Test Current Test Voltage
400 Ω 100 mΩ .8mA < 3.2 V
4 kΩ 1 Ω <80 µA
40 kΩ 10 Ω <10 µA
400 kΩ 100 Ω
4 MΩ 1 kΩ
40 MΩ 10 kΩ 1% + 1
0.5% + 1
Current, ac, dc
Range Resolution 971A 972A 973A 971A 972A 973A
dc 4 0 t o 5 0 0 Hz 40 Hz to 2 kHz
400 µA 100 nA 0.5%+2 0.5%+2
4000
A 1 µA
40 mA 10 µA
400 mA 100 µA
10 A 10 mA
1.0% + 2 0.8% + 2
1.2% + 2 1% + 2
Frequency, 971A
Range Resolution Accuracy Input voltage Input Impedence
5 Hz to 9999 Hz 1 Hz 0.1 V to 400 V rms
9.0 kHz to 99.99 kHz 10 Hz
Frequency, 972A/973A
Range Resolution Accuracy Input voltage Input Current
2 Hz to 99.99 Hz 0.01 Hz
90 Hz to 999.9 Hz 0.1 Hz
900 Hz to 9999 Hz 1 Hz 0.4V to 400V
9 .0 0 k Hz t o 9 9 . 9 9 k Hz 10 Hz 0.8V to 100V
90 kHz to 200 kHz 100 Hz
dBm 973A, (600Ω, 1 mW reference)
Function Input dBm Input Voltage 40Hz to 1kHz 1kHz to 5kHz 5kHz to 20kHz
ac mV -51.8 dBm to -5.7 dBm 2.0 mV to 400 mV 0.3 dBm
-11.8 dBm to -5.7 dBm 0.2V to 0.4 V
-5.7 dBm to 53.3 dBm 0.4V to 360 V
53.3 dBm to 62.2 dBm 360V to 1000V 0 .2 d Bm , 4 0 H z t o 5 0 0 Hz –
Capacitance 972A/973A
Range 10 nF 100 nF 1,000 nF 10 µF 100 µF 1,000 µF
Resolution 10 pF 100 pF 1 nF 10 nF 100 nF 1 µF
Accuracy 2% + 3 1.2% + 2 3% + 2
Temperature
971A 972A 973A
Calibrated element Thermistor Thermistor Thermistor Thermocouple
Measurement Range
Resolution 0.1°C, 0.2°F 1°C, 1°F
Accuracy 0.5°C, 1°F 0.3°C, 0.5°F 2%+2°C, 2%+4°F
Note: Accuracy does not include the temperature probe error.
0.2% + 1
0.5% + 1
1.5% + 5 1.5% + 4
0.02% + 1
0.02% + 1
-80 to 150°C
-112 to 302°C
0.8 V to 100 V rms
0.2V to 400V
2V to 100V
0.2 dBm
<1.1 µA
<110 nA
0.2 dBm 0.7dBmacV
<1.1V
Input
Resistance
<550Ω
<8Ω
<0.05Ω
>1.2 MΩ, <50 pF
50 µA to 10A
–
–
-50°C to 700°C
-58°F to 1292°F
4
Specifications 974A 23° C ± 5° C, <80% RH, accuracy ± (% of reading + number of digits)
dc Voltage
Range Resolution Accuracy Input Resistance
500 mV 10 µV >1000 MΩ
5 V 100 µV 11 MΩ
50 V 1 mV
500 V 10 mV
1000 V 100 mV
0.05% + 2
10 MΩ
True rms ac Voltage Accuracy
20 Hz -
50 Hz
50 Hz10 kHz
10 kHz -
30 kHz
30 kHz-
50 kHz
50 kHz-
100 kHz
Input
10 µV
2%+50 –
5V
50V 1 mV
1% + 40 2% + 70 3% + 300
1% + 30, 20 Hz to 1 kHz
10 MΩ
True rms ac + dc Voltage Accuracy
dc, 20 Hz - 10 KHz dc, 10 kHz - 30 kHz dc, 30 kHz - 50 kHz dc, 50 kHz - 100 kHz
–
1% + 30 1.2% + 40 2.5% + 70 3.5% + 300
1%+30 dc, 20 Hz - 1 kHz
Resistance Accuracy
Range Resolution Accuracy Test Current Test Voltage
500 Ω 10 mΩ
5 kΩ 100 mΩ
<800 µA <5.5V
50 kΩ 1 Ω <80 µA
500 kΩ 10 Ω
0.06% + 2
<15 µA
5 MΩ 100 Ω 0.5% + 2 <1.5 µA
50 MΩ 1 kΩ 1% + 2 <150 nA
<2.2V
Current, ac, dc
Accuracy
Range Resolution
dc 40 Hz to 1 KHz
Input
Resistance
500 µA 10 nA <1050Ω
50 mA 1 µA <12Ω
500 mA 10 µA
0.3% + 2 1% + 20
<2.5Ω
10 A 1 mA 0.7%+2 – <0.05Ω
Frequency 974A
Range Resolution Accuracy Input Voltage
10 Hz to 99.99 Hz 0.01 Hz
90 Hz to 999.9 Hz 0.1 Hz
900 Hz to 9999 Hz 1 Hz
0.45V to 500V
900 kHz to 99.99 kHz 10 Hz 0.7V to 100V
90 kHz to 200 kHz 100 Hz
0.05% + 1
1.5V to 100V
Temperature
Calibrated Element Measurement Range Resolution Accuracy
Thermistor
0.1° C, 0.1° F 0.2° C, 0.4° F
dBm 974A, (600Ω, 1 mW reference)
Accuracy
Input dBm Input Voltage 20 Hz to 10 kHz
25 mV to 50 mV 0.2 dBm 0.50 dBm
0.15 dBm 0.30 dBm
Not Specified
0.5 V to 450 V 0.1 dBm 0.20 dBm 0.50 dBm 1.00 dBm
acV
450 V to 750 V
Not Specified
Range Resolution
500 mV
500V 10 mV
750V 100 mV
100 µV
1% + 30
0.7%+30
0.5% + 30
Impedence
11 MΩ
<50 pF
<50 pF
-80 to 150° C, -112 to 302° F
-29.82 dBm to -23.80 dBm
-23.80 dBm to -3.80 dBm 50 mV to 499.99 mV
-3.80 dBm to 55.28 dBm
55.28 dBm to 59.72 dBm
0.15 dBm, 20 Hz to 1 kHz
10 kHz to 30 kHz 30 kHz to 50 kHz 50 kHz to 100 kHz
5
General Specifications
Display
971/2/3A 4 digit LCD display max.
reading of “4000” (9999
for Hz, 5656 for ac+dc), 40
segment bargraph with dc
zero center.
974A 5 digit LCD display, max.
reading of 49999 (70700
for ac+dc)
Sampling, dcV
971/2/3A 2.3 times per second,
23 Bargraph samples/sec
974A 2-4 times per second
Operating Temperature
971/2/3A -10° C to 50° C
(14°F to 122°F)
974A 0°C to 40° C
(32°F to 104°F)
Humidity 80% RH, 0° C - 40° C
Battery 1.5V, AA size X 2
Battery life (typical)
971A 1000 hrs
972/3A 600 hrs
974A 120 hrs
Size (W x H x D) 87 mm x 190 mm x 39 mm
(3.4 in x 7.5 in x 1.55 in)
Weight 440 g (1 lb) approx.
Ordering Information
971A Handheld Multimeter
972A Handheld Multimeter
973A Handheld Multimeter
974A Handheld Multimeter
970-series handheld multimeters come with alkaline batteries, rubber boot,
Certificate of Calibration, spare fuse, operating manual and test leads.
Options
Opt. W50 Additional 2-year warranty (5-year total)
Accessories
34300A
40 kV ac/dc high voltage probe
34301A 700 MHz RF detector probe
34302A Clamp-on ac/dc current probe (100 A)
34330A 30 A current shunt
E2304A handheld multimeter padded carrying case
E2306A deluxe test lead kit
E2305A 2 pairs spare test leads
E2301A surface type-k thremocouple probe
1,2
E2303A SMP-to-dual banana plug adapter
2
E2307A type-k thermocouple bead temperature probe
2
E2308A thermistor temperature probe
1
Requires E2303A thermocouple probe adapter.
2
For use with the 973A multimeter only.
6
Low-cost multimeter with the
basic test capabilities you need
• dc and ac volts, dc and ac
current, resistance, audible
continuity, and diode test
• Auto or manual ranging
• Basic Vdc accuracy of 0.7%
• Maximum 1 kV dc, 750 V rms,
10 A
Basic handheld multimeter provides all-around testing
When low cost is crucial, the Agilent
Technologies E2373A handheld multi
meter is an ideal tool for troubleshooting and making portable
basic measurements. This versatile
multimeter measures dc and ac volts,
dc and ac current, resistance, and
provides diode test and audible continuity. With basic Vdc accuracy of 0.7
percent and a choice of auto or manual ranging, this low-cost meter is an
excellent choice for measurements in
the field or in the lab.
Easy to use
The 2373A features a large 31/2 digit
display (0.85 in./22 mm high LCD) as
well as a trend-indicating analog bar
graph that’s great for observing
peaks. Other features that make it
easy to use include a convenient tilt
stand and autoranging. The unit is
powered by two A A batteries which
typically last for 2,500 hours of use.
Display annunciators are included for
all functions as well as for low battery indication, overload conditions,
and range hold.
3-year warranty
The E2373A multimeter is warranted
for a full three years. The unit comes
with test leads, batteries, a spare
fuse (0.5A/250V) and an operating
manual.
Agilent E2373A Handheld Multimeter
Data Sheet
General Specifications
Features
Large 0.85 in (22mm) display
Autorange or Manual Range
Continuity, and Diode function
Long Battery life
10A range
Display
3 1/2 digit display to 3200 counts
33 segment bargraph with DC zero center.
Calibration
1 yr interval
Sampling, DCV
2 times per second,
Bargraph 12/sec
Operating Temperature
0° C to 40° C (32° F to 104° F)
20-80% RH, 0° C - 40° C
Storage Temperature
20-70% R.H. -20° C to 40° C
and no condensation
Battery
2 x 1.5 V, AA size
Battery life (typical)
2500hrs
Size
3 in W x 6.5 in H x 1.3 in D
76mm W x 164mm H x 33mm D
Weight
240 g approx.
Accessories supplied
1 pair test leads, multi language manual,
batteries installed, 500 mA spare fuse
Warranty
3 years
7
Specifications
23° C±5 °C, <80% RH, accuracy ± (% of reading + number of digits)
Temperature Coefficient: specified accuracy x 0.1/° C (0-18° C, 28-40° C)
Diode Test
Test current: 0.6 mA nominal @ 0.6V, <3.3V
Display: 0-2V, 1 mV resolution
Accuracy: 3% + 2
Continuity (audible)
Test current: 0.8 mA nominal @ 0.6V, <1.3V
Display: 0-320 Ω,
0.1 Ω resolution, threshold <20 Ω
DC Voltage
Range Resolution Accuracy Input Resistance Maximum Input
300 mV 100 µV 0.5% + 2 >1000 MΩ
4 mV 1 mV 0.7% + 1 11 MΩ
40 V 10 mV 0.7% + 1 10 MΩ
400V 100 mV 0.7% + 1 10 MΩ
1000 V 1V 0.7% + 1 10 MΩ
Ordering Information
E2373A Handheld Multimeter
Comes with alkaline batteries, spare fuse, operating manual and test leads.
Options
Opt. W50 Additional 2-year warranty (5-year total)
Accessories
11060A Surface Mount Device (SMD) test probes
E2304A handheld multimeter padded carrying case
E2305A 2 pairs spare test leads
E2306A deluxe test lead kit
AC Voltage, average responding
Range Resolution Accuracy Input Resistance Max Input
3 V 1 mV 1.2% + 4 1 MΩ < 50 pF
30 V 10 mV 1.2% + 4 10 MΩ < 50 pF
300 V 100 mV 1.2% + 4 10 MΩ < 50 pF
750 V 1 V 1.2% + 4 10 MΩ < 50 pF
Current, AC, DC
Range Resolution DC
30 mA 10 µA 1.0% + 2 2.0% + 5 0.5A; 500 mA/250 Volt fuse
300 mA 100 µA
10 A 10 mA
1.5% + 2 2.0% + 5
AC
40-500 Hz
Burden
Voltage
<0.25V
<2.5V
<0.6V 10A (unfused)
0.5A; 500 mA/250 Volt fuse
Resistance
Range Resolution Accuracy
300 Ω 100 mΩ 0.7% + 2 <0.7 mA
3 kΩ 1 Ω 0.7% + 1 <130 µA
30 kΩ 10 Ω 0.7% + 1 <13 µA <1.3 V 250 Vrms
300 kΩ 100 Ω 0.7% + 1 <1.3 µA
3 MΩ 1 kΩ 1.5% + 1 <130 nA
30 MΩ 10 kΩ 3% + 1 <130 nA
Maximum Test
Current
Test
Voltage
± 1000 Vdc or
750 Vrms
Maximum
Input
Protection
Input
Agilent Technologies’ Test and Measurement
Support, Services, and Assistance
Agilent Technologies aims to maximize
the value you receive, while minimizing
your risk and problems. We strive to
ensure that you get the test and measurement capabilities you paid for and obtain
the support you need. Our extensive support resources and services can help you
choose the right Agilent products for your
applications and apply them successfully.
Every instrument and system we sell has
a global warranty. Support is available
for at least five years beyond the production life of the product. Two concepts
underlie Agilent’s overall support policy:
“Our Promise” and “Your Advantage.”
Our Promise
“Our Promise” means your Agilent test
and measurement equipment will meet its
advertised performance and functionality.
When you are choosing new equipment,
we will help you with product information, including realistic performance specifications and practical recommendations
from experienced test engineers. When
you use Agilent equipment, we can verify
that it works properly, help with product
operation, and provide basic measurement
assistance for the use of specified capabilities, at no extra cost upon request. Many
self-help tools are available.
Your Advantage
“Your Advantage” means that Agilent
offers a wide range of additional expert
test and measurement services, which you
can purchase according to your unique
technical and business needs. Solve problems efficiently and gain a competitive edge
by contracting with us for calibration, extracost upgrades, out-of-warranty repairs, and
on-site education and training, as well
as design, system integration, project management, and other professional services.
Experienced Agilent engineers and technicians worldwide can help you maximize
your productivity, optimize the return on
investment of your Agilent instruments and
systems, and obtain dependable measurement accuracy for the life of those products.
By internet, phone, or fax, get assistance
with all your test and measurement needs.
Online Assistance
www.agilent.com/find/assist
Phone or Fax
United States:
(tel) 1 800 452 4844
Canada:
(tel) 1 877 894 4414
(fax) (905) 206 4120
Europe:
(tel) (31 20) 547 2323
(fax) (31 20) 547 2390
Japan:
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840
Latin America:
(tel) (305) 267 4245
(fax) (305) 267 4286
Australia:
(tel) 1 800 629 485
(fax) (61 3) 9272 0749
New Zealand:
(tel) 0 800 738 378
(fax) (64 4) 495 8950
Asia Pacific:
(tel) (852) 3197 7777
(fax) (852) 2506 9284
Product specifications and descriptions in this
document subject to change without notice.
Copyright © 1998, 2000 Agilent Technologies
Printed in U.S.A. 5/00
5967-6368EN
Loading...
