Agilent 8753ES Data Sheet

This document describes the performance
and features of the following products:

• Agilent 8753ES S-parameter vector network
analyzer

• Agilent 8753ES Option 011 vector network
analyzer without test set

• Agilent 8753ET Transmission/reflection vector
network analyzer

For more information about these analyzers,
please see the following documents:

Pub. Number

Agilent 8753ET and 8753ES 5968-5159E
Network Analyzers

Brochure

Agilent 8753ET and 8753ES 5968-5158E
Network Analyzers

Configuration Guide

Agilent 8753ET/ES

8753ET and 8753ES Network
Analyzers, 30 kHz to 3 or 6 GHz

Data Sheet

3

4

10

21

21

22

24

Table of Contents

Definitions and Test Conditions

System Performance Summaries

Specifications and Characteristics

Measurement Throughput Summary

Options

Test Set Specifications for Option 011

Accessories

3

Specifications describe the instrument’s warranted
performance after a half-hour warm-up and over
the temperature range of 25° ± 5° C, unless other­wise stated. Specifications for frequencies above
3 GHz do not apply to instruments with Option 075
(75-ohm impedance).

Supplemental characteristics are typical but non­warranted performance parameters. These are
denoted as “typical,” “nominal,” or “approximate.”

The measurement uncertainty curves and meas­urement port characteristics given for Agilent
Technologies 8753ES systems also apply to the
8753ES with Options 006 and 011 and the 85047A
test set (50-ohm), or the 8753ES Option 011 with
an 85046B test set (75-ohm).

Dynamic Range

System dynamic range is calculated as the differ­ence between the receiver noise floor and the
lesser of either the source maximum output or the
receiver maximum input level. System dynamic
range applies to transmission measurements only,
since reflection measurements are limited by
directivity.

Noise floor is specified as the mean of the noise
trace over frequency. Noise floor is measured with
the test ports terminated in loads, full two-port
error correction for the 8753ES and enhanced­response error correction for the 8753ET (with
16 averages used during isolation), 10 Hz IF band­width (BW), maximum test port power, and no
averaging during the measurement.

Measurement Uncertainty

Measurement uncertainty curves utilize a Root
Sum Square (RSS) model for the contribution of
random errors such as noise, typical connector
repeatabilities, and test set switching; this is
combined with a worst-case model for the contri­butions of dynamic accuracy and residual system­atic errors.

Curves show the worst-case magnitude and phase
uncertainty for reflection and transmission meas­urements, after a full two-port error correction for
the 8753ES and enhanced-response error correc­tion for the 8753ET (including isolation with an
averaging factor of 16) using the specified cal kit,
with 10 Hz IF bandwidth (BW) and no averaging.

Measurement Port Characteristics

Characteristics show the residual system uncer­tainties for uncorrected performance and after
accuracy enhancement using full two-port error
correction for the 8753ES and enhanced-response
error correction for the 8753ET. These character­istics apply for an environmental temperature of
25° ± 5° C, with less than 1° C deviation from the
calibration temperature. Agilent 8753ET Option
004 may degrade transmission source match
as much as 2 dB, resulting in up to 0.05 dB addi­tional uncertainty in transmission tracking.

Corrected performance indicates residual error
after calibration. It is determined by the quality
of calibration standards, system repeatability,
stability, and noise.

Uncorrected performance indicates intrinsic errors
without calibration correction applied. This is
related to the ultimate stability of a calibration.

Definitions and Test Conditions

4

Agilent 8753ES (50-ohm systems)

7-mm test ports

Configuration

Network analyzer 8753ES

Standard and Option 006
Calibration kit 85031B
Test-port cables 11857D

System dynamic range

30 kHz to 50 kHz 70 dB

1

50 kHz to 300 kHz 90 dB

1

300 kHz to 16 MHz 100 dB
16 MHz to 3 GHz 110 dB

Option 014 108 dB

3 GHz to 6 GHz 105 dB

Option 014 103 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–

300 kHz

2

1.3 GHz 3 GHz 6 GHz

Directivity 55 dB 55 dB 51 dB 46 dB

Source match 55 dB 51 dB 49 dB 43 dB

Load match 55 dB 55 dB 51 dB 46 dB

Reflection ±(0.001 dB ±(0.001 dB ±(0.005 dB ±(0.020 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission ±(0.008 dB ±(0.006 dB ±(0.009 dB ±(0.021 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Uncorrected

Directivity 20 dB* 35 dB 30 dB 25 dB

Source match 18 dB** 16 dB 16 dB 14 dB

Load match 18 dB** 18 dB 16 dB 14 dB

Reflection ±2.5 dB ±1 dB ±1 dB ±1.5 dB
tracking

Transmission ±2.5 dB ±1 dB ±1 dB ±1.5 dB
tracking

Crosstalk 90 dB*** 100 dB 100 dB 90 dB

*15 dB, 30 kHz to 50 kHz **10 dB, 30 kHz to 50 kHz ***60 dB, 30 kHz to 50 kHz

System Performance Summaries

1. Typical below 300 kHz.

2. Typical performance.

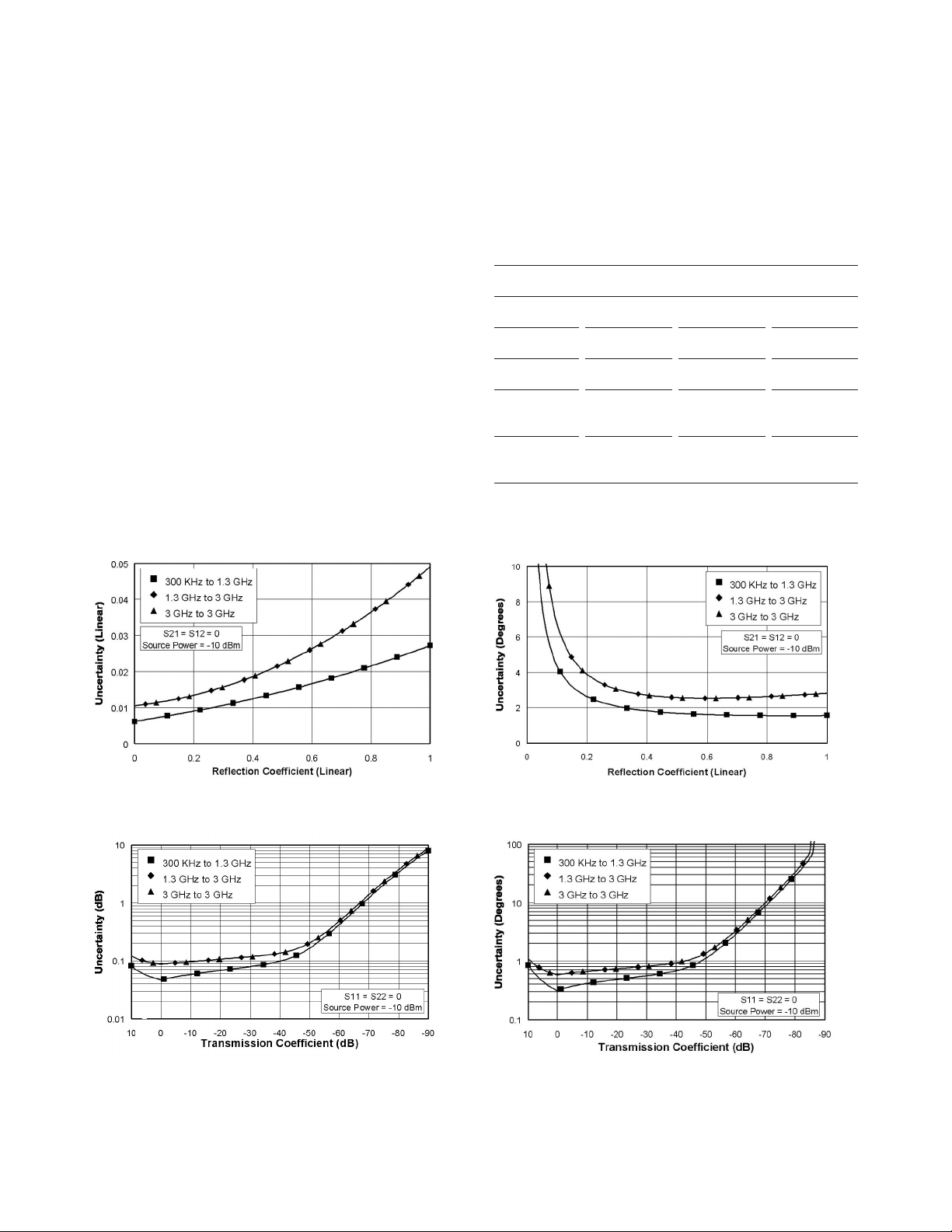

Reflection uncertainty

Magnitude Phase

Magnitude Phase

Transmission uncertainty

5

Agilent 8753ES (50-ohm systems)

Type-N test ports

Configuration

Network analyzer 8753ES

Standard and Option 006
Calibration kit 85032B
Test-port cables 11857D

System dynamic range

30 kHz to 50 kHz 70 dB

1

50 kHz to 300 kHz 90 dB

1

300 kHz to 16 MHz 100 dB
16 MHz to 3 GHz 110 dB

Option 014 108 dB

3 GHz to 6 GHz 105 dB

Option 014 103 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–

300 kHz

2

1.3 GHz 3 GHz 6 GHz

Directivity 50 dB 50 dB 47 dB 40 dB

Source match 49 dB 42 dB 36 dB 31 dB

Load match 50 dB 50 dB 47 dB 40 dB

Reflection ±(0.005 dB ±(0.009 dB ±(0.019 dB ±(0.070 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission ±(0.014 dB ±(0.013 dB ±(0.026 dB ±(0.065 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission uncertainty

1. Typical below 300 kHz.

2. Typical performance.

Magnitude Phase

Magnitude Phase

Reflection uncertainty

6

Agilent 8753ES (50-ohm systems)

3.5-mm test ports

Configuration

Network analyzer 8753ES

Standard and Option 006
Calibration kit 85033D
Test-port cables 11857D

System dynamic range

30 kHz to 50 kHz 70 dB

1

50 kHz to 300 kHz 90 dB

1

300 kHz to 16 MHz 100 dB
16 MHz to 3 GHz 110 dB

Option 014 108 dB

3 GHz to 6 GHz 105 dB

Option 014 103 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–

300 kHz

2

1.3 GHz 3 GHz 6 GHz

Directivity 49 dB 46 dB 44 dB 38 dB

Source match 49 dB 44 dB 41 dB 37 dB

Load match 49 dB 46 dB 44 dB 38 dB

Reflection ±(0.010 dB ±(0.005 dB ±(0.007 dB ±(0.009 dB
tracking +0.02/°C) +0.01/°C) +0.02/°C) +0.03/°C)

Transmission ±(0.016 dB ±(0.014 dB ±(0.022 dB ±(0.048 dB
tracking +0.02/°C) +0.01/°C) +0.02/°C) +0.03/°C)

System Performance Summaries

1. Typical below 300 kHz.

2. Typical performance.

Transmission uncertainty

Magnitude Phase

Magnitude Phase

Reflection uncertainty

Agilent 8753ES (75-Ohm Systems)

Type-N test ports

Configuration

Network analyzer 8753ES Option 075
Calibration kit 85036B
Test-port cables 11857B

System Dynamic Range

30 kHz to 50 kHz 68 dB

1

50 kHz to 300 kHz 90 dB

1

300 kHz to 16 MHz 96 dB
16 MHz to 3 GHz 106 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz–300 kHz2300 kHz–1.3 GHz 1.3 GHz–3 GHz

Directivity 48 dB 48 dB 43 dB

Source match 47 dB 41 dB 35 dB

Load match 48 dB 48 dB 43 dB

Reflection ±(0.004 dB ±(0.010 dB ±(0.019 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

Transmission ±(0.018 dB ±(0.016 dB ±(0.033 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

Uncorrected

2

Directivity 20 dB* 35 dB 30 dB

Source match 16 dB** 16 dB 16 dB

Load match 15 dB** 18 dB 16 dB

Reflection ±2.5 dB ±1 dB ±1 dB
tracking

Transmission ±2.5 dB ±1 dB ±1 dB
tracking

Crosstalk 90 dB*** 100 dB 100 dB

*15 dB, 30 to 50 kHz **10 dB, 30 to 50 kHz ***60 dB, 30 to 50 kHz

7

1. Typical below 300 kHz.

2. Typical performance.

Transmission uncertainty

Magnitude Phase

Magnitude Phase

Reflection uncertainty

8

Agilent 8753ES (75-ohm systems)

Type-F test ports

Configuration

Network analyzer 8753E Option 075
Calibration kit 85039B
Test-port cables 11857B

System dynamic range

30 kHz to 50 kHz 68 dB

1

50 kHz to 300 kHz 90 dB

1

300 kHz to 16 MHz 96 dB
16 MHz to 3 GHz 106 dB

Measurement Port Characteristics

Data is shown for a Type-F female reflection port and
a Type-F male transmission port.

Frequency Range

Corrected

2

30 kHz–300 kHz 300 kHz–1.3 GHz 1.3 GHz–3 GHz

Directivity 45 dB 45 dB 40 dB

Source match 40 dB 40 dB 30 dB

Load match 45 dB 45 dB 40 dB

Reflection ±(0.060 dB ±(0.060 dB ±(0.024 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

Transmission ±(0.033 dB ±(0.019 dB ±(0.057 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

System Performance Summaries

1. Typical below 300 kHz.

2. Typical performance.

Transmission uncertainty

Magnitude Phase

Magnitude Phase

Reflection uncertainty

9

1. One-port or enhanced-response calibration.

2. Enhanced-response or response-only calibration.

3. 2 dB less with Option 004.

4. Option 004 may degrade uncorrected source
match as much as 2 dB.

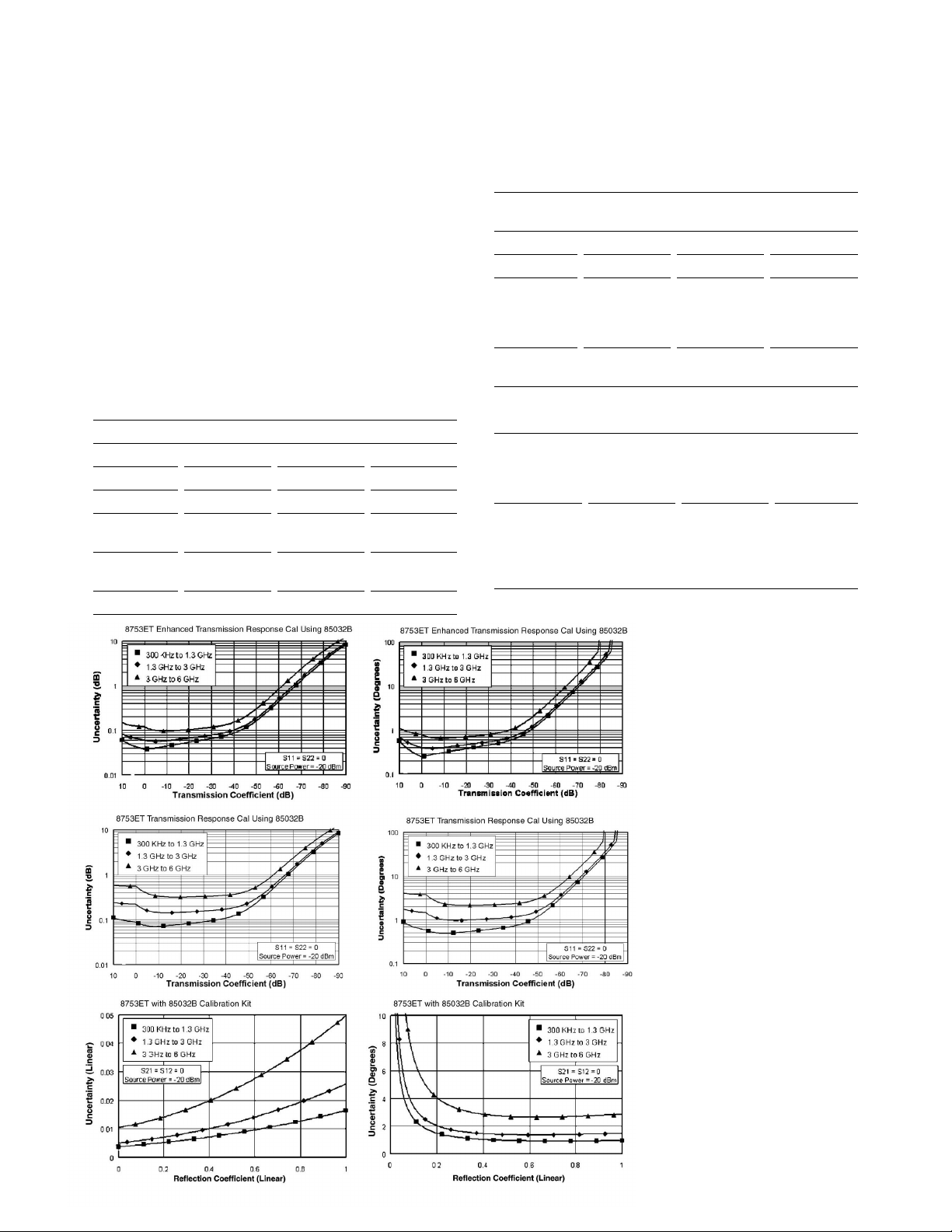

Transmission uncertainty
(enhanced-response calibration)

Transmission uncertainty
(response calibration)

Reflection uncertainty
(one-port calibration)

Agilent 8753ET (50-ohm systems)

Type-N test ports

Configuration

Network analyzer 8753ET Standard,

Option 006, or Option 004
Calibration kit 85032B
Test port cable Part number 8120-4781

System dynamic range

300 kHz to 16 MHz 100 dB
16 MHz to 3 GHz 110 dB
3 GHz to 6 GHz 105 dB

Measurement Port Characteristics

Frequency Range

Uncorrected 300 kHz–1.3 GHz 1.3 GHz–3.0 GHz 3.0 GHz–6.0 GHz

Directivity 30 dB 24 dB 19 dB

Source match425 dB 20 dB 14 dB

Load match 24 dB 19 dB 16 dB

Reflection ±1.0 dB ±1.0 dB ±2.0 dB
tracking

Transmission ±1.5 dB ±1.5 dB ±2.5 dB
tracking

Crosstalk 100 dB 100 dB 90 dB

Measurement Port Characteristics (continued)

Corrected

Reflection
measurements1300 kHz–1.3 GHz 1.3 GHz–3.0 GHz 3.0 GHz–6.0 GHz

Directivity 50 dB 47 dB 40 dB

Source match 42 dB 36 dB 31 dB

Load match

One-port cal 24 dB 19 dB 16 dB
Enhanced- 24 dB 19 dB 16 dB

reflection cal

Reflection ±(0.009 dB ±(0.019 dB ±(0.07 dB
tracking +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission
measurements

2

Source match

Enhanced- 42 dB 36 dB 31 dB

response cal

Response-only cal325 dB 20 dB 14 dB

Transmission tracking

Enhanced- ±(0.006 dB ±(0.018 dB ±(0.054 dB

response cal +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Response-only cal ±(0.033 dB ±(0.1 dB ±(0.27 dB

+0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

10

Test-Port Output Characteristics

7

Frequency characteristics

Range 30 kHz to 3 GHz

Option 006 30 kHz to 6 GHz
Resolution 1 Hz
Stability

9

±7.5 ppm (0° to 55° C)
±3 ppm/year

Accuracy ±10 ppm at 25° ±5° C

Option 1D5 ±0.05 ppm (0° to 55° C),

±0.5 ppm/year

Power range

2

-85 to +10 dBm

Option 075/014 -85 to +8 dBm

Power sweep range 25 dB (typically 31 dB)
Resolution 0.01 dB
Level accuracy

1,2,5

±1.0 dB

Level linearity

1,2,5

-15 dBm to +5 dBm ±0.2 dB
5 dBm to 10 dBm6±0.5 dB

Impedance

9

50 Ω (nominal)

30 kHz to 3 GHz >16 dB RL (<1.38 SWR)
3 GHz to 6 GHz >14 dB RL (<1.50 SWR)

Option 075 75 Ω (nominal)

30 kHz to 3 GHz >16 dB RL (<1.38 SWR)

Spectral purity

2nd harmonic

3

<-40 dBc at 0 dBm

9

<-50 dBc at -10 dBm

9

Option 002 <-25 dBc at 10 dBm

6

3rd harmonic

4

<-40 dBc at 0 dBm

9

<-50 dBc at -10 dBm

9

Option 002 <-25 dBc at 10 dBm

6

Nonharmonic spurious

9

Mixer related <-30 dBc at 10 dBm

6

<-55 dBc at -10 dBm

Test-Port Input Characteristics

Frequency range 30 kHz to 3 GHz

Option 006 30 kHz to 6 GHz

Average noise level

2,8

<3 GHz <-82 dBm (3 kHz BW)
<3 GHz <-102 dBm (10 Hz BW)
<3 GHz <-110 dBm (10 Hz BW) typical
3 to 6 GHz <-77 dBm (3 kHz BW)
3 to 6 GHz <-97 dBm (10 Hz BW)
3 to 6 GHz <-105 dBm (10 Hz BW)typical

Maximum input level 10 dBm
Damage level 26 dBm or 35 VDC

Impedance 50 Ω (nominal)

Option 075 75 Ω (nominal)

Frequency response

2,5

300 kHz to 3 GHz ±1.0 dB
3 GHz to 6 GHz ±2.0 dB

Internally generated harmonics (Option 002)

2nd harmonic

3

<-15 dBc at +8 dBm
<-30 dBc at 0 dBm

9

<-45 dBc at -15 dBm

9

3rd harmonic

4

<-30 dBc at +8 dBm
<-50 dBc at 0 dBm

9

<-50 dBc at -15 dBm

9

Harmonic measurement accuracy

10

300 kHz to 3 GHz ±1.5 dB
3 GHz to 6 GHz ±3 dB (Option 006)

Harmonic measurement dynamic range

-40 dBc (output = -10 dBm, input = <-15 dBm)

9

Frequency offset mode

11

Frequency range 300 kHz to 3 GHz

Option 006 300 kHz to 6 GHz

R-channel input requirements

Power level
300 kHz to 3 GHz 0 to -35 dBm
3 GHz to 6 GHz 0 to -30 dBm

LO spectral purity (typical)

Maximum spurious input <-25 dBc
Residual FM <20 kHz

LO frequency accuracy

9

±1 MHz at nominal frequency

Agilent 8753ES Specifications

1. Relative to 0 dBm output power.

2. Typical below 300 kHz.

3. 16 MHz to 3 GHz.

4. 16 MHz to 2 GHz.

5. Typical from 2 to 3 GHz for instruments with Option 075.

6. +8 dBm maximum with Option 075, or Option 014.

7. Test performed on port 1 only.

8. Instruments with Option 075 are degraded 2 dB.

9. Typical performance.

10. 25° ±5° C.

11. The Agilent 8753ES source characteristics and measurement accuracy in this
mode are dependent on the stability of the external LO source. The RF source
tracks the LO to maintain a stable IF signal at the R-channel receiver input.
Degradation in accuracy is negligible when using an Agilent 8642A/B, 8656B,
or E4432B RF signal generator as the LO source.

11

External source mode1(CW time sweep only)

Frequency range 300 kHz to 6 GHz
R-channel input requirements (typical)

Power level 0 to -25 dBm
Spectral purity

Maximum <-30 dBc
spurious input

Residual FM <20 kHz

Typical settling time 500 ms (automatic)

50 ms (manual)
Frequency readout accuracy 0.1% (automatic)
Input frequency accuracy requirement

2

Manual -0.5 to 5 MHz
Accuracy (see magnitude and phase

characteristics)

Magnitude Characteristics

Dynamic accuracy (10 Hz IF BW)

Display resolution 0.001 dB/division
Marker resolution

3

0.001 dB
Trace noise
(+5 dBm at test-port, ratio measurement, 3 kHz BW)

300 kHz to 3 GHz <0.006 dB rms
3 GHz to 6 GHz <0.010 dB rms

Reference level

Range ±500 dB
Resolution 0.001 dB

Stability

2

30 kHz to 3 GHz 0.02 dB/° C
3 GHz to 6 GHz 0.04 dB/° C

Phase Characteristics

Dynamic accuracy (10 Hz IF BW)
Range ±180°

Display resolution 0.01°/division
Marker resolution

3

0.01°
Trace noise
(+5 dBm at test-port, ratio measurement, 3 kHz BW)
300 kHz to 3 GHz <0.038° rms
3 GHz to 6 GHz <0.070° rms

Reference level

Range -180° to +180°
Resolution 0.01°

Stability

30 kHz to 3 GHz 0.05°/° C
3 GHz to 6 GHz 0.20°/° C

Polar characteristics

Range 10 x 10

–12

to 1000 units

full scale

Reference ±500 units

1. See the Agilent 8753ES descriptions and options for a functional description.
Measurement accuracy is dependent on the stability of the input signal.

2. Typical performance.

3. Marker resolution for magnitude; phase and delay is dependent upon measured
value. Resolution is limited to five digits.

12

Test Port Output Characteristics

Frequency characteristics

Range 300 kHz to 3 GHz

Option 006 30 kHz to 6 GHz
Resolution 1 Hz
Stability typically ±7.5 ppm 0° to 55° C

typically ±3 ppm/year

Option 1D5 typically ±0.05 ppm 0° to 55° C

typically ±0.5 ppm/year
Accuracy ±10 ppm at 25° ± 5° C
Power range -5 to +20 dBm

Option 006 -5 to +18 dBm

Resolution 0.01 dB
Level accuracy

1,2

±1.0 dB

Level linearity

1,2,5

±0.25 dB, -5 to +15 dBm

±0.5 dB, +15 to +20 dBm

Impedance 50 Ω nominal

300 kHz to 3 GHz2>16 dB RL (<1.38 SWR)
300 kHz to 6 GHz >14 dB RL (<1.50 SWR)

Spectral purity

2nd harmonic

3

<-40 dBc at +10 dBm

6

<-50 dBc at 0 dBm

6

Option 002 <-25 dBc at max power

3rd harmonic

4

<-40 dBc at +10 dBm

6

<-50 dBc at 0 dBm

6

Option 002 <-25 dBc at max power

Nonharmonic spurious

6

Mixer related <-30 dBc at max power

<-55 dBc at -10 dBm

Test Port Input Characteristics Option 011

Frequency range 300 kHz to 3 GHz

Option 006 30 kHz to 6 GHz

Average noise level

2

50 kHz to 3 GHz <-90 dBm (3 kHz BW)
50 kHz to 3 GHz <-110 dBm (10 Hz BW)
50 kHz to 3 GHz <-120 dBm (10 Hz BW) typical
3 to 6 GHz <-85 dBm (3 kHz BW)
3 to 6 GHz <-105 dBm (10 Hz BW)
3 to 6 GHz <-115 dBm (10 Hz BW) typical

Maximum input level 0 dBm
Damage level 20 dBm or 25 VDC
Impedance 50 ohms nominal

300 kHz to 2 MHz ≥20 dB RL
2 MHz to 1.3 GHz ≥24 dB RL

1.3 GHz to 3 GHz ≥19 dB RL

Option 006

3 GHz to 6 GHz ≥15 dB RL

6

Frequency response

300 kHz to 3 GHz ±1.0 dB
3 GHz to 6 GHz ±2.0 dB

Harmonics (Option 002)

2nd harmonic

3

<-15 dBc at 0 dBm
<-30 dBc at -10 dBm

6

<-45 dBc at -30 dBm

6

3rd harmonic

4

<-30 dBc at 0 dBm
<-50 dBc at -10 dBm

6

<-50 dBc at -30 dBm

6

Harmonic measurement accuracy

16 MHz to 3 GHz ±1.5 dB
3 GHz to 6 GHz Option 006 ±3 dB

Harmonic measurement dynamic range

-40 dBc6(output = -10 dBm, input <-15 dBm)

Agilent 8753ES Option 011 Specifications

1. +10 dBm output power for Agilent 8753ES Option 011.

2. Typical below 300 kHz.

3. 16 MHz to 3 GHz.

4. 16 MHz to 2 GHz.

5. For Agilent 8753ES Option 011 and Option 006, linearity is specified for the
ranges of -5 to +13 dBm and +13 to +18 dBm.

6. Typical performance.

13

Frequency offset mode

3

Frequency range 300 kHz to 3 GHz

Option 006 300 kHz to 6 GHz

R-channel input requirements

Power level
300 kHz to 3 GHz 0 to -35 dBm
3 GHz to 6 GHz 0 to -30 dBm

LO spectral purity

Maximum spurious input <-25 dBc
Residual FM <20 kHz

LO frequency accuracy ±1 MHz at nominal frequency

External source mode

4

(CW time sweep only)
Frequency range 300 kHz to 6 GHz
R-channel input requirements

1

Power level 0 to -25 dBm
Spectral purity

Maximum spurious <-30 dBc
input

Residual FM <20 kHz

Typical settling time

1

500 ms (automatic)

50 ms (manual)
Input frequency accuracy requirement

1

Manual -0.5 to 5 MHz
Display resolution 0.001 dB/division
Marker resolution

5

0.001 dB
Trace noise
(+5 dBm at test-port, ratio measurement, 3 kHz BW)
Magnitude

300 kHz to 3 GHz <0.006 dB rms
3 GHz to 6 GHz <0.010 dB rms

Phase

300 kHz to 3 GHz <0.038° rms
3 GHz to 6 GHz <0.070° rms

Reference level

Range ±500 dB
Resolution 0.001 dB

Stability

2

30 kHz to 3 GHz 0.02 dB/° C
3 GHz to 6 GHz 0.04 dB/° C

Range ±180°

Display resolution 0.01°/division
Marker resolution

5

0.01°

Trace noise

2

30 kHz to 3 GHz <0.038° rms
3 GHz to 6 GHz <0.070° rms

(+5 dBm at test port, ratio
measurement, 3 kHz BW)

Reference level

Range -180° to +180°
Resolution 0.01°

Stability

30 kHz to 3 GHz 0.05°/° C
3 GHz to 6 GHz 0.20°/° C

Polar characteristics

Range 10 x 10

–12

to 1000 units full

scale

Reference ±500 units

1. Typical performance.

2. Typical below 300 kHz.

3. The Agilent 8753ES source characteristics and measurement accuracy in this
mode are dependent on the stability of the external LO source. The RF source
tracks the LO to maintain a stable IF signal at the R-channel receiver input.
Degradation in accuracy is negligible when using an Agilent 8642A/B, 8656B,
or E4432B RF signal generator as the LO source.

4. See the Agilent 8753ES descriptions and options for a functional description.
Measurement accuracy is dependent on the stability of the input signal.

5. Marker resolution for magnitude, phase and delay is dependent upon
measured value. Resolution is limited to five digits.

14

Test-Port Output Characteristics

Frequency characteristics

Range 300 kHz to 3 GHz

Option 006 300 kHz to 6 GHz
Resolution 1 Hz
Stability

4

±7.5 ppm (0° to 55° C)
±3 ppm/year

Option 1D5 ±0.05 ppm (0° to 55° C)

±0.5 ppm/year
Accuracy ±10 ppm at 25° ±5° C
Power range -20 to +5 dBm

-85 to +10 dBm

(with Option 004)

Resolution 0.01 dB
Level accuracy

1

±1.0 dB

Level linearity

1

Standard

-20 to -15 dBm ±0.5 dB

-15 to 0 dBm ±0.2 dB
0 to +5 dBm ±0.5 dB

Option 004

-15 to +5 dBm ±0.2 dB
+5 to +10 dBm ±0.5 dB

Impedance 50 Ω (nominal)

300 kHz to 3 GHz >18 dB RL (< 1.28 SWR)
3 GHz to 6 GHz >14 dB RL (<1.50 SWR)

Spectral purity

2nd harmonic

2

<-40 dBc at 0 dBm

4

<-50 dBc at -10 dBm

4

Option 002 <-25 dBc at maximum output

power
3rd harmonic

3

<-40 dBc at 0 dBm

<-50 dBc at -10 dBm

Option 002 <-25 dBc at maximum output

power

Nonharmonic spurious

Mixer related <-30 dBc at +10 dBm

<-55 dBc at -10 dBm

Test Port Input Characteristics

Frequency range 300 kHz to 3 GHz

Option 006 300 kHz to 6 GHz

Average noise level

300 kHz to 3 GHz <-90 dBm (3 kHz BW)
300 kHz to 3 GHz <-110 dBm (10 Hz BW)
300 kHz to 3 GHz <-120 dBm (10 Hz BW)

typical
3 GHz to 6 GHz <-85 dBm (3 kHz BW)
3 GHz to 6 GHz <-105 dBm (10 Hz BW)
3 GHz to 6 GHz <-114 dBm (10 Hz BW)

typical
Maximum input level +10 dBm reflection port

0 dBm transmission port

Damage level >+26 dBm or 35 VDC

Impedance 50 Ω (nominal)

Frequency response

5

300 kHz to 3 GHz ±1.0 dB
3 GHz to 6 GHz ±2.0 dB

Harmonics (Option 002)

2nd harmonic

2

<-15 dBc at +8 dBm
<-30 dBc at 0 dBm

4

<-45 dBc at -15 dBm

4

3rd harmonic

3

<-30 dBc at +8 dBm
<-50 dBc at 0 dBm

4

<-50 dBc at -15 dBm

4

Harmonic measurement accuracy

5

300 kHz to 3 GHz ±1.5 dB
3 GHz to 6 GHz ±3 dB (Option 006)

Harmonic measurement dynamic range

4

-40 dBc (output = -10 dBm, input = <-15 dBm)

Frequency offset mode

6

Frequency range 300 kHz to 3 GHz

Option 006 300 kHz to 6 GHz

R-channel input requirements

Power level
300 kHz to 3 GHz 0 to -35 dBm
3 GHz to 6 GHz 0 to -30 dBm

LO Spectral purity

Maximum spurious input <-25 dBc
Residual FM <20 kHz

LO frequency accuracy

6

±1 MHz at nominal frequency

Agilent 8753ET Specifications

1. Relative to -5 dBm output power for the Agilent 8753ET; -10 dBm output power
for 8753ET with Option 004.

2. 16 MHz to 3 GHz.

3. 16 MHz to 2 GHz.

4. Typical performance.

5. 25° C ± 5° C.

6. The Agilent 8753ET source characteristics and measurement accuracy in this
mode are dependent on the stability of the external LO source. The RF source
tracks the LO to maintain a stable IF signal at the R-channel receiver input.
Degradation in accuracy is negligible when using an Agilent 8642A/B, 8656B,
or E4432B RF signal generator as the LO source.

15

External source mode1(CW time sweep only)

Frequency range 300 kHz to 6 GHz
R-channel input requirements

2

Power level 0 to -25 dBm
Spectral purity
Maximum spurious input <-30 dBc
Residual FM <20 kHz

Typical settling time 500 ms (automatic)

50 ms (manual)

Frequency readout accuracy20.1% (automatic)

Input frequency accuracy requirement

2

Manual -0.5 to 5 MHz
Accuracy (See magnitude and phase

characteristics)

Magnitude characteristics

Dynamic accuracy (10 Hz IF BW)

Display resolution 0.001 dB/division
Marker resolution

3

0.001 dB
Trace noise
(0 dBm at transmission port or +5 dBm at reflection port,
ratio measurement, 3 kHz BW)

300 kHz to 3 GHz <0.006 dB rms
3 GHz to 6 GHz <0.010 dB rms

Reference level

Range ±500 dB
Resolution 0.001 dB

Stability

2

300 kHz to 3 GHz 0.02 dB/1° C
3 GHz to 6 GHz 0.04 dB/1° C

Phase Characteristics

Dynamic accuracy (10 Hz IF BW)
Range ±180°

Display resolution 0.01°/division
Marker resolution

3

0.01°
Trace noise
(0 dBm at transmission port or +5 dBm at reflection
port, ratio measurement, 3 kHz BW)
300 kHz to 3 GHz <0.038° rms
3 GHz to 6 GHz <0.070° rms

Reference level

Range -180° to +180°
Resolution 0.01°

Stability

30 kHz to 3 GHz 0.05°/° C
3 GHz to 6 GHz 0.20°/° C

Polar characteristics

Range 10 x 10

–12

to 1000 units full

scale

Reference ±500 units

1. See the Agilent 8753ET/ES descriptions and options for a functional description.
Measurement accuracy is dependent on the stability of the input signal.

2. Typical performance.

3. Marker resolution for magnitude, phase and delay is dependent upon measured
value. Resolution is limited to five digits.

Measurement

Number of display channels

Four display channels available.

Number of measurement channels

Two primary and two auxiliary measurement
channels available.

Measurement parameters

8753ET: Reflection, transmission, A, B, R, A/R,
B/R, A/B. Conversion to impedance or admittance.
8753ES: S11, S21, S12, S22, A, B, R, A/R, B/R, A/B.
Conversion to impedance or admittance.

Formats

Cartesian: log/linear magnitude, phase, group
delay, SWR, real and imaginary.

Smith chart: with log/linear amplitude and phase,
R + jX, G + jB, or real/imaginary markers.

Polar: with linear/log amplitude, phase, or real and
imaginary markers.

Data markers

Each display channel has five independent markers
that can be displayed simultaneously. Twenty inde­pendent markers can be displayed in 4-channel
display mode when markers are uncoupled.

Marker functions

Markers can be used in various functions: Marker
search (Mkr to max, Mkr to min, Mkr to target),
Mkr bandwidth with user-defined target values,
Mkr to start, Mkr to stop, Mkr to center, Mkr to
span, Mkr to reference, Mkr to delay, and trace sta­tistics (average value, standard deviation, and peak­to-peak deviation of the data trace between two
markers). The tracking function enables continuous
update of marker search values on each sweep.

Group Delay Characteristics

Aperture: selectable

Maximum aperture: 20% of frequency span
Minimum aperture: (freq. span) / (number of
points +1)

Range

The maximum delay is limited to measuring no
more than 180° of phase change within the mini­mum aperture. Range = 1/(2 x minimum aperture)

Accuracy

The following graph shows group-delay accuracy
at 1.3 GHz with type-N full two-port calibration
and 10-Hz IF bandwidth. Insertion loss is assumed
to be <2 dB and electrical length to be ten meters.

Source Control

Sweep limits

Set start/stop or center/span of the stimulus
parameter (frequency, power, time) directly
through the source control keys and the control
knob, the step keys or the data entry keyboard.

Sweep type

Set a linear or logarithmic sweep, an arbitrarily
defined frequency list, a power sweep or a CW
(single frequency) type of sweep.

Measured number of points per sweep

Linear frequency: choose 3, 11, 26, 51, 101, 201,
401, 801, or 1601 points.

Fast swept list

Define up to 30 different sub-sweep frequency
ranges in any combination of CW, center/span, or
start-stop sweep modes. Set test-port power levels
and IF bandwidth independently for each segment.

Sweep modes

Set a coupled channel sweep (same stimulus conditions
on both channels) or an uncoupled channel sweep.

Chop/alternate

Select whether to alternately or simultaneously
(chop) measure channels when in dual-channel
mode. Chop mode is faster, while alternate mode
optimizes dynamic range.

Sweep time

Set sweep time in seconds, minutes, or hours.

Automatic sweep time

Select auto sweep time by entering zero seconds
sweep time. The analyzer will sweep at the minimum
sweep time for any subsequently selected stimulus
conditions. Auto sweep time is the default condition.

16

Agilent 8753ET/ES Supplemental Characteristics

17

Sweep trigger

Set to either continuous, single, group sweep, or
external trigger. Set external trigger to take a com­plete sweep or to measure individual points in a
frequency, power or list sweep.

Power

Set source power from -20 to +5 dBm for the
8753ET1or from -85 to +10 dBm for the 8753ES2.
Power slope can be set in dBm/GHz.

Power Meter Calibration

Select continuous leveling or use a correction table
to modify source power. The correction table is
created with an initial single sweep. Make single or
multiple power meter readings at each frequency.

Data Accuracy Enhancement

Measurement calibration

Measurement calibration significantly reduces
measurement uncertainty due to errors caused
by system directivity, source and load match,
tracking, and crosstalk. Full two-port calibration
removes all the systematic errors to obtain the
most accurate measurements.

Calibration types available

• Frequency response

Simultaneous magnitude and phase correction
of frequency response errors for either reflec­tion or transmission measurements.

• Response and isolation

Compensates for frequency response and direc­tivity (reflection) or frequency response and
crosstalk errors.

• Enhanced response calibration

Corrects for frequency response and source
match for transmission measurements, and
provides one-port calibration for reflection
measurements.

• One-port calibration

Uses test set port 1 or port 2 to correct for
directivity, frequency response and source
match errors.

• Two-port calibration

Compensates for directivity, source match,
reflection frequency response, load match,
transmission frequency response and crosstalk
for an S-parameter test set. Crosstalk calibration
can be omitted. Available on 8753ES analyzers.

• TRL*/LRM* calibration

Compensates for directivity, reflection and
transmission frequency response, and crosstalk
in both the forward and reverse directions.

Especially suitable for calibrating non­coaxial environments, such as in test fixtures.
TRL*/LRM* is a special implementation of
TRL/LRM calibration, modified for the three­sampler receiver in the 8753ES. Available
on Agilent 8753ES analyzers.

Interpolated error correction

With any type of accuracy enhancement applied,
interpolated mode recalculates the error coeffi­cients when the test frequencies are changed. The
number of points can be increased or decreased
and the start/stop frequencies can be changed, but
the resulting frequency span must be a subset of
the original calibration frequency span. System
performance is not specified for measurements
with interpolated error correction applied.

Velocity factor

Enters the velocity factor to calculate equivalent
electrical length.

Reference plane extension

Redefine the plane-of-measurement reference to other
than port 1 or port 2 of the 8753ET and 8753ES.

Select default calibration kit

Select from a list of standard calibration kits or
choose a user-defined kit.

Data Averaging

IF bandwidth

The IF bandwidth is selectable from 6 kHz to 10 Hz.

Weighted sweep-to-sweep averaging

Averages vector data on each successive sweep.

Trace smoothing

Computes the moving average of adjacent data
points. Smoothing aperture defines the trace
width (number of points) to be averaged, and
ranges from 0.25% to 20% of the trace width.

Display Control

Display formats

Single-channel, dual-channel overlay (both traces
on one graticule), dual-channel split (each trace
on separate graticules), three-channel split (each
trace on separate graticules), three-channel overlay
(three traces on one graticule), quad-channel over­lay (four traces on one graticule), quad-channel
split (each trace on separate graticules).

1. -85 to +5 dBm with Option 004.

2. +8 dBm maximum with Option 075 or 014.

18

Trace Functions

Display data

Display current measurement data, memory data,
or current measurement with measurement and
memory data simultaneously.

Trace math

Vector division or subtraction of current linear
measurement values and memory data.

Display annotations

Start/stop, center/span, or CW frequency, source
level, scale/div, reference level, marker data,
softkey functions, warning and caution messages,
trace identification, and pass/fail indication.

Autoscale

Automatically selects scale resolution and refer­ence value to center the trace.

Electrical delay

Offset measured phase or group delay by a defined
amount of electrical delay, in seconds.

Frequency blanking

Blank out all frequency information on the
display. Requires an instrument preset to
re-enable frequency information on the display.

Title

Add custom titles (49 characters maximum) to
the display.

Adjust display

Customize the color and brightness of the data
traces, memory traces, reference lines, graticules,
text, and warning messages. Default colors can
be recalled along with one set of user-defined
display values.

Storage

Instrument state

Up to 31 instrument states can be stored internally
or recalled via the SAVE/RECALL menu. Instrument
states include all control settings, active limit lines,
active list frequency tables, memory trace data,
active calibration coefficients, and custom display
titles. Storage is in nonvolatile memory.

Test sequences

Six measurement sequences can be stored or
recalled via the sequencing menu. Sequences may
also be recalled from Preset menu. Sequence reg­ister 6 is part of nonvolatile storage and is not
erased during a power cycle. If sequence 6 is titled
AUTO, it will be executed when power is turned on.

Disk drive

Data, instrument states, user graphics, data plots
and test sequences can be stored on internal floppy
disk in MS-DOS® or Agilent’s standard LIF formats.

Data Hardcopy

Data plotting

Hardcopy plots are automatically produced with
HP-GL compatible digital plotters. The 8753ET/ES
provides Centronics, RS-232C, and GPIB interfaces.

Data listings

Printouts of instrument data are directly produced
with a printer such as the HP DeskJet or LaserJet.
Select black & white or color print. For a list of
compatible printers, consult our printer compati­bility guide Web page at www.agilent.com/find/pcg

Configure plots

Configure plots completely from the network ana­lyzer by defining pen color and line type for data,
text markers, graticules, and memory traces.

Functions

Plot trace(s), graticule(s), marker(s), or text includ­ing operating and system parameters.

Quadrants

Plot entire display in one of four different quad­rants of the plotter paper.

System Capabilities

Limit lines

Define test limit lines that appear on the display
for go/no go testing. Lines may be any combination
of horizontal, sloping lines, or discrete data points.
Limit-test TTL output available for external control
or indication.

External source mode

The receiver (input R) detects and phase-locks to
any externally generated CW signal. Receiver
inputs A and B will measure this same frequency
for comparison or tracking measurements.

Automatic: The input signal frequency is counted
and displayed.

Manual: Measures the input signal closest to the fre­quency specified by the user (within +0.5 to +5 MHz).

Tuned receiver

Tunes the receiver for a synthesized CW input
signal at a precisely specified frequency. The time
bases of the external RF source or sources must
be tied to the external reference input (rear panel
BNC). The built-in RF source is not used.

Agilent 8753ET/ES Supplemental Characteristics (continued)

19

Frequency offset on/off

Sets the RF source to be swept at a fixed offset
frequency above the receiver as required in a swept
RF/IF, fixed LO, mixer test.

Service menu

Select the desired service test, service diagnostic,
service or verification mode.

Test Sequences

Description

Create, edit, save, or recall a series of front-panel key­strokes to automate a measurement. Test sequences
may contain basic stimulus and measurement func­tions (frequency, power, parameter, format, scale)
advanced operations (time domain, limit testing,
display marker values) and basic logical branching
(IF limit test fails DO sequence 5 or GOSUB).

Storage

Test sequences can be stored internally to a disk
drive and can be loaded from a computer over the
GPIB interface. Sequence 6 is saved in nonvolatile
storage and can be used as an autostart routine
when titled AUTO.

General purpose input/output

Read or write bits to the output port to control
external devices such as part handlers. Eight
output and five input TTL lines are available on
the parallel port.

Other functions

PAUSE/continue, wait, title sequence, print
sequence, duplicate sequence, pause, and select.

Time-domain (Option 010)

With the time-domain option, data from transmis­sion or reflection measurements in the frequency
domain are converted to the time domain using
a Fourier transformation technique (chirp Z) and
presented on the display. The time-domain response
shows the measured parameter value versus time.
Markers may also be displayed in electrical length
(or physical length if the relative propagation veloc­ity is entered).

Time stimulus modes

Two types of time excitation stimulus waveforms
can be simulated during the transformations,
a step and an impulse.

• Low-pass step

This stimulus, similar to a traditional time­domain reflectometer (TDR) stimulus wave­form, is used to measure low-pass devices. The
frequency-domain data should extend from
DC (extrapolated value) to a higher value.

• Low-pass impulse

This stimulus is also used to measure low-pass
devices.

• Bandpass impulse

The bandpass impulse stimulates a pulsed RF
signal (with an impulse envelope) and is used
to measure the time-domain response of band­limited devices.

Windows

The windowing function can be used to modify
(filter) the frequency-domain data and thereby
reduce overshoot and ringing in the time-domain
response. Three types of windows are available:
minimum, normal, and maximum.

Gating

The gating function can be used to selectively
remove reflection or transmission time-domain
responses. In converting back to the frequency­domain the effects of the responses outside the
gate are removed.

Remote Programming

Interface

GPIB interface operates to IEEE 488-1978 and IEC
625 standards and IEEE 728-1982 recommended
practices.

Addressing

The GPIB address can be verified or set from the
front panel via the local menu and can range from
0 to 30 decimal (factory set at 16).

Pass control

Allows the 8753ET/ES to request control of the
GPIB (when an active controller is present) when­ever it needs to output to a plotter or printer.

System controller

Lets an 8753ET/ES become a controller on the
GPIB to directly control a plotter or a printer.

Talker/listener

Lets the 8753ET/ES become a GPIB talker/listener
when an external controller is present.

Transfer formats

Binary (internal 48-bit f loating-point complex
format) ASCII 32- or 64-bit IEEE 754 floating­point format.

User-accessible graphics

Using a subset of HP Graphics Language (HP-GL),
vector or text graphics may be written on the
8753ET/ES via GPIB. Up to 5 kbytes of data can
be stored at one time (4 bytes per vector, 2 bytes
per character).

Interface function codes

SH1, AH1, T6, TE0, L4, LE0, SR1, RL1, PP0, DC1,
DT0, C1, C2, C3, C10, E2

20

Front Panel Connectors

8753ES test ports (without Option 011)

Connector type 7 mm, precision
Impedance 50 ohms (nominal)

8753ES Option 011 test ports

Connector type Type-N female
Impedance 50 ohms (nominal)

8753ES Option 075 test ports

Connector type Type-N female
Impedance 75 ohms (nominal)

8753ET test ports

Connector type Type-N female
Impedance 50 ohms (nominal)

Probe power

+15V ±2% 400 mA

(combined load for both probe connections)

-12.6V ±5.5% 300 mA
(combined load for both probe connections)

Rear-Panel Connectors

External reference frequency input (EXT REF INPUT)

Frequency 1, 2, 5, and 10 MHz

(±200 Hz at 10 MHz)
Level -10 dBm to +20 dBm, typical
Impedance 50 ohms
Connector BNC (f)

High-stability frequency reference output (Option 1D5)

Frequency 10.0000 MHz
Frequency stability ±0.05 ppm

(0° to 55° C)

Daily aging rate <3x10–9/day

(after 30 days)
Yearly aging rate 0.5 ppm/year
Output 0 dBm minimum

Nominal output impedance 50 Ω Connector BNC (f)

External auxiliary input (AUX INPUT)

Input voltage limits -10V to +10V

External AM input (EXT AM)

±1 volt into a 5 k Ω resistor, 1 kHz maximum,

resulting in approximately 8 dB/volt amplitude modulation.
BNC (f) connector.

External trigger (EXT TRIGGER)

Triggers on a negative TTL transition or contact closure
to ground. BNC (f) connector.

Test sequence output (TEST SEQ)

By default, this connector outputs a TTL end-of­sweep signal. It can also be programmed by the
user in a test sequence to output a user-defined
TTL signal. BNC (f) connector.

Limit test output (LIMIT TEST)

This connector outputs a TTL signal of the limit
test results. Pass: TTL high. Fail: TTL low. BNC (f)
connector.

Test-port bias input (BIAS CONNECT) (8753ES only)

Maximum voltage +30 VDC
Maximum current ±200 mA
(no degradation in RF specs)
Maximum current ±1 A
Connector BNC (f)

VGA video output (EXT MON)

This connector drives external VGA monitors.

GPIB

This connector allows communications with
compatible devices including external controllers,
printers, plotters, disk drives, and power meters.

Parallel port

This 25-pin female connector is used with parallel
peripherals. It can also be used as a general
purpose I/O port.

RS-232C

This 9-pin male connector is used with serial
peripherals.

DIN keyboard

This mini-DIN connector is used for adding an
IBM PC-AT compatible keyboard.

Test set interconnect

This connector is used to connect an 8753ES
Option 011 to the 85046A/B or 85047A test set.
8753ES analyzers without Option 011 can use
signal levels on this connector for sequencing
or general purpose I/O applications.

Internal memory

Typical data retention time with 3V, 1.2 Ah battery:
At 25° C 11,904 days (32.6 years)
At 40° C 1244 days (3.4 years)
At 70° C 250 days (0.68 year)

Line power

48 Hz to 66 Hz
115V nominal (90V to 132V) or 230V nominal (198V to 264V).
280 VA max.

General Characteristics

21

General Conditions

RFI and EMI susceptibility: defined by VDE 0730,
CISPR Publication 11, and FCC Class B Standards.

ESD (electrostatic discharge): must be eliminated
by use of static-safe work procedures and an anti­static bench mat. The flexible rubber keypad pro­tects key contacts from dust, but the environment
should be as dust-free as possible for optimal relia­bility.

Operating conditions

Temperature 0° to 55° C
(unless otherwise noted)
Humidity 5% to 95% at 40° C

(non-condensing)

Altitude 0 to 4500 meters

(15,000 feet)

Non-operating storage conditions

Temperature -40° C to +70° C

Humidity 0 to 90% relative at +65° C

(non-condensing)

Altitude 0 to 15,240 meters

(50,000 feet)

Weight (8753ET/ES)

Net 21 kg (46 lb)
Shipping 35 kg (77 lb)

Cabinet Dimensions (8753ET/ES)

(These dimensions exclude front and rear panel
protrusions.)

222 mm H x 425 mm W x 457 mm D
(8.75 in x 16.75 in x 18.0 in)

The following table shows typical measurement
times in milliseconds.

Typical Time for Completion (msec)

Number of Points

Measurement 51 201 401 1601

Start=1 GHz, Span=10 MHz, IFBW=6 kHz

Uncorrected, 1-port calibration

1

32 70 121 423

Two-port calibration

2

62 139 240 848

Start=30 kHz, Stop=3 GHz, IFBW=6 kHz

Uncorrected, 1-port calibration

1

202 270 304 615

Two-port calibration

2

402 540 607 1237

Start=30 kHz, Stop=6 GHz, IFBW=6 kHz

Uncorrected, 1-port calibration

1

310 380 415 658

Two-port calibration

2

618 757 829 1315

Time domain
(increase over uncorrected sweep time)

3

Conversion 12 42 86 378
Gating 14 40 80 349

GPIB data transfer

4

Internal binary 10 16 21 58
ASCII 35 112 214 831
IEEE 754 floating point format

32-bit 11 19 28 83
64-bit 13 26 42 141

Options

Harmonic measurements (Option 002)

Measures amplifier 2nd and 3rd harmonics on
a swept-frequency basis for fundamental signals
above 16 MHz.

Dynamic Range (source at +10 dBm, receiver <+30 dBm)

+40 dBc (minimum)

Accuracy

5

±1 dB (<6 GHz)

Step attenuator (Option 004)

Provides source output power range from

-85 to +10 dBm for 8753ET model.

6 GHz operation (Option 006)

With Option 006, performance is extended to
6 GHz. When external source, tuned receiver or
harmonic mode is used, the receiver is capable
of measuring signals up to 6 GHz.

Time domain (Option 010)

Transforms data from the frequency domain to the
time domain using a Fourier transformation technique.

High-stability frequency reference (Option 1D5)

This option adds an ovenized 10-MHz frequency
reference output. It is connected to the external
reference input on the rear panel. See the “General
Characteristics” section for below specifications.

Environmental Characteristics Measurement Throughput Summary

1. One-port calibration, with a 6 kHz IF bandwidth. Includes system retrace time,
but does not include bandswitch time. Time-domain gating is assumed off.

2. Same as footnote 1, but for an S21 measurement with full two-port calibration.
Includes RF switching time.

3. Option 010 only, gating off.

4. Measured with an Omnibook 7100 266 MHz Pentium

®

II computer.

5. Does not include error from the 8753T/ES source and receiver harmonics.

Agilent 8753ET/ES
Physical dimensions

22

Agilent 85046A/B S-Parameter Test Sets

The 85046A/B S-parameter test sets provide the
capability to measure reflection and transmission
characteristics (including S-parameters) of two­port devices in either direction with a single
connection. The test sets are controlled from the
8753ES Option 011 and include a programmable
step attenuator. The frequency range of the 85046A
50-ohm test set is 300 kHz to 3 GHz. The 85046A
has precision 7-mm connectors. The frequency
range of the 85046B 75-ohm test set is 300 kHz to
2 GHz. The 85046B has 75-ohm type-N(f) connec­tors. Both connectors can be adapted to other inter­faces with the appropriate precision adapters.

Agilent 85046A/B Specifications

Note: Specifications that apply only to the 85046
are indicated in parentheses.

Impedance 50 ohm (75 ohm)
Frequency range 300 kHz to 3 GHz

(300 kHz to 2 GHz)

Directivity 35 dB to 1.3 GHz

30 dB to F

max

1

Typical tracking

Transmission magnitude, phase

2

0.3 MHz to 2.0 MHz ±1.5 dB, ±20°

2.0 MHz to F

max

±1.5 dB, ±10°

Reflection magnitude, phase

2

0.3 MHz to 2.0 MHz ±1.5 dB, ±25°

2.0 MHz to F

max

±1.5 dB, ±10°

Effective source match

0.3 MHz to 2.0 MHz 14 dB

2.0 MHz to 1.3 GHz 20 dB (17 dB)

1.3 GHz to F

max

16 dB

Nominal insertion loss

Input to test port 14 dB + 0.5 dB/GHz

(19.5 dB + 1 dB/GHz)

Input to incident 18 dB + 1.5 dB/GHz

(18 dB + 1.5 dB/GHz)

Port 1, 2 to A, B 6.5 dB + 1.0 dB/GHz

(12 dB + 0.5 dB GHz)

Test set switch/repeatability

±0.03 dB; ±0.01 dB

3

Max. operating level +20 dBm
Damage level +30 dBm
RF attenuator range 70 dB, 10 dB steps
DC bias range ±30 VDC, 200 mA

4

500 mA max

DC bias connectors 50 ohm BNC (f)
Includes four 190 mm (7.5 in) type-N

cables and test set
interconnect cable.

Dimensions 90 mm H x 432 mm W

x 553 mm D

Weight 9.1 kg (20 lb)

A standard 85046A/B test set contains a solid­state transfer switch, which allows continuous
switching of power from port 1 to port 2 for full
two-port error correction. Option 009 replaces the
transfer switch with a mechanical switch. This
provides about 1.5 dB more power at the test port,
but does not allow continuous switching, so the
user must initiate updates of all four S-parameters
for full two-port error correction. Also, the mechan­ical switch has relays that will wear out faster
than the solid-state switch. Approximate lifetime
of the mechanical switch is 1 million cycles.

Test Set Specifications for Option 011

1. F
max

is the upper frequency limit of the associated test set.

2. Degrees, specified as deviation from linear phase.

3. Typical performance.

4. Some degradation of RF specifications may occur.

Agilent 85046A Schematic

23

Agilent 85047A S-Parameter Test Set

The 85047A S-parameter test set provides the
capability to simultaneously measure the reflec­tion and transmission characteristics of two-port
devices in either direction with a single connec­tion. This test set includes a frequency doubler
that can be switched in by an 8753B/C Option 006
to measure 3 MHz to 6 GHz in a single sweep or
switched out to measure 300 kHz to 3 GHz in
a single sweep. The 8753ES Option 011 does not
use the frequency doubler, so the full 300 kHz to
6 GHz range is available. This test set exhibits
<5 dB insertion loss between the RF input and the
test ports for as high as 15 dBm at the test port,
and also includes a programmable step attenuator.
There are two rear panel BNC outputs. One pro­vides a TTL signal which indicates the result of
a limit test. The second TTL output is controlled
from the 8753ES test sequence function.

Specifications

Impedance 50 ohms
Frequency range 300 kHz to 3 GHz and

3 GHz to 6 GHz
(8753B/C);
300 kHz to 6 GHz
(8753D/E/ES Opt. 006)

Directivity

1

300 kHz to 1.3 GHz 35 dB

2

1.3 GHz to 3 GHz 30 dB
3 GHz to 6 GHz 25 dB

Typical tracking

1

Transmission magnitude, phase

3

300 kHz to 3 GHz ±1.5 dB, ±10°
3 GHz to 6 GHz +0.5, -2.5 dB, ±20°

Reflection magnitude, phase

3

300 kHz to 3 GHz ±1.5 dB, ±10°
3 GHz to 6 GHz ±1.5 dB, ±20°

Source match

1

300 kHz to 1.3 GHz 20 dB

1.3 GHz to 3 GHz 16 dB
3 GHz to 6 GHz 14 dB

Normal insertion loss

Input to port 1,2

300 kHz to 3 GHz 4.0 dB +0.8 dB/GHz
3 GHz to 6 GHz 17.5 dB +0.8 dB/GHz

Input to R

300 kHz to 3 GHz 19 dB +0.5 dB/GHz
3 GHz to 6 GHz 34 dB +0.5 dB/GHz

Port 1,2 to A,B 16 dB

Typical isolation

4

300 kHz to 3 GHz 100 dB
3 GHz to 6 GHz 90 dB

Test port switch ±0.03 dB; ±0.01 dB4

repeatability

Maximum operating level +20 dBm
Damage level +30 dBm
RF attenuator range 70 dB (10 dB steps)
DC bias range ±30 VDC, 200 mA,

no degradation in RF specs,
1A max.

RF connectors

Port 1,2 7 mm precision
All others 50 ohm type-N(f)
Dimensions 90 mm H x 432 mm W x

553 mm D

Weight 10 kg (22 lb)

A standard 85047A test set contains a solid-state
transfer switch, which allows continuous switching
of power from port 1 to port 2 for full two-port
error correction. Option 009 replaces the transfer
switch with a mechanical switch. This provides
about 2.5 to 3.5 dB more power at the test port,
but does not allow continuous switching, so the
user must initiate updates of all four S-parameters
for full two-port error correction. Also, the mechan­ical switch has relays that will wear out faster
than the solid-state switch. Approximate lifetime
of the mechanical switch is 1 million cycles.

1. This can be greatly improved with accuracy enhancement.

2. Some degradation at environmental extremes below 600 kHz.

3. Degrees, specified as deviation from linear phase.

4. Typical performance.

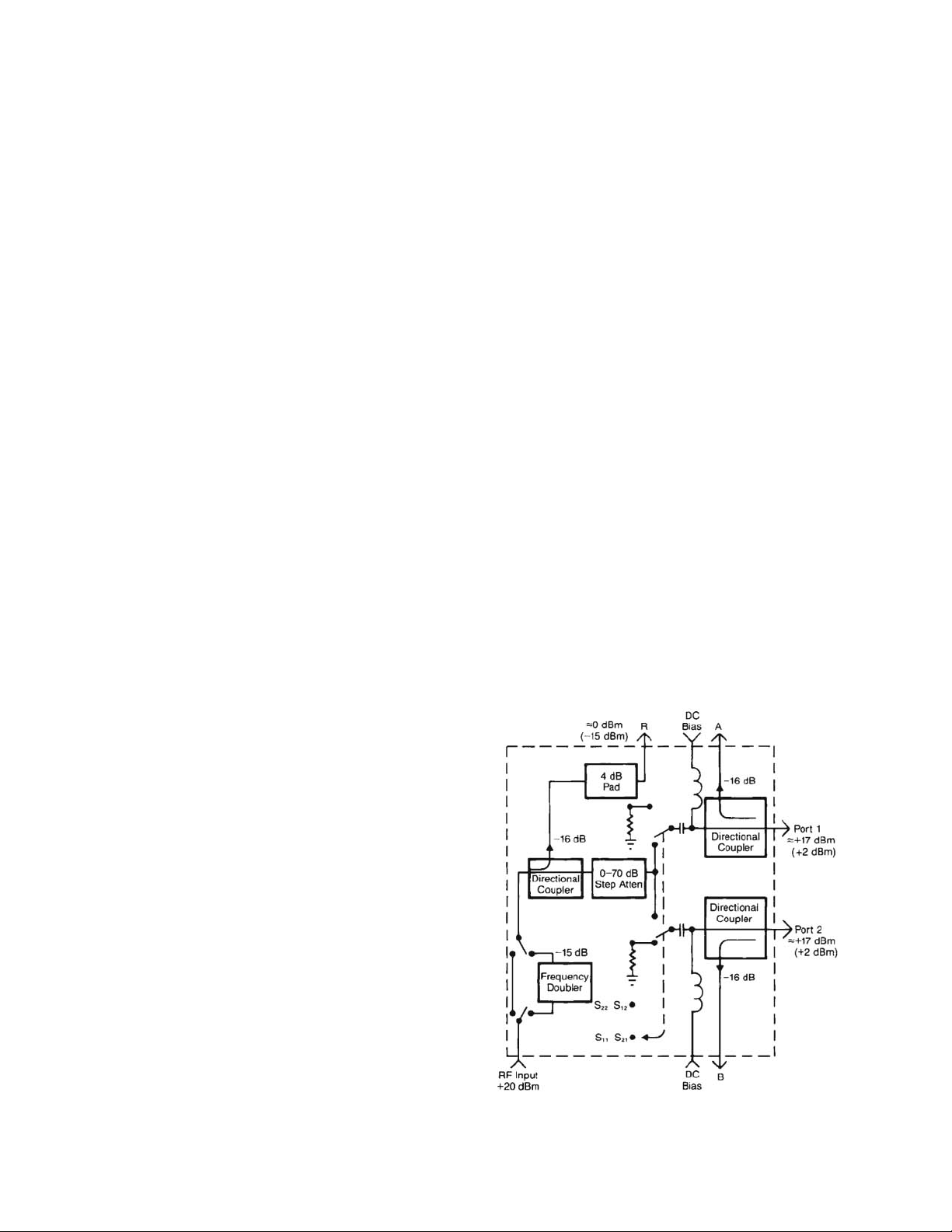

Agilent 85047A Schematic

24

Calibration Kits

Vector accuracy enhancement procedures require
that the systematic errors of the measurement sys­tem be characterized by measuring known devices
(standards) on the system over the frequency
range of interest. Return loss specifications or
typical values are provided where available for
the terminations and adapters.

85031B 7-mm calibration kit

Contains precision 7-mm standards used to cali­brate the 8753ES for measurement of devices with
precision 7-mm connectors.

Includes Part number

7 mm short/open circuit 85031-60001
7 mm 50-ohm terminations: 00909-60008
(two each)

Specifications for terminations

DC to 5 GHz RL ≥ 52 dB
5 to 6 GHz RL ≥ 46 dB

85032B 50-ohm type-N calibration kit

Contains precision 50-ohm type-N standards
used to calibrate the 8753ET/ES and 50-ohm test
sets for measurement of devices with 50-ohm
type-N connectors. Precision phase-matched 7-mm
to type-N adapters are included for accurate meas­urements of non-insertable devices. Option 001
deletes the 7-mm to type-N adapters, which are
not needed with the 8753ET.

Includes Part number

N-male 50-ohm termination 00909-60009
N-female 50-ohm termination 00909-60010
N-male short circuit 85032-60008
N-female short circuit 85032-60009
N-female open circuit 85032-60012
N-male open circuit 85032-60007
7-mm to N-male adapter 85054-60009
(two each)
7-mm to N-female adapter 85054-60001
(two each)

Specifications for terminations:

DC to 3 GHz RL ≥ 49 dB
2 to 3 GHz RL ≥ 46 dB
3 to 6 GHz RL ≥ 40 dB

Typical adapter characteristics:

DC to 6 GHz RL ≥ 30 dB

85033D 3.5-mm calibration kit

Contains a set of precision 3.5-mm standards
to calibrate the 8753ES and 50-ohm test sets for
the measurement of devices with precision 3.5-mm
and SMA connectors. Precision phase-matched
7-mm to 3.5-mm adapters are included for accurate
measurements of non-insertable devices. Option
001 deletes the 7-mm to type-N adapters.

Includes Part number

3.5-mm-male 50-ohm termination 85033-60009

3.5-mm-female 50-ohm termination 85033-60010

3.5-mm-female short 85033-60014

3.5-mm-male short 85033-60013

3.5-mm-female open 85033-60012

3.5-mm-male open 85033-60011
7-mm to 3.5-mm female adapter 1250-1747
(two)
7-mm to 3.5-mm male adapter 1250-1746
(two)

Specifications for terminations:

DC to 1.3 GHz RL ≥ 46 dB

1.3 to 3 GHz RL ≥ 44 dB
3 to 6 GHz RL ≥ 38 dB

Typical adapter characteristics:

DC to 6 GHz RL ≥ 34 dB

85036B 75-ohm type-N calibration kit

Contains a set of precision 75-ohm type-N stan­dards to calibrate the 8753ES with a 75-ohm test
set for measurement of devices with 75-ohm type-N
connectors. Precision phased-matched adapters
are included for accurate measurements of non­insertable devices.

Includes Part number

N-male 75-ohm termination 00909-60019
N-female 75-ohm termination 00909-60020
N-female 75-ohm short 85036-60011
N-male 75-ohm short 85036-60012
N-female open 85032-20001
N-male open 85032-60007
N-male to N-male 75-ohm adapter 85036-60013
N-female to N-female 75-ohm 85036-60014
adapter
N-male to N-female 75-ohm 85036-60015
adapter

Specifications for terminations:

DC to 2 GHz RL ≥ 46 dB
2 to 3 GHz RL ≥ 40 dB

Accessories

25

Agilent 85038 Family of Calibration Kits

The 85038A calibration kit contains open circuits,
short circuits, and terminations with both male
and female 7-16 connectors. More economical ver­sions of this kit are available: the 85038M contains
only male devices, and the 85038F provides only
female devices (see following table). Each kit con­tains a floppy disk with the calibration kit defini­tion for use with 8712, 8714, 8753, 8719, 8720,
8722, and 8510C network analyzers.

Contents of 7-16 Calibration Kits

Description Part Number 85038A 85038M 85038F

Open circuit, female 85038-80002 X X
Open circuit, male 85038-80003 X X
Short circuit, female 85038-80004 X X
Short circuit, male 85038-80005 X X
Termination, female 85038-80006 X X
Termination, male 85038-80007 X X
7-16 adapter, 11906-80016 X

female-to-female

7-16 adapter, 11906-80015 X

male-to-male
Calibration kit data disk 85038-10001 X X X
Torque wrench 8710-2175 X
Open-end wrench 8710-2174 X

Specifications
Frequency coverage dc to 7.5 GHz

(usable to 8 GHz)

Nominal impedance 50 ohms
Open circuits Reflection phase

±1 degree from nominal

Short circuits Reflection phase

±1 degree from nominal
Terminations Return loss >40 dB
7-16 to 7-16 adapters Return loss >40 dB

(VSWR <1.02)
7-16 to 50 ohm type-N Return loss >36 dB

adapters (VSWR <1.03)

7-16 to 7-mm adapters Return loss >38 dB

(VSWR <1.025)
7-16 to 3.5-mm adapters Return loss >34 dB

(VSWR <1.04)

Agilent 11906 Family of Adapter Kits

The 11906 family consists of four adapter kits:

11906A 7-16 to 7-16 adapter kit
Description Quantity Part number

7-16 male-to-male adapter 1 11906-80015
7-16 female-to-female adapter 1 11906-80016
7-16 male-to-female adapter 2 11906-80017

11906B 7-16 to 50-ohm type-N adapter kit
Description Quantity Part number

Type-N male to 7-16 male 1 11906-80007

adapter

Type-N female to 7-16 female 1 11906-80008

adapter

Type-N female to 7-16 male 1 11906-80009

adapter

Type-N male to7-16 female 1 11906-80010

adapter

11906C 7-16 to 7-mm adapter kit
Description Quantity Part number

7-mm to 7-16 male adapter 2 11906-80012
7-mm to 7-16 female adapter 2 11906-80013

11906D 7-16 to 3.5-mm adapter kit
Description Quantity Part number

3.5-mm male to 7-16 male 1 11906-80002
adapter

3.5-mm male to 7-16 female 1 11906-80005
adapter

3.5-mm female to 7-16 male 1 11906-80004
adapter

3.5-mm female to 7-16 female 1 11906-80003
adapter

85039B type-F calibration kit

Contains a set of 75-ohm type-F standards to cali­brate the 8753ES with a 75-ohm test set for the
measurement of devices with type-F connectors.

Description Part number

F-male 75-ohm termination 85039-60007
F-female 75-ohm termination 85039-60004

Specifications for termination:

DC to 1 GHz RL ≥ 45 dB
1 to 3 GHz RL ≥ 38 dB

F-male 75-ohm short 85039-60008
F-female 75-ohm short 85039-60003
F-male 75-ohm open 85039-60009
F-female 75-ohm open 85039-60005
F-female to F-female 85039-60002

75-ohm adapter

F-male to F-male 75-ohm adapter 85039-60006

Typical type-F adapter characteristics:

DC to 1 GHz RL ≥ 40 dB
1 to 3 GHz RL ≥ 32 dB

F-female to N-male 85039-60013

75-ohm adapter

F-male to N-female 85039-60011

75-ohm adapter

Typical type-F to type-N adapter characteristics:

DC to 1 GHz RL ≥ 38 dB
1 to 3 GHz RL ≥ 32 dB

26

Verification Kits

Measuring known devices other than the standards
used in calibration is an easy way to verify the
proper operation of an 8753ES measurement sys­tem. Agilent offers verification kits which include
devices, with data, for verifying the error-corrected
measurements of an 8753ES and 50-ohm test sets.

85029B 7-mm verification kit

Contains a set of precision 7-mm devices, with
data traceable to NIST* for verifying the calibrated
performance of an 8753E measurement system.
The 85031B 7-mm calibration kit is required for
complete verification.

Test-Port Return Cables

Agilent offers high-quality RF cables to connect
the 8753ET/ES and test sets to devices under test.
These cables offer excellent RF shielding for high­dynamic-range measurements.

11851B 50-ohm type-N RF cable kit

Recommended for use with the 11850C/D three-way
power splitters. Kit includes three phase-matched
610-mm (24-in.) cables and one 860-mm (34-in.) cable.

Return loss >24 dB to 3 GHz
Phase tracking ±4° at 1.3 GHz

8120-5639 50-ohm type-N RF cable

A 50-ohm type-N test-port cable
(both connectors are type-N male).

Return loss >30dB to 6 GHz

11857B 75-ohm type-N test-port return cables

A pair of 610-mm (24-in.) test-port return cables
for use with the 8753ES or 85046B 75-ohm
S-parameter test set.

Return loss >24 dB to 2 GHz
Phase tracking ±2° at 1.3 GHz

11857D 7-mm test-port return cables

A pair of 610-mm (24-in.) test-port return cables
for use with the 8753ES with the 85046A and
85047A S-parameter test sets. These cables can
be used with connector types other than 7-mm
with the appropriate precision adapters.

Return loss >24 dB to 3 GHz

>20 dB to 6 GHz

Phase tracking ±2° at 1.3 GHz

11857F type-F test-port return cables

Type-F test-port cable set (75-ohm). Includes one
cable with type-N(male) to type-F(male) connectors
and one cable with type-N(male) to type-F(female)
connectors.

11850C/D three-way power splitters

11850C 11850D

Impedance 50 ohms 75 ohms
Frequency range DC to 3 GHz DC to 2 GHz
Tracking ±25 dB, ±3° ±2 dB, ±2.5°
Equivalent source 30 dB at 1.3 GHz 30 dB at 1.3 GHz

match
(ratio or leveling) 20 dB at 3 GHz 20 dB at 2 GHz

Nominal 9.5 dB + 1 dB/GHz 7.8 dB

insertion loss

Input port match

DC to 1.3 GHz 20 dB 20 dB

1.3 GHz to F

max

10 dB 10 dB

Maximum operating +20 dB +20 dB

level

Damage level +30 dB +30 dB
RF connectors

RF input 50-ohm type-N (f) 50-ohm type-N(f)
All others 50-ohm type-N (f) 75-ohm type-N(f)

Includes Three 11852B 50- to 75-ohm

minimum-loss pads

Recommended 11851B RF cable kit

accessories

11667A 50-ohm power splitter

Frequency range DC to 18 GHz
Typical insertion loss 6 dB
Equivalent source match

DC to 4 GHz 26 dB
4 GHz to 8 GHz 21 dB
8 GHz to 18 GHz 17 dB

Tracking (between output arms)

DC to 4 GHz ±15 dB
4 GHz to 8 GHz ±2 dB
8 GHz to 18 GHz ±25 dB

Maximum operating level ±27 dBm
Connectors 50-ohm type-N (f)

Option 001

RF input type-N (m)
Outputs type-N (f)

Option 002

RF input type-N (f) on RF
Outputs precision 7-mm

Dimensions 46 mm H x 52 mm W x19 mm D

(1.8 x 2.0 x 0.7 in)

Recommended accessories 11851B RF cable kit

11852B 50-ohm to 75-ohm minimum loss pad

Frequency range DC to 3.0 GHz
Nominal insertion loss 5.7 dB
Return loss

300 kHz to 2 GHz 32 dB
2 GHz to 3 GHz 27 dB

Maximum input power 250 mW (+24 dBm)

Accessories

27

Connectors 50-ohm type-N (f) to

75-ohm type-N (m)
standard Option 004,
50-ohm type-N (m) to
75-ohm type-N (f)

Dimensions 14-mm D x 70-mm L

(0.56 in x 2.75 in)

Weight Net 0.1 kg (0.316 lb)

50-Ohm Accessory Kits

The 11853A 50-ohm type-N and the 11854A 50-ohm
BNC accessory kits provide the RF components
generally required when using either the 85046A,
85047A, or 11850C with the 8753ES Option 011
when measuring devices having 50-ohm type-N
or BNC connectors. These kits are supplied with
a storage case.

11853A 50-ohm type-N accessory kit
Includes Part number

Type-N (f) short HP 11511A
Type-N (m) short HP 11512A
Type-N (m) to N (m) adapter 1250-1475
Type-N (f) to N (f) adapter 1250-1472

11854A 50-ohm BNC accessory kit
Includes Part number

Type-N (m) to BNC female adapter 1250-1476
Type-N (m) to BNC male adapter 1250-1473
Type-N (f) to BNC male adapter 1250-1477
Type-N (f) to BNC female adapter 1250-1474
BNC (m) short 1250-0929

75-Ohm Accessory Kits

The 11855A 75-ohm type-N and the 11856A 75-ohm
BNC accessory kits provide the RF components
generally required when using either the 85046B
or the 11850D power splitter with the 8753ES
Option 011 when measuring devices having 75-ohm
type-N or BNC connectors. These kits are supplied
with a storage case.

11855A 75-ohm type-N accessory kit
Includes Part number

Type-N (f) short 1250-1531
Type-N (m) short 1250-1530
Type-N (m) to N (m) adapter 1250-1528
Type-N (f) to N (f) adapter 1250-1529
Type-N (m) termination 1250-1532

11856A 75-ohm BNC accessory kit
Includes Part number

Type-N (m) to BNC (f) adapter 1250-1535
Type-N (m) to BNC (m) adapter 1250-1533
Type-N (f) to BNC (m) adapter 1250-1534
Type-N (f) to BNC (f) adapter 1250-1536
BNC (m) short 1250-0929
BNC (m) termination 11652-60010

RF Limiter

Externally attaches to one or both ports of the
analyzer. Provides protection against potential
high-power transients from external devices.

Specifications
11930A 7-mm RF limiter

Frequency range DC to 6 GHz
Nominal insertion loss

DC to 3 GHz 1.0 dB
3 GHz to 6 GHz 1.5 dB

Return loss

DC to 3 GHz 22 dB
3 GHz to 6 GHz 20 dB

Maximum input power 3 W
Maximum DC 30 V, 350 mA

11930B 50-ohm type-N RF limiter

2

Frequency range 5 MHz to 6 GHz
Nominal insertion loss

5 MHz to 3 GHz 1.0 dB1
3 GHz to 6 GHz 1.5 dB

Return loss

5 MHz to 3 GHz 21 dB

1

3 GHz to 6 GHz 17 dB

Maximum input power 3W

85024A High-Frequency Probe

Two probes may be powered directly from the
front panel of the 8753ET/ES. Refer to technical
specifications, Agilent literature #5954-8393,
for more information.

Specifications

Input capacitance <0.7 pF (nominal)

(at 500 MHz)

Input resistance 1 Megohm (nominal)
Bandwidth 300 kHz to 3 GHz
Gain (at 500 MHz) 0 dB ±1 dB
Frequency response

300 kHz to 1 GHz ±1 dB
1 GHz to 3 GHz +2, -3 dB

Input voltage for

<1 dB compression 0.3 V

Supplement characteristics
Noise figure

<100 MHz <50 dB
100 MHz to 3 GHz <25 dB

Includes Part/model number

Type-N (m) adapter 11880A
10:1 divider 11881A
Spare 12 mil probes 85024-20012

2.5-inch ground lead 01223-61302

Hook tip 10229
Spanner tip 5060-0549
Probe tip nut driver 8710-1806

1. Return loss and insertion loss limited below 16 MHz by series capacitor.

2. Internal bias tees cannot be used with this limiter.

Agilent 8347A RF Amplifier

The 8347A RF amplifier delivers increased
power across a 300 kHz to 3 GHz frequency
range. The 8347A provides leveled output power
without using an external coupler and detector,
since these parts are built-in. The external ALC
can be directly connected to the external AM
input on the 8753ET/ES. This capability is espe­cially useful for achieving high dynamic range
measurements at faster sweep rates.

Specifications

Frequency 100 kHz to 3 GHz
Gain 25 dB minimum
Output power (leveled) +5 dBm to +20 dBm

(adjustable)
Maximum output power 24 dBm typical
Leveled power flatness ±1.5 dB
Impedance 50 ohms nominal
SWR

Input 2.2:1 max
Output 1.6:1 (ALC on)

Spectral purity

Harmonics -20 dBc at dBm
Third-order intercept +30 dBm (nominal)
Typical noise figure

100 MHz to 3 GHz 13.5 dB
RF connectors Type-N female
Dimensions 102-mm H x 213-mm

W x 297-mm D
(4.0 in x 8.4 in x 11.7 in)

Weight net 3.5 kg (7.7 lb)

Accessories

Agilent Technologies’ Test and Measurement
Support, Services, and Assistance

Agilent Technologies aims to maximize the value you receive,
while minimizing your risk and problems. We strive to ensure
that you get the test and measurement capabilities you paid
for and obtain the support you need. Our extensive support
resources and services can help you choose the right Agilent
products for your applications and apply them successfully.
Every instrument and system we sell has a global warranty.
Support is available for at least five years beyond the produc­tion life of the product. Two concepts underlie Agilent’s
overall support policy: “Our Promise” and “Your Advantage.”

Our Promise

“Our Promise” means your Agilent test and measurement equip­ment will meet its advertised performance and functionality.
When you are choosing new equipment, we will help you with
product information, including realistic performance specifica­tions and practical recommendations from experienced test
engineers. When you use Agilent equipment, we can verify that
it works properly, help with product operation, and provide
basic measurement assistance for the use of specified capabili­ties, at no extra cost upon request. Many self-help tools are
available.

Your Advantage

“Your Advantage” means that Agilent offers a wide range of
additional expert test and measurement services, which you
can purchase according to your unique technical and business
needs. Solve problems efficiently and gain a competitive edge
by contracting with us for calibration, extra-cost upgrades, out­of-warranty repairs, and on-site education and training, as well
as design, system integration, project management, and other
professional services. Experienced Agilent engineers and tech­nicians worldwide can help you maximize your productivity,
optimize the return on investment of your Agilent instruments
and systems, and obtain dependable measurement accuracy
for the life of those products.

Get assistance with all your test and measurement needs at:

www.agilent.com/find/assist

Product specifications and descriptions in this
document subject to change without notice.

Copyright © 1999, 2000 Agilent Technologies
Printed in U.S.A. 4/00
5968-5160E

MS-DOS®is a U.S. registered trademark of Microsoft Corporation.
Pentium

®

is a U.S. registered trademark of Microsoft Corporation.
