Agilent 8711C User’s Guide Supplement

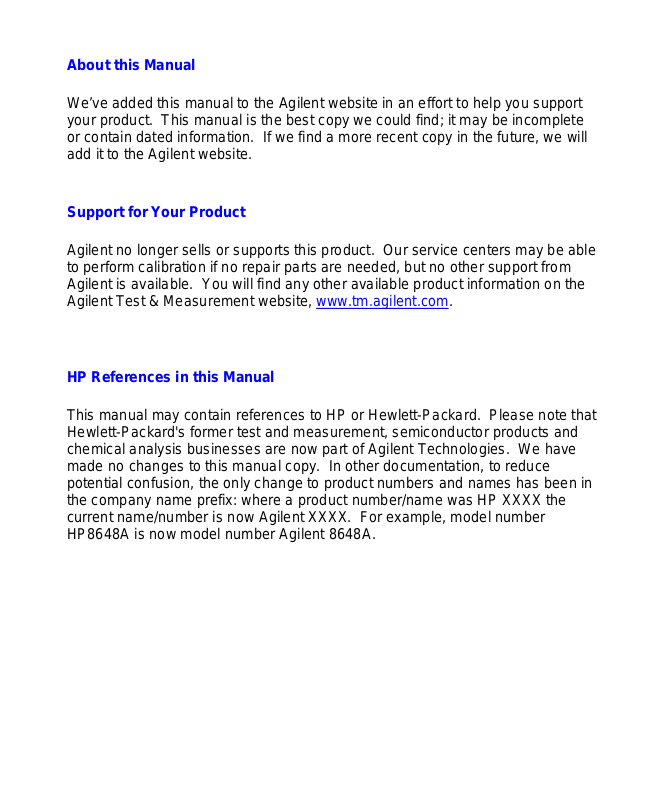

About this Manual

We’ve added this manual to the Agilent website in an effort to help you support your product. This manual is the best copy we could find; it may be incomplete or contain dated information. If we find a more recent copy in the future, we will add it to the Agilent website.

Support for Your Product

Agilent no longer sells or supports this product. Our service centers may be able to perform calibration if no repair parts are needed, but no other support from Agilent is available. You will find any other available product information on the Agilent Test & Measurement website,

www.tm.agilent.com.

HP References in this Manual

This manual may contain references to HP or Hewlett-Packard. Please note that Hewlett-Packard's former test and measurement, semiconductor products and chemical analysis businesses are now part of Agilent Technologies. We have made no changes to this manual copy. In other documentation, to reduce potential confusion, the only change to product numbers and names has been in the company name prefix: where a product number/name was HP XXXX the current name/number is now Agilent XXXX. For example, model number HP8648A is now model number Agilent 8648A.

Option

lF7

User’s Guide Supplement

871lC/12C/13C/14C/3OA

LAN Interface

HP part number: 08712-90062 Printed in USA

August 1998 Supersedes October 1997

Notice

Key Conventions

Firmware Revision

The information contained in this document is subject to change without notice. Hewlett-Packard makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shah not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This manual uses the following conventions:

[Front-Panel

K~YJ

This represents a key physically located on the instrument (a “hardkey”).

This indicates a “softkey, ’ a key whose label is determined

by the instrument’s Wnware, and is displayed on the right

side of the instrument’s screen next to the eight unlabeled

keys.

This manual documents analyzers with firmware revisions

C.04.52

and above. Some features will not be available or will require different keystrokes in analyzers with earlier hrmware revisions. For full compatibility, you can upgrade your firmware to the latest version. Contact your nearest Hewlett-Packard sales or service office for information.

Acknowledgments

Portions of the GIF output routines are by John Silva (derived from Jef Poskanzer’s

package).

JavaTM

Lotus@ Corporation.

Microsoft@ is a U.S. registered trademark of Microsoft Corp. MS@ and MS-DOS@ are U.S. registered trademarks of Microsoft Corporation. MS Windows@, Windows@, Windows

registered trademarks of Microsoft Corporation.

Netscape

Corporation.

Pentium@ PostscriptrM

registered in certain jurisdictions.

ReflectionTM

UNIX@ is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Limited.

is a U.S. trademark of Sun Microsystems, Inc.

l-2-3@

is a U.S. registered trademark of

TCP/IP

are U.S. registered trademarks of Lotus Development

is a U.S. registered trademark of Intel Corporation.

is a trademark of Adobe Systems Incorporated which may be

is a U.S. trademark of Walker, Richer & Quinn, Inc.

software are copyright Phil

95@,

and Windows NT@ are U.S.

Netscape

Karn, KASQ.

PBMplus

Communications

Introducing the LAN Interface

The Option lF7 LAN Interface lets you connect your analyzer to an Ethernet network that uses

Save and recall the analyzer’s settings (instrument state).

Transfer

Connect many analyzers to one computer.

Automate the control of your analyzers.

Program the analyzer using SCPI commands.

Print hardcopy directly to an HP LaserJet printer.

Access your analyzer’s Web pages. Here you’ll find links to:

BASIC

hles

TCP/IP.

With the LAN interface you can:

programs between your computer and your analyzer.

between your computer and analyzer using FTP.

Expert Assistance

o general information about the HP

87xx

family of analyzers o online documentation such as SCPI command references o specific information about your analyzer such as your current firmware

revision, installed options, even the analyzer’s current screen image. o general information about Hewlett-Packard, and how to obtain

assistance if you need it.

Most sites will hire a network administrator to install the LAN hardware and manage the assignment of IP addresses.

NOTE

Hewlett-Packard offers professional consulting services to help increase your computer and manufacturing productivity. HP system engineers will work with your factory management, engineering, and production groups to evaluate various automation solutions. For more information contact the nearest HP sales office. Refer to Chapter 7 for a table of Hewlett-Packard sales and service offices.

Documentation Outline

This

User’s Guide Supplement

troubleshoot the LAN interface on your analyzer. This supplement contains the following chapters:

Connactinfl md

2. Accrssinl the Analyzefs Web

3. Printing

4. Accessing the

Accessing the

Controlling the Analyzer via the LAN

7. General Troubleshooting

Glossary

Configuring the Analyzer

Paues

Analyzefs

Anelyzefs

File System

Dynamic Data Disk

describes how to connect, use and

Provides information about connecting the analyzer to the network. To effectively use this chapter, you should be familiar with your network setup and operation.

Describes how to use a Web browser to access built-in Web pages. Describes how to configure-and dump a hardcopy to-a network

printer. Describes how to access the analyzer’s file system using file transfer

protocol

IFTPI.

The directory structure of the analyzer is described

here. Describes the analyzer’s “data’ directory, the dynamic data disk.

Includes an example program. Shows you methods for programming the analyzer via the network

connection. Describes what to do if you have a problem using the analyzer on

your network. Definitions for networking and other terms used in this book.

Contents

Connecting and Configuring the Analyzer

Connecting the Analyzer to the LAN .........

Setting Up a Network

Point-to-Point Connections

Configuring the Analyzer ...............

The Analyzer’s IP Address and The Gateway Address

The The Ethernet Address To Configure the Analyzer

Verifying Connectivity

Running Ping under Windows 95 Running Ping under UNIX

Accessing the Analyzer’s Web Pages

Accessing the Analyzer with your Web Browser .....

Screen Snapshot Analyzer Configuration Product Documentation Product Overview Other Links

Subnet

................

.............

Hostname

...............

Mask

.................

...............

.............

................

..........

.............

..................

...............

..............

.................

...................

......

l-3 l-4 l-5 l-6 l-6 l-7 l-7

1-8

l-9 l-10 l-10 l-11

2-3 2-4 2-4 2-5 2-6 2-6

3. Printing

Configuring the Printer ...............

Configuring the Analyzer for Printing to a LAN Printer

If You Have Trouble Printing .............

Accessing the Analyzer’s File System

Using FTP to Access the Analyzer ..........

Example 1: Copy a File to the Analyzer

Example 2: Retrieve a File from the Analyzer

Commonly Used FTP Commands ...........

Using GUI FTP Software ...............

Example: Transferring Files between the Analyzer and

your PC.

...................

.......

.....

3-3 3-4

3-6

4-3 4-5 4-7 4-8

4-10

Contents- 1

Accessing the Analyzer’s Dynamic Data Disk

Saving and Recalling Analyzer States

Copying Programs to and from the Analyzer

To Copy an IBASIC Program to or from the Analyzer . To Copy and Run a Program with One Command

Copying a Screen Image to a Local File Copying Instrument Parameters in ASCII Text Format . . Retrieving Measurement Data in ASCII Format Importing Graphics or Data into PC Applications

Import a Screen Snapshot into a Word Processor

Program

Import Trace Data into a Spreadsheet Program

Controlling the Analyzer via the LAN

The Command Parser Port

Entering Commands Directly using Telnet

Programming the Analyzer within a C Program

IBASIC

Controlling Multiple Analyzers using a Controlling the Analyzer using HP VEE Controlling the Analyzer with a Controlling the Analyzer using HP BASIC

Communication Across the LAN

...................

..............

JavaTM

.........

.......

........

......

........

Per1

Script

........

Applet

.......

7. General Troubleshooting

Troubleshooting the Initial Connection

Assess the Problem

Ping the Analyzer from your Computer or Workstation

Ping your Computer or Other Device from your Analyzer

Subnets

Solutions to Common Problems

Getting Service Support

and Gateways

Troubleshooting

If you cannot connect to the analyzer

If you cannot access the file system via ftp

If you cannot telnet to the command parser port

If you get an “operation timed-out” message

If all else fails

HP on-site service

Return to HP service

...................

................

Subnet

Problems

............

...............

.................

...............

.........

..........

........

......

...

.....

....

.....

...

.....

5-4

5-6

5-6 5-8

5-9 5-11 5-12 5-13

5-13 5-14

6-3

6-6 6-26 6-29 6-33 6-35 6-43

7-3

7-4

7-6

7-9 7-11 7-12 7-12 7-13 7-13 7-14 7-14 7-15 7-15 7-15

Contents-2

Glossary Index

Contents-3

Figures

l-l. The LAN ETHERTWIST Port

3-l. Selecting and Configuring the LAN Printer 5-

screen.hgl

5-2. screen-m.hgl 5-3. Trace Data and Screen Snapshot Imported into a Spreadsheet

6-l. Sample HP VEE Screen 7-l. Example of a Successful Ping

7-2. Example of a Failed Ping 7-3. Example of a LAN with Two

.......................

......................

...............

.........

.................

...............

.................

Subnets

...........

Tables

4-l. FTP Commands 5-l. The Dynamic Data Disk Contents 7-l. Hewlett-Packard Sales and Service Offices

.....................

.............

.........

l-3

3-4

5-10

5-15

6-34

7-7 7-8 7-9

4-9

5-2

7-16

Contents-4

Connecting and Configuring the Analyzer

This chapter describes:

how to connect your analyzer to your network

how to set up a network

how to configure your analyzer

how to verify connectivity

In order to complete the steps in this chapter, you’ll need:

Option lF7 installed in your analyzer

A computer with a LAN interface, running an operating system that

supports

typical computer would be an IBM-compatible

lOBase-T

A computer program that talks over or telnet program, or a program that you write. This detail in the following chapters.

TCP/IP.

For example: UNIX@ or Microsoft Windows

Pentium@-based

LAN card, or an HP 5210 PA-RISC workstation.

TCP/Il?

This might be the built-in FTP

will

be covered in

95@.

PC with a

LAN cabling, and typically a LAN hub.

If you

only

wish to dump hardcopy to a LaserJet printer,

you’ll

need:

Option lF7 installed in your analyzer

An HP LaserJet printer with an HP JetDirect LAN interface card

LAN cabling, and typically, a LAN hub

Note to Novell Netware users

Older versions of Novell Netware used IPX networking protocol exclusively IPX protocol is not compatible with

Newer versions of Novell Netware, such as version provide a gateway to a information on using Novell Netware with

TCP/IP

protocol.

3.1x

and 4.xx allow for add-on products which

TCPllP

network. Consult your Novell network administrator for the latest

TCPllP

protocol.

l-2

Connecting the Analyzer to the LAN

Your analyzer has an your network using

RJ-45

connector (see Figure l-l), and connects to

lOBase-T

twisted pair cabling, also called Ethertwist.

Ethertwist cables resemble a standard modular phone line.

NOTE

If your network uses ThinLAN ThinLAN BNC connector to

HOBase-21,

lOBase-T

you will need to purchase an adapter which converts the

Ethertwist.

To connect the analyzer to your network:

1. Turn off the analyzer.

2. Connect the Ethertwist cable from your network to the LAN ETHERTWIST port on the rear of your analyzer and then turn on the analyzer.

LAN

ETHERTWIST

Setting Up a Network

If you do not already have a network, you will need to create one. A simple network consists of a central LAN hub with multiple Ethertwist cables, one

connected to the LAN port of each network device. This is often called a star

topology, with the LAN hub at the center.

Typical &port hub:

HP J2610B AdvanceStack lOBase-T Hub-W

Typical

Typical Ethertwist cables:

lb order cables, contact the nearest Hewlett-Packard sales or service office. See Chapter 7 for a table of sales and service offices.

16-port

J2611B AdvanceStack lOBase-T Hub-16U

92268A

92268B

HP 922686 Twisted-pair “straight-through” cable, 16 meters HP

92268D

92268N

hub:

Twisted-pair “straight-through” cable, 4 meters

Twisted-pan “straight-through” cable, 8 meters

Twisted-pair “straight-through” cable, 32 meters Twisted-pair “straight-through” cable, 300 meters

l-4

Connecting and Configuring the Analyzer

Setting Up a Network

Point-to-Point Connections

It is possible to connect a single computer to a single analyzer, and avoid using a LAN hub. lb do this, you must use a special “cross-over” cable or adapter, which acts like a LAN hub. If you try to create a point-to-point connection using a standard “straight through” cable, it will not work. For most applications, use of a LAN hub is simpler, and provides expandability.

NOTE

Point-to-point connections may not work when connecting to older laser printers. Older printers typically require a boot server for network use. To use a point-to-point connection with a printer, use an HP LaserJet 4 or newer.

l-5

Configuring the Analyzer

Before you configure your analyzer, you will need to contact your network administrator to obtain an IP address for your analyzer. You will also want to ask your network administrator about a unique hostname for your analyzer, a gateway IP address, and a subnet mask.

CAUTION

The Analyzer’s IP

Each device on your network must have a unique address so that all devices can communicate simultaneously over the same network. These unique addresses are called IP addresses, and are assigned by your network administrator. IP addresses are a set of 4 decimal numbers, separated by periods. For example: 192.170.128.21

You may also receive (or request) from your network administrator a

hostname for your analyzer.

For example:

The hostname is not required, but can be used on your computer so that you don’t have to remember the IP address. Typically, the hostname is found in the hosts file on your computer or returned by a name server.

Your network administrator will apply for a range of IP addresses from the Internet Network Information Center (InterNIC). InterNIC is responsible for registering domain names and assigning to networks that connect to the Internet. You may contact InterNIC via e-mail at hostmaster@internic.net, or by accessing their Web site at

http://rs.internic.net/.

It is important that no two devices are assigned the same IP address, or else conflicts will occur.

my87

Address and

Hostname

TCPLP

network numbers

l-6

Connecting and Configuring the Analyzer

Configuring the Analyzer

The

Gateway

Address

If your analyzer will be communicating with devices on different physical networks, you may need to have your network administrator assign a gateway IP address for you. The gateway IP address is the address of a routing device that connects your analyzer’s LAN with other

NOTE

See

“Subnets

and Gateways” in Chapter 7 for more information on gateway addresses.

LANs.

The Subnet

Mask

If your analyzer will be communicating with devices on different physical networks, you may need to have your network administrator assign a subnet mask number for you. The subnet mask tells your analyzer whether a remote device is on the same LAN as your analyzer. If your analyzer is attempting to communicate with another device, the subnet mask defines whether your analyzer needs to route communications through the gateway.

NOTE

See

“Subnets

and Gateways” in Chapter 7 for more information on

subnet

masks.

l-7

Connecting and Configuring the Analyzer

Configuring the Analyzer

The

Ethernet Address

Your analyzer has a unique built-in Ethernet address associated with the

LAN hardware inside the analyzer. The Ethernet address is a

assigned at the factory. The Ethernet address cannot be changed, and you

should not have to be concerned about it. In this document, the term “LAN

address” refers to the IP address.

4%bit

number

1-8

Connecting and Configuring the Analyzer

Configuring the Analyzer

To Configure the

Press

NOTE

After each of the following steps, the analyzer will prompt you to cycle power for the new setting to take effect. It is not necessary to cycle the power after each step. It only needs to be done when you are finished entering all of the settings.

2. Set the

CSYSTEM

LAf Stata

OPTIONS) LAM to access the LAN menu.

Analyzer

once-

setting to ON if it isn’t already. If you do not wish to use your analyzer’s LAN, you can turn this to OFF. When OFF, networking is disabled, and more memory is available to

IBASIC

and the volatile RAM

disk.

3. Press

LAW Pur% Set;q WXXX EP

&d&es8 , and enter the IP address that your network administrator assigned to your analyzer. You may have also received a hostname (for example: the

hostname

into your analyzer, just the IP address. The

my8711).

You cannot enter

hostname

can be used on your computer, so that you don’t have to remember the IP address.

4. Press

Gatasua;p IP Ad&ess

, and enter the numbers assigned to you by your network administrator. If you were not assigned a gateway IP address, leave the setting at 0.0.0.0 (default value) to disable gateway routing.

Press Subn&

#ask

, and enter the numbers assigned to you by your network administrator. If you were not assigned a subnet mask, leave the setting at 0.0.0.0 (default value) to disable subnet masking.

6. Once you have entered these settings, cycle the power on your analyzer, so that it can re-initialize its LAN interface with these new values.

l-9

Verifying Connectivity

You should now verify connectivity between your computer and your analyzer.

The ping utility is typically used to test connectivity.

Running Ping

under Windows 95

At the command prompt of a DOS window, type:

ping

ping

where

steps above, and <hostname> is the

For example, type ping

is the number you entered into your analyzer in the

my87

hostnarne

11.

assigned to your IP address.

You should see something like this:

Pinging

Reply from 15.4.43.5: bytes=32 Reply from 15.4.43.5: bytes=32 Reply from 15.4.43.5: bytes=32 Reply from 15.4.43.5: bytes=32

my8711

C15.4.43.53 with 32 bytes of data:

time=37ms TTL=252 time=3Oms TTL=252 time=3Oms TTL=252 time=3lms TTL=252

If you see something like this:

Request timed out. Request timed out. Request timed out. Request timed out.

your connection may have a problem. Refer to Chapter 7 for troubleshooting

help and information.

l-10

Connecting and Configuring the Analyzer

Running Ping

The ping program is typically found in the

under UNIX

“/et?

“/usr/etc”

directory, so

you must add the appropriate directory to your PATH, or type the full path:

/etc/ping <IP

/etc/ping <hostname>

address> 64 5

64 5

This command tells ping to send 5 packets of 64 bytes each. The output should look something like this:

PING hostname: 64 byte packets

bytes

---5 packets transmitted, 5 packets received, 0% packet loss round-trip

from from from from from

hostname

15.4.43.5:

15.4.43.5: icmp,seq=2. time=4.

15.4.43.5: icmp,seq=3. time=3.

15.4.43.5:

PING Statistics----

(ms) min/avg/max

icmp,seq=O. icmp-seq=l.

icmp_seq=4.

3/4/8

time=8. time=4.

time=3.

ms ms ms ms ms

If you do not see any output after about 20 seconds, interrupt the ping command using ^c (hold down the

this, ping should provide some statistics on how many packets were sent and

received. If the statistics look like this:

“Ctrl”

key, and press .c”). Once you do

----

hostname

4 packets transmitted, 0 packets received, 100% packet loss

your connection may have a problem. Refer to Chapter 7 for troubleshooting help and information.

PING Statistics----

l-11

Accessing the Analyzer’s Web Pages

Your analyzer has built-in Web pages that are accessible with a Web browser such as links to general product information, selected online documentation, benchmarks, Hewlett-Packard sites. You can also E-mail us with your comments and feedback on the HP

Before you can access your analyzer with a Web browser, you need to connect and configure your analyzer as described in Chapter 1.

Netscape

specihc

or Microsoft@ Internet Explorer. These Web pages contain

information about your analyzer, and general

87xx

family of analyzers.

2-2

Accessing the Analyzer with your Web Browser

lb access your analyzer, start your Web browser and connect to

“http://my8711”,

your analyzer. When you are connected to your analyzer, a Web page will appear with the

following information on it:

Get a current screen snapshot.

Examine your analyzer’s conhguration.

Browse selected product documentation.

Review the Product Summary.

Screen Snapshot

Clicking on “Get a current screen snapshot” shows an exact copy of your analyzer’s current screen image. Using your Web browser’s “reload” function

assures you of having the most current image.

CAUTION

The screen image takes a few seconds to load. Do not push any buttons on the analyzer or send any programmin

g commands to it while the snapshot is

loading, or an inaccurate image may result.

NOTE

Before capturing the screen image with your Web browser, you may wish to customize the look of the

image using the more information.) In particular, you may want to choose

background, especially if you plan to print the page from your Web browser.

Analyzer

Clicking on “Examine your analyzer’s of information that is equivalent to pressing (SYSTEM OPTIONS]

Xnstm@#S

Calo~ O@fon~

menu on your analyzer.

fn~~~s+

Gee

your analyzer’s

Vidm

Configuration

conEguration”

I&J

on the analyzer. This screen provides the model and

brings up a screen

llser’s Guide

to create a white

%wvico

for

serial number of your analyzer, Ermware revision, installed options, and amount of memory.

2-4

Accessing the Analyzer’s Web Pages

Accessing the Analyzer with your Web Browser

Product Documentation

This section provides selected portions of your analyzer’s documentation online, as well as benchmark information and information about product upgrades and options.

The following list shows the links currently available on this page:

Optimizing your Measurements

Accessing Built-in Disks

Controlling I/O Ports

Accessing the Analyzer’s file system via the LAN

Accessing the Dynamic Data Disk via the LAN

Controlling the Analyzer via the LAN

871xC

SCPI command reference

8730A

SCPI command reference

IEE 488.2 common commands

Product Upgrades and Options

Transfer Speeds using

Transfer Speeds using LAN

Printing Speed

List of printed manuals

HP-II3

If there are additional portions of the analyzer’s documentation that you think would be helpful to have online, please contact us via E-mail. Click on

“Contact HP” and “Send us your feedback!’ from your analyzer’s Web page.

2-5

Accessing the Analyzer’s Web Pages

Product

The links in this area provide generic information about the HP and HP available options are among the information provided here.

Other

At the bottom of every Web page in the analyzer, you’ll find the following links:

TOP

Search Contact HP

Overview

8730A

family of analyzers. New features, compatibility issues, and

Links

takes you to the top of the current page. takes you to the “Product Documentation” page. takes you to a page that provides links to HP Web sites, as

well as the opportunity to provide HP with feedback on your analyzer and its documentation.

takes you to copyright information.

871xC

2-6

Printing

Your analyzer can send hardcopy output directly to an HP LaserJet printer on your network. In order to print to a LAN printer, your analyzer must have the LAN state turned on, it must have its IP address set, and it must be connected to your network. Refer to Chapter 1 if you have not yet configured your analyzer as described.

Compatible Printers

The HP LaserJet 4 and HP LaserJet 5 families of printers are compatible with your analyzer for printing directly via a point-to-point connection or over your network. These newer printers allow you to enter the printer’s IP address directly from the front panel and do not require a boot server computer. Your printer should have a

Some older printers, such as an HP LaserJet Ill, do not allow you to enter an IP address from the front panel. They require a boot server computer on the network that configures (sets) the printer’s IP address.

JetDirect

LAN card installed.

3-2

Configuring the Printer

Refer to your printer’s documentation for instructions on how to set up your

printer for LAN usage. Typically, you will need to contact your network administrator to assign a unique IP address for your printer. Your printer software will turned on.

conEgure

the printer with the assigned IP address each time it is

3-3

Configuring the Analyzer for Printing to a LAN Printer

‘lb

set up your analyzer to print hardcopies to a LAN printer:

Press

2. Use the front panel knob, or the a a keys to highlight the LaserJet LAN printer in the table. See Figure

Press

(jHARD]

Sebct

Select

. See Figure

Copy

3-l.

Port .

3-l.

HARDCOPY DEVICE: File.

File Name

VICE TYPE

LANGUAGE HARDCOPY PORT

HP Plotter HPGL Parallel Port HP Plotter HP Plotter HP Printer HP Printer HP

Printer

Epson Compatible EPSDN Epson Compatible

- “INT:PLOTn’

File

HP LaserJet HP LaserJet HP LaserJet

“‘-“----“‘-“““““““““-‘------------------------------------;

HP LaserJet

.___________________-------------------------------------~

PCL!i/E PCL5/6 PCL5/6 PCLW6

HPGL. Internal Disk

HPGL HPGL

PCL

RS232 HP-18

Perellel Port

RS232

HP-IB

Parallel Port

EPSON HPGL

PCX

HPGL

PCX PCLS PCL5 PCLS HP-IB PCL5

RS232

Internal Disk Internal Disk

Non-V01 Non-V01

Parallel Port

1X3232 Ser ia 1

LAN

Serial

Ser ia 1

Set- ia 1

RAM Disk RAM Disk

Restore

Defaults

r--------I

Select

.-------

F-----------t

LAN

PPintr; /

L---------

Print/Plot

HP-18

Addrl

Addr

Baud Rate

Xon/Xof

OTR/DSR

Step 3

Step 4

’

-1

Step 2

3-4

Figure 3-1. Selecting and Configuring the LAN Printer

Printing

Configuring the Analyzer for Printing to a LAN Printer

Press

LIW Printr fP Mdr

the network printer you wish to use. Use the

. See Figure

3-l.

Enter the IP address of

C&XV&T IWtq

key to clear

the current or default setting, and then input the IP address using the

analyzer’s numeric keypad. (You can also use a keyboard connected to the

rear panel DIN KEYBOARD connector to enter the IP address.)

Press

PT&OT‘ WSIW

conEguration,

and use the

and the

Deitie

D&f fns PCX.5

key to set up the printer

H~~cop~ key to

deEne

the output. See your analyzer’s User’s Guide for information on configuring printers and

deEning

NOTE

You can print color screen dumps if you send the output to an HP Color LaserJet or HP Color LaserJet

5 printer. Press

output.

Define PC%5 CbloT‘

6. After you have completed the previous steps, you can send a hardcopy to your LAN printer by simply pressing

CHARDCOPY) Stat

If You Have Trouble Printing

Make sure the LAN state is set to ON (see Chapter

Make sure the analyzer’s LAN

Make sure the printer is configured properly. Refer to your printer’s

II?

address has been set (see Chapter 1).

documentation or your network administrator.

Verify connectivity to printer using the analyzer’s built-in ping diagnostic

utility (see Chapter 7).

l),

3-6

Accessing the Analyzer’s File System

CAUTION

This chapter shows you how to access the analyzer’s transfer protocol (FTP). This chapter also contains two simple examples: one for copying a a

lile

from the analyzer to your computer. The last section of this chapter

contains a summary of commonly used ftp commands. This chapter assumes that your analyzer is physically connected to your local

area network. If it is not connected, refer to Chapter 1 for information on how to connect the system.

When you access the analyzer, you will have read and write access to the analyzer’s

are described in Chapter 5).

It is possible to have multiple FTP sessions open to your analyzer simultaneously. Files can be corrupted when more than one session is accessing the analyzer at a time. accessing the analyzer’s file system at a time.

This caution also applies to file system access performed via SCPI commands over the LAN, HP-IB, or

There is no password protection built into the analyzer. This means that files are not protected against either deletion or being written over.

file

to the analyzer from your computer, and one for copying

iile

system (except for some files in the dynamic “data” disk, which

‘lake

care to not have more than one session

IBASIC.

lile

system using file

4-2

Using FTP to Access the Analyzer

If you are using a

UNIX

workstation, you have built-in networking software that includes ftp. The same is true if you are operating under Windows 95.

you are operating under Windows 3.1, you will need to have additional

networking software that includes ftp.

NOTE

There are versions of FTP programs available with a graphical user interface Software” later in this chapter for information on using these types of programs.

IGUI).

See “Using GUI

FTP

To access the analyzer’s file system using ftp:

1. Enter the following command on your computer or workstation: ftp

ftp

<IP

address>

For example, type f tp

2. When the connection is made, you will be prompted for a

my87

11.

name. Just

press the Return or Enter key on your computer.

3. lf you are prompted for a password, just press the Return or Enter key on your computer. There is no password protection built into your analyzer.

4. You should now have a prompt on your computer display that looks like this:

ftp>

4-3

Accessing the Analyzer’s File

Using

FTP

to Access the Analyzer

&stem

5. Type dir at the prompt. Your computer display should return something that looks like this:

200 Port command okay

150 Opening drwxrwxrwx drwxrwxrwx

drwxrwxrwx drwxrwxrwx

data connection

2 root 2 root 2 root 2 root

SYS SYS

for

LIST

1024 1024 1024 1024

Ott Ott Ott Ott

1997

1997 9 1997 9

1997

int nvram ram data

226 File sent OK

You can read and write

files

to:

int-a DOS formatted floppy disk in the analyzer’s 3.5” floppy disk

drive nvram-the analyzer’s internal non-volatile memory ram-the analyzer’s internal volatile memory

The data directory is a dynamic data disk with files that are linked

directly to analyzer operations. See Chapter 5 for information on accessing

and using this directory.

6. Use the examples in this chapter to copy a file to the analyzer and to retrieve a

fle

from the analyzer. Also see “Commonly Used FTP

Commands” in this chapter for commonly used ftp commands.

4-4

Accessing the Analyzer's File System

Using FTP to Access the Analyzer

CAUTION

Example 1:

Copy a

File to

the Analyzer

You can copy files from your computer to your analyzer. For instance, you may want to develop an

IRASIC

program on your computer and then copy it

to the analyzer so that you can run it from the front panel of the analyzer.

This example copies a file,

“ib-prog”,

from your computer to the analyzer’s

nvram disk.

1. On your computer or workstation, change directories to the directory that contains the file “ib-prog.”

2. On your computer or workstation, access the analyzer by typing ftp

hostname.

enter a

Press Return or Enter twice (remember you don’t need to

name or password).

3. Change to the non-volatile RAM disk in the analyzer by typing cd nvram at the ftp prompt.

4. Specify the type of

ascii at the ftp prompt.

Binary

llles

can be corrupted if you attempt to transfer them in “ascii” mode.

lile

you will be transferring by typing either binary or

5. Type put ib,prog at the ftp prompt.

6. Type bye at the ftp prompt to exit ftp.

You can can now recall and run the program from the front panel of your analyzer.

Press [SAVE RECALL)

Press

Prkar Renu Progr?ams

Sslect DE&B Non-V61 RAM ~tgk

Use the front panel knob to highlight the

IB-PROG hle.

3. Press Recall Program

Bun.

4-5

Accessing the Analyzer’s File System

Using FTP to Access the Analyzer

NOTE

You can also download and automatically run Chapter 5 for information on accessing this disk.

IHASIC

programs by accessing the data disk. See

Copying Files from UNIX

When

copYing

files from a UNIX environment to the analyzer, files that do not meet the DOS file-naming criteria comply For example, if You copy a file from UNIX named

“ibasic-pabc”

(58

characters in filename, with 13 characters in

on the analyzer. There will be no feedback or indication from ftp that this has occurred.

extensiont

“ibasic-program.abcd”

will be truncated to

it will appear as

4-6

Accessing the Analyzer’s File System

UsinN

FTP to Access the Analyzer

Example 2:

You can copy files from your analyzer to your computer. For instance, you may want to retrieve saved measurement data from your analyzer (or a group of analyzers) for statistical analysis on your computer. In another scenario, you may have automated your measurement system with an saving data and/or instrument states to the analyzer’s RAM disk. Your remote computer could, asynchronously, be copying and then deleting the the RAM disk, assuring backup of data, and preventing the RAM disk from filling up.

You may also want to copy instrument states and calibrations to your computer as a backup, eliminating the need for backups on floppy disks.

This example copies a a directory on your computer or workstation.

1. On your computer or workstation, access the analyzer by typing ftp hostname. Press Return or Enter twice (remember you don’t need to

enter a

2. Change to the non-volatile RAM disk in the analyzer by typing cd nvram at the ftp prompt.

3. If necessary, use the

your computer where you want to put the file. For example: type

led /users/myname/87lx_data.

Retrieve a

flIe “STATE:!.STA”

name or password).

led

File from

from your analyzer’s nvram disk to

command to change to the local directory on

the Analyzer

IBASIC

program

hles

from

CAUTION

4. Specify the type of file you will be transferring by typing either binary or ascii at the ftp prompt.

Binary

5. Type get

6. Type bye at the ftp prompt to exit ftp.

7. Verify the

iiles

can be corrupted if you attempt to transfer them in “ascii” mode.

copied to.

state2.

ille

sta at the ftp prompt.

was copied by listing the contents of the directory it was

4-7

Commonly Used FTP Commands

The exact commands you use within ftp depend on the software. If you are not familiar with your ftp software, type see a list of commands.

The following table lists and provides a brief description of some commonly used ftp commands.

I‘?”

or “help” at the ftp prompt to

4-8

Table 4-1. FTP Commands

Accessing the Analyzer’s File System

Commonly Used FTP Commands

Command

ascii binarv Sets the file transfer

bye

cd remoredireaory delete remote-fib dir

[remote-direaoryl

get

remureA

help Provides a list of ftp commands. help commend imaoe Icd

[local-dkeaoryl

[remote-direaory]

mget

mput

[remore-fihl

[low/-fibs]

[/oM/J%]

Sets the file transfer type to ASCII.

tvoe

to binarv.

Closes the connection to the host and exits ftp.

Sets the working directory on the host to Deletes remote-fib or empty remote-direaory. lists the contents of the specified

contents of the current remote directory ara listed. Copies

remureA,

the

lowlJ&

Provides a brief description of commend. Sets the file transfer tvoe to binarv.

Sets the local working directory to /owLdkeaory. lists the contents of the specified

the contents of the current remote directory ere listed. Copies multiple remore-fibs to the local system. Supports metacharacters such as Copies multiple

name.

low/-fibs

/ow/LfiY.

to the remote system. Supports metacharacters such as

Description

remore-direaory.

remore-dimaory.

If /ow/Lfih~ is unspecified, ftp uses the

remoteAieaory.

If remofe-direaory is unspecified, the

If the remore-diieaory is unspecified,

remore-&

name as

‘*‘. I+‘.

put

/ow/JiIs

[remote-fib]

quit Closes the connection to the host and exits ftp.

Copies

the

low/&

remote-&

to remote name.

fik

If remote-fib is unspecified, ftp uses the

low/-r%

name es

4-9

Using GUI FTP Software

There are versions of FTP programs available with a graphical user interface (GUI). These programs can make transferring your PC a simple “drag and drop” function.

NOTE

hles

between the analyzer and

The procedures in this section were developed using intended as examples only Other GUI directory format, and will probably have different steps.

Example:

Transferring

FTP

software may not be able to understand the analyzer’s

Files

and your PC

This example copies a

nvram disk.

1. Start the FTP program and

Set View

normal window.)

Under the Options menu, set Server Directory Format to List

Filenames Only.

hle,

“ib-prog” ,

conhgure

Split Window. (View both the command window and the

ReflectionTM FTP

for Windows

NT@.

They are

between the Analyzer

from your computer to the analyzer’s

as follows:

2. Type your analyzer’s

3. Click on Open.

4-10

hostname

in the Server Name box.

Accessing the Analyzer’s File System

4. You will be prompted for a user name. Since the analyzer does not require this (but the program does), you can type anything in the box. One character will

sufhce.

5. You will be prompted for a password. This is not required. Just click on OK.

6. To change to the non-volatile RAM disk in the analyzer, click inside the command window and then type cd nvram at the

ftp>

prompt.

7. Use the Client side of the window to change directories on your PC to the directory that contains the

hle “ib-prog”.

CAUTION

8. Click on the file

“ib-prog”

and “drag” it over to the Server side of the

window and “drop” it.

9. The file has been transferred to the non-volatile RAM disk on your analyzer.

10. lb drag and drop multiple fles, just hold down the @ key on your PC while selecting files with the mouse. Then when you drag and drop, your

entire selection will be transferred.

11. You can also transfer

hles

from the analyzer to your computer by

dragging files in the other direction.

Be sure to use the appropriate

hle

transfer method (binary or ASCII) for the file(s) you are transferring. If you are transferring files to or from the analyzer’s dynamic data disk, check

‘fable

5-l for

hle

types.

4-11

Accessing the Analyzer’s Dynamic Data Disk

Accessing the Analyzer’s Dynamic Data

Disk

Your analyzer has an ftp directory called “data,” which is a dynamic data disk. The you can put another analyzer’s instrument state into this directory and the analyzer will automatically recall this state. You can do the same with an

BASIC

automatically run. You can also pull a screendump from the analyzer directly into a file in either PCX or HP-GL format.

llIes

in this directory trigger analyzer operations. So, for example,

program: copy it to the analyzer’s data directory and it will

File

ttatortal

colrtal

data.sta’

trot-caLcall

The following

liles

make up the contents of the dynamic data disk:

Table

5-l.

The Dynamic Data Disk Contents

File Type Description

binary

binary This file contains the analyzer’s currant calibration and instrument state settings. The

binary

This file contains the analyzer’s currant instrument state settings. Instrument state settings consist of all the stimulus and response parameters that sat up the analyzer to make a

speciiic

measurement including markers, limit lines, and memory traces. Instrument state information is saved and recalled for both measurement channels. You can either retrieve this information from the analyzer, or you can put another analyzar’s instrument state information into this file, which will cause the analyzer to immediately enter the new instrument state.

measurement calibration information is the measurement correction data that the analyzer creates when you make a calibration. Measurement calibration information is saved and recalled for both measurement channels. You can either retrieve this information from the analyzer, or you can put another analyzer’s calibration and instrument state information into this file, which will cause the analyzer to immediately enter the new

This file contains the measurement data for both measurement channels. You can either retrieve this information from the analyzer, or you can put data trace information from another analyzer into this file.

thr

use

WI?~ 87075C

currently resides on the analyzer’s non-volatile RAM disk. You can either retrieve this

information from the analyzer, or you can put test sat calibration data into this file.

rest sets 0174 This file contains the test set calibration data that

cal

and instrument state.

1 See ‘Saving and Recalling Analyzer States’ in this chapter for information on how to use this file

5-2

Table

Accessing the Analyzer’s Dynamic Data Disk

5-l.

The Dynamic Data Disk Contents (continued)

File

prop.bad

prog-ren.besl’* prog-run.scpl**

screen.hp13

screen.pcw3

screen-m.hg13

screen-m.pcx3

screen-m.flif3

Penn-all.bft4

pit4

trecel.ern5

File Type

ASCII

ASCII ASCII

ASCII This file contains the current screen image in HP-GL format. It is available for uploading to a

binary

ASCII

binary

ASCII

ASCII 1

ASCII

This file contains the currently loaded that is currantlv in this file or

This file accepts a copy of an This file accepts a copy of a file containing

commands.

file on vour comoutar. This file contains the currant screen image in PCX format. It is available for uploading to a

file on your computer. This file contains the current screen image, as wall as the currant softkay menu, in HP-GL

format. It is available for uploading to a file on your computer. This file contains the currant screen imaga, as well as the currant softkay menu, in PCX

format. It is available for uploading to a file on your computer. This file contains the currant screen image, as well as the currant softkay menu, in

format. It is available for uploading to a file on your computer. This file contains a listing of all of the instrument’s operating parameters in ASCII text format. This file contains the information in the current operating parameters screen in ASCII text

format.

This file contains the measurement channel 1 measurement date in ASCII spreadsheet format.

Description

IBASIC

program. You can either retrieve the program

COW

a new

uroaram

to this file.

IBASIC

program and immediately runs it.

SCPI

commands and immediately executes the

GIF

trace2.pm5 tracel.slp5 trace2.81

1 See “Copying Programs to and from the Analyzer” in this chapter for information on how to use this file

2 kbur analyzer must have 3 See “Copying a Screen Image to a Local 4 See 5 See “Retrieving Measurement

“Copving

Instrument Parameters in ASCII Text Format” in this chapter for information on how to use this

ASCII ASCII

ASCII This file contains the measurement channel 2 measurement data in Touchstone format.

BASIC,

Option

Oata

This file contains the measurement channel 2 maesurament data in ASCII spreadsheet format. This file contains the measurement channel 1 measurement data in Touchstone format.

lC2,

to use this file

Fit<

in this chapter for information on how to use this fila

in ASCII Format” in this chapter for information on how to use this

file

fila

5-3

Saving and Recalling Analyzer States

This section describes how to use the state. sta, cal. sta, and data. sta

files

that reside in the data directory of the analyzer. See

description of each of these You may have a particular instrument state set up on an analyzer and would

like to set up that state on one or more additional analyzers. lb do this you

should:

hles.

‘fable 5-l

for a brief

1. Connect to the analyzer using your computer or workstation. See Chapter 4 for instructions on how to do this.

2. Type cd data at the ftp prompt.

3. Type dir at the ftp prompt to see the listing of files in this directory, as well as a short description of each of them.

4. Type binary at the ftp prompt to specify a binary file transfer.

5. Type get state. sta at the prompt to retrieve the current instrument state file from the analyzer. This copies the file state.sta (which contains the analyzer’s current instrument state information) to your computer.

6. Close the connection and exit ftp by typing bye or quit at the prompt.

7. Now you can put the instrument state into a different analyzer. Connect to the desired analyzer using ftp. For example, type ftp computer or workstation.

8. Type cd data at the ftp prompt.

9. Type put state. sta at the ftp prompt. This copies the contents of the

state.sta

to. The new analyzer will immediately reinitialize itself with the new instrument state.

The above procedure can be performed with the cal . sta and data. sta as well.

file from your computer to the new analyzer you are connected

ftp.

For example, type f tp

analyzer1

analyzer2

on your

files

5-4

Accessing the Analyzer’s Dynamic Data Disk

Saving and Recalling Analyzer States

NOTE

It is possible to have saved an instrument state file from the front panel of the analyzer that contains not only the instrument state settings, but the current calibration and measurement data as well. Putting this one file into the state. sta file will cause the analyzer to recall instrument state, cal

state, and measurement data.

CAUTION

When transferring these files between instruments with different model numbers and/or option configurations, it is possible that some instrument state settings will not be compatible. For example, if you try to put an instrument state with a stop frequency of 3 HP

8711C

will limit the frequency to 1.3

GHz

into an HP

GHz

(its high end limit). When you

8711C,

the

transfer this file over ftp, you will not receive any warning or indicator that this has occurred.

Copying Files from UNIX

When copying files from a UNIX environment to the analyzer, files that do not meet the DOS file-naming criteria to comply. For example, if you copy a file from UNIX named as

“ibasic-p.abc”

happened.

(53

characters in filename, with 53 characters in extension) will be truncated

“ibasic-program.abcd”

on the analyzer. There will be no feedback or indication from ftp that this has

it will appear

5-5

Copying Programs to and from the Analyzer

This section describes how to use the prog. bas, prog,run. scp

Iiles

that reside in the data directory of the analyzer. See

prog-run.

bas, and

lkble 5-l for a brief description of each of these files.

NOTE

Your analyzer must have Option

Copying a Screen Image to a Local File

This section describes how to copy screen images from the analyzer to a

fIe

on your computer. To copy a screen image to your computer:

1. Connect to the analyzer using ftp. For example, type

my871 1

on your

computer or workstation. See Chapter 4 for instructions on how to do this.

2. Type cd data at the ftp prompt.

3. Type dir at the ftp prompt to see the listing of files in this directory, as well as a short description of each of them.

4. Decide which screen image file you want to retrieve and then use the get command to transfer it to your computer. For example, type get screen .pcx image .pcx to retrieve the current screen image in PCX format, and place it into a file named image

NOTE

The look of the image you retrieve will depend on the selections in the menu on your analyzer, as well as the file you choose to retrieve from the data directory For example, Figure

5-I

was retrieved with the

includes the measurement graph and the marker table Figure 5-2 was retrieved with the analyzer’s hardcopy mode defined as Graph

“screen.hgl”

OrrXy

file using the analyzer’s default hardcopy mode, which

using the

“screen-m.hgV

.pcx

on your computer.

II&~zH Wtu?dc~~py

file.

5-9

Accessing the Analyzer’s Dynamic Data Disk

Copying a Screen Image to a local File

Figure

6-1. scrnn.hgl

Figure 6-2.

scram-m.hgl

5-10

Copying Instrument Parameters in ASCII Text Format

This section describes how to use the parm,all . txt and parm,screen. txt

fles that reside in the data directory of the analyzer. See

description of each of these files. Instrument parameters can be viewed on the analyzer by pressing

CSYSTEM

0PrIoNsJ Operating

Parameters . Several screens of information are available (the exact number depends upon your model number and option configuration). These screens describe all the current settings and configurations of the analyzer. You can copy all of these screens using

“par-m-all.txt”

G.le

on your computer.

or just the current screen with

“parm-screen.txt”

To copy instrument operating parameters:

lhble 5-l

to an ASCII

for a brief

1. Connect to the analyzer using ftp. For example, type

my87

11 on your

computer or workstation. See Chapter 4 for instructions on how to do this.

2. Type cd data at the ftp prompt.

3. Type get parm,all . txt or get parm,screen. txt at the prompt

to copy the desired parameters to your local computer. You can give the file a unique name on your local computer by typing: get

parrn-all

. txt newf ile.

4. Close the connection and exit ftp by typing bye or quit at the prompt.

Copying the

If you do not rename the above), it will be truncated to

There will be no feedback or indication from ftp that this has happened.

parm-soreen.txt

“parm-screen.txt”

file to B DOS environment

file when copying it to a DOS environment (as in step 3

“parm-scr.txt”

in order to comply with

DOS

file-naming conventions.

5-11

Retrieving Measurement Data in ASCII Format

This section describes how to use the

trace1

analyzer. See Table 5-l for a brief description of each of these Measurement data can be saved in ASCII formats that are compatible with

many personal computer software packages. The files with the extension in the data directory contain measurement data in a two-column format that is directly importable to Lotus@ spreadsheet programs. The directory contain measurement data in a format that is importable into CAE programs such as HP

lb retrieve measurement data:

1. Connect to the analyzer using ftp. For example, type

2. Type cd data at the ftp prompt.

3. Type get

4. Close the connection and exit ftp by typing bye or quit at the prompt.

. slp and

computer or workstation. See Chapter 4 for instructions on how to do this.

1 data in spreadsheet format. See other trace data computer by typing: get

trace2.

EEsof’s

trace1 .prn

hles.

slp

files

hles

Microwave Design System (MDS) and Series IV.

at the prompt to copy the measurement channel

You can give the

trace1 .prn

trace1 .prn, trace2 .pm,

that reside in the data directory of the

hles.

“.prn”

with the

Table

l-2-3@,

“.slp”

5-l for descriptions of the

hle

a unique name on your local

newf ile.

as well as other

extension in the data

my87

11 on your

5-12

Importing Graphics or Data into

PC Applications

Some of the newer PC word processor and spreadsheet programs allow you to import graphics and data from the Web. The following examples illustrate how to import a screen image from your analyzer into Microsoft@ Word 97, and how to import trace data from your analyzer into Microsoft@ Excel 97.

Import a

Screen Snapshot

into a Word

Processor

Program

This example steps you through importing a picture of the analyzer’s current screen into a word processor. (These steps were developed using Microsoft@

Word 97. Other word processing programs may or may not have the same

capability, and will probably have different steps.)

1. Place the cursor at the point in your imported graphic.

2. Click on Insert, Picture, From File. When the dialog box appears, type

http://my87ll/data/screen.pcxintheFile

3. Click on the Insert button in the dialog box.

file

where you want to place the

namebox.

5-13

Accessing

Importing Graphics or Data into PC Applications

the-

Analyzer’s Dynamic

Oata

Disk

Import

This example steps you through importing the analyzer’s current trace data into a spreadsheet program. (These steps were developed using Microsoft@ Excel 97. Other spreadsheet programs may or may not have the same

capability, and will probably have different steps.)

1. Click on File, Open. When the dialog box appears, type http :

2. Click on the Open button in the dialog box.

3. A “Text Import Wizard” will guide you through customizing how you want the data to appear in the spreadsheet. Figure 5-3 shows trace data (and a screen snapshot) imported into a spreadsheet program.

Trace Data

//my87ll/data/tracel.

into

Spreadsheet

sip

in the File name box.

Program

5-14

http.//ne!&71 l/data/trace1 .prn

Accessing the Analyzer’s Dynamic Data Disk

php66c

Figure 5-3. Trace Data and Screen Snapshot Imported into a Spreadsheet

5-15

Controlling the Analyzer via the LAN

To control your analyzer via LAN, you must use socket programming to send SCPI commands. Your analyzer is listening for SCPI commands at port 5025.

You can also control your analyzer by copying programs to the data directory via ftp (see Chapter 5, and see this chapter).

NOTE

“IBASIC

Communication Across the LAN” in

The example programs described in this chapter are on the “Example Programs with your analyzer.

DisK

that was shipped

6-2

The Command Parser Port

You can telnet to the analyzer’s command parser port and send SCPI programming interactively, or you can write a program that opens a socket and sends commands to it.

The analyzer listens for SCPI commands on port 23 and port 5025. Port 23 is intended for interactive use, using telnet. When you connect to port 23, a welcome message is displayed. Port 5025 is intended for program use. When you connect to port 5025, no welcome message is displayed.

Entering Commands

Directly using Telnet

Before connecting to your analyzer using telnet, you must have connected and configured your analyzer as described in Chapter 1.

Using telnet to send commands to your analyzer works in a similar way to communicating over HP-IB; you establish a connection with the analyzer, and then send and/or receive information via SCPI commands.

NOTE

In the current version of firmwaren there is no way to mirror or

SROs.

To do so requires XL/LAN, which has not yet been implemented.

As a workaround, you can use the HP can control your analyzer via

HP-B

E2050A

LAN to

HP-16

operations such as “device clear”

HP-M

gateway, which supports

SICULAN

and

6-3

Controlling the Analyzer via the LAN

The Command Parser Port

The syntax of the telnet command is:

Example

telnet

For example, type telnet

hostname

my8711.

A brief message should appear confirming the connection, and telling you the escape sequence for breaking the connection.

Trying. . . Connected to my8711.sr.hp.com. Escape character is Welcome to the HP

j-1’.

871xC

SCPI Parser

When you connect to the analyzer, there is no prompt. You can now begin typing analyzer SCPI commands; query results appear on the next line. When you are done, break the telnet connection using the escape character (in this case Ctrl

lb connect to the analyzer named

I),

telnet

and type quit. See the detailed example that follows.

“my8711”,

enter:

my8711

The computer responds with:

Trying. . . Connected to my8711.sr.hp.com Escape character is Welcome to the HP

‘-1’

871xC

SCPI Parser

The connection was successful. Because the analyzer does not provide a

prompt, start entering progr

amming

commands. Typical commands might be:

SENSl:FUNC

CALCl:MARK:FUNC

‘XFR:POW:RAT 2,O’:DET

MAX

NBAN;*OPC?

CALCl:MARK:POIN?

The small program above sets the analyzer to measure transmission, places

a marker on the maximum point, and then queries the analyzer for the amplitude of the marker.

6-4

Controlling the Analyzer via the LAN

The Command Parser Port

You need to press Enter after typing in each command. After pressing Enter on the last line in the example above, the analyzer returns the amplitude level of the marker to your computer and displays it on the next line. For example, after

typing

CALCl

: MARK : POIN? and pressing Enter, the computer

would display:

+1.71000000000E+002

When you are done, close the telnet connection. Enter the escape character

to get the telnet prompt. The escape character (Ctrl and

“I”

in this example)

does not print. At the telnet prompt, type quit or close. The telnet connection closes and you see your regular prompt.

Connection closed.

NOTE

If your telnet connection is in a mode called “line-by-line,” there is no local echo. This means you will not be able to see the characters you are typing on your computer’s display until after you press the Enter key

To remedy this, you need to change your telnet connection to ‘character-by-character” mode. This can be accomplished in most systems by escaping out of telnet to the typing mode char. If this does not work, consult your telnet program’s documentation for how to change to “character-by-character” mode.

telnet>

prompt, and then

6-5

Controlling the Analyzer via the LAN

The Command Parser Port

Programming

The following example program demonstrates simple socket programming. It is written in C, and compiles in the HP-UX UNIX environment. It should be portable to other UNIX environments with only minor changes.

In UNIX, LAN communication via sockets is very similar to reading or writing a

iile.

The only difference is the opensocket (1 routine, which uses a few network library routines to create the connection is created, the standard network communication.

In Windows, the routines send( > and fwrite ( > may not work on sockets.

The program reads the analyzer’s hostname from the command line, followed

by the SCPI command. It then opens a socket to the analyzer using port

5025, and sends the command. If the command appears to be a query, the

program queries the analyzer for a response, and prints the response.

This example program can also be used as a utility to talk to your analyzer

from the command prompt on your UNIX workstation or from within a script.

the Analyzer within a C

TCP/‘IP

fread0

recv ( >

network connection. Once this

and

fwrite0

must be used, since fread ( > and

Program

routines are used for

Windows95

PC, or

6-6

Controlling the Analyzer via the LAN

The Command Parser Port

**************************************************************************** *

$Header:

$Revision:

$Date: 97/02/13 13:03:10

* * *

$Contributor:

* *

$Description:

* * * * * * *

$Written by:

* *

871xC

* *

query the center frequency:

* * *

Select Lin Mag format:

* * *

Take a sweep, wait for end of sweep,

* * *

Query X and Y values of marker 1 and marker 2 (assumes they are on>:

* * *

Check for errors (gets one error>:

* *

Send a list of commands from a file, and number them:

****************************************************************************

lanio.c,v 1.6

97/02/13 13:03:10

1.6 $ $

LSID, MID $ Functions to talk to an HP 8711C/l2C/l3C/l4C/3OA

analyzer via TCP/IP. A TCP/IP connection to port 5025 is established and

the resultant file descriptor is used to instrument using regular socket I/O mechanisms. $

Glenn Engel.

Examples:

lanio 15.4.43.5

'sens:freq:cent?'

lanio my8711.sr.hp.com

lanio

my8711

my8711 'calc:markl:x?;y?;

my8711 'syst:err?'

':abort;INIT:CONT OFF;:INITl;*wai; :calc:mark:max; x?'

cat scpi,cmds I lanio -n

roger Exp $

Modified for

'CALC:FORM

MLIN'

move mkr to peak and query x pos:

:calc:mark2:x?;y?'

my8711

Uses command-line arguments.

WIN32

by Roger Petersen

"talk"

to the

6-7

Controlling the Analyzer via the LAN

The Command Parser Port

* This program compiles and runs under * *

HP-UX 9.05 (UNIX), using HP cc or

+ cc

-Aa

+ gee -Wall -0 -0 lanio

-0 -0 lanio

1anio.c

* * * * * *

Windows 95, using Microsoft Visual C++ 4.0 Standard Edition

Windows NT 3.51, using Microsoft Visual C++ 4.0

+ Be sure to add + Compile both

WSOCK32.LIB

1anio.c

and getopt.c

+ Consider re-naming the files to lanio.cpp and getopt.cpp

* * Considerations:

* * * *

On UNIX systems,

This makes programming very convenient, since routines like

getc(>, fgets(), fscanf()

routines typically use the lower level

file I/O can be used on network sockets.

and

* * * *

In the Windows environment,

and

close0

sockets.

cannot be assumed to work correctly when applied to

Instead, the functions

file operations such as

gee:

to your list of libraries!

fprintfo

send0

can be used. These

and

recvo

write0

MUST be used.

calls.

read0, writeo,

Support both

Win32 #ifdef -WIN32 t

define

WINSOCK

#endif

tifndef # ifndef

define

WINSOCK

,HPUX,SOURCE

,HPUX,SOURCE # endif tendif

#include #include #include

<stdio.h> Cstring.h> <stdlib.h>

#include <errno.h>

#ifdef WINSOCK

#include

Cwindows.h>

6-8

and HP-UX UNIX environment

Visual C++ 4.0 will define this

for fprintf and NULL

for memcpy and memset

for

for strerror

malloco, at010 */

*/ */

ifndef

include <winsock.h>

,WINSOCKAPI,

t endif

BSD-style socket functions

Controlling the Analyzer via the LAN

The Command Parser Port

#else /* UNIX with BSD sockets

include

include <netdb.h>

define SOCKET-ERROR (-1)

define INVALID-SOCKET

Csys/socket.h> <netinet/in.h>

/* /* /*

(-1)

typedef int SOCKET;

#endif /* WINSOCK */ #ifdef WINSOCK

Declared in getopt.c.

See example programs disk. extern char *optarg; extern int optind;

extern int getopt(int

argc,

char * const #else

include

<unistd.h>

#endif

#define COMMAND-ERROR (1) #define NO,CMD-ERROR

(0)

for connect and socket*/ for sockaddr,in for gethostbyname

argv[],

for

getopt(3C) */

*/ */

const char* optstring);

#define

SCPI-PORT

5025

#define INPUT,BUF,SIZE (64*1024)

/**************************************************************************

Display usage

**************************************************************************/

static void

usage(char *basename)

(

fprintf(stderr,"Usage: fprintf(stderr,"

[-nqu]

<hostname> [<command>]\n", <hostname> < stdin\n",

basename);

6-9

Controlling the Analyzer via the LAN

The Command Parser Port

fprintf(stderr," fprintf(stderr," fprintf(stderr,"

-n, number output

-q, quiet; do NOT echo

-8,

show messages in error queue when done\n");

tifdef WINSOCK

int

init,winsock(void)

(

WORD

WVersionRequested;

WSADATA

wsaData;

int err;

WVersionRequested = MAKEWORD(1, 1); WVersionRequested = MAKEWORD(2, 0);

err = WSAStartup(wVersionRequested, if (err != 0)

Tell the user that we couldn't find a

winsock.dll.

fprintfcstderr,

(

"Cannot initialize

return -1;

return 0;

lines\n");

BtwsaData);

useable */

Winsock l.l.\n");

int

close,winsock(void)

(

WSACleanupo;

return 0;

#endif /* WINSOCK */

/***************************************************************************

$Function: openSocket$

* $Description:

open a TCP/IP socket connection to the instrument $

* *

$Parameters:

6-10

Controlling the Analyzer via the LAN

The Command Parser Port

(const

* *

(int) portNumber

char *>

hostname

. . . . Network name of instrument.

This can be in dotted decimal notation.

. . . . . . . The TCP/IP port to talk to.

Use 5025 for the SCPI port.

* $Return:

(int)

. . . . . . . .

A file descriptor similar to

open(l).$

* $Errors:

returns -1 if anything goes wrong $

***************************************************************************/

SOCKET openSocket(const char

*hostname,

int

portNumber)

(

struct hostent

*hostPtr;

struct sockaddr-in peeraddr-in; SOCKET s;

memset(&peeraddr-in,

sizeof(struct

sockaddr,in));

/************************************************/

map the desired host name to internal form.

/***********************************************/

hostPtr

gethostbyname(hostname);

(hostPtr ==

fprintfcstderr,

NULL)

"unable to resolve

hostname '%s'\n",

return INVALID-SOCKET;

/*******************/

create a socket

/*******************/

s =

socket(AF,INET,

if (s

== INVALID-SOCKET)

SOCK-STREAM,

0);

(

fprintfcstderr,

hostname,

"unable to create socket to

strerror(errno));

return INVALID-SOCKET;

3 memcpy(&peeraddr,in.sin,addr.s,addr,

hostPtr->h,addr, hostPtr->h,length);

hostname);

'x8': %s\n",

6-11

Controlling the Analyzer via the LAN

The Command Parser Port

peeraddr,in.sin,family peeraddr-in.sin,port

(connectcs,

(const

sizeof(struct

fprintfcstderr,

hostname,

AF,INET;

= htons((unsigned

short)portNumber);

struct sockaddr*)tpeeraddr,in,

sockaddr,in)) == SOCKET-ERROR)

"unable to create socket to

strerror(errno));

'l/is': %s\n",

return INVALID-SOCKET;

return s;

/***************************************************************************

$Function: commandInstrument$

* $Description:

send a SCPI command to the instrument.$

* *

$Parameters:

* * *

(SOCKET) . . . . . . . . .

(const char *command) . . SCPI command string.

$Return:

(char *> . . . . . .

file pointer associated with TCP/IP socket.

a pointer to the result string.

$Errors:

returns 0 if send fails $ *

***************************************************************************/

int

commandInstrument(SOCKET

sock,

const char *command)

(

int count;

/* fprintfcstderr,

if (strchr(command,

fprintfcstderr,

"Warning: missing newline on command

command);

6-12

"Sending

'\n'> ==

NULL)

\"Xs\".\n",

(

command);

1s.

Might hang.\n",

count

send(sock,

if (count

command, strlen(command),

SOCKET-ERROR)

return COMMAND-ERROR;

Controlling the Analyzer via the LAN

The Command Parser Pert

0);

return

NO-CMD-ERROR;

/***************************************************************************

$Function: sendBlock$

* $Debcription:

send a SCPI command to the instrument.$

* *

$Parameters:

* * *

(SOCKET) . . . . . . .

(int)

(const char *command) . Pointer to block

* $Return:

file descriptor associated with TCP/IP socket.

. . . . . . . . . Block length

(char *> . . . . .

a pointer to the result string.

* $Errors:

returns 0 if send fails $ *

***************************************************************************/

int

sendBlock(SOCKET

sock, const char *block, int block-length-in-bytes)

int count;

count

send(sock,

if (count

fprintfcstderr,

== SOCKET-ERROR)

block, block-length-in-bytes,

(

"ERROR:

sendBlock(): send0 failed.\n");

0);

return COMMAND-ERROR;

return NO-CMD,ERROR;

/**************************************************************************

* recv,line(): **************************************************************************/

char * recv,line(SOCKET sock, char * result, int

similar to

fgetso,

but uses

recv0

maxlength)

6-13

#ifdef WINSOCK

int cur-length = 0; int count; char * ptr = result; int err = 1;

Controlling the Analyzer via the LAN

The Command Parser Port

while (cur-length C maxlength)

Get a byte into ptr

count =

If no chars to read, stop.

if (count < 1)

recv(sock,

break;

ptr, 1,

cur-length += count;

If we hit a

(*ptr

ptr++;

err = 0;

break;

ptr++;

newline,

'\n'> (

stop.

*ptr = if (err)

else

'\O';

(

return NULL;

return result;

(

0); */

#else

/***********************************************************************

Simpler UNIX version, using file I/O.

This demonstrates how to use file I/O on sockets, in UNIX.

***********************************************************************/

FILE *

instFile

instFile;

fdopen(sock, "r+");

6-14

recv(>

version works too.

(instFile ==

Controlling the Analyzer via the LAN

The Command Parser Port

NULL)

fprintfcstderr,

"Unable

to create FILE * structure :

%S\n",

strerror(errn0));

exit(2);

return

fgetscresult,

maxlength,

instFile);

tendif

/***************************************************************************

$Function:

* $Description:

* *

$Parameters:

* * *

(SOCKET) . . . . . . . file descriptor associated with TCP/IP socket.

(char *result) . . . . . where to put the result.

(size-t) maxLength

* $Return:

* $Errors:

***************************************************************************/

long

queryResponse(SOCKET

(

long ch; char long int count;

queryResponse

read response from analyzer

(assumes query command was already sent)

. . .

maximum size of result array in bytes.

(long) . . . . . . . The number of bytes in result buffer.

returns 0 if anything goes wrong. $

sock, char *result,

size-t maxlength)

tmp_buf[8]; resultBytes =

/*********************************************************

Read response from analyzer

********************************************************/

count ch =

recv(sock,

tmp-buf

COI;

tmp-buf,

0); /*

read 1 char

6-15

Controlling the Analyzer via the LAN

The Command Parser Port

if ((count < 1) I I (ch ==

EOF) 11

*result =

'\O';

null terminate result for ascii

return 0;

use a do-while so we can break out

(

if (ch ==

'#'>

binary data encountered - figure out what it is long numDigits; long

numBytes

char

count

ch =

= recv(sock,

tmp-buf[Ol;

if ((count C 1) I if (ch <

numDigits =

= 0;

length[lO]; */

tmp-buf,

(ch ==

'0'

II ch >

ch -

'0';

'9')

break; /* unexpected char

if (numDigits)

read

count

resultCcount1 = 0;

numBigits

recv(iock,

bytes into result string.

result,

numBytes= atol(result);

(ch == '\n'>>

0); /*

EOF))

break; /* End of file

read 1 char

(int)numDigitsi

null terminate

0); -

(numBytes)

(

resultBytes =

Loop until we get all the bytes we requested.

Each call seems to return up to 1457 bytes (HP-UX 9.05)

(

6-16

int rcount; rcount

= recv(sock,

resultBytes

result, (int)numBytes,

+= rcount;

0);

else

Controlling the Analyzer via the LAN

result

while (

/************************************************************

resultBytes < numBytes >;

* For LAN dumps,

rcount;

Advance pointer

there is always an extra trailing newline * Since there is no EOI line. For ASCII dumps this is

great but for binary dumps, it is not needed.

*******************************************************~***/

(resultBytes == numBytes)

char junk; count =recv(sock, &junk, 1,

0);

3 3 else

indefinite block . . .

dump til we can an extra line feed do

(recv,line(sock,

(strlen(result)==l

resultBytes

result +=

)

while (I);

strlen(result);

result, maxlength) == NULL) break;

&& *result ==

'\n')

strlen(result);

The Command Parser Port

break;

while

return

ASCII response (not a binary block)

*result =

(recv,line(sock,

REMOVE trailing

resultBytes

(result[resultBytes-11

result[resultBytesl

(char)ch;

strlen(result);

result+l, maxLength-

newline,

'\O';

if present. And terminate string.

'\n') resultBytes -=

(0);

resultBytes;

== NULL) return 0;

6-17

Controlling the Analyzer via the LAN

The Command Parser Port

/***************************************************************************

$Function:

queryInstrument

* $Description:

send a SCPI command to the instrument, return a

response.$

* *

$Parameters:

* * * *

(SOCKET) . . . . . . . file descriptor associated with TCP/IP socket.

(const char *command) . . SCPI command string.

(char *result) . . . . . . where to put the result.

(size-t)

maxLength

. . . .

maximum size of result array in bytes.

* $Return:

(long) . . . . . . . The number of bytes in result buffer.

$Errors:

returns 0 if anything goes wrong. $ *

***************************************************************************/

long

queryInstrument(SOCKET

const char *command, char *result,

sock,

size-t maxlength)

int command-err;

/*********************************************************

Send command to analyzer

*********************************************************/

command-err =

commandInstrument(sock, command);

if (command-err) return COMMAND-ERROR;

return queryResponse(sock, result, maxlength);

/*************************************************************************

$Function: showErrors$

* $Description:

query the SCPI error queue, until empty.

6-18

Print results. $

Controlling the Analyzer via the LAN

The Command Parser Port

* $Return:

(void) *

*************************************************************************/

void

showErrors(SOCKET

sock)

(

const

char * command =

char

result-strC2561;

queryInstrument(sock,

/******************************************************************

Typical result-str: * *

-221,"Settings

"No

error"

Don't bother decoding.

"SYST:ERR?\n";

command, result,str,

sizeof(result,str)-1);

conflict; Frequency span reduced."

******************************************************************/

(strncmp(result-str,

Matched

+O,"No

H+O,U,

error"

3) == 0)

(

break;

puts(result-str);

while

/***************************************************************************

$Function:

(1);

isQuery$

* $Description:

Test current SCPI command to see if it a query. $

* *

$Return:

(unsigned char) . . .

non-zero if command is a query.

0 if not. *

***************************************************************************/

unsigned char

isquery(

char* cmd

)

(

unsigned char q = 0 ; char *query

;

6-19

Controlling the Analyzer via the LAN

The Command Parser Port

/*********************************************************/

if the command has a

otherwise, simply send the command.

Actually, we must a little more specific so that

marker value queries are treated as commands.

Example:

/*********************************************************/

if ( (query

(

Make sure we don't have a marker value query, or

any command with a

This kind of command is not a query from our point of view.

The analyzer does the query internally, and uses the result.

query++ ; while (*query)

smis:mq:cm

strchr(cmd,'?'))

if (*query == '

query++

else break

;

'?'

in it, use queryInstrument.

(CALCI:MARRI:X?)

!= NULL)

'?'

followed by a

bump past

'> /*

attempt to ignore white spc

'?' */

'1'

character.

*/ */

*/ */ */

if ( *query !=

(

q=l;

'1' >

return q

;

/***************************************************************************

$Function:

* $Description:

* $Return:

***************************************************************************/

main$

Read command line arguments, and talk to analyzer. Send query results to stdout. $

(int)

6-20

. . .

non-zero if an error occurs

int

main(int argc,

char

Controlling the Analyzer via the LAN

The Command Parser Port

*argv[])

SOCKET char char

instsock;

*charBuf

= (char *)

*basename;

malloc(INPUT-BUF,SIZE);

int chr; char

commandCl0241;

char *destination; unsigned char quiet = 0; unsigned char show-errs = 0; int number = 0;

basename =

strrchr(argv[Ol,

if (basename != NULL)

basename++

;

else

basename =

while ( ( chr =

argv

CO];

getopt(argc,argv,"qune"))

switch (chr)

case case case case case

'q': 'n': '8': 'u': '?':

quiet

= 1; break;

number = 1; break

show-errs

usagecbasename); exit(l)

'/');

= I; break

!= EOF )

;

now look for

if (optind <

argc)

(

destination

strcpy(command, 'I");

if (optind <

(

while (optind <

/* strcat(command,

if (optind <

hostname

and optional <command>

argv[optind++] ;

argc)

argc) (

<hostname> <command> provided; only one command string

argvCoptind++l);

argc) <

strcat(comma.nd, ' ");

6-21

Controlling the Analyzer via the LAN

The Command Parser Port

else

strcat(command,

else

Only

strcpy(command, "'I>;

(

"\n");

provided; input on <stdin>

if (optind >

usage(basename);

exit(l);

argc)

.else

(

no hostname!

usage(basename);

exit(l);

/**********************************************/

open a socket connection to the instrument

/**********************************************/

#ifdef WINSOCK

(init,winsock()

exit(l);

!= 0)

(

#endif /* WINSOCK */

instSock =

(instsock

fprintf(stderr, return I;

openSocket(destination, SCPI,PORT);

INVALID-SOCKET)

"Unable to open

(

fprintf(stderr,

"Socket

opened.\n"); */

socket.\n");

(strlen(cmmand) >

6-22

/********************************************************/

if the command has a

otherwise, simply send the command.

I?'

in it, use queryInstrument.

/********************************************************/

if (

isQuery(command) >

long

bufBytes;

bufBytes

(!quiet)

queryInstrument(instSock,

fwrite(charBuf, bufBytes, fwrite("\n", fflush(stdout);

I, 1,

charBuf,

stdout) ;

command,

INPUT,BUF,SIZE);

stdout);

else

(

commandInstrument(instSock, command);

else

(

read a line from <stdin>

while (

gets(charBuf) !=

NULL

(

if (

!strlen(charBuf) )

continue

;

Controlling the Analyzer via the LAN

The Command Parser Port

*/ */

if (

*charBuf

continue

;

strcat(charBuf, if

(!quiet)

if (number)

(

char

num[lO] ;

sprintf(num,"%d:

'#' I I *charBuf == '!' )

"\n");

",number);

6-23

Controlling the Analyzer via the LAN

The Command Parser Port

fwrite(num, strlen(num),

1, stdout);

fwrite(charBuf, strlen(charBuf), fflush(stdout);

1, stdout)

;

if ( isQuery(charBuf)

(

long

bufBytes;

Put the query response into the same buffer as the

command string appended after the null terminator.

bufBytes

(!quiet)

fwrite(" fwrite(charBuf fwrite("\n", fflush(stdout);

queryInstrument(instSock,

charBuf

INPUT-BUF,SIZE

2, 1, stdout)

strlen(charBuf)+l, bufBytes,

I, 1, stdout)

; ;

charBuf,

strlen(charBuf)

-strlen(charBuf) >;

+ 1,

1, stdout);

else

commandInstrument(instSock, charBuf);

if (number) number++;

if (show-errs) c

showErrors(instSock);

tifdef

#else

WINSOCK closesocket(instSock); close,winsocko;

close(instSock);

6-24

tendif /* WINSOCK */

return 0;

End of

1anio.c */

Controlling the Analyzer via the LAN

The Command Parser Port

6-25

IBASIC Communication Across the LAN

You may need a way for an

BASIC

program running on the analyzer to signal

a remote computer that it has completed some operation.

IBASIC

currently cannot communicate directly across LAN using the ASSIGN

and OUTPUT or ENTER commands. However,

BASIC

can use the following

SCPI command to send a message to a remote computer via LAN:

DIAGnostic:COMMunicate:LAN:SEND <IP,ADDR>,<PORT,NUM>,<STRING>,

This command opens a socket to the remote computer, and sends the specified string. The

remote computer. The

use. The <STRING> is the message to be sent. The

speciiies

the timeout interval (0 to 75 seconds).

<IP,ADDR>

<PORT-NW0

argument specifies the IP address of the

argument specifies the port number to

argument

For example:

DIAGnostic:COMMunicate:LAN:SEND ‘15.4.40.49’,8001,‘Ready!‘,30

If the remote computer is not listening for a LAN connection at the specified port, this command will block, and wait for the remote computer to accept the connection. In this example, it will time out after 30 seconds. If no timeout interval is specified, it will time out after the default timeout of about

75 seconds (the standard

The following using

IBASIC.

BASIC

TCP/IP

timeout period).

example program demonstrates LAN communication

100

! ! This program demonstrates how

110 120

with a remote computer via LAN. This is done using a

130 140

150

SCPI command that sends a LAN message to the computer: ! ! 8003 is an arbitrary unused port number.

160 170

AIM Cmd$C2561

180

DIM

190

DIM Snum$[l6]

6-26

DIAG:COMM:LAN:SEND

Msg$[l28]

IBASIC

'15.4.40.49',8003,'Ready!'

can communicate

Controlling the Analyzer via the LAN

IBASIC Communication Across the LAN

200

210 220 230 240

250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560 570 580 590 600

! Initialize the instrument

! ASSIGN OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT

@Na

ONa;"SYST:PRES;*WAI"

ONa;"SENSI:STAT ONa;"POWI:MODE ONa;"DISP:ANN:FREQl:MODE CSPAN"

QNa;"SENSI:FREQ:CENT 177e6;SPAN

! Put sweep in hold

OUTPUT

QNa;"ABOR;:INITI:CONT OFF;*WAI"

! Sync up with analyzer OUTPUT QNa;"*OPC?" ENTER

QNa;Opc

! ! ! Get serial number

OUTPUT ENTER

QNa;"DIAG:SNUM?"

(ONa;Snum$

Snum$=Snum$C2,111

! ! Begin infinite loop:

Take sweep

Compute bandwidth

Send signal to computer

! !

Loop: !

DISP "Taking sweep..."

Count=Count+l

! Take sweep, and wait for it to finish.

OUTPUT ENTER

ONa;"INITI;*OPC?"

QNa;Opc

! Autoscale trace to give feedback.

OUTPUT

QNa;~'DISP:WINDl:TRAC:Y:AUTO

! Perform a search for the -3 dB bandwidth of the filter ! This function uses several markers to find 4 key values.

OUTPUT

QNa;"CALCI:MARK:BWID -3;FUNC:RES?"

! Read the four values: ! frequency,

ENTER

ONa;Bwid,Center,f,Q,Loss

TO 800

ON;

*WAI"

FIXed"

! remove quotes

the bandwidth, center

and the insertion loss.

! Freq sweep

200e6;*WAI"

ONCE"

6-27

610

620 630 640 650 660 670 680 690 700 710 720

. 730

740 750 760 770 780 790 800 810 820 830 840

Controlling the Analyzer via the LAN

IBASIC Communication Across the LAN

! Signal computer that we are done, ! so that it can come grab the

meas

results ! ! Create a string that looks like this: !

Ready!, "US36100007",6.159E+7,1.7248E+8,-1.6088<LF>

! Could send any string.

Could also save

meas

results to ! a file, and send filename, and computer could FTP the file. !

Msg$="'Ready! ,"tSnum$&"," Msg$=Msg$tval$(Bwid)&","bval$(Center,f)&","~val$(Loss) Msg$=Msg$tchr$(lO)&""'

! ! Send the message to the computer, via LAN !

Cmd$="DIAG:COMM:LAN:SEND

OUTPUT

@Na;Cmd$

DISP "Done with loop

'15.4.40.49',8003,"&Msg$

";Count;"

Continuing..." ! ! Pause, ! Computer will send

and wait for computer to grab data.

'PROG:STAT CONT'

when ready

PAUSE

GOT0

Loop

END

6-28

Controlling Multiple Analyzers using a Per1 Script

The following analyzers from your workstation.

The script downloads an program makes a measurement, and then signals the computer that it needs service. (See the previous section, to see how the

The computer receives this data, and then

/usr/bin/perl #

Per1

script to listen on a port, and print received messages.

# This script is based on the “server” example in the

# book “Programming #

require

‘sys/socket.ph’;

‘ctime.pl’;

Per1

script demonstrates how you can control a network of

IBASIC

tells

the

perl”

IBASIC

program accomplishes this.)

IBASIC

program to a group of analyzers. The BASIC

“IBASIC

signaI,

then queries the analyzer for measurement

program to continue.

O’Reilley &

# Not needed on HP-UX

Allow use of

Communication Across the LAN”

Associates, Inc.

ctimeo

to get date

# Get the port number from the command line (first

If no argument,

# Users can use ports above 1024 or so.

($port)

sport

$AF-INET $SOCK,STREAM $PF-INET

OARGV;

= 8003 unless

= 2;

= I;

$AF,INET;

default to a high-numbered port.

$port;

from

/usr/include/sys/socket.h /usr/include/sys/socket.h /usr/include/sys/socket.h

arg).

6-29

Controlling the Analyzer via the LAN

Controlling Multiple Analyzers using a

Is this line noise?

s= unsigned short, n =

# a4= # x8=

$sockaddr = 'S n a4

4 ascii characters, null padded,

8 null bytes

(?>

x8';

Per1

Script

No, it's the pack format:

short in network order

chop($this,hostname

($name, $alias, $proto)=

Create arguments for

0000 =

Wildcard address

'hostname');

bind0

getprotobyname('tcp');

and

connect0

$thisport

select(NEW,SOCK); $1 =

Open a network connection via a socket

= pack($sockaddr,

$AF-INET, $port, "\O\O\O\O">;

select(stdout);

socket(SOCK,

die "cannot create socket:

bind(SOCK,

die "cannot bind socket:

listen(SOCK,

die "cannot listen socket:

$PF,INET, $SOCK,STREAM, $proto)

$!\n";

$thisport)

$!\n";

SOMAXCONN)

$!\n";

calls, below.

II I I

I I

printf "Listening on port %d.\n",

for ($con = I;;

$con++> C

Wait for incoming connections

# $client-addr

accept(NEW-SOCK,

die "cannot accept socket:

We have a connection!

6-30

$port;

SOCK)

$!\n";

I I

Controlling the Analyzer via the LAN

Controlling Multiple Analyzers using a

printf("Accepted

Here we used to call

However, this causes problems if the parent doesn't

for the child -- zombie child processes are left behind!

To fix this,

code so that it doesn't wait for the parent.

connection

fork0

#$con!\n");

to fork a child process.

it might be better to

exec()

wait0

the child process

# This way, we can handle multipe overlapping messages. # Even if we don't

pending connections.

fork(), listen0

will allow multiple

# #

(($child

Get info about incoming connection, and print it

fork()) ==

(

($af, $port,

Qipaddr

$ipaddr)

= unpack($sockaddr,

unpack('C4', $ipaddr);

$client,addr);

$IP-addr =sprintf("%d.%d.%d.%d",

QipaddrCO], (OipaddrCll, @ipaddr[2], OipaddrC31);

$Date= &ctime(time());

printf

"%d:

Got message from %s at %s", $con,

# "Mon Ott

21:52:22

PDT

1996\n"

$IP,addr, $Date;

Per1

Script

Read incoming message, and save it to a file

Append it to a file named

each analyzer its own data file.

data.IP,addr

giving

$file

# print "Routing input to

open(FILE-OUT,

print FILE-OUT while

print FILE-OUT

./data.$IP-add?';

(<NEW-SOCK>) (

$file.\n";

'I>> $file") I I

$Date;

"$-'I;

die "Cannot open

close(NEW,SOCK); close(FILE-OUT);

Tell the instrument's

IBASIC

program to continue

$file: $!'I;

6-31

Controlling the Analyzer via the LAN

Controlling Multiple Analyzers using a Perl Script

system("lanio

exit 0;

$IP-addr

'PROGram:STATe CONT"');

6-32

Controlling the Analyzer using HP VEE

lb control your analyzer via LAN using HP VEE, click on the VEE menu titled

“I/O.’

Then select “lb/From Socket” and position the I/O object box on the

screen. Fill in the following Eelds:

Connect Port: Host Name: Timeout :

5025

my8711

For faster troubleshooting, you may want to set the timeout to a smaller number. If the your analyzer (example: 15.4.43.5). Using the

hostname

you enter doesn’t work, try using the IP address of

II?

address rather than the

hostname may also be faster. See Figure 6-l for an example of an HP VEE

screen.

NOTE

Since the current firmware revision does not support device clears via LAN. Future revisions may support this protocol.

SICLILAN,

there is no way to perform

SR[ls

6-33

Controlling the Analyzer via the LAN

Controlling the Analyzer using HP VEE

6-34

Figure

6-l.

Sample HP VEE Screen

php64c

Controlling the Analyzer with a JavaTM Applet

The following example program demonstrates simple socket programming with Java. It is written in Java progr

Java compilers versions 1.0 and above.

This program is on the example programs disk that was shipped with your analyzer. View the this program.

import java.awt.*; import java.io.*; import java.net.*; import

// // HP87xx // // // // // // // //

following:

:: :: ::

public class

java.applet.*;

This is a SCPI Demo to demonstrate how one can communicate with the

network analyzer with a JAVA capable browser. This is the Main class for the SCPI Demo. support the I/O commands and a the applet. To use this applet, either compile this applet with a Java compiler or use the existing compiled classes. Socks.class and ScpiDemo.html to a floppy. Insert the floppy into your instrument. Load up a browser on your computer and do the

1. Load this URL in your browser:

ftp://CYour

2. There should be two text windows show up in the browser: The top one is the SCPI response text area for any response

coming back from the instrument.

to enter a SCPI command.

If the command expects a response, it will show up in the top

window.

ScpiDemo

Thread

Socks URL

TextField TextArea

instrument's IP address or name>/int/ScpiDemo.html

extends

responseThread;

sck;

appletBase; scpicommand scpiResponse

README file

This applet will need Socks.class to

ScpiDemo.html

Type in a SCPI command and hit enter.

java.applet.Applet

new

TextFieldO;

= new

TextArea(l0, SO>;

amminglanguage, and will compile with

on the example programs disk before using

for a browser to load

copy

ScpiDemo.class,

The bottom one is for you

implements Runnable c

6-35

Controlling the Analyzer via the LAN

Controlling the Analyzer with a

JavaTM

Applet

Panel Panel

Initialize the applets

public void

southPane

init

(

= new

Panelo;

SetupSocketsO; SetupPanelsO;

Set up font type for both panels

Font font

= new

Font("TimesRoman",

Font.BOLD,l4);

scpiResponse.setFont(font); scpiCommand.setFont(font); scpiResponse.appendText("SCPI scpiResponse.appendText("

Demo Program:

_____________________

This routine is called whenever the applet is

public void

Open the sockets if not already opened

start0 (

sck.OpenSockets(); //

Start a response thread

StartResponseThread(true);

Response messages\n");

----------------\n")

actived

;

This routine is called whenever the applet is out of scope

i.e. minize browser

public void

Close all local sockets

stop0 C

sck.CloseSockets(); //

Kill the response thread

StartResponseThread(false);

Action for sending out scpi commands

This routine is called whenever a command is received from the

SCPI command panel.

public boolean

If this is the correct target

(evt.target //

action(Event

evt, Object what)

scpicommand) (

Get the scpi command

6-36

(

Controlling the Analyzer via the LAN

Controlling the Analyzer with a

String str = scpiCommand.getText();

Send it out to the Scpi socket

sck.ScpiHriteLine(str); //

Query for any error

sck.ScpiWriteLine("syst:err?");

return true;

return false;

Start/Stop a Response thread to display the response strings

private void StartResponseThread(boolean start)

if (start)

Start a response thread

responseThread responseThread.start();

(

= new

Threadcthis);

(

else

(

Kill the response thread

responseThread = null;

JavaTM

Applet

Response thread running

public void

String str =

Clear the error queue before starting the thread

in case if there's any error messages from the previous actions

while (

run0 (

"'I;

str.indexOf("No sck.ScpiHriteLine("syst:err?");

str =

sck.ScpiReadLine();

Start receiving response or error messages

while(true) (

str =

if (

sck.ScpiReadLineO;

If response messages is "No error", do no display it

str.indexOf("No

Display the error message in the Response panel

scpiResponse.appendText(str+"\n");

Initialize str to null

error") == -1 >

(

6-37

Controlling the Analyzer via the LAN

Controlling the Analyzer with a

query for any error messages

sck.ScpiWriteLine("syst:err?");

JavaTM

Applet

Set up and open the SCPI sockets

private void

Get server url

appletBase = //

Open the sockets sck =

SetupSockets (

(URL)getCodeBase();

new

Socks(appletBase);

Set up the SCPI command and response panels

private void

Set up SCPI command panel

southPanel.setLayout(new GridLayout(1,

= new

F.setLayout(new p.add("West", p.add("Center", scpiCommand);

southPanel.add(p);

SetupPanels (

PanelO;

BorderLayout(

new

Label("SCP1

command:“));

1));

Set up the Response panel

setLayout(new add("Center",

BorderLayout(2,2));

ScpiResponse);

add("South", southPanel);

Socks class is responsible for open/close/read/write operations

from the predefined socket ports. For this example program,

the only port used is 5025 for the SCPI port.

class Socks extends

Socket Info

To add a new socket, add a constant here,

change

then, edit the constructor for the new socket.

MAX,NUM,OF,SOCKETS

java.applet.Applet (

6-38

Controlling the Analyzer via the LAN

Controlling the Analyzer with a

JavaTM

Applet

public final int private final int

Port number

5025 is the dedicated port number for

SCPI=O;

MAX,NUM,OF,SOCKETS=l;

private final int SCPI,PORT = 5025;

Socket info private URL appletBase; private private

SocketCl

sock

DataInputStream[] sockIn=new DataInputStreamCMAX,NUM~OF,SOCKETSI;

private PrintStreamO private private

Constructor

Socks(URL

int[l

boolean[] sockOpen

appletB)

port

= new

sockOut

SocketCMAX-NUM,OF-SOCKETS];

= new

int[MAX,NUM,OF,SOCKETSI;

= new

boolean[MAX,NUM,OF,SOCKETS~;

appletBase = appletB; //

Set up for port array.

port[SCPIl

Initialize the sock array

for ( int i

sock[il sockIn[i] sockOut[i]

= SCPI,PORT;

0; i <

MAX-NUM-OF-SOCKETS;

= null;

sockOpen[i] = false;

HP87ll's

SCPI port

PrintStreamCMAX,NUM,OF,SOCKETSI;

i++ >

(

//***** Sockects //

Open the socket(s) if not already opened

public void

open/close routines

OpenSockets

try

Open each socket if possible

for ( int i

if (

sock[i]

0; i < MAX,NUM-OF-SOCKETS; i++ >

!sockOpen[i] > (

= new

Socket(appletBase.getHost(),port[il);

(

6-39

Controlling the Analyzer via the LAN

Controlling the Analyzer with a

sockIn[i]=new DataInputStream(sock[i].getInputStream()); sockOut[i]=new

if (

(sock[i]

(sockOut[il

sockOpen[i] = true;

catch (IOException e>

System.out.println("Sock,

Close the socket(s) if opened

public void

CloseSocket(int s>

try

if ( sockOpen[s] == true >

write blank line to exit servers elegantly

sockOut[sl.println(); sockOut[s].flush(); sockIn[s].close(); sockOut[sl.close(); sock[sl.close(); sockOpen[s] = false;

(

catch (IOException e>

System.out.println("Sock,

(

JavaTM

Applet

PrintStream(sockCi].getOutputStream());

null) && (sockInCi1 != null)

!= null) >

Open Error

(

"+e.getMessage());

(

Close Error

"+e.getMessage());

Close all sockets

public void

CloseSockets

for ( int

i=O;

CloseSocket(

6-40

i <

MAX-NUM,OF,SOCKETS;

i++ > c

Controlling the Analyzer with a

Return the status of the socket, open or close. public boolean SockOpen(int

return

sockOpenCs1;

Controlling the Analyzer via the LAN

JavaTM

Applet

//************* //MM

I/O routines for SCPI socket

Write an ASCII string with carriage return to SCPI socket

public void

(

if (

sockOut[SCPI].println(command); sockOut[SCPIl.flush();

Socket I/O routines.

ScpiWriteLine(String

SockOpen(SCP1) > (

command)

Read an ASCII string,

from SCPI socket

public String ScpiReadLineO

(

try

if (

SockOpen(SCP1) > (

return

sockInCSCPIl.readLineO;

terminated with carriage return

catch (IOException e)

System.out.println("Scpi

(

Read Line Error

“+e.getMessage());

return null;

Read a byte from SCPI socket

public byte ScpiReadByteO

try

if (

SockOpen(SCP1) > (

return

sockIn[SCPI].readByteo;

6-41

Agilent 8711C User’s Guide Supplement

Specifications and Main Features

Frequently Asked Questions

User Manual

Acknowledgments

Introducing the LAN Interface

Documentation Outline

Connecting and Configuring the Analyzer

Connecting and Configuring the Analyzer

Connecting the Analyzer to the LAN

Setting Up a Network

Point-to-Point Connections

Configuring the Analyzer

Verifying Connectivity

Screen Snapshot

Product Documentation

Printing

Printing

Configuring the Printer

Configuring the Analyzer for Printing to a LAN Printer

If You Have Trouble Printing

Using FTP to Access the Analyzer

Commonly Used FTP Commands

Using GUI FTP Software

Saving and Recalling Analyzer States

Copying Programs to and from the Analyzer

Copying a Screen Image to a Local File

Copying Instrument Parameters in ASCII Text Format

Retrieving Measurement Data in ASCII Format

Controlling the Analyzer via the LAN

Controlling the Analyzer via the LAN

The Command Parser Port

IBASIC Communication Across the LAN

Controlling the Analyzer using HP VEE
