• 10 kHz to 1280 MHz frequency range
• < – 147 dBc/Hz SSB phase noise at 10 kHz offset
• 0.1 Hz frequency resolution
• 100 kHz to 2560 MHz frequency range
• AM/FM/⌽M/pulse in one generator
• Internal variable modulation oscillator
HP 8662A HP 8663A
HP 8662A/HP 8663A Synthesized 1
Residual SSB Phase Noise (dBc/Hz):
Signal Generators
Spectral purity is the key contribution of both the HP 8662A and 8663A,
making them ideal for many radar, satellite communication, and phase
noise measurement applications. Typical absolute phase noise performance of these generators at a 1 kHz offset is as low as –135 dBc/Hz,
depending on the band of operation.
The frequency range of the HP 8662A is 10 kHz to 1280 MHz. It
offers versatile AM/FM, using either inter nal 400 Hz and 1 kHz rates or
externally applied modulating signals which can be either ac- or dc-coupled. It also has simultaneous modulation capability.
The HP 8663A and 8662A provide the U.S. Air Force MATE (Modular Automatic Test Equipment) capability, via Option 700. This option is
an external translator that allows the signal generator to be controlled by
the MATE language CIIL (Control Interface Intermediate Language).
HP 8662A Specifications
Frequency
Range: 10 kHz to 1280 MHz (1279.9999998 MHz)
Resolution: 0.1 Hz (0.2 Hz above 640 MHz)
Accuracy and Stability: Same as reference oscillator
Internal Reference Oscillator: 10 MHz quartz oscillator. Aging rate
–10
< 5 x 10
/day after 10-day warmup (typically 24 hrs. in normal
operating environment).
Spectral Purity
Front-Panel Absolute SSB Phase Noise (dBc/Hz):
Frequency range (MHz)
0.01 to 119.9
Spec Typ Spec Typ Spec Typ
1 Hz – 68 – 78 – 66 – 76 – 60 – 70
10 Hz – 98 – 108 – 96 – 106 – 90 – 100
100 Hz – 116 – 126 – 115 – 125 – 109 – 119
1 kHz – 126 – 132 – 129 – 135 – 124 – 130
3 kHz – 126 – 135 – 129 – 138 – 124 – 133
5 kHz – 128 – 138 – 131 – 141 – 126 – 136
10 kHz – 132 – 138 – 142 – 148 – 136 – 142
100 kHz – 132 – 139 – 142 – 148 – 136 – 142
Frequency range (MHz)
320 to 639.9
Spec Typ Spec Typ Spec Typ
1 Hz – 54 – 64 – 48 – 58 – 42 – 52
10 Hz – 84 – 94 – 78 – 88 – 72 – 82
100 Hz – 103 – 114 – 97 – 108 – 92 – 102
1 kHz – 118 – 125 – 112 – 119 – 106 – 113
3 kHz – 118 – 127 – 112 – 121 – 106 – 115
5 kHz – 120 – 130 – 114 – 124 – 108 – 118
10 kHz – 131 – 136 – 124 – 130 – 118 – 124
100 kHz – 131 – 136 – 124 – 130 – 118 – 124
1
2
120 to 159.9
640 to 1279.9
2
3
160 to 319.9
1280 to 2559.9
2
10 Hz – 108 – 114 – 112 – 119 – 106 – 113
100 Hz – 121 – 126 – 122 – 129 – 118 – 124
1 kHz – 128 – 133 – 131 – 138 – 127 – 134
3 kHz – 128 – 136 – 131 – 139 – 127 – 135
5 kHz – 129 – 138 – 133 – 141 – 129 – 136
10 kHz – 132 – 137 – 142 – 147 – 136 – 142
100 kHz – 132 – 137 – 142 – 147 – 136 – 142
10 Hz – 100 – 107 – 93 – 101 – 88 – 95
100 Hz – 112 – 119 – 105 – 112 – 100 – 106
1 kHz – 121 – 128 – 115 – 122 – 109 – 116
3 kHz – 121 – 129 – 115 – 123 – 109 – 117
5 kHz – 123 – 130 – 117 – 124 – 111 – 118
10 kHz – 131 – 136 – 124 – 130 – 118 – 124
100 kHz – 131 – 136 – 124 – 130 – 118 – 124
1
HP 8663A band begins at 0.1 MHz; specifications extend up to and including
119.9999999 MHz.
2
Specifications extend up to and including 0.1 Hz less than the starting frequency
of the next band.
3
Specifications extend up to and including 1279.9999998 MHz.
4
This band available on HP 8663A only; specifications extend up to and including
2559.9999996 MHz.
Option 003 Specified SSB Phase Noise for Rear-Panel 640 MHz Output:
1 Hz – 54 –64
10 Hz – 84 –94
100 Hz – 104 –114
1 kHz – 121 –126
3 kHz – 121 –127
5 kHz – 129 –138
10 kHz – 145 –149
100 kHz – 157 – 159
SSB Broadband Noise Floor in 1 Hz BW at 3 MHz Offset From Carrier:
< –146 dBc for fc between 120 and 640 MHz at output levels
above +10 dBm.
4
Frequency range (MHz)
0.01 to 119.9
1
120 to 159.9
2
160 to 319.9
2
Spec Typ Spec Typ Spec Typ
Frequency range (MHz)
320 to 639.9
2
640 to 1279.9
3
1.28 to 2559.9
Spec Typ Spec Typ Spec Typ
Spec Typ
HP 8662A
HP 8663A
2
5
4
Internet URL www.hp.com/go/tmc99 Product & Order Info See inside back cover
Signal Sources
220 High-Performance RF Signal Generators (cont’d)
HP 8662A
HP 8663A
Spurious Signals:
Frequency Range (MHz)
0.01 to 120 to 160 to 320 to 640 to
120 160 320 640 1280
Spurious non-harmonically –90 –100 –96 –90 –84
1, 2
related
Sub-harmonically related
1 , 3f ,
etc.
2 2
(
Power-line (60 Hz) related
or microphonically –90 –85 –80 –75 –70
generated (within 300 Hz)4dBc dBc dBc dBc dBc
Harmonics < –30 dBc
)
dBc dBc dBc dBc dBc
none none none none dBc
Output
Level Range: +13 to –139.9 dBm (1V to 0.023 µV
Resolution: 0.1 dB
Absolute Level Accuracy: (+15˚ to +45˚ C): ±1 dB between +13 and
–120 dBm; ± 3 dB between –120 and –130 dBm
SWR: Typically from 1.5 to 1.8, depending on output level and frequency
Reverse Power Protection: Typically up to 30 W or ± 8 Vdc
rms
into 50 Ω)
Amplitude Modulation
5
Depth: 0 to 95% at output levels of +8 dBm and below (+10 dBm in uncor-
rected mode). AM available above these output levels but not specified.
Resolution: 1%, 10 to 95% AM; 0.1%, 0 to 9.9% AM
Incidental PM: (at 30% AM): 0.15 to 640 MHz, < 0.12 radian peak;
640 to 1280 MHz, < 0.09 radian peak
Incidental FM: (at 30% AM): 0.15 to 640 MHz, < 0.12 x f
640 to 1280 MHz, < 0.09 x f
mod
mod
;
Indicated Accuracy: ± 5% of reading ± 1% AM. Applies for rates given
in table below, internal or external mode, for depths ≤90%.
Rates and Distortion with Internal or External Modulating Signal:
AM Distortion
Frequency 0 to 30% 30 to 70% 70 to 90%
Range AM Rate AM AM AM
0.15 to 1 MHz dc to 1.5 kHz 2% 4% 5.75%
1 to 10 MHz dc to 5 kHz 2% 4% 5.75%
10 to 1280 MHz dc to 10 kHz 2% 4% 5.75%
Frequency Modulation
FM Rates: (1 dB bandwidth): External ac, 20 Hz to 100 kHz;
external dc, dc to 100 kHz
FM Deviation: 25 to 200 kHz, depending on carrier frequency
Indicated FM Accuracy: ± 8% of reading plus 10 Hz (50 Hz to 20 kHz)
FM Resolution: 100 Hz for deviations < 10 kHz, 1 kHz for deviations
≥10 kHz
Incidental AM: (AM sidebands at 1 kHz rate and 20 kHz deviation):
< –72 dBc, f
c
< 640 MHz; < –65 dBc, fc≥640 MHz
FM Distortion: < 1.7% for rates < 20 kHz, < 1% for rates < 1 kHz
Center Frequency Accuracy and Long-Term Stability in AC Mode:
Same as CW mode
Supplemental Characteristic
Frequency-Switching Speed:5From 420 µs to 12.5 ms, depending on the
programming mode
–75
HP 8663A Specifications
The HP 8663A signal generator is related to the HP 8662A in both concept
and structure. Like the HP 8662A, the HP 8663A is an extremely low phase
noise signal source, incorporating signal generator modulation capabilities and output characteristics. The HP 8663A also offers increased frequency range to 2560 MHz, increased output level to +16 dBm, and the
addition of phase and pulse modulation while maintaining high spectral
purity. The result is a highly flexible and powerful signal generator that
3
uses and extends the proven circuitry of the HP 8662A. Thus, the HP 8662A
and HP 8663A share many of the same specifications.
Frequency
Range: 100 kHz to 2560 MHz (2559.9999996 MHz)
Resolution: 0.1 Hz (f
0.2 Hz (640 MHz to 1280 MHz);
0.4 Hz (f
Accuracy, Stability, and Internal Reference Oscillator: Identical to
HP 8662A
c
< 640 MHz);
c
≥1280 MHz)
Spectral Purity
(See HP 8662A specifications)
Spurious Signals: Identical to HP 8662A, except that for f
1280 and 2560 MHz the spurious non-harmonics are –78 dBc; the subharmonically related (f/2, 3f/2, etc.) between 640 and 1280 MHz are
–70 dBc and between 1280 and 2560 MHz are –40 dBc; and the powerline (60 Hz) or microphonically generated spurious are –65 dBc.
Harmonics: < –30 dBc, ≤+ 13 dBm output; < –25 dBc, + 13 dBm to
+ 16 dBm output, f
c
< 1280 MHz; < –25 dBc, fc≥1280 MHz
c
between
Output
Level Range: + 16 dBm to –129.9 dBm
Resolution: 0.1 dB
Absolute Level Accuracy: (+ 15˚ to + 45˚ C): ± 1 dB, + 16 dBm to
–119.9 dBm; ± 3 dB, –120 dBm and below
SWR: < 1.5
Amplitude Modulation
Depth: 0 to 95% at levels of + 10 dBm and below
Resolution: 0.1%
Incidental FM: (at 30% AM): Identical to HP 8662A except:
mod
< 0.3 x f
for 1280 ≤fc< 2560 MHz
Indicated Accuracy: ± 6% of reading ± 1% AM (400 Hz and 1 kHz,
depth 90%)
AM Bandwidth: (1dB): dc to > 1.5 kHz, 0.15 MHz ≤f
dc to > 5 kHz, 1 MHz ≤f
c
≤10 MHz; dc to > 10 kHz, fc> 10 MHz:
c
< 1 MHz;
external dc coupling. External ac coupling or internal;
low-frequency coupling is 20 Hz.
Distortion: (400 Hz and 1 kHz): < 2% (0 to 30% AM); < 3% (30 to 70% AM);
< 4% (70 to 90% AM)
Frequency Modulation
FM Rates: (1 dB bandwidth): External ac, 20 Hz to 100 kHz, external dc,
dc to 100 kHz
Maximum Allowable Peak Deviation: Identical to HP 8662A
c
for f
between 100 kHz and 1280 MHz. Up to 400 kHz for fcbetween
1280 and 2560 MHz.
Indicated FM Accuracy: (50 Hz to 20 kHz): ± 7% of setting +10 Hz
FM Resolution: 100 Hz to 1 kHz, depending on f
Incidental AM: (AM sidebands at 1 kHz rate and 20 kHz deviation):
< –72 dBc (10 ≤f
c
< 2560 MHz)
FM Distortion: < 1% (400 Hz and 1 kHz rates); < 1.7% (rates less than
20 kHz)
1
In the remote mode it is possible to have microprocessor clock-related spurious signals
spaced 3 MHz apart at an absolute level of typically less than –145 dBm.
2
Spurious signals can be up to 3 dB higher in the dc FM mode.
3
f/2 spurs not specified for carrier frequencies above 850 MHz.
4
At a 50 Hz line frequency, power-line or microphonically-related spurious signals
may be up to 3 dB higher and appear at offsets as high as 1 kHz from the carrier.
5
Due to automatic leveling loop bandwidth changes, brief (30 ms) level inaccuracies
may occur when switching through 150 kHz and 1 MHz RF output frequencies.
c
and deviation setting
Signal Sources
221High-Performance RF Signal Generators
Phase Modulation (Option 002)
Maximum Peak Phase Deviation: From ± 25˚ for fcbetween
120 and 160 MHz to ± 400˚ for f
Maximum Rate: From 10 kHz for f
10 MHz for f
c
between 640 and 2560 MHz
Phase Deviation Resolution: 1˚ (0.1 ≤f
2˚ (640 ≤f
c
< 1280 MHz); 4˚ (1280 ≤fc< 2560 MHz)
Phase Modulation Distortion: 10% at maximum rate
c
between 1280 and 2560 MHz
c
between 0.15 and 10 MHz to
c
< 640 MHz);
Biphase Modulation (BPSK)
Biphase modulation is available on the standard HP 8663A for
c
f
less than 640 MHz and available for all fcwith Option 002.
Deviation: ± 90˚
Carrier Null when Modulated with 1 MHz, 50% Duty Cycle
Square Wave: > 25 dBc
Modulation Input Required: TTL positive true. The internal modulation
oscillator can be used for 50% duty-cycle modulation. External input is
on rear panel.
Pulse Modulation
1
Pulse On/Off Ratio: > 80 dB (50 to 2560 MHz)
Pulse Rise/Fall Time: < 250 ns (50 to 120 MHz); < 800 ns (120 to 640 MHz);
< 100 ns (f
c
≥640 MHz)
Pulse Repetition Frequency (50% duty cycle):
Internal: 10 Hz to 99.9 kHz
External: 10 Hz to 2 MHz, 50 MHz < f
10 Hz to 5 MHz, f
c
> 640 MHz
c
< 640 MHz;
Internal Modulation Oscillator
Rates: 10 Hz to 99.9 kHz
Frequency Resolution: 3 digits
Frequency Accuracy: Same as reference oscillator
Output Level (available on rear panel): 1 V peak into 600 Ω
Output Impedance: 600 Ω
Flatness (referenced to 1 kHz): < ± 1%
Distortion: < 1%
Other HP 8662A and HP 8663A Information
Remote Programming: The HP-IB interface is standard on the HP 8662A
and HP 8663A signal generators. All functions controlled from the front
panel, with the exception of the line switch, are programmable with the
same accuracy and resolution as in manual mode.
Operating Temperature Range: 0˚ to + 55˚ C
Leakage: Meets radiated and conducted limits of MIL-STD-461A
methods RE02 and CE03 as well as BVDE 0871
Power Requirements: 115 (90 to 126) V or 230 (198 to 252) V;
48 to 66 Hz; 450 VA max
Size:
HP 8662A: 425 mm W x 178 mm H x 572 mm D (16.75 in x 7 in x 22.5 in)
HP 8663A: 425 mm W x 178 mm H x 642 mm D (16.75 in x 7 in x 25.3 in)
Note: depth includes front panel depth of 45 mm (1.75 in).
Weight: HP 8662A: net, 30 kg (65.5 lb); shipping, 36 kg (80 lb)
HP 8663A: net, 33.8 (74 lb); shipping, 40 kg (88 lb)
Key Literature
Synthesized Signal Generator 10 kHz to 1280 MHz
Technical Data, p/n 5953-8402
Synthesized Signal Generator 100 kHz to 2.56 GHz
Technical Data, p/n 5953-8376
HP 11721A
HP 8663A 2560 MHz Signal Generator
2
Opt 001 RF Connectors on Rear Panel Only
Opt 002 Wideband Linear Phase Modulation
Opt 003 Specified SSB Phase Noise for 640 MHz Output
Opt 700 External MATE Translator
Opt 907 Front Handle Kit (5061-9690) 4
Opt 908 Rack Flange Kit (5061-9678) 4
Opt 909 Rack Flange Kit w/Front Handles (5061-9684) 4
Opt 910 Additional Operation and Calibration Manual 4
(08663-90069) and Service Manuals (08663-90071)
Opt 915 Add Service Manual (08663-90071) 4
Opt W30 Extended Repair Service (see page 70)
Opt W32 Calibration Service (see page 70)
HP 11714A Service Support Kit (required for servicing
HP 8662A/8663A)
1
Pulse modulation is available for fc< 50 MHz but is unspecified.
2
HP-IB cables not supplied. For description and price, see page 568.
4 Indicates QuickShip availability.

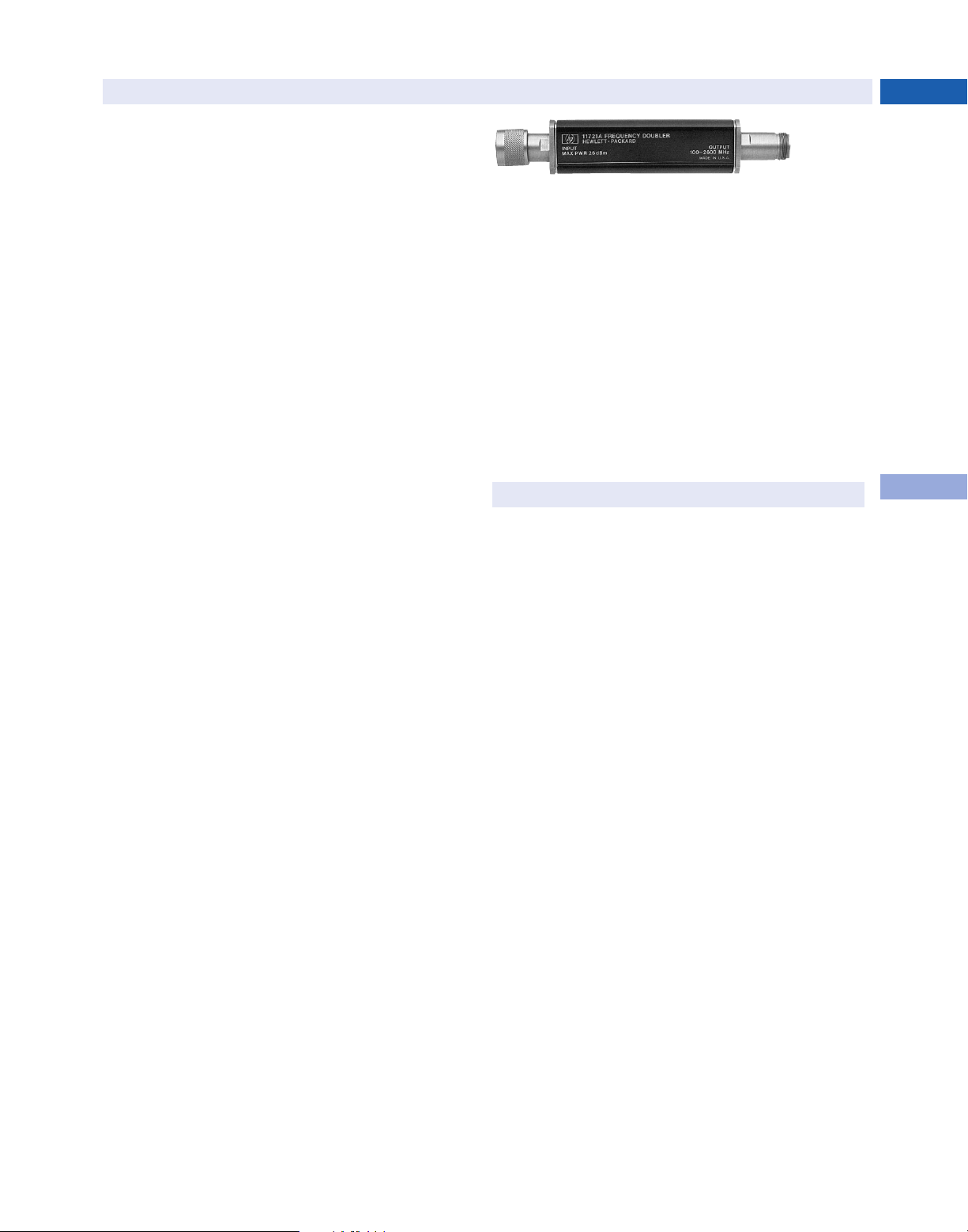

HP 11721A Frequency Doubler
The HP 11721A doubler is an ideal accessory for extending the usable
frequency range of signal generators, frequency synthesizers, or other
signal sources. Operating on input frequencies of 50 MHz to 1300 MHz,
it provides a doubled output in the range of 100 MHz to 2600 MHz. The
HP 11721A will work well with any RF source with an output in the range
of 50 to 1300 MHz.
The 50 Ω passive circuit of the HP 11721A offers low conversion
loss, low spurious, and excellent flatness over its entire frequency range
when operated above +10 dBm.
HP 11721A Specifications
Input Frequency Range: 50 to 1300 MHz
Output Frequency Range: 100 to 2600 MHz
Conversion Loss (+13 dBm input, 50 to 1280 MHz): < 15 dB
Spurious Referenced to Desired Output Frequency f:
(+ 13 dBm input with harmonics < – 50 dBc, 50 to 1280 MHz):
f/2, –15 dB; 3f/2, –15 dB
Input SWR: 1.5 typical
Input/Output Impedance: 50 Ωnominal
Operating Temperature Range: 0˚ to 50˚ C
Connectors: Input, type-N male; output, type-N female
Size: 161 mm L x 30 mm W x 20.5 mm H (6.38 in x 1.19 in x .19 in)
Weight: Net, .02 kg (0.5 lb); shipping, 0.4 kg (1 lb)
Ordering Information
HP 11721A Frequency Doubler
Opt W30 Extended Repair Service (see page 584)
HP 8662A
HP 8663A
HP 11721A
5
Ordering Information
HP 8662A 1280 MHz Signal Generator
Opt 001 RF Connectors on Rear Panel Only
Opt 003 Specified SSB Phase Noise for 640 MHz Output
Opt 700 External MATE Translator
Opt 907 Front Handle Kit (5062-3990) 4
Opt 908 Rack Flange Kit (5062-3978) 4
Opt 909 Rack Flange Kit w/Front Handles(5062-3984) 4
Opt 910 Two Sets of Operating and Service Manuals 4
(08662-90069)
Opt W30 Extended Repair Service (see page 70)
Opt W32 Calibration Service (see page 70)
Internet URL www.hp.com/go/tmc99 Product & Order Info See inside back cover
2
Loading...
