Agilent 85050B Technical Specifications

Technical Specifications

Discontinued Product Information

— For Support Reference Only —

Information herein, may refer to products/services no longer supported.
We regret any inconvenience caused by obsolete information. For the
latest information on Agilent’s test and measurement products go to:

www.agilent.com/find/products

In the US, call Agilent Technologies at 1-800-829-4444

(any weekday between 8am–5pm in any U.S. time zone)

World-wide Agilent sales office contact information is available at:

www.agilent.com/find/contactus

Agilent Technologies

PNA Series Network Analyzers

E8362A, E8363A, and E8364A

.

Documentation Warranty

THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS
SUBJECT TO BEING CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FUR­THER, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AGILENT
DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED WITH REGARD TO
THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT­NESS FOR A PARTICULAR PURPOSE. AGILENT SHALL NOT BE LIABLE FOR
ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY
INFORMATION CONTAINED HEREIN. SHOULD AGILENT AND THE USER HAVE A
SEPARATE WRITTEN AGREEMENT WITH WARRANTY TERMS COVERING THE
MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE WAR­RANTY TERMS IN THE SEPARATE AGREEMENT WILL CONTROL.

DFARS/Restricted Rights Notice

If software is for use in the performance of a U.S. Government prime contract or
subcontract, Software is delivered and licensed as “Commercial computer software” as
defined in DFAR 252.227-7014 (June 1995), or as a “commercial item” as defined in FAR

2.101(a) or as “Restricted computer software” as defined in FAR 52.227-19 (June 1987) or
any equivalent agency regulation or contract clause. Use, duplication or disclosure of
Software is subject to Agilent Technologies’ standard commercial license terms, and
non-DOD Departments and Agencies of the U.S. Government will receive no greater than
Restricted Rights as defined in FAR 52.227-19(c)(1-2) (June 1987). U.S. Government users
will receive no greater than Limited Rights as defined in FAR 52.227-14 (June 1987) or
DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any technical data.

ii

Contacting Agilent

Online assistance: www.agilent.com/find/assist

Americas

Brazil

(tel) ([phone]
(fax) ([phone]

Australia

(tel) 1800 629 485
(alt) 1800 143 243
(fax) 1800 142 134

Japan

(tel) 0120 421 345
(alt) ([phone]
(fax) 0120 421 678

Taiwan

(tel) 0800 047 866
(alt) 00801 651 317
(fax) 0800 286 331

Austria

(tel) 0820 87 44 11*
(fax) 0820 87 44 22

Canada

(tel) 877 894 4414
(fax) ([phone]

Asia Pacific and Japan

China

(tel) 800 810 0189
(alt) ([phone]
(fax) 800 820 2816

Malaysia

(tel) 1800 888 848
(alt) 1800 828 848
(fax) 1800 801 664

Thailand

(tel) 1800 226 008
(alt) ([phone]
(fax) ([phone]

Belgium

(tel) (+32) (0)2 404 9340
(alt) (+32) (0)2 404 9000
(fax) (+32) (0)2 404 9395

Mexico

(tel) ([phone]
(alt) 01800 5064 800
(fax) ([phone]

Hong Kong
(tel) 800 930 871
(alt) ([phone]
(fax) ([phone]

Singapore

(tel) 1800 375 8100
(alt) ([phone]
(fax) ([phone]

Europe

Denmark

(tel) ([phone]
(alt) ([phone]
(fax) ([phone]

United States

(tel) 800 829 4444
(alt) ([phone]
(fax) 800 829 4433

India

(tel) 1600 11 2 92 9
(fax) 000800 650 1101

South Korea

(tel) 080 769 0800
(alt) ([phone]
(fax) ([phone]

Finland

(tel) ([phone]
(fax) ([phone]

France

(tel) 0825 010 700*
(alt) (+33) (0)1 6453 5623
(fax) 0825 010 701*

Italy

(tel) (+39) (0)2 9260 8484
(fax) (+39) (0)2 9544 1175

Spain

(tel) ([phone]
(alt) ([phone]
(fax) ([phone]

Switzerland (Italian)

(tel) 0800 80 5353 opt. 3*
(alt) (+39) (0)2 9260 8484
(fax) (+41) (0)22 567 5314

(tel) = primary telephone number; (alt) = alternate telephone nu mber; (fax) = FAX number; * = in country number

Germany

(tel) 01805 24 6333*
(alt) 01805 24 6330*
(fax) 01805 24 6336*

Luxemburg

(tel) (+32) (0)2 404 9340
(alt) (+32) (0)2 404 9000
(fax) (+32) (0)2 404 9395

Sweden

(tel) 0200 88 22 55*
(alt) (+46) (0)8 5064 8686
(fax) 020 120 2266*

United King dom

(tel) (+44) (0)7004 666666
(alt) (+44) (0)7004 123123
(fax) (+44) (0)7004 444555

Ireland

(tel) (+353) (0)1 890 924 204
(alt) (+353) (0)1 890 924 206
(fax)(+353) (0)1 890 924 024

Netherlands

(tel) (+31) (0)20 547 2111
(alt) (+31) (0)20 547 2000
(fax) (+31) (0)20 547 2190

Switzerland (French)

(tel) 0800 80 5353 opt. 2*
(alt) (+33) (0)1 6453 5623
(fax) (+41) (0)22 567 5313

Israel

(tel) ([phone]
(fax) ([phone]

Russia

(tel) ([phone]
(alt) ([phone]
(fax) ([phone]

Switzerland (German )

(tel) 0800 80 5353 opt. 1*
(alt) (+49) (0)7031 464 63 33
(fax) (+41) (0)1 272 7373

iii

This page intentionally left blank.

iv

TechnicalSpecificationsfortheE836xA



Definitions................................................................................................................................4-4

Corrected System Performance.............................................................................................4-5

Table 1. System Dynamic Rangea.................................................................................................................. 4-5

Table 2. Receiver Dynamic Range

E8363/4A Corrected System Performance with 2.4mm Connectors............................................. 4-8

Table 3. 85056A Calibration Kit Standard Configurationand StandardPower Range (E8363/4A)... 4-8
Table 4. 85056A Calibration Kit Extended Configuration and Standard Power Range

(E8363/4A - Option 014) -OR- Standard ConfigurationandExtendedPower Range & Bias-Tees
(E8363/4A - Option UNL) -OR- Extended Configuration and Extended Power Range & Bias-Tees

(E8363/4A - Option UNL&014)..................................................................................................................... 4-9

Table 5. 85056D Calibration Kit Standard Configurationand StandardPower Range (E8363/4A). 4-10
Table 6. 85056D Calibration Kit Extended Configuration and Standard Power Range

(E8363/4A - Option 014) -OR- Standard ConfigurationandExtendedPower Range & Bias-Tees
(E8363/4A - Option UNL) -OR- Extended Configuration and Extended Power Range & Bias-Tees

(E8363/4A - Option UNL & 014) ................................................................................................................. 4-11

E8363/4A Corrected System Performance with 2.92mm Connectors............................................... 4-12

Table 7. 85056K Calibration Kit Standard Configurationand Standard Power Range (E8363/4A). 4-12
Table 8. 85056K Calibration Kit Extended Configuration and Standard Power Range

(E8363/4A - Option 014) -OR- Standard ConfigurationandExtendedPower Range & Bias-Tees
(E8363/4A - Option UNL) -OR- Extended Configuration and Extended Power Range & Bias-Tees

(E8363/4A - Option UNL&014)................................................................................................................... 4-13

E836xA Corrected System Performance with 3.5mm Connectors.............................................. 4-14

Table 9. 85052B Calibration Kit Standard Configurationand StandardPower Range (E836xA).... 4-14

Table 10. 85052B Calibration Kit Extended Configuration and Standard Power Range
(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-15

Table 11. 85052C Calibration Kit Standard Configurationand StandardPower Range (E836xA).. 4-16
Table 12. 85052C Calibration Kit ExtendedConfigurationand Standard Power Range

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-17

Table 13. 85052D Calibration Kit Standard Configurationand StandardPower Range (E836xA).. 4-18
Table 14. 85052D Calibration Kit ExtendedConfigurationand Standard Power Range

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-19

E836xA Corrected System Performance with 7mm Connectors................................................. 4-20

Table 15. 85050B Calibration Kit Standard Configurationand StandardPower Range (E836xA).. 4-20
Table 16. 85050B Calibration Kit Extended Configuration and Standard Power Range

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-21

Table 17. 85050C Calibration Kit Standard Configurationand StandardPower Range (E836xA).. 4-22
Table 18. 85050C Calibration Kit ExtendedConfigurationand Standard Power Range

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-23

Table 19. 85050D Calibration Kit Standard Configurationand StandardPower Range (E836xA).. 4-24
Table 20. 85050D Calibration Kit ExtendedConfigurationand Standard Power Range

a

............................................................................................................... 4-7

4-1

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-25

E836xA Corrected System Performance with Type-N Connectors............................................ 4-26

Table 21. 85054B Calibration Kit Standard Configurationand StandardPower Range (E836xA).. 4-26
Table 22. 85054B Calibration Kit Extended Configuration and Standard Power Range

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-27

Table 23. 85054D Calibration Kit Standard Configurationand StandardPower Range (E836xA).. 4-28
Table 24. 85054D Calibration Kit ExtendedConfigurationand Standard Power Range

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-29

E8363/4A Corrected System Performance with WR-28 Connectors.......................................... 4-30

Table 25. R11644A Calibration Kit StandardConfiguration and StandardPower Range

(E8363/4A)..................................................................................................................................................... 4-30

Table 26. R11644A Calibration Kit Extended Configuration and StandardPower Range
(E8363/4A - Option 014) -OR- Standard ConfigurationandExtendedPower Range & Bias-Tees
(E8363/4A - Option UNL) -OR- Extended Configuration and Extended Power Range & Bias-Tees

(E8363/4A - Option UNL&014)................................................................................................................... 4-31

E8363/4A Corrected System Performance with WR-42 Connectors.......................................... 4-32

Table 27. K11644A Calibration Kit StandardConfiguration and StandardPower Range

(E8363/4A)..................................................................................................................................................... 4-32

Table 28. K11644A Calibration Kit ExtendedConfigurationand Standard Power Range
(E8363/4A - Option 014) -OR- Standard ConfigurationandExtendedPower Range & Bias-Tees
(E8363/4A - Option UNL) -OR- Extended Configuration and Extended Power Range & Bias-Tees

(E8363/4A - Option UNL&014)................................................................................................................... 4-33

E836xA Corrected System Performance with WR-62 Connectors............................................. 4-34

Table 29. P11644A Calibration Kit Standard Configurationand Standard Power Range (E836xA)4-34
Table 30. P11644A Calibration Kit Extended Configuration and Standard Power Range

(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-35

E836xA Corrected System Performance with WR-90 Connectors............................................. 4-36

Table 31. X11644A Calibration Kit Standard Configuration and Standard Power Range

(E836xA)........................................................................................................................................................ 4-36

Table 32. X11644A Calibration Kit Extended Configuration and StandardPower Range
(E836xA - Option 014) -OR- StandardConfiguration and ExtendedPower Range & Bias-Tees
(E836xA - Option UNL) -OR- Extended Configuration and ExtendedPowerRange& Bias-Tees

(E836xA - Option UNL&014)...................................................................................................................... 4-37

Table 33. Uncorrected System Performance .............................................................................................. 4-38

Table 34. Test Port Output

a

......................................................................................................................... 4-40

Table 35: Test Port Input............................................................................................................................. 4-42

a

Table 36. Dynamic Accuracy (Specification
Table 37. Test Port Input(GroupDelay)

) ............................................................................................ 4-45

a

.................................................................................................. 4-46

General Information.............................................................................................................4-46

Table 38. Miscellaneous Information..........................................................................................................4-46

Table 39. Front Panel Information.............................................................................................................. 4-47

Table 40. Rear Panel Information............................................................................................................... 4-47

Table 41. Analyzer Environment and Dimensions..................................................................................... 4-49

Measurement Throughput Summary..................................................................................4-50

4-2

Table 42. Typical Cycle Time
Table43.CycleTimevsIFBandwidth
Table44.CycleTimevsNumberofPoints
Table 45. Data Transfer Time (ms)

a,b

(ms) for Measurement Completion.......................................................4-50

a

...................................................................................................... 4-51

a

a

............................................................................................... 4-51

............................................................................................................ 4-52

Specifications: Front-Panel Jumpers...................................................................................4-53

Table 46: Measurement Receiver Inputs (Rcvr A In, Rcvr B In)............................................................. 4-53

Table 47: Reference Receiver Inputs (Rcvr R1, Rcvr R2).............................................................. 4-55

Table 48: Reference Outputs (Reference 1 Source Out, Reference 2 Source Out)..................................4-56

Table 49: Source Outputs (Port 1 Source Out, Port 2 Source Out).......................................................... 4-57

Table 50: Coupler Inputs (Port 1 Cplr Thru, Port 2 Cplr Thru) ............................................................. 4-58

Table 51: Coupler Outputs (Port 1 Cplr Arm, Port 2 Cplr Arm)............................................................4-59

Test Set Block Diagrams.......................................................................................................4-60

E836xA Standard Configuration and Standard Power Range................................................... 4-60

E836xA - Option UNL Standard Configuration with Extended Power Range and Bias - Tees4-60

Test Set with Option 014 Block Diagrams..........................................................................4-61

E836xA - Option 014 Extended Configuration and Standard Power Range............................ 4-61

E836xA - Option UNL&014 Extended Configuration with Extended Power Range

and Bias - Tees............................................................................................................................... .. 4-62

4-3

This is a complete list of the E8362A, E8363A, and E8364A network analyzer technical specifications.

• To optimize viewing of uncertainty curves, click the Maximize button.

• To view or print the PNA Series Data Sheet (a condensed version of the specifications), visit our web

site at http://www.agilent.com/find/pna
sheet.

• The uncertainty curves contained in this document apply only to the setup conditions listed. Please
download our free Uncertainty Calculator from http://www.agilent.com/find/na_calculator
curves for your PNA setup. View the equations

See Specs for other PNA models

, select your analyzer model, and click on the link for the data

to generate the

used to generate the uncertainty curves.

Definitions

All specifications and characteristics apply over a 25 °C ±5 °C range (unless otherwise stated) and 90 minutes
after the instrument has been turned on.

Specification (spec.): Warranted performance. Specifications include guardbands to account for the expected
statistical performance distribution, measurement uncertainties, and changes in performance due to
environmental conditions.

Characteristic (char.): A performance parameter that the product is expected to meet before it leaves the
factory, but that is not verified in the field and is not covered by the product warranty. A characteristic includes
the same guardbands as a specification.

Typical (typ.): Expected performance of an average unit which does not include guardbands. It is not covered
by the product warranty.

Nominal (nom.): A general, descriptive term that does not imply a level of performance. It is not covered by the
product warranty.

Calibration: The process of measuring known standards to characterize a network analyzer's systematic
(repeatable) errors.

Corrected (residual): Indicates performance after error correction (calibration). It is determined by the quality of
calibration standards and how well "known" they are, plus system repeatability, stability, and noise.

Uncorrected (raw): Indicates instrument performance without error correction. The uncorrected performance
affects the stability of a calibration.

Standard: When referring to the analyzer, this includes no options unless noted otherwise.

4-4

Corrected System Performance

The specifications in this section apply for measurements made with the E836xA analyzer with the following
conditions:

• 10 Hz IF bandwidth

• No averaging applied to data

• Isolation calibration with an averaging factor of 8

Table 1. System Dynamic Range

Description Specification

a

(dB) at Test Port

Typical (dB) at Direct

b

Receiver Access Input

Dynamic Range (in a 10 Hz BW)
Standard Configuration and Standard Power Range
(E836xA - Standard)

45 MHz to 500 MHz

d

94 NA
500 MHz to 2 GHz 119 NA
2 GHz to 10 GHz 122 NA
10 GHz to 20 GHz 123 NA
20 GHz to 30 GHz 114 NA
30 GHz to 40 GHz 110 NA
40 GHz to 45 GHz 109 NA
45 GHz to 50 GHz 104 NA

Extended Configuration and Standard Power Range
(E836xA - Option 014)

45 MHz to 500 MHz

d

94 132
500 MHz to 2 GHz 119 138
2 GHz to 10 GHz 122 137
10 GHz to 20 GHz 122 137
20 GHz to 30 GHz 115 127
30 GHz to 40 GHz 107 119
40 GHz to 45 GHz 105 116
45 GHz to 50 GHz 100 111

Standard Configuration and Extended Power Range & Bias-Tees
(E836xA - Option UNL)

45 MHz to 500 MHz

d

92 NA
500 MHz to 2 GHz 117 NA
2 GHz to 10 GHz 120 NA
10 GHz to 20 GHz 121 NA
20 GHz to 30 GHz 112 NA
30 GHz to 40 GHz 108 NA
40 GHz to 45 GHz 105 NA
45GHzto50GHz 99 NA

c

4-5

Standard Configuration and Extended Power Range & Bias-Tees
(E836xA - Option UNL&014)

45 MHz to 500 MHz

d

92 130
500 MHz to 2 GHz 117 136
2 GHz to 10 GHz 120 135
10 GHz to 20 GHz 119 134
20 GHz to 30 GHz 109 121
30 GHz to 40 GHz 105 117
40 GHz to 45 GHz 101 112
45 GHz to 50 GHz 95 108

a

The system dynamic range is calculated as the difference between the noise floor and the source maximum output power. The effective

dynamic range must take measurement uncertainties and interfering signals into account.

b

The test port system dynamic range is calculated as the difference between the test port noise floor and the source maximum output

power. The effective dynamic range must take measurement uncertainties and interfering signals into account.

c

The direct receiver access input system dynamic range is calculated as the difference between the receiver access input noise floor and
the source maximum output power. The effective dynamic range must take measurement uncertainties and interfering signals into account.
This set-up should only be used when the receiver input will never exceed its damage level. When the analyzer is in segment sweep mode,
the analyzer can have predefined frequency segments which will output a higher power level when the extended dynamic range is required
(i.e. devices with high insertion loss), and reduced power when receiver damage may occur (i.e. devices with low insertion loss). The
extended range is only available in one-path transmission measurements.

d

May be degraded by 10 dB at particular frequencies (multiples of 5 MHz) below 500 MHz due to spurious receiver residuals. Methods are
available to regain the full dynamic range.

4-6

Table 2. Receiver Dynamic Range

Description Specification (dB)

a

at Test Port

b

Typical (dB) at Direct Receiver
Access Input

c

Dynamic Range (in a 10 Hz BW)
Standard Configuration and Standard Power Range (E836xA - Standard)

OR
Standard Configuration and Extended Power Range & Bias Tees (E836xA - Option

UNL)

45 MHz to 500 MHz

d

94 NA
500 MHz to 2 GHz 119 NA
2 GHz to 10 GHz 122 NA
10 GHz to 20 GHz 125 NA
20 GHz to 30 GHz 114 NA
30 GHz to 40 GHz 111 NA
40 GHz to 50 GHz 111 NA

Extended Configuration and Standard Power Range (E836xA - Option 014)
OR

Extended Configuration and Extended Power Range & Bias Tees (E836xA - Option
UNL&014)

45 MHz to 500 MHz

d

94 132
500 MHz to 2 GHz 119 138
2 GHz to 10 GHz 122 137
10 GHz to 20 GHz 124 139
20 GHz to 30 GHz 113 125
30 GHz to 40 GHz 110 122
40 GHz to 50 GHz 109 120

a

The receiver dynamic range is calculated as the difference between the noise floor and the receiver maximum output power. The effective

dynamic range must take measurement uncertainties and interfering signals into account.

b

The test port receiver dynamic range is calculated as the difference between the test port noise floor and the receiver maximum input

level. The effective dynamic range must take measurement uncertainties and interfering signals into account.

c

The direct receiver access input receiver dynamic range is calculated as the difference between the direct receiver access input noise floor
and the receiver maximum input level. The effective dynamic range must take measurement uncertainties and interfering signals into
account. This set-up should only be used when the receiver input will never exceed its damage level. When the analyzer is in segment
sweep mode, the analyzer can have predefined frequency segments which will output a higher power level when the extended dynamic
range is required (i.e. devices with high insertion loss), and reduced power when receiver damage may occur (i.e. devices with low insertion
loss). The extended range is only available in one-path transmission measurements.

d

May be degraded by 10 dB at particular frequencies (multiples of 5 MHz) below 500 MHz due to spurious receiver residuals. Methods are
available to regain the full dynamic range.

Note: This E836xA document provides technical specifications for the following calibration kits only: 85056A,
85056D, 85056K, 85052B, 85052C, 85052D, 85050B, 85050C, 85050D, 85054B, 85054D, K11644A, P11644A,
R11644A, and the X11644A.

4-7

E8363/4A Corrected System Performance with 2.4mm Connectors



Table 3. 85056A Calibration Kit

Standard Configuration and Standard Power Range
(E8363/4A)

Applies to the E8363/4A analyzers, 85056A (2.4mm) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to
40 GHz

40 to
50 GHz

Directivity 42 42 42 38 36
Source Match 41 38 38 33 31
Load Match 42 42 42 37 35
Reflection Tracking

Transmission Tracking

±0.001
+0.02/°C
±0.014
+0.02/°C

±0.008
+0.02/°C
±0.033
+0.02/°C

±0.008
+0.02/°C
±0.039
+0.02/°C

±0.020
+0.03/°C
±0.105
+0.03/°C

±0.027
+0.04/°C
±0.200
+0.04/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-8

Table 4. 85056A Calibration Kit

Extended Configuration and Standard Power Range (E8363/4A - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL&014)

Applies to the, E8363/4A analyzers, 85056A (2.4mm) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to
40 GHz

40 to
50 GHz

Directivity 42 42 42 38 36
Source Match 41 38 38 33 31
Load Match 42 42 42 37 35
Reflection Tracking ±0.001

+0.02/°C

Transmission Tracking

±0.019
+0.02/°C

±0.008

+0.02/°C
±0.039
+0.02/°C

±0.008

+0.02/°C
±0.053
+0.02/°C

±0.020

+0.03/°C
±0.114
+0.03/°C

±0.027

+0.04/°C
±0.215
+0.04/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-9

Table 5. 85056D Calibration Kit

Standard Configuration and Standard Power Range
(E8363/4A)

Applies to the, E8363/4A analyzers, 85056D (2.4mm) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
20 GHz

20 to
40 GHz

40 to
50 GHz

Directivity 42 34 34 26
Source Match 40 30 30 23
Load Match 42 34 34 25
Reflection Tracking

Transmission Tracking

±0.002
+0.02/°C
±0.016
+0.02/°C

±0.029
+0.02/°C
±0.081
+0.02/°C

±0.029
+0.03/°C
±0.095
+0.03/°C

±0.075
+0.04/°C
±0.544
+0.04/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-10

Table 6. 85056D Calibration Kit

Extended Configuration and Standard Power Range (E8363/4A - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL & 014)

Applies to the, E8363/4A analyzers, 85056D (2.4mm) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
20 GHz

20 to
40 GHz

40 to
50 GHz

Directivity 42 34 26 26
Source Match 40 30 24 23
Load Match 42 33 25 25
Reflection Tracking

Transmission Tracking

±0.002
+0.02/°C
±0.022
+0.02/°C

±0.029
+0.02/°C
±0.130
+0.02/°C

±0.079
+0.03/°C
±0.384
+0.03/°C

0.075
+0.04/°C

0.589
+0.04/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-11

E8363/4A Corrected System Performance with 2.92mm Connectors



Table 7. 85056K Calibration Kit

Standard Configuration and Standard Power Range
(E8363/4A)

Applies to the, E8363/4A analyzers, 85056K (2.92mm) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to
40 GHz

Directivity 42 42 42 40
Source Match 40 40 40 35
Load Match 42 42 42 38
Reflection Tracking

Transmission Tracking

±0.018
+0.02/°C
±0.016
+0.02/°C

±0.018
+0.02/°C
±0.028
+0.02/°C

±0.018
+0.03/°C
±0.033
+0.03/°C

±0.067
+0.04/°C
±0.089
+0.04/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-12

Table 8. 85056K Calibration Kit

Extended Configuration and Standard Power Range (E8363/4A - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL&014)

Applies to the, E8363/4A analyzers, 85056K (2.92mm) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to
40 GHz

Directivity 42 42 42 40
Source Match 40 40 40 35
Load Match 42 42 41 38
Reflection Tracking

Transmission Tracking

±0.018
+0.02/°C
±0.021
+0.02/°C

±0.018
+0.02/°C
±0.033
+0.02/°C

±0.018
+0.03/°C
±0.046
+0.03/°C

±0.067
+0.04/°C
±0.098
+0.04/°C

Transmission Uncertainty (Specifications

Reflection Uncertainty (Specifications)

4-13

E836xA Corrected System Performance with 3.5mm Connectors



Table 9. 85052B Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85052B (3.5mm) calibration kit, 85131F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to

26.5 GHz

Directivity 48 44 44 44
Source Match 40 31 31 31
Load Match 48 44 44 44
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.013
+0.02/°C

±0.006
+0.02/°C
±0.057
+0.02/°C

±0.006
+0.02/°C
±0.065
+0.02/°C

±0.006
+0.03/°C
±0.104
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-14

Table 10. 85052B Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85052B (3.5mm) calibration kit, 85131F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to

26.5 GHz

Directivity 48 44 44 44
Source Match 40 31 31 31
Load Match 48 44 44 44
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.017
+0.02/°C

±0.006
+0.02/°C
±0.065
+0.02/°C

±0.006
+0.02/°C
±0.091
+0.02/°C

±0.006
+0.03/°C
±0.109
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-15

Table 11. 85052C Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85052C (3.5mm) calibration kit, 85131F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to

26.5 GHz

Directivity 48 50 50 50
Source Match 40 50 50 50
Load Match 48 50 50 50
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.013
+0.02/°C

±0.000
+0.02/°C
±0.010
+0.02/°C

±0.000
+0.02/°C
±0.012
+0.02/°C

±0.000
+0.03/°C
±0.018
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-16

Table 12. 85052C Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85052C (3.5mm) calibration kit, 85131F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to

26.5 GHz

Directivity 48 50 50 50
Source Match 40 50 50 50
Load Match 48 50 50 50
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.017
+0.02/°C

±0.000
+0.02/°C
±0.012
+0.02/°C

±0.000
+0.02/°C
±0.016
+0.02/°C

±0.000
+0.03/°C
±0.021
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-17

Table 13. 85052D Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85052D (3.5mm) calibration kit, 85131F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to

26.5 GHz

Directivity 42 36 36 30
Source Match 37 28 28 25
Load Match 42 36 36 30
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.020
+0.02/°C

±0.008
+0.02/°C
±0.087
+0.02/°C

±0.008
+0.02/°C
±0.101
+0.02/°C

±0.011
+0.03/°C
±0.250
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-18

Table 14. 85052D Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85052D (3.5mm) calibration kit, 85131F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
20 GHz

20 to

26.5 GHz

Directivity 42 36 36 30
Source Match 37 28 28 25
Load Match 42 36 36 30
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.026
+0.02/°C

±0.008
+0.02/°C
±0.101
+0.02/°C

±0.008
+0.02/°C
±0.138
+0.02/°C

±0.011
+0.03/°C
±0.272
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-19

E836xA Corrected System Performance with 7mm Connectors



Table 15. 85050B Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85050B (7mm) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also applies
to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 52 52 52
Source Match 48 41 41
Load Match 52 52 52
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.006
+0.02/°C

±0.047
+0.02/°C
±0.019
+0.02/°C

±0.047
+0.02/°C
±0.022
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-20

Table 16. 85050B Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85050B (7mm) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also applies
to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 52 52 52
Source Match 48 41 41
Load Match 52 52 47
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.008
+0.02/°C

±0.047
+0.02/°C
±0.022
+0.02/°C

±0.047
+0.02/°C
±0.034
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-21

Table 17. 85050C Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85050C (7mm) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also applies
to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 52 60 60
Source Match 48 60 60
Load Match 52 60 60
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.006
+0.02/°C

±0.000
+0.02/°C
±0.003
+0.02/°C

±0.000
+0.02/°C
±0.004
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-22

Table 18. 85050C Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85050C (7mm) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also applies
to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 52 60 60
Source Match 48 60 60
Load Match 52 60 60
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.008
+0.02/°C

±0.000
+0.02/°C
±0.004
+0.02/°C

±0.000
+0.02/°C
±0.005
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-23

Table 19. 85050D Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85050D (7mm) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also applies
to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 40 40 40
Source Match 39 35 35
Load Match 40 40 40
Reflection Tracking

Transmission Tracking

±0.010
+0.02/°C
±0.018
+0.02/°C

±0.100
+0.02/°C
±0.044
+0.02/°C

±0.100
+0.02/°C
±0.052
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-24

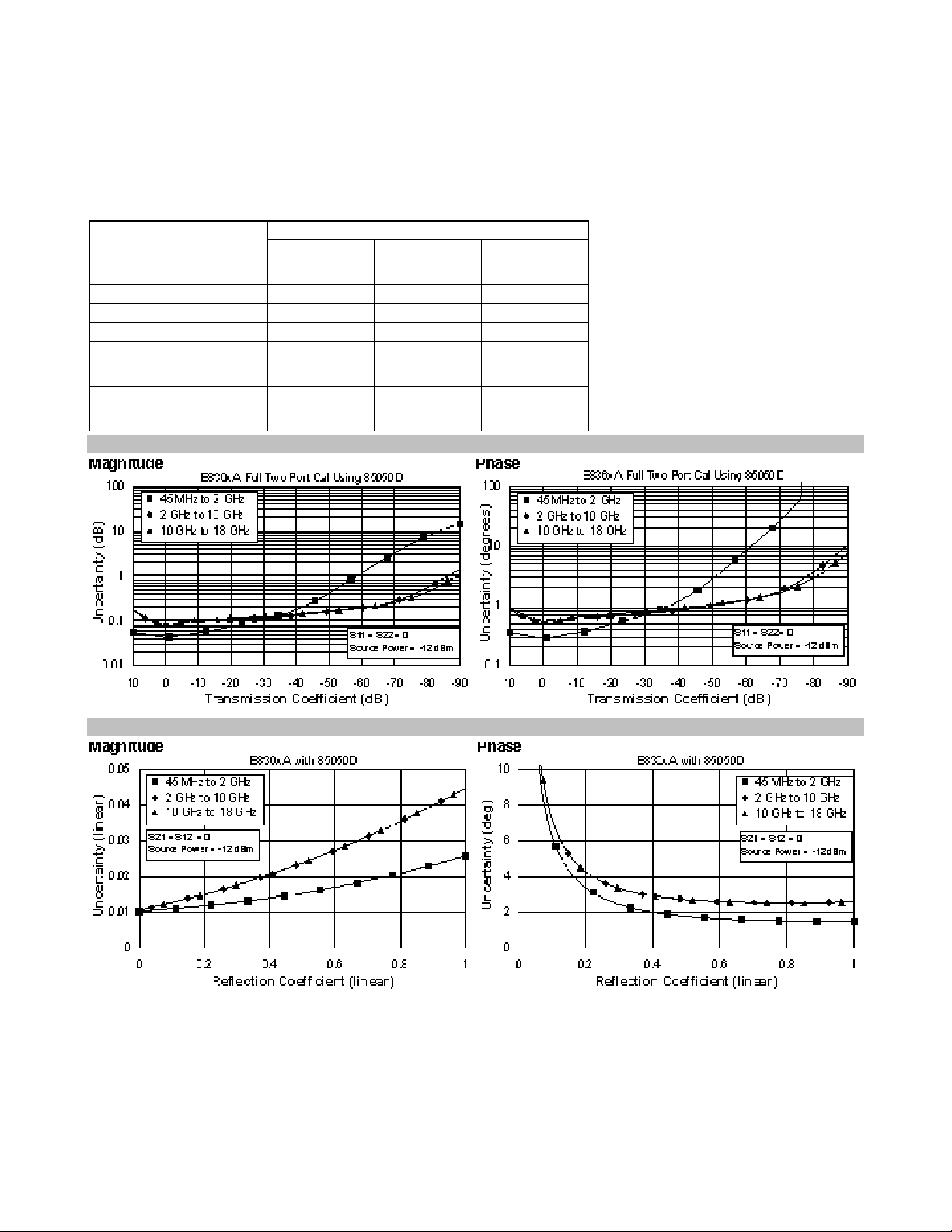

Table 20. 85050D Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85050D (7mm) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also applies
to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 40 40 40
Source Match 39 35 35
Load Match 40 40 37
Reflection Tracking

Transmission Tracking

±0.010
+0.02/°C
±0.025
+0.02/°C

±0.100
+0.02/°C
±0.052
+0.02/°C

±0.100
+0.02/°C
±0.078
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-25

E836xA Corrected System Performance with Type-N Connectors



Table 21. 85054B Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85054B (Type-N) calibration kit, 85132F flexible test port cable set with 85130C adapter set, and a full 2­port calibration. Also applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 48 42 42
Source Match 45 33 33
Load Match 48 42 42
Reflection Tracking

Transmission Tracking

±0.007
+0.02/°C
±0.009
+0.02/°C

±0.096
+0.02/°C
±0.052
+0.02/°C

±0.096
+0.02/°C
±0.060
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-26

Table 22. 85054B Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85054B (Type-N) calibration kit, 85132F flexible test port cable set with 85130C adapter set, and a full 2­port calibration. Also applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 48 42 42
Source Match 45 33 33
Load Match 48 42 41
Reflection Tracking

Transmission Tracking

±0.007
+0.02/°C
±0.011
+0.02/°C

±0.096
+0.02/°C
±0.060
+0.02/°C

±0.096
+0.02/°C
±0.083
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-27

Table 23. 85054D Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, 85054D (Type-N) calibration kit, 85132F flexible test port cable set with 85130C adapter set, and a full 2­port calibration. Also applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 40 34 34
Source Match 39 29 29
Load Match 40 34 34
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.019
+0.02/°C

±0.027
+0.02/°C
±0.091
+0.02/°C

±0.027
+0.02/°C
±0.105
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-28

Table 24. 85054D Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, 85054D (Type-N) calibration kit, 85132F flexible test port cable set with 85130C adapter set, and a full 2­port calibration. Also applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

0.045 to
2GHz

2to
10 GHz

10 to
18 GHz

Directivity 40 34 34
Source Match 39 29 29
Load Match 40 34 34
Reflection Tracking

Transmission Tracking

±0.003
+0.02/°C
±0.025
+0.02/°C

±0.027
+0.02/°C
±0.105
+0.02/°C

±0.027
+0.02/°C
±0.145
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-29

E8363/4A Corrected System Performance with WR-28 Connectors



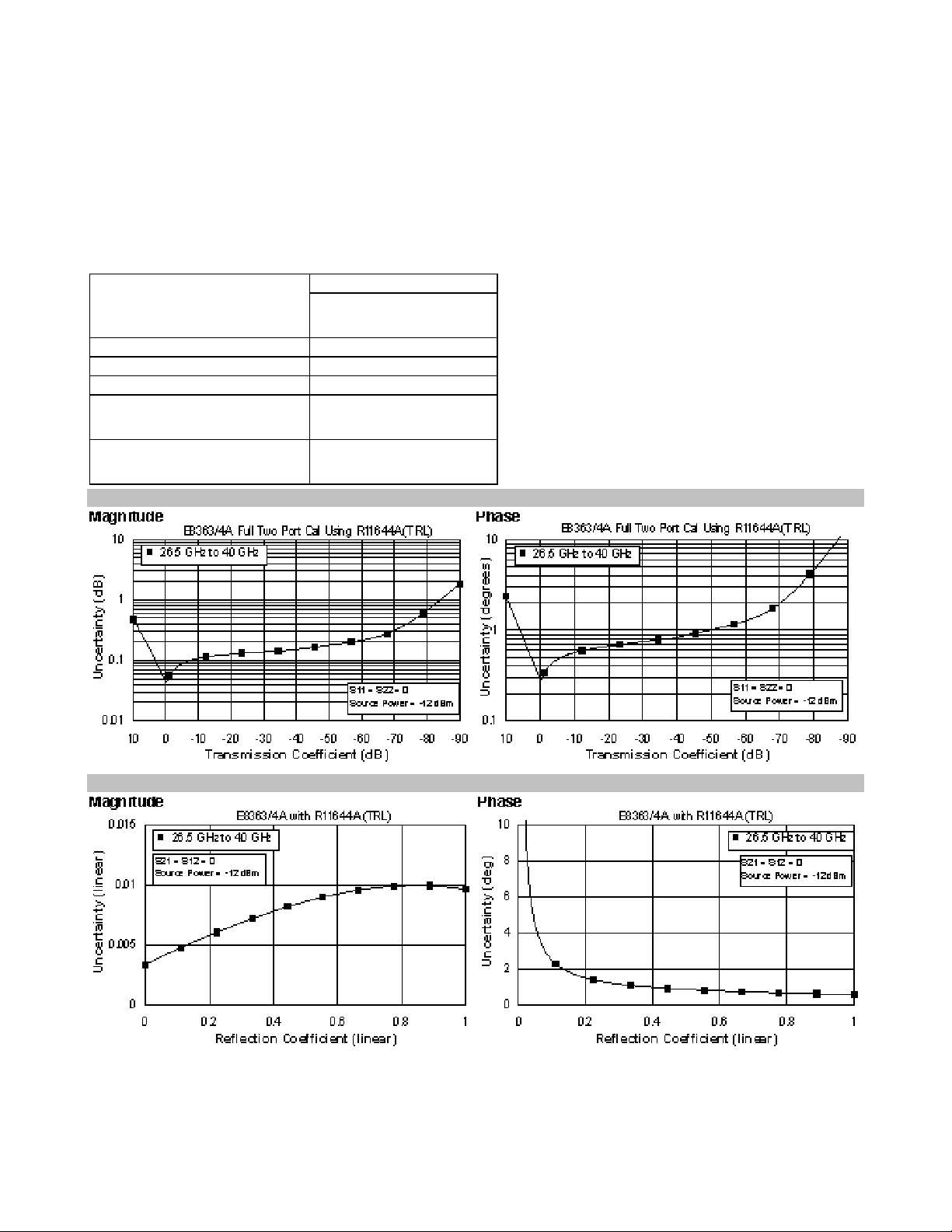

Table 25. R11644A Calibration Kit

Standard Configuration and Standard Power Range
(E8363/4A)

Applies to the, E8363/4A analyzers, R11644A (WR-28) calibration kit, 85133F flexible test port cable set with the R281A and R281B launch
sets with the R281A and R281B launch sets, and a full 2-port calibration. Also applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Description

Specification (dB)

26.5 to
40 GHz

Directivity 50
Source Match 50
Load Match 50
Reflection Tracking

±0.000
+0.03/°C

Transmission Tracking

±0.018
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-30

Table 26. R11644A Calibration Kit

Extended Configuration and Standard Power Range (E8363/4A - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL&014)

Applies to the, E8363/4A analyzers, R11644A (WR-28) calibration kit, 85133F flexible test port cable set with the R281A and R281B launch
sets with the R281A and R281B launch sets, and a full 2-port calibration. Also applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Description

Specification (dB)

26.5 to
40 GHz

Directivity 50
Source Match 50
Load Match 50
Reflection Tracking

±0.000
+0.03/°C

Transmission Tracking

±0.021
+0.03/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-31

E8363/4A Corrected System Performance with WR-42 Connectors



Table 27. K11644A Calibration Kit

Standard Configuration and Standard Power Range
(E8363/4A)

Applies to the, E8363/4A analyzers, K11644A (WR-42) calibration kit, 85134F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description
18 to
20 GHz

20 to

26.5 GHz

Directivity 50 50
Source Match 50 50
Load Match 50 50
Reflection Tracking

Transmission Tracking

±0.000
+0.02/°C
±0.010
+0.02/°C

±0.000
+0.02/°C
±0.012
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-32

Table 28. K11644A Calibration Kit

Extended Configuration and Standard Power Range (E8363/4A - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E8363/4A - Option UNL&014)

Applies to the, E8363/4A analyzers, K11644A (WR-42) calibration kit, 85134F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description
18 to
20 GHz

20 to

26.5 GHz

Directivity 50 50
Source Match 50 50
Load Match 50 50
Reflection Tracking

Transmission Tracking

±0.000
+0.02/°C
±0.016
+0.02/°C

±0.000
+0.02/°C
±0.021
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-33

E836xA Corrected System Performance with WR-62 Connectors



Table 29. P11644A Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, R11644A (WR-62) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Description

Specification (dB)

applies to the following condition:

12.4 to
18 GHz

Directivity 50
Source Match 50
Load Match 50
Reflection Tracking

±0.000
+0.02/°C

Transmission Tracking

±0.012
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-34

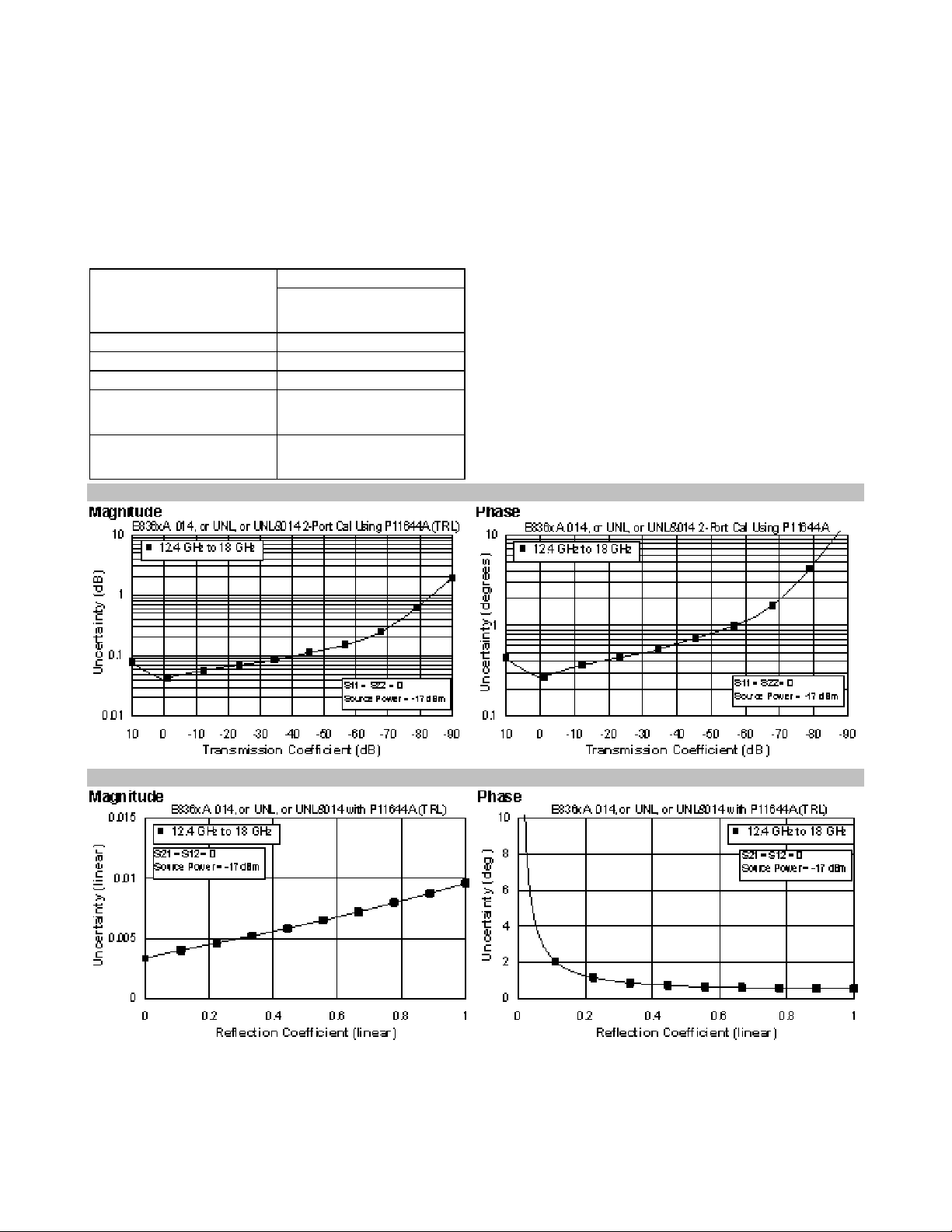

Table 30. P11644A Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, P11644A (WR-62) calibration kit, 85132F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Description

Specification (dB)

12.4 to
18 GHz

Directivity 50
Source Match 50
Load Match 50
Reflection Tracking

±0.000
+0.02/°C

Transmission Tracking

±0.016
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-35

E836xA Corrected System Performance with WR-90 Connectors



Table 31. X11644A Calibration Kit

Standard Configuration and Standard Power Range
(E836xA)

Applies to the, E836xA analyzers, X11644A (WR-90) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

8.2 to
10 GHz

10 to

12.4 GHz

Directivity 50 50
Source Match 50 50
Load Match 50 50
Reflection Tracking

Transmission Tracking

±0.000
+0.02/°C
±0.010
+0.02/°C

±0.000
+0.02/°C
±0.012
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-36

Table 32. X11644A Calibration Kit

Extended Configuration and Standard Power Range (E836xA - Option 014)

-OR­Standard Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL)

-OR­Extended Configuration and Extended Power Range & Bias-Tees (E836xA - Option UNL&014)

Applies to the, E836xA analyzers, X11644A (WR-90) calibration kit, 85133F flexible test port cable set, and a full 2-port calibration. Also
applies to the following condition:

Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature

Specification (dB)Description

8.2 to
10 GHz

10 to

12.4 GHz

Directivity 50 50
Source Match 50 50
Load Match 50 50
Reflection Tracking

Transmission Tracking

±0.000
+0.02/°C
±0.012
+0.02/°C

±0.000
+0.02/°C
±0.016
+0.02/°C

Transmission Uncertainty (Specifications)

Reflection Uncertainty (Specifications)

4-37

Table 33. Uncorrected System Performance

Specifications apply over environmental temperature of 23° ±3 °C, with < 1 °C deviation from the calibration temperature

Description Specification Supplemental Information
Directivity

Typical:

45 MHz to 2 GHz 24 dB 29 dB
2GHzto10GHz 22dB 25dB
10 GHz to 20 GHz 16 dB 20 dB
20 GHz to 40 GHz 16 dB 20 dB
40 GHz to 45 GHz 15 dB 18 dB
45 GHz to 50 GHz 13 dB 18 dB

Source Match - Standard

Typical:

45 MHz to 2 GHz 23 dB 27 dB
2GHzto10GHz 16dB 19dB
10 GHz to 20 GHz 14 dB 19 dB
20 GHz to 40 GHz 10 dB 14 dB
40GHzto45GHz 9dB 13.5dB
45GHzto50GHz 5.5dB 9dB

Source Match - Opt UNL, 014 or UNL&014

Typical:

45 MHz to 2 GHz 18 dB 22.5 dB
2GHzto10GHz 14dB 18dB
10 GHz to 20 GHz 12 dB 15 dB
20GHzto40GHz 8dB 10dB
40GHzto45GHz 7dB 10dB
45GHzto50GHz 4dB 6.5dB

Load Match - Standard

Typical:

45 MHz to 2 GHz 23 dB 29 dB
2GHzto10GHz 14dB 16dB
10 GHz to 20 GHz 10 dB 12 dB
20GHzto40GHz 9dB 12dB
40GHzto45GHz 9dB 13dB
45GHzto50GHz 7dB 10dB

Load Match - Opt UNL, 014 or UNL&014

Typical:

45 MHz to 2 GHz 17 dB 21.5 dB
2GHzto10GHz 13dB 16.5dB
10 GHz to 20 GHz 10 dB 13 dB
20GHzto40GHz 9dB 11dB
40GHzto45GHz 8dB 11dB
45GHzto50GHz 6dB 8dB

Reflection Tracking

Typical:

45 MHz to 20 GHz ±1.5
20GHzto40GHz ±1.5
40GHzto50GHz ±2.0

4-38

Transmission Tracking

a

Typical:

45 MHz to 2 GHz ±2.5 dB
2 GHz to 10 GHz ±2.0 dB
10GHzto20GHz ±3.0dB
20GHzto40GHz ±4.5dB
40GHzto45GHz ±6.0dB
45GHzto50GHz ±6.0dB

Crosstalk - Standard

45MHzto1GHz -85dB
1GHzto2GHz -100dB
2 GHz to 20 GHz -110 dB
20 GHz to 40 GHz -108 dB
40 GHz to 45 GHz -105 dB
45 GHz to 50 GHz -100 dB

Crosstalk - Option UNL or 014

45MHzto1GHz -85dB
1GHzto2GHz -100dB
2 GHz to 20 GHz -109 dB
20 GHz to 40 GHz -106 dB
40 GHz to 45 GHz -103 dB
45GHzto50GHz -98dB

Crosstalk - Option UNL&014

45MHzto1GHz -85dB
1GHzto2GHz -98dB
2 GHz to 10 GHz -108 dB
10 GHz to 20 GHz -107 dB
20 GHz to 40 GHz -104 dB
40 GHz to 45 GHz -100 dB
45GHzto50GHz -95dB

a

Measurement conditions: normalized to a thru, measured with two shorts, 10 Hz IF bandwidth, averaging factor of 8, alternate mode,

source power set to the lesser of the maximum power out or the maximum receiver power.

4-39

Table 34. Test Port Output

a

Description Specification Supplemental
Frequency Range

Standard Opt 014 Opt UNL Opt UNL&014

E8362A 45 MHz to 20 GHz
E8363A 45 MHz to 40 GHz
E8364A 45 MHz to 50 GHz

Nominal Power

b

-12 dBm -17 dBm -17 dBm -17 dBm

Frequency Resolution

1Hz

CW Accuracy

+/-1 ppm

Frequency Stability

+/-1 ppm 0° to 40° C, typical
+/-0.2 ppm/yr, typical

Power Level Accuracy

45 MHz to
10 GHz
10 GHz to

+/-1.5 dB +/-1.5 dB +/-1.5 dB +/-1.5 dB
+/-2.0 dB +/-2.0 dB +/-2.0 dB +/-2.0 dB

Variation from nominal
power in range 0 (step

attenuator at 0 dB)
20 GHz
20 GHz to

+/-3.0 dB +/-3.0 dB +/-3.0 dB +/-3.0 dB
40 GHz
40 GHz to

+/-3.0 dB +/-3.5 dB +/-3.0 dB +/-3.5 dB
45 GHz
45 GHz to

+/-3.0 dB +/-4.0 dB +/-3.0 dB +/-4.0 dB
50 GHz

Power Level Linearity

45 MHz to

+/-1.0 dB +/-1.0 dB +/-1.0 dB
20 GHz
20 GHz to

+/-1.0 dB +/-1.0 dB +/-1.0 dB

c

c

+/-1.0 dB
+/-1.0 dB

c

Test reference is at the
nominal power level (step

c

attenuator at 0 dB)
40 GHz
40 GHz to

+/-1.0 dB +/-1.0 dB +/-1.0 dB +/-1.0 dB

50 GHz

Power Range

45 MHz to
10 GHz
10 GHz to
20 GHz
20 GHz to
30 GHz
30 GHz to
40 GHz
40 GHz to
45 GHz
45 GHz to
50 GHz

d

-25 to
+5 dBm

-24 to
+3 dBm

-23 to
0dBm

-23 to

-4 dBm

-25 to

-5 dBm

-25 to

-10 dBm

-25 to
+5 dBm

-25 to
+2 dBm

-25 to

-2 dBm

-25 to

-6 dBm

-27 to

-7 dBm

-27 to

-12 dBm

-87 to
+3 dBm

-86 to
+1 dBm

-85 to

-2 dBm

-85 to

-6 dBm

-87 to

-9 dBm

-87 to

-15 dBm

-87 to
+3 dBm

-87 to
0dBm

-87 to

-4 dBm

-87 to

-8 dBm

-87 to

-11 dBm

-87 to

-17 dBm

4-40

Power Sweep Range (ALC)

45 MHz to

30 dB 30 dB 30 dB 30 dB
10 GHz
10 GHz to

27 dB 27 dB 27 dB 27 dB
20 GHz
20 GHz to

23 dB 23 dB 23 dB 23 dB
30 GHz
30 GHz to

19 dB 19 dB 19 dB 19 dB
40 GHz
40 GHz to

20 dB 20 dB 18 dB 16 dB
45 GHz
45 GHz to

15 dB 15 dB 12 dB 10 dB
50 GHz

Power Resolution

0.01 dB

Phase Noise

10 kHz offset from center frequency, nominal power at test port
45 MHz to

10 GHz

10 GHz to

20 GHz

20 GHz to

40 GHz

40 GHz to

50 GHz

Harmonics (2nd or 3rd)

Non-Harmonic Spurious (at Nominal Output Power)

45 MHz to
20 GHz
20 GHz to
40 GHz
40 GHz to
50 GHz

a

Source output performance on Port 1 only. Port 2 output performance is a characteristic.

b

Preset power.

c

1.5 dB for power <= -23 dBm.

d

Power to which the source can be set and phase lock is assured.

ALC range starts at
maximum leveled output
power and goes down to
power level indicated by dB
amount specified

-70 dBc, typical

-65 dBc, typical

-55 dBc, typical

-55 dBc, typical

-23 dBc typical, in power
range 0

-50 dBc typical, for offset
frequency > 1 kHz

-30 dBc typical, for offset
frequency > 1 kHz

-30 dBc typical, for offset
frequency > 1 kHz

4-41

Table 35: Test Port Input

Description Specification Supplemental

Standard Opt 014 Opt UNL Opt UNL&014

Test Port Noise Floor

1

10 Hz IF Bandw idth

45 MHz to

500 MHz

2

500 MHz to 2

<-89 dBm <-89 dBm <-89 dBm <-89 dBm

<-114 dBm <-114 dBm <-114 dBm <-114 dBm

GHz

2GHzto

<-117 dBm <-117 dBm <-117 dBm <-117 dBm

10 GHz

10 GHz to

<-120 dBm <-119 dBm <-120 dBm <-119 dBm

20 GHz

20 GHz to

<-114dBm<-113dBm<-114dBm<-113dBm

40 GHz

40 GHz to

<-114 dBm <-112 dBm <-114 dBm <-112 dBm

50 GHz

1 Hz IF Bandwidth

45 MHz to

500 MHz

500 MHz to

2

<-69 dBm <-69 dBm <-69 dBm <-69 dBm

<-94 dBm <-94 dBm <-94 dBm <-94 dBm

2GHz

2GHzto

<-97 dBm <-97 dBm <-97 dBm <-97 dBm

10 GHz

10 GHz to

<-100 dBm <-99 dBm <-100 dBm <-99 dBm

20 GHz

20 GHz to

<-94 dBm <-93 dBm <-94 dBm <-93 dBm

40 GHz

40 GHz to

50 GHz

Direct Receiver Access Input Noise Floor

<-94 dBm <-92 dBm <-94 dBm <-92 dBm

1

10 Hz IF Bandw idth

45 MHz to 500

2

MHz
500 MHz to 2

<-127 dBm <-127 dBm
<-133 dBm <-133 dBm

GHz

2GHzto

<-132 dBm <-132 dBm

10 GHz
10 GHz to 20

<-134 dBm <-134 dBm
GHz
20 GHz to 40

<-125 dBm <-125 dBm
GHz
40 GHz to 50

<-123 dBm <-123 dBm
GHz

4-42

1 Hz IF Bandwidth

45 MHz to

<-107 dBm <-107 dBm
500 MHz

500 MHz to 2

<-113 dBm <-113 dBm
GHz

2GHzto

<-112 dBm <-112 dBm
10 GHz

10 GHz to

<-114 dBm <-114 dBm
20 GHz

20 GHz to

<-105 dBm <-105 dBm
40 GHz

40 GHz to

<-103 dBm <-103 dBm
50 GHz

Receiver Compression Level

45 MHz to

<0.6 dB compression at +5 dBm

20 GHz
20 GHz to

<0.6 dB compression at 0 dBm

30 GHz
30 GHz to

<0.6 dB compression at-3 dBm

40 GHz
40 GHz to

<0.6 dB compression at -3 dBm

50 GHz

System Compression Level

maximum output power See dynamic

Trace Noise Magnitude

1 kHz IF bandwidth. Ratio measurement, nominal power at test port.
45 MHz to

<0.010 dB rms

500 MHz
500 MHz to

<0.006 dB rms

20 GHz
20 GHz to

<0.006 dB rms

40 GHz
40 GHz to

<0.006 dB rms

50 GHz

Trace Noise Phase

1 kHz IF bandwidth. Ratio measurement, nominal power at test port.
45 MHz to
500 MHz

3

500 MHz to

<0.100° rms

<0.060° rms

20 GHz
20 GHz to

<0.100° rms

40 GHz
40 GHz to

<0.100° rms

50 GHz

accuracy table

4-43

Reference Level Magnitude

Range +/-200 dB
Resolution 0.001 dB

Reference Level Phase

Range +/-500°
Resolution 0.01°

Stability Magnitude

4

Typical ratio measurement, made at the test port.
45 MHz to

+/-0.02 dB/°C

20 GHz
20 GHz to

+/-0.03 dB/°C

40 GHz
40 GHz to
50 GHz

Stability Phase

4

+/-0.04 dB/°C

Typical ratio measurement, measured at the test port.
45 MHz to

+/-0.2°/°C

20 GHz
20 GHz to

+/-0.5°/°C

40 GHz
40 GHz to

+/-0.8°/°C

50 GHz

Damage Input Level

Test Port 1
and 2

+20 dBm or
+/-40 VDC,

typical

R1, R2 in

+15 dBm or
+/-15 VDC,

typical

A, B in

+15 dBm or
+/-15 VDC,

typical

Coupler Thru

+30 dBm or
+/-40 VDC,

typical

Coupler Arm

+30 dBm or
+/-7 VDC,

typical

1

Total average (rms) noise power calculated as the mean value of a linear magnitude trace expressed in dBm.

2

Noise floor may be degraded by 10 dB at particular frequencies (multiples of 5 MHz) due to spurious receiver

residuals.

3

Trace noise magnitude may be degraded to 20 mdB rms at harmonic frequencies of the first IF (8.33 MHz)

below 80 MHz.

4

Stability is defined as a ratio measurement made at the test port.

4-44

Table 36. Dynamic Accuracy (Specificationa)

Accuracy of the test port input power reading is relative to the reference input power level. Applies to input ports 1 and 2 with the following
conditions:

• IF bandwidth = 10 Hz

• Test port powers = > -50 dBm and < 0 dBm

a

Dynamic accuracy is verified with the following measurements:

• compression over frequency

• IF linearity at a single frequency of 1.195 GHz and a reference level of -20 dBm

4-45

Table 37. Test Port Input (Group Delay)

a

Description Specification Supplemental Information
Aperture (selectable)

(frequency span)/(number of points -

1)

Maximum Aperture
Range
Maximum Delay

20% of frequency span

0.5 x (1/minimum aperture)
Limited to measuring no more than
180° of phase change within the
minimum aperture.)

Accuracy

See graph below. Char.

The following graph shows characteristic group delay accuracy with full 2-port calibration and a 10 Hz IF
bandwidth. Insertion loss is assumed to be < 2 dB and electrical length to be ten meters.

In general, the following formula can be used to determine the accuracy, in seconds, of specific group delay
measurement:

±Phase Accuracy (deg)/[360 × Aperture (Hz)]
Depending on the aperture and device length, the phase accuracy used is either incremental phase accuracy or

worst case phase accuracy.

a

Group delay is computed by measuring the phase change within a specified frequency step (determined by the frequency span and the

number of points per sweep).

General Information

Table 38. Miscellaneous Information

Description Specification Supplemental Information
System IF Bandwidth Range
CPU

1Hzto40kHz,nominal
Intel® 500 MHz Pentium® III

4-46

Table 39. Front Panel Information

Description Supplemental Information
RF Connectors
E8362A

Type 3.5 mm (male), 50 ohm, (nominal)
Center Pin Recession 0.002 in. (characteristic)

E8363/4A

Type 2.4 mm (male), 50 ohm, (nominal)
Center Pin Recession 0.002 in. (characteristic)

Display

Size 21.3 cm (8.4 in) diagonal color active matrix LCD; 640 (horizontal) X 480

(vertical) resolution; 59.83 Hz vertical refresh rate; 31.41 Hz horizontal
refresh rate

Refresh Rate Vertical 59.83 Hz; Horizontal 31.41 Hz

Display Range

Magnitude ±200 dB (at 20 dB/div), max
Phase ±180°, max
Polar 10 pUnits, min

1000 Units, max

Display Resolution

Magnitude 0.001 dB/div, min
Phase 0.01°/div, min

Marker Resolution

Magnitude 0.001 dB, min
Phase 0.01°, min
Polar 0.01 mUnit, min; 0.01°,min

Table 40. Rear Panel Information

Description Supplemental Information
10 MHz Reference In

Connector BNC, female
Input Frequency 10 MHz ± 10 ppm, typical
Input Level -15 dBm to +20 dBm, typical
Input Impedance

200 Ω, nom.

10 MHz Reference Out

Connector BNC, female
Output Frequency 10 MHz ± 1 ppm, typical
Signal Type Sine Wave, typical
Output Level
Output Impedance

+10 dBm ± 4 dB into 50 Ω,typical
50 Ω, nominal

Harmonics <-40 dBc, typical

VGA Video Output

Connector 15-pin mini D-Sub; Drives VGA compatible monitors
Devices Supported:

Resolutions:

Flat Panel (TFT) 1024 X 768, 800 X 600, 640 X 480
Flat Panel (DSTN) 800 X 600, 640 X 480
CRT Monitor 1280 X 1024, 1024 X 768, 800 X 600, 640 X 480

Simultaneous operation of the internal and external displays is allowed, but
with 640 X 480 resolution only. If youchange resolution, you can only view the
external display (internal display will "white out").

Test Set IO

25-pin D-Sub connector, available for external test set control

4-47

Aux IO

25-pin D-Sub connector, male, analog and digital IO

Handler IO

36-pin parallel I/O port; all input/output signals are default set to negative logic;
can be reset to positive logic via GPIB command

GPIB

24-pin D-sub (Type D-24), female; compatible with IEEE-488.

Parallel Port (LPT1)

25-pin D-Sub miniature connector, female; provides connection to printers or
any other parallel port peripherals

Serial Port (COM 1)

9-pin D-Sub, male; compatible with RS-232

USB Port

Universal Serial Bus jack, Type A configuration

(4 contacts inline, contact 1 on left); female
Contact 1 Vcc: 4.75 to 5.25 VDC, 500 mA, maximum
Contact 2 -Data
Contact 3 +Data
Contact 4 Ground

LAN

10/100BaseT Ethernet, 8-pin configuration; auto selects between the two data
rates

Line Power

a

Frequency 48 Hz to 66 Hz
Voltage at 115 V

90 to 132 VAC; 120 VAC, nominal
Setting
Voltage at 220 V

198 to 264 VAC; 240 VAC, nominal
Setting
VA Max 600 VA maximum

a

A third-wire ground is required.

4-48

Table 41. Analyzer Environment and Dimensions

Description Supplemental Information
General Environmental

RFI/EMI Susceptibility Defined by CISPR Pub. 11, Group 1, Class A, and IEC 50082-1
ESD Minimize using static-safe work procedures and an antistatic bench mat
Dust Minimize for optimum reliability

Operating Environment

Temperature

0°Cto+40°C
Instrument powers up, phase locks, and displays no error messages

within this temperature range (except for "source unleveled" error
message that may occur at temperature extremes when power
approaches limits of ALC range).

Error-Corrected

Temperature Range

23°C ± 3°C

with less than 1°C deviation from calibration temp.
Humidity 5% to 95% at +40 °C
Altitude 0 to 4500 m (14,760 ft.)

Non-Operating Storage Environment

Temperature -40 °C to +70 °C
Humidity 0% to 90% at +65 °C (non-condensing)
Altitude 0 to 15,240 m (50,000 ft.)

Cabinet Dimensions

Height Width Depth

Excluding front and rear
panel hardware and feet
As shipped - includes front
panel connectors, rear

267 mm

10.5 in

305 mm

12.0 in

425 mm

16.75 in

425 mm

16.75 in

426 mm

16.8 in

470 mm

18.5 in
panel bumpers, and feet.
As shipped plus handles 305 mm

12.0 in
As shipped plus rack­mount flanges
As shipped plus handles
and flanges

305 mm

12.0 in

305 mm

12.0 in

458 mm

18 in

483 mm

19 in

483 mm

19 in

502 mm

19.75 in

470 mm

18.5 in

502 mm

19.75 in

Weight
Net

E8362A 28.6 kg (63.5 lb), nominal
E8363/4A 29 kg (64 lb), nominal

Shipping

E8362A 35.8 kg (79.5 lb), nominal
E8363/4A 36.3 kg 80 lb), nominal

4-49

Measurement Throughput Summary

Table 42. Typical Cycle Time

a,b

(ms) for Measurement Completion

Number of Points
51 201 401 1601

Start 13.5 GHz, Stop 16.5 GHz, 35 kHz IF bandwidth

Uncorrected,

21 23 28 65

1-port cal
2-Port cal 52 57 70 152

Start45MHz,Stop10GHz,35kHzIFbandwidth

Uncorrected,

71 79 84 110

1-port cal
2-Port cal 153 171 182 243

Start45MHz,Stop20GHz,35kHzIFbandwidth

Uncorrected,

103 116 121 139

1-port cal
2-Port cal 216 245 256 303

Start45MHz,Stop40GHz,35kHzIFbandwidth

Uncorrected,

145 181 190 232

1-port cal
2-Port cal 293 367 382 428

Start45MHz,Stop50GHz,35kHzIFbandwidth

Uncorrected,

163 210 218 256

1-port cal
2-Port cal 332 425 442 487

Time Domainc(increase over uncorrected sweep time)

Conversions < 1 < 1 4 13
Gating <1 <1 4 17

a

Typical performance.

b

Includes sweep time, retrace time and band-crossing time. Analyzer display turned off with
DISPLAY:ENABLE OFF. Add 21 ms for display on. Data for one trace (S11) measurement.

c

Option 010 only.

4-50

Table 43. Cycle Time vs IF Bandwidth

Applies to the Preset condition (201 points, correction off) except for the following changes:

a

• CF = 1 GHz

• Span = 100 MHz

• Display off (add 21 ms for display on)

IF Bandwidth

CycleTime(ms)

b

(Hz)

40,000 8
35,000 9
30,000 11
20,000 13
10,000 28
7000 36
5000 48
3000 72
1000 196
300 620
100 3853
30 8041
10 19855

a

Typical performance.

b

Cycle time includes sweep and retrace time.

Table 44. Cycle Time vs Number of Points

Applies to the Preset condition (35 kHz IF bandwidth, correction off) except for the following changes:

a

• CF = 1 GHz

• Span = 100 MHz

• Display off (add 21 ms for display on)

Number
of

Cycle Time

b

(ms)

Points

34
11 4
51 5
101 6
201 9
401 16
801 29
1601 55

a

Typical performance.

b

Cycle time includes sweep and retrace time.

4-51

Table 45. Data Transfer Time (ms)

a

Number of Points

51 201 401 1601
SCPI over GPIB
(program executed on external PC)

a

32-bit floating point 3 7 12 43
64-bit floating point 4 12 22 84
ASCII 18 64 124 489

SCPI over 100 Mbit/s LAN
(program executed on external PC)

b

32-bit floating point 1 1 1 1
64-bit floating point 1 1 1 2
ASCII 5 15 26 96

SCPI (program executed in the analyzer)

c

32-bit floating point 1 1 2 3
64-bit floating point 1 2 2 4
ASCII 8 29 56 222

COM (program executed in the analyzer)

d

32-bit floating point 1 1 1 1
Variant type 1 1 2 6

DCOM over 100 Mbit/s LAN
(program executed on external PC)

f

32-bit floating point 1 1 1 2
Variant type 1 3 6 19

a

Typical performance

Note: Specifications for Recall & Sweep Speed are not provided for the E836xA analyzers.

4-52

Specifications: Front-Panel Jumpers



Models E8362A, E8363A, and E8364A Option 014

See Front-panel jumper



NOTE: The standard E8362A /63A/ 64A has no front-panel jumpers.



Table 46: Measurement Receiver Inputs (Rcvr A In, Rcvr B In)

Description Specification Supplemental Information
Maximum Input Level
E8362A:

45 MHz to 500 MHz -15 dBm, typical
500 MHz to 2 GHz -11 dBm, typical
2 GHz to 10 GHz -11 dBm, typical
10GHzto20GHz -11dBm,typical

E8363A:

45 MHz to 500 MHz -14 dBm, typical
500 MHz to 2 GHz -10 dBm, typical
2 GHz to 10 GHz -10 dBm, typical
10GHzto20GHz -10dBm,typical
20 GHZ to 30 GHz -14.5 dBm, typical
30 GHZ to 40 GHz -16.5 dBm, typical

E8364A:

45 MHz to 500 MHz - 14 dBm, typical
500 MHz to 2 GHz - 10 dBm, typical
2 GHz to 10 GHz - 10 dBm, typical
10GHzto20GHz -10dBm,typical
20 GHZ to 30 GHz - 14.5 dBm, typical
30 GHZ to 40 GHz - 16.5 dBm, typical
40GHZto45GHz -16dBm,typical
45GHZto50GHz -15dBm,typical

Noise Floor
E8362A:

45 MHz to 500 MHz < -109 dBm
500 MHz to 2 GHz < -130 dBm
2 GHz to 10 GHz < -133 dBm
10 GHz to 20 GHz < -135 dBm

45 MHz to 500 MHz < -89 dBm
500 MHz to 2 GHz < -110 dBm
2 GHz to 10 GHz < -113 dBm
10 GHz to 20 GHz < -115 dBm

configurations.

10 Hz IF Bandw idth

1 kHz IF Bandwidth

4-53

E8363A:

10 Hz IF Bandw idth

45 MHz to 500 MHz < -127 dBm
500 MHz to 2 GHz < -133 dBm
2 GHz to 10 GHz < -132 dBm
10 GHz to 20 GHz < -134 dBm
20 GHZ to 40 GHz < -125 dBm

1 kHz IF Bandwidth

45 MHz to 500 MHz < -107 dBm
500 MHz to 2 GHz < -113 dBm
2 GHz to 10 GHz < -112 dBm
10 GHz to 20 GHz < -114 dBm
20 GHZ to 40 GHz < -105 dBm

E8364A:

10 Hz IF Bandw idth

45 MHz to 500 MHz < - 127 dBm
500 MHz to 2 GHz < - 133 dBm
2 GHz to 10 GHz < - 132 dBm
10 GHz to 20 GHz < - 134 dBm
20 GHZ to 40 GHz < - 125 dBm
40 GHZ to 50 GHz < - 123 dBm

1 kHz IF Bandwidth

45 MHz to 500 MHz < -107 dBm
500 MHz to 2 GHz < -113 dBm
2 GHz to 10 GHz < -112 dBm
10 GHz to 20 GHz < -114 dBm
20 GHZ to 40 GHz < -105 dBm
40 GHZ to 50 GHz < -103 dBm

Damage Level

E8362A + 15 dBm, typical
E8363A + 15 dBm, typical
E8364A + 15 dBm, typical

Maximum DC Level

E8362A + 15 V, typical
E8363A + 15 V, typical
E8364A + 15 V, typical

4-54

Table 47: Reference Receiver Inputs (Rcvr R1, Rcvr R2)

Description Specification Supplemental Information
Maximum Input Level
E8362A:

45 MHz to 500 MHz -15 dBm, typical
500 MHz to 2 GHz -11 dBm, typical
2 GHz to 10 GHz -11 dBm, typical
10GHzto20GHz -11dBm,typical

E8363A:

45 MHz to 500 MHz -14 dBm, typical
500 MHz to 2 GHz -10 dBm, typical
2 GHz to 10 GHz -10 dBm, typical
10 GHz to 20 GHz -9.5 dBm, typical
20GHZto30GHz -14dBm,typical
30 GHZ to 40 GHz -15.5 dBm, typical

E8364A:

45 MHz to 500 MHz - 14 dBm, typical
500 MHz to 2 GHz - 10 dBm, typical
2 GHz to 10 GHz - 10 dBm, typical
10 GHz to 20 GHz - 9.5 dBm, typical
20GHZto30GHz -14dBm,typical
30 GHZ to 40 GHz - 15.5 dBm, typical
40GHZto45GHz -14dBm,typical
45GHZto50GHz -15dBm,typical

Damage Level

E8362A + 15 dBm, typical
E8363A + 15 dBm, typical
E8364A + 15 dBm, typical

Maximum DC Level

E8362A +/- 15 V, typical
E8363A +/- 15 V, typical
E8364A +/- 15 V, typical

4-55

Table 48: Reference Outputs (Reference 1 Source Out, Reference 2 Source Out)

Description Specification Supplemental Information
Maximum Output Level
E8362A:

45 MHz to 500 MHz -24 dBm, typical
500 MHz to 2 GHz -23 dBm, typical
2 GHz to 10 GHz -23 dBm, typical
10GHzto20GHz -26dBm,typical

E8363A:

45 MHz to 500 MHz -11.5 dBm, typical
500 MHz to 2 GHz -10.5 dBm, typical
2 GHz to 10 GHz -11 dBm, typical
10GHzto20GHz -11dBm,typical
20GHZto30GHz -11dBm,typical
30GHZto40GHz -11dBm,typical

E8364A:

45 MHz to 500 MHz - 11.5 dBm, typical
500 MHz to 2 GHz - 10.5 dBm, typical
2 GHz to 10 GHz - 11 dBm, typical
10GHzto20GHz -11dBm,typical
20GHZto30GHz -11dBm,typical
30GHZto40GHz -11dBm,typical
40GHZto45GHz -11dBm,typical
45GHZto50GHz -15dBm,typical

Damage Level

E8362A + 20 dBm, typical
E8363A + 20 dBm, typical
E8364A + 20 dBm, typical

Maximum DC Level

E8362A +/- 15 V, typical
E8363A +/- 15 V, typical
E8364A +/- 15 V, typical

4-56

Table 49: Source Outputs (Port 1 Source Out, Port 2 Source Out)

Description Specification

Supplemental Information

Maximum Output Level
E8362A, Option 014:

45 MHz to 500 MHz 6 dBm, typical
500 MHz to 2 GHz 7 dBm, typical
2 GHz to 10 GHz 7 dBm, typical
10GHzto20GHz 4dBm,typical

E8362A, Option 014 and UNL:

45 MHz to 500 MHz 4 dBm, typical
500 MHz to 2 GHz 5 dBm, typical
2 GHz to 10 GHz 5 dBm, typical
10GHzto20GHz 2dBm,typical

E8363A, Option 014:

45 MHz to 500 MHz 5.5 dBm, typical
500 MHz to 2 GHz 6.5 dBm, typical
2 GHz to 10 GHz 6.5 dBm, typical
10GHzto20GHz 4dBm,typical
20 GHZ to 30 GHz 1- dBm, typical
30 GHZ to 40 GHz -2 dBm, typical

E8363A, Option 014 and UNL:

45 MHz to 500 MHz 3.5 dBm, typical
500 MHz to 2 GHz 5 dBm, typical
2 GHz to 10 GHz 5 dBm, typical
10 GHz to 20 GHz 3.5- dBm, typical
20GHZto30GHz 0dBm,typical
30 GHZ to 40 GHz -2.5 dBm, typical

E8364A, Option 014:

45 MHz to 500 MHz 5.5 dBm, typical
500 MHz to 2 GHz 6.5 dBm, typical
2 GHz to 10 GHz 6.5 dBm, typical
10GHzto20GHz 4dBm,typical
20GHZto30GHz 1dBm,typical
30 GHZ to 40 GHz -2 dBm, typical
40 GHZ to 45 GHz -3 dBm, typical
45 GHZ to 50 GHz -7.5 dBm, typical

E8364A, Option 014 and UNL:

45 MHz to 500 MHz 3.5 dBm, typical
500 MHz to 2 GHz 5 dBm, typical
2 GHz to 10 GHz 5 dBm, typical
10GHzto20GHz 3.5dBm,typical
20GHZto30GHz 0dBm,typical
30 GHZ to 40 GHz -2.5 dBm, typical
40 GHZ to 45 GHz -5 dBm, typical
45GHZto50GHz -10dBm,typical

4-57

Damage Level

E8362A 20 dBm, typical
E8363A 20 dBm, typical
E8364A 20 dBm, typical

Maximum DC Level

E8362A 0 V, typical
E8363A 0 V, typical
E8364A 0 V, typical

Table 50: Coupler Inputs (Port 1 Cplr Thru, Port 2 Cplr Thru)

Description Specification

Supplemental Information

Insertion Loss to Test Port
E8362A, Option 014:

45 MHz to 500 MHz 0.5 dB, ty pical
500 MHz to 2 GHz 1.5 dB, typical
2 GHz to 10 GHz 1.5 dB, ty pical
10GHzto20GHz 1.5dB,typical

E8362A, Option 014 and UNL:

45 MHz to 500 MHz 1 dB, ty pical
500 MHz to 2 GHz 2 dB, typical
2 GHz to 10 GHz 2 dB, ty pical
10GHzto20GHz 2dB,typical

E8363A, Option 014:

45 MHz to 500 MHz 0.5 dB, ty pical
500 MHz to 2 GHz 0.5 dB, typical
2 GHz to 10 GHz 1.5 dB, ty pical
10GHzto20GHz 2dB,typical
20GHZto30GHz 3dB,typical
30GHZto40GHz 3.5dB,typical

E8363A, Option 014 and UNL:

45 MHz to 500 MHz 0.5 dB, ty pical
500 MHz to 2 GHz 1 dB, typical
2 GHz to 10 GHz 2 dB, ty pical
10GHzto20GHz 3dB,typical
20GHZto30GHz 4dB,typical
30GHZto40GHz 5dB,typical

E8364A, Option 014:

45 MHz to 500 MHz 0.5 dB, ty pical
500 MHz to 2 GHz 0.5 dB, typical
2 GHz to 10 GHz 1.5 dB, ty pical
10GHzto20GHz 2dB,typical
20GHZto30GHz 3dB,typical
30GHZto40GHz 3.5dB,typical
40GHZto45GHz 3.5dB,typical
45GHZto50GHz 4dB,typical

4-58

E8364A, Option 014 and UNL:

45 MHz to 500 MHz 0.5 dB, ty pical
500 MHz to 2 GHz 1 dB, typical
2 GHz to 10 GHz 2 dB, ty pical
10GHzto20GHz 3dB,typical
20GHZto30GHz 4dB,typical
30GHZto40GHz 5dB,typical
40GHZto45GHz 5.5dB,typical
45GHZto50GHz 6dB,typical

Damage Level

E8362A + 30 dBm, typical
E8363A + 30 dBm, typical
E8364A + 30 dBm, typical

Maximum DC Level

E8362A +/- 40 V, typical
E8363A +/- 40 V, typical
E8364A +/- 40 V, typical

Table 51: Coupler Outputs (Port 1 Cplr Arm, Port 2 Cplr Arm)

Description Specification Supplemental Information
Damage Level

E8362A + 30 dBm, typical
E8363A + 30 dBm, typical
E8364A + 30 dBm, typical

Maximum DC Level

E8362A +/- 7 V, typical
E8363A +/- 7 V, typical
E8364A +/- 7 V, typical

4-59

Test Set Block Diagrams

E836xA Standard Configuration and Standard Power Range

E836xA - Option UNL Standard Configuration with Extended Power Range and Bias - Tees

4-60

Test Set with Option 014 Block Diagrams

E836xA - Option 014 Extended Configuration and Standard Power Range

Item Description Item Description
a
b
c
d
e
f
g

SOURCE OUT
RCVR R1 IN
SOURCE OUT
CPLR THRU
PORT 1
CPLR ARM
RCVR A IN

h
i
j
k
l
m
n

RCVR B IN
CPLR ARM
PORT 2
CPLR THRU
SOURCE OUT
RCVR R2 IN
SOURCE OUT

4-61

E836xA - Option UNL&014 Extended Configuration with Extended Power Range and Bias - Tees

Item Description Item Description
a
b
c
d
e
f
g

SOURCE OUT
RCVR R1 IN
SOURCE OUT
CPLR THRU
PORT 1
CPLR ARM
RCVR A IN

h
i
j
k
l
m
n

RCVR B IN
CPLR ARM
PORT 2
CPLR THRU
SOURCE OUT
RCVR R2 IN
SOURCE OUT

4-62

www.agilent.com/find/emailupdates

Get the latest information on the products and
applications you select.

Agilent Email Updates

www.agilent.com

Agilent Technologies’ Test and Measurement
Support, Services, and Assistance

Agilent Technologies aims to maximize the value you
receive, while minimizing your risk and problems. We
strive to ensure that you get the test and measurement
capabilities you paid for and obtain the support you
need. Our extensive support resources and services
can help you choose the right Agilent products for
your applications and apply them successfully. Every
instrument and system we sell has a global warranty.
Two concepts underlie Agilent’s overall support policy:
“Our Promise” and “Your Advantage.”

Our Promise

Our Promise means your Agilent test and measurement
equipment will meet its advertised performance
and functionality. When you are choosing new equip­ment, we will help you with product information,
including realistic performance specifications and
practical recommendations from experienced test
engineers. When you receive your new Agilent equip­ment, we can help verify that it works properly and
help with initial product operation.

Your Advantage

Your Advantage means that Agilent offers a wide
range of additional expert test and measurement
services, which you can purchase according to your
unique technical and business needs. Solve problems
efficiently and gain a competitive edge by contracting
with us for calibration, extra-cost upgrades, out-of­warranty repairs, and onsite education and training,
as well as design, system integration, project manage­ment, and other professional engineering services.
Experienced Agilent engineers and technicians world­wide can help you maximize your productivity, optimize
the return on investment of your Agilent instruments
and systems, and obtain dependable measurement
accuracy for the life of those products.

For more information on Agilent Technologies’
products, applications or services, please contact
your local Agilent office.

Phone or Fax

United States: Korea:

(tel) 800 829 4444 (tel) [phone]
(fax) 800 829 4433 (fax) [phone]

Canada: Latin America:

(tel) 877 894 4414 (tel) [phone]
(fax) 800 746 4866 Taiwan:
China: (tel) 0800 047 866
(tel) 800 810 0189 (fax) 0800 286 331
(fax) 800 820 2816 Other Asia Pacific

Europe: Countries:

(tel) 31 20 547 2111 (tel) (65) 6375 8100
Japan: (fax) (65) 6755 0042
(tel) (81) 426 56 7832 Email: [e-mail]
(fax) (81) 426 56 7840

Contacts revised: 09/26/05

The complete list is available at:
www.agilent.com/find/contactus

Product specifications and descriptions in this
document subject to change without notice.

© Agilent Technologies, Inc. 2004, 2006
Printed in USA, July 13, 2006
5989-1072EUS

www.agilent.com/find/agilentdirect

Quickly choose and use your test equipment
solutions with confidence.

Agilent Direct

Agilent

Open

www.agilent.com/find/open

Agilent Open simplifies the process of connecting
and programming test systems to help engineers
design, validate and manufacture electronic prod­ucts. Agilent offers open connectivity for a broad
range of system-ready instruments, open industry
software, PC-standard I/O and global support,
which are combined to more easily integrate test
system development.
