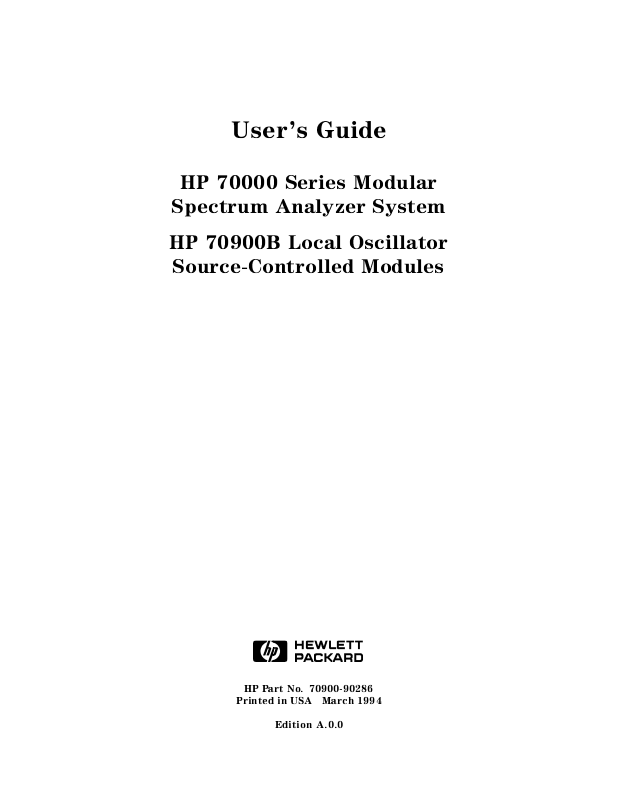

User's Guide
HP
Spectrum
HP
Source-Controlled Modules
70000
70900B
Series
Analyzer
Local
Modular
Oscillator
System
ABCDE
HP Part No. 70900-90286
Printed in USA March 1994
Edition A.0.0
