HP Mobile Communications DC Sources Technical Data
HP Model 66309B, 66309D
HP Model 66311B, 66311D
HP Model 66111A
Tailored solutions for
Mobile Communications
Product Testing
Visit our website at:
http://www.hp.com/go/dynamicPS
Page 2
HP System dc Power Supplies for Mobile Phone Test
HP now offers a family of power
supplies specially designed
for testing mobile phones. The
HP 66309B/D, HP 66311B/D and
HP 66111A mobile communications dc sources are designed
for the unique challenges of
simulating batteries during the
production test of wireless phones
that draw rapid pulses of current.
All models provide the sourcing,
current sinking, fast transient
response and measurement capability necessary for mobile phone
testing. In addition, the HP 66300
series offers advanced measurement capability to accurately perform peak and low-level current
measurement, ensuring cellular
phone quality and critical battery
specifications such as run time
and standby time.
A new HP-developed feature,
available in all models, detects
open sense connections. The
detection guarantees test system
integrity and improves yield by
preventing incorrect batterycharger calibration, incorrect
test results and low voltage
phone shutdown due to open
sense lead wiring.
Minimize system downtime
with HP’s proven reputation for
excellent product reliability and
worldwide support. Our thorough
environmental testing, quality control and over 30 years of power
supply design experience ensure
reliable operation over a wide
range of temperatures and other
environmental conditions.
From the economical HP 66111A
to the dual output HP 66309D
with built-in auxiliary DVM, this
family of products lets you choose
the best solution to meet your
needs.

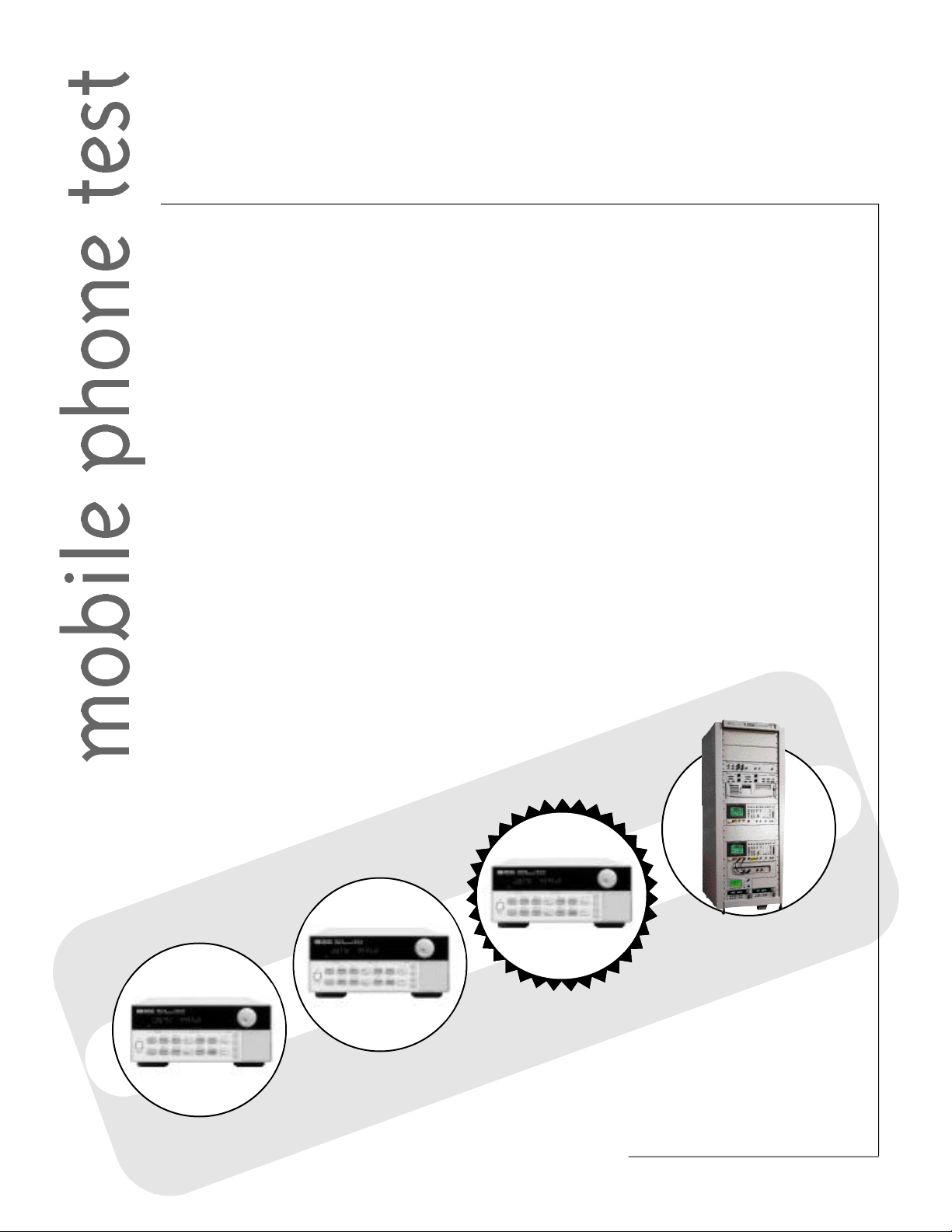

HP TS-5500
HP 66309B, HP 66309D
NEW
HP 66311B, HP 66311D
HP 66111A
HP 66300 Series
High Density Dual Output
Power Source
HP 66300 Series
Advanced Measurement
Power Source
HP 66111A
2
Basic Measurement
Power Source
Mobile Phone
Test Platform
Page 3
Solutions For All Your Needs
The HP 66111A
fast transient dc source
is our most economical offering in
high performance, high throughput
dc power supplies. It is designed
to simplify the testing of cellular
phones. The HP 66111A provides
5 Amp peak current sourcing and
rapid, basic measurements in a
compact, half-rack box. It offers
fast command processing time
as well as a new HP developed
feature that automatically detects
open sense connections that could
cause incorrect test results due to
erroneous voltage settings.
Excellent voltage transient
response ensures maximum test
system throughput by minimizing
test interruptions due to triggering
of low voltage phone shutdown.
The HP 66111A is ideal for applications that require fast, accurate
voltage and current measurement
capability without the need for
dynamic and microampere measurement capabilities. It is a great
solution for operational verification of cellular phones during initial turn-on of board assemblies.
The HP 66311B and 66311D
mobile communications
dc sources
are our single output offerings
in high performance, high
throughput, dynamic measurement
system dc power supplies. They
provide all the capabilities of
the HP 66111A plus they rapidly
and accurately perform peak and
low-level current measurements.
This feature allows you to
characterize cellular phone
current requirements under all
operating conditions; ensuring
cellular phone quality, critical
battery specifications (run-time
and standby-time) and high speed
device testing. The HP 66311D
offers all the same features as
the HP 66311B and in addition
has a built-in auxiliary digital
voltmeter (DVM). This eliminates
the need for a separate external
DVM and significantly reduces
test system complexity and saves
on integration time.
The HP 66311B and HP 66311D are
excellent for production environments requiring advanced measurement capability and fast transient response. They are great
solutions for design characterization during product development,
verification of critical battery
specifications during calibration
and alignment, or in final test.
NEW
The HP 66309B and HP 66309D
dual output mobile
communications dc sources
are our newest offerings in high
performance, high throughput
dynamic measurement system dc
power supplies. The HP 66309B
and HP 66309D provide two outputs for the testing of both the
main battery power and battery
charger circuitry, which helps save
on rack space – two outputs in a
compact half rack box.
The main output of the HP 66309B
and HP 66309D dual output mobile
communications dc source
includes all of the capabilities of
the HP 66311B Mobile dc source.
Additionally, the HP 66309B/D
have a second output that is electrically isolated and is designed to
provide either voltage or current
for a charger input on the device
under test. This output offers the
necessary basic voltage and current measurement capability for
testing the battery charger circuitry.
The HP 66309D offers all of the
same features as the HP 66309B
and in addition has a built-in auxiliary digital voltmeter (DVM). This
gives you the flexibility to use the
same test equipment to make
extended measurements needed
in production test (like measuring
the DC voltages within a cellular
phone, measuring relay switching
voltages or other voltages in the
test racks).
These high density power sources
are great solutions for production
environments that test both the
main battery and the battery
charger circuitry, and require
advanced measurement capability
and fast transient response.
3
Page 4
Sourcing Tailored To Your Digital Phone Test
low noise sourcing
Typical CDMA Current Pulse
low noise sourcing
fast settling time
Typical GSM Current Pulse
typical power supply
HP Mobile
Communications
DC Sources
fast settling time
fast rise and fall time
HP Mobile Communications
DC Sources
typical power supply
Excellent Voltage Transient
Response Characteristics
ensure maximum test system
throughput by minimizing device
shut downs due to transient
voltage amplitude and recovery
time. Low transient voltage
droop allows phone testing at the
low voltages necessary to simulate
discharged battery operating
conditions. An HP proprietary
loop compensation design significantly reduces sensitivity to wiring
impedance. Use the HP 66309B/D,
HP 66311B/D, or HP 66111A in
your set-up, and design in flexibility for future technology changes!
For GSM, CDMA, TDMA, PCS,
D E C T, TETRA, PHS, NADC
standards and more, these characteristics ensure the throughput
and yield you need during
production test.
High Peak Current Capability
in a compact box provides the
sourcing you need to test today’s
wide variety of cellular phones
and the comfort margin to prepare
for tomorrow’s technologies.
High Speed Output Programming
increases test throughput.
Command processing times of less
than 4 ms and output programming response times of less than
200 µs increase throughput by
reducing test cycle time.
Open Sense Lead Detect
Proprietary Technology
enables users to automatically
detect open sense wire connections, ensuring reliable, accurate
voltage to the device under test.
For battery powered devices,
undetected open sense connections can cause incorrect battery
charger calibration, suspect test
results due to erroneous voltage
setting and low voltage phone shut
down due to a large transient voltage drop. Sense lead connectivity
can be checked prior to testing
each phone with virtually no
impact on the test time. Even if
checked only periodically, this
diagnostic feature can prevent
shipping low quality products.
Stable Sourcing Optimized for
Multiple Configurations:
Two user-programmable compensation ranges ensure optimal
performance over a wide range of
cellular phone input capacitances
and load-lead configurations.
4
Page 5
…Measurement Tailored To Your Digital Phone Test
accurate peak current
measurement
accurate high level
current measurement
accurate low
level current
measurement
Typical Power Supply Measurements of Current Pulse Using the HP 14565A Device Characterization Software
accurate
minimum current
measurement
Everything You Need
and More...
Current Sinking of 2 A at 7.5 V for
the main output of the mobile
communications dc sources tests
your built-in battery chargers, and
provides the fast down-programming of the output you need for
fast throughput.
Standard Programming Language
reduces software development
time and preserve software investment. Software development is
kept to a minimum through the
use of the industry standard SCPI
programming command set.
No Compromise Dynamic
Measurement Performance:
One key challenge for testing
cellular phones is to accurately
measure both very low currents in
the microampere range and high
level millisecond peak pulse currents in the ampere range. The
HP 66300 series supplies have
the dynamic range to accomodate
both low and high level current
measurements as shown above.
Dynamic Current Pulse Measurement
provides the information you need
to evaluate the battery loading
characteristics of your cellular
phones. The HP 66300 series digitizes the main output’s current
waveform to provide the measurement parameters shown
above. The displayed measurement parameters are calculated
from data stored in a buffer. The
buffer consists of up to 4,096
data points that are collected at a
sample rate of 15.6 microseconds
to 32,000 seconds per sample.
The buffer size and sample rate
are user- p r o g r a m m a b l e . Like an
oscilloscope, measurements
are triggered when the measured
value crosses a user-specified
voltage or current threshold.
In addition to the measured
parameters, both pre- and posttrigger buffer data can
be returned to the computer.
Precision Voltage Measurement
allows you to accurately track
charger voltage levels and prevent
potential quality problems due to
battery overcharge or undercharge.
One-Box Solution...
The HP 66300 Series lowers test
system costs by reducing the
number of instruments and rack
or bench space needed for the
system. Previously, test solutions
to make pulsed and microamp
current measurements required
the use of an external voltmeter
and current shunt. This additional
equipment is no longer needed,
resulting in less space required,
lower cost, and simpler system
design and integration.
Accessories
Optional HP 14575A
Multiplexing Remote Front Panel
can control and display up to 6
remotely located dc source units.
This is an ideal solution to control
rack mounted power supplies that
are difficult to reach.
Optional HP 14565A Device
Characterization Software
for the HP 66300 Series simplifies
characterization of battery current
drain during product design.
5
Page 6
Specifications
Specifications are warranted over a temperature range of 0-55˚C, with any cellular phone capacitive load
(from 0 µf to 12,000 µf). Measurement and sensing at the rear terminals of the power supply.
HP Mobile Communication dc Sources NEW
Model HP 66111A HP 66311B HP 66309B
HP 66311D HP 66309D
Number of Outputs 1 1 2
Output Ratings
Output 1 Output 2
Voltage 0 to 15 V 0 to 15 V 0 to 15 V 0 to 12 V
Current 0 to 3 A 0 to 3 A 0 to 3 A 0 to 1.5 A
1
5A
1
5A
1
5A
2
3A
Programming accuracy
at 25°C ±5°C Voltage 0.05% + 10 mV 0.05% + 10 mV 0.05% + 10 mV 0.2% + 40 mV
+Current 0.05% + 1.33 mA 0.05% + 1.33 mA 0.05% + 1.33 mA 0.2% + 4.5 mA
Ripple and Noise
(20 Hz to 20 MHz) Voltage (rms/p-p)31 mV/6 mV 1 mV/6 mV 1 mV/6 mV 1 mV/6 mV
Current (rms) 2 mA 2 mA 2 mA 2 mA
dc Measurement Accuracy
(via HP-IB or front panel meters with Voltage 0.03% + 5 mV 0.03% + 5 mV 0.03% + 5 mV 0.2% + 15 mV
respect to actual output at 25°C ±5°C) Current see below see below see below 0.2% + 3 mA
High Current Range
+20 mA to +rated I 0.2% + 9 mA 0.2% + 0.5 mA
-20 mA to -rated I 0.2% + 9 mA 0.2% + 1.1 mA 0.2% + 1.1 mA
4
0.2% + 0.5 mA
4
N/A
4
N/A
Low Current Range
-20 mA to + 20 mA N/A 0.1% + 2.5 µA 0.1% + 2.5 µA N/A
Transient Response Time < 35 µs
5
< 35 µs
5
< 35 µs
5
< 400 µs
6
Voltmeter Input (HP 66311D and HP 66309D Only)
Input Range N/A Max differential voltage between input terminals ±25V
dc Readback Accuracy
at 25°C ±5°C N/A 0.04% + 5 mV
(ac + dc) rms Readback Accuracy
(Input 25 mV rms) N/A 1% + 5 mV at 10 kHZ sinewave
Common Mode Voltage Range
(from either DVM input with respect to N/A -4.5 V to 25 V
the negative output terminal of Output #1)
1
Peak current for up to a 7ms time period. Average current cannot exceed 3 A.
2
Peak current for up to a 1ms time period. Average current cannot exceed 1.5 A.
3
For phone capacitance higher than 6 µF.
4
Applies with current detector set to dc.
5
Time for the output voltage to recover to within 20 mV of its final value following a 0.1 A to 1.5 A load change in the High Mode compensation range.
6
Time for the output voltage to recover to within 20 mV of its final value following a 0.75 A to 1.5 A load change.
6
Page 7
Supplemental Characteristics
Supplemental characteristics are intended to provide information useful in applying the power supply by
describing non-warranted performance that has been determined by design or type testing.
HP Mobile Communication dc Sources NEW
Model HP 66111A HP 66311B HP 66309B
HP 66311D HP 66309D
Average Programming Resolution Voltage 3.75 mV 3.75 mV 3.75 mV 14 mV
OVP Accuracy
Maximum Current Measurement 7 A 7A 7A 1.8 A
Remote Sense Capability
(voltage drop per load lead for which 4 V
regulation can be maintained with stability)
Average Current Measurement Resolution High Range 3.5 mA 213 µA 213 µA 55 µA
Transient Voltage Dip 70 mV 70 mV 70 mV 170 mV
(with up to 15 feet 22AWG wiring)
Sink Current -2 A@7.5V
1
Overvoltage protection can be enabled or disabled under program control
2
The sink current decreases linearly from 2.8 A at 0 V to 1.2 A at 15 V. The sink current does not track the programmed current.
3
Add 2 mV to the load regulation for each 1 V change in the positive output lead.
4
Add 3 mV to the load regulation for each 1 V change in the negative output lead.
5
For current change from 0.1A to 1.5A in High compensation mode on Output 1. For current change from 0.75A to 1.5A on output 2.
1
5
Current 0.67 mA 0.67 mA 0.67 mA 1.75 mA
OVP 100 mV 100 mV 100 mV N/A
2.4% + 240 mV 240 mV 240 mV N/A
3
Low Range N/A 0.6 µA 0.6 µA N/A
2
3
4 V
-2 A@7.5V
Output 1 Output 2
3
4 V
2
-2 A@7.5V
2
4 V
-0.03 A@7.5V
4
Source Stability: User programmable
compensation ranges (High Mode and
Low Mode) on output 1 ensure power
supply stability from 0-12,000 µF and
over a wide variety of load-lead configurations. High Mode range for phone
input capacitance greater than 5 µF
gives the best transient voltage performance. Low Mode provides stability
over difficult operating conditions.
Output 2 is stable from 0-12,000 µF,
and has no user programmable
compensation ranges.
Output Programming Response Time: The
rise and fall time (10/90% and 90/10%)
of the output voltage is less than 200
µs for output 1 (< 3 ms rise time and
< 35 ms fall time for output 2).
Command Processing Time: Average
time required for the output voltage
to begin to change following receipt
of digital data is 4 ms for supplies
connected directly to the HP-IB.
Measurement Time: Average time to
process query, calculate measurement
parameter and return data is 20 ms.
The buffer data acquisition time which
is user-programmable must be added.
For the default condition, (2,048 data
points and 15.6 µs sampling interval)
this time is 31.9 ms. Measurement
speed can be increased by using fewer
data points, but will result in higher
measurement uncertainty.
HP-IB Interface Capabilities: IEEE488.2,
SCPI command set, plug and play
drivers.
AC Input: Standard - 104 to 127 Vac,
47 to 63 Hz (other options available,
see Ordering Information).
Input Power (Full load):
66111A, 66311B/D - 170 VA, 125 W;
66309B/D – 210VA, 170 W.
Regulatory Compliance: Listing
pending to UL 3111-1; certified to
CSA 22.2; No. 1010.1; conforms to
IEC 1010-1, EN 61010-1; Complies
with EMC directive 89/336/EEC
(ISM Group 1 Class B)
DC Floating Voltage: Output terminals
can be floated up to 50 Vdc
maximum from chassis ground.
Recommended Calibration Interval:
One year
Warranty Period: Three years
Weight: 9.07 kg (20 lb.) net; 11.1 kg
(24.5 lb.) shipping
Dimensions: Height 88.1 mm (3.5in.),
Width – 212.8 mm (8.4in.),
Depth – 435 mm (17.125 in.)
7
Page 8
Ordering Information
HP Model 66111A, 66311B, 66311D, 66309B, 66309D
Opt 100 87 to 106 Vac, 47 to 63 Hz
Opt 220 191 to 233 Vac, 47 to 63 Hz
Opt 230 207 to 253 Vac, 47 to 63 Hz
Opt 8ZJ Delete Instrument Feet
Opt AXS Rack Mount Kit for two side-by-side mounting of identical depth
units (HP P/N 5061-9694 lock-link kit and HP P/N 5062-3974
flange kit) Support rails are required when rack mounting units.
Use HP E3663A support rails for HP rack cabinets. For non-HP
racks consult your rack manufacturer.
Opt 1CM Rack Mount Kit for one HP 66311B/D, HP 66309 B/D or HP 66111A
(HP P/N 5062-3972). Support rails are required when rack mounting
units. Use HP E3663A support rails for HP rack cabinets. For nonHP racks consult your rack manufacturer.
Opt 052 Device characterization software (HP 14565A) for device current
draw measurement and display. Also allows saving and copying of
waveforms. Used in conjunction with Windows 95, 98 or NT, a
Mobile Communications DC Source, and a GPIB card.
*** Not available on the HP 66111A.
Opt 0BN Extra Documentation
Opt UK6 Calibration Certificate with Test Data
Accessories Rack Mount with slide for side-by-side mounting of two different
depth instruments (HP P/N 5062-3996 and 1494-0015)
Rack Mount, slide and filler panel for mounting one instrument
(HP P/N 5062-3996, 1494-0015, 5062-4022 respectively).
HP 14575A Multiplexing remote front panel, up to six inputs per display.
HP 14565A Device characterization software (Opt 052),
not available for the HP 66111A
For Further Information
For more information or for
evaluation units visit our HP
Mobile Communications dc source
web site at:
http://www.hp.com/go/PScare
For more information, call your
Local HP sales office listed in
your telephone directory or an
HP regional office listed here for
the location of your nearest sales
office. A current listing is also
available via the internet at:
http://www.hp.com/go/tmdir.
United States:
Hewlett-Packard Company
Test and Measurement Call Center
P.O. Box 4026
Englewood, CO 80155-4026
1 800 452 4844
Canada:
Hewlett-Packard Canada Ltd.
5150 Spectrum Way
Mississauga, Ontario
L4W 5G1
1-877-894-4414
Europe:
Hewlett-Packard Company
European Marketing Organization
P.O. Box 999
1180 AZ Amstelveen
The Netherlands
(31 20) 547 9999
Japan:
Hewlett-Packard Japan Ltd.
Measurement Assistance Center
9-1, Takakura-Cho, Hachioji-Shi,
Tokyo 192-8510, Japan
Tel: (81) 426 56 7832
Fax: (81) 426 56 7840
Latin America:
Hewlett-Packard Company
Latin American Region Headquarters
5200 Blue Lagoon Drive
9th Floor
Miami, Florida 33126
U.S.A.
(305) 267 4245/4220
Fax: (305) 267 4288
Australia/New Zealand:
Hewlett-Packard Australia Ltd.
31-41 Joseph Street
Blackburn, Victoria 3130
Australia
1 800 629 485
New Zealand
0 800 738 378
Fax: (61 3) 9210 5489
Asia Pacific:
Hewlett-Packard Asia Pacific Ltd.
17-21/F Shell Tower, Times Square,
1 Matheson Street, Causeway Bay,
Hong Kong
(852) 2599 7777
Data Subject to Change
March 1999
Copyright © 1999
Hewlett-Packard Company
Printed in U.S.A.
5968-3001 EN
Loading...
