Agilent 6612B Selection Guide

the power of simplicity

Mobile Communications

dc Sources

dc Power Supplies

Solar Array Simulators

dc Electronic Loads

ac Power Solutions

Add capability, not complexity

Complete test solutions for the price of a single instrument

The central theme in all our power products is one-box integration, which improves
test results while cutting costs, complexity and rack size. These solutions are
much easier to integrate, program and maintain in ATE systems. Because we
specify and guarantee performance for the entire integrated system, you know
exactly what to expect from your equipment (unlike systems assembled from
individual pieces). And thanks to our industry-leading average MTBF of more
than 100,000 hours, you can count on that power year after year.

People as dependable as the power

The experienced engineers at HP DIRECT understand that you have more important
things to do than shop around for power supplies. We’ll help you select the right
solutions for your application and your budget, then arrange fast shipping so you
can get back to work in a hurry.

In a world where complexity reigns supreme, HP’s one-box power solutions
might come as a pleasant surprise. We know you don’t want to spend
your days (and nights) worrying about test system power. That’s our job.
From basic dc supplies to compliance-test systems, we’ve reduced the
number of components you need to integrate and simplified the process
of delivering, controlling and measuring power.

From power supplies to power solutions

The mobile communications dc sources you’ll see on pages 2–3 are a
great example of how HP power products deliver more while demanding
less. To help you characterize the narrow current pulses characteristic
of digital phones and other new wireless devices, these sources offer the
peak measurement capability that once required an oscilloscope or high­speed digital voltmeter.

HP’s one-box solutions deliver the
reliable capability of an integrated
system for the price of a single box.

▲

CURRENT

PROGRAMMER

VOLTAGE

PROGRAMMER

POWER SUPPLY

DVM

CURRENT

READBACK

DVM

VOLTAGE

READBACK

DEVICE

UNDER TEST

DEVICE

UNDER TEST

You can search the most recent listings of
power products for complete specifications
on our Web site at:

www.hp.com/go/power1

ONE-BOX SOLUTION

Mobile Communications dc Sources . . . . . . . . . . . . . . . . . . . . . . . 2

Find the power generation and mea­surement solution you need for the
unique demands of today’s cellular
phone and mobile radio markets.

www.hp.com/go/pscare

Single-Output dc Supplies . . . . . . . . . . . . . . . . . . . . . . . 4

Get clean, stable power from 40 W
to 5 kW while lowering system
integration and overall test times.

www.hp.com/go/singlePS

Solar Array Simulators . . . . . . . . . . . . . . . . . . . . . . . 7

Simulate the unique electrical
characteristics of solar arrays,
generating I-V curves under a
variety of conditions. Two 480-W
models available.

www.hp.com/go/solarsimulator

Multiple-Output dc Supplies . . . . . . . . . . . . . . . . . . . . . . . 8

Get more value in a system supply.
Ideal for testing pc boards and
components, these models feature
two to four outputs with dual ranges
of 40/80 W or 25/50 W.

www.hp.com/go/multiplePS

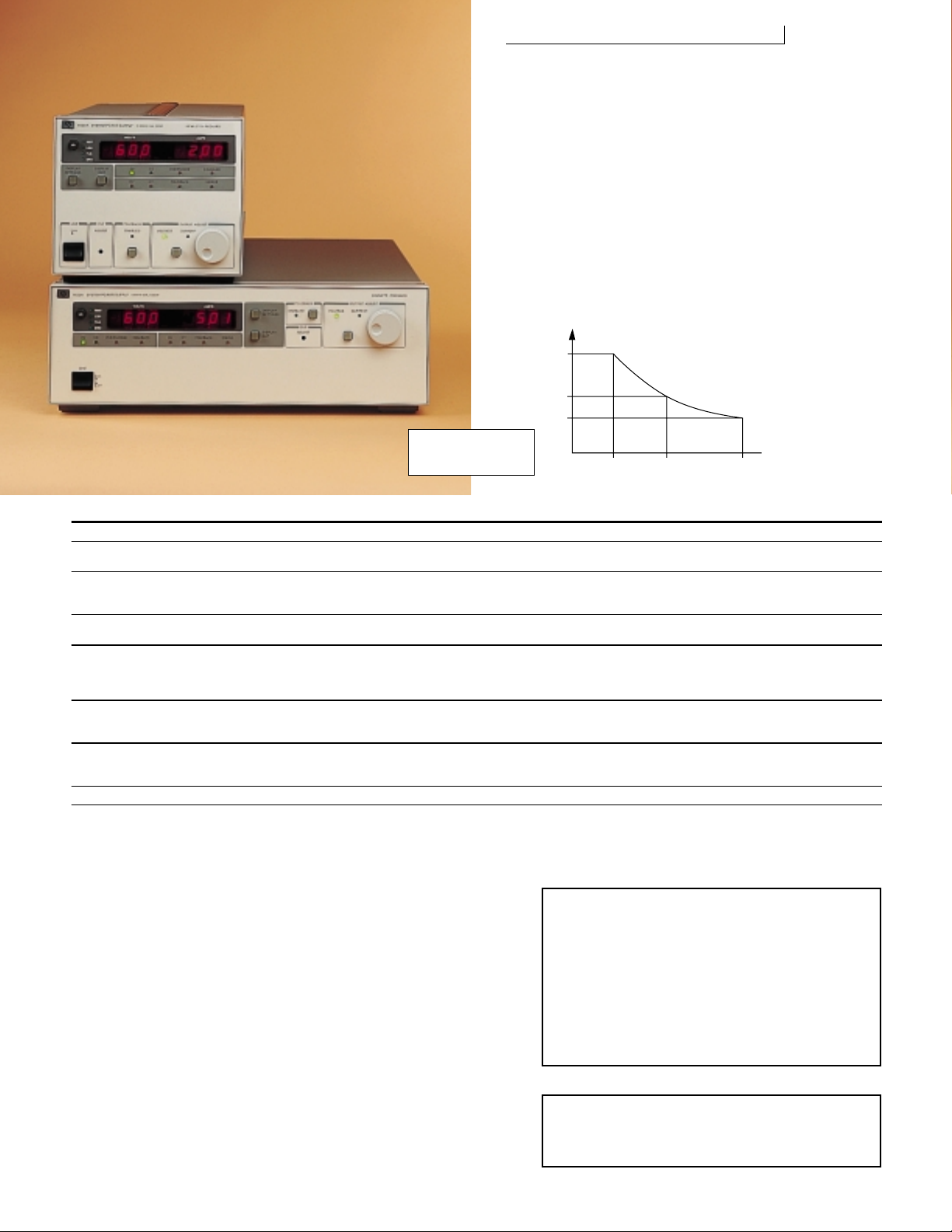

Auto-Ranging dc Supplies . . . . . . . . . . . . . . . . . . . . . . 10

Easily test military, aerospace
and other equipment across a wide
range of operating points. Choose
200 or 1000 W models.

www.hp.com/go/autorangingPS

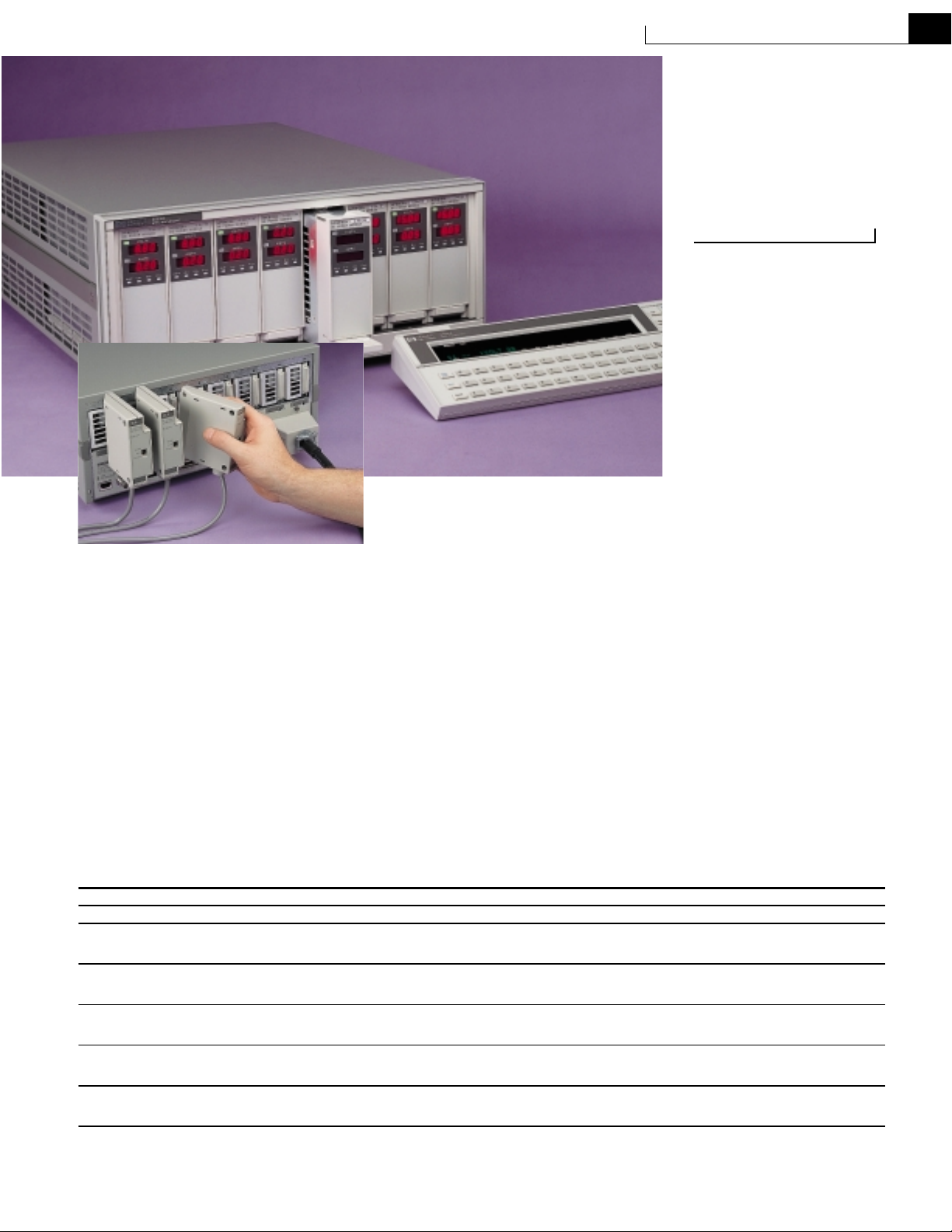

Modular Power System . . . . . . . . . . . . . . . . . . . . . . 11

Make the most of limited rack space
by packing up to eight supplies into
just 18 cm (7 in) of rack space.

www.hp.com/go/modularPS

dc Electronic Loads . . . . . . . . . . . . . . . . . . . . . . 12

Engineer maximum run time in
portable devices and improve the
development and production of
dc power supplies.

www.hp.com/go/loads

ac Power Solutions . . . . . . . . . . . . . . . . . . . . . . 13

Reduce design and test times for both
50/60 and 400 Hz components and
systems. Establish EMC compliance­grade testing in-house to reduce cycle
times and improve product testing.

www.hp.com/go/acsource

Ordering Information . . . . . . . . . . . . . . . . . . . . . . .16

Realistic measurements of real-life product performance

HP’s mobile communications dc sources are designed for the
unique challenges of simulating batteries in wireless phones
and other battery-powered devices that draw current in
short, pulsed bursts. Their fast and low voltage transient
response minimizes device shutdown, ensuring maximum
test-system throughput. Unlike the current readback feature
in standard dc supplies, HP’s unique dynamic measurements
work like a digital oscilloscope to capture the details you
need to optimize power management in your products.

Precision power for high-confidence testing

By combining both high-level sourcing (up to 5 A peak) and
fast, accurate low-level current measurements, these one-box
solutions provide the vital tools for both R&D and production
testing. The HP mobile communications dc sources include
a new HP-developed technology that detects open sense­wire connections. This feature helps to prevent inaccurate
test results, incorrect battery charger calibration and low
voltage phone shut down. The completely linear design
ensures noise levels as low as 300 µV and greatly reduces the
chance of interference with your RF tests.

Price/performance choices to match your unique leads

From the new low-cost HP 66111A to the dual-output HP
66309D, this family of solutions lets you choose the right

tool for the job. All models offer built-in HP-IB connectivity,
with programming response times as fast as 400 µs to max­imize manufacturing throughput.

A rack’s worth of capability in a single box

With the ability to measure instantaneous values, these
supplies eliminate the cost and hassle of an oscilloscope or
high-speed digital voltmeter (not to mention the shunt,
multiplexer, cables and all the other gear you would need).
Now you can catch and characterize those critical pulses
with just your power supply.

Power test solutions for today’s digital wireless devices

Product highlights

• Fast response power
technology accurately
simulates battery
operation of mobile
and portable devices.

• Advanced dynamic
measurement offers
accurate peak and
microamp pulsed
current measurements.

• Sure connect feature
detects open sense wire
connections for reliable
testing and results.

Discover your
products’ true
battery loading
characteristics
with dynamic
readback
measurements.

www.hp.com/go/pscare

For more detailed specifications, visit us online
at www.hp.com/go/pscare or ask for a copy of the
1999/2000 HP Power Products Catalog.

3

HP Mobile Communications dc Sources NEW NEW NEW

Model HP 66111A HP 66309B/D HP 66311B/D HP 66312A HP 66332A
Number of Outputs 12111
Output ratings (output 1)

Voltage 0 to 15 V 0 to 15 V 0 to 15 V 0 to 20 V 0 to 20 V
Current 0 to 3 A 0 to 3 A 0 to 3 A 0 to 2 A 0 to 5 A
Peak Current for up to 7 ms 5 A 5 A 5 A

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.05% + 10 mV 10 mV 10 mV 10 mV 10 mV
+Current 0.05% + 1.33 mA 1.33 mA 1.33 mA 1.33 mA 2 mA

Ripple and noise (20 Hz to 20 MHz)

Voltage (rms/p-p) 1 mV/ 6 mV 1 mV/ 6 mV 1 mV/ 6 mV 0.5 mV/ 3 mV 0.3 mV/ 3 mV
Current (rms) 2 mA 2 mA 2 mA 1 mA 2 mA

dc Measurement accuracy

(via HP-IB or front panel meters)

Voltage 0.03% + 5 mV 0.03% + 5 mV 0.03% + 5 mV 0.03% + 3 mV 0.03% + 3 mV
High Current Range
+ 20 mA to + rated 0.2% + 9 mA 0.2% + 0.5 mA 0.2% + 0.5 mA 0.2% + 0.25 mA 0.2% + 0.5 mA

- 20 mA to - rated 0.2% + 9 mA 0.2% + 1.1 mA 0.2% + 1.1 mA 0.2% + 0.85 mA 0.2% + 1.1 mA
Low Current Range

- 20 mA to + 20 mA N/A 0.1% + 2.5 µA 0.1% + 2.5 µA 0.1% + 2.5 µA 0.1% + 2.5 µA

Transient response time(recover to within 20 mV after 0.1 to 1.5 A load change) < 35 us
Transient voltage dip(typical with up to 15 feet 22 AWG wiring) 70 mV 70 mV 70 mV 500 mV 500 mV
Voltmeter input (HP 66311D & 66309D only)

Input Range N/A Max differential voltage between N/A N/A

input terminals +/- 25 V
DC Readback Accuracy (25°C+/-5°C) 0.04% + 5 mV
(AC + DC) rms Readback Accuracy (input > 25 mV rms) 1% + 5 mV at 10 kHz sinewave
Common Mode Voltage Range -4.5 V to + 25 V
(from either DVM input with respect to the negative output terminal of Output #1)

Auxiliary output (output 2) N/A N/A N/A N/A

Output Ratings Voltage 0 to 12 V

Current 0 to 1.5 A
Peak Current for up to 1 ms 3 A

Programming Accuracy Voltage 0.2% + 40 mV

+ Current 0.2% + 4.5 mA

Readback Accuracy Voltage 0.2% + 15 mV

+ Current 0.2% + 3 mA

Transient Recovery to 50% Load Change to within 20 mV < 400 µs

Mobile Communications dc Sources

For ordering
information,
see chart on
inside back cover.

Watch for NEW products on our Web site: www.hp.com/go/pscare

4

2

3

1

Implement faster ATE solutions in less time

With the HP 6800 Series approach to power supply design,
all the tools you need to control, deliver and measure dc
power are built right into the supply. The one-box solution
with integrated readback eliminates the voltmeters, shunts
and other add-ons you normally need, while reducing your
programming and maintenance chores.

Built-in HP-IB provides full control and readback, and
Standard Commands for Programmable Instruments (SCPI)
eliminate the most tedious part of program development. And
the speed advantage continues when your system goes online.
Output programming response times are as low as 15 ms.

Production tests are only as good as the power that
drives them

With all the time, money and energy you invest in test systems,
it only makes sense to employ the best power you can buy.
Fortunately, the clean, stable power offered with the value­priced HP 6600 Series makes it easy to buy the best. Even
the high-power 2 kW and 5 kW supplies deliver low ripple
and noise with tight line and load regulation.

Protect your equipment; protect your investment

HP system supplies take care of themselves and your devices
under test with overvoltage, overcurrent and overtemperature
protection plus discrete fault indicator/remote inhibit capability.
The 3-year warranty we offer on all our supplies and HP’s
record of reliability mean your investment is protected, too.

Product highlights

• One-box design simplifies
system integration

• Fast up and down
programming boosts
test throughput

• Broad selection of clean,
reliable dc power from
40 W to 5 kW

1 HP 6612B
2 HP 6631B
3 HP 6675A
4 HP 6681A

www.hp.com/go/singlePS

For more detailed specifications, visit us online
at www.hp.com/go/singlePS or ask for a copy of
the 1999/2000 HP Power Products Catalog.

Ever looked at your power supply

as a productivity tool?

Single-Output dc Supplies

Application info

The HP 6610C Series and
HP 6630B Series of dc power
supplies are ideal for testing
porta bl e battery-powered
products, electronic assem­blies, and components.
Ranging current measure­ment capability verifies
ampere levels down to
off-sta te microamp levels,
assuring quality of devices
being tested.

• High-volume ATE

• High throughput

• Precision measurement

For ordering
information,
see chart on
inside back cover.

5

40 W and 50 W

HP 6611C HP 6612C HP 6613C HP 6614C

Output ratings

Voltage 0 to 8 V 0 to 20 V 0 to 50 V 0 to 100 V
Current 0 to 5 A 0 to 2 A 0 to 1 A 0 to 0.5 A

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.05% + 5 mV 10 mV 20 mV 50 mV
+Current 0.05% + 2 mA 1 mA 0.75 mA 0.5 mA

Ripple and noise in the range of 20 Hz to 20 MHz, with outputs ungrounded or with either terminal grounded

Voltage (rms/p-p)

Normal mode 0.5 mV/3 mV 0.5 mV/3 mV 0.5 mV/4 mV 0.5 mV/5 mV

Current (rms) 2 mA 1 mA 1 mA 1 mA

dc Measurement accuracy via HP-IB or front panel meters with respect to actual output at 25°C ± 5° C

Voltage 0.03% + 2 mV 3 mV 6 mV 12 mV
Low current range

-20 mA to +20 mA 0.1% + 2.5 µA 2.5 µA 2.5 µA 2.5 µA
High current range
+20 mA to +rated 1 0.2% + 0.5 mA 0.25 mA 0.2 mA 0.1 mA

-20 mA to -rated 1 0.2% + 1.1 mA 0.85 mA 0.8 mA 0.7 mA

Average programming resolution (supplemental characteristic)

Voltage 2 mV 5 mV 12.5 mV 25 mV
Current 1.25 mA 0.5 mA 0.25 mA 0.125 mA
OVP 40 mV 100 mV 250 mV 500 mV

Dimensions 212.8 mm W x 368.3 mm D x 88.1 mm H

80 W and 100 W

HP 6631B HP 6632B HP 6633B HP 6634B

Output ratings

Voltage 0 to 8 V 0 to 20 V 0 to 50 V 0 to 100 V
Current 0 to 10 A 0 to 5 A 0 to 2 A 0 to 1 A

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.05% + 5 mV 10 mV 20 mV 50 mV
+Current 0.05% + 4 mA 2 mA 1 mA 0.5 mA

Ripple and noise in the range of 20 Hz to 20 MHz, with outputs ungrounded or with either terminal grounded

Voltage (rms/p-p)

Normal mode 0.3 mV/3 mV 0.3 mV/3 mV 0.5 mV/3 mV 0.5 mV/3 mV
Fast mode 1 mV/10 mV 1 mV/10 mV 1 mV/15 mV 2 mV/25 mV

Current (rms) 2 mA 2 mA 2 mA 2 mA

dc Measurement accuracy via HP-IB or front panel meters with respect to actual output at 25°C ± 5° C

Voltage 0.03% + 2 mV 3 mV 6 mV 12 mV
Low current range

-20 mA to +20 mA 0.1% + 2.5 µA 2.5 µA 2.5 µA 2.5 µA
High current range
+20 mA to +rated 1 0.2% + 1 mA 0.5 mA 0.25 mA 0.25 mA

-20 mA to -rated 1 0.2% + 1.6 mA 1.1 mA 0.85 mA 0.85 mA

Average programming resolution (supplemental characteristic)

Voltage 2 mV 5 mV 12.5 mV 25 mV
Current 2.5 mA 1.25 mA 0.5 mA 0.25 mA
OVP 40 mV 100 mV 250 mV 500 mV

Dimensions 425.5 mm W x 364.4 mm D x 88.1 mm H

500 W

HP 6551A* HP 6552A* HP 6553A* HP 6554A* HP 6555A*

HP 6651A HP 6652A HP 6653A HP 6654A HP 6655A

Output ratings

Output voltage 0 to 8 V 0 to 20 V 0 to 35 V 0 to 60 V 0 to 120 V
Output current (40° C) 0 to 50 A 0 to 25 A 0 to 15 A 0 to 9 A 0 to 4 A
Maximum current (50° C) 45.0 A 22.5 A 13.5 A 8.1 A 3.6 A
Maximum current (55° C) 42.5 A 21.3 A 12.8 A 7.7 A 3.4 A

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.06% + 5 mV 10 mV 15 mV 26 mV 51 mV
Current 0.15% + 60 mA 25 mA 13 mA 8 mA 4 mA

Ripple and noise from 20 Hz to 20 MHz

Constant voltage (rms) 300 µV 300 µV 400 µV 500 µV 700 µV

(p-p) 3 mV 3 mV 4 mV 5 mV 7 mV

Constant current (rms) 25 mA 10 mA 5 mA 3 mA 2 mA

Readback accuracy at 25° C ± 5° C (percent of reading plus fixed)

Voltage 0.07% + 6 mV 15 mV 25 mV 40 mV 80 mV
+Current 0.15% + 67 mA 26 mA 15 mA 7 mA 3 mA
–Current 0.35% + 100 mA 44 mA 24 mA 15 mA 7 mA

Average programming resolution (supplemental characteristic)

Voltage 2 mV 5 mV 10 mV 15 mV 30 mV
Current 15 mA 7 mA 4 mA 2.5 mA 1.25 mA

Dimensions 425.5 mm W x 497.8 mm D x 132.6 mm H

*Economy versions with identical specifications, but without HP-IB.

2 kW

HP 6571A* HP 6572A* HP 6573A* HP 6574A* HP 6575A*

HP 6671A HP 6672A HP 6673A HP 6674A HP 6675A

Output ratings

Output voltage 0 to 8 V 0 to 20 V 0 to 35 V 0 to 60 V 0 to 120 V
Output current 0 to 220 A 0 to 100 A 0 to 60 A 0 to 35 A 0 to 18 A

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.04% + 8 mV 20 mV 35 mV 60 mV 120 mV
Current 0.1% + 125 mA 60 mA 40 mA 25 mA 12 mA

Ripple and noise from 20 Hz to 20 MHz

Constant voltage (rms) 650 µV 750 µV 800 µV 1.25 mV 1.9 mV

(p-p) 7 mV 9 mV 9 mV 11 mV 16 mV

Constant current (rms) 200 mA 100 mA 40 mA 25 mA 12 mA

Readback accuracy at 25° C ± 5° C (percent of reading plus fixed)

Voltage 0.05% + 12 mV 30 mV 50 mV 90 mV 180 mV
±Current 0.1% + 150 mA 100 mA 60 mA 35 mA 18 mA

Average programming resolution (supplemental characteristic)

Voltage 2 mV 5 mV 9 mV 15 mV 30 mV
Current 55 mA 25 mA 15 mA 8.75 mA 4.5 mA

Dimensions 425.5 mm W x 640 mm D x 132.6 mm H

*Economy versions with identical specifications, but without HP-IB.

Single-Output dc Supplies

200 W

HP 6541A* HP 6542A* HP 6543A* HP 6544A* HP 6545A*

HP 6641A HP 6642A HP 6643A HP 6644A HP 6645A

Output ratings

Output voltage 0 to 8 V 0 to 20 V 0 to 35 V 0 to 60 V 0 to 120 V
Output current (40° C) 0 to 20 A 0 to 10 A 0 to 6 A 0 to 3.5 A 0 to 1.5 A
Maximum current (50° C) 18.0 A 9.0 A 5.4 A 3.2 A 1.4 A
Maximum current (55° C) 17.0 A 8.5 A 5.1 A 3.0 A 1.3 A

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.06% + 5 mV 10 mV 15 mV 26 mV 51 mV
Current 0.14% + 26 mA 13 mA 6.7 mA 4.1 mA 1.7 mA

Ripple and noise from 20 Hz to 20 MHz

Constant voltage rms 300 µV 300 µV 400 µV 500 µV 700 µV

p-p 3 mV 3 mV 4 mV 5 mV 7 mV

Constant current rms 10 mA 5 mA 3 mA 1.5 mA 1 mA

Readback accuracy at 25°C ± 5° C (percent of reading plus fixed)

Voltage 0.07% + 6 mV 15 mV 25 mV 40 mV 80 mV
+Current 0.10% + 18 mA 9.1 mA 5 mA 3 mA 1.3 mA
–Current 0.35% + 40 mA 20 mA 12 mA 6.8 mA 2.9 mA

Average programming resolution

Voltage 2 mV 5 mV 10 mV 15 mV 30 mV
Current 6 mA 3 mA 2 mA 1.2 mA 0.5 mA

Dimensions 425 mm W x 439 mm D x 88.1 mm H

*Economy versions with identical specifications, but without HP-IB.

6

Application info

A primary application for
this broad range of system
power supplies is to provide
power to the device in the
production testing of sub­assemblies and systems
in the communications,
computer, automotive and
aerospace/defense industries.

For ordering
information,
see chart on
inside back cover.

Single-Output dc Supplies/Solar Array Simulators

5 kW

HP 6680A HP 6681A HP 6682A HP 6683A HP 6684A

Output ratings

Voltage 0 to 5 V 0 to 8 V 0 to 21 V 0 to 32 V 0 to 40 V
Current (derated linearly

1% from 40° C to 55° C) 0 to 875 A 0 to 580 A 0 to 240 A 0 to 160 A 0 to 128 A

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.04% + 5 mV 8 mV 21 mV 32 mV 40 mV
Current 0.1% + 450 mA 300 mA 125 mA 85 mA 65 mA

Ripple and noise from 20 Hz to 20 MHz

Constant voltage (rms) 1.5 mV 1.5 mV 1.0 mV 1.0 mV 1.0 mV

(p-p) 10 mV 10 mV 10 mV 10 mV 10 mV

Constant current (rms) 290 mA 190 mA 40 mA 20 mA 23 mA

Readback accuracy at 25° C ± 5° C (percent of reading plus fixed)

Voltage 0.05% + 7.5 mV 12 mV 32 mV 48 mV 60 mV
Current 0.1% + 600 mA 400 mA 165 mA 110 mA 90 mA

Average programming resolution

Voltage 1.35 mV 2.15 mV 5.7 mV 8.6 mV 10.8 mV
Current 235 mA 155 mA 64 mA 43 mA 34 mA

Dimensions 425.5 mm W x 675.6 mm D x 220 mm H

Flexibility

The HP Solar Array Simulators (SAS) help satellite
manufacturers simulate the electrical characteristics
of solar arrays while developing and testing satellites
on earth. The simulator’s programming flexibility helps
you characterize a solar array’s electrical curves in three
easy ways: (1) Develop tables of I-V pairs for various
environments or download exact points from the panel
manufacturer. (2) Enter Isc, Voc, and V and I at maximum
power to generate the curve from an internal algorithm.
(3) Use fixed mode to get the I-V output of a standard
supply with the high-speed current characteristics and
low capacitance that solar arrays require.

The benefits of a one-box solution

Since the HP SAS generates the curve internally, you save
time, money, and rack space. No external components are
needed to characterize the solar array. Internal program­mable protection features reduce the risk of damage to the
spacecraft. The one-box solution simplifies the complexity
of system integration if you choose to integrate the system
yourself. If you would like a complete integrated system,
HP can meet that need, too.

Two standard models

To meet present and future requirements, we’ve added
a second standard model at 480 W with Voc=130 Vdc
(E4351B) to our present 480 W, Voc=65 Vdc model
(E4350B). Both models come with a three-year standard
warranty and HP’s worldwide network of support and
service centers.

Product highlights

• Accurately simulates solar panel characteristics

• Flexibility to program your I-V curve

• Testing and developing satellites

Solar Array Simulator

www.hp.com/go/solarsimulator

7

Application info

These high-power supplies
provide a source of clean
power for the burn-in of a
wide variety of devices
such as microprocessors,
memories, IC s, power
semiconductors, computer
modules and many other
electronic devices.

Product highlights

• Choose two, three, or four
independent, isolated out­puts at one HP-IB address

• Precision programming
down to 460 µV and 1 µA;
precision readback down
to 2 mV and 15 µA

• Built-in readback for one­box convenience and even
more value

A fast, easy way to add multiple power sources
to your ATE systems

Multiple sources with a simple one-box design

The HP 6620 Series multiple- output supplies deliver two,
three, or four reliable power sources in a single unit. Plus,
you’ll save the cost of the meters and shunts you’d need
without HP’s convenient one-box design.

With combinations of dual-range 40- and 80-W outputs or
25- and 50-W outputs, you’re sure to find the current and
voltage ranges you need to match each application. The
power will be clean and stable, too, with ripple and noise
of only 500 µVrms and 3 mVpk-pk.

Move up to higher precision

The HP 6625A, 6626A, 6628A and 6629A models offer the
precision of 14-bit programming and readback. You can
program in increments as small as 460 µV and 1 µA.

Designed for fast, easy integration

Multiple outputs and integrated current and voltage read­back dramatically simplify the job of system integration

and maintenance. Plus, think of all the rack space you’ll
save with everything you need in a single box.

Buy and use with confidence

Like all our system supplies, the HP 6620 Series offers pro­grammable overvoltage and overcurrent protection, in
addition to thermal shutdown protection. The three-year
warranty standard on all HP supplies means you can count
on clean, solid power day after day.

www.hp.com/go/multiplePS

For more detailed specifications, visit us online
at www.hp.com/go/multiplePS or ask for a copy of
the 1999/2000 HP Power Products Catalog.

Multiple-Output dc Supplies

9

Application info

These multiple-output
precision supplies are
ideal for evaluation,
characterization and
incoming inspection of
active components such
as power bipolar and
FET transistors, ICs,
SCRs, TRIACs and
opto-electronic devices.

For ordering
information,
see chart on
inside back cover.

Precision multiple-output supplies

Model 25-W output 50-W output

Output power Output range Low range High range Low range High range

Output volts 0 to 7 V 0 to 50 V 0 to 16 V 0 to 50 V or 0 to 16 V

Output amps 0 to 15 mA 0 to 500 mA 0 to 200 mA 0 to 1 A or 0 to 2 A

Output combinations for each Hewlett-Packard model

(total number of outputs)
HP 6625A (2) 1 1
HP 6626A (4) 2 2
HP 6628A (2) 0 2
HP 6629A (4) 0 4

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 1.5 mV + 0.016% 10 mV + 0.016% 3 mV + 0.016% 10 mV + 0.016%
Current 15 µA + 0.04% 100 µA + 0.04% 185 µA + 0.04% 500 µA + 0.04%

Ripple and noise (peak-to-peak, 20 Hz to 20 MHz; rms, 20 Hz to 10 MHz)

Constant voltage (rms/p-p) 500 µV/3 mV 500 µV/3 mV 500 µV/3 mV 500 µV/3 mV
Constant current (rms ) 0.1 mA 0.1 mA 0.1 mA 0.1 mA

Readback accuracy at 25° C ± 5° C (percent of reading plus fixed)

Voltage 2 mV + 0.016% 10 mV+ 0.016% 3.5 mV + 0.016% 10 mV + 0.016%
Current 15 µA + 0.03% 130 µA + 0.03% 250 µA + 0.04% 550 µA + 0.04%

Average programming resolution (supplemental characteristic)

Voltage 460 µV 3.2 mV 1 mV 3.2 mV
Current 1 µA 33 µA 13 µA 131 µA

Dimensions 425.5 mm W x 497.8 mm D x 132.6 mm H

Multiple-output dc supplies

Model 40-W output 40-W output 80-W output 80-W output

Output ratings

Low-range volts, amps 0 to 7 V, 0 to 5 A 0 to 20 V, 0 to 2 A 0 to 7 V, 0 to 10 A 0 to 20 V, 0 to 4 A
High-range volts, amps 0 to 20 V, 0 to 2 A 0 to 50 V, 0 to 0.8 A 0 to 20 V, 0 to 4 A 0 to 50 V, 0 to 2 A

Output combinations for each model (total number of outputs)

HP 6621A (2) — — 2 —
HP 6622A (2) — — — 2
HP 6623A (3) 1 1 1 —
HP 6624A (4) 2 2 — —
HP 6627A (4) — 4 — —

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 19 mV + 0. 0 6% 50 mV + 0.06% 19 mV + 0.06% 50 mV + 0.06%
Current 50 mA + 0.16% 20 mA + 0.16% 100 mA + 0.16% 40 mA + 0.16%

Ripple and noise (peak-to-peak, 20 Hz to 20 MHz; rms, 20 Hz to 10 MHz)

Constant voltage (rms/p-p) 500 µV/3 mV 500 µV/3 mV 500 µV/3 mV 500 µV/3 mV
Constant current (rms) 1 mA 1 mA 1 mA 1 mA

Readback accuracy at 25° C ± 5° CV (percent of reading plus fixed)

Voltage 20 mV + 0.05% 50 mV + 0.05% 20 mV + 0.05% 50 mV + 0.05%
+Current 10 mA + 0.1% 4 mA + 0.1% 20 mA + 0.1% 8 mA + 0.1%
–Current 25 mA + 0.2% 8 mA + 0.2% 50 mA + 0.2% 20 mA + 0.2%

Average programming resolution (supplemental characteristic)

Voltage 6 mV 15 mV 6 mV 15 mV
Current 25 mA 10 mA 50 mA 20 mA

Dimensions 425.5 mm W x 497.8 mm D x 132.6 mm H

(16.75 in x 5.22 in x 19.6 in)

Application info

This family of low-power
multiple-output power
supplies provides a space­efficient solution for applying
power to devices under test
that require multiple-voltage
sources. For example, these
products are ideal for PC
board test systems used in
the production of electronic
subassemblies.

HP’s 6030 Series auto-ranging supplies are a flexible,
convenient solution when you need to tes t a wid e range of
devices with a single supply or test devices with a variety
of operating points. You can choosefrom six models with
power ratings of 200 W or 1 kW, and all offer HP’s one-box
solution with built-in readback.

A simpler way to test multiple

operating points

Auto-Ranging dc Supplies

V1

V2
V3

Volts

P1

P2

P3

I1 I2 I3

Amps

www.hp.com/go/autorangingPS

For more detailed specifications, visit us online at
www.hp.com/go/autorangingPS or ask for a copy of
the 1999/2000 HP Power Products Catalog.

For ordering information,
see chart on inside back cover.

Application info

The auto-ranging feature of these products pro­vides a more efficient and convenient solution
in applications such as testing of aerospace
and military equipment, which require a wide
variety of voltage and current combinations
from a single test station.

Auto-ranging dc supplies

HP 6023A* HP 6028A* HP 6010A* HP 6011A* HP 6012B* HP 6015A*

Model HP 6033A HP 6038A HP 6030A HP 6031A HP 6032A HP 6035A
Output ratings

Voltage 0 to 20 V 0 to 60 V 0 to 200 V 0 to 20 V 0 to 60 V 0 to 500 V
Current 0 to 30 A 0 to 10 A 0 to 17 A 0 to 120 A 0 to 50 A 0 to 5 A

Maximum output power at any
valid combination of V and I 200 W 200 W 1000 W 1000 W 1000 W 1000 W

Ripple and noise from 20 Hz to 20 MHz

Constant voltage (rms) 3 mV 3 mV 22 mV 8 mV 8 mV 50 mV

(p-p) 30 mV 30 mV 50 mV 50 mV 40 mV 160 mV

Constant current (rms) 15 mA 5 mA 15 mA 120 mA 25 mA 50 mA

Programming accuracy at 25° C ± 5° C (percent of setting plus fixed)

Voltage 0.035% + 9 mV 0.035% + 40 mV 0.035% + 145 mV 0.035% + 15 mV 0.035% + 40 mV 0.25% + 400 mV
Current 0.15% + 20 mA 0.09% + 10 mA 0.2% + 25 mA 0.25% + 250 mA 0.2% + 85 mA 0.3% + 63 mA

Average programming resolution (supplemental characteristic) HP-IB models only

Voltage 5 mV 15 mV 50 mV 5 mV 15 mV 125 mV
Current 7.5 mA 2.5 mA 4.25 mA 30 mA 12.5 mA 1.25 mA

Dimensions 212.3 mm W x 443.6 mm D x 177.0 mm H 425.5 mm W x 503.7 mm D x 132.6 mm H

*Economy versions with identical specifications, but without HP-IB.

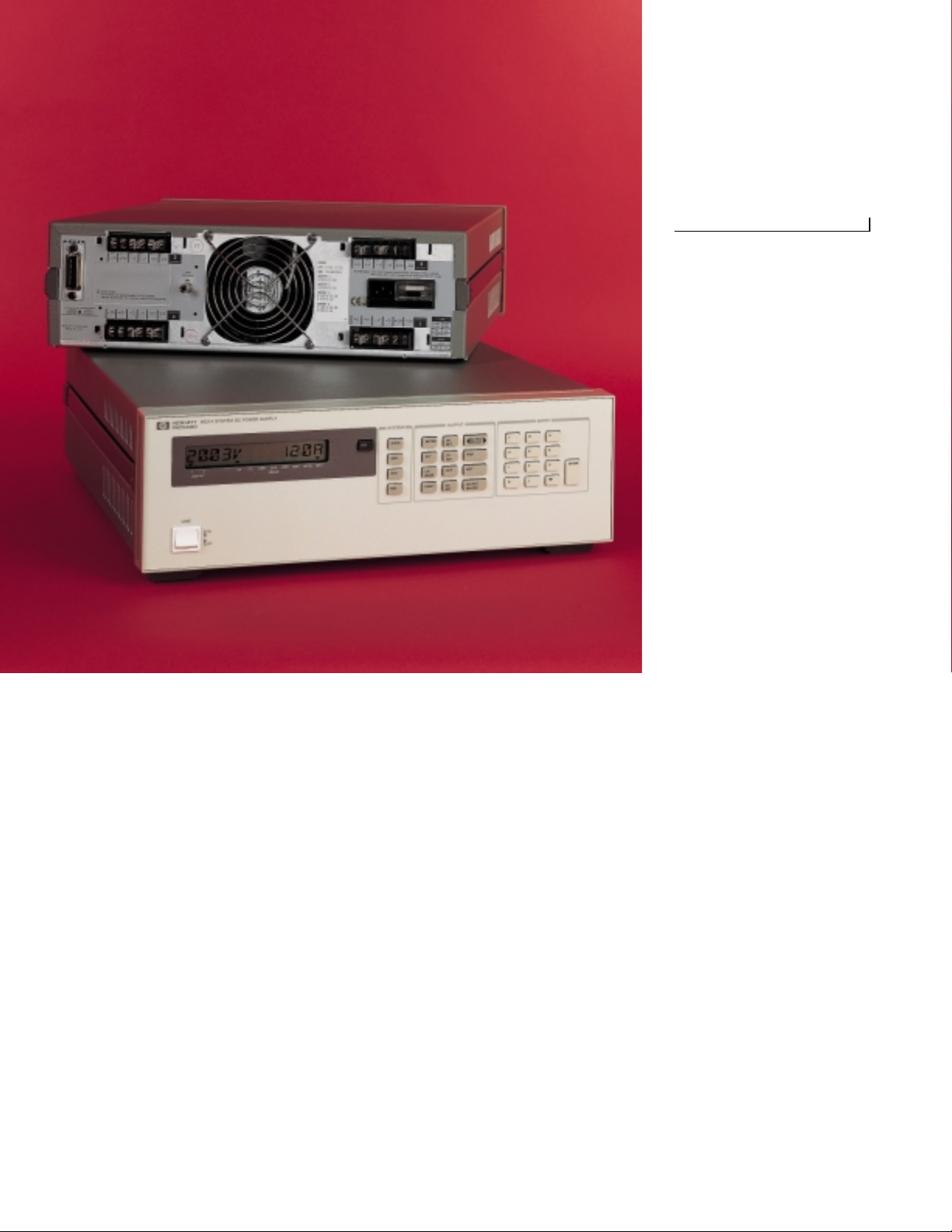

HP 6033A (Top)
HP 6030A (Bottom)

Product highlights

• High power density—
up to eight supplies
with 1200 W of power
in seven inche s of
rack space

•Low noise, stable power

• Accurate output
current measurements

• Advanced programming
capabilities with output
sequencing and precise
triggering

The simple way to integrate multiple power sources

With ATE rack space at a premium, the HP 66000 modular
power system’s growing popularity is no surprise. A single
mainframe can hold up to eight modules, and you can
choose from six modules with voltage ranges up to 200 V
and current ranges up to 16 A.

The HP 66000 is easier to integrate and maintain, too.
You can control up to 16 supplies from a single HP-IB
address. To reconfigure, just plug in whatever combination
of modules you need.

One-box integration can boost test throughput, too. Rather
than having the system controller make every current and
voltage setting on every output, just download the parame­ters you want, send it a hardware or software trigger, and
let the HP 66000’s output sequencing do the rest.

Modular convenience, dedicated performance

You won’t sacrifice performance or reliability to get the
advantages of modularity, either. The HP 66000 boasts
programming accuracy as tight as 0.03% + 3 mV and

0.03% + 400 µA and readback accuracy down to 0.02% +
2 mV and 0.02% + 300 µA. And the output power is rock
solid, with ripple and noise as low as 2 mVrms and
5 mVp– p.

Programmable overvoltage and overcurrent protection
and thermal protection keep the power system and your
test devices safe, while HP’s reliability and the three-year
warranty protect your investment.

www.hp.com/go/modularPS

Modular power systems

Model HP 66101A HP 66102A HP 66103A HP 66104A HP 66105A HP 66106A
Output ratings at 40° C

Output voltage 0 to 8 V 0 to 20 V 0 to 35 V 0 to 60 V 0 to 120 V 0 to 200 V
Output current 0 to 16 A 0 to 7.5 A 0 to 4.5 A 0 to 2.5 A 0 to 1.25 A 0 to 0.75 A

Programming accuracy at 25° C ± 5° C (percentage of setting plus fixed)

Voltage 0.03% + 3 mV 8 mV 13 mV 27 mV 54 mV 90 mV
Current 0.03% + 6 mA 3 mA 2 mA 1.2 mA 0.6 mA 0.4 mA

Ripple and noise (20 Hz to 20 MHz)

Constant voltage rms/p-p 2 mV/5 mV 3 mV/7 mV 5 mV/10 mV 9 mV/15 mV 18 mV/25 mV 30 mV/50 mV
Constant current rms 8 mA 4 mA 2 mA 1 mA 1 mA 1 mA

Readback accuracy via HP-IB or keyboard display at 25° C ± 5° C (percentage of reading plus fixed)

Voltage 0.02% + 2 mV 5 mV 8 mV 16 mV 32 mV 54 mV
Current 0.02% + 6 mA 3 mA 2 mA 1 mA 0.6 mA 0.3 mA

Average programming resolution (supplemented characteristics)

Voltage 2.4 mV 5.9 mV 10.4 mV 18.0 mV 36.0 mV 60.0 mV
Current 4.6 mA 2.3 mA 1.4 mA 0.75 mA 0.39 mA 0.23mA

Pack more power into your ATE systems

Modular Power System

11

dc Electronic Loads

The value of one-box electronic loads

HP’s integrated electronic loads help you save time, money
and rack space while delivering precise control and all the
capabilities you need for analyzing dc power sources and
devices. Choose a single-input unit (HP 6060B or 6063B)
or a modular mainframe (the 6-slot HP 6050A or the 2-slot
HP 6051A) to configure a solution for your specific needs.

With precise control of current, voltage and resistance, you
can establish just about any load profile you need. The pro­grammable pulse transient generator lets you define loading
amplitude, frequency, duty cycle and slew rate. The analog
programming capability allows you to create custom load­ing waveforms that simulate real-life conditions.

Integrate with ATE or run from the front panel

With built-in HP-IB and Standard Commands for
Programmable Instruments (SCPI), you’ll find it easy to pro­gram these loads. You can also operate all models directly
from t he fr o nt pa n el . E le c tr on i c c al ibration ensures accurate
results while simplifying maintenance.

All of HP’s electronic loads are covered by a three-year war­ranty and feature full protection from overvoltage, overcur­rent, overpower, overtemperature and reverse polarity.

www.hp.com/go/loads

dc Electronic loads

Model HP 6060B/60502B HP 6063B/60503B HP 60501B HP 60504B HP 60507B
Amperes 0 to 60 A 0 to 10 A 0 to 30 A 0 to 120 A 0 to 60 A
Volts 3 to 60 V 3 to 240 V 3 to 60 V 3 to 60 V 3 to 150 V
Resistance 0.033 to 0.20 to 0.067 to 0.017 to 0.033 to

10,000 Ω 50,000 Ω 10,000 Ω 5,000 Ω 10,000 Ω

Maximum power (at 40° C) 300 W 250 W 150 W 600 W 500 W
Rise/fall time 12 µs to 8 ms 16 µs to 8 ms 12 µs to 8 ms 12 µs to 8 ms 18 µs to 8 ms
Constant current mode accuracy 0.1% ± 75 mA 0.15% ± 10 mA 0.1% ± 40 mA 0.12% ± 130 mA 0.1% ± 80 mA
Constant voltage mode accuracy 0.1% ± 50 mV 0.12% ± 120 mV 0.1% ± 50 mV 0.1% ± 50 mV 0.1% ± 125 mV
Dimensions

HP 6050A 425.5 mm W x 624.7 mm D x 177 mm H HP 60501B, 60502B, 60503B 1-slot width
HP 6051A 213 mm W x 624.7 mm D x 177 mm H HP 60504B, 60507B 2-slot width
HP 6060B, 6063B 425.5 mm W x 396 mm D x 88.1 mm H

For ordering information, see chart on inside back cover.

Improve your designs with realistic
load simulations

Product highlights

• Ideal for testing and evaluating dc
power sources, power components,
and battery capacity testing

• One-box solution lowers costs while
improving ease of use and test quality

• Proven record of reliability

Product highlights

• AC mains design verification
system includes sourcing,
measurement and analysis

• Capable of compliance-grade
regulatory tests

• Modular, upgradable solutions
adapt to your changing needs

• Total ac power solutions for
50/60 and 400 Hz systems

When customers demand more, are you ready to deliver?

From avionics to fluorescent lights to uninterruptible
power supplies, customers are demanding products that
can use power efficiently while handling all kinds of ac
power disturbances. To make sure your products meet
these growing expectations, test them with the HP 6800
Series ac power source/analyzers. It’s easy to simulate
both clean and distorted ac power to evaluate how your
products respond under real-world operating conditions.

The power of a complete system, the price
of a single instrument

These one-box solutions with built-in virtual programmable
instruments provide everything you need to generate,
measure and analyze ac power. You can access all these
functions from the front panel or via a PC and the intuitive
graphical user interface.

Use the built-in sine, clipped sine and square waves or

creat e your own unique waves with the arbitrary waveform
generator. Th re e t ransient modes (step, pulse and list with
up to 100 sequenced output changes) simulate surges, sags,
brownouts and virtually any power quality problem. The
6811B, 6812B, and 6813B also include dc capability.

The 16-bit power meter/analyzer precisely measures all important
parameters, including rms voltage, peak and rms current, inrush
currents, frequency, phase, real and apparent power, and power
factor. You can analyze harmonic distortion up to the 50th
harmonic with both magnitude and phase results.

Predictable results in an unpredictable world

Staying ahead of the competition means staying on top of

Design better products in less time
with all-in-one ac source/analyzers

HP 6811B
HP 6812B
HP 6813B

HP 6814B
HP 6834B

HP 6843A

ac Power Solutions

13

www.hp.com/go/acsource

For more detailed specifications, visit us online
at www.hp.com/go/hpacpower or ask for a copy of
the 1999/2000 HP Power Products Catalog.

dynamic market forces. The HP 6800 Series ac power
source/analyzers let you adapt quickly to changing cus­tomer needs and governmen tal regulations. Simple
operati on an d stra ight forw ard programming make it
easy to change test procedures whenever needed, and
you can be assured of repeatable, reliable power
measurements no matter what kind of tests you
need to perform.

Compliance-grade confidence

Standardized ac mains testing is becoming increasingly
important in the face of international power compliance
regulations. The HP 14760A Series Regulatory Test
Solution software modules address a subset of single
phase ac mains-related tests needed to obtain the CE
mark. These include tests to comply with IEC 61000-3-2,
IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-13, IEC
61000-4-14, IEC 61000-4-28, EN 61000-3-2, EN 61000-3-3,
and EN 60555-2 standards and regulations. The HP 6800
Series ac power source/analyzers are designed
according to source and measurement requirements as
specified by IEC documents.

By designing from the ground up for regulatory standards,
you can help ensure that compliance testing doesn’t
become an end-of-the-line hurdle. The advanced diag­nostic capabilities can give you a jump-start on any
necessary design changes. Ultimately, you can save
time and money by performing your own compliance
tests whenever you need.

Easy ATE integration

More and more engineers are choosing the HP 6800
Series for its easy operation and programming. Even
creating a sequenced transient is as simple as entering
values in a list. Both HP-IB and RS-232 ports are
standard, and Standard Commands for Programmable
Instruments (SCPI) and VXI plug&play drivers simplify
the programming task.

Extensive protection to prevent load damage

In addition to overcurrent, overvoltage, overpower and
overtemperature protection, the HP 6800 Series offers
output disconnect relays and remote inhibit capability
(quickly disabling the output of the ac source via a TTL
signal) to protect the device under test.

The HP 6800 Series is backed by a three-year warranty and
HP’s worldwide network of support and service centers.

Application info

The HP 6800 Series provides a number of tools you can use to
design, test and improve your products:

Static testing—generating and measuring voltage, frequency,

and line current for meeting worldwide specifications.

Dynamic testing—simulating ac power quality problems for

limit testing and design verification.

Specialty testing—measuring current harmonic content

and creating custom ac power waveforms (such as a combined
ac + dcsignal to simulate a telephone ring).

Regulatory testing—measuring current harmonics,

voltage fluctuations, and flicker emissions and generating
voltage and frequency disturbances and interharmonics to
determine product immunity.

Development engineers and test professionals in a wide variety of
industries use ac power source/analyzers. Here are a few examples:

Avionics

Cockpit instrumentation
ATE test stations
Air traffic control

equipment

Computer products

Computers
Monitors
Peripherals (printers, disk drives)

Consumer products

Home appliances
Audio and video equipment
Heating/cooling controls

Electrical products

Relays
Transformers
Power components
Fire alarms

Lighting products

Electronic ballasts
Compact fluorescent bulbs
Timers

ac Power Solutions

Medical products

Fluid analyzers
Dental equipment
Patient monitors
Defibrillators

Motors/motor controllers

ac motors
Electronic controllers

Power products

OEM power supplies
ac/dc power supplies
Telecom power supplies
UPS (Uninterruptible

power supplies)

Medical power supplies

Telecom products

Base stations
Transmitters/receivers
CATV amplifiers
Data/voice switches

Other

System integrators
Contract manufacturers
Educational institutions

14

ac Power Solutions

15

HP 6800 Series AC Power Solutions

Model HP 6811B HP 6812B* HP 6813B* HP 6814B HP 6834B HP 6843A*
Number of phases 1 1 1 1 1/3 1
Output ratings

Power 375 VA 750 VA 1750 VA 3000 VA 4500 VA 4800 VA
Maximum rms voltage 300 V 300 V 300 V 300 V (high range) 300 V l-n (high range) 300 V

150 V (low range) 150 V l-n (low range)

Maximum rms current 3.25 A 6.5 A 13 A 10 A (high range) 15 A / 5 A (high range) 32 A

20 A (low range) 30 A / 10 A (low range)

dc voltage range

±

425 V

±

425 V

±

425 V N/A N/A N/A

Maximum repetitive 40 A 40 A 80 A 40 A (high range) 60 A /20 A (high range) 48 A (high range)
peak current 80 A (low range) 120 A / 40 A (low range) 96 A (low range)

Crest factor

12 6 6

443

Output frequency range

dc;45-1kHz dc;45-1kHz dc;45-1kHz 45-5kHz 45-5kHz 45-1kHz

dc voltage

±

425 V

±

425 V

±

425 V N/A N/A N/A

dc current

2.5A 5A 10A

N/A N/A N/A

Measurement Accuracy (25˚

± 5˚ C) for 45-100 Hz in High range where applicable

rms voltage 0.03% + 100 mV 0.03% + 100 mV 0.03% + 100 mV 0.05% + 250 mV 0.05% + 250 mV 0.05% + 250 mV
rms current 0.05% + 10 mA 0.05% + 10 mA 0.05% + 10 mA 0.01% + 50 mA 0.01% + 50 mA 0.1% + 75 mA

0.01% + 25 mA (in 3φ)

Power (VA) 0.1% + 1.5 VA + 12 0.1% + 1.5 VA + 12 0.1% + 1.5 VA + 12 0.15% + 5 VA 0.15% + 5 VA 0.15% + 9 VA

mVA/V mVA/V mVA/V 0.15% + 3 VA (in 3φ)

Power (Watts) 0.1% + 0.3 W + 1.2 0.1% + 0.3 W + 1.2 0.1% + 0.3 W + 1.2 0.15% + 5 W 0.15% + 5 W 0.15% + 9 W

mW/V mW/V mW/V 0.15% + 3 W (in 3φ)

* Regulatory Test Solution IEC mode measurement system characteristics

Output frequency range 50 /60 Hz 50 /60 Hz – – –
Reference impedance accuracy 3% (at 0.4 Ω and 796 µH) – – 3% (at 0.4 Ω and 796 µH)
Maximum total harmonic distortion 0.25% 0.25% – – 1%
Measurement accuracy
Current magnitude (low range) Fundamental 0.03% + 1.5 mA 0.03% + 3 mA

Harmonics 2-49 0.03% + 1mA + 0.2%/kHz – – 0.03% + 2mA + 0.2%/kHz

Current magnitude (high range) Fundamental 0.05% + 5 mA 0.05% + 6 mA

Harmonics 2-49 0.05% + 3mA + 0.2%/kHz 0.05% + 3mA + 0.2%/kHz

Dimensions 425.5 mm W x 132.6 mm H x 574.7 mm D 430.8 mm W x 266.7 mm H x 602 mm D

Ordering Information

16

How to find the perfect power solution

1.Speak to one of our online, experienced sales engineers.You can get quick product speci fications, discuss

your application or get help with a competitive comparison. All HP DIRECT sales engineers have
firsthand experience with HP power productsand are ready to answer your questions.

2.Visit our Web site, http://www.hp.com/go/power1

3.Contact your local HP sales office. A current listing is available via HP’s site on the internet at:

http://www.tmo.hp.com/tmo/contacts/English/index.html

Ordering

Call your local HP sales office.

Shipping

Our prices include regular surface freight delivery by the
carrier of our choosing. Charges for any special types of
delivery will appear separately on your invoice.

Payment

Terms are net 30 days from invoice date for HP account
customers. To open an HP account,just give us your
company billing and shipping addresses and a purchase
order number. We’ll give you an account number in
minutes. Open account terms are subject to credit
approval. We also accept VISA,®MasterCard®and
American Express.

Free application information

Many answers to your application questions can
be quickly found in the Application Information section
of the HP Power Products Catalog (5968-2199). You may
obtain this complete catalog of Hewlett-Packard power
products by returning the attached reply card, calling
your local HP sales office or by accessing www.hp.
com/go/power1to download or order the catalog online.

®

Title HP part number
1999/2000 HP Power Products Catalog 5968-2199
10 Practical Tips You Need to Know

About Your Power Supplies 5965-8239E
AN 90B, dc Power Supply Handbook 5952-4020
AN 372-1, Power Supply Testing 5952-4190
AN 1273, Compliance Testing-

Harmonic/Flicker 5964-1917
AN 1293, Sequential Shunt Regulation 5965-7329E
HP 6800 ac Power Source/Analyzers

Interactive CD-ROM
Product Note 5967-5578E

AN 1310, Evaluating Special Factors When
Selecting a System Power Supply for
Mobile Communications Device Testing 5968-2424E

Testing Uninterruptible Power Supplies
Using HP AC Sources
Product Note 5967-6056E

HP 66000 Modular Power System
Product Note 5091-2497

For your convenience, the following literature and appli­cation notes are available to download or order at:

www.hp.com/go/power/info

HP 6800 Series ac Power Source/Analyzer
Product Note 5963-7044

Sources of Voltage Related Stress During
Semiconductor Burn-In 5091-6953

Hewlett-Packard’s Answer to Your High
Performance, High Power Burn-In Needs 5091-6952

www.hp.com/go/power1

Pg. 10 Pg. 10 Pg. 12 Pg. 12 Pg. 12 Pg. 4 Pg. 8 Pg. 4 Pg. 4 Pg. 4 Pg. 4 Pg. 4 Pg. 13 Pg. 13 Pg. 13 Pg. 13 Pg. 2 Pg. 11 Pg. 11

OPT001 Front panel with line switch, (N/A 6035)

line indicator and OVP adjust only •

OPT020 Front binding posts (66332)

•• • •

OPT052 Device characterization software
OPT100 87-106 Vac. 48-83 Hz (Japan only) • • • • • • • • • • •
OPT200 174-220 Vac, 47-63 Hz (Japan only) ••
OPT220 191-233 Vac, 47-66 Hz • • • • • • • • • •
OPT230 191-250 Vac, 48-63 Hz • • • •
OPT240 209-250 Vac, 47-66 Hz • • • • • • • •
OPT400 360-440 Vac, 3-phase,

47-63 Hz operation •••

OPT601 Output connector kit (5060-3515) •
OPT602 Two bus bar spacers for paralleling

power supplies •

OPT750 Relay control and DFI/RI •
OPT760 Isolation and reversal relays (66332)

•• •• •

OPT800 Rack mount kit for two units (6033/ 38) (6051)

•••

OPT831 12 AWG, 200-240 Vac, unterminated (N/A 6033/38)

line cord • • • • • •

OPT832 4 mm wire size, unterminated

line cord • •

OPT833 1.5 mm wire size, 200-120 Vac, (N/A 6033/38)

unterminated line cord • • • •

OPT834 10 AWG. 100-120 Vac, unterminated (N/A 6033/38)

line cord • • • • •

OPT841 Line cord with NEMA L6-30P; 20 A, (N/A 6033/38)

250 V plug • • • • • •

OPT842 Line cord with IEC 309, 32 A, 220 V plug ••
OPT844 Line cord with NEMA L6-30 P; 30 A,

250 V locking plug ••

OPT845 Line cord with IEC 309; 16 A, (N/A 6033/38)

220 V plug • • ••

OPT846 Line cord with NEMA L5-30 P; 30 A, (N/A 6033/38)

120 V locking plug • • ••

OPT847 Line cord with CEE 7/7; 16 A, 220 V plug (N/A 6033/38)

•• ••

OPT848 Line cord with BS 546; 15 A, (N/A 6033/38)

240 V plug • • ••

OPT908 Rack mount kit (6010-12/15)(6030-32,35) (6050)

• • •• • •••• •

(6023/28) (6033/38) (6051)

•••

OPT909 Rack mount kit with handles (N/A 6023/28)(N/A 6033/38)(6050)

• • •• • •••• •

OPT910 Extra documentation • • • • • • • •••• ••
OPT0BN Extra documentation • • • • • • •
OPT1CM Rack mount kit (66312)

• • •••••
(66332)

•

OPT1CP Rack mount kit (66332)

••••

OPTAXS Rack mount for side-by-side mounting (66312)

• •

Accessories

1252-1488 4-pin FLT/Inhibit connector ••• •
1252-3698 7-pin analog pin •••
1494-0015 Rack slide for side-by-side mounting •
1494-0059 Rack slide kit • • • • • • • •
1494-0060 Rack slide kit • • • •
5060-3351 Field installable relay kit •
5060-3386 Standard connector assembly •
5060-3387 Standard connector assembly with

installed relays (Opt 760) •

5060-3512 Three 16A replacement fuses

for 360-440 V ac line ••

5060-3513 Three 30A replacement fuses

for 180-235 V ac line ••

5062-3996 Rack mount for side-by-side mounting

different length instruments •

5062-4022 Support shelf for one instrument •
5063-2310 Heavy-duty rack slide kit •
5080-2148 Serial link cable 2 m (6.6 ft) • • • •
34551A Rack kit for keyboard 66001A •
66001A Keyboard •
14575A Multiplexing remote front panel

14852A Bias cable (6626/29)

•

Measure
your options

Pg. 2

•

•

•

(66311)

•

•

•

•

•

•

•

(66311)
(66111)

•

6010A Series

Auto-rangers

6030A Series

Auto-rangers

6050A/6051B

Electronic Loads

6060B/6063B

Electronic Loads

60501-60506B

Electronic Loads

6610C Series

Single

6620A Series

Multiple

6630B Series

Single

6640A/6540A Series

Single

6650A/6550A Series

Single

6670A/6570A Series

Single

6680A Series

Single

6811B/6812B

ac Power Solution

6813B

ac Power Solution

6814B/6834B

ac Power Solution

6843A

ac Power Solution

66312A/332A

Dynamic Measurement

66000A

Modular Power System

66101A-66106A

Modular Power System

66111A, 66309B/D, 66311B/D

dc Mobile Communications

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

BUSINESS REPLY MAIL

FIRST-CLASS MAIL PERMIT NO. 226 PALO ALTO, CA

POSTAGE WILL BE PAID BY ADDRESSEE

TEST & MEASUREMENT ORGANIZATION

HEWLETT-PACKARD COMPANY

PO BOX 50637
PALO ALTO, CA 94303-9511

s9430395124s

All these products and you’re
still not satisfied?

No problem. We’ll be happy
to customize any of these
products to fit your exact
needs.

www.hp.com/go/power1

For all your power products needs

Integrated power solutions, from dc supplies to complete test systems.

ac Power
Solutions p. 13

Multiple-Output
dc Supplies p. 8

Modular
Power System p. 11

Single-Output
dc Supplies p. 4

Mobile Communications
dc Sources p. 2

dc Electronic Loads p. 12

You can search the most current listings of power products for complete
specifications on our Web site at:

www.hp.com/go/power1

Copyright © 1999
Hewlett-Packard Company
Data subject to change.
Printed in U.S.A. 4/99
5968-2197EN

Yes! Please keep me on your mailing list

for the 2000/2001 HP System Power Products
Selection Guide.

ac power solutions:

• Single-phase ac sources

• Three-phase ac sources

• Regulatory test solutions

Electronic loads:

• Single-input

• Modular mainframe

dc sources:

• Single-output

• Multiple-output

• Auto-ranging

• Battery-powered device test

• Solar array simulators

( )

My need for system power
products is:

■■ Immediate-3 months

■■ 4-12 months

■■ 13-24 months

■■ Unknown

My budget status for system
power products is:

■■ Approved/In process

■■ Plan to request

■■ Unknown

■■ None

HP ■■ may

■■ may not

contact me by email. (please check one)

■■ Please remove my name from your mailing list.

Power Products

www.hp.com/go/power1

Use our Web site to download the most up-to-date
power product resources—including application
notes, tips, product demos and our latest catalog.
Visit us at www.hp.com/go/power1 online.

PLACE LABEL HERE

Name Title

Business Phone Email

Company Dept./bldg./mailstop

Address

City State ZIP
