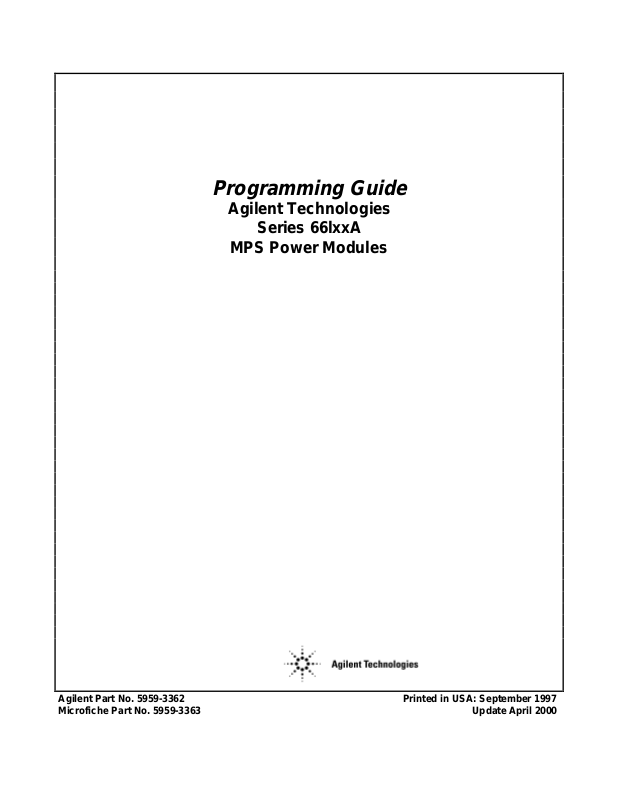

Programming Guide
Agilent Technologies
Series 66lxxA
MPS Power Modules
Agilent Part No. 5959-3362 Printed in USA: September 1997
Microfiche Part No. 5959-3363 Update April 2000
Safety Guidelines
The beginning of the Users Guide for GPIB Power Modules Series 66lxxA has a Safety Summary page. Be sure you are
familiar with the information on that page before programming the power module for operation from a controller.
Printing History
The current edition of this guide is indicated below. Reprints of this guide containing minor corrections and updates may
have the same printing date. New editions are identified by a new printing date and, in some cases, by a new part number.
A new edition incorporates all new or corrected material since the previous edition. Changes to the guide occurring
between editions are covered by change sheets shipped with the guide.
Edition 1......... October, 1991
Edition 2......... February, 1992
Update............. August, 1992
Update............. February, 1993
Edition 3.......... September, 1997
Update.......... April, 2000
© Copyright 1991,1992, 1997 Agilent Technologies, Inc.
This document contains proprietary information protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated into another language without the prior consent of Agilent Technologies.
The information contained in this document is subject to change without notice.
2
1. Introduction
About this Guide..........................................................................................................................................7
Documentation Summary.............................................................................................................................7
External References......................................................................................................................................7
VXIPlug&Play Power Products Instrument Drivers....................................................................................8
2. Introduction to Programming
GPIB Capabilities of the Power Module......................................................................................................9
Module GPIB Address.................................................................................................................................9
Introduction to SCPI.....................................................................................................................................9
Conventions...............................................................................................................................................9
Types of SCPI Messages.........................................................................................................................10
Types of SCPI Commands......................................................................................................................10
Structure of a SCPI Message...................................................................................................................10
The Message Unit.................................................................................................................................10
Combining Message Units....................................................................................................................10
Parts of a SCPI Message.........................................................................................................................11
Headers.................................................................................................................................................11
Query Indicator..........................................................................................................12
Message Unit Separator........................................................................................................................12
Root Specifier.......................................................................................................................................12
Message Terminator.............................................................................................................................12
Traversing the Command Tree................................................................................................................13
Active Header Path...............................................................................................................................13
The Effect of Optional Headers............................................................................................................13
Moving Among Subsystems.................................................................................................................14
Including Common Commands...............................................................................................................14
SCPI Data Formats.....................................................................................................................................14
Numerical Data........................................................................................................................................14
Boolean Data...........................................................................................................................................15
String Data...............................................................................................................................................15
Character Data.........................................................................................................................................15
System Considerations...............................................................................................................................16
Assigning the Address in Programs.........................................................................................................16
DOS Drivers............................................................................................................................................16
Types of Drivers...................................................................................................................................16
Agilent 82335A Driver.........................................................................................................................16
National Instruments GPIB Driver.......................................................................................................16
Error Handling......................................................................................................................................17
Agilent BASIC for Series 300.................................................................................................................17
Translation Among Languages...................................................................................................................17
General Setup Information for GWBASIC.............................................................................................17
Using the Agilent 82335A/82990A/16062B GPIB Command Library................................................17
Using the National Instruments GPIB Interface...................................................................................18
General Setup Information for Microsoft C............................................................................................18
Using the Agilent 82335A/82990A/16062B GPIB Command Library................................................18
Using the National Instruments GPIB Interface...................................................................................18
Sending Commands to and Receiving Data from the Module.................................................................19
Contents
3. Language Dictionary
Introduction................................................................................................................................................23
Parameters..................................................................................................................................................23
3
Related Commands.....................................................................................................................................23
Order of Presentation.................................................................................................................................23
Common Commands..................................................................................................................................23
Subsystem Commands................................................................................................................................23
Description of Common Commands..........................................................................................................24
*CLS........................................................................................................................................................24
*ESE........................................................................................................................................................25
*ESR?......................................................................................................................................................25
*IDN?......................................................................................................................................................26
*OPC.......................................................................................................................................................26
*OPC?.....................................................................................................................................................26
*OPT?.....................................................................................................................................................27
*PSC........................................................................................................................................................27
*RCL.......................................................................................................................................................28
*RST.......................................................................................................................................................28
*SAV.......................................................................................................................................................29
*SRE.......................................................................................................................................................29
*STB?......................................................................................................................................................30
*TRG.......................................................................................................................................................31
*TST?......................................................................................................................................................31
*WAI.......................................................................................................................................................31
Description of Subsystem Commands........................................................................................................31
ABOR......................................................................................................................................................31
Calibration Subsystem.............................................................................................................................32
CAL:AUTO..........................................................................................................................................32
CAL:CURR..........................................................................................................................................33
CAL:CURR:LEV.................................................................................................................................33
CAL:PASS...........................................................................................................................................33
CAL:SAV.............................................................................................................................................34
CAL:STAT...........................................................................................................................................34
CAL:VOLT..........................................................................................................................................34
CAL:VOLT:LEV.................................................................................................................................34
CAL:VOLT:PROT...............................................................................................................................35
Current Subsystem...................................................................................................................................35
CURR...................................................................................................................................................35
CURR:MODE......................................................................................................................................35
CURR:PROT:STAT.............................................................................................................................36
CURR:TRIG.........................................................................................................................................36
DISP:STAT..........................................................................................................................................36
INIT......................................................................................................................................................36
INIT:CONT..........................................................................................................................................36
List Subsystem.........................................................................................................................................37
LIST:COUN.........................................................................................................................................37
LIST:CURR.........................................................................................................................................37
LIST:CURR:POIN?.............................................................................................................................38
LIST:DWEL.........................................................................................................................................38
LIST:DWEL:POIN?.............................................................................................................................38
LIST:STEP...........................................................................................................................................38
LIST:VOLT..........................................................................................................................................39
LIST:VOLT:POIN?.............................................................................................................................39
MEAS:CURR?.....................................................................................................................................39
MEAS:VOLT?.....................................................................................................................................39
Output Subsystem....................................................................................................................................39
OUTP...................................................................................................................................................39
OUTP:DFI............................................................................................................................................40
4
OUTP:DFI:LINK .................................................................................................................................40
OUTP:DFI:SOUR ................................................................................................................................40
OUTP:PROT:CLE ...............................................................................................................................40
OUTP:PROT:DEL ...............................................................................................................................41
OUTP:REL...........................................................................................................................................41
OUTP:REL:POL ..................................................................................................................................41
OUTP:TTLT ........................................................................................................................................42
OUTP:TTLT:LINK..............................................................................................................................42
OUTP:TTLT:SOUR.............................................................................................................................42
Status Subsystem.....................................................................................................................................42
STAT:OPER?.......................................................................................................................................43
STAT:OPER:COND? ..........................................................................................................................43
STAT:OPER:ENAB.............................................................................................................................43
STAT:OPER:NTR ...............................................................................................................................44
STAT:OPER:PTR ................................................................................................................................44
STAT:PRES .........................................................................................................................................44
STAT:QUES? ......................................................................................................................................45
STAT:QUES:COND? ..........................................................................................................................45
STAT:QUES:ENAB ............................................................................................................................45
STAT:QUES:NTR ...............................................................................................................................45
STAT:QUES:PTR................................................................................................................................45
SYST:ERR? .........................................................................................................................................46
SYST:VERS?.......................................................................................................................................46
Trigger Subsystem...................................................................................................................................46
TRIG ....................................................................................................................................................46
TRIG:DEL............................................................................................................................................47
TRIG:LINK..........................................................................................................................................47
TRIG:SOUR.........................................................................................................................................47
Voltage Subsystem..................................................................................................................................48
VOLT...................................................................................................................................................48
VOLT:MODE ......................................................................................................................................48
VOLT:PROT........................................................................................................................................48
VOLT:SENS:SOUR?...........................................................................................................................49
VOLT:TRIG.........................................................................................................................................49
Link Parameter List.................................................................................................................................50
Power Module Programming Parameters................................................................................................50
4. Status Reporting
Power Module Status Structure..................................................................................................................51
Status Register Bit Configuration...............................................................................................................51
Operation Status Group..............................................................................................................................51
Register Functions...................................................................................................................................51
Register Commands.................................................................................................................................51
Questionable Status Group.........................................................................................................................52
Register Functions...................................................................................................................................52
Register Commands.................................................................................................................................52
Standard Event Status Group......................................................................................................................53
Register Functions...................................................................................................................................53
Register Commands.................................................................................................................................53
Status Byte Register ...................................................................................................................................54
The RQS Bit............................................................................................................................................54
The MSS Bit............................................................................................................................................54
Determining the Cause of a Service Interrupt..........................................................................................54
Output Queue .............................................................................................................................................54
5
Location of Event Handles.........................................................................................................................54
Initial Conditions at Power On...................................................................................................................55
Status Registers.......................................................................................................................................55
The PON Bit............................................................................................................................................55
Examples....................................................................................................................................................55
Servicing an Operation Status Event.......................................................................................................55
Adding More Operation Events...............................................................................................................56
Servicing Questionable Status Events.....................................................................................................56
Monitoring Both Phases of a Status Transition.......................................................................................56
5. Synchronizing Power Module Output Changes
Introduction................................................................................................................................................57
Trigger Subsystem......................................................................................................................................57
Model of Fixed-Mode Trigger Operation................................................................................................57
Idle State...............................................................................................................................................58
Initiated State........................................................................................................................................58
Delaying State......................................................................................................................................58
Output Change State.............................................................................................................................59
Model of List-Mode Trigger Operation...................................................................................................59
Output Change State.............................................................................................................................59
Dwelling State......................................................................................................................................59
The INIT:CONT Function.......................................................................................................................59
Trigger Status and Event Signals.............................................................................................................59
Trigger In and Trigger Out......................................................................................................................60
List Subsystem............................................................................................................................................61
Basic Steps of List Sequencing...............................................................................................................61
Programming the List Output Levels.......................................................................................................61
Programming List Intervals.....................................................................................................................61
Automatically Repeating a List...............................................................................................................62
Triggering a List......................................................................................................................................62
Dwell-Paced Lists.................................................................................................................................62
Trigger-Paced Lists..............................................................................................................................62
DFI (Discrete Fault Indicator) Subsystem..................................................................................................64
RI (Remote Inhibit) Subsystem..................................................................................................................64
SCPI Command Completion......................................................................................................................64
6. Error Messages
Power Module Hardware Error Messages..................................................................................................65
System Error Messages..............................................................................................................................65
A. SCPI Conformance Information............................................................................................................67
B. Application Programs..............................................................................................................................69
Index..........................................................................................................................................................111
6
Introduction
About This Guide
You will find the following information in the rest of this guide:
Chapter 2 Introduction to SCPI messages structure, syntax, and data formats. Examples of SCPI programs.
Chapter 3 Dictionary of SCPI commands. Table of module programming parameters.
Chapter 4 Description of the status registers.
Chapter 5 Description of synchronizing outputs with triggers and lists.
Chapter 6 Error messages.
Appendix A SCPI conformance information.
Appendix B Application programs that illustrate features of the power module.
Note Instructions for the Agilent 60001A MPS Keyboard are in the User’s Guide supplied with each module.
Documentation Summary
The following related documents shipped with the system have information helpful to programming the power module:
•
•
Mainframe User’s Guide. Information on the GPIB address switch, trigger connections, fault (FLT) and
remote inhibit (INH) connections.
Module User’s Guide. Includes specifications and supplemental characteristics, use of the module
configuration switch, device related error messages, calibration procedures and use of the MPS keyboard.
1
External References
SCPI References
The following documents will assist you with programming in SCPI:
•
•
To obtain a copy of the above documents, contact your local Agilent Technologies Sales and Support Office.
GPIB References
The most important GPIB documents are your controller programming manuals - GW BASIC, GPIB Command Library for
MS DOS, etc. Refer to these for all non-SCPI commands (for example: Local Lockout).
The following are two formal documents concerning the GPIB interface:
•
•
The above two documents are available from the IEEE (Institute of Electrical and Electronics Engineers), 345 East 47th
Street, New York, NY 10017, USA.
Beginner’s Guide to SCPI. Part No. H2325-90001. Highly recommended for anyone who has not had previous
experience programming with SCPI.
Tutorial Description of the GPIB . Part No. 5952-0156. Highly recommended for those not familiar with the
IEEE 488.1 and 488.2 standards.
2
ANSI/IEEE Std. 488.1-1987 IEEE Standard Digital Interface for Programmable Instrumentation . Defines
the technical details of the GPIB interface. While much of the information is beyond the need of most
programmers, it can serve to clarify terms used in this guide and in related documents.
2
ANSI/IEEE Std. 488.2-1987 IEEE Standard Codes, Formats, Protocols, and Common Commands .
Recommended as a reference only if you intend to do fairly sophisticated programming. Helpful for finding
precise definitions of certain types of SCPI message formats, data types, or common commands.
Introduction 7
VXI
plug&play
VXIplug&play instrument drivers for Microsoft Windows 95 and Windows NT are now available on the Web at
http://www.agilent.com/find/drivers. These instrument drivers provide a high-level programming interface to your Agilent
Technologies electronic load. VXIplug&play instrument drivers are an alternative to programming your instrument with
SCPI command strings. Because the instrument driver’s function calls work together on top of the VISA I/O library, a
single instrument driver can be used with multiple application environments.
Supported Applications
ñ Agilent VEE
ñ Microsoft Visual BASIC
ñ Microsoft Visual C/C++
ñ Borland C/C++
ñ National Instruments LabVIEW
ñ National Instruments LabWindows/CVI
System Requirements
The VXIplug&play instrument driver complies with the following:
ñ Microsoft Windows 95
ñ Microsoft Windows NT 4.0
ñ HP VISA revision F.01.02
ñ National Instruments VISA 1.1
Power Products Instrument Drivers
Downloading and Installing the Driver
NOTE: Before installing the VXIplug&play instrument driver, make sure that you have one of the supported
applications installed and running on your computer.
1. Access Agilent Technologies Web site at http://www.agilent.com/find/drivers.
2. Select the instrument for which you need the driver.
3. Click on the driver, either Windows 95 or Windows NT, and download the executable file to your PC.
4. Locate the file that you downloaded from the Web. From the Start menu select Run <path>:\agxxxx.exe - where
<path> is the directory path where the file is located, and agxxxx is the instrument driver that you downloaded .
5. Follow the directions on the screen to install the software. The default installation selections will work in most
cases. The readme.txt file contains product updates or corrections that are not documented in the on-line help. If
you decide to install this file, use any text editor to open and read it.
6. To use the VXIplug&play instrument driver, follow the directions in the VXIplug&play online help for your
specific driver under “Introduction to Programming”.
Accessing Online Help
A comprehensive online programming reference is provided with the driver. It describes how to get started using the
instrument driver with Agilent VEE, LabVIEW, and LabWindows. It includes complete descriptions of all function calls
as well as example programs in C/C++ and Visual BASIC.
ñ To access the online help when you have chosen the default Vxipnp start folder, click on the Start button and select
Programs | Vxipnp | Agxxxx Help (32-bit).
- where Agxxxx is the instrument driver.
8 Introduction
2
Introduction To Programming
GPIB Capabilities Of The Power Module
All power module functions except for setting the GPIB address are programmable over the GPIB. The IEEE 488.1
capabilities of the power module are listed in the User’s Guide.
Module GPIB Address
The power module operates from a primary GPIB address that is set by a switch on the mainframe. The power module’s
secondary GPIB address is determined by its slot position within the mainframe. See the mainframe Installation Guide for
details.
Introduction To SCPI
SCPI (Standard Commands for Programmable Instruments) is a programming language for controlling instrument functions
over the GPIB (IEEE 488) instrument bus. SCPI is layered on top of the hardware-portion of IEEE 488.2. The same SCPI
commands and parameters control the same functions in different classes of instruments. For example, you would use the
same DISPlay command to control the power module display state and the display state of a SCPI-compatible multimeter.
Conventions
The following conventions are used throughout this chapter:
Angle brackets < > Items within angle brackets are parameter abbreviations. For example, <NR1>
indicates a specific form of numerical data.
Vertical bar | Vertical bars separate one of two or more alternative parameters. For example,
0|OFF indicates that entering either "0" or "OFF" performs the same function.
Square Brackets [ ] Items within square brackets are optional. The representation [SOURce]:LIST
means that SOURce may be omitted.
Braces { } Braces indicate parameters that may be repeated zero or more times. It is used
especially for showing arrays. The notation <A>{<,B>} shows that parameter
"A" must be entered, while parameter "B" may be omitted or may be entered one
or more times.
Boldface font Boldface font is used to emphasize syntax in command definitions.
TRIGger:DELay <NRf> shows a command definition.
Computer font Computer font is used to show program lines in text. TRIGger: DELay .5 shows a
program line.
Introduction To Programming 9
Types of SCPI Messages
There are two types of SCPI messages, program and response.
•
•
Types of SCPI Commands
SCPI has two types of commands, common and subsystem. Common commands generally are not related to specific
operation but to controlling overall power module functions, such as reset, status, and synchronization. All common
commands consist of a three-letter mnemonic preceded by an asterisk:
Subsystem commands perform specific power module functions. They are organized into an inverted tree structure with the
"root" at the top (see Figure 3-2). Some are single commands while others are grouped within specific subsystems.
A program message consists of one or more properly formatted SCPI commands sent from the controller to
the power module. The message, which may be sent at any time, requests the power module to perform some
action.
A response message consists of data in a specific SCPI format sent from the power module to the controller.
The power module sends the message only when commanded by a special program message called a "query."
*RST *IDN? *SRE 8
Note If you have the optional Agilent 66001A MPS Keyboard, you may want to use it as a quick introduction
to message structure. See "Appendix A".
Structure of a SCPI Message
SCPI messages consist of one or more message units ending in a message terminator. The terminator is not part of the
syntax, but implicit in the way your programming language indicates the end of a line (such as a newline or end-of-line
character).
The Message Unit
The simplest SCPI command is a single message unit consisting of a command header (or keyword) followed by a message
terminator.
ABOR<newline>
VOLT?<newline>
The message unit may include a parameter after the header. The parameter usually is numeric, but it can be a string:
VOLT 20<newline>
VOLT MAX<newline>
Combining Message Units
The following command message is briefly described here, with details in subsequent paragraphs.
10 Introduction To Programming
Figure 2-1. Command Message Structure
The basic parts of the above message are:
Message Component
Headers VOLT LEV PROT CURR
Header Separator The colon in VOLT:LEV
Data 8.0 8.8
Data Separator The space in VOLT 8. 0 and PROT 8. 8
Message Units VOLT:LEV 8.0 PROT 8.8 CURR?
Message Unit Separator
Root Specifier The colon in PROT 8. 8; : CURR?
Query Indicator The question mark in CURR?
Message Terminator
Parts of a SCPI Message
Headers
Headers are instructions recognized by the power module interface. Headers (which are sometimes known as "keywords")
may be either in the long form or the short form.
Long Form The header is completely spelled out, such as VOLTAGE, STATUS, and DELAY.
Short Form The header has only the first three or four letters, such as VOLT, STAT, and DEL.
Short form headers are constructed according to the following rules:
• If the header consists of four or fewer letters, use all the letters. (DFI LIST)
• If the header consists of five or more letters and the fourth letter is not a vowel (a,e,i,o,u), use the first four
letters. (CURRent STATus)
• If the header consists of five or more letters and the fourth letter is a vowel (a,e,i,o,u), use the first three letters.
(DELay RELay)
Example
The semicolons in VOLT: LEV 8. 0; and PROT 8. 8;
The <NL> (newline) indicator. Terminators are not part of the SCPI syntax.
You must follow the above rules when entering headers. Creating an arbitrary form, such as POLAR for POLarity, will result
in an error.
Introduction To Programming 11
The SCPI interface is not sensitive to case. It will recognize any case mixture, such as TRIGGER, Trigger, TRIGger, triGgeR.
Note Shortform headers result in faster program execution.
Header Convention
upper-case letters, such as DELay.
Header Separator
OUTPut:RELay:POLarity).
Optional Headers
OUTPut[: STATe] ON. However, if you combine two or more message units into a compound message, you may need to
enter the optional header. This is explained under "Traversing the Command Tree."
. In this manual, headers are emphasized with boldface type. The proper short form is shown in
. If a command has more than one header, you must separate them with a colon (VOLT: PROT
. The use of some headers is optional. Optional headers are shown in brackets, such as
Note The optional Agilent 66001A MPS Keyboard does not display optional headers.
Query Indicator
Following a header with a question mark turns it into a query (VOLT?, VOLT:PROT?). If a query contains a parameter, place
the query indicator at the end of the last header (VOLT: PROT? MAX).
Message Unit Separator
When two or more message units are combined into a compound message, separate the units with a semicolon
(STATus:OPERation?;QUEStionable?). You can combine message units only at the current path of the command tree (see
"Traversing the Command Tree").
Root Specifier
When it precedes the first header of a message unit, the colon becomes the root specifier. It indicates that the parser is at the
root or top node of the command tree. Note the difference between root specifiers and header separators in the following
examples:
OUTP:PROT:DEL .1 All colons are header separators.
:OUTP:PROT:DEL .1 Only the first colon is a root specifier.
OUTP: PROT: DEL . 1; :VOLT 12.5 Only the third colon is a root specifier.
Message Terminator
A terminator informs SCPI that it has reached the end of a message. Three permitted messages terminators are:
• newline (<NL>), which is ASCII decimal 10 or hex 0A.
• end or identify (<END>)
• both of the above (<NL><END>).
In the examples of this guide, there is an assumed message terminator at the end of each message. If the terminator needs to
be shown, it is indicated as <NL> regardless of the actual terminator character.
12 Introduction To Programming
Traversing the Command Tree
Figure 2-2 shows a portion of the subsystem command tree (you can see the complete tree in Figure 3-2). Note the location
of the ROOT node at the top of the tree. The SCPI interface is at this location when:
•
•
•
•
Active Header Path
The power module is powered on.
A device clear (DCL) is sent to the power module.
The interface encounters a message terminator.
The interface encounters a root specifier.
Figure 2-2. Partial Command Tree
In order to properly traverse the command tree, you must understand the concept of the active header path. When the power
module is turned on (or under any of the other conditions listed above), the active path is at the root. That means the
interface is ready to accept any command at the root level, such as OUTPUT or STATUS in Figure 2-2. Note that you do not
have to proceed either command with a colon; there is an implied colon in front of every root-level command.
If you enter OUTPUT, the active header path moves one colon to the right. The interface is now ready to accept :STATE,
:PROTECTION, or :RELAY as the next header. Note that you must include the colon, because it is required between headers.
If you now enter :PROTECTION, the active path again moves one colon to the right. The interface is now ready to accept
either :CLEAR or :DELAY as the next header.
If you now enter :CLEAR, you have reached the end of the command string. The active header path remains at :CLEAR. If
you wished, you could have entered :CLEAR; DELAY 20 and it would be accepted. The entire message would be
OUTPUT:PROTECTION:CLEAR;DELAY 20. The message terminator after DELAY 20 returns the path to the root.
The Effect of Optional Headers
If a command includes optional headers, the interface assumes they are there. For example, if you enter OUTPUT OFF, the
interface recognizes it as OUTPUT: STATE OFF (see Figure 2-2). This returns the active path to the root (:OUTPUT). But if
you enter OUTPUT: STATE OFF, then the active path remains at :STATE. This allows you to send OUTPUT: STATE OFF;
PROTECTION: CLEAR in one message. If you tried to send OUTPUT OFF;PROTECTION:CLEAR, the header path would return
to :OUTPUT instead of :PROTECTION.
Introduction To Programming 13
The optional header SOURCE precedes the current, list, and voltage subsystems (see Figure 3-2). This effectively makes
:CURRENT, :LIST, and :VOLTAGE root-level commands.
Note The optional Agilent 66001 Keyboard does not display optional headers.
Moving Among Subsystems
In order to combine commands from different subsystems, you need to be able to restore the active path to the root. You do
this with the root specifier (:). For example, you could clear the output protection and check the status of the Operation
Condition register as follows (see Figure 2-2):
OUTPUT:PROTECTION:CLEAR
STATUS:OPERATION:CONDITION?
By using the root specifier, you could do the same thing in one message:
OUTPUT:PROTECTION:CLEAR;:STATUS:OPERATION:CONDITION?
Note The SCPI parser traverses the command tree as described in Appendix A of the IEEE 488.2 standard.
The "Enhanced Tree Walking Implementation" given in that appendix is not implemented in the power
module.
The following message shows how to combine commands from different subsystems as well as within the same subsystem
(see Figure 3-2):
VOLTAGE:LEVEL 7;PROTECTION 8;:CURRENT:LEVEL 3;MODE LIST
Note the use of the optional header LEVEL to maintain the correct path within the voltage and current subsystems and the
use of the root specifier to move between subsystems.
Including Common Commands
You can combine common commands with system commands in the same message. Treat the common command as a
message unit by separating it with the message unit separator. Common commands do not affect the active header path;
you may insert them anywhere in the message.
VOLT:TRIG 7.5;INIT;*TRG
OUTP OFF;*RCL 2;OUTP ON
SCPI Data Formats
All data programmed to or returned from the power module is ASCII. The data may be numerical or character string.
Numerical Data
Table 2-1 and Table 2-2 summarize the numerical formats.
14 Introduction To Programming
Table 2-1. Numerical Data Formats
Symbol Data Form
Talking Formats
<NR1> Digits with an implied decimal point assumed at the right of the least-significant
digit. Examples: 273 0273
<NR2> Digits with an explicit decimal point. Example: 273. .0273
<NR3> Digits with an explicit decimal point and an exponent. Example: 2.73E+2 273.0E-2
Listening Formats
<NRf> Extended format that includes <NR1>, <NR2> and <NR3>. Examples: 273 273.
2.73E2
<NRf+> Expanded decimal format that includes <NRf> and MIN MAX. Examples: 273 273.
2.73E2 MAX. MIN and MAX are the minimum and maximum limit values that are
implicit in the range specification for the parameter.
Table 2-2. Suffixes and Multipliers
Class Suffix Unit Unit with Multiplier
Current A Ampere MA (milliampere)
Amplitude V Volt MV (millivolt)
Time S second MS (millisecond)
Common Multipliers
lE3 K kilo
1E-3 M milli
1E-6 U micro
Boolean Data
Either form 1 | 0 or ON | OFF may be sent with commands. Queries always return 1 or 0.
OUTPut OFF
CURRent:PROTection 1
String Data
Strings are used for both program (listening) and response (talking) data. String content is limited to the characters required
for the link command parameters (see "Chapter 3 - Language Dictionary").
Note The IEEE 488.2 format for a string parameter requires that the string be enclosed within either single
(’ ’) or double (" ") quotes. Be certain that your program statements comply with this requirement.
Character Data
Character strings returned by query statements may take either of the following forms, depending on the length of the
returned string:
<CRD> Character Response Data. Permits the return of character strings.
<AARD> Arbitrary ASCII Response Data. Permits the return of undelimited 7-bit ASCII. This data type has an
implied message terminator.
Introduction To Programming 15
System Considerations
The remainder of this chapter addresses some system issues concerning programming. These are power module addressing
and the use of the following types of GPIB system interfaces:
1. HP Vectra PC controller with Agilent 82335A GPIB Interface Command Library
2. IBM PC controller with National Instruments GPIB-PCII Interface/Handler
3. Agilent controller with Agilent BASIC Language System
Note Some specific application programs are given in Appendix B.
Assigning the GPIB Address in Programs
The power module address cannot be set remotely. It is determined by the position of the mainframe address switch and the
position of power module (slot position) within the mainframe. ( See the Mainframe Users Guide for details.)
The following examples assume that the GPIB select code is 7, the mainframe interface address is 6, and that the power
module address will be assigned to the variable PM3 (power module in the third mainframe slot).
1060 ! Power Module installed in Primary Mainframe
1070 PM3=70602 ! Agilent 82335A Interface
1070 ASSIGN @PM3TO 70602 ! Agilent BASIC Interface
1080 !
1080 ! Power Module installed in Auxiliary Mainframe
1090 PM=70610 ! Agilent 82335A Interface
1090 ASSIGN @PM3 TO 70610 ! Agilent BASIC Interface
For systems using the National Instruments DOS driver, the address is specified in the software configuration program
(IBCONFIG.EXE) and assigned a symbolic name. The address then is referenced only by this name within the application
program (see the National Instruments GPIB documentation).
DOS Drivers
Types of Drivers
The Agilent 82335A and National Instruments GPIB are two popular DOS drivers. Each is briefly described here. See the
software documentation supplied with the driver for more details.
Agilent 82335A Driver.
To access these subroutines, your application program must include the header file SETUP.BAS, which is part of the DOS
driver software.
SETUP.BAS starts at program line 5 and can run up to line 999. Your application programs must begin at line 1000.
SETUP.BAS has built-in error checking routines that provide a method to check for GPIB errors during program execution.
You can use the error-trapping code in these routines or write your own code using the same variables as used by
SETUP.BAS.
National Instruments GPIB Driver. Your program must include the National Instruments header file DECL.BAS. This
contains the initialization code for the interface. Prior to running any applications programs, you must set up the interface
with the configuration program (IBCONF.EXE).
For GW-BASIC programming, the GPIB library is implemented as a series of subroutine calls.
16 Introduction To Programming
Your application program will not include the power module symbolic name and GPIB address. These must be specified
during configuration (when you run IBCONF.EXE). Note that the primary address range is from 0 to 30 but any secondary
address must be specified in the address range of 96 to 126. The power supply expects a message termination on EOI or
line feed, so set EOI w/last byte of Write. It is also recommended that you set Disable Auto Serial Polling.
All function calls return the status word IBSTA%, which contains a bit (ERR) that is set if the call results in an error. When
ERR is set, an appropriate code is placed in variable IBERR %. Be sure to check IBSTA %, after every function call. If it is
not equal to zero, branch to an error handler that reads IBERR% to extract the specific error.
Error Handling
If there is no error-handling code in your program, undetected errors can cause unpredictable results. This includes
"hanging up" the controller and forcing you to reset the system. Both of the above DOS drivers have routines for detecting
program execution errors.
Important Use error detection after every call to a subroutine.
Agilent BASIC Controllers
The Agilent BASIC Programming Language provides access to GPIB functions at the operating system level. This makes it
unnecessary to have the header files required in front of DOS applications programs. Also, you do not have to be concerned
about controller "hangups" as long as your program includes a timeout statement. Because the power module can be
programmed to generate SRQ on errors, your program can use an SRQ service routine for decoding detected errors. The
detectable errors are listed in "Chapter 5 - Error Messages".
TRANSLATION AMONG LANGUAGES
This section explains how to translate between Agilent BASIC and several other popular programming environments. For
explicit information on initializing interface cards or syntax of language, see the documentation that accompanies your
GPIB interface product.
General Setup Information for GWBASIC
Using the Agilent 82335A/82990A/61062B GPIB Command Library
•
•
•
• The GPIB Command Library supports strings, numeric and array data formats. However, multiple data types
• Error handling is accomplished by checking the variable PCIB.ERR. If it is nonzero, an error has occurred.
When CALLs are made to the GPIB Command Library, all parameters are passed as variables.
The address of a module is a real number, determined in the same manner as in Agilent BASIC. For example,
the address 70501 means 7 is the select code of the GPIB interface, 05 is the GPIB address of the mainframe, 01 is
the slot number (secondary address) of the module.
The module expects each command to be terminated by line feed (character 10) and/or EOI. The default
configuration of the GPIB Command Library is carriage return + line feed for end-of-line termination and EOI at
the end of a line. Therefore, the defaults are correct for use with the module.
cannot be sent in a single command. To send both string and numeric data in one command, convert all numeric
data to strings, concatenate with the string data and send the combined string to the module. To read multiple data
types, read the data into a string, and then manipulate the string by converting each piece into the appropriate data
format.
See the command library documentation for trapping and interpreting this error variable.
Introduction To Programming 17
Using the National Instruments GPIB Interface
•
•
•
•
•
•
General Setup Information for Microsoft C
Using the Agilent 82335A/82990A/61062B GPIB Command Library
•
•
When CALLs are made to the GPIB driver, all parameters are passed as variables.
The module is identified as a device in two ways. First, the GPIB.COM driver is modified to include the
module. Use the mainframe address as the primary bus address and the slot address as the secondary address. The
driver requires secondary address 0 (which is for slot 0) to be entered as 96, secondary address 1 to be entered as
97, etc.
It is recommended that you disable auto serial poll in the GPIB.COM driver.
The module expects each command to be terminated by a line feed (character 10) and/or EOI. Configure the
GPIB.COM driver to terminate all reads and writes with EOI.
The GPIB driver does all communication via strings. To send numeric data, number to-string conversion must
be performed before the IBWRT( ). To read numeric data, string-to-number conversion must be performed after
each IBRD( ).
Error handling is accomplished by checking the variable IBSTA%. If it is less than zero, an error has occurred.
See the GPIB interface documentation for trapping and interpreting this error variable.
The address of a module is of type long and is determined the same as with Agilent BASIC. For example, the
address 70501L means 7 is the select code of the GPIB interface, 05 is the GPIB address of the mainframe, 01 is
the slot number (secondary address) of the module.
The module expects each command to be terminated by a line feed (character 10) and/or EOI. The default
configuration of the GPIB Command Library is carriage return+line feed for end-of-line termination and EOI at the
end of a line. Therefore, the defaults are correct for use with the module.
•
•
Using the National Instruments GPIB Interface
•
• It is recommended that you disable the auto serial poll in the GPIB.COM driver.
• The module expects each command to be terminated by either a line feed (character 10) and/or EOI.
• The GPIB driver does all communication via strings. To send numeric data, number to-string conversion
• Error handling is accomplished by checking the variable IBSTA%. If bit 15 is set, an error has occurred. See
The GPIB Command Library supports strings, numeric and array data formats. However, multiple data types
cannot be sent in a single command. To send both string and numeric data in one command, convert all numeric
data to strings, concatenate with the string data and send the combined string to the module. To read multiple data
types, read the data into a string, and then manipulate the string by converting each piece into the appropriate data
format.
Each command library call returns an int. If the value is zero, no error has occurred. Error handling is
accomplished by checking the return value. See the command library documentation for interpretation of this error
value.
The module is identified as a device in two ways. First, the GPIB.COM driver is modified to include the
module. Use the mainframe address as the primary bus address. Use the slot address as the secondary address.
The driver requires that secondary address 0 (which is for slot 0) be entered as 96, secondary address 1 be entered
as 97, etc.
Configure the GPIB.COM driver to terminate all reads and writes with EOI.
must be performed before the ibwrt( ). To read numeric data, string-to-number conversion must be performed after
each ibrd( ).
the GPIB interface documentation for the interpretation of this error variable.
18 Introduction To Programming
Sending Commands to and Receiving Data from the Module
Sending the Command “VOLT 5”
********************************************** Agilent BASIC ************************************************
2100 OUTPUT 70501;"VOLT 5" ! where 70501 means 7 is the select code of the GPIB interface 05 is the
2110 ! GPIB address of the mainframe, 01 is the slot number (secondary address)
2120 ! of the module
************************* GWBASIC (Agilent 82335A/82990A/61062B GPIB Command Library) ************************
2100 MODULE.ADDRESS=70501
2110 COMMAND$ - "VOLT 5"
2120 L - LENGTH(COMMAND$)
2130 CALL IOOUTPUTS(MODULE.ADDRESS,COMMAND$,L)
2140 IF PCIB.ERR&<>O THEN ERROR PCIB.BASERR’ ! ERROR TRAP
********************************** GWBASIC (National Instruments GPIB Interface) ********************************
2100 COMMAND$ = "VOLT 5"
2110 CALL IBWRT(MODULE.ADDRESS%, COMMAND$)
2120 IF IBSTA% &< 0 GOTO 5000 ! TRAP ERROR WITH ERROR HANDLER
2130 ! AT LINE 5000
Sending the Command “VOLT 5” in BASIC
*********************** Microsoft C (Agilent 82335A/82990A/61062B HPIB Command Library) *************************
/* Assumes that you have an error handler routine, called ‘error_handler’ that accepts a float. The error handler in then passed the float
that is returned from each call to the library. */
*include &<stdio.h>
*include &<chpib.h>
*include &<cfunc.h>
*define module_address 70501L
char *cmd;
cmd = "VOLT 5”;
error = iooutputs(MODULE_ADDRESS, cmd, strlen(cmd));
error_handler(error);
****************************** Microsoft C (National Instruments GPIB Interface) ************************************
/* Assumes that you have an error handler routine, called ‘error-handler’. The error handler is then passed the float that is returned from
each call to the library. */
*include &<stdio.h>
*include &<decl.h>
*define ERR (l&<&<15) /* Error is detected as bit i5 of ibsta */
int module-address; /* Device is configured in the GPIB.COM handler. Use ibfind() to assign a value to module-address. */
char *cmd;
cmd - "VOLT 5”
ibwrt(MODULE_ADDRESS, cmd, strlen(cmd));
if (ibsta & ERR)
error_handler();
Sending the Command "VOLT 5” in C
Introduction To Programming 19
Receiving Data from the Module
The following screens show how to enter data from the module with various interfaces.
******************************************* Agilent BASIC ******************************************
2100 ENTER 70501; MEASUREMENT ! where 70501 means 7 is the select code of the GPIB interface,
2110 ! 05 is the GPIB address of the mainframe, 01 is the slot number
2120 ! (secondary address) of the module, MEASUREMENT is a real number
2130 ! sent by the module
**************** GWBASIC (Agilent 82335A/82990A/61062B GPIB Command Library) ***********************
2100 MODULE.ADDRESS=70501
2110 CALL IOENTER(MODULE.ADDRESS,MEASUREMENT)
2120 IF PCIB.ERR&< >0 THEN ERROR PCIB.BASERR ! ERROR TRAP
************************** GWBASIC (National Instruments GPIB Interface) *******************************
2100 MEASUREMENT$ - SPACE$(20) ! DRIVER CAN ONLY READ STRINGS, SO RESERVE
2110 ! SPACE IN A STRING
2120 CALL IBRD(MODULE.ADDRESS%, MEASUREMENT$)
2130 IF IBSTA% &< 0 GOTO 5000 ! TRAP ERROR WITH ERROR HANDLER AT LINE 5000
2140 MEASURED.VALUE=VAL(MEASUREMENT$)” ! CONVERT THE STRING TO A NUMBER
Receiving Module Data with BASIC
20 Introduction To Programming
***************** Microsoft C (Agilent 82335A/82990A/61062B GPIB Command Library) *********************
/* Assumes that you have an error handler routine, called ’error_handler’ that accepts a float. The error handler is then
passed the float that is returned from each call to the library. */
#include &<stdio.h>
#include k<chpib.h>
#include &<cfunc.h>
#define MODULE_ADDRESS 70501L
char *cmd;
float measurement;
error = ioenter(MODULE_ADDRESS, &&measurement);
error_handler(error);
**************************** Microsoft C (National Instruments GPIB Interface) ****************************
/* Assumes that you have an error handler routine, called ’error_handler’. The error handler is then passed the float that is
returned from each call to the library. */
#include &<stdio.h>
#include &<stdlib.h>
#include &<decl.h>
#define ERR (1&<&<15) /* Error is detected as bit 15 of ibsta */
#define STRING_LENGTH 20 /* Length of string to hold measurement */
int module_address; /* Device is configured in the GPIB.COM handler. Use
ibfind( ) to assign a value to module_address. */
char measurement[STRING_LENGTH];
float measured_value; /* Holds float conversion of measurement */
ibwrt(module_address, measurement, STRING_LENGTH);
if (ibsta & ERR)
error_handler();
measured_value = atof(measurement); /* Converts measurement string to float */
Receiving Module Data with C
Introduction To Programming 21
3
Language Dictionary
Introduction
This section gives the syntax and parameters for all the IEEE 488.2 SCPI commands and the Common commands used by
the Agilent Series 66l0xA power modules. It is assumed that you are familiar with the material in "Chapter 2 - Introduction
to Programming". That chapter explains the terms, symbols, and syntactical structures used here and gives an introduction
to programming.
The programming commands function the same way in all Agilent Series 66l0xA power modules. Since SCPI syntax
remains the same for all programming languages, the examples are generic.
Syntax definitions use the long form, but only short form headers (or "keywords") appear in the examples. If you have any
concern that the meaning of a header in your program listing will not be obvious at some later time, then use the long form
to help make your program self-documenting.
Parameters
Most commands require a parameter and all queries will return a parameter. The range for a parameter may vary according
to the model of power module. Parameters for all current models are listed in Table 3-3, at the end of this chapter.
Related Commands
Where appropriate, related commands or queries are included. These are listed either because they are directly related by
function or because reading about them will clarify or enhance your understanding of the original command or query.
Order of Presentation
The dictionary is organized as follows:
•
•
COMMON Commands
Common commands begin with an * and consist of three letters (command) or three letters and a ? (query). Common
commands are defined by the IEEE 488.2 standard to perform some common interface functions. The Agilent Series
6610xA power modules respond to the 13 required common commands that control status reporting, synchronization, and
internal operations. The power modules also respond to five optional common commands controlling triggers, power-on
conditions, and stored operating parameters.
Subsystem Commands
Subsystem commands are specific to power module functions. They can be a single command or a group of commands.
The groups are comprised of commands that extend one or more levels below the root. The description of subsystem
commands follows the description of the common commands.
IEEE 488.2 common commands, in alphabetical order.
Subsystem commands.
Language Dictionary 23
Description Of Common Commands
Figure 3-1 shows the common commands and queries. These commands are listed alphabetically in the dictionary. If a
command has a corresponding query that simply returns the data or status specified by the command, then both command
and query are included under the explanation for the command. If a query does not have a corresponding command or is
functionally different from the command, then the query is listed separately. The description for each common command or
query specifies any status registers affected. In order to make use of this information, you must refer to "Chapter 4 - Status
Reporting", which explains how to read specific register bits and use the information that they return.
Figure 3-1. Common Commands Syntax Diagram
*CLS
Meaning and Type
Clear Status Device Status
Description
This command causes the following actions (see "Chapter 4 - Status Reporting" for descriptions of all registers):
• Clears the following registers:
• Standard Event Status
• Operation Status Event
• Questionable Status Event
• Status Byte
• Clears the Error Queue
24 Language Dictionary
•
*ESE
Meaning and Type
Event Status Enable Device Status
Description
This command programs the Standard Event Status Enable register bits. The programming determines which events of the
Standard Event Status Event register (see *ESR?) are allowed to set the ESB (Event Summary Bit) of the Status Byte
register. A "1" in the bit position enables the corresponding event. All of the enabled events of the Standard Event Status
Event register are logically ORed to cause the Event Summary Bit (ESB) of the Status Byte register to be set. See "Chapter
4 - Status Reporting" for descriptions of all three registers.
Bit Position
Bit Name
Bit Weight
CME = Command error; DDE = Device-dependent error; EXE = Execution error; OPC = Operation
complete; PON Power-on; QYE = Query error
If *CLS immediately follows a program message terminator (<NL>), then the output queue and the MAV bit
are also cleared.
Command Syntax *CLS
Parameters (None)
Query Syntax (None)
Bit Configuration of Standard Event Status Enable Register
76543210
PON 0 CME EXE DDE QYE 0 OPC
1286432168421
Command Syntax *ESE <NRf>
Parameters 0 to 255
Power On Value (See *PSC)
Suffix (None)
Example *ESE 129
Query Syntax *ESE?
Returned Parameters <NR1> (Register value)
Related Commands *ESR? *PSC *STB?
If PSC is programmed to 0, then the *ESE command causes a write cycle to nonvolatile memory. The
nonvolatile memory has a finite maximum number of write cycles (see in the power module User’s
Guide). Programs that repeatedly cause write cycles to nonvolatile memory can eventually
exceed the maximum number of write cycles and may cause the memory to fail.
*ESR?
Meaning and Type
Event Status Register Device Status
Description
This query reads the Standard Event Status Event register. Reading the register clears it. The bit configuration of this
register is the same as the Standard Event Status Enable register (*ESE). See "Chapter 4 - Status Reporting" for a detailed
explanation of this register.
Query Syntax *ESR?
Parameters (None)
Returned Parameters <NR1> (Register binary value)
Related Commands *CLS *ESE *ESE? *OPC
Language Dictionary 25
*IDN?
Identification Query
Meaning and Type
Identification System Interface
Description
This query requests the power module to identify itself. It returns a string composed of four fields separated by commas.
Query Syntax *IDN?
Returned Parameters <AARD>
Field Information
Agilent Technologies Manufacturer
xxxxxA 5-digit model number followed by a letter
nnnnA-nnnnn 10-character serial number or 0
<R>.xx.xx Revision levels of firmware
Example Agilent Technologies,66101A,0,A.00.01
Related Commands (None)
*OPC
Meaning and Type
Operation Complete Device Status
Description
This command causes the interface to set the OPC bit (bit 0) of the Standard Event Status register when the power module
has completed all pending operations. (see *ESE for the bit configuration of the Standard Event Status register.) Pending
operations are complete when:
•
•
•
*OPC does not prevent processing of subsequent commands but Bit 0 will not be set until all pending operations are
completed.
*OPC?
Meaning and Type
Operation Complete Device Status
Description
This query causes the interface to place an ASCII "1" in the Output Queue when all pending operations are completed.
Pending operations are as defined for the *OPC command. Unlike *OPC, *OPC? prevents processing of all subsequent
commands. *OPC? is intended to be used at the end of a command line so that the application program can then monitor
the bus for data until it receives the "1" from the power module Output Queue.
All commands sent before *OPC have been executed. This includes overlapped commands. Most commands
are sequential and are completed before the next command is executed. Overlapped commands are executed in
parallel with other commands. Commands that affect output voltage, current or state, relays, and trigger actions are
overlapped with subsequent commands sent to the power module. The *OPC command provides notification that
all overlapped commands have been completed.
Any change in the output level caused by previous commands has been completed (completion of settling
time, relay bounce, etc.)
All triggered actions are completed.
Command Syntax *OPC
Parameters (None)
Related Commands *OPC? *WAI
26 Language Dictionary
Do not follow *OPC? with *TRG or GPIB bus triggers. Such triggers sent after *OPC? will be
prevented from executing and will prevent the power module from accepting further commands. If
this occurs, the only programmable way to restore operation is by sending the power module a GPIB
DCL (Device Clear) command.
Query Syntax *OPC?
Returned Parameters <NR1> ASCII 1 is placed in the Output Queue when the
power module has completed operations.
Related Commands *OPC *TRIG *WAI
*OPT?
Identification Query
Meaning and Type
Identification System Interface
Description
This query requests the power module to identify any options that are installed. Options are identified by number, as shown
below. A 0 indicates no options are installed.
Query Syntax *OPT?
Returned Parameters <AARD>
Related Commands (None)
*PSC
Meaning and Type
Power-on Status Clear Device Initialization
Description
This command controls the automatic clearing at power on the following registers (see "Chapter 4 - Status Reporting" for
register details):
•
•
If the command parameter = 1 (or any non-zero value), then the above registers are cleared at power on. If the command
parameter = 0, then the above registers are not cleared but are programmed to their last state prior to power turn on. This is
the most common application for *PSC and enables the power module to generate an SRQ (Service Request interrupt) at
power on.
repeatedly write to nonvolatile memory can eventually exceed the maximum number of write cycles
and may cause the memory to fail.
Service Request Enable.
Standard Event Status Enable.
Command Syntax *PSC <bool>
Parameters 0 | 1 | OFF | ON
Example *PSC 0 *PSC 1
Query Syntax *PSC?
Returned Parameters <NR1> 0 | 1
Related Commands *ESE *SRE
*PSC causes a write cycle to nonvolatile memory. If *PSC is programmed to 0, then the *ESE and
*SRE commands also cause a write cycle to nonvolatile memory. The nonvolatile memory has a finite
number of write cycles (see Table 1-2 in the power module User’s Guide). Programs that
Language Dictionary 27
*RCL
Meaning and Type
Recall Device State
Recalling a previously stored state may place hazardous voltage at the power module output.
Description
This command restores the power module to a state that was previously stored in memory with a *SAV command to the
specified location. The following states are recalled:
CAL:AUTO LIST:COUN OUTP:REL[:STAT] TRIG:LINK
CURR[:LEV][:IMM] LIST:STEP OUTP:REL:POL TRIG:SOUR
CURR:MODE OUTP[:STAT] OUTP:TTLT[:STAT] VOLT[:LEV][IMM]
CURR:PROT:STAT OUTP:DFI[:STAT] OUTP:TTLT:LINK VOLT:MODE
DISP:STAT OUTP:DFI:LINK OUTP:TTLT:SOUR VOLT:PROT[:LEV]
INIT:CONT OUTP:PROT:DEL TRIG:DEL
Sending *RCL also does the following:
•
•
Forces an ABORt command before resetting any parameters (this cancels any uncompleted trigger actions).
Disables the calibration function by setting CAL:STATe to OFF.
The device state stored in location 0 is automatically recalled at power turn-on when the power module configuration switch
is set for this mode of operation (see the power module User’s Guide).
Note Whenever the power module is powered up, the state stored in location 0 is written to the 5 volatile
locations (5 through 9).
Command Syntax *RCL <NRf>
Parameters 0 through 9
Example *RCL 3
Query Syntax (None)
Related Commands *PSC *RST *SAV
*RST
Meaning and Type
Reset Device State
Description
This command resets the power module to a factory-defined state as defined below. *RST also forces an ABORt command.
COMMAND STATE COMMAND STATE COMMAND STATE
CAL:AUTO
CAL:STAT
CURR[:LEV][:IMM]
CURR:PROT:STAT
CURR:MODE
DISP[:WIND]:STAT
INIT:CONT
LIST:STEP
LIST:COUN
OFF
OFF
1
OFF
FIX
ON
OFF
A UTO
1
OUTP[:STAT]
OUTP:DFI
OUTP:DFI:SOUR
OUTP:DFI:LINK
OUTP:PROT:DEL
OUTP:REL[:STAT]
OUTP:REL:POL
OUTP:TTLT[STAT]
OUTP:TTLT:SOUR
OFF
OFF
LINK
“SUM3”
1
OFF
NORM
OFF
BUS Table 3-2.
OUTP.TTLT:LINK
TRIG:DEL
TRIG:LINK
TRIG:SOUR
VOLT[:LEV][:IMM]
VOLT:MODE
VOLT:PROT:LEV
1
Model-dependent value. See
OFF
0
OFF
BUS
0
FIX
MAX
28 Language Dictionary
Command Syntax *RST
Parameters (None)
Query Syntax (None)
Related Commands *PSC *SAV
*SAV
Meaning and Type
Save Device State
Description
This command stores the present state of the power module to a specified location in memory. Up to 10 states can be
stored. Storage locations 0 through 4 are in nonvolatile memory and locations 5 through 9 are in volatile memory. If a
particular state is desired at power on, it should be stored in location 0. It then will be recalled at power on if the power
module configuration switch is set for this mode of operation (see the power module User’s Guide).
The following power module states are stored by *SAV:
CAL:AUTO LIST:COUN OUTP:REL[:STAT] TRIG:LINK
CURR[:LEV][:IMM] LIST:STEP OUTP:REL:POL TRIG:SOUR
CURR:MODE OUTP[:STAT] OUTP:TTLT[:STAT] VOLT[:LEV][IMM]
CURR:PROT:STAT OUTP:DFI[:STAT] OUTP:TTLT:LINK VOLT:MODE
DISP:STAT OUTP:DFI:LINK OUTP:TTLT:SOUR VOLT:PROT[:LEV]
INIT:CONT OUTP:PROT:DEL TRIG:DEL
Command Syntax *SAV
Parameters 0 to 9
Query Syntax (None)
Related Commands PSC *RCL *RST
*SRE
Meaning and Type
Service Request Enable Device Interface
Description
This command sets the condition of the Service Request Enable register. This register determines which bits from the
Status Byte register (see *STB for its bit configuration) are allowed to set the Master Status Summary (MSS) bit and the
Request for Service (RQS) summary bit. A 1 in any Service Request Enable register bit position enables the corresponding
Status Byte register bit and all such enabled bits then are logically ORed to cause Bit 6 of the Status Byte register to be set.
See "Chapter 4 - Status Reporting" for more details concerning this process.
When the controller conducts a serial poll in response to SRQ, the RQS bit is cleared, but the MSS bit is not. When *SRE
is cleared (by programming it with 0), the power module cannot generate an SRQ to the controller.
Command Syntax *SRE <NRf>
Parameters 0 to 255
Default Value (See *PSC)
Example *SRE 20
Query Syntax *SRE?
Returned Parameters <NR1> (Register binary value)
Related Commands *ESE *ESR *PSC
Language Dictionary 29
If *PSC is programmed to 0, then the *SRE command causes a write cycle to nonvolatile memory.
The nonvolatile memory has a finite number of write cycles (see Table 1-2 in the power module
User’s Guide). Programs that repeatedly write to nonvolatile memory can eventually exceed the
maximum number of write cycles and may cause the memory to fail.
*STB?
Meaning and Type
Status Byte Device Status
Description
This query reads the Status Byte register, which contains the status summary bits and the Output Queue MAV bit. Reading
the Status Byte register does not clear it. The input summary bits are cleared when the appropriate event registers are read
(see “Chapter 4 - Status Reporting”) for more information). The MAV bit is cleared at power on or by *CLS.
A serial poll also returns the value of the Status Byte register, except that bit 6 returns Request for Service (RQS) instead of
Master Status Summary (MSS). A serial poll clears RQS, but not MSS. When MSS is set, it indicates that the power
module has one or more reasons for requesting service.
Bit Configuration of Status Byte Register
Bit Position
Condition
76543210
OPER MSS ESB MAV QUES
222
(RQS)
Bit Weight
128 64 32 16 8 4 2 1
ESB = Event status byte summary; M = Message available
MSS = Master status summary; OPER = Operation status summary;
QUES = Questionable status summary; RQS = Request for service
1
Also represents RQS. 2These bits are always zero.
Query Syntax *STB?
Returned Parameters <NR1> (Register binary value)
Related Commands (None)
*TRG
Meaning and Type
Trigger Device Trigger
Description
This command generates a trigger to any subsystem that has BUS selected as its source (for example, TRIG:SOUR BUS,
OUTP:TTLT:SOUR BUS). The command has the same affect as the Group Execute Trigger (<GET>) command.
Command Syntax *TRG
Parameters (None)
Query Syntax (None)
Related Commands ABOR CURR:TRIG INIT TRIG[:IMM] VOLT:TIUG
30 Language Dictionary
*TST?
Meaning and Type
Test Device Test
Description
This query causes the power module to do a self-test and report any errors (see "Selftest Error Messages" in Chapter 3 of the
power module User’s Guide).
Query Syntax *TST?
Returned Parameters <NR1>
0 Indicates power module passed self-test.
Nonzero Indicates an error code.
Related Commands (None)
*WAI
Meaning and Type
Wait to Continue Device Status
Description
This command instructs the power module not to process any further commands until all pending operations are completed.
"Pending operations" are as defined under the *OPC command. *WAI can be aborted only by sending the power module a
GPIB DCL (Device Clear) command.
Command Syntax *WAI
Parameters (None)
Query Syntax (None)
Related Commands *OPC
Description of Subsystem Commands
Figure 3-2 is a tree diagram of the subsystem commands. Commands followed by a question mark (?) take only the query
form. Except as noted in the syntax descriptions, all other commands take both the command and query form. The
commands are listed in alphabetical order and the commands within each subsystem are grouped alphabetically under the
subsystem.
ABOR
This command cancels any trigger actions presently in process. Pending trigger levels are reset equal to their corresponding
immediate values. ABOR also cancels any programmed lists that may be in process.
ABOR also resets the WTG bit in the Operation Condition Status register (see "Chapter 4 - Status Reporting"). If
INIT:CONT ON has been programmed, the trigger subsystem initiates itself immediately after ABORt, thereby setting
WTG. ABOR is executed at power turn on and upon execution of *RCL, RST, or any implied abort command (see List
Subsystem).
Command Syntax ABORt
Parameters (None)
Examples ABOR
Query Syntax (None)
Related Commands INIT *RST *TRG TRIG
Language Dictionary 31
Figure 3-2. Subsystem Tree Diagram
Calibration Subsystem
The commands in this subsystem allow you to do the following:
• Control automatic calibration of the measurement subsystem.
• Enable and disable the calibration mode.
• Change the calibration password.
• Calibrate the overvoltage protection (OVP) circuit.
• Calibrate the current and voltage output levels, and store new calibration constants in nonvolatile memory.
CAL:AUTO
This command controls the autocalibration function and is used to substantially improve the accuracy of the
MEAS:CURR? and MEAS:VOLT? data readback queries. It does this by compensating for temperature drift in the
readback circuitry.
32 Language Dictionary
Whenever CAL:AUTO ONCE is sent, the power module performs an immediate readback temperature compensation.
CAL:AUTO ONCE is a sequential command that takes several seconds to complete. When CAL:AUTO ON is sent, the
power module automatically performs a readback temperature compensation before executing every MEAS command. Use
of this command extends the execution time of every MEAS query.
Command Syntax CALibrate:AUTO <bool> | ONCE
Parameters 0 | OFF | 1 | ON | ONCE
*RST Value OFF
Examples CAL:AUTO 1 CAL:AUTO ONCE
Query Syntax CALibrate:AUTO?
Returned Parameters 0 | 1
Related Commands MEAS:CURR? MEAS:VOLT?
CAL:CURR
This command can only be used in the calibration mode. It enters a current value that you obtain by reading an external
meter. You must first select a calibration level (CAL:CURR:LEV) for the value being entered. Two successive values
(one for each end of the calibration range) must be selected and entered. The power module then computes new current
calibration constants. These constants are not stored in nonvolatile memory until saved with the CAL:SAVE command.
Command Syntax CALibrate:CURRent[:DATA] <NRf>
Parameters (See Table 3-2)
Default Suffix A
Examples CAL:CURR 3222.3 MA CAL:CURR:DATA 5.000
Query Syntax (None)
Related Commands CAL:SAVE CAL:STAT
CAL:CURR:LEV
This command can only be used in the calibration mode. It sets the power module to a calibration point that is then entered
with CAL:CURR[:DATA]. During calibration, two points must be entered and the low-end point (MIN) must be selected
and entered first.
Command Syntax CALibrate:CURRent:LEVel <CRD>
Parameters MINimum |MAXimum
Examples CAL:CURR:LEV MIN CAL:CURR:LEV MAX
Query Syntax (None)
Related Commands CAL:CURR[:DATA] CAL:STAT
CAL:PASS
This command can only be used in the calibration mode. It allows you to change the calibration password. Unless it is
changed subsequently to shipment, the password is the model number of the power module. A new password is
automatically stored in nonvolatile memory and does not have to be stored with the CAL:SAVE command.
If the password is set to 0, password protection is removed and the ability to enter the calibration mode is unrestricted.
Command Syntax CALibrate:PASScode <NRf>
Parameters <NRf>
Examples CAL:PASS 66102 CAL:PASS 09.1991
Query Syntax (None)
Related Commands CAL:STAT
Language Dictionary 33
CAL:SAVE
This command can only be used in the calibration mode. It saves any new calibration constants (after a current or voltage
calibration procedure has been completed) in nonvolatile memory.
Command Syntax: CALibrate:SAVE
Parameters (None)
Examples CAL:SAVE
Query Syntax (None)
Related Commands CAL:CURR CAL:VOLT CAL:STAT
CAL:STAT
This command enables and disables the calibration mode. The calibration mode must be enabled before the power module
will accept any other calibration commands except CAL:AUTO.
The first parameter specifies the enabled or disabled state. The second parameter is the password. It is required if the
calibration mode is being enabled and the existing password is not 0. If the second parameter is not entered or is incorrect,
an error is generated and the calibration mode remains disabled. The query statement returns only the state, not the
password.
Whenever the calibration mode is changed from enabled to disabled, any new calibration constants are lost unless they have
been stored with CAL:SAVE.
Command Syntax: CALibrate:STATe <bool> [,<NRf>]
Parameters 0 | OFF | 1 | ON[,<NRf>]
*RST Value OFF
Examples CAL:STAT 1,66102 CAL:STAT OFF
Query Syntax CALibrate:STATe?
Returned Parameters 0 | 1
Related Commands CAL:PASS CAL:SAVE
CAL:VOLT
This command can only be used in the calibration mode. It enters a voltage value that is obtained from an external meter.
You must first select a calibration level (CAL:VOLT:LEV) for the value being entered. Two successive values (one for
each end of the calibration range) must be selected and entered. The power module then computes new voltage calibration
constants. These constants are not stored in nonvolatile memory until saved with the CAL:SAVE command.
Command Syntax CALibrate:VOLTage[:DATA] <NRf>
Parameters See Table 3-2
Default Suffix V
Examples CAL:VOLT 310.0 MV CAL:VOLT 5.000
Query Syntax (None)
Related Commands CAL:SAVE CAL:STAT
CAL:VOLT:LEV
This command can only be used in the calibration mode. It sets the power module to a calibration point that is then entered
with CAL:VOLT[:DATA]. During calibration, two points must be entered and the low-end point (MIN) must be selected
and entered first.
Command Syntax CALibrate:VOLTage:LEVel <CRD>
Parameters MINimum |MAXimum
Examples CAL:VOLT:LEV MIN CAL:VOLT:LEV MAX
Query Syntax (None)
Related Commands CAL:VOLT[:DATA] CAL:STAT
34 Language Dictionary
CAL:VOLT:PROT
This command can only be used in the calibration mode. It calibrates the power module overvoltage protection (OV)
circuit. The power module output must be enabled and operating in the constant voltage (CV) mode. The power module
automatically performs the calibration and stores the new OV constant in nonvolatile memory. CAL:VOLT:PROT is a
sequential command that takes several seconds to complete.
Command Syntax: CALibrate:VOLTage:PROTection
Parameters (None)
Example CAL:VOLT:PROT
Query Syntax (None)
Related Commands CAL:STAT
Current Subsystem
This subsystem programs the output current of the power module.
CURR
This command directly programs the immediate current level of the power module. The immediate level is the current
applied at the output terminals. This command is always active, even when the current subsystem is in the list mode (see
CURR:MODE).
Command Syntax [SOURce]:CURRent[:LEVel] [:IMMediate][:AMPLitude] <NRf+>
Parameters See Table 3-2
Default Suffix A
*RST Value See Table 3-2
Examples CURR 500 MA CURR:LEV .5
Query Syntax [SOURce]:CURRent[:LEVel] [:IMMediate][:AMPLitude]?
[SOURce]:CURRent[:LEVel] [:IMMediate][:AMPLitude]? MAX
[SOURce]:CURRent[:LEVel] [:IMMediate][:AMPLitude]? MIN
Returned Parameters <NR3> CURR? returns the present programmed current level.
CURR? MAX and CURR? MIN return the maximum and minimum
programmable current levels.
Related Commands *SAV *RCL *RST
CURR:MODE
This command enables or disables list subsystem control over the power module output current. When programmed with
FIX, this command prevents the output current from being controlled by the sequencing of points specified by
LIST:CURR. If the LIST parameter is used, then the output current may be changed by the subsequent execution of a list.
However, the list mode does not prevent the output current from being set by CURR and *RCL.
Note CURR:MODE:LIST is an implied ABORt command.
Command Syntax [SOURce]:CURRent:MODE <CRD>
Parameters FIXed | LIST
*RST Value FIX
Examples CURR:MODE LIST CURR:MODE FIX
Query Syntax [SOURce]:CURRent:MODE?
Returned Parameters FIX | LIST
Related Commands CURR:LIST *RCL
Language Dictionary 35
CURR:PROT:STAT
This command enables or disables the power module overcurrent (OC) protection function. If the overcurrent protection
function is enabled and the power module goes into constant current (CC) mode, then the output is disabled and the
Questionable Condition status register OC bit is set (see "Chapter 4 - Status Reporting"). An overcurrent condition can be
cleared with the OUTP:PROT:CLE command after the cause of the condition is removed.
Command Syntax [SOURce]:CURRent:PROTection:STATe <bool>
Parameters 0 | 1 | OFF | ON
*RST Value OFF
Examples CURR:PROT:STAT 0 CURR:PROT:STAT OFF
Query Syntax [SOURce]:CURRent:PROTection:STATe?
Returned Parameters 0 | 1
Related Commands OUTP:PROT:CLE OUTP:PROT:DEL *RCL *SAV
CURR:TRIG
This command programs the pending triggered current level of the power module. The pending triggered current level is a
stored value that is transferred to the output terminals when a trigger occurs. A pending triggered level is unaffected by
subsequent CURR commands and remains in effect until the trigger subsystem receives a trigger or an ABORt command is
given. If there is no pending triggered level, then the query form returns the IMMediate current level. In order for
CURR:TRIG to be executed, the trigger subsystem must be initiated (see INITiate).
Command Syntax [SOURce]:CURRent[:LEVel]:TRIGgered [:AMPLitude] <NRf+>
Parameters See Table 3-2
Default Suffix A
*RST Value See Table 3-2
Examples CURR:TRIG 1200 MA CURR:LEV:TRIG 1.2
Query Syntax SOURce]:CURRent[LEVel]:TRIGgered [:AMPLitude]?
[SOURce]:CURRent[LEVel]:TRIGgered [:AMPLitude]? MAXimum
[SOURce]:CURRent[:LEVel]:TRIGgered [:AMPLitude]? MIN
Returned Parameters <NR3> CURR:TRIG? returns the presently programmed triggered level.
If no triggered level is programmed, the CURR level is returned.
CURR:TRIG? MAX and CURR:TRIG? MIN return the maximum and
minimum programmable triggered current levels.
Related Commands ABOR CURR[:IMM] CURR:MODE INIT *RST
DISPlay Command
This command turns the power module optional front panel voltage and current displays on and off. It does not affect the
annunciators.
Command Syntax DISPlay[:WINDow]:STAT <bool>
Parameters 0 | 1 | OFF | ON
*RST Value ON
Examples DISP:STAT 1 DISP:STAT OFF
Query Syntax DISPlay[:WINDow]:STAT?
Returned Parameters 0 |1
Related Commands *SAV *RCL
INITiate Command
This command enables the trigger subsystem. When a trigger is enabled, an event on the selected trigger source causes the
specified triggering action to occur. If a trigger circuit is not enabled, all trigger commands are ignored. If INIT:CONT is
OFF, then INIT enables the trigger subsystem only for a single trigger action. The subsystem must be enabled prior to each
subsequent trigger action. If INIT:CONT is ON, then the trigger system is continuously enabled and INIT is redundant.
36 Language Dictionary
Command Syntax INITiate[:IMMediate]
INITiate:CONTinuous <bool>
Parameters For INIT[:IMM] (None)
For INIT:CONT 0 | 1 | OFF | ON
*RST Value OFF
Examples INIT INIT:CONT 1 INIT:CONT ON
Query Syntax For INIT[:IMM] (None)
For INIT:CONT INITiate:CONTinuous?
Returned Parameters 0 | 1
Related Commands ABOR CURR:TRIG TRIG *TRG VOLT:TRIG
List Subsystem
This subsystem controls the generation of parameter lists that sequence the power module output through values of voltage
and current. Two subsystem commands specify lists of output voltages (LIST:VOLT), and currents (LIST:CURR). A
count command (LIST:COUN) determines how many times the power module sequences through a list before that list is
completed. A dwell command (LIST:DWEL) specifies the time interval that each value (point) of a list is to remain in
effect. A step command (LIST:STEP) determines if a trigger causes a list to advance only to its next point or to sequence
through all of its points.
Each list can have from 1 to 20 points. Normally, voltage, current, and dwell lists must have the same number of points, or
an error is generated when the first list point is triggered. The exception is a list consisting of only one point. Such a list is
treated as if it had the same number of points as the other lists, with all the points having the same value as the one specified
point.
Note All list subsystem commands (as well as CURR:MODE LIST and VOLT:MODE LIST) are implied
ABORt commands.
LIST:COUN
This command sets the number of times that the list is executed before it is completed. The command accepts parameters in
the range 1 through 9.9E37, but any number greater than 65534 is interpreted as INFinity. Use INF if you wish to execute a
list indefinitely.
Command Syntax [SOURce]:LIST:COUNt <NRf+>
Parameters 1 to 9.9E37 | INFinity
*RST Value 1
Examples LIST:COUN 3 LIST:COUN INF
Query Syntax [SOURce]:LIST:COUNt?
Returned Parameters <NR3>
Related Commands CURR:MODE LIST:CURR LIST:DWEL LIST:STEP
LIST:VOLT VOLT:MODE
LIST:CURR
This command specifies the output current points in a list. The current points are given in the command parameters, which
are separated by commas. Up to 20 points may be entered and the output current values specified by the points will be
generated in the same order as they were entered.
Command Syntax [SOURce]:LIST:CURRent <NRf+> {,<NRf+>}
Parameters See Table 3-2
Default Suffix A
Examples LIST:CURR 2.5,3.0,3.5 LIST:CURR MAX,2.5,MIN
Query Syntax (None)
Related Commands CURR:MODE LIST:CURR:POIN? LIST:DWEL
Language Dictionary 37
LIST:CURR:POIN?
This query returns the number of points specified in LIST:CURR. Note that it returns only the total number of points, not
the point values.
Query Syntax [SOURce]:LIST:CURRent:POINts?
Returned Parameters <NR1>
Example LIST:CURR:POIN?
Related Commands CURR:MODE LIST:CURR LIST:DWEL
LIST:DWEL
This command sets the dwell points for the output current list and output voltage list. Each dwell point specifies the time, in
seconds, that the output of the power module is to remain at the level specified by the corresponding point in the current or
voltage list. At the end of the dwell time, the output of the power module depends upon the following conditions:
•
•
If LIST:STEP AUTO has been programmed, the output automatically changes to the next point in the list.
If LIST:STEP ONCE has been programmed, the output remains at the present level until a trigger sequences
the next point in the list.
Command Syntax [SOURce]:LIST:DWEL1 <NRf+> {,<NRf+>}
Parameters 0.01 to 65 |MINimum | MAXimum
Default Suffix S
Examples LIST:DWEL .5,.5,1.5
Query Syntax (None)
Related Commands CURR:MODE LIST:COUN LIST:CURR LIST:STEP
LIST:VOLT VOLT:MODE
LIST:DWEL:POIN?
This query returns the number of points specified in LIST:DWEL. Note that it returns only the total number of points, not
the point values.
Query Syntax [SOURce]:LIST:DWFL1:POINts?
Returned Parameters <NR1>
Example LIST:DWEL:POIN?
Related Commands LIST:CURR LIST:DWEL LIST:VOLT
LIST:STEP
This command specifies how list sequencing occurs in response to triggers. If LIST:STEP AUTO is sent, then a single
trigger causes the list (voltage, current, or dwell) to sequence through all its points. The time that a list remains at each
point is as specified in the dwell list. As soon as the dwell interval expires, the list moves to the next point.
If LIST:STEP ONCE is sent, then a single trigger advances a list only one point. After the specified dwell interval, the list
remains at that point until the next trigger occurs.
In either mode, triggers that occur during a dwell interval are ignored.
Command Syntax [SOURce]:LIST:STEP <CRD>
Parameters AUTO | ONCE
*RST Value AUTO
Examples LIST:STEP ONCE
Query Syntax [SOURce]:LIST:STEP?
Returned Parameters AUTO | ONCE
Related Commands CURR:MODE LIST:COUN LIST:CURR LIST:DWEL
LIST:VOLT VOLT:MODE
38 Language Dictionary
LIST:VOLT
This command specifies the output voltage points in a list. The voltage points are given in the command parameters, which
are separated by commas. Up to 20 points may be entered and the output voltage values specified by the points will be
generated in the same order as they were entered.
Command Syntax [SOURce]:LIST:VOLTage <NRf+> {,<NRf+>}
Parameters See Table 3-2
Default Suffix V
Examples LIST:VOLT 2.0,2.5,3.0 LIST:VOLT MAX,2.5,MIN
Query Syntax (None)
Related Commands VOLT:MODE LIST:VOLT:POIN? LIST:DWEL
LIST:VOLT:POIN?
This query returns the number of points specified in LIST:VOLT. Note that it returns only the total number of points, no t
the point values.
Query Syntax [SOURce]:LIST:VOLTage:POINts?
Returned Parameters <NR1>
Example LIST:VOLT:POIN?
Related Commands VOLT:MODE LIST:VOLT LIST:DWEL
MEASure Query
This query returns the current measured at the power module output terminals or the voltage measured at the sense
terminals. The query format allows two optional parameters for specifying the expected value and desired measurement
accuracy. The power module accepts the optional parameters but ignores them.
Query Syntax MEASure:CURRent[:DC]? [<NRf>[,<NRf>]]
MEASure:VOLTage[:DC]? [<NRf>[,<NRf>]]
Parameters (None)
Default Suffix A for MEAS:CURR? V for MEAS:VOLT?
Examples MEAS:CURR? MEAS:VOLT?
MEASURE:VOLTAGE:DC? MV
Returned Parameters <NR3>
Related Commands CAL:AUTO
Output Subsystem
This subsystem controls the power module voltage and current outputs and the optional output relay.
OUTP
This command enables or disables the power module output. The state of a disabled output is a condition of zero output
voltage and a model-dependent minimum source current.
If the power module is configured to use the relay option, the command opens the relay contacts when the output is disabled
and closes them when it is enabled. Transitions between the output ON and OFF states are sequenced so that the relay is
switched while the power mesh is disabled. Use of the second (NORelay) parameter prevents the command from having
any effect on the relay; it remains in its existing state when OUTPut is executed. The query form returns the output state,
excluding that of the relay (see OUTP:REL?).
Language Dictionary 39
Command Syntax OUTPut[:STATe] <bool>[,NORelay]
Parameters 0 | OFF[,NORelay] | 1 | ON[,NORelay]
*RST Value 0
Examples OUTP 1 OUTP:STAT ON,NORELAY
Query Syntax OUTPut[:STATe]?
Returned Parameters 0 | 1
Related Commands *RCL *SAV
OUTP:DFI
This command enables or disables the discrete fault indicator (DFI) signal to the power module backplane.
Command Syntax OUTPut:DFI[:STATe] <bool>
Parameters 0 |1 | OFF | ON
*RST Value OFF
Examples OUTP:DFI:1 OUTP:DFI OFF
Query Syntax OUTPut:DFI[:STATe]?
Returned Parameters 0 | 1
Related Commands OUTP:DFI:LINK OUTP:DFI:SOUR
OUTP:DFI:LINK
This command specifies which events within the power module are linked to DFI source events.
Command Syntax OUTPut:DFI:LINK <CRD>
Parameters See Table 3-2
*RST Value SUM3
Examples OUTP:DFI:LINK "CC" OUTP:DFI:LINK “OFF”
Query Syntax OUTPut:DFI:LINK?
Returned Parameters See Table 3-2
Related Commands OUTP:DFI:SOUR OUTP:DFI[:STAT]
OUTP:DFI:SOUR
This command selects the source for DFI events. The only available source is LINK.
Command Syntax OUTP:DFI:SOUR <CRD>
Parameters LINK
*RST Value LINK
Examples OUTP:DFI:SOUR LINK
Query Syntax OUTPut:DFI:SOUR?
Returned Parameters LINK
Related Commands OUTP:DFI:LINK OUTP:DFI[:STAT]
OUTP:PROT
There are two output protection commands that do the following:
OUTP:PROT:CLE Clears any overvoltage (OV), overcurrent (OC), overtemperature (OT), or remote inhibit (RI)
protection features. After this command, the output is restored to the state it was in before the
protection feature occurred.
40 Language Dictionary
OUTP:PROT:DEL Sets the delay time between the programming of an output change that produces a CV, CC, or
UNREG condition and the recording of that condition by the Status Operation Condition register.
The delay prevents momentary changes in power module status that can occur during
reprogramming from being registered as events by the status subsystem. Since the delay applies
to CC status, it also delays the OCP (overcurrent protection) feature. The OVP (overvoltage
protection) feature is not affected by this delay.
Command Syntax OUTPut:PROTection:CLEar
OUTPut:PROTection:DELay <NRf+>
Parameters OUTP:PROT:CLE, (none)
OUTP:PROT:DEL 0 to 32.767 | MIN | MAX
Default Suffix S
*RST Value 100 (milliseconds)
Examples OUTP:PROT:CLE OUTP:PROT:DEL 75E-1
Query Syntax OUTP:PROTection:CLEar (None)
OUTPut:PROTection:DELay?
OUTPut:PROTection:DELay? MINimum
OUTPut:PROTection:DELay? MAXimum
Returned Parameters <NR3>
Related Commands OUTP:PROT:CLE (None)
OUTP:PROT:DEL *RCL *SAV
OUTP:REL
This command is valid only if the power module is configured for the optional relay connector. Programming ON closes
the relay contacts; programming OFF opens them. The relay is controlled independently of the output state. If the power
module is supplying power to a load, that power will appear at the relay contacts during switching. If the power module is
not configured for the relay connector, sending either relay command generates an error.
Command Syntax OUTPut:RELay[:STATe] <bool>
Parameters 0 | 1 | OFF | ON
*RST Value 0
Examples OUTP:REL 1 OUTP:REL OFF
Query Syntax OUTPut:RELay?
Returned Parameters 0 |1
Related Commands OUTP[:STAT] *RCL *SAV
OUTP:REL:POL
This command is valid only if the power module is configured for the optional relay connector. Programming NORMal
causes the relay output polarity to be the same as the power module output. Programming REVerse causes the relay output
polarity to be opposite to that of the power module output. If OUTP[:STAT] = ON when either relay command is sent, the
power module output voltage is set to 0 during the time that the relays are changing polarity. If the power module is not
configured for the relay connector, sending either relay command generates an error.
Command Syntax OUTPut:RELay:POLarity <CRD>
Parameters NORMal | REVerse
*RST Value NORM
Examples OUTP:REL:POL NORM
Query Syntax OUTPut:RELay:POLarity?
Returned Parameters NORM | REV
Related Commands OUTP[:STAT] *RCL *SAV
Language Dictionary 41
OUTP:TTLT
This command enables or disables the power module Trigger Out signal, which is available at a BNC connector on the rear
of the mainframe. Trigger Out is the logical OR of all the power module TTLTrig signals (see "Chapter 5 - Synchronizing
Power Module Output Changes"). It also may be selected as a trigger input (see TRIGger:SOURce).
Command Syntax OUTPut:TTLTrg[:STATe] <bool>
Parameters 0 | 1 | OFF | ON
*RST Value OFF
Examples OUTP:TTLT 1 OUTP:TTLT OFF
Query Syntax OUTPut:TTLrg[:STATe]?
Returned Parameters 0 |1
Related Commands OUTP:TTLT:LINK OUTP:TTLT:SOUR
OUTP:TTLT:LINK
This command specifies which events within the power module are linked to TTLTrg source events when LINK is the
parameter for the OUTP:TTLT:SOUR command.
Command Syntax OUTPut:TTLrg:LINK <CRD>
Parameters See Table 3-1
*RST Value OFF
Examples OUTP:TTLT:LINK "CC" OUTP:TTLT:LINK "OFF"
Query Syntax OUTPut:TTLrg:LINK?
Returned Parameters See Table 3-1
Related Commands OUTP:TTLT:SOUR OUTP:TTLT[:STAT]
OUTP:TTLT:SOUR
This command selects the signal source for the Trig Out signal as follows:
BUS *TRG or <GET> (Group Execute Trigger) HOLD No trigger source except TRIG:IMM
EXT Mainframe backplane Trigger In bus LINK Internal power module event as
specified by TRIG:LINK
When an event becomes true at the selected TTLTrg source, a pulse is sent to the BNC connector on the rear of the
mainframe.
Command Syntax OUTPut:TTLrg:SOURce <CRD>
Parameters BUS | EXTernal | LINK | HOLD
*RST Value BUS
Examples OUTP:TTLT:SOUR LINK
Query Syntax OUTPut:TTLrg:SOURce?
Returned Parameters BUS | EXT | LINK | HOLD
Related Commands OUTP:TTLT:LINK OUTP:TTLT[:STAT]
Status Subsystem
This subsystem programs the power module status registers. The power module has three groups of status registers;
Operation, Questionable, and Standard Event. The Standard Event group is programmed with Common commands as
described in "Chapter 4 - Status Reporting". The Operation and Questionable status groups each consist of the following
five registers:
Condition Enable Event NTR Filter PTR Filter
42 Language Dictionary
Status Operation Registers
The bit configuration of all Status Operation registers is shown in the following table:
Bit Configuration of Operation Registers
Bit Position
Bit Name
Bit Weight
CAL = Interface is computing new calibration constants; CC = The power module is in constant current mode;
CV = The power module is in constant voltage mode; NU = (Not used); STC = The list step is complete;
WTG = Interface is waiting for a trigger.
12111098765 43210
STC NU CC NU CV NU NU WTG NU NU NU NU CAL
4096 2048 1024 512 256 128 64 32 16 8421
Note See "Chapter 4 - Status Reporting" for more explanation of these registers
STAT:OPER?
This query returns the value of the Operation Event register. The Event register is a read-only register which holds (latches)
all events that are passed by the Operation NTR and/or PTR filter. Reading the Operation Event register clears it.
Query Syntax STATus:OPERation[:EVENt]?
Parameters (None)
Returned Parameters <NR1> (Register Value)
Examples STAT:OPER:EVEN?
Related Commands *CLS STAT:OPER:NTR STAT:OPER:PTR
STAT:OPER:COND?
This command returns the value of the Operation Condition register. That is a read-only register which holds the real-time
(unlatched) operational status of the power module.
Query Syntax STATus:OPERation:CONDition?
Parameters (None)
Examples STAT:OPER:COND?
Returned Parameters <NR1> (Register value)
Related Commands (None)
STAT:OPER:ENAB
This command and its query set and read the value of the Operation Enable register. This register is a mask for enabling
specific bits from the Operation Event register to set the operation summary bit (OPER) of the Status Byte register. This bit
(bit 7) is the logical OR of all the Operation Event register bits that are enabled by the Status Operation Enable register.
Command Syntax STATus:OPERation:ENABle <NRf>
Parameters 0 to 32727
Suffix (None)
Default Value 0
Examples STAT:OPER:ENAB 1312 STAT:OPER:ENAB 1
Query Syntax STATus:OPERation:ENABle?
Returned Parameters <NRI> (Register value)
Related Commands STAT:OPER:EVEN
Language Dictionary 43
STAT:OPER:NTR|PTR Commands
These commands set or read the value of the Operation NTR (Negative-Transition) and PTR (Positive-Transition) registers.
These registers serve as polarity filters between the Operation Enable and Operation Event registers to cause the following
actions:
•
•
•
•
When a bit in the Operation NTR register is set to 1, then a 1-to-0 transition of the corresponding bit in the
Operation Condition register causes that bit in the Operation Event register to be set.
When a bit of the Operation PTR register is set to 1, then a 0-to-I transition of the corresponding bit in the
Operation Condition register causes that bit in the Operation Event register to be set.
If the same bits in both NTR and PTR registers are set to 1, then any transition of that bit at the Operation
Condition register sets the corresponding bit in the Operation Event register.
If the same bits in both NTR and PTR registers are set to 0, then no transition of that bit at the Operation
Condition register can set the corresponding bit in the Operation Event register.
Note Setting a bit in the value of the PTR or NTR filter can of itself generate positive or negative events in the
corresponding Operation Event register.
Command Syntax STATus:OPERation:NTRansition <Nrf>
STATus:OPERation:PTRansition <NRf>
Parameters 0 to 32727
Suffix (None)
Default Value 0
Examples STAT: OPER: NTR 32 STAT: OPER: PTR 1312
Query Syntax STAT:OPER:NTR? STAT:OPER:PTR?
Returned Parameters <NR1> (Register value)
Related Commands STAT:OPER:ENAB
STAT:PRES
This command sets all defined bits in the Status Subsystem PTR registers and clears all bits in the subsystem NTR and
Enable registers. STAT:OPER:PTR is set to 1313 and STAT:QUES:PTR is set to 1555.
Command Syntax STATus:PRESet
Parameters (None)
Examples STAT:PRES
Query Syntax (None)
Related Commands (None)
Status Questionable Registers
The bit configuration of all Status Questionable registers is as follows:
Bit Configuration of Questionable Registers
Bit Position
Condition
Bit Weight
NU = (Not used); OC = Overcurrent protection circuit has tripped; OT = Overtemperature status condition exists;
OV = Overvoltage protection circuit has tripped; RI = Remote inhibit is active; UNR = Power supply output is
unregulated.
15-11 10 9 8 7 6 5 4 3 2 1 0
NU UNR RI NU NU NU NU OT NU NU OC OV
1024 512 256 128 64 32 16 8 4 2 1
Note See "Chapter 4 - Status Reporting" for more explanation of these registers.
44 Language Dictionary
STAT:QUES?
This command returns the value of the Questionable Event register. The Event register is a read-only register which holds
(latches) all events that are passed by the Questionable NTR and/or PTR filter. Reading the Questionable Event register
clears it.
Query Syntax STATus:QUEStionable[:EVENt]?
Parameters (None)
Returned Parameters <NR1> (Register Value)
Examples STAT:QUES:EVEN?
Related Commands *CLS STAT:QUES:NTR STAT:QUES:PTR
STAT:QUES:COND?
This query returns the value of the Questionable Condition register. That is a read-only register which holds the real-time
(unlatched) questionable status of the power module.
Query Syntax STATus:QUEStionable:CONDition?
Example STAT: QUES: COND?
Returned Parameters <NR1> (Register value)
Related Commands (None)
STAT:QUES:ENAB
This command sets or reads the value of the Questionable Enable register. This register is a mask for enabling specific bits
from the Questionable Event register to set the questionable summary (QUES) bit of the Status Byte register. This bit (bit
3) is the logical OR of all the Questionable Event register bits that are enabled by the Questionable Status Enable register.
Command Syntax STATus:QUEStionable:ENABle <NRf>
Parameters 0 to 32727
Suffix (None)
Default Value 0
Example STAT:QUES:ENAB 18
Query Syntax STATus:QUEStionable:ENABle?
Returned Parameters <NR1> (Register value)
Related Commands STAT:QUES:EVEN?
STAT:QUES:NTR|PTR Commands
These commands allow the values of the Questionable NTR (Negative-Transition) and PTR (Positive-Transition) registers
to be set or read. These registers serve as polarity filters between the Questionable Enable and Questionable Event registers
to cause the following actions:
•
• When a bit of the Questionable PTR register is set to 1, then a 0-to-I transition of the corresponding bit in the
• If the same bits in both NTR and PTR registers are set to 1, then any transition of that bit at the Questionable
• If the same bits in both NTR and PTR registers are set to 0, then no transition of that bit at the Questionable
When a bit of the Questionable NTR register is set to 1, then a 1-to-0 transition of the corresponding bit of the
Questionable Condition register causes that bit in the Questionable Event register to be set.
Questionable Condition register causes that bit in the Questionable Event register to be set.
Condition register sets the corresponding bit in the Questionable Event register.
Condition register can set the corresponding bit in the Questionable Event register.
Note Setting a bit in the PTR or NTR filter can of itself generate positive or negative events in the
corresponding Questionable Event register.
Language Dictionary 45
Command Syntax STATus:QUEStionable:NTRansition <NRf>
STATus:QUEStionable:PTRansition <NRf>
Parameters 0 to 32727
Suffix (None)
Default Value 0
Example STAT:QUES:NTR 16 STAT:QUES:PTR 512
Query Syntax STATus:QUEStionable:NTRansition?
STATus:QUEStionable:PTRansitiion?
Returned Parameters <NR1> (Register value)
Related Commands STAT:QUES:ENAB
SYST:ERR?
This query returns the next error number followed by its corresponding error message string from the remote programming
error queue. The queue is a FIFO (first-in, first-out) buffer that stores errors as they occur. As it is read, each error is
removed from the queue. When all errors have been read, the query returns 0,NO ERROR. If more errors are accumulated
than the queue can hold, the last error in the queue is -350,TOO MANY ERRORS.
Query Syntax SYSTem:ERRor?
Parameters (None)
Returned Parameters <NR1>,<SRD>
Example SYST:ERR?
SYST:VERS?
This query returns the SCPI version number to which the power module complies. The returned value is of the form
YYYY.V, where YYYY represents the year and V is the revision number for that year.
Query Syntax SYSTem:VERSion?
Parameters (none)
Returned Parameters <NR2>
Example SYST:VERS?
Related Commands (None)
Trigger Subsystem
This subsystem controls the triggering of the power module. See "Chapter 5 - Synchronizing Power Module Output
Changes" for an explanation of the Trigger Subsystem.
Note The trigger subsystem must be enabled from the Initiate Subsystem or no triggering action will occur.
TRIG
When the trigger subsystem is enabled, TRIG generates an immediate trigger signal that bypasses any selected
TRIG:SOUR and TRIG:DEL. The trigger will then:
1. Initiate a pending level change as specified by CURR[:LEV]:TRIG or VOLT[:LEV]:TRIG.
2. Initiate a pending level change as specified by CURR:MODE LIST or VOLT:MODE LIST and in accordance
with LIST:STEP.
3. Clear the WTG bit in the Status Operation Condition register.
46 Language Dictionary
Command Syntax TRIGger[:STARt][:IMMediate]
Parameters (None)
Examples TRIG TRIG: IMM
Query Syntax (None)
Related Commands ABOR CURR:MODE CURR:TRIG INIT *TRG
VOLT:MODE VOLT:TRIG
TRIG:DEL
This command sets the time delay between the detection of an event on the specified trigger source and the start of any
corresponding trigger action on the power module’s output.
Command Syntax TRIGger[:STARt]:DELay <NRf+>
Parameters 0 to 65 | MIN | MAX
Default Suffix S
*RST Value 0
Examples TRIG:DEL .25 TRIG:DEL MAX
Query Syntax TRIGger[:STARt]:DELay?
Returned Parameters <NR3>
Related Commands ABOR CURR:TRIG INIT *TRG TRIG[:IMM]
VOLT:TRIG
TRIG:LINK
This command specifies which event conditions within the power module are linked to trigger source events when LINK is
the parameter of the TRIG:SOUR command.
Command Syntax TRIGger[:STARt]:LINK <CRD>
Parameters (See Table 3-1)
*RST Value OFF
Examples TRIG:LINK "CC" TRIG:LINK "OPER"
Query Syntax TRIGger[:STARt]:LINK?
Returned Parameters <CRD> (See Table 3-1)
Related Commands ABOR INIT *TRG TRIG[:IMM] TRIG:SOUR
TRIG:SOUR
This command selects the power module input trigger source as follows:
BUS *TRG or <GET> (Group Execute Trigger)
EXT Mainframe backplane Trigger In bus
HOLD No trigger source except TRIG:IMM
LINK Internal power module event as specified by TRIG:LINK
TTLT Mainframe Trigger Out bus
Command Syntax TRIGger[:STARt]:SOURce <CRD>
Parameters BUS | EXT | HOLD | LINK | TTLT
*RST Value BUS
Examples TRIG: SOUR BUS TRIG: SOUR LINK
Query Syntax TRIGger[:STARt]:SOURce?
Returned Parameters BUS | EXT | HOLD | TTLT
Related Commands ABOR CURR:TRIG INIT OUTP:TTLT
VOLT:TRIG
Language Dictionary 47
Voltage Subsystem
This subsystem programs the output voltage of the power module.
VOLT
This command directly programs the immediate voltage level of the power module. The immediate level is the voltage
applied at the output terminals. This command is always active, even when the voltage subsystem is in the list mode (see
VOLT:MODE).
Command Syntax [SOURce]:VOLTage[:LEVel] [:IMMediate][:AMPLitude] <NRf+>
Parameters Table 3-2
Default Suffix V
*RST Value Table 3-2
Examples VOLT 2500 MV VOLT:LEV 2.5
Query Syntax [SOURce]:VOLTage[:LEVel] [:IMMediate][:AMPlitude]?
[SOURce]:VOLTage[:LEVel] [:IMMediate][:AMPLitude]? MAX
[SOURce]:VOLTage[:LEVel] [:IMMediate][:AMPLitude]? MIN
Returned Parameters <NR3> VOLT? returns the presently programmed immediate voltage
level.
VOLT? MAX and VOLT? MIN return the maximum and minimum
programmable immediate voltage levels.
Related Commands *SAV *RCL *RST
VOLT:MODE
This command enables or disables list subsystem control over the power module output voltage. When programmed with
FIX, this command prevents the output voltage from being controlled by the sequencing of points specified by
LIST:VOLT. If the LIST parameter is used, then the output voltage may be changed by the subsequent execution of a list.
However, the list mode does not prevent the output voltage from being set by VOLT[:IMM] and *RCL.
Note VOLT:MODE LIST is an implied ABORT command.
Command Syntax [SOURce]:VOLTage:MODE <CRD>
Parameters FIXed | LIST
*RST Value FIX
Examples VOLT:MODE LIST VOLT:MODE FIX
Query Syntax [SOURce]:VOLTage:MODE?
Returned Parameters FIX | LIST
Related Commands VOLT:LIST *RCL
VOLT:PROT
This command sets the overvoltage protection (OVP) level of the power module. If the output voltage exceeds the OVP
level, then the power module output is disabled and the Questionable Condition status register OV bit is set (see "Chapter 4
- Status Reporting"). An overvoltage condition can be cleared with the OUTP:PROT:CLE command after the condition
that caused the OVP trip is removed. The OVP always trips with zero delay and is unaffected by the OUTP:PROT:DEL
command.
Command Syntax [SOURce]:VOLTage:PROTection [:LEVel] <NRf+>
Parameters See Table 3-2
Default Suffix V
*RST Value MAX
Examples VOLT:PROT 2.5 VOLT:PROT:LEV MAX
48 Language Dictionary
Query Syntax [SOURce]:VOLTage:PROTection [:LEVel]?
[SOURce]:VOLTage:PROTection [:LEVel]? MIN
[SOURce]:VOLTage:PROTection [:LEVel]? MAX
Returned Parameters <NR3> VOLT:PROT? returns presently programmed OVP level.
VOLT:PROT? MAX and VOLT:PROT? MIN return the
maximum and minimum programmable OVP levels.
Related Commands OUTP:PROT:CLE *RST *SAV *RCL
VOLT:SENS:SOUR?
This command reads the state of the power module output connector remote sense switch. The INTernal parameter
corresponds to the LOCAL position of the switch. (See the power module User’s Guide for more information about this
switch.) VOLT:SENS:SOUR is an alias for the SCPI VOLT:ALC:SOUR command.
Query Syntax [SOURce]:VOLTage:SENSe:SOURce?
Example VOLT:SENS:SOUR?
Returned Parameters EXTernal | INTernal
Related Commands VOLT:ALC:SOUR?
VOLT:TRIG
This command programs the pending triggered voltage level of the power module. The pending triggered voltage level is a
stored value that is transferred to the output terminals when a trigger occurs. A pending triggered level is unaffected by
subsequent VOLT:LEV[:IMM] commands and remains in effect until the trigger subsystem receives a trigger or an
ABORt command is given. In order for VOLT:TRIG to be executed, the trigger subsystem must be initiated (see
INITiate).
Command Syntax [SOURce]:VOLTage[:LEVel]:TRIGgered [:AMPLitude] <NRf+>
Parameters See Table 3-2
Default Suffix V
*RST Value See Table 3-2
Examples VOLT:TRIG 1200 MV VOLT:LEV:TRIG 1.2
Query Syntax [SOURce]:VOLTage[:LEVel]:TRIGgered [:AMPLitude]?
[SOURce]:VOLTage[LEVel]:TRIGgered [:AMPLitude]? MAX
[SOURce]:VOLTage[:LEVel]:TRIGgered [:AMPLitude]? MIN
Returned Parameters <NR3> VOLT:TRIG? returns the presently programmed current
level. If the TRIG level is not programmed, the IMM level is returned.
VOLT:TRIG? MAX and VOLT:TRIG? MIN return the
maximum and minimum programmable triggered voltage levels.
Related Commands ABOR VOLT[:IMM] VOLT:MODE INIT *RST
Language Dictionary 49
Table 3-1. Link Parameter List
Parameter True Event Condition Valid for
CC Constant current event bit
CV Constant voltage event bit
ESB Standard event summary bit
LSC List sequence complete pulse
OPC Operation complete bit
OPER Operation summary bit
QUES Questionable summary bit
MAV Message available summary bit1OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
OFF No linked event condition OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
RQS Request service summary bit
RTG Received a trigger bit
STC List step completed pulse
STS List step started pulse
SUM3 OPER or QUES or ESB bit
TDC Trigger delay complete pulse
1
See “Chapter 4 - Status Reporting” 2 See “Chapter 5 - Synchronizing Power Module Output Changes”.
1
1
1
1
1
1
2
2
2
1
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
2
OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
1
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:TTLT:LINK TRIG[:STAR]:LINK
OUTP:DFI:LINK OUTP:TTLT:LINK TRIG[:STAR]:LINK
2
OUTP:TTLT:LINK TRIG[:STAR]:LINK
Table 3-2. Power Module Programming Parameters
Agilent Model
Parameter 66101A 66102A 66103A 66104A 66105A 66106A
Output Programming Range
(maximum programmable values):
Voltage:
Current:
OV Protection:
8.190 V 20.475 V 35.831 V 61.425 V 122.85 V 204.75 V
16.380 A 7.678 A 4.607 A 2.559 A 1.280 A 0.768 A
8.8 V 22.0 V 38.5 V 66.0 V 132.0 V 220.0 V
Average Resolution
Voltage:
Current:
OV Protection:
*RST State Values
1
Voltage:
Current:
OV Protection:
1
These also are the power-on reset values when the factory default parameters are left in effect (see "Chapter 2
2.4 mV 5.9 mV 10.4 mV 18.0 mV 36.0 mV 60.0 mV
4.6 mA 2.3 mA 1.4 mA 0.75 mA 0.38 mA 0.23 mA
50 mV 120 mV 200 mV 375 mV 750 mV 1.25 V
0
257 mA 120 mA 72 mA 40 mA 20 mA 12 mA
8.8 V 22.0 V 38.5 V 66.0 V 132.0 V 220.0 V
Installation” in the power module User’s Guide).
Nonvolatile Memory Locations:
Volatile Memory Locations:
:
50 Language Dictionary
5; (0 through 4)
5; (5 through 9)
Status Reporting
Power Module Status Structure
Figure 4-1 shows the status register structure of the power module. The Standard Event, Status Byte, and Service Request
Enable registers and the Output Queue perform standard GPIB functions as defined in the IEEE 488.2 Standard Digital
Interface for Programmable Instrumentation. The Operation Status and Questionable Status registers implement status
functions specific to the power module.
Status Register Bit Configuration
Table 4-2 and Figure 4-1 show the bit configuration of each status register.
Operation Status Group
Register Functions
The Operation Status registers record signals that occur during normal operation. The group consists of the following
registers:
•
•
•
•
A Condition register that holds real-time status of the circuits being monitored. It is a read-only register.
A PTR/NTR (positive transition/negative transition) Filter that functions as described under
STAT:OPER:NTR|PTR COMMANDS in "Chapter 3 - Language Dictionary". This is a read/write register.
An Event register that latches any condition that is passed through the PTR or NTR filters. Reading the Event
register clears it.
An Enable register that functions as described under STAT:OPER:ENAB in "Chapter 3 -Language
Dictionary". This is a read/write register.
4
The outputs of the Operation Status group are logically-ORed into the OPER(ation) summary bit (7) of the Status Byte
register.
Register Commands
Commands that access this group are derived from the STAT:OPER commands described in "Chapter 3 - Language
Dictionary" and summarized in Table 4-1.
Table 4-1. Status Operation Commands
Register Command Query Cleared By
Condition (None)
PTR Filter
NTR Filter
Event (None)
Enable
STAT:OPER:PTR <NRf> STAT:OPER:PTR? Programming 0 or
STAT:OPER:NTR <NRf> STAT:OPER:NTR?
STAT:OPER:ENAB <NRf> STAT:OPER:ENAB?
STAT:OPER:COND?
STAT:OPER:EVEN? Reading or *CLS
Cannot be cleared
STAT:PRES
Programming 0
Programming 0
Status Reporting 51
Table 4-2. Bit Configurations of Status Registers
Bit Signal Meaning Bit Signal Meaning
Operation Status Group Standard Event Status Group
0
5
8
10
12
0
1
4
9
10
CAL
WTG
CV
CC
DWE
OV
OC
OT
RI
UNR
The interface is computing new
calibration constants
The interface is waiting for a trigger 2
The power module is in constant
voltage mode
The power module is in constant
current mode
The list step is active (dwelling) 5
Questionable Status Group Status Byte and Service Request
The power module overvoltage
protection circuit has tripped
The power module overcurrent
protection circuit has tripped
The power module has an
overtemperature condition
The power module remote inhibit state
is active
The power module output is
unregulated
0
OPC
QYE
3
DDE
4
EXE
CME
7
PON
3
QUES
4
MAV
5
ESB
6
MSS
RQS
7
OPER
Operation complete
Query error
Device-dependent error
Execution error
Command error
Power on
Enable Registers
Questionable status summary bit
Message Available summary bit
Event Status summary bit
Master Status summary bit
Request Service bit
Operation status summary bit
Questionable Status Group
Register Functions
The Questionable Status registers record signals that indicate abnormal operation of the power module. As shown in Figure
4-1, the group consists of the same type of registers as the Status Operation group. The outputs of the Questionable Status
group are logically-ORed into the QUES(tionable) summary bit (3) of the Status Byte register.
Register Commands
Programming for this group is derived from the STAT:QUES commands described in "Chapter 3 - Language Dictionary"
and summarized in Table 4-3.
Table 4-3. Status :Questionable Commands
Register Command Query Cleared By
Condition (None)
PTR Filter
NTR Filter
Event (None)
Enable
STAT:QUES:PTR <NRf> STAT:QUES:PTR? Programming 0
STAT:QUES:NTR <NRf> STAT:QUES:NTR?
STAT:QUES:ENAB <NRf> STAT:QUES:ENAB?
STAT:QUES:COND?
STAT:QUES:EVEN? Reading or *CLS
Cannot be cleared
Programming 0 or
STAT:PRES
Programming 0
52 Status Reporting
Figure 4-1. Power Module Status Model
Standard Event Status Group
Register Functions
This group consists of an Event register and an Enable register that are programmed by COMMON commands. The
Standard Event register latches events relating to interface communication status (see Table 4-2). It is a read-only register
that is cleared when read. The Standard Event Enable register functions similarly to the enable registers of the Operation
and Questionable status groups.
Register Commands
The common *ESE command programs specific bits in the Standard Event Status Enable register. Because the power
module implements *PSC, the register is cleared at power on if *PSC = 1.
*ESR? reads the Standard Event Status Event register. Reading the register clears it.
Status Reporting 53
Status Byte Register
This register summarizes the information from all other status groups as defined in the IEEE 488.2 Standard Digital
Interface for Programmable Instrumentation standard. The bit configuration is shown in Table 4-2. The register can be
read either by a serial poll or by *STB?. Both methods return the same data, except for bit 6. Sending *STB? returns MSS
in bit 6, while polling returns RQS in bit 6.
The RQS Bit
Whenever the power module requests service, it sets the SRQ interrupt line true and latches RQS into bit 6 of the Status
Byte register. When the controller services the interrupt, RQS is cleared inside the register and returned in bit position 6 of
the response. The remaining bits of the Status Byte register are not disturbed.
The MSS Bit
This is a real-time (unlatched) summary of all Status Byte register bits that are enabled by the Service Request Enable
register. MSS is set whenever the power module has at least one reason (and possible more) for requesting service. Sending
*STB? reads the MSS in bit position 6 of the response. No bits of the Status Byte register are cleared by reading it.
Determining the Cause of a Service Interrupt
You can determine the reason for an SRQ by the following actions:
•
•
•
Use a serial poll or the *STB? query to determine which summary bits are active.
Read the corresponding Event register for each summary bit to determine which events caused the summary
bit to be set. When an Event register is read, it is cleared. This also clears the corresponding summary bit.
The interrupt will recur until the specific condition that caused the each event is removed. If this is not
possible, the event may be disabled by programming the corresponding bit of the status group Enable register or
NTR|PTR filter. A faster way to prevent the interrupt is to disable the service request by programming the
appropriate bit of the Service Request Enable register.
Output Queue
The Output Queue is a first-in, first-out (FIFO) data register that stores power module-to-controller messages until the
controller reads them. Whenever the queue holds one or more bytes, it sets the MAV bit (4) of the Status Byte register. If
too many unread error messages are accumulated in the queue, a system error message is generated (see "Chapter 6 - Error
Messages"). The Output Queue is cleared at power on and by *CLS.
Location Of Event Handles
"Event handles" are signals within the interface that can be used for triggers, for a Trigger Out signal, or for a DFI signal.
Those event handles derived from signals in the Status Subsystem are shown as circled numbers in Figure 4-1. Other event
handles are described in "Chapter 5 - Synchronizing Power Module Output Changes".
54 Status Reporting
Initial Conditions At Power On
Status Registers
When the power module is turned on, a sequence of commands initializes the status registers. Table 4-4 shows the register
states and corresponding power-on commands for the factory-default *RST power-on state. If the module power-on function
switch is set to 0, then the power-on state is determined by the parameters stored in location 0 (see Chapter 4 of the User’s
Guide).
Table 4-4. Default Power On Register States
Register Condition Caused By
Operation PTR; Questionable PTR All bits = 1
Operation NTR; Questionable NTR All bits = 0
Operation Event; Questionable Event All bits = 0
Operation Enable; Questionable Enable All bits = 0
Standard Event Status Enable All bits = 0
1
Status Byte All bits = 0
Status Request Enable All bits = 0
Output Queue Cleared
1
If PSC=1. If PSC = 0, then the last previous state before turn on is recalled. The value of PSC is
1
STAT:PRE
STAT:PRE
*CLS
STAT:PRE
*ESE 0
*CLS
*SRE 0
*CLS
stored in nonvolatile memory.
The PON (Power On) Bit
The PON bit in the Standard Event register is set whenever the power module is turned on. The most common use for PON
is to generate an SRQ at power on following an unexpected loss of power. To do this, bit 7 of the Standard Event Enable
register must be set so that a power-on event registers in the ESB (Standard Event Summary Bit). Also, bit 5 of the Service
Request Enable register must be set to permit an SRQ to be generated. The commands to accomplish these two conditions
are:
*ESE 128
*SRE 32
If *PSC is programmed to 0, the contents of the Standard Event Enable and Service Request Enable registers are saved in
nonvolatile memory and recalled at power on. This allows a PON event to generate SRQ at power on. Programming *PSC
to 1 prevents these registers from being saved and they are cleared at power on. This prevents a PON event from generating
SRQ at power on.
Examples
Note These examples are generic SCPI commands. See "Chapter 2 - Programming Introduction" for
information about encoding the commands as language strings.
Servicing an Operation Status Mode Event
This example assumes you want a service request generated whenever the power module switches to the CC (constant
current) mode. From Figure 4-1, note that the required path is for a condition at bit 10 (CC) of the Operation Status register
to set bit 6 (RQS) of the Status Byte register. The required register programming is as follows:
Status Reporting 55
Table 4-5. Generating RQS from the CC Event
Register Command Comment
Operation PTR
Operation Enable
Service Request Enable
Operation Condition
1
All bits of the PTR registers bits are set to 1 at power on.
STAT:OPER:PTR 1024
STAT:OPER:ENAB 1024
*SRE 128
STAT:OPER:EVEN?
Allows a positive transition at the CC input (bit 10) to be
latched into the Status Event register.
Allows the latched CC event to be summed into the OPER
summary bit.
Enables the OPER summary bit from the Status Byte register to
generate RQS.
When you service the request, read the event register to
determine that bit 10 (CC) is set and to clear the register for the
next event.
1
Adding More Operation Events
To add CV (constant voltage) and DWE (dwelling) events to this example, it is only necessary to add the decimal values for
bit 8 (value 64) and bit 12 (value 4096) to the programming commands of the Operation Status group. The commands to do
this are:
STAT:OPER:PTR 5376;ENAB 5376
It is not necessary to change any other registers, since the programming for the operation summary bit (OPER) path has
already been done.
Servicing Questionable Status Events
To add OC (overcurrent) and OT (overtemperature) events to this example, program Questionable Status group bits
1 and 4.
STAT:QUES:PTR 18;ENAB 18
Next, you must program the Service Request Enable register to recognize both the questionable (QUES) and the operational
(OPER) summary bits.
*SRE 136
Now when there is a service request, read back both the operational and the questionable event registers.
STAT:OPER:EVEN?;QUES:EVEN?
Monitoring Both Phases of a Status Transition
You can monitor a status signal for both its positive and negative transitions. For example, to generate RQS when the
power module either enters the CC (constant current) condition or leaves that condition, program the Operational Status
PTR/NTR filter as follows:
STAT:OPER:PTR 1024;NTR 1024
STAT:OPER:ENAB 1024;*SRE 128
The PTR filter will cause the OPER summary bit to set RQS when CC occurs. Then the controller subsequently reads the
event register (STAT: OPER: EVEN?), the register is cleared. When CC subsequently goes false, the NTR filter causes the
OPER summary bit to again set RQS.
56 Status Reporting
5
Synchronizing Power Module Output Changes
Introduction
If you use only the VOLT [: LEV] : TRIG and/or CURR [: LEV] : TRIG commands to trigger output changes, you do not need the
information in this chapter. This chapter gives supplemental information on how you can synchronize power module output
changes to internal or external events. The output changes can be:
•
•
•
•
•
The event to which the output change is synchronized can be any of the following:
•
•
•
•
•
•
A change in output voltage level.
A change in output current level.
The start of an internally-paced list of output voltage or current levels.
A step to the next level in a list of output voltage or current levels.
A change in the output state (on or off).
A command from the controller.
A GPIB bus command.
An event that occurs within the power module.
An event that occurs within another power module.
An external signal at the mainframe trigger input.
An external signal at the mainframe fault inhibit input (INH).
The output synchronization is implemented by the following power module functions:
•
•
•
•
Trigger subsystem.
List subsystem.
Remote inhibit (RI) subsystem.
Discrete fault indicator (DFI) subsystem.
Trigger Subsystem
Two simplified models of the trigger subsystem are presented. The first model shows how the trigger subsystem functions
during fixed-mode output. This mode occurs when VOLT:MODE FIX or CURR:MODE FIX is in effect (see "Chapter 3 Language Dictionary"). In this mode of output control, each triggered output voltage or current value is explicitly specified
by a triggered-level command (for example, VOLT: TRIG 20 or CURR: TRIG 1.55). The trigger then causes the output to
change to this pending triggered level.
The second model shows the difference in trigger subsystem operation during list-mode output. This mode occurs when the
VOLT:MODE LIST or CURR:MODE LIST command is programmed (see "List Subsystem" further in this chapter for an
explanation of lists). In this mode of output operation, the triggered output voltage or current levels are specified within a
list and the trigger controls the sequencing through the values in the list.
Model of Fixed-Mode Trigger Operation
Figure 5-lA is a simplified model of trigger subsystem operation when the power module is programmed for fixed-mode
output. The rectangular boxes represent states. The arrows show the transitions between states. These are labeled with the
input or event that causes the transition to occur.
Synchronizing Power Module Output Changes 57
Idle State
When the power module is turned on, the trigger subsystem is in the idle state. In this state, the trigger subsystem ignores
all triggers. When the trigger action has been completed, the trigger subsystem returns to this state. It also returns to the
Idle state if the ABORt command or an implied ABORt command (*RST, *RCL, or any LIST) is sent.
Initiated State
The INITiate command moves the trigger subsystem from the Idle state to the Initiated State. This enables the power module
to receive triggers. The source of the trigger is selected with the TRIGger:SOURce command (see "Chapter 3 - Language
Dictionary"). When in the Initiated state, the power module responds to events on the selected trigger source by transferring
to the Delaying state. As shown in Figure 5-lA there is another trigger signal that is not subject to TRIG: SOUR control. This
is the TRIGger:IMMediate command. If the trigger subsystem is in the Initiated state, this command generates a trigger that
transfers the trigger subsystem directly to the Output Change state, bypassing the Delaying state.
Delaying State
When a trigger event occurs on the selected trigger source, the trigger subsystem transfers to the Delaying state. In this
state, the subsystem waits for the interval specified by the TRIGger:DELay command before moving to the next state. As
shown in Figure 5-1A, a TRIGger: IMMediate command will bypass any programmed delay and cause an immediate transition
to the Output Change state.
Figure 5-1. Simplified Models of Trigger Modes
58 Synchronizing Power Module Output Changes
Output Change State
When the trigger subsystem enters the Output Change state, the output voltage and current are set to the pending levels
programmed by the VOLTage:TRIGgered and CURRent:TRIGgered commands. Once this occurs, the existing triggered levels
are cleared and must be reprogrammed. If no triggered levels are programmed, then the trigger has no effect on the output
levels. When the triggered actions are completed, the trigger subsystem returns to the Idle state.
Model of List Mode Trigger Operation
Figure 5-1B is a simplified model of trigger subsystem operation when power module is programmed for list-mode output.
Operation in the Idle, Initiated, and Delaying states are identical to that described under fixed-mode operation.
Output Change State
When the trigger subsystem enters the Output Change state in List mode, the output voltage and/or current is set to the next
value (point) in the programmed list. The trigger subsystem then transfers to the next (Dwelling) state and increments the
list to the next point. If there are no more points in the list, the subsystem resets the list to the first point. This completes
the list, unless LIST: COUNt is programmed to greater than one. In that case, the list is not completed until it has repeated the
list sequence the number of times specified by the count.
Dwelling State
Each voltage and current list point has an associated dwell interval specified by the LIST:DWELL command. After the new
output value is established, the trigger system pauses for the programmed dwell interval. During this dwell interval, trigger
events are ignored and only an ABORt (or implied abort) command can transfer the subsystem out of the Dwelling state.
At the end of the dwell interval, the transition to the next state depends on whether or not the list has completed its
sequencing and on how the LIST: STEP command has been programmed.
•
•
The INITiate:CONTinuous Command
In the above descriptions of the trigger subsystem models, the INITiate: IMMediate command was used to move from the Idle
to the Initiated state. In some applications, it may be desirable to have the subsystem return directly to the Initiated state
after a trigger action has completed. Programming INITiate:CONTinuous ON does this by bypassing the Idle state. If the
ABORt command is given while INIT: CONT is ON, the trigger subsystem transfers to the Idle state but immediately exits to
the Initiated state.
Trigger Status and Event Signals
Some transitions of the trigger subsystem provide inputs to the status subsystem. Others are defined as "event handles",
which are selectable trigger sources by way of parameters in link commands TRIGger:LINK, OUTPut:DFI:LINK and
OUTPut:TTLT:LINK (see Table 3-1). Table 5-1 summarizes these signals.
If the list is completed, the trigger subsystem returns to the Idle state.
If the list is not completed, then the subsystem reacts as follows:
•
•
If LIST: STEP ONCE has been programmed, the trigger subsystem returns to the Idle state.
If LIST: STEP AUTO has been programmed, the trigger subsystem returns to the Output Change state and
immediately executes the next list point.
Synchronizing Power Module Output Changes 59
Table 5-1. Trigger Subsystem Status and Event Signals
Signal Type Description
DWE Status Bit Dwelling. True only during the dwelling state. DWE can be monitored at the
Operation Status register (see "Chapter 4 - Status Reporting").
LSC Event Handle List Sequence Complete. Occurs upon exit from the Dwelling state after the
last programmed list point has been executed. If LIST: COUNt is greater than
1, LSC occurs once for each count until the list is done.
RTG Event Handle Received a trigger. Occurs upon exit from the Initiated state.
TDC Event Handle Trigger delay complete. Occurs upon exit from the Delaying state.
STC Event Handle Step Completed. Occurs upon exit from the Dwelling state.
STS Event Handle Step Started. Occurs upon transition into the Dwelling state.
WTG Status Bit Waiting for trigger. True only when the trigger subsystem is in either the
Initiated or the Delaying state. WTG can be monitored at the Operation Status
register (see "Chapter 4 - Status Reporting”).
Trigger In and Trigger Out
The mainframe has two bnc connectors labeled Trigger In and Trigger Out. Figure 5-2 shows the model for these signals,
which are applied to all power modules in the mainframe (see “TrigIn/TrigOut Characteristics” in Chapter 1 of Agilent
66000A Installation Guide for electrical parameters). Trigger In and Trigger Out are electrically isolated at each power
module from the mainframe chassis reference ground.
Trigger In
Trigger In is a TTL level input that can be selected as a trigger source for each module. Modules recognize a Trigger In
signal on its falling edge. Trigger In is selected as a trigger source with the EXTernal parameter. For example:
TRIGger:SOURce EXT
OUTPut:TTLT:SOURce EXT
Trigger Out
The Trigger Out signal is a 20-microsecond, negative-true TTL pulse. This pulse can be driven by each power module by
programming the OUTPut:TTLTrg commands. Each module can also select Trigger Out as a trigger source by programming
the SCPI TRIGger:SOURce TTLT command (see "Chapter 3 - Language Dictionary" for details of these commands).
•
•
To select the Trigger In connector as a trigger source, use TRIG: SOUR EXT
To apply a trigger to the Trigger Out connector, use OUTP:TTLT ON. You must also select the source
(OUTP:TTLT:SOUR).
Figure 5-2. TTLT Trigger Model
60 Synchronizing Power Module Output Changes
List Subsystem
The List Subsystem commands allow you to program a sequence of voltage and/or current values that will be applied to the
power module output when it is the list mode (VOLTage:MODE LIST or CURRent:MODE LIST). Up to 20 voltage and current
values, with 20 associated time intervals (dwells), may be programmed. By using lists, you can program a complex
sequence of power module outputs with minimal interaction between the controller and the power module. Lists allow you
to time output changes more precisely or to better synchronize them (using triggers) with asynchronous events.
Basic Steps of List Sequencing
You can program the number of output levels (or points) in the list, the time interval that each level is maintained, the
number of times that the list will be executed, and how the levels change in response to triggers. This is a synopsis of the
list commands:
List Function Command
Enable the voltage list function
Enable the current list function
Specify the voltage output levels (points)
Specify the current output levels (points)
Specify the time duration of each output level
Specify the times the list is repeated
Select the list response to a trigger
Programming the List Output Levels
VOLT:MODE LIST
CURR:MODE LIST
LIST:VOLT <NRf+>
LIST:CURR <NRf+>
LIST:DWEL <NRf+>
LIST:COUN <NRf+>
LIST:STEP AUTO|ONCE
1. Enable the specific output to be controlled by the list. For example,
VOLT:MODE LIST
CURR:MODE LIST
2. Program the desired output levels or points. The order of the points determines the order in which the output levels will
occur. To sequence the voltage through values of 1, 1.5, 3, 1.5, and 1 volts, program:
LIST:VOLT 1,1.5,3.0,1.5,1
You can specify lists for both voltage and current. For example:
LIST:VOLT 1,2,5,6,8
LIST:CURR 10,5,2,1.67,1.25
Both lists must have the same number of points. The exception is if a list has only a single point. In this case, the singlepoint list is treated as if it has the same number of points as the other list with each point equal to the programmed value.
For example, if you send:
LIST:VOLT 1,2,5,6,8;CURR 1
then the power module will respond as if the two lists were:
LIST:VOLT 1,2,5,6,8
LIST:CURR 1,1,1,1,1
Note Execution of a list will be aborted if an ABORt command or an implied ABORt command (another list
command, the *RST command or the *RCL command) is sent.
Programming List Intervals
The dwell time is the interval that the output remains at the programmed value. The time unit is seconds. The following
command specifies five dwell intervals:
LIST:DWEL 1,1.5,3,1.5,.5
Synchronizing Power Module Output Changes 61
The number of dwell points must equal the number of output points:
LIST:VOLT 3.0,3.25,3.5,3.75
LIST:DWEL 10,10,25,40
The only exception is for a dwell list with one value, which gives the same interval to all the points in the corresponding
voltage or current list.
Note Sending a VOLT [: LEV: IMM] or CURR [: LEV: IMM] command during an interval will override the list
output value for that interval. When the next interval begins, the output will be determined by the list
value for that interval.
Automatically Repeating a List
You can repeat a list by entering a LIST: COUNt parameter. The parameter determines how many times a list is executed or
sequenced. Enter an integer or enter the value INF to make the list repeat indefinitely. For example, to make the current list
2,3,12,15 repeat 5 times, send:
LIST:CURR 2,3,12,15
LIST:COUN 5
The LIST: COUNt parameter is stored by *SAV and restored by *RCL. The GPIB *RST value is 1.
Triggering a List
No list will execute without a trigger. How the list responds to a trigger depends on how you program the LIST: STEP AUTO
| ONCE command. The method you use will depend upon whether you want the list to be paced by dwell intervals or by
triggers.
Dwell-Paced Lists
For a closely controlled sequence of output levels, you can use a dwell-paced list. Each list output point remains in effect
for the dwell time associated with that point. When the dwell time expires, the output immediately changes to the next point
in the list.
For dwell pacing, program LIST: STEP to AUTO (see Figure 5-3-A). The dwell-paced list requires only a single trigger to
start the list. The trigger subsystem remains in the dwelling state until the list is completed. If LIST: COUN is greater than 1,
the entire list is repeated until the count has been satisfied (see Figure 5-1-B).
Trigger-Paced Lists
If you need the output to closely follow asynchronous events, then a trigger-paced list is more appropriate. Program LIST:
STEP to ONCE (see Figure 5-3-B). Now expiration of a dwell interval returns the trigger subsystem to the Initiated state.
The subsystem then waits for a trigger to start the next dwell interval. During this time, the power module output remains at
the level set by the last executed point in the list.
Note If the subsystem is not in the dwelling state, a TRIGger [: IMMediate] command will sequence the next point
in the list.
62 Synchronizing Power Module Output Changes
Figure 5-3. Timing diagrams of LIST:STEP Operation
Synchronizing Power Module Output Changes 63
DFI (Discrete Fault Indicator) Subsystem
Whenever a fault is detected in the power module, it is capable of generating a low-true TTL signal at the mainframe FLT
jack for communication with external devices (see “INH/FLT Characteristics” in Chapter 1 of the Agilent 66000A
Installation Guide for the electrical parameters). The source for the DFI signal can be any of the parameters of the
OUTPut:DFI:LINK command (see Table 3-1). The SUM3 link parameter allows any combination of Questionable, Operation,
or Event status bits to generate the DFI signal. The GPIB *RST command sets the link parameter to SUM3.
RI (Remote Inhibit) Subsystem
Each power module is connected to the mainframe INH jack via a function selector switch. (See Chapter 2 of the Operating
Guide for details concerning this switch.) When the switch is set to enable the RI function, a low-true TTL signal at the INH
input will shut down the power module. This generates an RI status bit at the Questionable Status register (see "Chapter 4 Status Reporting"). By programming the status subsystem, you may use RI to generate a service request (SRQ) to the
controller and/or to create a DFI output at the mainframe FLT jack. By using RI/DFI in this way, you can chain the power
modules to create a serial shutdown in response to the INH input.
SCPI Command Completion
SCPI commands sent to the power module are processed either sequentially or in parallel. Sequential commands finish
execution before a subsequent command begins. A parallel command can begin execution while a preexisting command is
still executing (overlapping commands). Commands that affect list and trigger actions are among the parallel commands.
There *WAI, *OPC, and *OPC? common commands provide different ways of indicating when all transmitted commands,
including any parallel ones, have completed their operations. The syntax and parameters for these commands are described
in "Chapter 3 - Language Dictionary". Some practical considerations for using these commands are as follows:
*WAI This prevents the power module from processing subsequent commands until all pending operations are
completed. If something prevents completion of an existing operation, *WAI can place the module and the
controller in a "hang-up" condition.
*OPC? This places a 1 in the Output Queue when all pending operations have completed. Because it requires
your program to read the returned value from the queue before executing the next program statement,
*OPC? could prevent subsequent commands from being executed.
*OPC This sets the OPC status bit when all pending operations have completed. Since your program can read
this status bit on an interrupt basis, *OPC allows subsequent commands to be executed.
The trigger subsystem must be in the Idle state in order for the status OPC bit to be true. Therefore, as far as triggers and
lists are concerned, OPC is false whenever the trigger subsystem is in the Initiated state. However, OPC is also false if there
are any commands pending within any other subsystems. For example, if you send CURR: TRIG 1 . 5 after a VOLT:LIST
command, completion of the CURR:TRIG command will not set OPC if the list command is still executing.
Note For a detailed discussion of *WAI, *OPC and *OPC?, see "Device/Controller Synchronization Techniques"
in ANSI/IEEE Std. 488.2-1987.
64 Synchronizing Power Module Output Changes
6
Error Messages
Power Module Hardware Error Messages
Front panel error messages resulting from selftest errors or runtime failures are described in the power module User’s
Guide.
System Error Messages
System error messages are read back via the SYST:ERR? query. The error number is the value placed in the power module
error queue. SYST:ERR? returns the error number into a variable and combines the number and the error message into a
string. Table 6-1 lists the system errors that are associated with SCPI syntax errors and interface problems. Information
inside the brackets is not part of the standard error message, but is included for clarification. When system errors occur, the
Standard Event Status register (see "Chapter 4 - Status Reporting") records them as follows:
Standard Event Status Register Error Bits
Bit Set Error Code Error Type Bit Set Error Code Error Type
5
4
Error
Number
-100 Command error [generic]
-101 Invalid character
-102 Syntax error [unrecognized command or data type]
-103 Invalid separator
-104 Data type error [e.g., “numeric or string expected, got block date”]
-105 GET not allowed
-108 Parameter not allowed [too many parameters]
-109 Missing parameter [too few parameters]
-112 Program mnemonic too long [maximum 12 characters]
-113 Undefined header [operation not allowed for this device]
-121 Invalid character in number [includes "9" in octal data, etc.]
-123 Numeric overflow [exponent too large; exponent magnitude >32 k]
-124 Too many digits [number too long; more than 255 digits received]
-128 Numeric data not allowed
-131 Invalid suffix [unrecognized units, or units not appropriate]
-138 Suffix not allowed
-141 Invalid character data [bad character, or unrecognized]
-148 Character data not allowed
-150 String data error
-151 Invalid string data [e.g., END received before close quote]
-158 String data not allowed
-161 Invalid block data [e.g., END received before length satisfied]
-168 Block data not allowed
-200 Execution error [generic]
-220 Parameter error
-100 thru -199 Command
-200 thru -299 Execution
Table 6-1. Summary of System Error Messages
Error String [Description/Explanation/Examples]
3
2
-300 thru -399 Device-dependent
-400 thru -499 Query
Error Messages 65
Table 6-1. Summary of System Error Messages (continued)
Error
Number
-222 Data out of range [e.g., too large for this device]
-223 Too much data [out of memory; block, string, or expression too long]
-241 Hardware missing [device-specific]
-310 System error
-330 Self-test failed
-350 Too many errors [errors lost due to queue overflow]
-400 Query error [generic]
-410 Query INTERRUPTED [query followed by DAB or GET before response complete]
-420 Query UNTERMINATED [addressed to talk, incomplete programming message received]
-430 Query DEADLOCKED [too many queries in command string]
-440 Query UNTERMINATED [after indefinite response]
Error String [Description/Explanation/Examples]
66 Error Messages
A
SCPI Conformance Information
Note See Chapter 3 - Language Dictionary for command syntax.
SCPI Version
This power module conforms to Version 1990.0.
SCPI Confirmed Commands
ABOR STAT:OPER:NTR? [SOUR]:VOLT[:LEV][:IMM][:AMPL)
CAL:AUT STAT:OPER:PTR [SOURI:VOLT[:LEV][:IMM][:AMPL]?
CAL:STAT STAT:OPER:PTR? [SOUR]:VOLT[:LEV][:TRIG][:AMPL]
DISP[:WIND][:STAT] STAT:PRES [SOUR]:VOLT[:LEV][:TRIG][:AMPL]?
DISP[:WIND][:STAT]? STAT:QUES[:EVEN]? [SOUR]:VOLT:MODE
INIT[:IMM] STAT:QUES:COND? [SOUR]:VOLT:MODE?
INIT:CONT STAT:QUES:ENAB [SOUR]:VOLT:PROT[:LEV]
INIT:CONT? STAT:QUES:ENAB? [SOUR]:VOLT:PROT[:LEV]?
MEAS:CURR[:DC]? [SOUR]:CURR[:LEV][:IMM][:AMPL] SYST:ERR?
MEAS:VOLT[:DC]? [SOUR]:CURR[:LEV][:IMM][:AMPL]? SYST:VERS?
OUTP[:STAT] [SOUR]:CURR[:LEV]:TRIG[:AMPL] TRIG[:STAR][:IMM]
OUTP[:STAT?] [SOUR]:CURR[:LEV]:TRIG[:AMPL]? TRIG:DEL
OUTP:PROT:CLE [SOUR]:CURR:MODE TRIG:DEL?
OUTP:PROT:DEL [SOUR]:CURR:MODE? TRIG:LINK
OUTP:PROT:DEL? [SOUR]:CURR:PROT:STAT TRIG:LINK?
OUTP:TTLT[:STAT] [SOUR]:CURR:PROT:STAT? TRIG:SOUR
OUTP:TTLT[:STAT]? [SOUR]:LIST:COUN TRIG:SOUR?
OUTP:TTLT:LINK [SOUR]:LIST:COUN? *CLS
OUTP:TTLT:LINK? [SOUR]:LIST:CURR *ESE *ESE? *ESR?
OUTP:TTLT:SOUR [SOUR]:LIST:CURR:POIN? *IDN?
OUTP:TTLT:SOUR? [SOUR]:LIST:DWEL? *OPC *OPC? *OPT?
STAT:OPER[:EVEN]? [SOUR]:LIST:DWEL:POIN? *PSC *PSC?
STAT:OPER:COND? [SOUR]:LIST:STEP *RCL *RST
STAT:OPER:ENAB [SOUR]:LIST:STEP? *SAV *SRE *STB?
STAT:OPER:ENAB? [SOUR]:LIST:VOLT *TRG *TST?
STAT:OPER:NTR [SOUR]:LIST:VOLT:POIN? *WAI
SCPI Approved Commands
(None)
SCPI Conformance Information 67
Non-SCPI Commands
CAL:CURR OUTP:DFI:SOUR?
CAL:PASS OUTP:REL[:STAT]
CAL:SAVE OUTP:REL[:STAT]?
CAL:VOLT OUTP:REL:POL
OUTP:DFI[:STAT] OUTP:REL:POL?
OUTP:DFI[:STAT]? [SOUR]:LIST:STEP
OUTP:DFI:LINK [SOUR]:LIST:STEP?
OUTP:DFI:LINK? [SOUR]:VOLT:SENS?
OUTP:DFI:SOUR
68 SCPI Conformance Information
Application Programs
This section contains seven example applications. For each application, there is:
B
•
•
•
•
•
•
•
The following table lists what MPS features are used in each of the applications. It can be used as an index into this section.
Application 1. Sequencing Multiple Modules During Power Up
Application 2. Sequencing Multiple Modules to Power Down on Event
Application 3. Controlling Output Voltage Ramp Up at Turn On
Application 4. Providing Time-Varying Voltages
Application 5. Providing Time-Varying Current Limiting
Application 6. Output Sequencing Paced by the Computer
Application 7. Output Sequencing Without Computer Intervention
An overview of the application.
Which MPS features are used to implement the application.
The advantages and benefits of the MPS solution.
The details of the implementation of the solution.
A block diagram of the setup.
A sample program listing in Agilent BASIC.
A description of variations on the application.
Application
1234567
Lists
20-point current List
20-point voltage List
Repetitive Lists
Dwell time
List Pacing
Dwell-paced Lists
Trigger-paced Lists
Actions Due To A Change In Status
Generate an SRQ
Generate a trigger
Disable the output
Stop the List
Triggers
Change the voltage on trigger
Trigger in/out from MPS backplane TTL
Trigger
Trigger on a GPIB trigger command
Trigger delay
Other Features
Active downprogramming
Overcurrent protection
ll l
ll ll
lllll
ll
l
ll ll
l
lll l
lll
ll
ll
ll
ll
ll
lll
ll
Application Programs 69
Application 1. Sequencing Multiple Modules During Power Up
Overview of Application
When testing mixed signal devices, ± bias supply voltages are typically applied before logic bias supply voltages. For a
device that is sensitive to when bias voltages are applied, the order of power up of multiple power modules can be
controlled.
For this example, the device requires three bias supplies, + 5 V for the logic circuits and ± 15 V for amplifier circuits. To
properly power up the device, the supplies must be sequenced so that the ± 15 V are applied first and the + 5 V is applied 50
ms later.
The MPS can easily address this application through the use of triggers. The trigger will cause the modules to change from
0 V, where they are not powering the DUT, to their final voltage. By delaying the response to the trigger, you can control
when the module's output voltage changes. This means you can control the sequence of the modules during power up.
MPS Features Used
•
•
•
•
Advantages/Benefits Of The MPS Solution
By using trigger delay, the timing is accurate and repeatable.
The sequence is simpler to program (no timing loops).
The computer is not devoted to sequencing power modules.
The computer does not provide timing for the sequence.
One command initiates the sequence.
Implementation Details
How the MPS Implements The Sequence
The computer sends a trigger command to the first module.
The first module simultaneously sends a backplane trigger to other two modules and goes to + 15 V.
The second module receives the backplane TTL Trigger and immediately goes to - 15 V.
The third module receives the backplane TTL Trigger, delays 50 ms, and then goes to + 5 V.
MPS Set Up
Module in slot 0:
The module is connected to + 15 V on the DUT.
The initial voltage setting is 0 V.
The module listens for the computer to send a trigger command.
Upon receipt of the trigger command, the module goes to 15 V.
Also upon receipt of the trigger command, the module generates a backplane TTL Trigger.
Change the voltage on trigger.
Trigger in/out from MPS mainframe backplane TTL Trigger.
Trigger on a GPIB trigger command Trigger delay.
Trigger delay.
Module in slot 1:
The module is connected to - 15 V on the DUT.
The initial voltage setting is 0 V.
The module listens for a backplane TTL Trigger.
Upon receipt of the trigger, the module goes to 15 V.
70 Application Programs
Module in slot 2:
The module is connected to + 5 V on the DUT.
The initial voltage setting is 0 V.
The module listens for a backplane TTL Trigger.
The trigger delay is programmed to 50 ms.
Upon receipt of the trigger, the module waits the trigger delay time and then goes to 5 V.
Variations On This Implementation
1. The modules could be set to generate SRQ when the last module (+ 5 V) reaches its final output value. This would notify
the computer that power has been applied to the DUT and the testing can begin.
2. To provide a delay between the application of the + 15 V and the - 15 V bias, you can program different trigger delays
into modules 2 and 3. The delay time will be relative to the module in slot 0.
3. To get all three modules to apply power to the DUT at the same time, simply eliminate the trigger delay on the + 5 V
module.
4. When modules need to be connected in parallel to increase current, they will also need to be synchronized so that they all
apply power simultaneously. To get modules in parallel to apply power at the same time, use the approach described in
this example, but eliminate any trigger delays.
Figure B1-1. Block Diagram of Application #1
Application Programs 71
72 Application Programs
Figure B1-2. Timing Diagram of Application #1
10 ! APPLICATION #1: SEQUENCING MULTIPLE MODULES DURING POWER UP
20 ! PROGRAM: APP_1
30 !
40 ASSIGN @Slot0 TO 70500 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
50 ASSIGN @Slot1 TO 70501 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 01
60 ASSIGN @Slot2 TO 70502 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 02
70 !
80 ! SET UP MODULE IN SLOT 0 AS +15 V BIAS SUPPLY --------------------90 1
100 OUTPUT@Slot0;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
110 OUTPUT@Slot0;”VOLT 0” ! START AT 0 V
120 OUTPUT@Slot0;”VOLT:TRIGGERED 15” ! GO TO 15 V ON TRIGGER
130 OUTPUT@Stot0;”TRIGGER:SOURCE BUS” ! TRIGGER SOURCE IS
140 OUTPUT@Stot0;”OUTPUT:TTLTRG:SOURCE BUS" ! GENERATE BACKPLANE TTL TRIGGER WHEN
RECEIVED
150 OUTPUT@Slot0;”OUTPUT:TTLTRG:STATE ON" I ENABLE BACKPLANE TTL TRIGGER DRIVE
160 OUTPUT@Slot0;”OUTPUT ON" ! ENABLE OUTPUT
170 OUTPUT@Slot0;”INITIATE" ! ENABLE RESPONSE TO TRIGGER
180 !
190 ! SET UP MODULE IN SLOT 1 AS -15 V BIAS SUPPLY --------------------200 1
210 OUTPUT@Slot1;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
220 OUTPUT@Slot1;"VOLT 0” ! START AT 0 V
230 OUTPUT@Slot1;"VOLT:TRIGGERED 15” ! GO TO 15 V ON TRIGGER
240 OUTPUT@Slot1;"TRIGGER:SOURCE TTLTRG" ! TRIGGER SOURCE IS BACKPLANE TTL TRIGGER
250 OUTPUT @Slot1;"OUTPUT ON" ! ENABLE OUTPUT
260 OUTPUT @Slot1;"INITIATE" ! ENABLE RESPONSE TO TRIGGER
270 !
280 ! SET UP MODULE IN SLOT 2 AS +5 V BIAS SUPPLY --------------------290 !
300 OUTPUT @Slot2;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
310 OUTPUT @Slot2;"VOLT 0” ! START AT 0 V
320 OUTPUT @Slot2;"VOLT:TRIGGERED 5” ! GO TO 5 V ON TRIGGER
330 OUTPUT @Slot2;"TRIGGER:SOURCE TTLTRG" ! TRIGGER SOURCE IS BACKPLANE TTL TRIGGER
340 OUTPUT @Slot2;"TRIGGER:DELAY 0.050” ! 50 ms TRIGGER DELAY
350 OUTPUT @Slot2;"OUTPUT ON" ! ENABLE OUTPUT
360 OUTPUT @Slot2;"INITIATE" ! ENABLE RESPONSE TO TRIGGER
370 !
380 ! BEFORE TRIGGERING THE MODULES, DETERMINE IF THE MODULES ARE READY BY CHECKING FOR
390 ! 'WAITING FOR TRIGGER' (BIT 5 OF THE OPERATION STATUS REGISTER). IF THE LAST MODULE PROGRAMMED
400 ! IS READY THEN SO ARE THE OTHERS, SO JUST CHECK SLOT 2.
410 !
420 ! YOU COULD ELIMINATE THIS STEP BY SIMPLY INSERTING A PAUSE IN THE PROGRAM. HOWEVER, BY
430 ! CHECKING THE INSTRUMENT STATUS, YOU CAN AVOID TIMING PROBLEMS. ALSO, ANY OTHER OPERATIONS
440 ! THAT TAKE TIME WILL GIVE THE MODULES A CHANCE TO COMPLETE PROCESSING.
450 !
460 REPEAT
470 OUTPUT @Slot2;"STATUS:OPERATION:CONDITION?"
480 ENTER @Slot2;Condition_data
490 UNTIL BIT(Condition_data,5) ! TEST FOR BIT 5 = TRUE
500 !
510 ! TRIGGER MODULE IN SLOT 0 TO BEGIN SEQUENCING THE 3 MODULES TO POWER UP
520 !
530 OUTPUT @Slot0;"*TRG” ! SEND Agilent
540 !
550 END
-1B 'BUS' TRIGGER
Agilent -18 'BUS'
GPIB 'BUS' TRIGGER IS
Figure B1-3. Agilent BASIC Program Listing for Application #1
Application Programs 73
Application 2. Sequencing Multiple Modules to Power Down on Event
Overview Of Application
When testing devices, such as some GaAs and ECL devices that are sensitive to when bias voltages are removed, the order
of power-down of multiple power modules can be controlled. The power-down sequence can be initiated by an event, such
as a change in power module status, fault condition, detection of a TTL signal, etc.
For this example, there are three supplies + 5 V and ± 15 V. (See previous application for how to generate a power up
sequence.) Once the power has been applied to the DUT, the modules can be reprogrammed to perform the power down
sequence. The power down sequence is initiated when a fault in the DUT draws excessive current from the power module,
causing the module to change from CV to CC. To prevent damage to the DUT, it is necessary to remove the + 5 V first,
then the ± 15 V modules 15 ms later.
Once again, MPS triggering can solve the application. In this scenario, the CV-to-CC crossover event will be used as the
trigger source. The trigger will cause the modules, in the correct order, to change from their programmed voltages down to
0 V.
MPS Features Used
•
•
•
•
Advantages/Benefits Of The MPS Solution
By using the modules' change in status to automatically generate a trigger, the computer is not devoted to polling the
modules to detect a change in state.
By letting each module monitor its status, the CC condition will generate a response faster than if the computer was polling
the module to detect a change in state.
The sequence is simpler to program (no timing loops).
By using trigger delay, the timing is accurate and repeatable because the computer does not provide timing for the sequence.
The active downprogrammers in the module output can quickly discharge the module's output capacitors and any
capacitance in the DUT.
Implementation Details
How The MPS Implements The Solution
All modules are set to listen for a backplane TTL Trigger.
When any module detects a change in status from CV to CC, it sends out a backplane TTL Trigger.
When the + 5 V module receives the trigger, it immediately goes to 0 V.
When the + 15 V and - 15 V modules receive the trigger, they wait the trigger delay time and then go to 0 V.
Generate a trigger on a change in internal status.
Change the voltage on trigger.
Trigger in/out from MPS mainframe backplane TTL Trigger o Trigger delay.
Active downprogramming.
Note Any module can generate both the backplane TTL Trigger signal and be triggered by that same signal.
74 Application Programs
MPS Set Up
Module in slot 0:
The module is connected to + 15 V on the DUT.
The initial voltage setting is 15 V.
The module monitors its status.
The module will generate a backplane TTL Trigger on CV-to-CC crossover.
The module listens for a backplane TTL Trigger.
The trigger delay is programmed to 15 ms.
Upon receipt of the trigger, the module waits the trigger delay time and then goes to 0 V.
Module in slot 1:
The module is connected to supply - 15 V to the DUT.
The initial voltage setting is 15 V
The module monitors its status.
The module will generate a backplane TTL Trigger on CV-to-CC crossover.
The module listens for backplane TTL Trigger.
The trigger delay is programmed to 15 ms.
Upon receipt of the trigger, the module waits the trigger delay time and then goes to 0 V.
Module in slot 2.
The module is connected to supply + 5 V to the DUT.
The initial voltage setting is 5 V.
The module monitors its status.
The module will generate a backplane TTL Trigger on CV-to-CC crossover.
The module listens for backplane TTL Trigger.
Upon receipt of the trigger, the module immediately goes to 0 V.
Variations On This Implementation
1. The modules could be set to generate SRQ when the last module reaches 0 V. This could notify the computer that power
has been removed from the DUT.
2. The modules could be set to generate a DFI (Discrete Fault Indicator) signal on the MPS rear panel on a change in status.
This signal could be used to shut down other power modules, to flash an alarm light, or to sound a buzzer. This could
also be routed to other instruments to signal them to stop making measurements.
3. To get all three modules to remove power from the DUT at the same time, simply eliminate the trigger delay on the ± 15
V modules.
4. To provide a delay between the removal of the three bias voltages, you can program a different trigger delay into each
module.
Application Programs 75
Figure B2-1. Block Diagram of Application #2
76 Application Programs
Figure B2-2. Timing Diagram of Application #2
10 ! APPLICATION #2: SEQUENCING MULTIPLE MODULES TO POWER DOWN ON EVENT
20 ! PROGRAM: APP_2
30 !
40 ASSIGN @Slot0 TO 70500 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
50 ASSIGN @Slot1 To 70501 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 01
60 ASSIGN @Slot2 TO 70502 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 02
70 !
80 ! SET UP MODULE IN SLOT 0 AS +15 V BIAS SUPPLY --------------------90 !
100 OUTPUT @Slot0;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
110 OUTPUT @Slot0;”CURR .5”
120 OUTPUT @Slot0;”VOLT 15” ! START AT 15 V
130 OUTPUT @Slot0;”VOLT:TRIGGERED 0” ! GO TO 0 V ON TRIGGER
140 OUTPUT @Slot0;”TRIGGER:SOURCE TTLTRG" ! TRIGGER SOURCE IS TTL TRIGGER
150 OUTPUT @Slot0;”TRIGGER:DELAY .015” ! 15 ms TRIGGER DELAY
160 OUTPUT @Slot0;”INITIATE" ! ENABLE RESPONSE TO TRIGGER
170 OUTPUT @Slot0;"OUTPUT:TTLTRG:SOURCE LINK" ! GENERATE A BACKPLANE TTL TRIGGER
180 OUTPUT @Slot0;”OUTPUT:TTLTRG:LINK 'CC’ “ ! WHEN A CV-TO-CC TRANSITION OCCURS
190 OUTPUT @Slot0;”OUTPUT:TTLTRG:STATE ON" ! ENABLE TTL TRIGGER DRIVE
200 OUTPUT @Slot0;"OUTPUT ON" ! ENABLE OUTPUT
210 !
220 ! SET UP MODULE IN SLOT 1 AS -15 V BIAS SUPPLY --------------------230 !
240 OUTPUT @Slot1;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
250 OUTPUT @Slot1;"CURR .5”
260 OUTPUT @Slot1;"VOLT 15” ! START AT 15 V
270 OUTPUT @Slot1;"VOLT:TRIGGERED 0” ! GO TO 0 V ON TRIGGER
280 OUTPUT @Slot1;"TRIGGER:SOURCE TTLTRG" ! TRIGGER SOURCE IS BACKPLANE TTL TRIGGER
290 OUTPUT @Slot1;"TRIGGER:DELAY .015” ! 15 ms TRIGGER DELAY
300 OUTPUT @Slot1;"INITIATE" ! ENABLE RESPONSE TO TRIGGER
310 OUTPUT @Slot1;"OUTPUT:TTLTRG:SOURCE LINK" ! GENERATE A BACKPLANE TTL TRIGGER
320 OUTPUT @Slot1;"OUTPUT:TTLTRG:LINK 'CC’ “ ! WHEN A CV-TO-CC TRANSITION OCCURS
330 OUTPUT @Slot1;"OUTPUT:TTLTRG:STATE ON" ! ENABLE TTL TRIGGER DRIVE
340 OUTPUT @Slot1;"OUTPUT ON" ! ENABLE OUTPUT
350 !
360 ! SET UP MODULE IN SLOT 2 AS +5 V BIAS SUPPLY ---------------------370 !
380 OUTPUT @Slot2;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
390 OUTPUT @Slot2;"CURR .5”
400 OUTPUT @Slot2;"VOLT 5” ! START AT 5 V
410 OUTPUT @Slot2;"VOLT:TRIGGERED 0” ! GO TO 0 V ON TRIGGER
420 OUTPUT @Slot2;"TRIGGER:SOURCE TTLTRG" ! TRIGGER SOURCE IS BACKPLANE TTL TRIGGER
430 OUTPUT @Slot2;"INITIATE" ! ENABLE RESPONSE TO TTL TRIGGER
440 OUTPUT @Slot2;"OUTPUT:TTLTRG:SOURCE LINK" ! GENERATE A BACKPLANE TTL TRIGGER
450 OUTPUT @Slot2;"OUTPUT:TTLTRG:LINK 'CC’ “ ! WHEN A CV-TO-CC TRANSITION OCCURS
460 OUTPUT @Slot2;"OUTPUT:TTLTRG:STATE ON" ! ENABLE TTL TRIGGER DRIVE
470 OUTPUT @Slot2;"OUTPUT ON" ! ENABLE OUTPUT
480 !
490 ! THE POWER MODULES ARE NOW SET UP TO IMPLEMENT THE POWER DOWN ON EVENT.
500 ! ANY TIME ANY MODULE GOES INTO CC, THE SEQUENCE WILL OCCUR.
510 !
520 END
Figure B2-3. Agilent BASIC Program Listing for Application #2
Application Programs 77
Application 3. Controlling Output Voltage Ramp Up at Turn On
Overview Of Application
When control over the rate of voltage ramp up at turn-on of the power module output is required, the desired shape can be
approximated by downloading and executing a series of voltage and dwell time points.
For this example, you need to program the power module to change its output from 2 volts to 10 volts, slewing through the 8
volt transition in 0.5 seconds. This results in a turn-on ramp-up of 16 V per second.
The MPS can create this voltage versus time characteristic using Lists. The desired characteristic (in this case, linear) is
simulated using the 20 available voltage points. To determine the value of each point in the transition, simply divide the
change in voltage by 20. To determine the dwell time of each voltage point, divide the total transition time by 19. After the
List has been executed, the module will continue to output the final value (in this case, 10 volts) until the output has been
reprogrammed to another value. Note that the dwell-time of the last point is not part of the transition time.
To determine the slowest ramp up (longest transition time) that can be generated, you must consider how smooth you need
the voltage versus time characteristic to be. As the dwell time associated with each point gets longer, the output voltage will
become more like a "stair step" and less like a linear transition. (see Figure B3-1)
To determine the fastest ramp up (shortest transition time) that can be generated, you must consider the minimum dwell time
specification (10 ms) and the maximum risetime of specification the power module (20 ms). If you program 10 ms dwell
times, the power module will not be able to reach its output voltage before the next voltage point is output. (see Figure B3-
2)
MPS Features Used
•
•
•
Advantages/Benefits Of The MPS Solution
By using Lists, the module changes its output voltage automatically, so that the computer is not devoted to reprogramming
the output voltage.
The outputs can change faster when dwell paced than when the computer must explicitly reprogram each change.
The sequence is simpler to program (no timing loops). By using dwell times, the timing of each point is accurate and
repeatable.
The computer does not provide timing for the sequence. For negative-going ramps, the active downprogrammers in the
module output can quickly discharge the module’s output capacitors and any capacitance in the DUT when negative going
ramps are required.
Implementation Details
How the MPS Implements The Sequence
The module is programmed to List mode.
The module will execute a dwell-paced List.
The 20 voltage points are downloaded to the module.
The 20 dwell times are downloaded to the module.
When the transition must occur, the module is triggered by the computer.
The module output ramps under its own control.
20-point voltage List.
Dwell time.
Dwell-paced Lists.
78 Application Programs
Figure B3-1. Simulating a Slow Voltage Ramp
Figure B3-2. Simulating a Fast Voltage Ramp
Variations On This Implementation
1. The module could be set to begin ramping in response to an external or backplane TTL Trigger.
2. The module could be set to generate SRQ when it has finished its transition. This would notify the computer that the
voltage is at the proper level.
Application Programs 79
3. The module could be set to generate an external trigger when it has finished its transition. This trigger could be routed to
other instruments as a signal to start making measurements.
4. Multiple modules could be programmed to slew together in response to the computer trigger command.
5. The module could be set to generate an external trigger for each point in the transition. This trigger could be routed to
other instruments as a signal to take a measurement at various supply voltages. (see application #7)
6. Many voltage versus time characteristics can be generated by varying the voltage values and the dwell times in the List.
Figure 3-3. Generating the Desired Voltage Ramp for Application #3
80 Application Programs
10 ! APPLICATION #3: CONTROLLING VOLTAGE RAMP UP AT TURN ON
20 ! PROGRAM: APP_3
30 !
40 ASSIGN @Slot0 To 70500 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
50 !
60 OPTION BASE 1
70 DIM V_Step(20) ! ARRAY TO HOLD THE VOLTAGE RAMP STEPS
80 Vstart=2 ! START VOLTAGE FOR RAMP
90 Vstop=10 ! STOP VOLTAGE FOR RAMP
100 Ramp_time=.5 ! SECONDS TO CHANGE FROM Vstart TO Vstop
110 Dwell=Ramp_time/19 ! IN SECONDS
120 !
130 ! SINCE THE OUTPUT STAYS AT THE LAST VOLTAGE POINT AFTER ITS DWELL TIME EXPIRES, THE DWELL TIME OF THE
140 ! LAST POINT IS NOT PART OF THE TRANSITION TIME. THEREFORE, DIVIDE THE TOTAL TIME BY 19 POINTS, NOT 20.
150 ! ALSO, YOU ONLY NEED TO DOWNLOAD 1 DWELL TIME. IF THE MODULE RECEIVES ONLY 1 DWELL TIME, IT ASSUMES
160 ! YOU WANT THE SAME DWELL TIME FOR EVERY POINT IN THE LIST.
170 !
180 FOR I=1 TO 20
190 V_step(l)=Vstart+(((Vstop-Vstart)/20)*I) ! CALCULATES VOLTAGE LIST POINTS
200 NEXT I
210 !
220 OUTPUT @Slot0;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
230 OUTPUT @Slot0;”VOLT ";Vstart ! START RAMP AT Vstart
240 OUTPUT @Slot0;”CURR .1”
250 OUTPUT @Slot0;"OUTPUT ON" ! ENABLE OUTPUT
260 OUTPUT @Slot0;”VOLT:MODE LIST" ! SET TO GET VOLTAGE FROM LIST
270 OUTPUT @Slot0;”LIST:VOLT ";V_step(*) ! DOWNLOAD VOLTAGE POINTS
280 OUTPUT @Slot0;”LIST:DWELL ";Dwell ! DOWNLOAD 1 DWELL TIME
290 OUTPUT @Slot0;”LIST:STEP AUTO" ! DWELL-PACED LIST
300 OUTPUT @Slot0;”INITIATE" ! ENABLE TRIGGER TO START LIST
310 !
320 ! BEFORE TRIGGERING THE MODULE, DETERMINE IF IT IS READY BY CHECKING FOR
330 ! 'WAITING FOR TRIGGER' (BIT 5 OF THE OPERATION STATUS REGISTER).
340 !
350 ! YOU COULD ELIMINATE THIS STEP BY SIMPLY INSERTING A PAUSE IN THE PROGRAM. HOWEVER, BY
360 ! CHECKING THE INSTRUMENT STATUS, YOU CAN AVOID TIMING PROBLEMS. ALSO, ANY OTHER OPERATIONS
370 ! THAT TAKE TIME WILL GIVE THE MODULE A CHANCE TO COMPLETE PROCESSING.
380 !
390 REPEAT
400 OUTPUT @Slot0;”STATUS:OPERATION:CONDITION?"
410 ENTER @Slot0;Condition_data
420 UNTIL BIT(Condition_data,5) ! TEST FOR BIT 5 = TRUE
430 !
440 ! SEND TRIGGER COMMAND TO START LIST AND GENERATE THE VOLTAGE RAMP
450 !
460 OUTPUT @Slot0;”TRIGGER:IMMEDIATE" ! THIS IS AN IMMEDIATE TRIGGER, WHICH IS ALWAYS ACTIVE.
470 ! THEREFORE, IT DOES NOT NEED TO BE SELECTED AS A TRIGGER
SOURCE.
480 !
490 END
Figure B3-4. Agilent BASIC Program Listing for Application #3
Application Programs 81
Application 4. Providing Time-Varying Voltages
Overview of Application
To burn-in devices using thermal or mechanical cycling/stress, cyclical time-varying voltage is provided by programming a
set of voltage and dwell time points that repetitively sequence over time.
For this example, the power module must provide the repetitive waveform shown in Figure B4-1. This time-varying voltage
will be applied to a hybrid IC. By continually cycling the voltage from 0 to 7 volts over a 33 second interval, the hybrid is
given time to heat up and undergo thermal and mechanical stress as the welds inside the hybrid expand and contract, and
then subsequently cool down.
Figure B4-1. Voltage Waveform for Application #4
In addition to generating the cyclical voltage, it is desirable to have the power module notify the computer should the device
fail and stop the cycling. Since the module is monitoring test status, the computer is free to perform other tests.
The MPS can address this application using dwell-paced repetitive Lists. This application could be thought of as a simple
power arbitrary waveform generator. To get the desired time-varying voltage, you must be able to describe the waveform in
20 discrete voltage points, with each point ranging from 10 ms to 65 seconds. This range of dwell times determines the
range of frequencies (or time rate of change) of the voltage waveform to be generated.
Once the waveform has been described, it is downloaded to the module. Upon being triggered, it will repetitively generate
the waveform without computer intervention.
The module will also be set up to generate an SRQ and stop the voltage cycling of the hybrid should fail. If the hybrid fails
by shorting, the module will go into CC. This change in status will cause the module to protect the DUT by disabling the
output, which will stop the test and generate an SRQ. (Open circuit failures will not be detected. Since failures of this type
are less likely to have destructive consequences, detection is not required.)
82 Application Programs
MPS Features Used
•
•
•
•
•
•
•
•
•
•
Advantages/Benefits Of The MPS Solution
By using Lists, the module changes its output voltage automatically, so that the computer is not devoted to reprogramming
the output voltage.
The output can change faster when dwell paced than when the computer must explicitly reprogram each change.
Overcurrent protection can disable the output before the DUT is damaged.
By letting each module monitor its status, the CC condition will be responded to faster than if the computer was responsible
for stopping the test.
The sequence is simpler to program (no timing loops),
By using dwell times, the timing of each point is accurate and repeatable because the computer does not provide timing for
the sequence.
When the output is disabled, the active downprogrammers in the module output can quickly discharge the module’s output
capacitors and any capacitance in the DUT.
20-point voltage List.
Repetitive Lists.
Dwell time.
Dwell-paced Lists.
Generate an SRQ on a change in internal status.
Disable the output on a change in internal status.
Stop the List on a change in internal status.
Trigger on a GPIB trigger command.
Overcurrent protection.
Active downprogramming.
Implementation Details
How The MPS Implements The Sequence
The module is programmed to List mode.
The module will execute a dwell-paced List.
The 3 voltage points are downloaded to the module.
The 3 dwell times are downloaded to the module.
To begin the cycling, the module is triggered by the computer.
The module continuously generates the voltage waveform.
The module continuously monitors its status.
If the module goes into CC, the overcurrent protection disables the output.
The module generates an SRQ when the overcurrent protection occurs.
Module set up
Set voltage mode to List.
Download voltage List.
Download dwell times.
Set Lists to dwell paced.
Set Lists to infinitely repeat.
Enable status monitoring of overcurrent condition.
Enable overcurrent protection.
Enable SRQ generation on overcurrent protection occurrence.
Application Programs 83
Variations On This Implementation
1. The module could be set to begin generating the waveform in response to an external or backplane TTL Trigger.
2. The module could be set to generate external triggers for each point in the List. This trigger could be routed to other
instruments to synchronize external measurements to the change in voltage. (see application #7) Using this technique,
parametric measurements could be made on the device during the thermal cycling.
3. Multiple modules could be programmed to cycle together in response to the computer trigger command.
4. To determine how many times the hybrid was cycled before it failed, you can use the SRQ (that was generated when the
hybrid failed and the module went into CC) to timestamp the failure. The elapsed time will give the number of cycles
executed.
84 Application Programs
10 ! APPLICATION #4: PROVIDING TIME-VARYING VOLTAGES
20 ! PROGRAM: APP_4
30 !
40 ASSIGN Slot0 TO 70500 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
50 !
60 ! INITIALIZE THE MODULE
70 !
80 OUTPUT @Slot0;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
90 OUTPUT @Slot0;”VOLT 0” ! START TEST AT 0 V
100 OUTPUT @Slot0;”CURR .1” ! SET CURRENT LIMIT
110 OUTPUT @Slot0;”OUTPUT ON" ! ENABLE OUTPUT
120 !
130 ! SET UP OVERCURRENT PROTECTION (OCP) AND GENERATE SRQ ON OCP TRIP
140 !
150 OUTPUT @Slot0;”CURRENT:PROTECTION:STATE ON" ! ENABLE OCP
160 OUTPUT @Slot0;”OUTPUT:PROTECTION:DELAY 0” ! NO DELAY BEFORE PROTECTION OCCURS
170 OUTPUT @Slot0;”STATUS:QUESTIONABLE:ENABLE 2” ! ENABLE DETECTION OF OC CONDITION IN THE
180 ! QUESTIONABLE REGISTER, WHERE OC = BIT 1 = VALUE 2.
190 OUTPUT @Slot0;”STATUS:QUESTIONABLE:PTRANSITION 2” ! ENABLES DETECTION ON POSITIVE TRANSITION, I.E.,
GOING INTO OC.
200 OUTPUT @Slot0;"*SRE 8” ! ENABLES THE SERVICE REQUEST REGISTER TO GENERATE
210 ! AN SRQ WHEN ANY EVENT IN THE QUESTIONABLE REGISTER
220 ! IS ASSERTED. THE QUESTIONABLE REGISTER = BIT 3= VALUE 8.
230 !
240 ! SET UP THE VOLTAGE LIST
250 !
260 OUTPUT @Slot0;”VOLT:MODE LIST" ! SET TO GET VOLTAGE FROM LIST
270 OUTPUT @Slot0;”LIST:VOLT 5,7,0” ! DOWNLOAD VOLTAGE POINTS
280 OUTPUT @Slot0;”LIST:DWELL 1,2,30” ! DOWNLOAD DWELL TIMES
290 OUTPUT @Slot0;’LIST:STEP AUTO" ! DWELL-PACED LIST
300 OUTPUT @Slot0;”LIST:COUNT INF" ! CONTINUOUSLY REPEAT LIST (INF = INFINITE)
310 OUTPUT @Slot0;”INITIATE" ! ENABLE TRIGGER TO START LIST
320 !
330 !
340 ! BEFORE TRIGGERING THE MODULE, DETERMINE IF IT IS READY BY CHECKING FOR
350 ! 'WAITING FOR TRIGGER' (BIT 5 OF THE OPERATION STATUS REGISTER).
360
370 ! YOU COULD ELIMINATE THIS STEP BY SIMPLY INSERTING A PAUSE IN THE PROGRAM. HOWEVER, BY
380 ! CHECKING THE INSTRUMENT STATUS, YOU CAN AVOID TIMING PROBLEMS. ALSO, ANY OTHER OPERATIONS
390 ! THAT TAKE TIME WILL GIVE TNE MODULE A CHANCE TO COMPLETE PROCESSING.
400 !
410 REPEAT
420 OUTPUT @Slot0;”STATUS:OPERATION:CONDITION?"
430 ENTER @Slot0;Condition_data
440 UNTIL BIT(Condition_data,5) ! TEST FOR BIT 5 = TRUE
450 !
460 ! SEND Agilent
470 !
480 OUPUT @Slot0;”TRIGGER:IMMEDIATE" ! THIS IS AN IMMEDIATE TRIGGER, WHICH IS ALWAYS ACTIVE.
490 ! THEREFORE, IT DOES NOT NEED TO BE SELECTED AS A TRIGGER
500 !
510 END
-1B TRIGGER COMMAND TO START LIST
SOURCE.
Figure B4-2. Agilent BASIC Programming Listing for Application #4
Application Programs 85
Application 5. Providing Time-Varying Current Limiting
Overview Of Application
To provide current limit protection which varies as a function of time, multiple thresholds on current limit are required.
Having multiple thresholds can provide a high limit to protect the DUT during its power-up in-rush with automatic
switchover to a lower limit to protect the DUT during its steady state operation.
For this example, the DUT is a printed circuit assembly. This assembly is being tested prior to installation in the end
product. The module provides power to the assembly, which will undergo a functional test. The assembly has capacitors
on-board, and when power is applied, the in-rush current approaches 4 A. After the capacitors charge, which takes about
500 milliseconds, the steady state current settles to 600 mA. See Figure B5-1.
The MPS can address this application using dwell-paced Lists. In this case, the List will consist of a set of current limits
and dwell times, because the voltage will remain constant throughout the test.
Once power has been applied, the first current limit, which provides protection to a shorted DUT while still allowing high
current in-rush to occur, will remain in effect for the dwell time. Then the current limit will switch to its next setting in the
List. The result is a current limit which changes with time and provides protection as the DUT current requirements drop
off to their steady state value. When the dwell time expires for the last current limit in the List, the current limit stays at this
value until reprogrammed. Thus, the actual value of the last dwell time is not important. The last current List point would
be the current limit for the steady state operation during the test of the DUT. See Figure B5-2 for how the MPS implements
this protection.
Throughout List execution, overcurrent protection will be enabled. If at any time the module goes into CC, the output will
be disabled, the test stopped, and the DUT protected.
MPS Features Used
•
•
•
•
•
•
•
•
•
Advantages/Benefits Of The MPS Solution
By using Lists, the module changes its current limit automatically, so that the computer is not devoted to reprogramming the
current limit.
The output can change faster when dwell paced than when the computer must explicitly reprogram each change.
Overcurrent protection can disable the output before the DUT is damaged.
By letting the modules monitor status, the CC condition will be responded to faster than if the computer was responsible for
stopping the test.
The sequence is simpler to program (no timing loops).
By using dwell times, the timing of each point is accurate and repeatable because the computer does not provide timing for
the sequence.
When the output is disabled, the active downprogrammers in the module output can quickly discharge the module’s output
capacitors and any capacitance in the DUT.
20-point current List.
Dwell time.
Dwell-paced Lists.
Disable the output on a change in internal status.
Stop the List on a change in internal status.
Change the voltage on trigger.
Trigger on a GPIB trigger command.
Overcurrent protection.
Active downprogramming.
86 Application Programs
Figure B5-1. Typical DUT Current vs. Time
Figure B5-2. Desired Current vs. Time
Application Programs 87
Implementation Details
How The MPS Implements The Sequence.
The module is programmed to current List mode.
The module will execute a dwell-paced current List.
The current limit List points are downloaded to the module.
The dwell times are downloaded to the module.
To begin powering the DUT, the module is triggered by the computer. This one trigger causes the current List to begin
executing and the voltage to go to its programmed value.
The module steps through the current limit List.
The module continuously monitors its status.
If the modules goes into CC, the overcurrent protection disables the output.
Module Set Up
Set the current mode to List.
Download current List.
Download the dwell times.
Set the List to be dwell paced.
Enable overcurrent protection.
The initial voltage setting is 0 V.
The module listens for the computer to send a trigger command.
Upon receipt of the trigger command, the module goes to 12 V.
Also upon receipt of the trigger command, the module begins executing its current limit List.
Variations On This Implementation
1. The module could be set to begin applying power in response to an external or backplane TTL Trigger.
2. Multiple modules could be programmed to cycle together in response to the computer trigger command. Each module
could have unique current limits, voltage settings, and dwell times.
3. The module could be set to generate an SRQ if the overcurrent protection disables the output.
4. The module could be set to generate an external or backplane TTL Trigger if the overcurrent protection disables the
output.
5. The in-rush current can be controlled using the current limit settings of the current List. Instead of setting the current
limit slightly above 4 A, it could be set at a much lower value. This would limit the in-rush current to the value in the
List. It would take longer to charge the capacitors on the assembly, but the inrush condition would be controlled. In this
variation, the overcurrent protection could not be used, because you want the module to be in CC.
88 Application Programs
10 ! APPLICATION #5: PROVIDING TIME-VARYING CURRENT LIMITING
20 ! PROGRAM: APP_5
30 !
40 DIM C_limit$[50],Dwell[50]
50 !
60 C_limit$=”4.1, 3.0, 2.0 , 1.0, 0.7” ! CURRENT LIMIT DATA
70 Dwell$="0.2, 0.05, 0.1, 0.15, 0.1” ! DWELL TIME DATA
80 !
90 ASSIGN @Slot0 To 70500 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
100 !
110 OUTPUT @Slot0;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
120 OUTPUT @Slot0;”VOLT 0” ! START TEST AT 0 V
130 OUTPUT @Slot0;”OUTPUT ON" ! ENABLE OUTPUT
140 OUTPUT @Slot0;”CURRENT:PROTECTION:STATE ON" ! ENABLE OCP
150 OUTPUT @Slot0;"OUTPUT:PROTECTION:DELAY 0” ! NO DELAY BEFORE PROTECTION OCCURS
160 OUTPUT @Slot0;”CURRENT:MODE LIST" ! SET TO GET CURRENT FROM LIST
170 OUTPUT @Slot0;”LIST:CURRENT ";C _limit$ ! DOWNLOAD CURRENT POINTS
180 OUTPUT @Slot0;”LIST:DWELL ";Dwell$ ! DOWNLOAD DWELL TIMES
190 OUTPUT @Slot0;”LIST:STEP AUTO" ! DWELL-PACED LIST
200 OUTPUT @Slot0;”VOLT:TRIGGERED 12” ! GO TO 12 V WHEN TRIGGERED
210 OUTPUT @Slot0;”INITIATE" ! ENABLE TRIGGER TO START LIST AND APPLY 12 V
220 !
230 ! BEFORE TRIGGERING THE MODULE, DETERMINE IF IT IS READY BY CHECKING FOR
240 ! 'WAITING FOR TRIGGER' (BIT 5 OF THE OPERATION STATUS REGISTER).
250 !
260 ! YOU COULD ELIMINATE THIS STEP BY SIMPLY INSERTING A PAUSE IN THE PROGRAM. HOWEVER, BY
270 ! CHECKING THE INSTRUMENT STATUS, YOU CAN AVOID TIMING PROBLEMS. ALSO, ANY OTHER OPERATIONS
280 ! THAT TAKE TIME WILL GIVE THE MODULE A CHANCE TO COMPLETE PROCESSING.
290 !
300 REPEAT
310 OUTPUT @Slot0;”STATUS:OPERATION:CONDITION?"
320 ENTER @Slot0;Condition_data
330 UNTIL BIT(Condition_data,5) ! TEST FOR BIT 5 = TRUE
340 !
350 ! SEND Agilent
360 !
370 OUTPUT @Slot0;”TRIGGER:IMMEDIATE" ! THIS IS AN IMMEDIATE TRIGGER, WHICH IS
380 ! ALWAYS ACTIVE. THEREFORE, IT DOES NOT NEED
390 END ! TO BE SELECTED AS A TRIGGER SOURCE.
-1BTRIGGER COMMAND TO START LIST AND APPLY 12 V
Figure B5-3. Agilent BASIC Program Listing for Application #5
Application Programs 89
Application 6. Output Sequencing Paced by the Computer
Overview Of Application
When performing bias supply margin testing, throughput can be maximized by eliminating the command processing time
associated with reprogramming all outputs for each set of limit conditions. Instead, multiple sets of bias limit conditions can
be downloaded to the power modules during test system initialization. During the testing, the computer can use a single
command to simultaneously signal all power modules to step through each test condition.
In this example, the DUT requires + 5 V and ± 12 V. The DUT is tested to ensure proper operation at marginal supply
voltages. The margin specified is ± 5 % of nominal voltage. At each of the combinations given below, the computer first
sets up the three modules and makes a measurement on the DUT. The combinations to be tested are:
Nominal 5 V Nominal + 12 V Nominal - 12 V
4.75 V 12 V -12 V
5 V 12 V -12 V
5.25 V 12 V -12 V
5 V 11.4 V -12 V
5 V 12.6 V -12 V
5 V 12 V - 11.4 V
5 V 12 V - 12.6 V
When conducting this test, the modules will need to be reprogrammed 21 times and seven measurements made. The
command processing time could slow down this test.
The MPS can be used to increase throughput. By downloading all of the combinations into the three modules, each setting
can be quickly stepped through by triggering all modules to change to their next voltage setting and then taking a
measurement from the DUT. This permits testing without command processing overhead.
MPS Features Used
•
•
•
•
Advantages/Benefits Of The MPS Solution
By using Lists, the module changes its voltage without delays due to processing the command to change the output voltage.
By using triggers, all three outputs can be changed with one command.
The computer loop to change the settings and take a measurement is simplified, because you do not have to explicitly
reprogram each module output. Instead, the loop becomes "Trigger" and "Measure".
Implementation Details
How The MPS Implements The Sequence
The following steps are performed for each point in the List:
The computer sends a trigger command to the first module.
The first module simultaneously sends a backplane TTL Trigger to the other two modules and goes to its next List point.
The second module receives the backplane TTL Trigger and immediately goes to its next List point.
The third module receives the backplane TTL Trigger, immediately goes to its next List point.
The computer gets a measurement from the measurement instrument.
20-point voltage List.
Trigger-paced Lists.
Trigger in/out from MPS mainframe backplane TTL Trigger.
Trigger on a GPIB trigger command.
90 Application Programs
MPS Set Up
Module in slot 0:
The module is connected to + 5 V on the DUT.
The initial voltage setting is 0 V.
Set the voltage mode to List.
Download the voltage List.
Set the List to be trigger paced.
The module listens for the computer to send a trigger command. Upon receipt of the trigger command, the module outputs
its next List point.
Also upon receipt of the trigger command, the module generates a backplane TTL Trigger.
Module in slot 1:
The module is connected to + 12 V on the DUT.
The initial voltage setting is 0 V.
Set the voltage mode to List.
Download the voltage List.
Set the List to be trigger paced.
The module listens for a backplane TTL Trigger.
Upon receipt of a trigger, the module goes to its next List point.
Module in slot 2.
The module is connected to - 12 V on the DUT.
The initial voltage setting is 0 V.
Set the voltage mode to List.
Download the voltage List.
Set the List to be trigger paced,
The module listens for a backplane TTL Trigger.
Upon receipt of a trigger, the module goes to its next List point.
Variations On This Implementation
1. A current List could also have been executed by the module so that for each voltage point, a corresponding current limit
could be programmed.
2. Overcurrent protection could be enabled to protect a faulty DUT.
3. The module could generate an SRQ when it finishes changing voltage for each point in the List based on the STC (Step
Completed) status bit, which indicates when the module has completed executing the next point in the List. The SRQ
could tell the computer to get a measurement from the measurement instrument.
4. The module could be told to output its next List point in response to an external or backplane TTL Trigger. (see next
application.)
Application Programs 91
Figure B6-1. Block Diagram of Application #6
92 Application Programs
Figure B6-2. Timing Diagram of Application #6
10 ! APPLICATION #6: OUTPUT SEQUENCING PACED BY THE COMPUTER
20 ! PROGRAM: APP-6
30 !
40 DIM Plus_5v$[50],Plus_12v$[50],Minus_12v$[50]
50 !
60 Plus_5v$=”4.75, 5, 5.25, 5, 5, 5, 5” ! THESE ARE THE BIAS
70 Ptus_12v$="12, 12, 12, 11.4, 12.6, 12, 12” ! SUPPLY LIMIT CONDITIONS
80 Minus_12v$="12, 12, 12, 12, 12, 11.4, 12.6” ! TO BE TESTED
90 !
100 Num_test_steps=7 ! NUMBER OF BIAS SUPPLY LIMIT C0MBINATIONS
110 Dwell=.0I0 ! SECONDS OF DWELL TIME
120 !
130 ASSIGN @Slot0 TO 70500 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
140 ASSIGN @Slot1 TO 70501 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 01
150 ASSIGN @Slot2 TO 70502 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 02
160 !
170 ! SET UP MODULE IN SLOT 0 AS +5 V BIAS SUPPLY --------------------180 !
190 OUTPUT @Slot0;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
200 OUTPUT @Slot0;”VOLT 0” ! START AT 0 V
210 OUTPUT @Slot0;”OUTPUT ON" ! ENABLE OUTPUT
220 OUTPUT @Slot0;”VOLTAGE:MODE LIST" ! SET TO GET VOLTAGE FROM LIST
230 OUTPUT @Slot0;”LIST:VOLTAGE ";Plus_5v$ ! DOWNLOAD VOLTAGE LIST POINTS
240 OUTPUT @Slot0;”LIST:DWELL”;Dwell ! DOWNLOAD I DWELL TIME (ASSUMES SAME FOR ALL POINTS)
250 OUTPUT @Slot0;”LIST:STEP ONCE" ! EXECUTE 1 LIST POINT PER TRIGGER
260 OIJTPUT @Slot0;”TRIGGER:SOURCE BUS" ! TRIGGER SOURCE IS GPIB 'BUS'
270 OUTPUT @Slot0;”OUTPUT:TTLTRG:SOURCE BUS"! GENERATE BACKPLANE TTL TRIGGER WHEN GPIB 'BUS' TRIGGER IS RECEIVED
280 OUTPUT @Slot0;"OUTPUT:TTLTRG:STATE ON" ! ENABLE TTL TRIGGER DRIVE
290 OUTPUT @Slot0;”INITIATE" ! ENABLE RESPONSE TO TRIGGER
300 !
310 ! SET UP MODULE IN SLOT 1 AS +12 V BIAS SUPPLY --------------------320 !
330 OUTPUT @Slot1;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
340 OUTPUT @Slot1;"VOLT 0” ! START AT 0 V
350 OUTPUT @Slot1;"OUTPUT ON" ! ENABLE OUTPUT
360 OUTPUT @Slot1;"VOLT:MODE LIST" ! SET TO GET VOLTAGE FROM LIST
370 OUTPUT @Slot1;"LIST:VOLTAGE ";Plus_12v$ ! DOWNLOAD VOLTAGE LIST POINTS
380 OUTPUT @Slot1;"LIST:DWELL”;Dwell ! DOWNLOAD 1 DWELL TIME (ASSUMES SAME FOR ALL POINTS)
390 OUTPUT @Slot1;"LIST:STEP ONCE" ! EXECUTE 1 LIST POINT PER TRIGGER
400 OUTPUT @Slot1;"TRIGGER:SOURCE TTLTRG" ! TRIGGER SOURCE IS BACKPLANE TTL TRIGGER
410 OUTPUT @Slot1;"INITIATE" ! ENABLE RESPONSE TO TRIGGER
420 !
430 ! SET UP MODULE IN SLOT 2 AS -12 V BIAS SUPPLY ---------------------440 !
450 OUTPUT @Slot2;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
460 OUTPUT @Slot2;"VOLT 0 ! START AT 0 V
470 OUTPUT @Slot2;"OUTPUT ON" ! ENABLE OUTPUT
480 OUTPUT @Slot2;"VOLT:MODE LIST" ! SET TO GET VOLTAGE FROM LIST
490 OUTPUT @Slot2;"LIST:VOLTAGE ";Minus_12v$ ! DOWNLOAD VOLTAGE LIST POINTS
500 OUTPUT @Slot2;"LIST:DWELL”;Dwell ! DOWNLOAD 1 DWELL TIME (ASSUMES SAME FOR ALL POINTS)
510 OUTPUT @Slot2;"LIST:STEP ONCE" ! EXECUTE 1 LIST POINT PER TRIGGER
520 OUTPUT @Slot2;"TRIGGER:SOURCE TTLTRG" ! TRIGGER SOURCE IS BACKPLANE TTL TRIGGER
530 OUTPUT @Slot2;"INITIATE" ! ENABLE RESPONSE TO TTL TRIGGER
540 !
550 ! BEFORE TRIGGERING THE MODULES, DETERMINE IF THE MODULES ARE READY BY CHECKING FOR
560 ! 'WAITING FOR TRIGGER' (BIT 5 OF THE OPERATION STATUS REGISTER). IF THE LAST MODULE PROGRAMMED
570 ! IS READY THEN SO ARE THE OTHERS, SO JUST CHECK SLOT 2.
580 !
590 ! YOU COULD ELIMINATE THIS STEP BY SIMPLY INSERTING A PAUSE IN THE PROGRAM. HOWEVER, BY
Application Programs 93
600 ! CHECKING THE INSTRUMENT STATUS, YOU CAN AVOID TIMING PROBLEMS. ALSO, ANY OTHER OPERATIONS
610 ! THAT TAKE TIME WILL GIVE THE MODULES A CHANCE TO COMPLETE PROCESSING.
620 !
630 REPEAT
640 OUTPUT @Slot2;"STATUS:OPERATION:CONDITION?"
650 ENTER @Slot2;Condition_data
660 UNTIL BIT(Condition_data,5) ! TEST FOR BIT 5 = TRUE
670 !
680 ! GENERATE A TRIGGER AND MAKE A MEASUREMENT FOR EACH TEST CONDITION
690 !
700 FOR Loop_count=1 TO Num_test_steps
710 OUTPUT @Slot0;"*TRG" ! SEND Agilent
720 GOSUB Get_measurement
730 NEXT Loop_count
740 !
750 STOP
760 !
770 Get_measurement:
780 !
790 ! THIS IS JUST TO SHOW YOU WHERE YOU WOULD ADD CODE TO GET DATA FROM THE MEASUREMENT INSTRUMENT.
800 ! THE MEASUREMENT MUST TAKE LONGER THAN THE PROGRAMMED DWELL TIME OR YOU WILL MISS TRIGGERS.
810 !
820 WAIT .1
830 !
840 RETURN
850 !
860 END
-1B BUS TRIGGER
Figure B6-3. Agilent BASIC Program Listing for Application #6
94 Application Programs
Application 7. Output Sequencing Without Computer Intervention
Overview Of Application
When characterizing devices, the DUT’s performance is measured over a range of power supply voltages. This test can be
performed without computer intervention by using hardware signals from the measurement instrument to cause the power
module to sequence to the next voltage in a preprogrammed List. By buffering these readings in the measurement
instrument, the entire test can be executed without computer involvement. For characterizations that require long
measurement times, the computer is free to do other tasks. For characterizations that must execute at hardware speeds, the
computer is not involved and will not slow down the test loop.
In this example, the power module must apply 8 to 14 volts (in 13 0.5-volt increments) to an automotive engine sensor. The
module varies the bias voltage to the engine sensor and the sensor’s output is measured to characterize its performance over
the range of possible "battery voltages". The sensor output is measured by a DMM that has an internal buffer and stores
each reading.
By combining Lists and trigger capabilities, the MPS can be used to address this application. The module can be
programmed to use its triggering capabilities to the fullest extent. Each time the module executes the next step in its List
and changes voltage, the module will generate an external trigger. The external trigger will cause the DMM, equipped with
an external trigger input, to take and store a reading. The DMM, also equipped with a "Measurement Complete" output,
sends its output trigger signal to the module to tell the module to go to its next List point. Effectively, the module and the
DMM "handshake", so that the two function at hardware speeds without computer intervention.
When the test is complete, either device can signal the computer to get the data from the DMM. For the purpose of this
example, the module will generate an SRQ when the last List point has been executed. This is indicated by the OPC
(Operation Complete) bit in the status register.
Another detail that needs attention is timing. The DUT may require some settling time before the DMM is told to take a
reading. The module’s dwell time can be used to do this. The STC (Step Complete) status signal indicates when the point
has been executed and its dwell time has expired. The dwell time is programmed to be the engine sensor’s settling time.
The external trigger is generated when STC is asserted. Thus, the DMM will not be triggered until the dwell time has
expired and the sensor’s output has settled.
This type of self-paced test execution is useful in two situations. When the test must execute very fast, there is no time for
the computer to be involved in each iteration of the test loop. Therefore, the test must execute without computer
intervention. The second situation is when the test is very long. For example, if the measurement instrument took 1 minute
to make each measurement, the test would take 13 minutes to execute. The computer is not used efficiently if it is idle while
waiting for each measurement loop, so it would be best to have the computer executing another task. Without self-pacing,
you would need to develop interrupt driven software that stops every 1 minute to take a reading. By letting the module and
the DMM run on their own, code development is much simpler and computer resources are used more efficiently.
MPS Features Used
• 20-point voltage List.
• Dwell time.
• Trigger-paced Lists.
• Generate an SRQ on a change in internal status.
• Generate a trigger on a change in internal status.
• Trigger in/out from MPS mainframe backplane TTL Trigger.
• Trigger on a GPIB trigger command.
Application Programs 95
Advantages/Benefits Of The MPS Solution
The entire test executes without computer involvement, the command processing time is eliminated from the test loop.
The entire test executes without computer involvement, so the computer can perform other tasks while the test executes.
Software development is simplified; you do not need to write a test loop because the module and the DMM are running on
their own.
By using dwell times, the trigger out signal can be sent at the correct time, which permits the DUT to settle before a reading
is taken.
Implementation Details
How The MPS Implements The Sequence
The module listens for the computer to send a trigger command.
Upon receipt of the trigger command, the module outputs its first List point.
After the dwell time expires, the STC is asserted and the module generates an external trigger.
The DMM receives the external trigger, takes and stores a reading.
The DMM generates a "Measurement Complete" output signal when it’s done.
The module receives the DMM output signal as an external trigger in.
Also upon receipt of the trigger in, the module outputs its next List point.
The process repeats for each List point.
After the last List point has executed, the module generates SRQ, telling the computer the test has completed.
MPS Set Up
Set the voltage mode to List.
Download the voltage List.
Download the dwell time List.
Set the List to be trigger paced.
Set the trigger source to external trigger.
Note The computer trigger command "TRIGGER:IMMEDIATE" is always active, even if the external trigger
is the selected source.
Set the module to generate a backplane TTL Trigger on STC. This backplane TTL Trigger drives external trigger out.
Set the module to generate SRQ on OPC.
Variations On This Implementation
1. A current List could also have been executed by the module so that for each voltage point, a corresponding current limit
could be programmed.
2. Overcurrent protection could be enabled to protect a faulty engine sensor.
3. If the DMM does not have an internal buffer, the computer could take a reading on each iteration of the test loop (see
previous application).
96 Application Programs
Figure B7-1. Block Diagram of Application #7
Figure B7-2. Timing Diagram of Application #7
Application Programs 97
10 ! APPLICATION #7: OIJTPUT SEQUENCING WITHOUT COMPUTER INTERVENTION
20 ! PROGRAM: APP_7
30 !
40 ASSIGN @Slot0 TO 70500 ! SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
50 !
60 DIM Vlist$[80]
70 Vlist$=”8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14” ! VOLTAGE LIST POINTS
80 !
90 OUTPUT @Slot0;"*RST;*CLS;STATUS:PRESET" ! RESET AND CLEAR MODULE
100 OUTPUT @Slot0;”VOLT 0” ! START AT 0 V
110 OUTPUT @Slot0;”CURR 1" ! SET CURRENT LIMIT
120 OUTPUT @Slot0;"OUTPUT ON" ! ENABLE OUTPUT
130 OUTPUT @Slot0;”VOLT:MODE LIST" ! SET TO GET VOLTAGE FROM LIST
140 OUTPUT @Slot0;”LIST:VOLT ";Vlist$ ! DOWNLOAD VOLTAGE LIST POINTS
150 OUTPUT @Slot0;”LIST:DWELL .050” ! DOWNLOAD 1 DWELL POINT (ASSUMES SAME FOR ALL POINTS)
160 ! USE A 50 ms SETTLING TIME AS THE DWELL TIME
170 OUTPUT @Slot0;”LIST:STEP ONCE" ! EXECUTE 1 POINT PER TRIGGER
180 !
190 OUTPUT @Slot0;"*ESE 1” ! ENABLES DETECTION OF OPC IN THE STANDARD EVENT REGISTER.
200 ! OPC = BIT 0 = VALUE 1 OF THE STANDARD EVENT REGISTER.
210 OUTPUT @Slot0;"*SRE 32” ! ENABLES THE SERVICE REQUEST REGISTER TO GENERATE AN SRQ WHEN
220 ! ANY EVENT IN THE STANDARD EVENT REGISTER IS ASSERTED.
230 THE STANDARD EVENT REGISTER = BIT 5 = VALUE 32.
240 !
250 OUTPUT @Slot0;"OUTPUT:TTLTRG:STATE ON" ! ENABLE BACKPLANE TTL TRIGGER DRIVE
260 OUTPUT @Slot0;”OUTPUT:TTLTRG:SOURCE LINK" ! WHEN THE MODULE INDICATES SIC (STEP COMPLETED),
270 OUTPUT @Slot0;”OUTPUT:TTLTRG:LINK ‘STC’” ! GENERATE A BACKPLANE TTL TRIGGER
280 OUTPUT @Slot0;”TRIGGER:SOURCE EXTERNAL" ! USE EXTERNAL TRIGGER IN BNC AS TRIGGER SOURCE
290 OUTPUT @Slot0;’INITIATE" ! ENABLE RESPONSE TO TRIGGER
300 OUTPUT @Slot0;"*OPC” ! TELLS MODULE TO ASSERT OPC (OPERATION COMPLETE)
310 ! WHEN IT COMPLETES THE LIST. OPC GENERATES SRO.
320 !
330 ON INTR.7 GOSUB Srq_handler ! ENABLE SRQ INTERRUPT AND
340 ENABLE INTR 7;2 ! IDENTIFY HANDLER SUBROUTINE
350 !
360 ! BEFORE TRIGGERING THE MODULE, DETERMINE IF IT IS READY BY CHECKING FOR
370 ! 'WAITING FOR TRIGGER' (BIT 5 OF THE OPERATION STATUS REGISTER).
380 !
390 ! YOU COULD ELIMINATE THIS STEP BY SIMPLY INSERTING A PAUSE IN THE PROGRAM. HOWEVER, BY
400 ! CHECKING THE INSTRUMENT STATUS, YOU CAN AVOID TIMING PROBLEMS. ALSO, ANY OTHER OPERATIONS
410 ! THAT TAKE TIME WILL GIVE THE MODULE A CHANCE TO COMPLETE PROCESSING.
420 !
430 REPEAT
440 OUTPUT @Slot0;”STATUS:OPERATION:CONDITION?"
450 ENTER @Slot0;Condition_data
460 UNTIL BIT(Condition_data,5) ! TEST FOR BIT 5 = TRUE
470 !
480 ! BEGIN THE SELF-PACED TEST LOOP BY TRIGGERING THE MODULE TO START THE LIST
490 !
500 OUTPUT @Slot0;”TRIGGER:IMMEDIATE" ! THIS IS AN IMMEDIATE TRIGGER, WHICH IS ALWAYS ACTIVE.
510 ! IT DOES NOT NEED TO BE SELECTED AS TRIGGER SOURCE.
520 !
530 GOTO 530 ! IDLE IN LOOP WAITING FOR SRQ OR GO DO OTHER TASKS
540 !
550 Srq_handler: !
560 !
570 ! ADD LINES HERE TO READ THE DATA BUFFER FROM THE DMM
580 !
590 END
Figure B7-3. Agilent BASIC Program Listing of Application #7
98 Application Programs
Supplemental Information
This appendix contains program listings translated into the following DOS-compatible languages and GPIB interfaces:
•
•
•
•
GWBASIC and the Agilent 61062/82990/82335A GPIB Command Library for MS-DOS
GWBASIC and the National Instruments GPIB-PC Interface Card
Microsoft C and the Agilent 61062/82990/82335A GPIB Command Library for MS-DOS
Microsoft C and the National Instruments GPIB-PC Interface Card
Each program is translated from the Agilent BASIC listing found in application #3. This example program was chosen as
representative of all application programs because it shows how to:
•
•
•
•
•
Configure the interface card.
Address the power module.
Write strings to the power module.
Write real arrays to the power module.
Receive real numbers from the power module.
The six other application programs all use a subset of the above functions.
1 ’ MERGE "SETUP.BAS" AS DESCRIBED IN YOUR GPIB COMMAND LIBRARY MANUAL
2 ‘
1000 ‘ APPLICATION #3: CONTROLLING VOLTAGE RAMP UP AT TURN ON
1010 ‘ FOR GWBASIC AND THE Agilent 61062/82990/82335A GPIB COMMAND LIBRARY
1020 ‘ PROGRAM: Agilent
1030 ‘
1040 OPTION BASE 1
1050 INTERFACE = 7 ‘ SELECT CODE OF THE GPIB CARD
1060 SLOTO 705001 ‘ SELECT CODE 7, MAINFRAME ADDRESS 05, SLOT 00
1070 CR.LFS CHR$(13) + CHR$(10) ‘ CARRIAGE RETURN + LINE FEED = END OF LINE TERMINATION
1080 DIM VSTEP(20) ‘ ARRAY TO HOLD THE VOLTAGE RAMP STEPS
1090 NUM.POINTS = 20 ‘ NUMBER OF POINTS IN THE VOLTAGE RAMP ARRAY
1100 VSTART = 2 ‘ START VOLTAGE FOR RAMP
1110 VSTOP = 10 ‘ STOP VOLTAGE FOR RAMP
1120 RAMPTIME = .5 ‘ TIME IN SECONDS TO CHANGE FROM VSTART TO VSTOP
1130 DWELL = RAMPTIME / 19 ‘ DWELL TIME FOR EACH POINT
1140 ‘
1150 ‘ SINCE THE OUTPUT STAYS AT THE LAST VOLTAGE POINT AFTER ITS DWELL TIME EXPIRES, THE DWELL TIME OF THE
1160 ‘ LAST POINT IS NOT PART OF THE TRANSITION TIME. THEREFORE, DIVIDE THE TOTAL TIME BY 19 POINTS, NOT 20.
1170 ‘ YOU WANT THE SAME DWELL TIME FOR EVERY POINT IN THE LIST, SO YOU NEED TO DOWNLOAD ONLY 1 DWELL TIME.
1180 ‘
1190 FOR I=1 TO 20
1200 VSTEP(I) = VSTART + ((( VSTOP - VSTART ) / 20 ) * I ) ‘ CALCULATES VOLTAGE LIST POINTS
1210 NEXT I
1220 ‘
1230 NOTE REGARDING GPIB READ/WRITE TERMINATIONS:
1240 ‘
1250 ‘ THE DEFAULT MODE OF THE INTERFACE CARD IS THAT EOI IS ENABLED AND THE READ/WRITES TERMINATE
1260 ‘ ON CARRIAGE RETURN/LINE FEED. THE MODULE TERMINATES ON EITHER EOI OR LINE FEED, SO THE
1270 ‘ DEFAULT SETTINGS OF THE CARD ARE SUFFICIENT.
1280 ‘
1290 CMD$ = "*RST;*CLS;STATUS:PRESET" ‘ RESET AND CLEAR MODULE
1300 L = LEN( CMD$ )
1310 CALL IOOUTPUTS( SLOTO, CMD$, L )
1320 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1330 ‘
3.BAS
Application Programs 99
1340 CMD$ = "VOLT+ STR$( VSTART ) ‘ START RAMP AT VSTART. USE NUMBER TO STRING
1350 L = LEN( CMD$ ) ‘ CONVERSION TO SEND REAL NUMBERS OVER THE BUS
1360 CALL IOOUTPUTS( SLOTO, CMD$, L ) ‘ AS PART OF THE COMMAND STRING.
1370 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1380 ‘
1390 CMD$ = "CURR .1”
1400 L = LEN( CMD$ )
1410 CALL IOOUTPUTS( SLOTO, CMD$, L )
1420 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1430 ‘
1440 CMD$ = "OUTPUT ON" ‘ ENABLE OUTPUT
1450 L = LEN( CMD$ )
1460 CALL IOOUTPUTS( SLOTO, CMD$, L )
1470 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1480 ‘
1490 CMD$ = "VOLT:MODE LIST" ‘ SET TO GET VOLTAGE FROM LIST
1500 L = LEN( CMD$ )
1510 CALL IOOUTPUTS( SLOTO, CMD$, L )
1520 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1530 ‘
1540 ‘ SENDING THE VOLTAGE DATA POINTS REQUIRES TWO STEPS USING THE GPIB COMMAND LIBRARY. THE INSTRUCTION CONTAINS BOTH
1550 ‘ STRING DATA AND A REAL ARRAY. FIRST, SEND THE STRING DATA COMMAND HEADER "LIST:VOLT" TO THE MODULE USING lOOUTPUTS.
1560 ‘ THEN, SEND THE REAL ARRAY USING IOOUTPUTA. HOWEVER, YOU MUST INHIBIT THE EOI AND END-OF-LINE TERMINATOR AFTER THE
1570 ‘ IOOUTPUTS COMMAND OR THE MODULE WILL STOP TAKING DATA. THEN RE-ENABLE THEM TO TERMINATE THE IOOUTPUTA.
1580 ‘
1590 EOI.STATE = 0 ‘ TURN OFF EOI
1600 CALL IOEOI( INTERFACE, EOI.STATE )
1610 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1620 ‘
1630 END.OF.LINE = 0 ‘ TURN OFF END-OF-LINE TERMINATION
1640 CALL IOEOL( INTERFACE, CR.LF$, END.OF.LINE )
1650 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1660 ‘
1670 CMD$ = "LIST:VOLT
1680 L = LEN( CMD$ )
1690 CALL IOOUTPUTS( SLOTO, CMD$, L ) ‘ SEND THE VOLTAGE HEADER (STRING) ...
1700 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1710 ‘
1720 EOI.STATE = 1 ‘ TURN ON EOI
1730 CALL IOEOI( INTERFACE, EOI.STATE )
1740 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1750 ‘
1760 END.OF.LINE = LEN (CR.LF$ ) ‘ TURN ON END-OF-LINE TERMINATION
1770 CALL IOEOL( INTERFACE, CR.LF$ , END.OF.LINE )
1780 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1790 ‘
1800 CALL IOOUTPUTA( SLOTO, VSTEP(1), NUM.POINTS ) ‘ DOWNLOAD THE VOLTAGE POINTS (ARRAY)
1810 IF PCIB.ERR<>0 THEN ERROR PCIS.BASERR
1820 ‘
1830 CMD$ = "LIST:DWELL “ + STR$( DWELL ) ‘ DOWNLOAD 1 DWELL TIME. USE NUMBER TO STRING
1840 L = LEN( CMD$ ) ‘ CONVERSION TO SEND REAL NUMBERS OVER THE BUS
1850 CALL IOOUTPUTS( SLOTO, CMD$, L ) ‘ AS PART OF THE COMMAND STRING.
1860 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1870 ‘
1880 CMD$ = "LIST:STEP AUTO" ‘ DWELL-PACED LIST
1890 L = LEN( CMD$ )
1900 CALL IOOUTPUTS( SLOTO, CMD$, L )
1910 IF PCIB.ERR<>0 THEN ERROR PCIB.BASERR
1920 ‘
1930 CMD$ = "INITIATE" ‘ ENABLE TRIGGER TO START LIST
100 Application Programs
