Agilent 6010A Spec Sheet

This series of dc power supplies
take the place of multiple power
supplies on your test bench by
providing maximum power at
a variety of operating points.
They have ten-turn front panel
pots to allow precise local control.
These power supplies also may be
connected in auto-parallel or auto­series with their corresponding
GPIB unit (6030 Series), as part
of a test system.

Supplemental Characteristics
for all model numbers

Remote Sensing: Up to 2 V drop in each

lead. Voltage regulation specification met
with up to 0.5 V drop, but degrades for
greater drops.

Modulation: (analog programming of
output voltage and current)

Input signal: 0 to 5 V or 0 to 4 k Ohms
Regulatory Compliance: Certified to

CSA556B; conforms to IEC 61010-1.

Size:

425.5 mm W x 132.6 mm H x 516.4 mm D
(16.75 in x 5.25 in x 20.33 in).
See page 99 for more details

Warranty:One year

Ordering Information

Opt 120 104 to 127 Vac, 47 to 63 Hz
Opt 220 191 to 233 Vac, 48 to 63 Hz

Opt 240 209 to 250 Vac, 48 to 63 Hz
* Opt 908 Rack-mount Kit (p/n 5062-3977)
* Opt 909 Rack-mount Kit with Handles.

(p/n 5062-3983)

Opt 0L2

Extra Standard Documentation Package

Opt 0B0 No documentation package
Opt J01

Stabilization for loads up to 10 Henries

Agilent Performance dc Power Supplies speed and accuracy for test optimization

Specifications

(at 0˚to 55˚C unless
otherwise specified)

Power Products Catalog 2002-2003

For more detailed specifications see the product manual at

www.agilent.com/find/power

52

Save rack space by using fewer outputs
Reduce cost by using fewer power supplies
Control with external voltage

6010A, 6011A, 6012B, 6015A

Single-Output, Autoranging:

200 W and 1000 W

6010A 6011A 6012B 6015A

Number of outputs 111 1
GPIB No No No No
Output ratings

Voltage 0 to 200 V 0 to 20 V 0 to 60 V 0 to 500 V
Current 0 to 17 A 0 to 120 A 0 to 50 A 0 to 5 A

Maximum power

Watts 1,200 W 1,064 W 1,200 W 1,050 W
Autoranging output V1, I1200 V, 5 A 20 V, 50 A 60 V, 17.5 A 500 V, 2 A

V2, I2120 V, 10 A 14 V, 76 A 40 V, 30 A 350 V, 3 A

V3, I360 V, 17 A 7 V, 120 A 20 V, 50 A 200 V, 5 A
Ripple and noise, 20 Hz to 20 MHz
Voltage rms 22 mV 8 mV 8 mV 50 mV
p-p 50 mV 50 mV 40 mV 160 mV
Current rms 15 mA 120 mA 25 mA 50 mA

Load regulation

Voltage 0.01%+ 5 mV 3 mV 5 mV 13 mV
Current 0.01%+ 10 mA 15 mA 10 mA 35 mA

Transient response time

10% step change
Time 2 ms 2 ms 2 ms 5 ms
Level 150 mV 100 mV 100 mV 200 mV

Supplemental Characteristics (Non-warranted characteristics determined by design that are

useful in applying the product)

Programming resolution

Voltage 50 mV 5 mV 15 mV 125 mV
Current 4.25 mA 30 mA 12.5 mA 1.25 mA
dc floating voltage ±550 V ±240 V ±240 V ±550 V

either terminal can be grounded
or floated from chassis ground

ac input current 100 Vac 24 A 24 A 24 A 24 A

120 Vac 24 A 24 A 24 A 24 A
220 Vac 15 A 15 A 15 A 15 A
240 Vac 14 A 14 A 14 A 14 A

Weight Net 16.3 kg (36 lb) 17.2 kg (38 lb) 16.3 kg (36 lb) 16.3 kg (36 lb)

Shipping 21.8 kg (48 lb) 22.7 kg (50 lb) 21.8 kg (48 lb) 21.8 kg (48 lb)

A line cord option must be specified.
See pages 93-98 for ordering information.

* Support rails required

Accessories
1494-0060 Rack Slide Kit
E3663AC Support rails for

Agilent rack cabinets

V1

I1 I2 I3

Volts

P1

P2

P3

Amps

V2
V3

Autoranging Output:

This series of 200 watt and 1000
watt dc power supplies take the
place of multiple power supplies
in your test system by providing
maximum power at a variety of
operating points.

Industry standard SCPI commands
and VXIPlug&Play drivers make
system integration easy. Using the
serial link, up to 16 power supplies
can be connected through one
GPIB address. These power supplies
have excellent electrical efficiency,
making them a good choice for
large systems.

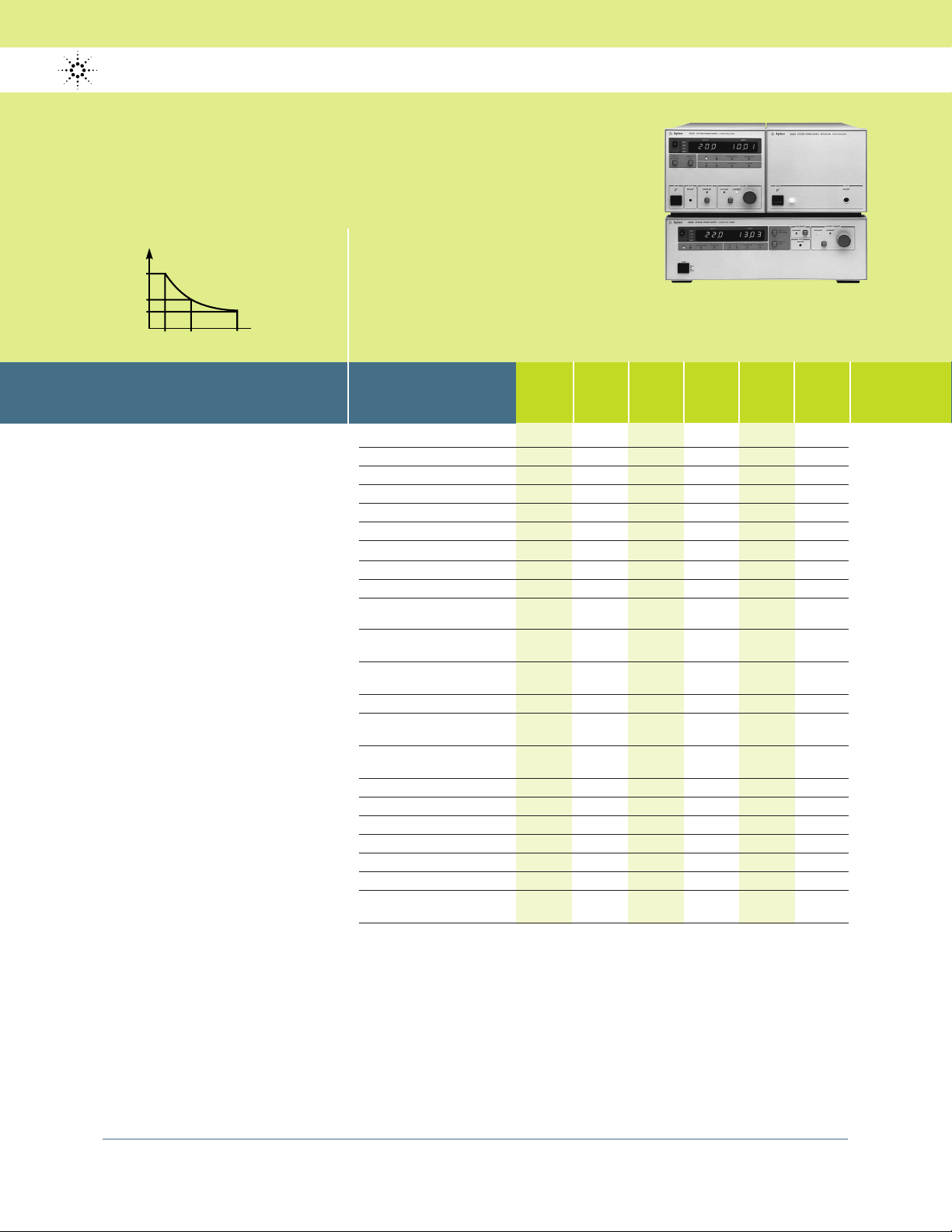

Agilent Performance dc Power Supplies speed and accuracy for test optimization

Specifications

(at 0˚to 55˚C unless
otherwise specified)

6030A 6031A 6032A 6033A 6035A 6038A

Power Products Catalog 2002-2003

For more detailed specifications see the product manual at

www.agilent.com/find/power

53

Save rack space by using fewer outputs
Reduce cost by using fewer power supplies

6030A, 6031A,

6032A, 6035A

6033A, 6038A

Single-Output, Autoranging:

200 W and 1000 W GPIB

Number of outputs 111111
GPIB Yes Yes Yes Yes Yes Yes
Output ratings

Output Voltage 0 to 200 V 0 to 20 V 0 to 60 V 0 to 20 V 0 to 500 V 0 to 60 V
Output Current 0 to 17 A 0 to 120 A 0 to 50 A 0 to 30 A 0 to 5 A 0 to 10 A

Maximum power watts 1,200 W 1,064 W 1,200 W 242 W 1,050 W 240 W
Autoranging output

V1, I1200 V, 5 A 20 V, 50 A 60 V, 17.5 A 20 V, 10 A 500 V, 2 A 60 V, 3.3 A

V2, I2120 V, 10 A 14 V, 76 A 40 V, 30 A 14 V, 17.2 A 350 V, 3 A 40 V, 6 A

V3, I360 V, 17 A 7 V, 120 A 20 V, 50 A 6.7 V, 30 A 200 V, 5 A 20 V, 10 A

Programming accuracy Voltage 0.035% 0.035% 0.035% 0.035% 0.25% 0.035%
at 25°C ±5°C +145 mV +15 mV +40 mV +9 mV +400 mV +40 mV

Current 0.2% 0.25% 0.2% 0.15% 0.3% 0.09%

+25 mA +250 mA +85 mA +20 mA +63 mA +10 mA

Ripple and noise Voltage rms 22 mV 8 mV 8 mV 3 mV 50 mV 3 mV
20 Hz to 20 MHz p-p 50 mV 50 mV 40 mV 30 mV 160 mV 30 mV

Current rms 15 mA 120 mA 25 mA 30 mA 50 mA 5 mA

Readback accuracy Voltage 0.08% 0.08% 0.08% 0.07% 0.5% 0.07%
at 25°C ±5°C +80 mV +7 mV +20 mV +6 mV +300 mV +50 mV

Current 0.36% 0.4% 0.36% 0.3% 0.5% 0.2%

+15 mA +100 mA +35 mA +25 mA +50 mA +11 mA

Load regulation

Voltage 0.01%+ 5 mV 3 mV 5 mV 2 mV 13 mV 3 mV
Current 0.01%+ 10 mA 15 mA 10 mA 9 mA 35 mA 5 mA

Line regulation

Voltage 0.01%+ 5 mV 2 mV 3 mV 1 mV 13 mV 2 mV
Current 0.01%+ 5 mA 25 mA 10 mA 6 mA 18 mA 2 mA
Transient response time Time 2 ms 2 ms 2 ms 1 ms 5 ms 1 ms

10% step change Level 150 mV 100 mV 100 mV 50 mV 200 mV 7 5 mV

V1

I1 I2 I3

Volts

P1

P2

P3

Amps

V2
V3

Autoranging Output:

54

Supplemental Characteristics
for all model numbers

Remote Sensing: Up to 2 V drop in each

lead. Voltage regulation specification met
with up to 0.5 V drop, but degrades for
greater drops.

Modulation: (analog programming of
output voltage and current)
Input signal: 0 to 5 V or 0 to 4 k Ohms

Size: 6030A–32A, 6035A:

425.5 mm W x 132.6 mm H x 503.7 mm D
(16.75 in x 5.25 in x 19.83 in).
6033A, 6038A:

212.3 mm W x 177.0 mm H x 516.4 mm D
(8.36 in x 6.97 in x 17.87 in).
See page 99 for more details.

Warranty: One year

Ordering Information

Opt 001 Front panel has only line switch,

line indicator, and OVP adjust
(6030A–33A and 6038A only)

Opt 100 87 to 106 Vac, 48 to 63 Hz
(power supply output is derated to 75%)

Opt 120 104 to 127 Vac, 47 to 63 Hz
Opt 220 191 to 233 Vac, 48 to 63 Hz
Opt 240 209 to 250 Vac, 48 to 63 Hz
Opt 800 Rack-mount Kit for Two

Half-rack Units Side by Side.
Lock link Kit p/n 5061-9694 and
7 in Rack adapter Kit 5063-9215

* Opt 908 Rack-mount Kit for a Single

Half-rack Unit 6033A and 6038A
(with blank filler panel); p/n 5062-3960,
6030A–32A and 6035A; p/n 5062-3977

* Opt 909 Rack-mount Kit with Handles.

For 6030A–32A, 6035A; p/n 5062-3983

Autoranging: 200 W and 1000 W GPIB (Continued)

Power Products Catalog 2002-2003

For more detailed specifications see the product manual at

www.agilent.com/find/power

Agilent Performance dc Power Supplies speed and accuracy for test optimization

Specifications

(at 0˚to 55˚C unless
otherwise specified)

6030A 6031A 6032A 6033A 6035A 6038A

Supplemental Characteristics (Non-warranted characteristics determined by design and

useful in applying the product)

Programming resolution Voltage 50 mV 5 mV 15 mV 5 mV 125 mV 1 5 mV

Current 4.25 mA 30 mA 12.5 mA 7.5 mA 1.25 mA 2.5 mA

dc floating voltage ±550 V ±240 V ±240 V ±240 V ±550 V ±240 V
either terminal can be grounded
or floated from chassis ground

ac input current 100 Vac 24 A 24 A 24 A 6 A 24 A 6 A

120 Vac 24 A 24 A 24 A 6.5 A 24 A 6.5 A
220 Vac 15 A 15 A 15 A 3.8 A 15 A 3.8 A
240 Vac 14 A 14 A 14 A 3.6 A 14 A 3.6 A

Weight Net 16.3 kg 17.2 kg 16.3 kg 9.6 kg 16.3 kg 9.6 kg

(36 lb) (38 lb) (36 lb) (21 lb) (36 lb) (21 lb)

Shipping 21.8 kg 22.7 kg 21.8 kg 11.4 kg 21.8 kg 11.4 kg

(48 lb) (50 lb) (48 lb) (25 lb) (48 lb) (25 lb)

Opt 0L2 Extra Standard
Documentation Package

Opt 0B3 Service Manual
Opt 0B0 No documentation package
Opt J01 Stabilization for loads up to

10 Henries (not available on 6033A)

A line cord must be specified for 6030A-32A,
6035A. See pages 93-98 for ordering
information.

* Support rails required

Accessories
5080-2148 Serial Link Cable, 2 m (6.6 ft)

1494-0060 Rack Slide Kit
E3663AC Support rails for Agilent rack

cabinets
