I/O Function Guide
Publication number 54652-97002
July 1996 (pdf version Dec 1998)
© Copyright Hewlett-Packard Company 1991-1996
All rights reserved
Interface Modules for
HP 54600-Series Instruments
Contents
To install the interface module 6
Print/Utility Menu 8
To select your printer or plotter 9
To setup your printer or plotter 11
To set formfeed 12
To print or plot gray scale 13
Gray scale printing 13
Gray scale plotting 14
To print or plot scale factors 15
To set HP-IB addresses 17
Instrument address 17
Printer Address 17
To set RS-232 baud rate and handshake 18
Baud rate 18
Handshake 18
2
Introduction
These modules provide the means for remote communication with
HP 54600-series instruments. For programming specifics, refer to the
Programmer’s Guide or Programmer’s Reference shipped with your
oscilloscope or logic analyzer. The hardcopy process does not
interrupt front-panel operation of the instrument. While any of the
interfaces are connected to the rear panel of the instrument, the
instruments trace memories become nonvolatile and are saved when
the power is removed from the instrument.
HP 54650A HP-IB Interface Module
Full programmability
•
Hardcopy output
•
HP 54651A RS-232-C Interface Module
Full programmability
•
Hardcopy output
•
HP 54652A Parallel Interface Module
Hardcopy output
•
HP 54652B Parallel/RS-232-C Interface Module
Full programmability
•
Hardcopy output
•
Connection to both an RS-232-C controller and a parallel printer at the
•
same time.
HP 54655A Test Automation Module (HP-IB) and
HP 54656A Test Automation Module (RS-232-C)
Full programmability.
•
Hardcopy output.
•
100 nonvolatile sequence steps.
•
40 nonvolatile mask templates.
•
3
I/O Function Guide
2 nonvolatile trace memories.
•
Built-in automatic mask generation and mask editing capabilities.
•
Protection of test sequence and mask template setup through software.
•
The HP 54656A has the following additional features:
External input lines for Next, Previous and Reset control.
•
5 user-definable output lines.
•
Recessed protection switch.
•
HP 54657A Measurement/Storage Module (HP-IB),
HP 54658A Measurement/Storage Module (RS-232-C), and
HP 54659B Measurement/Storage Module (RS-232-C/Parallel)
Full programmability.
•
Hardcopy output.
•
Three additional automatic voltage measurements (amplitude, preshoot,
•
and overshoot).
Two additional automatic time measurements (delay and phase angle).
•
User defined measurement thresholds of 10%/90%, 20%/80%, or selected
•
voltage values.
Two additional cursor measurements (voltage in percent and time in
•
degrees).
Two additional cursor measurement sources (math function 1 and 2).
•
Waveform math functions (addition, subtraction, multiplication,
•
differentiation, integration, and FFT).
Time and date tagging of hardcopy and nonvolatile memories.
•
Three nonvolatile trace memories.
•
Additional 64K of nonvolatile trace memory (with data compression).
•
The HP 54659B has an additional parallel output connector which allows the
module to be connected to both an RS-232-C controller and a parallel printer
at the same time.
4
I/O Function Guide
Interface I/O functions
Interface module Interface connection I/O Function
HP 54650A HP-IB HP-IB controller
HP 54651A RS-232-C RS-232-C controller
HP 54652A Parallel Parallel output to printer
HP 54652B
2
RS-232-C and parallel RS-232-C controller and parallel output to printer, or RS-232-C
output to printer/plotter
HP 54655A
HP 54656A
HP 54657A
HP 54658A
HP 54659B
1,3
1,3
1
1
1,2
HP-IB HP-IB controller or HP-IB output to printer/plotter
RS-232-C RS-232-C controller or RS-232-C output to printer/plotter
HP-IB HP-IB controller or HP-IB output to printer/plotter
RS-232-C RS-232-C controller or RS-232-C output to printer/plotter
RS-232-C and parallel RS-232-C controller and parallel output to printer, or RS-232-C
output to printer/plotter
1
The enhanced features of the HP 54655A/56A/57A/58A/59B are not available to the HP 54620A/C Logic Analyzer. These modules supply
enhanced oscilloscope programming functions. The I/O functions of these modules will function when used with the HP 54620A/C
Logic Analyzer.
2
The 54652B and HP 54659B are not compatible with the HP 54600A, HP 54601A, HP 54602A, and HP 54610A.
3
The 54655A and HP 54656A are not compatible with the HP 54615B, HP 54615B, HP 54645A and HP 54645D.
or HP-IB output to printer/plotter
or RS-232-C output to printer/plotter
5
I/O Function Guide
To install the interface module
To install the interface module
Turn off the instrument.
1
Install the module as shown below.
2
The instrument is reset after installation. The installed interface module is
shown in the message displayed when your turn on the instrument. The I/O
functions (controller and hardcopy) are available by pressing the instrument
front-panel
Print/Utility
key.
Installation of interface module to HP 54600-Series instrument
6
Interface Cables
I/O Function Guide
To install the interface module
Interface
module
Cable function
(Instrument to ..)
Module
connector
Printer/plotter/
controller
HP part number Cable
Length
connector
HP 54650A, HP 54655A
HP 54657A
HP 54651A, HP 54656A
HP 54658A
1
(HP-IB)
1
(RS-232-C)
Printer/plotter/
,
controller
1,3
Printer/plotter/
,
controller
Controller 25-pin F 25-pin M HP 92219J
HP-IB HP-IB HP 10833A
HP 10833B
HP 10833C
HP 10833D
25-pin F 25-pin F HP 13242G
HP 17255M
HP 17255D
1 m (3.3 ft)
2 m (6.6 ft)
4 m (13.2 ft)
0.5 m (1.6 ft)
5 m (16.7 ft)
1.5 m (4.9 ft)
5 m (16.7 ft)
1.5 m (4.9 ft)
1,3
Controller 25-pin F 9-pin M HP 24542G 3 m (9.9 ft)
HP 54652A
(parallel output only)
2
HP 54652B
, HP 54659B
Parallel printer parallel parallel C2950A
C2951A
1,2
RS-232-C controller 9-pin M 25-pin M HP 34398A 2.5 m (8.2 ft)
2 m (6.6 ft)
3 m (9.9 ft)
(RS-232-C and parallel
output)
1
The enhanced features of the HP 54655A/56A/57A/58A/59B are not available to the HP 54620A/C Logic Analyzer. These modules
supply enhanced oscilloscope programming functions. The I/O functions of these modules will function when used with the
HP 54620A/C Logic Analyzer.
2
The 54652B and HP 54659B are not compatible with the HP 54600A, HP 54601A, HP 54602A, and HP 54610A.
3
The 54655A and HP 54656A are not compatible with the HP 54615B , HP 54615B, HP 54645A and HP 54645D.
RS-232-C controller 9-pin M 9-pin M HP 34398A 2.5 m (8.2 ft)
RS-232-C printer/
plotter/controller
Parallel printer parallel parallel C2950A
9-pin M 25-pin F HP 34398A + HP 34399A
adapter kit
C2951A
2.5 m (8.2 ft)
2 m (6.6 ft)
3 m (9.9 ft)
7
Print/Utility Menu
The Print/Utility menu of your HP 54600-series instrument allows you
to select I/O functions for the module you have connected to your
instrument. The module can have an HP-IB, RS-232-C, parallel, or
combination RS-232-C/parallel interface.
Print
Utility

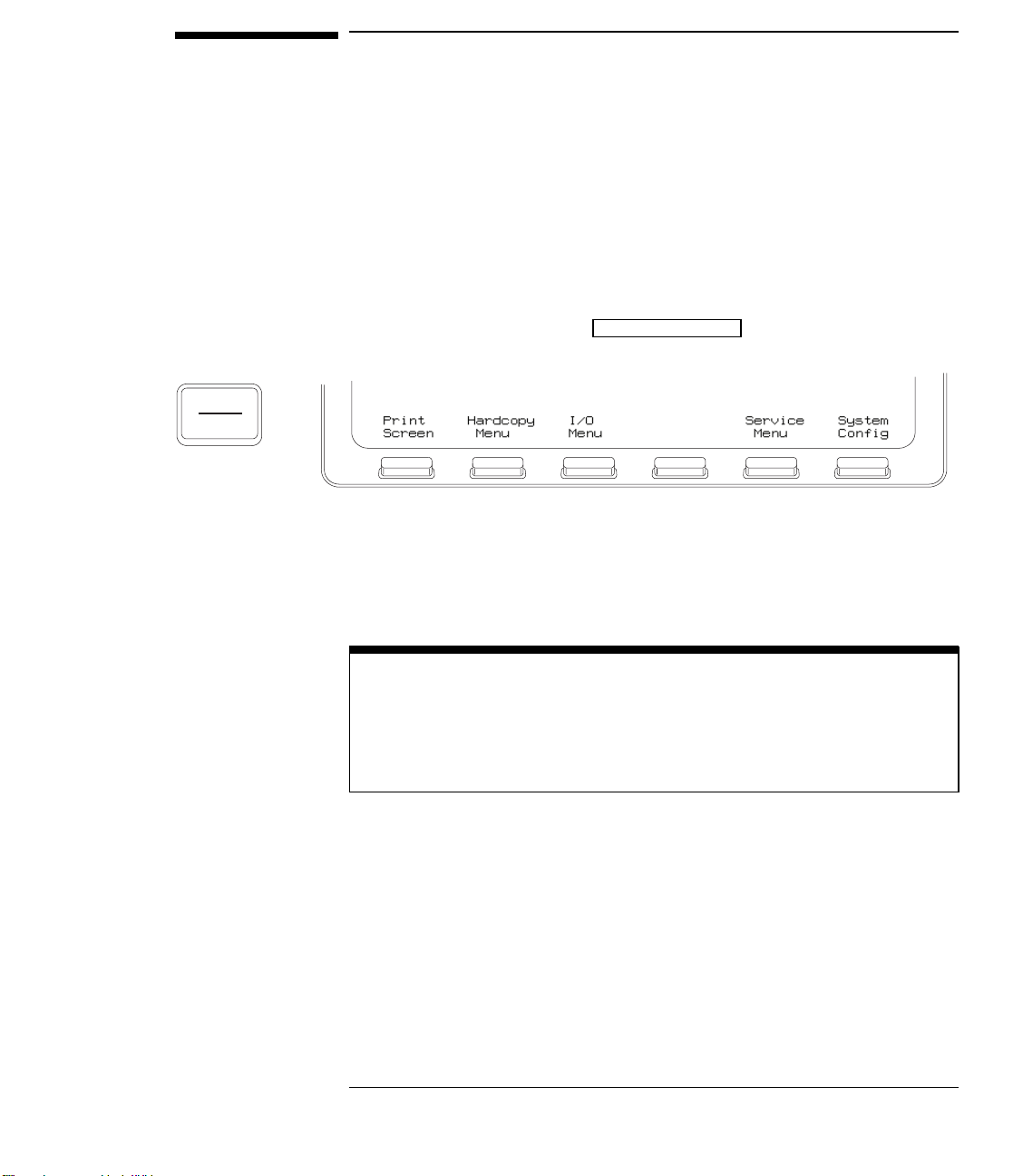

Print/Utility Menu
To display this menu, press
•
Print Screen
plotter.
Interface setup
In many cases, the interface will need to be configured before attempting to
print. If you are setting up an HP-IB module, refer to "To set HP-IB addresses"
on page 17. If you are setting up an RS-232-C module, refer to "To set RS-232
baud rate and handshake" on page 18.
Hardcopy Menu
and to set parameters for that printer or plotter.
I/O Menu
HP-IB interface for printer or controller operation.
Service Menu
enhanced module functions such as service self-test, service self-calibration
and system configuration. Refer to your instrument
or enhanced module
pressing this softkey sends the screen image to your printer or
this softkey allows you to select your printer or plotter type
this softkey allows you to set up parameters for your RS-232-C or
System Config
and
User’s Guide
Print/ Ut il ity
these softkeys control instrument and
for use of these softkeys.
.
User and Service Guide
8
To select your printer or plotter.
I/O Function Guide
To select your printer or plotter.
Press the
•
Your module can be configured to print in several formats.
To select the format of your printer/plotter, press the
•
Hardcopy Menu
until the desired format is displayed.
Hardcopy Menu with RS-232-C or parallel module attached
Format
LaserJet
DJ mono
DJ color
Epson
ThinkJet
Plotter
RS-232-C modules only and is not an option on color HP 54600 instruments.
Your module can be configured to print in the following formats:
HP LaserJet format
monochrome HP DeskJet format
color HP DeskJet format (color HP 54600-series instruments only)
Epson format
HP ThinkJet format (HP-IB and RS-232-C modules only)
HP plotter (HP-GL) format. This format is available on HP-IB and
softkey to view printer/plotter options.
softkey
Format
9
I/O Function Guide
To select your printer or plotter.
Destination
press the
the module to be
Hardcopy Menu with RS-232-C/parallel dual interface module attached
Printer address
If you have an RS-232-C/parallel dual interface module,
Destination
softkey to select the hardcopy output destination of
RS-232
or
Parallel
.
If you have an HP-IB interface module, press the
softkey until the correct address is displayed. The address can also be
incremented or decremented by turning the knob closest to the
key. The default printer/plotter address is 1.
PrintAddr
Cursors
Hardcopy Menu with HP-IB module attached
10
To setup your printer or plotter
I/O Function Guide
To setup your printer or plotter
From the
•
Selecting Printer Setup from the Hardcopy Menu
Printer/plotter options are displayed for formfeed, scale factors, and gray
scale printing.
Printer setup options for HP LaserJet and HP DeskJet formats
Hardcopy Menu
, press the
Printer Setup
softkey.
11
I/O Function Guide
To set formfeed
To set formfeed
To set formfeed, press the
•
softkey.
The instrument will send a formfeed command after printing when
is set to On.
Formfeed is not an option when Format is set to Plotter.
Formfeed
can be selected as On or
Hardcopy Menu
softkey, then the
Off
Printer Setup
Formfeed
12
To print or plot gray scale
Gray scale printing
I/O Function Guide
To print or plot gray scale
To print in gray scale, press the
•
softkey.
Setup
Selecting GrayScale from the Printer Setup menu
When gray scale printing is selected, the full-bright and half-bright traces on
the instrument screen are printed on the hardcopy.
Gray scale printing requires an HP-PCL printer capable of at least 300 dpi
(dots-per-inch), such as an HP LaserJet or HP DeskJet series printer. Grayscale
printing is not available with ThinkJet and Epson formats. If you have a color
HP 54600-series instrument, DJ Color format will print in 2 different colors.
GrayScale
Hardcopy Menu
softkey, then the
can be selected as On or
Off
Printer
Gray scale print
13
I/O Function Guide
To print or plot gray scale
Gray scale plotting
Press the
1
Plotter
Plotting GrayScale from the Plotter Setup menu
Gray scale plotting requires an HP-GL plotter capable of plotting with at least 2
pens.
Press the
2
Hardcopy Menu
is displayed.
Plotter Setup
displayed.
Gray scale plot uses two pens for the hardcopy. Half-bright traces are plotted
with plotter pen 1 and full-bright traces are plotted with plotter pen 2.
softkey, then press the
softkey, then press the
softkey until
Format
softkey until 2 is
Colors
14
I/O Function Guide
To print or plot scale factors
To print or plot scale factors
Instrument scale factors may be turned on or off for hardcopy prints and
plots. All factors are printed on the hardcopy when on is selected. When
factors is selected for a hardcopy plot, the plot is in portrait mode. When
factors is not selected for hardcopy plot, the plot is in landscape mode.
Press the
1
Press the
2
Hardcopy Menu
Factors
softkey until On is displayed.
softkey, then press the
Printer Setup
softkey.
Print or Plot with Factors On (portrait mode)
15
I/O Function Guide
To print or plot scale factors
Plot with Factors Off (landscape mode)
16
To set HP-IB addresses
I/O Function Guide
To set HP-IB addresses
Setting HP-IB addresses
To set addresses on HP-IB modules, press
•
I/O Menu
the
This menu allows you to set the instrument and printer/plotter address.
Each device on an HP-IB bus must have a unique instrument adresss
between 0 and 30.
softkey.
Print/Utility
, then press
Instrument address
To set the instrument address, press the
address is displayed. The address can also be incremented or decremented
by turning the knob closest to the
address is 7.
InstAddr
Cursors
softkey until the correct
key. The default instrument
See also
Printer Address
To set the printer or plotter address on the HP-IB bus, press the
softkey until the correct address is displayed. The address can also be
incremented or decremented by turning the knob closest to the
Cursor s
For more information on HP-IB parameters, refer to the Programmer’s Guide
that came with your HP 54600-Series instrument.
key. The default printer/plotter address is 1.
PrintAddr
17
I/O Function Guide
To set RS-232 baud rate and handshake
To set RS-232 baud rate and handshake
To set the baud rate and handshake parameters on a module with an
•
RS-232 interface, press
softkey.
Setting RS-232-C baud rate and handshake
Print/ Ut il ity
, then press the
I/O Menu
See also
Baud rate
To set the RS-232 baud rate, press the
value is displayed. The baud rate can also be incremented or decremented
by turning the knob closest to the
selected as 1200, 2400, 9600, or 19200. The default baud rate is 9600.
Baud Rate
Cursors
softkey until the correct
key. The baud rate can be
Handshake
To set the RS-232 handshake protocol, press the
correct protocol is displayed.
Handshake
/XOFF-transmit off.)
For more information on RS-232 parameters, refer to the Programmer’s
Guide that came with your HP 54600-Series instrument.
can be set to
DTR
(data terminal ready) or
Handshake
XON
(XON-transmit on
softkey until the
18
© Copyright HewlettPackard Company 1991–1996
All Rights Reserved.
Reproduction, adaptation, or
translation without prior
written permission is
prohibited, except as allowed
under the copyright laws.
Publication number
54652-97002
Printed in USA.
Edition dates are as follows:
First edition, July 1996
Printed in USA.
Warranty
The information contained in
this document is subject to
change without notice.
Hewlett-Packard makes
no warranty of any kind
with regard to this
material, including, but
not limited to, the implied
warranties or
merchantability and
fitness for a particular
purpose.
Hewlett-Packard shall not be
liable for errors contained
herein or for incidental or
consequential damages in
conne ction with the
furnishing, performan ce, or
use of this material.
This Hewlett-Packard
product has a warranty
against defects in material
and workmanship for a period
of three years from date of
shipment. During the
warranty period,
Hewlett-Packard Company
will, at its option, either
repair or replace products
that prove to be defective.
For warranty service or
repair, this product must be
returned to a service facility
designated by
Hewlett-Packard.
For products returned to
Hewlett-Packard for warranty
service, the Bu yer shal l
prepay shipping charges to
Hewlett-Packard and
Hewlett-Packard shall pay
shipping charges to return
the product to the Buyer.
However, the Bu yer shall pay
all shipping charges, duties,
and taxes for products
returned to Hewlett-Packard
from another country.
Hewlett-Packard warrants
that its software and firmware
designated by
Hewlett-Packard for use with
an instrument will execute its
programming instructions
when properly installed on
that instrument.
Hewlett-Packard does not
warrant that the operation of
the instrument software, or
firmware will be
uninterrupted or error free.
Limitation of Warranty
The foregoing warranty shall
not ap ply to defects resulting
from improper or inadequate
maintenance by the Buyer,
Buyer-supplied software or
interfacing, unauthorized
modification or misuse,
operation outsid e of the
environmental specifications
for the product, or improper
site preparation or
maintenance.
No other warranty is
expressed or implied.
Hewlett-Packard specifically
disclaims the implied
warranties or merchantability
and fitness for a particular
purpose.
Exclusive Remedies
The remedies provided
herein are the buyer’s sole
and exclusive remedies.
Hewlett-Packard shall not be
liable for any direct, indirect,
special, incidental, or
consequential damages,
whether based on contract,
tort, or any other legal theory.
Assistance
Product maintenan ce
agreements and other
customer assistance
agreements are available for
Hewlett-Packard products.
For any assistance, contact
your nearest Hewlett-Packard
Sales Office.
Certification
Hewlett-Packard Company
certifies that this product met
its published specifications at
the time of shipment from the
factory. Hewlett-Packard
further certifies that its
calibration measurements are
traceable to the United States
National Institute of
Standards and Technology, to
the extent allowed by the
Institute’s calibration facility,
and to the calibration
facilities of other
International Standards
Organization members.
Hewlett-Packard
P.O. Box 2197
1900 Garden of the Gods Road
Colorado Springs, CO 80901
Loading...
