• Dual-channel 100-MHz scope
with 200 MSa/s
• 1 MB of memory per scope
channel
• 16 logic timing channels with
400 MSa/s on 8 channels
(2 MB memory/ch)
200 MSa/s on 16 Channels
(1 MB memory/ch)
• Ideal for debugging 8- or 16-bit
microcontroller systems
• MegaZoom technology for easyto-use responsive deed memory
• Simple easy-to-use controls
• Powerful triggering
New mixed-signal testing power

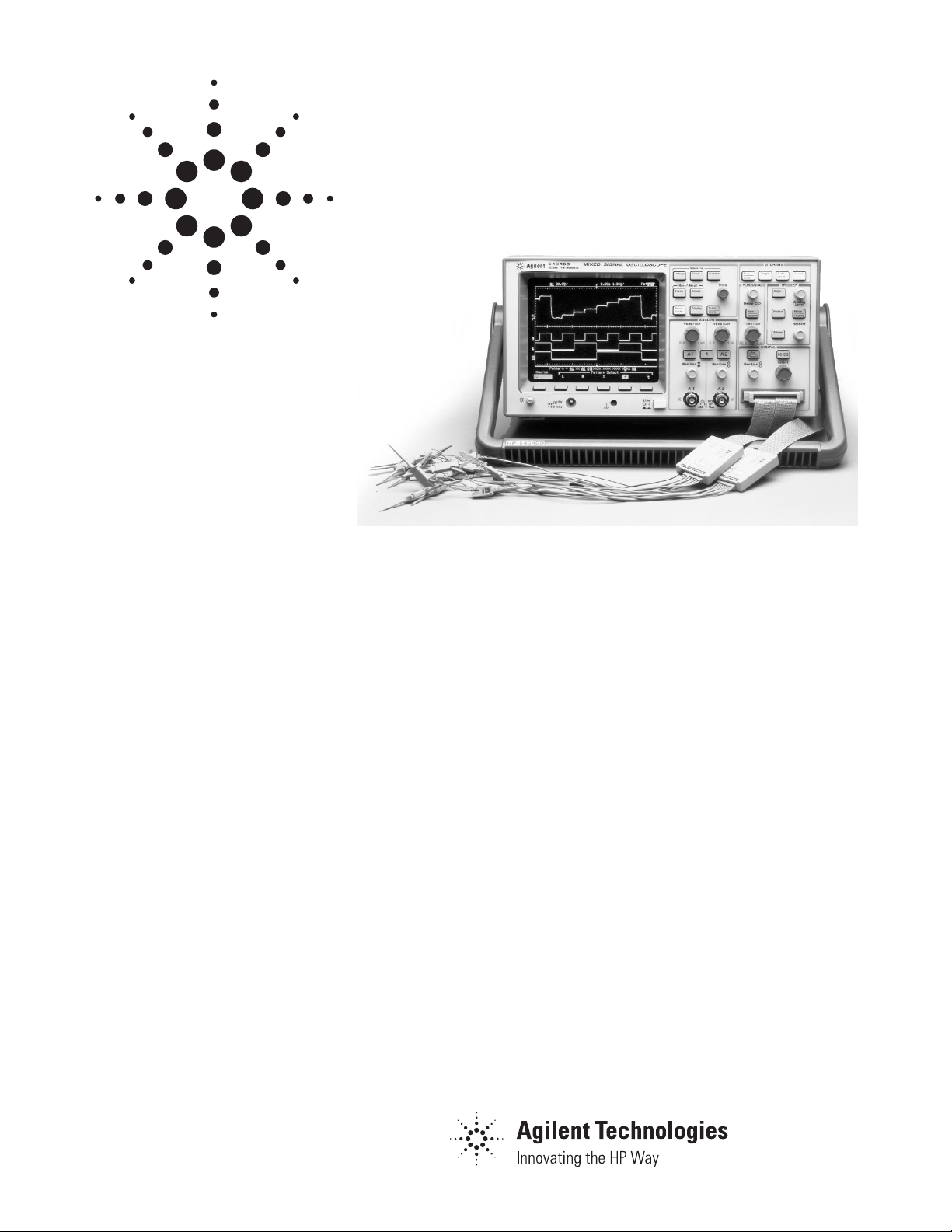

With the introduction of the Agilent
Technologies 54645D mixed-signal
oscilloscope (MSO) to your lab, you
will be able to easily view the complex relationships of your circuit’s
analog and digital operation.
Seamless integration of scope and
logic channels in the 54645D MSO
allow you to view both the analog circuit operation on the two 100 MHz
scope channels and the logic timing
displayed on the 16 logic channels.
Analog and digital events are aligned
in time so that you can easily relate
cause and effect in many difficult
mixed-signal troubleshooting situations, such as those encountered in
debugging 8- or 16-bit microcontroller
systems.
The 54645D gives you an oscilloscopelike operation of both the scope and
logic channels. For example, simply
turn the time-base knob to set the
time/division for all scope and logic
channels. Press Autoscale for the display of all active analog (scope) and
digital (logic) channels. There is no
scope-logic mode switch, just a seamless integration of logic channels into
a scope.
Agilent MegaZoom Technology
When you try to view analog and
digital signals, the events of interest
either take place over a long time
span or they are widely separated
from the trigger event. With 1 million
samples per channel, MegaZoom technology captures long time spans
while maintaining the high sample
rate, allowing you to see the fine
detail needed to solve elusive
problems.
Before the introduction of the 54645D
MSO with MegaZoom technology,
deep-memory oscilloscopes were considered specialized tools because of
their complex operation, non-responsive control panel, and excessive dis-
play dead time. These problems have
been greatly reduced with the development of MegaZoom technology,
which uses multiple processors optimized for the task of waveform acquisition, storage, and display. Now you
can have a deep memory scope in
your lab that is also a scope you will
use every day, as it is a deep-memory
scope that responds instantly to your
control inputs, has a high speed, low
dead time display and deep memory
with easy-to-use pan-and-zoom.
With an easy-to-use control system,
the 54645D MSO provides the triggering power you need to troubleshoot
problems. You will find it ideally suited
for everyday use because of its familiar scope edge triggering mode. This
familiar scope mode is the one that
can be used to solve most of your
problems, as you can trigger on a rising or falling edge on any of the
MSO’s 18 input channels.
Pattern triggering is provided in the
54645D MSO. This triggering mode
allows you to establish a trigger pattern of high, low, and “don’t care”
levels across all 18 of its channels.
Agilent 54645D
Mixed Signal Oscilloscope
Product Overview
The advanced mode gives you the
choice of glitch, TV, and advanced
pattern triggering. In the glitch mode,
the 54645D MSO can search for a
glitch that is less than a specified
width on any of its 18 input channels,
allowing you to find abnormally short
pulses that may indicate circuit failures. In addition you can search for a
pulse that is greater than a specified
width or within upper and lower limits.
In advanced pattern trigger mode, the
54645D MSO will search for a combination of two trigger pattern terms.
These terms may be combined in one
of several Boolean relationships
(AND, OR, THEN).
In TV mode the 54645D MSO may be
triggered on field 1, field 2, or line of
a composite TV waveform.
Computer and hardcopy I/O
For connection to your PC, printer, or
workstation, the 54645D is fully compatible with the full line of 546XX
interface modules. Select the module
that best fits your needs and you are
ready to either print the screen or
interface to your PC or workstation.
With the addition of the 54657A or
54659B Measurement/Storage module
you will have both the interface capabilities described above, as well as
additional measurements such as
FFT.
Software for enhanced connectivity
With the addition of HP BenchLink
Scope software for Microsoft®
Windows™, you have the ability to
easily interface this powerful instrument to your PC. This versatile software, which is compatible with
Windows 3.1, 95 or NT, makes the
movement of waveform data or trace
images fast and easy.
Built to last
The 54645D MSO is designed and
built to the rugged requirements of
MIL-T-28800. This means that the
product is built to withstand the rigors of daily use as you test and debug
your circuits, backed up with a threeyear warranty.
Specifications
Vertical System
Scope Channels: CH 1 and 2
Bandwidth (3dB) dc to 100 MHz @≥ 10
mv/div
(> 75 MHz @ < 10
mv/div)
ac coupled 1.5 Hz to 100 MHz
Risetime ≈ 3.5 ns @ > 10
mv/div,
(calculated) (< 4.6 ns @ < 10
mv/div)
Dynamic Input Range ± 32 V or ± 8 div
whichever is less
Math Functions channel 1 +
or - channel 2
Input Resistance 1 Mohm
Input Capacitance ≈ 13 pf
Maximum Input 400V (dc + peak ac)
Range 1mV/div to 5V/div
Vertical Gain Accuracy ± 1.5% full scale
Vernier Fully calibrated, accu-
racy ± 3% full scale
Single Cursor Accuracy Vertical gain accuracy
± 1% full scale
± 0.5% position value
Dual Cursor Accuracy Vertical gain ± 0.8%
full scale
BW Limit Approx. 20 MHz
Coupling ac, dc, GND
Channel Isolation dc to 20 MHz > 40 dB
(with channels at
same v/div) 20 MHz to
100 MHz > 30 dB
Inversion Channel 1 and
Channel 2
Logic Channels
16 channels (0-15) in two pods of 8 channels
each
Maximum Input Voltage ± 40 volts peak
Threshold Range ± 6.0 volts in 50 mV
increments
Threshold Accuracy ± (100 mV + 3% of
threshold setting)
Input Dynamic Range ± 10 Volts about
threshold
Minimum Input To meet the timing
Voltage Overdrive specifications the
threshold value must
be within 20% of the
50% voltage point of
the input signal
Minimum Input 500 mV peak to peak
Voltage Swing
Input Resistance 100 K Ω
Input Capacitance Approx 8 pF
Channel-to-Channel Skew 2 ns typical, 3 ns max
Pre-defined Thresholds TTL = 1.4V, CMOS =
2.5V, ELC = -1.3V
Horizontal System, Scope & Logic Channels
Sweep Speeds 50s/div to 5 ns/div
main and delayed
Accuracy ± 0.01%
Vernier Accuracy = ± 0.05%
Horizontal Resolution 40 ps
Scope Cursor Accuracy
Single Channel Horizontal accuracy
± 0.2% screen width
± 40 ps
Channel to Channel Horizontal accuracy
± 0.2% screen width
± 80 ps
Logic Cursor Accuracy
Single Channel Horizontal accuracy ±
0.2% screen width ± 1
logic sample period
Channel to Channel Horizontal accuracy
± 2% screen width ± 1
logic sample period
± chan-to-chan skew
< 10 ppm
Delay Jitter < 10 ppm
Delay Range
Pre-trigger (negative delay): At least 1 screen
width or 2.5 msec
Post trigger (from trigger point to end of sweep):
500 seconds
Delayed Sweep
Delayed timebase can be as fast as 5 nsec/div
but must be at least 2X the main timebase.
Delayed sweep display is the same data acquisition as was the main.
MegaZoom technology (Post acquisition Pan and
Zoom): The time/div and delay controls allow any
part of the acquired waveform display to be
expanded to the full extent of the memory available.
Trigger System
Modes Auto, Autolevel,
Normal, and Single
Holdoff ≈ 200 ns to ≈ 25
seconds
Edge Triggering Rising or falling on
any of the 18 input
channels
2
3
Pattern Triggering A pattern of high, low,
and don’t care levels
and a rising or falling
edge can be established across all
18 channels. The analog channel’s high
level is defined by that
channel’s trigger level.
Advanced Triggering Selectable as glitch,
advanced pattern, or
TV
Glitch Less than, greater
than, or within specified range
Source Any of the 18 input
channels
Polarity Rising or falling
Minimum Pulse 8 ns
Width Setting
Advanced Pattern Up to two trigger
terms (P1 and P2) and
two edge terms (E1
and E2) may be estab-
lished and these terms
can be combined as
follows: AND, OR,
Then, Entered, Exited,
Duration <, Duration
>, Duration range.
TV Available on scope
channels only
TV Line and Field 0.5 divisions of com-
posite sync required
for stable display
Oscilloscope Analog Triggering
Sensitivity DC to 25 MHz > 10 mV/
div ≤ 3.5 div or 3.5 mV
< 10 mV/div ≤ 1 div
or 2 mV
25 MHz to 100 MHz >
10 mV/div ≤ 1 div or
10 mV
< 10 mV/div, ≤1.5 div
or 3 mV
Sources CH 1, CH 2, and line
Coupling
dc, ac, HF reject, LF reject, noise reject
HF reject and LF reject -3dB @ 50 kHz.
XY
Bandwidth 100 MHz
Phase error @ 1 MHz 1.8 degrees
Acquisition System
Maximum Display Rate 3 million samples per
second with sufficient
trigger rate, and vec-
tors off. 60 full screens
per second, vectors on
Average Selectable as smooth-
ing, 4, 8, 16, 32, 64,
128, and 256 averages
Roll Mode At sweep speeds of
200 ms/div and slower, data moves across
the display from right
to left with no dead
time.
Oscilloscope Acquisition System
Maximum Sampling Rate 200 MSa/s on each
channel
Single Shot Bandwidth 50 MHz
Simultaneous capture on both channels
Vertical Resolution 8 bits
Peak Detection Can capture and dis-
play a pulse at least 5
nsec wide at any time-
base setting
Maximum Memory Depth 1 MB samples per
channel
Logic Acquisition System
Vertical Resolution 1 bit
Maximum Sampling Rate 400 MSa/s on one
pod, 200 MSa/s on
two pods
Simultaneous capture on all channels
Peak Detection Will capture and dis-
play a pulse at least 5
nsec wide at any time-
base setting
Maximum Memory Depth 2 MB samples per
channel on one pod, 1
MB samples when
both pods are used
Display System
Display 7-inch raster mono-
chrome CRT
Resolution 255 vertical by
500 horizontal points
Controls Front-panel intensity
Vectors Selectable on/off
Graticle 8 x 10 grid, frame, and
none
Advanced Features
Automatic Measurements (Measurements are
continuously updated,
markers indicate
measurement)
Voltage V
AVG
(dc), V
RMS
, VPP, V
MIN
,
V
MAX
, V
TOP
, and V
BASE
Time Frequency, period, +
pulse width, - pulse
width, duty cycle, rise
time and fall time (rise
time and fall time are
scope only)
Cursors Manually or automati-
cally placed read out
of time, 1/time, voltage. Additionally logic
channels can be displayed as binary or hex
values.
Setup Functions
Autoscale Finds and displays all
active scope and logic
channels, sets edge
trigger mode on highest numbered channel,
sets vertical sensitivity
on scope channels
and thresholds on
logic channels, time
base to display 1.8
periods
Save/Recall (non-volatile) 10 set-ups can be
saved and recalled
from non-volatile
memory
Trace Trace 2 volatile
(pixel) Memory
User-Defined All channels may be
Channel Labels assigned a user
defined label of up to
6 characters. Labels
displayed in place of
1st division of wave
form
General
Calibrator Output:
Frequency ≈ 1.2 kHz
Amplitude 5V
EMI
Commercial Meets FTZ 1046 class B
Mil-T-28800D Meets requirements in
accordance with para-
graph 3.8.3 EMI Type
III, and MIL-STD-461C
as modified by table
XII.
CE01, CE03 Yes
CS01, CS02, CS06 Yes
RE01 15 dB relaxation to 20
kHz; exceptioned from
20 kHz to 50 kHz
RE02 (with Opt 002) Full limits of class A1c
and A1f
RE02 (without OPT 002) 10 dB relaxation from
14 kHz to 100 kHz
RS02 Exceptioned
RS03 (with OPT 001) Slight trace shift from
80 Mhz to 200 mHz
General Information
Size 35.258 x 17.272 x 31.75
cm, 12.7W x 6.8H x
12.5D in (excluding
handle)
Weight ≈ 6.35 kgs (14 lbs)
Power Usage ≈ 90 W
Voltage 88-250 VAC
Line Voltage selection Automatic
Frequency 45-440 Hz
Environmental Characteristics
This instrument meets the requirements of
MIL-T-28800D for Type III, Class 3 Style D
equipment as described below.
Shock: Agilent class B1 and MIL-T-28800 style D,
Class 3 operating: 30g, 1/2 sine, 11 ms duration,
3 shocks per axis along major axis. Total of
18 shocks.
Vibration Operations: 15 minutes along each of
3 major axes; 0.64 mm (0.025 inch) p-p displacement, 10 Hz to 55 Hz in one-minute cycles. Held
for 10 minutes at 55 Hz (4 g at 55 Hz).
Altitude: Operating to 4500 M (15,000 ft),
non-operating to 15,000 M (50,000 ft).
Humidity: Operating 95% RH at 40°C, 24 hrs,
Non-operating 90% RH at 65°C, 24 hrs
Ambient temperature: Operating -10°C to 55°C,
non-operating -51°C to +71°C
Safety: CSA Certification, IEC 348
Ordering Information
54645D Mixed Signal Oscilloscope
Accessories included
Two each Agilent 10074A 10:1 divider probes with readout; 10089A 16 channel logic input probe
assembly; Removable front panel ground connector; User’s Guide and service manual; power cord.
Accessories and Options Available
Opt. 001 RS-02 magnetic interference shielding added to the CRT
Opt. 002 RE-02 Display shield added to the CRT to reduce radiated interference
OPT 101 10098A Front panel cover and pouch kit
OPT 103 54645A Customer training kit
OPT 104 1185A Carrying case
OPT 106 34810B HP BenchLink Scope software
OPT 1CM 5062-7345 Rack mount kit
OPT W50 Additional two years of warranty
10074A 10X probe with readout
10070A 1X probe
10085A 16:16 logic cable and termination
10089A 16:2 x 8 logic input probe assembly
Modules Fully Supported
* 54650A, GPIB I/O
* 54652B RS-232 and Centronics I/O
* 54657A GPIB Measurement/storage
* 54659B RS-232 and Centronics Measurement/storage
* E2657A GPIB Connectivity kit
* E2658A RS-232 Connectivity kit
* includes measurement/storage module, BenchLink Scope and cable.
Microsoft ® Windows ™ is a trademark of Microsoft Corporation.
Agilent Technologies’ Test and Measurement
Support, Services, and Assistance
Agilent Technologies aims to maximize
the value you receive, while minimizing
your risk and problems. We strive to
ensure that you get the test and measurement capabilities you paid for and obtain
the support you need. Our extensive support resources and services can help you
choose the right Agilent products for your
applications and apply them successfully.
Every instrument and system we sell has
a global warranty. Support is available
for at least five years beyond the production life of the product. Two concepts
underlie Agilent’s overall support policy:
“Our Promise” and “Your Advantage.”
Our Promise
“Our Promise” means your Agilent test
and measurement equipment will meet its
advertised performance and functionality.
When you are choosing new equipment,
we will help you with product information, including realistic performance specifications and practical recommendations
from experienced test engineers. When
you use Agilent equipment, we can verify
that it works properly, help with product
operation, and provide basic measurement
assistance for the use of specified capabilities, at no extra cost upon request. Many
self-help tools are available.
Your Advantage
“Your Advantage” means that Agilent
offers a wide range of additional expert
test and measurement services, which you
can purchase according to your unique
technical and business needs. Solve problems efficiently and gain a competitive edge
by contracting with us for calibration, extracost upgrades, out-of-warranty repairs, and
on-site education and training, as well
as design, system integration, project management, and other professional services.
Experienced Agilent engineers and technicians worldwide can help you maximize
your productivity, optimize the return on
investment of your Agilent instruments and
systems, and obtain dependable measurement accuracy for the life of those products.
Get assistance with all your
test and measurement needs at:
www.agilent.com/find/assist
Product specifications and descriptions in
this document subject to change without notice.
Copyright © 1998, 2000 Agilent Technologies
Printed in U.S.A. 5/00
5968-2610EN
Loading...
