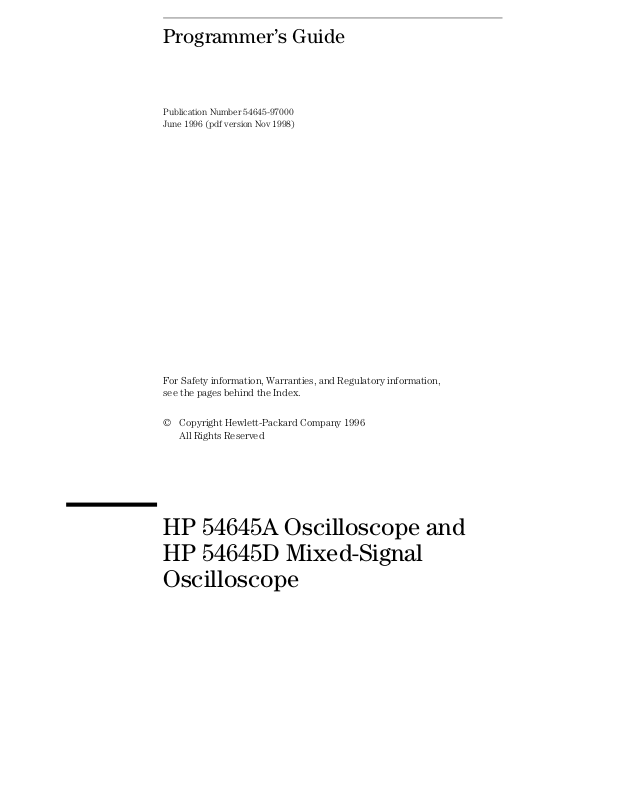

Programmer’s Guide

Publication Number 54645-97000 June 1996 (pdf version Nov 1998)

For Safety information, Warranties, and Regulatory information, see the pages behind the Index.

HP 54645A Oscilloscope and HP 54645D Mixed-Signal Oscilloscope

Programming the Oscilloscope

When you attach an interface module to the rear of the HP 54645 A/D Oscilloscope, it becomes programmable. That is, you can hook a controller (such as a PC or workstation) to it, and write programs on that controller to automate oscilloscope setup and data capture. Both HP-IB (also known as GP-IB, IEEE-488) and RS-232-C interfaces are available.

The following figure shows the basic structure of every program you will write for the oscilloscope.

Initialize

To ensure consistent, repeatable performance, you need to start the program, controller, and oscilloscope in a known state. Without correct initialization, your program may run correctly in one instance and not in another. This might be due to changes made in configuration by previous program runs or from the front panel of the oscilloscope.

• Program initialization defines and initializes variables, allocates

memory, or tests system configuration.

• Controller initialization ensures that the interface to the

oscilloscope (either HP-IB or RS-232) is properly set up and ready for data transfer.

• Oscilloscope initialization sets the channel configuration and labels,

threshold voltages, trigger specification and mode, timebase, and acquisition type.

Capture

Once you initialize the oscilloscope, you can begin capturing data for analysis. Remember that while the oscilloscope is responding to commands from the controller, it is not performing acquisitions. Also, when you change the oscilloscope configuration, any data already captured is most likely invalid.

To collect data, you use the :DIGitize command. This command clears the waveform buffers and starts the acquisition process. Acquisition continues until acquisition memory is full, then stops. The acquired data is displayed by the oscilloscope, and the captured data can be measured, stored in trace memory in the oscilloscope, or transferred to the controller for further analysis. Any additional commands sent while :DIGitize is working are buffered until :DIGitize is complete.

You could also start the oscilloscope running, then use a wait loop in your program to ensure that the oscilloscope has completed at least one acquisition before you make a measurement. HP does not recommend this because the needed length of the wait loop may vary, causing your program to fail. :DIGitize, on the other hand, ensures that data capture is complete. Also, :DIGitize, when complete, stops the acquisition process so that all measurements are on displayed data, not on a constantly changing data set.

Analyze

After the oscilloscope has completed an acquisition, you can find out more about the data, either by using the oscilloscope measurements or by transferring the data to the controller for manipulation by your program. Built-in measurements include frequency, duty cycle, period, and positive and negative pulse width.

Using the :WAVeform commands, you can transfer the data to your controller. You may want to display the data, compare it to a known good measurement, or simply check logic patterns at various time intervals in the acquisition.

iii

In This Book

The HP 54645A/D Programmer’s Guide is your introduction to programming the HP 54645A Oscilloscope or HP 54645D Mixed-Signal Oscilloscope using an instrument controller. This book, with the Programmer’s Reference, provides a comprehensive description of the oscilloscope’s programmatic interface. The Programmer’s Reference is supplied as a Microsoft Windows Help file on a 3.5" diskette.

To program the HP 54645A/D, you need an interface module, such as the HP 54650A, 54651A, or 54652B. You also need an instrument controller that supports either the IEEE-488 or RS-232-C interface standards, and a programming language capable of communicating with these interfaces.

This book contains the following information: Chapter 1, “Introduction to Programming,” gives a general overview of

oscilloscope programming. Chapter 2, “Programming Getting Started,” shows a simple program, explains

its operation, and discusses considerations for data types. Chapter 3, “Programming over HP-IB,” discusses the general considerations

for programming the instrument over an HP-IB interface. Chapter 4, “Programming over RS-232-C,” discusses the general

considerations for programming the instrument over an RS-232-C interface. Chapter 5, “Programming and Documentation Conventions,” describes the

conventions used in representing the syntax of commands throughout this book and the HP 54645A/D Programmer’s Reference, and gives an overview of the oscilloscope command set.

Chapter 6, “Status Reporting,” discusses the oscilloscope status registers and how to use them in your programs.

Chapter 7, “Installing and Using the Programmer’s Reference,” tells how to install the HP 54645A/D Programmer’s Reference online help file in Microsoft Windows, and explains help file navigation.

Chapter 8, “Programmer’s Quick Reference,” lists all the commands and queries available for programming the oscilloscope.

For information on oscilloscope operation, see the HP 54645A/D User and Service Guide. For information on interface configuration, see the documentation for the oscilloscope interface module and the interface card used in your controller (for example, the HP 82341A interface for IBM PC-compatible computers).

Introduction to Programming

Programming Getting Started

Programming over HP-IB

Programming over RS-232-C

Programming and

Documentation Conventions

Status Reporting

Installing and Using the

Programmer’s Reference

Programmer’s Quick Reference

Index

1 Introduction to Programming

Talking to the Instrument 1–3 Program Message Syntax 1–4 Combining Commands from the Same Subsystem 1–7 Duplicate Mnemonics 1–7 Query Command 1–8 Program Header Options 1–9 Program Data Syntax Rules 1–10 Program Message Terminator 1–12 Selecting Multiple Subsystems 1–12

2 Programming Getting Started

Initialization 2–3 Autoscale 2–4 Setting Up the Instrument 2–4 Example Program 2–5 Using the DIGitize Command 2–6 Receiving Information from the Instrument 2–8 String Variables 2–9 Numeric Variables 2–10 Definite-Length Block Response Data 2–11 Multiple Queries 2–12 Instrument Status 2–12

3 Programming over HP-IB

Interface Capabilities 3–3 Command and Data Concepts 3–3 Addressing 3–4 Communicating Over the Bus 3–5 Lockout 3–6 Bus Commands 3–6

Contents–1

Contents

4 Programming over RS-232-C

Interface Operation 4–3 Cables 4–3 Minimum Three-Wire Interface with Software Protocol 4–4 Extended Interface with Hardware Handshake 4–5 Configuring the Interface 4–7 Interface Capabilities 4–8 Communicating Over the RS-232-C Bus 4–9 Lockout Command 4–10

5 Programming and Documentation Conventions

Command Set Organization 5–3 The Command Tree 5–6 Truncation Rules 5–10 Infinity Representation 5–11 Sequential and Overlapped Commands 5–11 Response Generation 5–11 Notation Conventions and Definitions 5–12 Program Examples 5–13

6 Status Reporting

Status Reporting Data Structures 6–5 Status Byte Register (SBR) 6–9 Service Request Enable Register (SRER) 6–11 Trigger Event Register (TRG) 6–11 Standard Event Status Register (SESR) 6–12 Standard Event Status Enable Register (SESER) 6–13 User Event Register (UER) 6–14 Local Event Register (LCL) 6–14 Operation Status Register (OPR) 6–14 Limit Test Event Register (LTER) 6–15 Mask Test Event Register (MTER) 6–16 Histogram Event Register (HER) 6–17 Arm Event Register (ARM) 6–17 Error Queue 6–18

Contents–2

Output Queue 6–19 Message Queue 6–19 Key Queue 6–19 Clearing Registers and Queues 6–19

7 Installing and Using the Programmer’s Reference

To install the help file under Microsoft Windows 7–3 To use the help text and example program files 7–3 To get updated help and program files via the Internet 7–4 To start the help file 7–5 To navigate through the help file 7–5

8 Programmer’s Quick Reference

Contents

Introduction 8–2

Conventions 8–3 Suffix Multipliers 8–3 Commands and Queries 8–4

Index

Contents–3

Contents–4

Introduction to Programming

Chapters 1 and 2 introduce the basics for remote programming of an oscilloscope. The programming instructions in this manual conform to the IEEE 488.2 Standard Digital Interface for Programmable Instrumentation. The programming instructions provide the means of remote control.

To program the HP 54645A/D oscilloscope you must add either an HP-IB (HP 54650A, for example) or RS-232-C (HP 54651A, for example) interface to the rear panel.

You can perform the following basic operations with a controller and an oscilloscope:

• Set up the instrument.

• Make measurements.

• Get data (waveform, measurements, configuration) from the

oscilloscope.

• Send information (pixel image, configurations) to the oscilloscope.

Other tasks are accomplished by combining these basic functions.

Languages for Program Examples

The programming examples for individual commands in this manual are written in HP BASIC 5.0 or C.

1-2

Introduction to Programming

Talking to the Instrument

Computers acting as controllers communicate with the instrument by sending and receiving messages over a remote interface. Instructions for programming normally appear as ASCII character strings embedded inside the output statements of a “host” language available on your controller. The input statements of the host language are used to read in responses from the oscilloscope.

For example, HP BASIC uses the OUTPUT statement for sending commands and queries. After a query is sent, the response is usually read in using the ENTER statement.

Messages are placed on the bus using an output command and passing the device address, program message, and terminator. Passing the device address ensures that the program message is sent to the correct interface and instrument.

The following HP BASIC statement sends a command which sets the bandwidth limit of analog channel 1 on:

OUTPUT < device address > ;":ANALOG1:BWLIMIT ON"<terminator>

The < device address > represents the address of the device being programmed. Each of the other parts of the above statement are explained in the following pages.

1-3

Figure 1-1

Introduction to Programming

Program Message Syntax

To program the instrument remotely, you must understand the command format and structure expected by the instrument. The IEEE 488.2 syntax rules govern how individual elements such as headers, separators, program data, and terminators may be grouped together to form complete instructions. Syntax definitions are also given to show how query responses are formatted. Figure 1 shows the main syntactical parts of a typical program statement.

Program Message Syntax

Output Command

The output command is entirely dependent on the programming language. Throughout this manual, HP BASIC is used in most examples of individual commands. If you are using other languages, you will need to find the equivalents of HP BASIC commands like OUTPUT, ENTER, and CLEAR in order to convert the examples. The instructions listed in this manual are always shown between quotation marks in the example programs.

Device Address

The location where the device address must be specified is also dependent on the programming language you are using. In some languages, this may be specified outside the output command. In HP BASIC, this is always specified after the keyword OUTPUT. The examples in this manual assume the oscilloscope is at device address 707. When writing programs, the address varies according to how the bus is configured.

1-4

Introduction to Programming

Program Message Syntax

Instructions

Instructions (both commands and queries) normally appear as a string embedded in a statement of your host language, such as BASIC, Pascal, or C. The only time a parameter is not meant to be expressed as a string is when the instruction’s syntax definition specifies <block data>, such as learnstring. There are only a few instructions which use block data.

Instructions are composed of two main parts:

The header, which specifies the command or query to be sent.

•

The program data, which provide additional information needed to clarify

•

the meaning of the instruction.

Instruction Header

The instruction header is one or more mnemonics separated by colons (:) that represent the operation to be performed by the instrument. The command tree in chapter 5 illustrates how all the mnemonics can be joined together to form a complete header (see chapter 5, “Programming and Documentation Conventions”).

The example in figure 1 is a command. Queries are indicated by adding a question mark (?) to the end of the header. Many instructions can be used as either commands or queries, depending on whether or not you have included the question mark. The command and query forms of an instruction usually have different program data. Many queries do not use any program data.

White Space (Separator)

White space is used to separate the instruction header from the program data. If the instruction does not require any program data parameters, you do not need to include any white space. In this manual, white space is defined as one or more spaces. ASCII defines a space to be character 32 (in decimal).

Program Data

Program data are used to clarify the meaning of the command or query. They provide necessary information, such as whether a function should be on or off, or which waveform is to be displayed. Each instruction’s syntax definition shows the program data, as well as the values they accept. The section “Program Data Syntax Rules” in this chapter has all of the general rules about acceptable values.

When there is more than one data parameter, they are separated by commas (,). Spaces can be added around the commas to improve readability.

1-5

Introduction to Programming

Program Message Syntax

Header Types

There are three types of headers:

Simple Command headers

•

Compound Command headers

•

Common Command headers

•

Simple Command Header Simple command headers contain a single mnemonic. AUTOSCALE and DIGITIZE are examples of simple command headers typically used in this instrument. The syntax is:

Simple command headers must occur at the beginning of a program message; if not, they must be preceded by a colon.

When program data must be included with the simple command header (for example, :DIGITIZE ANALOG1), white space is added to separate the data from the header. The syntax is:

Compound Command Header Compound command headers are a combination of two program mnemonics. The first mnemonic selects the subsystem, and the second mnemonic selects the function within that subsystem. The mnemonics within the compound message are separated by colons. For example:

To execute a single function within a subsystem:

:<subsystem>:<function><separator><program data><terminator>

(For example :ANALOG1:BWLIMIT ON) Common Command Header Common command headers control IEEE

488.2 functions within the instrument (such as clear status). Their syntax is:

*<co mm an d header>< terminat or >

No space or separator is allowed between the asterisk (*) and the command header. *CLS is an example of a common command header.

1-6

Introduction to Programming

Combining Commands from the Same Subsystem

To execute more than one function within the same subsystem a semicolon (;) is used to separate the functions:

:<su bsystem>:<function><separato r><data>; <function><separator><data><terminator>

(For example :ANALOG1:COUPLING DC;BWLIMIT ON)

Duplicate Mnemonics

Identical function mnemonics can be used for more than one subsystem. For example, the function mnemonic RANGE may be used to change the vertical range or to change the horizontal range:

:ANALOG1:RANGE .4

sets the vertical range of channel 1 to 0.4 volts full scale.

:TIM EB AS E:RANGE 1

sets the horizontal time base to 1 second full scale.

ANALOG1 and TIMEBASE are subsystem selectors and determine which range is being modified.

1-7

Introduction to Programming

Query Command

Command headers immediately followed by a question mark (?) are queries. After receiving a query, the instrument interrogates the requested function and places the answer in its output queue. The answer remains in the output queue until it is read or another command is issued. When read, the answer is transmitted across the bus to the designated listener (typically a controller). For example, the query :TIMEBASE:RANGE? places the current time base setting in the output queue. In HP BASIC, the controller input statement:

ENTER < device address > ;Range

passes the value across the bus to the controller and places it in the variable Range.

Query commands are used to find out how the instrument is currently configured. They are also used to get results of measurements made by the instrument. For example, the command :MEASURE:RISETIME? instructs the instrument to measure the rise time of your waveform and places the result in the output queue.

The output queue must be read before the next program message is sent. For example, when you send the query :MEASURE:RISETIME? you must follow that query with an input statement. In HP BASIC, this is usually done with an ENTER statement immediately followed by a variable name. This statement reads the result of the query and places the result in a specified variable.

Read the Query Result First

Sending another command or query before reading the result of a query causes the output buffer to be cleared and the current response to be lost. This also generates a query interrupted error in the error queue.

1-8

Introduction to Programming

Program Header Options

Program headers can be sent using any combination of uppercase or lowercase ASCII characters. Instrument responses, however, are always returned in uppercase.

Program command and query headers may be sent in either long form (complete spelling), short form (abbreviated spelling), or any combination of long form and short form.

TIMEBASE:DELAY 1US - long form TIM:DEL 1US - short form

Programs written in long form are easily read and are almost self-documenting. The short form syntax conserves the amount of controller memory needed for program storage and reduces the amount of I/O activity.

Command Syntax Programming Rules

The rules for the short form syntax are shown in chapter 5, “Programming and Documentation Conventions.”

1-9

Introduction to Programming

Program Data Syntax Rules

Program data is used to convey a variety of types of parameter information related to the command header. At least one space must separate the command header or query header from the program data.

When a program mnemonic or query has multiple program data a comma separates sequential program data.

For example, :MEASURE:TVOLT 1.0V,2 has two program data: 1.0V and 2. There are two main types of program data which are used in commands:

character and numeric program data.

Character Program Data

Character program data is used to convey parameter information as alpha or alphanumeric strings. For example, the :TIMEBASE:MODE command can be set to normal, delayed, XY, or ROLL. The character program data in this case may be NORMAL, DELAYED, XY, or ROLL. The command :TIMEBASE:MODE DELAYED sets the time base mode to delayed.

The available mnemonics for character program data are always included with the instruction’s syntax definition. When sending commands, either the long form or short form (if one exists) may be used. Uppercase and lowercase letters may be mixed freely. When receiving query responses, uppercase letters are used exclusively.

Numeric Program Data

Some command headers require program data to be expressed numerically. For example, :TIMEBASE:RANGE requires the desired full scale range to be expressed numerically.

For numeric program data, you have the option of using exponential notation or using suffix multipliers to indicate the numeric value. The following numbers are all equal:

28 = 0.28E2 = 280e-1 = 28000m = 0.028K = 28e-3K.

When a syntax definition specifies that a number is an integer, that means that the number should be whole. Any fractional part would be ignored, truncating the number. Numeric data parameters which accept fractional values are called real numbers.

1-10

Introduction to Programming

Program Data Syntax Rules

All numbers are expected to be strings of ASCII characters. Thus, when sending the number 9, you would send a byte representing the ASCII code for the character “9” (which is 57). A three-digit number like 102 would take up three bytes (ASCII codes 49, 48, and 50). This is taken care of automatically when you include the entire instruction in a string.

Embedded Strings

Embedded strings contain groups of alphanumeric characters which are treated as a unit of data by the oscilloscope. For example, the line of text written to the advisory line of the instrument with the :SYSTEM:DSP command:

:SYSTEM:DSP"This is a message."

Embedded strings may be delimited with either single (’) or double (”) quotes. These strings are case-sensitive, and spaces act as legal characters just like any other character.

1-11

Introduction to Programming

Program Message Terminator

The program instructions within a data message are executed after the program message terminator is received. The terminator may be either an NL (New Line) character, an EOI (End-Or-Identify) asserted in the HP-IB interface, or a combination of the two. Asserting the EOI sets the EOI control line low on the last byte of the data message. The NL character is an ASCII linefeed (decimal 10).

New Line Terminator Functions

The NL (New Line) terminator has the same function as an EOS (End Of String) and EOT (End Of Text) terminator.

Selecting Multiple Subsystems

You can send multiple program commands and program queries for different subsystems on the same line by separating each command with a semicolon. The colon following the semicolon enables you to enter a new subsystem. For example:

:AN ALOG1:RANGE 0.4;:TIM EBASE:RANGE 1

Combining Compound and Simple Commands

Multiple commands may be any combination of compound and simple commands.

1-12

Programming Getting Started

This chapter explains how to set up the instrument, how to retrieve setup information and measurement results, how to digitize a waveform, and how to pass data to the controller.

Languages for Programming Examples

The programming examples in this manual are written in HP BASIC 5.0 or C.

2-2

Programming Getting Started

Initialization

To make sure the bus and all appropriate interfaces are in a known state, begin every program with an initialization statement. HP BASIC provides a CLEAR command which clears the interface buffer:

CLEAR 707 ! initializes the interface of the instrument

When you are using HP-IB, CLEAR also resets the oscilloscope’s parser. The parser is the program which reads in the instructions which you send it.

After clearing the interface, initialize the instrument to a preset state:

OUTPUT 707;"*RST" ! initializes the instrument to a preset state.

Information for Initializing the Instrument

The actual commands and syntax for initializing the instrument are discussed in the common commands section of the online

Programmer’s Reference

HP 54645A/D Oscilloscopes

Refer to your controller manual and programming language reference manual for information on initializing the interface.

2-3

Programming Getting Started

Autoscale

The AUTOSCALE feature performs a very useful function on unknown waveforms by setting up the vertical channel, time base, and trigger level of the instrument.

The syntax for the autoscale function is:

:AUTOSCALE<terminator>

Setting Up the Instrument

A typical oscilloscope setup would set the vertical range and offset voltage, the horizontal range, delay time, delay reference, trigger mode, trigger level, and slope. A typical example of the commands sent to the oscilloscope are:

:AN ALOG1:PROBE X10;RANG E 16;OFFSET 1.00<terminato r> :TIMEBASE:MODE NORMAL;RANGE 1E-3;DELAY 100E-6<terminator>

This example sets the time base at 1 ms full-scale (100µs/div) with delay of 100 µs. Vertical is set to 16V full-scale (2 V/div) with center of screen at 1V and probe attenuation set to 10.

2-4

Programming Getting Started

Example Program

This program demonstrates the basic command structure used to program the oscilloscope.

10 CLEAR 707 ! Initialize instrument interface 20 OUTPUT 707;"*RST" ! Initialize inst to preset state 30 OUTPUT 707;":TIMEBASE:RANGE 5E-4" ! Time base to 50 us/div 40 OUTPUT 707;":TIMEBASE:DELAY 0" ! Delay to zero 50 OUTPUT 707;":TIMEBASE:REFERENCE CENTER" ! Display reference at center 60 OUTPUT 707;":ANALOG1:PROBE X10" ! Probe attenuation to 10:1 70 OUTPUT 707;":ANALOG1:RANGE 1.6" ! Vertical range to 1.6 V full scale 80 OUTPUT 707;":ANALOG1:OFFSET -.4" ! Offset to -0.4 90 OUTPUT 707;":ANALOG1:COUPLING DC" ! Coupling to DC 100 OUTPUT 707;":TRIGGER:MODE NORMAL" ! Normal triggering 110 OUTPUT 707;":TRIGGER:LEVEL -.4" ! Trigger level to -0.4 120 OUTPUT 707;":TRIGGER:SLOPE POSITIVE" ! Trigger on positive slope 130 OUTPUT 707;":ACQUIRE:TYPE NORMAL" ! Normal acquisition 140 OUTPUT 707;":DISPLAY:GRID OFF" ! Grid off 150 END

Line 10 initializes the instrument interface to a known state.

•

Line 20 initializes the instrument to a preset state.

•

Lines 30 through 50 set the time base mode to normal with the horizontal

•

time at 50 µs/div with 0 s of delay referenced at the center of the graticule. Lines 60 through 90 set the vertical range to 1.6 volts full scale with center

•

screen at -0.4 volts with 10:1 probe attenuation and DC coupling. Lines 100 through 120 configure the instrument to trigger at -0.4 volts

•

with normal triggering. Line 130 configures the instrument for normal acquisition.

•

Line 140 turns the grid off.

•

2-5

Programming Getting Started

Using the DIGitize Command

The DIGitize command is a macro that captures data satisfying the specifications set up by the ACQuire subsystem. When the digitize process is complete, the acquisition is stopped. The captured data can then be measured by the instrument or transferred to the controller for further analysis. The captured data consists of two parts: the waveform data record and the preamble.

Ensure New Data is Collected

After changing the oscilloscope configuration, the waveform buffers are cleared. Before doing a measurement, the DIGitize command should be sent to the oscilloscope to ensure new data has been collected.

When you send the DIGitize command to the oscilloscope, the specified channel signal is digitized with the current ACQuire parameters. To obtain waveform data, you must specify the WAVEFORM parameters for the waveform data prior to sending the :WAVEFORM:DATA? query.

Set :TIMebase:MODE to NORMal when using :DIGitize

:TIMebase:MODE must be set to NORMal to perform a :DIGitize command or to perform any WAVeform subsystem query. A "Settings conflict" error message will be returned if these commands are executed when MODE is set to ROLL, XY, or DELayed. Sending the *RST (reset) command will also set the time base mode to normal.

The number of data points comprising a waveform varies according to the number requested in the ACQuire subsystem. The ACQuire subsystem determines the number of data points, type of acquisition, and number of averages used by the DIGitize command. This allows you to specify exactly what the digitized information contains.

2-6

Programming Getting Started

Using the DIGitize Command

The following program example shows a typical setup:

OUTPUT 707;":ACQUIRE:TYPE AVERAGE"<terminator> OUT PUT 707;":ACQUIRE:CO MPLETE 100"<terminator> OUT PUT 707;":WAVEFORM:S OURCE ANALOG1"<terminato r> OUT PUT 707;":WAVEFORM:F ORMAT BYTE"<terminator> OUT PUT 707;":ACQUIRE:CO UNT 8"<terminator> OUT PUT 707;":WAVEFORM:P OINTS 500"<terminator> OUTPUT 707;":DIGITIZE ANALOG1"<terminator> OUT PUT 707;":WAVEFORM:D ATA?"<terminator>

This setup places the instrument into the averaged mode with eight averages. This means that when the DIGitize command is received, the command will execute until the signal has been averaged at least eight times.

After receiving the :WAVEFORM:DATA? query, the instrument will start passing the waveform information when addressed to talk.

Digitized waveforms are passed from the instrument to the controller by sending a numerical representation of each digitized point. The format of the numerical representation is controlled with the :WAVEFORM:FORMAT command and may be selected as BYTE, WORD, or ASCII.

The easiest method of transferring a digitized waveform depends on data structures, formatting available and I/O capabilities. You must scale the integers to determine the voltage value of each point. These integers are passed starting with the leftmost point on the instrument’s display. For more information, see the waveform subsystem commands and corresponding program code examples in the online HP 54645A/D Oscilloscopes Programmer’s Reference.

Aborting a Digitize Operation Over HP-IB

When using HP-IB, a digitize operation may be aborted by sending a Device Clear over the bus (CLEAR 707).

2-7

Programming Getting Started

Receiving Information from the Instrument

After receiving a query (command header followed by a question mark), the instrument interrogates the requested function and places the answer in its output queue. The answer remains in the output queue until it is read or another command is issued. When read, the answer is transmitted across the interface to the designated listener (typically a controller). The input statement for receiving a response message from an instrument’s output queue typically has two parameters; the device address, and a format specification for handling the response message. For example, to read the result of the query command :ANALOG1:COUPLING? you would execute the HP BASIC statement:

ENTER <device address> ;Setting$

where <device address> represents the address of your device. This would enter the current setting for the channel one coupling in the string variable Setting$.

All results for queries sent in a program message must be read before another program message is sent. For example, when you send the query :MEASURE:RISETIME?, you must follow that query with an input statement. In HP BASIC, this is usually done with an ENTER statement.

Sending another command before reading the result of the query causes the output buffer to be cleared and the current response to be lost. This also causes an error to be placed in the error queue.

Executing an input statement before sending a query causes the controller to wait indefinitely.

The format specification for handling response messages is dependent on both the controller and the programming language.

2-8

Programming Getting Started

String Variables

The output of the instrument may be numeric or character data depending on what is queried. Refer to the specific commands for the formats and types of data returned from queries.

Express String Variables Using Exact Syntax

In HP BASIC 5.0, string variables are case sensitive and must be expressed exactly the same each time they are used.

Address Varies According to Configuration

For the example programs in the help file, assume that the device being programmed is at device address 707. The actual address varies according to how you configured the bus for your own application.

The following example shows the data being returned to a string variable:

10 DI M Rang$[30] 20 OUTPUT 707;":ANALOG1:RANGE?" 30 EN TER 707;Rang$ 40 PR INT Rang$ 50 END

After running this program, the controller displays:

+8.0 0000E-01

2-9

Programming Getting Started

Numeric Variables

The following example shows the data being returned to a numeric variable:

10 OUTPUT 707;":ANALOG1:RANGE?" 20 EN TER 707;Rang 30 PR INT Rang 40 END

After running this program, the controller displays:

2-10

Figure 2-1

Programming Getting Started

Definite-Length Block Response Data

Definite-length block response data allows any type of device-dependent data to be transmitted over the system interface as a series of 8-bit binary data bytes. This is particularly useful for sending large quantities of data or 8-bit extended ASCII codes. The syntax is a pound sign ( # ) followed by a non-zero digit representing the number of digits in the decimal integer. After the non-zero digit is the decimal integer that states the number of 8-bit data bytes being sent. This is followed by the actual data.

For example, for transmitting 4000 bytes of data, the syntax would be:

The “8” states the number of digits that follow, and “00004000” states the number of bytes to be transmitted.

2-11

Programming Getting Started

Multiple Queries

You can send multiple queries to the instrument within a single program message, but you must also read them back within a single program message. This can be accomplished by either reading them back into a string variable or into multiple numeric variables. For example, you could read the result of the query :TIMEBASE:RANGE?;DELAY? into the string variable Results$ with the command:

ENTE R 70 7; Results$

When you read the result of multiple queries into string variables, each response is separated by a semicolon. For example, the response of the query :TIMEBASE:RANGE?;DELAY? would be:

<range_value>; <delay_value>

Use the following program message to read the query :TIMEBASE:RANGE?;DELAY? into multiple numeric variables:

ENTE R 70 7; Result1, Result2

Instrument Status

Status registers track the current status of the instrument. By checking the instrument status, you can find out whether an operation has been completed, whether the instrument is receiving triggers, and more. Chapter 6, “Status Reporting” explains how to check the status of the instrument.

2-12

Programming over HP-IB

This section describes the HP-IB interface functions and some general concepts. In general, these functions are defined by IEEE 488.1. They deal with general interface management issues, as well as messages which can be sent over the interface as interface commands.

For more information on connecting the controller to the oscilloscope, see the documentation for the HP-IB interface card you are using.

3-2

Programming over HP-IB

Interface Capabilities

The interface capabilities of the oscilloscope, as defined by IEEE 488.1, are SH1, AH1, T5, L4, SR1, RL1, PP0, DC1, DT1, C0, and E2.

Command and Data Concepts

The interface has two modes of operation:

command mode

•

data mode

•

The bus is in the command mode when the ATN line is true. The command mode is used to send talk and listen addresses and various bus commands, such as a group execute trigger (GET).

The bus is in the data mode when the ATN line is false. The data mode is used to convey device-dependent messages across the bus. The device-dependent messages include all of the instrument commands and responses.

3-3

Programming over HP-IB

Addressing

By using the front-panel menus, you must place the instrument in the “Connect to Computer” mode. Use the Print/Utility menu key on the front panel to do this after you have installed the HP-IB interface on the rear panel of the oscilloscope. Use this menu to set the HP-IB address for the oscilloscope.

Each device on the HP-IB resides at a particular address, ranging from

•

0 to 30. The active controller specifies which devices talk and which listen.

•

An instrument may be talk addressed, listen addressed, or unaddressed by

•

the controller.

If the controller addresses the instrument to talk, the instrument remains configured to talk until it receives an interface clear message (IFC), another instrument’s talk address (OTA), its own listen address (MLA), or a universal untalk command (UNT).

If the controller addresses the instrument to listen, the instrument remains configured to listen until it receives an interface clear message (IFC), its own talk address (MTA), or a universal unlisten command (UNL).

3-4

Programming over HP-IB

Communicating Over the Bus

Because HP-IB can address multiple devices through the same interface card, the device address passed with the program message must include not only the correct interface select code, but also the correct instrument address.

Interface Select Code (Selects Interface)

Each interface card has a unique interface select code. This code is used by the controller to direct commands and communications to the proper interface. The default is typically “7” for HP-IB controllers.

Instrument Address (Selects Instrument)

Each instrument on an HP-IB must have a unique instrument address between decimal 0 and 30. The device address passed with the program message must include not only the correct instrument address, but also the correct interface select code.

DEVICE ADDRESS = (Interface Select Code * 100) + (Instrument Address) For example, if the instrument address for the oscilloscope is 4 and the

interface select code is 7, when the program message is passed, the routine performs its function on the instrument at device address 704.

For the oscilloscope, the instrument address is typically set to 707.

Oscilloscope Device Address

The examples in this manual and in the online

Programmer’s Reference

See the documentation for your HP-IB interface card for more information on select codes and addresses.

assume the oscilloscope is at device address 707.

HP 54645A/D Oscilloscopes

3-5

Programming over HP-IB

Lockout

You can use the SYSTem:LOCK ON command to disable front-panel control while a program is running. By default, the instrument accepts and executes bus commands, and the front panel is entirely active.

Restore Front-Panel Control

Cycling power also restores front panel control.

With HP-IB, the instrument is placed in the lockout mode by sending the local lockout command (LLO). The instrument can be returned to local by sending the go-to-local command (GTL) to the instrument.

Bus Commands

The following commands are IEEE 488.1 bus commands (ATN true). IEEE

488.2 defines many of the actions which are taken when these commands are received by the instrument.

Device Clear

The device clear (DCL) or selected device clear (SDC) commands clear the input and output buffers, reset the parser, and clear any pending commands. If either of these commands is sent during a digitize operation, the digitize operation is aborted.

Interface Clear (IFC)

The interface clear (IFC) command halts all bus activity. This includes unaddressing all listeners and the talker, disabling serial poll on all devices, and returning control to the system controller.

3-6

Programming over RS-232-C

This section describes the interface functions and some general concepts of the RS-232-C. The RS-232-C interface on this instrument is Hewlett-Packard’s implementation of EIA Recommended Standard RS-232-C, “Interface Between Data Terminal Equipment and Data Communications Equipment Employing Serial Binary Data Interchange.” With this interface, data is sent one bit at a time and characters are not synchronized with preceeding or subsequent data characters. Each character is sent as a complete entity without relationship to other events.

IEEE 488.2 Operates with IEEE 488.1 or RS-232-C

IEEE 488.2 is designed to work with IEEE 488.1 as the physical interface. When RS-232-C is used as the physical interface, as much of IEEE 488.2 is retained as the hardware differences will allow. No IEEE 488.1 messages such as DCL, GET, and END are available.

4-2

Programming over RS-232-C

Interface Operation

The oscilloscope can be programmed with a controller over RS-232-C using either a minimum three-wire or extended hardwire interface. The operation and exact connections for these interfaces are described in more detail in the following sections. When you are programming the oscilloscope over RS-232-C with a controller, you are normally operating directly between two DTE (Data Terminal Equipment) devices as compared to operating between a DTE device and a DCE (Data Communications Equipment) device.

When operating directly between two RS-232-C devices, certain considerations must be taken into account. For three-wire operation, an XON/XOFF software handshake must be used to handle handshaking between the devices. For extended hardwire operation, handshaking may be handled either with XON/XOFF or by manipulating the CTS and RTS lines of the oscilloscope. For both three-wire and extended hardwire operation, the DCD and DSR inputs to the oscilloscope must remain high for proper operation.

With extended hardwire operation, a high on the CTS input allows the oscilloscope to send data and a low on this line disables the oscilloscope data transmission. Likewise, a high on the RTS line allows the controller to send data and a low on this line signals a request for the controller to disable data transmission. Because three-wire operation has no control over the CTS input, internal pull-up resistors in the oscilloscope ensure that this line remains high for proper three-wire operation.

Cables

Selecting a cable for the RS-232-C interface is dependent on your specific application. The following paragraphs describe which lines of the oscilloscope are used to control the operation of the RS-232-C bus relative to the oscilloscope. To locate the proper cable for your application, refer to the reference manual for your controller. This manual should address the exact method your controller uses to operate over the RS-232-C bus.

4-3

Programming over RS-232-C

Minimum Three-Wire Interface with Software Protocol

With a three-wire interface, the software (as compared to interface hardware) controls the data flow between the oscilloscope and the controller. This provides a much simpler connection between devices since you can ignore hardware handshake requirements. The oscilloscope uses the following connections on its RS-232-C interface for three-wire communication:

Pin 7 SGND (Signal Ground)

•

Pin 2 TD (Transmit Data from oscilloscope)

•

Pin 3 RD (Receive Data into oscilloscope)

•

The TD (Transmit Data) line from the oscilloscope must connect to the RD (Receive Data) line on the controller. Likewise, the RD line from the oscilloscope must connect to the TD line on the controller. Internal pull-up resistors in the oscilloscope ensure the DCD, DSR, and CTS lines remain high when you are using a three-wire interface.

No Hardware Means to Control Data Flow

The three-wire interface provides no hardware means to control data flow between the controller and the oscilloscope. XON/OFF protocol is the only means to control this data flow.

4-4

Programming over RS-232-C

Extended Interface with Hardware Handshake

With the extended interface, both the software and the hardware can control the data flow between the oscilloscope and the controller. This allows you to have more control of data flow between devices. The oscilloscope uses the following connections on its RS-232-C interface for extended interface communication (on a 25-pin connector):

Pin 7 SGND (Signal Ground)

•

Pin 2 TD (Transmit Data from oscilloscope)

•

Pin 3 RD (Receive Data into oscilloscope)

•

The additional lines you use depends on your controller’s implementation of the extended hardwire interface.

Pin 4 RTS (Request To Send) is an output from the oscilloscope which can

•

be used to control incoming data flow. Pin 5 CTS (Clear To Send) is an input to the oscilloscope which controls

•

data flow from the oscilloscope. Pin 6 DSR (Data Set Ready) is an input to the oscilloscope which controls

•

data flow from the oscilloscope within two bytes. Pin 8 DCD (Data Carrier Detect) is an input to the oscilloscope which

•

controls data flow from the oscilloscope within two bytes. Pin 20 DTR (Data Terminal Ready) is an output from the oscilloscope

•

which is enabled as long as the oscilloscope is turned on.

4-5

Programming over RS-232-C

Extended Interface with Hardware Handshake

The RTS (Request To Send) line is an output from the oscilloscope which can be used to control incoming data flow. A high on the RTS line allows the controller to send data, and a low on this line signals a request for the controller to disable data transmission.

The CTS (Clear To Send), DSR (Data Set Ready), and DCD (Data Carrier Detect) lines are inputs to the oscilloscope which control data flow from the oscilloscope (Pin 2). Internal pull-up resistors in the oscilloscope assure the DCD and DSR lines remain high when they are not connected.

If DCD or DSR are connected to the controller, the controller must keep these lines and the CTS line high to enable the oscilloscope to send data to the controller. A low on any one of these lines will disable the oscilloscope data transmission. Dropping the CTS line low during data transmission will stop oscilloscope data transmission immediately. Dropping either the DSR or DCD line low during data transmission will stop oscilloscope data transmission, but as many as two additional bytes may be transmitted from the oscilloscope.

4-6

Programming over RS-232-C

Configuring the Interface

By using the front-panel controls, you must place the RS-232-C interface in either the printer mode or the controller mode. Use the printer mode when you want the instrument to talk directly to a printer over RS-232-C without the aid of a controller. Use the controller mode when the instrument will operate in conjunction with a controller over RS-232-C.

Use the Print/Utility menu key on the front panel to do this after you have installed the RS-232-C interface on the rear panel of the oscilloscope. Use this menu to “Connect to Computer,” and assign the baud rate and handshake protocol.

4-7

Programming over RS-232-C

Interface Capabilities

The baud rate, stop bits, parity, handshake protocol, and data bits must be configured exactly the same for both the controller and the oscilloscope to properly communicate over the RS-232-C bus. The oscilloscope’s RS-232-C interface capabilities are as follows:

Baud Rate: 1200, 2400, 9600, or 19,200

•

Stop Bits: 1

•

Parity: None

•

Protocol: DTR or XON/XOFF

•

Data Bits: 8

•

Protocol DTR (Data Terminal Ready) With a three-wire interface, selecting

DTR for the handshake protocol does not allow the sending or receiving device to control data flow. No control over the data flow increases the possibility of missing data or transferring incomplete data.

With an extended hardwire interface, selecting DTR allows a hardware handshake to occur. With hardware handshake, hardware signals control data flow.

XON/XOFF XON/XOFF stands for Transmit On/Transmit Off. With this mode the receiver (controller or oscilloscope) controls data flow and can request that the sender (oscilloscope or controller) stop data flow. By sending XOFF (ASCII 17) over its transmit data line, the receiver requests that the sender disables data transmission. A subsequent XON (ASCII 19) allows the sending device to resume data transmission.

A controller sending data to the oscilloscope should send no more than 32 bytes of data after an XOFF.

The oscilloscope will not send any data after an XOFF is received until an XON is received.

4-8

Programming over RS-232-C

Communicating Over the RS-232-C Bus

Data Bits

Data bits are the number of bits sent and received per character that represent the binary code of that character.

Information is stored in bytes (8 bits at a time) in the oscilloscope. Data can be sent and received just as it is stored, without the need to convert the data.

Communicating Over the RS-232-C Bus

Each RS-232-C interface card has its own interface select code. This code is used by the controller to direct commands and communications to the proper interface. Unlike HP-IB, which allows multiple devices to be connected through a single interface card, RS-232-C is only connected between two devices at a time through the same interface card. Because of this, only the interface code is required for the device address.

Generally, the interface select code can be any decimal value between 0 and 31, except for those interface codes which are reserved by the controller for internal peripherals and other internal interfaces. This value can be selected through switches on the interface card. For more information, refer to the reference manual for your interface card or controller.

For example, if your RS-232-C interface select code is 20, the device address required to communicate over the RS-232-C bus is 20.

4-9

Programming over RS-232-C

Lockout Command

To lockout the front panel controls use the system command LOCK. When this function is on, all controls (except the power switch) are entirely locked out. Local control can only be restored by sending the command :SYSTEM:LOCK OFF.

Restoring Local Control

Cycling the power will also restore local control, but this will also reset certain RS-232-C states.

4-10

Programming and Documentation Conventions

This chapter covers conventions used in programming the instrument, as well as conventions used in the online HP 54645A/D Oscilloscopes Programmer’s Reference and the remainder of this manual. This chapter also contains a detailed description of the command tree and command tree traversal.

5-2

Programming and Documentation Conventions

Command Set Organization

The command set is divided into common commands, root level commands and sets of subsystem commands. Each of the groups of commands is described in the HP 54645A/D Oscilloscopes Programmer’s Reference, which is supplied as an online help file for Microsoft Windows. See the chapter "Installing and Using the Programmer’s Reference" for information on installing and using the help file.

The commands shown use upper and lowercase letters. As an example, AUToscale indicates that the entire command name is AUTOSCALE. To speed up the transfer, the short form AUT is also accepted by the oscillscope. Each command listing contains a description of the command and its arguments and command syntax. Some commands have a programming example.

The subsystems are listed below:

Subsystem Description

ACQuire sets the parameters for acquiring and storing data ANALog controls the channel display and vertical or Y-axis of the oscilloscope CALibrate provides utility commands for determining the state of the calibration

factor protection switch

CHANnel controls all oscilloscope functions associated with individual channels

or groups of channels Common commands defined by IEEE 488.2 standard common to all instruments DISPlay controls how waveforms, graticule, and text are displayed and written

FUNCtion controls functions in the Measurement/Storage Module HARDcopy provides commands to set and query the selection of hardcopy device

MASK controls the waveform monitoring test function available when using

MEASure selects automatic measurements to be made and controls time markers ROOT controls many of the basic functions of the oscilloscope and reside at

SYStem controls some basic functions of the oscilloscope TEST allows instrument self-tests to be performed via the remote interface TIMebase controls all horizontal sweep functions TRACe controls features used with trace memories TRIGger controls the trigger modes and parameters for each trigger type WAVeform provides access to waveform data

on the screen

and formatting options

the Measurement/Storage Module

the root of the command tree

5-3

Programming and Documentation Conventions

Command Set Organization

Table 5-1

Alphabetic Command Reference

Command Subsystem

Where Used

ACTivity ADDRess ADVanced AER ALL ASTore AUToscale

BLANk BWLimit BYTeorder

CENTer CLEAR *CLS COLumn COMPlete CONNect COUNt COUNt COUPling COUPling CREATE

DATA DATA DATA DATA DEFine DELay# DELay DESTination DEVice DIGitize DITHer *DMC

CHANnel HARDcopy TRIGger Root level TEST Root level Root level

Root level ANALog WAVeform

FUNCtion TRACe Common DISPlay ACQuire DISPlay ACQuire WAVeform ANALog TRIGger:EDGE MASK

DISPlay MASK TRACe WAVeform MEASure MEASure TIMebase MASK HARDcopy Root level ACQuire Common

Command Subsystem

Where Used

DSP

DUTycycle

EDGE

EDGE1

EDGE2

*EMC

ERASe

ERRor

*ESE

*ESR

FACTors

FAILmode

FALLtime

FFEed

FIELd

FORMat

FREQuency#

GLITch

*GMC

GRAYscale

GREaterthan

GRID

HOLDoff

*IDN

INCRement

INVerse

INVert

KEY

LABel

SYSTem MEASure

TRIGger TRIGger:ADVanced TRIGger:ADVanced Common Root level SYSTem Common Common

HARDcopy MASK MEASure HARDcopy TRIGger:TV WAVeform MEASure

TRIGger Common HARDcopy TRIGger:ADVanced TRIGger:GLITch DISPlay

TRIGger

Common MASK DISPlay ANALog

SYSTem

ANALog

Command Subsystem

Where Used

LABel LABel LABel LABList LESSthan LESSthan LEVel LEVel LINE LINE *LMC LOCK *LRN

MATH MERGe MODE MODE MODE MOVE

NREJect NUMBer NWIDth#

OFFSet OFFSet *OPC OPEE OPER OPERation OPERator *OPT ORDer OVERshoot

PATTern PATTern1

CALibrate CHANnel DISPlay DISPlay TRIGger:ADVanced TRIGger:GLITch TRIGger:EDGE TRIGger:GLITch DISPlay TRIGger:TV Common SYSTem Common

CHANnel Root level TIMebase TRACe TRIGger FUNCtion

TRIGger MASK MEASure

ANALog FUNCtion Common Root level Root level FUNCtion<N> TRIGger:ADVanced Common DISPlay MEASure

TRIGger TRIGger:ADVanced

# These commands are used by the HP 54645A only.

5-4

Programming and Documentation Conventions

Command Set Organization

Command Subsystem

Where Used

PATTern2 PEAKs PERiod PHASe# PIXel *PMC PMODe POINts POINts POLarity POLarity POSition POSTfailure PREamble PREShoot# PRINt PROBe PWIDth#

QUALifier

RANGe RANGe RANGe RANGe RANGe *RCL REFerence REFerence REJect RISetime# ROW *RST RUN

TRIGger:ADVanced FUNCtion MEASure MEASure DISPlay Common ANALog ACQuire WAVeform TRIGger:TV TRIGger:GLITch DISPlay MASK WAVeform MEASure Root level ANALog MEASure

TRIGger:GLITch

ANALog FUNCtion<N> TIMebase TRIGger:ADVanced TRIGger:GLITch Common FUNCtion TIMebase TRIGger MEASure DISPlay Common Root level

Command Subsystem

Where Used

SOURce SOURce SOURce1 SOURce2 SOURce SOURce SOURce SOURce SPAN *SRE STANdard STATistics STATus *STB STOP SWITch

TDELta TER TEST TEXT THReshold THReshold TOLerance *TRG *TST TSTArt TSTOp TV TVHFrej TVMode TVOLt TYPE TYPE

FUNCtion MEASure TRIGger:ADVanced TRIGger:ADVanced TRIGger:EDGE TRIGger:GLITch TRIGger:TV WAVeform FUNCtion Common TRIGger:TV MASK Root level Common Root level CALibrate

MEASure Root level MASK DISPlay CHANnel TRIGger MASK Common Common MEASure MEASure TRIGger TRIGger:TV TRIGger:TV MEASure ACQuire WAVeform

Command Subsystem

Where Used

VBASe# VDELta VIEW VIEW VIR# VMAX# VMIN# VPP# VRMS# VSTArt VSTOp VTIMe VTOP

*WAI WINDow

XINCrement XORigin XREFerence

YINCrement YORigin YREFerence

MEASure MEASure FUNCtion<N> Root level TRIGger:TV MEASure MEASure MEASure MEASure MEASure MEASure MEASure MEASure

Common FUNCtion

WAVeform WAVeform WAVeform

*SAV SAVE SAVE SCRatch SETup SHOW SINGle SLOPe SOUrce

# These commands are used by the HP 54645A only.

Common MASK TRACe MEASure SYSTem MEASure Root level TRIGger:EDGE DISPlay

VAMPlitude# VAUToscale VAVerage#

MEASure Root level MEASure

5-5

Programming and Documentation Conventions

The Command Tree

The command tree shows all of the commands and the relationships of the commands to each other. The IEEE 488.2 common commands are not listed as part of the command tree because they do not affect the position of the parser within the tree. When a program message terminator (<NL>, linefeed-ASCII decimal 10) or a leading colon (:) is sent to the instrument, the parser is set to the “root” of the command tree.

Command Types

The commands for this instrument can be placed into three types:

Common commands

•

Root level commands

•

Subsystem commands

•

Common Commands The common commands are the commands defined by IEEE 488.2. These commands control some functions that are common to all IEEE 488.2 instruments.

Common commands are independent of the tree, and do not affect the position of the parser within the tree. These commands differ from root level commands in that root level commands place the parser back at the root of the command tree.

Example:

*RST

Root Level Commands The root level commands control many of the basic functions of the instrument. These commands reside at the root of the command tree. Root level commands are always parsable if they occur at the beginning of a program message, or are preceded by a colon.

Example:

:AUT OSCALE

5-6

Programming and Documentation Conventions

The Command Tree

5-7

Programming and Documentation Conventions

The Command Tree

Subsystem Commands

Subsystem commands are grouped together under a common node of the command tree, such as the TIMEBASE commands. Only one subsystem may be selected at any given time. When the instrument is initially turned on, the command parser is set to the root of the command tree, therefore, no subsystem is selected.

Tree Traversal Rules

Command headers are created by traversing down the command tree. A legal command header from the command tree would be :ANALOG1:RANGE. This is called a compound header. A compound header is a header made of two or more mnemonics separated by colons. The mnemonic created contains no spaces. The following rules apply to traversing the tree:

A leading colon or a <program message terminator> (either an <NL> or

•

EOI true on the last byte) places the parser at the root of the command tree. A leading colon is a colon that is the first character of a program header.

Executing a subsystem command places you in that subsystem until a

•

leading colon or a <program message terminator> is found. In the Command Tree, use the last mnemonic in the compound header as a reference point (for example, RANGE). Then find the last colon above that mnemonic (ANALOG<n>). That is the point where the parser resides. Any command below that point can be sent within the current program message without sending the mnemonics that appear above them (for example, OFFSET).

Examples

The OUTPUT statements in the examples are written using HP BASIC 5.0. The quoted string is placed on the bus, followed by a carriage return and linefeed (CRLF).

Example 1:

OUT PUT 707;":ANALOG1:RA NGE 0.5 ;OFFSET 0"

The colon between ANALOG1 and RANGE is necessary because ANALOG1:RANGE is a compound command. The semicolon between the RANGE command and the OFFSET command is the required program message unit separator. The OFFSET command does not need ANALOG1 preceding it, since the ANALOG1:RANGE command sets the parser to the ANALOG1 node in the tree.

5-8

Programming and Documentation Conventions

The Command Tree

Example 2:

OUTPUT 707;":TIMEBASE:REFERENCE CENTER ; DELAY 0.00001"

OUTPUT 707;":TIMEBASE:REFERENCE CENTER" OUTPUT 707;":TIMEBASE:DELAY 0.00001"

In the first line of example 2, the “subsystem selector” is implied for the DELAY command in the compound command. The DELAY command must be in the same program message as the REFERENCE command, since the program message terminator places the parser back at the root of the command tree.

A second way to send these commands is by placing TIMEBASE: before the DELAY command as shown in the second part of example 2.

Example 3:

OUTPUT 707;":TIMEBASE:REFERENCE CENTER ; :ANALOG1:OFFSET ’0’"

The leading colon before ANALOG1 tells the parser to go back to the root of the command tree. The parser can then see the ANALOG1:OFFSET command.

5-9

Programming and Documentation Conventions

Truncation Rules

The truncation rule for the mnemonics used in headers and alpha arguments is:

The mnemonic is the first four characters of the keyword unless:

The fourth character is a vowel, then the mnemonic is the first three characters of the keyword.

This rule is not used if the length of the keyword is exactly four characters.

Some examples of how the truncation rule is applied to various commands are shown in the following table.

Table 5-2

Mnemonic Truncation

Long Form Short Form

RANGE RANG PATTERN PATT TIMEBASE TIM DELAY DEL TYPE TYPE

5-10

Programming and Documentation Conventions

Infinity Representation

The representation of infinity is 9.9E+37. This is also the value returned when a measurement cannot be made.

Sequential and Overlapped Commands

IEEE 488.2 distinguishes between sequential and overlapped commands. Sequential commands finish their task before the execution of the next command starts. Overlapped commands run concurrently. Commands following an overlapped command may be started before the overlapped command is completed. All of the commands are sequential.

Response Generation

As defined by IEEE 488.2, query responses may be buffered for the following conditions:

When the query is parsed by the instrument.

•

When the controller addresses the instrument to talk so that it may read

•

the response.

The responses to a query are buffered when the query is parsed.

5-11

Programming and Documentation Conventions

Notation Conventions and Definitions

The following conventions and definitions are used in this manual and the online HP 54645A/D Oscilloscopes Programmer’s Reference in descriptions of remote operation:

Conventions

< > Angle brackets enclose words or characters that symbolize a program code

parameter or an interface command.

::= “is defined as.” For example, <A> ::= indicates that <A> can be

replaced by in any statement containing <A>.

| “or.” Indicates a choice of one element from a list. For example, <A> |

indicates <A> or , but not both.

... An ellipsis (trailing dots) indicates that the preceding element may be

repeated one or more times.

[ ] Square brackets indicate that the enclosed items are optional.

{ } When several items are enclosed by braces, one, and only one of these

d ::= A single ASCII numeric character, 0-9.

n ::= A single ASCII non-zero, numeric character, 1-9.

<NL> ::= Newline or Linefeed (ASCII decimal 10).

::= 0 through 32 (decimal) except linefeed (decimal 10). The nominal value is 32

elements must be selected.

Definitions

(the space character).

5-12

Programming and Documentation Conventions

Program Examples

The program examples given for commands in the online HP 54645A/D Oscilloscopes Programmer’s Reference were written using the HP BASIC

5.0 programming language. The programs always assume the oscillscope is at address 7 and the interface is at address 7 for a program address of 707. If a printer is used, it is always assumed to be at address 701.

In these examples, give special attention to the ways in which the command or query can be sent. The way the instrument is set up to respond to a command or query has no bearing on how you send the command or query. That is, the command or query can be sent using the long form or short form, if a short form exists for that command. You can send the command or query using upper case (capital) letters or lower case (small) letters. Also, the data can be sent using almost any form you wish. If you are sending a timebase range value of 100 ms, that value could be sent using a decimal (.1), or an exponential (1e-1 or 1.0E-1), or a suffix (100 ms or 100MS).

As an example, set the sweep speed to 100 ms by sending one of the following:

Commands in long form using the decimal format.

•

OUT PUT 707;":ANALOG1:RA NGE .1"

Commands in short form using an exponential format.

•

OUTPUT 707;":ANAL1:RANG 1E-1"

Commands using lower case letters, short forms, and a suffix.

•

OUTPUT 707;":anal1:rang 100 mV"

Including the Colon Is Optional

In these examples, placing the colon as the first character of the command is optional. The space between RANGE and the argument is required.

5-13

5-14

Status Reporting

Figure 6-1 is an overview of the oscilloscope’s status reporting structure. The status reporting structure allows monitoring specified events in the oscilloscope. The ability to monitor and report these events allows determination of such things as the status of an operation, the availability and reliability of the measured data, and more.

• To monitor an event, first clear the event, then enable the event. All

of the events are cleared when you initialize the instrument.

• To generate a service request (SRQ) interrupt to an external

controller, enable at least one bit in the Status Byte Register.

The Status Byte Register, the Standard Event Status Register group, and the Output Queue are defined as the Standard Status Data Structure Model in IEEE 488.2-1987.

IEEE 488.2 defines data structures, commands, and common bit definitions for status reporting. There are also instrument-defined structures and bits.

The bits in the status byte act as summary bits for the data structures residing behind them. In the case of queues, the summary bit is set if the queue is not empty. For registers, the summary bit is set if any enabled bit in the event register is set. The events are enabled with the corresponding event enable register. Events captured by an event register remain set until the register is read or cleared. Registers are read with their associated commands. The *CLS command clears all event registers and all queues except the output queue. If *CLS is sent immediately following a program message terminator, the output queue is also cleared.

6-2

Figure 6-1

Status Reporting

Status Reporting Overview Block Diagram

The status reporting structure consists of the registers in figure 6-1.

6-3

Status Reporting

Table 6-1 is a list of the bit definitions for the bit in the status reporting data structure.

Table 6-1

Status Reporting Bit Definition

Bit Description Indicates

PON Power On Power is turned on. URQ User Request Whether a front-panel key has been pressed. CME Command Error Whether the parser detected an error. EXE Execution Error Whether a parameter was out of range, or

DDE Device Dependent Error Whether the device was unable to complete an

QYE Query Error If the protocol for queries has been violated. RQL Request Control Whether the device is requesting control. OPC Operation Complete Whether the device has completed all pending

OPER Operation Status

Status ESB Event Status Bit If any of the enabled conditions in the Standard

MAV Message Available If there is a response in the output queue. MSG Message An advisory has been displayed. USR User Event Register If any of the enabled conditions have occurred in

TRG Trigger Whether a trigger has been received. LCL Local If a remote-to-local transition occurs. FAIL Fail That the specified test has failed. COMP Complete That the specified test has completed. LTEST Limit Test If any of the enabled conditions have occurred in

MTEST Mask Test If any of the enabled conditions have occurred in

HIST Histogram If any of the enabled conditions have occurred in

WAIT TRIG Wait for Trigger Instrument is armed and ready for trigger.

inconsistent with the current settings.

operation for device dependent reasons.

operations. If any of the enabled conditions in the Operation Status Register have occurred.

Whether a device has a reason for requesting service.

Event Status Register have occurred.

the User Event Register.

the Limit Test Register.

the Mask Test Register.

the Histogram Register.

6-4

Status Reporting

Status Reporting Data Structures

Figure 6-2 brings together the different status reporting data structures mentioned in this chapter and shows how they work together. To make it possible for any of the Standard Event Status Register bits to generate a summary bit, the bits must be enabled. These bits are enabled by using the *ESE common command to set the corresponding bit in the Standard Event Status Enable Register.

To generate a service request (SRQ) interrupt to an external controller, at least one bit in the Status Byte Register must be enabled. These bits are enabled by using the *SRE common command to set the corresponding bit in the Service Request Enable Register. These enabled bits can then set RQS and MSS (bit 6) in the Status Byte Register.

6-5

Figure 6-2

Status Reporting

Status Reporting Data Structures

6-6

Figure 6-2 (Continued)

Status Reporting

Status Reporting Data Structures

6-7

Figure 6-2 (Continued)

Status Reporting

Status Reporting Data Structures

6-8

Status Reporting

Status Byte Register (SBR)

The Status Byte Register is the summary-level register in the status reporting structure. It contains summary bits that monitor activity in the other status registers and queues. The Status Byte Register is a live register. That is, its summary bits are set and cleared by the presence and absence of a summary bit from other event registers or queues.

If the Status Byte Register is to be used with the Service Request Enable Register to set bit 6 (RQS/MSS) and to generate an SRQ, at least one of the summary bits must be enabled, then set. Also, event bits in all other status registers must be specifically enabled to generate the summary bit that sets the associated summary bit in the Status Byte Register.

The Status Byte Register can be read using either the *STB? Common Command or the HP-IB serial poll command. Both commands return the decimal-weighted sum of all set bits in the register. The difference between the two methods is that the serial poll command reads bit 6 as the Request Service (RQS) bit and clears the bit which clears the SRQ interrupt. The *STB? command reads bit 6 as the Master Summary Status (MSS) and does not clear the bit or have any affect on the SRQ interrupt. The value returned is the total bit weights of all of the bits that are set at the present time.

The use of bit 6 can be confusing. This bit was defined to cover all possible computer interfaces, including a computer that could not do a serial poll. The important point to remember is that, if you are using an SRQ interrupt to an external computer, the serial poll command clears bit 6. Clearing bit 6 allows the oscilloscope to generate another SRQ interrupt when another enabled event occurs.

No other bits in the Status Byte Register are cleared by either the *STB? query or the serial poll, except the Message Available bit (bit 4). If there are no other messages in the Output Queue, bit 4 (MAV) can be cleared as a result of reading the response to the *STB? command.

If bit 4 (weight = 16) and bit 5 (weight = 32) are set, the program prints the sum of the two weights. Since these bits were not enabled to generate an SRQ, bit 6 (weight = 64) is not set.

6-9

Status Reporting

Status Byte Register (SBR)

Example The following example uses the *STB? query to read the contents of the

oscilloscopes Status Byte Register when none of the register’s summary bits are enabled to generate an SRQ interrupt.

10 OUTPUT 707;":SYSTEM:HEADER OFF;*STB?" !Turn headers off 20 ENTER 707;Result !Place result in a numeric variable 30 PRINT Result !Print the result 40 End

The next program prints 112 and clears bit 6 (RQS) of the Status Byte Register. The difference in the decimal value between this example and the previous one is the value of bit 6 (weight = 64). Bit 6 is set when the first enabled summary bit is set and is cleared when the Status Byte Register is read by the serial poll command.

Example The following example uses the HP BASIC serial poll (SPOLL) command to

read the contents of the oscilloscopes Status Byte Register.

10 Result = SPOLL(707) 20 PRINT Result 30 END

Use Serial Polling to Read Status Byte Register

Serial polling is the preferred method to read the contents of the Status Byte Register because it resets bit 6 and allows the next enabled event that occurs to generate a new SRQ interrupt.

6-10

Status Reporting

Service Request Enable Register (SRER)

Setting the Service Request Enable Register bits enable corresponding bits in the Status Byte Register. These enabled bits can then set RQS and MSS (bit

6) in the Status Byte Register. Bits are set in the Service Request Enable Register using the *SRE command

and the bits that are set are read with the *SRE? query. Refer to figure 6-2.

Example The following example sets bit 4 (MAV) and bit 5 (ESB) in the Service

Request Enable Register.

OUT PUT 707;"*SRE 48"

This example uses the parameter “48” to enable the oscilloscope to generate an SRQ interrupt under the following conditions:

When one or more bytes in the Output Queue set bit 4 (MAV).

•

When an enabled event in the Standard Event Status Register generates a

•

summary bit that sets bit 5 (ESB).

Trigger Event Register (TRG)

This register sets the TRG bit in the status byte when a trigger event occurs. The TRG event register stays set until it is cleared by reading the register or

using the *CLS command. If your application needs to detect multiple triggers, the TRG event register must be cleared after each one.

If you are using the Service Request to interrupt a program or controller operation, each time the trigger bit is set you must then clear the event register.

6-11

Status Reporting

Standard Event Status Register (SESR)

The Standard Event Status Register (SESR) monitors the following oscilloscope status events:

PON - Power On

•

URQ - User Request

•

CME - Command Error

•

EXE - Execution Error

•

DDE - Device Dependent Error

•

QYE - Query Error

•

RQC - Request Control

•

OPC - Operation Complete

•

When one of these events occur, the event sets the corresponding bit in the register. If the bits are enabled in the Standard Event Status Enable Register, the bits set in this register generate a summary bit to set bit 5 (ESB) in the Status Byte Register.

The contents of the Standard Event Status Register can be read and the register cleared by sending the *ESR? query. The value returned is the total bit weights of all of the bits that are set at the present time.

Example The following example uses the *ESR query to read the contents of the

Standard Event Status Register.

10 OUTPUT 707;":SYSTEM:HEADER OFF" !Turn headers off 20 OUTPUT 707;"*ESR?" 30 ENTER 707;Result !Place result in a numeric variable 40 PRINT Result !Print the result 50 End

If bit 4 (weight = 16) and bit 5 (weight = 32) are set, the program prints the sum of the two weights.

6-12

Status Reporting

Standard Event Status Enable Register (SESER)

To make it possible for any of the Standard Event Status Register (SESR) bits to be able to generate a summary bit, first enable the bit. Enable the bit by using the *ESE (Event Status Enable) common command to set the corresponding bit in the Standard Event Status Enable Register (SESER).

Set bits are read with the *ESE? query.

Example For example, suppose your application requires an interrupt whenever any

type of error occurs. The error related bits in the Standard Event Status Register are bits 2 through 5. The sum of the decimal weights of these bits is

60. Therefore, you can enable any of these bits to generate the summary bit by sending:

OUT PUT 707;"*ESE 60"

Whenever an error occurs, it sets one of these bits in the Standard Event Status Register. Because the bits are all enabled, a summary bit is generated to set bit 5 (ESB) in the Status Byte Register.

If bit 5 (ESB) in the Status Byte Register is enabled (via the *SRE command), an SRQ service request interrupt is sent to the external computer.

Function of SESR Bits

Standard Event Status Register bits that are not enabled still respond to their corresponding conditions (that is, they are set if the corresponding event occurs). However, because they are not enabled, they do not generate a summary bit to the Status Byte Register.

6-13

Status Reporting

User Event Register (UER)

This register hosts the LCL bit (bit 0) from the Local Event Register. The other 15 bits are reserved. You can read and clear this register using the UER? query. This register is enabled with the UEE command. For example, if you want to enable the LCL bit, you send a mask value of 1 with the UEE command; otherwise, send a mask value of 0.

Local Event Register (LCL)

This register sets the LCL bit in the User Event Register and the USR bit (bit

1) in the status byte. It indicates a remote-to-local transition has occurred. The LER? query is used to read and to clear this register.

Operation Status Register (OPR)

This register hosts the WAIT TRIG bit (bit 5), the LTEST bit (bit 8), the HIST bit (bit 9), the MASK bit (bit 10), and the PROG bit (bit 14).

The WAIT TRIG bit is set by the Trigger Armed Event Register and

•

indicates that the trigger is armed. The LTEST bit is set when a limit test fails or is completed and sets the

•

corresponding FAIL or COMP bits in the Limit Test Event Register. The HIST bit is set when the COMP bit is set in the Histogram Event

•

The MASK bit is set when the Mask Test either fails specified conditions or

•

satisfies its completion criteria, setting the corresponding FAIL or COMP bits in the Mask Test Event Register.

The PROG bit is reserved for future use.

•

If any of these bits are set, the OPER bit (bit 7) of the Status Byte Register

•

is set. The Operation Status Register is read and cleared with the OPER? query. The register output is enabled or disabled using the mask value supplied with the OPEE command.

6-14

Status Reporting

Limit Test Event Register (LTER)

Bit 0 (COMP) of the Limit Test Event Register is set when the Limit Test completes. The Limit Test completion criteria are set by the LTESt:RUN command.

Bit 1 (FAIL) of the Limit Test Event Register is set when the Limit Test fails. Failure criteria for the Limit Test are defined by the LTESt:FAIL command.

The Limit Test Event Register is read and cleared with the LTER? query. When either the COMP or FAIL bits are set, they in turn set the LTEST bit

(bit 8) of the Operation Status Register. You can mask the COMP and FAIL bits, thus preventing them from setting the LTEST bit, by defining a mask using the LTEE command.

Enable Mask Value

Block COMP and FAIL 0 Enable COMP, block FAIL 1 Enable FAIL, block COMP 2 Enable COMP and FAIL 3

6-15

Status Reporting

Mask Test Event Register (MTER)

Bit 0 (COMP) of the Mask Test Event Register is set when the Mask Test completes. The Mask Test completion criteria are set by the MTESt:RUMode command.

Bit 1 (FAIL) of the Mask Test Event Register is set when the Mask Test fails. This will occur whenever any sample is recorded within any polygon defined in the mask.

The Mask Test Event Register is read and cleared with the MTER? query. When either the COMP or FAIL bits are set, they in turn set the MASK bit

(bit 10) of the Operation Status Register. You can mask the COMP and FAIL bits, thus preventing them from setting the MASK bit, by defining a mask using the MTEE command.

Enable Mask Value

Block COMP and FAIL 0 Enable COMP, block FAIL 1 Enable FAIL, block COMP 2 Enable COMP and FAIL 3

6-16

Status Reporting

Histogram Event Register (HER)

Bit 0 (COMP) of the Histogram Event Register is set when the Histogram completes. The Histogram completion criteria are set by the HISTogram:RUNTil command. The Histogram Event Register is read and cleared with the HER? query.

When the COMP bit is set, it in turn sets the HIST bit (bit 9) of the Operation Status Register. Results from the Histogram Register can be masked by using the HEEN command to set the Histogram Event Enable Register to the value

0. You enable the COMP bit by setting the mask value to 1.

Arm Event Register (ARM)

This register sets bit 5 (Wait Trig bit) in the Operation Status Register and the OPER bit (bit 7) in the Status Byte Register when the instrument becomes armed.

The ARM event register stays set until it is cleared by reading the register with the AER? query or using the *CLS command. If your application needs to detect multiple triggers, the ARM event register must be cleared after each one.

If you are using the Service Request to interrupt a program or controller operation when the trigger bit is set, then you must clear the event register after each time it has been set.

6-17

Status Reporting

Error Queue

As errors are detected, they are placed in an error queue. This queue is first in, first out. If the error queue overflows, the last error in the queue is replaced with error 350, “Queue overflow.” Any time the queue overflows, the least recent errors remain in the queue, and the most recent error is discarded. The length of the oscilloscope’s error queue is 30 (29 positions for the error messages, and 1 position for the “Queue overflow” message).

The error queue is read with the SYSTEM:ERROR? query. Executing this query reads and removes the oldest error from the head of the queue, which opens a position at the tail of the queue for a new error. When all the errors have been read from the queue, subsequent error queries return 0, “No error.”

The error queue is cleared when:

the instrument is powered up,

•

the instrument receives the *CLS common command, or

•

the last item is read from the error queue.

•

6-18

Status Reporting

Output Queue

The output queue stores the oscilloscope-to-controller responses that are generated by certain instrument commands and queries. The output queue generates the Message Available summary bit when the output queue contains one or more bytes. This summary bit sets the MAV bit (bit 4) in the Status Byte Register.

The output queue may be read with the HP Basic ENTER statement.

Message Queue

The message queue contains the text of the last message written to the advisory line on the screen of the oscilloscope. The length of the oscilloscope’s message queue is 1. The queue is read with the SYSTEM:DSP? query. Note that messages sent with the SYSTem:DSP command do not set the MSG status bit in the Status Byte Register.

Key Queue

The key queue contains the key codes for the last 10 keys pressed on the front panel. This queue is first in, first out. If the key queue overflows, the oldest key codes are discarded as additional keys are pressed. The key queue is read with the SYSTEM:KEY? query.

Clearing Registers and Queues

The *CLS common command clears all event registers and all queues except the output queue. If *CLS is sent immediately following a program message terminator, the output queue is also cleared.

6-19

Figure 6-3

Status Reporting

Clearing Registers and Queues

Status Reporting Decision Chart

6-20

Installing and Using the Programmer’s Reference

The HP 54645A/D Oscilloscopes Programmer’s Reference is supplied as an online help file readable with the Microsoft Windows 3.1 help viewer. A second diskette contains the help file as an ASCII text file and sample programs for the HP 54645A/D Oscilloscopes. This chapter explains how to install the help file on your system, discusses the text and program files, and explains how you can get the programs and help file via the Internet.

7-2

Installing and Using the Programmer’s Reference

To install the help file under Microsoft Windows

The help file requires Microsoft Windows 3.1 and MS-DOS 3.3 or greater running on an IBM-compatible PC. The file uses the Microsoft Windows help viewer, WINHELP.EXE.

Start your PC and start Microsoft Windows.

1 2 Insert the 3.5" floppy disk labeled “HP 54645A/D Oscilloscopes

Programmer’s Reference/Example Programs for Windows 3.1 Applications” into the appropriate diskette drive (A: or B:) of your PC.

3 Select File | Run from the Program Manager, then type in the

following:

<dri ve>:\ins tall

where <drive> is either A: or B:.

4 Follow the instructions onscreen to complete the installation.

The installer copies the help file to a directory named \hp54645. You can choose a different directory if desired. It also creates a Program Manager group and icon that you can use to open the help file with the Microsoft Windows help viewer.

To use the help text and example program files

The help file is available as an ASCII text file that can be browsed with a text editor or text search tools. Also, there are sample programs (in ASCII text format) that show how to use the HP 54645 commands with the oscilloscope.

• Copy the help file text or sample programs from the diskette labeled

“HP 54645 Oscilloscopes Programmer’s Reference/Example Programs for Non-Windows Applications” to your system for viewing.

See the file README.TXT on the diskette for more information about the diskette contents.

7-3

Installing and Using the Programmer’s Reference

To get updated help and program files via the Internet

The latest versions of the help and example program files are available via anonymous ftp. You must have a connection to the Internet and have ftp software.

Log on to your Internet service.

1 2 Connect to host col.hp.com using anonymous ftp.

A sample set of commands might be as follows:

$ ftp co l. hp .com Name : an on ymous Pass wo rd : myname@m ycompany .c om

3 Change to the directory containing HP 54645 files.

ftp> cd dist/hp54600/hp54645

4 Get sample programs or updated help files from the directory as

desired.

For example, if you want the latest version of the HP 54645A/D Oscilloscopes Programmer’s Reference online help file, you set the transfer mode to binary and get the file:

ftp > binary ftp > get hp54645.hlp

Check the README file for more information on the files in this directory. If you have trouble making the connection, or need more information on ftp,

see your network administrator.

7-4

Installing and Using the Programmer’s Reference

To start the help file

• To open the help file under Microsoft Windows, double-click the

“Programmer’s Reference” icon in the “HP 54645A/D Oscilloscopes Programmer’s Reference” program group in the Program Manager.

The help file requires the program WINHELP.EXE for Microsoft Windows

3.1. The properties for the Program Manager icon are set to expect this file in the Windows directory.

To navigate through the help file

• Navigate through the help file by clicking on highlighted text and

buttons.

See your Microsoft Windows documentation for more information, or select Help | How to Use Help in the Help window.

7-5

7-6

Programmer’s Quick Reference

Introduction

The Programmer’s Quick Reference provides the commands and queries with their corresponding arguments and returned formats for the HP 54645A/D Oscilloscopes. The arguments for each command list the minimum argument required. The part of the command or query listed in uppercase letters refers to the short form of that command or query. The long form is the combination of the uppercase and lowercase letters. Any optional parameters are listed at the end of each parameter listing.

8-2

Programmer’s Quick Reference

Conventions

The following conventions used in this guide include:

< > Indicates that words or characters enclosed in angular

::= "is defined as." <A>::= indicates that <A> can be replaced by

| "or" Indicates a choice of one element from a list. For

... Indicates that the element preceding the ellipses may

[ ] Indicates that the bracketed items are optional. { } Indicates that when items are enclosed by braces,

{N,..,P} Indicates selection of one integer between N and P

brackets symbolize a program code parameter or an HP-IB command.

in any statement containing <A>.

example, <A> | indicates <A> or but not both.

be repeated one or more times.

one, and only one of the elements may be selected.

inclusive.

Suffix Multipliers

The following suffix multipliers are available for arguments.

EX :: = 1E18 M :: = 1E-3 PE :: = 1E15 U :: = 1E-6 T :: = 1E12 N :: = 1E-9 G :: = 1E9 P :: = 1E-12 MA :: = 1E6 F :: = 1E-15 K :: = 1E3 A :: = 1E-18

For more information regarding specific commands or queries, please refer to the online HP 54645A/D Oscilloscopes Programmer’s Reference.

8-3

Programmer’s Quick Reference

Commands and Queries

The following tables facilitate easy access to each command and query for the HP 54645A/D Oscilloscopes. The commands and queries are divided into separate categories with each entry alphabetized.

The arguments for each command list the minimum argument required. The part of the command or query listed in uppercase letters refers to the short form of that command or query. The long form is the combination of the uppercase and lowercase letters. The NR1 and NR3 formats refer only to the Query Return values. Input arguments are not restricted by these formats.

These commands also show specific information about how the command operates on a particular oscilloscope model. For additional information, refer to the online Oscilloscopes Programmer’s Reference.

Command Query Options and Query Returns

:ACQuire:COMPlete

<complete_argument> :ACQuire:COUNt

<count_argument> :ACQuire:DITHer :ACQuire:DITHer {ON | OFF} n/a :ACQuire:POINts? 1,000 to 2,000,000; an integer in NR1 format. :ACQuire:TYPE

<acq_type> n/a :AER? 0 | 1;an integer in NR1 format :ANALog<n>:BWLimit

{ON | OFF} :ANALog<n>:COUPling

{AC | DC | GND}

:ANALog<n>:INVert

{ON | OFF} :ANALog<n>:LABel

:ANALog<n>:OFFSet <offset_argument>

:ANALog<n>:PMODe {AUTo | MANual}

:ANALog<n>:PROBe <attenuation>

:ANALog<n>:RANGe <range_argument>

:ACQuire:COMPlete? <complete_argument> ::= 0 to 100; an integer in NR1 format

:ACQuire:COUNT? <count_argument> ::= 4, 8, 16, 32, 64, 128, or 256; an integer in

NR1 format

:ACQuire:TYPE? <acq_type> ::= {NORMal | AVERage | PEAK | REALtime}

:ANALog<n>:BWLimit? {ON | OFF}

<n> ::= 1 or 2; an integer in NR1 format

:ANALog<n>:COUPling? {AC | DC | GND}

<n> ::= 1 or 2; an integer in NR1 format

:ANALog<n>:INVert? {ON | OFF}

<n> ::= 1 or 2; an integer in NR1 format

:ANALog:LABel? <string>::= any series of ASCII characters enclosed in quotation

marks <n> ::= 1 or 2

:ANALog<n>:OFFSet? <offset_argument> ::= offset value in volts in <NR3> format.

<n> ::= 1 or 2; an integer in NR1 format

:ANALog<n>:PMODe? {AUT | MAN}

<n> ::= 1 or 2; an integer in NR1 format

:ANALog<n>:PROBe? <attenuation> ::= X1, X10, X20, X100 for all oscilloscope models

<n> ::= 1 or 2; an integer in NR1 format

:ANALog<n>:RANGe? <range_argument> ::= Full-scale range value for channels 1 or 2

in NR3 format.

8-4

Programmer’s Quick Reference

Commands and Queries

Command Query Options and Query Returns

:ASTore n/a n/a :AUToscale n/a n/a :BLANk

:CALibrate:LABel

<string> n/a :CALibrate:SWITch? {PROT | UNPR}

:CHANnel:ACTivity :CHANnel:ACTivity? <edges> ::= 32-bit integer in NR1 format

:CHANnel:LABel

:CHANnel:MATH

:CHANnel:THReshold

<channel_group>,<threshold type>,[<value>]

*CLS n/a n/a

:DIGitize [<source>[,<source>]]

:DISPLAY:COLumn

:DISPlay:CONNect

{ON | OFF}

:DISPlay:DATA <binary block data>

:DISPlay:GRID

<value>

:DISPlay:INVerse {ON | OFF}

:DISPlay:LABel

<value>

:DISPlay:LABList

<binary block> :DISPlay:LINE

<string> :DISPlay:ORDer

n/a <source> ::= {ANALog<n> | DIGital0,...,DIGital15 | PMEM{1 | 2}}

<n> ::= 1 or 2; an integer in NR1 format

:CALibrate:LABel? <string> ::= unquoted ASCII string up to 32 characters

<levels> ::= 32-bit integer in NR1 format

:CHANnel:LABel? <source text> ::= {ANALog1 | ANALog2 | DIGital0,...,DIGital15}

<string> ::= any series of ASCII characters enclosed in quotation marks

:CHANnel:MATH? <operation> ::= {OFF | ADD | SUBTRACT}

:CHANnel:THReshold? <channel group> ::= {POD1 | POD2}

<threshold type> ::= {CMOS | ECL | TTL | USERdef} <value> ::= voltage type in NR3 format [Volt type] [Volt type] ::= {V | MV (-3) | UV (-6)}

n/a <source> ::= {ANALog1 | ANALog2 | POD1 | POD2}

:DISPLAY:COLumn? <number> ::= 0 through 63; an integer in NR1 format

:DISPlay:CONNect? {ON | OFF}

:DISPlay:DATA? <binary block_data> ::= 16748 bytes of data in IEEE 488.2 # format

:DISPlay:GRID? <value> ::= {OFF | FRAME | FULL}

<value> ::= {OFF | FRAME | FULL | TV} for HP 54645A with Option 005

:DISPlay:INVerse? {ON | OFF}

DISPlay:LABel? <value> ::= {ON | OFF}

:DISPlay:LABList? <binary block> ::= a time-ordered list of 75 labels. Each label can

be a maximum of 6 characters followed by a comma.

n/a <string> ::= any series of ASCII characters enclosed in quotation

marks

:DISPlay:ORDer? <order list> ::= ::= DIGital<n>[,DIGital<n>]

<n> ::= integer from 0 to 15

8-5

Programmer’s Quick Reference

Commands and Queries

Command Query Options and Query Returns

:DISPlay:PIXel

:DISPlay:PIXel? <x>,<y> <x> ::= x coordinate of the pixel to be set; an integer (0 to 511) in

NR1 format <y> ::= y coordinate of the pixel to be set; an integer (0 to 303) in NR1 format <intensity> ::= an integer in NR1 format:

0 for pixel off 1 for pixel with half-bright on 2 for pixel with full-bright on

n/a :DISPlay:POSition?

:DISPlay:ROW <row number>

:DISPlay:SOURce <value>

:DISPlay:TEXT BLANK n/a n/a

*DMC <macro label>,<macro definition

*EMC

{{OFF | 0} | {ON | 1}}

:ERASe

<value> *ESE

<mask_argument>

n/a *ESR? <status> ::= 0 to 255; an integer in NR1 format

:FUNCtion2:CENTer

:DISPlay:ROW? <row number> ::= 1 to 20; an integer in NR1 format

:DISPlay:SOURce? <value> ::= {PMEMory1 | PMEMory2}

n/a <macro label> ::= quoted ASCII string

*EMC? {0 | 1}

n/a <value> ::= {PMEMory1 | PMEMory2}

*ESE? <mask_argument> ::= 0 to 255; an integer in NR1 format

:FUNCtion2:CENTer? <frequency> ::= the current center frequency in NR3 format.

<binary order string> ::= Wave height ch 0, bottom pixed location ch 0 (main display) Wave height ch 1, bottom pixed location ch 1 (main display) ... Wave height ch 15, bottom pixed location ch 15 (main display) Wave height ch 0, bottom pixed location ch 0 (delayed display) Wave height ch. 1, bottom pixed location ch. 1 (delayed display) ... Wave height ch.15, bottom pixed location ch. 15 (delayed display)

<macro definition> ::= block data in IEEE 488.2 # format

Bit Weight Enables 7 128 PON - Power On 6 64 URQ - User Request 5 32 CME - Command Error 4 16 EXE - Execution Error 3 8 DDE - Device Dependent Error 2 4 QYE - Query Error 1 2 TRG - Trigger Query 0 1 OPC - Operation Complete

The range of legal values is from 0 Hz to 10.00 GHz.

8-6

Programmer’s Quick Reference

Command Query Options and Query Returns

:FUNCtion2:MOVE

{LEFT)

:FUNCtion<N>:OFFSet

:FUNCtion <N>:OPERati on

n/a :FUNCtion2:PEAKs?

:FUNCtion<N>:RANGe

<range>

:FUNCtion2:REFerence

<level>

:FUNCtion2:SOURce

{CHANnel1 | CHANnel2 | FUNCtion1}

:FUNCtion2:SPAN

:FUNCtion<N>:VIEW

{ON | OFF}

:FUNCtion2:WINDow

{RECTangular | HANNing | FLATtop | EXPonent}

n/a *GMC?

:HARDcopy:ADDRess

:HARDcopy:DEVice

:HARDcopy:FACTors

{{OFF | 0} | {ON | 1}}

:HARDcopy:FFEed

{{OFF | 0} | {ON | 1}}

:HARDcopy:GRAYscale

{{OFF | 0} | {ON | 1}}

n/a n/a

:FUNCtion<N>:OFFSet? <offset> ::= the value at center screen in NR3 format.

:FUNCtion<N>:OPERation? <operation> ::=

{FREQ1 | DB1 | FREQ2 | DB2}

:FUNCtion<N>:RANGe? <range> ::= the full-scale vertical axis value in NR3 format.

:FUNCtion2:REFerence? <level> ::= the current reference level in NR3 format.

:FUNCtion2:SOURce? {ANALog1 | ANALog2 | FUNCtion1}.

:FUNCtion2:SPAN? ::= the current frequency span in NR3 format.

:FUNCtion<N>:VIEW? {ON | OFF}

:FUNCtion2:WINDow? {RECTangular | HANNing | FLATtop | EXPonent}

<macro label> :HARDcopy:ADDRess? <address> ::= 0 to 31; an integer in NR1 format

:HARDcopy:DEVice? <device> ::=

:HARDcopy:FACTors? {OFF | ON}

:HARDcopy:FFEed? {OFF | ON}

:HARDcopy:GRAYscale? {OFF | ON}

The range of legal values is +-10 times the current sensitivity of the selected function.

<N> ::= 1 or 2

{ADD | SUBTract | MULTiply} for :FUNCtion1:OPERation {INTegrate | DIFFerentiate | FFT} for :FUNCtion2:OPERation

<N> ::= 1 or 2 <measurement> ::= {FREQ1 | DB1 | FREQ2 | DB2}.

The measurement is the value of the peak specified in NR3 format.

The range for FUNCtion1 is 8E-6 to 8E+6. The range for the INTegrate function is 8E-9 to 400E+3. The range for the DIFFerentiate function is 8E-6 to 1.6E11. The range for the FFT function is 8 to 400 dBV.

<N> ::= 1 or 2

The range of legal values is from ±160.0 dBV to +240.0 dBV in increments of 2.5 dBV.

The current reference level value is in NR3 format. The range of legal values is from ±160.0 dBV to +240.0 dBV in increments of 2.5 dBV.

Legal values are 1.221 Hz to 9.766 GHz

<N> ::= 1 or 2

<macro label> ::= quoted ASCII string <macro definition> ::= block data in IEEE 488.2 # format

{THINkjet | LASerjet | EPSon | BWDeskjet | PLOTter}

Commands and Queries

8-7

Programmer’s Quick Reference

Commands and Queries

Command Query Options and Query Returns

n/a *IDN? HEWLETT-PACKARD,<model>, 0, X.X

n/a *LMC? <ascii string> ::= string list seperated by commas n/a *LRN? <learn_string> ::= a block of data in IEEE 488.2 # format

:MASK:CREATe n/a n/a

:MASK:DATA

<mask_data>

:MASK:DESTination

{TRACe | PRINter}

:MASK:FAILmode

{IN | OUT}

:MASK:INCRement

{ON | OFF}

:MASK:NUMBer

:MASK:POSTfailure

{RUN | STOP}

:MASK:SAVE

{ON | OFF} n/a :MASK:STATistics? <compares, failures, failure %> ::=

:MASK:TEST

{ON | OFF}

:MASK:TOLerance

<value>

:MEASure:DEFine

:MEASure:DELay

[<source>]

:MEASure:DUTYcycle

[<source>]

:MEASure:FALLtime

[<source>]

:MEASure:FREQuency

[<source>]

:MASK:DATA? <mask_data> ::= 1008 bytes of data that represent the currently

:MASK:DESTination? {TRACe | PRINter}

:MASK:FAILmode? {IN | OUT}

:MASK:INCRement? {ON | OFF}

:MASK:NUMBer? <number> ::= memory (1 or 2)

:MASK:POSTfailure? {RUN | STOP}

:MASK:SAVE? {ON | OFF}

:MASK:TEST? {ON | OFF}

:MASK:TOLerance? <value> ::= the tolerance used when creating a mask template.

:MEASure:DEFine? <measurement> ::= DELay

:MEASure:DELay? [<source>]

:MEASure: DUTYcycle? [<source>]

:MEASure:FALLtime? [<source>]

:MEASure:FREQuency? [<source>]

<model> ::= the model number of the instrument <X.X> ::= the software revision of the instrument

selected mask template.

current number of mask tests performed, number of failures detected, percentage of failures

The entered value can be from 0.00 to 20.0 percent.

edge_spec1 ::= [<slope>] <occurrence> edge_spec2 ::= [<slope>] <occurrence> <slope> ::= {+ | -} <occurrence> ::= integer from 1 to 5

<source> ::= {ANALog1 | ANALog2} <return_value> ::= floating-point number delay time in seconds in NR3 format

<source> ::= {ANALog1 | ANALog2 | DIGital0,...,DIGital15} <return_value> ::= ratio of positive pulse width to period in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= time in seconds between the 10% and 90% voltage levels in NR3 format

<source> ::= {ANALog1 | ANALog2 | DIGital0,...,DIGital15} <return_value> ::= frequency in Hertz in NR3 format

8-8

Programmer’s Quick Reference

Commands and Queries

Command Query Options and Query Returns

:MEASure:NWIDth

[<source>]

:MEASure:OVERshoot

[<source>]

:MEASure:PERiod

[<source>]

:MEASure:PHASe

[<source>]

:MEASure:PREShoot

[<source>]

:MEASure:PWIDth

[<source>]

:MEASure:RISEtime

[<source>]

:MEASure:SCRatch n/a n/a :MEASure:SHOW

{ON | OFF} :MEASure:SOURce

[<source>]

n/a :MEASure:TDELta? <return_value> ::= time difference in seconds between start and

:MEASure:TSTArt

<value> [suffix]

:MEASure:TSTOp

<value> [suffix] n/a :MEASure:TVOLt

:MEASure:VAMPlitude

[<source>]

:MEASure:VAVerage

[<source>]

:MEASure:VBASe

[<source>]

:MEASure:NWIDth? [<source>]

:MEASure:OVERshoot? [<source>]

:MEASure:PERiod? [<source>]

:MEASure:PHASe? [<source>]

:MEASure:PREShoot? [<source>]

:MEASure:PWIDth? [<source>]

:MEASure: RISEtime? [<source>]

:MEASure:SHOW? {ON | OFF}

:MEASure:SOURce? <source> ::= {ANALog1 | ANALog2} for HP 54645A

:MEASure:TSTArt? <value> ::= time at the start marker in seconds in NR3 format

:MEASure:TSTOp? <value> ::= time at the stop marker in seconds in NR3 format

<tvolt_argument>, <slope><occurrence>

:MEASure:VAMPlitude? [<source>]

:MEASure:VAVerage? [<source>]

:MEASure:VBASe? [<source>]

<source> ::= {ANALog1 | ANALog2 | DIGital0,...,DIGital15} <return_value> ::= negative pulse width in seconds-NR3 format

<source> ::= {ANALog1 | ANALog2} <voltage> ::= the percent of the overshoot of the selected waveform in NR3 format

<source> ::= {ANALog1 | ANALog2 | DIGital0,...,DIGital15} <return_value> ::= waveform period in seconds in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= the phase angle value in degrees in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= the percent of preshoot of the selected waveform in NR3 format

<source> ::= {ANALog1 | ANALog2 | DIGital0,...,DIGital15} <return_value> ::= width of positive pulse in seconds in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= rise time in seconds in NR3 format

<source> ::= {ANALog1 | ANALog2 | DIGital0,...,DIGital15} for HP 54645D

stop markers in NR3 format

[suffix] ::= {s, ms, µs, ns, ps}

[suffix] ::= {s, ms, µs, ns, ps} <tvolt_argument> ::= positive or negative voltage level that the

waveform must cross. <slope> ::= direction of the waveform when <tvolt_argument> is crossed. <occurrence> ::= number of crossings to be reported. <return_value> ::= time in seconds of specified voltage crossing in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= the amplitude of the selected waveform in volts in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= calculated average voltage in NR3 format

<source> ::= {ANALog1 | ANALog2} <base_voltage> ::= voltage at the base of the selected waveform in NR3 format

8-9

Programmer’s Quick Reference

Commands and Queries

Command Query Options and Query Returns

n/a :MEASure:VDELta? <return_value> ::= delta V value in volts in NR3 format

:MEASure:VMAX

[<source>]

:MEASure:VMIN

[<source>]

:MEASure:VPP

[<source>]

:MEASure:VRMS

[<source>]

:MEASURE:VSTArt

<vstart_argument>

:MEASure:VSTOp

<vstop_argument> n/a :MEASure:VTIMe?

:MEASure:VTOP

[<source>]

:MERGe <pixel memory>

*OPC *OPC? ASCII "1" is placed in the output queue when all pending device

:OPEE

<n> n/a :OPER? <n> ::= 16-bit integer in NR1 format n/a *OPT? n identifies the module and option pairing.

*PMC n/a n/a

:PRINt [enhancement]

*RCL

<value>

*RST n/a See reset values in the online Programmer’s Reference. :RUN n/a n/a

*SAV

<value> :SINGle n/a n/a

:MEASure:VMAX? [<source>]

:MEASure:VMIN? [<source>]

:MEASure:VPP? [<source>]

:MEASure:VRMS? [<source>]

:MEASure:VSTArt? <vstart_argument> ::= voltage value for VMarker 1 in NR3 format

:MEASure:VSTOp? <vstop_argument> ::= voltage value for VMarker 2 in NR3 format

<vtime_argument>

:MEASure:VTOP? [<source>]

n/a <pixel memory> ::= {PMEMory1 | PMEMory2}

:OPEE? <n> ::= 16-bit integer in NR1 format

:PRINt?

[enhancement] n/a <value> ::= {1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 }

n/a <value> ::= {1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10}

<source> ::= {ANALog1 | ANALog2} <return_value> ::= maximum voltage of the selected waveform in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= minimum voltage of the selected waveform in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= voltage peak-to-peak in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= calculated dc RMS voltage in NR3 format

<return_value> ::= voltage at VMarker 1 in NR3 format

<return_value> ::= voltage at VMarker 2 in NR3 format <vtime_argument> ::= displayed time from trigger in seconds in

NR3 format <return_value> ::= voltage at the specified time in NR3 format

<source> ::= {ANALog1 | ANALog2} <return_value> ::= voltage at the top of the waveform in NR3 format

operations have completed.

X.X identifies the module software revision.

Module: No Opt. 005 Opt. 005 Basic Interface 0,X.X 50,X.X Measurement/Storage 2,X.X 52,X.X

[enhancement] ::= {HIRes{,LORes{,TIFF{,PARallel {,PCLcolor[,FACTors[,SOFTkey]]}}}}}

8-10

Agilent 54645A Programmer’s Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Programming the Oscilloscope

Initialize

Capture

Analyze

In This Book

Contents

Introduction to Programming

Talking to the Instrument

Program Message Syntax

Output Command

Device Address

Instructions

Instruction Header

White Space (Separator)

Program Data

Header Types

Combining Commands from the Same Subsystem

Duplicate Mnemonics

Query Command

Program Header Options

Program Data Syntax Rules

Character Program Data

Numeric Program Data

Embedded Strings

Program Message Terminator

Selecting Multiple Subsystems

Initialization

Autoscale

Setting Up the Instrument

Example Program

Using the DIGitize Command

Receiving Information from the Instrument

String Variables

Numeric Variables

Definite-Length Block Response Data

Multiple Queries

Instrument Status

Interface Capabilities

Command and Data Concepts

Addressing

Communicating Over the Bus

Interface Select Code (Selects Interface)

Instrument Address (Selects Instrument)

Lockout

Bus Commands

Device Clear

Interface Clear (IFC)

Interface Operation

Cables

Minimum Three-Wire Interface with Software Protocol

Extended Interface with Hardware Handshake

Configuring the Interface

Interface Capabilities

Communicating Over the RS-232-C Bus

Data Bits

Lockout Command

Command Set Organization

The Command Tree

Command Types

Subsystem Commands

Tree Traversal Rules

Examples

Truncation Rules

Infinity Representation

Sequential and Overlapped Commands

Response Generation

Notation Conventions and Definitions

Conventions

Definitions

Program Examples

Status Reporting Data Structures

Status Byte Register (SBR)

Service Request Enable Register (SRER)

Trigger Event Register (TRG)

Standard Event Status Register (SESR)

Standard Event Status Enable Register (SESER)
