Agilent 54602B Data Sheet

Analog feel and digital power for precise,
accurate troubleshooting at an affordable price

With many models to choose from, you will be able
to pick the oscilloscope that best fits your meas­urement and troubleshooting needs while meeting
your budget.

Displays you can trust

Agilent Technologies 54600-series oscilloscopes
feature real-time vector displays that give you a
clear and accurate picture of your waveforms.
Like analog oscilloscope displays, these enhanced
displays give you waveform slew rate information
at a glance, with brighter traces representing more
slowly changing waveforms and dimmer traces
representing more rapidly changing waveforms.

The multiprocessor architecture of Agilent 54600­series oscilloscopes permits a display update rate
of up to 3.0 million points per second. This fast
display update means the oscilloscope screen
reflects changes in the waveform instantaneously,
giving you the display responsiveness you need
to make adjustments quickly and see complex
waveforms accurately.

Powerful digital features

The digital architecture of Agilent 54600-series
oscilloscopes gives you a multitude of features that
help you get your job done easier and faster:

• Pretrigger viewing capability lets you view
events that you’d miss with an analog scope.
This feature lets you see what happened before
the trigger event, so you can troubleshoot more
effectively.

• Autoscale frees you from resetting the scope
every time you move the probe from test point
to test point. You simply hit the autoscale button
and it sets voltage, time and trigger parameters
for you.

• With autostore, the waveform displays at full
brightness while all previously acquired wave­forms remain on the scope’s screen at half bright­ness. You see a history of waveform activity while
simultaneously viewing the live waveform.

• Automatic measurements of voltage, frequency
and time, plus user-defined cursor measurements,
make waveform characterization fast and easy.

• With peak detect, you won’t have to worry about
missing narrow glitches.

Agilent 54600-Series
Oscilloscopes

Data Sheet

• 60/100/150/500 MHz bandwidth
models with 2 or 4 channels

• Easy-to-use analog front panel

• Fast, responsive display

• Automatic measurements

• Pretrigger viewing, trace storage

• Optional remote control/hard copy

2

The Agilent 54600 series includes eight models
designed to meet your needs and your budget:

54600B 100 MHz oscilloscope

With 100 MHz bandwidth, two input channels,
and sweep speeds from 2 ns/div to 5 ns/div,
the 54600B is ideal for benchtop troubleshooting,
production test, field service, and education—
or anywhere else you need a dependable scope
with solid performance.

54645A MegaZoom oscilloscope

The 54645A is a dual-channel 100 MHz oscilloscope
with 200 MSa/s and a full 1 MB of memory behind
each of its channels. Through the application of
MegaZoom technology, accessing this deep-memory
is as easy as turning a knob—pan and zoom
through the deep captured waveform to search for
other troubleshooting clues.

54602B 4 (2 + 2)-channel oscilloscope

When you need more than 100 MHz of bandwidth,
take a closer look at the 54602B scope. You get
the same capabilities as the 54600B but with the
added advantage of a 150 MHz bandwidth, 4 (2+2)
channels, and 1 mV/div sensitivity.

54603B 60 MHz oscilloscope

The 54603B was designed with the tight budgets
of colleges and universities in mind. Students can
use the 60 MHz, 2-channel 54603B to understand
circuit operation and learn standard measurement
techniques on the same type of equipment they
are likely to use when they graduate.

54610B 500 MHz oscilloscope

This lowest-cost, 2-channel 500 MHz scope offers
a viewable external trigger and horizontal accuracy
of 0.001%. The 54610B capabilities are well-suited
for production test applications as well as general
purpose troubleshooting.

54615B 1 GSa/s oscilloscope

With the 54615B you can capture narrow glitches
and subtle details of your signal. This 2-channel
scope combines 500 MHz bandwidth, 1 GSa/s sam­ple rate and 1 nanosecond peak detection on both
channels. The 54615B peak detection allows the
scope to maintain the 1 GSa/s sample rate at all
sweep speeds. A horizontal accuracy of 0.005%
means you can make critical timing measurements
with confidence.

54616B/C 2 GSa/s oscilloscope

The top-of-the-line 54616B offers the same benefits
as the 54615B but with twice the sample rate—
2 GSa/s sampling rate, 500 MHz bandwidth, and
1 nanosecond peak detection. Plus, if you prefer
a color display for waveform viewing, the 54616C
color version is available.

Expandable features to meet your changing needs

The Agilent 54600-series oscilloscopes can be easily
and inexpensively upgraded with add-on modules
and software to provide advanced capabilities:

• Interface modules give you remote control and
hard-copy output to RS-232, GPIB, and parallel
printers and plotters.

• Measurement Storage modules offer interfacing
and printing plus advanced features like FFT,
mask testing, and additional memory.

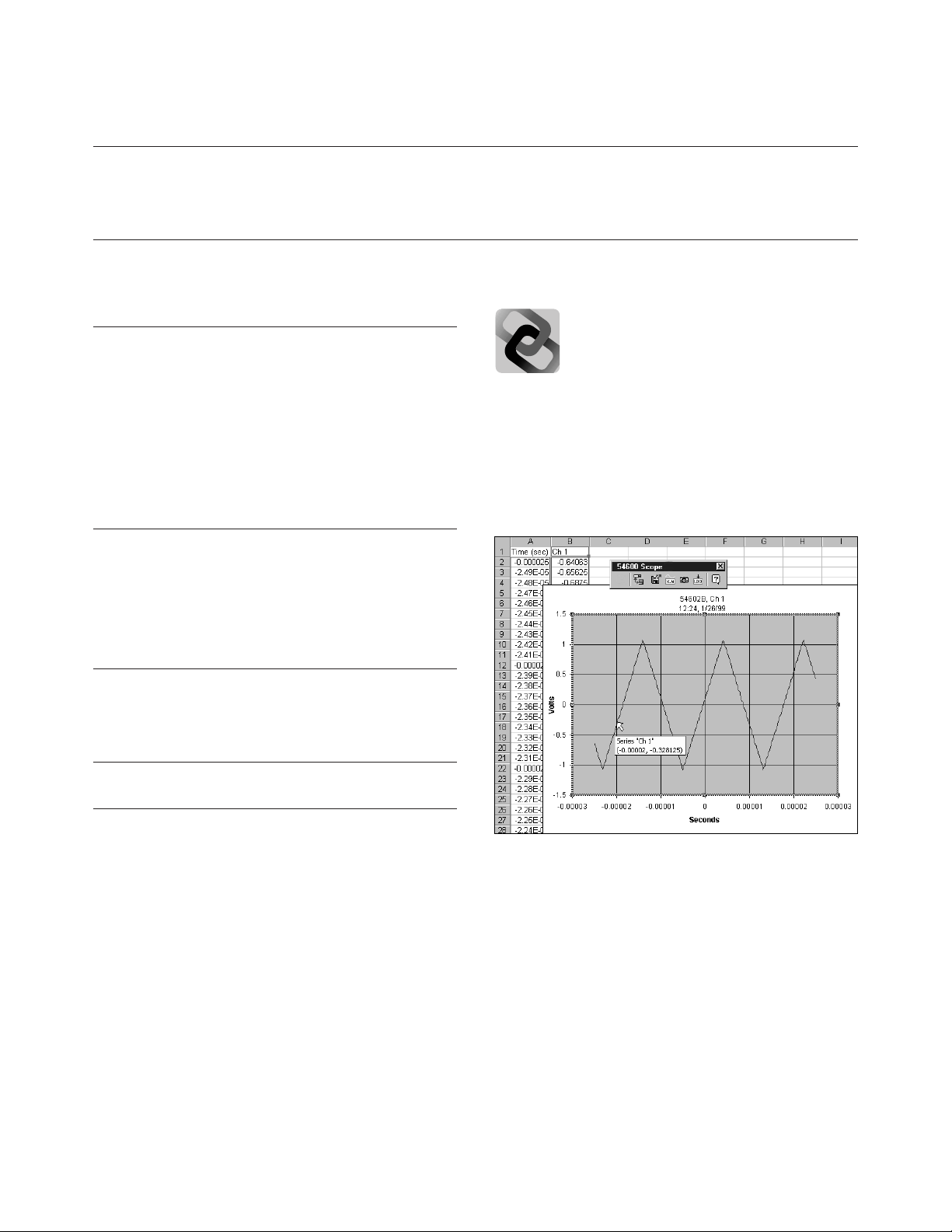

• Agilent BenchLink XL 54600 free software cap­tures screen images, gathers waveform data,
and stores instrument setups, all from the famil­iar environment of MS Excel or Word. Ships free
with each module.

• Optional Agilent BenchLink Scope is a stand­alone software package for bringing waveform
images and points into your PC. Use it when
you need Windows 3.1 compatibility, don’t have
Excel or Word, or need to access trace memory
from your PC.

Enhanced TV/video trigger

With Option 005 you gain the ability to trigger
and perform highly detailed measurements on
the video components of your system. For more
information see Agilent publication number
5968-2611. Not available on the 54600B, 54603B,
or 54645D scopes.

3

Technical Specifications

54603B 54600B 54645A 54602B 54610B 54615B/16B/16C

Bandwidth

CH 1 and 2 dc-60 MHz dc-100 MHz dc-100 MHz

††

dc-150 MHz* dc-500 MHz dc-500 MHz

ac coupled 10 Hz-60 MHz 10 Hz-100 MHz 1.5 Hz-100 MHz††10 Hz-150 MHz* 10 Hz-500 MHz 10 Hz-500 MHz

CH 3 and 4 NA NA NA dc-250 MHz NA NA

Single shot bandwidth dc-2 MHz dc-2 MHz dc-50 MHz dc-2 MHz dc-2 MHz 54615B 250 MHz

54616B/C 500 MHz

Number of channels 2224 (2+2) 2 2

Sensitivity

CH 1 and 2 2 mV/div to 5 V/div 2 mV/div to 5 V/div 1 mV/div to 5 V/div 1 mV/div to 5 V/div 2 mV/div to 5 V/div 2 mV/div to 5 V/div
CH 3 and 4 NA NA NA 0.1 and 0.5 V/div NA NA

dc gain accuracy ± 2% ± 1.5% ± 1.5% ± 1.5% ± 2% ± 2%

Rise time (calculated)

CH 1 and 2 <5.83 ns <3.5 ns <3.5 ns <2.33 ns <700 ps <700 ps
CH 3 and 4 NA NA NA <1.4 ns NA NA

Input impedance 1 MΩ, ~ 13 pF 1 MΩ, ~ 18 pF 1 MΩ, ~ 13 pF 1 MΩ, ~ 13 pF 1 MΩ, ~ 9 pF 1 MΩ, ~ 9 pF

or 50 Ω selectable or 50 Ω selectable

Input coupling

CH 1 and 2 dc, ac or ground dc, ac or ground dc, ac or ground dc, ac or ground dc, ac or ground dc, ac or ground
CH 3 and 4 NA NA NA dc or ground NA NA

Maximum input 400 V 400 V 400 V 400 V 250 V or 5 Vrms 250 V or 5 Vrms

(dc + peak ac) in 50 Ω mode in 50 Ω mode

Timebase range 5 s/div to 5 ns/div 5 s/div to 2 ns/div 5 s/div to 2 ns/div 5 s/div to 2 ns/div 5 s/div to 1 ns/div 5 s/div to 1 ns/div
(main and delayed)

Trigger sources CH 1, 2, line, or ext. CH 1, 2, line, or ext. CH 1, 2, line, or ext. CH 1, 2, 3, 4, line CH 1, 2, line, or ext. CH 1, 2, line, or ext.

Horizontal accuracy ± 0.01% ± 0.01% ± 0.01% ± 0.01% ± 0.01% ±0.005%

Horizontal resolution 100 ps 100 ps 40 ps 100 ps 100 ps 20 ps

Trigger sensitivity

dc to 25 MHz 0.35 div or 3.5 mV 0.35 div or 3.5 mV 0.35 div or 3.5 mV 0.35 div or 3.5 mV 0.35 div or 3.5 mV 0.5 div or 5.0 mV***
25 MHz to max. 1 div or 10 mV 1 div or 10 mV 1 div or 10 mV 1 div or 2 mV** 1 div or 10 mV

†

1 div or 10 mV

†

bandwidth

Maximum sample rate

single shot 20 MSa/s 20 MSa/s 200 MSa/s 20 MSa/s 20 MSa/s 54615 1 GSa/s

54616 2 GSa/s

repetitive 10 GSa/s 10 GSa/s >10 GSa/s 10 GSa/s 10 GSa/s >10 GSa/s

Record length 4,000 points 4,000 points 1M points 4,000 points 4,000 points 5,000 points

2,000 points 2,000 points 1M points 2,000 points 2,000 points 5,000 points

Max. display update rate 1,500,000 points/sec 1,500,000 points/sec 3,000,000 points/sec 1,500,000 points/sec 1,500,000 points/sec 500,000 points/sec

Resolution 8 bits

Power Voltage: 100-240 Vac, 45 to 440 Hz, 220 VA maximum

Net weight Approx. 6.2 kg (14 lbs)

Size (excl. handle) 172 mm H x 322 mm W x 317 mm D (6.8 x 12.7 x 12.5 in)

Warranty 3 years

* Maximum bandwidth on CH 1 and 2 is 100 MHz at 1, 2, and 5 mV/div.
** 64602B, for ranges 1, 2, and 5 mV/div, sensitivity between

25 MHz and 100 MHz on CH 1 and 2 is 2 div or 4 mV.
*** Trigger sensitivity from dc to 100 MHz.
† Trigger sensitivity from 100 MHz to max. bandwidth.
†† Maximum bandwidth on CH 1 and 2 is 75 MHz at 1, 2 and 5 mV/div.

4

Vertical System (Agilent 54600B, 54646B, 54602B, 54603B)

Bandwidth Limit ~ 20 MHz
Inversion CH 1 and CH 2
CMRR ~ 20 dB at 50 MHz
Dynamic Range ± 8 div from center screen

Input R and C 1 MΩ , ~ 13 pf

Maximum Input 400 V (dc + peak ac)

Math Functions CH 1 + or – CH 2

Cursor Accuracy

[1][2]

Single Cursor Vert. Acc. ± 1.2% of full scale, ± 0.5% of

position value

Dual Cursor Vert. Acc. ± 0.4% of full scale

Vertical System (Agilent 54610B, 54615B, 54616B/C)

Bandwidth Limit ~ 30 MHz
Inversion CH 1 and CH 2
CMRR ~ 20dB at 50 MHz
Dynamic Range ± 12 div from center screen

Input R and C 1 MΩ, ~ 9 pf or 50Ω selectable
Maximum Input 250 V (dc + peak ac) or 5 Vrms in 50Ωmode
50Ω Protection Protects 50Ω load from excessive voltage

Time Skew Adjustable over a range of ±25ns to remove

effects of cabling

Probe Sense Automatic readout of 1X, 10X, 20X, 50X

and 100X probes

Math Functions CH 1 + or – CH 2

Cursor Accuracy

[1][2]

Single Cursor Vert. Acc. ± 1.2% of full scale, ± 0.5% of

position value

Dual Cursor Vert. Acc. ± 0.4% of full scale

Horizontal System

Cursor Accuracy ± 0.01% ± 0.2% of full scale ± 200 ps

(∆t and 1/∆t)

[3]

Delay Jitter 10 ppm ppm (54615B, 54616B/C)

Pretrigger Delay ≥ 10 div

(Negative time)

Posttrigger Delay at least 2,560 div or 50 ms.

(Trigger to start Not to exceed 100 s.
of sweep)

Delayed Sweep

Main Sweep Delayed Sweep

5 s/div to 10 ms/div up to 200X main
5 ms/div and faster up to 2 ns/div
54610B, 15B/16B/16C up to 1ns/div

Trigger System

Coupling ac, dc, LF reject, HF reject, and noise reject.

LF and HF: -3db at ~ 50 kHz

Modes Auto, Autolevel, Normal, Single, and TV
54645A Glitch Minimum width 8 ns, Operators: <, >, or range

triggering

TV Triggering TV line and field. 0.5 div of composite sync

for stable display (Ch 1 and Ch 2)

TV Functions

Line Counting Delay time calibrated in NTSC and

PAL line numbers

All Field Trigger Oscilloscope triggers on the vertical

(both fields selected, sync pulse in both fields, allowing use
54602B and 54610B) with noninterlaced video.

Holdoff Adjustable from 200 ns to ~ 13 s

External Trigger (54600B, 54603B, 54645A)
Range Sensitivity ±18V

dc to 25 MHz: < 50mV
25 MHz to 100 MHz: < 100mV

Coupling dc, HF reject and noise reject

Input R and C 1MΩ, ~ 13pf

Maximum Input 400 V (dc + peak ac)

External Trigger (54610B, 54615B, 54616B/C)
Range Sensitivity ±18V (54610B)

± 2 V (54615B, 54616B/C)
dc to 100 MHz: < 75mV
100 MHz to 500 MHz: < 150mV

Coupling dc and ground

Input R and C 1MΩ, ~ 12pf or 50Ω selectable

Maximum Input 250 V (dc + peak ac) or

5 Vrms in 50Ω mode

Trigger View External trigger is viewable.

(54610B only) Bandwidth is > 350MHz

(not available on 54615B)

X-Y Operation

Z-Blanking TTL high blanks trace

(not available on 54615B, 54616B/C)

Bandwidth X and Y same as vertical system
Phase Difference ± 3 degrees at 100 kHz

± 3 degrees at 10 MHz (54615B, 54616B/C)

[1] Temperature ± 10°C from calibration
[2] Use full scale at 80mV for 2mV/div and 5 mV/div ranges
[3] Use full scale of 50 ns for 2 ns/div

5

Display System

Display 7-inch Raster CRT
Resolution 255 vertical by 500 horizontal points
Controls Front-panel intensity control
Graticule 8 X 10 grid or frame
Autostore Autostore saves previous sweeps in

half bright display and the most recent sweep
in full bright display.

Display (54616C) 5.8 inch Active Matrix Color LCD Display

Acquisition System

Simultaneous Channels

54600B/54610B, Channels 1 and 2

54615B, 54616B

54602B Channels 1 and 2 or 3 and 4
Record Length 4,000 points Vectors off

2,000 points Vectors on and/or single shot
54615B, 54616B/C 5,000 points
54645A 1 million points
Max Update Rate Vectors off: 1,500,000 points/sec

Vectors on: 60 full screens/sec, independent

of number of waveforms being displayed
54615B, 54616B/C 500,000 points/sec
54645A 3,000,000 points/sec

Usable Single-Shot 2 MHz, single channel
Bandwidth 1 MHz, dual channel

54615B 250 MHz
54616B/C 500 MHz
54645A 50 MHz
Peak Detect 50 ns glitch capture (100 ns dual channel) at

sweep speeds of 50 µs/div and greater
54615B, 54616B/C 1 ns glitch capture
54645A 5 ns

Average Number of averages selectable at 8, 64, 256

Advanced Functions

Automatic Measurements Measurements are continuously updated

Voltage Vavg, Vrms, Vpp, Vtop, Vbase, Vmin, and Vmax
Time Frequency, Period, + Width, – Width,

Duty Cycle, Rise Time, and Fall Time
Cursors Manually or automatically placed

Setup Functions

Autoscale Sets the vertical and horizontal deflection and

the trigger level
Save/Recall 10 front-panel setups
Trace Memory Two volatile pixel memories

General

Power Line Requirements

Line Voltage Range 100 Vac to 240 Vac
Line Voltage Selection Automatic
Line Frequency 45 Hz to 440 Hz
Max Power 220 VA
Consumption 300 VA (54615B, 54616B/C)

Environmental The instrument meets the requirements of
Characteristics MIL-T-28800D for Type III, Class 3,

Style D equipment as described below.

Ambient Temperature

Operating –10°C to +55°C
Nonoperating –51°C to + 71°C

Humidity

[1]

Operating 95% RH at 40°C for 24 Hrs
Nonoperating 90% RH at 65°C for 24 Hrs

Altitude

Operating to 4,500 m (15,000 ft)
Nonoperating to 15,000 m (50,000 ft)

EMI (Commercial) Meets FTZ 1046 Class B
EMI (MIL-T-28800D) Meets requirements in accordance with

Paragraph 3.8.3, EMI Type III, and

MIL-STD-461C as modified by Table XII.
CE01,CE03 Full limits
CS01, CS02, CS06 Full limits
RE01 15 dB relaxation to 20 kHz; exceptioned from

20 kHz to 50 kHz
RE02 (With Opt 002) Full limits of class A1c and A1f
(Without Opt 002) 10 dB relaxation from 14 kHz to 100 kHz
RS02 Exceptioned
RS03 (With Opt 001) Slight trace shift from 80 MHz to 200 MHz

Vibration Operating: 15 minutes along each of the

3 major axes; 0.025 inch p-p displacement,

10 Hz to 55 Hz in one-minute cycles. Held for

10 minutes at 55 Hz (4 g at 55 Hz).

Shock Operating: 30 g, 1/2 sine, 11 ms duration,

3 shocks per axis along major axis.

Total of 18 shocks
Size (excluding handle) Height: 172 mm (6.8 in)

Width: 322 mm (12.7 in)

Depth: 317 mm (12.5 in)

Weight 6.2 kg (14 lbs)
Safety CSA Certification,

IEC 348

UL 1244 listed
Warranty 3 years

[1] Tested to Agilent Environmental Specification Section 758 for Class B-1 products

6

Optional Add-on Modules

Agilent 54650A GPIB Interface Module

Description Full GPIB remote control

Direct printing to GPIB printers and plotters
Converts scope’s 2 trace memories to
non-volatile memory
IEEE-488.2 compatible

Printer Support HP ThinkJet, HP QuietJet, HP PaintJet,

HP LaserJet; HP-GL compatible plotters

Agilent 54652B RS-232 Parallel Interface Module

Description Full RS-232 remote control

Direct printing to RS-232 and parallel printers
Converts scope’s 2 trace memories to
non-volatile memory

RS-232 Specifications

Connector Type 9 pin (m) DTE Port
Cable 34398A (provided)
Protocols X0n/Xoff, hardwire
Data Bits 8
Parity None
Baud Rates 1200, 2400, 9600, 19200
Printer Support HP ThinkJet, HP QuietJet, HP PaintJet, HP

LaserJet; HP-GL compatible plotters

Parallel Specifications

Connector Type 25 pin (f)
Cable C2950A
Printer Support Epson FX-80 or HP PCL compatible printers

Agilent 54657A (GPIB) and 54659B (RS-232)
Measurement Storage Modules

These modules incorporate the relevant GPIB or RS-232 control and
printing capabilities specified above, as well as the following features.

Waveform Math Functions

Function 1 Addition, subtraction, and multiplication
Function 2 Differentiation, integration, and FFT

FFT

Windows Exponential, flat top, Hanning and rectangular
Samples 1024 points

Trace Memory up to 100 nonvolatile memories
Memories 1 – 3 High speed storage without compression.
Memories 4 – 100 Storage with compression. Storage time is

approximately 7 seconds. Number of traces

that can be stored is a function of complexity,

with the minimum being 4 highly complex

traces and the maximum being 96.
Memory Labeling An onscreen text editor is provided for creating

labels up to 20 characters. Each label contains

the date and time it was saved.
Real Time Clock 24-hour format with battery back-up. Can be

set from front panel.

Unattended Waveform Monitoring

Testing Method Comparison to waveform mask.
Number of Masks 2
Mask Generation Automask, controlled from the front panel,

and Operation generates mask from displayed waveform with

selectable tolerance. Mask editor function

allows pixel-by-pixel editing and line drawing.

Smoothing function performs a running average

of 3 pixels.
Action on Failure Save failed trace to memory with date and time

of the failure

Print failed trace with date and time of the

failure

Count the failure and maintain pass/fail

statistics while continuing the test

7

Probe Accessories

10072A SMT Probe tips for 1007X probes

This accessory kit contains 2 dual-lead
adapters and 8 IC clips, so connecting to ICs
and standard board headers is easy.

5081-7705 BNC Adapter for 1007X probes

This accessory clips on the end of the probe
and allows the probe to mate with BNC (f)
connectors.

5081-7690 Replacement Accessory Kit for 1007X probes

This kit contains replacement Hook Tip, IC Tip,
Ground Bayonet, Ground Lead, Adjustment
Tool, and Probe Identification Tags.

Additional Measurement Accessories

10100C 50 Ω ± 1% Feedthrough Termination

BNC (f) to BNC (m), Frequency range
dc-300 MHz, Max. VSWR 1.1:1

11094B 75 Ω ± 0.2% Feedthrough Termination

BNC (f) to BNC (m), maximum power 1 Watt

E9637A Dual Banana(m) to BNC (f) Adapter
10110B Dual Banana(m) to BNC (m) Adapter

Additional Accessories
10098A Front Panel Cover and Pouch Kit

This kit will add the Option 101 front panel
cover and pouch to any 54600-series
oscilloscope

1183A Testmobile Scope

Cart for 54600-series scopes

Agilent BenchLink XL 54600 Software

PC Connectivity Made Easy

Receive Agilent BenchLink XL 54600

software FREE with the purchase of
any module listed above. Use it to retrieve wave­form images, waveform data—even automatic meas­urements—directly into MicroSoft Excel and Word
without programming. Additionally, an ActiveX
control simplifies programming in Visual Basic,
VBA, Visual C++, Agilent VEE, and National
Instruments LabVIEW.

Specifications for Agilent 54600-series Scope Probes

Probe Model Bandwidth Division Approx. Input Approx. Input Rise-time Max input Scope
Number Ratio length R C dc + peak ac Compatibility

10070B 20 MHz 1:1 1.5m 1 MΩ 70 pF <17.5 ns 400 V 54600 series
10071B 150 MHz 10:1 1.5m 10 MΩ 15 pF <2.33 ns 500 V 54600/02/03/45B
10073B 500 MHz 1:1 1.5m 2.2 MΩ 12 pF <0.7 ns 500 V 54610/15/16B
10074B 150 MHz 10:1 1.5m 10 MΩ 12 pF <2.33 ns 500 V 54645A
10442B 1 GHz 10:1 2.0m 500 Ω 1.2 pF <0.35 ns 10 V scopes with 50 Ω inputs

Ordering Information

Agilent 54600-Series Oscilloscopes

54600B Two-channel, 100 MHz Oscilloscope
54602B Four-channel, 150 MHz Oscilloscope
54603B Two-channel, 60 MHz Oscilloscope

Each of the above oscilloscopes comes with two

1.5 meter 10X probes (10071A), a user and service
guide, and power cord.

54610B Two-channel, 500 MHz, 20 MSa/s Oscilloscope
54615B Two-channel, 500 MHz, 1 GSa/s Oscilloscope
54616B Two-channel, 500 MHz, 2 GSa/s Oscilloscope
54616C Color two-channel, 500 MHz, 2 GSa/s, Oscilloscope
54645A Two-channel, 100 MHz, 200 MSa/s Oscilloscope
54645D Two-channel and 16 timing channel

100 MHz MSO Oscilloscope
Each of the above oscilloscopes comes with two 1.5 meter
10X probes, a user and service guide, and power cord.

Options

Opt. 001 RS-03 Magnetic interface shielding added to CR
Opt. 002 RE-02 Display shield added to CRT to reduce

radiated interface

Opt. 005 Enhanced TV/video triggering (not 54600/03B/645D)
Opt. 090 Delete probes (for 54600/02/03B)
Opt. 090 Delete probes (for 54610B, 54615B, and 54616B/C)
Opt. 090 Delete probe (for 54645A)
Opt. 101 Accessory pouch and front panel cover (10098A)
Opt. 102 Two additional 10071B probes (54602B only)
Opt. 103 Operator training kit

(includes training signal board and lab workbook)
Opt. 104 Carrying case
(protects scope for shipping or baggage checking)

Opt. 106 HP BenchLink Scope software for Windows (HP 34810B)
Opt. 1CM Rack Mount Kit (P/N 5062-7345)
Opt. W50 Additional 2-year warranty (5-year total), starting at

Manual options (please specify one)

ABA US English ABF French ABJ Japanese
ABD German ABZ Italian AB1 Korean
ABE Spanish ABO Taiwan Chinese

Agilent 54650-series enhancement modules

(each includes HP BenchLink XL 54600 Software)

54650A GPIB interface module
54652B RS-232 and parallel interface module

(includes RS-232 cable)

54657A GPIB measurement/storage module
54659B RS-232 and parallel measurement/storage module

(includes RS-232 cable)

*E2657A GPIB Connectivity Kit
*E2658A RS-232 Connectivity Kit

* Kit includes Measurement Storage Module,

HP 34810B BenchLink Scope Software and cable

Additional oscilloscope accessories,
probes and terminations

10070B 1:1 probe
10071B 10:1 probe
10072B SMT probing kit
10073B 10:1 500 MHz probe with readout
10074B 10:1 150 MHz probe with readout

10442B 10:1 Resistive divider probe for 50 Ω inputs.
10100C 50 Ω feedthrough termination
11094B 75 Ω ±2% Feedthrough Termination

BNC(f) to BNC (m)

5081-7690 1007X probe accessory kit
5081-7705 1007X probe-to-BNC (m) adapter
34397A Inverter, 12 Volt dc to 115 V ac

HP 34810-Series BenchLink Software

HP 34810B BenchLink Scope Software

Includes software on 3.5” disk, user’s guide (all languages).
GPIB or RS-232 module needed for connection to scope.

Agilent Technologies’ Test and Measurement
Support, Services, and Assistance

Agilent Technologies aims to maximize the value you receive,
while minimizing your risk and problems. We strive to ensure
that you get the test and measurement capabilities you paid
for and obtain the support you need. Our extensive support
resources and services can help you choose the right Agilent
products for your applications and apply them successfully.
Every instrument and system we sell has a global warranty.
Support is available for at least five years beyond the produc­tion life of the product. Two concepts underlie Agilent’s
overall support policy: “Our Promise” and “Your Advantage.”

Our Promise

“Our Promise” means your Agilent test and measurement equip­ment will meet its advertised performance and functionality.
When you are choosing new equipment, we will help you with
product information, including realistic performance specifica­tions and practical recommendations from experienced test
engineers. When you use Agilent equipment, we can verify that
it works properly, help with product operation, and provide
basic measurement assistance for the use of specified capabili­ties, at no extra cost upon request. Many self-help tools are
available.

Your Advantage

“Your Advantage” means that Agilent offers a wide range of
additional expert test and measurement services, which you
can purchase according to your unique technical and business
needs. Solve problems efficiently and gain a competitive edge
by contracting with us for calibration, extra-cost upgrades, out­of-warranty repairs, and on-site education and training, as well
as design, system integration, project management, and other
professional services. Experienced Agilent engineers and tech­nicians worldwide can help you maximize your productivity,
optimize the return on investment of your Agilent instruments
and systems, and obtain dependable measurement accuracy
for the life of those products.

Get assistance with all your test and measurement needs at:

www.agilent.com/find/assist

Product specifications and descriptions in this
document subject to change without notice.

Copyright © 1999, 2000 Agilent Technologies
Printed in U.S.A. 4/00
5968-5316EN
